USER MANUAL HPIMD25B HAIER

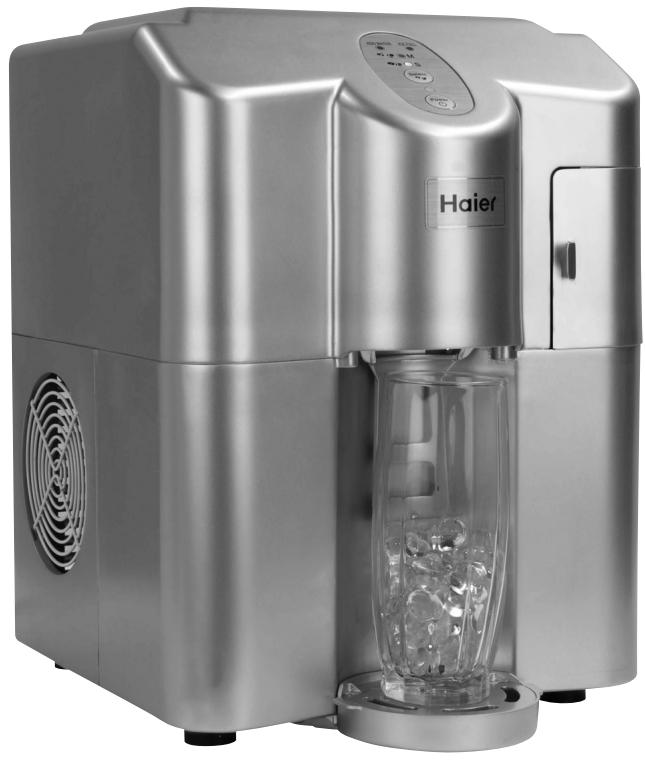

Portable Counter Top Ice Maker Dispenser

Portable Counter Top Ice Maker Dispenser

Model #/ Modèle #/ Para Modelo de # HPIMD25W/B/S

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. DANGER! To protect against risk of electric shock, do not immerse cord, plug or any parts of the unit in water or other liquids.
3. Close supervision is necessary when using this appliance near children. This appliance is not suitable for use by children.
4. Never leave an appliance unattended while in use.
5. Do not place an appliance on or near a hot gas or electric burner, or in a heated oven. Do not place on top of any other appliance.
6. Do not let the power cord of an appliance hang over the edge of a table or countertop or touch any hot surface.
7. Do not operate any electrical appliance with a damaged cord or plug or after the appliance malfunctions or has been dropped or damaged in any manner. If damage is suspected, contact the nearest authorized service center for examination, repair or electrical or mechanical adjustment.
8. Unplug from power outlet when not in use, before putting on or taking off attachments, and before cleaning.
9. The use of accessory attachments that are not recommended by the appliance manufacturer may cause fire, electric shock or injury.
10. Avoid contact with moving parts when the unit is in operation.
11. Never touch the cooling elements when the unit is in operation.
12. Do not use outdoors.
13. Do not use appliance for other than its intended use.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

UNPACKING YOUR ICE MAKER

1. Inspect and remove all packing materials. This includes the foam and any adhesive tape both inside and outside of the unit.
2. Inspect and remove any remains of packing, tape, or printed materials before powering on your Haier appliance.

WARNING

Please read this manual carefully before using.

Retain it for your future reference.

PRODUCT REGISTRATION

Keep for your records to obtain Warranty Service

Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use out of your appliance.

Remember to record the model and serial number. They are on a label in back of the appliance.

Model number

Icemaker serial number

Date of purchase

Staple your receipt to your manual.

You will need it to obtain warranty service.

Please register online at www.prodregister.com/Haier.

SAFETY INSTRUCTIONS

Electrical Requirements Wiring and Grounding Instructions

This appliance must be plugged into at least a 15 AMP 115 VOLT 60Hz GROUNDED OUTLET. This appliance must be grounded. It is equipped with a 3-wire cord having a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

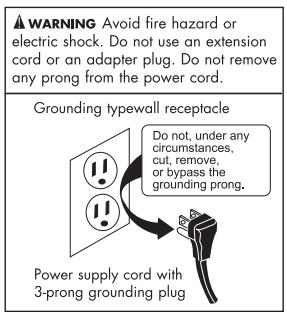

WARNING! Improper use of grounded wire can result in the risk of electric shock. Consult a electrician if necessary. Do not attempt to defeat this safety feature by modifying the plug.

Avoid the use of an extension cord because it may overheat and cause a risk of fire. However, if it is necessary to use an extension cord:

A. Use only 3-wire extension cords with 3-blade grounding plug.
B. The marked rating of an extension cord must be equal to or greater than the rating of this appliance.
C. It should be positioned such that it does not drape over the counter or tabletop where it can be pulled on by children intentionally.

Attempting any maintenance or cleaning:

To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

NOTE: Pressing the Power ON/OFF button to an off position does NOT disconnect the appliance from the power supply.

TABLE OF CONTENTS

Important Safeguards 1
Safety Instructions 3
Parts and Accessories 5
Pre-Operating Instructions 6
Operating Instructions 7
Starting Off 7
Cleaning and Maintenance 8
Troubleshooting Guide 10
Limited Warranty 11

Specifications	Model # HPIMD25W/B/S
Electrical Shock Protection	Class 1
Power	115V/60Hz
Ice Making Current	1.8 A
Ice Harvest Current	2.5 A
Refrigerant	R134a/2.4 Oz.
Design Pressure
High Side	290 Psig
Low Side	88 Psig
Dimensions	11.4" x 13.5" x 15.8"
Weight	24.7 LBS
Enclosure	ABS plastic

PARTS, FUNCTIONS AND FEATURES

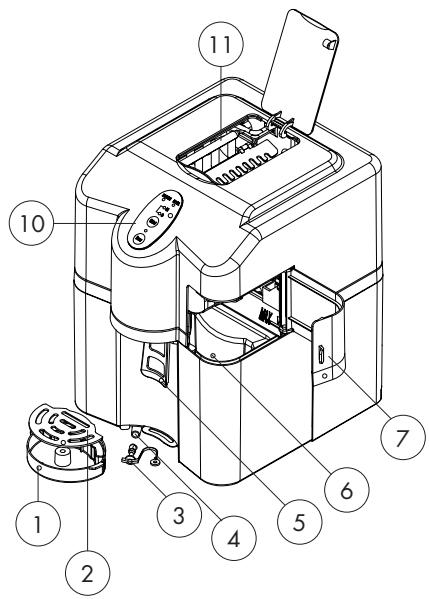

1. Water drip tray
2. Water drip tray cover/cup-glass holder
3. Water drain cap
4. Water drain port
5. Ice cube dispenser paddle
6. Water reservoir
7. Water reservoir access door
8. Air vent (do not block)
9. Ice cube dispenser shoot
10. Control panel

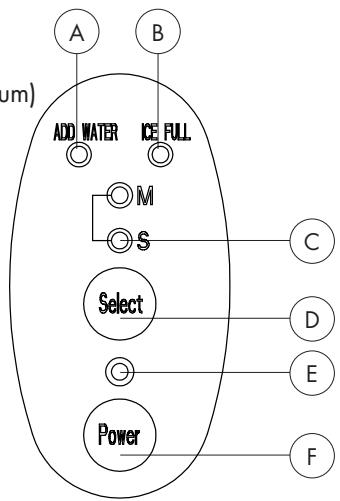

A.: Add water LED indicator
B.: Ice full LED indicator
C.: Ice cube size LED indicator (small or medium)
D.: Ice cube size button
E.: Power LED indicator
F.: Power on/off button

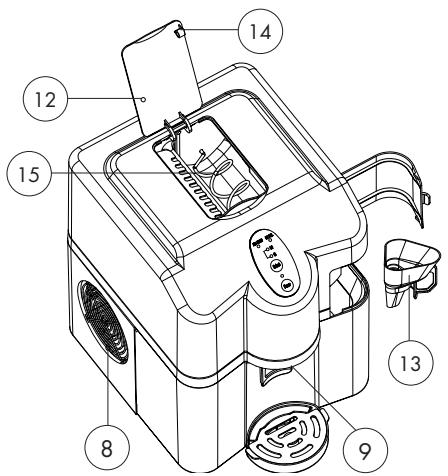

1. Evaporator
2. Transparent hatch for viewing/cleaning
3. Funnel (to add water)
4. Safety Switch Activator
5. Auger to move ice to dispenser

PRE-OPERATING INSTRUCTIONS

WARNING: 1. Before using your ice maker, it is strongly recommended to clean it thoroughly, without power.

Clean the water reservoir and ice storage compartment with diluted vinegar, warm water and a soft cloth. Use water to rinse the inside parts, and drain out the water from the draining spout by unplugging the drain cap on the front (under water drip tray).

WARNING: 2. The incline angle of the icemaker cabinet should not exceed 45^

during transportation or use. Do not turn the icemaker upside-down.

Doing so could cause the compressor or refrigerating system to operate incorrectly. When the icemaker is moved or transported, please allow time for the fluids in the compressor to settle. Before using the icemaker for the first time, please wait 2 hours after the unit has been leveled and positioned in its proper place.

1. Please ensure the icemaker is level and on a stable table or platform for safety and to avoid malfunction.
2. The machine must be placed on a dry and level surface with sufficient ventilation, far from heat sources such as ovens, heaters and corrosive gases. Leave an 8-inch clearance on all sides of the icemaker for proper ventilation.
3. Do not fill the water reservoir with hot water. This may damage the icemaker. It is best to fill the water reservoir with water of room temperature or lower.
4. We suggest to use distilled, purified or bottled water instead of tap water. The ice will taste better and will reduce the sediment caused by city tap water.
5. NOTE: This portable icemaker uses a fully automatic control system, with an advanced microcomputer for easy and convenient ice making. Making ice is simple and fast. Just add water, plug into an outlet, and press the ON button. When first turning on the unit or during icemaking cycles, the compressor will stay idle for 3 minutes, while energizing.

There are warning indicators that alert you when the reservoir is empty and when the ice storage compartment is full. The icemaker also has built-in safeguards that can limit accidental damage, automatically shutting down the system when necessary.

OPERATING INSTRUCTIONS

Starting Off:

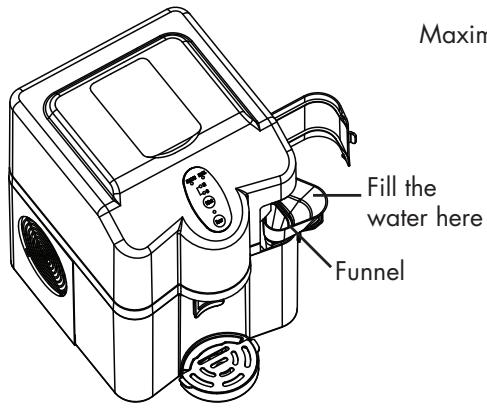

1. Open the access door on the front, right hand side of the unit, insert provided funnel, and pour potable water (bottled water suggested) into the reservoir. Keep water level below the "MAX" water level mark on the inside wall of the reservoir.

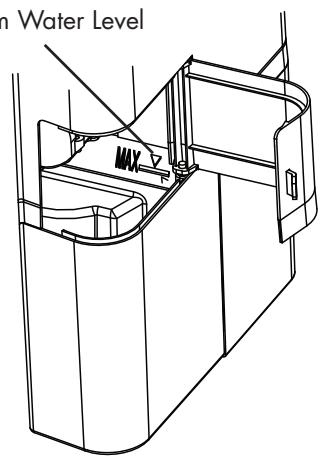

NOTE: If water is accidentally filled above "MAX", it will be channeled down the front of the unit and end up on the surface below.

1. Remove funnel and close reservoir door.

WARNING:

Do not pour water into ice storage compartment located on top of the unit. This will affect the ice making performance. Only pour water into the Water Reservoir Tank located on the front, right hand side of the unit.

1. Plug the unit into a grounded, 120V / 60Hz outlet only. Push the ON/OFF button on the control panel to turn ON the machine to begin the ice making cycle. You will hear the compressor and water flowing over the evaporator. The LED indicator just above the ON/OFF button will also light.
2. Each cycle produces 9 cubes of ice. The ice making cycle takes about 6 to 15 minutes, depending on the ambient (room) temperature. Ambient and initial water temperatures affect the actual ice making time. It is not suggested to try making ice if room temperature exceeds 90^ degrees Fahrenheit as ice making time may vary greatly.

3. The default size of the ice cube is medium. If you want small size cubes, press the "Select" button on the control panel and the LED indicator should switch from "M" to "S". If room temperature is lower than 60^ degrees Fahrenheit, it is recommended to select small size cubes.

4. During the operation process, if the level of the water in the reservoir becomes low, the "Add Water" LED indicator will display.

NOTE: If for any reason such as water shortage, to much ice, power off, etc., do NOT restart the machine right away. Wait at least 3 minutes before attempting to restart.

1. The ice maker automatically stops producing ice when the ice storage compartment is full. The "Ice Full" LED indicator will light as confirmation.

NOTE: As a safety precaution, the auger inside the ice storage compartment and dispensing will automatically stop working if the transparent hatch on top of the unit is even partially open.

WARNING: Do NOT attempt in any way to disable the safety switch activator on the transparent hatch or inside the ice storage compartment.

1. To dispense the ice, push forward on the ice cube dispenser paddle. That will activate the auger inside the ice storage compartment, first back, then forward and allow ice cubes to drop down the shoot. The blue overhead light should also come on when paddle is pushed forward.

NOTE: Transparent hatch on top of the unit must be closed fully for auger to operate and ice to dispense.

CLEANING AND MAINTENANCE

WARNING:

• Never clean the ice maker unless the power is OFF and unit is unplugged.
• Full strength solvents, detergents, and abrasives must never be used for cleaning.
• Never tilt or place the icemaker on its side, otherwise you must wait 2 hours for compressor coolant to settle.

It is recommended that the appliance is cleaned once a month or more frequently in areas where chalky deposits can be a problem. A recommended cleaning solution is 1 part vinegar to 10 parts water. The appliance should be allowed to complete one ice making cycle, thoroughly rinsed with fresh water and dried with a soft cloth. Any residual vinegar may cause the next ice cubes to be soft or slushy. If this happens, the unit should be rinsed again with fresh water.

Before using your ice maker, it is strongly recommended to clean it thoroughly

1. Power should be off and unit unplugged
2. Clean the interior with diluted vinegar solution, warm water and a soft cloth
3. Use water to rinse the interior and remove water thru the drain by removing the drain cap.

4. It is suggested to change the water in the reservoir daily for optimum hygiene.

5. If the unit isn't used for an extended period of time, remove all water left in the reservoir and ice storage compartment thru the drain.

6. Clean the outside of the ice maker regularly with a mild detergent solution and warm water.
7. Dry the interior and exterior with a soft cloth.

How to drain all the water from both the water reservoir and ice storage compartment

1. Power should be off and unit unplugged.
2. Place the icemaker in a position where water can be collected from the drain.

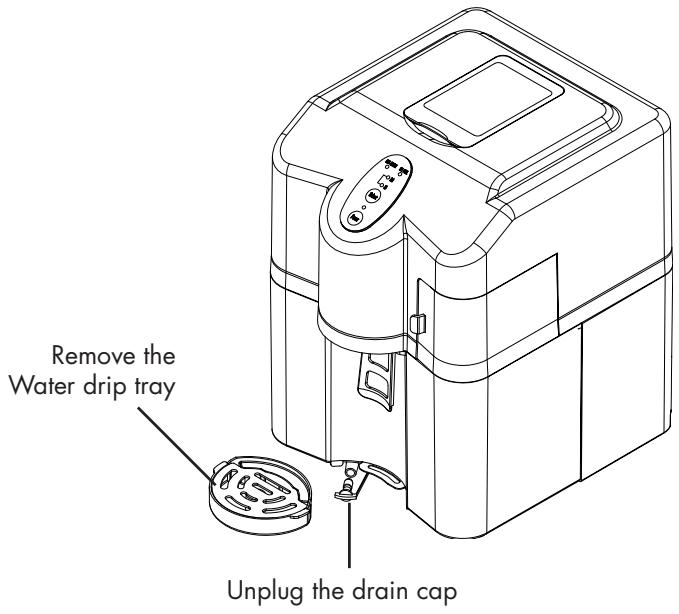

3. Remove water drip tray/cup-glass holder to access drain. (see image below)
4. Remove drain plug and let water flow out. (see image below)
5. Replace drain plug and clean the water reservoir and ice storage compartment with diluted vinegar solution.
6. Use water to rinse the water reservoir and ice storage compartment.
7. Remove drain plug and let water flow out.
8. Replace drain plug and dry water reservoir and ice storage compartment with soft cloth.
9. Store ice maker in dry, clean area.

NOTE: When moving the unit, it is better to allow the refrigerant liquid inside the compressor to settle at least 3 minutes before restarting.

TROUBLESHOOTING GUIDE

Problem	Possible Causes	Solution
Power LED indicator will not come on	Plug disconnected from wall outlet	Check that unit is plugged into standard 120V, 60 Hz outlet. Also make sure outlet has power and circuit breaker is not tripped.
"Ice Full" LED indicator is on	Storage compartment is full	Remove ice from storage compartment via the dispenser
Ice cubes in storage compartment but do not come out the dispenser	Transparent hatch is open	Close hatch securely, resetting safety switch and reactivating auger
	Auger in ice storage compartment is blocked	Release ice dispenser paddle, wait 10 seconds, push ice dispenser paddle forward again
"Add Water" LED indicator is on	Water reservoir is empty or water level is low	Use provided funnel to add water to reservoir on side of unit.
Ice making cycle is normal but no ice is made	Ambient temperature or water temperature inside reservoir is to high	Operate ice makers at ambient temperature below 90° and pour colder water into reservoir.
	Refrigerant liquid leakage.	Turn power off, unplug unit and contact a qualified technician.
	Pipe in the cooling system is blocked.	Turn power off, unplug unit and contact a qualified technician.
Solid block of ice forms on evaporator	Ice dispensing not complete from storage compartment	Unplug and allow ice to melt (never use sharp object to remove ice).

Note: There is protective circuitry inside this icemaker to protect the circuitry from overheating and the icemaker will automatically shut down to prevent damage if activated. Please disconnect power cord and restart after 30 minutes of cooling down time.

For Haier Customer Service, please call: 1-877-337-3639

CUSTOMER

SERVICE

Hotline 24/7

1-877-337-3639

LIMITED WARRANTY

What is covered and for how long?

This warranty covers all defects in workmanship or materials for a period of: 12 months for labor (Carry in Only) 12 months for parts (Functional Parts Only)

The warranty commences on the date of item purchase. Customer shall provide Haier with proof of the date of purchase and the original receipt along with: brand, model and serial number for verification prior to any warranty service being provided.

Carry-In Service is available for selected products at the discretion of Haier.

EXCEPTIONS:

Commercial or Rental Use warranty 90 days for labor 90 days for parts No other warranty applies.

What is covered.

1. The mechanical and electrical parts of the appliance which serve the functional purpose of this appliance are covered for a period of 12 months or as stated above. This includes all parts except finish, trim and glass.
2. The limited warranty does not cover any credit or refund for any loss or injury caused by the product or defects to the product including but not limited to incidental or consequential damages.

What will be done?

1. Any mechanical or electrical part that proves to be defective in normal usage during the specified warranty period will be repaired or replaced at Haier's discretion.

ALL WARRANTY SERVICE MUST BE PROVIDED BY ONLY OUR FACTORY SERVICE CENTERS, OR BY AN AUTHORIZED Haier CUSTOMER TECHNICIAN.

If it is determined that repair is not appropriate or replacement parts are unavailable for repair, Haier will exchange the product with a refurbished or new product the same or similar to the original at its discretion.

1. There will be no charge to the purchaser for functional replacement parts and labor on any covered items during the initial 12-month period or as stated above.
2. THIS WARRANTY COVERS APPLIANCES WITHIN THE CONTINENTAL UNITED STATES, PUERTO RICO AND CANADA. IT DOES NOT COVER THE FOLLOWING:

Damages from improper installation.
Damages incurred during shipping.
Defects other than manufacturing. Damage
from misuse, abuse, accident, alteration,
lack of proper care and maintenance
or incorrect current or voltage or acts of God. Damage from other than household use. Damage from service by other than an authorized dealer or service center.
Decorative trims, glass or replaceable light bulbs. Transportation and shipping costs.
Labor (after the initial 12 months). Credit or Refund for products over 30 days past date of purchase. Food loss for food spoiled as a direct result of mechanical failure of the product or of any delay in providing service, repair, replacement. This limited warranty doesn't apply to refurbished product or unit purchased as/like new or second-hand. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR INCLUDING THE WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state..

Haier
by Haier America Trading, LLC.
New York, NY 10018
