USER MANUAL HWR10XC5 HAIER

English À Word From Haier Thank You for buying a dependable, energy saving and easy to operate HAIER room air conditioner. This manual contains useful information for you to maintain, operate, install and safely use your room air conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with the ultimate level of comfort. Please read instructions carefully before using the product. Also, do not forget to fill out and mail the Product Registration Card Product Registration Record Your Model and Serial Number. For all your service calls during the warranty period the following information will be needed. Attach the sales receipt to this guide and keep for future reference. This information can be obtained from the serial plate, which is on your air conditioner. This is either on the cabinet (side or back) or you may have to remove the front grille to locate it. Model Number: … Serial Number: Date of Purchase: Dealer's Name: Dealer's Address: Dealer's Phone Number: … TABLE

English SAFETY PRECAUTIONS

WARNING: Following these basic precautions will reduce the

risk of fire, electrical shock, injury or death when using your air conditioner. À 1} Air conditioner must be connected to proper electrical outlet with the correct electrical supply. {see table] À 2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle outlet in the wall, have a certifie electrician install the proper receptacle. The wall receptacle MUST be properly grounded. À 3] Do not use if power cord is frayed or otherwise damaged. Also avoid using it if there are cracks or abrasion damage along the length, plug or connector. À 4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.

5) When installing your air conditioner in a window, make sure the window

is strong enough to hold the weight of the air conditioner. You also want to secure and correctly install your air conditioner properly to prevent it from falling. Extra brackets and or support may be required depending on your window.

6) Do not block airflow inside or outside the air conditioner with blinds,

drapes, protective covers, shrubs or bushes.

7) Be careful of sharp edges on the front and rear fins of the unit that could

cut and cause serious injury.

8) Be careful when lifting the air conditioner to install or remove the unit.

Always use two or more people for this. 9} Always unplug the air conditioner before servicing it or moving it.

Table Of Contents A Word From Haïier Product Registration Safety Precautions Warnings_. Electrical Safety... Energy Saving Guide Operating Guide Normal Operating Sounds …. Operating Instructions Installations Parts. Tools Installing Unit into À Window... Clean and Care Guide. Troubleshooting Warranty Information English PAGE

English Following the safety messages is very important. These messages can save you from being injured or killed Warning symbols alert you to be careful and means Danger. Always follow instructions to be safe and reduce chances of injury or death. Warning and Danger signs will precede safety messages. Electrical Safety À Grounding: This room air conditioner must be grounded. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. The power cord has a grounding wire with a grounding plug. Plug it into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding

plug can result in a risk of electric shock. Call a qualified electrician if you don't understand the grounding instructions or if you are not sure if the air conditioner is properly grounded. If the wall outlet is not grounded, please contact an electrician to have it replaced with a properly grounded outlet. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Adapter Plug: We strongly advise against using an adapter plug. Important: Test power plug before each use:

1. Press à reset i button.

2. Press à test à button, unit should trip.

Do not use if above test fail. In the event this device trips , the cause of the malfuncti be corrected before further use of the device .

English + Air Condifioners are designed for use in a double hung window or through the wall installation only. (As applicable in your model) + While installing unit be sure to tilt air conditioner 5 degree outward to have the water drip outside the house + Install the unit on the north side as normally that is the shaded side. This will enhance the operation of your unit. + Window has to be strong for installation. Extra brackets and or support may be required depending on your window + Measure the window before installing, if the window is too big for the unit you may require professional installation. + Use correct electric voltage and proper ampere for the unit to run effectively. + Only let a certified electrician do any modifications to your electrical outlet. Energy Saving Guide + When installing your air conditioner make sure to seal all areas where there is a possibility of air leakage. + Airflow should not be blocked inside either by curtains, drapes or furniture or outside by shrubs or bushes. + Do not needlessly use an electrical light or other appliances that produce heat. + Keep the blinds and the drapes drawn on all the other windows. + While cooking use an exhaust fan in the kitchen to remove the excess heat produced + Always use the correct BTU size air conditioner to cool the room to attain optimum efficiency.

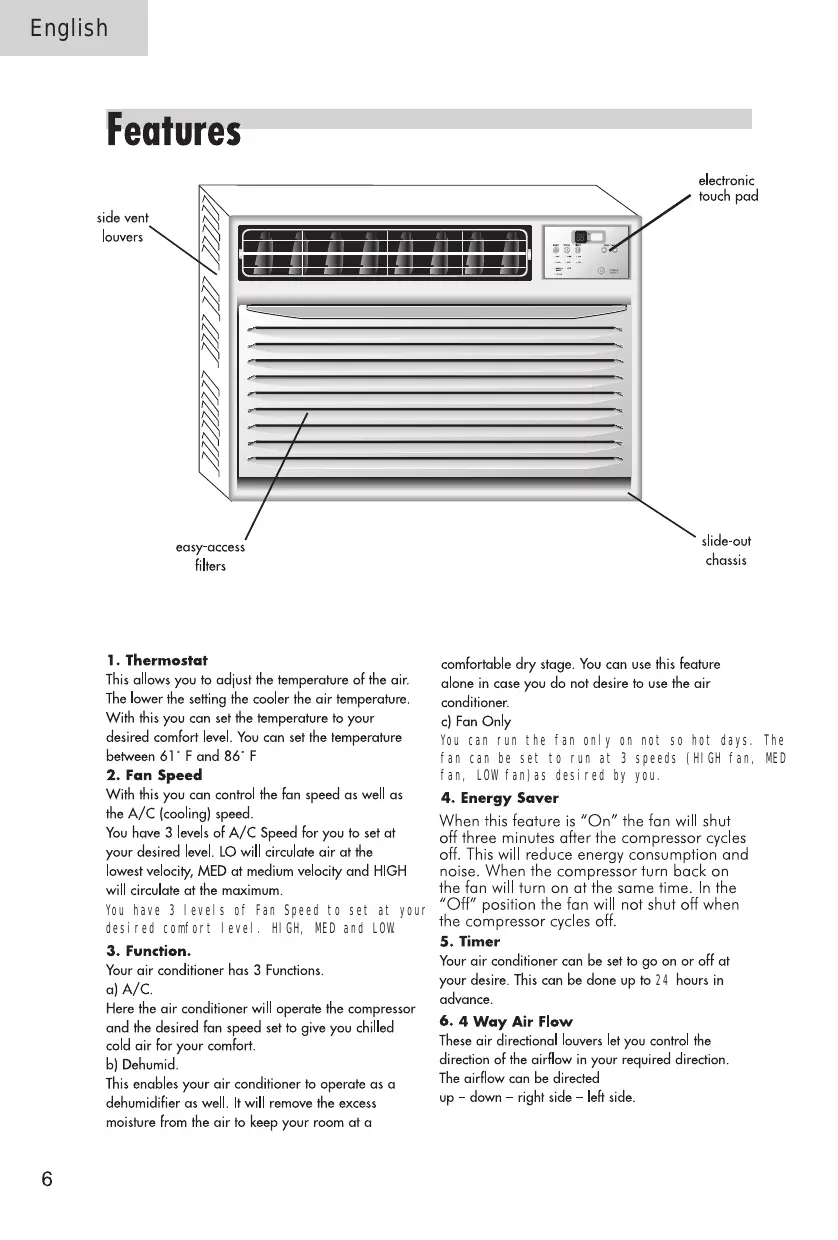

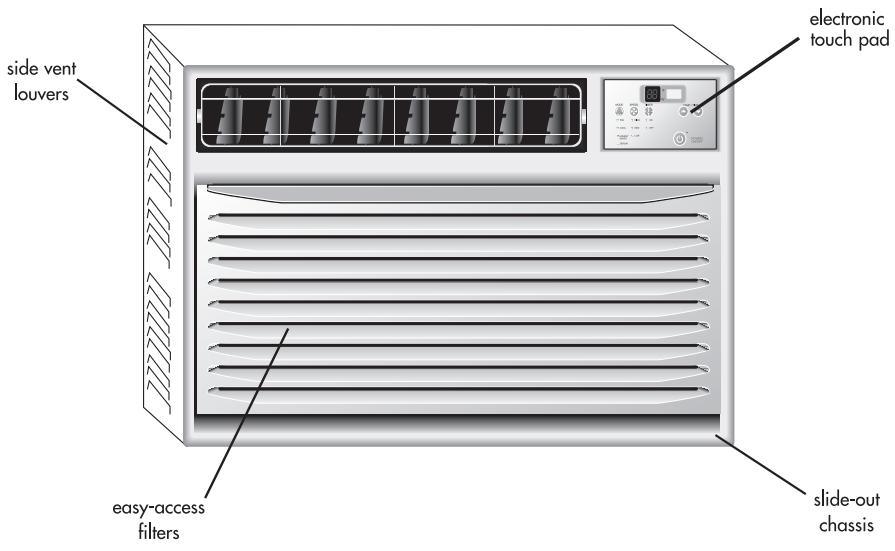

English Features electronic touch pad side vent louvers

This allows you te adjust the temperature of the air The lower the setting the cooler the air temperature. With his you can set the temperature to your desired comfort level. You can set the temperature bebween 61° F and 86° F

With this you can control he fan speed as well as the A/C [cooling] speed. You have 3 levels of A/C Speed for you to set at your desired level. LO will circulate air at the lowest velocity, MED at medium velocity and HIGH will cireulate at the maximum. You have 3 levels of Fan Speed to set at your desired comfort level. HIGH, MED and LOW

Your air conditioner has 3 Functions al A/C. Here the air condifioner will operate he compressor land ihe desire! fon speed so1 to give you child cold air for your comfort b) Dehumid his enables your air condifioner io operale as a dehumidifier as well. It will remove the excess moisture from the air to keep your room at a slide-out chassis comfortable dry stage. You can use this feature alone in case you do not desire to use the air conditioner. €] Fan Only You cam run the fan only on not so hot days fan can be set to run at 3 speeds (HIGH fan, fan, LON fanlas desireë by you

When this feature is “On” the fan will shut off three minutes after the compressor cycles off. This will reduce energy consumption and noise. When the compressor tum back on the fan will turn on at the same time. In the “Off” position the fan will not shut off when the compressor cycles off.

Your air condifioner can be set lo go on or off at your desire. This can be done up to 24 hours in advance.

These air directional louvers let you control the direction of the airflow in your required direction. The airflow can be directed up - down - right side — left side. The MED

The Fresh 4ir Vent allons the air conditioner to geing constructed of high efficiency purifying recireulate inside air, draw fresh air into the room : SübStance, active carbon fabric, electrostatic fabric and exhaust stale air to the outside

8. slide Out Chassis electrostatic active carbon net and other materials

Your Air Condhitioner becomes more versaïle with tourifies the air effectivel Its mevy structure this feature. You have the option to install the unit in nereases the capability to filter dust and smoke a window or the wall effectively. Due to the retention of the active carbon

9. Window Install Ki thas a high purifying speed capable of

Enables you to instal he air conditioner in a double hung window. Extra brackels or support may be needed depending on your window:

This Ki nctional wireless remote allows you to operate your air conditioner from a distamce. You need not have lo get up to change the sotings, ihe functions or to turn the unit on or off

11. LED Display Electronic Control Panel

The 4 function LED displays Room Temperature, Temperature Seting, Timer Sehing and Time Remaining to Stop / Start he unit. Electronic Control Panel lets you set the temperature to the Exact Temperature you desire. strong airflon

13. How The Unit Drains

On humid days with the air conditioner in use, moisture may collect on the pan or bottom of the air conditioner. If the unit is position properly the moisture will gather towards the back of the unit. This will not effect the operation of the unit and the moisture will evaporate in time. Occasional the moisture will flow over the back of the pan but this will not effect the operation of the unit. Never drill holes in the pan under any condition

English Operating Guide Normal Operating Sounds The following sounds are normally heard during the operation of an air conditioner. + Cool airflow movement as dictated by the set fan speed. + Water sounds. This is normal as your air conditioner acts as a dehumidifier also. Thus you will hear water sounds from water drops falling on the condenser. + As the refrigerant flows through the inner sealed tubing a rushing noise may be heard. + Raïtling or vibrating noises may be heard due to poor wall or window installation. + High pitch compressor sound may be heard. Operating Instructions Following are the operating instructions of your electronic air conditioner. Remote control and control panel operations After installing your air conditioner plug it in to the proper electrical outlet in the wall. Keep the vent in the closed position. Now set the air conditioner at your comfort level. This full functional wireless remote allows you to operate your air conditioner without having to get up and go to the unit. The full function feature allows you to change the settings and turn the unit on or off from the remote itself. This control pad works the same as the control pad on the air conditioner. (See Fig. # 1) Fig. # 1 Remote Control S © D © Haier

English After you plug in the unit it will perform a self test. Al the display lights will turn on for 3 seconds. The LED display will read “88”. If any display light fails to turn on you may need service on the unit. After the 3 seconds self test the unit will automatically go to the stand by mode. Now all lights will be off and you will have to turn “ON” by pressing the On/Of key After pressing “On/Of", the unit starts to work and enters the status of “Fan” with low setting. You will have to press the {A} or (w) key on the Temp/Time to set the temperature at your desired comfort. You can choose between 61°F and 86'F. Once the temperature is set you can raise or lower it by pressing the (A) or (vi keys. (Only when the unit is cooling, energy saver or dehumidifying, can the temperature setting be adjusted.] (See Fig. # 2) Having set the temperature you will set the function of the air conditione Fig. # 2 Control Panel. S © S © Svae ©" POWER

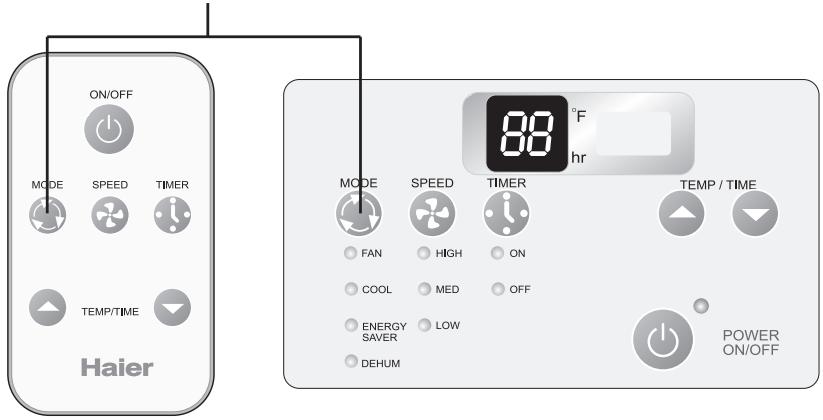

Every time you press the MODE button, it will change between FAN, COOL, ENERGY SAVER and DEHUM. [See Fig. # 3)

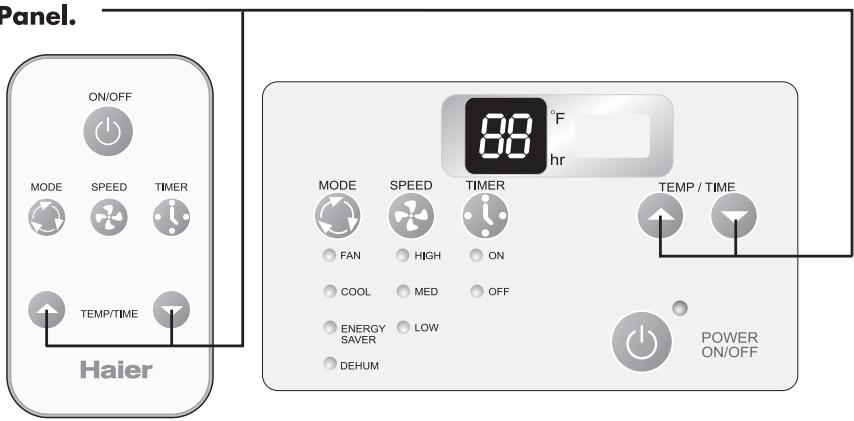

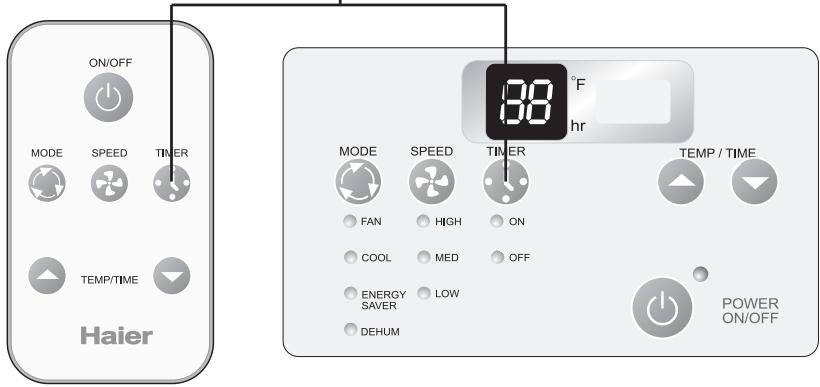

English Fig. #3 Control Panel. C à br # me sen TER TENP/ TUE, CS Eros . ER POWER Ha ONOFF laier & J) Once the function mode is decided you will have to set the fan speed. [See fig. #4 Every time you press the SPEED button, fan speed will change between LOW HI GH, MED.

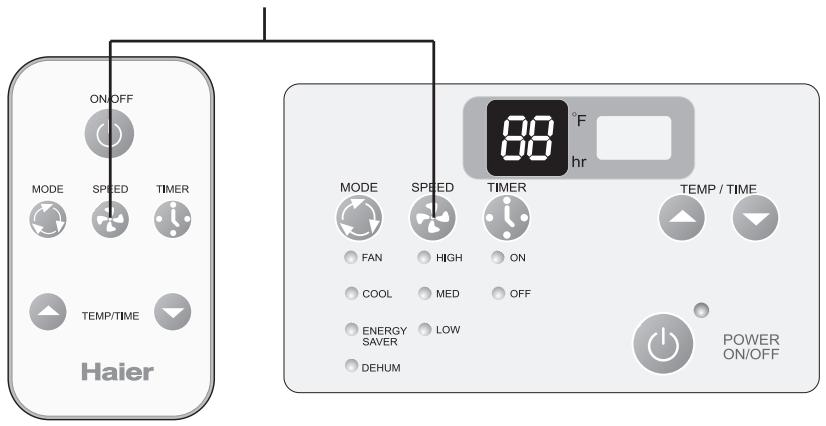

1) 1f you choose the COOL mode you can run the fan in one of the 3 speeds HIGH,

2) For cool days you my want to run the "FAN" function. The fan can be set to run

3 speeds (HIGH fan, MED fan, LOW fan)as desired by you

4lEnergy Saver : The unit runs the same as COOL setting in the ENERGY SAVER mode. But the fan will be off 3 minutes after the compressor cycle off.

ml) @ © $ © © © © DEN On ou © …- © Se 7e 07 ° ge Our power h ERSFE Haler eus Vent Control Operations For maximum cooling efficiency, CLOSE the vent. This will allow internal air circulation. OPEN the vent to discharge stale air.

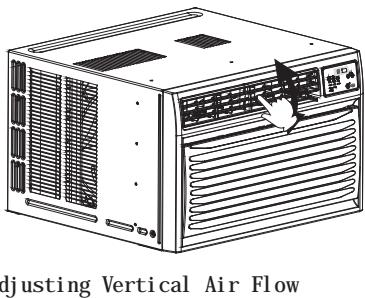

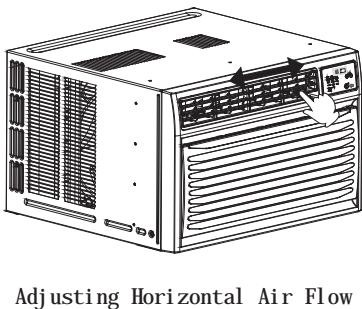

Adjusting the Air Flow Direction ui, Airflow can be adjusted by changing the direction of the air conditioner's louvers This can also increase the cooling efficiency of the air conditioner Adjusting Horizontal Air Flo Adjusting Vertical Air Flow Direction Direction Adjusting the Horizontal vane up and doun will Adjusting the vertical louvers left @hange vertical airflow. The vane can be adjusted right will change horizontal airflowy nudging the back or up and doun of the vane Adjusting Horizontal Air Flow Adjusting Vertical Air Flow Recommended orientation of louvers Adjust louvers to face upmards when cooling to meximize cooling efficiency.

English Installations Before you install your air conditioner check the following

1) The unit is free of all obstructions inside and outside the room e.g. drapes,

curtains, furniture, plants, shrubs, bushes, trees, other structures like building, garage etc. Air conditioner must have clear unobstructed airflow through the condenser to remove the heat.

2) The window is strong enough to hold the weight of the air conditioner.

Extra brackets or supports may be needed depending on your windows.

3) The window sil and track are strong enough to hold the weight of the

4) The wall is strong enough to hold the unit. Extra brackets or supports may be

needed depending on the wall À 5) There is adequate and proper power supply near the air conditioner. À 6) DO NOT use adapter plugs À 7 DO NOT use extension cords À 2 DO NOT eut or remove the ground prong À 2) DO NOT modify the plug or the electrical wall outlet in any way. K plug does not fit the electrical outlet have a certified electrician do the necessary change. À 10} DO NOT connect electrical power to the unit before installation À 112 D0 NOT use if power cord is worn out, frayed or ofherwise damaged Avoid using if there are cracks or abrasion damage along the length, plug or connection À 128 coreful of exposed sharp edges of the cabinet and sharp coils (fins) on the back of the unit that could cut and cause serious injury.

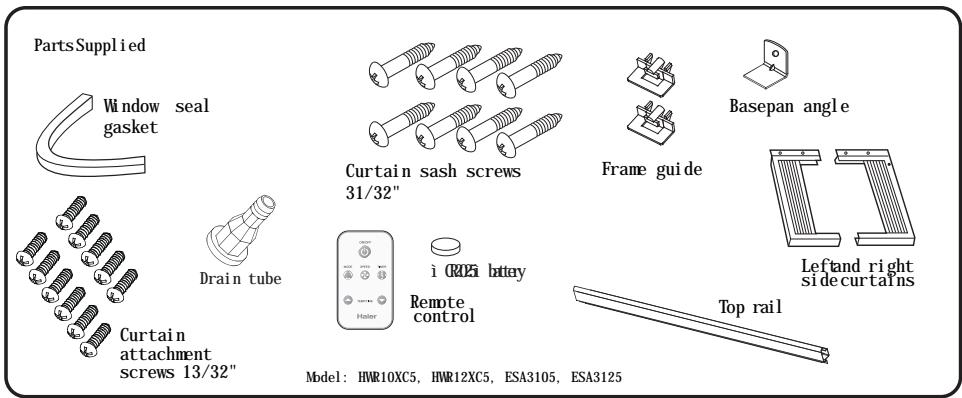

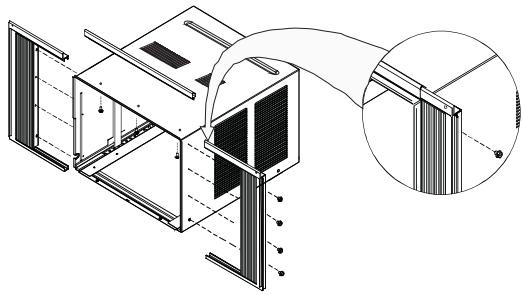

Remat © 2 eme Top rail % Curtain attachment sereus 13/32" Nodel: HORIONCS, HURI2NCS, ESA3IOS, ESA3I2 Tools You will need to have the following tools to help you in the installation of your air conditioner. eScissors *Phillips Screwdriver *Standard Screwdriver ePliers eWrench eDrill and Drill Bits Tape Measure Gloves eLevel *Sockets

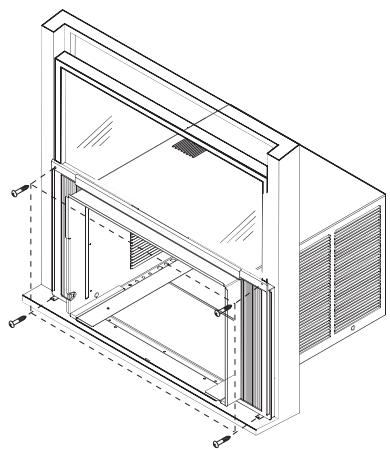

English Enstalling Unit into A Window Window Opening Requirements The air conditioner is designed to fit into double or single hung sash type w units comes with an installation kit that provides adjustable mounting louvers between the sides of the unit, and the window frame. The chart belou reflects the units mith, and without installation kits. Méasure your window opening it to the chart below to ensure that it meets the minimum and maximum window width require

Dimension Alinch) En Blinch} u Ciinch) Dlinch} Max Dlinch} Min Case High Case Width Case Depth ] PREPARE UNIT FOR ENSTALLATI ON- 1 Upack unit on Floor next to installation location.

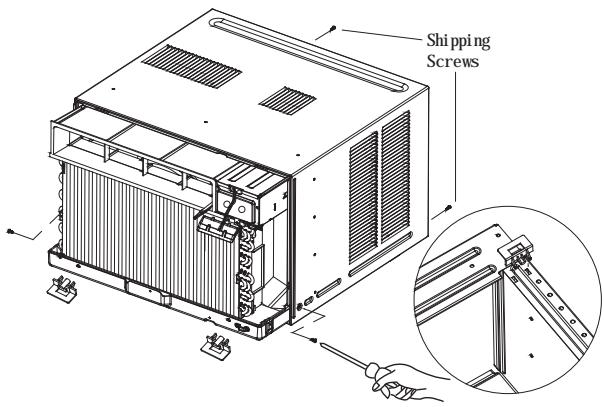

1. Open the inlet grille by pulling the exposed door on + EST

the top of the unit and remove the serew mhich fasten EM. Lt SR | front panel. (Fig. A)

2. Remove the front panel and rotate it to 8 positi4

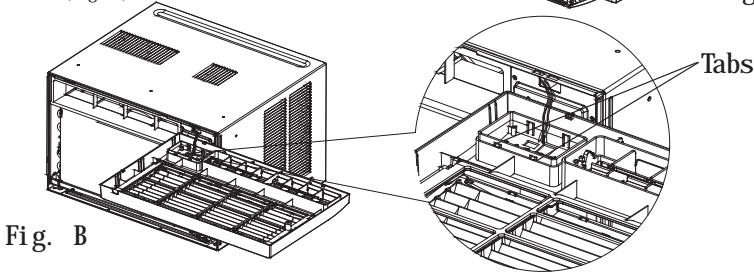

Separate operation panel Fromthe front panel by pushiiÿ the tabs. (fig. 8]

1. Remove the serens which fasten

the cabinet at bath sides and at the back

2. Slide the unit fromthe cabinet

by gri ping the base pan handle and qulling Formrd while bracing the cabinet

3. Insert he Frame Guide into the

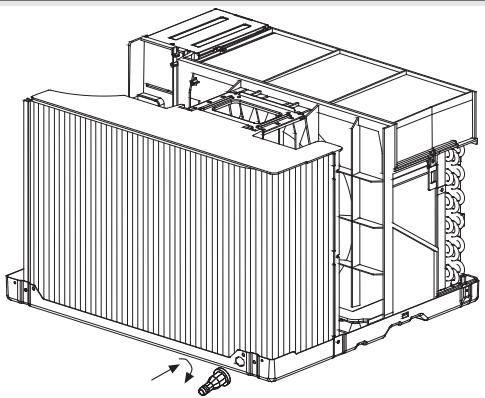

bottom of the cabinet Caution: lever expos. front or grille to temperatures plastic 3 ASSEMBLE

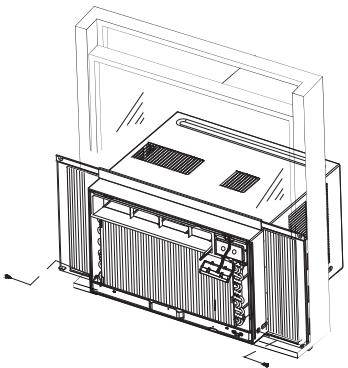

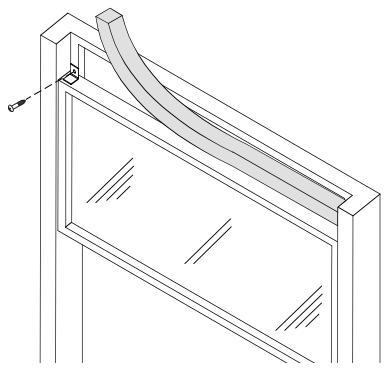

RETURN CHASSIS TO QUTER CASE Fin someone to help you replace chassis in outer case Replace front panel, and grille. QD À age Le st the at ace screws before replacing grille] Caution For security purpose, reinstal sereus at cabinet's sides Fapartant Because window sash helps keep unit in windon, make certain window sash contacts outer case before reinstalling chassis.

English eAlways unplug your air conditioner before cleaning. eThe air filter behind the inlet grille should be checked and cleaned at once every 2 weeks [or as necessary) to maintain optimal performance of the air conditioner. How to remove the air filter

1. The grille may be opened fromthe top for easy maintenance after inst

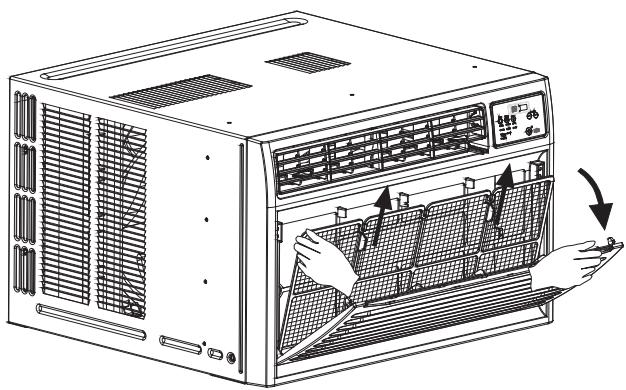

2. Open the inlet grille by pulling off the exposed door on the top of t

unit{based on the installation).

3. Pull the tab slightiy to release the filter. Pull the filter in the s

4. Clean the filter with warm, soapy water. The water should be below

5. Rinse off and gently shake off excess water fromthe filter. Let it d

replacing it. DO NOT use your air conditioner without the air filter in place. eTo clean the front panels or the cabinet DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals my dissolve, damage and/or discolor your air conditioner. eAlways use à soft cloth dampened with water or mild soap and water solution to wipe the front of the cabinet. Vipe dry with à soft cloth.

English eTo store your air conditioner, after the season, remove the unit fromthe window as per the installation guide. Repack the unit in its original box and store away. If your unit is installed in à wall or you do not intendt remove it fromthe window then cover the outside with a winter cover. This can be purchased fromthe retailer where you purchased your air conditioner or from your local hardware store. eBefore putting away your unit make sure any water left in the pan is removed and drained away'. Water left in the pan could lead to Rusting or damage to the electrical connections. Hit If air conditioner does not operate: Check if unit is plugged in. The plug may have come loose. Check if the unit is in "Off" mode. Air fromair conditioner is warm The COOL setting may need to be raised. Ice formation on cooling coils: Outside temperature too cold. Set the unit on fan only setting to defrost ice. Lower temperature setting. Temperature setting may be too cold, Unit BTU may be too high for the room.

English Air conditioner working but room not cooling: Room may have appliances that produce heat. Use an exhaust fan to remove excess heat. Redirect the airflow Remove any obstacles. Al doors and windows need to be closed so cool air does not escape the room. Air filter may need cleaning. Unit BTU may be too low for the required cooling area. On extreme hot & humid days air conditioners may take a little longer to cool Vent may be in the open position. Vent has to be closed for optimum cooling. Air conditioner is making noise when cooling: You may hear sounds of air movement, water, compressor clicking on à off or window vibrations. Read Operating Guide- Normal Operating Sounds. (See page 8) Water in the air conditioner cabinet: This is normal as your air conditioner not only cools but also de the air. If there is water dripping inside the room check the ir the unit. The unit may need to be reinstalled. (See page 17)
