Product type	LED pool spotlight
Brand	Edenea
Model	PAR56 WH60 LED SEAMAID
Category	Pool
Dimensions (diameter)	200 mm (standard PAR56)
Height	100 mm
Weight	0.8 kg
Power supply voltage	12 V AC/DC
Power	60 W
Luminous flux	3000 lm
Color temperature	3000 K - 6000 K (adjustable white)
Beam angle	120°
Protection rating	IP68 (submersible)
Housing material	Stainless steel and polycarbonate
Cable length	3 m
Main functions	LED lighting, color change (RGB), dimming
Maintenance and cleaning	Clean the lenses with a soft non-abrasive cloth
Safety	Use a safety transformer; cut off power before intervention
Spare parts and repairability	O-ring, lens, cable and transformer available
Warranty	2 years

Frequently Asked Questions - PAR56 WH60 LED Edenea

What are the exact dimensions of this spotlight?

The spotlight is in PAR56 format, with a diameter of 200 mm and a height of about 100 mm.

Can this spotlight be used in a saltwater pool?

Yes, the stainless steel housing and IP68 rating make it suitable for saltwater, but regular rinsing with fresh water is recommended.

How to install this spotlight in a pool?

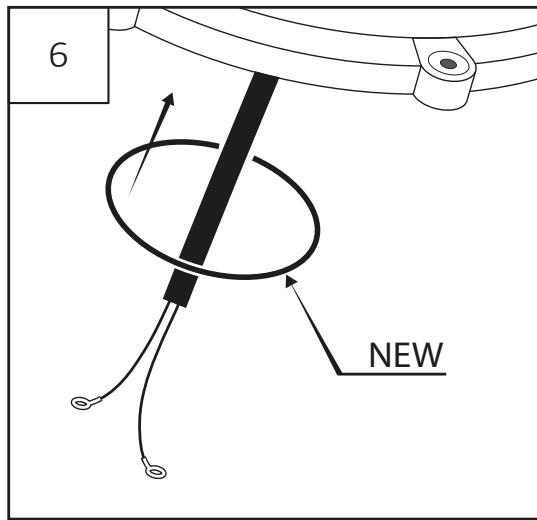

The spotlight is recessed into the pool wall using a standard PAR56 support box. Ensure the power is turned off and use a new O-ring to guarantee sealing.

What is the lifespan of the LEDs?

The LEDs have an average lifespan of 30,000 to 50,000 hours, depending on usage conditions.

Can I use this spotlight with a dimmer?

Yes, it is compatible with most standard LED dimmers. However, check your dimmer's compatibility with 12 V LEDs.

Does the spotlight change color automatically?

Yes, it offers an automatic color change mode with several speeds and a fixed mode adjustable via the remote control (not included).

Which transformer is recommended?

A waterproof transformer of at least 60 W, 12 V AC/DC, is recommended. Use a model suitable for LEDs to avoid flickering.

How to clean the spotlight?

Clean the lens with a soft cloth and soapy water. Avoid abrasive products that could scratch the surface.

What to do if the spotlight flickers?

Check the transformer connection and compatibility with the dimmer. Flickering can also indicate unstable voltage or a sealing defect.

Is this spotlight under warranty?

Yes, Edenea offers a 2-year warranty against manufacturing defects. It does not cover damage due to improper installation or corrosion.

USER MANUAL PAR56 WH60 LED Edenea

# 502815

COLD WHITE

MANUEL D'UTILISATION & D'ENTRETIEN

Contenu fourni - Content provided - Contenuto fornito - Contenido incluido - Verpackungsinhalt - Conteúdo fornecido - Geleverde inhoud - Комплект поставки :

Outillage nécessaire standard - Standard tools required - Attrezzatura necessaria standard - Herramientas estándares necesarias - Erforderliches Standardwerkzeug - Ferramentas necessárias standard - Standaard benodigd gereedschap - Требуемый стандартный инструмент :

13

FR

IMPORTANT: this instruction manual contains highly

important information about safety measures to be taken

when installing and commissioning the device. It is therefore important for you to read these instructions before assembling and operating the product. Please keep this manual for later use. Lack of compliance with the instructions stated in this manual during the installation, operating and maintenance phases shall relieve the manufacturer or distributor of any liability in the face of damages caused to people, to the product or to the installation site, and will result in you losing the warranty.

1. GENERAL INFORMATION

This LED light was designed for immersed use in swimming water. It is a class III lighting system with Safety Extra Low Voltage of 12V(AC) or 20V(DC). The light source of this luminaire is not replaceable. When the light source reaches its end of life, the whole luminaire shall be replaced. It has an IP68 protection level and must be installed at a maximum immersed depth of 1 metre. This light also complies with international light safety standards, in particular standard IEC 60598-2-18 pertaining to swimming pool lights. It must be connected to a flexible power lead with a minimum size of 2x1mm ² .

2. INSTALLATION

Correct installation requires for the light's power circuit to be protected by a residual current device, with a maximum intensity of 30mA . This light can only be connected to a double-insulated transformer or a double-insulated compatible stabilised safety power source. Any other type of voltage transformer is prohibited. We recommend for the transformation power to be higher than the total power of all lights connected to the device. The manufacturer or distributor can in no way be held responsible for the assembly, installation or operation of the product if it was manipulated or if non-provided electrical components were added.

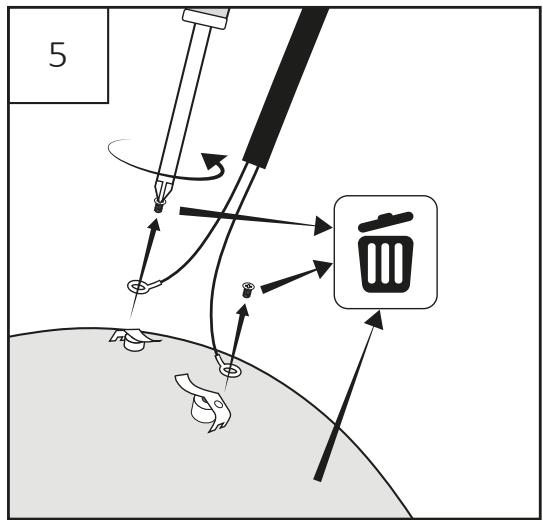

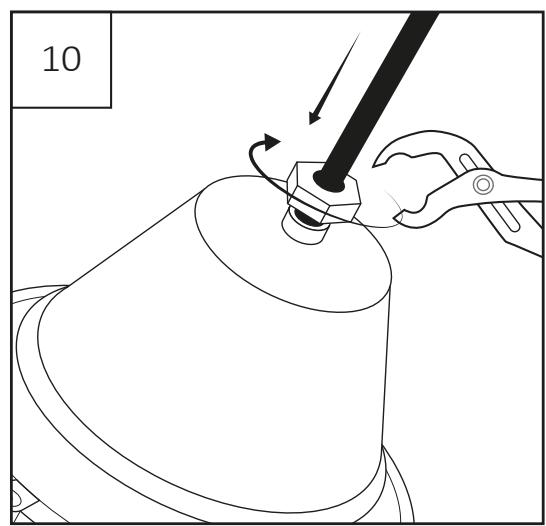

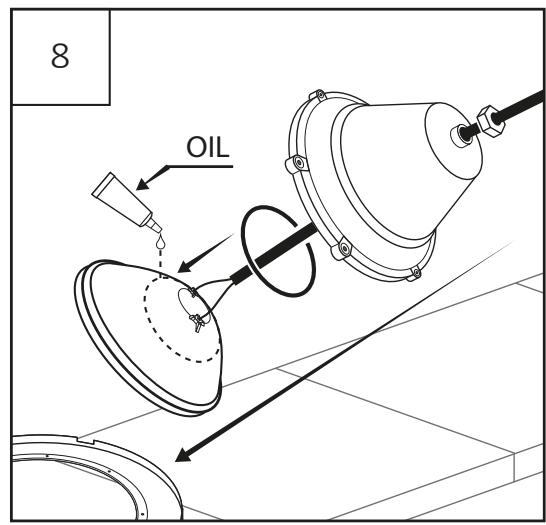

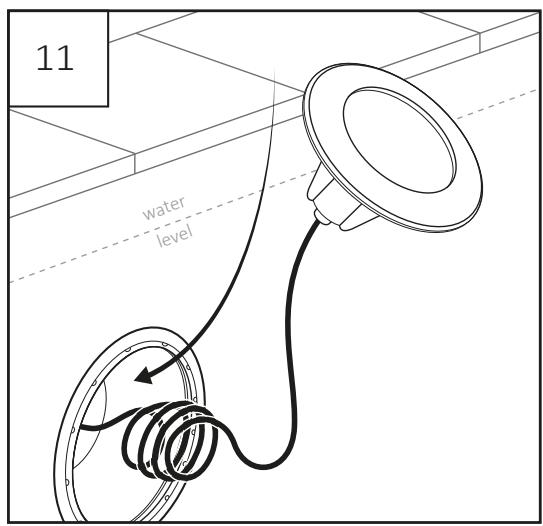

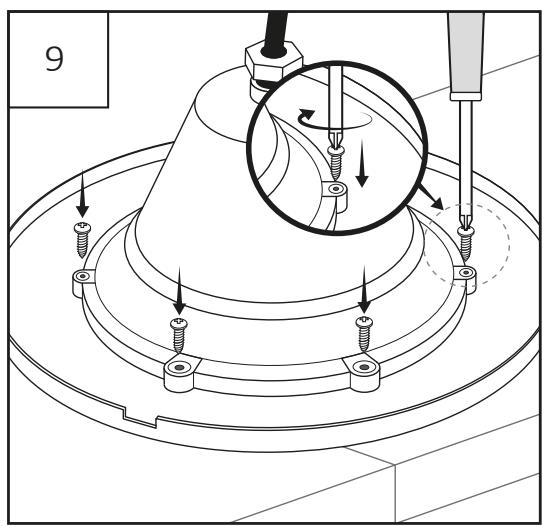

3. ASSEMBLY AND REPLACEMENT

Please refer to the instruction sheet provided in this manual.

4. MAINTENANCE

This LED light does not require any form of maintenance. If the light malfunctions, please contact either our customer service department, or that of your retailer.

5. USAGE

This LED light should be used like any traditional incandescent lamp for swimming pools. Commands are given through the main ON/OFF switch on the pool's electrical panel. You also have the option of connecting a remote control module of the same brand.

6. SAFETY WARNINGS

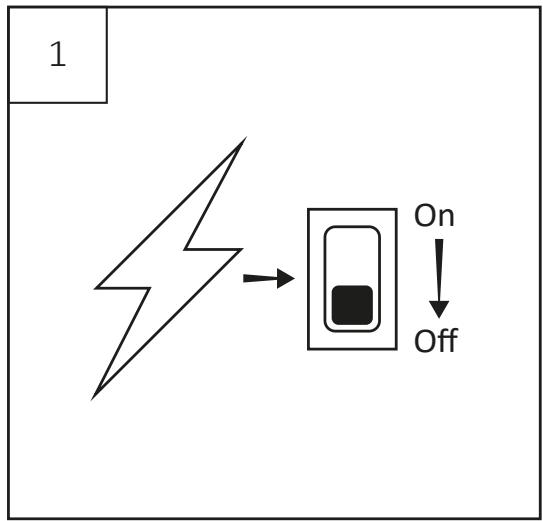

- Before working on the light, it must be unplugged from the electrical network

- All electrical connections must be done outside the water

- Never work on the device with wet feet

- All prevention standards currently in force must be complied with

- IEC 364-7-702 standards in particular must be complied with: ELECTRICAL INSTALLATIONS INSIDE BUILDINGS. SPECIAL POOL INSTALLATIONS

- Those in charge of assembly must be suitably qualified for this type of work

- Switching the device off with the remote control will simply put it on standby

- If the device stays off for more than 24h, we recommend using the switch located just before the transformer.

7. WARRANTY

This LED light is guaranteed against any material and/or manufacturing defects (electronic components) for 2 years starting from the date of delivery. (Substantiating documents must be preserved) This light is not guaranteed against breakage caused by an external impact, a short circuit or excessive screwing, nor against power surges caused by the main power network. (In this case, the home insurance policy will kick in). This warranty is valid under the strict condition that the assembly and maintenance instructions are complied with. Within the framework of this warranty, the manufacturer or distributor's only obligation will be to have their after-sales service replace or repair the product or component recognised as defective for free (the choice is theirs to make). Any other costs are to be covered by the purchaser. To benefit from this warranty, products must first be sent in to the manufacturer or distributor's after-sales service; their consent is mandatory if the product is to be replaced or repaired. The warranty shall not apply in the case of a visible defect. Defects and deteriorations caused by normal wear, malfunctions resulting from non-compliant assembly and/or usage, and product modifications made without the manufacturer's prior written consent are also excluded from the warranty.

8. ENVIRONMENTAL INFORMATION

In accordance with European Directive 2002/96/EC, pertaining to waste electrical and electronic equipment (WEEE), the consumer must return any used products to suitable collection points.

IT

6. VEILIGHEIDSWAARSCHUWINGEN

La Direction – Philippe POMA

# 502815

Caractéristiques Techniques - Technical features - Caratteristiche tecniche - Características técnicas Technische Eigenschaften - Technische specificaties - Технические характеристики

LED	60
T(Kelvin)	6500k White
CRI	86
EEI	0,14
[CSH]	>10 000h
[CSH4-XCAT]	>100 000
	On/Off
[CSHD]	~12V(AC)-50/60Hz==20V(DC)

max	1650 lumens± 10%
P max	13,5W ± 1%
120°	1450 lumens± 10%
P > 1h	13,5W ± 1%
PF	~12V(AC) = 0,76=20V(DC) = 1
Prog.	1 colour

À UTILISER UNIQUEMENT AVEC UN TRANSFORMATEUR OU UNE ALIMENTATION DE SÉCURITÉ SHOULD ONLY BE USED WITH A TRANSFORMER OR SAFETY POWER FEED

DA UTILIZZARE ESCLUSIVAMENTE CON UN TRASFORMATORE O UN'ALIMENTAZIONE DI SICUREZZA

This luminaire includes integrated LED lamps

Lamps in this luminaire can not be changed

13,5 kWh/1000h
