Product Type	Electric Heater with Cooling Function
Brand	Rointe
Model	Rointe Heating Cooling
Dimensions (H x W x D)	60 x 80 x 25 cm
Weight	15 kg
Power Supply	230 V ~ 50 Hz
Heating Power	2000 W
Cooling Capacity	2500 W
Energy Efficiency Class (Heating)	A+
Energy Efficiency Class (Cooling)	A
Thermostat Control	Electronic, programmable
Modes	Heating, Cooling, Fan, Dehumidification
Remote Control	Included
Timer	24-hour programmable timer
Filter Type	Washable antibacterial filter
Noise Level	< 45 dB (low speed)
Safety Features	Overheat protection, tip-over switch, frost protection
Maintenance	Clean filter every 2 weeks; wipe exterior with damp cloth
Warranty	5 years (parts and labor)
Spare Parts Availability	Filters, remote control, fan motor available from Rointe service centers
Repair Index	8.5 / 10

Frequently Asked Questions - HEATING COOLING ROINTE

How do I install the Rointe Heating Cooling unit?

Place the unit on a flat, stable surface near a power socket. Ensure at least 30 cm clearance around it for proper airflow. Do not install outdoors or in humid areas.

Can I use the heater without water?

Yes, the unit operates as a dry electric heater. No water is required for heating mode.

How to switch between heating and cooling modes?

Use the mode button on the remote or control panel to select Heating (sun icon) or Cooling (snowflake icon). The unit will adjust automatically.

Why is my unit not cooling properly?

Check if the filter is clean. A dirty filter reduces airflow. Also ensure the room is not too large for the unit's capacity (max 25 m²). If problem persists, contact support.

How often should I clean the filter?

Clean the filter every two weeks under normal use. Remove the filter, wash with mild soap and water, let dry completely before reinserting.

Does the unit have a timer function?

Yes, you can set a 24-hour timer to turn the unit on or off automatically. Press the Timer button and set the desired time.

What does the error code E1 mean?

Error E1 indicates a sensor fault. Try resetting the unit by unplugging it for 10 minutes. If the error persists, contact Rointe service.

Can I leave the unit on overnight for heating?

Yes, the unit is designed for continuous operation. Use the Sleep mode for quieter operation and automatic temperature adjustment.

How do I store the unit when not in use?

Clean and dry the filter, turn off the unit, disconnect power, and store in a dry place away from direct sunlight. Cover to protect from dust.

Is the remote control included in the package?

Yes, the Rointe Heating Cooling comes with a remote control. Batteries (AAA) are not included, please provide two AAA batteries.

USER MANUAL HEATING COOLING ROINTE

Illustration of various household appliances including air purifier, heater, digital display, thermometer, and refrigerator (no text or symbols)

40 YEARS 1985 · 2025

40 YEARS OF SUSTAINABLE COMFORT

At Rointe, we proudly celebrate 40 years at the forefront of innovation, dedicated to advancing the most sustainable and balanced comfort.

RADIATORS
EONIQ Radiator Wi Fi DIRECT	12
Belize Radiator Wi Fi DIRECT	14
Olympia Radiator Wi Fi DIRECT	16
Kyros Radiator Wi Fi DIRECT	18
Sygma Radiator	20
Palaos WiFi Radiator Wi Fi DIRECT	22
Radiator accessories	24
ELECTRIC TOWEL RAILS
Neø towel rail Wi Fi DIRECT	28
Orion towel rail Wi Fi DIRECT	30
Venezia Oval WiFi towel rail Wi Fi DIRECT	32
Elba Oval WiFi towel rail Wi Fi DIRECT	33

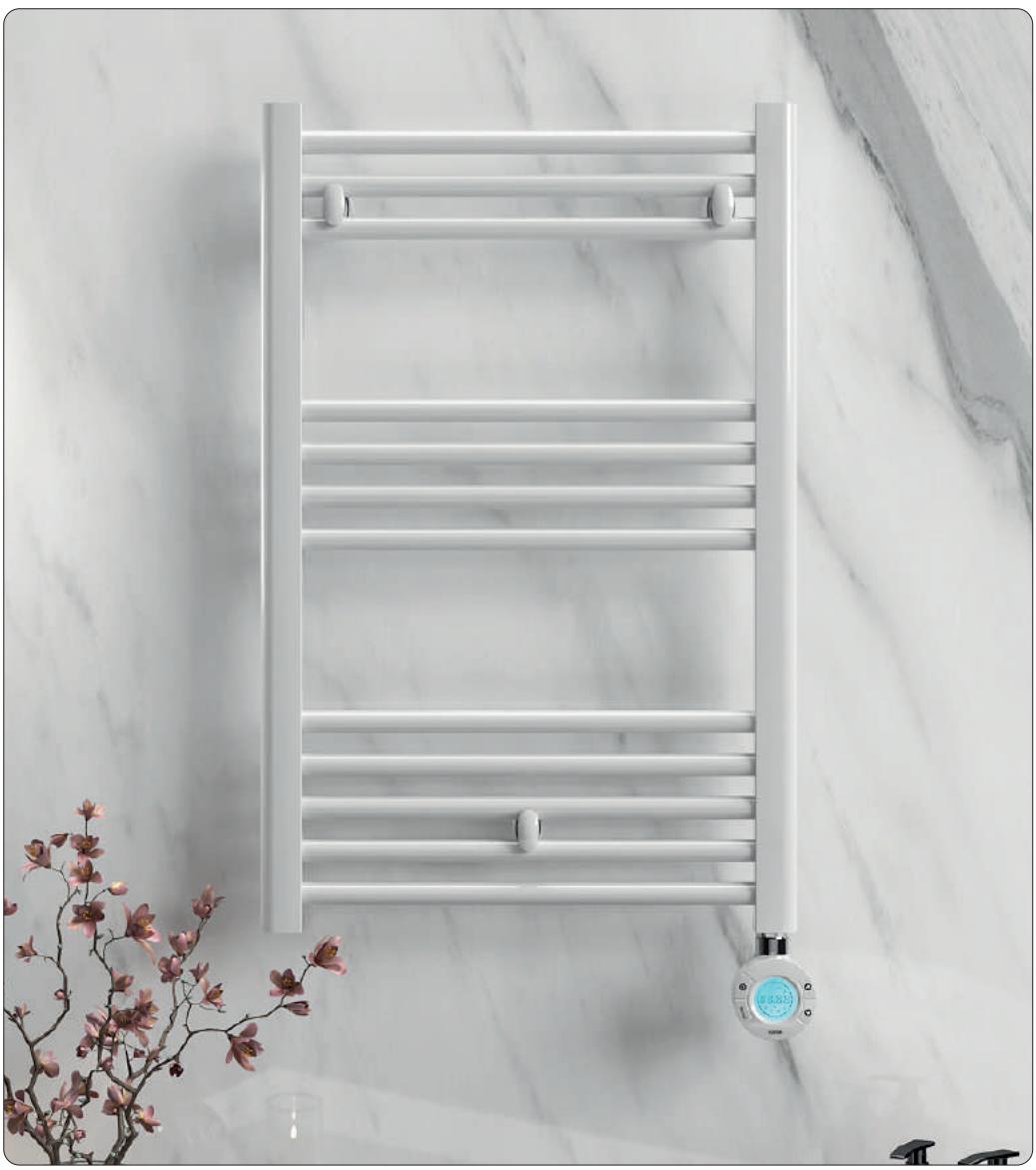

Elba Plus towel rail	34
Elba SWT towel rail	36
Elba Cable towel rail	37
Sublime towel rail	38
Milano towel rail with built-in fan heater	39

WET SYSTEM TOWEL RAILS

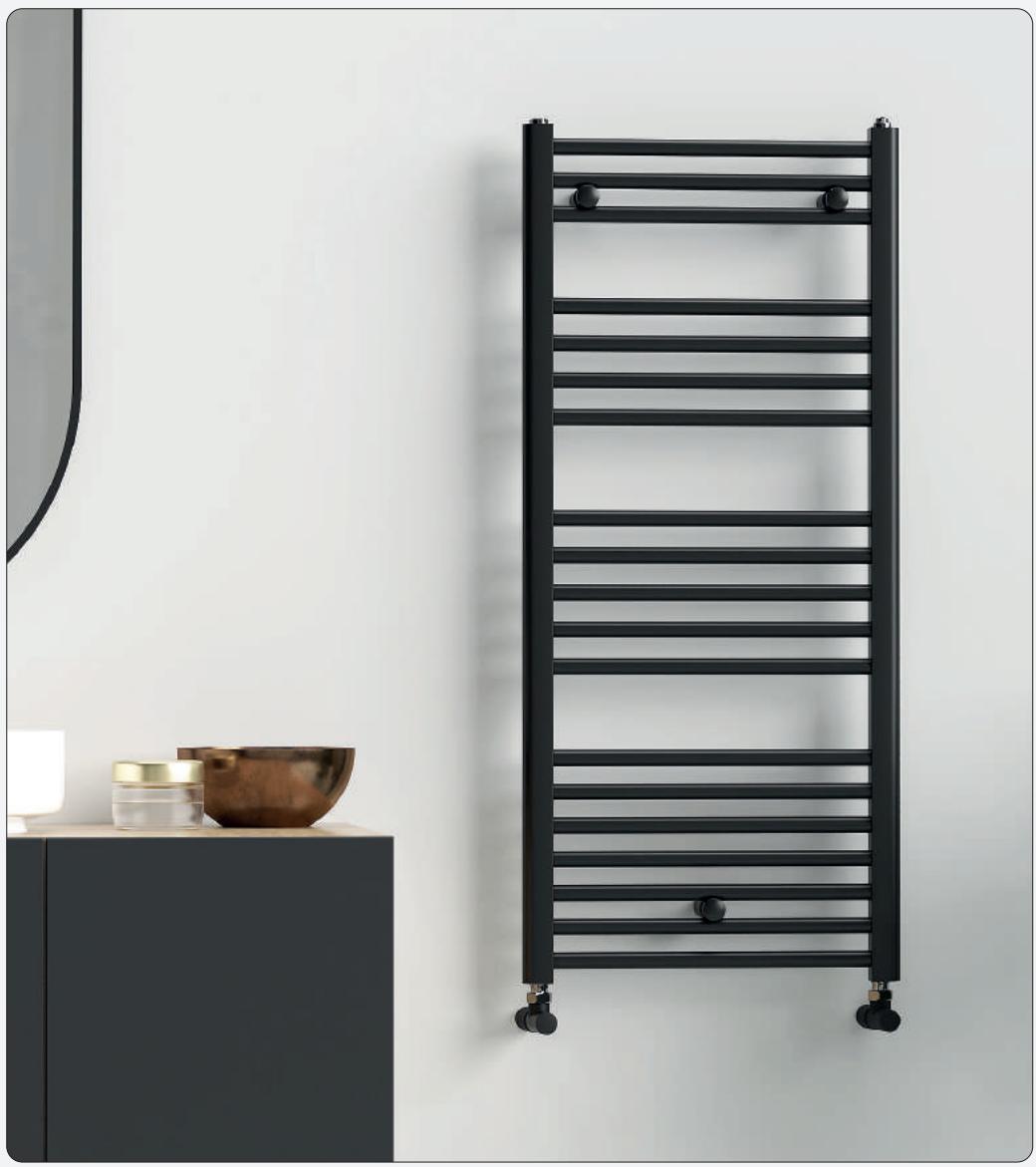

Elba towel rail	42

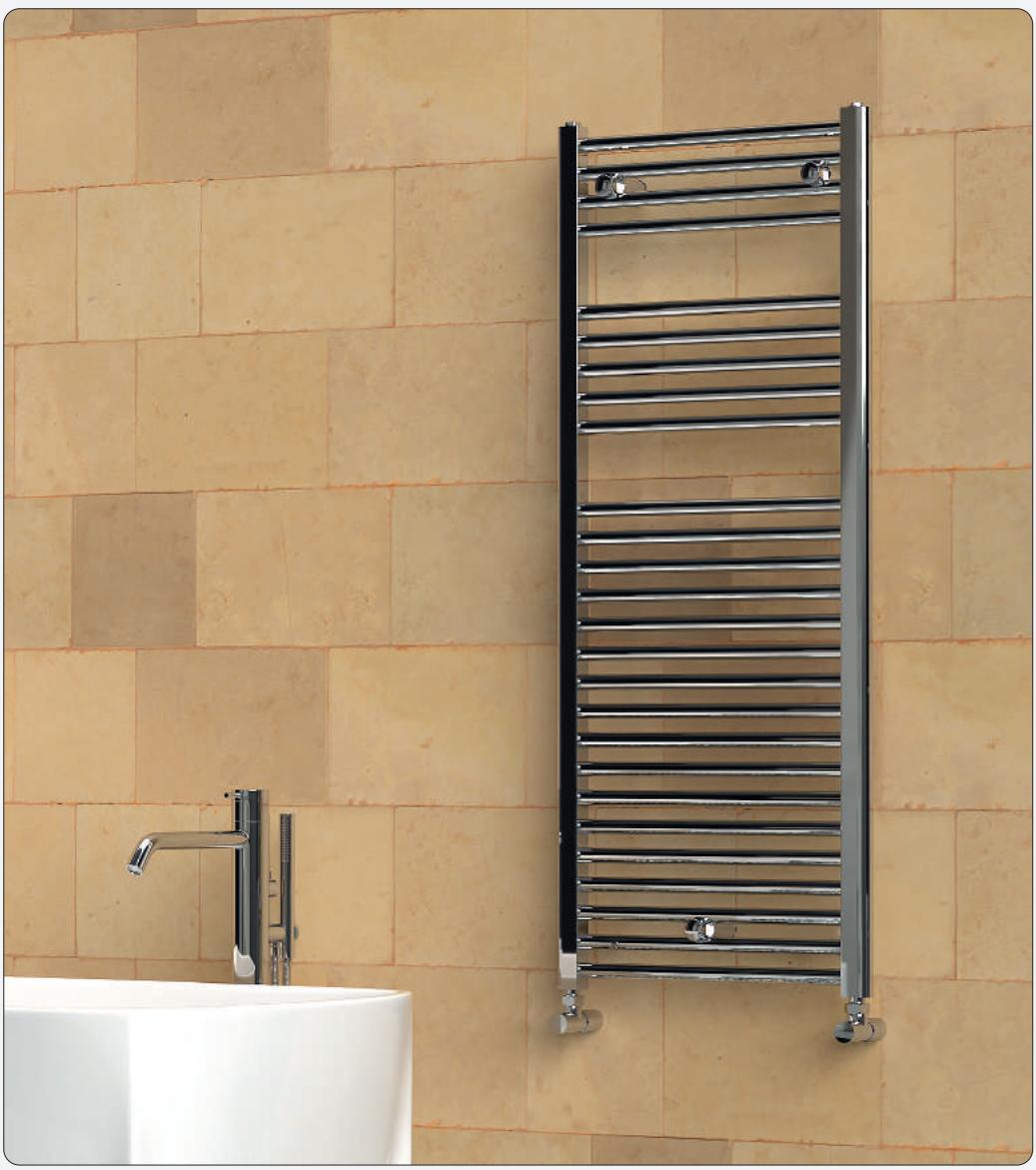

Giza towel rail	44
Venezia towel rail	46
Circe towel rail	47
Torino towel rail	47

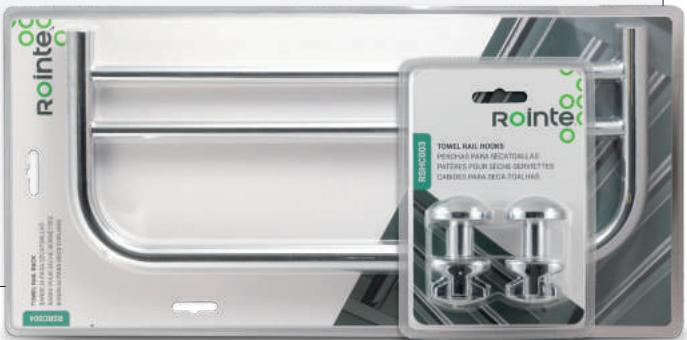

Rointe towel rail accessories	48
Valves for wet system towel rails	49

ELECTRIC UNDERFLOOR HEATING

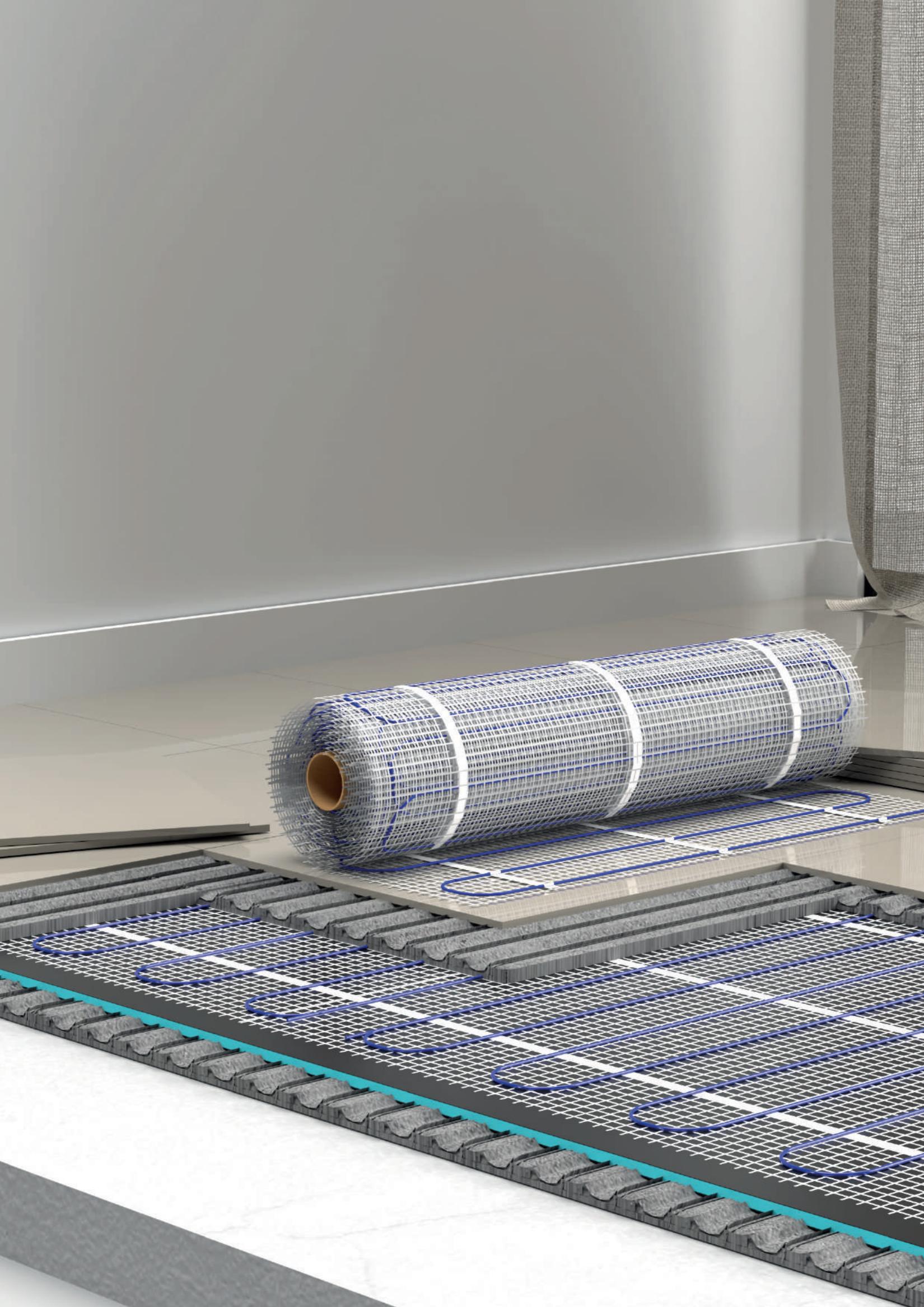

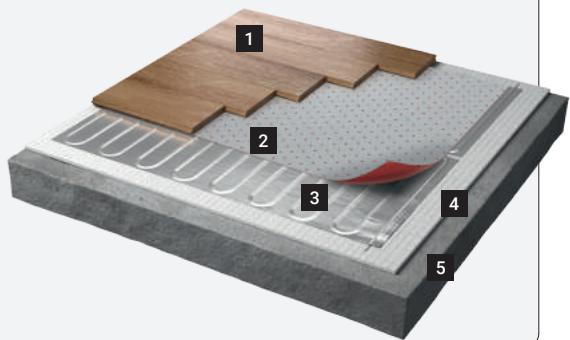

Milos underfloor heating	52
Erko underfloor heating	53
Accessories for underfloor heating installation	54
Genius Thermostat WI FI DIRECT	56
Thermostat ST.2	57
Thermostat ST.3	57

DOMESTIC HOT WATER HEATERS

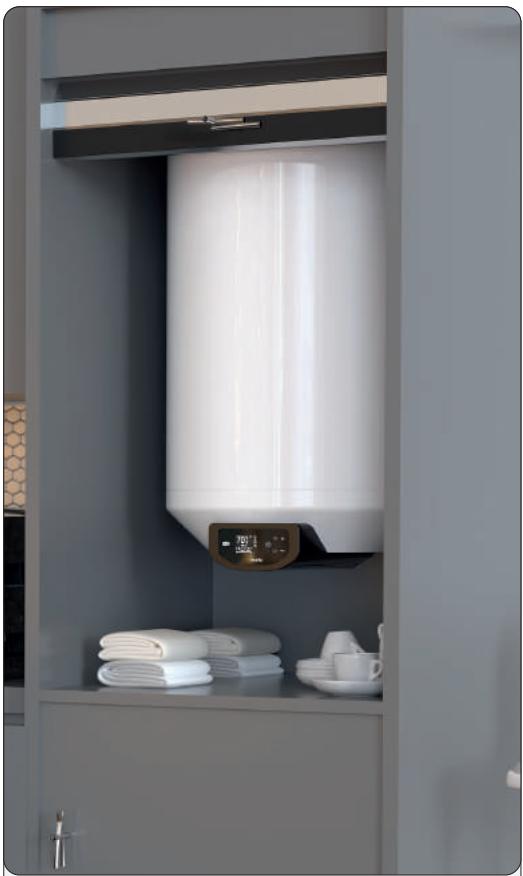

Dalis Pro hot water heat pump	60
Rome water heater WIF DIRECT	62
Venice water heater	63

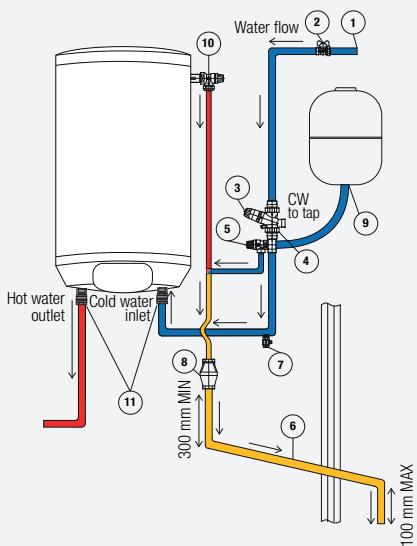

Accessories for the installation of water heaters	64

OTHER HEATING PRODUCTS
Onyx HHR storage heater WI FI DIRECT	68

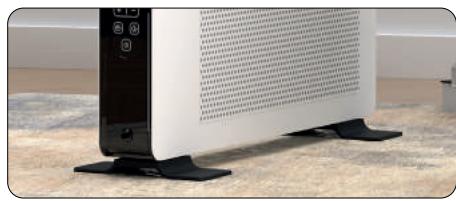

Giro portable heater / convector	70
Giro Short portable heater / convector	71

OUTDOOR HEATING

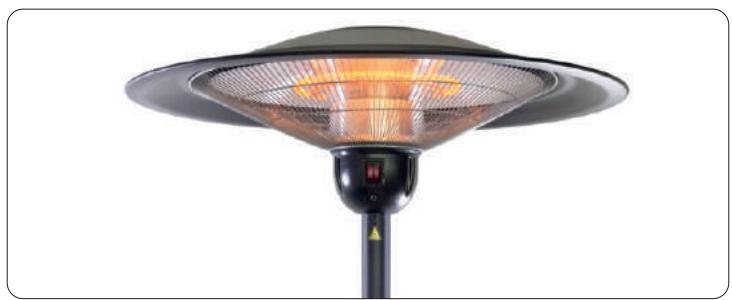

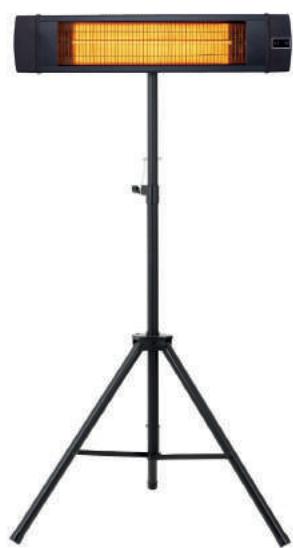

Sahara infrared heater	74
Umbra Mini infrared heater	74
Lyra infrared heater	75
Lumia infrared heater	75
Fuji carbon fibre heater / lamp	76
Accessories for outdoor heaters	76

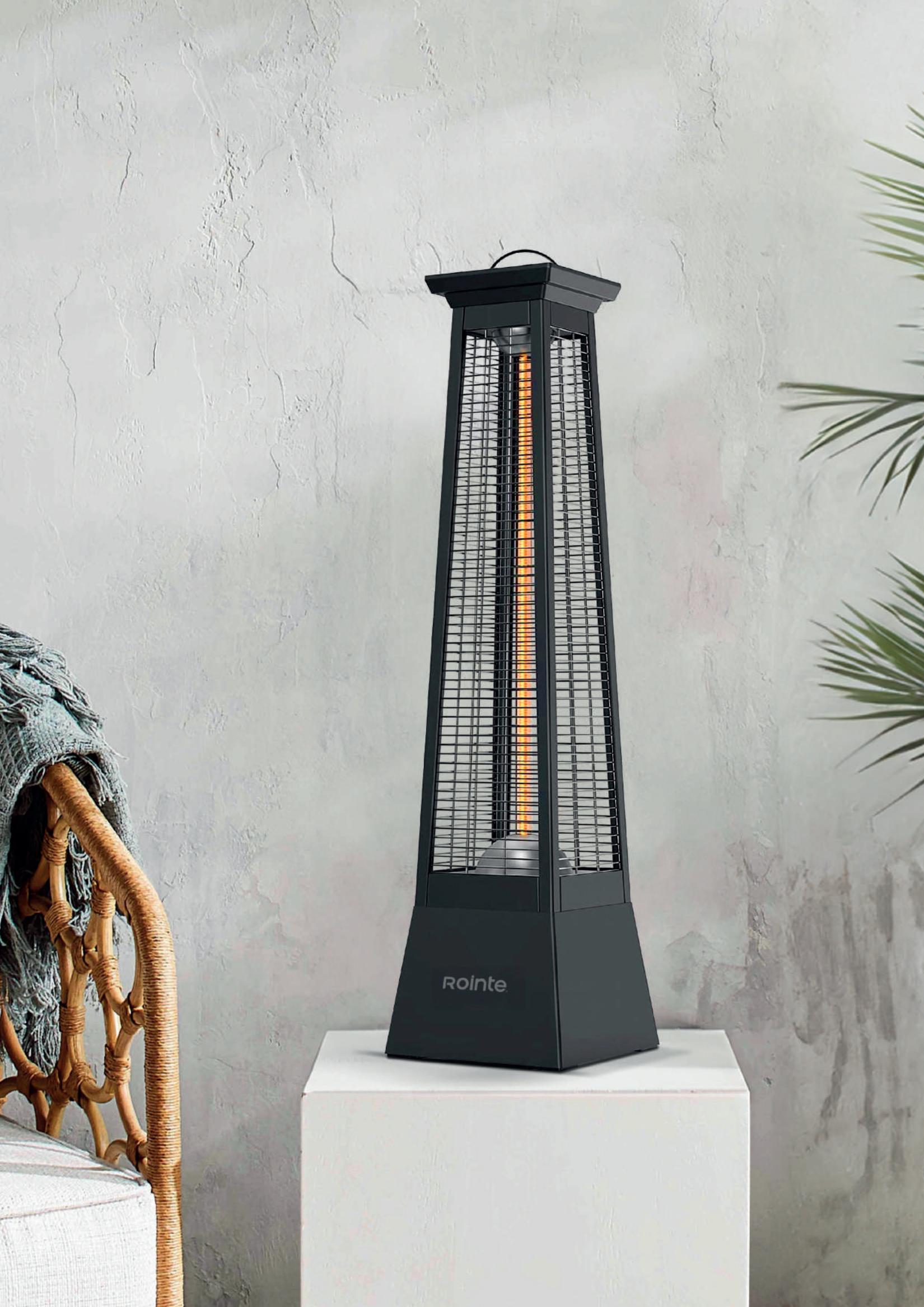

Amber vertical infrared heater	77

COOLING AND CLIMATE CONTROL

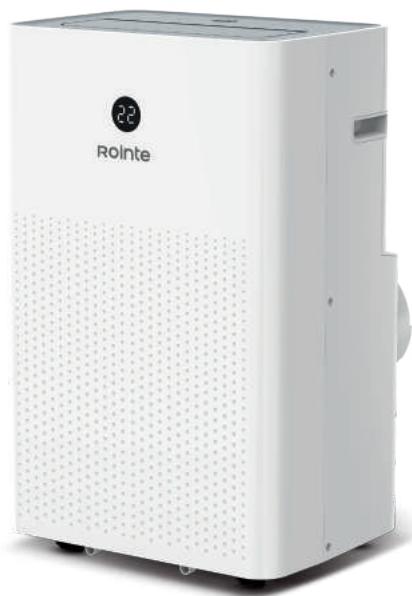

Fiore Portable Air Conditioner	80

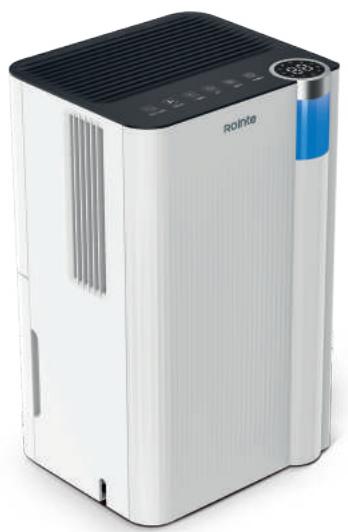

Drypure Dehumidifier	82

Modern home appliance with black heat exchanger mounted on white wall, surrounded by greenery and decorative plants (no visible text or symbols)

ENERGY EFFICIENCY: SMART SAVINGS

With efficient heating & cooling solutions, you save energy and money every month. Because your home needs fewer resources to maintain a comfortable temperature all year round: warmth in winter, coolness in summer and hot water when you need it.

But how can this be achieved? By opting for Rointe low consumption comfort systems with intelligent control technologies.

In this catalogue we present efficient heating and cooling solutions that improve the energy efficiency of your home, while providing you with the comfort you need.

Gain comfort. Gain savings. With Rointe, your wellbeing always wins.

A couple sitting on a sofa using a laptop, with decorative wall decor and a window in the background (no visible text or symbols).

YOUR COMFORT

25% FASTER

35% MORE STABLE

10% MORE EFFICIENT

With Inverter Smart Adaptive Tech, achieving maximum efficiency means enjoying constant comfort that is tailored to you.

For the first time ever, we have succeeded in developing an smart electric heating system that uses a single heating element capable of operating at several power ratings, effectively reducing power peaks during the temperature stabilisation period.

INVERTER SMART ADAPTIVE TECH REDUCES THE STABILISATION POWER RATING BY UP TO 80%, COMPARED TO TRADITIONAL SYSTEMS BASED ON PID CONTROLLERS.

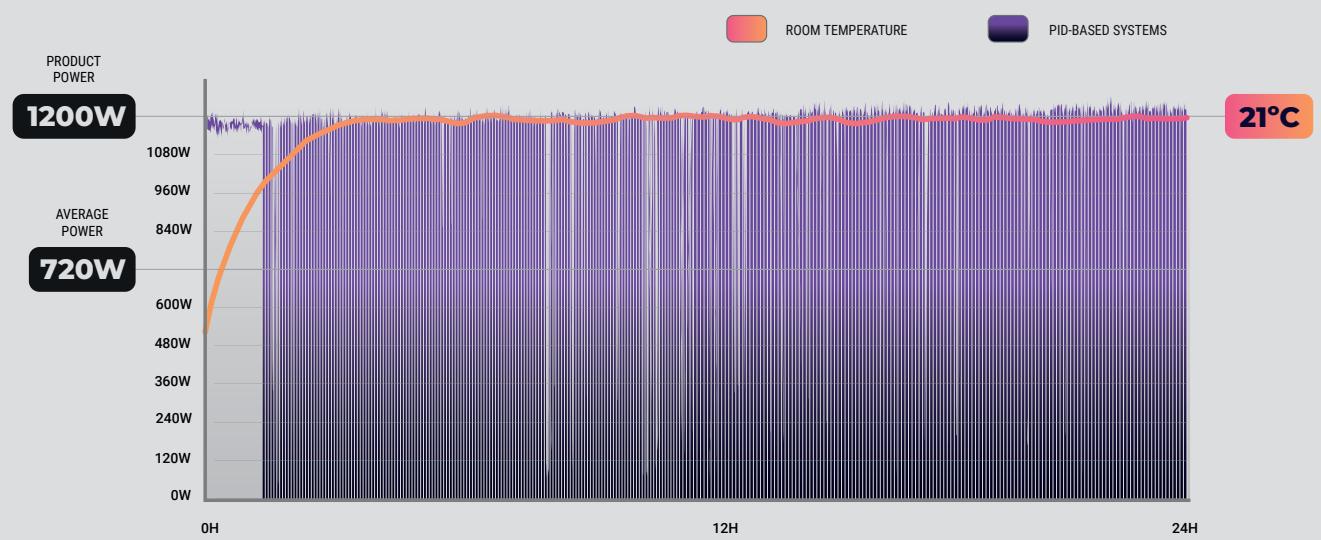

OTHER SYSTEMS WITH PID CONTROLLERS

HOW DO THEY WORK?

PID-based systems operate at 100% of their product power continuously until the setpoint temperature is reached. Once this is reached, they perform micro-cuts in consumption over this rated power. These micro-cuts determine the average power, which remains consistently between 38% and 40% of the rated power.

BENEFITS

Modern office interior with a white heat sink and orange light trails, no visible text or symbols

FASTER HEATING SPEED

The product uses 100% of its power to quickly reach the desired temperature and then reduces its consumption to maintain it efficiently.

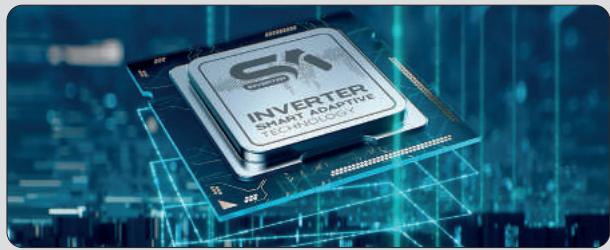

Close-up of an Inverter Smart Adaptive TECHNOLOGY chip on a glowing circuit board (no text or symbols visible)

LOWER STABILISATION POWER

When the desired temperature is reached, the product employs algorithms that gradually reduce the power to optimise energy and keep the room comfortable.

Its lower stabilisation power, combined with a random coefficient that distributes the consumption of the products out of sync, avoids power peaks.

MANAGED WITH AI

Our Artificial Intelligence systems allow the products to manage energy intelligently, ensuring stable heat and optimised consumption.

HOW DOES IT WORK?

This patented technology allows our radiators to gradually adjust their power by up to 80% in an intelligent way, to adapt their consumption to the comfort needs of the room, keeping the room temperature more stable.

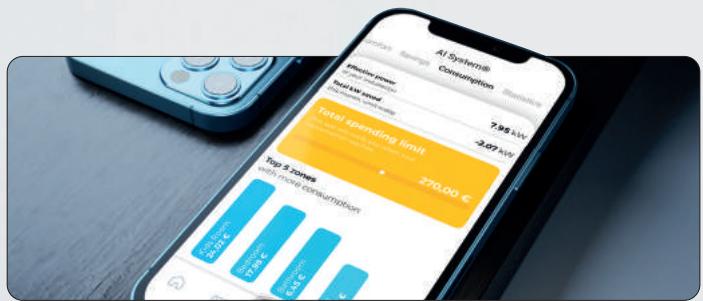

CONTROL 60%' OF YOUR HOME'S ENERGY FROM A

SINGLE APP

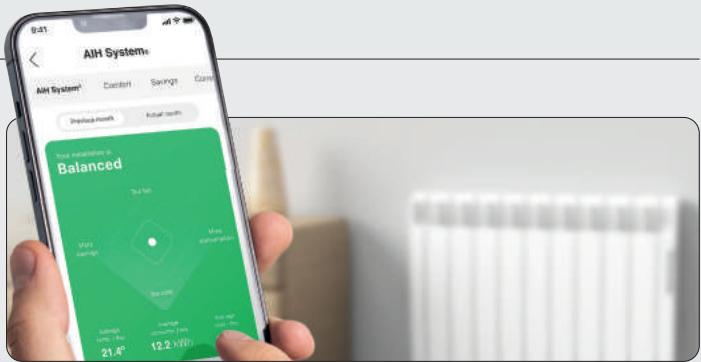

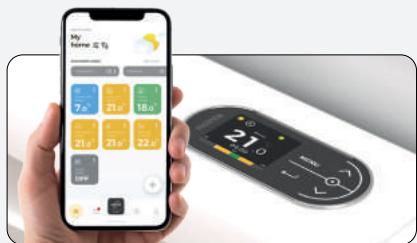

Rointe Nexa

Discover the Rointe Global Electric Heating Solution with WiFi control through Rointe NEXA, the app that transforms your heating into a 100% intelligent ecosystem. Control your radiators, towel rails, underfloor heating and hot water with Rointe products, inside and outside the home, from the comfort of your smartphone.

BENEFITS

CONTROL YOUR ENERGY CONSUMPTION

Set a maximum monthly spending limit from the application and, thanks to its smart alerts system, you will be notified in advance when you're close to reaching it.

Aerial view of a residential area with houses, roads, and green spaces; overlaid with a red trajectory line and a map icon (no readable text or symbols)

GPS ON/OFF

Enable GPS automation in your app so your devices automatically turn off when you leave home and turn on when you return, giving you convenience and energy efficiency.

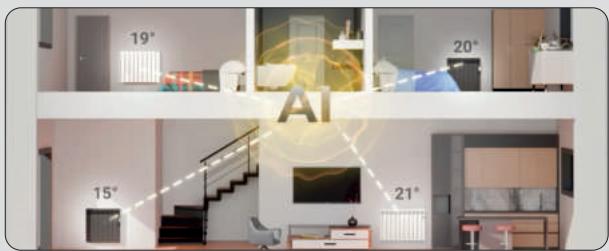

AI APPLIED TO YOUR HEATING

Discover how artificial intelligence transforms your home experience. Know the thermal state of your home and receive advice on how to optimise your energy consumption more efficiently.

Person holding smartphone with warning icon above (no text or symbols on device)

STAY INFORMED AT ALL TIMES

Lost your internet connection? Has someone unplugged a device? Rointe Nexa alerts you in real time and helps you to resolve any incident, so that you never lose control.

Close-up of soil layers with visible erosion and discoloration, showing brown and green sedimentary strata (no text or symbols)

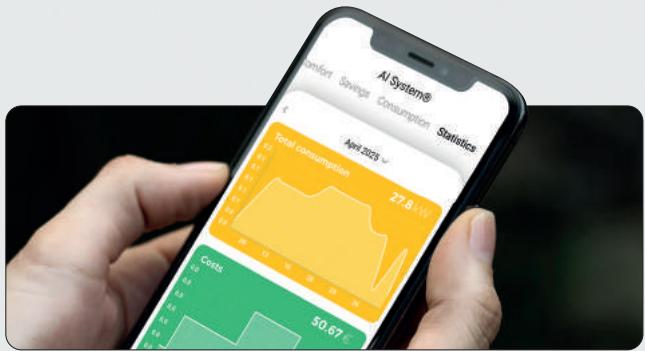

KNOW IN DETAIL HOW YOU USE YOUR ENERGY

Rointe Nexa allows you to know the energy use in your heating, with data on consumption by product. It also shows how much you have saved, making it easier to manage your well-being more efficiently.

A couple sleeping together in bed, eyes closed, under dark blue lighting (no text or symbols visible)

NEW NIGHT AND HOLIDAY MODES

Save up to 8% while you sleep with Night Mode, or activate Holiday mode and come home to the perfect temperature and hot water ready and waiting. Enjoy efficient comfort with Rointe NEXA.

1 Source: Institute for Energy Diversification and Saving (IDAE).

NEW!

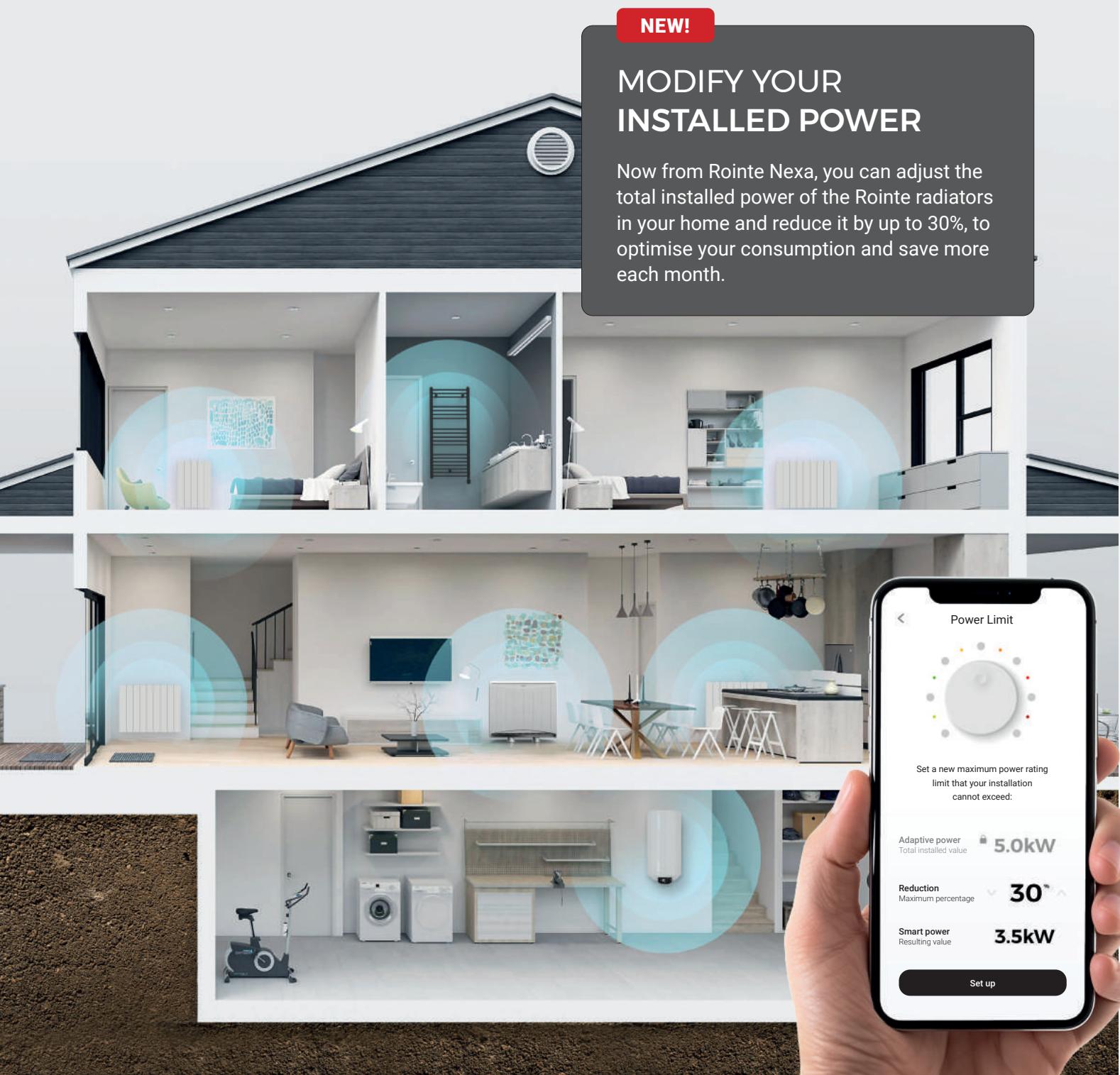

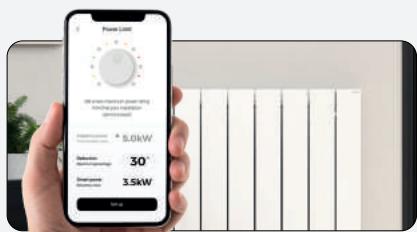

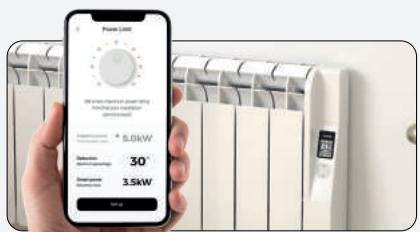

MODIFY YOUR INSTALLED POWER

Now from Rointe Nexa, you can adjust the total installed power of the Rointe radiators in your home and reduce it by up to 30%, to optimise your consumption and save more each month.

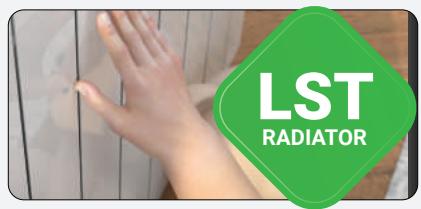

GENTLE AND SAFE HEAT THAT PROTECTS EVEN THE MOST SENSITIVE OF PEOPLE

Heating products with surfaces above 75^ C (radiant panels or water radiators) can quickly cause burns and are dangerous for children, the elderly, sensitive people and pets. These high temperatures make them unsuitable for installation in nurseries, schools or residential homes, for example.

Rointe LST radiators incorporate an innovative sensor that measures the surface temperature of the product and allows you to customise its operation from the App, to effectively reduce the surface temperature of the product.

LST RADIATOR

100% safe for: nurseries, schools, care homes, housing associations, hospitals...

Setting your personalised limit is as easy as accessing the application and setting the desired maximum contact temperature with the 'Surface Temperature Limit' function.

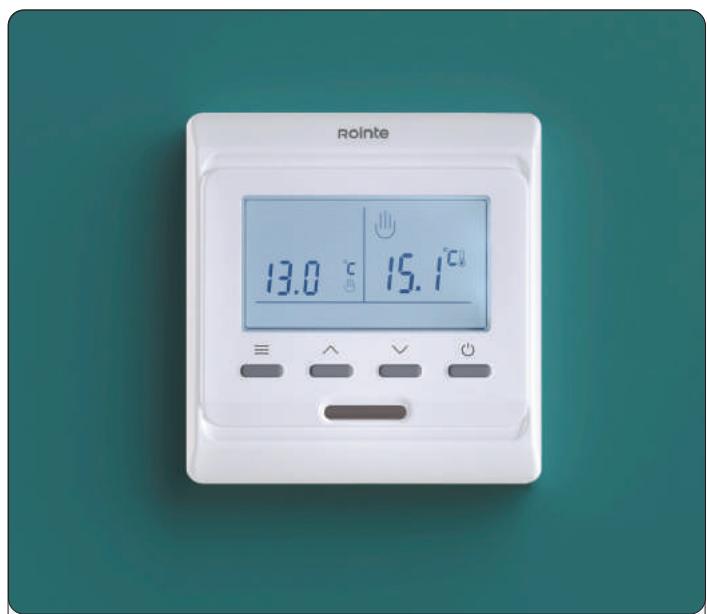

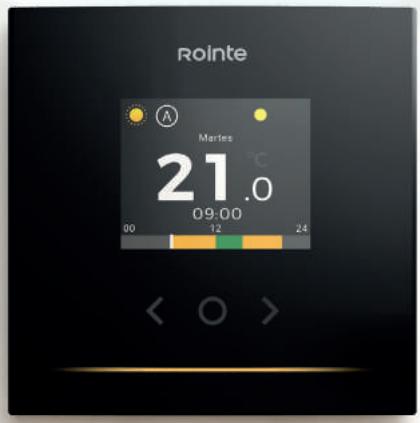

GENIUS THERMOSTAT:

CENTRALISED CONTROL

OF YOUR SYSTEM

Discover GENIUS, the new Rointe digital thermostat that transforms the way you control your heating. Acting as a central unit, GENIUS manages all the Rointe connected heating products in your home from a single place, offering you comfort, efficiency and total control with just one touch.

CENTRALISE YOUR INSTALLATION

Program, modify temperatures and control your entire system from a single point.

SINGLE READING SENSOR

Make your thermostat the only room temperature reading point in your system.

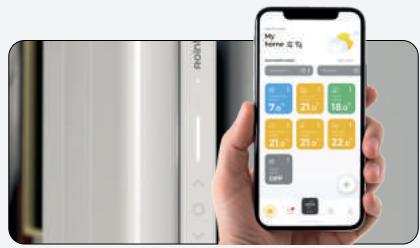

ALWAYS CONNECTED TO YOUR SMART PHONE

Control your thermostat anytime, anywhere from your smart phone.

Abstract composition with two overlapping circular shapes in blue and orange tones (no text or symbols)

Row of black rectangular blocks with vertical lines, no visible text or symbols

ELECTRIC

RADIATORS

We've developed radiators capable of offering you a soft and enveloping warmth, day or night, in all the rooms of your home.

With Rointe, comfort enters your life to fill it with pure wellbeing.

EONIQ Radiator Wi Fi DIRECT	12
Belize Radiator Wi Fi DIRECT	14
Olympia Radiator Wi Fi DIRECT	16
Kyros Radiator Wi Fi DIRECT	18
Sygma Radiator	20
Palaos WiFi Radiator Wi Fi DIRECT	22
Radiator accessories	24

EONIQ WI FI DIRECT

INVERTER SMART ADAPTIVE ENERGY-EFFICIENT RADIATOR WITH WIFI & AI

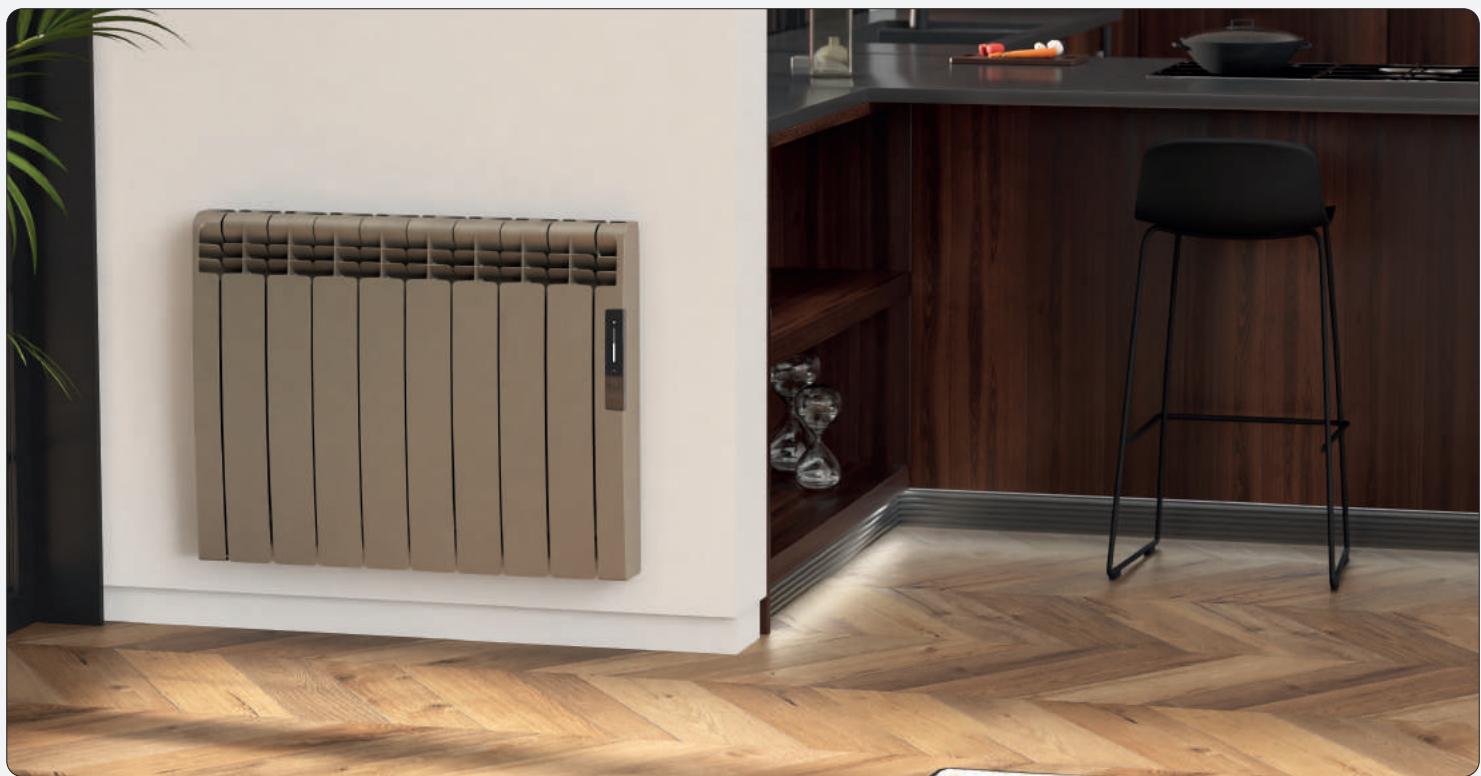

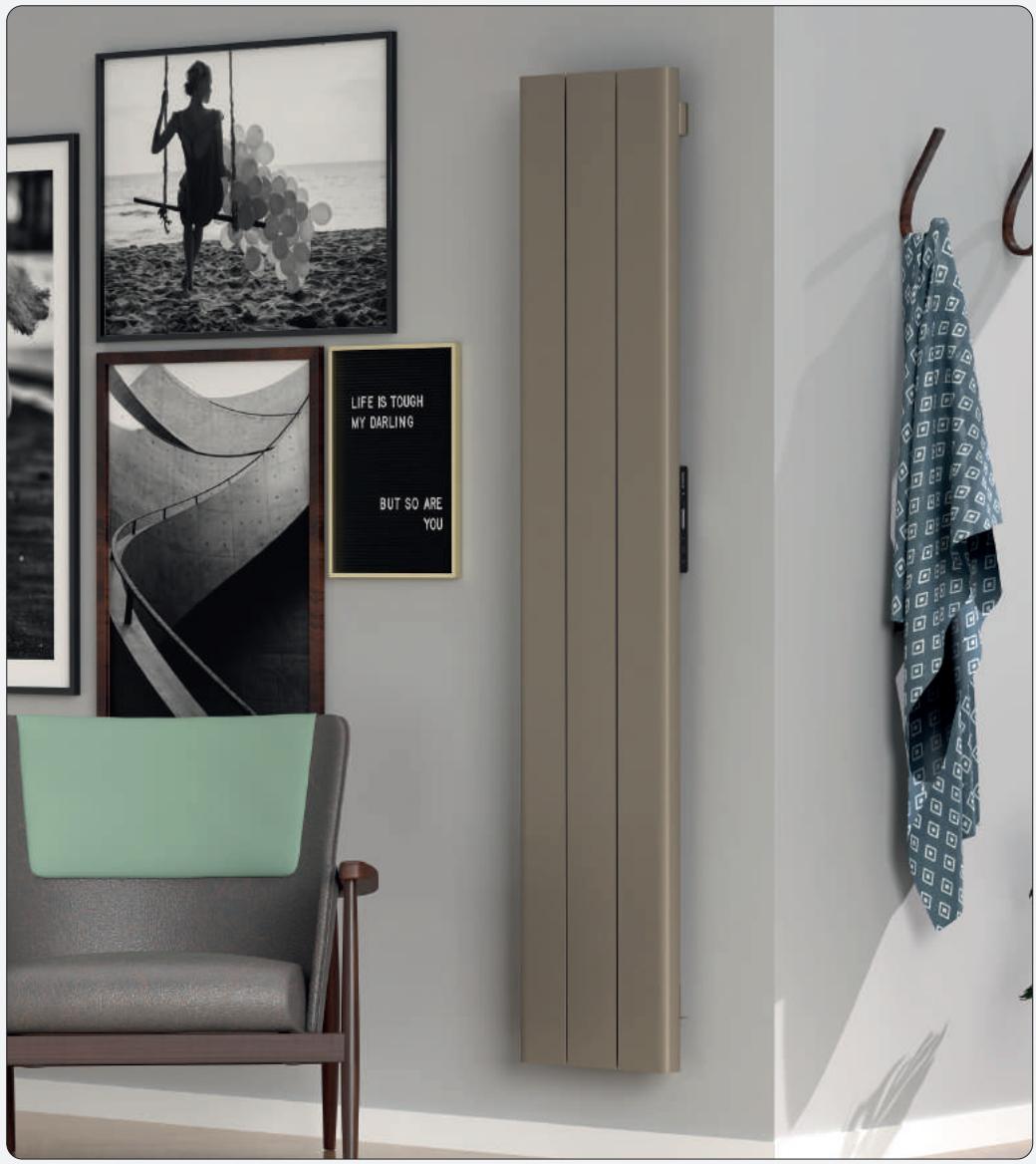

Displayed model

ERIP1200RAD2 - EONIQ 1200W Pearl Beige RAL 1035

Modern kitchen interior with a wall-mounted heater and wooden flooring, featuring a black stool and kitchen counter (no visible text or symbols)

RATED POWER SETTING

Configure the power of the radiators from the App, adapting them to your contracted electrical power.

LOW TEMPERATURE FUNCTION

The LST function limits the contact temperature with the radiator aluminium surface.

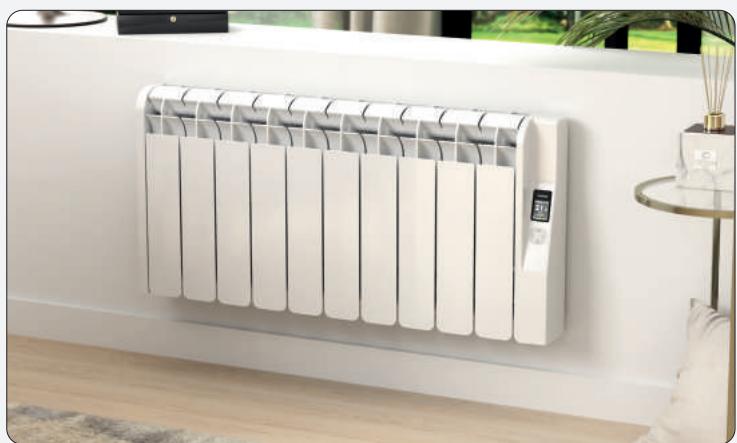

MAXIMUM ENERGY SAVINGS

The radiator uses only 35 % of its average rated output to maintain thermal comfort. ^4

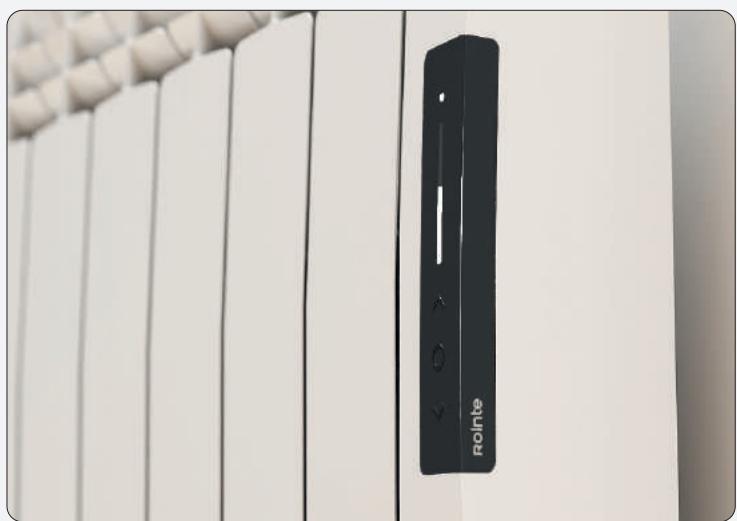

Close-up of a black Rointe device mounted on a white panel, with no visible text or symbols on the device itself.

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with LED indicator

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Inverter Smart Adaptive Tech

Thermal Fluid Tech

High sensitivity thermostat

Compatible with voice assistants

EFFICIENCY

Effective Power ^3

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Power limitation

Programmable from App

4 pre-installed programmes

Lock from product & App

Limited mode for guests

Surface temp. limitation

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Front-opening body

100% aluminium body

100% aluminium sides

White RAL 9016

Textured Black RAL 9005

Textured Oyster White RAL 1013

Textured Pearl Beige RAL 1035

Textured Dark Grey RAL 7010

TECHNICAL SPECIFICATIONS

MODELS	White	ERIW0600RAD2	ERIW1200RAD2	ERIW1800RAD2
	Black	ERIB0600RAD2	ERIB1200RAD2	ERIB1800RAD2
	Oyster White	ERIO0600RAD2	ERIO1200RAD2	ERIO1800RAD2
	Pearl Beige	ERIP0600RAD2	ERIP1200RAD2	ERIP1800RAD2
	Dark Grey	ERIG0600RAD2	ERIG1200RAD2	ERIG1800RAD2
Nominal Power (W)		600	1200	1800
Effective Power (W) ^3		210	420	630
Number of elements		4	8	12
Weight (Kg)		10.9	17.0	25.1
Recommended area (m ^2 )		From 3 to 8 m ^2	From 6 to 16 m ^2	From 14 to 25 m ^2
Finishes	White RAL 9016 / Textured black RAL 9005 / Textured RAL 1013 / Textured RAL 1035 / Textured RAL 7010
EAN13	White	8435556162858	8435556162865	8435556162872
	Black	8435556162889	8435556162896	8435556162902
	Oyster White	8435556162919	8435556162926	8435556162933
	Pearl Beige	8435556162940	8435556162957	8435556162964
	Dark Grey	8435556162971	8435556162988	8435556162995

SCHEME Dimensions in mm.

PRODUCT VIDEO

AUGMENTED REALITY

DOWNLOAD APP ROINTE NEXA

1) Compatible with 2.4 GHz Wi-Fi networks. 2) The figure may vary depending on the circumstances of the electrical installation. 3) Tests carried out in independent laboratories.

The product includes 1.7 m cable with plug (outlet right side), brackets, installation kit + template and user manual.

BELIZE

WIF DIRECT

INVERTER SMART ADAPTIVE ENERGY-EFFICIENT RADIATOR WITH WIFI & AI

Displayed model

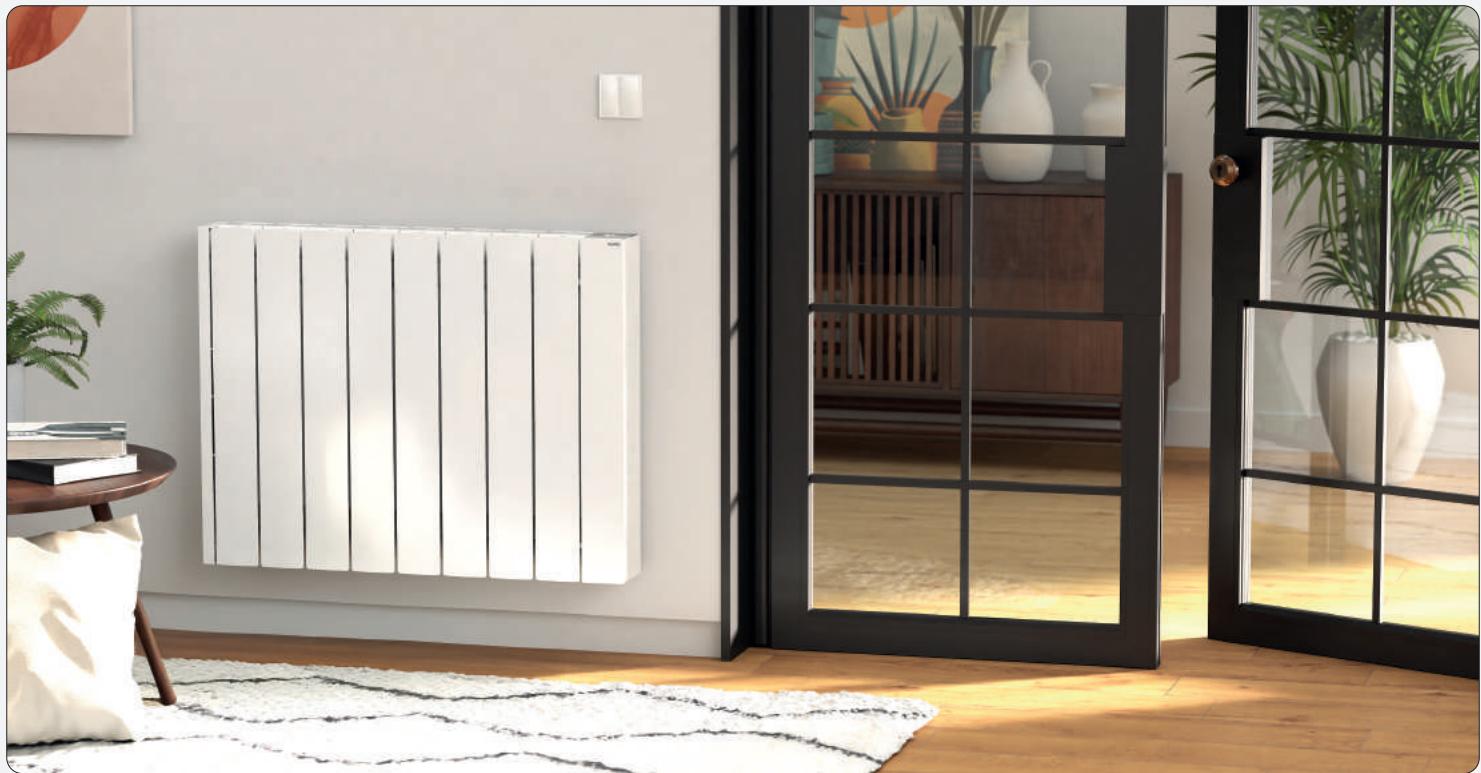

BRIW1200RAD3 - Belize 1200W white RAL 9016

Modern interior scene with white wall-mounted heating unit, wooden flooring, and glass doors (no visible text or symbols)

RATED POWER SETTING

Configure the power of the radiators from the App, adapting them to your contracted electrical power.

LOW TEMPERATURE FUNCTION

The LST function limits the contact temperature with the radiator aluminium surface.

MAXIMUM ENERGY SAVINGS

The radiator uses only 35 % of its average rated output to maintain thermal comfort. ^4

Modern wall-mounted heating element with vertical panel, placed on a wooden floor next to a small red electronic device (no text or symbols visible)

Displayed model

BRIW1250RADC4 - Belize Short 1250W white RAL 9016

Close-up of a white Rointe medical device with a digital display showing temperature reading (no readable text or symbols beyond branding)

Close-up of a black Rointe smartwatch with display screen and control buttons (no readable text or symbols)

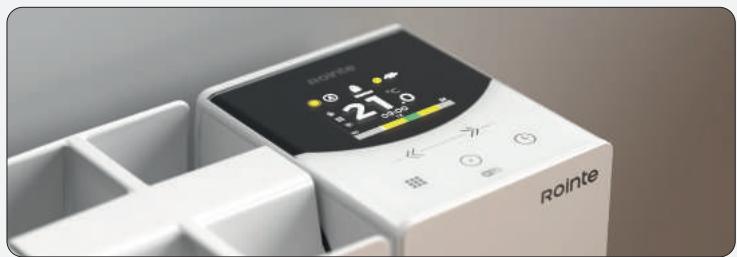

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with TFT display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Inverter Smart Adaptive Tech

Thermal Fluid Tech

High sensitivity thermostat

Compatible with voice assistants

EFFICIENCY

Effective Power ^3

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Power limitation

Programmable product & App

4 pre-installed programmes

Lock from product & App

Limited mode for guests

Surface temp. limitation

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Top-opening body

Short model available

100% aluminium body

PC/ABS sides

White RAL 9016

Matt Black RAL 9005

TECHNICAL SPECIFICATIONS

SHORT VERSION

MODELS	White	BRIW0600RAD3	BRIW1200RAD3	BRIW1800RAD3	BRIW1000RADC4	BRIW1250RADC4	BRIW1500RADC4
	Black	BRIB0600RAD3	BRIB1200RAD3	BRIB1800RAD3	BRIB1000RADC4	BRIB1250RADC4	BRIB1500RADC4
Nominal Power (W)		600	1200	1800	1000	1250	1500
Effective Power (W) ^3		210	420	630	350	437	525
Number of elements		4	8	12	8	10	12
Weight (Kg)		8.8	14.3	21.8	8.9	12.7	16.4
Recommended area (m ^2 )		From 3 to 8 m ^2	From 6 to 16 m ^2	From 14 to 25 m ^2	From 5 to 14 m ^2	From 6 to 17 m ^2	From 7 to 21 m ^2
Finishes	White RAL 9016 / Matt Black RAL 9005				White RAL 9016 / Matt Black RAL 9005
EAN13	White	8435556165347	8435556166351	8435556166368	8435556166603	8435556166610	8435556166627
	Black	8435556166375	8435556166382	8435556166399	8435556166634	8435556166641	8435556166658

SCHEME Dimensions in mm.

CE

ecodesign LOT20READY

PRODUCT VIDEO

AUGMENTED REALITY

DOWNLOAD APP ROINTE NEXA

1) Compatible with 2.4 GHz Wi-Fi networks. 2) The figure may vary depending on the circumstances of the electrical installation. 3) Tests carried out in independent laboratories.

The product includes 1.7 m cable with plug (outlet right side), brackets, installation kit + template and user manual.

OLYMPIA

WIFIDIRECT

INVERTER SMART ADAPTIVE ENERGY-EFFICIENT RADIATOR WITH WIFI & AI

Displayed model

ORIW1200RAD3 - Olympia 1200W white RAL 9016

Modern living room interior with white wall-mounted heating unit and brown sofa, wooden flooring, and large window (no text or symbols visible)

RATED POWER SETTING

Configure the power of the radiators from the App, adapting them to your contracted electrical power.

LOW TEMPERATURE FUNCTION

The LST function limits the contact temperature with the radiator aluminium surface.

MAXIMUM ENERGY SAVINGS

The radiator uses only 35 % of its average rated output to maintain thermal comfort. ^4

Close-up of a black Rointe smart appliance with a digital display showing temperature and control buttons (no readable text beyond branding)

Close-up of a white Rointe appliance with a digital display showing temperature and speed indicators (no readable text beyond branding)

FEATURES

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with TFT display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Inverter Smart Adaptive Tech

Natural Stone Tech

High sensitivity thermostat

Compatible with voice assistants

EFFICIENCY

Effective Power ^3

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Power limitation

Programmable product & App

4 pre-installed programmes

Lock from product & App

Limited mode for guests

Surface temp. limitation

Night saving mode

Holida mode

Countdown timer

DESIGN AND FINISHES

Top-opening body

100% aluminium body

PC/ABS sides

White RAL 9016

Matt Black RAL 9005

TECHNICAL SPECIFICATIONS

MODELS	White	ORIW0600RAD3	ORIW1200RAD3	ORIW1800RAD3
	Black	ORIB0600RAD3	ORIB1200RAD3	ORIB1800RAD3
Nominal Power (W)		600	1200	1800
Effective Power (W) ^3		210	420	630
Number of elements		4	8	12
Weight (Kg)		13.8	26.3	40.3
Recommended area ( m^2 )		From 3 to 8 m^2	From 6 to 16 m^2	From 14 to 25 m^2
Finishes			White RAL 9016 / Matt Black RAL 9005
EAN13	White	8435556166856	8435556166863	8435556166870
	Black	8435556166887	8435556166894	8435556166900

SCHEME Dimensions in mm.

PRODUCT VIDEO

AUGMENTED REALITY

DOWNLOAD APP ROINTE NEXA

1) Compatible with 2.4 GHz Wi-Fi networks. 2) The figure may vary depending on the circumstances of the electrical installation. 3) Tests carried out in independent laboratories.

The product includes 1.7 m cable with plug (outlet right side), brackets, installation kit + template and user manual.

KYROS

WIFI DIRECT

INVERTER SMART ADAPTIVE ENERGY-EFFICIENT RADIATOR WITH WIFI & AI

Displayed model

KRIW1200RAD4 - Kyros 1200W white RAL 9016

Modern residential appliance with a white electric heater mounted on a wall, placed in a room with bookshelves and curtains (no visible text or symbols)

RATED POWER SETTING

Configure the power of the radiators from the App, adapting them to your contracted electrical power.

LOW TEMPERATURE FUNCTION

The LST function limits the contact temperature with the radiator aluminium surface.

MAXIMUM ENERGY SAVINGS

The radiator uses only 35 % of its average rated output to maintain thermal comfort. ^4

Modern white solar heating radiator mounted on a wall, with a digital display and side table nearby (no visible text or symbols)

Displayed model

KRIW1250RADC4 - Kyros Short 1250W white RAL 9016

Close-up of a Rointe air conditioner unit with digital display showing 21.0°C and time 09:00 (no readable text beyond branding)

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with TFT display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Inverter Smart Adaptive Tech

Thermal Fluid Tech

High sensitivity thermostat

Compatible with voice assistants

EFFICIENCY

Effective Power ^3

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Power limitation

Programmable product & App

4 pre-installed programmes

Lock from product & App

Limited mode for guests

Surface temp. limitation

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Front-opening body

Short model available

100% aluminium body

PC/ABS sides

White RAL 9016

Matt Black RAL 9005

TECHNICAL SPECIFICATIONS

SHORT VERSION

MODELS	White	KRIW0600RAD4	KRIW1200RAD4	KRIW1800RAD4	KRIW1000RADC4	KRIW1250RADC4	KRIW1500RADC4
	Black	KRIB0600RAD4	KRIB1200RAD4	KRIB1800RAD4	KRIB1000RADC4	KRIB1250RADC4	KRIB1500RADC4
Nominal Power (W)		600	1200	1800	1000	1250	1500
Effective Power (W) ^3		210	420	630	350	437	525
Number of elements		4	8	12	8	10	12
Weight (Kg)		8.8	16.3	23.8	10.0	13.4	17.0
Recommended area (m ^2 )		From 3 to 8 m ^2	From 6 to 16 m ^2	From 14 to 25 m ^2	From 5 to 14 m ^2	From 6 to 17 m ^2	From 7 to 21 m ^2
Finishes	White RAL 9016 / Matt Black RAL 9005				White RAL 9016 / Matt Black RAL 9005
EAN13	White	8435556162452	8435556162469	8435556162476	8435556162643	8435556162650	8435556162667
	Black	8435556162483	8435556162490	8435556162506	8435556162674	8435556162681	8435556162698

SCHEME Dimensions in mm.

CE

ecodesign LOT20READY

PRODUCT VIDEO

AUGMENTED REALITY

DOWNLOAD APP ROINTE NEXA

1) Compatible with 2.4 GHz Wi-Fi networks. 2) The figure may vary depending on the circumstances of the electrical installation. 3) Tests carried out in independent laboratories.

The product includes 1.7 m cable with plug (outlet right side), brackets, installation kit + template and user manual.

SYGMA

ENERGY-EFFICIENT DIGITAL RADIATOR PROGRAMABLE 24/7

Displayed model

SRI1200RAD2 - Sygma 1200W white RAL 9016

Modern living room interior with white wall-mounted air conditioner unit and gray armchair, no visible text or symbols

Interior scene with white bookshelves and a wooden table, no visible text or symbols

PLUG & PLAY INSTALLATION

Simple connection that allows you to enjoy cosy and comfortable warmth almost immediately.

REMOTE CONTROL

Infrared remote control available. More detailed information on page 24.

MAXIMUM ENERGY SAVINGS

The radiator only uses an average of 38% of its rated power to maintain comfort. ^1

Exterior view of a modern heating radiator mounted on a wooden floor (no text or symbols visible)

Displayed model

SRI1250RADC3 - Sygma Short 1250W white RAL 9016

FEATURES

CONTROL AND TECHNOLOGY

5-button mechanical panel

Green TFT display

Optional remote control

Comfort, Eco and Anti-frost mode

Fuzzy Logic Energy Control

Thermal Fluid Tech

High sensitivity thermostat

EFFICIENCY

Effective Power ^1

Func. Open Windows

Early Start function

FUNCTIONALITY

Programmable product & remote

Lock from product & remote

DESIGN AND FINISHES

Top-opening body

Short model available

100% aluminium body

PC/ABS sides

White RAL 9016

TECHNICAL SPECIFICATIONS

SHORT VERSION

MODELS	SRI0600RAD3	SRI1200RAD3	SRI1800RAD3	SRI1000RADC3	SRI1250RADC3	SRI1500RADC3
Nominal Power (W)	600	1200	1800	1000	1250	1500
Effective Power (W) ^1	210	420	630	350	437	525
Number of elements	4	8	12	8	10	12
Weight (Kg)	8.8	14.3	23.8	10.0	13.4	17.3
Recommended area ( m^2 )	From 3 to 8 m^2	From 6 to 16 m^2	From 14 to 25 m^2	From 5 to 14 m^2	From 6 to 17 m^2	From 7 to 21 m^2
Finishes		White RAL 9016			White RAL 9016
EAN13	8435556163237	8435556163244	8435556163251	8435556163299	8435556163305	8435556163312

SCHEME Dimensions in mm.

PRODUCT VIDEO

AUGMENTED REALITY

1) Tests carried out in independent laboratories.

The product includes 1.7 m cable with plug (outlet right side), brackets, installation kit + template and user manual.

PALAOS

WIFIDIRECT

ENERGY-EFFICIENT DIGITAL RADIATOR WITH WIFI & AI

Displayed model

EVIP1500RAD2 - Palaos WiFi 1500W Textured Pearl Beige RAL 1035

SMARTPHONE CONTROL

Control your Palaos radiator whenever and wherever you want from the new Rointe NEXA app.

Interior view of a modern living room with a window, hanging curtains, and a green plant (no visible text or symbols)

DESIGN WITH HIDDEN PANEL

The panel is concealed on the side, allowing a clean and uniform front view.

Close-up of a black electronic device with a vertical control panel and indicator lights, mounted on a plain wall (no visible text or symbols)

MAXIMUM ENERGY SAVINGS

Its technology allows the product to offer maximum performance with minimum consumption.

FEATURES

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with LED indicator

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Liquid Stone Tech

OPTIMIZER
Optimizer Energy Plus

High sensitivity thermostat

Compatible with voice assistants

EFFICIENCY

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Programmable from App

4 pre-installed programmes

Lock from product & App

Limited mode for guests

Surface temp. limitation

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

SLIMLINE design body

100% aluminium body

Textured White RAL 9016

Anthracite SANDBLAST

Textured Pearl Beige RAL 1035

TECHNICAL SPECIFICATIONS

MODELS	White	PIW1000WF	PIW1500WF	PIW2000WF
	Black	PIB1000WF	PIB1500WF	PIB2000WF
	Pearl Beige	PIP1000WF	PIP1500WF	PIP2000WF
Nominal Power (W)		1000	1500	2000
Number of elements		2	3	4
Weight (Kg)		11.0	15.5	20.5
Recommended area ( m^2 )		From 5 to 14 m^2	From 7 to 17 m^2	From 16 to 28 m^2
Finishes	White RAL 9016 textured / Anthracite Sandblast / RAL 1035 textured
EAN13	White	8435556167037	8435556167044	8435556167051
	Black	8435556167068	8435556167075	8435556167082
	Pearl Beige	8435556167099	8435556167105	8435556167112

SCHEME Dimensions in mm.

1000W

1500W

2000W

PRODUCT VIDEO
AUGMENTED REALITY

DOWNLOAD APP ROINTE NEXA

1) Compatible with 2.4 GHz Wi-Fi networks. 2) The figure may vary depending on the circumstances of the electrical installation.

The product includes 1.7 m cable without plug (outlet right side), brackets, installation kit + template and user manual.

ACCESSORIES

FOR ROINTE ELECTRIC

RADIATORS

AIR CONTROL REMOTE CONTROL

CONTROL

• Soft touch buttons and TFT display.
• Send up to 3 metres.
• Reception up to 1 metre.

FUNCTIONALITY

• 24/7 Programmer.
- Manual / Automatic function.
• Control of the illumination of the product display.
- Clear memory.
- Remote locking of the product.
- Display of the effective power of the product.

DESIGN

• Body made of PC/ABS.
• Power supply: 2 AAA batteries (included).
• Wall support included.

MODEL	ACMI120
Width x height x depth (mm)	54 x 177 x 21
Depth with bracket (mm)	25
Weight (g)	130
Finish	White
EAN13	8436045914286

Displayed model
ACMN120 - AIR Control control

Two white plastic water pushers with black wheels and metal handles, displayed against a plain background (no text or symbols visible)

WHEEL KIT

Complete set of wheels to transform the product into a portable radiator. Includes 2 metal plates, 4 castors, fixing system and assembly diagram.

Not compatible with PALAOS radiators.

IMPORTANT

Rointe radiators are designed to be hung on the wall and their correct sizing is essential to achieve maximum efficiency.

Rointe is not responsible for a possible reduction in the efficiency of the product due to the installation of wheels to enable its mobility.

MODELS	White	RIRW02
	Black	RIRB02
Units per pack		2
Compatible with		Eoniq, Belize, Olympia, Kyros and Sygma
Finishes		White RAL 9010 / Matt Black RAL 9005
EAN13	White	8435556162278
	Black	8435556162285

Black metal panel with vertical slots placed on a wooden floor against a beige wall (no text or symbols visible)

Displayed model

RKYB0600 - Protective grille matt black RAL 9005

White industrial air conditioner unit with vertical ventilation grilles, mounted on a wooden floor against a beige wall (no text or symbols visible)

Displayed model
RKYW0600 - Protective grille white RAL 9016

PROTECTIVE GRILLS

Vandal-resistant protective grill designed to prevent tampering with the product. Not compatible with PALAOS radiators.

MODELS	STANDARD VERSION				SHORT VERSION
	White	RKYW0600	RKYW1200	RKYW1800	RKYW1000C	RKYW1250C	RKYW1500C
	Black	RKYB0600	RKYB1200	RKYB1800	RKYB1000C	RKYB1250C	RKYB1500C
Width x height (mm)		600 x 660	840 x 660	1160 x 660	840 x 500	1000 x 500	1160 x 500
Depth (mm)		150	150	150	150	150	150
Compatible with (no. of items)		4	8	12	8	10	12
Finishes	White RAL 9016 / Matt Black RAL 9005				White RAL 9016 / Matt Black RAL 9005
EAN13	White	8435556168119	8435556168126	8435556168133	8435556168157	8435556168164	8435556168171
	Black	8435556168188	8435556168195	8435556168201	8435556168225	8435556168232	8435556168249

Modern bathroom wall with black lattice heater and towel, featuring marble and black hexagonal background (no text or symbols)

ELECTRIC

TOWEL RAILS

Envelop your bathroom in comfortable warmth, while enjoying soft, dry towels. With Rointe towel rails, you can turn your bathroom into a space of pure wellbeing, where you can relax after an intense day's work.

Neø towel rail WiFi DIRECT	28
Orion towel rail WiFi DIRECT	30
Venezia Oval WiFi towel rail WiFi DIRECT	32
Elba Oval WiFi towel rail WiFi DIRECT	33
Elba Plus towel rail	34
Elba SWT towel rail	36
Elba Cable towel rail	37
Sublime towel rail	38
Milano towel rail with built-in fan heater	39

WIFIDIRECT

ENERGY-EFFICIENT DIGITAL TOWEL RAIL WITH WIFI & AI

Displayed model

NTI045SEB - NE∅ 500W textured black RAL 9005

Modern wall-mounted heater with black horizontal bars installed on a tiled wall, next to a window and kitchen sink (no text or symbols visible)

SMARTPHONE CONTROL

Control your towel rail whenever and wherever you want with the new Rointe NEXA app.

Close-up of a kitchen appliance control panel with a progress bar and indicator lights (no text or symbols visible)

INNOVATIVE DESIGN

The product has an integrated control panel which gives it a clean and uniform appearance.

Close-up of a server rack with multiple slots and a control panel (no visible text or symbols)

MAXIMUM ENERGY SAVINGS

Its technology allows the product to offer maximum performance with minimum consumption.

Close-up of a modern kitchen appliance with horizontal shelves and a digital control panel (no visible text or symbols)

Modern bathroom radiator with white panel against a green tiled wall and wall-mounted mirror (no text or symbols visible)

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with LED indicator

Comfort, Eco and Anti-frost mode

Bluetooth pairing

OPTIMIZER

Optimizer Energy Plus

Optimum Flux Tech

High sensitivity thermostat

Compatible with voice assistants

EFFICIENCY

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Programmable from App

4 pre-installed programmes

Product and App lock

Limited mode for guests

Boost function up to 2 hours

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Concealed brackets

Integrated control panel

STEEL

100% steel body

White RAL 9016

Textured Black RAL 9005

Chrome mirror

Oyster White Text. RAL 1013

Pearl Beige Text. RAL 1035

Dark Grey Text. RAL 7010

TECHNICAL SPECIFICATIONS

MODELS	White	NTI030SEW	NTI050SEW	NTI075SEW
	Black	NTI030SEB	NTI050SEB	NTI075SEB
	Chrome	NTI030SEC	NTI050SEC	NTI075SEC
	Oyster White	NTI030SEO	NTI050SEO	NTI075SEO
	Pearl Beige	NTI030SEP	NTI050SEP	NTI075SEP
	Dark Grey	NTI030SEG	NTI050SEG	NTI075SEG
Nominal Power (W)	White / Black / RAL	300	500	750
	Chrome	300	300	500
Number of bars		13	17	21
Width - L (mm)		500	500	500
Recommended area ( m^2 )		Up to 3 m^2	Up to 5 m^2	Up to 7.5 m^2
Finishes	White RAL 9016 / Black textured RAL 9005 / Chrome / RAL 1013 text. / RAL 1035 text. / RAL 7010 text.
EAN13	White	8435556163626	8435556163633	8435556163640
	Black	8435556163688	8435556163695	8435556163701
	Chrome	8435556163657	8435556163664	8435556163671
	Oyster White	8435556163718	8435556163725	8435556163732
	Pearl Beige	8435556163749	8435556163756	8435556163763
	Dark Grey	8435556163770	8435556163787	8435556163794

SCHEME Dimensions in mm.

300W

300 / 500W

500 / 750W

PRODUCT VIDEO

AUGMENTED REALITY

DOWNLOAD APP ROINTE NEXA

1) Compatible with 2.4 GHz Wi-Fi networks. 2) The figure may vary depending on the circumstances of the electrical installation.

The product includes 1.4 m cable without plug (right side outlet), brackets, installation kit + template and user manual.

ORION

WIFIDIRECT

ENERGY-EFFICIENT DIGITAL TOWEL RAIL WITH WIFI & AI

Displayed model

OTI030SEB4 - Orion 300W white

Modern bathroom radiator with white lattice and digital display, set against a blue wall and decorative wall art (no text or symbols visible)

SMARTPHONE CONTROL

Control your towel rail whenever and wherever you want with the new Rointe NEXA app.

Modern kitchen appliance with horizontal metal grating and a digital control panel (no visible text or symbols)

ELEGANCE AND FUNCTIONALITY

Its innovative design, with a tilted control panel, makes it easier to control the product.

MAXIMUM ENERGY SAVINGS

Its technology allows the product to offer maximum performance with minimum consumption.

FEATURES

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

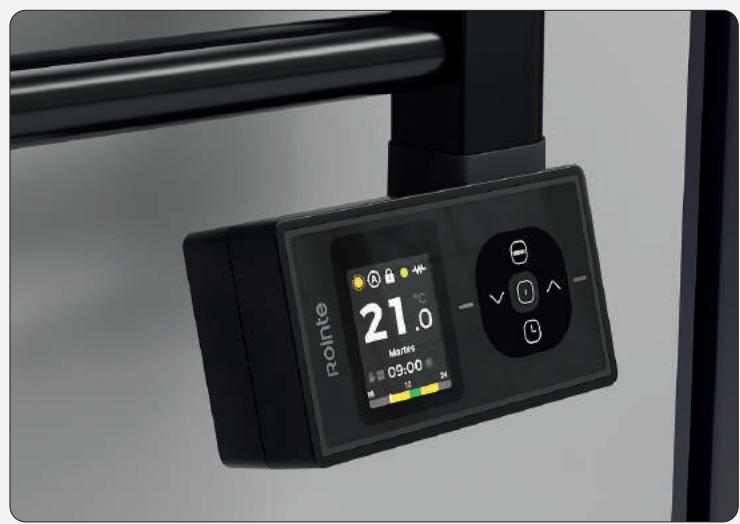

Touch panel with TFT display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

OPTIMIZER

Optimizer Energy Plus

Optimum Flux Tech

High sensitivity thermostat

Compatible with voice assistants

EFFICIENCY

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Programmable from App

4 pre-installed programmes

Product and App lock

Limited mode for guests

Boost function up to 2 hours

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Concealed brackets

30° inclined panel

STEEL

100% steel body

White RAL 9016

Matt Black RAL 9005

Chrome mirror

TECHNICAL SPECIFICATIONS

MODELS	White	OTI030SEB4	OTI050SEB4	OTI075SEB4
	Black	OTI030SEN4	OTI050SEN4	OTI075SEN4
	Chrome	OTI030SEC4	OTI050SEC4	OTI075SEC4
Nominal Power (W)	White / Black	300	500	750
	Chrome	300	300	500
Number of bars		12	19	26
Width - L (mm)		500	500	500
Weight (Kg)		7.4	11.6	14.6
Recommended area ( m^2 )		Up to 3 m^2	Up to 5 m^2	Up to 7.5 m^2
Finishes		White RAL 9016 / Matt black RAL 9005 / Chrome
EAN13	White	8435556167310	8435556167327	8435556167334
	Black	8435556167372	8435556167389	8435556167396
	Chrome	8435556167341	8435556167358	8435556167365

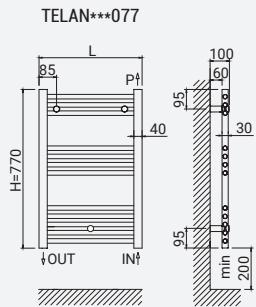

SCHEME Dimensions in mm.

300W

[Non-Text]

300 / 500W

[Non-Text]

500 / 750W

[Non-Text]

ecodesign LOT20READY

PRODUCT VIDEO

AUGMENTED REALITY

DOWNLOAD APP ROINTE NEXA

1) Compatible with 2.4 GHz Wi-Fi networks. 2) The figure may vary depending on the circumstances of the electrical installation.

The product includes 1.4 m cable without plug (right side outlet), brackets, installation kit + template and user manual.

Black horizontal ladder installed on a marble wall, no text or symbols visible

Displayed model

TVEWI50B120 - Venezia Oval Wi-Fi 500W black

THERMAL FLUID

VENEZIA OVAL WiFi DIRECT

ENERGY-EFFICIENT DIGITAL TOWEL RAIL WITH WIFI & AI

FEATURES

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel without display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Compatible with voice assistants

Optimizer Energy Plus

Optimum Flux Tech

High sensitivity thermostat

EFFICIENCY

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Programmable from App

4 pre-installed programmes

Product and App lock

Limited mode for guests

Boost function up to 2 hours

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Concealed brackets

Panel on left side

100% steel body

White RAL 9016

Black Text RAL 9005

TECHNICAL SPECIFICATIONS

MODELS	White	TVEWI50B077	TVEWI50B120
	Black	TVEWI50N077	TVEWI50N120
Nominal Power (W)		300	500
Number of bars		11	16
Width - L (mm)		500	500
Weight (Kg)		10.0	15.5
Recommended area ( m^2 )		Up to 3 m^2	Up to 5 m^2
Finishes		White RAL 9016 / Textured black RAL 9005
EAN13	White	8435556146926	8435556146933
	Black	8435556146964	8435556146971

ELBA ^OVAL (WIF DIRECT)

ENERGY-EFFICIENT DIGITAL TOWEL RAIL WITH WIFI & AI

FEATURES

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel without display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

PRODUCT
WITH REVERSIBLE PANEL product available to order with control panel on the left-hand manifold.

OPTIMIZER

Optimizer Energy Plus

Optimum Flux Tech

High sensitivity thermostat

Compatible with voice assistants

EFFICIENCY

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Programmable from App

4 pre-installed programmes

Product and App lock

Limited mode for guests

Boost function up to 2 hours

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Concealed brackets

100% steel body

White RAL 9016

Matt Black RAL 9005

Chrome mirror

Black horizontal heater with a white cloth hanging on top, against a plain wall (no text or symbols)

Displayed model
TELWI50B112 - Elba Oval WiFi 500W white

300 / 500W

500 / 750W

TECHNICAL SPECIFICATIONS

MODELS	White	TELWI50B077	TELWI50B112	TELWI50B150
	Black	TELWI50N077	TELWI50N112	TELWI50N150
	Chrome	TELWI50C077	TELWI50C112	TELWI50C150
Nominal Power (W)	White / Black	300	500	750
	Chrome	300	300	500
Number of bars		12	19	26
Width - L (mm)		500	500	500
Weight (Kg)		7.4	11.6	14.6
Recommended area ( m^2 )		Up to 3 m^2	Up to 5 m^2	Up to 7.5 m^2
Finishes		White RAL 9016 / Matt black RAL 9005 / Chrome
EAN13	White	8435556146742	8435556146759	8435556146766
	Black	8435556146827	8435556146834	8435556159186
	Chrome	8435556146780	8435556146797	8435556146803

ELBA PLUS

DIGITAL ELECTRIC TOWEL RAIL PROGRAMMABLE

Displayed model

TELL2I40B77 - Elba Plus 300W white

White horizontal heater with lattice bars against a marble wall, next to a decorative floral branch (no text or symbols visible)

Close-up of a metallic wall-mounted fixture with a circular dial indicator (no visible text or symbols)

PLUG & PLAY INSTALLATION

Simple connection that allows you to enjoy cosy and comfortable warmth almost immediately.

Close-up of a white industrial control panel with a digital display showing time and temperature (no readable text or symbols)

ELEGANCE AND FUNCTIONALITY

Its innovative design, with a circular, touch-sensitive control panel, makes it easier to control the product.

Black horizontal heater with vertical bars and a small circular sensor on the right, placed on a wooden surface with dried leaves in the foreground (no text or symbols visible)

MAXIMUM ENERGY SAVINGS

Its technology allows the product to offer maximum performance with minimum consumption.

Modern bathroom radiator with horizontal metal grilles and a digital water tap, next to a pink orchid branch (no text or symbols visible)

Black horizontal bar with a hanging control dial and floral decoration (no text or symbols visible)

FEATURES

CONTROL AND TECHNOLOGY

Touch panel with LCD display

Comfort, Eco and Anti-frost mode

Optimum Flux Tech

High sensitivity thermostat

EFFICIENCY

Open Windows function

FUNCTIONALITY

Programmable 24/7

Panel lock

DESIGN AND FINISHES

STEEL

100% steel body

White RAL 9016

Matt Black RAL 9005

Chrome mirror

Modern stainless steel horizontal heater with adjustable side rails and a small water level indicator, placed on a marble surface with floral decoration (no text or symbols visible)

PRODUCT

WITH REVERSIBLE PANEL

Available to order with control panel on the left-hand manifold.

TECHNICAL SPECIFICATIONS

MODELS	White	TELL2I40B77	TELL2I40B112	TELL2I50B77	TELL2I50B112
	Black	TELL2I40N77	TELL2I40N112	TELL2I50N77	TELL2I50N112
	Chrome	TELL2I40C77	TELL2I40C112	TELL2I50C77	TELL2I50C112
Nominal Power (W)	White / Black	300	500	300	500
	Chrome	300	300	300	300
Number of bars		12	19	12	19
Width - L (mm)		400	400	500	500
Weight (Kg)		6.1	9.8	10.6	15.9
Recommended area ( m^2 )		Up to 3 m^2	Up to 5 m^2	Up to 3 m^2	Up to 5 m^2
Finishes		White RAL 9016 / Matt black RAL 9005 / Chrome		White RAL 9016 / Matt black RAL 9005 / Chrome
EAN13	White	8435556164722	8435556164739	8435556164166	8435556164173
	Black	8435556164760	8435556164777	8435556164203	8435556164210
	Chrome	8435556164746	8435556164753	8435556164180	8435556164197

SCHEME Dimensions in mm.

300 / 500W

PRODUCT VIDEO

AUGMENTED REALITY

The product includes 1.4 m cable without plug (right side outlet), brackets, installation kit + template and user manual.

Black horizontal heater installed on a wall, no text or symbols visible

Displayed model TEL20I40N112 - Elba SWT 500W black

THERMAL FLUID

ELBA _SWT

DIGITAL ELECTRIC TOWEL RAIL WITH ON / OFF CONTROL

FEATURES

CONTROL AND TECHNOLOGY

Panel with switch

Optimum Flux Tech

DESIGN AND FINISHES

STEEL

100% steel body

White RAL 9016

Matt Black RAL 9005

White horizontal heater with a small outlet pipe attached (no text or symbols visible)

Close-up of a black showerhead handle against a plain wall (no text or symbols visible)

TECHNICAL SPECIFICATIONS

MODELS	White	TEL20I40B077	TEL20I40B112	TEL20I50B077	TEL20I50B112
	Black	TEL20I40N077	TEL20I40N112	TEL20I50N077	TEL20I50N112
Nominal Power (W)		300	500	300	500
Number of bars		12	19	12	19
Width - L (mm)		400	400	500	500
Weight (Kg)		6.1	9.8	10.6	15.9
Recommended area ( m^2 )		Up to 3 m^2	Up to 5 m^2	Up to 3 m^2	Up to 5 m^2
Finishes		White RAL 9016 / Matt black RAL 9005		White RAL 9016 / Matt black RAL 9005
EAN13	White	8435556167624	8435556167631	8435556167587	8435556167594
	Black	8435556167648	8435556167655	8435556167600	8435556167617

ELBA CABLE

DIGITAL ELECTRIC TOWEL RAIL WITH HEATING ELEMENT AND CABLE

FEATURES

CONTROL AND TECHNOLOGY

DESIGN AND FINISHES

100% steel body

Woman interacting with a tablet displaying a circular progress chart (no visible text or symbols on the screen)

DID YOU KNOW...

The Elba Cable towel rail is ideally suited for installation in pilot wire systems or home automation systems (such as KNX®).

It is also the perfect solution for connecting to sockets with a cut-off switch, or to thermostats to control their shutdown and start-up.

Contact us for more information.

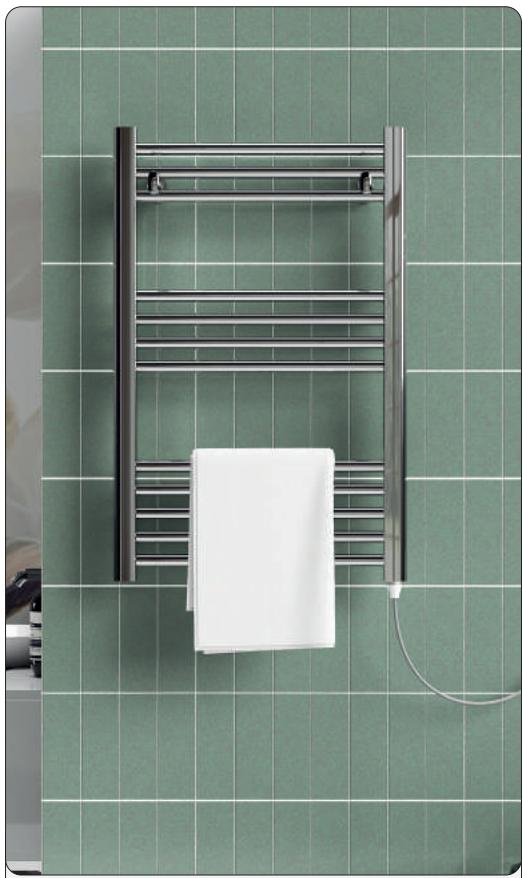

Modern bathroom towel rack with a white towel placed on a green tiled wall (no text or symbols visible)

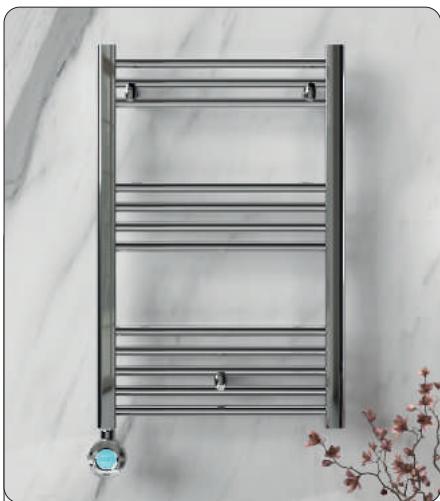

Displayed model

TELCI50C077 - Elba Cable 300W chrome

[Non-Text]

[Non-Text]

TECHNICAL SPECIFICATIONS

MODELS	White	TELCI50B077	TELCI50B112
	Black	TELCI50N077	TELCI50N112
	Chrome	TELCI50C077	TELCI50C112
Nominal Power (W)	White / Black	300	500
	Chrome	300	300
Number of bars		12	19
Width - L (mm)		500 x 770	500 x 1.120
Weight (Kg)		10.6	15.9
Recommended area ( m^2 )		Up to 3 m^2	Up to 5 m^2
Finishes		White RAL 9016 / Matt black RAL 9005 / Chrome
EAN13	White	8435556118374	8435556118381
	Black	8435556149514	8435556149521
	Chrome	8435556118398	8435556118404

Modern bathroom wall-mounted shower unit with gold bars against marble tiled wall, no text or symbols visible

Displayed model
SSI50L81 - Sublime 54W brushed brass

GUARANTEE
STEEL
BODY

GUARANTEE
ELECTRONIC
COMPONENTS

SUBLIME

DIGITAL ELECTRIC TOWEL RAIL WITH TOUCH PANEL

FEATURES

CONTROL AND TECHNOLOGY

Touch panel with display

Heating element without fluid

Temperature control of heating element

DESIGN AND FINISHES

STAINLESS

STEEL

Body 100% stainless steel 304

Brushed brass (gold)

Polished steel

HIDDEN CABLES INSTALLATION SYSTEM

Direct connection to the network without visible cables. (Invisible installation)

Diagram of a pipe junction with a cable and a tool inserted, no text or symbols present

TECHNICAL SPECIFICATIONS

MODELS	Brushed brass	SSI50L81
	Polished steel	SSI50A81
Nominal Power (W)		54
Number of bars		5
Width - L (mm)		500
Weight (Kg)		3.8
Recommended area ( m^2 )		Up to 3 m^2
Finishes		Brushed brass / Polished steel
EAN13	Brushed brass	8435556164036
	Polished steel	8435556164029

MILANO

DIGITAL ELECTRIC TOWEL RAIL WITH BUILT-IN HEATER

FEATURES

CONTROL AND TECHNOLOGY

Touch panel with LCD display

Comfort, Eco and Anti-frost mode

Optimum Flux Tech

High sensitivity thermostat

EFFICIENCY

Open Windows function

FUNCTIONALITY

Programmable 24/7

3 pre-installed programmes

Timer up to 9h

DESIGN AND FINISHES

100% steel body

Built-in heater

White RAL 9016

DID YOU KNOW...

The exclusive low consumption technology of the Rointe MILANO towel rails, tested in a climatic chamber, makes it possible to reduce the average nominal power required to maintain the best comfort in your bathroom by up to 70% ^1 .

Close-up of a black control panel with four buttons and a white plastic object on the side (no visible text or symbols)

White horizontal heater rack mounted on a wall, no text or symbols visible

Displayed model
TMILN50B115 - Milano 1500W white RAL 9016

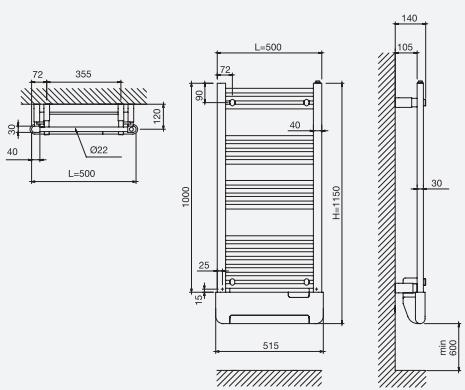

TECHNICAL SPECIFICATIONS

MODEL		TMILN50B115
Number of bars		18
Nominal Power (W)	Towel rail	500
	Heater	1000
Width - L (mm)		500 x 1150
Weight (Kg)		9.9
Recommended area (m2)		Up to 10 m2
Finishes		White RAL 9016
EAN13		8435556147626

Interior scene with a white ceramic bowl on a wooden table, against a dark wall and abstract greenery (no text or symbols visible)

Modern bathroom wall with a metal radiator and white vases, set against a stone wall (no text or symbols visible)

Close-up of a decorative lampshade with black and gold tones, partially overlaid on a green leaf (no text or symbols)

WET SYSTEM

TOWEL RAILS

Complete your water heating system with a towel rail to enjoy the unique well-being of drying yourself with warm, dry towels. Choose from one of our exclusively designed towel rails and give your bathroom that touch of elegance and unique style you're looking for.

Elba towel rail	42
Giza towel rail	44
Venezia towel rail	46
Circe towel rail	47
Torino towel rail	47
Rointe towel rail accessories	48
Valves for the installation of hydraulic towel rails	49

ELBA AQUA

WET SYSTEM TOWEL RAIL

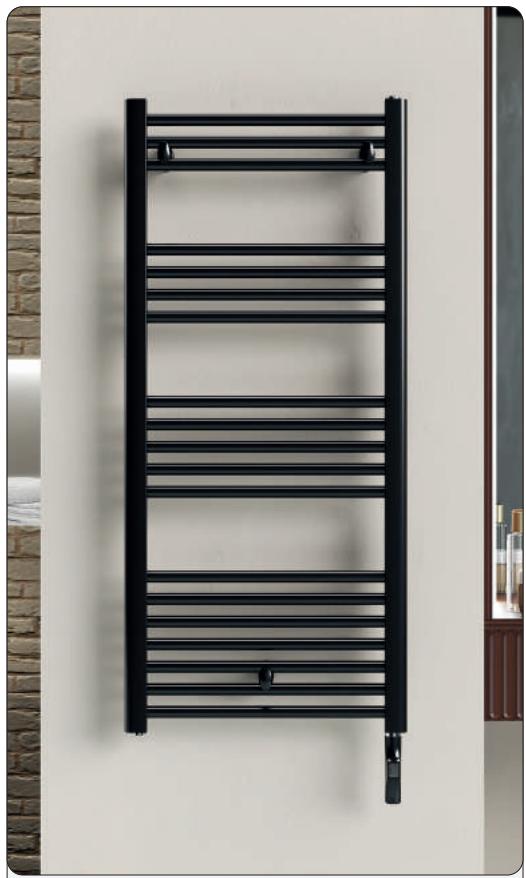

Displayed model

TELAN50N112 - Elba black RAL 9005

Modern bathroom radiator with black lattice and wheels, next to a small sink with a bowl of liquid (no text or symbols visible)

FEATURES

DESIGN AND FINISHES

1/2" connections

STEEL

100% steel body

Maximum temperature 95°C

Maximum pressure 8 bar

White RAL 9016

Matt Black RAL 9005

Chrome mirror

For twin-pipe installations, it is recommended to connect the flow and return at the bottom of the towel rail. For single pipe installations, it must be installed from the bottom with the sensor supplied with the single pipe valve.

CE

SCHEME Dimensions in mm.

TECHNICAL SPECIFICATIONS

MODELS	White	TELAN40B077	TELAN40B112	TELAN40B150	TELAN40B172
	Chrome	TELAN40C077	TELAN40C112	TELAN40C150	TELAN40C172
Number of bars		12	19	26	34
Thermal power Δ T 50°C W		256	391	531	667
Water content (L)		2.65	4.01	5.43	6.65
Width (mm)		400	400	400	400
Weight (Kg)		3.6	5.5	7.8	9.6
Finishes	White RAL 9016 / Chrome
EAN13	White	8435556127499	8435556127505	8435556127512	8435556127529
	Chrome	8435556127536	8435556127543	8435556127550	8435556127567
MODELS	White	TELAN45B077	TELAN45B112	TELAN45B150	TELAN45B172
	Chrome	TELAN45C077	TELAN45C112	TELAN45C150	TELAN45C172
Number of bars		12	19	26	34
Thermal power Δ T 50°C W		276	422	574	720
Water content (L)		2.84	4.31	5.84	7.20
Width (mm)		450	450	450	450
Weight (Kg)		4.1	6.2	8.4	10.4
Finishes	White RAL 9016 / Chrome
EAN13	White	8435556130758	8435556130765	8435556130772	8435556130789
	Chrome	8435556130796	8435556130802	8435556130819	8435556130826
MODELS	White	TELAN50B077	TELAN50B112	TELAN50B150	TELAN50B172
	Black	TELAN50N077	TELAN50N112	TELAN50N150	TELAN50N172
	Chrome	TELAN50C077	TELAN50C112	TELAN50C150	TELAN50C172
Number of bars		12	19	26	34
Thermal power Δ T 50°C W		299	459	624	782
Water content (L)		3.03	4.62	6.26	7.74
Width (mm)		500	500	500	500
Weight (Kg)		4.4	6.7	9.1	11.2
Finishes	White RAL 9016 / Matt black RAL 9005 / Chrome
EAN13	White	8435556130833	8435556130840	8435556130857	8435556130864
	Black	8435556114253	8435556131328	8435556158820	8435556158837
	Chrome	8435556130871	8435556130888	8435556130895	8435556130901
MODELS	White	TELAN55B077	TELAN55B112	TELAN55B150	TELAN55B172
	Chrome	TELAN55C077	TELAN55C112	TELAN55C150	TELAN55C172
Number of bars		12	19	26	34
Thermal power Δ T 50°C W		322	495	674	847
Water content (L)		3.22	4.92	6.68	8.29
Width (mm)		550	550	550	550
Weight (Kg)		4.7	7.2	9.8	12.0
Finishes	White RAL 9016 / Chrome
EAN13	White	8435556130918	8435556130925	8435556130932	8435556130949
	Chrome	8435556130956	8435556130963	8435556130970	8435556130987
MODELS	White	TELAN60B077	TELAN60B112	TELAN60B150	TELAN60B172
	Chrome	TELAN60C077	TELAN60C112	TELAN60C150	TELAN60C172
Number of bars		12	19	26	34
Thermal power Δ T 50°C W		344	539	736	909
Water content (L)		3.42	5.23	7.09	8.83
Width (mm)		600	600	600	600
Weight (Kg)		5.0	7.7	10.5	12.8
Finishes	White RAL 9016 / Chrome
EAN13	White	8435556167723	8435556167730	8435556167747	8435556167754
	Chrome	8435556167761	8435556167778	8435556167785	8435556167792

GIZA AQUA

WET SYSTEM TOWEL RAIL

Displayed model

TGIAN50C120 - Giza Chrome

Modern bathroom sink with a metal horizontal heater mounted on a tiled wall, no text or symbols visible.

FEATURES

DESIGN AND FINISHES

1/2" connections

100% steel body

Maximum temperature 95°C

Maximum pressure 8 bar

White RAL 9016

Matt Black RAL 9005

Chrome mirror

For twin-pipe installations, it is recommended to connect the flow and return at the bottom of the towel rail. For single pipe installations, it must be installed from the bottom with the sensor supplied with the single pipe valve.

CE

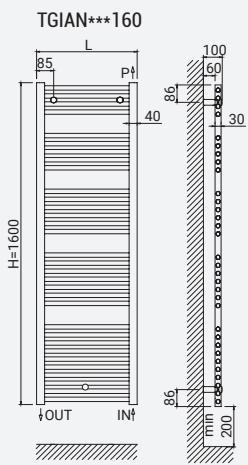

SCHEME Dimensions in mm.

TECHNICAL SPECIFICATIONS

MODELS	White	TIGIAN40B080	TIGIAN40B120	TIGIAN40B160	TIGIAN40B180
	Chrome	TIGIAN40C080	TIGIAN40C120	TIGIAN40C160	TIGIAN40C180
Number of bars		16	26	32	38
Thermal power Δ T 50°C W		323	499	645	781
Water content (L)		3.11	4.87	6.23	7.21
Width (mm)		400	400	400	400
Weight (Kg)		4.7	7.4	10.0	11.8
Finishes	White RAL 9016 / Chrome
EAN13	White	8435556131472	8435556131489	8435556131496	8435556131502
	Chrome	8435556131632	8435556131649	8435556131656	8435556131663
MODELS	White	TIGIAN45B080	TIGIAN45B120	TIGIAN45B160	TIGIAN45B180
	Chrome	TIGIAN45C080	TIGIAN45C120	TIGIAN45C160	TIGIAN45C180
Number of bars		16	26	32	38
Thermal power Δ T 50°C W		369	560	723	880
Water content (L)		3.37	5.29	6.74	7.82
Width (mm)		450	450	450	450
Weight (Kg)		5.4	8.4	10.8	12.8
Finishes	White RAL 9016 / Chrome
EAN13	White	8435556131519	8435556131526	8435556131533	8435556131540
	Chrome	8435556131670	8435556131687	8435556131694	8435556131700
MODELS	White	TIGIAN50B080	TIGIAN50B120	TIGIAN50B160	TIGIAN50B180
	Black	TIGIAN50N080	TIGIAN50N120	TIGIAN50N160	TIGIAN50N180
	Chrome	TIGIAN50C080	TIGIAN50C120	TIGIAN50C160	TIGIAN50C180
Number of bars		16	26	32	38
Thermal power Δ T 50°C W		403	624	792	970
Water content (L)		3.63	5.71	7.25	8.43
Width (mm)		500	500	500	500
Weight (Kg)		6.2	9.7	12.2	14.2
Finishes	White RAL 9016 / Matt black RAL 9005 / Chrome
EAN13	White	8435556131557	8435556131564	8435556131571	8435556131588
	Black	8435556159070	8435556159087	8435556159094	8435556159100
	Chrome	8435556131717	8435556131724	8435556131731	8435556131748
MODELS	White	TIGIAN55B080	TIGIAN55B120	TIGIAN55B160	TIGIAN55B180
	Chrome	TIGIAN55C080	TIGIAN55C120	TIGIAN55C160	TIGIAN55C180
Number of bars		16	26	32	38
Thermal power Δ T 50°C W		437	688	870	1060
Water content (L)		3.88	6.12	7.76	9.03
Width (mm)		550	550	550	550
Weight (Kg)		7.0	11.8	14.5	16.6
Finishes	White RAL 9016 / Chrome
EAN13	White	8435556131595	8435556131601	8435556131618	8435556131625
	Chrome	8435556131755	8435556131762	8435556131779	8435556131786
MODELS	White	TIGIAN60B080	TIGIAN60B120	TIGIAN60B160	TIGIAN60B180
	Chrome	TIGIAN60C080	TIGIAN60C120	TIGIAN60C160	TIGIAN60C180
Number of bars		16	26	32	38
Thermal power Δ T 50°C W		471	752	948	1150
Water content (L)		4.14	6.54	8.28	9.64
Width (mm)		600	600	600	600
Weight (Kg)		8.5	14.1	15.9	18.0
Finishes	White RAL 9016 / Chrome
EAN13	White	8435556167808	8435556167815	8435556167822	8435556167839
	Chrome	8435556167846	8435556167853	8435556167860	8435556167877

Modern bathroom interior with white radiator rack, mirror, and sink (no text or symbols)

VENEZIA AQUA

WET SYSTEM TOWEL RAIL

CE

Displayed model

TVEAN50B077 - Venezia white RAL 9016

FEATURES

DESIGN AND FINISHES

1/2" connections

100% steel body

Maximum temperature 95°C

Maximum pressure 8 bar

White RAL 9016

Black Text. RAL 9005

i

For twin-pipe installations, it is recommended to connect the flow and return at the bottom of the towel rail. For single pipe installations, it must be installed from the bottom with the sensor supplied with the single pipe valve.

TECHNICAL SPECIFICATIONS

MODELS	White	TVEAN50B077	TVEAN50B120
	Black	TVEAN50N077	TVEAN50N120
Number of bars		11	16
Thermal power Δ T 50°C W		306	457
Water content (L)		2.3	3.5
Axes distance (mm)		100	100
Weight (Kg)		5.5	8.2
Finishes		White RAL 9016 / Textured black RAL 9005
EAN13	White	8435556133193	8435556133209
	Black	8435556133230	8435556133247

SCHEME Dimensions in mm.

Modern bathroom wall with metal radiator and ceramic vases, set against a stone wall (no text or symbols visible)

CIRCE

AQUA

CE

WET SYSTEM TOWEL RAIL

STAINLESS STEEL

Displayed model

TCIAN53A080 - Circe brushed steel

MODELS	TCIAN53A080	TCIAN53A120
Number of bars	12	18
Thermal power Δ T 50°C W	196	294
Water content (L)	1.7	2.6
Axes distance (mm)	500	500
Weight (Kg)	6.6	9.0
Finishes	Brushed stainless steel
EAN13	8435556134725	8435556134732

TORINO AQUA

CE

WET SYSTEM TOWEL RAIL

STAINLESS STEEL

Displayed model

TTOAN50A100 - Torino brushed steel

MODELS	TTOAN50A100
Number of bars	12
Thermal power Δ T 50°C W	377
Water content (L)	3.2
Axes distance (mm)	50
Weight (Kg)	8.6
Finishes	Brushed stainless steel
EAN13	8435556134626

Modern bathroom radiator with a white towel hanging against a wall, next to a wooden door (no text or symbols visible)

ACCESSORIES

COMPATIBLE WITH ALL ROINTE TOWEL RAILS

HANGERS

This accessory allows you to extend the capacity of the towel rail by making it easier to place more towels and bath linen on it.

It is important not to exceed the maximum supported weight of 1KG per unit.

Available in 3 finishes: White, Chrome and Black.

Compatible with Orion, Milano, Elba and Giza towel rail ranges.

MODELS	White	RSHW003
	Chrome	RSHC003
	Black	RSHB003
Units per pack		2 / minimum 20 packs
Length x height (mm)		35 x 70
Compatible with		Orion, Milano, Elba and Giza
Finishes		White RAL 9010 / Chrome / Black
EAN13	White	8435556158967
	Chrome	8435556158981
	Black	8435556158974

RACK

This accessory allows more towels to be placed on the product, without exceeding the maximum supported weight.

The space between the wet towel and the towel rail facilitates faster drying.

Available in 3 finishes: White, Chrome and Black.

Compatible with the Orion, Milano, Elba and Giza towel rail ranges (450, 500, 550 & 600 mm wide models).

MODELS	White	RSRW003
	Chrome	RSRC003
	Black	RSRB003
Units per pack		1 / minimum 20 packs
Length x height (mm)		410 x 170
Compatible with		Orion, Milano, Elba and Giza
Finishes		White RAL 9010 / Chrome / Black
EAN13	White	8435556138549
	Chrome	8435556138563
	Black	8435556138556

NEW PACKAGING

Now, Rointe towel rail accessories have a new, more attractive and visual packaging, ideal for display on any commercial shelf.

Two translucent spherical objects arranged in a V-shape, no text or symbols present

Displayed model RSHW003

Two metallic dumbbell-shaped objects with reflective surfaces, shown against a white background (no text or symbols)

Displayed model RSHC003

Two black spherical objects with rounded ends, isolated on white background (no text or symbols)

Displayed model RSHB003

Simple 3D-rendered gray object resembling a handle or bracket (no text or symbols)

Displayed model RSRW003

Metallic tray or harness with rounded ends and a looped handle, isolated on white background (no text or symbols)

Displayed model RSRC003

Black metal bracket or support structure on white background (no text or symbols)

Displayed model RSRB003

VALVES

COMPATIBLE WITH ALL ROINTE WET SYSTEM TOWEL RAIL MODELS

TIFANA VALVE

Angle valve for the installation of copper and multilayer pipes.

MODELS	WHITE		VTITB02
	CHROME		VTITC02
	BLACK		VTITN02
	STAINLESS		VTITS02
Size (inches)			1/2"
Connection			24 - 19
EAN13	WHITE		8435556139270
	CHROME		8435556139287
	BLACK		8435556139294
	STAINLESS		8435556139300
G	F	H	A	L
1/2"	24 x 19	64	23	55

TIFANA LOCKSHIELD

Angle lockshield for copper and multilayer pipe.

MODELS	WHITE		VTITB01
	CHROME		VTITC01
	BLACK		VTITN01
	STAINLESS		VTITS01
Size (inches)			1/2"
Connection			24 - 19
EAN13	WHITE		8435556139232
	CHROME		8435556139249
	BLACK		8435556139256
	STAINLESS		8435556139263
G	F	H	A	L
1/2"	24 x 19	53	23	55

G	F	H	A	L
1/2”	24 x 19	53	23	55

HYDRA SIDE MONOTUBE VALVE

Single-pipe valve with thermostatic angle side connection and built-in lockshield.

(38 mm to shafts)

MODELS	WHITE		VTIHB01
	CHROME		VTIHC01
	BLACK		VTIHN01
	STAINLESS		VTIHS01
Size (inches)			1/2"
Connection			24-19
EAN13	WHITE		8435556139324
	CHROME		8435556139331
	BLACK		8435556139348
	STAINLESS		8435556139355
G	F	H	A	L	B	C
1/2"	24 x 19	54	65	141	38	35

COPPER PIPE ADAPTER

Compatible with monotube valves.

MOD.	Measurement	Connection	Finish	EAN 13
VTIAC01	12	24-19	Chrome	8435556139423
VTIAC02	14	24-19	Chrome	8435556139430
VTIAC03	15	24-19	Chrome	8435556139447
VTIAC04	16	24-19	Chrome	8435556139454
VTIAC05	18	24-19	Chrome	8435556139461
VTIAC06	12	24-19	Stainless	8435556139478
VTIAC07	14	24-19	Stainless	8435556139485
VTIAC08	15	24-19	Stainless	8435556139492
VTIAC09	16	24-19	Stainless	8435556139508
VTIAC10	18	24-19	Stainless	8435556139515

HYDRA SIDE MONOTUBE VALVE

Single-pipe valve with thermostatic angle side connection and built-in lockshield.

(38 mm to shafts)

MODELS	WHITE	VTIHB02
	CHROME	VTIHC02
	BLACK	VTIHN02
	STAINLESS	VTIHS02
Size (inches)		1/2"
Connection		24-19
EAN13	WHITE	8435556139362
	CHROME	8435556139379
	BLACK	8435556139386
	STAINLESS	8435556139393

G	F	H	A	L	B	C
1/2"	24 x 19	84	55	142	38	37

MULTILAYER PIPE ADAPTER

Compatible with monotube valves.

MOD.	Measurement	Connection	Finish	EAN 13
VTIAM01	16x2	24-19	Chrome	8435556139522
VTIAM02	18x2	24-19	Chrome	8435556139539
VTIAM03	20x2	24-19	Chrome	8435556139546
VTIAM04	16x2	24-19	Stainless	8435556139553
VTIAM05	18x2	24-19	Stainless	8435556139560
VTIAM06	20x2	24-19	Stainless	8435556139577

Three product packaging images of Rointe industrial pumps and mechanical components, displayed on a tablet device (no visible text or symbols)

VALVE + LOCKSHIELD + ADAPTER KIT

Includes lockshield valve and copper adapter. Kit suitable for radiators and towel rails with angle joint and manual head.

MODELS	Measurement	Finish	EAN13
VTIKB01	1/2"	White	8435556139621
VTIKC01	1/2"	Chrome	8435556139638
VTIKN01	1/2"	Black	8435556139645

Interior view of a room with a rolled blue mesh material and a grid-patterned floor, no visible text or symbols.

Interior view of a room with fabric and tiled floor, no visible text or symbols

ELECTRIC

UNDERFLOOR HEATING

A warm home is a happy home. Discover the Rointe underfloor heating systems and be surprised with a warmth that envelops your entire home, providing a coziness in your footprint like you've never felt before. Install your underfloor heating system and enjoy the invisible comfort that rises from the ground.

Milos underfloor heating	52
Erko underfloor heating	53
Accessories for underfloor heating installation	54
Genius Thermostat WIF DIRECT	56
Thermostat ST.2	57
Thermostat ST.3	57

Aerial view of a modern building with grid-patterned flooring and blue curved lines, no visible text or symbols.

CE

MILOS W150

ELECTRIC HEATING MAT

FOR HARD, CERAMIC AND PORCELAIN FLOORS

FEATURES

CONTROL AND FUNCTIONALITY

Double insulated cable

Compatible with Rointe thermostats

Grounding

DESIGN AND FINISHES

500 mm mat width

3 mm cable thickness

80 mm cable spacing

3 m cold tail length

INSTALLATION DIAGRAM

1 Ceramic / porcelain floor (10 - 20 mm)

2 Flexible cement glue (min. 10 mm)

3 Heating mat (3 mm)

4 Insulation plates (6 mm)

5 Flexible cement glue (min. 5 mm)

6 Base

TECHNICAL SPECIFICATIONS

MODELS	MSIPVC010	MSIPVC015	MSIPVC020	MSIPVC025	MSIPVC030	MSIPVC035	MSIPVC040	MSIPVC045	MSIPVC050	MSIPVC060	MSIPVC070	MSIPVC080	MSIPVC090	MSIPVC100	MSIPVC120
Area (m2)	1	1.5	2	2.5	3	3.5	4	4.5	5	6	7	8	9	10	12
Power (W)	150	225	300	375	450	525	600	675	750	900	1050	1200	1350	1500	1800
Mat length (m)	2	3	4	5	6	7	8	9	10	12	14	16	18	20	24
Amperage (A)	0.7	1.0	1.3	1.6	2.0	2.3	2.6	2.9	3.3	3.9	4.6	5.2	5.9	6.5	7.8
Resistance Ω	353	265	176	141	118	101	88	78	71	59	50	44	39	35	32
IP protection IPX7
Cable length (m) 3 m (cold tail)
Cable type Phase, Neutral, Ground
Accessories comp. Insulation panels (3.6 m2) - ASCI56 or ASCIX56 / Perimeter band (2.5 m) - ASBPN01
EAN 13	8436045918550	8436045918567	8436045918574	8436045918581	8436045918598	8436045918604	8436045918611	8436045918628	8436045918635	8436045918642	8436045918659	8436045918666	8436045918673	8436045918680	8436045918703

1) This product complies with the ECODESIGN standard when installed together with the ST.2, ST.3 or GENIUS thermostats.

ERKO

W140

ELECTRIC HEATING MAT

FOR LAMINATED, VINYL, LINOLEUM, AND CARPET FLOORS

FEATURES

CONTROL AND FUNCTIONALITY

EFTE

Double insulated cable

21°

Compatible with Rointe thermostats

Grounding

DESIGN AND FINISHES

500 mm mat width

1.5 mm cable thickness

50 mm cable spacing

3 m cold tail length

Architectural interior design featuring curved wooden flooring and glass panels (no text or symbols)

INSTALLATION DIAGRAM

1 Coating
2 Upper protection:

2.1 Upper protection foil (1.5 mm) - Installations with parquet or parquet flooring
2.2 Upper protection system (7 mm) - Installations with carpet or vinyl less than 5 mm

3 Heating foil (1.5 mm)
4 Lower insulation blanket (1.2 mm)
5 Base

TECHNICAL SPECIFICATIONS

MODELS	MSIWFH010	MSIWFH015	MSIWFH020	MSIWFH030	MSIWFH040	MSIWFH050	MSIWFH060	MSIWFH070	MSIWFH080	MSIWFH090	MSIWFH100	MSIWFH120
Area (m2)	1	1.5	2	3	4	5	6	7	8	9	10	12
Power (W)	140	210	280	420	560	750	840	980	1120	1260	1400	1680
Mat length (m)	2	3	4	6	8	10	12	14	16	18	20	24
Amperage (A)	0.6	0.9	1.2	1.8	2.4	3.0	3.7	4.3	4.9	5.5	6.1	7.3
Resistance Ω	378	252	189	124	94	76	63	54	47	42	38	32
IP protection IPX7
Cable length (m) 3 m (cold tail)
Cable type Phase, Neutral, Ground
Accessories comp.	Insulation blanket (10 or 25 m2) - ASLIU*** / Upper Protection System - ASLID0 / Upper Protection Foil - ASLSI01 / Conductive Tape for Mesh Bonding - ASCAI01
EAN 13	8436045918727	8436045918734	8436045918741	8436045918758	8436045918765	8436045918772	8436045918789	8436045918796	8436045918802	8436045918819	8436045918826	8436045918833

1) This product complies with the ECODESIGN standard when installed together with the ST.2, ST.3 or GENIUS thermostats.

ACCESSORIES

REQUIRED FOR THE INSTALLATION OF ROINTE ELECTRIC UNDERFLOOR HEATING

MILOS UNDERFLOOR HEATING

INSULATION PANELS

Insulation panels for Milos underfloor heating installation. Available with and without rigid cement coating.

Abstract geometric pattern with diagonal blue stripes on a dark gray background (no text or symbols)

WITH CEMENT COATING

Abstract geometric pattern with diagonal light blue stripes on white background (no text or symbols)

WITHOUT CEMENT COATING

MODEL	ASCI56	ASCIX56
Units per pack	5 units	5 units
Area covered (unit)	0.72 m^2 /unit (total 3.6 m^2 )	0.72 m^2 /unit (total 3.6 m^2 )
Length x width (mm)	1200 x 600	1200 x 600
Thickness (mm)	6	6
Compatible with	Milos	Milos
EAN13	8435556159117	8435556159124

PERIMETER TAPE

Insulation system that is installed around the entire perimeter of the skirting board to absorb the expansion of the flooring and eliminate heat loss due to thermal bridges.

MODEL	ASBPN01
Units per pack	1 unit - 25 linear metres
Length (m)	25
Height (mm)	50
Compatible with	Milos
EAN13	8436045911001

• Manufactured from extruded polyethylene
- Reduces heat loss through the wall
- Easy installation: pre-installed self-adhesive tape
• Thermal insulation properties

Pink circular object with layered texture, no visible text or symbols

FIBRE GLASS TAPE

Fixing system for the solid connection of Rointe insulating panels.

MODEL	ASCF01
Units per pack	1 unit - 45 linear m
Length (m)	45
Width (mm)	50
Compatible with	Insulation panels ASCI56 and ASCIX56
EAN13	8435556159025

• For joining insulating panels
- Joins panels together and provides stability

Roll of white adhesive tape with grid pattern, no visible text or symbols

UPPER PROTECTION SYSTEM

Protection system for installation over the ERKO radiant panel in installations with coverings less than 10 mm thick (carpet and vinyl flooring).

MODEL	ASLIDO
Units per pack	4 units - 0.72 m^2 /unit
Length x width (m)	1.2 x 0.6
Thickness (mm)	Upper plate	4
	Lower plate	3
Compatible with	Erko
EAN13	8436045918864

TOP PROTECTIVE SHEETING

Protection system for installation under floors thicker than 10 mm (parquet and laminate floors).

MODEL	ASLSI01
Coverage (m2)	7.5
Length x width (m)	7.5 x 1.0
Thickness (mm)	1.2
Compatible with	Erko
EAN13	8435556137214

• Easy installation: self-adhesive overlap
  • TOG 1.7 / Rm-value 0.17

MODEL	ASLIU100	ASLIU250
Coverage (m2)	10	25
Length x width (m)	8.33 x 1.2	20.83 x 1.2
Thickness (mm)	6	6
Compatible with	Erko	Erko
EAN13	8436045918895	8436045918901

Folded gray textured surface with no visible text or symbols

• Improves floor stability
• Protects the radiant sheet
  • Excellent heat transfer (TOG 0.5)
  • Pre-installed extra-strong contact adhesive

Two beige rectangular panels with no text or symbols visible

• Thickness of only 1.2 mm
- Includes damp-proof layer
- Cushions footfall and reduces impact sound
• Excellent heat transfer (TOG 0.14)
- Easy installation: self-adhesive overlap

Roll of red adhesive material with a dotted patterned surface (no text or symbols visible)

CONDUCTIVE TAPE

• For the connection between Erko mats
- Provides electrical continuity between mats

MODEL	ASCAI01
Units per pack	1 unit - 20 linear metres
Length (m)	20
Width (mm)	50
Compatible with	Erko
EAN13	8435556137221

Displayed model
TSGNI01 - GENIUS thermostat

Dimensions in mm.

DID YOU KNOW...

The GENIUS digital thermostat can also function as a master thermostat, controlling all the Rointe connected heating products in your home, as if it were a central control unit.

Find out more on page 09.

GENIUS

WIF DIRECT

DIGITAL TOUCH THERMOSTAT

WI-FI WITH ARTIFICIAL INTELLIGENCE

FEATURES

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with TFT display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Compatible with voice assistants

16A
Max. permissible power
Compatible sensors

6, 8, 10, 12, 15, 33 & 47 KΩ

Integrated ambient temperature sensor

NTC ground sensor 10kOhm at 25°C included

EFFICIENCY

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Programmable product & App

4 pre-installed programmes

Locking from product & App

Limited mode for guests

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Heavy duty front panel

INSTALLATION DIAGRAM

MODELS	TSGNI01
Maximum permissible power (W)	3680
Display size (inches)	1.77
Installed depth (mm)	19.5
Weight (g)	200
Finishes	Pearl White (rear) / Black RAL 9005 (front)
EAN13	8435556167884

Displayed model

TSEDI01 - Thermostat ST.3 white

Dimensions in
mm.

ST.3

ecodesign

PROGRAMMABLE

DIGITAL THERMOSTAT

CONTROL AND TECHNOLOGY

• Maximum permissible power: 3680W - 16A.
• Compatible sensors (KΩ): 10.
• Built-in ambient temperature sensor.
- NTC 10kOhm floor sensor at 25^ included (3 m length).

SAVINGS

• Energy-efficient function Open windows.
• Holiday and Maintenance modes.
- Adaptive Start function.

FUNCTIONALITY

• 2 programming modes: Monday to Friday + Saturday + Sunday (5+1+1), every other day (7).
  • Panel locking from the product.

MODEL	TSEDI01
Max. permissible power (W)	3680
Screen size (mm)	63 x 49
Installed depth (mm)	16
Weight (g)	250
Finish	White
EAN13	8435556163480

ST.2

PROGRAMMABLE

DIGITAL THERMOSTAT

CONTROL AND TECHNOLOGY

• Maximum permissible power: 3680W - 16A.
• Compatible sensors (KΩ): 10.
• Built-in ambient temperature sensor.
• NTC 10kOhm floor sensor at 25°C included (3 m length).

SAVINGS

• Energy-efficient function Open windows.

FUNCTIONALITY

• 3 weekly programming modes (days): 5+2, 6+1, 7.
- Locking from the product.

MODEL	TSETI03	TSETI02
Max. permissible power (W)	3680	3680
Screen size (mm)	45 x 50	45 x 50
Installed depth (mm)	13	13
Weight (g)	250	250
Finish	White	Black
EAN13	8436580778268	8436045911056

Displayed model

TSETI03 - Thermostat ST.2 white

Dimensions in mm.

Modern kitchen cabinet with open storage unit and coffee machine, no visible text or symbols

ELECTRIC DOMESTIC HOT

WATER HEATERS

Enjoy the most efficient hot water with Rointe electric water heaters. Choose the most suitable product for your needs from a wide range that includes everything from undersink water heater to a water heater with Wi-Fi control. With solutions up to 260 L, we have the perfect water heater for you.

Dalis Pro hot water heat pump	60
Rome unvented water heater Wi-Fi DIRECT	62
Venice unvented compact water heater	63
Accessories for the installation of water heaters	64

Close-up of a metallic chair or stool with metal frame and vertical bracing (no text or symbols visible)

DALIS PRO

AIR SOURCE HEAT PUMP + STORAGE TANK ALL-IN-ONE FOR DOMESTIC HOT WATER

Displayed model

DWN260DHW5 - DALIS 260 L heat pump without heat exchanger

Interior view of a modern kitchen with wooden shelves, a washing machine, and a large cylindrical water heater (no visible text or symbols)

TOUCH CONTROL PANEL

The new DALIS Pro water heaters feature a large touch panel with LCD display for easy control.

Interior view of a refrigerant room with white ductwork and digital display (no visible text or symbols)

UPPER AIR SUPPLY

The air inlet and outlet openings at the top ensure adequate heat exchange.

Close-up of a coiled metal wire with a loop, no visible text or symbols

AVAILABLE WITH HEAT EXCHANGER

DALIS Pro is available in a model with a heat exchanger, which allows the product to be connected to solar collectors.

SAVE ENERGY WITH DALIS PRO AND YOUR PHOTOVOLTAIC SYSTEM

DALIS Pro is 100% compatible with your renewable energy system.

With the installation of a PV controller, you can use the electrical energy from your solar panels to directly power your DALIS Pro heat pump. Contact us to find out more.

CONTROL AND TECHNOLOGY

Touch panel with display

Comfort, Eco and Anti-frost mode

Rotary compressor

Low noise emission

Refrigerant R134a

PRODUCT VIDEO

AUGMENTED REALITY

EFFICIENCY

Maximum efficiency

Energy savings ^1

Compatible with renewable energy sources

FUNCTIONALITY

Programmable 24/7

Function Anti-legionella

Max. temp. with heat pump

Max. temp. with heating element

Boost mode max. power

DESIGN AND FINISHES

Vitrified steel tank

NONCFC CFC-free PU insulation

Magnesium protective anode

TECHNICAL SPECIFICATIONS

			Models compatible with solar collector systems
MODELS	DWI200DHW5	DWI260DHW5	DWI200DHWI5	DWI260DHWI5
Volume (L)	200	260	200	260
Heat pump power (W)	663	663	663	663
Heating element power (W)	1500	1500	1500	1500
Average consumption heat pump (kWh)	0.430	0.430	0.466	0.466
Required overload protection	16A T fuse / 16A circuit breaker
Internal protection	Safety thermostat with manual reset
OUTPUT
Load profile	L	L	L	L
Warm-up time	08:59 h:min	10:15 h:min	08:59 h:min	10:15 h:min
Heat pump output - Nominal Power (kW)	1.1	1.1	1.1	1.1
SCOP ACS^2	2.8	2.8	3	3
SCOP ACS^3	3.1	3.1	3.4	3.4
Amount of water mixed at 40°C	272	351	262	339
Annual electricity consumption AEC (kWh)	867	1355	867	1355
WORKING CONDITIONS
Air inlet temp. min./max. (90% R.H.) (°C)	-10 / 43
Min./max. temp. of installation site (°C)	4 / 43
Coil connection to solar system ( m^2 )	N/A	N/A	1	1.2
Cathodic protection	Magnesium anode ∅32x400 mm
Insulation - PU rigid (mm)	50	50	50	50
Maximum working pressure (bar)	8	8	8	8
Transport weight (kg)	96	110	112	128
Compressor protection	Thermal circuit breaker with automatic resetting
Type of protection of the thermodynamic circuit	Safety pressure switch with automatic reset [high / low pressure 2.5 / 0.1 Mpa].
Rated air capacity ( m^3/h )	314
Maximum available pressure (Pa)	98
Motor protection	Internal thermal circuit breaker with automatic resetting
Capacitor	Externally protected. No direct contact with water
Antifreeze	4-way valve
Refrigerant charge (g)	880
Global warming potential	1,430
EAN13	8435556139614	8435556139591	8435556139607	8435556139584

With heat exchanger

Without heat exchanger

CONNECTIONS

CW	Cold water inlet	G 1"	G 1"
HW	Hot water outlet	G 1"	G 1"
IS	Coil flow	G 1"	-
OS	Coil return	G 1"	-
TS	Temperature sensor	G 1/2"	-
R	Recirculation	G 3/4"	G 3/4"
EE	Opening resistance	G11/2"	G11/2"
CD	Condensate drainage	G 3/4"	G 3/4"
ThS	Safety thermostat	-	-
MA	Magnesium anode	G11/4"	G11/4"

	With heat exchanger		Without heat exchanger
(mm)	200 L	260 L	200 L	260 L
h	1720	2010	1720	2010
a	994	1285	994	1285
b	724	834	724	834
d	995	1285	995	1285
f	803	1064	803	1064
j	681	781	-	-
k	60	60	60	60
n	681	766	681	766
u	1153	1440	1153	1440
w	58	58	58	58
M	260	260	260	260
∅ DF	160	160	160	160
R	1785	2055	1785	2055
∅ D	630	630	630	630

1) Compared to a water heater of equivalent volume of Energy Classification C.

2) Condition according to EN16147:2017 A7/W55.

3) Condition according to EN16147:2017 A14/W55.

Interior view of a modern kitchen cabinet with white insulation and digital display (no visible text or symbols)

Displayed model

RWI080DHWC4 - ROME 80 L electric water heater
Dimensions in mm.

ROME

WIFIDIRECT

DIGITAL ELECTRIC UNVENTED WATER HEATER WITH WIFI & ARTIFICIAL INTELLIGENCE

FEATURES

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with TFT display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Compatible with voice assistants

Thermal bridge break

Optimisation of water inflow

Maximum operating pressure

EFFICIENCY

Artificial Intelligence

TRP consumption meter ^2

GPS automation

FUNCTIONALITY

Programmable product & App

4 pre-installed programmes

Limited mode for guests

Function Anti-legionella

Safety thermostat

Product and App lock

Holiday mode

DESIGN AND FINISHES

Vitrified steel tank

NONCFC CFC-free PU insulation

Magnesium protective anode

Ceramic heating element
TECHNICAL SPECIFICATIONS

MODELS	RWI080DHWC4	RWI150DHWC4
Volume (L)	80	150
Load profile	M	XL
Nominal Power (W)	2400	2400
Distance between sockets (mm)	100	100
Empty weight (Kg)	24.1	36.6
Water inlet (inches)	1/2"	1/2"
Sizing (No. of persons)	Up to 3	Up to 4
Finish	White RAL 9016
EAN13	8436045913074	84360459113531

VENICE

ELECTRIC UNVENTED WATER HEATER COMPACT UNDER/OVER SINK

FEATURES

CONTROL AND TECHNOLOGY

External regulator

Indicator light

Thermal bridge break

Optimisation of water inflow

Maximum operating pressure

DESIGN AND FINISHES

Vitrified steel tank

CFC-free PU insulation

Magnesium protective anode

Safety thermostat

Submerged copper heating element

Compact size

Modern bathroom sink with black basin and Rointe air fryer, no visible text or symbols on main objects

Model shown

VWI010DHWU4 - VENICE Water Heater 10 L
Dimensions in mm.

TECHNICAL SPECIFICATIONS

Bottom outlet (over sink) model
Top outlet (under sink) model

MODELS	VWI010DHWD4	VWI015DHWD4	VWI010DHWU4	VWI015DHWU4
Volume (L)	10	15	10	15
Load profile	XXS	XXS	XXS	XXS
Nominal Power (W)	1500	1500	1500	1500
Dist. between sockets (mm)	100	100	100	100
Empty weight (Kg)	7.6	9.4	7.6	9.4
Water inlet (inches)	1/2"	1/2"	1/2"	1/2"
Sizing (persons)	1 (sink only)	1 (sink only)	1 (sink only)	1 (sink only)
Finish	White RAL 9016
EAN13	8436045913159	8436045913166	8436045913616	8436045913623

ACCESSORIES

REQUIRED FOR THE INSTALLATION OF

ROINTE ELECTRIC WATER HEATERS

INSTALLATION KIT: VENICE

It's mandatory for Venice unvented domestic hot water heaters to be installed with an installation kit if they are located more than 3 meters away from the sink or if the pressure is greater than 4 bar. This kit is compatible with Venice 10/15 L water heaters.

Installation scheme A

When inlet pressure is less than bar and expanded hot water can be put in pipework.

Installation scheme C

When inlet pressure is greater than 4 bar.

Installation scheme B

When inlet pressure is less than 4 bar but expanded hot water cannot be put in pipework.

INSTALLATION DETAILS

1	Expansion relief valve (included)
2	Nearest cold water draw off (not supplied)
3	Service valve (not supplied)
4	Expansion vessel (included)
5	Check valve (included)
6	Pressure reducing valve (included)

MINIMUM PIPE LENGTH
Capacity	15 mm pipe	22 mm pipe
10 L	2.7 mm	1.2 mm
15 L	4.2 mm	1.8 mm

MODEL	KITKW04
Expansion Relief Value	15 - 25 mm
Check Valve	0.35 Mpa
Expansion Vessel	8 L (0.1 Mpa)
Pressure Reducing Valve	0.60 Mpa
EAN13	8436045912992

KITKW04 - Installation kit for Venice

Check Valve

Pressure Reducing & Relief Valve

Expansion Vessel

INSTALLATION KIT: DALIS

It's mandatory for Dalis PRO air source heat pump hot water heaters to be installed with an installation kit.

KITKW03

Pressure Reducing & Relief Valve

Tundish

Expansion Vessel

INSTALLATION DETAILS

1	Mains cold water supply
2	Stop cock (not supplied)
3	Pressure reducing valve (included)
4+5	Check valve/Expansion relief valve (included)
6	Discharge pipe 22 mm
7	Drain cock (not supplied)
8	Tundish (included)
9	Expansion vessel (included)
10	T/P relief valve (included)
11	Electrolytic fittings (included)

MODEL	KITKW03
Pressure Reducing & Relief Valve	0.35 / 0.60 Mpa
Tundish	15 - 25 mm
Expansion Vessel	18 L (0.1 Mpa)
EAN13	8436045914354

INSTALLATION KIT: ROME

It's mandatory for Rome unvented domestic hot water heaters to be installed with an installation kit.

KITKW02

Pressure Reducing & Relief Valve

Tundish

Expansion Vessel

INSTALLATION DETAILS

1	Mains cold water supply
2	Stop cock (not supplied)
3	Pressure reducing valve (included)
4+5	Check valve/Expansion relief valve (included)
6	Discharge pipe 22 mm
7	Drain cock (not supplied)
8	Tundish (included)
9	Expansion vessel (included)
10	T/P relief valve (included)
11	Electrolytic fittings (included)

MODEL	KITKW02
Pressure Reducing & Relief Valve	0.35 / 0.60 Mpa
Tundish	15 - 25 mm
Expansion Vessel	12 L (0.1 Mpa)
EAN13	8436045914347

ACCESSORIES for Rointe water heaters

SUPPORT TRIPOD

MODEL	TPKW001
Length x height (mm)	715 x 420
Max. supported weight (kg)	260
Compatibility (L)	80 & 150
EAN13	8436045914323

UNIVERSAL SUPPORT

MODEL	KWSPTN01
Length x height (mm)	80 x 470
Max. supported weight (kg)	260
Compatibility (L)	80 & 150
EAN13	8436045910608

The use of the tripod does not exempt it from being fixed on the wall.

Simple diagram of a metal frame structure with supports and legs (no text or symbols)

White plastic electronic component with slots and mounting bracket (no text or symbols visible)

White Rointe air conditioner unit with vertical panel lines and a black vented base (no text or symbols on the device itself)

Close-up of a modern desk lamp with a textured cushion and black adjustable arm (no text or symbols visible)

OTHER ELECTRIC

HEATING PRODUCTS

Rointe is expanding its electric heating offer with solutions such as the Onyx Wi-Fi Direct technology storage heater, perfect for heating rooms quickly, efficiently and without complications. Discover more products that combine technology and design for your comfort.

Onyx HHR Storage Heater (WIFI DIRECT)	68
Giro portable heater / convector	70
Giro Short portable heater / Convector	71

ONYX WIFI DIRECT

SLIM DYNAMIC HIGH HEAT RETENTION HEATER WITH WIFI & AI

Displayed model

SHOXI222 - Onyx storage heater 2,220 W

Modern white Rointe air purifier unit with gray patterned armchair, placed in a modest living room with wooden furniture and bookshelves (no visible text or symbols on main subject)

DIRECT CONTROL WITHOUT GATEWAYS

Integrated Wi-Fi module that allows direct connection to the router without the need for intermediate gateways.

Exterior view of a modern office building (no signage)

HIGH HEAT RETENTION (HHR)

The quality of its materials means that more than 60% of the stored heat is retained even after 16 hours.

MAXIMUM ENERGY SAVINGS

The Onyx high heat retention storage heater saves up to 37% more energy than a standard storage heater. ^2

Exterior view of a modern office building (no signage)

INVERTER OPERATION

Thanks to the INVERTER SMART

ADAPTIVE TECH technology, the Onyx storage heater automatically adjusts the fan speed, intelligently and continuously adapting to the heating needs of each room.

This regulation improves the management of energy consumption and ensures constant thermal comfort.

CONTROL AND TECHNOLOGY

Module WiFi Inside ^1

Touch panel with display

Comfort, Eco and Anti-frost mode

Bluetooth pairing

Inverter Smart Adaptive Tech

Mg-Fe alloy cells

Single & Dual feed system

Compatible with voice assistants

EFFICIENCY

Automatic charge control

Energy saving ^2

Artificial Intelligence

Open Windows function

Early Start function

TRP consumption meter ^3

GPS automation

C€

FUNCTIONALITY

Programmable product & App

4 pre-installed programmes

Product and App lock

Limited mode for guests

Boost mode max. power

Night saving mode

Holiday mode

Countdown timer

DESIGN AND FINISHES

Adjustable to 2 heights

100% metal body

Ceramic fan rotor

PRODUCT VIDEO

AUGMENTED REALITY

DOWNLOAD APP ROINTE NEXA

TECHNICAL SPECIFICATIONS

MODELS	SHOXI102	SHOXI156	SHOXI222	SHOXI276	SHOXI330
Rated input +5%/-10% (W)	1020	1560	2220	2760	3300
Rated output (W)	500	700	1000	1250	1500
Classification (W)	340	520	740	920	1100
Max. storage capacity (Wh)	7140	10920	15540	19320	23100
Empty weight (kg)	22.7	26.1	30.0	35.5	38.5
Weight with cells (kg)	67	91	115	142	165
Finish			White RAL 9016
Required cell packs (units) ^4	4	6	8	10	12
EAN13	8435556163435	8435556163442	8435556163459	8435556163466	8435556163473

SCHEME Dimensions in mm.

Model	Height (H)	Width (L)	Depth (D)
SHOXI102	740 mm	580 mm	190 mm
SHOXI156	740 mm	703 mm	190 mm
SHOXI222	740 mm	865 mm	190 mm
SHOXI276	740 mm	1069 mm	190 mm
SHOXI330	740 mm	1069 mm	190 mm

FLOOR SUPPORTS INCLUDED

Standard

Height

Model	Width	Height	Depth
Standard	225 mm	123 mm	132 mm
Height	225 mm	203 mm	132 mm

1) Compatible with 2.4 GHz Wi-Fi networks. 2) Tests carried out in independent laboratories.
3) The figure may vary depending on the circumstances of the electrical installation.
4) Each pack includes 3 power cells.

Modern white Rointe air purifier device on a rug in a living room, with digital display and bookshelves nearby (no visible text or symbols on main subject)

GIRO

PORTABLE DIGITAL HEATER / CONVECTOR

Displayed model

PHGRI2000H - Giro digital convector heater

CE

Exterior view of a white electronic device with a black control panel and emitting smoke (no visible text or symbols)

HEALTHY ENVIRONMENT

Removable humidifier included that can be refilled with water.

Exterior view of a modern electric heater with cooling unit and mounting base (no visible text or symbols)

NO INSTALLATION REQUIRED

Product with brackets that can be easily moved.

TOUCH CONTROL PANEL

Touch control panel with large LED control display.

FEATURES

CONTROLS

• Touch panel with LED display.
  • Room temperature selector.
• ECO mode.

TECHNOLOGY

• Mica Stone Tech: mica stone panel.
- Adjustable digital thermostat.
• Overheating protection.

FUNCTIONALITY

• 2 output powers: 1000 W and 2000 W.
- Adjustable timer.
- Refillable humidifier.

MODELS	PHGRI2000H
Nominal Power (W)	2000
2 output powers (W)	1000/ 2000
Height (mm)	450
Weight (Kg)	5.9
Recommended area ( m^2 )	20 - 25
Rechargeable humidifier	Included (removable)
Finishes	White
EAN13	8435556160557

Technical drawing of a rectangular panel with dimensions labeled (730 and 450), no readable text or symbols beyond measurement lines.

Modern electric heater with a white top and black base, placed on a wooden floor near a patterned armchair and wooden cabinet (no visible text or symbols)

GIRO

SHORT

PORTABLE DIGITAL HEATER / CONVECTOR

Displayed model

PHGRI1500H - Giro Short digital convector heater

CE

Interior view of a modern room with striped curtains and a white wall-mounted device (no visible text or symbols)

HEALTHY ENVIRONMENT

Removable humidifier included that can be refilled with water.

Exterior view of a modern office building (no signage)

NO INSTALLATION REQUIRED

Product with brackets that can be easily moved.

TOUCH CONTROL PANEL

Touch control panel with large LED control display.

FEATURES

CONTROLS

• Touch panel with LED display.
  • Room temperature selector.
• ECO mode.

TECHNOLOGY

• Open coil heating element.
• Adjustable digital thermostat.
  • Overheating protection.

FUNCTIONALITY

• 2 output powers: 750 W and 1500 W.
- Adjustable timer.
- Refillable humidifier.

MODELS	PHGRI1500H
Nominal Power (W)	1500
2 output powers (W)	750/ 1500
Height (mm)	250
Weight (Kg)	4.7
Recommended area ( m^2 )	14 - 20
Rechargeable humidifier	Included (removable)
Finishes	White
EAN13	8435556160595

Exterior view of a black Rointe heat exchanger on a white pedestal, with a wicker chair and palm plants in the background (no signage or text on main subject)

Close-up of a palm plant with green fronds against a light wall, no text or symbols visible

INFRARED

OUTDOOR HEATING

Discover Rointe's outdoor infrared heaters: the perfect combination of comfort, efficiency and elegant design.

Transform your outdoor life with Rointe.

Sahara infrared heater	74
Umbra Mini infrared heater	74
Lyra infrared heater	75
Lumia infrared heater	75
Fuji carbon fibre heater / lamp	76
Accessories for outdoor heaters	76
Amber vertical infrared heater	77

SAHARA

INFRARED HEATER

FOR WALL OR CEILING

CONTROL

• Remote control included with 2 power output levels selector.
• Instant comfort: Heat in just 3 seconds.

ENERGY

• More than 10000 hours of guaranteed service life.

TECHNOLOGY

• Infrared heating: heats objects or bodies directly by means of infrared radiation.
  • Heat source: gold halogen lamp.
  • Up to 95% thermal efficiency.

FUNCTIONALITY

• Recommended area: up to 5 m ^4 .
• Overheating protection system.
• Safety system: anti-tilt shutdown.
- Silent operation.
- Soft light without disturbing glare.

DESIGN

• Easy installation on wall or ceiling.
• Product compatible with tripod for unmounted operation (sold separately).
• Suitable for indoor and outdoor installation.

UMBRA MINI

SLIM INFRARED HEATER

FOR INSTALLATION UNDER UMBRELLA

CONTROL

• On/Off switch.
• Instant comfort: Heat in just 3 seconds.

ENERGY

• More than 10000 hours of guaranteed service life.

TECHNOLOGY

• Infrared heating: heats objects or bodies directly by means of infrared radiation.
  • Heat source: low glare amber lamp.
  • Up to 95% thermal efficiency.

FUNCTIONALITY

• Recommended area: up to 5 m ^4 .
• Overheating protection system.
• Safety system: anti-tilt shutdown.
- Silent operation.
- Soft light without disturbing glare.

DESIGN

• Easy installation on wall or ceiling.
• Product compatible with tripod for unmounted operation (sold separately).
• Suitable for indoor and outdoor installation.

CE

RoHS

Cross-sectional view of a cylindrical device with hexagonal patterned top layer (no text or symbols)

Exterior view of a modern office building ceiling with overhead lighting fixture and cables (no signage)

MODEL	IRSHI2000B
Nominal Power (W)	2000
2 output powers (W)	1000/ 2000
Width x Height x Depth (mm)	675 x 105 x 72
Weight (Kg)	1.7
Recommended area ( m^2 )	4 - 5
Finishes	Black
EAN 13	8435556160717

CE

Close-up of a heated heater with visible cooling effect and grid pattern (no text or symbols)

Exterior view of a modern office building (no signage)

MODEL	IRUBI2000B
Nominal Power (W)	2000
Width x Height (mm)	460 x 197
Weight (Kg)	1.9
Recommended area ( m^2 )	4 - 5
Finishes	Black
EAN 13	8435556160779

LYRA

INFRARED HEATER CEILING PENDANT

CONTROL

• Remote control included with on/off function.
• Instant comfort: Heat in just 3 seconds.

SAVINGS

• More than 10000 hours of guaranteed service life.

TECHNOLOGY

• Infrared heating: heats objects or bodies directly by means of infrared radiation.
  • Heat source: low-glare halogen lamp.
  • Up to 95% thermal efficiency.

FUNCTIONALITY

• Recommended area: up to 4 m ^2 .
• Overheating protection system.
- Silent operation.
- Soft light without disturbing glare.

DESIGN

• Easy installation under roof.
• Suitable for outdoor and indoor installation.
  • Decorative and elegant design.

LUMIA

INFRARED HEATER CEILING PENDANT

CONTROL

• Pull-cord switch.
• Instant comfort: Heat in just 3 seconds.

SAVINGS

• More than 10000 hours of guaranteed service life.

TECHNOLOGY

• Infrared heating: heats objects or bodies directly by means of infrared radiation.
  • Heat source: low-glare halogen lamp.
  • Up to 95% thermal efficiency.

FUNCTIONALITY

• Recommended area: up to 4 m ^2 .
• Overheating protection system.
- Silent operation.
- Soft light without disturbing glare.

DESIGN

• Easy installation under roof.
• Suitable for outdoor and indoor installation.
  • Decorative and elegant design.
  • Aluminium alloy housing.

CE

Black circular pendant light with a coiled grille and hanging chain (no text or symbols visible)

Interior ceiling with wooden roof and blue corrugated metal roof, featuring a lit incandescent lamp emitting flames (no text or symbols visible)

MODEL	IRLRI2000B
Nominal Power (W)	2000
Diameter (mm)	500
Height (mm)	216
Weight (Kg)	2.45
Recommended area ( m^2 )	3 - 4
Finishes	Black
EAN13	8435556160786

CE

Black overhead lighting fixture with curved glass and heat sink (no text or symbols visible)

Exterior view of a modern office building (no signage)

MODEL	IRLMI1500
Nominal Power (W)	1500
Diameter (mm)	425
Height (mm)	230
Weight (Kg)	2.08
Recommended area ( m^2 )	3 - 4
Finishes	Black
EAN13	8435556160564

PORTABLE

CARBON-FIBRE HEATING LAMP

CONTROL

• On/Off switch.
• Instant comfort: Heat in just 3 seconds.

SAVINGS

- More than 10000 hours of guaranteed service life.

TECHNOLOGY

• Infrared heating: heats objects or bodies directly by infrared radiation.
  • Carbon Fiber Tech: softer heat thanks to the
• long-lasting carbon fibre filament.
• Up to 95% thermal efficiency.

FUNCTIONALITY

• 360^ heat range.
• Recommended area: up to 4m^2 .
  • Overheating protection system.
• Safety system: anti-tilt shutdown.
• Silent operation.
• Soft light without disturbing glare.

DESIGN

• Portable design with built-in handle.
• Suitable for outdoor and indoor installation.

Black outdoor heater with vertical cooling fins and a heat sink, labeled 'nointe' at the base (no other text or symbols visible)

Exterior view of a portable outdoor heater with heat source and label 'Roite', placed on a tiled floor against a plain wall (no text or symbols on the device itself)

MODEL	IRFJI2000B
Base (mm)	200 x 200
Height (mm)	800
Weight (Kg)	3.80
Recommended area ( m^2 )	3 - 4
Finishes	Black
EAN13	8435556160809

ACCESSORIES

FOR ROINTE OUTDOOR HEATERS

Close-up of a black industrial fan or vent with ventilation slots and a metal clamp (no visible text or symbols)

UNDER UMBRELLA SUPPORT

MODEL	IRAPF01
EAN13	8435556160878

Exterior view of a portable outdoor heating lamp with a black stand and orange panel (no text or symbols visible)

TRIPOD STAND

MODEL	IRATB01
Minimum height (mm)	1100
Maximum height (mm)	1800
Weight (Kg)	3.5
Finish	Black
EAN13	8435556160861

Exterior view of a modern patio with two wicker chairs, a black outdoor lawn light, and green shrubs in the background (no signage or text visible)

AMBER

VERTICAL

INFRARED HEATER

CE

FEATURES

CONTROL

• Double mechanical switch.
• Heat radius: 360^ .

TECHNOLOGY

• Halogen tube.
• Aluminium reflector.

FUNCTIONALITY

• 3 output powers: 1200 / 1800 / 3000 W.
- Height adjustable.

MODELS	IRAMI3000
Nominal Power (W)	3,000
3 output powers (W)	1200 / 1800 / 3000
Width x Height (mm)	740 x 2050
Weight (Kg)	16
Recommended area ( m^2 )	4 - 6
Finishes	Black
EAN13	8435556168096

Exterior view of a modern outdoor heating lamp with a black dome and heat sink (no text or symbols visible)

Line drawing of a street lamp with a wide base and vertical height dimensions (740 and 2050 units), no text or symbols present.

Modern black outdoor lighting stand with a circular base and arched top (no text or symbols visible)

White Rointe air purifier with digital display, placed beside a gray armchair and wooden flooring against a light blue wall (no text or symbols on device)

COOLING

AND CLIMATE CONTROL

Our advanced cooling and air conditioning technology redefines comfort with innovative and sustainable solutions. With Rointe you can enjoy modern designs, maximum efficiency and commitment to the environment, guaranteeing wellbeing in every space.

Fiore Portable Air Conditioning	80
Drypure Dehumidifier	82

FIORE 1750 / 2250 / 3000 FR

PORTABLE AIR CONDITIONING

1750, 2250 AND 3000 COOLING CAPACITY

White portable air purifier with digital display and control panel (no visible text or symbols)

Displayed model
PFI070 - Fiore 1750 Fr portable air conditioner

White portable air purifier with digital display and ventilation slots (no visible text or symbols)

Displayed model
PFI090 - Fiore 2250 Fr portable air conditioner

White RoInte air purifier device with perforated ventilation grille and digital display (no text or symbols on body)

Displayed model
PFI120 - Fiore 3000 Fr portable air conditioner

FEATURES

EASY TO TRANSPORT

The product includes wheels for easy movement between rooms.

LED TOUCH DISPLAY

Elegant high-brightness colour LED display on the top front of the product.

EASY INSTALLATION

Easy installation, maintenance and plug & play operation.

DEHUMIDIFIER

Special function that balances the ambient humidity of the air without changing the room temperature.

AUTO RESTART

In case of power failure, the unit returns to the last mode selected by the user.

WINDOW KIT

The product includes a window kit for venting hot air to the outside.

TIMER

Function that allows programming the on and/or off time of the unit.

REMOTE CONTROL

The units are fitted with a remote control for easy remote control.

FILTER INCLUDED

The unit is equipped with a filter designed to remove dust particles contained in the air.

MODELS			PFI070	PFI090	PFI120
Dehumidification capacity (30°C, 80%HR)		Litres	19.2	21.8	28.8
Capacity / Power		Cooling	1750	2250	3000
		kW	2.05	2.6	3.5
		BTU	7000	9000	12000
EER		W/W	2.61	2.61	2.61
Energy classification			A	A	A
Power supply			220-240 V, 50Hz	220-240 V, 50Hz	220-240 V, 50Hz
Amperes		A	3.5	3.9	5.8
Electricity consumption		W	780	870	1330
Air flow rate		m^3/h	290	340	390
Sound power	Low speed	dB(A)	51	51	52
	High speed	dB(A)	53	53	54
Unit	Dimensions (A x B x C)	mm	315 x 310 x 700	315 x 310 x 700	432 x 350 x 700
	Net weight	Kg	22	23	28
Length / diameter of the exhaust pipe		mm	1500/ 150	1500/ 150	1500/ 150
Recommended area		m^2	10 - 15	10 - 20	20 - 30
Selectable temperatures		°C	16 - 31	16 - 31	16 - 31
Refrigerant	Type		R290	R290	R290
	Load	gr	115	150	200
Operating temperatures		°C	5 - 35	5 - 35	5 - 35
EAN13			8435556168287	8435556168294	8435556168300

SCHEME

Measurements located in the table above

White portable air purifier with labeled dimensions A, B, and C (no text or symbols on the device itself)

PFI070

White portable air purifier with labeled dimensions A, B, and C (no text or symbols on the device itself)

PFI090

White industrial air purifier unit with labeled dimensions A, B, and C (no text or symbols on the device itself)

PFI120

DID YOU KNOW...

Rointe portable air conditioners include the new ultrasilent system, which reduces the sound power of the device to 51 dB, a noise level equivalent to a quiet street.

Close-up of a person lying down with closed eyes, wearing a striped top (no visible text or symbols)

DRYPURE _12/16 L

PORTABLE DEHUMIDIFIER WITH CONTINUOUS DRAINAGE OPTION 12 & 16 LITRES

R-290

ECO GAS

R290

Exterior view of a white Rointe air purifier with black ventilation grille and blue control panel (no text or symbols visible)

Displayed model
DHDI12 - Drypure Dehumidifier 12 L

Exterior view of a modern Rointe air purifier unit (no visible text or symbols on body)

Displayed model
DHDI16 - Drypure Dehumidifier 16 L

Displayed model
DHDI12 - Drypure Dehumidifier 12 L

Exterior view of a DHDI16 Drypure Dehumidifier 16 L device (no signage or text on device body)

FEATURES

EASY TO TRANSPORT

The product includes wheels for easy movement between rooms.

3 MODES

Three different modes of operation: Auto Mode, Dry Mode and Sleep Mode.

OVERHEATING PROTECTION

Automatic compressor overheat protection with three-minute delay.

LED DISPLAY WITH INDICATOR LIGHT

Front indicator with 3 light colours: red, green and blue depending on the level of ambient humidity detected.

2 / 4.5 TANK (Depending on model)

The product incorporates a removable tank with a maximum capacity of up to 4.5 litres.

TIMER FROM 1 TO 24 H

Function that allows programming the on and/or off time of the unit.

CONTINUOUS DRAINAGE FUNCTION

The product can be operated with or without a tank, with continuous drainage mode.

CHILD LOCK

Function that locks the control panel to prevent tampering with the product.

FILTER INCLUDED

The unit is equipped with a filter designed to remove dust particles contained in the air.

MODELS			DHDI12	DHDI16
Dehumidification capacity (30°C, 80%HR)		L	12	16
Nominal Power		W	200	300
Power supply			220-240 V, 50Hz	220-240 V, 50Hz
Amperes		A	1.2	2.1
Air flow rate		m3/h	120	120
Sound level		dB	38	38
Unit	Dimensions (A x B x C)	mm	255 x 230 x 446	305 x 235 x 495
	Net weight	Kg	10	13
Recommended area		m2	8 - 15	15 - 20
Refrigerant	Type		R290	R290
	Load	gr	45	50
Water tank capacity		L	2	4.5
Number of speeds			2	2
Timer		H	1 - 24	1 - 24
Filters			1	1
Ambient operating temperature		°C	5-35	5-35
EAN13			8435556168348	8435556168355

SCHEME

Measurements located in the table above

White industrial water purifier unit with labeled dimensions A, B, and C (no text or symbols on body)

DHDI12

White RoInte air purifier device with labeled dimensions A, B, and C (no text or symbols on body)

DHDI16

Woman sitting on a sofa reading a book, surrounded by patterned pillows and a window with greenery outside (no text or symbols visible)

This catalogue is marketing material and does not represent a commercial offer. For specific part numbers, please ask your wholesaler. It is possible that your product has other characteristics than those indicated in this catalogue, due to the continuous improvement of Rointe products.

The part numbers, EAN codes, descriptions & technical data are correct except for typographical errors.

Copyright © Rointe Heating 2025. All rights reserved.

MPMKCAT228

UNITED KINGDOM

Check our commercial terms
and conditions

IRELAND

Check our commercial terms
and conditions
