Product type	Electric convector
Brand	Cecotec
Model	ReadyWarm 7200 Design Connected
Power supply	220-240 V ~ 50 Hz
Power (levels)	800 W / 1000 W / 1800 W
Temperature range	10 °C to 35 °C
Timer	Up to 9 hours
Built-in Wi-Fi	Yes (Cecotec app)
Remote control	Included
Display	Digital screen
Mounting options	Wall or floor standing
Maintenance	Soft damp cloth, mild detergent
Safety	Overheat protection, timer shut-off
Spare parts and repairability	Contact Cecotec after-sales service
Recycling	WEEE compliant, do not dispose with household waste

Frequently Asked Questions - ReadyWarm 7200 Design Connected CECOTEC

How to install the ReadyWarm 7200 convector?

The appliance can be mounted on the wall using the supplied wall bracket, at a minimum height of 1.8 m from the floor, or placed on the floor on its feet. Keep a distance of at least 1 m from flammable materials.

How to turn the appliance on and off?

Plug in the appliance, the ⏻ symbol flashes. Press the ⏻ button to turn on. To turn off, press again and unplug the power cord.

What power levels are available?

Three levels: 800 W, 1000 W and 1800 W. Select them by pressing the M button repeatedly.

How to set the temperature?

Use the + and - buttons to set the temperature between 10 °C and 35 °C. The set temperature must be higher than the ambient temperature for the heater to work.

How to use the timer?

Press and hold the M button to activate the timer. Press again to add hours (up to 9 h). The appliance will turn off automatically after the programmed delay.

How to connect the convector to Wi-Fi?

Download the Cecotec app. Make sure the Wi-Fi indicator is flashing, then follow the instructions in the app to connect the appliance to your Wi-Fi network.

How to use the remote control?

To connect the remote control, press and hold the F button on the panel until a beep, then press a button on the remote. It allows to turn on/off, set temperature, timer and select power.

How to clean the appliance?

Unplug the appliance and allow it to cool. Clean with a soft damp cloth and mild detergent. Avoid abrasive products and do not touch the heating elements.

What are the important safety instructions?

Do not cover the appliance while in use, keep flammable materials at least 1 m away, do not use near a bathtub or pool, and supervise children.

What to do in case of breakdown or malfunction?

Unplug the appliance and contact the official Cecotec after-sales service. Do not attempt to repair yourself.

USER MANUAL ReadyWarm 7200 Design Connected CECOTEC

Exterior view of a modern electric solar heating device (no visible text or symbols on the device body)

ES • Este producto no es adecuado para calefacción primaria. Este producto está indicado únicamente en lugares abrigados o para una utilización puntual. EN • This product is not suitable for primary heating purposes. This product is only suitable for well-insulated spaces or occasional use. FR • Ce produit ne convient pas pour une utilisation en tarit que chauffage primaire. Cet appareil a été conçu seulement pour être utilisé dans des espaces intérieurs ou pour une utilisation momentanée. DE • Dieses Produkt ist nicht für die Primärheizung geeignet. Dieses Produkt ist nur für den Gebrauch in geschützten Räumen oder für den gelegentlichen Gebrauch geeignet. IT • Questo apparecchio non è adatto all'uso come fonte di riscaldamento primaria. Il suo utilizzo è indicato solo in luoghi riparati o per uso occasionale. PT • Este aparelho não é adequado para ser usado como aquecimento primário. Destina-se a uma utilização ocasional e apenas em locais abrigados. NL • Dit product is niet geschikt voor hoofdverwarming. Dit product is alleen geschikt voor beschutte locaties of incidenteel gebruik PL • Ten produkt nie nadaje się do ogrzewania podstawowego. Ten produkt nadaje się tylko do miejsc ostoriętych lub do użytku okazionalnego. CZ • Tento produkt neni vhodny pro primární vytápění. Je vhodny pouze pro chráněnă mista nebo pro občasné použití. TR • Bu ürün birincil istima için uygun değildir. Bu ürün yalnızca korunaklı yerter veya ara sira kullanım için uygundur. GR • Autó to προϊόν δεν είναι κατάλληλο για κύρια θέρμασην. Autó to προϊόν είναι κατάλληλο μόνο για προστατευμένες τοποθεσίες ή περιστασιακή χρίση. CAT • Aquest producte no és adequat per a calefacción primária. Aquest producte está indicat únicament a llocs abrigats o per a una utilizització puntual. HU • Ez a termék nem alkalmas elsődleges fiftésre. Kızaríalag fedett helyeken vagy alkalmi használatra alkalmas. يَمْجَعْتِهُ تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تَوْلُوا تُرْمِّي عَلَا دَابجْتِسِال وَأَنْمِّي عَلَا دَابجْتِسِال وَأَنْمِّي عَلَا دَابجْتِسِال وَأَنْمِّي عَلَا دَابجْتِسِال وَأَنْمِّي عَلَا دَابجْتِسِال وَأَنْمِ"

Manual de instrucciones Instruction manual Manuel d'instructions Bedienungsanleitung Manuale di istruzioni Manual de instruções Handleiding Instrukcja obsługi Návod k použití Kullanma kilavuzu Oðnyíες хрóησης Manual d'instruccions Használati útmutató تاميölعكلا ليولد

Instrucciones de seguridad 6
instructions 9
Instructions de sécurité 12
Sicherheitshinweise 15
Istruzioni di sicurezza 18
Instruções de segurança 21
Veiligheidsinstructies 24
Instrukcje bezpieczeństwa 27
Bezpečnostní pokyny 30
Güvenlik talimatları 33
Οδηγίες ασφαλείας 36
Instruccions de seguretat 39
Biztonsági utasítások 42
قَمَالْسَلَا تَامِيْلُ عَت 45

ÍNDICE

1. Parts and components 53
2. Before use 53
3. Assembly 53
4. Operation 54
5. Cleaning and maintenance 56
6. Disposal of old electrical and electronic appliances 56
7. Copyright 56
8. Simplified EU Declaration of Conformity 57

SOMMAIRE

EU01_117498_ReadyWarm 7200 Design Connected

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- Make sure that the mains voltage matches the voltage specified on the product's rating label and that the plug is earthed.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

- Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service to avoid any danger.

- Do not place the appliance near heat sources, flammable substances, wet surfaces, or allow it to come into contact with water or other liquids. Do not use outdoors.

- Do not cover the device during operation.

- Do not introduce or allow objects to be introduced in the device, this could cause risk of electrical shock, fire or damage.

- Always turn off and unplug the appliance when not in use and before moving it. To unplug the appliance, pull the plug, not the cord.

- Avoid using extension cords, as they could overheat and cause risk of fire.

- The appliance must not be placed directly under a power socket.

• Do not use the heating appliance in the immediate vicinity of a bath, shower, or swimming pool.
• Do not use this heating appliance if it has been dropped.
• Do not use if there are visible signs of damage to the heating appliance.
• Use this heating appliance on a horizontal and stable surface, or fix it to the wall, as applicable.
• WARNING: do not use this heating device in small rooms that are occupied by people who cannot leave the room by themselves, unless permanent supervision is provided.
• WARNING: to reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1 m away from the air outlet.
• CAUTION: some of the product's parts may become very hot and cause burns. Particular attention should be paid when children and/or vulnerable people are present.
• One of the most common causes of overheating is the building up of debris or fluff in the appliance. Be sure to clean these accumulations periodically by vacuuming the vents and grilles.
• Do not place the appliance on carpets, and do not place the cable under carpets. Position the cord in such a way as to avoid obstructing passage and cause tripping hazards.
• Do not store it until it cools down. Store it in a cool, dry place when not in use.
• The heater must be installed at a minimum height of 1.8 m above the floor.
• Keep the appliance out of the reach of children under 3 years of age unless they are continuously supervised.
• Children between 3 and 8 years old should only switch the appliance on or off when it has been placed or installed in its normal, intended operating position and if they have

been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children between 3 and 8 years old should not plug in, adjust, and clean the appliance and should not carry out maintenance tasks.

- This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance should not be carried out by children without supervision.

- Supervise children to ensure they do not play with the product. Close supervision is necessary when the appliance is being used by or near children.

INSTRUCTIONS DE SÉCURITÉ

1. Display/Control panel
2. Feet
3. Heat outlet

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Product
• Remote control
• Feet and wall brackets
• Instruction manual

Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. ASSEMBLY

Wall mounting

Unpack the package to find the heater along with the wall mounting accessories pack.

1. Assemble the 3 parts of the wall mounting bracket by screwing together the spare parts from the bag (Fig. 2.A).
2. Mark the positions of the four holes to be drilled in the wall and drill the holes with the appropriate drill bit. After drilling, insert the expansion plug into each hole and mount the

ENGLISH

bracket by securing it with screws into all 4 expansion plugs (Fig. 2.B).

1. Lift the heater and align its four holes with the 4 hooks on the bracket (Fig. 2.C).
2. Insert the 4 bracket hooks into the 4 holes of the heater. Secure the heater's back cover by hooking the metal piece into the slot indicated by the round circle (Fig. 2.D).

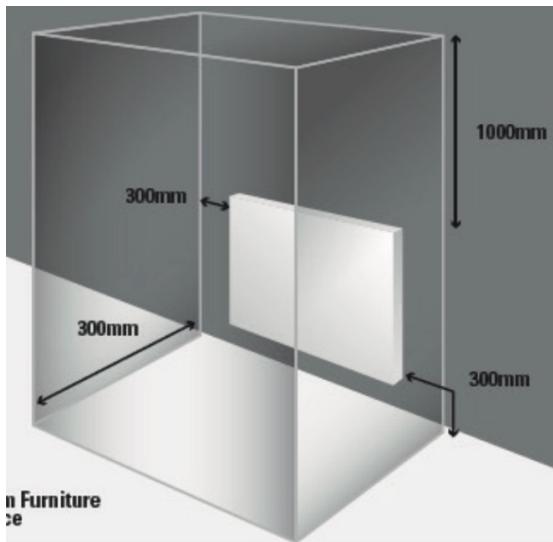

3. The minimum distances from furniture must comply with the specifications in this manual (Fig. 2.E).

Feet assembly

• The left foot is marked with an "L" on its bottom. Align the 2 holes of the foot with the 2 holes at the bottom of the heater and install on the "L" side of the heater using 2 screws.
• The right foot is marked with an "R" on its bottom. Align the 2 holes of the foot with the 2 holes at the bottom of the heater and install on the "R" side of the heater using 2 screws (Fig. 3).

4. OPERATION

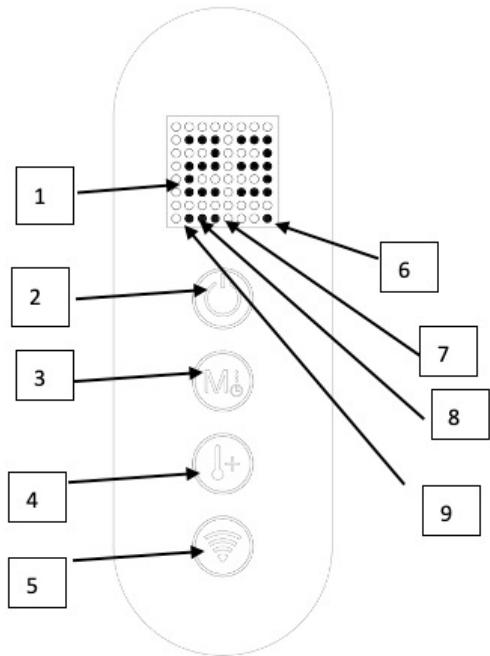

Control panel (Fig. 4):

1. Display
2. On/Off
3. Mode/Timer button
4. Temperature increase
5. Wi-Fi button
6. Wi-Fi indicator light
7. Second power level indicator light
8. Third power level indicator light
9. First power level indicator light

Switching the heater on/off

1. Check that the heater is not damaged.
2. Insert the plug into the power socket.
3. At this point, the “☐” symbol on the display will flash. Then press the “💡” button. The heater will start operating. The display will show the room temperature.
4. After use, first press the "💡" button to switch off the device. Finally, remove the plug from the power socket.

Power setting

1. Press the “M” button once for 800 W heating.
2. Press the "M _i " button twice for 1000 W heating.
3. Press the “Mi” button three times for 1800 W heating.

Note: Ensure the set temperature is higher than the room temperature; in this case, the heater will operate at the selected power level.

Temperature setting

1. You can adjust the temperature setting by pressing the "button." Each press increases the temperature by one degree. The temperature range is 10 to 35°C.
2. Under power settings 1st/2nd/3rd, you can adjust the temperature from 10 to 35°C.

Timer

Press and hold the “M _15 ” button to activate the timer; the display will flash 0H. Each subsequent press increases the timer by one hour up to a maximum of 9H. The timer is set after 10 flashes. You can also press and hold the button to finish the timer setting. The display will alternately show the room temperature and the set number of hours. The heater will switch off when the set time is reached.

Wi-Fi and App

The heater can also be controlled via a smartphone app. To do this, the heater must be connected to a Wi-Fi network.

1. Download the Cecotec app from the Apple Store or Android marketplace.
2. Enter the app, register and log in.
3. Make sure the Wi-Fi indicator light on the heater is flashing.
4. The app will automatically scan for the heater.
5. Press the "Add" button to connect the product.
6. Enter the Wi-Fi network password.
7. The app will automatically connect to the heater.
8. Once the Wi-Fi indicator light remains steady, the connection has been successful.

Wi-Fi on/off

Press the “💡” button and “💡” button together until the Wi-Fi indicator light flashes to enable Wi-Fi connection.

Press the “💡” button and “💡” button together until the Wi-Fi indicator light turns off to disable the Wi-Fi function.

Remote control operation

The heater can also be controlled using the remote control (Fig. 5).

1. To pair the remote, press and hold the “+” button on the heater’s control panel until you hear a “beep” sound, and continue holding the button. Simultaneously, press any button on the remote control; you will hear another “beep” sound, at which point the remote control will be successfully paired with the heater.

ENGLISH

1. Press the "⏻" button to turn the device on/off.
2. Press the " Ⓤ" button, then you can set the timer using "+" and "-".
3. Press “+” and “—” to increase and decrease the temperature. The temperature range is 10 to 35°C.
4. Press "M" to choose different power levels: 800/1000/1800 W.

5. CLEANING AND MAINTENANCE

• Before performing any cleaning or maintenance operations, disconnect the appliance from the mains power supply and wait for it to cool down.
• For cleaning, it is recommended to use a soft, damp cloth and mild detergent. Do not use abrasive cloths or implements that might affect the appliance's surface. Check that the hot air outlet and ventilation inlet are free from dust and dirt. During cleaning, be careful not to touch the heating elements.
• In case of malfunction and/or faulty operation, disconnect the appliance from the mains power supply and contact an authorised repair technician.

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should

contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

7. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

8. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE novaciones hereby declares that this appliance complies with the essential its and other relevant provisions of the regulations applicable in the European appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

تَقَرْرِرَرْرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرِرَ

Simple line drawing of a circular shape with a zigzag line inside, no text or symbols present.

D

Technical line drawing of a rectangular electronic component with internal structural details (no text or symbols)

Technical line drawing of a mechanical component with two vertical supports and mounting holes (no text or symbols)

E
Fig./Img./Abb./Afb./Rys.2

Line drawing of a rectangular electronic device with labeled ports L and R, showing internal structure without any text or symbols.

Technical line drawings of a flat-screen TV or monitor device, showing front and side views with no text or symbols.

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5
