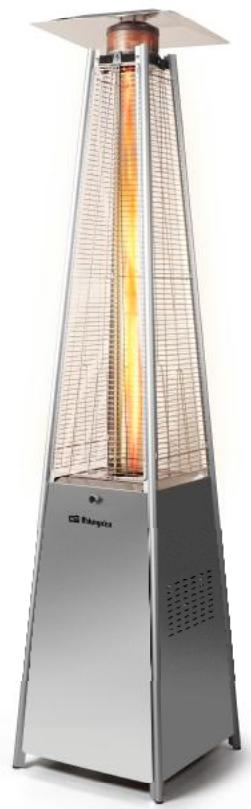

PHE 75 - Auxiliary heating Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	PHE 75
Product type	Gas patio heater
Usage	Outdoor only
Maximum power	13 kW
Minimum power	5 kW
Gas type	Butane (28-30 mbar) or Propane (37 mbar)
Recommended gas pressure	Butane 28-30 mbar, Propane 37 mbar
Regulator outlet pressure	Butane 30 mbar, Propane 37 mbar
Compatible cylinder dimensions	Max diameter 30.5 cm, max height 51.7 cm, max weight 23 kg
Ignition	Piezoelectric with pilot flame
Safety	Thermocouple (automatic shut-off if pilot flame goes out), mandatory leak test
Materials	Steel, quartz glass, metal guard
Cleaning	Soft cloth, clean burner and quartz tube every 6 months
Spare parts	Regulator, rubber hose, injectors, quartz tube available via after-sales service
Estimated weight (without cylinder)	Approximately 18 kg
Approximate height	220 cm
Approximate diameter	80 cm

Frequently Asked Questions - PHE 75 Orbegozo

How to light the Orbegozo PHE 75 heater?

Open the gas valve on the cylinder. Press and turn the control knob to the PILOT position (90°, counterclockwise). Hold it down for 30 seconds while pressing the IGNITION button several times until the pilot flame ignites. Release the control knob. Then turn the knob to the desired position. Let it warm up for 5 minutes at maximum power before adjusting.

What type of gas to use for this heater?

Use only butane (pressure 28-30 mbar) or propane (pressure 37 mbar). Propane is recommended as it works better in cold weather. The regulator must match the gas pressure used.

Where to install the Orbegozo patio heater?

Place the heater on a firm, level surface, outdoors only. Keep a safe distance of at least 100 cm from combustible materials (height and sides). Never use it in an enclosed space, vehicle, or boat.

How to perform a leak test?

Prepare a soapy water solution (half water, half soap). Apply it to all connections (regulator, hose, valves) with a sprayer or cloth. Open the gas valve (knob in OFF position). If bubbles appear, there is a leak. Tighten the connections or replace defective parts. Do not smoke and keep all flames away during the test.

What to do in case of gas smell?

Immediately turn off the heater and close the cylinder valve. Extinguish any flame or ignition source. Ventilate the area (if indoors, but this appliance is for outdoor use). If the smell persists, contact technical service. Do not use the appliance until repaired.

How to clean the Orbegozo PHE 75 heater?

Use a soft cloth to dust surfaces. Do not use corrosive or flammable products. Every six months, open the side guards, remove the quartz tube, and clean the burner of debris. Cover the appliance when not in use.

Can I use this heater indoors?

No, absolutely not. This heater is designed for outdoor use only. Using it in an enclosed space can lead to carbon monoxide poisoning, fire, or explosion.

How to store the gas cylinder?

After use, always close the cylinder valve. If you disconnect the cylinder, remove the regulator and hose. Store the cylinder in a ventilated place, away from heat sources and flames. Never store it in a basement or unventilated space.

What is the power of this heater?

The maximum power is 13 kW (945 g/h consumption) and the minimum power is 5 kW. This allows effective heating of a patio or outdoor space.

How to change the gas cylinder?

Close the valve on the used cylinder. Disconnect the regulator and hose. Replace with a new cylinder (max 30.5 cm diameter, 51.7 cm height, 23 kg). Reconnect the regulator and tighten the clamps. Perform a leak test with soapy water before relighting the heater. Work in a well-ventilated area, away from any flame.

USER MANUAL PHE 75 Orbegozo

Exterior view of a portable outdoor café with a metal gridded base and heat sink (no signage or text visible)

Exterior view of a modern outdoor café with a vertical metal frame and heat sink (no signage or text visible)

PHE 75 / PHE 80

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Technical line drawing of an electronic device casing with ports and a central component (no text or symbols)

AA
Pila 1x 1.5V

PARTES Y CARACTERÍSTICAS

ESPECIFICACIONES

Technical line drawing of a mechanical device with mounting base and control panel (no text or symbols)

Line drawing of a surveying instrument with a central tower and base mount (no text or symbols)

3/16" Tornillo

×4

Destornillador

× 1

Sujeción

×4

Line drawing of a gas cylinder mounted on a ladder, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Mechanical component diagram showing two gears and a curved shaft (no text or symbols)

• Do not use the patio heater for indoors, as it may cause personal injury or property damage
This outdoor heater is not intended to be installed on recreational vehicles and/or boats.

• Installation and repair should be done by a qualified service person.

•Improper installation, adjustment, alteration can cause personal injury or property damage.

• Do not attempt to alter the unit in any manner.

• Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.

• Do not store or use gasoline or other flammable vapors or liquids in the heater unit.

•The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before use, and at least annually by a qualified service person.

• All leak tests should be done with a soap solution. Never use an open flame to check for leaks.

• Do not use the heater until all connections have been leak tested.

•Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF.If leak is at Hose/

Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing should be returned to hose's place of purchase. If leak is at

Regulator/Cylinder Valve connection: disconnect, reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder

valve is defective and should be returned to cylinder's place of purchase.

•urn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF.If leak is at Hose/Do not transport heater while it's operating.
• Do not move the heater after it has been turned off until the temperature has cooled down.
- Keep the ventilation opening of the cylinder enclosure free and clear of debris.
• Do not paint the radiant screen, control panel or top canopy reflector.
• Control compartment, burner and circulation air passageways of the heater must be kept clean. Frequent cleaning may be required as necessary.
•The LP tank should be turned off when the heater is not in use.
•Check the heater immediately if any of the following occurs:

- The heater does not reach temperature.

- The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).

- Smell of gas in conjunction with extreme yellow tipping of the burner flames.

•The LP regulator/hose assembly must be located out of pathways where people may trip over it or in area where the hose will not be subject to accidental damage.

• Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.

• Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.

Children should be carefully supervised when they are in the area of the heater.

• Clothing or other flammable materials should not be hung on the heater or placed on or near the heater.

• To change the gas cylinder in a amply ventilated area, away from any ignition source (candle, cigarettes, other flame producing appliances, ...);

• To check that the regulator seal is correctly fitted and able to fulfill its function showed as photo right;

• To not obstruct the ventilation holes of the cylinder housing;

• To close the gas supply at the valve of the gas cylinder or the regulator after use;

• In the event of gas leakage, the appliance shall not be used or if alight, the gas supply

shall be shut off and the appliance shall be investigated and rectified before it is used again;

• To check the hose at least once per month, each time the cylinder is changed, or each time before long time no use. If it shows signs of cracking, splitting or other deterioration it shall be exchanged for new hose of the same length and of the equivalent quality;

•The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;

•Read the instructions before using this appliance. The appliance must be installed in accordance with the instructions and local regulations.

HEATER STAND AND LOCATION

• The heater is primarily for outdoor use only. Always ensure that adequate fresh air ventilation is provided.

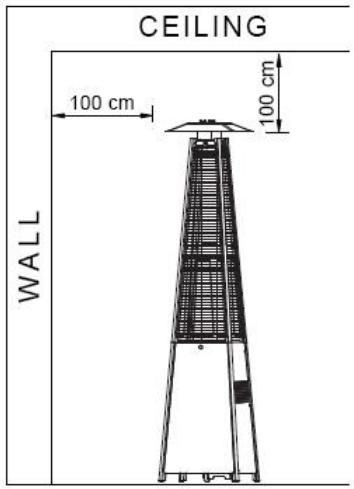

• Always maintain proper clearance to non protected combustible materials i.e. top 100 cm and sides 100 cm minimum.
• Heater must be placed on level firm ground.
• Never operate heater in an explosive atmosphere like in areas where gasoline or other flammable liquids or vapors are stored.
• To protect heater from strong wind, anchor the base securely to the ground with screws.

GAS REQUIREMENTS

• Use propane, butane or their mixtures gas only.
• The pressure regulator and hose assembly to be used must conform to local standard codes.
• The installation must conform to local codes, or in the absence of local codes, with the standard for the storage and handling of liquid petroleum gases.
• A dented, rusted or damaged tank may be hazardous and should be checked by your tank supplier. Never use a tank with a damaged valve connection.
• The tank must be arranged to provide for vapor withdrawal from the operating cylinder.
• Never connect an unregulated tank to the heater.

LEAKAGE TEST

Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness check must be performed at the installation site due to possible mishandling in shipment or excessive pressure being applied to the heater.

• Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
• The heater must be checked with a full cylinder.
• Make sure the safety control valve is in the OFF position.
• Turn the gas supply ON.
• In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and recheck.
• Never leak test while smoking.

1. Turn on the valve on the gas supply cylinder completely.
2. Press and turn the variable control knob to PILOT position (counter-clockwise 90°).
3. Press down the variable control knob and hold for 30 seconds. While holding down the variable control knob, press the igniter button several times until the pilot flame lights. Release the variable control knob after the pilot flame lights.

Note:

• If a new tank has just been connected, please allow at least one minute for the air in the gas pipeline to purge out through the pilot hole.
• When lighting the pilot flame make sure that the variable control knob is continuously pressed down while pressing the igniter button. Variable control knob can be released after the pilot flame lights.

• If the pilot flame does not light or it goes out, repeat step 3.

• After the pilot flame lights, turn the variable control knob to maximum position and leave it there for 5 minutes or more before turning the knob to desired temperature position.

Warning: check that no broken on the glass is found before operation

TO TURN OFF THE HEATER

1. Turn the variable control knob to PILOT position.
2. Press and turn the variable control knob to OFF position

Off: the heater stop work Hi: maximum temperature position Lo: minimum temperature position

1. Turn off the valve on the gas supply cylinder completely

STORAGE

1. Always close the gas valve of the gas cylinder after use or in case of a disturbance.
2. Remove the pressure regulator and the hose.
3. Check the tightness of the gas valve and for damage. If you suspect a damage, have it changed by your gas dealer.
4. Never store liquid gas cylinder in a sub-terrain, or at places without adequate air ventilation.

CLEANING AND CARE

• Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive.
• Remove debris from the burner to keep it clean and safe for use.
• Cover the burner unit with the optional protective cover when the heater is not in use.

BATTERY

Unscrew the switch button, load 1x AA 1.5V battery, tighten the switch button.

Technical line drawing of an electronic device casing with ports and a knob (no text or symbols)

PARTS AND SPECIFICATIONS

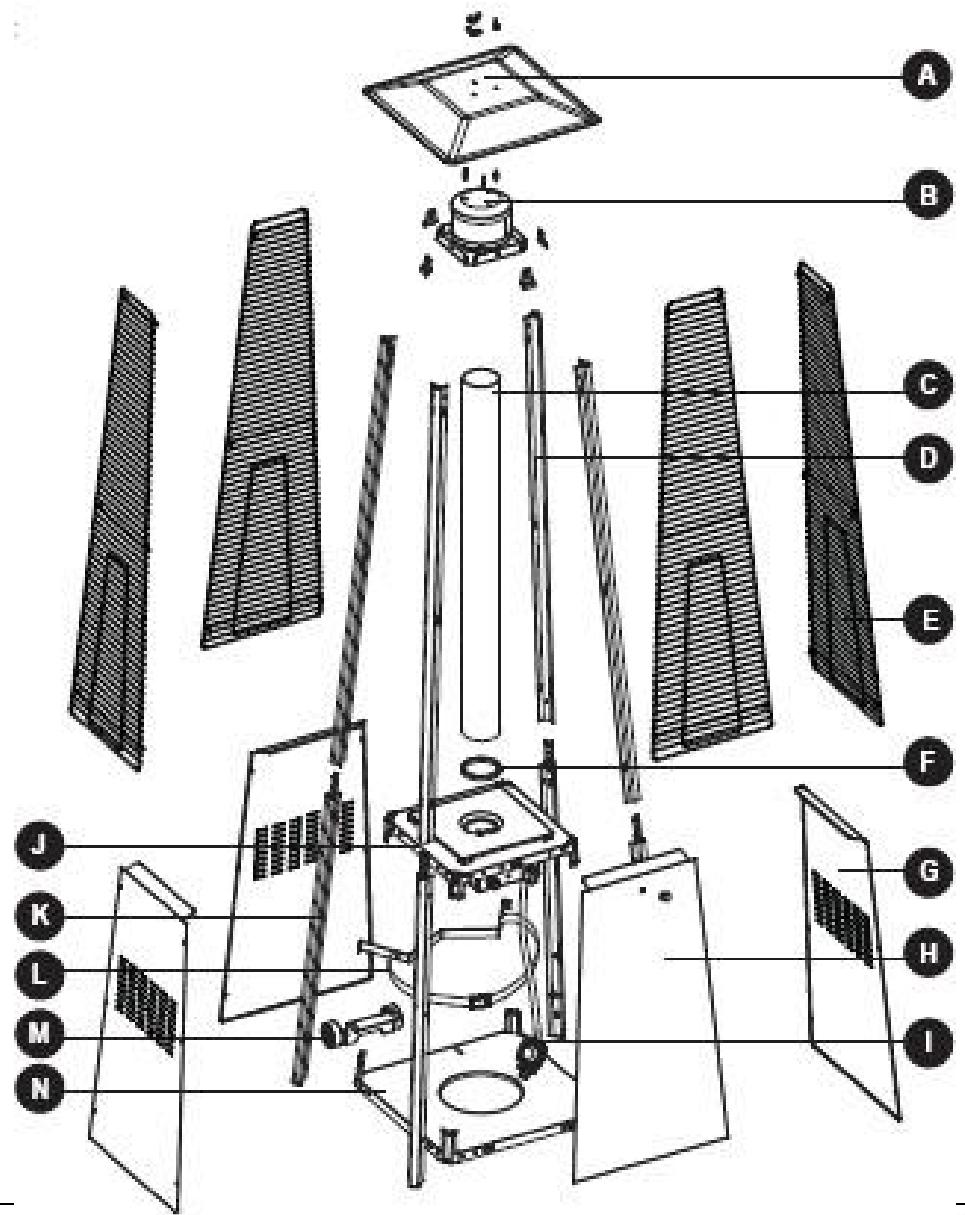

A. Construction and characteristics

• Transportable terrace/garden heater with tank housing
• Casing in steel with powder-coating or in stainless steel.
  • Gas hose connections with metal clamp (screw caps for Germany)
  • Heat emission from reflector

B. Specifications

- Use propane, butane or their mixtures gas only.

• Max. wattage: 13000 watts

• Min. wattage: 5000 watts

- Consumption:

APPLIANCE CATEGORY:	13+(28-30/37)
TYPES OF GAS:	Butane	Propane
GAS PRESSURE:	28-30mbar	37 mbar
OUTLET PRESSURE OF REGULATOR:	30mbar	37 mbar

- Using the proper regulator according to outlet pressure of regulator as showed in the table above.

C. Table of injector

• The hose and regulator assembly must conform to local standard codes
• Regulator outlet pressure should meet the corresponding appliance category showed in the specifications
  • The appliance requires approved hose in 0.5 m

APPLIANCE CATEGORY:	13+(28-30/37)
TYPES OF GAS:	Butane	Propane
GAS PRESSURE:	28-30mbar	37 mbar
TOTAL HEAT INPUT (Hs): (Qn)	13 Kw (945g/h)
INJECTOR SIZE:	1.88 mm for main burner0.18 mm for pilot burner

ASSEMBLY PARTS

Tools needed:

• Philips screwdriver w/ medium blade
- Spray bottle of soap solution for leakage test

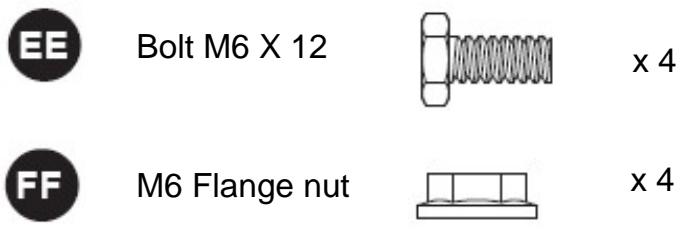

HARDWARE CONTENTS

ASSEMBLY PROCEDURES

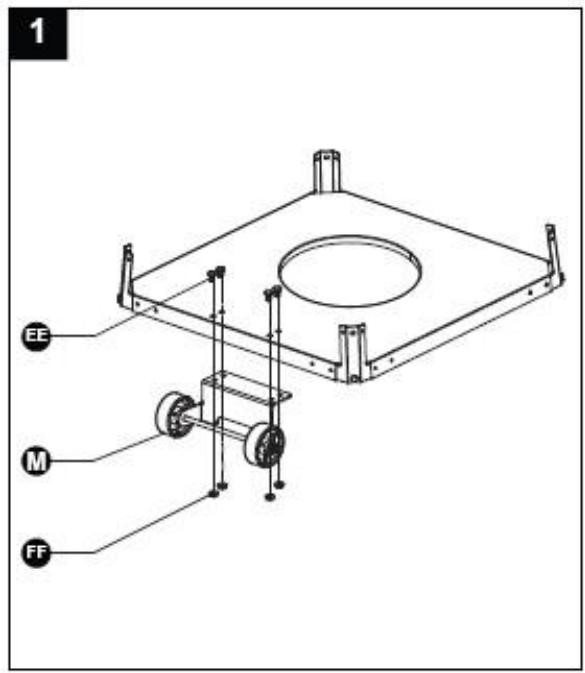

1. Assemble the wheel assembly to the bottom plate. Fix the wheel assembly to the bottom plate using 4pcs bolt M6X12 and 4pcs flange nut M6.

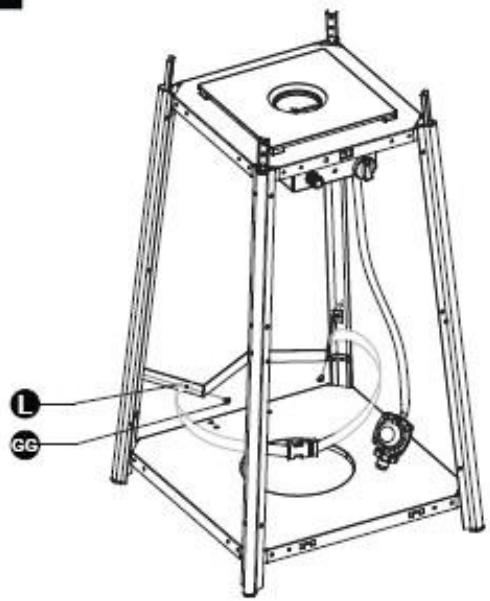

1. Insert the pins of the base to the holes of lower support, press to secure the pins. Using 4pcs screw M5x12 to secure the lower support and base.

Insert the pins of the control box assy to the holes of upper support, press to secure the pins. Using 4pcs screw 3/16" screw to secure the upper support and control box assy.

Screw M5 X 12

×4

3/16" Screw

× 4

screwdriver

x 1

1. Assemble block belt. Fix the block belt to the 2pcs of lower support behind the front door, using 2pcs screw M5X12.

Screw M5 X 12

x 2

screwdriver

x 1

1. Assemble the middle support. Insert the 4pcs upper support to the lower support. Secure them with 8pcs screw 3/16".

3/16" Screw

× 8

screwdriver

x 1

3

Technical line drawing of a mechanical device with labeled components (no text or symbols present)

4

1. Assebmle the flame screen to the upper support.

Secure the flame screen to the upper support using 8pcs screw 3/16".

3/16" Screw

× 8

screwdriver

x 1

1. Assemble the reflector onto the flame screen.

Screw the 3pcs stud on the flame screen, put 3pcs washer 6 onto the top of stud, then put the reflector onto the stud, secure them with 3pcs washer 6 and 3pcs wing nut.

Wing nut

× 3

Washer Φ6

× 6

Stud

× 3

1. Carefully install the glass tube by lifting up and inserting through the center hole in the upper plate. Ensure the black silicone ring is attached to the lower edge of the glass tube as illustrated. Slide the glass tube through the hole of the lower plate cover and onto the middle plate. Check and ensure that the glass tube is positioned properly and is completely covering the center hole of the middle plate.

WARNING! The black silicone ring must be in place prior to operating the heater.

8. Assembly the protective guard.

Hang the hooks of the protective guard onto the holes in supports.

Secure the protective guards with fixing brackets with 4pcs 3/16" screws.

3/16" Screw

x 4

screwdriver

× 1

Fixing Bracket

× 4

9. Attach the three side panels to the heater using 18pcs screw 3/16".

Note : Do not cover the front side where the control knob is.

3/16" Screw

× 18

screwdriver

× 1

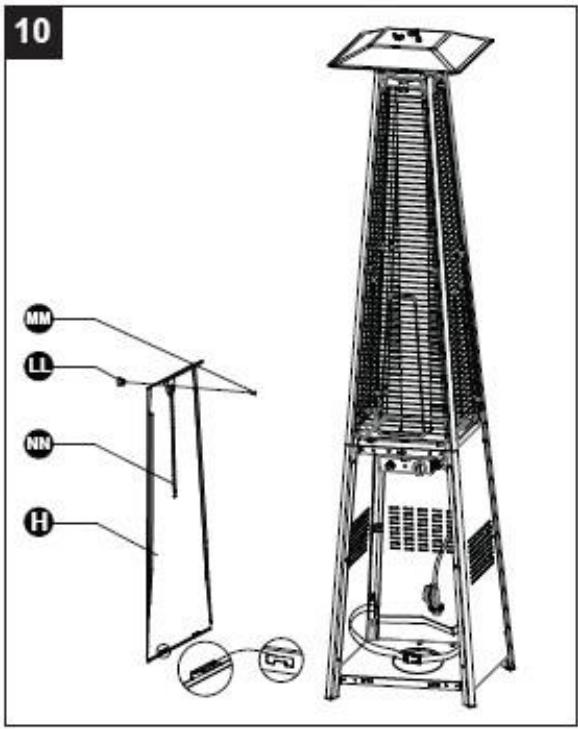

1. Install the knob to M4x10 screw. Hang the chain to the hole on the control box assy and put the pothook of front panel to the holes of bottom plate.

Knob

x 1

Screw M4 X 10

× 1

Chain

x 1

screwdriver

× 1

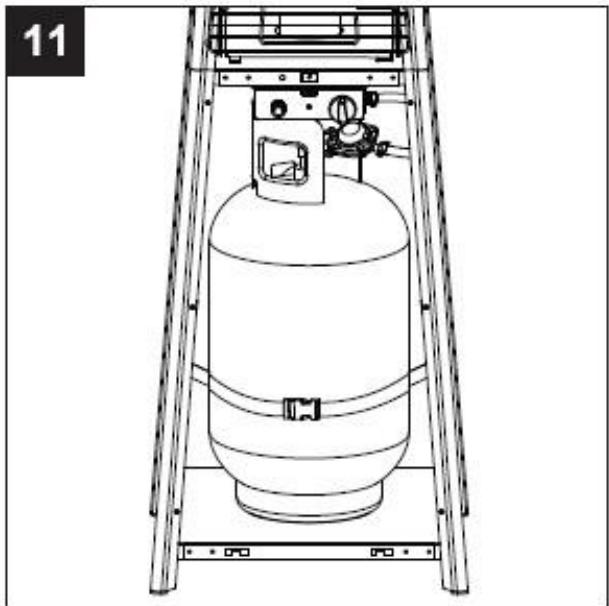

1. Propane Only-Proper Hose Connection. WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire.

After the cylinder is placed inside the heater, secure the cylinder with block melt tightly.

11

Line drawing of a cylindrical gas cylinder mounted on a ladder, with no visible text or symbols

12. Leak Check.

WARNING! A leak test must be performed annually and each time a cylinder is hooked up or if a part of the gas system is replaced.

WARNING! Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious bodily injury, or death.

Leak testing: This must be done before initial use, annually, and whenever any gas Components are replaced or serviced. Do not smoke while performing this test, and remove all sources of ignition. See Leak Testing Diagram for areas to check. Turn all burner controls to the off position. Turn gas supply valve on.

Brush a half-and-half solution of liquid soap and water onto all joints and connections of the regulator, hose, manifolds and valves.

Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Customer Care department and have the patio heater inspected by a certified gas installer.

If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the patio heater inspected by a certified gas installer or dealer. Do not use the patio heater until the leak has been corrected.

Hose / Regulator connection

Regulator / Cylinder connection

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with curved and straight sections (no text or symbols)

12

Technical line drawing of a mechanical device with control panel and adjustment knob (no text or symbols)

Mechanical assembly diagram showing a rotating component with curved arms and a shaft (no text or labels)

PROBLEMS CHECK LIST

PROBLEM	PROBABLE CAUSE	SOLUTION
Pilot will not light	Gas valve may be OFFTank fuel emptyOpening blockedAir in supply systemLoose connections	Turn the gas valve ONRefill LPG tankClean or replace openingPurge air from linesCheck all fittings
Pilot will not stay on	Debris around pilotLoose connectionsThermocouple badGas leak in lineLack of fuel pressure	Clean dirty areaTighten connectionsReplace thermocoupleCheck connectionsTank near empty. Refill LPG tank
Burner will not light	Pressure is lowOpening blockedControl not ONThermoscouple badPilot light assembly bentNot in correct location	Tank near empty. Refill LPG tankRemove and cleanTurn valve to ONReplace thermocouplePlace pilot properlyPosition properly and retry

FRANÇAIS

LIRE LES INSTRUCTIONS AVANT LA MISE EN FONCTIONNEMENT

Technical line drawing of a mechanical testing apparatus with labeled components (L and GG), no readable text or symbols beyond labels.

8. Monter les protections.

Line drawing of a gas cylinder mounted on a ladder, no text or symbols present

1. Test de fuites

Technical line drawing of a Manguera electrical connector (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with labeled components (L and GG), no readable text or symbols beyond labels

1. Install the knob to M4x10 screw. Hang the chain to the hole on the control box assy and put the pothook of front panel to the holes of bottom plate

2. Propane Only-Proper Hose Connection.

WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire.

After the cylinder is placed inside the heater, secure the cylinder with block melt tightly.

1. Leak Check.

Line drawing of a gas cylinder mounted on a ladder, no text or symbols present

ATENÇÃO! Deve ser feito anualmente um teste de fugas, cada vez que se substituir a garrafa ou se se substituir a borracha ou o regulador
