Product type	Wall-mounted electric towel warmer
Brand	Orbegozo
Model	TH 8001
Dimensions (H x W x D)	60 x 54.5 x 2.5 cm
Weight	2.1 kg
Power supply	230 V ~ 50 Hz
Rated power	400 W (estimated)
Protection rating	Not specified (bathroom use)
Installation	Wall-mounted, mounting hardware included (wall plugs, screws, brackets)
Main function	Drying and heating towels
Indicator light	Yes, indicates power on
Usage	Indoor, bathroom or utility room
Minimum height from floor	60 cm (lower bar)
Maintenance and cleaning	Unplug before cleaning, use a damp cloth, do not immerse
Safety	Do not place under a wall socket, hot surface, do not use in small rooms without supervision
Spare parts	Wall bracket, screws, wall plugs provided
Repairability	Refer to an authorized technical service
General information	Compliant with directives 2014/35/EU and 2014/30/EU
Warranty	Consult the seller or the brand

Frequently Asked Questions - TH 8001 Orbegozo

How to install the towel warmer?

Mark the drilling spots with a pencil, drill the holes, insert the wall plugs, then attach the wall brackets with the screws provided. Then hang the unit and plug it in.

Can I use this towel warmer in a bathroom?

Yes, it is designed for use in bathrooms and utility rooms. Ensure to follow safety distances and do not place the unit under an electrical outlet.

What is the recommended installation height?

The lower bar of the towel warmer must be installed at least 60 cm above the floor to avoid any danger to very young children.

How to clean the unit?

Always unplug the unit before cleaning. Use a damp, non-abrasive cloth. Never immerse it in water or any other liquid.

What if the power cord is damaged?

Do not use the unit. Contact an authorized technical service for cord replacement.

Does the towel warmer heat the entire room?

It is mainly designed to dry towels and provide supplemental heating. Its estimated power of 400 W allows heating the air nearby.

Can I leave the unit unattended?

It is not recommended to leave the unit unattended, especially in small rooms with persons who cannot leave on their own. Unplug it when not in use.

What accessories are included?

The installation kit includes wall plugs, M4x24PT screws, and wall brackets. The unit comes with a power cord and plug.

Is it possible to repair the unit myself?

No, any repair must be carried out by an authorized technical service to ensure safety.

How to dispose of the unit at the end of its life?

Do not throw it away with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) in accordance with directive 2002/96/EC.

USER MANUAL TH 8001 Orbegozo

TH 8000/TH 8001

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.

12. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

13. WARNING: In case of misuse, there is a risk of possible injury.

14. Children of less than 3 years should be kept away unless continuously supervised.

15. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The device should not be placed immediately below a socket base.

- WARNING: This heater isn't equipped with a temperature control room. Do not use this heater in small rooms that are occupied by people who cannot leave the room by themselves, unless you provide surveillance.

• Always unplug heater when not in use.

- This appliance is designed to be used exclusively fixed on the wall. Follow the installation instructions of the appliance

- This appliance is designed for only clothes that are washable with water.

- This appliance only works in upright position.

- Do not store the appliance until it has cooled completely.

• The towel warmer must be installed such that switches and other controls cannot be touched while a person is in the bath or shower.
• WARNING: In order to avoid a hazard for very young children, this appliance must be installed so that lower rail heater is at least 60cm above the floor.

INSTRUCTION MANUAL

This Towel Warmer is intended for the use in bathrooms or laundry areas. READ THE INSTRUCTIONS CAREFULLY BEFORE OPERATING

SPECIFICATIONS

Power Source: 230V AC\~50Hz, Class I

Rating Power Input: 95W

Unit Size: 60x 54.5 x 2.5 (H x W x D) cm

Unit Weight: 2.1kgs

1. Please read the wall-mount installation instruction carefully to understand how to install on your ideal location of the wall.
2. Make sure to complete the installation.
3. Plug the power cord into an electrical outlet.
4. After connecting to suitable power supply 230V AC, 50Hz, the appliance starts up and the indicator lamp lights up.

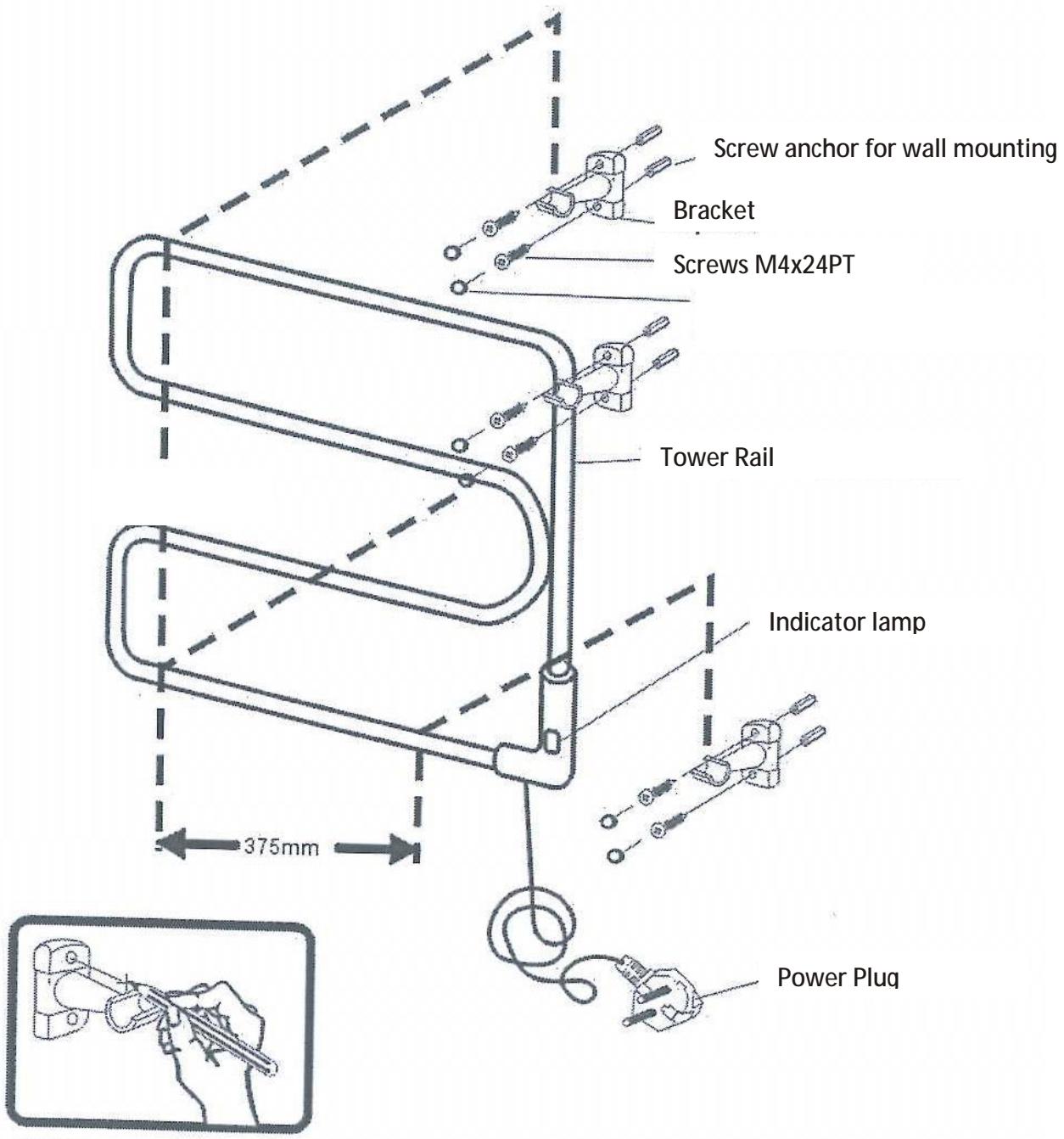

-Screw anchor for wall mounting

-Screws M4x24PT

-Tower rail

-Indicator Lamp

-Power Plug

OPERATING INSTRUCTIONS

STEP 1

Drill holes on the wall according to the bracket level

STEP 2
Insert screw anchor into the holes

STEP 3

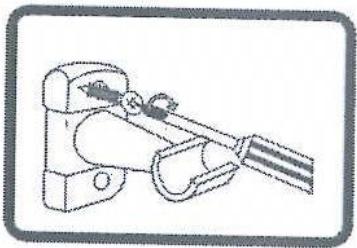

Turns the screws in

STEP 4
Put the warmer on screws

MAINTENANCE

- If the supply cord is damaged it must be repaired by the Authorized Service Agent.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and

recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

FRANÇAIS

INSTRUCTIONS DE SECURITÉ

Voltage : 230V AC, 50Hz, Class I

Puissance : 95W

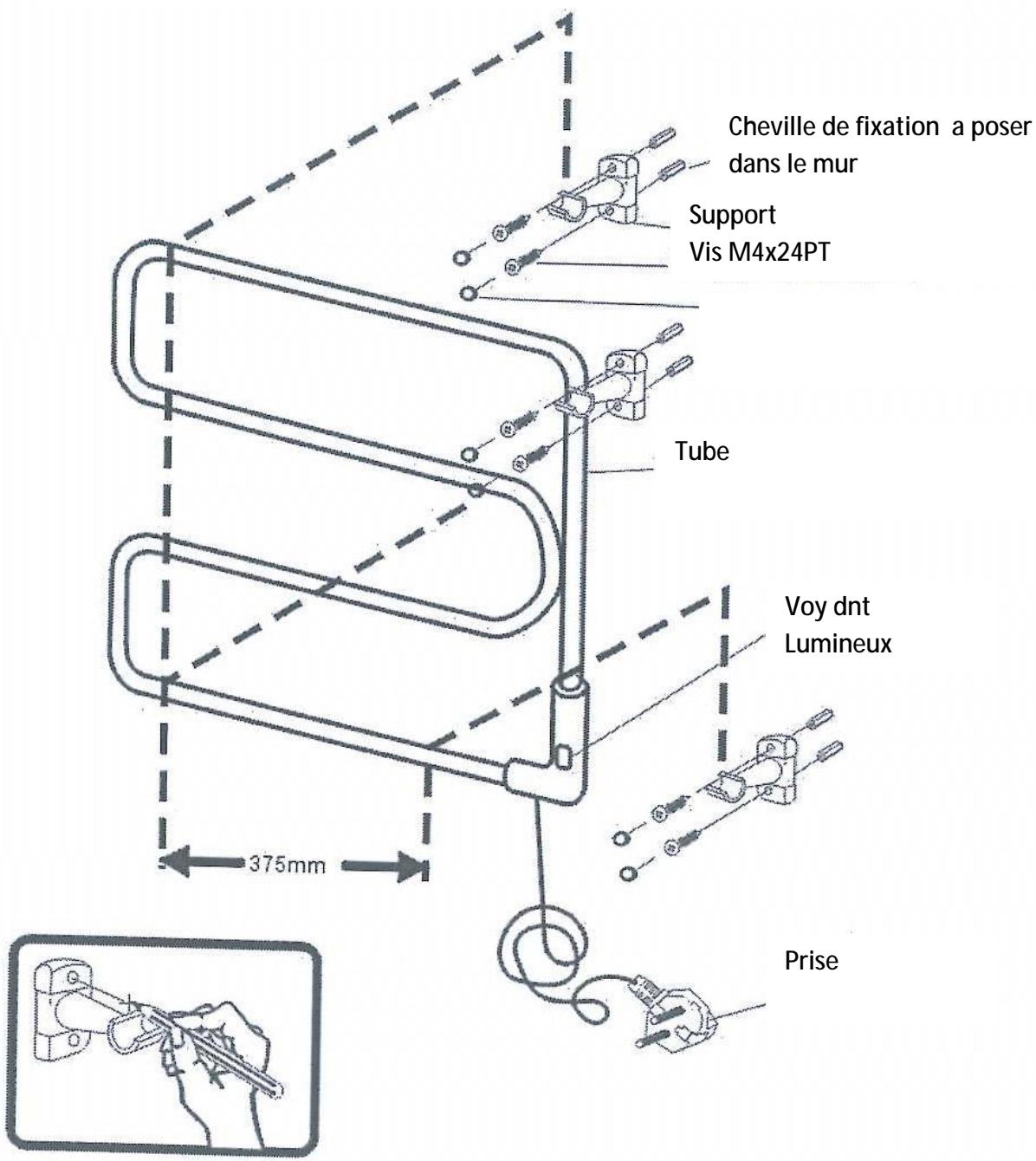

INSTRUCTIONS DE MONTAGE
