Product Type	Refrigerator with freezer compartment
Brand	Elvita
Model	CKD6910X
Total Gross Capacity	300 L
Refrigerator Capacity	200 L
Freezer Capacity	100 L
Energy Efficiency Class	A+
Climate Class	N-ST (Tropical to Subtropical)
Noise Level	40 dB(A)
Power Supply	220-240 V, 50 Hz
Dimensions (H x W x D)	180 cm x 60 cm x 65 cm
Weight	65 kg
Number of Shelves	4 adjustable glass shelves
Number of Freezer Drawers	3
Door Type	Standard hinge (reversible)
Defrost Type	Manual defrost (freezer), auto defrost (fridge)
Refrigerant	R600a (isobutane)
Control Type	Mechanical thermostat
Interior Light	LED
Spare Parts Availability	Shelves, door bins, thermostat available through service centers
User Manual Format	PDF (247 pages, multilingual)

Frequently Asked Questions - CKD6910X Elvita

What are the dimensions of the Elvita CKD6910X refrigerator?

The dimensions are approximately 180 cm in height, 60 cm in width, and 65 cm in depth. Always measure your space before installation.

How do I set the temperature on the CKD6910X?

The temperature is controlled by a mechanical dial inside the fridge compartment. Turn it to a higher number for colder settings. Typically, the middle setting is recommended.

Does the freezer require manual defrosting?

Yes, the freezer compartment needs manual defrosting. When ice build-up exceeds 5 mm, unplug the refrigerator, remove food, and let the ice melt. Do not use sharp tools.

Why is my refrigerator making noise?

Some noise is normal due to the compressor and fans. However, if you hear unusual sounds like clicking or rattling, ensure the refrigerator is level and away from walls. Check if items inside are vibrating.

How should I clean the interior?

Unplug the appliance and remove all food. Use a soft cloth with a mild detergent and warm water. Avoid abrasive cleaners. Dry thoroughly before restarting.

What is the energy class of the Elvita CKD6910X?

It has an energy efficiency class of A+, which means it is moderately efficient. Actual consumption depends on usage and placement.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to change the hinge side. You will need a screwdriver and possibly a second person.

How much food can the freezer hold?

The freezer has a capacity of about 100 L, with three drawers. It can hold roughly 60-80 kg of frozen food, depending on packaging.

What type of refrigerant gas does it use?

It uses R600a (isobutane), which is environmentally friendly but flammable. Ensure the cooling circuit is not damaged, and disposal must follow local regulations.

Where can I find the user manual?

The user manual is available for free download in PDF format on notice-facile.com. It contains 247 pages and is available in multiple languages.

USER MANUAL CKD6910X Elvita

CKD6910X, CKD6910S - 2025-07-16

You can find the latest updated manual online. Please go to elvita.se and use the search function and the product's model code to find the manual.

CONTENTS/INHALT/INNEHÅLL/INNHOLD/INDHOLD/SISÄLLYSLUETTELO/EFNISYFIRLIT

ENGLISH 2

DEUTSCH....38

SVENSKA 74

NORSK....110

DANSK....144

SUOMI 180

ÍSLENSKA 214

Contents

SAFETY 4

Admonitions 4

Intended use 4

Safety for children and people with disabilities.... 4

General safety 5

Safety during installation 6

Safety during operation 7

Safety during maintenance 8

Disposal 9

QUICK START 10

GETTING STARTED 12

Getting to know your fridge freezer 12

Control panel 12

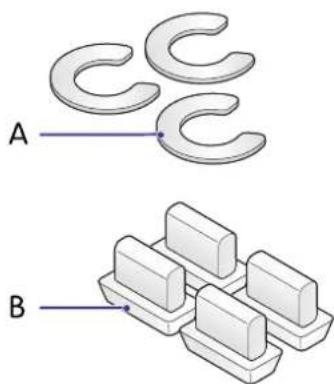

Accessories 12

Fridge and freezer compartments 12

Door alarm 14

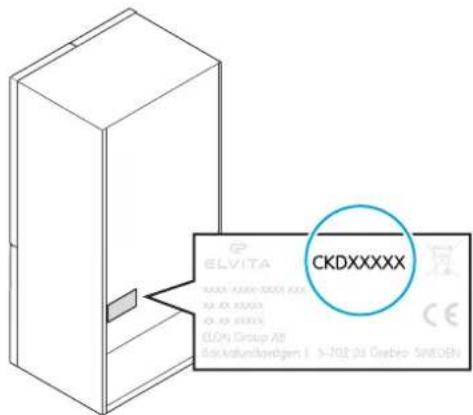

Find the model code 14

Before first use 14

USING YOUR FRIDGE FREEZER 17

Settings and modes 17

Turn on and turn off the fridge freezer 17

Change the temperature in the fridge compartment 17

Change the temperature in the freezer compartment 18

Change the temperature in the Convertible compartment 18

Turn on and turn off ECO mode 18

Turn on and turn off Holiday mode 19

Turn on and turn off Super freeze mode 19

Storing food.... 19

Store food in the fridge.... 19

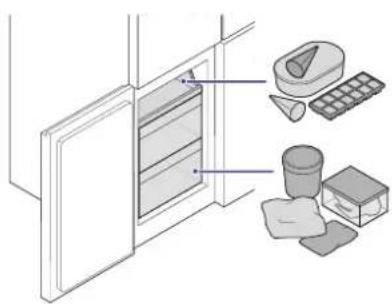

Store food in the freezer.... 20

CLEANING AND MAINTENANCE 22

Clean the fridge freezer 22

Prepare for longer periods of non-use 23

Replacing the LED light 24

TROUBLESHOOTING 25

Fridge freezer is not working correctly.... 25

Odour from the compartments 25

Temperature inside is too warm 25

Temperature inside is too cold 26

Noise from the fridge freezer 26

The side panel is hot 26

Drawer cannot be opened easily.... 26

Condensation on the fridge freezer interior.... 26

Condensation on the fridge freezer exterior.... 27

INSTALLATION 28

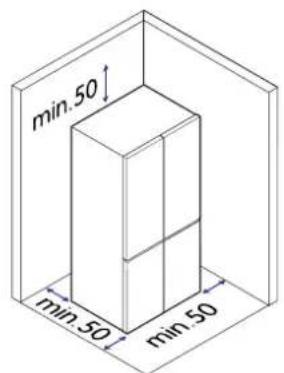

Installation area 28

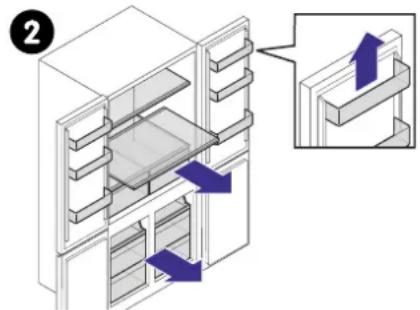

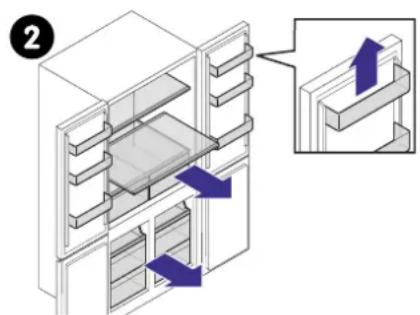

Unpack the fridge freezer 29

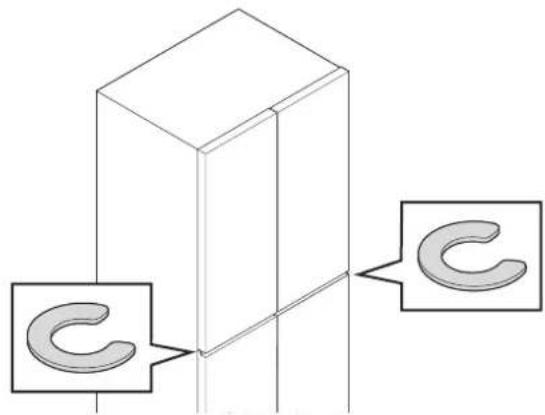

Install the washers 30

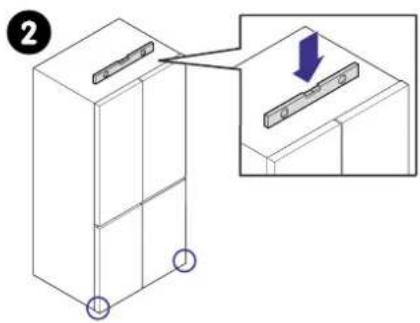

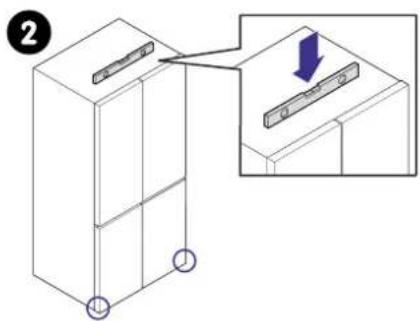

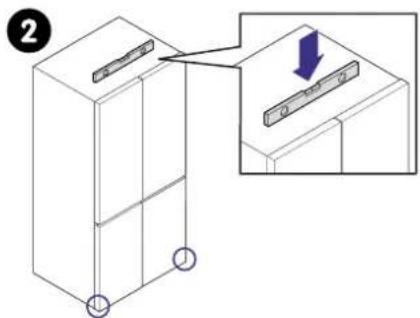

Level the fridge freezer 31

Move the fridge freezer 31

SPECIFICATIONS 33

Technical specifications.... 33

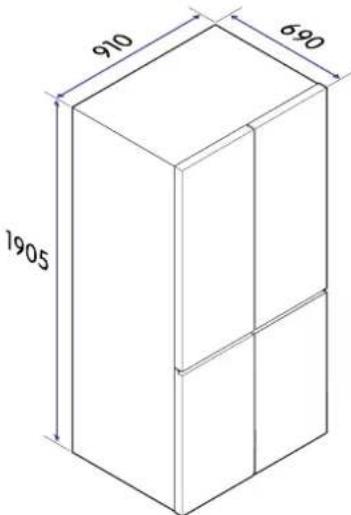

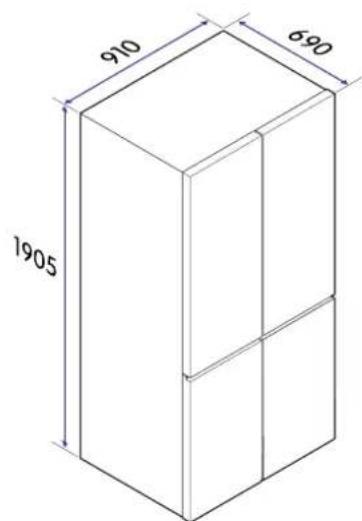

Dimensions.... 34

EU directives and standards.... 34

Climate classes.... 34

General storage recommendations.... 35

SAFETY

Carefully read the instructions before you install and use the product. Save the instructions and keep them near the product for future reference. All kinds of warranties shall be invalid if these instructions are not followed.

Admonitions

DANGER!

Used when there is a risk for personal injury or death.

WARNING!

Used when there is a risk for personal injury.

CAUTION!

Used when there is a risk for damage to the product.

NOTE!

General information that you should be aware of.

Helpful tips that you may find useful.

Intended use

This product is only intended for:

- Indoor use in a household or a similar environment such as:

– staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

- Household use, such as storage of food and beverages.

Safety for children and people with disabilities

WARNING!

Only let the following groups use the product if they are supervised or if instructions are provided to them about how to use the product in a safe way. They must understand the hazards involved.

• Children 8 years and older. (Children younger than 8 years must be continuously supervised, or be kept away from the product.)
• Children aged 3 to 8 years are allowed to load and unload the product.
• People with reduced physical, sensory or mental capabilities. • People with a lack of experience and knowledge.

WARNING!

• Do not let children or pets play with the product.
• Do not let children clean the product without supervision.
• Do not let children or pets enter or climb inside the product, otherwise they may suffocate or fall.

WARNING!

Cleaning and maintenance must not be performed by children unless they are aged 8 years or older and are under supervision.

WARNING!

Keep all packaging away from children as there is a risk of suffocation.

WARNING!

To prevent children from getting trapped inside, remove the doors before disposing of the product.

General safety

WARNING!

Do not place hands, feet, or metal objects under or behind the product. There is a risk of crushing, and sharp edges can cause injury.

WARNING!

• Take care when moving the product. The product is heavy. - Unplug the product before transportation. - Do not stand on any parts of the product or use any parts of the product as supports. - Do not use the product if it is damaged; contact support.

WARNING!

Risk of electric shock!

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• If the power socket is loose, do not plug in the power plug. There is a risk of electric shock and fire.
• Do not pull on the power cord when you unplug the product. Grab the power plug firmly and pull it out of the power socket.
• Do not touch the power plug with wet hands.
• Do not damage or crush the power cord, and do not use it if it is damaged or worn. Any damage to the cord may cause a short circuit, fire, and electric shock.

WARNING!

Risk of fire!

- The following symbol can be found on the product. It is a warning and indicates that the refrigerant and insulation blowing gas are flammable.

• During transportation and installation of the product, ensure that none of the components of the refrigerant circuit become damaged. The refrigerant, isobutane (R600a), contained within the refrigerant circuit is flammable.
• If the refrigerant circuit is damaged, avoid open flames and sources of ignition and thoroughly ventilate the area surrounding the product.
• Do not alter the specifications or modify the product in any way.
• If the power socket is loose, do not plug in the power plug. There is a risk of electric shock or fire.
• Do not damage or crush the power cord, and do not use it if it is damaged or worn. Any damage to the cord may cause a short circuit, fire, and electric shock.

Safety during installation

WARNING!

• Always use personal protective equipment (gloves etc.) during installation, maintenance and repair. There is a risk of injury.
• Do not damage the refrigerant circuit.
• Do not plug in the product if it is damaged.
• When positioning the product, ensure the power cord and power plug are not trapped or damaged. A damaged power plug may overheat and cause a fire.
• When positioning the product, ensure the power plug is accessible.
• Do not install the product in a location with direct sunlight.
• The product must be earthed. The manufacturer is not responsible for damages that may occur as a result of usage without earthing.
• Keep ventilation openings outside the product clear of obstruction.

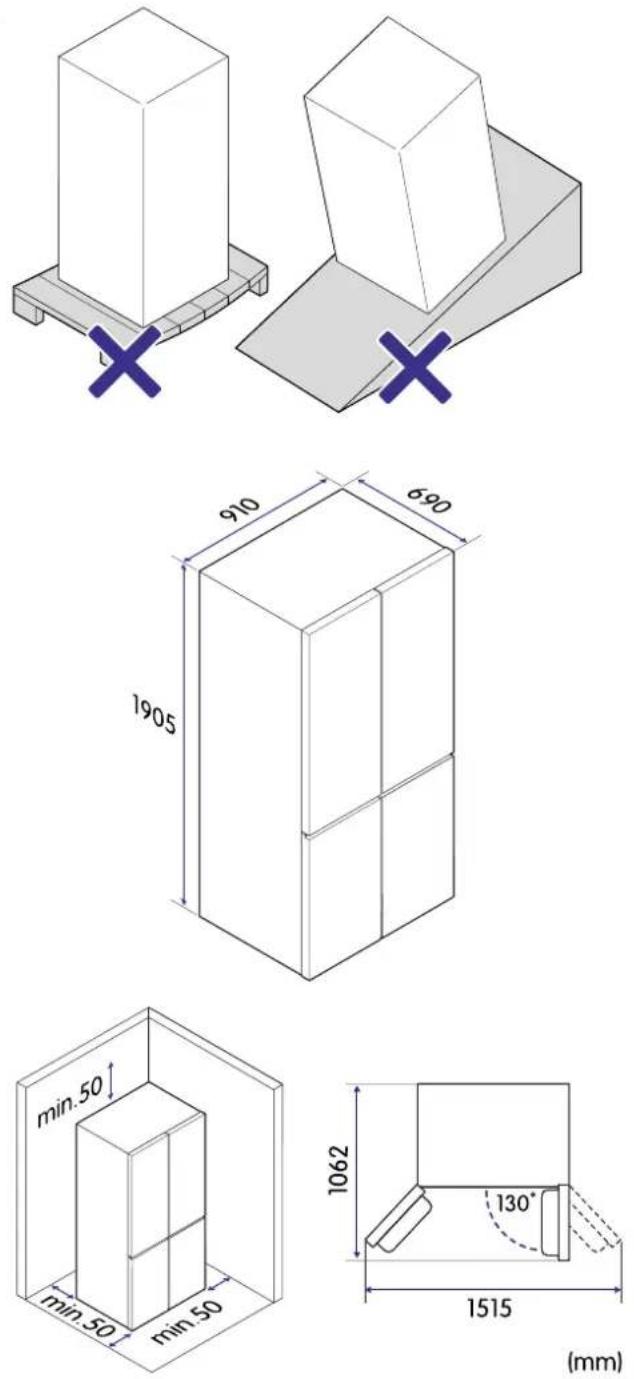

• Do not install the product without sufficient space and air ventilation around the product. This leads to overheating.
• Do not install the product close to radiators or cookers.
• The surface that the product is installed on should be strong enough to support a fully loaded product.
• Adjust the feet until all feet make contact with the floor and the product is level. This prevents the product from moving, tipping over and risk of injury.
• Do not install the back of the product too close to a wall. There is a risk of fire if the compressor gets overheated.
• When positioning the fridge freezer, the space above the fridge freezer must be minimum 50 mm, and the fridge freezer must be placed against a wall with a clearance of at least 50 mm to allow for air circulation and to prevent overheating. It is advisable to be 50 mm from the back to the wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of fire.

WARNING!

• Do not connect the product to the power socket if the product is damaged. Contact the retailer from which you purchased the product.
• Use a dedicated power socket, meaning that the power socket must not be shared with other products.
• Do not locate multiple portable socket outlets or portable power supplies behind the product.
• Make sure to connect the power plug to an earthed socket. Check carefully to ensure that your socket is properly and reliably earthed.
• Make sure the connection parameters of the product match the mains electricity supply. This information (fuse rating, voltage and frequency) is found on a label on the product. If in any doubt, consult a qualified electrician. Otherwise, there is a risk of electric shock, fire, injuries or problems with the product.
• Do not use extension cords and do not lengthen the power cord.
• After positioning the product, it is recommended to wait at least 4 hours before connecting the product to the mains. This allows the oil to flow back in the compressor.

CAUTION!

• Make sure there is enough space around the product so the doors and drawers can open easily.
• Disconnect the product from the power socket before installing accessories.

NOTE!

Contact Elvita support if you need help with the installation of your product.

Safety during operation

WARNING!

• Do not store explosive substances in this product, such as aerosol cans that contain a flammable propellant.
• Do not store flammable gas or liquids in the product, there is a risk of an explosion.
• Do not store flammable, explosive, volatile and highly corrosive items in the product to prevent damages to the product or fire accidents.
• Do not store containers filled with liquid on top of the product, to avoid spillage. Dry any spilled liquids. Spilled liquids may cause electric shock, fire or injury.

WARNING!

Keep burning candles, lamps and other items with naked flames away from the product to avoid the risk of fire.

WARNING!

• Do not remove or place food or containers in the freezer compartment with wet hands when the fridge freezer is running, especially metal containers, to avoid the risk of skin abrasions and ice burns.
• Do not consume frozen food, such as ice popsicles and ice cubes, straight from the freezer. This may cause ice burns.

WARNING!

• Keep ventilation openings inside the product clear of obstruction.
• Do not use electrical appliances inside the food storage compartments of the product, other than those recommended by the manufacturer.

WARNING!

Do not operate the product without the interior lighting.

CAUTION!

• Do not place hot items near the plastic components of the product.
• Do not place food directly against the rear wall.
• Make sure all shelves and drawers are fully pushed into the product before closing the door to avoid damaging it.

CAUTION!

Warnings for food safety!

To avoid contamination of food, please follow these instructions:

• Avoid prolonged door openings: Keeping the door open for long periods can cause a significant increase in the temperature inside the compartments.
• Regular cleaning: Clean surfaces that come into contact with food and accessible drainage systems regularly.
• Water dispenser maintenance: For models with a water dispenser: If the water dispenser has not been used for 48 hours, clean it before use. If the water system is connected to a water supply and has not been used for 5 days, flush it before consumption.
• Proper storage of raw meat and fish: Store raw meat and fish in suitable containers in the compartments to prevent contact with or dripping onto other food.

• Star-rated compartments:

- Two-star frozen food compartments are suitable for storing pre-frozen food, preserving ice cream, and making ice cubes.

- One-star, two-star, and three-star compartments are not suitable for freezing fresh food.

- Long-term storage precautions: If the refrigerating product is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould from developing inside.

• The storage recommendations should be strictly adhered to.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Place food so that air can circulate freely around it.
• Do not freeze frozen food again once it has thawed out. Once the food has thawed, it may slowly lose quality or spoil.

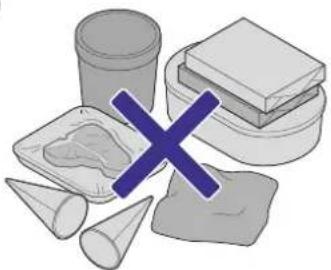

• Cover or wrap the food, particularly if it has a strong flavour to avoid transfer of odours.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure in the container, which may cause it to explode and damage the product.
• Do not open the door frequently.
• Gently close the door to prevent items from falling over.

Safety during maintenance

WARNING!

• Any electrical work must be performed by a qualified electrician or a person with comparable qualifications.
• This product must only be serviced by an authorised service centre, and only genuine spare parts must be used.
• Do not try to repair, disassemble or modify the product by yourself.
• Unplug the product before defrosting
• Do not perform any maintenance near a source of fire.

WARNING!

Before any cleaning or performing any maintenance of the product, unplug the product from the power socket.

WARNING!

Do not use tools or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING!

Do not replace the lamps in the product. If the lamps are broken, contact the support.

CAUTION!

• Do not use metal objects, steam cleaner, thinner, car detergent, clorox, ethereal oil, abrasive cleansers or organic solvent such as benzene for cleaning. They may damage the surface of the product and may cause fire.
• Do not use sharp objects to remove frost from the product. Use a plastic scraper.
• Do not use sponges and rough cleaning cloths. They may cause scratches.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the products surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Disposal

WARNING!

• To prevent children from getting trapped inside, remove the doors before disposing of the product. - To prevent children from climbing inside the product, do not remove the shelves and drawers. - Keep all packaging away from children as there is a risk of suffocation. - If the product has a lock on the door, make it unusable before disposing of the product. - To prevent children from getting an electric shock, unplug and cut the power cord before disposing of the product. - Do not let children play with the product.

WARNING!

• Ensure that the tubing of the refrigerant circuit is not damaged prior to disposal.
• Do not dispose of the product by throwing it into fire. There is a risk of explosion.
• The product contains refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally at an authorised waste disposal centre in accordance with local regulations, as they may cause eye injuries or ignition. The refrigerant and insulation blowing gas are flammable. Do not expose to flame.

Dispose of packaging in an environmentally-friendly manner. Recycling packaging, while observing national and local regulations, can reduce the consumption of raw materials and the amount of waste in landfill sites.

This product is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). The symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact the relevant municipal body in charge of waste management, your household waste disposal service or the store where you purchased the product.

QUICK START

Changing temperature in the fridge

1

Changing temperature in the freezer

1

Changing temperature in the Convertible compartment

1

Storing food in the fridge

Storing food in the freezer

GETTING STARTED

Getting to know your fridge freezer

Control panel

A. Temperature display B. Fridge temperature control C. Convertible compartment temperature control D. Freezer temperature control E. Mode selector (ECO, Holiday, Super freeze) F. Child lock control

Accessories

A. Washers B. Door buffer

Washers For aligning the fridge doors.

Door buffer For reducing impact when the door closes.

Fridge and freezer compartments

Fridge compartment

The fridge compartment is suitable for storing a variety of fruits, vegetables, beverages and other food for consumption in the short term. The fridge compartment consists of door racks, shelves and drawers.

Door shelves To store and organise your food and drinks.

Vegetable drawers

To store and organize different types of food such as fruits, vegetables, and snacks.

Shelves: To store and organize your food and drinks.

NOTE!

• This product is most energy efficient with all shelves and drawers in their original position.
• This product contains a LED light source of energy efficiency class F.

Freezer compartment

The freezer compartment can keep food fresh for a long time and is suitable for storing meat, fish, ice cream, and other food that is not intended to be consumed in the short term. The freezer compartment consists of drawers and a sliding tray.

Freezer drawers: To store and organize different types of food.

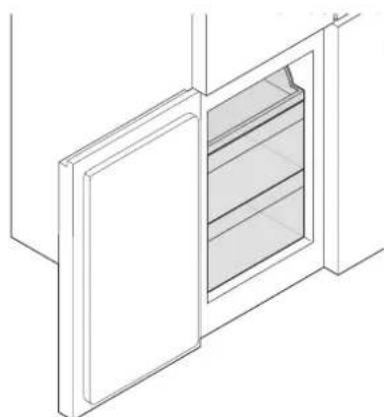

Convertible compartment

The convertible compartment can function as either a fridge or a freezer. The convertible compartment consists of drawers and a sliding tray.

WARNING!

• Do not place bottles or enclosed containers containing liquids in the freezer or in the convertible compartment when it is set to freezer temperature. The containers may crack because of freezing.
• Do not place carbonated or fizzy drinks in the freezer or in the convertible compartment when it is set to freezer temperature, as it creates pressure in the container, which may cause it to explode and damage the product.

NOTE!

The Convertible compartment can function as either a fridge or a freezer.

Convertible compartment drawers: To store and organize different types of food depending on the temperature in the drawer.

Door alarm

NOTE!

To save energy, avoid keeping the door open for a long time.

When the door has been open for over 1 minute, an acoustic alarm sounds. Turn off the alarm by closing the door.

Find the model code

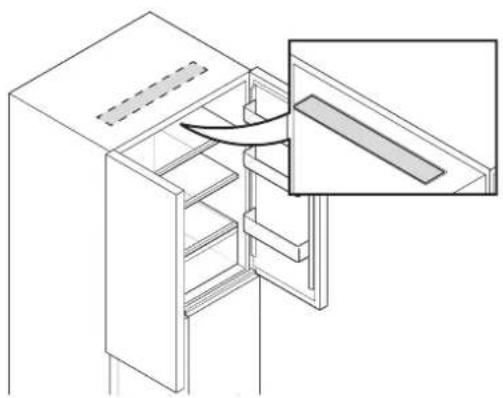

The model code is printed on a label on the product. You need the code to find the complete and most recent information, service, and support for your product model.

NOTE!

This product and label text are examples. Your product and text may have a different look and content.

Before first use

Prepare the fridge freezer for the first use before plugging it in and storing food.

WARNING!

Before installing or using this product, read the safety information and the full instructions.

WARNING!

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not connect the product to the power socket if the product is damaged. Contact the retailer from which you purchased the product.
• The plug must be plugged into an appropriate power socket that is installed and earthed in accordance with all local laws and regulations.
• If the power socket is loose, do not plug in the power plug. There is a risk of electric shock or fire.
• Do not damage the power cord or use the power cord if it is damaged or worn. Any damage to the cord may cause a short circuit, fire, and electric shock.
• Do not use extension cords and do not lengthen the power cord.
• Pull out the plug in case of power failure.

1. Make sure the fridge freezer is unpacked and placed properly.

NOTE! Make sure there is sufficient space and air circulation around the fridge freezer according to the installation area measurements.

1. Leave the fridge freezer to stand for at least 4 hours before plugging it in.
2. Use a soft cloth or sponge to wipe the inside of the fridge freezer using a weak solution of bicarbonate of soda.

Rinse with warm water and wipe the interior dry or let it stand to dry with the doors open.

CAUTION! Make sure to use neutral soap. Do not use detergents or abrasives.

1. Plug in the power cord.

After a while, the compressor starts to operate and produce some noise. Sealed liquid and gases may also produce noise, even when the compressor is not running. The front edges of the product may feel warm, which prevents condensation. All of this is normal during operation.

1. Let the fridge freezer run empty, without opening the door, for 2 hours.

Your fridge freezer is now ready for use.

NOTE!

• The recommended temperature is 4 °C in the fridge and -18 °C in the freezer. Check regularly with a thermometer to ensure that the cabinet maintains these temperatures.
• Storing too much food when your fridge freezer is first turned on may affect the refrigerating performance negatively.

USING YOUR FRIDGE FREEZER

Settings and modes

ECO

Saves power by reducing energy consumption. See section "Turn on and turn off ECO mode", page 18.

Holiday

Adjusts the temperature for longer periods of non-use. See section "Turn on and turn off Holiday mode", page 19.

Super freeze

Freezes the food faster than usual. See section "Turn on and turn off Super freeze mode", page 19.

Turn on and turn off the fridge freezer

WARNING!

• The plug must be plugged into an appropriate power socket that is installed and earthed in accordance with all local laws and regulations.
• Do not damage the power cord or use the power cord if it is damaged or worn. Any damage to the cord may cause a short circuit, fire, and electric shock.
• Do not use extension cords and do not lengthen the power cord.
• If the power socket is loose, do not plug in the power plug. There is a risk of electric shock and fire.
• Do not touch the power plug with wet hands.

NOTE!

The LED light inside the fridge freezer will turn on when the door is open.

1. Plug in the power cord to turn on the fridge freezer.
2. Unplug the power cord to turn off the fridge freezer.

WARNING! Do not pull on the power cord when you unplug the product. Grab the power plug firmly and pull it out of the power socket.

Turn on and turn off the fridge

1. Touch FRIDGE until -- is displayed to turn off the fridge.
2. Touch FRIDGE to set the temperature and turn on the fridge.

Turn on and turn off the convertible zone

1. Touch CONVERTIBLE ZONE until -- is displayed.
2. Touch CONVERTIBLE ZONE to set the temperature and turn on the convertible zone.

Change the temperature in the fridge compartment

NOTE!

The fridge can be set to -- to turn it off. This is not a temperature setting.

Set the average temperature for the fridge compartment.

1. Touch FRIDGE to cycle through the available temperatures (2°C to 8°C).

CAUTION!

• A high temperature setting will accelerate food waste.
• A lower temperature setting than necessary wastes energy.
• For optimum food preservation, a medium setting is the most suitable.

NOTE!

• The recommended temperature for the fridge compartment is 4°C.
• Temperatures inside each compartment may vary from the temperature value displayed on the panel, depending on how much food is stored and where the food is placed. High or low room temperature may also affect the actual temperature inside the product.

Change the temperature in the freezer compartment.

Set the average temperature for the freezer compartment.

1. Touch FREEZER to cycle through the available temperatures (-14°C to -22°C).

CAUTION!

• A high temperature setting will accelerate food waste.
• A lower temperature setting than necessary wastes energy.
• For optimum food preservation, a medium setting is the most suitable.

NOTE!

• The recommended temperature for the freezer compartment is -18°C.
• Temperatures inside each compartment may vary from the temperature value displayed on the panel, depending on how much food is stored and where the food is placed. High or low room temperature may also affect the actual temperature inside the product.

Change the temperature in the Convertible compartment

NOTE!

The Convertible compartment can be set to -- to turn it off. This is not a temperature setting

Set the average temperature for the Convertible compartment.

1. Touch CONVERTIBLE ZONE to cycle through the available temperatures (5°C to -20°C).

CAUTION!

• A high temperature setting will accelerate food waste.
• A lower temperature setting than necessary wastes energy.
• For optimum food preservation, a medium setting is the most suitable

NOTE!

Temperatures inside each compartment may vary from the temperature value displayed on the panel, depending on how much food is stored and where the food is placed. High or low room temperature may also affect the actual temperature inside the product.

Turn on and turn off ECO mode

Use ECO mode to reduce energy consumption.

Turn on ECO mode

1. Touch MODE to cycle through the available modes until [ECO mode] is lit. ECO mode is turned on. The temperature in the fridge is set to 5°C and the temperature in the freezer is set to -18°C

Turn off ECO mode

1. Touch MODE until none of the mode icons are lit.

Turn on and turn off Holiday mode

Use Holiday mode to adjust the temperature for longer periods of non-use.

CAUTION!

Do not store any food in the refrigerator when this mode is used.

Turn on Holiday mode

1. Touch MODE to cycle through the available modes until [Holiday mode] is lit to turn Holiday mode on. Holiday mode is turned on and the temperature in the fridge is set to 17°C.

Turn off Holiday mode

1. Touch MODE until none of the mode icons are lit.

Turn on and turn off Super freeze mode

Use Super freeze mode to rapidly lower the temperature. Doing so freezes the food faster than usual. This keeps the food fresh for longer and vitamins and nutrients are preserved more efficiently.

Turn on Super freeze mode

1. Touch MODE to cycle through the available modes until [Super freeze mode] is lit. Super freeze mode is turned on and the freezer temperature is set to -25 °C. Super freeze mode automatically turns off after 50 hours.

Turn off Super freeze mode

1. Touch MODE until none of the mode icons are lit.

Storing food

Store food in the fridge

WARNING!

Do not overload the shelves, door racks or put too much food in the drawers to avoid items falling and causing injury or damage to the fridge freezer.

• Do not overload the shelves, door racks or put too much food in the drawers to avoid items falling and causing injury or damage to the fridge freezer.
• Do not overload the product to prevent insufficient air circulation.

CAUTION!

• Always follow food storage times and expiration dates suggested by manufacturers. - Opening the door for long periods can cause a significant increase of the temperature in the compartments. - Store raw meat and fish in suitable containers in the fridge, so that it is not in contact with or drip onto other food. - Do not put liquid oils or oil-cooked meals in your fridge in unsealed containers. They damage the plastic surfaces of the product. Clean and rinse any spilled oil with warm water at once.

CAUTION!

Do not close the door while any shelves are extended or drawers are open. It may damage the shelves, drawers and door.

NOTE!

To avoid wasting energy:

• Do not store warm food or evaporating liquid in the fridge freezer. Placing hot food directly into the fridge or freezer causes the internal temperature to rise resulting in the compressor having to work harder and therefore consume more energy. Warm food and beverages must cool down to room temperature before storing them.
• Do not keep the doors open for longer periods.

Use the following tips and recommendations when storing food in the fridge.

When refrigerating fresh food:

• Cover or wrap the food, particularly if it has a strong flavour.
• Place the food so that air can circulate freely around it.
• During a power outage, foods can be kept for several hours. Do not open the door during a power outage, and do not put any more fresh food into the fridge.

Other refrigerating recommendations:

Food Recommendation

Meat (all types) Wrap in polythene and place on the glass shelf above the drawer for fruit and vegetables

Cooked food, cold dishes etc. Cover and place on any shelf

Fruit and vegetables Store in the drawer for fruit and vegetables

Butter and cheese Wrap in airtight foil or plastic film wrap

Milk bottles, other bottled drinks, and canned liquids Ensure bottles have a lid and store in the door racks

Eggs and packed foods Store in the door racks, put eggs in the egg holder

NOTE!

This product is most energy efficient with all shelves and drawers in their original position. However, the shelves can be removed for cleaning or placed at different heights to get more space in the fridge. See section "Clean the fridge freezer", page 22.

Store food in the freezer

WARNING!

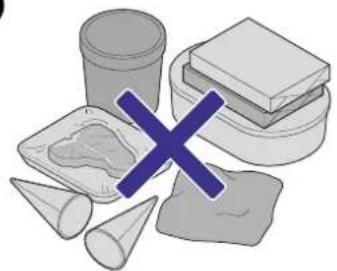

• Do not place food or containers in the freezer compartment with wet hands when the fridge freezer is running, especially metal containers, to avoid the risk of skin abrasions and ice burns.
• Do not consume frozen food, such as ice popsicles and ice cubes, straight from the freezer. This may cause ice burns.
• Do not overload the product to prevent insufficient air circulation.

CAUTION!

• Always follow food storage times and use by dates suggested by manufacturers. - Opening the door for long periods can cause a significant increase of the temperature in the compartments. - Store raw meat and fish in suitable containers in the freezer, so that it is not in contact with or drip onto other food. - Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure in the container, which may cause it to explode and damage the product. - Make sure that bottles are not left in the freezer for longer than needed. Freezing may cause the bottles to break.

CAUTION!

Do not close the door while any drawers are open. It may damage the drawers and the door.

NOTE!

To avoid wasting energy, do not store warm food or evaporating liquid in the fridge freezer. Placing hot food directly into the fridge or freezer causes the internal temperature to rise, resulting in the compressor having to work harder and therefore consume more energy. Warm food and beverages must cool down to room temperature before storing them.

Use the following tips and recommendations when storing food in the freezer.

• Prepare food in small portions to enable it to be rapidly and completely frozen and in turn make it possible to thaw only the quantity required. Once defrosted, food will deteriorate rapidly and should not be frozen again.
• When food freezes too slowly, it can lose quality or go bad.
• Wrap up the food in aluminium foil or polyethylene food wraps which are airtight. Wipe containers dry before placing them in the freezer.
• Label and date each frozen package in order to keep track of the storage time. Remove as many items as needed at one time.
• Do not allow fresh unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
• Ensure that frozen food has been stored correctly by the food retailer.
• Put packages in the freezer as quickly as possible after purchase.
• During power outage, foods in the freezer can be kept for several hours. Do not open the door during power outage, and do not put any more fresh food into the freezer. In case the failure lasts longer, the food must be checked and, if necessary, consumed immediately or frozen after being cooked.

NOTE!

This product is most energy efficient with all shelves and drawers in their original position. However, the shelves can be removed for cleaning or placed at different heights to get more space in the freezer. See section "Clean the fridge freezer", page 22.

CLEANING AND MAINTENANCE

Clean the fridge freezer

Clean the exterior of the fridge freezer every two months and the interior every 15 days to prevent odours. Regularly check and clean the door seals to remove any debris. Sticky food or drinks can cause the seals to stick to the cabinet and potentially tear when opening the door. Cleaning is easier when food stocks are low.

WARNING!

Before cleaning or maintenance of this product, read the safety information and the full instructions.

WARNING!

• Always switch off the product and unplug it from the mains socket before cleaning. Alternatively, switch off the circuit breaker or remove the fuse. Failure to do so may result in electric shock.
• Do not use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium-coated parts of the product. Chlorine causes corrosion on such metal surfaces.
• Do not use metal objects, sharp objects, steam cleaner, thinner, car detergent, Clorox, ethereal oils (e.g. lemon juice or orange peel juice), abrasive cleansers, or organic solvents (e.g. benzene, butyric acid, or cleansers containing acetic acid) for cleaning. These substances may damage plastic parts, harm the surface of the product, and may cause fire.
• Never clean the product with a steam cleaner. Moisture can accumulate in electrical components, posing a risk of electric shock. Hot vapours may also damage plastic parts.
• Do not use vapor or vaporized cleaning materials. Vapour may come into contact with electrical parts and cause a short circuit or electric shock.
• Do not spray water directly on the product.
• Ensure the product is completely dry before plugging it back into the mains socket.

CAUTION!

• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Regularly clean the water drain hole with a drain hole cleaning tool. Be careful not to cause any damage to the cabinet with sharp objects.
• Do not use cleaning products (such as soap, detergent, scrub powder, spray cleaner, etc.) to clean the interior. They may cause odour and may contaminate food.
• Do not put liquid oils or oil-cooked meals in your fridge in unsealed containers. They damage the plastic surfaces of the product. Clean and rinse any spilled oil with warm water at once.

4

5

7

1. Unplug the fridge freezer to turn it off.

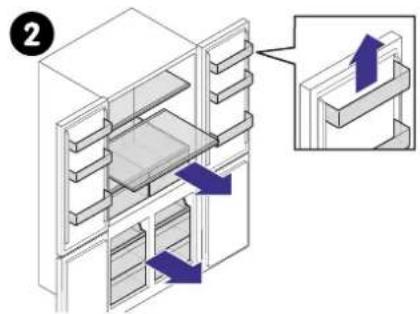

2. Remove the food, drinks, shelves and drawers. Throw away spoiled food and drinks.
3. Clean the doors and cabinet surfaces with a soft cloth dampened with lukewarm water, then wipe them dry with a soft cloth. Use a soft cloth or sponge with a mild bicarbonate of soda solution to wipe the inside of the fridge freezer. After cleaning, rinse the surfaces with warm water using a well-wrung sponge or cloth. Finally, dry the interior with a clean cloth or leave the doors open to allow it to air dry.

Wash the seals with a mild detergent and warm water, then rinse and dry them thoroughly after cleaning.

CAUTION! Keep water away from the lamp's cover and other electrical components.

NOTE! Only wipe the lamp and the temperature selector knob with a soft dry cloth.

Spray water onto the cleaning cloth instead of spraying directly on the surface of the fridge freezer. This helps ensure an even distribution of moisture on the surface.

1. Clean the shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Rinse and wipe them completely dry.
2. Clean the power plug with a dry cloth.
3. Install the interior shelves and drawers back into the fridge freezer.

NOTE! Ensure all surfaces are completely dry, especially the door seals, before reinstalling the shelves and drawers.

1. Plug in the fridge freezer to turn it on.

WARNING!

- Ensure that the power cord is not cracked or damaged. If the power cord is damaged, contact the dealer from whom you purchased the product or contact Elvita support.

- Do not plug the fridge freezer back into the power socket unless the interior is completely dry.

Ensure the fridge freezer is sufficiently cold before placing the food and drinks back into the fridge freezer.

Prepare for longer periods of non-use

When switching off the fridge freezer for an extended period of time some preparations need to be made to keep the product in good condition and prevent mould.

1

2

3

1. Unplug the fridge freezer.
2. Remove food from the fridge freezer. Defrost the freezer if needed.
3. Clean the fridge freezer. See section "Clean the fridge freezer", page 22.

Leave the doors open to prevent odour.

When starting the fridge freezer after a period of non-use, let the fridge freezer run at least 2 hours on low temperature settings before putting food in the compartment.

Replacing the LED light

WARNING!

The LED light must not be replaced by the user. If the LED light is damaged, contact the Elvita support.

WARNING!

• Any electrical work required to do the servicing of the product should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorised service centre, and only genuine spare parts must be used.

NOTE!

• The lamps used in this product are not suitable for household room illumination.
• The intended purpose of the lamps used in the product is to facilitate easy retrieval and storage of food items in the product.

TROUBLESHOOTING

Fridge freezer is not working correctly

WARNING!

• Only authorised technicians may carry out repairs.
• If you experience problems with the product, see if the user instructions and troubleshooting information can help you find a solution. If the problem persists, contact an authorised technician, qualified electrician or the retailer where the product was purchased.

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Mains plug is not plugged in or is loose

Connect main plug to power outlet.

Fuse has blown or defective

1. Check the fuse and circuit of the power supply.
2. If it is not in working condition contact an authorised electrician.

Faulty socket or mains malfunction

If there are issues with the mains power supply, it should be corrected by an authorised electrician.

Odour from the compartments

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Interior is not clean

Clean the interior. See section "Clean the fridge freezer", page 22.

Food, containers or wrapping are causing odours

Use a different container, wrap food properly or remove spoiled food from the fridge freezer.

Temperature inside is too warm

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Temperature setting is set to too warm

Decrease the temperature. See section "Change the temperature in the fridge compartment", page 17, section "Change the temperature in the freezer compartment", page 18 and section "Change the temperature in the Convertible compartment", page 18.

Doors are left open too long or too frequently

Make sure that the door is fully closed. Check that the doors are not kept open by some obstacle.

A large quantity of warm food was placed within the last 24 hours

Turn the temperature selector knob to a colder setting temporarily.

Proximity to heat sources

If the fridge freezer is placed near a potential heat source, see section "Installation area", page 28 for help with proper placement.

Temperature inside is too cold

Temperature setting is set to too cold

Increase the temperature. See section "Change the temperature in the fridge compartment", page 17, section "Change the temperature in the freezer compartment", page 18 and section "Change the temperature in the Convertible compartment", page 18.

Noise from the fridge freezer

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Noise is normal during operation

During regular operation, several typical sounds may be heard emanating from the device. These can include:

- Compressor activity

• Refrigerant circulation

Fridge freezer is not level

Level the fridge freezer. See section "Level the fridge freezer", page 31.

Fridge freezer touches the wall or other objects

Move the fridge freezer slightly so that it has sufficient space around it. See section "Installation area", page 28.

Rear component obstructions

If a component located at the rear of the fridge freezer (such as a pipe) is in contact with another part of the fridge freezer or a nearby surface, it should be carefully adjusted to ensure proper clearance.

The side panel is hot

The condenser is inside the panel

With the condenser positioned within a panel, it is normal for the exterior to feel warm or hot due to its operation.

Drawer cannot be opened easily

Food items are touching the ceiling of the drawer

Rearrange the items preventing the drawer from closing.

Condensation on the fridge freezer interior

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Ambient humidity is too high

Do not install the fridge freezer in highly humid places. Wipe the condensation off with a clean towel.

NOTE!

Hot and humid weather increases condensation and frost. It is normal and not a fault.

Door is left open too long or too frequently

Make sure that the door is fully closed. Check that the door is not kept open by some obstacle.

Open container of liquid in the fridge

Do not store open containers with liquid in the fridge. Cover or seal container.

Ambient temperature is too cold

Do not install the fridge freezer in places where the temperature falls below 10° C.

Temperature setting is set to too cold

Increase the temperature. See section "Change the temperature in the fridge compartment", page 17, section "Change the temperature in the freezer compartment", page 18 and section "Change the temperature in the Convertible compartment", page 18.

Condensation on the fridge freezer exterior

Ambient humidity is high

Hot and humid weather increases condensation. It is normal and not a fault. When the humidity is lower, the condensation disappears.

INSTALLATION

Follow the instructions in this section to install your product.

DANGER!

Before installing or adjusting accessories, make sure that the product is unplugged from the power socket.

WARNING!

Read the safety information and the full instructions before installing or using this product.

WARNING!

• This product is not intended for use as a built-in product.
• Do not damage the refrigerant circuit.
• When positioning the product, ensure the power cord is not trapped or damaged. A damaged power plug may overheat and cause a fire.
• Do not locate multiple portable socket outlets or portable power supplies behind the product.
• Do not connect the product to the power socket if the product is damaged. Contact the retailer from which you purchased the product.
• Use a dedicated power socket, meaning that the power socket must not be shared with other products.
• The plug must be plugged into an appropriate power socket that is installed and earthed in accordance with all local laws and regulations.
• Do not use a power socket that can be turned off by a switch or other electricity-saving systems.
• Make sure the connection parameters of the product match the mains electricity supply. This information (fuse rating, voltage and frequency) is found on a label on the product. If in any doubt, consult a qualified electrician.
• Do not use extension cords and do not lengthen the power cord.

CAUTION!

Take care when handling the product to ensure that it does not fall and cause injury.

NOTE!

If you have any concerns about the installation, contact the support. Contact Elvita support if you need help with your product.

Installation area

WARNING!

• When positioning the product, ensure the power cord and power plug are not trapped or damaged. A damaged power plug may overheat and cause a fire.
• This product must be placed on a level surface of hard material that is the same height as the rest of the flooring.
• This surface should be strong enough to support a fully loaded product.
• When positioning the product, ensure the power plug is accessible.
• Do not install the back of the product too close to a wall. There is a risk of fire if the compressor gets overheated.

CAUTION!

- This product performs well within the climate class from SN to T. See section "Climate classes", page 34. The product may not work properly if it is exposed to temperatures above or below temperature ranges spanning from 10°C to 43°C for a long period.

Keep the following in mind when choosing a location to install the product:

• Avoid direct sunlight, rain or frost.
• Keep away from heat sources, such as cookers, ovens, fires, heaters or radiators.
• Position in a well-ventilated indoor location.
• Do not install the product in a damp or wet location.
• The surface should be rigid, dry and level.
• Leave enough space to allow the doors and drawers to open easily, in accordance with the dimensions.

To level the product properly and allow air to circulate in the lower rear of the product, the feet may need to be adjusted. See section "Level the fridge freezer", page 31.

Unpack the fridge freezer

WARNING!

Keep all packaging away from children as there is a risk of suffocation.

NOTE!

Keep the packaging for future transportation and moving of the product.

1

2

3

4

1. Check the packaging for any damage. If the packaging is damaged, do not unpack the fridge freezer. Contact the retailer where the product was purchased.
2. Remove the cardboard box, plastic wrapping, and foam packaging.
3. Remove the cardboard and tape protecting the shelves and drawers. Take out the accessories and installation parts from inside the fridge freezer.
4. Check the fridge freezer for any damage. If the fridge freezer is damaged, do not connect it to the power supply. Keep the packaging and contact the retailer where the product was purchased.

Install the washers

The fridge doors may not stay aligned if they are heavily loaded with food. Fit the washers to adjust the door position.

1. Slightly lift the fridge door. Fit the washer to the middle hinge. Do this for both fridge doors.

Level the fridge freezer

The fridge freezer is equipped with two adjustable levelling feet located at the front. No adjustable components are present at the rear. To level the unit, adjust the two front levelling feet as required.

Adjust the feet until all feet make contact with the floor and the fridge freezer is level. This prevents the fridge freezer from moving and avoids vibrations.

WARNING!

- Avoid jamming your hand between the product and the ground, or between the product and the adjusted leg. Risk of injury!

- The surface that the product is installed on should be strong enough to support a fully loaded product.

1. Check if any feet are not touching the floor, and if needed, adjust the front feet by screwing out the foot by hand or using a suitable spanner until it makes contact with the floor.

NOTE!

• Turn the feet clockwise to increase the height.
• Turn the feet counter-clockwise to reduce the height.

Having someone slightly tilt the fridge freezer makes it easier to adjust the feet.

1. Use a spirit level to check if the fridge freezer is level and adjust the feet again if needed.

Move the fridge freezer

WARNING!

Make sure to have 2 or more people present when moving or installing the product to prevent the risk of injury.

CAUTION!

Do not hold the door, door handle or hinge when moving the product.

4

1. Remove the food and drinks from the fridge freezer and store them in a cool place.
2. Unplug the product.
3. Clean the fridge freezer. See section "Clean the fridge freezer", page 22.
4. Fix the shelves, drawers and removable parts with tape to prevent movement during the move. The fridge freezer is ready to be moved.

NOTE! Follow the transport instructions on the packaging.

SPECIFICATIONS

Technical specifications

Product model code See section "Find the model code", page 14
Height 1905 mm
Width 910 mm
Depth 690 mm
Total volume 600 l
Fridge volume 429 l
Freezer volume 81 l
Convertible compartment volume 90 l
Recommended temperature setting for optimised food storage, fresh food	4 °C
Recommended temperature setting for optimised food storage, 4-star	-18 °C
Freezing capacity 10.4 kg / 24 h
Defrosting type (fridge compartment)	Automatic
Defrosting type (freezer compartment)	Automatic
Minimum ambient temperature, for which the refrigerating product is suitable	10°C
Maximum ambient temperature, for which the refrigerating product is suitable	43°C
Rated current	1.5 A
Power supply	220~240 V, 50 Hz

Energy efficiency

You can find information about the energy efficiency of this product in EPREL, the European product registry for energy labelling. Go to the EPREL website and use the model identifier to find the information. The model identifier can be found on the energy label accompanying the product.

EPREL website: https://eprel.ec.europa.eu/

ENERG

SUPPLIER'S NAME

MODEL IDENTIFIER

Dimensions

(mm)

EU directives and standards

This product fulfils the applicable EU directives and regulations and carries the CE mark. If not included with the product, a copy of the EU Declaration of Conformity is available on request.

The performance of the product has been tested in compliance with standard EN 60335 for refrigerating appliances.

Climate classes

Class Symbol Ambient temperature range
Extended temperate SN +10°C to +32°C
Temperate N +16°C to +32°C
Subtropical ST +16°C to +38°C
Tropical T +16°C to +43°C

• Extended temperate: This product is intended to be used at ambient temperatures ranging from 10°C to 32°C. • Temperate: This product is intended to be used at ambient temperatures ranging from 16°C to 32°C.
• Subtropical: This product is intended to be used at ambient temperatures ranging from 16°C to 38°C.
• Tropical: This product is intended to be used at ambient temperatures ranging from 16°C to 43°C.

General storage recommendations

Store different foods according to the recommended compartments and target storage temperature of the food products. Do this to ensure the best preservation over the longest period and to avoid food waste.

CAUTION!

• Two-star (**) frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-star (*), two-star (**), and three-star (*** ) compartments are not suitable for the freezing of fresh food.

NOTE!

Some fridge freezers may not have all compartment types listed in the table below.

Compartment type Target storage temperature (°C) Appropriate food
Fridge +2 ~ +8 Eggs, cooked food, packaged food,		fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.
(***)*-Freezer ≤ -18 Seafood (fish, shrimp, shellfish),		freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
***-Freezer ≤ -18 Seafood (fish, shrimp, shellfish),		freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
**-Freezer	≤ -12 Seafood (fish, shrimp, shellfish),	freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
*-Freezer	≤ -6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
0-star	-6 ~ 0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than 3 days). Partially encapsulated processed foods (non-freezable foods).
Chill -2 ~ +3 Fresh/frozen pork, beef, chicken,		freshwater aquatic products, etc.(7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no later than 2 days). Seafood (less than 0 °C for 15 days, it is not recommended to store above 0 °C)
Fresh Food 0 ~ +4 Fresh pork, beef, fish, chicken, cooked		food, etc. (Recommended to eat within the same day, preferably no later than 3 days)
Wine +5 ~ +20 Red wine, white wine, sparkling wine		etc.

3

4

5

4

5

7

2

3

TROUBLESHOOTING

2

3

4

2

3

4

Safety during installation

WARNING!

Change the temperature in the freezer

1

GETTING STARTED

A. Washers B. Door buffer

2

3

4

5

3

4

5

7

2

3

TROUBLESHOOTING

(mm)

2

3

4

4

Change the temperature in the freezer

1

Change the temperature in the flexible compartment

1

Store food in the freezer

1

GETTING STARTED

A. Temperature display B. Temperature control for the refrigerator compartment C. Temperature control for the flexible compartment D. Temperature control for the freezer compartment E. Mode selector (ECO, Holiday, Super Freeze) F. Child lock

Accessories

A. Washers B. Door buffer

Drawers in the flexible space

2

3

4

5

3

4

5

7

2

3

TROUBLESHOOTING

2

3

4

1. Check the packaging for damage. Do not unpack the combined refrigerator-freezer if the packaging is damaged. Contact the dealer who sold you the product.
2. Remove the cardboard box, plastic wrap, and foam packaging.
3. Remove the cardboard and tape that protect the shelves and drawers. Take out the accessories and mounting parts that are inside the combined refrigerator-freezer.
4. Inspect the combined refrigerator-freezer for damage. Do not connect it to the power supply if it is damaged. Keep the packaging and contact the dealer who sold you the product.

Level the combined refrigerator-freezer

1. Make sure that all feet are in contact with the floor. If necessary, adjust the front feet by screwing them out by hand or with a suitable screwdriver until they touch the floor.

NOTE:

4

Storing food in the freezer

1

GETTING STARTED

A. Washers B. Door buffer

Drawers with convertible space

2

3

4

5

Turn off Holiday mode

4

5

7

2

3

TROUBLESHOOTING

(mm)

2

3

4

4

INSTALLATION

A. Washers B. Door bumper

2

3

4

5

3

4

5

7

2

3

TROUBLESHOOTING

(mm)

2

3

4

4

Adjustable temperature of the convertible compartment

1

Storing food in the freezer

1

GETTING STARTED

A. Temperature display B. Temperature control of the refrigerator C. Temperature control of the convertible compartment D. Temperature control of the freezer E. Setting selector (ECO, Holiday, Super Freeze) F. Child lock control

Accessories

Drawers of the convertible compartment

2

3

4

5

4

5

7

2

3

TROUBLESHOOTING

The refrigerator and freezer are not working properly

WARNING!

(mm)

2

3

4

4
