USER MANUAL IA5878 VTECH

• Table of contents Parts checklist for ia5878/ia5884 Parts checklist for ia5882/ia5890 Installation Choose location. Connect power and telephone line cords . Install handset battery Wall mounting bracket installation Desk/able bracket installation If you subscribe to DSL service Bel clip Check for dial tone Charge the handset battery Language Set the dial mode . Handset ringer style. Set ringer volume . Telephone operation Handset layout
• Telephone base layout . Handset operation Telephone base operation Temporary tone dialing Call transfer … Headset jack . Operating range Directory Store a directory entry. Chart of characters Edit a directory entry Delete a directory entry. Move a directory entry into speed dial ; Dial a number from the directory Speed dial. Store a speed dial entry Edit a speed dial entry Delete a speed dial entry . Dial a speed dial number . Reassign locations in speed dial Caller ID About call history (caller ID). Review call history Delete records from call history : . : . : Dial a displayed number Store a call history record in the directory. Display screen messages Answering system operation Audible indicators Setting the clock. Record your announcement. Review your announcement Delete your announcement Setup the answering system Listen to, save & delete messages Call screening/intercept Record a memo Answering system operation - remote access Accessing the answering system remotely i www.vtechphones.com p. 12

Voice menu Remote access commandés . Display screen messages Battery information Battery care and performance Replacing the handset battery Troubleshooting Maintenance Limited Warranty Important safety instructions . . . FCC, ACTA and IC regulations . The RBRCP seal Index www.vtechphones.com

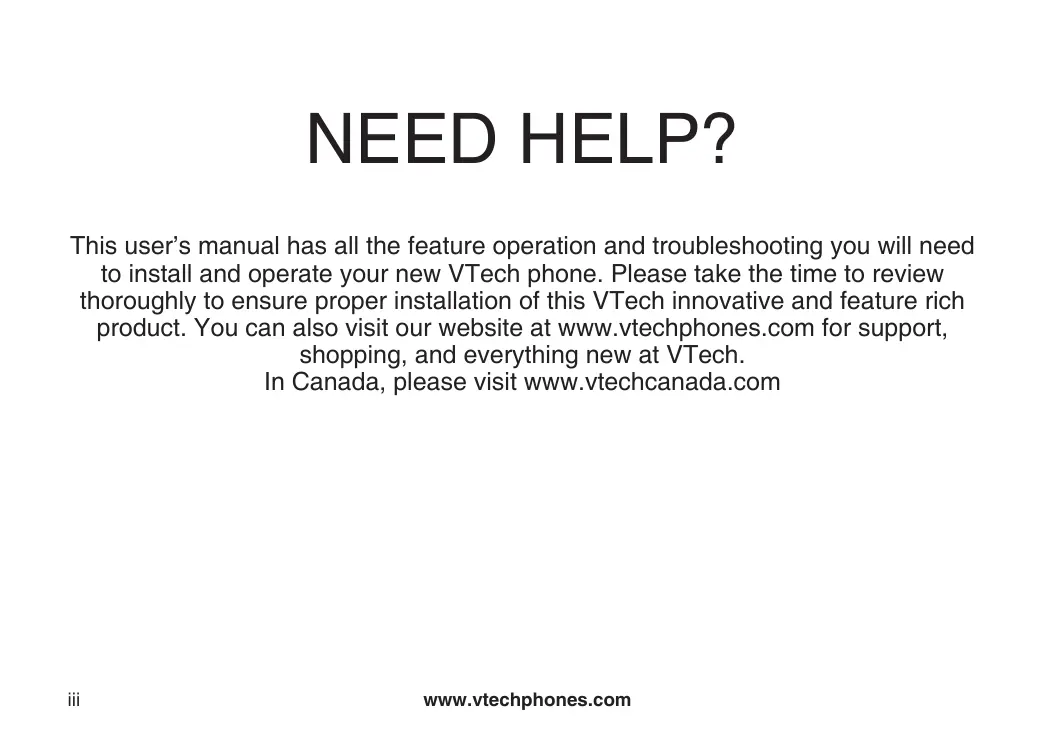

NEED HELP? This user's manual has all the feature operation and troubleshooting you will need to install and operate your new VTech phone. Please take the time to review thoroughly to ensure proper installation of this VTech innovative and feature rich product. You can also visit our website at www.vtechphones.com for support, shopping, and everything new at VTech. In Canada, please visit www.vtechcanada.com (il www.vtechphones.com

*_ Telephone base with wall N L + Important! mounting/desktop bracket nn ! Please read the + Handsets (2) E Important safety instructions on *_ Charger page 51 before + Telephone line cord using this telephone. *__ Base power adapter Telephone base with wall — Charger + Charger power adapter mounting/desktop bracket | Handsets (2) + Belt clips (2) = = + Batteries (2) + Users manual L A To purchase replacement Telephone line cord Base power adapter … Charger power adapter batteries, visit us on the web at www.vtechphones.com or call us } À at 1-800-595-9511. In Canada, Le go to www.vtechcanada.com or vw] call us at 1-800-267-7377. Bel clips (2) Batteries (2) Users manual Battery compartiment covers (2) www.vtechphones.com 1

Parts checklist Parts checklist for ia5878/ia5884 *_ Telephone base with wall mounting/desktop bracket + Handsets (3) + Chargers (2) + Telephone line cord + Base power adapter + Charger power adapters (2) Belt clips (3) Batteries (3) + Users manual To purchase replacement batteries, visit us on the web at www.vtechphones.com or call us at 1-800-595-9511. In Canada, go to www.vtechcanada.com or call us at 1-800-267-7377. Telephone base win wall mounting/desktop bracket Handsels (3) Chargers (2 A. power adapters Telephone line cord Base power adapter (2)

Bel clips (3) Batteries (3) Users manual

Parts checklist Parts checklist for ia5882/ia5890 *_ Telephone base with wall mounting/desktop bracket + Handsets (4) + Chargers (3) *_ Telephone line cord + Base power adapter

Chargers (3) Telephone base with wall + Charger power adapters (3) mouning/desktop bracket Handsets (4) Belt clips (4) à Batteries (4) + + Users manual 8 & A Charger power adapters (3) To purchase replacement Telephone line cord Base Power adapter batteries, visit us on the web at _ — www.vtechphones.com or call us b | at 1-800-595-9511. In Canada, Û go to www.vtechcanada.com or a7 call us at 1-800-267-7377. Belt clips (4) Batteries (4) Users manual Battery compartiment covers (4) www.vtechphones.com 3

Installation Choose location Connect power and telephone line cords For maximum performance of *Installthe telephone | your cordiess telephone system: base away from electronic equipment 1. Choose a central location Such as personal for your telephone base. computers, television SAS Me rave 2. Install yourtelephone base ndard Svens. Avid and extension handset a uet Modular excessive heat, cold, away from electronic electrical outle: j dust or moisture. equipment, such as telephone jack + Connect the power personal computers, and telephone television sets and line cords to îhe microwave ovens. uen ofihe 3. In locations where there ase as ilustrater are multiple cordiess + Plug the base power telephones, separate adapter into an telephone bases as much electrical outlet. as possible. + Connect the 4. Install your telephone felephone ire cor equipment away from heat o to the wall jack. sources and sunlight. e e + This power unit 5. Avoid excessive moisture, 0] 19 intended to bo dust or extreme cold. Û — correctly orientated in a verlical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling or an under the table Icabinet outlet. 4 www.vtechphones.com

Installation Install handset battery

a) Align the two holes in the plug with the socket pins in the handset battery compartment, matching the red and black wires to the color- coded label. Snap the plug into place. Put the battery into the compartment. b) Place the battery in the compartiment with the wires tucked inside. c) Place battery compartiment cover by sliding it upward until i clicks into place. d) The battery may have enough power for short calls. For best performance, put the handset in the telephone base and charge the battery for at least 16 hours. www.vtechphones.com Use only the provided VTech battery, or equivalent. To purchase replacement batteries, visit us on the web at ww. vtechphones. com or call us at 1-800-595- 9511.In Canada.go to ww. vtechcanada. com or call us at 1-800-267-7377.

Installation Wall mounting bracket installation (optional) Your telephone base comes with the wall mounting/desktop bracket installed, ready for desktop use. If you prefer to mount your telephone on the wall (optional), it is designed to mount on a standard telephone wall plate. For wall mounting, follow these instructions: +_ First, insert the lower portion tabs of the wall mounting/desktop bracket into the lower grooves in the telephone base, then snap the upper portion tabs of the bracket into place. + Mount the telephone base on the wall by positioning it so the mounting studs will fit into the holes on the telephone base and wall mounting/desktop bracket. Slide the telephone base down on the mounting studs until it locks into place. +_ To remove the bracket, press both upper portion tabs firmly inward and pull the bracket downward until it release from the grooves. lower portion tab lower groove upper grooves Desk/table bracket installation To place your telephone base on a desk or table, insert the wall mounting/desktop bracket. Insertthe lower portion tabs of the bracket into the upper grooves of the telephone base. Snap the upper portion tabs of the bracket into place. To remove the bracket, press both upper portion tabs firmly inward and pull the bracket upward until it is released from the grooves. www.vtechphones.com

Installation If you subscribe to DSL service If you receive high speed internet service through your telephone line (commonly referred to as DSL) and you are experiencing interference during conversations and/or your caller ID features aren't functioning properly, install a DSL filter to the telephone line between the telephone base and the telephone line jack. Contact your DSL provider to obtain a DSL filter. Telephone line cord To attach À To single telephone jack (RJ11C) DSL filter (for DSL users) mn à To remove www.vtechphones.com

+_lfthe phone will not be used for a long period of time, remove the battery to prevent battery damage. Installation Check for dial tone After the batteries are charged, pick up the handset and press TALK/FLASH; you should hear a dial tone. lf you do not, refer to the Troubleshooting section in the back of this users manual. Charge the handset battery The battery may have enough power to allow for short calls. If the battery power is low, NEEDS RECHARGING will appear on the handset screen. For best performance charge the battery for at least 16 hours the first time. Language + Press PROG, then press Y or À until LANGUAGE is displayed. Press SELECT. + The current setting blinks. Press W or À until the screen displays the correct language (English, Espanol or Francais). + Press SELECT to save your selection. Set the dial mode If you have touch tone service, the phone is ready to use as soon as the battery is charged. lf you have pulse (rotary) service, you'll need to change the dial mode. + Press PROG. + Press Y or À until the screen displays DIAL MODE: and the current setting. + Press SELECT. The current setting blinks. + Press Y or À to select TONE or PULSE. + Press SELECT to save. www.vtechphones.com

Installation Set handset date and time If you subscribe to caller ID service, the date and time will be set automatically with the first incoming call. If you do not have caller ID service, you can set the date and time manually: + Press PROG, then press Y or À until DATE/TIME is displayed. Press SELECT. + The month is flashing. Press Y or À until the screen displays the correct month. Press SELECT. + The days flashing. Press Y or À until the screen displays the correct day. Press SELECT. + The houris flashing. Press Y or A until the screen displays the correct hour. Press SELECT. + The minute is flashing. Press Y or A until the screen displays the correct minute. Press SELECT. + AMor PMis flashing. Press Y or À to choose between AM or PM. Press SELECT. Handset ringer style You can select from four different handset ringer styles, or turn the ringer off.

1. With the handset in idle (off) mode, press PROG.

2. Press Y or À until the screen displays RINGER: and current setting.

3. Press SELECT. The current setting blinks, and you will hear a sample of the ring.

4. Press Y or À to select RINGER: 1, 2, 3, 4 or OFF. You will hear a sample of each ring tone.

5. Press SELECT to choose the displayed ringer setting.

Set ringer volume You can select from two different handset ringer volume, or turn the ringer off. Begin with the handset in idle (off) mode. Press and hold A or Y untilthe screen displays OFF LOW HIGH. .… The current setting biinks, and you will hear a sample ofthe ring volume. . Press À or Y to select ringer volume: OFF LOW HIGH. You will hear a sample of each ring tone. .… Press SELECT to choose the displayed ringer setting. un » w N + www.vtechphones.com +_Inthe eventthe battery loses all of its power or is removed, the time setting will be lost.

Telephone operation Handset layout

Telephone operation Telephone base layout

21. ANNC (announcement)

+ Whenever the phone is in use, call timer will be shown at the top right corner. Telephone operation Handset operation Making calls + Press TALK/FLASH, then dial the number. — OR — Dial the number (press Y to backspace), then press TALK/FLASH. Ending calls + Press OFF to end your call. — OR — Put the handset on the telephone base or charger to end your call. Answering Calls + Press any key to answer a call (except OFF, À or

FLASH During a call, press TALK/FLASH to receive an incoming call, if call waiting is activated. CHAN Press CHAN/REMOVE to switch to a clear channel while on a call. REMOVE When viewing the cal log, press to delete the current record displayed. While handset is in idle mode, press and hold to delete all records in the call log. ‘Y/CID VOL- and À /VOL+ RI

+ While on a call, press to decrease the volume. À double beep will sound when you reach the lowest setting. www.vtechphones.com

Telephone operation + While phone is not in use, press to display caller ID information. + While entering names or numbers into memory, press W then press CHAN/REMOVE to delete the last character entered. AVOL+ R1 + While on a call, press to increase the volume. À double beep will sound when you reach the highest setting. + While phone is not in use, press to display directory entries. + While entering names, press twice to add a space. SELECT Press to contfirm an entry of operation, or to select highlighted item from menu. OFF During a call, press to hang up. While using menu, press to cancel an operation or exit the menu display. REDIAL/PAUSE Press to view redial number. Press it again to delete the redial number. Press to insert a dialing pause while entering a number. PROG (program) With the handset in idle (on-hook), press to enter programming mode. VOL (volume) During a call, press À or Y to adjust the listening volume to a comfortable level. www.vtechphones.com

Telephone operation Telephone base operation

+ Only one handset + Flashes in unison with an incoming call ringing. can be onacallata |. Flashes slowly when the handset is in use or answering machine picks up a call or extension is off time. For example, hook. iFHST is on a call + Glows steadily when the handset is charging. and HS2 presses Message window the TALK/FLASH | indicate the status of answering machine. (e.g. show the number of message recorded in the mailbox.) button, OTHER ANS ON/OFF RANGS Set the answering machine to answer an incoming call. will display. PLAY/STOP + Play back recorded messages in mailbox. + Stop the playback of messäge. REPEAT/ . Repeal or playback he previous message during playback or as a parameters setting in the SETUP mode. SKIP/» Skip forward a message during playback or move to the next setting in SETUP mode. DELETE Delete individual or all the messages. VOL A/v Increase/decrease speaker volume. CLOCK Press to announce the current time. Press again to enter clock set mode. SETUP To set various answering machine features. For details, please refer to the Answering system operation section. ANNC (announcement) Enter announcement mode and press again to quit. FIND HANDSET To page handset(s). 14 www.vtechphones.com

Telephone operation Temporary tone dialing If you have pulse (rotary) dialing, you can change from pulse dialing to touch tone dialing during a call by pressing *TONE. This is useful if you need to send touch tone signals for access to telephone banking or long distance services.

1. Press *TONE when handset is off hook or on a call.

3. After you hang up, the phone automatically returns to pulse dialing.

Call transfer To transfer an extemal call from one handset (HS1) to the other handset (HS2): For the ia5865/ia5870

1. While on a call, press SELECT on HS1 to forward the call to HS2.

HS1 will show: HS2 will ring and show:

2. Press TALK/FLASH on HS2 to answer the transferred call. HS1 will return to the idle mode.

www.vtechphones.com Only one handset can be on a call at time. For example, iHS1 is on a call and HS2 presses the TALK/FLASH button, OTHER

will display. The phone will automatically return to pulse service after you hang up.

+_IfHS2 cannot be found, HS1 will generate an error tone and continue the call automatically. Before HS2 answers, HS1 can press TALK/FLASH to cancel the forward function and continue the external call. IHS2 doesn't respond within 30 seconds, HS1 will Start ringing until TALK/FLASH is pressed to pick up the returned call. If itis not answered within another 30 seconds, the external call will end automatically. Telephone operation For the ia5878/ia5884

1. While on a call, press SELECT on HS1 to forward the call to the destination handset.

HS1 will show: Destination handset will ring and show:

2. Enter the destination handset number you want to transfer.

3. Press TALK/FLASH on the destination handset to answer the transferred call. HS1 will return to

the idle mode. For the ia5882/ia5890

1. While on a call, press SELECT on HS1 to forward the call to the destination handset.

HS1 will show: Destination handset will ring and show:

2. Enter the destination handset number you want to transfer.

3. Press TALK/FLASH on the destination handset to answer the transferred call. HS1 will return to

the idle mode. www.vtechphones.com

Telephone operation Headset jack You can use this telephone handstree when you install any VTech 2.5 mm headset, purchased separately. Plug the headset into the jack located on the right side of the handset (under the small rubber flap). Do not force the connection, but make sure the plug fits securely. Operating range This cordless telephone operates within the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and base can communicate over only a certain distance - which can vary with the locations of the base and handset, the weather, and the construction of your home or office. If you move out of range during a phone conversation, you might hear noise or interference. To improve reception, move closer to the base. If you move out of range without pressing OFF, your phone will be left off the hook. To hang up proper, walk back into range, periodically pressing OFF. www.vtechphones.com +_ To purchase a headset, visit us on the web at www. vtechphones. com or call us at 1-800-595-9511. In Canada, go to www vtechcanada. com or call us at 1-800-267-7377.

+ Press OFF at any time to exit the directory. + When the memory is full the screen will display MEMORY FULL, an error tone sounds and you will not be able to store à new number until you delete a stored number to make room for another entry. Ifthe directory is empty and you try to access the directory, DIRECTORY EMPTY will show on the screen. Directory Your phone can store 20 (including nine speed dial entries) telephone numbers with names (up to 15 characters for the name and 24 digits for the number in each location) in the handset. Store a directory entry

2. Press SELECT. The screen displays ENTER NAME.

8. Using the chart on the next page, enter up to 15 characters for the name you're storing with the

number. Press W then press CHAN/REMOVE to backspace and make corrections; press À to advance or press it twice to add a space.

5. Enter the telephone number. Press w then press CHAN/REMOVE to backspace and make

corrections. Press REDIAL/PAUSE to store a pause (for example a P will be shown) if necessary. — OR — Press REDIAL/PAUSE to display the last number (up to 24 digits) dialed from this handset.

6. Press SELECT or PROG. The screen displays DISTINCT RING? and the current setting.

7. Press or À to choose Y (yes) if you wish the phone to alert you to calls from this number by

changing to a distinctive ringer after the first ring. Choose N for a normal ringer.

8. Press SELECT or PROG to confirm. If you chose Y in step 7, a [i] will be displayed with the

directory entry. www.vtechphones.com

Directory Chart of characters Using the chart below, enter up to 15 characters for the name you're storing. An error tone will sound if you try to enter more than 15 characters. Press w then press CHAN/REMOVE to backspace and make corrections: press A to advance or press it twice to add a space. Characters by number of key presses Once Twice Dial key Stimes Atimes 5times 6times

D E F 3 o G H 1! 4 ©

+ When you reach the end of the list in the directory, END OF LIST will be shown on the screen. If you press a dial pad key for alphabetical look up while in the directory and there are no entries starting with the letters on that key, NO DATA will be displayed on the screen. Each handset directory is independent of the other handsets. If you make entries or changes to the directory of one handset it will not be reflected in the other handsets.

Directory Edit a directory entry

1. Press A. The screen displays DIRECTORY.

2. Press w or À to scroll alphabetically through entries stored in directory.

—oR— Press the dial pad key for the first letter of the entry you want to edit.

Press SELECT. The screen displays the name and number. The cursor appears atthe beginning of the name. Press CHAN/REMOVE to backspace or press À and the dial pad keys to edit the name. Press SELECT to confirm and move on to edit the number. Press CHAN/REMOVE to backspace and make corrections. Press SELECT to confirm and move to edit the distinctive ring setting.

5. Press SELECT to save the edited information.

Delete a directory entry

1. Press A. The screen displays DIRECTORY.

2. Press Y or A to scroll alphabetically through entries stored in directory.

— OR — Press the dial pad key for the first letter of the entry you want to delete.

3. When the screen displays the entry you want to delete, press SELECT. Then press w or À until

5. Press À until YES flashes.

6. Press SELECT. You'll hear a confirmation beep.

Move a directory entry into speed dial

1. Press A. The screen displays DIRECTORY.

2. Press y or À to scroll alphabetically through entries stored in directory.

— OR — Press the dial pad key for the first letter of the entry you want to move.

5. Press the key (1-9) to move this entry from the normal directory to the speed dial memory and assign

the memory location. You'll hear a confirmation beep. À memory location number (1 through 9) will be displayed with this entry. Dial a number from the directory

1. Press A. The screen displays DIRECTORY.

2. Press Y or À to scroll alphabetically through entries stored in directory.

— OR — Press the dial pad key for the first letter of the entry you want to dial.

3. When the screen displays the entry you want to dial, press TALK/FLASH.

+_ The entries you store in speed dial memory will be marked with Of through 09 and also display in the directory. Press OFF at any time to exit speed dial mode Ifthe location is not empty, your new entry will be stored in place ofthe old and the entry will be moved to a directory location.

Speed dial Your phone can store up to nine telephone numbers with names (up to 15 characters and 24 digits in each location) in the speed dial memory locations you assign (numbered 1 through 9) in each handset. These numbers can be dialed with two button presses. You can also store telephone numbers with names alphabetically in the directory. See Telephone directory for instructions. Store a speed dial entry

Dialkey Once Twice Stimes Atimes 5times Gtimes Press PROG. Then press w or À until the screen displays SPEED DIAL. Press SELECT. The screen displays ENTER 1-9. Press the key (1 through 9) to assign the speed dial location this number will be stored. The screen displays ENTER NAME. Using the chart below, enter up to 15 characters for the name you are storing. An error tone will sound if you try to enter more than 15 characters. Press w then press CHAN/REMOVE to backspace and make corrections; press A to advance or press it twice to add a space. . After you enter the name, press SELECT or PROG. The screen displays ENTER NUMBER. Characters by number of key presses

6. Enterthe telephone number. Press W then press CHAN/REMOVE to backspace and make corrections.

Press REDIAL/PAUSE to enter a pause (for example a P will be shown) if necessary. — OR — Press REDIAL/PAUSE to display the last number (up to 24 digits long) dialed from this phone.

7. Press SELECT or PROG to store your entry. The screen displays DISTINCT RING? and the

8. Press y or À to choose Y (for yes) if you wish the phone to alert you to calls from this number by

assigning a distinctive ringer after the first ring. Choose N for a normal ringer.

9. Press SELECT or PROG to confirm. If you chose Y in step 8, a Ji] will be displayed with the

entry. Edit a speed dial entry

1. Press and hold the speed dial location key (1-9) of the entry you wish to edit.

2. When the screen displays the entry you want to edit, press SELECT. Then press w or À until EDIT

3. Press SELECT. The screen displays the name and number. The cursor appears atthe beginning of

the name. Press CHAN/REMOVE to backspace or press À and the dial pad keys to edit the name. Press SELECT to move on to edit the number. Press CHAN/REMOVE to backspace and make corrections. Press SELECT to move on to edit the distinctive ring setting. Press w or À to choose Y (for yes) if you wish the phone to alert you to calls from this number by assigning a distinctive ringer after the first ring. Choose N for a normal ringer.

peed dial Delete a speed dial entry

1. Press and hold the speed dial location key (1-9) of the entry you wish to delete.

2. When the screen displays the entry you want to delete, press SELECT. Then press w or À until

flashes. Press À until YES flashes. Press SELECT. You'll hear a confirmation beep. al a speed dial number

1. Press and hold the speed dial location key (1-9) of the entry you wish to dial.

Press TALK/FLASH to dial the displayed memory number. Reassign locations in speed dial

1. Press and hold the speed dial location key (1-9) of the entry you wish to reassign.

When the screen displays the entry you want to reassign, press SELECT. Press y or À until SPEED flashes. . Press SELECT. The screen displays ENTER 1-9. . Press the keys (1-9) to reassign this entry into another memory location. You’ hear a confirmation beep. www.vtechphones.com

Caller ID Your phone has a caller ID (CID) with call waiting feature that works with service from your local phone service provider. Caller ID with call waiting lets you see who's calling before you answer the phone, even when you're on another call. You may need to change your phone service to use this feature. Contact your phone service provider if: + You have both caller ID and call waïting, but as separate services (you may need combined service) + You have only caller ID service, or only call waiting service. + You don't subscribe to any caller ID or call waiting services. You can use this product with regular caller ID service, and you can use this products other features without subscribing to either caller ID or combined caller ID with call waiting service. There are fees for caller ID services, and they may not be available in all areas. This product can provide information only if both you and the caler are in areas offering caller ID service, and if both telephone companies use compatible equipment. www.vtechphones.com

+_Ifyou answer a call before the information appears on the screen, it will not be in the call history. Press OFF at any time to exit call history. Each handset's call log is independent from the other handset. For example, when you delete one or all call log entries from one handset, they will not be deleted from the other handset.

Caller ID Caller's telephone number This party has called more than once Callers name Position of call in call newËE —] history and indicate whether the record is É3 1 Eten GFAT new or old Time of call Date of call About call history (caller ID) Your phone can store up to 45 calls in its caler ID (CID) memory. When the memory is full, the oldest call will automatically be deleted to make room for new incoming call information. For each call that comes in, the screen displays the following information between the first and second ring: + Your callers name (15 letters are sent by your telephone company). + The callers area code and telephone number. + __ The time and date of the call. +" The repeat tag (*) in the upper right corner, indicating the party has called more than once. Review call history

1. Press Y (CID) to view call history.

2. Press W or A to scroll through records in call history.

Caller ID Delete records from call history Delete a specific call:

1. Locate the record you want to delete from call history.

2. Press the CHAN/REMOVE key to delete. You'll hear a confirmation beep.

1. With the handset in idle (off) mode, press and hold the CHAN/REMOVE key to delete. The screen

displays ERASE ALL NO YES. The current choice flashes.

2. Press A until YES flashes.

3. Press SELECT. You'll hear a confirmation beep.

Dial a displayed number

1. Locate the record in call history that you want to dial.

2. Although the call log entries you receive are 10 digits, (the area plus the 7-digit number.) in somel

areas, you may need to dial only the seven digits, or a 1 plus the seven digits, or a 1 plus the areal code plus the seven digits. You can change the number of digits that you dial or store from the call log. While reviewing the call log, press # repeatedly to display these dialing options for local andl long distance numbers before dialing or saving the telephone number. See an example below.

3. Press SELECT. Press Y or À until DIAL flashes.

4. Press SELECT. The number is automatically dialed.

— OR — When the number is correctly displayed for dialing, press TALK/FLASH. Store a call history record in the directory

1. Locate the record in the call history you want to store in the directory.

www.vtechphones.com + Caller ID numbers may appear with an area code that may not be required for local calis, or without a 1 that may be needed for long distance calls. If the number displayed is notin the right format, press # repeatedly to see the different dialing options. You can choose to dial with or without the area code, or with or without the 1.

2. Ifyou wish to change how the numbers stored, press#.

The screen displays any alterate dialing sequences + Caller ID numbers may available for this call (area code + number; 1 + area appear with an area code + number; number only; 1+ number). See the note code that may not be in the side margin for more information on changing required for local calls, the dialing sequence. or without a 1 that may be needed for long 3. Press SELECT, then press Y or À until PROGRAM distance calls. If the flashes. number displayed is 4. Press SELECT again not in the right format, ‘ ù : : press # repeated lo 5. You will be given the option to edit the name. Make See the different dialing any changes to the name and press SELECT. options. You can

6. Edit the number if necessary and press SELECT.

choose to dial with or ù without the area code, 7. Press W or À to select Y or N for distinctive ringer. or with or without the 1. | 8. Press SELECT. You'll hear a confirmation beep. If you choose Y in step 7, a directory entry. Display screen messages Screen displays he: F j The other party is blocking name and/or number information: will be displayed with the Your phone company is unable to receive information: about this callers name and/or number. This caller has called you more than once. (after name) 28 www.vtechphones.com

Answering system operation Audible indicators Your telephone system gives you voice prompts for feature operations and voice confirmations when you press a button or complete an operation. Setting the clock . Make sure the answering system is on. : Press CLOCK. The system announces the clock setting (e.g. day, time and year), then announces: “To set the clock, press CLOCK.”

3. Press CLOCK. The system announces the current day.

4. Press SKIP or REPEAT until the system announces the correct day, then press CLOCK. The

system announces the current hour.

5. Press SKIP or REPEAT until the system announces the correct hour, then press CLOCK. The

system announces the current minute.

6. Press SKIP or REPEAT until the system announces the correct minute, then press CLOCK. The

system announces the current year.

7. Press SKIP or REPEAT until the system announces the correct year, press CLOCK. The system

announces the current clock setting and exits the clock menu. www.vtechphones.com If you have caller ID service the clock will be set automatically with incoming calls, but you will need to make sure the year is correct. You can also set the clock manually. To advance or recede the minutes or year by increments or decrements of ten, press and hold SKIP or REPEAT. Press and hold CLOCK for about two seconds to exit clock setting at any stage and the new setting will be saved and announced.

Announcements less than two seconds in length wi not be recorded. Ifthe answering system is tumed off and you receive calls the phone will ing 10 times, then answer and announce “Please enter your remote access code." Answering system operation If you choose not to record a personalized announcement, the pre-recorded announcement will say “Hello, please leave a message after the tone." Repeat or playback previous message. In setup, use to: change settings. Skip through a message. Ein setup, use to change Tum answering settings. system on or off. {— Record announcement and Enter answering system—|—— mer feature setup. memos.

Review/change clock setting Enter announcement mode. Record your announcement

1. Press ANNC until you hear “Announcement. Press PLAY or press RECORD."

2. Press RECORD. After you hear ‘Record after the tone. Press STOP when you are done," followed

by a beep, speak toward the base to record an announcement up to 90 seconds long. .… Press PLAY/STOP. The system plays back your recorded message. Press ANNC to exit the menu.

Review your announcement

1. Press ANNC until you hear “Announcement. Press PLAY or press RECORD."

2. Press PLAY/STOP, the system plays the current announcement.

Answering system operation Delete your announcement Press DELETE during announcement playback. The system will use the pre-recorded announcement until you record a new one. Setup the answering system

1. Press SETUP until the system announces the feature you want to set. Refer to the feature summary

below for a description of the features and your choices.

2. Press SKIP or REPEAT until the system announces the desired setting.

3. Press SETUP to confirm your selection and move on to the next feature, or press PLAY/STOP to

exit feature setup. Default settings indicated by *. System announces: Descri “Number of rings <current setting», to | To set the number of rings before the answering machine picks change the setting, press SKIP OR | up the incoming call. Two rings, four rings”, six rings and toll REPEAT, to continue setup, press | saver. When set to the toll saver setting, the answering system SETUP." will answer after two rings if there are new messages/memos, otherwise, answers call after four rings. “Base ringer <current setting», to Changes the volume of the ringer. Choose between HI, LO* or change the setting, press SKIP OR RE-_ | OF. PEAT, to continue setup, press SETUP." Remote access code <current setting>, _ | Allows you to call your answering machine and access messages to change the setting, press SKIP or and the answering system menu REPEAT, to continue setup, press The default access code is 19. SETUP www.vtechphones.com + Toincrease or decrease the remote access code by increments of 10, press and hold the SKIP or REPEAT key.

+ You can exit feature setup at any time by pressing PLAY/STOP.

Answering system operation Message alert tone <current setting» to To notify the user by beeping when new message(s) has change the setting, press SKIP or REPEAT, _ | been received. You may tu it on or off (*) to continue setup, press SETUP. Delete messages

+ To delete a message, press ES DELETE while the |_2g : L To increase/decrease message is playing. Ë gl eseroume + Press and hold DELETE sun NE in idle to delete all old messages in idle mode. From Play messages + You cannot delete a 6 © O + Press to play messages. message until it's been . "A + Press again to stop reviewed deleted playback. messages cannot be recovered. Message window Record announcement and memos. www.vtechphones.com

Answering system operation Listen to, save & delete messages The system automatically saves your messages until you delete them, and can store approximately 11 minutes of messages, memos, and announcements (up to a maximum of 95 messages). À message or memo can be up to four minutes long. The message window will flash to alert you to new, unplayed messages. If all messages have been reviewed, the number displayed in the message window will glow steadily. lfthe system contains both old and new messages, it will play only the new messages. After all new messages are played, press PLAY/STOP to hear all messages. Before playing a message, the system announces the day and time it was received. While the message plays, the message window displays the number of the message. After playing the last message, the system announces “End of messages." If the system has less than five minutes of recording time left, it announces the remaining time. Call screening/intercept

1. Make sure the answering system is on, and set the message playback volume control above level

1 so you can hear the callers message.

2. If you decide to answer the call, press TALK/FLASH on the handset.

Record a memo You can record a memo up to four minutes long, which is stored as an incoming message.

1. Press and release RECORD.

2. The system announces “Record after the tone. Press STOP when you are done." After the beep,

speak toward the microphone. The message window displays the length of your memo up to 99 seconds, if you record a memo longer than 99 seconds, 99 continues to flash until you finish.

Answering system operation Window pla: Whei There are no messages. Total number of old message(s). #5 (flashing) Total number of new message(s) or clock has not been set: ÎS (alternating) Memory is full with total number of new or new and old message(s) recorded. (Maximum number of messages is 95.) 1-53 (counting) Elapsed time while recording a memo or announcement up to 90 seconds. 33 (flashing) Recording time exceeds 99 seconds. Current message number during old message playing back. {flashing) Current message number during new message playing back. 1-5 (steady for two seconds) Indicates volume level selected when pressing the volume up/down key. {steady for two seconds) Shows the current remote access code. OH or ÜF (steady for two seconds) Display when any setting is changed from on or off. —— (steady) System is in programming mode, initializing or a handset is off hook or on a call. —— (flashing) System is in programming mode. www.vtechphones.com

Answering system operation - remote access Accessing the answering system remotely You can access many features of this system remotely from a touch tone phone.

1. Dial your telephone number.

2. When the system answers, enter your remote access code. If the memory is full, it announces

“Memory is full” before asking you to enter your remote access code.

3. Enter a remote command, see Remote access commands below.

4. To end remote access, simply hang up the phone.

Voice menu The system has voice prompts to help you with remote operations. Press *S to hear the menu while connected remotely to the answering system: Remote access commands Function Command Play messages Press 1 to play all messages. Press 2 to play new messages. If there are no new messages, the system plays old messages. Repeat a message Press 4 while message is playing. Press 4 to repeat the current playing message from its beginning or press 4 during the beginning of the day and time announcement to back up previous message. Skip a message Press 6 while message is playing: each press advances to the next message. Stop Press 5. Help Press *5. Save messages Hang up. www.vtechphones.com

+_Ifno key is pressed within five seconds of entering remote access, the voice menu will be announced. After the voice menu announcement, if no key is pressed within 20 seconds, the remote access call will automatically end If accessing from a touch tone telephone, press #5 to stop recording. Press 8 to hang up the line after you finish remote access to the answering system, so that your phone can ring and receive calls normally.

Answering system operation - remote access Functio Review previous message Command Press 4 during the beginning of the day and time announcement. Delete message Press 3 while message is playing. Press 33 during or after HELP menu announcement to delete all old messages. Record announcement Press *7; after the beep record announcement. Press 5 to stop. System plays back announcement. Turn system off Press 0; the system announces, “Calls will not be answered." Press 0 again to turn the system back on. Turn system on When system is off, it answers after 10 rings and announces, Please enter your remote access code, then press 0 to turn the answering system on. End call Press 8. www.vtechphones.com

Display screen messages Screen display: Whe + RINGING ** There is a call coming in. CONNECTING... The handset is waiting for dial tone. PHONE ON The handset is in use. ** PAGING ** The telephone base is paging the handset. BATTERY LOW The battery needs to be recharged. w The handset is changing to another of the r SCANNING... 30 channels available. &

1. Displays when one handset is on a o

call and the other handset presses L-] TALK/FLASH 2 OTHER HANDSET ON OR OUT OF |2. Displays when base power is off and Ê RANGE TALK/FLASH is pressed. You'll also hear © an error tone. 3

3. Displays when an out-of-range dial fails to

connect. RINGER OFF The handset ringer is turned off www.vtechphones.com 37

+_lf you repeatedly get a low battery indicator, even after charging ovemight, the battery should be replaced. To reduce the risk offire or injury to persons or damage to the telephone, read and follow these instructions carefully: Charge the battery provided with or identified for use with this product only in accordance with the instructions and limitations specified in the users manual.

attery information Battery care and performance: After your battery is fully charged, you can expect the following performance: Operat Operating While in use (talking) up to 5 hours While not in use (standby”) up to 7 days + Handset is off the telephone base or charger but not in use. The battery needs charging when: — A new battery is installed in the handset. — The phone beeps twice every five seconds. — The screen displays BATTERY LOW and the low battery icon. Place the handset in the base so the charge light tums on. The battery is typically fully charged in 16 hours. You can keep the battery fully charged by retuming the handset to the base after each use. Replacing the handset battery

Remove the battery compartiment cover on the handset by pressing on the indentation and sliding the cover downward. Lift out the old battery and disconnect. .… Alignthe two holes in the new battery's plug with the socket pins, and snap the plug into place. Snap the battery in the compartment, as described in Installation, on page 5. .… Replace the cover by sliding it up into place. For optimum performance, the new battery should be charged before using the phone. Place the handset in the telephone base or charger and allow it to charge for at ; least 16 hours the first use. The telephone might operate } before that, but for best performance, let the battery charge fully.

Troubleshooting If you have difficulty operating your phone, the suggestions below should solve the problem. If you still have difficulty after trying these suggestions, call VTech Communications at 1-800-595-9511. In Canada, call VTech Telecommunications Canada Lid. at 1-800-267-7377. Problem Suggestion www.vtechphones.com My telephone does not | + Make sure the battery is installed and charged correctly (see page 5 and 38). For optimum work at all. daily performance, return the cordless handset to the telephone base after use. + Make sure the power adapter is securely plugged into an outlet not controlled by a wall switch. + Make sure the telephone line cord is plugged firmiy into the telephone base and the modular wall jack. + Unplug the unirs electrical power and remove the battery from he handset. Wait or 15 seconds then plug in the battery and plug in the power. Âllow up to one minute for the cordless handset and base to synchronize. + Charge the battery in the cordless handset for at least 16 hours. + Remove and re-insert the battery. If that still does not work, it may be necessary to purchase a new battery pack. + Disconnect the telephone base from the modular jack and plug in a working telephone. If this ielephone does not work, the problem is probably in he wiring or the local service. Call the local telephone company. BATTERY LOW is + Place the handset in the telephone base or charger for recharging. & displayed on screen. + Remove and re-install the battery and use it normally until fully discharged, then recharge 5 the handset on the telephone base or charger for 16 hours. 3 + _Ifthe above measures do not correct the problem, the battery may need to be replaced. =

Troubleshooting Problem The battery does not charge in the handset or the handset battery does not accept charge. Suggest Make sure the handset is placed in the charger correctly. The CHARGE light on the telephone base or charger should be on. If the cordiess handset is in the charger or in the telephone base but the CHARGE light is not on, refer to The charge light is off in this section. It may be necessary to purchase a new battery. Please refer to the Batteries section of this users manual. The telephone might be malfunctioning. Please refer to the Warranty section of this user's manual for further instruction. The CHARGE light is off. Clean the charging contacts on the cordiess handset(s) and telephone base each month using a pencil raser or a dry non-abrasive fabric. Make sure the power adapter and telephone line cords are plugged in correctly and securely. Unplug the power adapter. Wait for 15 seconds before plugging it back in. Allow up to one minute for the cordiess handset and telephone base to reset. The telephone might be malfunctioning. Please refer to the Warranty section of this user's manual for further instruction.

Troubleshooting Problem Suggestion The CHARGE/IN + This is a signal that the battery is very low, completely depleted, when there is no electrical USE Indicator on the contact between the battery and the telephone base or when the telephone line is in use. telephone base is + Ensure the connector ofthe battery is securely plugged into the handset and place the handset flashing, in the telephone base for charging. + Answering machine has picked up a call. + Handset is on a call. + Another phone extension is in use. There is no dialtone. | + First, try all the above suggestions: + Move the cordiess handset closer to the telephone base. It might be out of range. + The telephone line cord might be malfunctioning. Try installing a new telephone line cord. + Disconnect the telephone base from the telephone jack and connect a different telephone: If there is no dial tone on the telephone either, the problem is in your wiring or local service. Contact your local telephone company. www.vtechphones.com ai

Troubleshooting Problem Suggestion The telephone does + Make sure the ringer is on. (See page 9). not ring when there is _ | + Make sure the telephone line cord and power adapter are plugged in properly (see page 4). an incoming call + The cordless handset may be too far from the telephone base. Move it closer to the telephone base. + There may be too many extension phones on the telephone line to allow all of them to ring simultaneously. Try unplugging some of them. + Ifthe other telephones in your home are having the same problem, the problem is in the wiring or local service. Contact the local telephone company (charges may apply). + Otherelectronic products can cause interference to our cordless telephone. Try installing your telephone as far away as possible from the following electronic devices: wireless routers, radios, radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors, television, VCRS, personal computers, kitchen appliances, and other cordiess telephones. + Testa working telephone atthe telephone jack. If another telephone has the same problem, the problem is in the telephone jack. Contact your local telephone company (charges may apply) + The telephone line cord might be malfunctioning. Try installing a new telephone line cord. + Re-install the battery pack and place the cordiess handset in the telephone base. + Wait for the cordless handset to synchronize with the telephone base. To be safe, allow up to one minute for this to take place. 42 www.vtechphones.com

Troubleshooting Problem Suggestion 1 cannot dial out. + First, try all the above suggestions. + Make sure there is a dial tone before dialing. It is normal ifthe cordless handset takes a second or two to synchronize with the telephone before producing a dial tone. Wait an extra second before dialing. + Make sure the telephone is set to the correct dial mode (pulse dial or tone dial) for the service in your area. Refer to the Setup the dial mode section of this users manual (page 8) to set the dial mode. + _Ifthe other telephones in your home are having the same problem, the problem is in the wiring or local service. Contact your local telephone company (charges may apply). + Eliminate any background noise. Noise from a television, radio, or other appliances may cause the telephone to not dial out properly. If you cannot eliminate the background noise, first try muting the cordless handset before dialing, or dialing from another room in your home with less background noise. 1 hear other calls when | + Disconnectthe telephone base from the telephone jack. Plug in a different telephone. If you still using the telephone. hear other calls, the problem is probably in the wiring or local service. Call your local telephone company. +_ Press the CHAN/REMOVE key to switch to a clear channel when on a call. 1 hear noise in the + Make sure the telephone line cord is plugged in securely. cordless handset, and none of the keys or buttons work. www.vtechphones.com 43

Troubleshooting Problem There is noise or interference during a telephone conversation. My calls fade out or cut in and out when | am using the cordiess handset Suggestion The handset may be out of range. Move it closer to the telephone base. Appliances or other cordiess telephones plugged into the same circuit as the telephone base can cause interference. Try moving the appliance or telephone base to another outlet. Other electronic products can cause interference to your cordless telephone. Try installing your telephone as far away as possible from the following electronic devices: wireless routers, radios, radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors, televisions, VCRS, personal computers, kitchen appliances, and other cordiess telephones. + Microwave ovens operate on the same frequency as your telephone. Itis normal to experience static on your telephone while the microwave oven is operating. Do not install this telephone in the same outlet or near a microwave oven. + _Ifyourtelephone is plugged in with a modem or a surge protector, plug the telephone (or modem/ surge protector) into a different location. If this solves the problem, re-locate your telephone or modem farther apart from each other, or use a different surge protector. + The layout of your home or office might be limiting the operating range. Try moving the base to another location, preferably a higher location for better reception. + Disconnect the telephone base from the modular jack and plug in a corded telephone. If calls are still not clear, the problem is probably in the wiring or local service. Contact your local service company (charges may apply). + Select channels four through 10 for your router (refer to the users manual of your router for more information). + If you still have problems with the telephone or the router, make sure the handset is ON and press CHAN/REMOVE until the performance improves. + Press the CHAN/REMOVE button while on a call until the interference has been eliminated. + _Ifthe other telephones in your home are having the same problem, the problem is in the wiring or local service. Contact the local telephone company (charges may apply). + Do you have DSL service? If yes, you need to have a DSL filter installed at every telephone jack thaï has a telephone connected to it. Contact your DSL service provider for fier information.

Troubleshooting Problem Suggestion My caller ID features + Calle IDis a subscription service. You must subscribe to this service from our local telephone are not working company for this feature to work on your telephone. properly. + The caller may not be calling from an area which supports caller ID. + Both you and the caller's telephone companies must use equipment which are compatible with caller ID service. + If you subscribe to DSL service, install a DSL filter to the telephone line between the telephone base and the telephone line jack. Contact your DSL service provider for fiter information. The system does not | + Make sure you subscribe to caller ID with call waiting features services provided by the local receive caller ID or telephone company. the system does not + The caller may not be calling from an area which supports caller ID. display caller ID during | + Both you and the caller's telephone companies must use equipment which are compatible with call waiting. caller ID service. + If you subscribe to DSL service, install a DSL filter to the telephone line between the telephone base and the telephone line jack. Contact your DSL service provider for filter information. www.vtechphones.com

Troubleshooting Problem The answering system does not answer after the correct number of rings. Suggestion Make sure the answering system is on. When the answering system is on, the red light on the ANSWER ON/OFF key should be li. If Toll Saver is activated, the number of rings changes to two when there are new messages waiting (see page 31) Ifthe memory is full or if the answering system is off, the system will answer after ten rings. In some cases, the answering system may be affected by the ringing system used by the local telephone company. The announcement message is not clear. When recording the announcement, make sure you speak in a normal tone of voice about nine inches from the telephone base. Make sure there is no background noise (television, music, traffic, etc.) when recording. The answering system does not record message. Make sure the answering system is on. The messages on the answering system are incomplete. If a caller leaves a very long message, part of it may be lost when the system disconnects the call after four minutes. Ifthe caller pauses for more than seven seconds, the system stops recording and disconnects the call. Ifthe memory on the system becomes full during a message, the system stops recording and disconnects the call. Ifthe caller's voice is very soft, the system may stop recording and disconnect the call.

Troubleshooting Problem Suggestion The messages on +_ Press Y or À on the telephone base to increase or decrease the speaker volume. the system are very difficult to hear. The answering system | + Make sure your “Remote Access Code” is correct (see page 35 and 36) does not respond to + Make sure you are calling from a touch-tone telephone. When dialing a number, you should hear remote commandés. tones. If you hear clicks, then itis not a touch-tone telephone and cannot activate the answering system. + The answering system may not detect the “Remote Access Code” when your announcement is playing. Wait until the announcement is over before entering the code. + There may be interference on the telephone line you are using. Press the dial pad keys firmiy when dialing My cordless handset | + Make sure the power cord is securely plugged into the telephone base. Plug the unit into a beeps five times and different working electrical outlet not controlled by a wall switch. is not performing + Move the cordiess handset closer to the telephone base. lt may be out of range. normally. + Reset the telephone base by unplugging and removing the battery from the handset. Wait for 15 seconds then plug in the battery and plug in the power. Allow up to one minute for the cordiess handset and the telephone base to synchronize. + Other electronic products can cause interference to your cordiess telephone. Try installing your telephone as far away from these electronic devices as possible: wireless routers, radios, radio towers, pager towers, cellular telephones, intercoms, room monitors, televisions, personal computers, kitchen appliances and other cordiess telephones. www.vtechphones.com uoneuuojul jeuonippy

Troubleshooting Problem Suggestion Common cure for + _Ifthe unit is not responding normally, try putting the cordless handset in the telephone base or electronic equipment. the charger. I it does not seem to respond, try the following (in the order listed):

1. Disconnect the power to the telephone base.

2. Disconnect the battery on the cordless handset and the spare battery in the telephone base.

3. Wait a few minutes before connecting power to the telephone base.

4. Re-instal the battery and place the cordiess handset into the telephone base or charger.

5. Wait for the cordless handset to synchronize its connection with the telephone base. Allow up

to one minute for this to take place. Caller ID entries + Although the call log entries you receive are 10 digits, (the area plus the 7-digit number.) in do not match the some areas, you may need to dial only the seven digits, or a 1 plus the seven digits, or a numbers 1 need to dial plus the area code plus the seven digits. You can change the number of digits that you dial or store from the call log. + While reviewing the call log, press # repeatedly to display these dialing options for local and long distance numbers before dialing or saving the telephone number. 48 www.vtechphones.com

Maintenance Taking care of your telephone Your cordes 1elephone contains saphisicated electron parts, 5 it must be treated with care. Avoid rough treatment Place the handsel doun gent. Save the original packing materials to protect your elephone you ever need to hip Avoid ter Your telephone can be damaged if gets we. De not usa the handset outdoors in he rain, or handle with we hand, Do not install your elephone base near sin, bathlub or shower. Electical storms. Electcal torms can sometimes cause power surges harmlul to electronic equipment. For your oun safety, use caution when using lecti applances during storms. Cieaning your telephone Your telephone has a durable past casing hat should retain it luster for many years. Clean ani with a soft clin lighii dampened with water or a md soap. Do not use excass water or cleaning Solents of any kind Limited Warranty What does this limited warranty cover? The manufacturer af his VTech Produet warrants 1 the holder of a valid proof of purchase (Consumer or “you that he Product and al accessories provided in the sales package Product) are fre from defects in material and workmanship, pursuant 1 the following terms and conditions, when installed and used normally and in accordance with the Product operating instructions. This imited warranty extends only Lo Ihe Consumer for Produets purchased and used in 1e Uniied States of America and Canada, What ill VTech do if the Product is not free from defects in materials and workmanship during the limited warranty period (‘Materally Defective Product")?

• Duringthe limited warranty period, VTeche authorized service representative il repair er replace at VTech's option. without charge, a Maerialy Defective Product. 1 we repair he Product, ne may use new or efurbished replacement parts. 1fwe choose lo replace Ihe Product, we may replace It with a new or refurbished Product of the same or similar design. We wi retain detecte parts, modules, or equipment. Repair or replacement of the Product, at VTech's option, is your exclusive remedy. VTech il return repaired or replacement Products 10 you in working condition. You should expect he repair or replacement to take approximately 30 days. How long is the limited warranty period? The limited warranty period for the Product extands for ONE (1) VEAR from he date of purchase. I VTech repaire orreplaces a Material Defective Product under the terms of this limited warranty, is limited warranty also applies Lo repaired or replacement Product for à period of alther (a) 90 days from th data Ie repaired ar replacement Product is shipped Lo you or (b) the lime remaining on 1he original oné-yaar warranty: whichever is longer. What is not covered by this limited warranty? This limited warranty does not cover: 1. Produet at has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or handling, neglect inundation, fre, water or other liquid intrusion; or Product that has been damaged due 10 repair alteration or modification by anyone ather than an authorized service representative of VTech, or Product ta Ie extent hat he problem experienced is caused by signal conditions, network relabilt, or cable or antenna systems; or Product ta Ine extent at he problem is caused by use with non-VTech accessories; or Product whose warranty/qualty stickers, Product serial numbers plates or electronic serial numbers have bean removed, altered ar rendered Ilagible: or www.vtechphones.com 49

Limited Warranty 6. Product purchased, used, serviced, or ahipped for repair rom outside 1ne United States of America or Canada, or used for commercial or instltional purposes (including but not limited 1o Products used for rental purposes): or

7. Product returned without val proof of purchase (sea ter 2 below}: or

8. Charges for installation or set up, adjustment of eustomer control, and installation or repair of systems outside ne uni. How do you get warranty service? To oblain warranty service in {he United States of America, call 1-800-98-9511 for instructions regarding where Lo return he Product. Belore caling fo service, please check Ine users manual. À check Gf ne Produet controls and leatures may save you à service call + Except as provided by applicable law, you assume the risk of los or damage during transit and transportation and are responsible or delery or handling charges incurred in the transport of Product () to the service location. VTech wi return repaired or replaced product under this limited warranty 10 you, transportation, delvery or handling charges prepaid VTech assumes no risk for damage or loss of ne Product in transit. fine Produet failure is not covered by Is Imited warranty, or proof f purchase does not meet the terms of his Imited warranty, VTech wil noël you and vil request that you authorize te cost of repair prior lo any further repair aclviy. You must pay for Ie cost of par and return Shipping costs for in repair f Products Ia are not covered by Is limited warranty. What must you return with the Product Lo get warranty service? 1. Returm the entre original package and contents including the Product t the VTech service lacation along with a description of the mallunction or difficult; and 2. | include “val proof of purchase” (sales receipl) identfying the Product purchased (Product model) and the date of purchase or receipt: and

3. Provide your name, complete and correct mailing address, and elephone number.

(Other Limitations: «This warranty s the complete and exclusive agreement betmeen you and VTech. lt supersedes all other wrien or oral communicatians related to this Praduct. Tech provides no other warrantes Loris Product. The warranty exclusively describes al of VTech's responsiblities regarding the Product. There are no other express warranties. No ane is authorized 10 make modifications 10 ti Imited warranty and you should not rely on any such modification. State/Provincial Law Rights: This warranty gives you specific legal rights, and you may also have other rights, which vary from state t state or province 1o province. *Limitations: Implied warrants, including those fines for a particular purpose and merchantabliy (an unwritien warranty hat he Product is it or ardinary use) ar limited to one year from date of purchase. Some states/prouinces do not allow lmlations on how long an implied warranty lasts, so te above Imitation may not apply 0 you. In na event shall VTech be Hlable for any indirect, special, Incidental, consequential ar similar amages {including but not mited 0 lost profs or revenue, mabilty to use the Product or other associated equipment, te cost of subatiute equipment, and ctaims by Iird parties resulting from te use of this Product. Same states/provinees do net allow the exclusion or lmiation of ncidental or consequental damages, 50 the above Imitation or exclusion may nat apply 0 you. Please retain your original sales receipt as proof of purchase. 50 www.vtechphones.com

Important safety instructions When using your telephone equipment, basic safety precautions should always be followed t reduce he risk fie, electric Shock and injury, including the following

Read and understand all instructions. Follow al warings and instructions marked on the product. Unplug is produet from the wal outet before cleaning. Do nat use quid or aerosol ceaners. Use a damp clth for cleaning Do not use this product near water {for example, near à bath Lub, Hichen sik or swimming pool). Do nat place his produet on an unstable surface, such as a table, shef or stand. The product may fa causing serious damage. Slot and opanings in the back or battom of te telephone base and handset are provided for ventilation. To protect 1hem from overheating, these openings must not be blocked by lacing te product on a so surface such as à bed, sofa or rug. This product should never be placod near or over a radator or heat register. This product should not be placed in any area were proper ventilation is not provided ‘This product should be operated only from the type of power Source indicated on 1e markng label. you are nat sure af th 1ype of power Supalin your home, consul your dealer or local power company. Do not allow anything Lo rest on the power cord. Do net install his produet where {ne cord may have anyone walking en Never push objects of any kind ina hi product hrough sis in the base ar handsel as iney may touch dangerous voltage points ar Short out parts hat could result in a ik of fre or electric shock. Never pil quid of any kind on the product. ‘To reduce ne risk of alecric shock, do not isassembla this product, but take 10 an authorized service facility. Opening er remeving part of {ne base ar handsel olner {han spaclid acoees ‘doors may expose you to dangerous vllages or oter risk. Incorrect roassemblng can cause electric shock when the product I subsequenty used Do not averload al outts and extension cords as his can result in ina risk of fire or lectie ahock. Unplug is produet from Ihe wal outet and refer seriing t an authorized servi facility under ie folloning conditions: A.” Vihen Ina power supply cord or plug is Gamaged or frayed

8. N'lquié has been spiled onto the product.

CG. Ilthe produet has been exposed 10 rain or water. D. fine product does not operale nomall by folowing the eperaing instructions. Adust only those controls that are covered by (ne operaling instructions, as impraper adjusiment of olher Gontrols may result In damage and often requires extensive work by an authorzed lschnician 0 restore 1e product 19 normal operation. E. the product has been dropped and the base andr handset has been damaged Fine product exhbits a distinct change in performance. AAvoid using à telephone (other than cordiese) during an electrical storm. Thare is à remote risk of electric shock rom ljgining, Do not usa 1he telephone Lo report a gas ak in tne vicnity of ne leak. (Only put ne handset of your lelephone exo your ear when ti in normal ak. This poner uni is intended to be correct orientated in a verial r floor mount poshion. The prongs are not designed 1o hold th plug in place ts plugged into a celing or an under he tablefcabinet outet.

SAVE THESE INSTRUCTIONS

FCC, ACTA and IC regulations FCG Part 15 This equipment has been tested and found to comply with the requirements for a Class 8 digital device under Par 15 of the Federal Communications Commission (FC) rules. These requirements are intended to provide reasonable protection against harmful intrference in à residental instalation. This equipment generates, uses and can radiat rad frequency anergy and, nat inalled and Used in accordance wih Ina instructions, may cause harmiul imerierence lo radio communications. However, ire is no guarantee Ihat inerlerence il not oceur in a parlular installation, 1 his equipment does cause harnfulinterlerence 19 radio or television receplion, which can be determine! by tuning ine equipment of and on, the user is encouraged 1 try 1o correct le intrlerence by ne or more of in following measures: < Reorient or reocae 1e receiving antenna. < Increase ina separation been Ihe equipment and receive. : Gonnect ie equipment into an outlet on a Gui diferent from that to which the receiver is connect Gonsuï the dealer ar an experienced radia/TV techniclan for help. (Changes or modifications 11h equipment not expreseiy approved by the party responsible for compllance could void the users autharity to operate the equipment. To ensure safety of users, the FC has established rer forthe amount radio frequency energy that can be safeiy absotbed by a user orbystander according to In intended usage of in product This product has been tested and found to compiy with the FCC criteria, The handset may be safely held against {ne earofthe user. The telephone base shal be installed and used such {nat parts oftne users body other han 1e hands are maintained al à distance of approimately 20 cm (8 inches) or more. au choose 19 use a cipping device, please make sure Lo only use Ina supplied VTech bel clip. FCG Part 68 and ACTA This equipment complies with Part 68 of ine FC rules and with technical requirements adopte by the Administrative Council fr Terminal Atlachments (ACTA). The label on the back or baton of his equipment contains, among olher ing, a product identifier in the format US:AAAEQ##TIOX. This identlier muet be provided lo your cal lelephone company upon request. The plug and jack used to connect his equipment 1 premises wiring and ie telephone network must compiy with applicable Part 68 rues and technical requirements adopted by ACTA. À compliant telephone cord and moduar plug 1 provided with ts product. I Is designed to be connected to a compatible madular jack tt also complant. An AU jack should nomaly be used for connecting 10 a single line and an RJ14 jack for two Ines. See Installation Instructions in to users manual. The Ringer Equivalence Number (REN) is used Lo determine how many devices you may connect 9 your telephone line and sil have them ring when you are called. The REN for is product is encoded as the 6h and 7h characters following ne US: in the product idertier (e.g, if # is 03, ne BEN is 0.3). In most, but ot ll areas, the sum of al ENS should be five (5.0) or ess. For more information, please contact your local elephone company. This equipment may not be used with Par Lines. you have special wired alarm ialing equipment connected to your elephone ne, ensure the connection of his equipment daes nat isable your alarm equipment. 1 you have questions about what il disable alarm equipment, consul your telephone company or à qualid instaler. Iinis equipment is malunctioring, l must be unplugged from the moduiar jack url the problem has been corrected. Repair 1 this telephane equipment can only be made by ine manufacturer or its authorized agents. For repair procedures, follow he instructions outined under he Limited Warranty. 1 tis equipment is causing han to the telephone network, the telephons company may temporarly discontinue your telephone serice. The telephone company is required to nolfy you before interuptng service. 1 advance notice s not practical, you il be notiied as soon as possible. You wil be gen the apparut l correct ne problem and Ine Lelephone company s required 1 inlorm you of our night fl a complaint with ine FO. Your telephone company may make changes in 1 facities, equipment, operation, or procedures ta could affecte proper functianing af ts product Te telephone company required Lo not you such changes are planned In product is equipped with a corded or cordless hands, is hearng aid compatible In product has memory dialing locations, you may choose Lo store emergency telephone numbers (e.g. police, fre, mecieal) in Inese locations. you do store ar ost emergency numbers, please: 52 www.vtechphones.com

FCC, ACTA and IC regulations < Bemain on he line and breliy explain the reason for ne cal before hanging up.

• Perf such actes in of-peak hours, such as early moming or ae auening Industry Canada This equipment comgles with regulations RSS210 and CS-03 of Industry Canada. Operation is subject 1 the following mo condiions: (1) ts device may not cause interlerence, and (2) this device mus accept any intrlerence, including interlerence Inat may cause undesired operation of he device. The tem “IC: * before the certficationregisrtion number oniysignifles at ne Industry Canada technical speciications were met. ‘The Finger Equivalence Number (REN) for his terminal equipment is 0.1. The REN is an indication of he maximum number ol devices allowed to be connected 1 a telephone interlace, The termintion on an imérlace may consi of any combination af devices subject oniy 19 1e requirement hat he sum of he RENS of al ne devices dos not exceed five. The RBRCS® seal KEY ne ABRG® Seal on the nickel-cadmium battery idicates that VTech Communications, Inc. is veluntariÿ parieipating in an industry program Lo colet and recyele 1hese batteries at the end of tir useful Ives, vien Lake out of service thin te United States and Canada. “8 me RBRC° program roues a convenint atematve 1 laong used nakakcadmium barres 1e ah ormunipal asie, ch may be legal in your area

VTech's participation in RBRC makes easy for you Lo d'op off ne spent battery at local etalers partlipatng in the RBRC® program or at authorzed VTach product senice centers. Please cal 1 800-8-BATTEAVI# fr information on N-C battery recycling and disposal bans/estictions In your area. VTech invoivement in ni program is part of is commiment 1 protectng our enronment and consenving natural resources. RBRC* is a registered trademark of Rechargeable Battery Recycing Corporation. www.vtechphones.com 53

Technical specifications Enhanced 5.8GHz Technology - Dual band transmission combines the best of 5.8GHz and 900MHZz technolo- gies, providing enhanced performance over standard cordiess telephones. Frequency control Crystal controlled PLL synthesizer Transmit frequency Base: 912.75 - 917.10 MHZ Handset: 5863.80 - 5872.5 MHz Receive frequency Base: 5863.80 - 5872.5 MHz Handset: 912.75 - 917.10 MHz Channels 30 Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use. Size Handset: 184mm X 52mm X 41mm Base: 160mm X 144mm X 104mm (with wall mount) Charger: 85mm X 78mm X 50mm Weight Handset: 130 grams Base: 347 grams (with wall mount) Charger: 61grams Power requirements Handset: 400mAH Ni-Cd battery Base: 9V DC @ 300mA Charger: 9V DC @ 150mA Memory Nine speed dial locations; up to 24 digits, 15 characters per location Directory: 20 memory locations (including the nine speed dial entries): up to 24 digits, 15 characters per location Caller ID: 45 memory locations 54 www.vtechphones.com

CalleriD_ 25 Call screening/intercept 33 Calltransfer 15 Charge the handset battery 8 Check for dial tone 8 Choose location 4 Connect power and telephone line cords 4

Delete a directory entry 20 Delete a speed dial entry 24 Delete your announcement 31 Dial a displayed number 27 Dial a number from the directory 21 Dial a speed dial number 24 Directory 18 Display screen messages 28, 37

Edit a directory entry 20 Edit a speed dial entry 23

FCC, ACTA and IC regulations 52-53

Reassign locations in speed dial 24 Record a memo 33 Record your announcement 30 Remote access commands 35 Replacing the handset battery 38 Review call history 26 Review your announcement 30

Set handset date and time 9 Set ringer volume 9 Set the dial mode 8 Setting the clock 29 Setup the answering system 31 CRE Speed dial 22 Store a call history record in the directory 27 Store a directory entry 18

Store a speed dial entry 22

Technical specifications 54 Telephone base layout 11 Telephone base operation 14 Telephone operation 10 Temporary tone dialing 15 The RBRC? seal 53 Troubleshooting 39

VTECH TELECOMMUNICATIONS LTD. À member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, Oregon Distributed in Canada by VTech Telecommunications Canada Ltd., Richmond, B.C. Copyright ©2007 for VTECH TELECOMMUNICATIONS LTD. Printed in China. v.06 91-000915-050-100 vtech Imoraton Beyond en}
