USER MANUAL 380 EC GARDENA

GB Operating Instructions

Electric Cylinder Lawnmower

F Mode d'emploi

Tondeuse helicoidale electrique

Welcome to the Garden of GARDENA...

Please read these operating instructions carefully and observe the notes given. Use these instructions to familiarise yourself with the electric cylinder lawnmower, its correct use and the notes on safety.

For safety reasons, children under the age of 16 as well as persons not familiar with these operating instructions should not use this electric cylinder lawnmower.

Please keep these operating instructions in a safe place.

Contents:

1. Where to Use Your GARDENA Cylinder Lawnmower 11
2. Safety references 11
3. Assembly 13
4. Function 13
5. Operation 14
   6.Putting into Storage 15
   7.Maintenance 15
   8.Troubleshooting/Service 16
6. Accessories 18
7. Technical Data 18
8. Warranty 18

1. Where to Use Your GARDENA Electric Cylinder Lawnmower

Correct use:

The GARDENA Electric Cylinder Lawnmower has been designed for cutting lawn and grass areas of private houses.

Compliance with these instructions provided by GARDENA is a prerequisite for using the cylinder lawnmower correctly.

Please note:

The Electric Cylinder Lawnmower should not be used for cutting climbing plants or grass on roofs, due to the danger of bodily harm.

2. Safety references

Please read the notes on safety on the Electric Cylinder Lawnmower.

Warning!

Please read the operating instructions before using the mower!

Warning!

Sharp blades!

Danger!

Risk of injury!

Keep bystanders away!

Remove the plug from the mains socket if the cable is cut through or damaged and/or during maintenance work.

Keep the power cable away from the cutting blades.

Check each time you use the mower:

Inspect the mower each time before you use it. Do not use the mower if the safety devices (Switch handle, cable strain relief, start button, blade cover) and/or the cutting mechanism are damaged or worn. Replace damaged or worn parts. Never disable safety devices.

Inspect the surface on which the lawn mower is to be used beforehand. Stones, pieces of wood and wires as well as other solid matter must be removed.

Objects which are contacted by the cutting tools could be thrown out uncontrollably or damage the cutting mechanism.

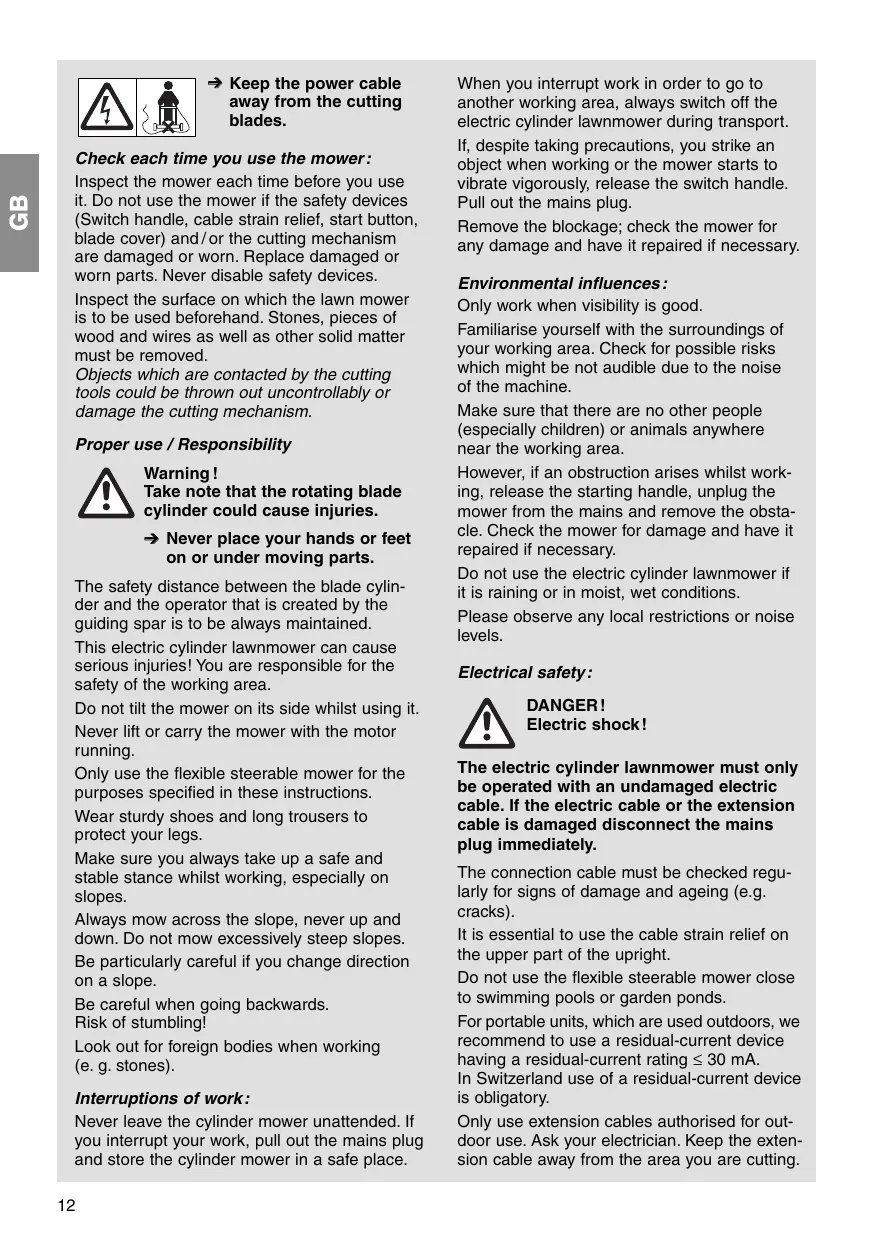

Proper use / Responsibility

Warning!

Take note that the rotating blade cylinder could cause injuries.

Never place your hands or feet on or under moving parts.

The safety distance between the blade cylinder and the operator that is created by the guiding spar is to be always maintained.

This electric cylinder lawnmower can cause serious injuries! You are responsible for the safety of the working area.

Do not tilt the mower on its side whilst using it.

Never lift or carry the mower with the motor running.

Only use the flexible steerable mower for the purposes specified in these instructions.

Wear sturdy shoes and long trousers to protect your legs.

Make sure you always take up a safe and stable stance whilst working, especially on slopes.

Always mow across the slope, never up and down. Do not mow excessively steep slopes.

Be particularly careful if you change direction on a slope.

Be careful when going backwards.

Risk of stumbling!

Look out for foreign bodies when working (e. g. stones).

Interruptions of work:

Never leave the cylinder mower unattended. If you interrupt your work, pull out the mains plug and store the cylinder mower in a safe place.

When you interrupt work in order to go to another working area, always switch off the electric cylinder lawnmower during transport. If, despite taking precautions, you strike an object when working or the mower starts to vibrate vigorously, release the switch handle. Pull out the mains plug.

Remove the blockage; check the mower for any damage and have it repaired if necessary.

Environmental influences:

Only work when visibility is good.

Familiarise yourself with the surroundings of your working area. Check for possible risks which might be not audible due to the noise of the machine.

Make sure that there are no other people (especially children) or animals anywhere near the working area.

However, if an obstruction arises whilst working, release the starting handle, unplug the mower from the mains and remove the obstacle. Check the mower for damage and have it repaired if necessary.

Do not use the electric cylinder lawnmower if it is raining or in moist, wet conditions.

Please observe any local restrictions or noise levels.

Electrical safety:

DANGER!

Electric shock!

The electric cylinder lawnmower must only be operated with an undamaged electric cable. If the electric cable or the extension cable is damaged disconnect the mains plug immediately.

The connection cable must be checked regularly for signs of damage and ageing (e.g. cracks).

It is essential to use the cable strain relief on the upper part of the upright.

Do not use the flexible steerable mower close to swimming pools or garden ponds.

For portable units, which are used outdoors, we recommend to use a residual-current device having a residual-current rating ≤ 30mA .

In Switzerland use of a residual-current device is obligatory.

Only use extension cables authorised for outdoor use. Ask your electrician. Keep the extension cable away from the area you are cutting.

The mains voltage and the equipment voltage stated on the type plate must be the same. If extension cables are used, these must comply with the minimum cross-sections in the table below:

Voltage	Cable length	Cross-section
220-240V/50Hz	Up to 50 m	1.5 mm²
220-240V/50Hz	50 - 100 m	2.5 mm²

3. Assembly

Assembling the handle:

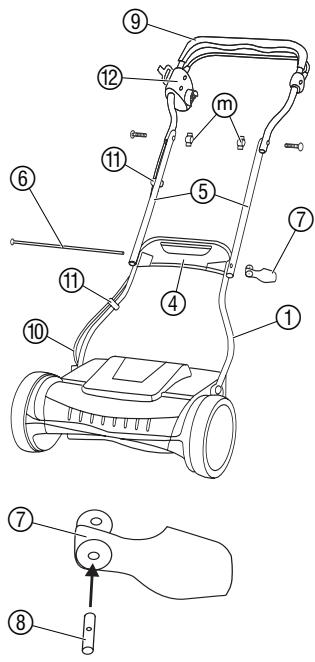

1. Insert lower part of bottom upright ① into upright holders ② up to stop and secure with the screws ③.
2. Push connector ④ from underneath into upper part of bottom upright ①.
3. Insert threaded rod ⑥ from left through lower parts of central upright ⑤ , upper part of bottom upright ① and connector ④ right up to the stop.
4. Slide threaded bearing ⑧ into clamping lever ⑦.
5. Screw clamping lever ⑦ onto threaded rod ⑥ approx. 4 turns.
6. Move clamping lever ⑦ onto connector ④ and check whether clamping lever ⑦ locks.
7. If clamping lever ⑦ does not yet lock, screw another turn onto threaded rod ⑥. Repeat procedure until clamping lever ⑦ locks on connector ④.
   8 Firmly attach bottom part of top upright ⑨ to upper parts of central upright ⑤ using 2 wing nuts

The safety starter lock ⑫ on the crossbar ⑨ must then be on the left.

1. Fix the motor cable to the upright with the two cable clips 11.

4. Function

Mowing correctly:

To produce a well-maintained lawn we recommend cutting the lawn one a week if possible. The lawn becomes thicker if cut frequently.

Relatively long cut grass (>1cm) must be removed so that the lawn does not become yellow and matted.

After relatively long intervals between mowing (holiday lawn), up to max. 12 cm, first of all cut in one direction with the cutting height as high as possible, then cut in the crosswise direction at the cutting height required.

If possible, only cut the grass when it is dry, if the grass is damp, the cutting pattern will be uneven.

Connecting to power supply:

Starting electric cylinder lawnmower:

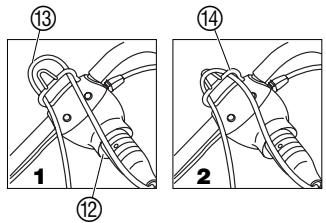

1. Place the connector of the extension cable ⑬ on the plug of the safety starter lock ⑫.
2. Draw a loop of the extension cable ⑬ through the cable strain relief device ⑭ 1 and suspend in position 2.

This prevents inadvertent disconnection of the plug and socket connection.

1. Insert extension cable 14 into a mains socket.

Danger of injury if the cylinder lawn mower does not switch off automatically!

Do not remove or bridge safety devices fitted to the cylinder lawnmower (e.g. by tying the starting lever to the upper handle)!

Danger! The cylinder does not stop immediately after the motor has been switched off:

Never lift, tip or carry the lawnmower with the motor running!
Never start on solid ground (e.g. asphalt).
→ Always maintain the safety distance between the cylinder and the user as defined by the guide handle.

1. Place cylinder lawnmower on flat grass surface.
2. Keep safety interlock ② pressed down and pull starting lever ⑤ on the upper handle ③ . The lawnmower starts.
3. Release safety interlock ⑫
4. Only push the mower forwards and at walking pace.

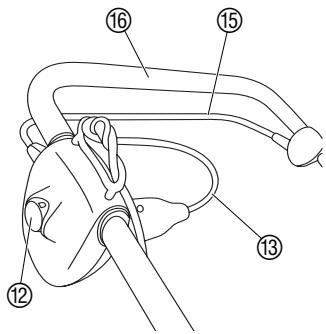

When in operation, the extension cable ③ must always be guided in the direction you are working and to the side of the area to be worked on. Always work away from the connection cable.

Blockage Protection: If the blade cylinder is blocked, e. g. by a foreign body, release starting lever immediately, disconnect plug from mains socket and remove the blockage.

Danger of injury!

If the thermal response switch responds and the starting handle remains in the ON position, the cylinder mower starts again automatically after cooling down.
Release starting lever immediately.

Circuit Breaker: If the electric cylinder lawnmower is overloaded over a longer period of time the motor may become hot. To protect the motor from overheating the circuit breaker switches the motor off. You can switch the mower on again after approximately 5-10 minutes.

Note: The cylinder mower can be used in electric mode or as a push-lawnmower without the electric drive.

Adjusting the cutting height:

DANGER! Cutting tool can cause injuries!

When adjusting the cutting height, wait until the blade cylinder is stationary, put on suitable working gloves and unplug from the mains.

Mowing with the grass collection sack (accessories):

The cutting height can be set to any position between 12mm and 42mm .

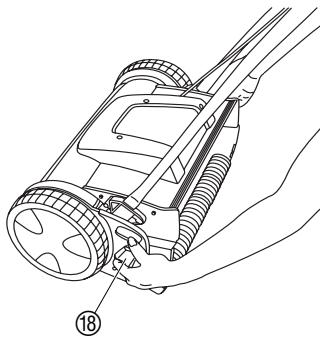

1. Slacken the two locking screws ⑧ and set to the height required on the scale ⑨
2. Tighten the two locking screws 18 on both sides to the same height.

The locking screws 18 must always be set to the same height on both sides.

The mower may only be adjusted to a depth in which the lower blade does not touch the ground when it is uneven.

Suspend the grass collection sack in the cylinder mower as described in the Operating Instructions for the grass collection sack.

6. Putting into Storage

Storage:

1. Switch off the lawnmower and pull out the extension cable.
2. Clean mower before storage (see 7. Maintenance).
3. Store mower in a dry, frostproof but cool place out of reach of children.

To save space, the cylinder mower can be folded up by folding the clamping lever.

Disposal: (in accordance with RL 2002/96/EC)

The product must not be added to normal household waste. It must be disposed of in line with local environmental regulations.

7. Maintenance

DANGER! Cutting tool can cause injuries!

Before maintenance, wait until the cutting tool is stationary, wear suitable work gloves and pull out the mains plug.

DANGER! Injury to persons and damage to property!

Do not clean mower under running water (especially at high pressure).

Deposits affect the cutting result as well as discharge of grass clippings. Residual dirt and grass is easily removed immediately after mowing.

1. Remove grass deposits with a brush and a cloth.
2. Oil the red cutting mechanism lightly with thin oil (e.g. sprayed oil).

8. Troubleshooting / Service

DANGER! Cutting tool can cause injuries!

Before rectifying faults, wait for the cutting tool to stop, wear suitable work gloves and pull out the mains plug.

Problem	Possible cause	Remedy
Abnormal noise, Clattering in the mower	Screws / components loose.	→ Tighten screws or send to GARDENA Service.
	Foreign bodies on the blade.	→ Remove foreign bodies.
	Notch in the blade.	→ Remove notches with grindstone.
	Blades are striking each other too hard.	→ Adjust cutting mechanism.
Motor will not start	Power cable faulty.	→ Unplug from mains and check power cable.
	Fuse / fault current circuit-breaker has responded.	Check power cable and replace fuse / switch fault current circuit breaker on again.
	Extension cable may not have a large enough cross-section.	→ Use extension cable with cross-section complying with table (2. Safety references).
	Circuit breaker has been triggered.	→ Wait approx. 5-10 minutes then turn on the mower again.
Motor jams and is noisy	Blocked by foreign body. Blocking protection activated.	1. Release starting handle. 2. Unplug mains plug at the socket. 3. Remove foreign body.
	Cutting load too high.	→ Reduce mowing speed and / or raise cutting height.
Motor turns off	The cutting height you have selected is too low; Circuit breaker has been activated.	Let the motor cool for 5-10 minutes, then use the mower with a higher cutting height and reduce the cutting height and the mowing speed in stages.
Runs unevenly, mower vibrates significantly	Cutting tool damaged.	→ Have cutting tool checked by an authorised specialist dealer or GARDENA-Service.
	Blade very dirty.	→ Clean blade.

Problem

Lawn cut unevenly

Possible cause

Remedy

Blade set incorrectly.	→ Adjust cutting mechanism.
Cutting mechanism blunt.	Recommendation: → Have cutting mechanism reground or replaced by GARDENA Service.
Lawn too long / too wet.	→ See 4. Function “Mowing Tips”.

Adjusting the cutting mechanism:

The cutting gear of your lawn mower was optimally adjusted before leaving our company. If, after longer use, a clean cut of the grass is no longer possible or the blade roller contacts the lower blade, then the lower blade should be adjusted.

1. Remove the plug from the mains socket.
2. Check cylinder ② and lower blade ② for notches and remove these with a grindstone if necessary.
3. Unscrew internal hexagon screws ② with an internal hexagon wrench (5 mm) anticlockwise until the cylinder ⑩ turns freely.
4. Push the feeler gauge supplied (thin strip of metal) ② on the left side between one blade ② on the cylinder and the lower blade ① .
5. Tighten left internal hexagon screw ② with an internal hexagon wrench (5 mm) until the feeler gauge ③ is held gently.
6. Continue turning the cylinder until the blade ②, already adjusted on the left side, is exactly above the lower blade ② on the right side.
7. Tighten the right internal hexagon screw ② with an internal hexagon wrench (5 mm) until the feeler gauge ③ is held gently.
8. Rotate cylinder ②. If a banging noise is produced during this open up the internal hexagon screw ② slightly on the side affected.

When the cylinder and the lower blade can hardly be heard touching each other, the cutting mechanism has been adjusted correctly.

9. Cutting test:

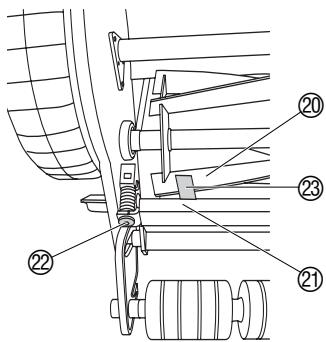

Place a strip of paper 24 in such a way on the lower blade 21 that it points towards the spindle of the cylinder 20.

1. Turn cylinder ② carefully.

If the lower blade is set correctly (2) the paper will be cut off as if with scissors.

1. Repeat the cutting test on the other blades ②

On safety grounds, only original GARDENA spares may be used.

Please contact GARDENA Service if it is necessary to replace the cutting tool, which will only become blunt after several years use if well-maintained.

Have the cylinder mower checked over in the autumn if possible so that it is ready for use immediately when the next lawn-mowing season starts.

If you have any problem with your cylinder mower, please contact our Customer Service.

9. Accessories

GARDENA Grass collecting bag

Saves raking up the cut grass.

Art. No. 4029

10. Technical Data

	380 EC (Art. 4028)
Power rating	400 W
Voltage / Frequency	230 V/50 Hz
Cutting width / Cutting height	38 cm /12 - 42 mm
Cutting height adjustment	infinitely variable
Weight	12 kg
Working area related emission characteristic value \( L_{pA} \)1)	77 dB (A)
Noise level \( L_{WA} \)2)	measured 91 dB (A) / guaranteed 92 dB (A)
\( Vibrations\ a_{vhw} \)1)	< 2,5 m/s2

Measuring method 1) EN 836 2) RL 2000/14/EG

11. Warranty

GARDENA guarantees this product for 2 years (starting from the date of purchase). This guarantee covers all serious defects of the unit that can be proved to be material or manufacturing faults. Under warranty we will either replace the unit or repair it free of charge if the following conditions apply:

• The unit must have been handled properly and in keeping with the requirements of the operating instructions.
• Neither the purchaser or a non-authorised third party have attempted to repair the unit.

The wearing parts blade cylinder (complete) and lower blade are excluded from the warranty.

This manufacturer's guarantee does not affect the user's existing warranty claims against the dealer/seller.

If a fault occurs with your Electric Cylinder Lawnmower, please return the faulty unit together with a copy of the receipt and a description of the fault, with postage paid to one of the GARDENA Service Centres listed on the back of these operating instructions.

DProduktlaufzeit	Wir weisen ausdrücklich darauf auf hin, dass wir nach dem Produkttaftungs- gesetz nicht für durch unsere Geräte hervorgerufene Schäden einzu- stehen haben, sofern diese durch unsachgemäße Reparatur verursacht oder bei einem Teileaustausch nicht unsere Original GARDENA Teile oder von uns freiugegebene Teile verwendet werden und die Reparatur nicht vom GARDENA Service oder dem autorisierten Fachmann durchgeführt wird. Entsprechendes gilt für Ergänzungsteile und Zubehör.
G3Product Liability	We expressly point out that, in accordance with the product liability law, we are not liable for any damage caused by our units if it is due to im- proper repair or if parts exchanged are not original GARDENA parts or parts approved by us, and, if the repairs were not carried out by a GARDENA Service Centre or an authorised specialist. The same applies to spare parts and accessories.
FResponsibilité	Nous vous signalons expressément que GARDENA n'est pas respons- sable des dommages causés par ses appareils, dans la mesure où ces dommages seraient causés suite à une réparation non conforme, dans la mesure où, lors d'un échange de pieces, les pieces d'origine GARDENA n'aurait pas été utilisées, ou si la réparation n'a pas été effectué par le ServiceAprès-Vente GARDENA ou l'un des Centres SAV agrées GARDENA. Ceci est également valable pour tout ajout de pieces et d'ac- cessoires autres que ceux préconsés par GARDENA.
NLProductaansprakelijkheid	Wij wijzen er nadruukelijk op, dat wij op grond van de wet aansprakelijk- heid voor producten Niet aansprakelijk+zijn voor schade ontstaan door once apparaten, indien deze door onvakkundige reparatie veoroorzaakt,zijn, of er bij het uitwisselen van onderdelen geen gebruik gemaaakterd ward van once originèle GARDENA onderdelen of door ons vrijgeveen onderdelen en de reparatie net door de GARDENA technische Dienst of de bevoegtde vak- man uitgevoerd werk. Ditzelfde geldt voor extra-onderdelen en accessoires.
SProduktansvar	Tillverkaren ar inte ansvarig für skada som orsakats av Produkten om skadan beror på att produit har reparerats felaktigt eller om, vid repa- ration aller utbyte, andra øan Original GARDENA reservdeler har anvænts. Samma sak gäller for kompletteringsdeler och tillbehör.
IResponsibilitàdel prodotto	Si rende espessamente noto che, conformmente alla législazione sulla responsabilità del prodotto, non si risponde di danni causati da nostri arti- coli se originati da riparazioni eseguite non correttamente o da sostituzioni di parti effettuate con materiale non originale GARDENA o comunque da noi non approvato e, in agli caso, qualora l'intervento non venga eseguito da un centro assistenza GARDENA o da personale specializzato autoriz- zato. Lo stesso vale per le parti complementari e gli accessori.
EResponsibilitadede products	Advertimos que conforme a la ley de responsabilitad de produits no nos responsabilizamos de daños causados por nuestros aparatos, sempre y cuando dichos daños hayan sido originados por arreglos o reparaciones indebidas, por recambios con piezas que no Sean piezas originales GARDENA o bien piezas autorizadas por nosotros, asi como en aquellos casos en que la reparación no haya sido efectuada por un Servicio Téc- nico GARDENA o por un técnico autorizzato. Lo"Myso es aplicable para las piezas complementarias y accesorios.
PResponsibilitadedeuble o dato	Queremos salientar que segundo a lei da responsabilitadde fabricante,;nós não nos responsabilitzarempos por danos causados pello/DDso equipa- mento, quando these ocorram em decorrendência de reparações inadequadas ou da substituição de peças por peças não originais da GARDENA, ou pe-ças não autorizadas. A responsabilitadtodornar-se-à nula también depos de reparações realizadas por oficinas não autorizadas pela GARDENA.Esta restrizione valorá tambem para peças adiconuides e acessórios.
DKProduktansvar	Vi gør udtrykkeiligt opmærksom på at i henhold til produktansversloven er viiske ansvarlige for skader forårsaget af vores udstyr, hvist det skyldes uautoriserede reparationser ullhvis dele der skifteet ud og der ikke er an- vendtd originale GARDENA dele ulle degekndt af os, eller his repara- tionnerne ici er udført af GARDENA-service ellern autoriseret fagmand. Det samme gælder for ekstra udstdyr og tilbehör.

EU-Konformitätserkläufig MaschinenVerbindung (9. GSGVO) / EMVG / Niederspr. RL Der Unterzeichnete GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, bestätigt, dass die nachfolgenden beziehnten Geräte in der von uns in Verkehr gebrachten Ausführung die Anforderungen der harmonisierten EU-Richtlinien, EU-Sicherheitsstandards und produitspezifischen Standards erfüllen. Bei einer nicht mit uns abgeimtmten Änderung der Geräte verliert diese Ermärfung ihre Gültigkeit.	Bezeichnung des Gerätes: Description of the unit: Designation du matériel: Omschrijving van het appeaat: Produktbeskrivning: Descriizione del prodotto: Descrizione di la mercancia: Descrizione do aparelho: Beskrivelse at enhedere:	Elektro-Spindelmaher Electric Cylinder Lawnmower Tondeuse hellecoidale électrique Elektrische kooimesmaier Elektrisk Cylinderklippare Rasaprato elettrica Cortacésped Maquina de cortar relva électrica Elektrisk plaenkelipper
GB EU Certificate of Conformity The undersigned GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, hereby certifies that, when leaving our factory, the units indicated below are in accordance with the harmonised EU guidelines, EU standards of safety and product specific standards. This certificate becomes void if the units are modified without our approval.	Typ: Type: Type: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ:typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ:Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ: Typ:(typ)	Art.-Nr.: Art. No.: Référence : Art. nr.: Art.nr. : Art.nr. : Art. : Art. : Art. : Art. : Art. : Art. : Art. : Art. : Art. : Art. : Art. : Harmonisierte EN: EN ISO 12100-1 EN ISO 12100-2 EN 836 EN 60335-1 EN 60335-2-77 ISO 4871
F Certificat de conformité aux directives européennes Le constructeur, soussigné : GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, déclare qu'à la sortie de ses usines le matériel ne désigné ci-dessous était conforme aux prescriptions des directives européennes énoncées ci-après et conforme aux régles de sécurité et autres règles qui lui sont applicables dans le cadre de l'Union européenne. Tout modification portée sur ce produit sans l'accord express de GARDENA supprime la validité de ce certificat.	EU-Richtlinien: EU directives: 98/37/EC Directives européennes: 89/336/EC EU-richtlinien: 2006/95/EC Elective UE: 93/68/EC Normativa UE: 2000/14/EC EU Retningsinier:	Harmonisierte EN: EN ISO 12100-1 EN ISO 12100-2 EN 836 EN 60335-1 EN 60335-2-77 ISO 4871
NF EU-overeerenstemmingsverklaring Ondergetekende GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, bevestig, dat de volgende genoemoe apparaten in de door ons in dehandel gebrachte uftvordering voldoen aan de es van, en in overeenstemming bijen met de EU-richtlinjen, de EU-veilighieldsstandjaard en de voor het product specifieke staandaard. Bij een net met ons afgestemde verandering aan de apparaten verlief deze verklaringaar geldighid.	Hinterlegte Dokumentation: Konformitätsbewertungsverfahren: Deposited Documentation: Conformity Assessment Procedure: Documentation déposée : Procedure d'évaluation de la conformité :	GARDENA Technische Dokumentation Nach 2000/14/EG Art. 14 Anhang VI GARDENA Technical Documentation according to 2000/14/EC Art. 14 Annex VI Documentation technique GARDENA Selon 2000/14/CE art. 14 Annexe VI
S EU Tillverkarintyg Undertecknadirma GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, intygar harned att nedan tatsäch producer overensstämmer med EU's direktiv, EU's sakerhetsstandard och produitspecification. Detta intyg upphör att gälla om Produkten ärdans utand vart tillständ.	Schall-Leistungspiegel: Noise level: measured / guaranteed Puisance acoustique: Geluidsniveau: Ljudniva: uppmätt / garanterad Livello rumorosità: Nivel sonoro: medido / garantizzato Nivel de ruido: Lydtryksniveau:	gemessen / garantiert mesurée / garantie gemeten / gegardeerd testato / garantito medido / garantizzato alfànt / garantità 91 dB (A) / 92 dB (A)
Dichiarazione di conformità alle norme UE La sottoscritta GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, certifiche che il prodotto qui seguito indica, nei modelli da noi commercializzati, è conformate alle dirittive armonizzate UE nonché agli standard di sicurezza e agli standard specifici di prodotto. Qualunque modificata apporbata al prodotto senza notre specifica autorizzazione invalida la presente dichiarazione.	Anbringungsjahr der CE-Kennzechnung: Year of CE marking: Date d'apposition du marquage CE: Installatiejeaar van de CE-aanduiding: CE-Märkningsår: Anno di filascio della certificazione CE: Colocacion del distinativo CE: Ano de marcação pela CE: CE-Merkningsår:	2004
E Declaration de conformità de la UE El que subscribe GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, declares que la presente mercancia, Objects de la presente déclaración, cumple con todas las normas de la UE, en lo que a normas tícnicas, de homologação y de security se refiere. En caso de realizar cualquier Mudación en la presente mercancia sin unsere previa autorização, estadeclaración pierde su validez.
P Certificado de conformità da UE Os abaix mentionados GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, por este meio certificam que ao sair da fábrica o abaix mentionado está de accordo com as direcrizes harmonizadas da UE, prados de segança e de produits specificos. Este certifyificado ficarà nulo se a unidad forificada sem a minha aprovasión.	Ulm, den 01.08.2004 Ulm, 01.08.2004 Fait à Ulm, le 01.08.2004 Ulm, 01.08.2004 Ulm, 2004.08.01. Ulm, 01.08.2004 Ulm, 01.08.2004 Ulm, 01.08.2004 Ulm, 01.08.2004 Ulm, 01.08.2004 Ulm, 01.08.2004 Ulm, 01.08.2004	Pauli Peter Lameli Technische Leitung Technical Dept. Manager Direction technique Hoofd technische Dienst Technical Director Direzione Técnica Director Técnico Teknik direktr
DK EU Overensstemmelse certificat Undertegnede GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm bekrefter hemred, at eheder listed herunder, ved asfindelse fra fabrikken, er i overeinsstammelse med harmoniserede UE retningsinier, EU sikherhedsstandarder og productspecificationsstandarder. Dette certifikat träeder ud af kraft hisende er endret utden vor godkendelse.

Deutschland / Germany GARDENA

Manufacturing GmbH

Service Center

Hans-Lorenser-StraBe 40

D-89079 UIm

Produktfragen:

([phone]

Reparaturen:

([phone]

[e-mail]

Argentina

Argensem® S.A.

Calle Colonia Japonasa /n (1625)Loma Verde

Escobar, Buenos Aires

Phone: [phone]

[e-mail]

Australia

Nylex Consumer Products 50-70 Stanley Drive

Somerton, Victoria, 3062

Phone: [phone]

[e-mail]

Austria/Österreich

GARDENA

GARDENA Belgium NV/SA

2 Luis Ahalier Str. - 7th floor

Sofia 1404

Phone: [phone]

[e-mail]

Canada

GARDENA Canada Ltd.

100 Summerlea Road

Brampton, Ontario L6T 4X3

Phone: [phone]

[e-mail]

Chile

Antonio Martinic y Cia Ltda.

Cassillas 272

Centro de Cassillas

Santiago de Chile

Phone: [phone]

[e-mail]

Costa Rica

Compania Exim

Euroiberoamericana S.A.

Los Colegios, Moravia,

Blezard Business Park

Seaton Burn

Newcastle upon Tyne

NE13 6DS

[e-mail]

Greece

Agrokip

Psomadopoulos S.A.

Ifaistou 33A

Industrial Area Koropi

194 00 Athens Greece

V.A.T. EL093474846

Phone: [phone]

[e-mail]

Hungary

GARDENA

Magyarország Kft.

Kesmárk utca 22

1158 Budapest

Phone: [phone]

[e-mail]

Iceland

O. Johnson & Kaaber

Tunguhalsi 1

110 Reykjavik

[e-mail]

Ireland

Michael McLoughlin & Sons

Hardware Limited

Long Mile Road

Dublin 12

Italy

Phone: [phone]

[e-mail]

Japan

KAKUICHI Co. Ltd.

Sumitomo Realty &

Development Kojimachi

BLDG., 8F

5-1 Nibanncyo, Chiyoda-ku

Tokyo 102-0084

Phone: [phone]

[e-mail]

Luxembourg

Magasins Jules Neuberg

NYLEX New Zealand Limited

Building 2, 118 Savill Drive

Mangere, Auckland

Phone: [phone]

[e-mail]

Norway

GARDENA Norden AB

Salsgkontor Norge

Karihaugveien 89

1086 Oslo

[e-mail]

Poland

GARDENA Polska Sp. z o.o.

Szymanow 9 d

05-532 Baniocha

Phone: [phone]

[e-mail]

Portugal

GARDENA Portugal Lda.

02-08 Tat Ann Building

Singapore 577185

Phone: [phone]

[e-mail]

Slovak Republic

GARDENA Slovensko, s.r.o.

Panónska cesta 17

85104 Bratislava

Phone: [phone]

[e-mail]

Slovenia

GARDENA d.o.o.

Brodišć 15

1236 Trzin

Phone: [phone]

[e-mail]

South Africa

GARDENA

South Africa (Pty.) Ltd.

P.O.Box 11534

Vorna Valley 1686

Phone: [phone]

[e-mail]

Spain

GARDENA IBÉRICA S.L.U.

C/ Basauri, n° 6

La Florida

28023 Madrid

Phone: [phone]

Kyivo Svyatoshyn Region

08130, Ukraine

Phone: [phone]

[e-mail]

USA

Melnor Inc.

3085 Shawnee Drive

Winchester, VA 22604

Phone: [phone]

[e-mail]

4028-20.960.04/0307

© GARDENA

Manufacturing GmbH

D-89070 Ulm

http://www.gardena.com
