Product Type	Digital and FM Portable Radio
Brand	PURE
Model	EVOKE D4 MAPLE
Dimensions (W x H x D)	180 x 217 x 115 mm
Power Supply	Mains adaptor 9 V DC, 1.5 A (model ZDD090150, ZDD090150BS or ZDD090150AU); compatible rechargeable battery ChargePAK F1 (sold separately)
Power Consumption	Operation: 3.5 W; standby with display: <0.8 W; standby without display: <0.5 W
Frequency Ranges	DAB/DAB+/DMB-R: Band III (174-240 MHz); FM: 87.5-108 MHz
Speaker	3 inch extended range
Display	White OLED graphic display 128 x 22 pixels high contrast
Inputs	9 V DC mains adaptor socket; stereo mini-jack auxiliary input; mini-B USB port for updates
Outputs	Stereo mini-jack headphone socket
Presets	15 DAB presets and 15 FM presets
Main Features	DAB/DAB+/FM radio, remote control, two alarms (radio or melody), kitchen timer, sleep timer, brightness and timeout adjustment, automatic clock synchronization, software update via USB
Included Accessories	Remote control with coin cell battery, mains adaptor, user manual
Battery Options	Rechargeable battery ChargePAK F1 (sold separately)
Safety	Do not expose to water or excessive heat; use only the supplied adaptor; double electrical insulation; keep coin cell battery out of reach of children
Care and Cleaning	Wipe with a soft, dry cloth; do not use chemical or abrasive products
Spare Parts and Repairability	Mains adaptor (ZDD090150, ZDD090150BS, ZDD090150AU); ChargePAK F1 battery; no user repair – contact Pure support
Warranty	3 years from date of purchase
General Information	Brand: PURE; model: EVOKE D4 MAPLE; category: portable radio; CE, C-Tick certification; compliance with EMC and Low Voltage directives

Frequently Asked Questions - EVOKE D4 MAPLE PURE

How to set an alarm on the Evoke D4?

Press the Q1 or Q2 button. Turn and press the Select button to activate the alarm. Set the hour, minutes, repetition (daily, weekdays, weekends or once), type (digital radio, FM or melody) and optionally the station. Confirm each step with the Select button.

How to store a station as a preset?

Tune to the desired station. For presets 1 to 4: press the corresponding button for 2 seconds. For presets 1 to 15: press 5+, turn and press Select to choose the number, then hold Select for 2 seconds.

How to use the auxiliary input (Aux in)?

Connect your device (MP3 player, etc.) to the Aux in socket at the back of the radio. Press Source and select Auxiliary Input. Adjust the volume with the Volume button.

What to do if the radio cannot find any stations?

Ensure the telescopic antenna is fully extended. Perform an auto-tune: press Menu, select Autotune. If the problem persists, move the radio or reset the device via Menu > Settings > Factory reset.

How to reset the Evoke D4 to factory settings?

Press Menu, turn and press Select to choose Settings, then Factory reset. Select Yes to confirm. This clears all presets and stored stations.

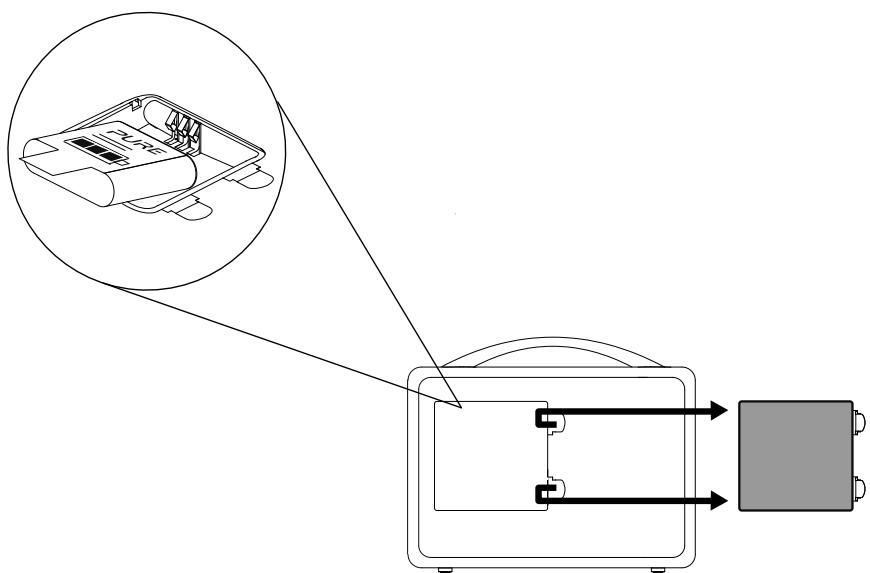

How to install the ChargePAK F1 rechargeable battery?

Turn off the radio and unplug it. Open the battery compartment at the back. Insert the ChargePAK F1 battery aligning the three contacts, close the lid. Reconnect the radio; the battery will charge automatically.

How to change the FM tuning mode (auto or manual)?

In FM mode, press Menu, select FM Tuning Mode. Choose Auto for automatic search or Manual to step by 0.05 MHz with the Select button.

How to adjust the screen brightness?

Press Menu, select Display settings. Choose Active (while operating) or Standby & Sleep. Then set Brightness to Auto or a level from 1 to 10, and Duration to Always on or 7 seconds.

How to update the radio's software?

Download the update file from support.pure.com. Connect the radio to a PC via a mini-B USB cable. Follow the instructions provided with the file. Requires Windows or Mac OS 10.6+.

How to disable the sleep timer?

Hold down the Timer button until the message Timers cleared appears. This also cancels the kitchen timer if it was active.

USER MANUAL EVOKE D4 MAPLE PURE

Thank you for choosing Evoke D4. This manual will get you up and running in no time and explains how to make the most of Evoke D4's great features. If you need additional help with topics not covered in this manual, please visit the Pure support pages at support.pure.com.

Safety Instructions

1. Read these instructions - All the safety and operating instructions should be read before this product is operated.
2. Keep these instructions - The safety and operating instructions should be retained for future reference.
3. Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions - All operating and use instructions should be followed.
5. Keep the radio away from heat sources such as radiators, heaters or other appliances that produce heat.
6. Do not expose the unit to direct sunlight.
7. Do not use the radio near water.
8. Avoid objects or liquids getting into the radio.
9. Do not remove screws from or open the radio casing.
10. Fit the mains adapter to an easily accessible socket, located near the radio and ONLY use the mains power adapter supplied by Pure (model number ZDD090150, ZDD090150BS or ZDD090150AU).
11. Always switch the radio off and disconnect it from mains power before inserting or removing a ChargePAK.
12. Should not be immersed in water, used in shower or bathroom if plugged into the mains.
13. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on apparatus.
14. WARNING: The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable.
15. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
16. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the alike.
17. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

WARNING

DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD

The remote control supplied with this product contains a coin/bottom cell battery. If the coin/bottom cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.

Damage to hearing can occur with consistent exposure to high volume when using headphones. Always check the volume level before inserting headphones into your ears.

Use of headphones while operating a vehicle is not recommended and is illegal in some areas. Stop listening to your radio if you find it distracting while operating any type of vehicle or performing any other activity that requires your full attention.

Contents

4 Introduction

4 Front panel controls
5 Rear connectors
5 Remote control

7 Getting started

8 Changing digital radio stations

8 Changing FM radio stations

9 Pausing and controlling scrolling text

10 Storing and selecting presets

10 To quick-store a station to a preset button (1-4)
10 To store a station to the preset list (1-15)
10 To recall a preset when listening to digital radio or FM radio

11 Setting the alarm & timers

11 Snoozing a sounding alarm
12 Changing the alarm snooze time
12 Setting the kitchen timer
12 Setting the sleep timer

13 Options and settings

13 Digital radio settings
13 FM radio settings
14 General settings
15 Clock settings
16 Display settings

17 Using a ChargePAK F1

18 Help and specifications

Introduction

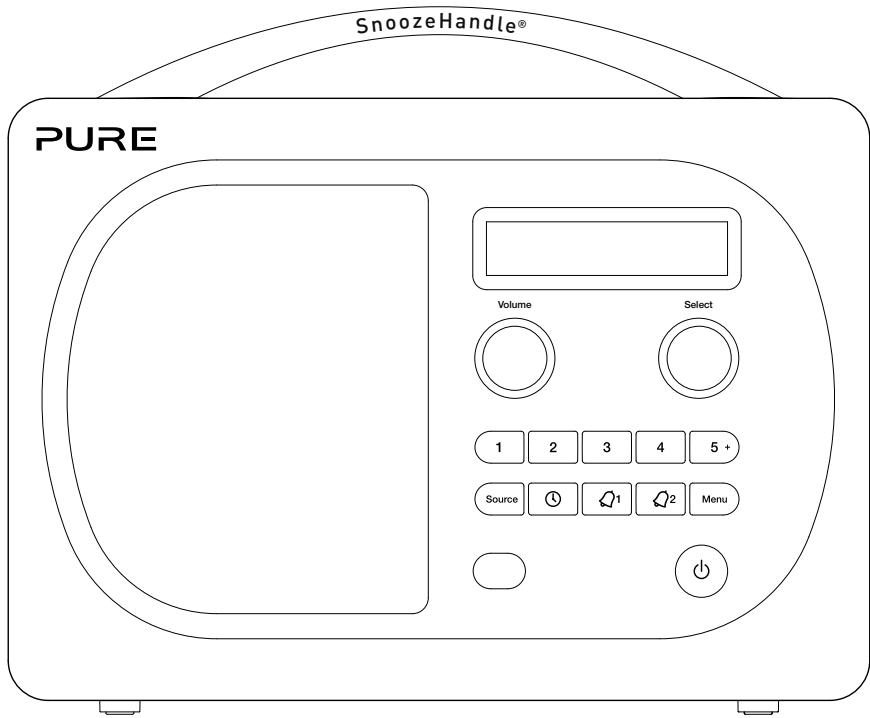

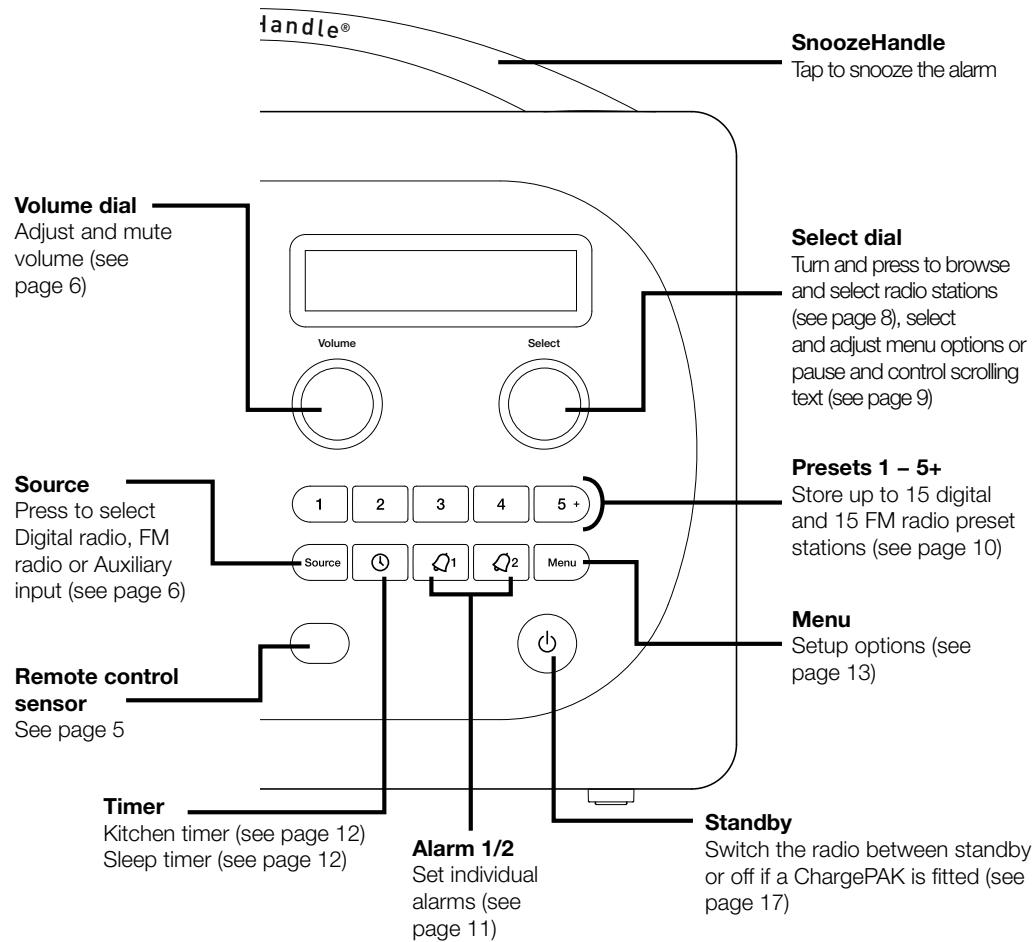

Front panel controls

Rear connectors

9V DC

Connect to supplied mains adapter only

3.5 mm stereo headphone socket

Aux in

Analogue stereo input for iPod, MP3 player, etc

Mini-B type USB connector for upgrades only

Remote control

Volume

Increase and decrease the volume

Presets 1 - 5+

Store up to 15 digital or 15 FM radio preset stations (see page 10)

Standby

Switch the radio between standby or off if a ChargePAK is fitted (see page 17)

Press to browse and select radio stations (see page 8) or pause and control scrolling text (see page 9)

Adjusting and muting the volume

Turn the Volume dial or press the Volume buttons on the remote to increase or decrease the volume. Press the Volume dial to mute.

Volume

BBC Radio 2
Muted

Changing source

Use the Source button to choose between digital radio, FM radio or Auxiliary device (a separate device such as an MP3 player connected to the Aux In socket).

FM radio

Auxiliary Input

Changing the information shown on screen

You can change the information that is displayed on screen. To change the information that is displayed on screen:

1. Press Menu.
2. Turn and press the Select dial to select 'Information'.
3. Turn and press the Select dial to select one of the following options:

Scrolling text

Information broadcast by most digital stations and some FM radio (RDS) stations.

Clock

Displays the time (and an alarm indicator if the alarm is set).

Signal strength

Displays signal strength.

Battery information

Displays a charging or power remaining indicator for a ChargePAK F1 rechargeable battery pack (available separately).

Charging indicator (when receiving mains power)

OR

Charge remaining (when powered by a ChargePAK)

Getting started

Quick set up

Note: If you have a ChargePAK F1 rechargeable battery (sold separately) fit it now before plugging in Evoke. See page 17 for more information.

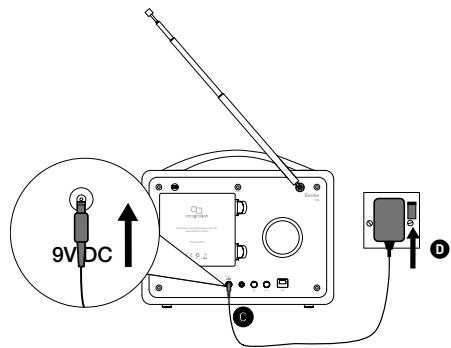

1 Unclip the aerial and fully extend it (steps A and B).

• Insert the jack of the supplied mains adapter into the socket on the rear of the radio (C).
• Plug the mains adapter into the mains supply (D).

2 Select your language when prompted. Turn the Select dial to select a language (English/ Francais/Deutsch/Italiano) and push to confirm.

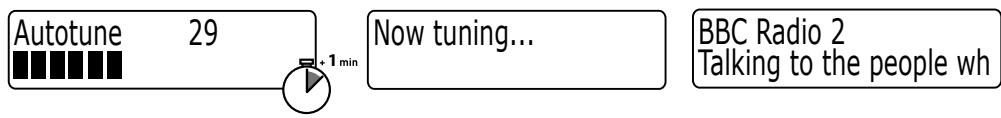

3 Wait for your radio to complete an Autotune and find all available digital stations. When the Autotune is complete, a station will start playing.

Changing digital radio stations

Using the front panel controls

Turn the Select dial left or right to browse through the list of available digital stations. Push the Select dial to change the station.

BBC Radio 6Music Now playing: Race For T

Using the remote control

1. Press the < or > button on the remote to browse through the list of available digital stations.
2. Press the Select button to change the station.

Changing FM radio stations

Seek tuning

Using the front panel controls

Turn the Select dial right or left to seek to the next or previous FM radio station that has a strong signal.

96.60MHz FM

Using the remote control

Press and hold the < or > button to start seeking to the next or previous FM station.

Manual tuning

1. Change the FM radio tuning mode to 'Manual' (see page 13).
2. Turn the Select dial right or left or press the < or > buttons on the remote control to step up or down 0.05 MHz.

Pausing and controlling scrolling text

Using the front panel controls

1. When 'Scrolling text' information is displayed in either digital or FM radio, push the Select dial to pause the scrolling text.

1. Turn the Select dial right and left to scroll forwards and backwards through the text. To exit push the Select dial.

Exit

Using the remote control

1. When 'Scrolling text' information is displayed in either digital or FM radio, press the Select button to pause the scrolling text.
2. Press the <> buttons to scroll forwards and backwards through the text. To exit press the Select button again.

Storing and selecting presets

Store up to 15 digital and 15 FM radio stations for quick access.

BBC Radio 6Music Now playing: No Cars G

Preset 1 stored

Preset 06 Preset empty

Preset 10 Preset empty

Preset 10 stored

Preset 10 DR theJazz

theJazz Now: Remember by Ha

To quick-store a station to a preset button (1-4)

Tune to the digital or FM radio station you want to store. Press and hold one of the numbered Preset buttons (1-4) for two seconds until you see a message to confirms the preset has been stored on the top line.

To store a station to the preset list (1-15)

1. Tune to the digital radio or FM radio station you want to store.
2. Press and release the 5+ button to view the numerical list of stored presets, then turn and press the Select dial or use the buttons on the remote control to choose any Preset number between 1 and 15. You can overwrite existing presets.
3. Press and hold the 5+ button (or the Select dial) for two seconds until you see a message to confirms the preset has been stored. The current digital/FM radio station is now stored to that number.

To recall a preset when listening to digital radio or FM radio

1. To tune to Presets 1 to 4, press the corresponding numbered button on the front panel or on the remote control (1 to 4).
2. To access the full list of presets (from 1 to 15) on the front panel press and release the 5+ button, turn the Select dial right or left to scroll through the list of presets, then push and release the Select dial to tune to the selected preset. To access the full list of presets (from 1 to 15) using the remote control, press and release the 5+ button and use the buttons to scroll and select a preset.

Setting the alarm & timers

Setting an alarm

Evoke has two alarms which can switch the radio on and tune to a digital or FM radio station or sound an alarm tone.

1. Press the Q1 or Q2 button.
2. Turn and press the Select dial to select 'On'. The alarm is now active.
3. To set the time you want the alarm to sound turn the Select dial to adjust the hours and then push to confirm. Repeat to adjust the minutes.
4. Turn and press the Select dial to choose when you want the alarm to repeat. The available options are 'Daily', 'Weekdays', 'Weekends' or 'Once only'.
5. Turn and press the Select dial to choose the type of alarm you want to sound: 'DR' (digital radio), 'FM' or 'Tone'. If you select 'Tone', there are no further options.
6. For DR (digital radio) and FM radio alarms only, push the Select dial to select 'Select station' and choose the radio station you want to use for the alarm.

For digital radio alarms

Select 'Last listened', or a preset station. If you select 'Last listened' the alarm will tune to the last digital station you listen to before the alarm sounds.

For FM radio alarms

Choose between 'Last listened' or a preset station. If you select 'Last listened' the alarm will tune to the last FM station you listen to before the alarm sounds.

1. If you have selected a digital or FM radio alarm you can turn the Select dial to adjust the volume level for the alarm.

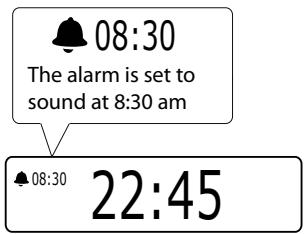

That's it! You can see if the alarm is currently switched on in the 'Full screen time' display (see page 6). Alarms can be set and adjusted from standby by pressing the Q1 or Q2 button.

Note: The alarm function does not work when Evoke is being powered by the ChargePAK F1.

Cancelling a sounding alarm

To cancel a sounding alarm, press either the Menu, Source, Q1, Q2 or Select dial. If you press the Standby button during a sounding alarm, Evoke will enter standby.

Snoozing a sounding alarm

Tap the SnoozeHandle to snooze a sounding alarm for the specified time (default 10 minutes).

Set snooze time 5 minutes

Changing the alarm snooze time

1. Press Menu.
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Set snooze time'.
4. Turn and press the Select dial to change the snooze time between 1 and 59 minutes.

Kitchen timer01 hours 00 minutes

Setting the kitchen timer

Evoke has a countdown timer which will sound an alarm after a set time period.

Kitchen timer01 hours 30 minutes

To set the kitchen timer

1. Press the Timer ① button, turn the Select dial and push to select 'Kitchen timer'.
2. Turn the Select dial to change the hours and push to confirm. Turn again to change the minutes and push to confirm and start the countdown timer.

The alarm will sound after the time period you have set whether the radio is on or in standby. Cancel the beeping alarm tone by pressing any button on the radio.

Timers cleared

To stop and reset the kitchen timer

To stop and reset the countdown timer to zero before it sounds a beeping tone, press and hold down the Timer ① button for three seconds until you see the message 'Timers cleared'.

Set sleep time 45 minutes

Setting the sleep timer

Evoke has a sleep timer that switches your radio into standby (or off if powered by a ChargePAK) after a set time period.

08:30

To set the sleep timer

1. Press the Timer button, turn the Select dial and push to select 'Sleep timer'
2. Turn the Select dial to increase the duration of the sleep timer from 15 to 90 minutes. Press the Select dial to start the sleep timer.

The time remaining until shut-down is displayed on the right of the full-screen time view.

Timers cleared

To cancel the sleep timer

Press and hold the Timer ① button until you see the message 'Timers cleared'.

Options and settings

EN

Digital radio settings

Autotune

You can use the autotune function to automatically scan for new digital radio stations and remove inactive ones.

Note: Autotune is only available when you have selected 'Digital radio' as the radio source.

To carry out an autotune:

1. Press Menu.
2. Turn and press the Select dial to choose 'Autotune'. The number of stations found will be displayed during the autotune.

When the autotune has finished, Evoke will tune to the last station that you were listening to.

FM radio settings

FM stereo option

You can choose between 'Stereo' or 'Mono' reception when listening to FM radio. You may want to choose Stereo if listening using headphones.

Note: The FM stereo option is only available when you have selected 'FM radio' as the radio source.

To change between Stereo or Mono reception:

1. Press Menu.
2. Turn and press the Select dial to choose 'FM stereo'.
3. Turn and press the Select dial to choose between 'Stereo' or 'Mono' FM reception.

FM tuning mode

Note: The FM tuning mode option is only available when you have selected 'FM radio' as the radio source.

Press Menu and turn and press the Select dial to choose 'FM tuning mode'. Choose from the following two modes:

Seek

When you turn the Select dial, the radio tunes to the next station with a good signal.

Manual

When you turn the Select dial, the radio tunes up or down the FM radio frequency range by 0.05 MHz

General settings

Changing your preferred language

You can select the language that your Evoke uses for menus and options.

1. Press Menu.
2. Turn and press the Select dial to choose 'Settings'.
3. Turn and press the Select dial to choose 'Language'.
4. Turn and press the Select dial to select a menu language from 'English', 'French', 'German' or 'Italian'.

Carrying out a factory reset

Resetting your Evoke removes all presets, stored stations, alarms and resets all other options to default settings.

1. Press Menu.
2. Turn and press the Select dial to choose 'Settings'.
3. Turn and press the Select dial to choose 'Factory reset'.
4. Turn and press the Select dial to select 'Yes' to reset Evoke to factory settings. Select 'No' if you do not want to reset your Evoke to factory settings.

Displaying the software version

To display the software version:

1. Press Menu.
2. Turn and press the Select dial to choose 'Settings'.
3. Turn and press the Select dial to choose 'SW version'.

Updating Evoke's software

Software updates for your Evoke may be made available in the future. If you register your product and include a valid e-mail address you will receive notification of software updates (register at www.pure.com/ register). Alternatively, visit http://support.pure.com at any time to check for available software updates.

To update your software

Connect your radio to your PC using a suitable A-to-mini B type USB cable. Follow the instructions provided with the software download at http://support.pure.com

Note: USB update requires a PC running Windows or a Mac running MAC OS 10.6 or above and a suitable USB cable (not included).

Clock settings

Setting the time and date

The time and date on Evoke are automatically set by the FM or digital radio signal. If the time/date does not update automatically, you can manually set it using this option.

Note: Any time or date updates received by an FM or a digital broadcast will override manual settings, if clock synchronization is enabled (see below for more information).

Setting the time and date manually

1. Press Menu.
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Set time & date'.
4. Turn and press the Select dial to set the hour. Repeat to adjust the minutes.
5. Turn and press the Select dial to set the day of the month. Repeat to set the month and year.

Changing the time format

1. Press Menu.
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Set 12/24 hour'. Repeat to set the required time format.

Changing the date format

1. Press Menu.
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Set date format'. Repeat to set the required date format.

Clock synchronization options

You can select the radio sources that you want to use for setting the time. By default, Evoke uses both the FM and digital radio signals to synchronize the time.

To specify the clock synchronization options:

1. Press Menu.
2. Turn and press the Select dial to choose 'Clock'.
3. Turn and press the Select dial to choose 'Clock sync'.
4. Turn and press the Select dial to choose the required clock synchronization option.

Display settings

Adjusting the display

You can adjust the brightness and time-out duration of the display for when the unit is switched on and in standby. To change display options:

1. Press Menu, scroll to 'Display settings' and push the Select dial.
2. Now choose either 'Active' to change settings that apply when the unit is switched on, or 'Standby' to change settings that apply in standby.

Changing the display time-out duration

Select 'Duration' and choose from the following two modes:

Always on The screen is always set to your preferred brightness level.

Timed off The screen is set to your preferred brightness level when a button is pressed and then switches off after 7 seconds of inactivity.

Changing your preferred brightness level

Select 'Active brightness' and choose from the following options:

Automatic The brightness of the screen adjusts automatically depending on the level of light in the room (default).

1-10 Turn the Select dial to vary the brightness level between 1 (very dim) and 10 (very bright) and push to confirm your preferred setting.

Using a ChargePAK F1

ChargePAK makes your Evoke truly portable, so you can enjoy the programmes you love in the garden or at the beach.

Because it's rechargeable, ChargePAK is much cheaper than regular batteries. It's also more eco-friendly because it reduces the amount of toxic substances sent to landfill. And, because it's a fit-and-forget solution that charges whenever your radio is connected to the power outlet, it's much more convenient than standard rechargeable batteries.

Installing a ChargePAK

1. Switch your Evoke off and disconnect it from the power supply.
2. Open the battery compartment and position ChargePAK so that the Pure label is facing the battery compartment lid and ChargePAK's contacts line up with the three terminals in the battery compartment.
3. Replace the battery door and connect your product to a power outlet.
4. ChargePAK will begin charging. When charging your ChargePAK for the first time or after an extended period of inactivity we recommend that you charge it for around 24 hours to ensure full battery power.

Note: It is normal for your ChargePAK to get warm, especially during charging. Your ChargePAK will give years of trouble-free use under normal circumstances, but like all rechargeable batteries its efficiency will gradually reduce with age.

Important: Evoke can only be powered with a Pure ChargePAK F1 and is not compatible with any other batteries, either disposable or rechargeable, or any other ChargePAK model.

Help and specifications

Secondary and inactive stations

() Secondary digital radio services

Some stations have accompanying secondary services which provide extra information or alternative content and may only be broadcast at certain times. If a station has a secondary service available, the station shows >> next to its name in the station list and the secondary service appears next to the station in the list. A secondary service has a << before its name in the station list.

(? ) Inactive or unavailable digital radio stations

Inactive or unavailable stations appear on the station list preceded by '?' and cannot be tuned to. A station may be inactive or unavailable because the station is not broadcasting at the current time (check with the station) or has stopped broadcasting altogether. Also, you may not have a strong enough signal to receive the Multiplex on which the station is broadcast.

Hints and tips

Display says 'No stations available'

Use Autotune (see page 13) to search for stations. Try adjusting your aerial or radio position.

Receiving new digital radio stations that have started broadcasting

Use Autotune (see page 13) to scan and add any new digital services to the station list.

The screen is very dark

Check that the light sensor (behind the speaker grille) is not obstructed.

Resetting your radio

Resetting your radio removes all presets, clears the station list and resets all options to defaults. See page 18 for more information.

Technical specifications

Radio	Digital and FM radio
Frequencies	DAB/DAB+/DMB-R/Parametric stereo decode up to 256 kbps, FM radio 87.5-108 MHz
Speaker	Full-range 3" drive unit
Inputs	9V DC power adapter socket (230V supplied). 3.5mm stereo Aux In for auxiliary devices. USB connection (Mini-B type) for product upgrades only
Outputs	3.5mm stereo headphone
Presents	15 digital radio and 15 FM radio presets
Display	High contrast white graphical 128 x 22 pixel Organic LED (OLED) display
Mains power adapter	Adapter: Input AC 100 - 240 V~, 50/60 Hz, 0.5A; Output DC 9.0V , 1500mA; Main unit: DC 9.0V , 1.5A
ChargePAK	Pure ChargePAK F1 rechargeable battery pack (available separately)
Power consumption	Standby with clock display: >0.8W, Standby with display off: >0.5W, Active: 3.5W
Dimensions	180mm high x 217mm wide x 115mm deep
Aerial	Captive telescopic aerial
Approvals	CE marked. Compliant with the EMC and Low Voltage Directives (2004/108 EC and 2006/95/EC) ETSI EN 300 401 compliant Australian C-Tick N1600 and Electrical Safety

Correct disposal of this product

This marking indicates that this product should not be disposed with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection system or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Copyright

Copyright 2014 by Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited.

Trademarks

Evoke D4, ChargePAK, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited. All other product names are trademarks of their respective companies. Version 3 July 2014.

Warranty Information

Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of three years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorised by us. Please visit www.pure.com/register to register your product with us. Should you have a problem with your unit please contact your supplier or contact Pure Support at the address shown on the rear of this manual.

Disclaimer

Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person or organisation of such revisions or changes.

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Playing: Race For Th

BBC Radio 6Music Prize by Flaming Lips

Beenden

BBC Radio 6Music Now playing: No Cars G

Preset 1 stored

Preset 06 Preset empty

Preset 10 Preset empty

Preset 10 stored

Preset 10 DR theJazz

theJazz Now: Remember by Ha

Set snooze time 5 minutes

Kitchen timer01 hours 00 minutes

Kitchen timer01 hours 30 minutes

Timers cleared

Set sleep time 45 minutes

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Playing: Race For Th

BBC Radio 6Music Prize by Flaming Lips

Sortie

BBC Radio 6Music Now playing: No Cars G

Preset 1 stored

Preset 06 Preset empty

Preset 10 Preset empty

Preset 10 stored

Preset 10 DR theJazz

theJazz Now: Remember by Ha

Set snooze time 5 minutes

Kitchen timer01 hours 00 minutes

Kitchen timer 01 hours 30 minutes

Set sleep time 45 minutes

Timed off (Retroéclairage)

BBC Radio 6Music Now playing: Race For T

Uso del telecomando

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Playing: Race For Th

BBC Radio 6Music Prize by Flaming Lips

Esci

Uso del telecomando

BBC Radio 6Music Now playing: No Cars G

Preset 1 stored

theJazz Now: Remember by Ha

Set snooze time 5 minutes

Kitchen timer01 hours 00 minutes

Kitchen timer01 hours 30 minutes

Timers cleared

Set sleep time ←45 minutes

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Playing: Race For Th

BBC Radio 6Music Prize by Flaming Lips

Afslut

BBC Radio 6Music Now playing: No Cars G

Preset 1 stored

Preset 06 Preset empty

Preset 10 Preset empty

Preset 10 stored

Preset 10 DR theJazz

theJazz Now: Remember by Ha

Hurtig lagring af en fast station (1-4)

Set snooze time 5 minutes

AEndring af alarmens 'snoopze-tid'

Kitchen timer01 hours 00 minutes

Kitchen timer01 hours 30 minutes

Timers cleared

Set sleep time 念 45 minutes

Installation of ChargePAK

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Now playing: Race For T

BBC Radio 6Music Playing: Race For Th

BBC Radio 6Music Prize by Flaming Lips

Afsluiten

BBC Radio 6Music Now playing: No Cars G

Preset 1 stored

Preset 06 Preset empty

Preset 10 Preset empty

Preset 10 stored

Preset 10 DR theJazz

theJazz Now: Remember by Ha

Set snooze time 5 minutes

Kitchen timer01 hours 00 minutes

Kitchen timer01 hours 30 minutes

Timers cleared

Set sleep time ←45 minutes

Imagination Technologies Limited

Home Park Estate

Kings Langley

Herts,WD4 8LZ

United Kingdom

www.pure.com

http://support.pure.com

Pure
