How to thread the needle?
Use the built-in needle threader: lower the threader lever behind the needle, pass the thread through the hook, then release the lever. The thread will be threaded automatically.
How to use the Integrated Dual Feed (IDT™)?
The IDT™ is located on the machine arm. Lower it to engage, raise it to disengage. It ensures perfect fabric feeding from top and bottom, ideal for quilting and difficult fabrics.
How to change the presser foot?
Raise the presser foot lever, press the release button at the back of the foot to remove it. To attach a new one, simply snap it on by pushing down until it clicks. No tools needed.
How to wind the bobbin?
Place thread on the bobbin pin, guide as indicated, then push the winder to the right. The machine will wind automatically and stop when the bobbin is full. You can wind directly from the needle without rethreading.
How to adjust thread tension?
Tension is electronic and adjusts automatically according to the selected stitch. However, you can manually adjust it using the + and - keys on the screen. For most fabrics, the default tension is suitable.
How to use the automatic thread cutter?
After sewing, press the thread cutter button (Thread Snips). The machine cuts the upper and bobbin threads automatically. You can also program the thread cutter into a stitch sequence.
How to use the knee lift?
The knee lift is located under the machine table. Push it sideways with your knee to raise the presser foot, freeing your hands to guide the fabric.
How to select stitches?
Use the direct selection keys on the front panel or the touch screen. You can browse categories (utility, decorative, buttonholes, etc.) and tap the desired stitch. The screen displays the stitch in actual size.
How to clean the machine?
Unplug the machine. Remove the bobbin case and needle plate. Use a small brush to remove lint from the feed dogs and bobbin case. Oil according to the manual's recommendations. Reassemble.
What to do if thread breaks frequently?
Check the threading, tension, and needle condition. Ensure the bobbin is correctly inserted and the thread is not caught. Use a needle appropriate for the fabric. If the problem persists, consult the troubleshooting section of the manual.
USER MANUAL QUILT EXPRESSION 4.0 PFAFF

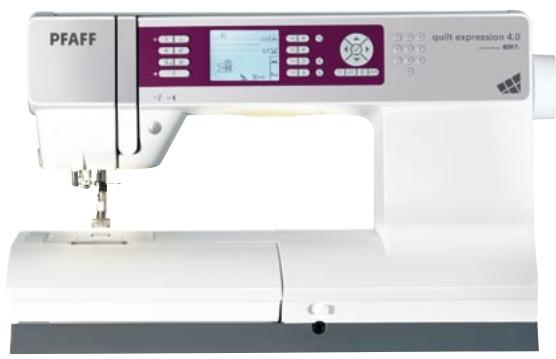

Features and Benefits PFAFF® quilt expression™ 4.0 "Realize your quilting potential"
- The original IDT™! Integrated Dual Feed only from PFAFF® for 40 years! Absolutely even fabric feed from both the top and bottom. PFAFF® IDT™ is ideal for the quilter and sewer! IDT™ works with any stitch in forward or reverse at any stitch length or width. The original IDT™ from PFAFF® is built right onto the machine. It can be easily engaged or disengaged as needed. Many PFAFF® accessories and presser feet can be used with IDT™ to ensure even seams with any stitch on any fabric.
Large sewing space. The sewing area to the right of the needle is super-sized for sewing large projects. - A wide variety of beautiful 9 mm stitches. Select from over 200 stitches. Includes utility stitches, buttonholes, 9 mm wide decorative stitches, quilt stitches, cross stitches and hemstitches. - German innovative design. Built to make sewing easy and to achieve the professional results that sewers want. The PFAFF® expression 2.0™ with its innovative features, durability and ease of operation will do it all for you. - Dual lights. Optimized bright lights illuminate your entire sewing area without shadows. - Illuminated graphic display. The graphic display shows the stitch in actual size and all important information. - Thread Snips. Automatically cuts top and bobbin thread at the touch of a button or wherever you have programmed it. - Two Free-motion modes. Choose between Sensomatic or Spring foot free-motion mode for best results with various techniques and fabrics. Automatic presser foot lift. Raises the presser foot to pivot position automatically when the needle is set to stop down. The presser foot lifts at the end of a seam after a thread snip. - External feed dog drop. Convenient location to lower the feed dogs from the front of the machine. Ideal for stippling, free-motion embroidery or darning. - Extra presser foot lift. Raises the presser foot to its highest position so that thick fabrics can be placed easily under the presser foot. - Electronic thread tension. Needle thread tension is set electronically for different stitches - makes sewing simple.
- Stitch width safety. Limits stitch width to center needle straight stitch while using straight stitch needle plate and/or straight stitch foot to prevent needle breakage. Electronic Knee Lift. Raises the presser foot with an easy movement allowing your hands to be free.
- Stitch positioning. Moves complete stitch right or left to align decorative stitches.
- Easy-access stitch selection. Quick and easy stitch selections using the Direct Selection Buttons. Automatic Tie-off. Ties off automatically at the beginning and/or the end of a seam for a quick and easy finish.
- Stitch sequencing and memories. Combine and save up to 40 stitches and/or letters in one of 20 sequence memories - sew in one step repeatedly.
- Personal stitch settings. Change the settings on built-in stitches to your personal liking. Save in one of the 20 personal stitch memories.
- Program sequencing commands. Program Stop, Thread Snips or Tie-off into a stitch sequence. Your sequence does exactly what you want every time. Built-in sewing alphabets. Personalize any project.
- Needle up/down. Touch a button to set your needle to automatically stop up or down in the fabric for pivoting, appliqué and more. Or just tap the foot control to shift between needle up/down position. Bobbin thread sensor. Alerts you when your bobbin thread is running low.
- Tapering on all 9 mm decorative stitches! Gradually increase or decrease the width at the beginning and/or at the end. Choose different angles for more creative opportunities.
- Twin needle program. Automatically adjusts the stitch width to prevent needle breakage.
- Speed ranges. Adjust your sewing speed for specialty threads, techniques or personal taste.
- Stitch restart. Instantly returns to the beginning of your selected stitch or sequence.
- Mirror image. Flip the stitch side to side and/or end to end for even more creative possibilities.
- Languages. Choose from 14 different languages in the Settings menu.
- Info Button. Simply touch to see important sewing recommendations on the illuminated graphic display.
- 37 needle positions. Variable needle positions for precise stitching. Perfect for topstitching, quilting, zippers and more.
- Integrated Needle Threader. Makes threading the needle fast and easy. Large stitch plate. Markings to the left and right of the needle help you guide your fabric.
- Snap-on/Snap-off presser feet. Changing is easy - no screws or other tools are needed - just snap it on or off. Top loaded bobbin. Bobbin winding from the needle. No need to rethread to wind bobbins when you wind directly from the needle. Winding stops automatically when your bobbin is full. Permanent Reverse. Your hands are free to guide your fabric.
- Sensormatic buttonhole. Makes beautiful repeatable buttonholes on any fabric. Electronic Needle Piercing power. Full piercing power at any speed with total control.
- Button Ruler. Quickly determine your buttonhole size with the help of the button ruler.
- Two built-in spool pins. For twin needle sewing or specialty sewing.
- Accessory Feet included - 0A Standard foot with IDT™, 1A Fancy stitch foot with IDT™, 2A Fancy stitch foot, 3 Blindhem foot with IDT™, 4 Zipper foot with IDT™, 5A Sensomatic buttonhole foot, 5M Manual buttonhole foot, 6A Sensormatic free-motion/Embroidery foot, 7 Rolled hem foot with IDT™, 1/4" Quilting Foot with IDT™.
