KVF 750 4X4 - All-terrain vehicle (ATV) KAWASAKI - Free user manual and instructions

Product type	All-terrain vehicle (ATV)
Brand	Kawasaki
Model	KVF 750 4X4
Engine	4-stroke V-twin 90°, liquid cooling, 749 cc
Bore x stroke	85 x 66 mm
Compression ratio	8.8:1
Valve train	SOHC, 4 valves per cylinder
Fuel system	Fuel injection, 2 x Mikuni Ø36 mm
Ignition	Battery and coil (transistorized)
Starting	Electric
Max power	37.1 kW (50.4 hp) at 6,500 rpm
Max torque	59.4 N·m at 4,500 rpm
Transmission	Dual-range CVT with reverse
Final drive	2WD / 4WD, shaft
Frame	High-tensile tubular steel double cradle
Front suspension	Double wishbone with two shocks, stroke 171 mm
Rear suspension	Double wishbone with two shocks, stroke 200 mm
Front brakes	Dual 200 mm discs, two-piston calipers
Rear brakes	Sealed multi-disc system
Front tires	AT 25 x 8-12
Rear tires	AT 25 x 10-12
Dimensions (L x W x H)	2,195 x 1,166 x 1,233 mm
Wheelbase	1,284 mm
Ground clearance	247 mm
Fuel tank capacity	19 liters
Dry weight	275 kg
Curb weight	297 kg

Frequently Asked Questions - KVF 750 4X4 KAWASAKI

What type of engine oil should be used for the KVF 750 4X4?

Use a 4-stroke engine oil with viscosity SAE 10W-40 or 10W-50, meeting API SJ or higher standard. Refer to the manual for exact quantities.

How to activate 4-wheel drive (4WD) mode?

The 2WD/4WD selector is on the handlebar. In 4WD mode, both front wheels are driven to improve traction on difficult terrain.

What is the recommended tire pressure?

The recommended pressure is generally 0.3 to 0.5 bar (4-7 psi) for front and rear tires. Adjust according to load and terrain.

How often should the engine oil be changed?

Oil change is recommended every 100 hours or after each season of intensive use. Refer to the manual for precise schedule.

How to maintain the CVT transmission?

The CVT system requires regular inspection of the belt and pulleys. Clean the compartment and check for wear every 50 hours of use.

What type of fuel to use?

Use unleaded gasoline with an octane rating of at least 91 (RON). Avoid gasoline containing more than 10% ethanol.

How to clean the air filter?

Remove the air filter and clean it with a non-flammable solvent. Let it dry completely before re-oiling with air filter oil. Replace every 50 hours or more often in dusty conditions.

What is the towing capacity of the KVF 750?

The maximum towing capacity is 600 kg (braked trailer). Ensure you use a suitable hitch ball and do not exceed this limit.

How to check the coolant level?

With the engine cold, check the overflow reservoir: the level should be between the MIN and MAX marks. Use ethylene glycol-based coolant.

What safety equipment is recommended?

Always wear an approved helmet, gloves, safety goggles, high boots, and appropriate clothing. Use the emergency stop switch.

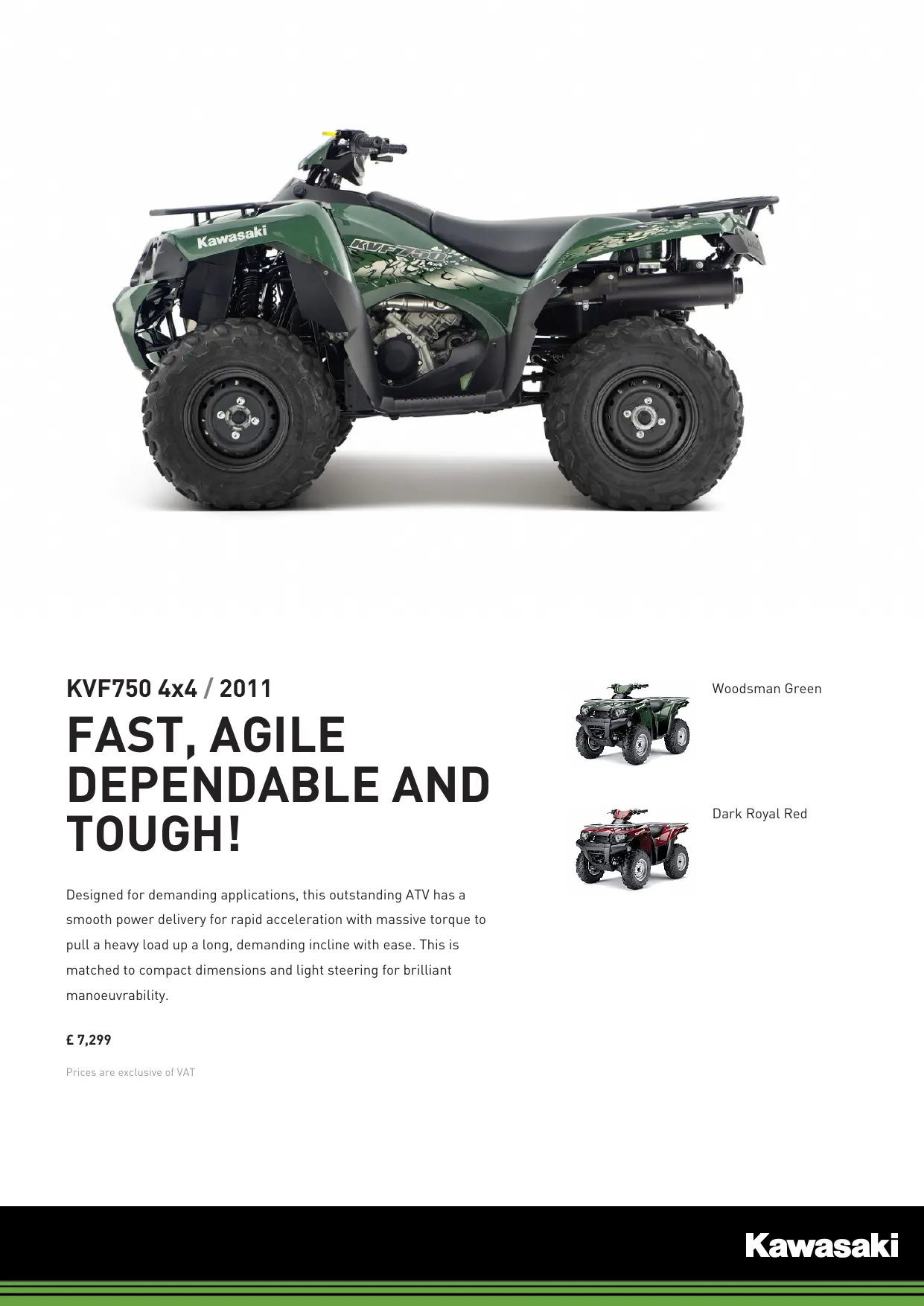

USER MANUAL KVF 750 4X4 KAWASAKI

Designed for demanding applications, this outstanding ATV has a smooth power delivery for rapid acceleration with massive torque to pull a heavy load up a long, demanding incline with ease. This is matched to compact dimensions and light steering for brilliant manoeuvrability.

£ 7,299

Prices are exclusive of VAT

Woodsman Green

Dark Royal Red

Powerful engine

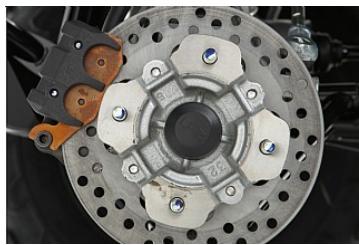

11MY_KVF750_GRN_brakes

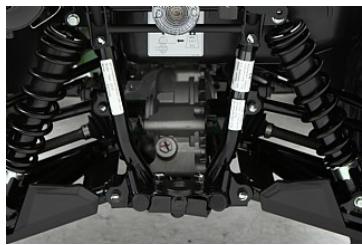

IRS and double wishbone suspension

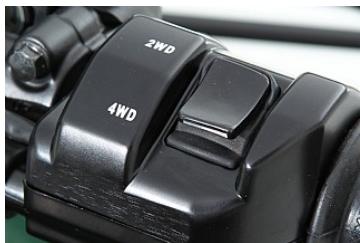

11MY_KVF750_GRN_2WD-4WD

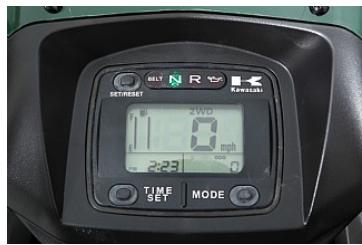

11MY_KVF750_GRN_instrument

New bumper design

More features

Polished rims

Sealed storage

Dual-rate springs

Throttle

Stronger axle boots

11MY_KVF750_GRN_airc leaner

Engine

Engine type	Liquid-cooled, 4-stroke 90oV-twin
Displacement	749 cm3
Bore x stroke	85 x 66 mm
Compression ratio	8.8:1
Valve/Induction system	SOHC, 4 valves per cylinder
Fuel system	Fuel injection:φ36 mm x 2(Mikuni)
Ignition	Battery & Coil (Transistorise ignition)
Starting	Electric

Performance

Maximum power	37.1 kW (50.4 PS) / 6,500 rpm
Maximum torque	59.4 N·m / 4,500 rpm

Transmission

Transmission	Dual range CVT with reverse
Final Drive	2WD / 4WD, shaft

Frame

Frame type	Double cradle, high-tensile tubular steel
Wheel travel, front	171 mm
Wheel travel, rear	200 mm
Tyre, front	AT 25 x 8-12
Tyre, rear	AT 25 x 10-12

Suspension

Suspension, front	Double wishbone with twin shock absorbers
Suspension, rear	Double wishbone with double shock absorbers

Brakes

Brakes, front	Dual 200 mm discs with twin piston calipers
Brakes, rear	Sealed multi-plate system

Dimensions

Dimensions (L x W x H)	2,195 mm x 1,166 mm x 1,233 mm
Wheelbase	1,284 mm
Ground Clearance	247 mm
Fuel capacity	19 litres
Dry weight	275 kg
Curb Mass	297 kg
