GX20IG - Grill plate STAR - Free user manual and instructions

Product Type	Gas Grill Plate (Griddle)
Brand	STAR
Model	GX20IG
Cooking Surface Dimensions	600 x 400 mm (23.6 x 15.7 in)
Overall Dimensions (L x W x H)	610 x 430 x 250 mm (24 x 16.9 x 9.8 in)
Weight	Approx. 18 kg (39.7 lbs)
Fuel Type	Natural Gas or LPG (propane)
Power (Gas Burner)	10 kW (34,000 BTU/h)
Ignition	Piezo electric ignition
Control Knobs	Precise flame adjustment with safety lock
Cooking Surface Material	Stainless steel with polished finish
Thermostat	Adjustable temperature range (100°C to 300°C / 212°F to 572°F)
Safety Features	Flame failure device (thermocouple)
Cleaning and Maintenance	Removable grease tray for easy cleaning; wipe with damp cloth
Spare Parts Availability	Burners, thermocouple, control knobs, grease tray available from STAR service centers
Repairability	Modular design; user replaceable components with basic tools
Certifications	CE, ETL, CSA
Included Accessories	Gas regulator and hose (if LPG), instruction manual

Frequently Asked Questions - GX20IG STAR

How do I ignite the grill plate?

Turn the control knob to the 'Ignition' position and press the piezo igniter button simultaneously. If it does not light, wait 5 minutes before retrying.

Can I use this grill plate indoors?

Yes, it is designed for indoor use in commercial kitchens. Ensure proper ventilation and installation per local codes.

How do I clean the stainless steel surface?

After cooling, remove the grease tray and wipe the cooking surface with a damp cloth and mild detergent. Avoid abrasive cleaners.

What type of gas do I need?

The GX20IG is compatible with natural gas or LPG (propane). The gas type must match the nozzle set installed; conversion kits are available.

Why is the flame yellow instead of blue?

Yellow flame indicates incomplete combustion. Check for clogged burner ports or improper gas pressure. Clean ports and ensure correct gas type.

How often should I change the thermocouple?

The thermocouple is a safety device. If the flame goes out during operation, test the thermocouple. Replace if faulty every 2-3 years.

Can I cook directly on the surface without a pan?

Yes, the grill plate is designed for direct cooking. The stainless steel surface is ideal for grilling meats, vegetables, and eggs.

What is the temperature range?

The adjustable thermostat allows temperatures from 100°C to 300°C (212°F to 572°F), suitable for low simmering to high searing.

How do I convert from natural gas to LPG?

Conversion requires changing the burner nozzles and adjusting the regulator. Contact STAR service or a qualified technician for the correct conversion kit.

What is the warranty period?

STAR offers a 2-year warranty against manufacturing defects. Register your product online to activate warranty.

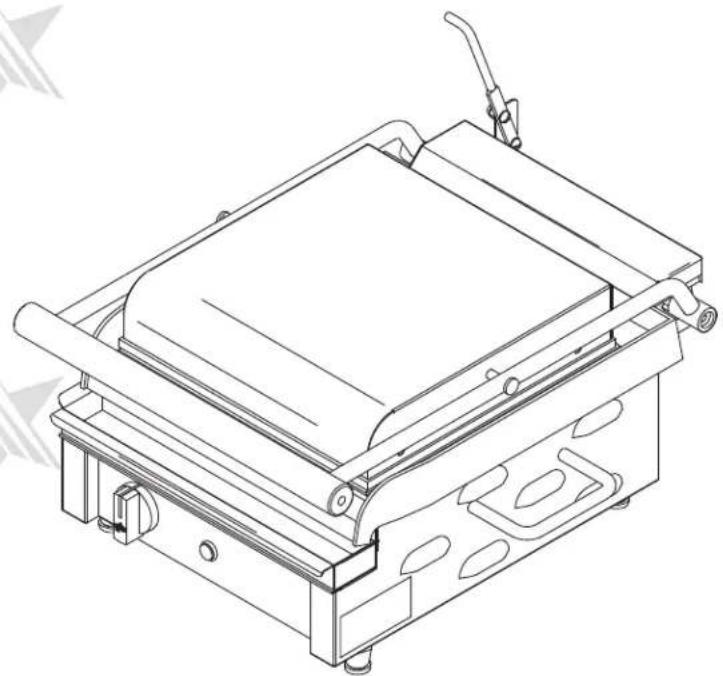

USER MANUAL GX20IG STAR

2M-Z7971 Rev. L 12/2018

GX10IG

CE

cULus

LISTED

RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE

Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.

Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this sheet are subject to change without notice. While Star International Holdings Inc., Company exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the specifications. By using the information provided, the user assumes all risks in connection with such use.

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance.

Please record the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure a faster service.

Model No.

Serial No.

Voltage

Purchase Date

Authorized Service Agent Listing

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com

E-mail [e-mail]

Service Help Desk

Business 8:00 am to 4:30 p.m. Central Standard Time

Hours:

Telephone: [phone]

Fax: [phone]

E-mail [e-mail]

Website: www.star-mfg.com

Mailing Address: Star Manufacturing International Inc.

265 Hobson Street

Smithville, TN 37166

U.S.A

GENERAL INSTALLATION DATA

CAUTION

This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations.

All shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier.

Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 15 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms.

VENTILATION AND CLEARANCES

The installation of any components such as a vent hood, grease extractors, and/or fire extinguishing systems, must conform to their applicable nationally recognized installation standards and/or local building codes.

ELECTRICAL CONNECTION

Before making any electrical connection be sure to read data plate which is located at the bottom of the unit.

ELECTRICAL GROUNDING INSTRUCTIONS

This unit is equipped with a 3-prong (grounding) plug for your protection against shock hazard and must be plugged directly into a properly grounded 3-prong receptacle.

DO NOT CUT OR REMOVE THIS PLUG OR GROUNDING PRONG FROM THE PLUG.

CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE DATA PLATE OF THE UNIT.

ELECTRICAL SPECIFICATIONS

Model Voltage Rated		Wattage Amps Plug
GX10IG	120V 1,400	11.7 NEMA 5-15P
	230V 1,650	7.2 BS 1363A (16amp)
	208/240V 1,350 / 1,800 6.5 / 7.5 NEMA 6-15P
GX10IS	120V 1,400	11.7 NEMA 5-15P
	230V 1,650	7.2 BS 1363A (16amp)
	208/240V 1,350 / 1,800 6.5 / 7.5 NEMA 6-15p
GX10ISG	120V 1,400	11.7 NEMA 5-15P
	230V 1,650	7.2 BS 1363A (16amp)
	208/240V 1,350 / 1,800 6.5 / 7.5 NEMA 6-15
GX14IG	120V 1,800	15 NEMA 5-15P
	230V 2,570	11.2 BS 1363A (16 amp)
	208/240V 2,100 / 2,800	10.1 / 11.7	NEMA 6-15P
GX14IS	120V 1,800	15 NEMA 5-15P
	230V 2,570	11.2 BS 1363A (16 amp)
	208/240V 2,100 / 2,800	10.1 / 11.7	NEMA 6- 15P
GX14ISG	120V 1,800	15 NEMA 5-15P
	230V 2,570	11.2 BS 1363A (16 amp)
	208/240V 2,100 / 2,800	10.1 / 11.7	NEMA 6- 15 P
GX20IG	208/240V 2,700 / 3,600	13 / 15 NEMA 6-20P
	230V 3,300	14.4	BS 1363A (16 amp)
GX20IGS	208/240V 2,700 / 3,600	13 / 15 NEMA 6-20P
	230V 3,300	14.4	BS 1363A (16 amp)
GX20IS	208/240V 2,700 / 3,600	13 / 15 NEMA 6-20P
	230V 3,300	14.4	BS 1363A (16 amp)

CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE DATA PLATE OF THE UNIT.

INITIAL START UP

Level unit using the adjustable feet under the unit (approximately 1/2" adjustment).

Before using the unit for the first time, wipe down the exterior and grilling area with a damp cloth. Take to a well ventilated area and heat for approximately 30 minutes. The grill may emit a small amount of smoke as the cooking surfaces reaches 450° F. Do not be alarmed, as the smoke is caused by oils associated with the manufacturing process and will stop when the burn off is complete. Brush off any debris from the grilling surface.

SEASONING THE COOKING SURFACES

The cooking surfaces must be "seasoned" in order to reduce product sticking. To season, bring grill to 300°F , until completed. Brush upper and lower cooking surfaces with a salt free liquid vegetable oil. If using an aerosol agent, first apply into a cup and then brush onto cooking surface. Let sit for 20 minutes, and then wipe clean using a warm damp cloth. Repeat if required.

SETTING THE TEMPERATURE

The thermostat control knob is used to set the temperature to your requirements. The maximum set point is 450° F ( 232° C), the minimum set point is 175° F ( 79° C). See Knob Settings.

DAILY OPERATION

Check the power cord to insure that it is plugged into a proper outlet.

Check that the thermostat control is turned on.

The pilot light will come on when the thermostat control goes past the 175° F.

Set the thermostat control knob to desired temperature.

Always allow 20 minutes of preheat time before loading the unit with product.

Failure to allow sufficient preheat time will result in unsatisfactory cooking of the first load.

OPERATING HINTS AND SAFETY

Disconnect power to the unit with the switch at the end of each day of operation.

Do not leave the unit in operation without an attendant.

Turn thermostat down to 200°F (93°C) during idle periods. It will take only a few minutes to regain operating temperature.

Use spatula to push excess grease into grease cup after each load of food is cooked.

This will reduce smoking of hot grease and carbonizing.

Do not leave the unit at high temperature when not in use or during idle periods.

This will cause food particles and grease film to carbonize.

"Season" cooking surfaces with non-salted vegetable oil to reduce product sticking.

MONTHLY LUBRICATION/INSPECTION

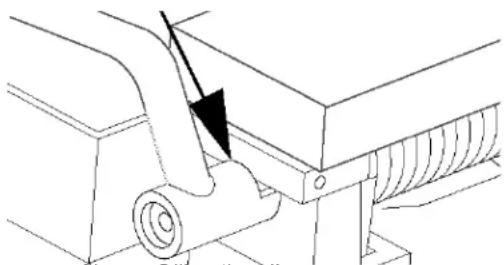

Above: Oiling the Hinge,

Below: Tightening the top housing

Apply two (2) drops of non-toxic mineral or vegetable oil to hinge bracket at the rear.

Check the bolts, screws and nuts, tighten if necessary.

The Spring setting which holds the top housing in the up position is set at the factory and should provide many years of use without the need of adjusting. After a extended period of time the top housing may not maintain its original setting, therefore the spring tension can be adjusted by tightening and loosening the Retainer bolts on the back of the unit.

CLEANING

While holding top lid with one hand, apply only cleaners which are safe for aluminum and iron surfaces. Wipe with clean sponge or towel until unit is clean.

1. If particles adhere to the cooking surface during the day, scrape them off with a spatula or stiff brush.

NOTE: It is best not to let food cook on to the grill, as build up of food on the grill will increase sticking and smoking. In addition, carbon may build up on the grill surface and reduce the cooking efficiency.

1. At the end of the day, wipe down all surfaces with a warm, damp cloth, use a mild detergent on all non-cooking areas and then dry entire unit.

2. Remove and empty to clean grease catcher cup as required using mild detergent and water.

CLEANING CARBON BUILDUP

1. When carbon build up occurs, use a carbon removal agent to clean cooking surface. When this process is completed, you must re-season the grill (See Seasoning Grill).

2. Acidic cleaners are NOT recommended as a cleaning agent.

CAUTION

DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.

DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE UNIT IS ON THE TABLE/COUNTER.

KEEP AWAY FROM RUNNING WATER.

CLEANING cont

DO NOT USE SHARP OBJECTS TO REMOVE CARBON BUILD-UP.

BEFORE CLEANING MAKE SURE POWER IS TURNED OFF, UNIT IS UNPLUGGED AND IS NOT TOO HOT.

DO NOT SPLASH WATER ON FRONT CONTROL PANEL!

DO NOT SPLASH WATER ON FLEX CONDUIT CONNECTING TOP AND BOTTOM OF THE UNIT.

Do not use ice or cold water to clean the cooking surfaces when the unit is hot. The surfaces are cast aluminum or cast iron and may crack or deform under the shock of rapid temperature change.

1. Unit not heating.

A. Check if unit is plugged in correct receptacle.
B. Check incoming power line.
C. Check that thermostat is set to proper temperature.

If unit still does not operate contact the factory or one of its representatives or a local service company for service or required maintenance.

LIMITED EQUIPMENT WARRANTY

Star Manufacturing [as well as its subsidiaries] warranties new products to be free from defects in material and/or workmanship for a period of one [1] year from the date of original installation, except as noted below. Defects that occur as a result of normal use, within the time period and limitations defined in this warranty, will at Star's discretion have the parts replaced or repaired by Star or a Star-authorized service agency.

THIS WARRANTY IS SUBJECT TO ALL LISTED CONDITIONS.

Repairs performed under this warranty are to be performed by a Star-authorized service agency. Star will not be responsible for charges incurred or service performed by non-authorized repair agencies. In all cases, the nearest Star-authorized service agency must be used.

Star will be responsible for normal labor charges incurred in the repair or replacement of a warranted product within 50 miles (80.5 km) of an authorized service agency. Time and expense charges for anything beyond that distance will be the responsibility of the owner. All labor will need to be performed during regular service hours. Any overtime premium will be charged to the owner. For all shipments outside the U.S.A. and Canada, please see the International Warranty for specific details.

It is the responsibility of the owner to inspect and report any shipping damage claims, hidden or otherwise, promptly following delivery.

No mileage or travel charges will be honored on any equipment that is deemed portable. In general, equipment with a cord and plug weighing less than 50 lb. (22.7 kg) is considered portable and should be taken or shipped to the closest authorized service agency, transportation prepaid.

PORTABLE EQUIPMENT EXAMPLES

• 514LL fryer
  • 15MC and 18MCP hot food merchandisers
  • QCS1, QCS2, and RCS2 toasters
  • 16PD-A pretzel merchandisers
  • condiment dispensers except HPD- and SPD-series models
• all pop-up toasters
• all pastry display cabinets
• all heat lamps

- J4R popcorn machine

• 12NCPW and 15NCPW nacho merchandisers

- nacho cheese warmers except 11WLA-series models

• specialty food warmers except 130R, 11RW, and 11WSA models

- all butter dispensers

• all nacho chip merchandisers

- all accessories

CONTACT

Should you require any assistance regarding the operation or maintenance of any Star equipment; write, phone, fax or email our service department. In all correspondence mention the model number and the serial number of your unit, as well as the voltage or type of gas you are using.

Business hours are 8:00 a.m. to 4:30 p.m. Central Standard Time

Telephone Star/Toasmaster 314.678.6306

Fax [phone]

Email [e-mail]

www.star-mfg.com • www.toastmastercorp.com

WARRANTY EXCLUSIONS

THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY.

• Any product which has not been used, cleaned, maintained, or installed in accordance with the directions published in the appropriate installation sheet and/or owner's manual as well as national and local codes, including incorrect gas, electrical, or water connection. Star is not liable for any unit which has been mishandled, abused, misapplied, subjected to chlorides, harsh chemicals, or caustic cleaners, damaged from exposure to hard water, modified by unauthorized personnel, damaged by flood, fire, or other acts of nature [or God], or which have an altered or missing serial number.
• Installation, labor, and job checkouts, calibration of heat controls, air and gas burner/bypass/pilot adjustments, gas or electrical system checks, voltage and phase conversions, cleaning of equipment, or seasoning of griddle surface.
• Replacement of fuses or resetting of circuit breakers, safety controls, or reset buttons.
• Replacement of broken or damaged glass components, quartz heating elements, and light bulbs.
• Labor charges for all removable parts in gas charbroilers and hotplates, including but not limited to burners, grates, and radiants.
• Any labor charges incurred by delays, waiting time, or operating restrictions that hinder a service technician's ability to perform service.
• Parts that fail or are damaged due to normal wear or labor for replacement of Items that can easily be replaced during a daily cleaning routine. such as but not limited to silicone belts, PTFE non-stick sheets, knobs, control labels, bulbs, fuses, quartz heating elements, baskets, racks, and grease drawers.
• Components that should be replaced when damaged or worn, but have been field-repaired instead [eg. field-welded fry pots]
• Any loss of business or profits.

ADDITIONAL WARRANTIES

Specialty/chain specific versions may also have additional and/or extended warranties.

PRODUCTS PARTS LABOR
Star Ultra-Max ® griddles, charbroilers, and hotplates	2 years	2 years
Star-Max ® fryers, griddles, charbroilers, and hotplates	2 years	2 years
Jetstar ® popcorn poppers 2 years	2 years
Staltek TM roller grill coatings 5 years
chrome griddle surfaces [against peeling]	5 years
cast iron grates, burners, and burner shields	180 days
original Star or Toastmaster parts sold to repair Star or Toastmaster equipment	90 days
Service First 1 year

FOR REFERENCE WIRING DIAGRAM IS SHOWN AS UNIT IS ASSEMBLED WITH THE BOTTOM PLATE REMOVED. ITEMS ARE IN GENERAL LOCATION BUT MAY BE RELOCATED OR SCALED FOR CLARITY.
SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE

MODEL: GX & PBF SINGLE LID SERIES, WIRE DIAGRAM, 120V/230/240V

THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.

NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.

STAR INTERNATIONAL HOLDINGS INC. COMPANY

SK2116 Rev - 02/16/2005

MODEL: GX & PBF DOUBLE LID SERIES, WIRE DIAGRAM, 230/240V
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR INTERNATIONAL HOLDINGS INC. COMPANY SK2118 Rev - 02/16/2005

SOME ITEMS ARE INCLUDED FOR
ILLUSTRATIVE PURPOSES ONLY AND IN
CERTAIN INSTANCES MAY NOT BE AVAILABLE
This drawing contains information confidential
to Star Manufacturing International, Inc.
No reproduction or disclosure of its
contents is permitted.

MODEL GX10, GX14, GX20 SERIES

GX20 SHOWN

STAR MANUFACTURING INTERNATIONAL, INC.

SK2121 Rev. J

11/12/2014

10" TWO SIDED GRILLS
MODEL GX10IG, GX10IS, GX10ISG

Key Number	Part Number	Number Per Unit	Description
1 D9-GR0239	1 TOP HOUSING & CONDUIT - 10 ALL
2 2C-Z2054	1 CLAMP, THERMISTOR ALL
3 2C-Z2893	8 NUT 10-24 Hex STL ZP ALL
4 D9-GR0228	1 TOP INS. PLATE ASSY -10" ALL
5 D9-Z2908	1 INSULATION, 10" ALL
6 2A-Z6604	8 SPACER, INSULATION PLATE ALL
7 D9-Z7646	1 PLATE, ELE.8INS RET. -10" ALL
8 2C-08-07-0285	8 SCREW 10-24 x 3/4 3/8 ALL
9 PS-Z7761	1 ELEMENT, TOP, 600W, 120V-10" 120 V
	PS-Z2019	1 ELEMENT, HEATING 800W/240V 230/240 V
10 1O-E1500	3" SLEEVING #4 208ID GLASS ALL
11	2F-Z7657	1 CASTING, IRON, TOP GR - 10" GROOVED MODELS
	2F-Z7737	1 CASTING, IRON, TOP SM. -10" SMOOTH MODELS
12 2V-Z7641	2 ROD, ARM CONNECTION COMMON ALL
13 2B-Z7860	2 ARM, SIDE COMMON ALL
14 2V-Z7662	1 HANDLE -10" GRILL EXPRESS ALL
15 D9-Z8769	1 COVER, HINGE 10 ALL
16 2V-Z3252	1 ROD - TOP HOUSING LATCH ALL
17 2V-Z7863	2 SPACER, INSIDE 10" ALL
18 2P-Z8824	1 SPRING, TORSION LH ALL
19 2P-Z8823	1 SPRING, TORSION RH ALL
20 2V-Z8407	2 COLLAR, 2 PIECE COMMON ALL
21 2V-Z7862	2 SPACER, OUTSIDE COMMON ALL
22 2V-Z7861	1 ROD, HINGE 10" ALL
23 2F-Z8529	2 RETAINER, HANDLE COMMON ALL
24 D9-Z8444	1 BRACKET, MTG - TOP LATCH ROD ALL
25 2C-Z2992	2 BOLT 1/4"-20X1 PHP STL NP ALL
26 2F-Z7910	2 RETAINER, SPRING ALL
27 D9-GR0253	1 BODY ASSY - 10" ALL
28 2T-Y2313	1 THERMOSTAT 118V-236V ALL
29 2M-Z8848	1 OVERLAY EXP GRILL - 10" ALL
30 2R-Z8847	1 KNOB, T-STAT CONTROL ALL
31 2E-Z2894	1 TERMINAL BLOCK (304) ALL
32 2J-Y6689	1 PILOT LIGHT 120V 120 V
	2J-Z2329	1 PILOT LIGHT 240 V 230/240 V
33 2V-Z8859	2 SPACER, SIDE ALL
34 D9-Z7697	1 PLATE, BOTTOM-10" ALL
35	2A-Z1485	4 FOOT 1" ADJUSTABLE ALL
36 2K-Y3240	1 BUSHING HEYCO SR 17-2 ALL
37	2E-Z2898	1 CONDUIT ASSY, PTFE ALL
38 2C-Z3917	2 RIVET, POP ALL
39 2E-Z3768	1 LOCKNUT, CONDUIT 1/2 IN ALL
40 2C-Z3780	2 RETAINER, CONDUIT ALL
41 2A-Z3827	1 PLATE, STAMPING - CONDUIT ALL
42 D9-Z8861	1 CORD SET 14/3 120V 15A 120 V
	2E-Y9251 1 CORD SET CONT EUR 16AMP 230V
	2E-Z2770 1 CORD, POWER, 14-3, 6-15 240 V
43 2F-Z7730	1 CASTING, IRON, BOTTOM GR - 10" GROOVED MODELS
	2F-Z7756	1 CASTING, IRON, BOT., SM.-10" SMOOTH MODELS
44	D9-GR0229	1 BRACKET ASSY, THERMOSTAT ALL
45 2N-Z7765	1 ELEMENT, BOT, 800W, 120V-10 120 V
	2N-Z2020	1 ELEMENT, HEATING 1000W/240 230/240V
46 D9-Z7677	1 ELEMENT PLATE, BOTTOM-10" ALL
47 D9-Z7676	1 INS. PLATE, BOTTOM-10" ALL
48 D9-Z8842	1 GREASE CUP 10" ALL
49 2C-1512	6 SCREW 10-24X3/8 RHP STL NP ALL
53 2M-Z2620	1 LABEL CAUTION,BI-LINGUAL ALL
54 2C-6260	2 WASHER #10 INT STL NP ALL
55 2C-2559	2 NUT 10-24 ACHD BR NP ALL
56 2A-Z8408	2 PIN, SLOTTED SPRING-S.S. ALL
57 2C-08-07-0236	4 SCREW 10-32 X 3/4 SHCS ALL
58	D9-Z12061 - SCRAPER-GROOVES ACCESSORY
59 2C-Z5193	8 SCREW 10-24 X .75 PH SS ALL
60 2C-1515	2 SCREW 10-24X.75 ST RH NP

14" TWO SIDED GRILLS

MODEL

GX14IG, GX14IS, GX14ISG

Key Number	Part Number	Number Per Unit	Description
1 D9-GR0233	1 TOP HOUSING ASSY	14" ALL
2 2C-Z2054	1 CLAMP, THERMISTOR	ALL
3 2C-Z2893	8 NUT 10-24 Hex	STL ZP	ALL
4 D9-GR0232	1 TOP INS. PLATE ASSY	-14" ALL
5 D9-Z7991	1 INSULATION, 14" ALL
6 2A-Z6604	8 SPACER, INSULATION	PLATE ALL
7 D9-Z7846	1 PLATE, ELE.&INS RET.	-14"	ALL
8 2C-08-07-0285	8 SCREW	10-24 x 3/4 3/8	ALL
9 PS-Z7769	1 ELEMENT, TOP	800W, 120V-14"	120 V
	PS-Z7771	1	ELEMENT, TOP, 1250W,240V-14	230/240 V
10	10-E1500	0.333	SLEEVING #4 .208ID GLASS	ALL
11	2F-Z7741	1	CASTING, IRON, TOP GR - 14"	GROOVED MODELS
	2F-Z7742	1	CASTING, IRON, TOP SM. -14"	SMOOTH MODELS
12 2V-Z7641	2 ROD, ARM CONNECTION COMMON		ALL
13 2B-Z7860	2 ARM, SIDE COMMON		ALL
14 2V-Z7992	1 HANDLE -14" GRILL EXPRESS		ALL
15 D9-Z8429	1 COVER, HINGE 14		ALL
16 2V-Z3252	1 ROD - TOP HOUSING LATCH		ALL
17 2V-Z7863	2 SPACER, INSIDE 10"		ALL
18 2P-Z8756	1 SPRING, TORSION LH ALL
19 2P-Z8755	1 SPRING, TORSION RH		ALL
20 2V-Z8407	2 COLLAR, 2 PIECE COMMON		ALL
21 2V-Z7862	2 SPACER, OUTSIDE COMMON		ALL
22 2V-Z7994	1 ROD, HINGE 14"		ALL
23 2F-Z8529	2 RETAINER, HANDLE COMMON		ALL
24 D9-Z8444	1 BRACKET, MTG - TOP LATCH ROD		ALL
25 2C-Z2992	2 BOLT 1/4"-20X1 PHP STL NP		ALL
26 2F-Z7910	2 RETAINER, SPRING		ALL
27 D9-GR0254	1 BODY ASSY - 14"		ALL
28 2T-Y2313	1 THERMOSTAT	118V-236V	ALL
29 2M-Z8849	1 OVERLAY 14" EXPRESS GRILL		ALL
30 2R-Z8847	1 KNOB, T-STAT CONTROL		ALL
31 2E-Z2894	1 TERMINAL BLOCK (304)		ALL
32 2J-Y6689	1 PILOT LIGHT 120V		120V, 120VC-CANADA
32 2J-Z2329	1 PILOT LIGHT 240 V		230/240 V
33 2V-Z8859	2 SPACER, SIDE		ALL
34 D9-Z7842	1 PLATE, BOTTOM-14"		ALL
35	2A-Z1485	4	FOOT 1" ADJUSTABLE	ALL
36 2K-Y3240	1 BUSHING HEYCO SR	17-2	ALL
37	2E-Z2898	1	CONDUIT ASSY, PTFE	ALL
38 2C-Z3917	2 RIVET, POP		ALL
39 2E-Z3768	1 LOCKNUT, CONDUIT 1/2 IN		ALL
40 2C-Z3780	2 RETAINER, CONDUIT		ALL
41 2A-Z3827	1 PLATE, STAMPING - CONDUIT		ALL
42 D9-Z8861	1 CORD SET 14/3 120V 15A		120V
	D9-Z8917	1 CORD SET 120V 5-20P	120VC-CANADA
	2E-Y9251	1 CORD SET CONT EUR 16AMP	230V
	2E-Z2770	1 CORD, POWER, 14-3, 6-15	240 V
43 2F-Z7758	1 CASTING, IRON, BOTTOM GR - 14"		GROOVED MODELS
	2F-Z7757	1	CASTING, IRON, BOT., SM.-14"	SMOOTH MODELS
44	D9-GR0229	1	BRACKET ASSY, THERMOSTAT	ALL
45 2N-Z7772	1 ELEMENT, BOT, 1000W, 120V-14 120 V
	2N-Z7774	1	ELEMENT, BOT, 1500W,240V-14	230/240V
46 D9-Z7843	1 ELEMENT PLATE, BOTTOM-14"		ALL
47 D9-Z7844	1 INS. PLATE, BOTTOM-14"		ALL
48 D9-Z8843	1 GREASE CUP 14"		ALL
49 2C-1512	6 SCREW 10-24X3/8 RHP	STL NP	ALL
53 2M-Z2620	1 LABEL CAUTION,BI-LINGUAL		ALL
54 2C-6260	2 WASHER #10 INT STL NP		ALL
55 2C-2559	2 NUT 10-24 ACHD BR NP		ALL
56 2A-Z8408	2 PIN, SLOTTED SPRING-S.S.		ALL
57 2C-08-07-0236	4 SCREW 10-32 X 3/4 SHCS		ALL
58	D9-Z12061	-	SCRAPER-GROOVES	ACCESSORY
59 2C-Z5193	8 SCREW 10-24 X .75 PH SS		ALL
60 2C-1515	2 SCREW 10-24X.75 ST RH NP

20" TWO SIDED GRILLS

MODEL

GX20IG, GX20IGS, GX20IS

Key Number	Part Number	Number Per Unit	Description
1 D9-GR0239 2 TOP HOUSING & CONDUIT - 10 ALL
2 2C-Z2054 2 CLAMP, THERMISTOR ALL
3 2C-Z2893 16 NUT 10-24 Hex STL ZP ALL
4 D9-GR0228 2 TOP INS. PLATE ASSY -10" ALL
5 D9-Z2908 2 INSULATION, 10" ALL
6 2A-Z6604 16 SPACER, INSULATION PLATE ALL
7 D9-Z7646 2 PLATE, ELE.&NS RET. -10" ALL
8 2C-08-07-0285 16 SCREW 10-24 x 3/4 3/8 ALL
9 PS-Z2019 2 ELEMENT, HEATING 800W/240V ALL
10 10-E1500 0.666 SLEEVING #4 .208ID GLASS ALL
11 2F-Z7657 1 or 2 CASTING, IRON, TOP GR - 10" GROOVED MODELS (depending on unit)
	2F-Z7737 1 or 2 CASTING, IRON, TOP SM. -10" SMOOTH MODELS (depending on unit)
12 2V-Z7641 4 ROD, ARM CONNECTION COMMON ALL
13 2B-Z7860 4 ARM, SIDE COMMON ALL
14 2V-Z7862 2 HANDLE -10" GRILL EXPRESS ALL
15 D9-Z8417 2 COVER, HINGE 10 ALL
16 2V-Z3252 2 ROD - TOP HOUSING LATCH ALL
17 2V-Z7863 4 SPACER, INSIDE 10" ALL
18 2P-Z8824 2 SPRING, TORSION LH ALL
19 2P-Z8823 2 SPRING, TORSION RH ALL
20 2V-Z8407 4 COLLAR, 2 PIECE COMMON ALL
21 2V-Z7862 4 SPACER, OUTSIDE COMMON ALL
22 2V-Z7861 2 ROD, HINGE 10" ALL
23 2F-Z8529 4 RETAINER, HANDLE COMMON ALL
24 D9-Z8444 2 BRACKET, MTG - TOP LATCH ROD ALL
25 2C-Z2992 4 BOLT 1/4"-20X1 PHP STL NP ALL
26 2F-Z7910 4 RETAINER, SPRING ALL
27 D9-GR0255 1 BODY ASSY - 20" ALL
28 2T-Y2313 2 THERMOSTAT 118V-236V ALL
29 2M-Z8850 1 OVERLAY 20" EXPRESS GRILL ALL
30 2R-Z8847 2 KNOB, T-STAT CONTROL ALL
31 2E-Z2894 2 TERMINAL BLOCK (304) ALL
32 2J-Z3157 2 PILOT LIGHT 250V AMBER ALL
33 2V-Z8859 2 SPACER, SIDE ALL
34 D9-Z7918 1 PLATE, BOTTOM-20" ALL
35 2A-Z1485 4 FOOT 1" ADJUSTABLE ALL manufactured on or before 2/4/08
	2R-200716 4 LEG, 2.5" IN METAL ALL manufactured after 2/5/08
36 2K-Y6764 1 BUSHING - STRAIN RELIEF ALL
37 2E-Z2898 2 CONDUIT ASSY, PTFE ALL
38 2C-Z3917 2 RIVET, POP ALL
39 2E-Z3768 2 LOCKNUT, CONDUIT 1/2 IN ALL
40 2C-Z3780 4 RETAINER, CONDUIT ALL
41 2A-Z3827 2 PLATE, STAMPING - CONDUIT ALL
42 2E-Z2905 1 CORD SJTO 12/3 NEMA 6-20P ALL
	2E-Y9251 1 CORD SET CONT EUR 16AMP 230V
43 2F-Z7730 1 or 2 CASTING, IRON, BOTTOM GR - 10" GROOVED MODELS (depending on unit)
	2F-Z7756 1 or 2 CASTING, IRON, BOT., SM.-10" SMOOTH MODELS (depending on unit)
44 D9-GR0229 2 BRACKET ASSY, THERMOSTAT ALL
45 2N-Z2020 2 ELEMENT, HEATING 1000W/240 ALL
46 D9-Z7677 2 ELEMENT PLATE, BOTTOM-10" ALL
47 D9-Z7676 2 INS. PLATE, BOTTOM-10" ALL
48 D9-Z8838 1 GREASE CUP 20" ALL
49 2C-1512 8 SCREW 10-24X3/8 RHP STL NP ALL
53 2M-Z2620 1 LABEL CAUTION,BI-LINGUAL ALL
54 2C-6260 4 WASHER #10 INT STL NP ALL
55 2C-2559 4 NUT 10-24 ACHD BR NP ALL
56 2A-Z8408 4 PIN, SLOTTED SPRING-S.S. ALL
57 2C-08-07-0236 8 SCREW 10-32 X 3/4 SHCS ALL
58 D9-Z12061 - SCRAPER-GROOVES ACCESSORY
59 2C-Z5193 8 SCREW 10-24 X .75 PH SS ALL
60 2C-1515 2 SCREW 10-24X .75 ST RH NP

STAR MANUFACTURING INTERNATIONAL INC.

Star - Holman - Lang - Wells - Toastmaster

265 HOBSON ST. SMITHVILLE, TN 37166

[phone]

www.star-mfg.com
