Product Type	Electric Grill Plate
Brand	STAR
Model	536TGF
Dimensions (W x D x H)	40 cm x 30 cm x 8 cm
Weight	3.2 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	2000 W
Cooking Surface	Non-stick coated, ridged
Temperature Control	Adjustable thermostat with indicator light
Main Functions	Grilling, searing, heating
Safety Features	Auto shut-off, cool-touch handles, non-slip feet
Cleaning & Maintenance	Wipe with damp cloth; removable drip tray dishwasher safe
Spare Parts Availability	Replacement drip trays and heating elements available
Repairability	Modular design; user-serviceable parts
Material	Aluminum with non-stick coating, plastic handles
Warranty	2 years
Included Accessories	Drip tray, spatula

Frequently Asked Questions - 536TGF STAR

How do I preheat the grill plate?

Plug in the appliance and set the thermostat to the desired temperature. Wait until the indicator light turns off, indicating it has reached the set temperature. This usually takes 5-7 minutes.

Can I use metal utensils on the non-stick surface?

No, metal utensils can scratch the non-stick coating. Use wooden, silicone, or plastic utensils to prolong the life of the surface.

How do I clean the grill plate after use?

Allow the plate to cool completely. Wipe with a soft damp cloth or sponge. For stubborn residue, use a mild detergent. The drip tray is dishwasher safe.

What should I do if the grill plate does not heat up?

Check that the appliance is properly plugged in and the power outlet is working. Ensure the thermostat is set to a temperature above room temperature. If it still does not heat, contact customer service.

Is the grill plate suitable for indoor use?

Yes, it is designed for indoor use. Ensure proper ventilation and place it on a heat-resistant surface away from flammable materials.

Can I leave the grill plate unattended while cooking?

No, never leave the appliance unattended while in use. It has an auto shut-off feature for safety, but constant supervision is recommended.

What foods can I cook on this grill plate?

You can cook steaks, burgers, chicken, fish, vegetables, and even pancakes. The ridged surface gives nice grill marks.

How do I store the grill plate?

After cleaning and drying, store the appliance in a cool, dry place. Keep the cord wrapped loosely and avoid placing heavy objects on top.

The indicator light is blinking, what does it mean?

A blinking light typically indicates the appliance is heating or maintaining temperature. If it blinks rapidly, refer to the manual for specific error codes.

Are spare parts available for this model?

Yes, replacement drip trays and heating elements can be ordered from the manufacturer or authorized dealers. Use only genuine parts to ensure safety and performance.

USER MANUAL 536TGF STAR

524CHSF, 536CHSF, 548CHSF

Installation and

Operation

Instructions

2M-Z16009 Rev. E 06/2019

LISTED

ANSI/NSF 4

RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE

Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.

Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this sheet are subject to change without notice. While Star International Holdings Inc., Company exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the specifications. By using the information provided, the user assumes all risks in connection with such use.

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance.

Please record the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure a faster service.

Model No.

Serial No.

Voltage

Purchase Date

Authorized Service Agent Listing

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com

E-mail [e-mail]

Service Help Desk

Business 8:00 am to 4:30 p.m. Central Standard Time Hours:

Telephone: [phone]

Fax: [phone]

E-mail [e-mail]

Website: www.star-mfg.com

Mailing Address: Star Manufacturing International Inc.

265 Hobson Street

Smithville, TN 37166

U.S.A

GENERAL INFORMATION

This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations.

Before using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit.

All shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier.

Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 15 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms.

INSTALLATION

The griddles are equipped for the voltage indicated on the nameplate mounted under the bullnose on the front panel. They will operate on alternating current (AC) only.

DO NOT CONNECT TO DIRECT CURRENT (DC).

The installation of the electric griddle should conform to the:

NATIONAL ELECTRIC CODE AND ALL LOCAL ELECTRIC CODES AND ORDINANCES AND THE LOCAL ELECTRIC COMPANY RULES AND REGULATIONS

For your protection we recommend that a qualified electrician install this griddle. He should be familiar with electrical installations and all electric codes. Proper connections and power supply are essential for efficient performance. The external wiring should be in conduit or an approved type of flexible cable suitable for operation at the temperature indicated on the wiring diagram, and of a proper size to carry the load. The supply circuit should be properly fused and equipped with a means of disconnecting, as required by local electrical code. THE BODY OF THE GRIDDLE SHOULD BE GROUNDED (DO NOT GROUND TO A GAS SUPPLY LINE).

GENERAL OPERATING PROCEDURES

The Chrome-Max and Star-Max series electric griddles may be wired for operation in the field for either 1-phase or 3-phase power supplies by making line connections at the junction box(es) located at the rear of the unit. Two junction boxes are provided on the 548TGF for making line connections. These may be connected in parallel to one 16KW 3-phase line or on two separate 8KW lines.

CONNECTING POWER SUPPLY

Detach cover on junction box at rear of unit. There are pigtail leads for the supply connection in the junction box.

LOCATING AND LEVELING THE UNIT

Do not install the unit closer than 1-inch from a side wall and/or closer than 1-inch from a rear wall. Level unit by adjusting the (4) feet which have an adjustment of 1-3/4" (43.75mm) for accurate leveling and perfect line-up with other Star-Max series units. After the griddle is in its final position, adjust the legs to create 1/8 inch slant from back to front on the griddle plate. This will allow grease to run into the grease gutter and provide the proper air flow.

EXHAUST CANOPY

Griddles inherently create a good deal of heat and smoke and should be installed under an efficient exhaust hood with flame proof filters. A vertical distance of not less than 48" shall be provided between the top of the appliance and filters or any other combustible material. Exhaust installation must conform to local codes.

AIR SUPPLY: Provisions for adequate air supply must be provided.

SEASONING THE GRIDDLE HEATING SURFACE (NON CHROMIUM SURFACE)

Clean the griddle surface thoroughly. After the griddle has been thoroughly cleaned, it should be seasoned to prevent food from sticking. Before using and after each thorough scouring, season the griddle heating surface in the following manner.

1. Turn temperature control dials to 350° F ( 177° C).
2. Using a clean cloth, not a spatula, spread a thin film of cooking oil over the griddle cooking surface. This film should remain on the hot griddle surface for half an hour.
3. Remove the excess oil and wipe clean.
4. Apply another film of cooking oil over the hot cooking area for another half hour and again remove excess oil and wipe clean. The griddle surface should now be ready for use.

Even with careful seasoning, food may, to some extent, stick to the griddle cooking surface until the griddle plate is broken in.

TEMPERATURE CONTROL

The temperature controls are combination "ON/OFF" switches and thermostats. Turning the dial knob automatically maintains the selected heat range.

The Star-Max/Chrome-Max electric griddle line has one thermostat for every 12" (30cm) section of griddle that operates independently of one another. Each thermostat controls the section of the griddle above it and may be set at different temperatures as desired.

COOKING

Set the thermostat dial knob at the temperature desired. After a short pre-heating period, the thermostat will automatically maintain the selected temperature.

IDLING

During idle periods, to save on operating costs, lower the temperature setting of the thermostat to about 250° F ( 121° C). It is not necessary to maintain cooking temperature during idle periods, as the griddle can quickly be reheated to the desired temperature.

SIGNAL LIGHTS

Each thermostat has its own signal light which indicates when the unit's control knob is not in the off position.

GRIDDLE CARE (NON-CHROMIUM SURFACES)

It takes very little time and effort to keep the griddle attractive and performing at top efficiency. If grease is permitted to accumulate, it will form a gummy cake and then carbonize into a hard substance which is extremely difficult to remove. To prevent this condition, the following suggestions for cleanliness should be followed:

1. After each use, scrape the griddle with a scraper or flexible spatula to remove excess grease and food. A waste drawer is provided for the scrapings. If there is an accumulation of burned on grease and food, the griddle should be thoroughly scoured and reseasoned. Use pumice or griddle stone while the griddle is warm. Do not use steel wool because of the danger of steel slivers getting into the food.

2. Daily, use a clean cloth and a good non-abrasive cleaner to clean the stainless steel body of the griddle. Wipe the polished front with a soft cloth.

3. At least once a day, remove the waste drawer and wash in the same way as an ordinary cooking utensil. The drawers are removed by pulling forward until they are released from their track.

GRIDDLE CARE (CHROMIUM SURFACES)

It takes very little time and effort to keep this Industrial Chromium griddle surface sparkling clean and performing at top efficiency. DO NOT allow grease to accumulate as it will carbonize and become difficult to remove. To prevent this condition the following cleaning suggestions should be followed:

1. Remove excess grease and food regularly with a 4" (100mm) wide Razor Sharp type scraper and wipe surface with a damp cloth if desired.
2. Following the scraping, for end of the day cleaning, a damp cloth and a non-silicated, non-abrasive, non-chlorinated cleaner such as Bon-Ami may be used to wipe surface clean, followed by wiping with a clean wet cloth.
3. Follow steps 2 and 3 from Griddle Care (Non-Chromium Surfaces) above.

1. Never use pumice, griddle stones, or abrasives on a chromium surface.
2. Never strike a chromium griddle surface with a sharp instrument or spatula edge.
3. Never use steel wool.
4. Never use commercial liquid grill cleaner on the griddle surface.
5. Abusing surface voids the warranty.

MAINTENANCE AND REPAIRS

Contact the factory, a service representative, or a local service company for service or required maintenance.

CHROME-MAX GRIDDLE SURFACE LIMITED WARRANTY EXCLUSIONS

Your Chrome-Max griddle has been designed to give you many years of cooking reliability and requires minimum maintenance to keep the chrome surface in its original condition. All Chrome-Max griddle surfaces are warranted for a period of 5 years against manufacturing defects to the original owner from the date of installation. This limited warranty is void if it is determined by Star Manufacturing International Incorporated or one of its authorized representatives that the chrome surface has been misused or abused or subjected to the following situations:

1. Improperly installed.
2. Incorrect voltage applied to electric Chrome-Max units allowing the surface to overheat and discolor.
3. The misuse of any instrument or tool which scratches or makes indentations in the surface which could cause the surface to peel, flake, or chip off.
4. The use of any chemical or abrasive cleaning solution, griddle brick, stone, screen or other cleaning products which could damage and affect the performance of the chrome surface.
5. The neglect of daily routine maintenance to the chromium surface.

LIMITED EQUIPMENT WARRANTY

Star Manufacturing [as well as its subsidiaries, Toastmaster and Holman] warranties new products to be free from defects in material and/or workmanship for a period of one [1] year from the date of original installation, except as noted below. Defects that occur as a result of normal use, within the time period and limitations defined in this warranty, will at Star's discretion have the parts replaced or repaired by Star or a Star-authorized service agency.

THIS WARRANTY IS SUBJECT TO ALL LISTED CONDITIONS.

Repairs performed under this warranty are to be performed by a Star authorized service agency. Star will not be responsible for charges incurred or service performed by non-authorized repair agencies. In all cases, the nearest Star-authorized service agency must be used. Star will be responsible for normal labor charges incurred in the repair or replacement of a warranted product within 50 miles (80.5 km) of an authorized service agency. Time and expense charges for anything beyond that distance will be the responsibility of the owner. All labor will need to be performed during regular service hours. Any overtime premium will be charged to the owner. For all shipments outside the U.S.A. and Canada, please see the International Warranty for specific details. It is the responsibility of the owner to inspect and report any shipping damage claims, hidden or otherwise, promptly following delivery. No mileage or travel charges will be honored on any equipment that is deemed portable. In general, equipment with a cord and plug weighing less than 50 lb. (22.7 kg) is considered portable and should be taken or shipped to the closest authorized service agency, transportation prepaid.

PORTABLE EQUIPMENT EXAMPLES

• 514LL fryer
  • 15MC and 18MCP hot food merchandisers
  • QCS1, QCS2, and RCS2 toasters
  • 16PD-A pretzel merchandisers
• Condiment dispensers except HPD- and SPD-series models
• All pop-up toasters
• All pastry display cabinets
• All heat lamps
  • J4R popcorn machine
  • 12NCPW and 15NCPW nacho merchandisers
• Nacho cheese warmers except 11WLA-series models
  • Specialty food warmers except 130R, 11RW, and 11WSA models
• All butter dispensers
  • All nacho chip merchandisers
• All accessories

CONTACT

Should you require any assistance regarding the operation or maintenance of any Star equipment; write, phone, fax or email our service department. In all correspondence mention the model number and serial number of your unit, as well as the voltage or type of gas you are using.

Business hours are 8:00 a.m. to 4:30 p.m. Central Standard Time (CST)

Telephone: [phone]

Fax: [phone]

Email: [e-mail]

www.star-mfg.com

WARRANTY EXCLUSIONS

THE FOLLOWING WILL NOT BE COVERED UNDER WARRANTY.

- Any product which has not been used, cleaned, maintained, or installed in accordance with the directions published in the appropriate installation sheet and/or owner's manual as well as national and local codes, including incorrect gas, electrical, or water connection. Star is not liable for any unit which has

been mishandled, abused, misapplied, subjected to chlorides, harsh chemicals, or caustic cleaners, damaged from exposure to hard water, modified by unauthorized personnel, damaged by flood, fire, or other acts of nature [or God], or which have an altered or missing serial number.

- Installation, labor, and job checkouts, calibration of heat controls, air and gas burner/bypass/pilot adjustments, gas or electrical system checks, voltage and phase conversions, cleaning of equipment, or seasoning of griddle surface.

- Replacement of fuses or resetting of circuit breakers, safety controls, or reset buttons.

- Replacement of broken or damaged glass components, quartz heating elements, and light bulbs.

- Labor charges for all removable parts in gas charbroilers and hotplates, including but not limited to burners, grates, and radiants.

• Any labor charges incurred by delays, waiting time, or operating restrictions that hinder a service technician's ability to perform service.
• Replacement of items subject to normal wear or items that can easily be replaced during a daily cleaning routine, such as but not limited to knobs, bulbs, fuses, quartz heating elements, baskets, racks, and grease drawers.
• Components that should be replaced when damaged or worn, but have been field-repaired instead [eg. field-welded fry pots]
• Any loss of business or profits.

PRODUCTS PARTS LABOR
Star-Ultra Max® fryers, griddles, charbroilers, and hotplates	2 years	2 years
Star-Max® fryers, griddles, char-broilers, and hotplates	2 years	2 years
Jetstar® popcorn poppers	2 years	2 years
StaltekTM roller grill coatings	5 years
Cast iron grates, burners; and burner shields	180 days
Star, Toastmaster, or Holman parts sold to repair equipment	90 days
Service First 1 year

STAR MANUFACTURING INTERNATIONAL INC.#10 SUMMERD RINE ST. LOUIS NO. 63143, USA			MATERIAL	MODEL NO.515TGD			PART NO.SK 1925

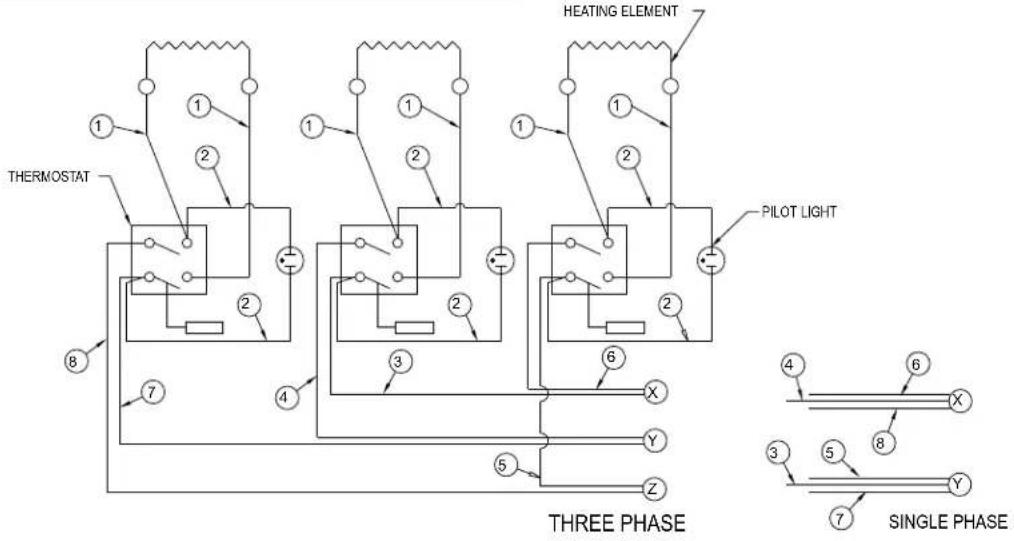

			FINISH	TITLE WIRING DIAGRAM 15" ELEC. GRIDDLE
DR. TH	CK.	DATE 2-20-03		REVISIONS	LTR	DATE DES	CRIPTION OF CHANGE DR
TOLERANCES UNLESS OTHERWISE NOTEDFRACTIONS ±1/64 DECIMALS ±.005 ANGLES ±1"			THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
NOMINAL AMPS PER LINE WIRE			NOTE:1) FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY,SUITABLE FOR AT LEAST 90°C (194°F). USE GAUGE SHOWNOR LARGER.2) ALL INTERNAL WIRING IS #14 GA.
3,004 WATTS 4,000 WATTS
208V-1 PHASE 240V-1 PHASE
		16.6614.44
		AWGAWG#14#14

STAR MANUFACTURING INTERNATIONAL INC.#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA

MATERIAL

MODEL NO.524TGD

PART NO.SK 1926

FINISH

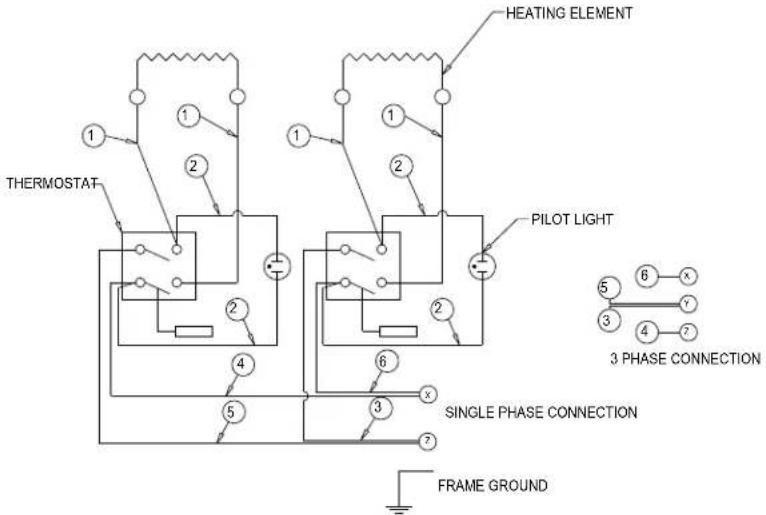

TITLE WIRING DIAGRAM 24" ELEC. GRIDDLE

DR, TH

CK.

DATE 2-20-03

REVISIONS

LTR DATE DESCRIPTION OF CHANGE DR

TOLERANCES UNLESS OTHERWISE NOTEDFRACTIONS #1/84 DECIMALS ±.005 ANGLES ±1"

THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.

-

NOMINAL AMPS PER LINE WIRE

NOTE:1) FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY,SUITABLE FOR AT LEAST 90°C (194°F). USE GAUGE SHOWNOR LARGER.2) ALL INTERNAL WIRING IS #14 GA.

208V-3 PHASE

240V-3PHASE

208V

240V

6008 WATTS

8000 WATTS

1 PH

1 PH

X

Y

Z

X

Y

Z

14.44

24.98

14.44

16.66

28.86

16.66

28.88

33.3

AWG#16

AWG#12

AWG#16

AWG#14

AWG#10

AWG#14

#10

AWG#8

-C3KD]STAR MANUFACTURING INTERNATIONAL INC.#10 SUNNEN DRIVE, ST. LOUIS, MO. 63143, USA

MATERIAL~

MODEL NO.536TGD 220/230V SK2204

PART NO.

FINISH-

TITLE WIRING DIAGRAM 3 PHASE 5 WIRE

DR. TH

CK.

DATE 6-9-06

REVISIONS

LTR

DATE DESCRIPTION OF CHANGE DR

TOLERANCES UNLESS OTHERWISE NOTEDFRACTIONS ±1/84 DECIMALS ±.005 ANGLES ±1°

THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INTL. INC.NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.

-

DO NOT COIOPERATING

N

220/380V Y

230/400V Y

FOR SUPPLY CONNECTIONS USECOPPER WIRE ONLY, SUITABLEFOR AT LEAST 90°C (194°F). #10AWG OR LARGER.

10083 WATTS

11020 WATTS

X

Y

Z

N

XYZ

N

15.3

15.3 16

1615.3

15.3 16

16

		MATERIAL	MODEL NO.536TGF-PE	PART NO.SK2624
DR.	MH	CK.		536TGF-PE
TOLERANCES L				RIPTION OF CHANGE	DR
FRACTIONS ±1/64 DI

SOME ITEMS ARE INCLUDED FOR
ILLUSTRATIVE PURPOSES ONLY AND IN
CERTAIN INSTANCES MAY NOT BE AVAILABLE

MODEL - 524TGF, 524CHSF

STAR MANUFACTURING INTERNATIONAL, INC.

SK2597

REV. B

9/01/15

2M-Z16009 Star-Max Electric Griddle

Model: 515TGD, 524TGF, 536TGF and 548TGF Star-Max/Chrome-Max Electric Griddles
Fig No Part No. Qty Description Application
1	G3-515311		GRIDDLE PLATE STUDDED 515TGF
	G3-524313 GRIDDLE PLATE		STUDDED 524CHSF
	G3-524314 GRIDDLE PLATE		STUDDED 524TGF
	G3-524315 DIVIDED PLATE A		SSEMBLY 524TGF-DIV
	G3-536313 GRIDDLE PLATE		STUDDED 536TGF
	G3-536315 GRIDDLE PLATE		ASSY 536DIV 536TGF-DIV
	G3-536316 GRIDDLE PLATE		ASSY WELDED 536TGF-PE
	G3-536314 GRIDDLE PLATE		STUDDED 536CHSF
	G3-548312 GRIDDLE PLATE		STUDDED 548TGF
	G3-548313 GRIDDLE PLATE		STUDDED 548CHSF
2	2N-Z5948	1/2/3/4	HEATING ELEMENT
3	G3-Z5973	2/4/6/8	ELEMENT CLAMP SHORT
4	G3-Z16135	6/12/18/24	HEATER ELEMENT CLAMP SM
5	2C-6517	8/16/24/32	NUT 1/4-20 HEX STL NP
6	G3-615304	1	CHUTE ASSEMBLY	515
	G3-624304			524 / 536 / 548
7	2C-Z2893	4	NUT 10-24 HEX STL
8	G3-Y7788	1	BOX COVER	515 / 524 / 536
		2		548
	H1-Z9843	1	CONNECTION BOX COVER	536TGF-230V
	G3-Z19326	1	COVER - CONNECTION BOX	536TGF-PE
9	2C-Y2295	1 / 2	SCREW 10X3/8 STL HEX GREEN	515, 524, 536 / 548
10	2C-Y2344	1	GROUND LUG	515 / 524 / 536
		2		548
11	2C-1512	2 / 4	SCREW 10-24X3/8 RHP STL	515, 524, 536 / 548
		14		536TGF-PE
12	2E-Y7327	1	ELECTRICAL BOX	515 / 524 / 536
		2		548
	H1-Z9842	1	SUPPLY CONNECTION BOX	536TGF-230V
	G3-Z19325	1	BOX - SUPPLY CONNECTION	536TGF-PE
13	2K-Z6183	3	BUSHING	515 / 524 / 536
		6		548
14	G3-Z5950	1	REAR PANEL	515
	G3-Z5952			524
	G3-Z5954			536
	G3-Z5956			548
	G3-Z9848			536TGF-230V
	G3-Z19324		REAR PANEL 536TGF-PE	536TGF-PE
15	2C-8833	Various	SCREW 8-18X1/2 HEX STL NP	ALL
16	G3-Z5945	2	SIDE PANEL	ALL
17	G3-624302	1	SIDE LINER ASSEMBLY LEFT	ALL
18	G3-Z5993	1	BOTTOM PANEL	515
	G3-Z5994			524
	G3-Z5995			536
	G3-Z5996			548

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED INCLUDE MODEL AND SERIAL NUMBER OF 2

PAGE 1

Some items are included for illustrative purposes only and in certain instances may not be available.

Model: 515TGD, 524TGF, 536TGF and 548TGF Star-Max/Chrome-Max Electric Griddles
Fig No Part No. Qty Description Application
19 G3-624303 1 SIDE LINER ASSEMBLY RIGHT ALL
20 2A-Z5942 4 FOOT ALL
21	G3-Z5905	1 CENTER WALL		515
	G3-Z5915 524
	G3-Z5925 536
	G3-Z5935 548
22	G3-Z5997	1 FRONT BOTTOM PANEL		515
	G3-Z5998 524
	G3-Z5999 536
	G3-Z6001 548
23 G3-Y7046 1 GREASE	DRAWER	ALL
24	G3-Z6036	2	DRAWER SLIDE	ALL
25	2T-Z5958	1/2/3/4	THERMOSTAT	ALL
26	2C-Z8547	AR	BOLT, KNOB STOP	ALL
27	2M-Z15451	1/2/3/4	LABEL ELECT T-STAT LG	515 / 524 / 536/ 548
	2M-Z18125	3 LABEL - KNOB 536TGF-PE
28	G3-624329	1/2/3/4	KNOB ASSY LG E-T KEYR	515 / 524 / 536/ 548
29	2J-Y6690	1/2/3/4	PILOT LIGHT	515 / 524 / 536 / 548
30	2M-Z15804	1	STAR-MAX LOGO	ALL
31	G3-Z15793	1	FRONT PANEL	515
	G3-Z15794			524
	G3-Z15795			536
	G3-Z15709		FRONT PANEL 5136	536TGF-230V
	G3-Z19764		FRONT PANEL w/KNOB GUARD HOLES	536TGF-PE
	G3-Z15796		FRONT PANEL	548
32	2C-8477	3	CLIP .125 PO STL PHOS	ALL
33	G3-Z5947	1/2/3/4	COVER	515 / 524 / 536 / 548
34	PS-524318		KNOB GUARD KIT	OPTIONAL ACCESSORY
35 2A-Z13272		6 KNOB GUARD 536TGF-PE
36	2R-Z8892	3	KNOB, THERM. ELEC. S-MAX, PLASTIC	536TGF-PE
37	2C-200067	6	SCREW 6-32X1/4 THP SS	536TGF-PE
38	G3-Z19058	3	KNOB STOP BRACKET	536TGF-PE
39	2C-200177	12	WASHER #10 EXT STL ZP	536TGF-PE
NI	2E-Z5969	1	WIRE SET	515
NI	2E-Z5970	1/2	WIRE SET	524 / 548
NI	2E-Z5971	1	WIRE SET	536
NI	2E-Z19258	1	CORD SET 8/4 50 AMP LOCK	536TGF-PE
