USER MANUAL TW05BB LEXIBOOK

- Barbie Walkie Talkies

Les talkies-walkies Barbie

INSTRUCTION MANUAL MODE D'EMPLOI

www.lexibookjunior.com

TW05BBGB

Lexibook Junior

Designation: Walkie-Talkie

Games to learn as they grow,

Thank you for purchasing a Lexibook Junior product.

Infant and preschool toys, educational computers, interactive games that can connect to the TV, chess games, musical games... Our toys create a fun and engaging environment for children of all ages to stimulate their ability to learn fundamental skills.

Let's play!

Lexibook team

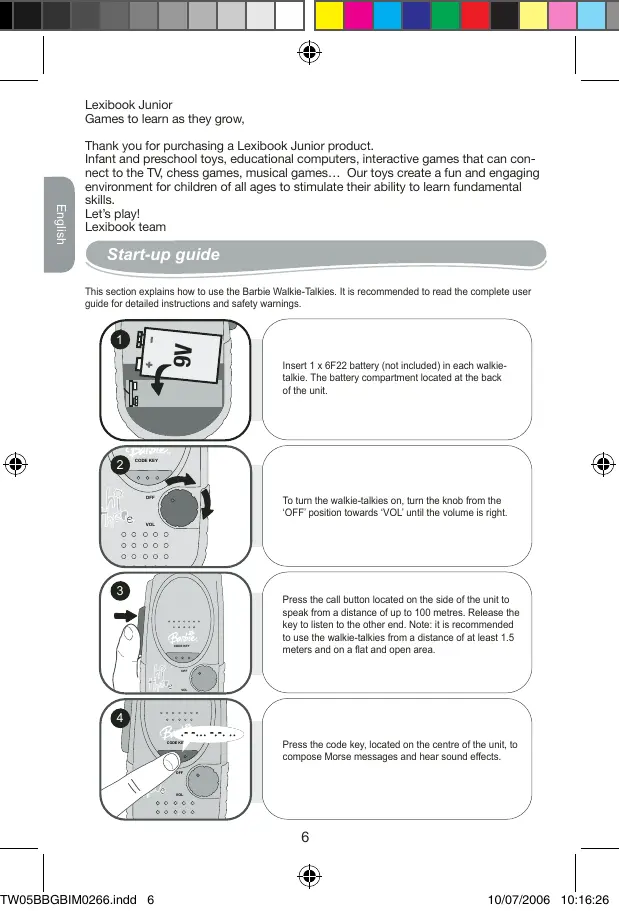

Start-up guide

This section explains how to use the Barbie Walkie-Talkies. It is recommended to read the complete user guide for detailed instructions and safety warnings.

Insert 1 x 6F22 battery (not included) in each walkkite talkie. The battery compartment located at the back of the unit.

To turn the walkie-talkies on, turn the knob from the 'OFF' position towards 'VOL' until the volume is right.

Press the call button located on the side of the unit to speak from a distance of up to 100 metres. Release the key to listen to the other end. Note: it is recommended to use the walkie-talkies from a distance of at least 1.5 meters and on a flat and open area.

Press the code key, located on the centre of the unit, to compose Morse messages and hear sound effects.

Introduction

At Lexibok Junior, we delight in creating toys nurturing children's boundless imagination. With our new range, Barbie Lifestyle, little girls can now express themselves in style.

All Barbie Lifestyle items are derived from little girls' fascination with the adult world. When girls create a style of their own, they engage their emotional, social, psychological and creative skills. Barbie Lifestyle, for fashion conscious little girls!

Inside the package

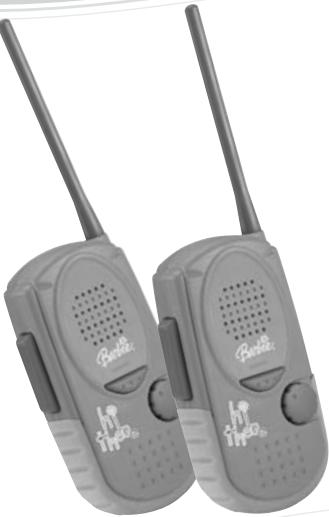

2 Barbie Walkie-Talkies

One instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this toy and should be discarded for your child's safety.

Battery information

Barbie Walkie-Talkies work with 2 × 9V type 6F22 alkaline batteries (one battery per unit).

1. Using a screwdriver, open the battery compartment cover located at the back of the unit.
2. Install the 2 × 6 F22 batteries observing the polarity indicated at the bottom of the battery compartment, and as per the diagram shown opposite.
3. Close the battery compartment and tighten the screw.

Do not use rechargeable batteries. Non-rechargeable batteries are not to be recharged.

Rechargeable batteries are to be removed from the toy before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the toy. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the game for a long period of time.

WARNING: If the unit malfunctions or receives an electrostatic shock, turn the unit off and on again. If this proves to be ineffective, remove the batteries and insert them again.

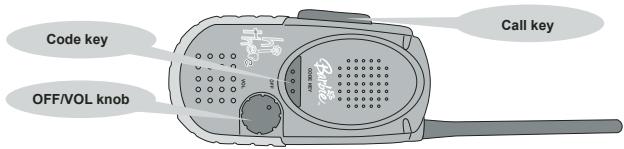

Product features

Position Off/Vol

To turn the walkie-talkies on and off.

Touched'appeal

To talk to the other receiver.

Touche Morse

To send Morse messages.

Characteristics

Channel: 1

Operating frequency: 27.145MHz

Coverage: 80 to 100 metres

Power supply: 2 x 6F22

Transmitter Power (Watts): < 10 mW

Channel Spacing (kHz): 10

Maintenance

Only use a soft, slightly damp cloth to clean the unit. Do not use detergent. Do not to expose the unit to direct sunlight or any other heat source. Do not immerse the unit in water. Do not dismantle or drop the unit. Do not try to twist or bend the unit. If the unit malfunctions, try to change the batteries first. If this proves to be ineffective, read the instruction manual again.

Warranty

NOTE: please keep this instruction manual, it contains important information.

This product is covered by our 2-year warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observation of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. Not suitable for children under 36 months old, as it contains small detachable elements which could be swallowed.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

Reference: TW05BBGB

Designed and developed in Europe - Made in China

Environmental Protection:

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

©2006 Mattel, Inc.

©2006 Lexibook®

For use only in the UK.

Declaration of conformity

We, Lexibook® S.A.

declare under our sole responsibility that the product

Kind of product: Walkies-Talkie

Type number: TW05BBGB

to which this declaration relates, is in conformity with the following standards and/or other normative documents:

EN301489-3

EN301489-1

EN300 220-3

EN300 220-1

We hereby declare that the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

Denis Mauduit

Quality Manager

Lexibook Junior
