EasyMenu is HITACHI's On Screen Display function for easy operation.

READ THE INSTRUCTIONS INSIDE CAREFULLY.
KEEP THIS USER MANUAL FOR FUTURE REFERENCE.

For future reference, record the serial number of your colour monitor.

SERIAL No.

The serial number is located on the rear of the monitor.

This monitor is ENERGY STAR® compliant when used with a computer equipped with VESA DPMS.

The ENERGY STAR® emblem does not represent EPA endorsement of any product or service.

As an ENERGY STAR® Partner, Hitachi,Ltd. has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

---

---

---

---

---

---

---

---

---

HITACHI

Colour Monitor

CM761ET(DJ71)

USER MANUAL

Congratulations on your selection of the HITACHI Colour Monitor.

Read the instructions inside carefully, and keep this user manual for future reference.

NOTE:

• The information in this manual is subject to change without notice. The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transmission or use of this documents or contents is not permitted without express written authority.

TRADEMARK ACKNOWLEDGEMENT:

VGA is a registered trademark of International Business Machines Corporation.

VESA is a trademark of a nonprofit organisation, Video Electronics Standard Association.

ENERGY STAR® is a trademark of Environmental Protection Agency (EPA).

CONTENTS

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

FEATURES 1-2

CAUTIONS 1-3

INSTALLATION 1-7

OPERATION 1-8

TROUBLESHOOTING 1-15

SPECIFICATIONS 1-16

Tables:

Table 1-1. Adjustment 1 - 9

Table 1-2. Power Saving System 1 - 14

Table 1-3. Signal Check 1 - 14

Table 1-4. Troubleshooting 1 - 15

Table 1-5. Standard Settings 1 - 17

Table 1-6. Pin Assignment 1 - 18

The following features are provided in this Colour Monitor.

Sharpest Focus and Highest Contrast

Flat screen Enhanced Dot Pitch (EDP) CRT with anti-glare, dynamic focus circuit, dark glass and an INVER shadow mask gives the sharpest focus and highest contrast to minimise eye fatigue.

Wide-range Multi-Scanning

Automatic scanning and automatic adjustment to conform with a wide range of scanning frequencies and user requirements.

Digital Picture Control Function

Position, size, pincushion, trapezoid, right pincushion, right trapezoid and moire are adjustable by digital controls. Geometry settings can be stored for different H/V frequencies. Microprocessor-based preset functions can store 26 sets of geometry settings including the standard factory settings.

Digital Colour Control Function

Red, green, and blue colour balance is adjustable by digital control. An adjusted colour setting can be stored and recalled by the colour select button.

Power Saving System

The Environmental Protection Agency (EPA) has established a voluntary program by which manufacturers enable computer products to go into low power states while not being used. This monitor has a low power "sleep" mode, which is compliant with the EPA requirements for the ENERGY STAR® program, and will assist you in conserving energy. Please refer to the section of "POWER SAVING SYSTEM" for details.

EasyMenu

An On Screen Display function that allows easy access to adjust all operations from the front panel.

Plug & Play

This monitor is VESA DDC1/2B compliant when used with a computer compliant with VESA DDC (Display Data Channel).

Discontinue Usage if Abnormal Operation Occurs!
Abnormal operations such as smoke, burning smell, excessive sound, etc. could cause fire or electrical shock. If you observe any abnormal operation, you should turn Off the monitor and disconnect the power plug from the power outlet. You should check for smoke or fire and contact your dealer.
Do not expose the monitor to physical impact!
Do not allow foreign objects (water, metal, etc.) inside!
Never remove the cover!

The colour monitor contains high voltage components. Ask your dealer to repair or clean inside.

The power outlet should be close to the monitor and easily accessible!
Install the unit in an suitable environment!

Do not expose the monitor to rain, moisture, dust, corrosive gases, vibrations, etc. so as to prevent electrical shock or fire hazard.

Avoid placing the monitor in direct sunlight or near heating appliances.

Do not place the monitor on an unstable base.

Keep in a well ventilated area!

Do not cover this monitor or place anything against any sides (not only the top, right and left side but also the rear and bottom sides) of the monitor. Ventilation holes are provided at all sides of covers to prevent excessive temperature increase.

Be cautious of magnetic fields!

DO NOT place a magnet, loudspeaker system, floppy disk drive, printer, or anything which will generate magnetism near the unit. A magnetic field may cause blurred colours or distortion of the displayed pattern.

Be mindful of the ambient illumination!

Avoid direct rays of the sun or room lighting onto the CRT screen in order to prevent eye fatigue.

The enclosed power cord must be used!

Failure to do so may cause fire or electrical shock hazard.

Use only the correct voltage power outlet with safety ground connection!

This monitor will automatically adjust to the input voltage 100 - 120 / 200 - 240V.

Be cautious of the power cord connection!

Before inserting the plug of the power cord into a power outlet of the correct voltage, check that the connection portion of the power cord is clean (with no dust). Then, insert the plug of power cord into a power outlet firmly to avoid electrical shock or fire hazard.

1 Remove the power cord for complete separation!

For complete separation from the power source, remove the power cord from the monitor or from the wall power outlet.

CAUTION for 200 - 240V operation only

This equipment relies on the protective devices in the building installation for short-circuit and over-current protection. Refer to the following table for the suitable number and location of the protective devices which should be provided in the building installation.

Informative examples of protective devices in single - phase equipment or sub - assemblies

	Protection against	Minimum number of fuses or circuit - breaker poles	Location
Case A: Equipment to be connected to POWER SYSTEMS with earthed neutral reliably identified, except for Case C below.	Earth faults	1	Phase conductor
	Overcurrent	1	Either of the two conductors
Case B: Equipment to be connected to any supply, including IT POWER SYSTEMS and supplies with reversible plugs, except for Case C below.	Earth faults	2	Both conductors
	Overcurrent	1	Either of the two conductors
Case C: Equipment to be connected to 3-wire power systems with earthed neutral reliably identified.	Earth faults	2	Each phase conductor
	Overcurrent	2	Each phase conductor

Verify that the protective devices in the building installation meets the conditions in the table prior to installing the equipment.

Be careful of static electricity on CRT surface!

To prevent electrical shock by the static electricity on the CRT surface, disconnect the power cord at least 30 seconds after turning OFF the power.

Avoid frequent power ON-OFF switching!

Do not repeat OFF and ON power switching in a short period. This may cause blurred colours or distortion of the displayed pattern.

Be careful of generated magnetism!

After the power has been turned ON or when the degauss function has been manually engaged, the CRT is demagnetised for approximately 7 seconds. This generates a strong magnetic field around the front cover which may affect the data stored on magnetic tape or disks near the front cover. Place such magnetic recording equipment and tapes/disks away from this unit.

About cleaning

Before cleaning, turn OFF the power switch and disconnect the plug from the power outlet. For the screen, use water with a lightly moistened soft cloth such as a gauze type material. For the cover, use water or a liquid synthetic detergent, with a lightly moistened soft cloth. Do not clean the inside of monitor by yourself as it is very dangerous. Refer to your dealer. Do not use aerosol sprays, solvents or abrasive cleaners.

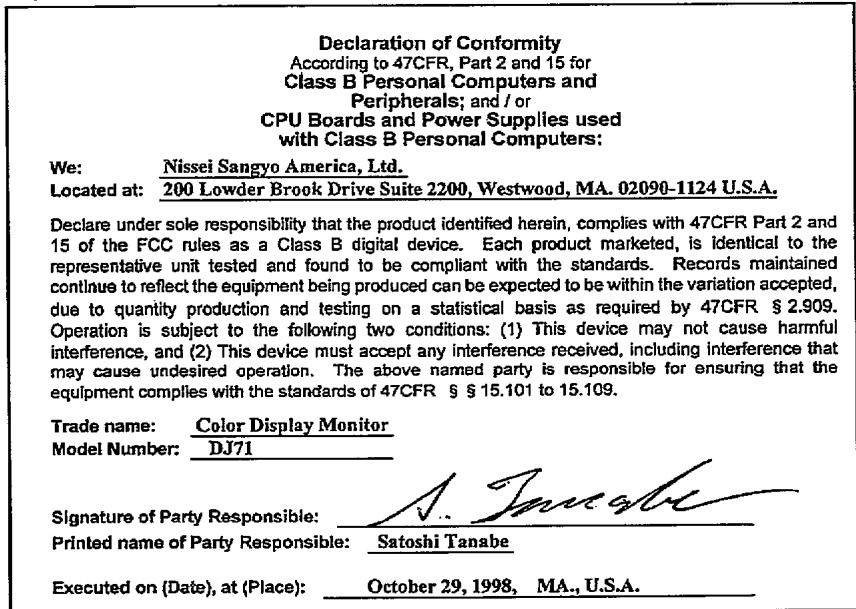

FCC Statement Warning

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

INSTRUCTIONS TO USERS : This equipment complies with the requirements of FCC (Federal Communication Commission) equipments provided that following conditions are met.

(1) Power cord: Unshielded power cord must be used.
(2) Video inputs: The input signal amplitude must not exceed the specified level.

CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For the Customers in CANADA

NOTICE : This Class B digital apparatus complies with Canadian ICES-003.

For the Customers in the UK

THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE UK PLEASE REFER TO THE NOTES ON THIS PAGE.

IMPORTANT FOR UNITED KINGDOM

WORDING FOR CLASS I EQUIPMENT INSTRUCTION BOOKS AND LABELS

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS 1362 fuse must be used of the same rating. If the fuse cover is detachable never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug. Fuse covers are available from your dealer.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power outlets in your home or the cable is too short to reach a power outlet, then obtain an appropriate safety approved extension lead or consult your dealer.

Should it be necessary to change the mains plugs, this must be carried out by a competent person, preferably a qualified electrician.

If there is no alternative to cutting off the mains plug, ensure that you dispose of it immediately, having first removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply.

WARNING: THIS EQUIPMENT MUST BE EARTHED

IMPORTANT

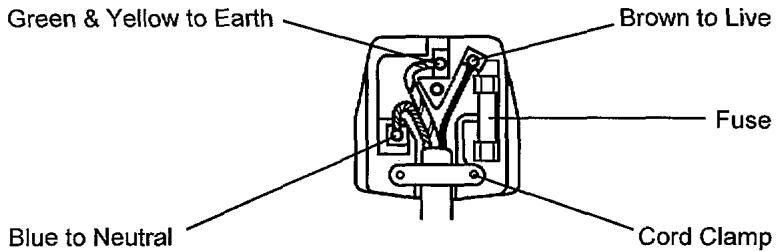

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow = Earth, Blue = Neutral, Brown = Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol ② or coloured GREEN or GREEN and YELLOW.

The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

Before installing, read the chapter "CAUTIONS" carefully.

Checking the contents

Check whether the consignment agrees with the details in the following delivery note. Should you discover that the equipment has been damaged during transport or that the consignment does not correspond to the delivery note, notify your dealer immediately.

Delivery Note: one Monitor one Power Cord this User Manual

NOTE: Keep the original packing material for future reshipment.

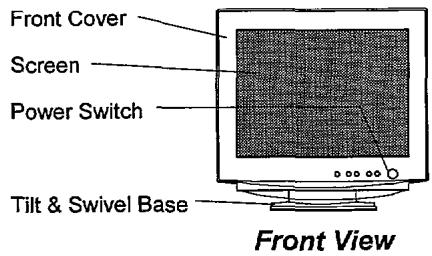

Connecting the monitor

1. Installation

Install the monitor in an suitable environment.

Do not place the monitor on an unstable base.
Do not expose the monitor to rain, moisture, dust, corrosive gases, vibrations, etc. so as to prevent electrical shock or fire hazard.
Avoid placing the monitor in direct sunlight or near heating appliances.

2. Signal Cable Connection

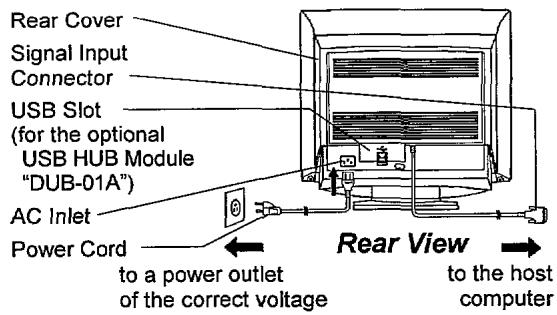

Insert the Signal Input Connector of the monitor to the host computer, with attention to it's suitability, and secure the screws on the connector shell firmly.

3. Power Cord Connection

(1) Make sure to use the power cord meeting the safety standard of the country in which you are using the monitor.
(2) Insert the connector of a power cord to the AC Inlet of the monitor.
(3) Insert the plug of the power cord to a power outlet of the correct voltage.

Before inserting the plug of the power cord into a power outlet of the correct voltage, check that the connection portion of the power cord is clean (with no dust). Then, insert the plug of power cord into a power outlet firmly to avoid electrical shock or fire hazard.

Power ON/OFF

Press the power switch, to switch the power ON or OFF. When power is ON, the power indicator lights.

NOTE:

• Turn on the monitor first, then the computer.
• After turning OFF the power switch, wait at least 5 seconds before restarting the monitor. If this 5 second delay is not observed, the monitor may operate incorrectly.

Brightness/Contrast Adjustment

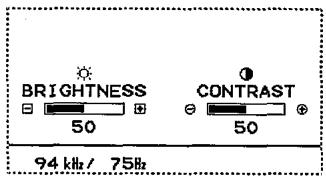

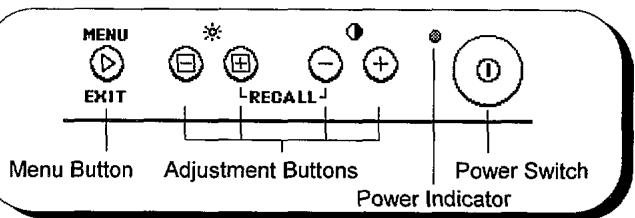

(1) Press one of the adjustment buttons when the OSD (On Screen Display) is not shown. The OSD function "EasyMenu" then shows the condition of Brightness and Contrast.
(2) To adjust, use the adjustment buttons / for Brightness, and / for Contrast.

Other Functions

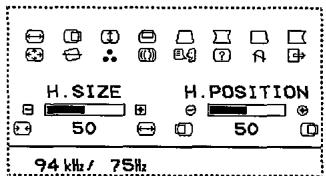

(1) Press the menu button. EasyMenu then shows the function menu and the condition of selected functions.
(2) To select the function, use the menu button.
(3) To execute the selected function, use the adjustment buttons in the Table 1-1 overleaf.

NOTE:

• You can select the EasyMenu language. Use the function "LANGUAGE SELECT".
• If the function "EXIT STORE" is "YES", you can store the adjusted condition automatically at clearing the EasyMenu.
• To clear the EasyMenu, either push the menu switch and hold for 3 seconds, or wait for 8 seconds.

Table 1-1. Adjustment

Item	AdjustmentButton			Function
	☐	☐
☐ BRIGHTNESS	☐			makes Brightness darker.
		☐		makes Brightness brighter.
☐ CONTRAST			☐	makes Contrast darker excluding background.
				\( makes \) Contrast brighter excluding background.
☐ H.SIZE	☐			shrinks horizontally.
		☐		expands horizontally.
☐ H POSITION			☐	moves the position to the left.
				\( moves \) the position to the right.
☐ V.SIZE	☐			shrinks vertically.
		☐		expands vertically.
☐ V.SIZE	☐		☐	moves the position down.
				\( moves \) the position up.
☐ TRAPEZOID	☐			shrinks the top side, and expands the bottom side.
		☐		expands the top side, and shrinks the bottom side.
☐ PINCUSHION			☐	curves the left/right sides inward.
				curves the left/right sides outwards.
☐ RIGHT TRAPEZOID	☐			shrinks the right top side, and expands the right bottom side.
		☐		expands the right top side, and shrinks the right bottom side.
☐ RIGHT PINCUSHION			☐	curves the right side inwards.
				curves the right side outwards.
☐ ZOOM	☐			shrinks horizontally and vertically.
		☐		expands horizontally and vertically.
☐ ROTATION			☐	rotates counter clockwise.
				rotates clockwise.

Table 1-1. Adjustment (Continued)

Item	Adjustment Button			Function
	○	○
Colour Menu				changes to the next mode. COLOR SELECT ↓ R (Red) ↓ G (Green) ↓ B (Blue) ↓ COLOR RESET
				changes to the previous mode. COLOR RESET ↓ B (Blue) ↓ G (Green) ↓ R (Red) ↓ COLOR SELECT
COLOR SELECT				changes the colour to the previous mode. USER (if available) → 5000 → 6500 → 9300
				changes the colour to the next mode. 9300 → 6500 → 5000 → USER (if available)
R (Red)				makes the Green and Blue stronger. When the Green or Blue reaches the upper limit, it makes the Red weaker.
				makes the Red stronger. When the Red reaches the upper limit, it makes the Green and Blue weaker.
G (Green)				makes the Blue and Red stronger. When the Blue or Red reaches the upper limit, it makes the Green weaker.
				makes the Green stronger. When the Green reaches the upper limit, it makes the Blue and Red weaker.
B (Blue)				makes the Red and Green stronger. When the Red or Green reaches the upper limit, it makes the Blue weaker.
				makes the Blue stronger. When the Blue reaches the upper limit, it makes the Red and Green weaker.
COLOR RESET				no effect. (NO)
				cancelled the currently adjusted colour, and calls the colour condition of the previously selected colour mode. (YES)
SCREEN (Screen Menu)				changes to the next mode. H.MOIRE ↓ ADJUST (of H.MOIRE) ↓ V.MOIRE ↓ ADJUST (of V.MOIRE) ↓ H.CONV. ↓ V.CONV.
				changes to the previous mode. V.CONV. ↓ H.CONV. ↓ ADJUST (of V.MOIRE) ↓ V.MOIRE ↓ ADJUST (of H.MOIRE) ↓ H.MOIRE
H.MOIRE				stops the horizontal moire changing circuit. (OFF)
				⊕ operates the horizontal moire changing circuit. (ON)
ADJUST				makes the operation of the horizontal moire changing circuit weaker.
				⊕ makes the operation of the horizontal moire changing circuit stronger.
V.MOIRE				stops the vertical moire changing circuit. (OFF)
				⊕ operates the vertical moire changing circuit. (ON)
ADJUST				makes the operation of the vertical moire changing circuit weaker.
				⊕ makes the operation of the vertical moire changing circuit stronger.
H.CONV.				moves the red of image to the left.
				⊕ moves the red of image to the right.
V.CONV				moves the red of image down.
				⊕ moves the red of image up.

Table 1-1. Adjustment (Continued)

Item	Adjustment Button			Function
LANGUAGE SELECT				changes the language to the previous mode. FRANÇAIS (French) ↓ ITALIANO (Italian) ↓ ESPÁÑOL (Spanish) ↓ DEUTSCH (German) ↓ ENGLISH
				changes the language to the next mode. ENGLISH ↓ DEUTSCH (German) ↓ ESPÁÑOL (Spanish) ↓ ITALIANO (Italian) ↓ FRANÇAIS (French)
? OPTION				(See next page.)
DEGAUSS				degauss manually (ON). Use this function only when you see colour impurities on the screen after turning ON the monitor. Wait for about 10 minutes before repeating the function. Remember, the monitor is automatically degaussed during initial power on.
EXIT STORE				disappear the EasyMenu without storing the adjusted condition. (NO)
				disappear the EasyMenu with storing the adjusted condition. (YES)
? OPTION (Option Menu)				changes to the next mode. OSD H.POS ↓ OSD V.POS ↓ FREQUENCY ↓ HEMISPHERE
				changes to the previous mode. HEMISPHERE ↓ FREQUENCY ↓ OSD V.POS ↓ OSD H.POS
OSD H.POS				moves the EasyMenu position to the left.
				moves the EasyMenu position to the right.
OSD V.POS				moves the EasyMenu position down.
				moves the EasyMenu position up.
FREQUENCY				enables the frequency indicating function. (NO)
				disables the frequency indicating function. (YES)
HEMISPHERE				set the northern Hemisphere mode. (N)
				set the southern Hemisphere mode. (S)

Recall

To select the factory preset for the current video mode, press buttons and simultaneously and hold for two seconds. This function will reset the current user mode, no other user programmed modes will be affected.

Reset

To reset all user stored settings, turn On the power switch while pressing and simultaneously. All user stored settings will be deleted.

POWER SAVING SYSTEM

This monitor complies with VESA and ENERGY STAR® power saving requirements. The power saving system works only when used with VESA DPMS compliant PC's and/or graphic controllers.

Table 1-2. Power Saving System

VESA DPMS				Power Saving States
Power Saving Mode	Video	H. Sync.	V. Sync.	Power	Power Indicator
ON	Active	Yes	Yes	125 W (typical)	Lighting Green
Stand-by	Blanked	No	Yes	Less than 15 W	Lighting Orange
Suspend	Blanked	Yes	No
Active OFF	Blanked	No	No	Less than 3 W

NOTE:

• When to switch the power Off during the monitor is in Active OFF mode, sometimes the power indicator lighting continues a few seconds. It is not failure.

PLUG & PLAY

This monitor complies with VESA DDC1/2B specifications. Plug & Play is a system, by which computer, peripherals (including monitors), and operating system manufacturers comply with for this user-friendly function. It works when the monitor is connected to DDC ready computer that is running an operating system software that incorporates Plug & Play functionality.

SIGNAL CHECK

Your monitor is equipped with an automatic Signal Verification System. The Table-1-3 below outlines the operation of this system.

Table 1-3. Signal Check

Signal Condition	Indication of EasyMenu	Power Indicator State
Proper signal is detected by the monitor.	The EasyMenu indicates the horizontal frequency and vertical frequency for 5 seconds, if the function “FREQUENCY” is “YES”.	The power indicator lights green.
No Sync. Signal is detected by the monitor.	The EasyMenu indicates the message “POWER SAVE” for 5 seconds after which time the unit will turn into Power Saving Mode.	After 10 seconds, the colour of the power indicator will turn to orange.
A video signal is applied to the monitor that is beyond the monitor scan range.	The EasyMenu indicates the message “INVALID SCAN FREQ.”	The power indicator will be illuminated as a solid green colour.

The following Table 1-4 is provided to assist you in common installation issues.

Table 1-4. Troubleshooting

Symptom	Solution
No power	Verify the power cord is installed correctly. Press the power switch.
No picture	Increase Contrast and Brightness.
No picture and the power indicator lights orange	Check Signal Cable Connection. Check Power Connection to computer.
“POWER SAVE” message appears	Check Signal Cable Connection. Check Power Connection to computer.
“INVALID SCAN FREQ.” meseage appears	Check Signal Cable Connection. Check video input specification.
Wavy or elliptical (moire) pattern appears	Adjust unit with moire control as outlined in the Table 1-1.
Colour is not uniform	Activate Degauss function.
Environmental influences	Check to see that no magnetic appliance such as telephones, subwoofer/speakers, fans, or fluorescent lighting are near the monitor.

CRT

19 inch type picture tube, 0.22 mm horizontal dot pitch, 0.21 mm horizontal mask pitch, Invar shadow mask, Black matrix, Short persistence phosphors, Dark tint, Anti-Reflection coat.

Input Signal

Video : 0.70 Vp-p, Analogue

Sync. : Separate H/V, TTL level

Composite H/V, TTL level

Sync. on Green at 0.30 Vp-p

Synchronisation

Horizontal : 31 - 96 kHz

Vertical : 50 - 180 Hz

Resolution

Horizontal : up to 1600 dots

Vertical : up to 1280 lines

Video Clock Frequency

200 MHz (typical)

Viewable Image Size

18.0 inches (458 mm), diagonal (typical)

Viewable Image Area

Horizontal : 367 mm (typical)

Vertical : 276 mm (typical)

Colour Temperature

9300:Standard colour balance,9300K

6500:Standard colour balance,6500K

5000:Standard colour balance,5000K

USER : User defined

Power Supply

AC 100 - 120 / 200 - 240 V (automatically selected)

Power Consumption : 125 W (typical.) (provided with power save circuit)

Warm-up Time

30 minutes to reach optimum performance level.

Dimensions / Weight

448 (W) x 442 (H) x 395 (D) mm / 22.0 kg (approx.) (including Tilt & Swivel Base)

Environmental Condition

Operating Temperature : 5 to 35^

Operating Relative Humidity : 10 to 80 % without condensation

Storage Temperature : -20 to 60^

Storage Relative Humidity : 10 to 90 % without condensation

USB Function (optional)

USB HUB Module "DUB-01A" with 4 downstream and 1 upstream ports.

Standard Settings

Microprocessor-based preset functions can store 26 sets of geometry settings including the standard settings. The following industrial standard settings have been preprogrammed by the factory.

Table 1-5. Standard Settings

No.	Video Mode Name (with Resolution and Vertical Frequency)				Horizontal Frequency	Video Mode
1	VGA	640 ×	400	-70 Hz	31.47 kHz	VGA
2	VESA	800 ×	600	-85 Hz	53.67 kHz	VESA
3	VESA	1024 ×	768	-85 Hz	68.68 kHz	VESA
4	VESA	1280 ×	1024	-85 Hz	91.15 kHz	VESA
5	VESA	1600 ×	1200	-75 Hz	93.75 kHz	VESA

NOTE:

• Input signals with approximately the same frequencies may be regarded as the same signal.
• The following horizontal timing conditions are recommended (at sync. H, V separate or H/V composite).

for 31kHz - 55kHz horizontal frequency:

Horizontal front porch should be more than 0.1 s
Horizontal sync. width should be within 1.0 - 3.8 s
Horizontal back porch should be more than 1.2 s
Horizontal blanking width should be more than 3.5 s

for 55kHz - 96kHz horizontal frequency:

Horizontal front porch should be more than 0.1 s
Horizontal sync. width should be within 1.0 - 3.0 s
Horizontal back porch should be more than 1.1~ s
Horizontal blanking width should be more than 2.4~ s

• The following vertical timing conditions are recommended.

Vertical front porch should be more than 10~ s

Vertical sync. width should be less than 200~ s

Vertical back porch should be more than 400~ s

Vertical blanking width should be more than 450~ s

• In case the front or back porch is extremely long, or the data display time is extremely short, it may not be able to set the expected size and position.

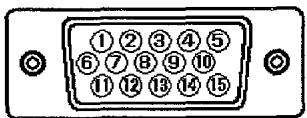

Pin Assignment

Signal Input Connector of the Monitor

Table 1-6. Pin Assignment

Pin No.	Signal
1	Red Video
2	Green Video (Sync. optional)
3	Blue Video
4	No pin
5	No connection
6	Red Ground
7	Green Ground
8	Blue Ground
9	No connection
10	Ground
11	No pin
12	Bi-directional Data [SDA]
13	H.Sync. (or H/V)
14	V.Sync. [VCLK]
15	Data Clock [SCL]
