USER MANUAL AVTL 83 HOTPOINT-ARISTON

Unpacking and levelling, 2

Electric and water connections, 2-3

The first wash cycle, 3

Technical details, 3

Washing machine description, 4-5

Control panel, 4

How to open and shut the drum, 5

Leds, 5

Starting and Programmes, 6

Briefly: how to start a programme, 6

Programme table, 6

Personalisations, 7

Setting the temperature, 7

Setting the spin cycle, 7

Functions, 7

Detergents and laundry, 8

Detergent dispenser, 8

Bleach cycle, 8

Preparing your laundry, 8

Special items, 8

Woolmark Platinum Care, 8

Precautions and advice, 9

General safety, 9

Disposal, 9

Saving energy and respecting the environment, 9

Care and maintenance, 10

Cutting off the water or electricity supply, 10

Cleaning your appliance, 10

Caring for your appliance door and drum, 10

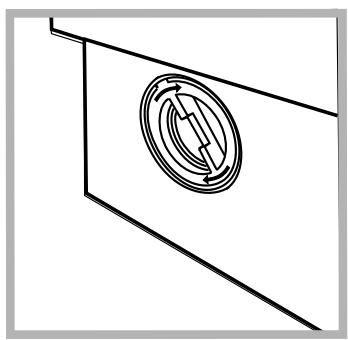

Cleaning the pump, 10

Checking the water inlet hose, 10

Cleaning the detergent dispenser, 10

Troubleshooting, 11

Service, 12

Before calling for Assistance, 12

ARISTON

!Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

!Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

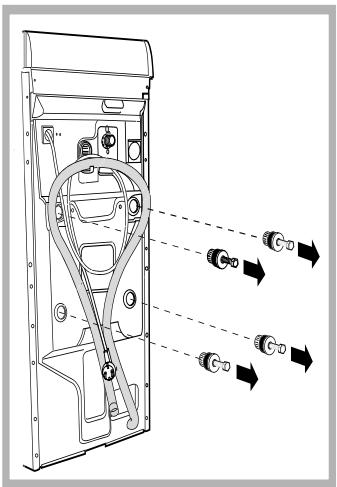

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten the shorter ones at the top.

!Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.
2. If the floor is not perfectly level, compensate for any unevenness by tightening or

loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

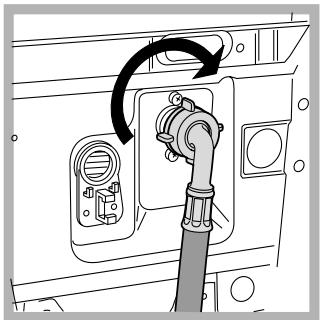

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure).

Before making the connection, allow the water to run freely until it is perfectly clear.

1. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

2. Make sure there are no kinks or bends in the hose.

The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).
If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

Connecting the drain hose

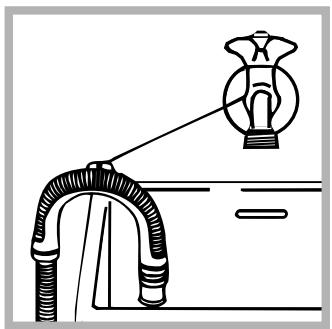

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100~cm from the floor;

underwater.

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be

! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

• the socket is earthed and in compliance with the applicable law;
• the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);
• the supply voltage is included within the values indicated on the Technical details table (on the right);
• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.
  ! The washing machine should not be installed in an

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

! When the washing machine is installed, the main socket must be within easy reach.
! Do not use extensions or multiple sockets.
The power supply cable must never be bent or dangerously compressed.
The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ programme without a pre-wash cycle.

Technical details
Model	AVTL 83
Dimensions	40 cm wide 85 cm high 60 cm deep
Capacity	from 1 to 5 kg
Electric connections	voltage 220/230 Volts 50 Hz maximum absorbed power 1850 W
Water connections	maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 42 litres
Spin speed	up to 800 rpm
Control programmes according to IEC456 directive	programme 3; temperature 60°C; run with a load of 5 kg.
CE	This appliance is compliant with the following European Community Directives: - 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments - 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments - 2002/96/CE

Washing machine description

GB

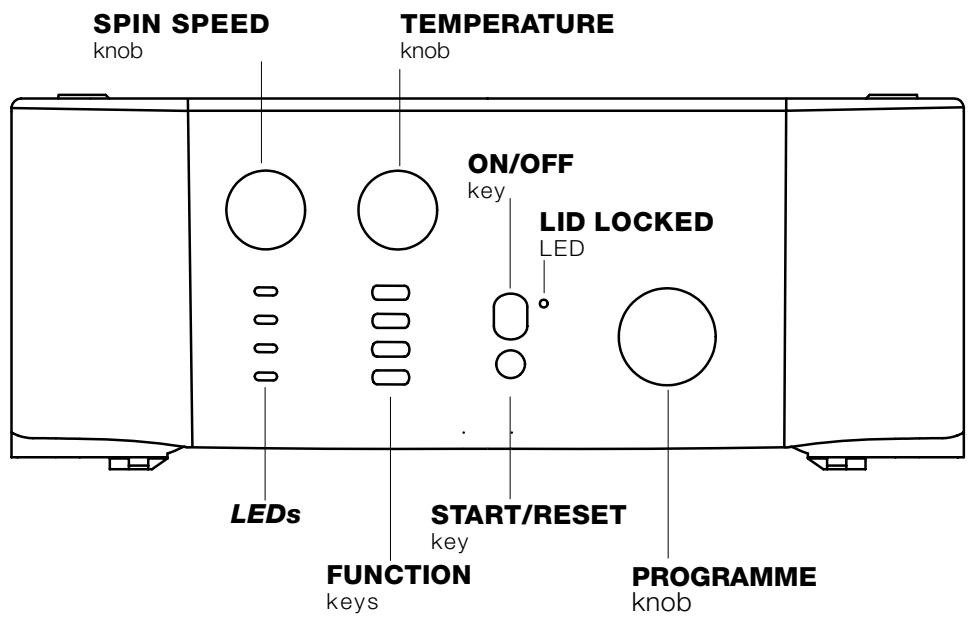

Control panel

Detergent dispenser to add detergent and fabric softener (see page 8).

LEDs to find out which wash cycle phase is under way. If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 5).

SPIN SPEED knob to set the spin speed or exclude the spin cycle completely (see page 7).

FUNCTION keys to select the functions available. The button corresponding to the function selected will remain on.

TEMPERATURE knob to set the temperature or the cold wash cycle (see page 7).

ON/OFF key to turn the washing machine on and off.

START/RESET key to start the programmes or cancel incorrect settings.

ON-OFF/LID LOCK led ,to find out whether the washing machine is on (flashing) and if the lid may be opened (see page 5).

PROGRAMME knob to set the programmes (see page 6).

The knob stays still during the cycle.

ON-OFF/LID LOCK led:

If this LED is on, the appliance Lid is locked to prevent it from being opened accidentally; to avoid any damages, you must wait for the lamp to flash before you open the Lid.
The rapid flashing of the ON-OFF/LID LOCK Led together with the flashing of at least one other LED indicates there is an abnormality. Call for Technical Assistance.

How to open and to close the drum

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Leds

The LEDs provide important information.

This is what they can tell you:

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Prewash

Wash

Rinse

Spin cycle

Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

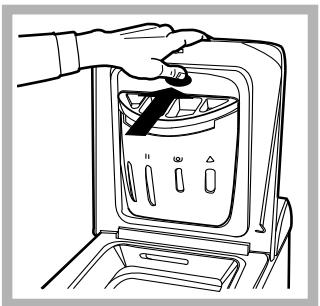

A) Opening (Fig. 1).

Lift the external lid and open it completely.

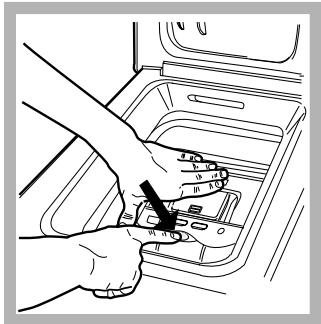

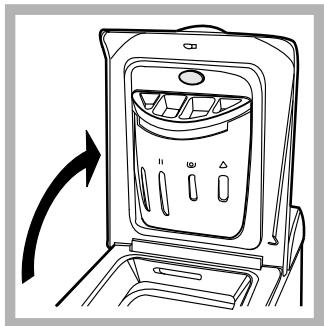

B) Then open the drum using both hands as shown in Fig. 2:

• press the button indicated by the arrow in Fig. 2 lightly downwards, with one hand firmly resting on the doors to prevent them from suddenly opening and hurting your fingers;
• therefore follow the appliance doors along as these unhook and open easily.

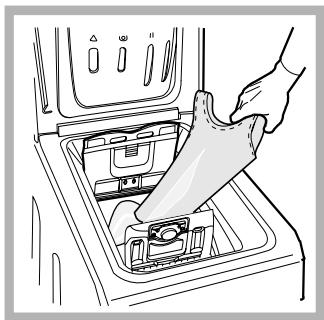

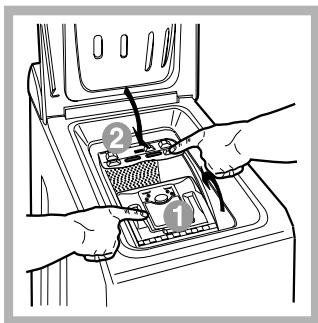

C) Loading the washing machine. (Fig. 3).

• close the drum fully by first shutting the front door followed by the rear one;
• then ensure the hooks on the front door are perfectly housed within the seat of the rear door;
• after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;
• finally shut the external lid.

Function keys

The FUNCTION KEYS also act like LEDs.

When a function is selected, the corresponding button is illuminated.

If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled.

If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

Briefly: starting a programme

1. Switch the washing machine on by pressing button All the LEDs will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.
2. Load your laundry into the washing machine, add the detergent and any fabric softener (see page 8) and shut the appliance door.
3. Set the PROGRAMME knob to the programme required.

4. Set the wash temperature (see page 7).

5. Set the spin speed (see page 7).

6. Start the programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.
7. When the programme is finished, the ON-OFF/DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button .

Programme table

Type of fabric and degree of soil	Program-mes	Wash temper-at.	Detergent		Fabric softener	Bleaching /option Bleach	Cycle length (minutes)	Description of wash cycle
			Pre-wash	Wash

Cotton

Extremely soiled whites (sheets, tablecloths, etc.)	1	90°C	●	●	●		137	Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Extremely soiled whites (sheets, tablecloths, etc.)	2	90°C		●	●	Delicate/ Traditional	129	Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	3	60°C		●	●	Delicate/ Traditional	144	Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	4	40°C		●	●	Delicate/ Traditional	78	Wash cycle, rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	5	30°C		●	●	Delicate/ Traditional	70	Wash cycle, rinse cycles, intermediate and final spin cycles

Synthetics

Heavily soiled fast colours (baby linen, etc.)	6	60°C		●	●	Delicate	79	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Heavily soiled fast colours (baby linen, etc.)	7	50°C		●	●	Delicate	75	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Delicate colours (all types of slightly soiled garments)	8	40°C		●	●	Delicate	65	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Delicate colours (all types of slightly soiled garments)	9	30°C		●	●		32	Wash cycle, rinse cycles and delicate spin cycl

Delicate

Wool	10	40°C		●	●	Delicate	45	Wash cycle, rinse cycles and delicate spin cycle
Very delicate fabrics (curtains, silk, viscose, etc.)	11	30°C		●	●		52	Wash cycle, rinse cycles, anti-crease or draining cycle

PARTIAL PROGRAMMES

Rinse	®				●			Rinse cycles and spin cycle
Delicate rinse cycle	®				●			Rinse cycles, anti-crease or draining
Spin cycle	®							Draining and heavy duty spin cycle
Delicate spin cycle	®							Draining and delicate spin cycle
Draining	®							Draining

Notes

For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily 30^ (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30^ ), you can wash different fabrics together (except for woolen and silk items), with a maximum load of 3kg .

We recommend the use of liquid detergent.

(1) Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6).

The temperature can be lowered, or even set to a cold wash (a).

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:

Programmes Maximum spin speed

Cottone	800 rpm
Synthetics	800 rpm
Wool	600 rpm
Silk	no

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol . The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;
2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Function	Effect	Comments	Enabled with programmes:
Super Wash	Allows for an impeccable wash, visibly whiter than a standard Class A wash.	This function is incompatible with the RAPID function.	1, 2, 3, 4, 5, 6, 7, 8
Easy iron	This option reduces the amount of creasing on fabrics, making them easier to iron.	When this function is set, programmes 6, 7, 8, 11 and Delicate rinse will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED will flash. - to conclude the cycle, press the START/RESET button; - to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button.	All programmes except for 1, 2, 9, 10 and Draining.
Rapid	Cuts the duration of the wash cycle by 30%.	This function is incompatible with the SUPER WASH function.	1, 2, 3, 4, 5, 6, 7, 8 Rinses
Extra Rinse	Increases the efficiency of the rinse.	Recommended when the appliance has a full load or with large quantities of detergent.	1, 2, 3, 4, 5, 6, 7, 8, and Rinse cycles.

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may

in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

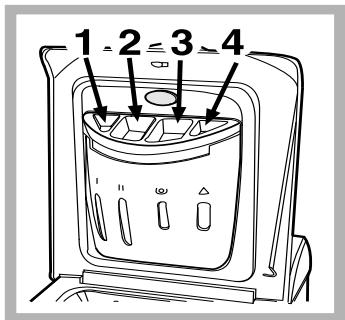

compartment 1: Detergent for pre-wash

compartment 2: Detergent for the wash cycle (powder or liquid)

It is recommended that you place liquid detergent directly into the compartment using the appropriate dosing cup.

compartment 3: Additives (softener, etc.)

When pouring the softener in compartment 3, avoid exceeding the "max" level indicated.

The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see page 10.

compartment 4: Bleach

! Do not use hand wash detergent because it may form too much foam.

Bleach cycle

Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool.

When pouring in the bleach, be careful not to exceed the "max" level indicated on compartment 4 ..

To run the bleach cycle alone, pour the bleach into compartment 4 and set the Extra Rinse option

Preparing your laundry

• Divide your laundry according to:

• the type of fabric/the symbol on the label.

• the colours: separate coloured garments from whites.

• Empty all pockets and check for loose buttons.

• Do not exceed the weight limits stated below, which refer to the weight when dry:

Sturdy fabrics: max 5 kg

Synthetic fabrics: max 2.5 kg

Delicate fabrics: max 2 kg

Wool: max 1 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1,200 g
1 towel 150-250 g

Special items

Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically.

Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2 - 3kg , repeating the rinse cycle once or twice and using the delicate spin cycle.

Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites.

Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Woolmark Platinum Care

As gentle as a hand wash.

WOOLMARK PLATINUM CARE

Ariston sets a new standard of superior performance that has been endorsed by The Woolmark Company with the

prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.0303):

Set programme 10 for all "Hand wash" garments, using the appropriate detergent.

(max load 1 kg.)

! The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for non-professional, household use and its functions must not be changed.
• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not open the detergent dispenser while the appliance is in operation.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
• Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on

human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

• Disposing of an old washing machine: before scrapping your appliance, cut the power supply cable and remove the appliance door.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60^ instead of 90^ or one at 40^ instead of 60^ will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser by raising it and pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

Caring for your appliance door and drum

• Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance.

Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

! Make sure the wash cycle has ended and unplug the appliance.

To recover any objects that have fallen into the pre-chamber:

1. remove the plinth at the bottom on the front side of the washing machine by pulling from the side with your hands (see diagram); (see figure); 2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;
2. clean the interior thoroughly;
3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

How to clean the detergent dispenser

Disassembly:

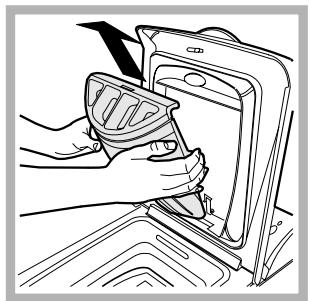

Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1).

Cleaning:

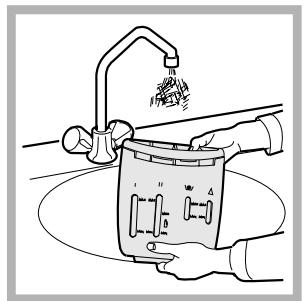

Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them.

Reassembly:

Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Fig.1

Fig. 2

Fig. 3

Fig. 4

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Problem

The washing machine won't start.

The wash cycle won't start.

The washing machine fails to load water.

The washing machine continuously loads and unloads water.

The washing machine does not drain or spin.

The washing machine vibrates too much during the spin cycle.

The washing machine leaks.

The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED.

There is too much foam.

Possible causes/Solution:

• The appliance is not plugged into the socket, or not enough to make contact.

• There has been a power failure.

• The appliance Lid is not shut properly. The Lid locked Led flashes.

• The button has not been pressed.
• The START/RESET button has not been pressed.

• The water tap is not turned on.

• The water inlet hose is not connected to the tap.
  The hose is bent.

• The water tap is not turned on.
• There is a water shortage.
• The water pressure is insufficient.

• The START/RESET button has not been pressed.

• The drain hose is not fitted between 65 and 100cm from the floor (see page 3).

• The free end of the hose is underwater (see page 3).

• The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

• The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6).

• The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 7).
• The drain hose is bent (see page 3).

• The drain duct is clogged.

• When the machine is installed, the locking screws for the oscillating assembly are still in place. Remove the screws (see page 2).

• The washing machine is not level (see page 2).

• The washing machine is closed in between furniture cabinets and the wall (see page 2).

• The water inlet hose is not screwed on correctly (see page 2).

• The detergent dispenser is obstructed (to clean it, see page 10).

• The drain hose is not secured properly (see page 3).

• Call for Assistance because this means there is an abnormality.

• The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like).

GB

Before calling for Assistance:

• Check whether you can solve the problem on your own (see page 11);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

If the machine has been installed or used incorrectly, you may be charged for the maintenance callout service.
! Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem;
  the appliance model (Mod.);
  the serial number (S/N);

This information can be found on the data plate situated on the rear of the washing machine.

Français

AVTL 83

Sommaire

Installation, 14-15

Raccordements hydrauliques

pression maximale 1 MPa (10 bar)
pression minimale 0,05 MPa (0,5 bar)
capacité du tambour 42 litres

Vitesse d'essorage

Causes / Solutions possibles:

HnKaTopbI COO6aHT NOJb3OBaTeJIb BaxHbIE CBeDeHn.

3NaueHnIHnKaToPoB:

Tekyzaa p3a zukla:

B npocece zukla ctnpkn HndkaTopby 6ydyT 3aropatbcra Odn 3a dpyrnM, noka3bBaJ a3y BblnoJIHeHn nporpaMMbl:

PpeBapntbHaTcInpKa

CTnnpka

Полockане

OTXNM

Примechанe:В поцecce слва 3aropntсиндikatop,coOTbETCTByUOsiNицКу OTЖIMa.

A)OTKpbIBAHNE(pnc.1).

IOnHIMnTe BHeuHIOU KpbIuKy I NpIoHocTbO ee OTKpoIte.

6) 3aTeM, mCNoIb3y o6e pyKn, OTKpoIte 6apa6aH, KaK noka 3aHo Ha pnc. 2:

• Haxmnte KhoNky, obo3naeHHyO cTpeKoHa pnc.2, cner Ka Bn3, dpyroynpko npndepkmbaBdEpcbl (TaK bI n36ejnte BHe3anHoro OTKpbBaHnB DBePOK n 3aueMlEHNn NaNbceB); DBePbI paCenTcN JLeKo OTKpoOTcN.

B) 3AΓPy3KA CTnPAJIbHOJ MAUINHbl (pnc. 3).

Γ)3AKPbIBAHNE(pnc.4).

• 3aKpoIte PONHocTbIO 6apabAH, onyckA CHaHaI nepeHIO DBePcU, a 3aTEM 3aDHIIO;
• 3aTeM yIOCTOBepbTecb, YTO KpIOKn IpepeHne IDbepcI ToHO BOJIN B IpeHa3NaueHHbIe MeCt a Ha 3aDHeN DBePcE;
• NOCNE TORO, KAK KpIOKN 3aUeJIKNHUYINCb, HAnKMITE O6e DBePcbl CNeRkA Bn3, YTO6bI y6eDNTbcra OHN 3aKpbITb I NIOTHO;
  -И,надоHeц,ЗakpoTe BHeUHIOU KpbIuKy.

KhONKn BbIbopa yHKcun

KHONKN BbIBOPA ΦYHKUNI TaKKe YBnIOTcN HnIKaTOPAMN.

Pn BbIbope yHKcnn 3aropaetcra COOTBETCTByuOua KhoNka.

Ecnn BbIbpaHnHa cyHKnra YBnIeTc HecOBMeCTmOc 3aDaHHo nporpamMo, KHOJa 6yTe T MIRaTb, N TaKa yHKnra He 6yTe AKTNBnPOBaHa.

Ecnn6yndT BbIbpaHa fynHKnna, HecOBmecTnMa c npyro, paHee Bbl6paHHoN fynHKnne, OCTaHETcBKnIOueHHoT OJIbKO NocJeDnra Bbl6paHHa fynKnna.

3anyck MaunHbI. PporgamMbI

KpaTkne nHcTpyKcUn: POpJOk 3aynycka nporpaMMbl

1. BkIIOHnTe CInpaJIbHyO MaUINHy, HaxaB Ha KHOJky ⑥. Bce INdIKaTOPbI 3aOpTcRHa HeCKoJIbKO CeKHyN, 3aTeM nOracHyT, INdJaKTOp BKJIIOUeEHNE/JIOK 3A5JOKnPOBAH NaHET MmraTb.
2. 3arpy3nte 6eIbe B 6apa6aH, 3acbIbTe CTnpaIbHOe BeueCTBO I Do6aBKn (CMOTpnte cTp. 32), 3akpoTe KpbIuKn 6apa6aHa n BHeuHn JIOK.
3. Bb6paTb npn nmoOny pykOaTkn BbIbopa IPOrPAMM

HyXHyIO npOrpaMMy.

1. BbIbpaTb TeMnepaTpy CTnpkn (cM. cmp. 31).
2. Bbl6paTb ckopoctb OTKIMa (cM. cmp. 31).
3. 3anycntte nporpaMMy, haxaB KhoNky IYCK/C5POC (Start/Reset).
   IЯ OTmeHbI 3anyska DepxKte HaxaToN KhoNky IYCK/ CBPOC (Start/Reset) B TeueHne 2-x cekyHd.
4. По завершени рограмьи Ид ВКПIOЧЕНЕ/ЛЮК 3АБЛОКИPOBAH 3amuraet, сгнаниз用药, утOMЖно OTkpbl TB JIOK. Bынтуб eлbe N OCTaВNTь JIOK NOЛуOTkpblIM ДЯ cyшк Бараза ha. BыклioчntbCTираJIbHyO MaSHInHy, habkab KHOINy

Ta6nua nporpamM

O6hApyKeHHa HeNCppaBHOCTb:

CTnpaIbHa MaShHa He BKJIIOUcaETc.

Zukl cTnpKn He 3anyckaetc.

Bo3MOxHbIe npuHHbI / MeToDbl yCtpaHeHn:

Bnka He BCTaBHeHa B po3Etky IIN BCTaBHeHa pIoXO, He o6ecneHbA KoHTaKaT.
B DOME OTKNHOeHO 3NEKTPnueCTBO.

• JIIOK IIIOXO 3aKpbIT (Mnraet INHДИКaTOP BLOKINPOBKNJIIOKA).
  He 6bIHaKaTa KOnIka
• He 6bla naxkata kHonka NYCK/C5P0C (Start/Reset).
  3aKpbIT KpaH IODaHu BObl.

CTnpaIbHa MaunHa He 3aJIbBa-et BODy.

3aJIINBHOI WIIaHr He NODcoEINHeN K KpaHy.
- LlanaHr nepexkaT.
3aKpbIT KpaH IOdaH NBObl.
B DOME HET BOДbl.
HeoTaToHoe BoOpnoBoDHOe daBJeHne.
- He 6bla naxkata kHonka NYCK/C5P0C (Start/Reset).

CtnpaBna MaunHa HenpepbIBHO 3aHbAet N CnBaET BODy.

ClnBHOJIJIaHr pacnoJIOXeH HIXe 65 IIN BbIe 100 cm. ot noJa (cM. c. 27).
KoheCnBHOI JNaHra nOpyKeH B Body (cM. c. 27).
- HacteHHbI CNiB He IMeET CInBHO Tpy6bl.

EcIn CInBHOI JIaHr BCTPOEH B KaHaJIIN3aUIO, IMeIte BBNdy, YTO Ha BEpxHIX 3TaJax MoKcET CO3dAbaTbcr CnOHHbI 3oΦeKT — MaIIHa OJHOBpeMeHHO CInBaET I 3aJIbAeT BOy. IIN pPeIOTBpaUeHnI POIo6HOrO 3oΦeKt aYctaHABNI- BaETcCneUaJIbHbIKJIaNaH (aHTncfOH).

CtnpaJIbHaMaIshHaHe npOn3Bo-DNT CInB N OTXIM.

• BbI6paHna nporpamMa He npEduyMcAtpmbaET cNIB BOdbI — dIra HEKOtOpbIX nporpamM Heo6xoDmMo BKJIHOuHTb cNIB BpyHyO (CMc.30).
• AKTUNBn3npoBaHa DOnOpHnTeJbHna FyHKnJa IeKgA rnaKka: Ia 3aBepSeHnI nporpaMMbI HaxMnTe KhoNky PNYCK/C6POC (Start/Reset) (cM. c. 31).
  CnBnoI nnHr nepexkat (cm. c. 27) nIIN 3acopen.
  3acopBkaHaJIIN3aUIN.

CnIbHaBn6paun npn OTxKmE.

• Пи установке CTирально Maшинь 6аразан 6ыл ра3блорован Heпра-Bильно (См. c. 26).
• CtrnpaIbHaMaIiHa nIIOxo BblpOBHeHa (cM. c. 26).
• 3a3op Mekdy MaunHOH n CteHO/Me6bIy HeIOCTaTOye (cM. c. 26).

PpoTeuBvBoI n3 CTnpaJbHoi MaunHbl.

• Плнохозakpenlenзаивоншанг (raикага на концшларна нелnotho 3aTaytaинелрьну установпера пokладka (cM. c. 26).
• PacnpedeJInteIb MOHux CpeCTB 3a6NT OCTaTKAMN MOHux CpeCTB (o YnCTKe pacnpedeJInteIg cm. c. 34).
  -ПлохоЗakpenlenсclINBHOJшпанг (cM.c.27).

ИнданkaTop BKЛIOUЧЕHNE/ЛIOK 3АБЛОКИPOBAH ча tcу мигет OДНовремен c ЛобьIM дугим ИнданkaTopom.

• 06paTntecb B ABTOPn3OBAHHbI CepBnCHbI LcHtp, TAK KAK 3TO O3Haayet HeNCnPpABHocTb.
• IcnoJIb3yeTcMoIooIee cpeICTBO, HeNoIoxOJaIooIee IJnABTOMaTHUeCKNX CTnpaJIbHbIX MaunH C ppoHTaJIbHOJ 3aRpy3KoJ.
• Передзировka моюцero сретва.

Ecnu nocne npoeepku mauuha npodonkaem paobommb He dojnxbIM o6pa30m, 6pbamumecb e Aemopu3oehnbl Cepucbui cehmp 3a nomoubio. (cm. c. 36)

Ipeed Tem kak o6paTntb8 B ABTopn3ObaHHb CepBnchbI cHTp:

• Y6eɪntecb, yTO Bbl He MoXeTe yCTpaHNTb HEnCnpaBHOCTb CAMOCToTIELBO (cM. c. 35).
  3anyctnte nporpaMMy NOBTOPOI npOBepKn IcnpaBHOCTH MaunHbl.
  B npotNBOM clyuae o6paNTeCb B ABTOpN3OBaHHbI CepBnCHbI ueHtp no TeJefoHy, yka3aHHOMy B rapaHTnHOM DOKymente.
  ! He noIb3yImecb ycnyaMu Iuu, He yIOnHMOueHHbIX PpuO3eOdumelm. Ipu pemOHme mpe6yIme uCnoIb3oBaHua opuuaHaNbHbIX 3aNaChbIX Yacmei.

При образецнив АВториЗовнив Сервuchни сентр сообuntе:

TIN HENCIPaBHOCTN;
Homep rapaHTnHOro DOkUMeHTa (cePBnCHOH KNHXKN, CepBnCHOrO cepTnΦnKaTa n T.I.).
MoJeIb MaunHb (MoJ.) n cepnHbI Homep (S/N), yka3aHHbIe B INΦopMaunHOHou TabJIuKpe, paCnoJIOXeHNo Ha 3aDHe N aHeJIc CTnpaJIbHO MauHbI.

Espanol

Sumario

Instalación, 38-39

WOLUMARK PLATINUM CARE
