Product type	Refrigerator-freezer
Brand	Beko
Model	CFM4340W
Dimensions (H x W x D)	185.5 x 59.5 x 63.0 cm
Net weight	70 kg
Power supply	220-240 V, 50 Hz
Energy class	A+
Annual energy consumption	241 kWh
Total net capacity	340 L
Net refrigerator capacity	240 L
Net freezer capacity	100 L
Number of shelves	5 glass shelves
Defrost type	Automatic
No Frost function	Yes
Interior lighting	LED
Door reverse	Possible (reversible)
Climate class	SN-ST (10 °C to 38 °C)
Noise level	39 dB(A)
Water connection	No
Warranty	2 years
Year of manufacture	2018

Frequently Asked Questions - CFM4340W BEKO

How to adjust the refrigerator temperature?

The temperature is adjusted via the control panel. Use the Setting button to choose between 2 °C and 8 °C. The ideal temperature is 4 °C.

How to clean the interior of the refrigerator?

Unplug the appliance and empty it. Clean with a soft cloth dampened with warm water and neutral detergent. Rinse and dry. Do not use abrasive products.

How to reverse the refrigerator door?

Unscrew the upper and lower hinges, remove the door, then reassemble it on the other side. Follow the detailed instructions in the user manual.

What to do if the refrigerator stops cooling?

Check that the appliance is plugged in and the socket works. Ensure the ambient temperature is not too high. Clean the condenser. If the problem persists, contact after-sales service.

The refrigerator makes noise, is that normal?

Yes, some noises are normal: the compressor, fan, or refrigerant circulation. If the noise is abnormal (grinding, clicking), check that the appliance is level and not touching furniture.

How to defrost the freezer?

This appliance is equipped with the No Frost system; defrosting is automatic. No action required. If ice accumulates, check that the door is properly closed.

Tips for saving energy?

Place the appliance away from heat sources. Open the door as little as possible. Let food cool before storing. Set the temperature to 4 °C for the refrigerator and -18 °C for the freezer.

How to store food for better preservation?

Place meat and fish in the coldest areas (top). Vegetables in the crisper drawer. Dairy products on middle shelves. Do not overload the appliance.

What to do in case of a power outage?

Do not open the door. Food stays cold for about 4 hours. After a long outage, check each item. If frozen food has thawed, consume it quickly.

Where to find spare parts for this model?

Spare parts are available from authorized Beko dealers or online on specialized sites. Use the model reference CFM4340W to identify parts.

USER MANUAL CFM4340W BEKO

CFM 4340 W

EN - DE - FR - TR - ES - PL - RO - IT - NL - FI - SV - SR - AR

CONTENTS

ENGLISH 6-10

DEUTSCH 11-18

FRANÇAIS 19-26

TÜRKÇE 27-36

ESPAÑOL 37-46

POLSKI 47-57

ROMANIAN 58-69

ITALIANO 70-77

NEDERLANDS 78-84

SUOMI 85-89

SVENSKA 90-94

СРПСКИ 95-99

EN	OPERATION CLEANING AND CARE
DE	BETRIEB REINIGUNG UND PFLEGE
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
TR	KULLANIM TEMIZLEME VE BAKIM
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA
RO	UTILIZARE CURĂ AREA ȘI ÎNGRIJIREA
IT	UTILIZZO PULIZIA E CURA
NL	BEDIENING REINIGING EN ONDERHOUD
FI	KÄYTTÖ PUHDISTUS JA HOITO
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
SR	ЭКСПЛУАТАЦИЯ ČİŞĆENJE I NJEGA
AR	التنظيف والعنابة التشفيل

Please read this user manual first!

Dear Customers,

Thank you for selecting a Beko product. We hope that you get the best results from your product, which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product, and keep it as a reference for future use. If you hand over the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

1. Filter basket cover
2. Filter basket
3. Water level indicator
4. Water tank
5. Drip-stop
6. Glass jug
7. On/Off button
8. Warming plate

Accessories

Coffee measuring spoon

Meanings of the symbols

The following symbols are used in the various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Materials are intended to be in contact with food.

Technical data

Power supply: 220-240 V~, 50-60Hz

Power: 900 W

Auto shut off: 30 min

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international safety standards. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. • Always keep the appliance and its cord out of reach of children aged less than 8 years.

• Do not use it if the power cable or the appliance itself is damaged. Contact an authorised service.
• This appliance is intended to be used for household purposes in places such as:
• Shops, offices and personnel kitchens in other working environments,
• Farmhouses,
• By customers in hotels, motels and other residential places,
• Places for sleep and breakfast.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• For additional protection, this appliance should be connected to a household faulty current protection switch with no more than 30 mA.
• Use the appliance with a grounded outlet only.
• Do not use the appliance with an extension cord.
• Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage.

1 Important instructions for safety and environment

• Do not touch the appliance or its plug with wet or damp hands when the appliance is plugged in.
• Do not pull the power cable when unplugging the appliance.
• This appliance is intended for private domestic use only and is not suitable for professional-catering purposes.
• Never fill the appliance above the maximum level indicator, boiling water may splash out.
• Do not fill the kettle below the minimum level indicator.
• Do not open the lid while the water is boiling.
• Position the lid of the appliance in a way that the hot steam is not directed to you.
• Hold the appliance by the handle only.
• If water does not drip from the filter basket during operation, unplug the appliance and leave it to cool for 10 minutes, then open the filter cover and check it.
• Never operate the appliance without any water inside it. Always use the appliance on a stable and flat surface.
• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• Unplug the appliance before cleaning. After cleaning, dry the appliance and all parts before connecting it to mains supply.
• Do not immerse the appliance, or power plug in water or any other liquids.
• Never use the appliance in or near to combustible or inflammable places and materials.
• If you keep the packaging materials, store them out of the reach of children.
• The coffee maker shall not be placed in a cabinet when in use.

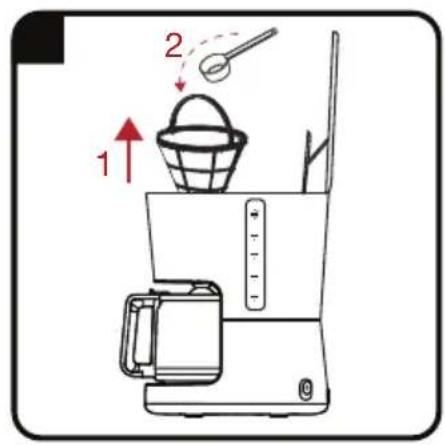

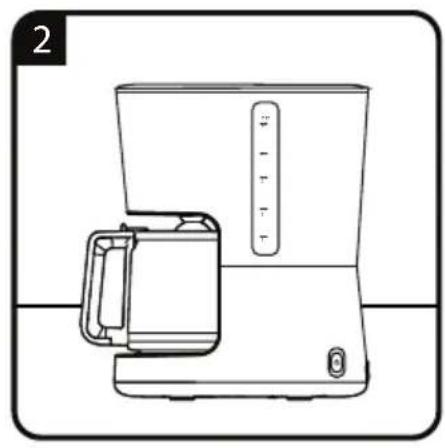

2 Operation

For the good coffee taste it is suggested to operate the appliance with at least 4 cups coffee serving.

For improved heat retention we recommend that you rinse the pot with hot water before starting the brewing process.

Use only clean, cold, and fresh drinking water.

There is a drip hole on the back of the water reservoir to prevent exceeding the capacity of the coffee maker. If you add too much water, it will drip out from the back of the appliance.

WARNING: If the glass jug (6) is not placed accurately, the drip-stop (5) function will not function properly. It could cause hot water or hot coffee to overflow.

The brewing process can be stopped at any time by pushing the On/Off button (7) again.

The appliance is equipped with a drip-stop (5) located underneath the filter basket (2) and enables you to briefly remove the glass jug (6) to pour coffee before the water has finished running through the machine.

WARNING: Make sure to place the glass jug (6) on the warming plate (8) quickly (max. 30 seconds). Otherwise the brewed coffee from the filter could overflow. If you want to use the glass jug for more than 30 seconds switch off the appliance.

WARNING: Never pull out the filter basket (2) during the brewing process even if no water is draining. Extremely hot water or coffee can spill out from the filter basket and cause injury.

WARNING: If water/coffee is not draining from the filter basket (2) after several seconds with the glass jug (6) properly in place (8) immediately unplug the appliance and wait 10 minutes before opening and checking the filter basket (2).

WARNING: When the brewing process ends and the water level indicator (3) with "10" marking is empty, there will still be hot liquid in the filter basket (2). Wait a few minutes for the rest of the liquid to drip into the glass jug (6).

If you want to continue the brewing process, repeat the procedure from 1 to 12. Let the appliance cool down at least 15 minutes between each brewing process.

When making coffee, use an average of 1 spoon of coffee for one cup (125 ml). For example, if you want to make 10 cups of coffee, add 10 spoons of coffee. (Note: 1 spoon contains approximately 5-7 grams of coffee.)

Hints and Tips

• Use softened or filtered water to prevent lime build-up.
• Store unused coffee in a cool, dry place. After opening a package of coffee, reseal it tightly to maintain its freshness.
• Do not reuse the coffee sediment in the filter since this will reduce the flavour.
• Reheating coffee is not recommended as coffee is at its peak flavour immediately after brewing.

3.1 Cleaning and care

WARNING: Never use petrol solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Never put the appliance or power cord in water or any other liquid.

Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

You can also use white vinegar and lemon acid instead of a commercially available descaler.

3.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully. Make sure the appliance is unplugged and completely dry.
• Store the appliance in a cool, dry place. Make sure the appliance is kept out of the reach of children.

3.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

3.4 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

3.5 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

3.6 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5 of this operating manual.

Auto shut off: 30 min
