USER MANUAL MaCave S118G DOMETIC

MaCave

S17G, S24G, S46G, S118G, ST198D

3

4

5

6

7

S17G, S46G

23 S17G A

B

24 A

B

S24G 25 A

B

S46G

26 A

S118G

B

27 ST198D

Please read this instruction manual carefully before first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Contents

1 Explanation of symbols 36 2 Safety instructions .... 36 3 Contents of product 38 4 Optional extras....39 5 Intended use 39 6 Technical description 39 7 Setting up and connecting the appliance ..... 43 8 Using the appliance 46 9 Troubleshooting 53 10 Maintaining and cleaning the appliance....55 11 Guarantee 56 12 Disposal 56 13 Technical data 57

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

Action: This symbol indicates that action is required on your part. The required action is described step-by-step.

This symbol describes the result of an action.

Fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

Faulty assembly or connection. Damage to the product resulting from mechanical influences and excess voltage. Alterations to the product without express permission from the manufacturer. Use for purposes other than those described in the operating manual.

2.1 General safety

WARNING!

Before you start up the device for the first time, verify that the operating voltage matches the line voltage (see type plate). Do not operate the device if it is visibly damaged. This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Should your device need to be repaired, please contact customer services. This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks. Electrical devices are not toys.

Always keep the device out of the reach of children.

Children must be supervised to ensure that they do not play with the device. Keep the keys out of the reach of children. If this device's power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards. Do not store any explosive substances, such as spray cans with propellants in the device.

CAUTION!

Disconnect the device from the power supply – before cleaning and maintenance – if you don't use it for a longer period.

• The appliance should be moved and set up by at least two people. Otherwise this could lead to back or other injuries.
• Do not place the device in direct sunlight or near any heat producing appliances (heating, stoves).

NOTICE!

● Never pull the plug out of the electrical outlet by the cord. - Do not use accessories that have not been recommended by the manufacturer. This can lead to injury and damage to material.

2.2 Operating the device safely

WARNING!

● Never use the device in rooms where flammable materials are stored or flammable gases have built up. Sparks from the motor could ignite them.

CAUTION!

- Do not use the device with wet hands.

NOTICE!

● Only use the device indoors, never outside. ● Never expose the device to moisture. - Keep children and pets at a safe distance when operating the device. - Do not place any electrical devices inside the refrigerator.

3 Contents of product

● Wine cellar ● Water tank (S17G, S24G, S46G, S118G only) ● Key (S17G, S46G, S118G, ST198D only) ● Label set (S17G, S46G, S118G, ST198D only) ● Door hinge (left side) - Operating manual

4 Optional extras

Description Item number S17G S24G S46G Storage base 9103540117 - 9103540118 Presentation shelves -- 9103540121 (tilted) Label set 9103540116 - 9103540116 Active carbon filter 9103500156 – 9103500156 Description Item number

	S118G	ST198D
Storage base 9103540119	9103540120
Presentation shelves (tilted)	9103540121	-
Label set 9103540116	9103540116
Active carbon filter 9103500156	9103500156
Service tray	9103540068	9103540068

5 Intended use

The device is a wine cellar. It is only intended for storing wine.

6 Technical description

The wine cellar is available in five models:

●S17G:

with capacity for up to 17 Bordeaux standard bottles

●S24G:

with capacity for up to 24 Bordeaux standard bottles

●S46G:

with capacity for up to 46 Bordeaux standard bottles

●S118G:

with capacity for up to 118 Bordeaux standard bottles

●ST198D:

with capacity for up to 198 Bordeaux standard bottles

S17G, S24G, S46G and S118G: Factory fitted with shelves.

S17G, S46G and S118G: You can increase the capacity by using the optional accessory of reinforced storage shelves.

ST198D: Factory fitted with reinforced storage shelves.

You can find information on storage of bottles in chapter "Storing bottles" on page 46.

S24G has an adjustable temperature zone.

S17G, S46G, S118G and ST198D have two separate adjustable temperature zones. The temperature zones are chilled or heated automatically to reach or maintain the temperature that is set.

The temperature can be set in 1°C or 1°F increments using sensor buttons.

The appliance has:

- Sensor buttons: Just touch slightly to select the required function.

- Automatic defrosting

- S17G, S46G, S118G and ST198D: an active carbon filter for improving the inner climate

- A fan for maintaining a constant inner climate, such as in a cellar (dynamic cooling mode)

- S17G, S46G and S118G: a lockable glass door with a reversible door hinge

S24G: glass door with a reversible door hinge

ST198D: a lockable door with a reversible door hinge

- S17G, S46G and S118G: a replaceable decorative film for the glass door

- Detachable shelves for storing the bottles

● a Sabbath mode

● LED interior lighting with two operating modes

- a temperature memory function: The set temperature is also saved when the unit is switched off.

- a temperature monitor: A warning signal sounds and the temperature display flashes if the interior temperature noticeably deviates from the one set.

Overview (S17G, S46G, S118G, ST198D)

No. in

fig. 1,

page 3

Designation

1 Upper temperature zone

2 Control panel

3 Cooling area divider

4 Lower temperature zone

5 Lock

6 Ventilation slots

7 Adjustable feet

Overview (S24G)

No. in

fig. 2,

page 3

Designation

1 Control panel

2 Cooling area

3 ST198D: Lock

4 ST198D: Ventilation slots

5 ST198D: Adjustable feet

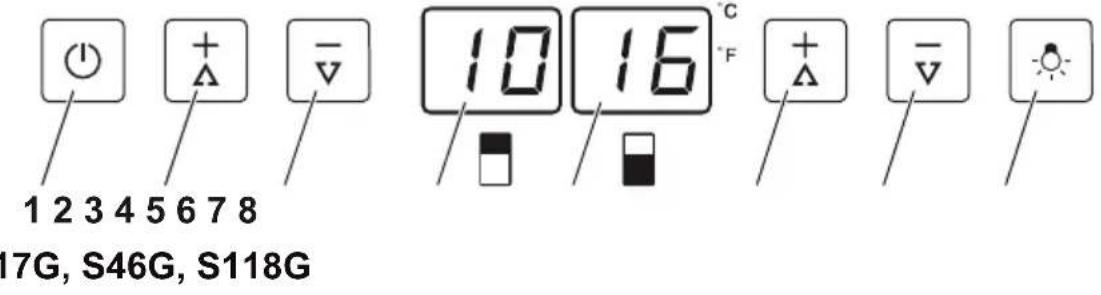

Control elements (S17G, S46G, S118G, ST198D)

No. in

fig. 3,

page 4

Symbol Description

1 On/off switch

2 Increases the set temperature of the upper temperature zone by 1 °C or 1 °F

3 Decreases the set temperature of the upper temperature zone by 1 °C or 1 °F

4 Display indicates the current temperature of the upper temperature zone

5 Display indicates the current temperature of the lower temperature zone

6 Increases the set temperature of the lower temperature zone by 1 °C or 1 °F

7 Decreases the set temperature of the lower temperature zone by 1 °C or 1 °F

5 Display indicates the current temperature of the lower

temperature zone

6 Increases the set temperature of the lower temperature

△ zone by 1 °C or 1 °F

7 Decreases the set temperature of the lower temperature zone by 1 °C or 1 °F

V zone by 1 °C or 1 °F

8 Switches the interior light on or off

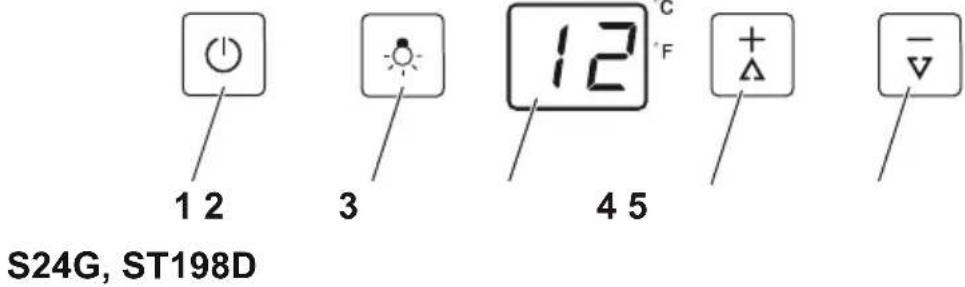

Control elements (S24G)

No. in

fig. 4,

page 4

Symbol Description

1 On/off switch

2 Switches the interior light on or off

3 – Display indicates the current temperature

4 Increases the set temperature of the upper temperature

zone by 1 °C or 1 °F

5 Decreases the set temperature of the upper temperature

zone by 1 °C or 1 °F

7 Setting up and connecting the appliance

7.1 Notes on setting up the appliance

S17G, S46G, S118G and ST198D can be placed free-standing.

When selecting the location, observe the following instructions:

• The ambient temperature should be in accordance with the climate class mentioned for your country in the supplementary brochure. Otherwise, it is possible that the inner temperature you set cannot be reached or maintained. This could also be the case if there are extreme fluctuations in the ambient temperature.
• The appliance should stand in the coldest part of the room, away from heat sources (ovens, heating devices or radiators). The location must not be damp or wet. The appliance must not be exposed to direct sunlight. This can damage the acrylic coating and lead to higher power consumption.
• The ground must be level and sufficiently stable to support the wine cellar at full capacity.
• The appliance must be sufficiently ventilated. The ventilation slots on the front of the appliance must not be obstructed.
• Note the information on the electrical connection, see chapter “Notes on the electrical connections” on page 45.
• Remove all the inner and outer packaging material before setting up. Make sure the appliance is level by adjusting the feet.

7.2 Notes on installing the appliance

NOTICE!

• When mounting ensure that the ventilation openings are kept free. Covered ventilation openings result in an increase of electricity consumption and can damage the device.
• When pushing the appliance into place, ensure that the mains cable does not get pinched.

S17G and S46G can be mounted into a kitchen plinth beneath the kitchen counter.

S24G, S118G and ST198D can be mounted into a kitchen cabinet.

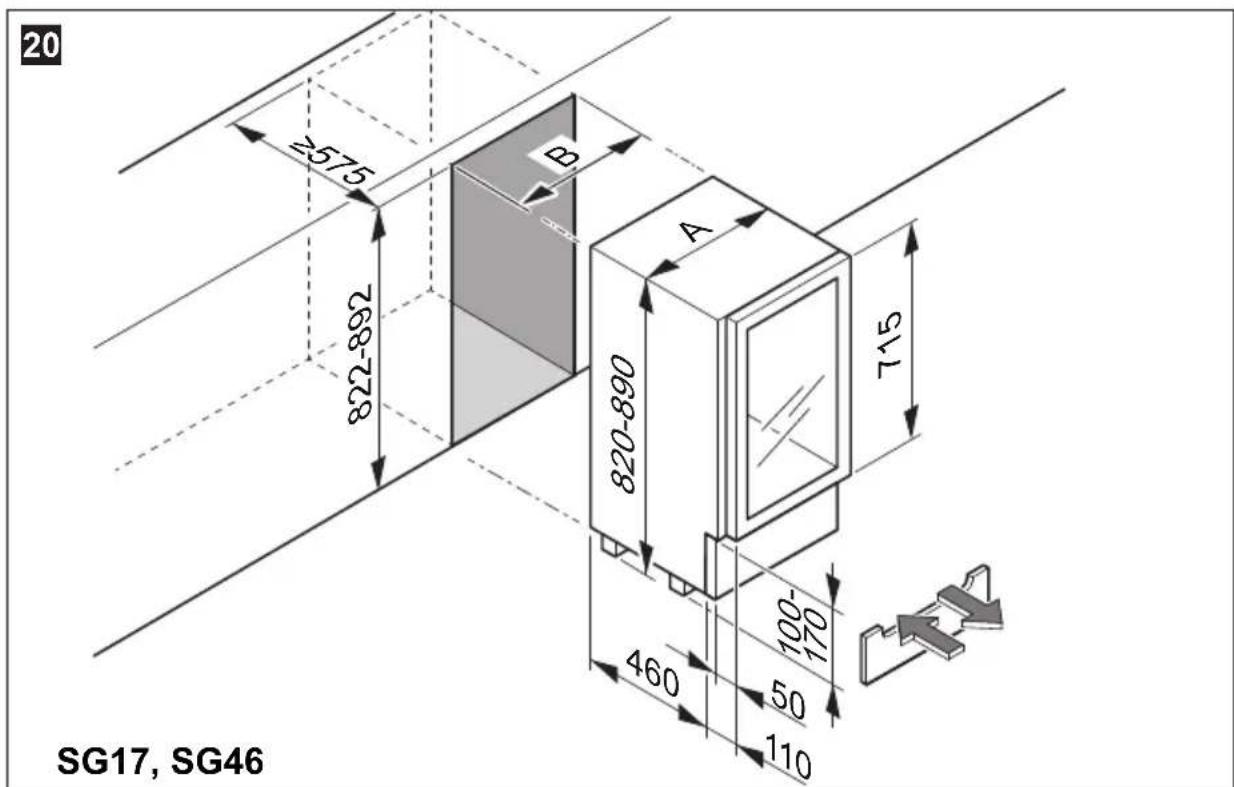

S17G and S46G installation (fig. 20, page 6)

Check the dimensions (in mm):

Width Depth Height
S17G	300 min. 575 822 – 892
S46G	600 min. 575 822 – 892

If using a plinth:

Ensure that the ventilation openings in the plinth have a cross-section of at least 300 cm².

S118G and ST198D installation

Check the dimensions (in mm):

Width Depth Height
S118G	600	min.	575	1815
ST198D	600 min.	575 1815

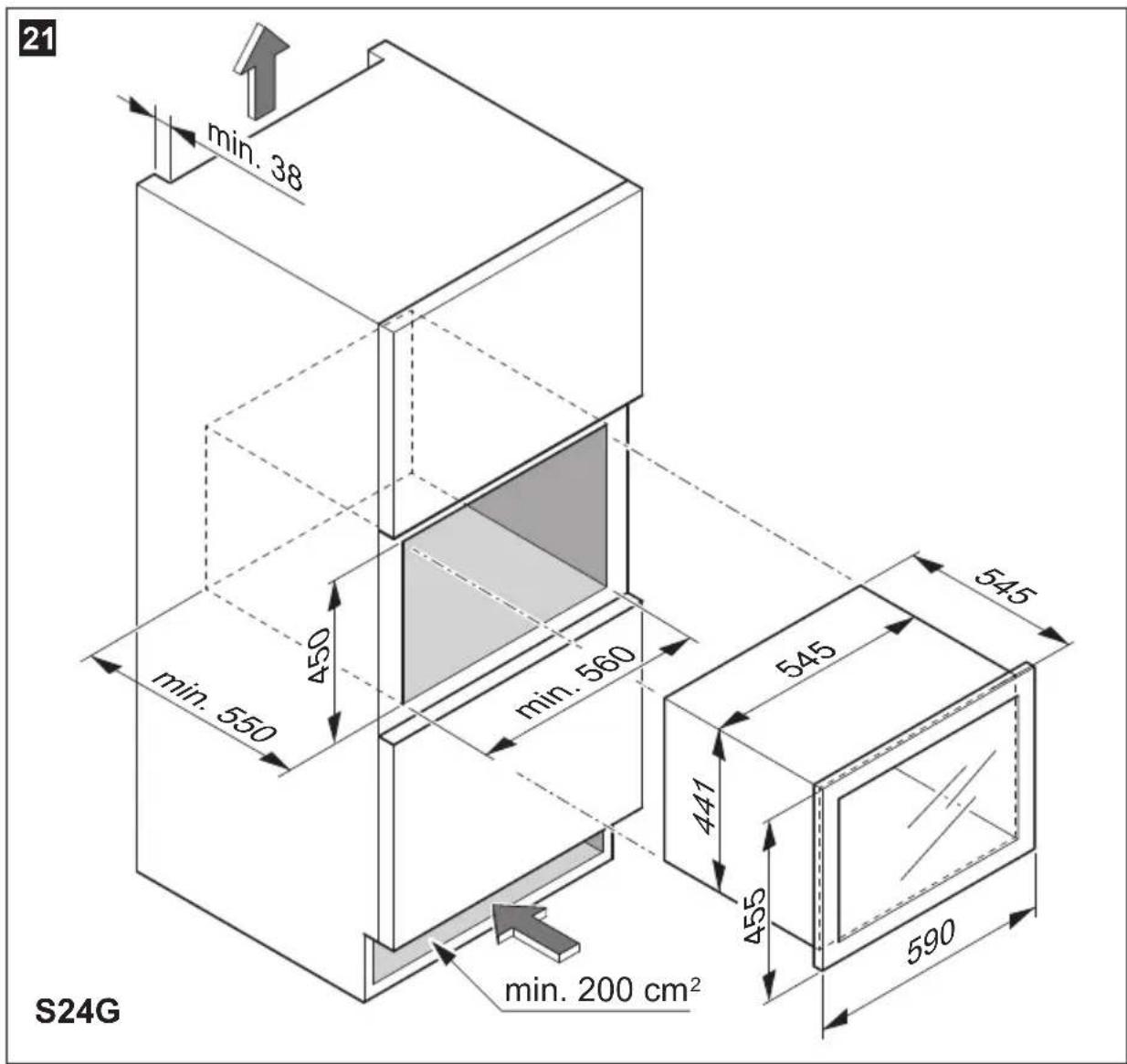

S24G installation (fig. 21, page 7)

Check the dimensions (in mm):

	Width Depth Height
S24G	560	550	450

Warmed air must be dissipated via a ventilation shaft at the rear side. The ventilation shaft must have a cross-section of at least 200 cm². The plastic seals included are mounted to seal right and left between the device and the kitchen unit.

7.3 Reversing the door

You can also change the hinge of the door, so that it opens to the left rather than the right.

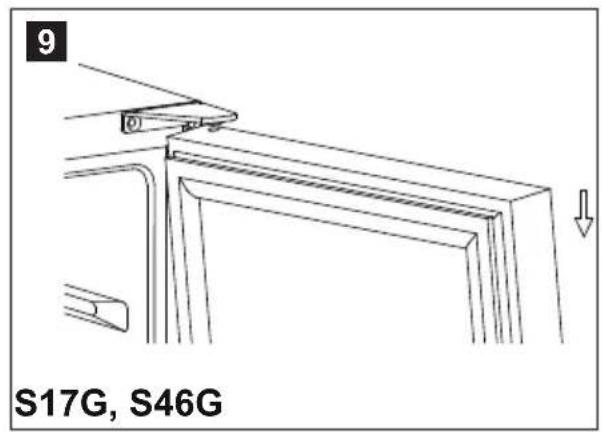

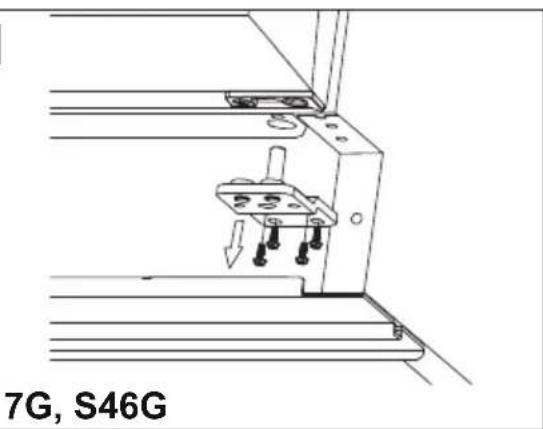

S17G and S46G

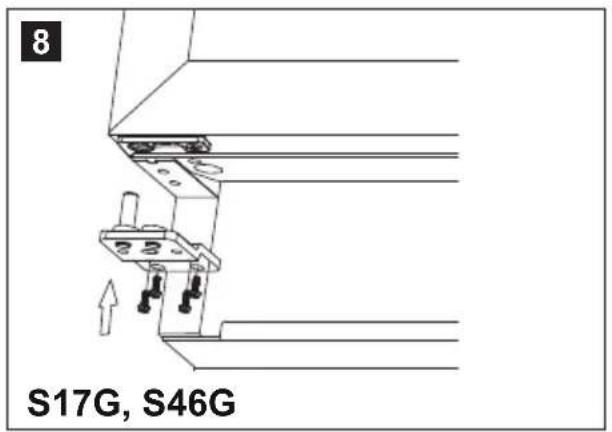

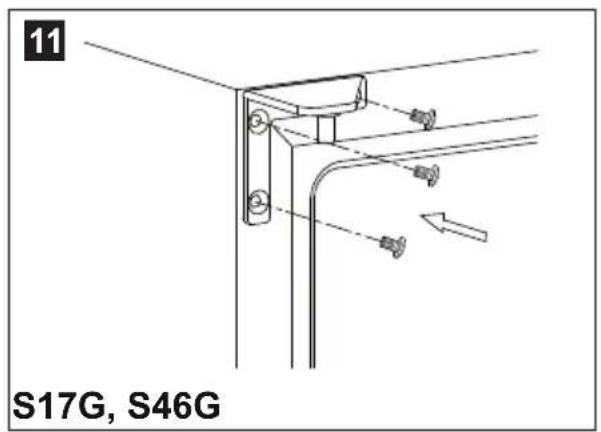

Change the door as described in fig. 5, page 4 to fig. 11, page 5. Fit the door handle on the other side as described in fig. 18, page 6 to fig. 19, page 6.

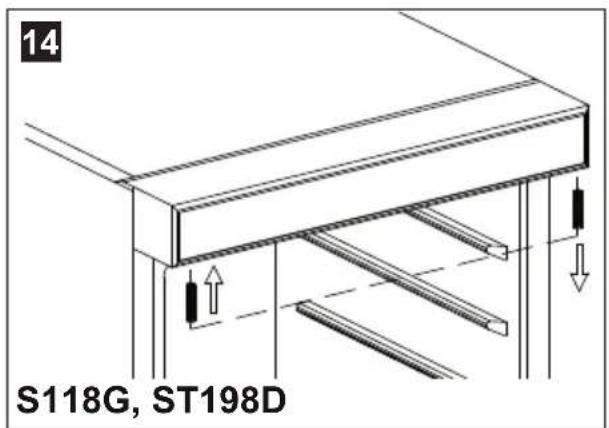

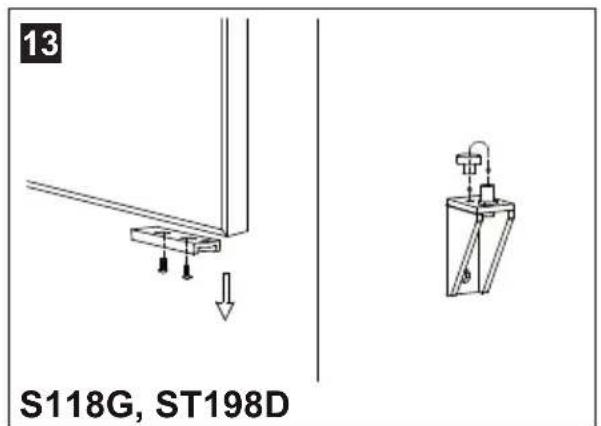

S118G

Change the door as described in fig. 12, page 5 to fig. 15, page 5. Fit the door handle on the other side as described in fig. 18, page 6 to fig. 19, page 6.

ST 198D

Change the door as described in fig. 12, page 5 to fig. 15, page 5. Turn the door by 180°.

▶ Move the closing solenoid to the opposite position.

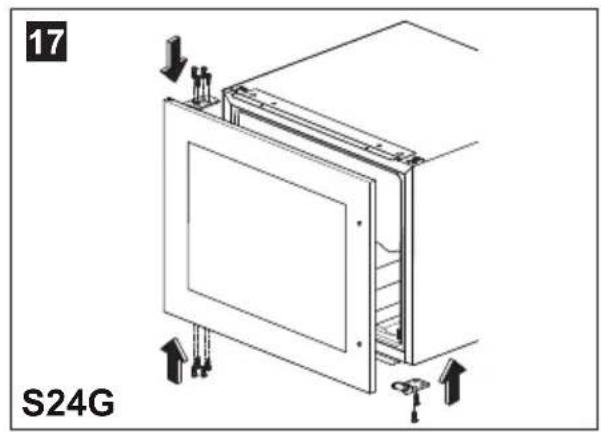

S24G

▶ Change the door as described in fig. 16, page 6 to fig. 17, page 6. Turn the door by 180°.

7.4 Notes on the electrical connections

NOTICE!

Leave the appliance to stand upright for about 2 hours after transporting, before you connect it to the power supply. Otherwise this could cause faults in the cooling system.

Observe the following when connecting the appliance:

• Connect this appliance to a 15 A circuit.
• Check that the voltage specification on the type plate is the same as that of the power supply.
• If you are using an extension cord, it must be suitable for the values which correspond to the device, see chapter "Technical data" on page 57.
• Do not use an extension cord or a multiple power socket that can be switched off with just one switch.
• The cord must rest securely behind the appliance and not be allowed to lie or hang unprotected.

8 Using the appliance

8.1 Storing bottles

ATTENTION!

Be sure to use reinforced storage shelves (accessory) if you want to stack bottles.

Notes on the use

●Only store wine in unopened bottles. - Do not overload the device.

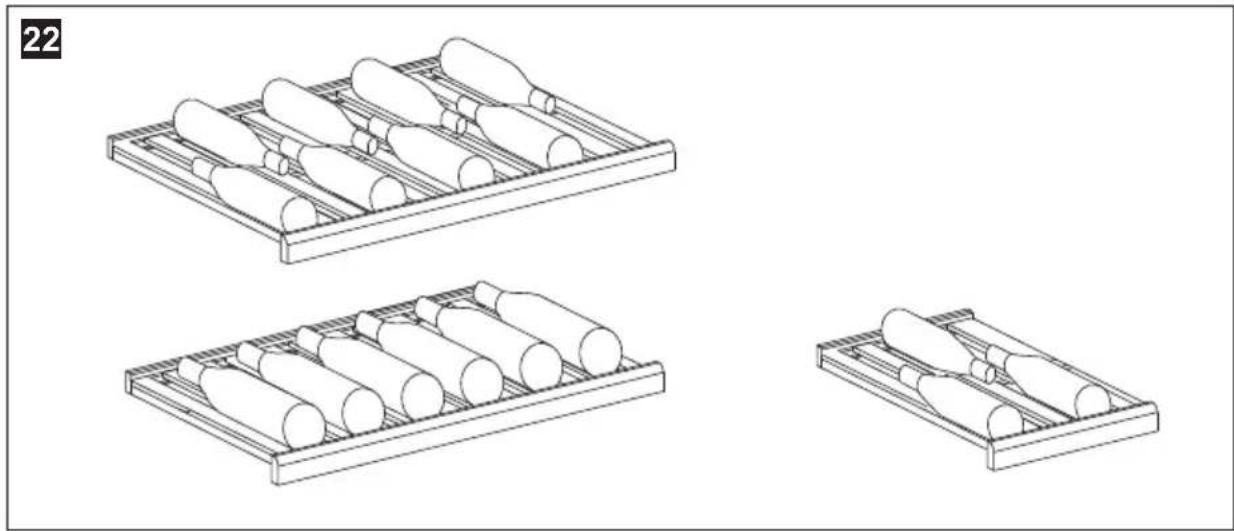

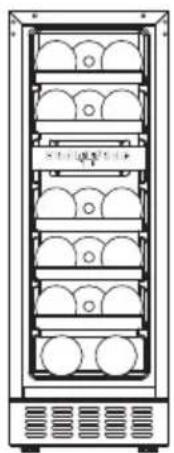

• Fig. 22, page 7, shows you how you can store the bottles.
• Do not cover the shelves with aluminium foil or any other objects, as this obstructs the air circulation.
• If the device has been empty for a long time, disconnect it from the power supply and clean it thoroughly. Leave the door open slightly to allow the air to circulate and prevent condensation, mould or odours from building up.
• After a power outage or if the appliance has been switched off, wait 3 to 5 minutes before switching on the appliance again.

The following variants are possible:

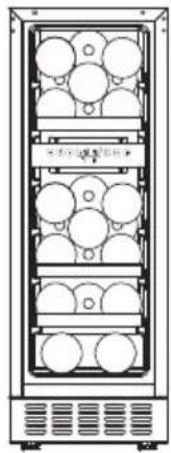

S17G

– with shelves (fig. 23 A, page 8) – with storage shelves (accessory) (fig. 23 B, page 8)

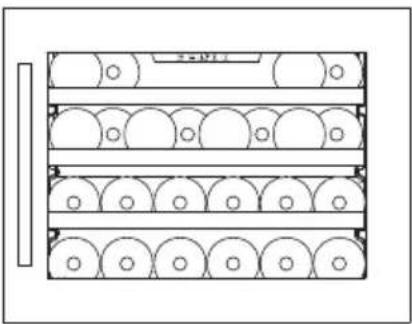

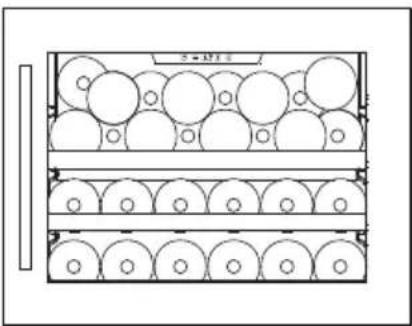

S24G

– with 3 shelves (fig. 24 A, page 8) – with 2 storage shelves (fig. 24 B, page 8)

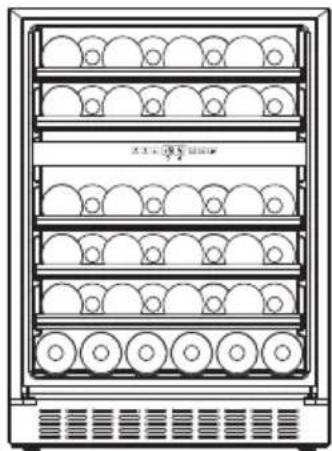

S46G

– with shelves (fig. 25 A, page 8) – with storage shelves (accessory) (fig. 25 B, page 8)

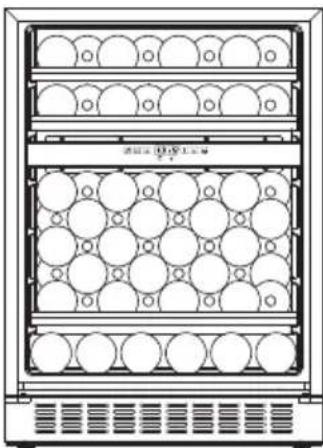

S118G

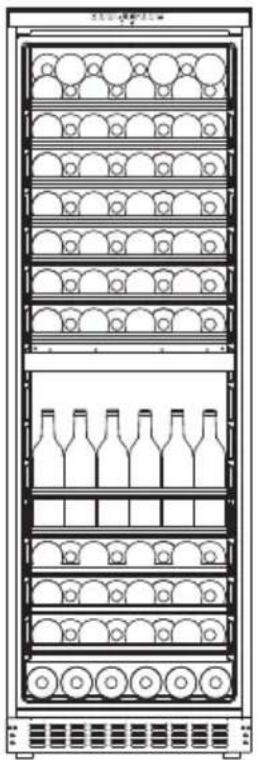

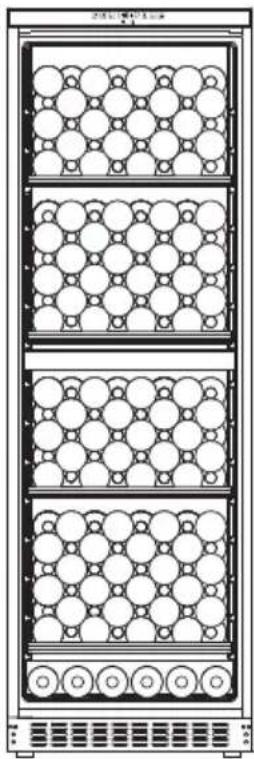

– with shelves (fig. 26 A, page 9) – with storage shelves (accessory) (fig. 26 B, page 9)

- ST198D: (fig. 27, page 9)

8.2 Energy saving tips

• Do not open the device more often than necessary.
• Do not leave the door open for longer than necessary.
• Clean dust and dirt from the condenser at regular intervals.

8.3 Using the appliance

Quick reference

Function Press the button
Switches on the appliance	> 5 s
Switches off the appliance	> 5 s
Removes the key lock	+ + 5 s
Changes the unit (°C / °F)	> 5 s
Indicates the set temperature of the temperature zone	+ or 1 s
Increases the temperature in the temperature zone by 1 °C or 1 °F	+ < 1 s
Decreases the temperature in the temperature zone by 1 °C or 1 °F	< 1 s
Switches off the fan (silent mode)	+ > 5 s
Switches on the fan (dynamic cooling)	> 5 s
Switches interior light on/off	< 1 s

S118G, ST198D: Key lock

If the buttons are not touched for 2 minutes or longer, the key lock is activated automatically.

▶ To remove the key lock, press the +/Δ and v buttons for at least 5 seconds.

Sets the unit (°C / °F)

You can select the temperature in Fahrenheit or Celsius.

To do this, press the button for 5 seconds.

The unit is converted and the display shows the temperature in the other form.

Setting the temperature

S24G has an adjustable temperature zone. The temperature can be set between 5 °C and 22 °C (41 °F and 72 °F).

S17G, S46G, S118G and ST198G have two separate adjustable temperature zones. The temperature of each zone can be set between 5 °C and 22 °C (41 °F and 72 °F).

The lower temperature zone is ideal for storing white and red wine at 13 °C to 22 °C (55 °F to 72 °F). The upper temperature zone is suitable for storing champagne and white wine at a setting of 5 °C to 13 °C (41 °F to 55 °F).

NOTE

• The temperature for the lower temperature zone must always be just as high or higher than the upper temperature zone.
• The appliance functions at its best if the difference in temperature between the two zones is at least 4 °C.

Press the +/Δ or ∇ button to set the temperature.

The display flashes while you make the setting.

After the temperature has been set, the display shows the current inner temperature of the particular temperature zone.

NOTE

When using the appliance for the first time or if it has not been used for a long time, the inner temperature could differ from the one you have set.

The temperature display flashes as long as this is the case.

Once the set temperature has been reached, the temperature display remains lit.

Checking the set temperature

This is how to display the set temperature:

▶ Press

button

briefly.

√ The set temperature is shown in the display for 5 seconds. Then the display shows the current inner temperature again.

NOTE

In the event of an interruption to the power supply (power failure, switch over) the unit saves the previous temperature settings.

Temperature monitoring

A warning signal sounds and the temperature display flashes.

• if the inner temperature of a zone deviates from the set temperature by more than 5°C.
• if the power supply has been disconnected for a long time.
• if the door has not been shut properly.
• if the door is open for more than 60 seconds.

This prevents the temperature from falling or rising unnoticed, which could affect the quality of the wine.

Once the unit has reached the set temperature, the warning signal stops and the temperature display stops flashing.

To switch off the warning signal prematurely:

Press the button briefly.

The temperature display flashes until the set temperature is reached. The display is then illuminated constantly and indicates that the alarm system is active again.

Using the Sabbath mode

In this mode, the display, interior lighting and warning signal for the temperature monitor are deactivated. The refrigeration continues as usual.

To switch on the Sabbath mode:

Press the ⏻ and ⚙️ buttons simultaneously for at least 5 seconds.

The temperature display flashes 4 times. The Sabbath mode is activated. The Sabbath mode switches off automatically after 96 hours.

To switch off the Sabbath mode:

Press the ⏻ and ⚙️ buttons simultaneously for at least 5 seconds.

The temperature display flashes 4 times. The Sabbath mode is deactivated. The display, interior lighting and warning signal for the temperature monitor are activated.

Setting the LED interior lighting

The unit has two different modes for lighting:

- Standard mode: The interior is illuminated when the door is opened.

- Showcase mode: The interior is illuminated constantly.

To switch between standard and showcase modes:

Press the 🔍 buttons briefly.

Set fan mode (Dynamic Cooling Mode/Silent Mode)

The fan is switched on (Dynamic Cooling Mode) by default to ensure a homogeneous climate in a temperature zone. The fan operates automatically to regulate the humidity and temperature. The fan can be switched off (Silent Mode) once the set temperature has been reached.

This is how to switch on the fan (Dynamic Cooling Mode):

Press the button for more than 5 seconds.

5 acoustic signals are emitted. The fan is switched on (Dynamic Cooling Mode).

This is how to switch off the fan (Silent Mode):

Press the button for more than 5 seconds.

3 acoustic signals are emitted. The fan is switched off (Silent Mode).

Cabinet shelves

The shelves can be pulled out by a third so that you can reach the wine bottles easily. The shelves have a limit stop to prevent them from being pulled out too far.

Make sure that the door is fully open when you pull out the shelves on roller-bearings. Otherwise the door seal can be damaged.

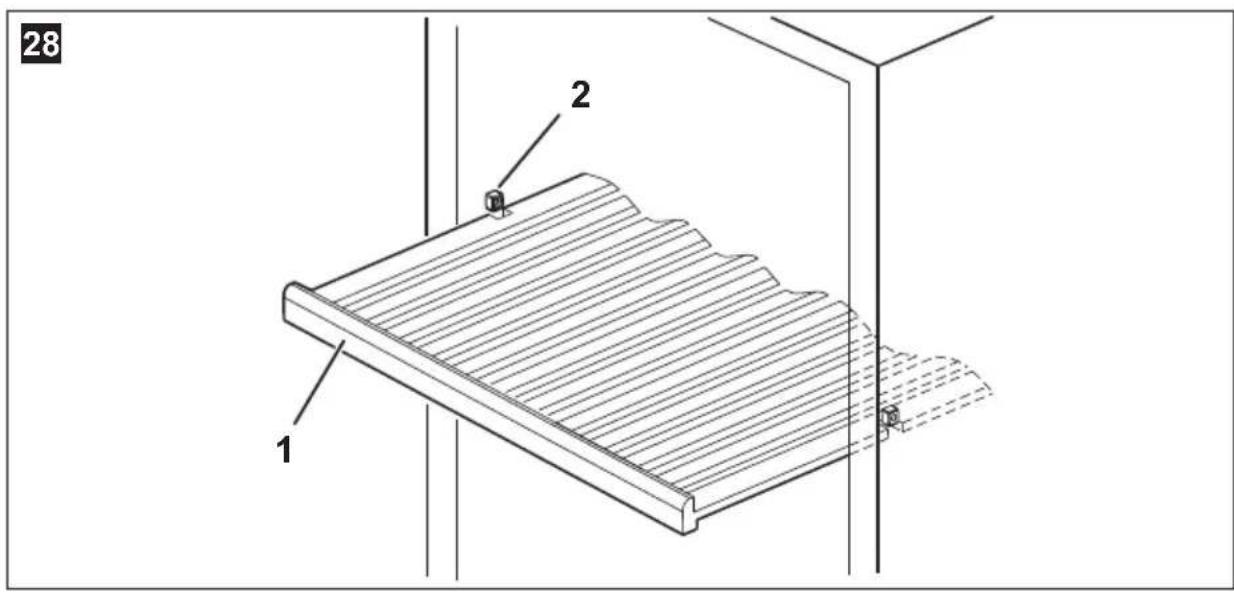

Proceed as follows to remove one of the shelves from the guide rail (fig. 28, page 10):

Pull out the shelf (1) exactly in the position where the recess is, just above the plastic ledge (2) on the inner side of the device.

Remove the shelf.

Make sure that the recesses on the shelf fit on the plastic ledges (2) when putting in the shelf.

Checking the water level (humidity control)

Check the level of water in the container (fig. 29 1, page 10) on the top shelf regularly.

Fill the water container 3/4 full with water and place it on the grid on the top shelf.

Make sure that the water container is securely positioned on the grid so that it cannot tip over.

Replacing the active charcoal filter

Replace the active charcoal filter with a new one once a year.

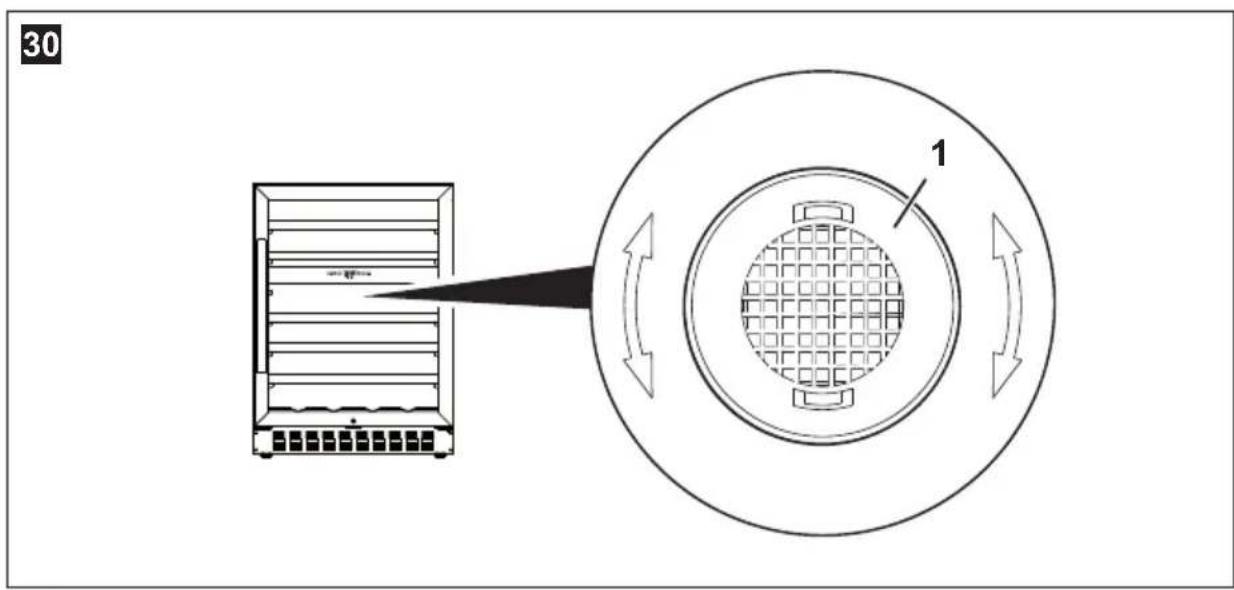

Turn the filter (fig. 30 1, page 10) 90° clockwise or anti-clockwise and remove it.

Insert the new filter.

Turn the filter 90° clockwise or anti-clockwise until it clicks into position.

8.4 Procedure in the event of a power failure or if left unattended

Power failure

A short power failure will not unduly affect the inner temperature as long as you do not open the door too frequently.

If the power is off for a long time, carry out the appropriate action to protect the contents of your wine refrigerator.

Short periods of operator absence

Leave the device operating if you are absent for less than 3 weeks.

Long periods of operator absence

▶ If you leave the device unused for several months, remove the contents. ▶ Switch off the unit and disconnect it from the power supply. ▶ Clean and dry the insides thoroughly. Leave the door ajar to prevent odours and mould from forming.

8.5 Moving the device

▶ Remove the contents. ▶ Tape down all the shelves. ▶ Turn the adjustable feet all the way in so that they are not damaged when moving. ▶ Tape the door closed. ▶ Only carry the appliance in an upright position. Avoid tipping the appliance. Protect the exterior with a blanket or something similar.

9 Troubleshooting

If you are unable to solve a problem yourself, get in touch with customer services (see address list overleaf).

Problem Possible cause Remedy

Appliance does not work	Appliance is not connected to a power supply	Connect the appliance
	Appliance is switched off Switch on the appliance
	Circuit breaker or fuse has blown	Switch on circuit breaker or replace fuse
Appliance is not cold enough	Temperature is not set properly	Check the set temperature
	The ambient temperature could require a higher temperature setting	Set a higher temperature
	Door was opened frequently Do not open the door more often than necessary
	Door was not closed properly Close door properly
	Door is not hermetically-sealed	Check the door seal and clean or replace
Appliance switches itself on and off	Room temperature is higher than average.	Put the appliance in a cooler place
	The cabinet was recently replenished with new bottles	Leave the appliance to work for a while until the set temperature has been reached.
	Door was opened frequently Do not open the door more often than necessary
	Door was not closed properly Close door properly
	Door is not hermetically-sealed	Check the door seal and clean or replace

Problem Possible cause Remedy

The light does not work. Appliance is not connected to a power supply		Connect the appliance
		Circuit breaker or fuse has blown Switch on circuit breaker or replace fuse
		The light was switched off on the control panel. Switch on the light
The appliance vibrates The appliance is not properly level		Level the appliance with the adjustable feet
The appliance seems to make a lot of noise	The noise is probably caused by the refrigerant, which is normal. At the end of each cycle, you will hear noises made by the flow of refrigerant.If temperature fluctuations occur, the contraction and expansion of the inner walls may cause popping and cracking noises.
	The appliance is not properly level	Level the appliance with the adjustable feet
The door does not close properly	The appliance is not properly level	Level the appliance with the adjustable feet
	The door hinge was changed incorrectly	Check the door hinge and reassemble correctly
	The door seal is dirty Clean the door seal
	The shelves are not fitted correctly	Check the shelves and refit correctly
LED indicates E1, E2 or E7.	The temperature sensor for the fan inside the appliance shows an error	This can only be repaired by an authorised repair centre.

10 Maintaining and cleaning the appliance

CAUTION!

Always disconnect the plug before you clean and service the appliance.

●Never clean the appliance under running water or in dishwater. Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the appliance. - Make sure that the air inlet and outlet vents on the unit are free of any dirt, so that heat from the interior can be released and the unit is not damaged.

All the shelves can be removed for optimum cleaning, see chapter “Cabinet shelves” on page 51.

▶Switch off the appliance and disconnect the plug. ▶ Wash the inside with a solution of warm water and baking powder. This should be about 2 tablespoons of baking powder to half a litre (half a quart) of water. ▶Clean the shelves with mild detergent. ▶Wipe the control panel with a slightly damp cloth. ▶ Wash the outside of the device with warm water and a mild detergent. Then wipe it down with clean water and dry the surface with a cloth.

11 Guarantee

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see the back of the instruction manual for the addresses).

For repair and guarantee processing, please include the following documents when you send in the device:

●A copy of the receipt with purchasing date ●A reason for the claim or description of the fault

12 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

13 Technical data

	S17G S24G S46G
Temperature range:	+5 °C to 22 °C (+41 °F to 72 °F)
Category:	2
Energy efficiency class:	A	B	A
Power consumption:	138 kWh/annum	90 kWh/annum	45 kWh/annum
Climatic class:	ST (Ambient temperature: +16 °C to 38 °C/+61 °F to 100 °F)
Noise emission:	45 dBA 44 dBA 45 dBA
Dimensions W x D x Hin mm / in inches(including handle):	295 x 615 x 82011,6 x 24,2 x 32,3	590 x 608 x 45523,2 x 24 x 17,9	595 x 615 x 82023,4 x 24,2 x 32,3
Capacity (Bordeaux typebottles):	17 24	46
Weight:	29 kg	27 kg 50 kg

	S118G	S198G
Temperature range:	+5 °C to 22 °C (+41 °F to 72 °F)
Category:	2
Energy efficiency class:	B	A+
Power consumption:	225 kWh/annum	135 kWh/annum
Climatic class:	ST (Ambient temperature: +16 °C to 38 °C/+ 6 1 °F to 1 0 0 °F)
Noise emission:	46 dBA	46 dBA
Dimensions W x D x H in mm / in inches (including handle):	595 x 615 x 181023,4 x 24,2 x 71,3	595 x 615 x 181023,4 x 24,2 x 71,3
Capacity (Bordeaux type bottles):	118	198
Weight:	9 4 kg	6 3 kg

You find information for the country versions in the supplementary brochure.

6 Description technique

Dometic Australia Pty. Ltd.

1 John Duncan Court

Varsity Lakes QLD 4227

[phone]

[phone]

Mail: [e-mail]

AUSTRIA

Dometic Austria GmbH

Commercial: [e-mail]

SAV/Technical: [e-mail]

HONG KONG

WAECO Impex Ltd.

Suites 2207-2211 · 22/F · Tower 1

The Gateway · 25 Canton Road,

Tsim Sha Tsui · Kowloon

Hong Kong

[phone]

[phone]

Mail: [e-mail]

HUNGARY

Dometic Plc. Sales Office

Kerékgyártó u. 5.

H-1147 Budapest

[phone]

[phone]

Dometic Italy S.r.l.

Via Virgilio, 3

I-47100 Forli

[phone]

[phone]

Mail: [e-mail]

NORWAY

Dometic Norway AS

Skolmar 24

N-3232 Sandefjord

[phone]

[phone]

Mail: [e-mail]

POLAND

Dometic Poland Sp. z o.o.

Ul. Puławska 435A

02-801 Warszawa

Poland

[phone]

[phone]

Mail: [e-mail]

RUSSIA

Dometic RUS LLC

Komsomolskaya square 6-1

107140 Moscow

Russia

[phone]

[phone]

Mail: [e-mail]

SLOVAKIA

Dometic Slovakia s.r.o.

Tehelná 8

SK-98601 Fil'akovo

[phone]

[phone]

Mail: [e-mail]

SPAIN

Dometic Spain S.L.

Avda. Sierra del Guadarrama, 16

E-28691 Villanueva de la Cañada

Madrid

[phone]

[phone]

Mail: [e-mail]

SWEDEN

Dometic Scandinavia AB

Gustaf Melins gata 7

Dometic Switzerland AG

Riedackerstrasse 7a

CH-8153 Rümlang (Zürich)

[phone]

[phone]

Mail: [e-mail]

TAIWAN

WAECO Impex Ltd.

Taipei Office

2 FL-3 · No. 56 Tunhua South Rd, Sec 2

Taipei 106, Taiwan

[phone]

[phone]

Mail: [e-mail]

UNITED KINGDOM

Dometic UK Ltd.

Dometic House · The Brewery

Blandford St. Mary

Dorset DT11 9LS

[phone]

[phone]

Mail: [e-mail]

UNITED ARAB EMIRATES

Dometic Middle East FZCO

P. O. Box 17860

S-D 6, Jebel Ali Freezone

Dubai, United Arab Emirates

[phone]

[phone]

Mail: [e-mail]

UNITED STATES OF AMERICA

Dometic Marine Division

2000 N. Andrews Ave. Extension

Pompano Beach, FL 33069 USA

[phone]

[phone]

Mail: [e-mail]
