Product Type	Handheld Vacuum Cleaner
Brand	Worx
Model	WX030.9
Power Source	Cordless, 20V Li-ion battery (not included)
Battery Capacity	2.0 Ah
Runtime	Up to 20 minutes
Charging Time	Approximately 3-5 hours
Dust Capacity	0.5 L
Filtration	HEPA filter
Dimensions (L x W x H)	400 x 120 x 100 mm
Weight	1.2 kg (without battery)
Noise Level	< 75 dB
Main Functions	Dry vacuuming of hard floors, carpets, upholstery, and crevices
Accessories Included	Crevice tool, brush nozzle, charging adapter
Maintenance	Empty dustbin after each use; clean filter monthly
Safety Features	Overcharge protection, thermal cut-off
Spare Parts Availability	Battery, filter, charger available via Worx website
Warranty	2 years

Frequently Asked Questions - WX030.9 WORX

How do I assemble the Worx WX030.9 vacuum?

The vacuum comes pre-assembled. Simply attach the desired nozzle by clicking it onto the main unit and ensure the dustbin is securely locked.

What type of battery does the WX030.9 use?

It uses a 20V Worx Li-ion battery (e.g., WA3550 or WA3551). The battery is not included and must be purchased separately.

How do I charge the vacuum?

Insert the battery into the charger and plug into a wall outlet. The LED indicates charging status. A full charge takes about 3-5 hours.

What is the runtime of the vacuum?

With a fully charged 2.0 Ah battery, runtime is up to 20 minutes. Runtime may vary based on surface and attachments used.

How do I clean the dustbin and filter?

Press the release button to empty the dustbin. Rinse the HEPA filter under cold water monthly and let it dry completely before reuse. Do not use chemicals.

Can I use the vacuum on carpet?

Yes, the WX030.9 is suitable for low-pile carpets and rugs. Use the brush nozzle for best results.

What does the LED light indicate?

A solid green light means the battery is charged. Red flashing indicates low battery. No light means the battery needs charging.

How do I replace the filter?

Open the dustbin, remove the old filter, and insert a new Worx filter (model WX030.9 replacement). Ensure it is seated properly.

Why is the suction weak?

Check if the dustbin is full or the filter is clogged. Also ensure the battery is fully charged. Clean or replace the filter if necessary.

Where can I find spare parts?

Spare parts such as filters, batteries, and chargers are available on the Worx official website or authorized retailers.

USER MANUAL WX030.9 WORX

SAFETY AND OPERATING MANUAL

ORIGINAL INSTRUCTIONS

TABLE OF CONTENT

1. PRODUCT SAFETY
2. COMPONENT LIST
3. TECHNICAL DATA
4. OPERATION INSTRUCTIONS
5. MAINTENANCE
6. STORAGE
7. ENVIRONMENTAL PROTECTION
8. TROUBLESHOOTING
9. DECLARATION OF CONFORMITY

1. PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

-The appliance is only to be used with the power supply unit provided with the appliance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
When battery pack is not

in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject battery pack to mechanical shock.

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Keep battery pack clean and dry.

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

i) Do not maintain battery pack on charge when not in use.

j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

k) Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.

I) Do not use any battery pack which is not designed for use with the equipment.

m) Keep battery pack out of the reach of children.

n) Retain the original product literature for future reference.

o) Remove the battery from the equipment when not in use.

p) Dispose of properly.

q) Do not mix cells of different manufacture, capacity, size or type within a device.

r) Keep the battery away from microwaves and high pressure.

SYMBOLS

	Warning
	Read operator's manual
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
	Li-lon battery This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
	RCM marking
	ABN: Australian Business Number. By this number, business information such as entity type, status, business location etc. can be found at website http://abr. business.gov.au.ABN of Positec Australia Pty Limited is 14 101 682 357
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

2. COMPONENT LIST

1. VACUUM TUBE

2. ON-OFF SWITCH

3. SOFT THIN BRUSH STORAGE PORT

4. DUSTING BUTTON

5. FLAT TOP BRUSH STORAGE PORT

6. BATTERY PACK *

7. DUST CUP BOTTOM COVER

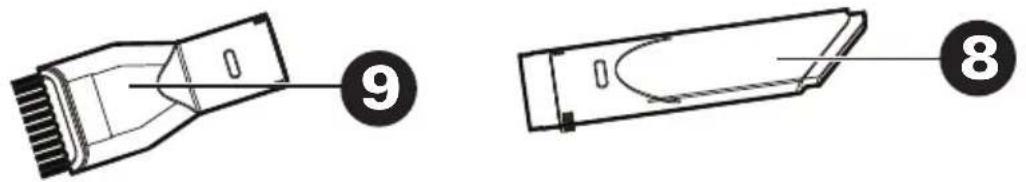

8. SOFT THIN BRUSH

9. FLAT TOP BRUSH

* Some of the accessories mentioned in illustrations or texts are not included in the scope of supply.

3. TECHNICAL DATA

	WX030 WX030.X **
Rated Voltage	20V-Max***
Maximum idle speed 34000r/min
Machine weight (bare tool) 1.4kg

** X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models.
***Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

Category Model Capacity
20V Battery	WA3551 2.0	Ah
	WA3551.1 2.0	Ah
	WA3572 2.5	Ah
	WA3553 4.0	Ah
20V Charger	WA3880	2.0 A

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOTE: Please read the instructions carefully before use.

INSTALLATION AND OPERATION

1. INSTALLATION OF THE SOFT THIN BRUSH/FLAT TOP BRUSH

Remove the soft thin brush/flat top brush from the soft thin brush storage port/flat top brush storage port, connect the vacuum tube and clamp it in place. (See figure A)

2. START/STOP(SEE FIGURE B)

Press the on-off switch button to start the vacuum cleaner operation, and press again to stop it.

WARNING: PLEASE KEEP THE AIR INTAKE UNOBSTRUCTED, OTHERWISE IT MAY CAUSE MOTOR OVERHEATING AND MAY DAMAGE THE MACHINE.

3. DUST CUP CLEANING

Press the dusting button, and the bottom cover of the dust cup will pop up automatically. Rotate counterclockwise and take out the filter element of the dust cup. (See Fig. C1, C2) Dump the dust and garbage in the cup and filter element into the trash can, and rinse the filter element of the dust cup with clean water. After the filter element of the dust cup dries naturally, rotate clockwise and lock the filter element of the dust cup in place. (See Fig. D1, D2)

Warning: Do not use the machine without installing the filter element of the dust cup. When the suction of the machine obviously decreases, it is necessary to clean up the garbage in the dust cup in time.

5. MAINTENANCE

WARNING: Remove the battery before carrying out any servicing or maintenance.

Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. If you see some sparks flashing in the ventilation slots, this is normal and will not damage your power tool.

OPERATION INSTRUCTIONS FOR THE ACCESSORIES

Flat top brush is suitable for dust removal from inaccessible corners in the interior of the car, such as the bottom of the seat, the side of the seat, the inside of the door, the area around the driver's seat, the rear window, the trunk of the car, etc.

The soft thin brush can be used to clean most of the cracks and corners of the car.

PRECAUTIONS WHEN USING THE MACHINE

Can not be used to absorb water;

Can not be washed in water;

Check the hoses regularly and stop using if there is any damage.

When cleaning or maintaining, remove the battery pack.

6. STORAGE

Clean the moulded plastic housing of the machine using a soft brush and clean cloth. Do not use water, solvents or polishes. Remove all debris, especially from the motor cooling vents.

Store in a secure, dry place out of the reach of children.

Do not place other objects on the product.

Positec Australia Pty Limited

10 Corporate Blvd Bayswater, VIC 3153, Australia

7. ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your

local authorities or retailer for recycling advice.

8. TROUBLESHOOTING

Fault Causes Solutions
Motor does not rotate. The battery has run out.		Remove the battery pack and insert charger for charging.
Decreased suction	Dust cup is full of dust. Clean	the dust in the dust cup.
	The filter element of the dust cup is full of dust.	Clean or replace filter element of dust cup
	Battery low	Remove the battery pack and insert charger for charging.
	Hose blocked	Straightening hose after power-on can inhale some foreign body.
Machine heating Machine run Slight heating-up is normal.
The battery is fully charged and the dust in the dust cup does not rotate.	The airway is blocked by foreign bodies.	Clean up foreign bodies in the airway in time.

9. DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product

Description Battery operated vacuum cleaner

Type WX030 WX030.X (3-designation of

machinery, representative of Battery-operated vacuum cleaner)

Function For household cleaning or similar purposes

Complies with the following Directives:

2014/35/EU, 2014/30/EU,

2011/65/EU&(EU)2015/863

Standards conform to

EN 60335-1, EN 60335-2-2, EN 62233, EN 55014-1, EN 55014-2

2021/12/31

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,

Positec (UK & Ireland) Ltd.

PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product

Description Battery operated vacuum cleaner

Type WX030 WX030.X (3-designation of machinery, representative of Battery-operated vacuum cleaner)

Function For household cleaning or similar purposes

Complies with the following regulations:

Supply of Machinery (Safety) Regulations 2008 Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

Standards conform to

BS EN 60335-1, BS EN 60335-2-2, BS EN 62233, BS EN 55014-1, BS EN 55014-2

UK CA

2021/12/31

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

WORX

you've got the power

After-sales Service and Application

At www.worx.com you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: 0345 202 9679

E-Mail: [e-mail]

www.worx.com

Copyright © 2022, Positec. All Rights Reserved. AR01481002
