Product Type	Headphone Amplifier / DAC
Brand	NuPrime
Model	AMG DAC
Dimensions (W x D x H)	215 mm x 190 mm x 55 mm
Weight	2.0 kg
Power Supply	External AC adapter, 100-240V, 50/60Hz
Inputs	USB Type-B, Coaxial S/PDIF, Optical TOSLINK, RCA Stereo
Outputs	6.35mm Headphone Jack, RCA Stereo (Pre-out)
Supported Audio Formats	PCM up to 384kHz/32-bit, DSD up to DSD256 (DoP)
Headphone Amplifier Type	Class A with balanced topology
Headphone Output Power	1.5W at 32Ω, 150mW at 600Ω
Signal-to-Noise Ratio	> 110 dB
THD+N	< 0.005%
Frequency Response	20 Hz - 20 kHz ±0.1 dB
Volume Control	Analog potentiometer, pre-gain
Gain Options	Low / High
Display	LED indicator for power and sample rate
Remote Control	Not included
Chassis Material	Aluminum with brushed finish
Operating Temperature	0°C to 35°C
Storage Temperature	-20°C to 60°C
Maintenance	Clean with a soft, dry cloth. Avoid liquids.
Safety	Do not expose to moisture or high voltage. Use only included adapter.
Spare Parts and Repair	Contact NuPrime authorized service center.
General Information	High-end DAC and headphone amplifier with premium components.

Frequently Asked Questions - AMG DAC NuPrime

What is the maximum supported sampling rate?

The AMG DAC supports PCM up to 384kHz/32-bit and DSD up to DSD256 via DoP.

Can I use the AMG DAC as a standalone DAC without headphones?

Yes, it has RCA pre-out outputs that can be connected to a speaker amplifier.

What headphone impedance can it drive?

It can drive headphones from 16Ω to 600Ω with adequate power, delivering 1.5W at 32Ω and 150mW at 600Ω.

How do I switch between inputs?

Input selection is automatic based on signal detection. Manual switching is available via a front panel button.

Is the AMG DAC compatible with smartphones or tablets?

It can be used with devices that support USB audio class 2.0 via an appropriate adapter, but compatibility varies.

How to clean the device?

Use a soft, dry cloth to wipe the surface. Do not use any chemicals or liquids.

What should I do if there is no sound?

Check that the input source is selected properly, volume is turned up, and headphones/speakers are plugged in. Also verify the USB driver is installed on your computer.

Does the AMG DAC require a driver on Windows?

Yes, for full support up to 384kHz and DSD, install the NuPrime USB driver from the official website. On macOS it is plug-and-play.

What is the warranty period?

Standard warranty is 1 year from date of purchase. Extended options may be available depending on region.

Can I use the volume control as a preamp?

Yes, the analog volume control affects both the headphone output and the RCA pre-out, allowing it to function as a preamp.

USER MANUAL AMG DAC NuPrime

The AMG DAC uses dual ESS DACs with discrete Class-A transistors for natural, detailed, and expansive sound stage sound characteristics.

AMG DAC

U S E R'S MANUAL

NUPRiME

Table of Contents

FCC Notice - Declaration of Conformity Information....2

EU Declaration of Conformity .... 3

Safety Instructions....4

Introduction....7

Quick Start Guide 10

Specifications 12

Remote Control 15

NuPrime's Limited Warranty and Limitation of Liabilities 16

NUPRiME

FCC Notice - Declaration of Conformity Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment.

Changes or modifications made to this equipment, not expressly approved by us or parties authorized by us could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NUPRiME

EU Declaration of Conformity

CE Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC.

The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA.

The Authorized Representative for EMC and product safety is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA.

For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

For Customers in Europe

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The

recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

NUPRiME

Safety Instructions

There are two categories of Safety Instructions included in this manual:

• Product Warnings, (i.e., what must never be done to assure avoiding those hazards that
  • could cause bodily injury or property damage); and
• User Directions (i.e., what must always be done to assure the safe use of your device).

The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words. Those Signal Words, and their intended meanings, are as follows:

DANGER: Indicates that a failure to observe the Safety Instructions could result in death or catastrophic bodily injury.

WARNING: Indicates that a failure to observe the Safety Instructions could result in serious bodily injury.

CAUTION: Indicates that a failure to observe the Safety Instructions could result in minor bodily injury or property damage.

NOTE: Designates important information that relates to activities and/or conditions that might result in loss of data and/or damage to your device.

Safe Use and Operation of Your Device

This equipment emits stray RF energy and will interfere with the reception of signals by airborne electronic navigational devices or medical devices. Do not operate this equipment near any sensitive medical devices.

WARNING: Use only grounded AC power cords.

Always immediately disconnect the power to the equipment in the event the device emits an unusual odor or sound or generates smoke.

NUPRiME

WARNING: Never attempt to disassemble, repair or make any modification to your device. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself.

WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual. In addition, always keep all accessories and components out of the reach of small children as small parts might present a choking hazard. Seek immediate medical attention if choking occurs or if any small part has been swallowed.

CAUTION: Never raise the sound volume level too high when using your device with earphones. An excessive sound volume level could cause damage to your hearing.

WARNING: To reduce the risk of re or electric shock, do not expose the unit to moisture or water.

Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs.

Read all the instructions before connecting or operating the component.

Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions.

Do not use this unit near water.

You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling.

NUPRiME

Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat.

The unit must be connected to a power supply only of the type and voltage speci ed on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable.

Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where the cord exits the back of the unit.

The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is to be left unused for a long period of time.

Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if:

• The power supply cord or plug has been damaged.
- Objects have fallen or liquid has been spilled into the unit.
- The unit has been exposed to rain.
• The unit shows signs of improper operation.
- The unit has been dropped or damaged in any way

NUPRiME

Introduction

With five digital including IIS/DSD and one analog stereo inputs, RCA stereo and XLR balanced outputs, and decoding capability of PCM 384K, DSD256, the NuPrime AMG-DAC is a reference-class DAC with natural, detailed, and expansive sound stage sound characteristics designed for studio professionals and high-end audiophiles.

Preamp

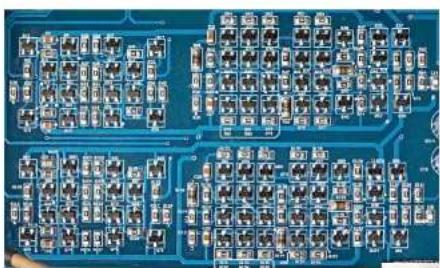

In a modern high-end DAC, the preamp stage plays a prominent role in determining the sound qualify and characteristics. AMG DAC preamp design features:

• Output stage voltage amplification employing all discrete components.
• Output stage current amplification utilising a high-speed amplifier with complete discrete components.
• "Current transmitter" has no negative feedback amplifier.

NUPRiME

The sound is natural and relaxed with no hint of digital. Users can hear a very open sense of live performance space with a focused sound field. The guitar and piano melody naturally scattered in the listening space, making people relax and immerse themselves in it, transforming the stiff strings into natural and smooth sounds.

The Heart

As the heart of an audio system, the AMG-DAC supports an extensive number of inputs and formats. Dual ESS Technology 32-bit audio DAC ESS9038Q2M independently decode left and right channels improve channel separation and reducing overall noise.

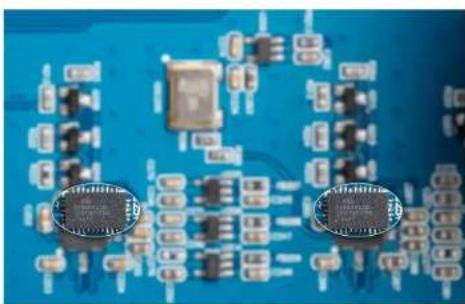

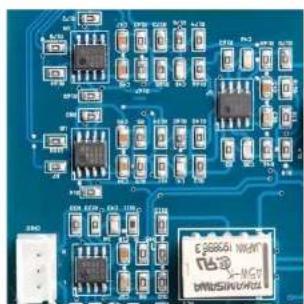

MUSES 8820 DAC IV Circuit Dual ESS DACs

NUPRiME

Other notable features:

• MUSES 72320 volume control
- NuPrime SRC IC chip (co-developed with IC vendor) provides DSP processing where Input signals are up sampled to megahertz before down converted to the targeted sampling rate with ultra-low jitter and distortion.
- Extension port for Bluetooth receiver and WIFI audio streamer (optional).
• Full microprocessor control with memory retention.
• Supports DSD native playback by ASIO2.1 and DoP method.
- Ultra-low-noise JFETs in the input stage for the lowest possible noise floor.
- Individually adjustable volume on each input for precise level matching of sources.
• Asynchronous transfer mode.

NuPrime Extension Port

NuPrime defined an USB Type -A port to carry S/PDIF data and 5V power for connecting to external wireless audio receiver using just one standard USB cable. The NuPrime Omnia WR-1, BTR-HD, Stream Mini, and Stream Mini DAC wireless receivers have a micro-USB port that is compatible this specification.

PIN1: +5V OUT

PIN2: +5V OUT

PIN3:SPDIF

PIN4 : GND

NUPRiME

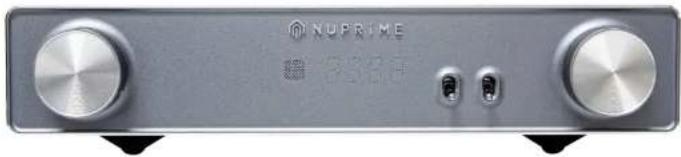

Quick Start Guide

Left Knob

• Power / Input Selector:
■ Briefly press for 3 sec to On/Off standby mode
■ Turn the knob to switch between inputs

Right Knob

• Volume control:
■ Turn the knob clockwise to increase volume
■ Turn the knob counterclockwise to decrease volume
■ Briefly press the knob to Mute / un-Mute

Output Gain: Left Toggle Switch

• Upwards: High Gain
  • Downwards: Low Gain

NUPRiME

FIX Output On/Off: Right Toggle Switch

• Upwards: Output is at max volume and can't be adjusted
  • Downward: Volume can be adjusted

Display:

• PCM Sample rate: 44.1,48,88.2,96,176.4,192,352.8,384
• DSD Sample rate: d2.8 (64), d5.6 (128), d11.2 (256)
• Volume display: oo - 99
- Inputs Display:

C1: Coaxial input
O2: Optical input
U3: USB input
E4: Extension port input
A5: Stereo analog input
HE: IIS/DSD Digital input

NUPRiME

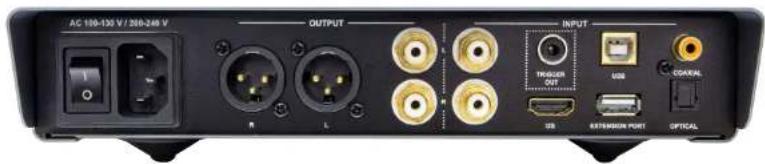

Specifications:

Inputs:

• C1: Coaxial input for CD/DVD/BD players, TV and any device with a coaxial source. Supports PCM 44.1KHz \~ 384KHz/24Bit and DOP 64 and 128.
• O2: Optical input for CD/DVD/BD players, TV and any device with an optical source. Supports PCM 44.1KHz \~ 192KHz/24Bit and DOP 64.
• U3: USB input for computer (PC/MAC) and for NAS devices. Type B 2.0 Hi-Speed, Windows OS : data stream up to 384KHz/24Bit and Native DSD 256. Type B 2.0 Hi-Speed, Mac / Linux OS : data stream up to 384KHz/24Bit and DOP DSD 128.
• E4: Extension port for Bluetooth or WIFI. (Optional) Supports PCM 44.1KHz \~ 192KHz/24Bit.

• A5: Stereo analog for CD/DVD/BD players, TV and any analog source device.

- HE: IIS/DSD Digital input With HDMI cable to transfer IIS and DSD data from NuPrime source devices. Supports PCM 44.1KHz - 384KHz/32Bit and DSD 64 - DSD 256 data streams.

Do not connect to the HDMI output of Set Top Box or BD / DVD player.

Note: AMG-DAC does not guarantee that all NAS devices will operate and be compatible due to wide variety of brands and custom specs.

NUPRiME

Outputs:

• 1 x RCA unbalanced High / Low outputs : 4 / 2 Vrms
  • 1 x XLR balanced High / Low outputs : 8 / 4 Vrms
  • Frequency Response: 20 Hz - 20 KHz / ±0.3 dB
• S/N ratio > 110 dB
• THD+N: < 0.01%
• TRIGGER out
  • Dimensions: (W x H x D): 235 mm x 55 mm x 300 mm
  • Weight: 5.5 pounds (2.5 kg)
• Worldwide AC Voltage: 90VAC-130VAC / 210VAC-250VAC with Voltage Select Switch
  • AC Fuse: Slow-blow, T2.5A, 250VAC

AC Inlet Voltage Selector:

Make sure that the AC voltage selector switch at the bottom of the unit is switched to the appropriate voltage for your country. All NuPrime products are shipped with the switch set to 230V AC to prevent accidental damage.

NUPRiME

IIS / DSD Pin Definition:

PIN1: SDATA - / DSD R-	PIN6: BCK - / DSD CLK -	PIN11: GND	PIN16: NC
PIN2: GND	PIN7: LRCK - / DSD L -	PIN12: NC	PIN17: GND
PIN3: SDATA + / DSD R+	PIN8: GND	PIN13: NC	PIN18: NC
PIN4: BCK + / DSD CLK +	PIN9: LRCK + / DSD L +	PIN14: NC	PIN19: + 3.3V OUTPUT
PIN5: GND	PIN10: NC	PIN15: NC

Note: AMG-DAC does not guarantee that all IIS/DSD sources from other manufacturers will operate and be compatible due to custom specs.

XLR MALE Pin Definition:

Pin 1: Ground

Pin 2: Positive (+)

Pin 3: Negative (-)

NUPRiME

Remote Control:

Tunisia Toggle power standby and on
Toggle power standby and on for AMG STA
DIS Sample Rate
Volume mute
Previous channel
▶ Next channel
Volume down
Volume up

NUPRiME

NuPrime's Limited Warranty and Limitation of Liabilities

ADDITIONAL RIGHTS

For consumers, who are covered by consumer protection laws or regulations in their country of purchase or, if different, their country of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. This warranty does not exclude, limit or suspend any rights of consumers arising out of nonconformity with a sales contract. Some countries, states and provinces do not allow the exclusion or limitation of incidental or consequential damages or allow limitations on how long an implied warranty or condition may last, so the limitations or exclusions described below may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province. This limited warranty is governed by and construed under the laws of the country in which the product purchase took place.

LIMITED WARRANTY

For a period of ONE (1) YEAR from the date of retail purchase by the original end-user purchaser ("Warranty Period"), NuPrime warrants (in) this product against defects in materials and workmanship, and (ii) that each Product, unmodified and under normal use and conditions, will substantially comply with NuPrime' applicable written technical documentation for the Product. NuPrime reserves the right to make substitutions and modifications from time to time in the specifications of Products sold by NuPrime, provided that such substitutions or modifications do not materially affect overall Product performance.

If a hardware defect exists and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, NuPrime will (1) repair the hardware defect at no charge, using new or refurbished replacement parts, (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product. NuPrime may

NUPRiME

request that you replace defective parts with user-installable new or refurbished parts that NuPrime provides in fulfillment of its warranty obligation. A replacement product/part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes NuPrime's property. When a refund is given, your product becomes NuPrime's property.

OBTAINING WARRANTY SERVICE

If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product. Be aware, however, that not all countries have NuPrime Authorized Service Providers ('NASP') and not all Authorized Service Providers outside the country of purchase have all parts or replacement units for the product. If the product cannot be repaired or replaced in the country it is in, it may need to be sent to a different country or returned to the country of purchase at your expense for repair or replacement. If you seek service in a country that is not the country of original purchase, you will comply with all applicable import and export laws and regulations and be responsible for all custom duties, V.A.T. and other associated taxes and charges. Where international service is available, NuPrime may repair or exchange defective products and parts with comparable products and parts that comply with local standards.

You can always deliver the product to NuPrime's U.S.A or Taiwan service center for obtaining warranty service, however, you may have to pay for shipping cost.

NuPrime may send you user-installable new or refurbished replacement product or parts to enable you to service or exchange your own product ("DIY Service"). Upon receipt of the replacement product or part, the original product or part becomes the property of NuPrime and you agree to follow instructions, including, if required, arranging the return of original product or part to NuPrime in a timely manner.

NUPRiME

When providing DIY Service requiring the return of the original product or part, NuPrime may require a credit card authorization as security for the retail price of the replacement product or part and applicable shipping costs. If you follow instructions, NuPrime will cancel the credit card authorization, so you will not be charged for the product or part and shipping costs. If you fail to return the replaced product or part as instructed or the replaced product or part is not eligible for warranty service, NuPrime will charge the credit card for the authorized amount.

EXCLUSIONS AND LIMITATIONS

This Limited Warranty applies only to hardware products manufactured by or for NuPrime that can be identified by the "NuPrime" trademark, trade name, or logo affixed to them. The Limited Warranty does not apply to any non-NuPrime hardware products or any accessories, even if packaged or sold with NuPrime hardware. Non-NuPrime manufacturers, suppliers, may provide their own warranties. Other accessories distributed by NuPrime under the NuPrime brand name are not covered under this Limited Warranty. This warranty does not apply: (a) to damage caused by accident, abuse, misuse, misapplication, liquid contact, fire, earthquake, non-NuPrime products, or other external causes; (b) to damage caused by service performed by anyone who is not a NASP; (c) to a product or a part that has been modified without the written permission of NuPrime; (d) to consumable parts, such as batteries, or protective coatings designed to diminish over time unless failure has occurred due to a defect in materials or workmanship; (e) to cosmetic damage, including but not limited to scratches, dents, and broken plastic on ports; (f) to defects caused by normal wear and tear or otherwise due to the normal aging of the product; or (g) if any NuPrime serial number has been removed or defaced.

Important: Do not open the hardware product. Opening the hardware product may cause damage that is not covered by this warranty. Only NuPrime or a NASP should perform service on this hardware product.

This warranty and remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. NuPrime specifically

NUPRiME

disclaims any and all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If NuPrime cannot lawfully disclaim implied warranties under this limited warranty, all such warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the duration of this warranty. No NuPrime reseller, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

NuPrime is not responsible for direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory, including but not limited to lost profits, downtime, goodwill, damage to or replacement of equipment and property, any costs of recovering, reprogramming, or reproducing any program or data stored in or used with NuPrime products, and any failure to maintain the confidentiality of data stored on the product. NuPrime specifically does not represent that it will be able to repair any product under this warranty or make a product exchange without risk to or loss of programs or data.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitations on the duration of implied warranties or conditions, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state or province. Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the Warranty period must be presented to obtain warranty service.

Replacement as provided under this warranty is the exclusive remedy of the consumer. Nuprime shall not be liable for any incidental or consequential damages for breach of any express or implied warranty on this product. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose on this product is limited in duration to the duration of this warranty.
