USER MANUAL SILK EPIL XELLE 5270 BRAUN

Silk Soft Perfection 5270 MN Braun GmbH Frankfurter Straße 145 61476 Kronberg/Germany 5-396-397/00/IV-06/M D/GB/F/E/P/I/NL/DK/N/S/FIN/ PL/CZ/SK/H/TR/RO/HR/SLO/GR Printed in Germany FIN

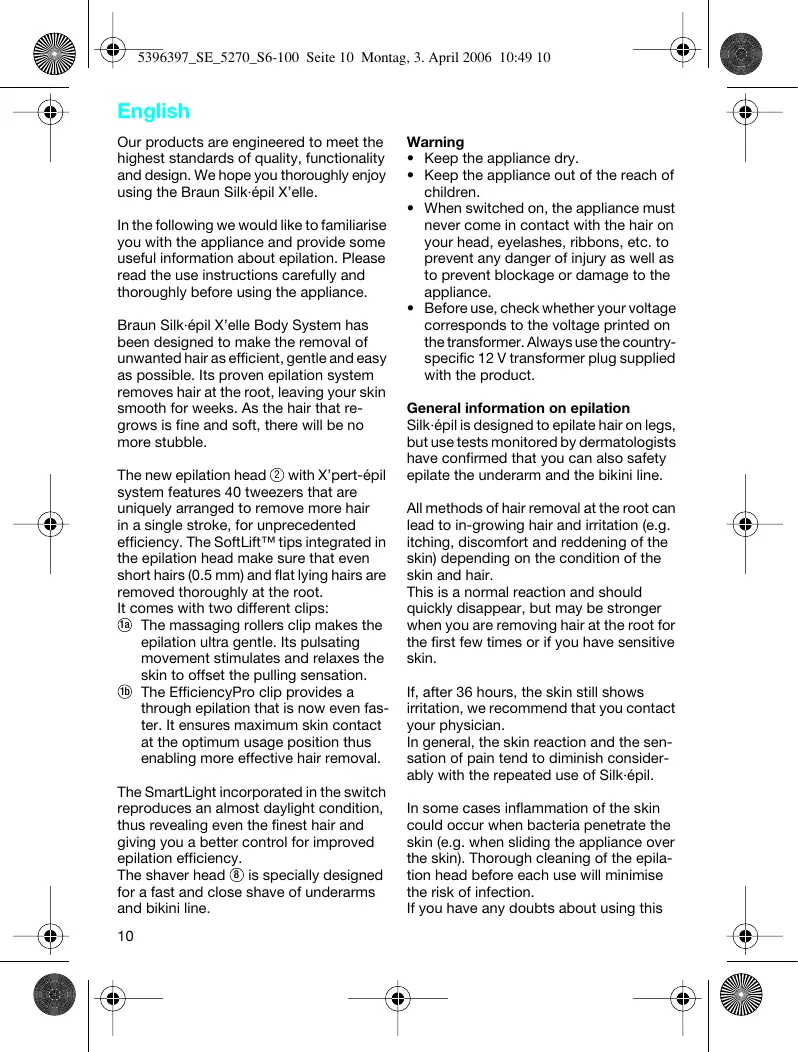

0212 - 473 75 85 English Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy using the Braun Silk·épil X’elle. In the following we would like to familiarise you with the appliance and provide some useful information about epilation. Please read the use instructions carefully and thoroughly before using the appliance. Braun Silk·épil X’elle Body System has been designed to make the removal of unwanted hair as efficient, gentle and easy as possible. Its proven epilation system removes hair at the root, leaving your skin smooth for weeks. As the hair that regrows is fine and soft, there will be no more stubble. The new epilation head 2 with X’pert-épil system features 40 tweezers that are uniquely arranged to remove more hair in a single stroke, for unprecedented efficiency. The SoftLift™ tips integrated in the epilation head make sure that even short hairs (0.5 mm) and flat lying hairs are removed thoroughly at the root. It comes with two different clips: 1a The massaging rollers clip makes the epilation ultra gentle. Its pulsating movement stimulates and relaxes the skin to offset the pulling sensation. 1b The EfficiencyPro clip provides a through epilation that is now even faster. It ensures maximum skin contact at the optimum usage position thus enabling more effective hair removal. The SmartLight incorporated in the switch reproduces an almost daylight condition, thus revealing even the finest hair and giving you a better control for improved epilation efficiency. The shaver head 8 is specially designed for a fast and close shave of underarms and bikini line.

• Keep the appliance dry.
• Keep the appliance out of the reach of children.
• When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.
• Before use, check whether your voltage corresponds to the voltage printed on the transformer. Always use the countryspecific 12 V transformer plug supplied with the product. General information on epilation Silk·épil is designed to epilate hair on legs, but use tests monitored by dermatologists have confirmed that you can also safety epilate the underarm and the bikini line. All methods of hair removal at the root can lead to in-growing hair and irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk·épil. In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimise the risk of infection. If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: – eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins – around moles – reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud’s disease – haemophilia or immune deficiency. Description (see page 3)

Some useful tips Epilation is easier and more comfortable when the hair is at the optimum length of 2–5 mm (0.08–0.2 in.) If hairs are longer, we recommend that you either shave first and epilate the shorter re-growing hairs after 1 or 2 weeks, or use the shaver head with the included OptiTrim attachment 8a to pre-cut hairs to this ideal length. When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisture cream after epilation. Fine hair which re-grows might not grow up to the skin surface. The regular use of massage sponges (e.g. after showering) or exfoliation peelings helps to prevent in-growing hair as the gentle scrubbing action removes the upper skin layer and fine hair can get through to the skin surface. It is a fact that hair re-growth will be reduced by 50 % if you remove hairs from the root regularly at least every 4 weeks using your Silk·épil.

Massaging rollers clip EfficiencyPro clip Epilation head with X’pert-épil system Release buttons Switch with incorporated SmartLight Socket for cord connector Cord connector 12 V transformer plug Shaver head OptiTrim attachment Shaving foil frame with long hair trimmer Release bars Cutter block Shaver head base A How to epilate

• Your skin must be dry and free from grease or cream.
• Keep in mind that epilation is more comfortable when the hair is at the optimum length of 2–5 mm (see section «Some useful tips»).
• Before starting, thoroughly clean the epilation head 2 .
• Plug the cord connector 6 into the socket 5 and plug the transformer plug 7 into an electrical outlet. 1 Make sure one of the clips (1a) or (1b) is attached to the epilation head. To turn on the appliance, slide switch 4 to the «optimal» setting. For reduced speed, choose the «soft» setting. The SmartLight illuminates as long as the appliance is switched on. 2 Rub your skin to lift short hairs. For optimum performance hold the appliance at a right angle (90°) against your skin. Guide it in a slow, continuous movement without pressure against the hair growth, in the direction of the switch.

As hair can grow in different directions, it may also be helpful to guide the appliance in different directions to achieve optimum results. Both rollers of the massaging rollers clip 1a should always be kept in contact with the skin, allowing the pulsating movements to stimulate and relax the skin for a gentler epilation. If you are used to epilation and look for a faster way to efficiently remove hair, attach the EfficiencyPro clip 1b . It allows maximum skin contact and ensures an optimum usage position. 3 Leg epilation Epilate your legs from the lower leg in an upward direction. When epilating behind the knee, keep the leg stretched out straight. 4 Underarm and bikini line epilation Please be aware that especially at the beginning these areas are particularly sensitive to pain. With repeated usage the pain sensation will diminish. For more comfort, ensure that the hair is at the optimum length of 2–5mm. Before epilating, thoroughly clean the respective area to remove residue (like deodorant). Then carefully dab dry with a towel. When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive directly after epilation, avoid using irritating substances such as deodorants with alcohol. Cleaning the epilation head 5 After epilating, unplug the appliance and clean the epilation head. First remove the clip used ( 1a or 1b ) and clean it with the brush. 6 To clean the tweezer element, use the cleaning brush dipped into alcohol.

Clean the tweezers with the brush from the rear side of the epilator head while turning the barrel manually. 7 Remove the epilation head by pressing the release buttons 3 on the left and right and pull it off. Give the top of the housing a quick clean with the brush. Place the epilation head and your preferred clip ( 1a or 1b ) back on the housing B Shaving

1. Remove the OptiTrim 8a attachment.

Put on the shaver head 8 by clicking it in (the long hair trimmer should be in front).

2. When using the shaver head, always

slide the switch to the «optimal» setting.

3. For best results, guide the shaving

system in a way that about half of the shaving foil and the long hair trimmer are in contact with your skin. Always guide the appliance in the direction of the trimmer. The trimmer first raises all long hairs and cuts them off. Then the flexible foil follows to smooth away any stubble. Pre-cutting hair for epilation

4. If you choose to pre-cut your hair to

the ideal length for epilation, place the OptiTrim attachment onto the shaver head.

5. Hold the appliance with the OptiTrim

attachment ensuring that the surface of the comb is lying flat on the skin. Guide the appliance with the comb tips against the hair growth as shown in illustration B 5. N.B. As hair does not always grow in the same direction it may be difficult to cut. In which case, guide the appliance slightly diagonally or in different directions. Cleaning the shaver head

6. After shaving, unplug the appliance

and, if necessary, remove the OptiTrim attachment.

7. Clean the OptiTrim attachment with

8. In order to clean the shaver head,

remove the shaving foil frame 8b . To do so, press the release bars 8c on the front and back and pull it off.

9. Carefully tap the shaving foil frame on

10. Brush out the cutter block 8d as well as

the area below the cutter block.

11. N.B.: The shaving foil is a very delicate

part that must not be cleaned with the brush.

12. We recommend that you put a drop of

light machine oil along the length of the trimmer every 3 months.

13. Put the shaving foil frame back on and

14. Replace the OptiTrim attachment

because it also serves as a protective cap. Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Note: Do not use the shaver head with a damaged shaving foil. Replacing the shaving parts The shaving foil and the cutter block are precision parts that wear out with the time. Have the shaving foil frame and the cutter block replaced when you notice a reduced shaving performance even after cleaning the shaver head. Subject to change without notice. This product conforms to the European Directives EMC 89/336/ EEC and Low Voltage 73/23/EEC.

Description (cf. page 3)

English Guarantee We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre. For UK only: This guarantee in no way affects your rights under statutory law.
