USER MANUAL PULSONIC 9595 BRAUN

washable rt cleaning sta clean eco

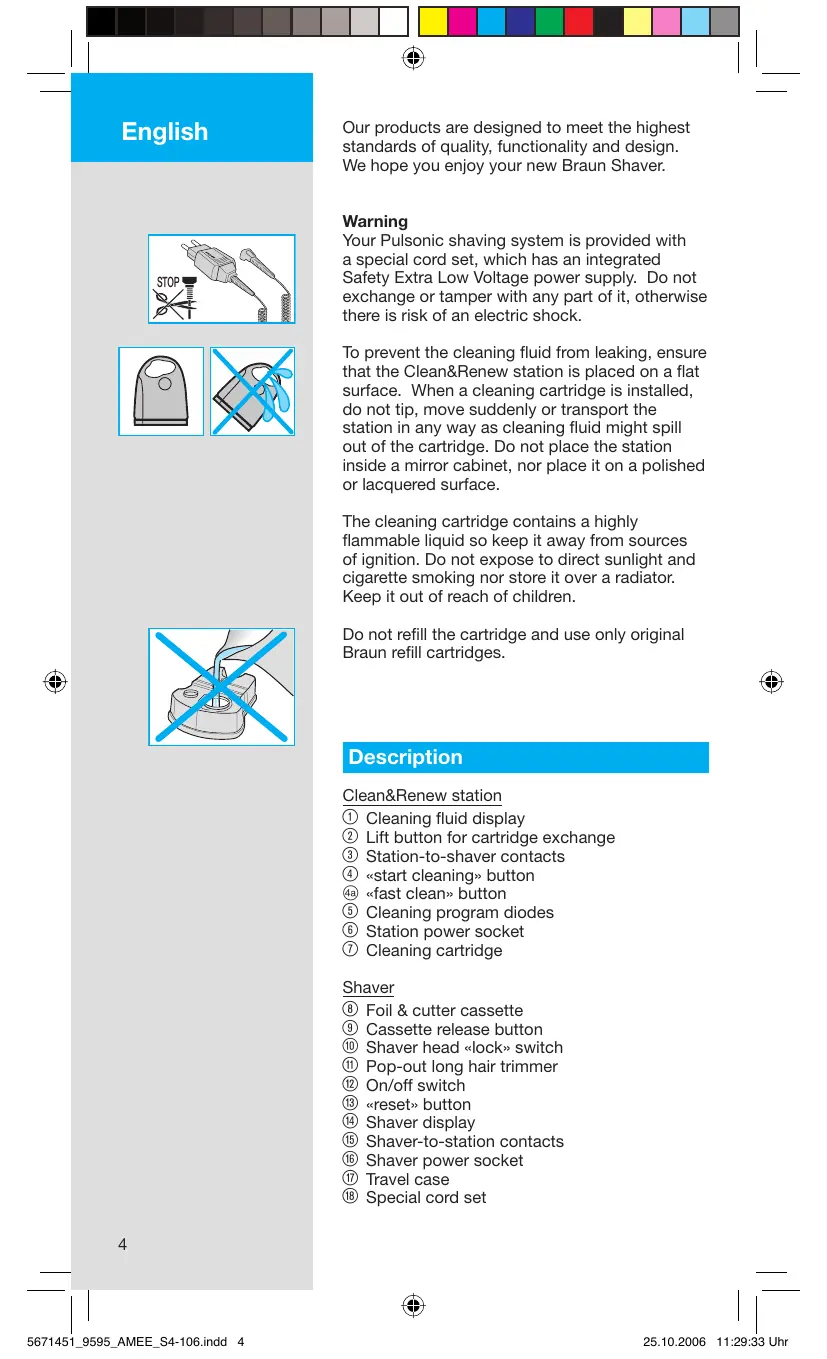

English STOP Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun Shaver. Warning Your Pulsonic shaving system is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. To prevent the cleaning fluid from leaking, ensure that the Clean&Renew station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface. The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator. Keep it out of reach of children. Do not refill the cartridge and use only original Braun refill cartridges. Description Clean&Renew station 1 Cleaning fluid display 2 Lift button for cartridge exchange 3 Station-to-shaver contacts 4 «start cleaning» button D «fast clean» button 5 Cleaning program diodes 6 Station power socket 7 Cleaning cartridge Shaver 8 Foil & cutter cassette 9 Cassette release button 0 Shaver head «lock» switch q Pop-out long hair trimmer w On/off switch e «reset» button r Shaver display t Shaver-to-station contacts z Shaver power socket u Travel case i Special cord set

Before shaving Prior to first use you must connect the shaver to an electrical outlet using the special cord set i or alternatively proceed as below. clean eco norm

intens ive auto sel ect Installing the Clean&Renew station

• Using the special cord set i, connect the station power socket 6 to an electrical outlet.
• Press the lift button 2 to open the housing. cleaning clean

• Hold the cleaning cartridge 7 down on a flat, stable surface (e.g. table). auto sive sele

• Carefully remove the lid from the cartridge. cleaning clean

• Slide the cartridge into the base of the station as far as it will go. eco auto

• Slowly close the housing by pushing it down until it locks. fast clean fast clean The cleaning fluid display 1 will show how much fluid is in the cartridge: high low low low empty empty empty

able «clean» «eco» «normal» «intensive» shaver is clean short economical cleaning required normal level of cleaning required high intensive cleaning required wash If required, the Clean&Renew station will now charge the shaver. The hygiene status of the shaver will also be analyzed and one of the following cleaning program diodes 5 will light up: high trimm Charging and cleaning the shaver Insert the shaver head down into the cleaning station. (The contacts t on the back of the shaver will align with the contacts 3 in the cleaning station). high reset «high» up to 30 cleaning cycles available «low» up to 7 cleaning cycles remaining «empty» new cartridge required

a rt cleaning clean eco normal fast clea

intensi high auto select low empty s ta rt cleaning clean eco normal intensive f a st c le a n auto select ble washa If the station selects one of the required cleaning programs, it will not start unless you press the «start cleaning» button 4. For best shaving results, we recommend cleaning after each shave.

a rt cleaning clean eco normal f a st cle intensive high

Whilst cleaning is in progress, the respective cleaning program diode will blink. Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head and a heat drying process dries the shaver. Depending on the program selected the total cleaning time will range from 32 to 43 minutes. s ta rt cleaning clean eco normal f a st c le a n The cleaning programs should not be interrupted. Please note that whilst the shaver is drying, the shaving head may be hot and wet. When the program is finished, the blue «clean» diode will light up. Your shaver is now clean and ready for use. intensive auto select ble washa

t cleaning tar clean eco normal f a st cle

auto sele low empty Fast cleaning Push the «fast clean» button D to activate the fast clean program without drying. This program takes about 25 seconds only and is recommended when you do not have time to wait for one of the automatic cleaning programs. If you remove the shaver just after the program has finished, wipe off the shaver head with a tissue to avoid dripping. Stand-by mode 10 minutes after completing the charging or cleaning session, the Clean&Renew station switches to the stand-by mode: The diodes of the Clean&Renew station turns off. Shaver display The shaver display r shows the charge status of the battery on the left, and the hygiene status on the right. (6 dark segments are shown on each side when the battery is fully charged and the shaver is hygienically clean.) Battery segments: During charging or when using the shaver, the respective battery segments will blink. When fully charged all 6 segments are shown. With decreasing charge the segments gradually disappear. Low charge indicator The low charge segment provided with a red frame blinks to indicate that the charge has dropped below 20%. The remaining capacity is sufficient for 2 to 3 shaves.

25.10.2006 11:29:35 Uhr

Hygiene segments: All 6 hygiene segments will appear after the shaver has been cleaned in the Clean&Renew station. When the shaver is being used, the hygiene segments will gradually disappear. Once the shaver is returned to the station, the system will automatically select the appropriate cleaning program and restore the segments to maximum hygiene. Given that rinsing the shaver under tap water is not as hygienic as the cleaning station, the hygiene segments will only restore themselves when the shaver has been cleaned in the Clean&Renew station. Charging information

• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth.
• The best environmental temperature for charging is between 5 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time. Shaving

Press the on/off switch w to operate the shaver:

• The pivoting shaver head and floating foils automatically adjust to every contour of your face.
• To shave hard to reach areas (e.g. under the nose) slide the shaver head «lock» switch 0 to the back position to lock the pivoting head at an angle.

• To trim sideburns, moustache or beard, slide the pop-out long hair trimmer q upwards. Tips for the perfect shave release For best shaving results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at right angles

3. Stretch your skin and shave against the

direction of your beard growth.

Shaving with the cord If the shaver has run out of power (discharged), and you do not have the time to recharge it in the Clean&Renew station, you may also shave with the shaver connected to an electrical outlet via the special cord set. Cleaning reset

ive intens high Automatic cleaning After each shave, return the shaver to the Clean&Renew station and proceed as described above in the section «Before shaving». All charging and cleaning needs are then automatically taken care of. With daily use, a cleaning cartridge should be sufficient for about 30 cleaning cycles. The hygienic cleaning cartridge contains alcohol, which once opened will naturally evaporate slowly into the surrounding air. Each cartridge, if not used daily, should be replaced after approximately 8 weeks. The cleaning cartridge also contains lubricates, which may leave residual marks on the outer foil frame after cleaning. However, these marks can be removed easily by wiping gently with a cloth or soft tissue paper. Manual cleaning The shaver head is suitable for cleaning under running tap water.

Warning: Detach the shaver from the

power supply before cleaning the shaver head in water. trim

Rinsing the shaving head under running water is an alternative way to keep the shaver clean, especially when travelling:

• Switch the shaver on (cordless) w and rinse the shaving head under hot running water. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds. release

• Next, switch off the shaver, press the release button 9 to remove the foil and cutter cassette 8 and let it dry.

washable oil release washable trimmer click! release

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil on top of the foil and cutter cassette.

25.10.2006 11:29:37 Uhr

Alternatively, you may clean the shaver using the brush provided:

• Switch off the shaver. Remove the foil and cutter cassette 8 and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. However, do not clean the cassette with the brush as this may damage it. Cleaning the housing From time to time clean the housing of the shaver and the Clean&Renew station with a damp cloth, especially inside the cleaning chamber where the shaver rests. release washable release release washable washable Replacing the cleaning cartridge After having pressed the lift button 2 to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution. old new Keeping your shaver in top shape Replacing the foil and cutter cassette / reset To maintain 100% shaving performance, replace the foil and cutter cassette 8, when the replacement symbol lights up on the shaver display r (after about 18 months) or when cassette is worn. The replacement symbol will remind you during the next 7 shaves to replace the foil and cutter cassette. Then the shaver will automatically reset the display. After you have replaced the foil and cutter cassette, use a ball-pen to push the «reset» button e for at least 3 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time.

Series Series release mer washable 360°Complete Accessories Available at your dealer or Braun Service Centres:

• Foil & cutter cassette No. 9000
• Cleaning cartridge Clean&Renew CCR

Environmental notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. The cleaning cartridge can be disposed with regular household waste. Subject to change without notice. This product conforms to the European Directives EMC 89/336/EEC and Low Voltage 73/23/EEC. For electric specifications, see printing on the special cord set. Guarantee We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. foil & cutter cassette) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre. For UK only: This guarantee in no way affects your rights under statutory law.
