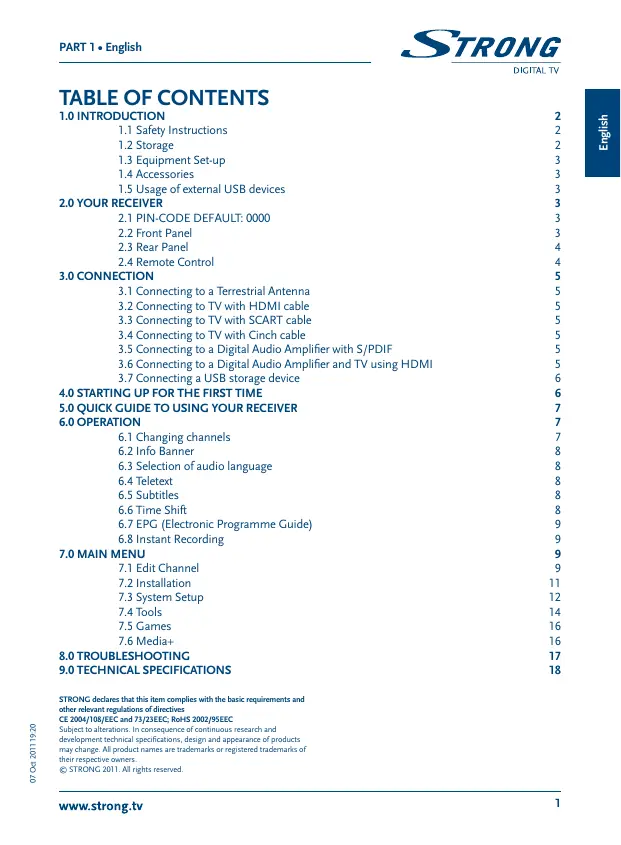

USER MANUAL SRT 8105 STRONG

1.1 Safety Instructions

12 Storage 13 Equipment Setup 14 Accessories

1.5 Usage of external USB devices

3.1 Connecting to a Terrestral Antenna

3.2 Connecting to TV with HDMI cable

3.3 Connecting to TV with SCART cable

3.4 Connecting to TV with Cinch cable

3.5 Connecting to a Digital Audio Amplifier with S/PDIF 5

3.7 Connecting a USB storage device

5.0 QUICK GUIDE TO USING YOUR RECEIVER

6.1 Changing channels

6.3 Selection of audio language

6.8 Instant Recording

1.1 Safety Instructions

DO NOT INSTALL YOUR RECEIVER: In a closed or poor ventilated cabinet; directiy on top ofor under any other equipment; on a surface which might obstruct the ventilation slots, DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES: = To direct sunlight or any other equipment that generates heat to rain or intense moisture; to intense vibration and to any shock which may cause permanent damage to your receiver or to any magnetic objects, such as loudspeakers, transformers, etc. Do not use a damaged power cord. It may cause a fire or an electrical shock. Do not touch a power cord with wet hands. may cause an electric shock. When the receiver is not used for a long period oftime, you should unplug the power cord from the wall socket. = Do notuse alcohol or ammonia based liquids to clean the receiver. IF you wish, your may clean your receiver with a sof lintfree cloth slightly made damp with a mild soap solution, only after disconnecting from the mains voltage supply. Make sure no foreign objects fall through the ventilation slots because this could cause fie or an electric shock Do not place any objects on top ofthe receiver because this might prevent proper cooling ofthe companents inside. Safety Precautions = Never open the receiver cover. Doing so will void the warranty I is dangerous to touch the inside ofthe receiver due to high voltage currents and possible electrical hazards. Refer al maintenance or servicing to qualifed service personnel. When you are connecting cables, be sure that the receiver is disconnected from the mains supph Wai a few seconds aller suitching ofthe receiver before you move the receiver or disconnect any equipment. Use only approved extension corde vith compatible viring that is suitable for the electrical power consumption ofthe installed equipment. Please ensure that the electrical power supply corresponds with the voltage on the electrical identification plate at the back ofthe receiver Ifthe receiver does not operate normal even after strict following the instructions in this user manual, itis recommended to consult your dealer.

Your receiver and is accessories are stored and delvered in a packaging designed to protect against lectrc shocks and moisture. When unpacking i, make sur that all the parts are included and keep the packaging away from children. For transporing the receive from one place to another ri you are returing it under warranty conditions, make sure to repack the recever in is original packaging with its accessories. Faling to compy vith such packaging procedures could void jour warranty. 2 wwwsstrongtv

Par gun <STRON DIGITAL IV

1.3 Equipment Set-up

Ve recommend you consul a professional installer to set up your equipment. Othenwise, please follou the instructions belouc 1 Refer to the user manual of your TV and antenna. = Make sure that the HDMI cable and outdoor components are in a good condition = Use only a HDMI 1.3 cable or igher for maximum performance. = 1Fyou use TV SCART connection, use then well shielded SCART cable [applis oniyto SRT 8105) This manual provides complete instructions for instaling and using this receiver. The following symbols will serve as follout WARNING Indicates warning information. Tips Indicates any other additional important or hepful information. MENU Represents a button on the remote control or the receive. (Bold Character Move to Represents à menuitem within a window (halic Character)

NOTE: ‘The batteries should not be recharged, disassembled, electrical short drcuited, be mixed or used with other types ofbatteres.

1.5 Usage of external USB devices

m lis recommended to use USB 2.0 storage devices or higher. I your device is not compatible to USB 2.0 specications, recording, playback and other multimedia functions of the receiver might not iork proper To ensure best performance of your USB storage device please format it by this receiver (menu “Medios") to FAT32 system. Other fl systems are not supparted by the receiver. However it is possible to use already NTFS formatted disk. STRONG cannot guarantee compatiblty with all ypes of USB storage devices. Itis aduised not to store important information on USB storage deuices used vith the receiver. Alays make backups of data on your USB storage device before using it with this receiver. STRONG wil not take responsibility for any loss of information or cireumstances caused by loss ofinformation

Fig.1 wwwsstrongtv 3 English

Indicates current time in STAND-BY mode* Indicates current channel number in OPERATING mode* Connector for USB devices. Point your remote control towards this sensor. RED indicates that the receiver is in STAND.BY mode. GREEN indicates that the receive is in OPERATING mode. Fig.2

1. ANTIN To connect to your antenna for the reception of broadeast signal.

2 TO Te connect to ne terrestial anterna input of your TV set. ‘his connection wil allow you to watch analogue terrestral programmes via the tuner in your TV.

3. SIPDIF Coaxal To connect your receiver to a digital audio amplifier.

4 To connect your eceiver with your TV set using a HDMI cable. S. TVSCART Te connect your recever with our TV set using a SCART cable *

6. Video Connector To connect jour receiver with your TV set using a cinch cable.*

7. Audio L/R Connector

To connect your receiver with your TV set using a inch cable.

8. Power Cord Yourreceiver requires a voltage of 220-240 AC (Auto.

selectable), 50/60Hz 25%. Check the local poer specifcation before connecting your receiver to the wall outlet. *Onl SRT 8105

1. © ‘ur the receiver On/Standby

2 @ Mutes audio output ofthe receiver

3. PG+/PG Page up/doun and 10 channels steps in channel list mode

4. DIVNCR No function

12. RECORD Records the TV programme to {ne connected storage device

13. TIMESHIFT — Activates the time shift function

14.09 Channel selection or value input

15.EPG Shous the EPG (Electronic Programme Guide) n TV mode V6 RECALL Back to previous shoun channel wwwsstrongtv

18. TV/RADIO oggles between TV or RADIO mode

19.FAV Favourite group selection 20.FILE Shows the Media Player list 21.TX Shows Teletext on OSD (On Screen Display)

22. SUBTITLE Shows list of subtitled languages

2.4» Fast rewind | Fast forward

24. Coloured buttons … for Multimedia and Teletext functions

3.1 Connecting to a Terrestrial Antenna

To receive broadcast signal, your terestrial indoor or outdoor antenna must be connected to the ANT IN connector on the back ofthe receive. Use a proper} shielded antenna cable and suitable connectors. The TO TV connectar allows you to loop the antenna signal to a second receiver or TV set.

3.2 Connecting to TV with HDMI cable

The TV set shall be connected wilh the receiver using a good quality HDMI 1.3 or higher cable. This connection gives the highest possible qualit

3.3 Connecting to TV with SCART cable

SRT 8105 is also equippéd with a SCART connectoralemativel, he TV set can be connected to the receiver using a good quality SCART cable.

3.4 Connecting to TV with Cinch cable

TV sets without SCART 6r HDMI input{s) can be connected to the receiver using suitable cinch cables. Connect one end ofthe cable to the Audio L, R and VIDEO connectors on the back of SRT 8105. Connect the other end to the respective inputs on your TV set.

3.5 Connecting to a Digital Audio Amplifier with S/PDIF

By connecting your receñer to a digital amplifier or home theatre system, you can enjoy the best possible sound quality and mul-channel audio (depending on broadcast}. Connect your Digital Audio Ampliier or home theatre system with a suitable cinch cable to the S/PDIF connector on the back oftne receive. Fes

3.6 Connecting to a Digital Audio Amplifier and TV

using HDMI wwwsstrongtv 5 English

<STRONG PART ga DIEMALIV By connecting your receiver to the latest digital amplers or home theatre systems with HDMI connections, you ll enjoy the best possible sound qualit and mult.channel audio (depending on broadcast). Connect the HDMI output of the receiver to an input of your amplifier, and then connect the HDMI output oFthe amplifier to your TV set. Select the correct input on Your amplifier to watch and listen to programmes.

3.7 Connecting a USB storage device

Fig.7 NOTE: Ve recommend the use of a hard disk drive USB 2.0 or higher for recording and play back OF TV events. For proper functioning of Time Shi and recording functions, a fast USB device [such as a hard disk drive) is needed. Interrupted playback or a distorted picture during playback or Time Shif are indications for a low device speed. STRONG cannot guarantee proper functioning of recoding and or Time Shi functions with all USB devices.

4.0 STARTING UP FOR THE FIRST TIME

IF jou use your eceiver for the first time, the Welcome “Easy install” menu appears. Use À W to move the highlight t the setting you wish to alter and use 4) to change values. Star by selecting your language using 4. Once you have selected your language, press W to move the highlight to Region Select your region using 4D>- Subite: Select On to display suites per default, Select Offto hide subtitles per default. Aspect Mode: Use this option to select the aspect ratio of your TV and the preferred conversion method. Options are: Auto (automatic detection of aspect ratio), 4:3 Panscan (Displays 169 widescreen broadcasts full screen on your 43 TV), 43 leterbox (black bars on top and under the picture on a 4:3 TV) and 169 {use this setting for 169 TV sets). ‘Scan mode Select AÏ to store scrambled and fre to air channels or select Free to store on free to air channels. NOTE: Scrambled channels you cannot watch with this receiver. Connection Use this option to select the connection to your TV set. Select HDMI or SCART. jou ae using a inch cable then his selection is not important {apples only to SRT 8105) Once all settings are made, move the highlight to OK and press OK to continue. The receiverwil now advance to the Agrial Agjustment screen This par ofthe wizard is of great help en setting up your antenna system. Use A Y to move the highlight to the setting you wish to alter and use 4 Lo change values The following setings are available: Antenna Power. Set to On you use an active antenna. When set to On, 5 V will be present on he ANT IN connector ofthe receive Select Offor passive antennas. Beeper. Select On for an audible indication of signal reception. Offtums the beeper of. 6 wwwsstrongtv

Par gun <STRON DIGTAL IV Channel No. Select a channel that is known to carry a broadast in your region. The Signal Strength and Signal Quality bars give a visual indication ofthe reception. AAdjust your antenna to obtain maximum signal strength and qualit. Once all settings are made, press OK to start scanning. The receiver will now search for all available channels. Once scanning is finished, the receiver switches to viewing mode. TP. In case the Welcome “Easy install” menu does not appear afer suitching on he receiver the first time, reset the receiver to factory settings by pressing the MENU button and selecting Load Factor Settng in submenu Toois. (Default PIN 0000)

5.0 QUICK GUIDE TO USING YOUR RECEIVER

Ve at STRONG understand that you can't wait to enjoy your new high definition digital terestral receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, adhice you to read the full manual to get the best performance fiom your receive. To tu your receiver ON or to Standby, use the À button on the remote control Choose the desired channel with the À W buttons. Alternativel, you can digit the channel number with the 0-9 buttons on the remote control. Or press OK in viewing mode to display the channel ist The volume can be adjusted with the 4 buttons.

Your new receiver is equipped with several features to make watching TV a true pleasure. This paragraph describes these features. Please also read chapter 7.0 o get fariliar vith the menu of your receive.

6.1 Changing channels

To gain direct access to a certain channel, simply imput its number with the 0-9 keys on the remote control. Channel numbers can be up to four digis long. Entering a number with less than four digits is possible. Just wait a few seconds and your receiver will switch to the selected channel or press OK immediately aier selecting the channel number.

Press OK in viewing mode to display the Channel List, Use À W in the Channel List to highlight your channel of choice and press OK once to select he highlighted channel. Press OK again to leave the Channel List wwwsstrongtv 7 English

file watching TV you can press the INFO button any time to get information about the current channel and event. Press INFO twice for technical details about the current channel. Event information is displayed when available. Availabiy depends on broadcast.

6.3 Selection of audio language

Some channels support a choice of audio formats and/or languages. To select another audio stream, press AUDIO in viewing mode. À lis th available audio streams will now be displayed. Use À W to Select the desired stream and confirm vith OK. The audio channel as stereo, mono, lef and right can be selected with the 4 buttons.

Your recever includes a ful featured Teletex To access Teleteu, press the TTX button in vieuing mode and use the 0-9 buttons to input the number ofthe page jou wish to see The coloured buttons ofthe remote control allow you t jump to selected pages direct as indicated om the bottom fthe teletext screen. Use the À W buttons to select one page up or down, use 4 buttons to select subpages. Press EXIT or TTX to get back to viewing mode.

Some channels support a choice of subtile languages. Press SUBTITLE in viewing mode t display à list of avalable subtil languages. Select your subtile ofchoice with À W and press OK to conf. Press EXIT t leave without making changes.

Time Shi allous you t pause Ie broadeasts and resurne playback later. Press TIMESHIFT in viewing mode to activate this mode. On screen wil appear a message Timeshjf On, live TV keeps playing. To pause press I (PAUSE) button and press D (PLAY) to resume Time shifed playback Press 449 for Fastrewind/Fast forwards. Press I (STOP) Lo return Lo ive TV. Press EXT to ext Time Shi mode. NOTE: Time Shif needs a connected USB storage device with sufficient free space and sufficient speed in order to work proper. Ü wstrongiv

‘The Electronic Programme Guide is a very useful function that allows you to view event schedules and information and to mark programmes for recording, To access the EPG, press the EPG button in viewing mode. Use A V to select the desired channel and 4 to select the desired event. Press OK to display detailed information on the selected event. Use EXIT to quit the detailed information screen. Press RED to get to the Step Time function. Use 4 to select the desired step and OK to execute it. Press EXT to qui the Step Time function. Press GREEN to set a timer for a selected event Refer to section 7.34 for details on the timer function NOTE: AAvailability of EPG data depends on broadcast.

6.8 Instant Recording

Your new receive allows you to make an instant recording of the programme you are watching. Simphy press @ to star the recording. To enter the duration for the recording press @ again. Use the 0-9 keys to imput the desired recording time. During the recording a recording sign wil be shown on the upper right of your TV screen. To stop the recording, press ML. Select Yes and press OK again to stop the recording. *Please connect an USB storage device with suficient fee space before you start a recording

‘The main menu gives you access to settings, multimedia functions and buil in games. To access the main menu, press MENU in vieng mode. The main menu consists of the following sub menus: Edit Channel, Installation, System Setup, Tool, Game and Media+ ‘Throughout he main menu, MENU or EXIT can be used to get back to the previous screen

Use A Y to select Edit Channel and press OK or to enter. Use À Y to highlight the desired sub menu and press OK to select. Press EXIT or 4 to get back to the main menu.

7.1.1 TV Channel List

In Edit Channel menu select TV Channel List with A W and press OK to enter. Use 4 10 change the channel group (assumed you have ready set up favourite groups) Select the desired channel with À W. Press OK to view the selected channel in he preview box

7.1.1.1 Adding channels to favourite lists

Channels from the TV Channel Lis can be added to up to 8 different favourite groups. Press FAV while in TV Channel List to access this function. The FAV sign on the top ofthe screen vill move up 0 indicate that the Favourite function is selected. Use À V to select a channel you wish to add to à favourite group. When the highlight is on the desired channel press OK. A list with all available Favourite lists will now pop up. Use A Y to select the favourie list you wish to add the channel to and press OK, press EXT to finalize the process. Favoured channels ll be marked vith a heart symbol. wwwsstrongtv 9 English

<STRONG PART ga DIEMALI Once all changes are made, press EXIT twice. À confirmation banner will pop up. Select Yes to save he changes or No to discard.

71.12 Locking channels

Locked channels can onl be watched after entering ie pin code. (DEFAULT PIN: 0000) Te lock or unlock a channel press RED while in TV Channel Lit. The red Lock sign on the top ofthe screen will move up to indicate that the Lock function is selected. Use À W to select the desired channel and press OK to lock or unlock. You are asked to imput the pin code. (DEFAULT PIN: 0000) Locked channel will be marked with the à symbol. Locking/unlocking multiple channels in one session is possible. Once al changes are made, press EXIT uice. À confirmation banner will pop up. Select Yes t save the changes or No to diseard. Locking/unlocking multiple channels in one session is possible.

711.13 Skipping channels

Channels marked with Sp will be skipped when zapping channels with the À W buttons. Despite that, these channels are stl avaiable om the channel is. To mark channels for skipping, press GREEN wéile in TV Channel Lis. The Skip symbol on the top of the screen will move up to indicate that the Skip function is selected. Use À W to select the desired channel and press OK to mark or unmark it for skipping. Channels set fr skipping will be marked with the æ symbol Once al changes are made, press EXIT vice. À confirmation Banner wil pop up. Select Yes t save the changes or No to discard.

71.14 Moving channels

To enable the Move function, press YELLOW ue in TV Channel Lis. The Move symbol on the top of the screen wi move up to indicate that the Mave function is selected. Use À W to select the desired channel and press OK to select. You can now move the selected channel up or dou he channel lis using À W. Once the channel is on the desired position, press OK again. The channel is now fed on its new position. Once al changes are made, press EXT twice. À confirmation banner vil pop up. Select Yes to save the changes or No to discard.

7.1.1.5 Editing channels

he Edi function allows ou to So, Rene ar Delte channels. To enterthe Edit menu, press BLUE while in TV Channel List. The Edit Channel menu ill appear. Son Press RED to enter the Sor menu Use AY to select the desredsoring method and press OK to conf. Posble methods are Name (AZ) Soring in alphabetcal order from A to Z. Name (ZA) Soring in alphabetcal order from Z to A. Free/Scramble: First in the list will be Free-To-Air channels. Lock: All unlocked channels wi placed first in the list. Defauit Soring by searched Order (rom lowest to highest frequency or by LCN numbering). w wstrongiv

Par gun <STRON DIGITAL IV Rename Press GREEN in Edit Channel to enable the Rename function. The Rename sign will move up to indicate that Rename is selected. Use A W to highlight the desired channel and press OK 10 select it. A text field will now pop up atthe right ofthe screen. Use QD A W to select the desired characters and enter them with OK. Once you have finished editing, press BLUE to enter the changes. Once all changes are made, press EXIT twice. Select Yes to save the changes or No to discard. Delete Press BLUE in Edit Channel to enable the Delete function. The Delete sign will move up to indicate that Delete is selected. Use À W to highlight the desired channel and press OK to mark it for deleton. ‘The receive asks you to enter the pin code. Once you have marked all channels you wish to delete, press EXIT twice. À confirmation banner will be displayed. Select Ys to delete the marked channels or No to cancel.

7.1.2 Radio Channel List

Basical, the operation ofthe Radio Channel List is the same as in the TV Channel List, The only difference is that in Radio Channel List there is no video information, so it will always display the radio logo atthe right previews screen.

Use this menu to delete all stored channels. Select Deete All with À W and press OK. The receiver asks you to enter the pin code. (Defaul pin:0000). In the confirmation window select Yes with > and press OK to delete or select No to cancel WARNINGI ‘The Delete al function will permanently delete al current channels and all Favourite lists from your receiver, and you are not able to leave the menu until you search for channels again.

Use À V to select Installation and press OK or D to advance. Select Auto Scan with À W and press OK to enter. Use 4 10 toggl beteen FTA On Yes or Ne. When FTA Only is set to Yes, scrambled channels vont be stored in the channel st. Use À W to highlight Search. Now press OK to start auto scan ‘The receiver il store ll new found channels in the channel is

Use À Y 10 select Installation, press OK or D to advance. Use À Y 10 select Channel Scon and press OK 19 enter. Use 4 to toggl betneen available scan modes: By Channel and By Frequency. 1FBy Channel is selected, use the eursor buttons to select Scan Band and Channel Ne. By Frequency is selected, use the cursor buttons to select Frequency and Bandvidth. Highlight Search and press OK Lo start scanning. New found channels wll be stored in the channel ist. wwwsstrongtv n English

<STRONG PART ga DIEMALI

7.23 Antenna Adjustment

Use A Y to select Installation press OK or D to advance. Use A V to select Arial Adjustment and press OK to enter. Use A Y move the highlight to the setting you wish to alter and use 4 to change values. ‘The following settings are available: Antenne Power: Set to On ifyou use an active antenna. When set to On, 5 V will be present on the ANT IN connector ofthe receiver. Select Of for passive antennas. Besper. Select On for an audible indication of signal reception. Offturs the beeper of. Channel No. Select a channel that is known to carry a broadcast in your region. The Signal Strength and Signal Quality bars give a visual indication ofthe reception. AAdjust your antenna to obtain maximum signal strength and qualit} Press EXIT to leave the Anienna Adjustment screen.

7.2.4 LCN (Logical Channel Numbering)

1FLCN (Logical Channel Numbeing) is activated and an LCN signal is provided bythe operator, channels vil be stored in an operator defined order, St LCN to On to activate operator defined channel numbering or Ofto store channels in found order

‘This menu allous you to manage the system settings of your recever. I consists ofthe following sub» menus: Lamguage, TV System, Local Time Setting, Timer Sting, Parental Lock, OSD Settng, Favourite and Auto Standby. Press À V to highlight desired menu and press OK advance to the next screen. Use À W to move he highlight to the desired setting. Values can be changed with 4e. Press EXT to leave.

‘This menu allous you to set up your language preferences. Language: Use 4 to select the desired language for the On Screen Display. First Audio: Use 4 to select the desired Audio language. Second Audio: Use 4 to select a language that will be played when the language selected at Fist Audio in't available. Subtitle Language: Use 4 to select the preferred subtitle language. Subritles: Use 4 to select the preferred subtile type to be displayed automaticall. Téletext Use 4 to select the preferred teletert language (when available.)

Use this menu to match your receive t your TV set. The following settings are available: Video Resolution: Toggles beteen 576 up to 1080p. Please use a seting that matches your ‘TV's specifications. fer a selection is made, you will be asked to confim. NOTE: Selection is only applicable on HDMI m2 wwwsstrongtv

DIGITAL IV ‘Aspect Mode: Use this option to select he aspect ratio of jour TV and the preferred conversion method. Options are: Auto (automatic detection of aspect ratio), 4:3 Panscan (Displays 16:9 widescreen broadcasts full screen on your 43 TV) 433 letterbox (black bars on top and under the picture on a 43 TV) and 16:9 {use this setting for 16:9 TV sets) Connection Use this option to select the connection to your TV set, Select HDMI or TV SCART. Digial Audio Output: | Toggles betueen PCM and Bistream output. When PCM is selected, all audio villbe converted to stereo audio. Bitstream enables multi-channel audio on the digital output.

7.3.3 Local Time Setting

Here you can set up our region and time zone. Region Use 4 to select he region you ve in. GMT Usage Set to On for broadcaster defined time or to Offto input time and date manualh. GMT offer Allous you to adjust the time zone you le in. This option s only avalable when GMT Usage is set to On. ‘The GMT Offet range is "11:30 - 41200”, increasing by half hours progressively. The cities matching the set GMT Offet are displayed at the bottom of the screen Summer Time: Select Offor On to add one hour extra for summer time during the summer. Date: Date and Time settings are available only when GMT Usage is set to Of. Use the 0-9 buttons to enter the date. Press EXIT to proceed Time: Date and Time settings are available only when GMT Usage is set to Of Use the 0-9 buttons to enter he time. Press EXIT to proceed.

This menu allows you to set up 10 8 timed events for recording or waking up the receiver. Use A V to select Time Setng from the Sjatem Setup menu and press OK to enter. The receive vil display a ist with 8 imers, followed by their respective status, Select the timer you wish t set or change with À W and press OK to proceed The timer setup menu will now be displayed The following setings are avalable: Timer Mode: Choose berueen Of (Timer inactive), Once or Daily (Timer il be executed every day) Timer Senice Choose betueen Channel (Timer will wake up the receiver) or Record {Timer wil start t record he scheduled event) Wokeup Channel. Use QD to select the channel tre timer will wake up with Wakeup Date Use the 0-9 buttons to imput the date for the timed event Wakeup Time: Use the 0-9 buttons to imput the desired start time. Duration: Use the 0-9 buttons to imput he timer duration Once all settings are according to your wishes, use À to move the highlght to Save and press OK 0 confim. To quit the timer without saving your settings, move the Highlight to Cancel wwwsstrongtv English

‘This menu allows you to protect the instalation menu and/or channels with a password. You can also enter a new password in the Parental Lock menu. Use A to select Parental Lock from the System Setup menu and press OK to proceed. You will be asked t0 enter your pin code. (DEFAULT: 0000) Menu Lock: Locks the instalation menu. You can set Menu Lock to On or Of. Channel Lock Choose between: Off AGE 10, ÂGE 12, AGE 16 and AGE 18. Channels with 2 parental rating above the chosen age will be protected with a password (if available in your local broadcast.) New Password Enter your new password (4 digits) here. Confirm Password: Re-enter your password here to confirm.

This menu allows you to change setings for OSD Timsout and OSD Trarsparenc} OSD imeour Sets the time fier which on screen banners and messages disappear. The range is 1-10 seconds. OSD Transpareney… To setthe OSD transparencyfom Of 40% with 10% steps Load Default OSD Serie Press OK to clear all OSD setngs and reset to defaut values

‘This menu allows you to persomlize the names ofthe 8 available Favourite lists. Use A V 10 select Favourite from the System Setup Menu and press OK to praceed. The names ofal groups are now displayed. Select the desiredfavourite group with A V and press OK to cdit ts name. À text field will now pop up at the right oftne screen. Use AD À V to select the desired characters and enter them with OK. Once you have inished editing, press BLUE to save the changes. Once al changes are made, press EXIT vice.

Auto Standby is a new feature that helps you with reducing power consumption. When set to On, the receiver will tum to standby ii doesn't receive any commands for three hours. Set Auto Stand to Ofio avoid the automatic switch doun.

7.4.1 Receiver Information

‘This submenu shows receiver specific information such as hardware version and sofware version. It also displays our web address wawstrong.w. Please have the Receiver Information screen on hand when you call our hotline. The person who answers your call might ask for the information given in his screen. 4 wwwsstrongtv

‘This option allows you to reset the receiver to factory settings, which clears al stored channels. WARNINGI By resetting your receive to factory default, al your settings and stored “channels will be permanentiy deleted. Please use this option with care. Use A to select “Load Factory Setting” in the Tools menu and press OK. You are asked to input password. Input the correct password using the 0-9 buttons (default: 0000). À confirmation window is displayed. Select Yes to return to factory settings. Select No to cancel. Press EXIT to leave.

7.4.3 SJW Upgrade by OTA

his recever is equipped with an Over The Ar soflware upgrade option. An Over The Air update right ot be available in your region Please visit our website wwstrong vor contact your local semi hotline for more information about this option

7.4.4 Upgrade by USB

This feature allows you to upgrade your recevers sofare ia the USB port Ifnew sofiare is avalble for your recever it can be dounloadedfiom our website wwwstrong Place the sofiuare fie (urzipped) in the root directory of our USB storage device (HDD, memory stick ete and'insert {his deice int the USB port of the receive. Select Upgrade by USE from the Took menu and press OK t proceed. The upgrade menu vil now be displayed Use À Y to select Upgrade Mode and choose option Alode. Use A V to select Upgrade Fil and choose the file containing the new sofware Once al setings are made, move the highlight to Stat and press OK 1o start te upgrade process. Afir a feu seconds he receiver ask: "Are You sure o burn flash? Select Yes to fnalize the upgrade or No to qui without upgrading, WARNINGI AAfer an update the receiver restarts automatically, During the upgrade process NEVER disconnect the receiver from the mains or switch ofthe poerl Doing s0 might damage your receiver and wil void warranty!

7.4.5 Remove USB device safely

Select Remove USB device safly from the tools menu and press OK. The receiver will display a message indicating that you can safely remove your storage device from the receiver. NOTE: fer performing this function, the USB device is no longer accessible from your receiver. To gain access to your storage device again, re insert or switch the receiver to standby and on again. wwwsstrongtv 15 English

Your recever is equipped with two games which can be played on your TV sereen using the receiver remote control, Use À Y to select Game fiom the Main menu and press OK or D 10 proceed. Select one ofthe available games (Othello or Sudoku) using À W and press OK to start the game. Follow the directions on screen. Use EXIT to quit a game.

‘The Mediar menu consists ofthe following submenus: Media Player, Record Manager, DVR HDD Information, HDD Format, DVR Configuration and Jump. Use À to highlight the desired menu and press OK to enter. Press EXIT to quit.

his function alows You to play MPEG, AVI, MP3, JPG many other type fes from connected storage device (see details in technical part) Select Media Player from the Medias menu and press OK to proceed Use A V browse the connected USB device and use OK 1o open maps. Press OK to play the highighted selection. The help banner atthe bottom ofthe screen xplains ll buttons used in the Media player. Press EXIT to qu. NOTE: You can also access the Media Player from viewing mode with the FILE key on the remote control.

7.6.2 Record Manager

The Record Manager gives you access to previous recorded events Select Record Manager from the Media+ menu and press OK to enter. Use A V to highight the recording you wish to play and press OK start playback Press EXT to ext. During playback ii possible to perform the following actions: YELLOW (1) To pause the playback. To resume playback, press BLUE (D). «4» For fast forward or fast rewind during playback. RED (1) Press to stop playback and return to Record Manager. NOTE: You can also access the Record Manager from viewing mode with the RED Key on the remote control ‘The help banner at the bottom ofthe screen explains al buttons used in this record manager to edit. Press EXIT to save the settings and qui the menu.

7.6.3 DVR HDD Information

‘This option shous relevant information about the connected USB device. 16 wwwsstrongtv

Par gun <STRON DIGITAL IV Select DVR HDD Inférmation from the Media menu and press OK to enter. Press EXIT to leave.

‘The HDD format menu allows you to format the connected USB device. WARNINGI Formatting vil permanent} delete ALL data stored on the connected device Please make a backup copy of al data you wish to keep before entering the HDD Format menu. STRONG cannot be held responsible for loss of data from USB devices used vith this receive. Select HDD Fonnat om the Media+ menu and press OK to enter. Use @ to select the partition you wish to format (Parition 1 is set per default and press V to ighight Fommat. Press OK to procecd, select FAT or Cancel, or press EXIT to leave without formattig. NOTE Ii possible to use already NTFS formatted USB disk.

7.6.5 DVR Configuration

‘This menu allows you to make settings for Time Shi and recording Select DVR Configuration from the Media» menu and press OK to enter. Use A V to move the ighlight and 4 to change settings. Press EXIT to quit. Time Shi On or Of. When Time Shif is set to Of, Time Shift becomes inactive. Time Shifi to Record: … On or Off. When set to On, is Time Shif also possible during record Record Type: TS or PS. When TS is selected, recordings will also include subttles and eletext (uen available). PS makes recordings without these etras. Record Selection Select the partition the receiver will record on. Standby afer record. On or Off Select if receiver must go to standby mode after Timer record.

The jump intenval seing allows you to define he length fie fast search interval during playback of previously recorded event, The player wi jump forward or back with the set amount oftime each time you press or # Select Jump fom the Media menu and press OK to enter. Use 4 to select the desired search interval. Possible settings are: 30 Sec, 1 Min, 5 Min, 10 Min, 30 Min Press EXT to leave the menu.

‘There may be various reasons for abnormal operation of the receiver Check the receiver according to the procedures shown below IFthe receiver does not work proper} afier checking please contact your dealer or the local Service Hotline. Do NOT try to open or disassemble the receive. It may cause a dangerous situation and warranty will be void wwwsstrongtv 7 English

DIEMALI Problem Possible cause What to do LED indicator not it Mains lead unplugged Check mains plug No signal found Aerial is disconnected Aerial is damaged/misaligned Out of digital signal area Active antenna requires to switch ON antenna power external power Check aerial lead Check aerial Check with dealer Suitch receiver's Antenna Power ON/connect external power No picture or sound on TV HDMI is not selected on your TV or Amplifier or is set to higher resolution as TV supports. TV is not switched on Switch to correct TV input Select lower resolution Switch TV on Scrambled channel Message Channelis scrambled Select alternative channel No response to remote control Receiver of. Remote not aimed correct Front panel obstructed Remote batteries exhausted Plug in and turn on plug {im remote at front panel Check for obstructions. Replace remote batteries Forgotten PIN code Contact local Service Hotline or send email to our Support via vawstrong iv Afler moving the receiver Lo another roomfarea you are no longer able to receive digital reception Antenna signals are 100 weak Press the INFO button on remote 2x to cal up signal bars and adjust antenna for maximum) reception or rescan channels The receiver suitches of automaticalh. Auto Standby function enabled. Disable auto standby. See
