Product type	Digital satellite receiver
Brand	STRONG
Model	SRT 6015
Dimensions (W x H x D)	260 x 40 x 140 mm
Weight	1.2 kg
Power supply	90 - 240 V AC, 50/60 Hz
Maximum consumption	20 W
Standby consumption	≤ 8 W
Tuner input frequency	950 - 2150 MHz
Demodulation	QPSK
Symbol Rate	2 - 45 MS/s
Flash memory	16 Mbits
SDRAM memory	64 Mbits
Channel capacity	Up to 3200 channels for 64 satellites
Video outputs	TV SCART (RGB, CVBS), VCR SCART, S-VHS (model 6015)
Audio outputs	Analog stereo audio, Digital coaxial S/PDIF
RF modulator	UHF CH 21-69, PAL B/G, D/K, M/N, I standards (model 6015)
Main features	Free to Air reception, DiSEqC 1.0/1.2, 7-day EPG, OSD/VBI teletext, parental lock, 10 timers, Tetris game, OTA update
Maintenance and cleaning	Unplug before cleaning. Use a soft cloth slightly dampened with soapy water. Do not use alcohol or ammonia.
Safety and repairability	Do not open the casing. Do not expose to moisture, heat or shocks. Consult a professional for any repair. Spare parts available from the manufacturer.

Frequently Asked Questions - SRT 6015 STRONG

How to connect the satellite dish to the receiver?

Connect the coaxial cable from the dish LNB to the SAT IN connector on the back of the receiver. If using multiple dishes, a DiSEqC 1.0 switch is recommended.

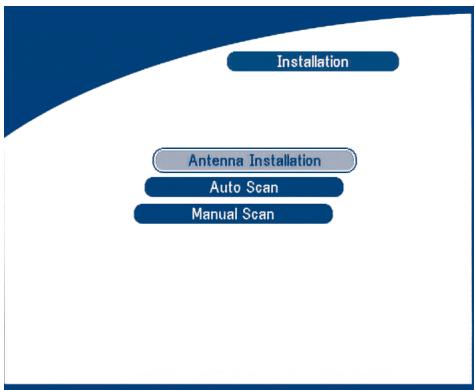

How to perform channel search?

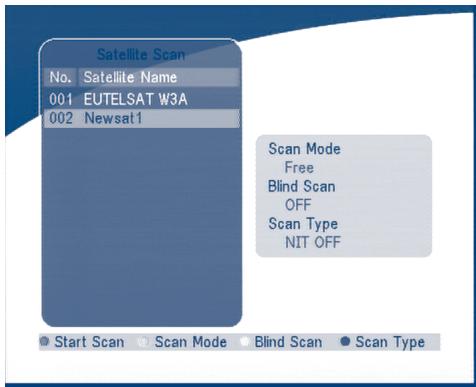

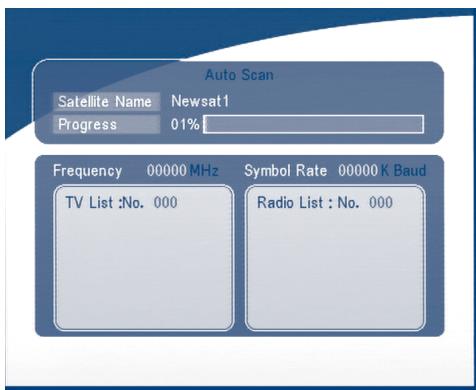

Go to menu Installation then Auto Scan. Select the satellite, set scan mode (Free or Free+CA) and press RED key to start search. You can also use Manual Scan for a specific transponder.

What to do if I have no picture or sound?

First check that the receiver is on (green LED) and that the SCART or HDMI cable is properly connected to the TV. Make sure the TV is on the correct source. If the problem persists, check the antenna cable and signal strength in the Program Info menu.

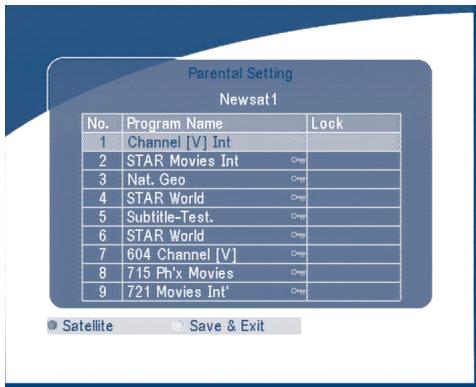

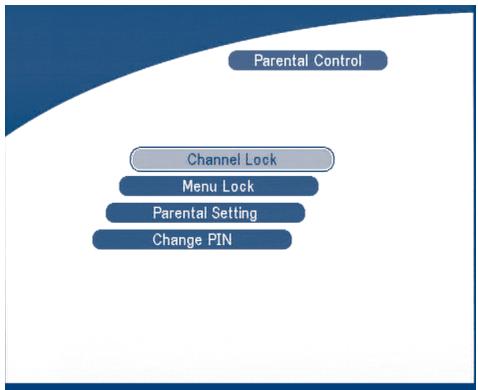

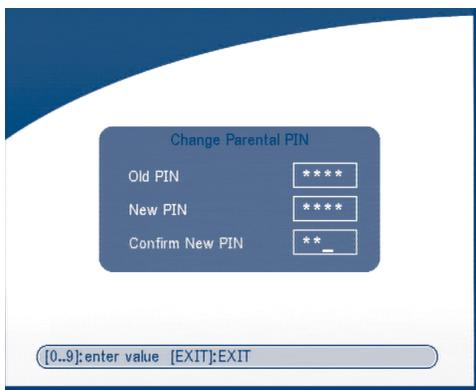

How to lock certain programs for children?

Go to menu System Configuration > Parental Control. Enable Channel Lock then go to Parental Configuration. Select the channels to lock by pressing OK. Default PIN is 0000.

How to update the receiver software?

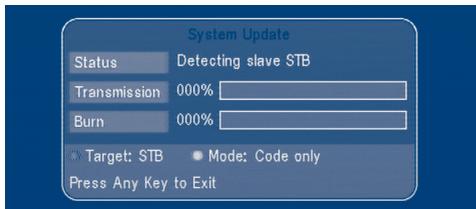

You can update via satellite (OTA) by going to System Update and choosing Over Air Download. Or via a PC by connecting the serial RS-232 port and using a transfer software (1K Xmodem protocol). Never cut power during update.

What does the red and green LED on the front panel mean?

The RED LED indicates the receiver is in standby mode. The GREEN LED indicates the receiver is on and active.

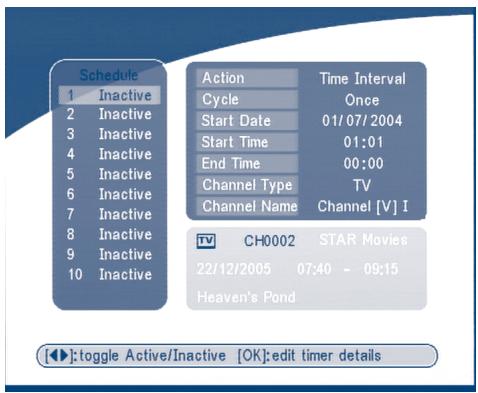

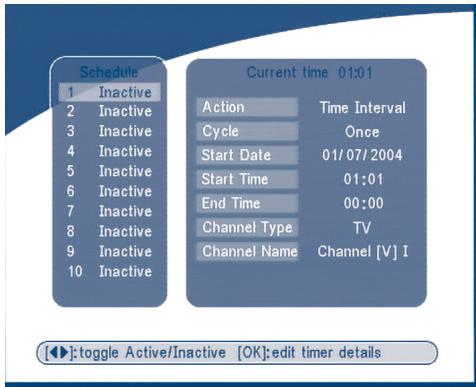

How to set the timer for recording?

In the Timer menu, select a free slot (1 to 10). Set Action to 'Time interval' to turn on/off at specific times. Choose channel, date, start and end time. Confirm with OK. You can program daily, weekly or once actions.

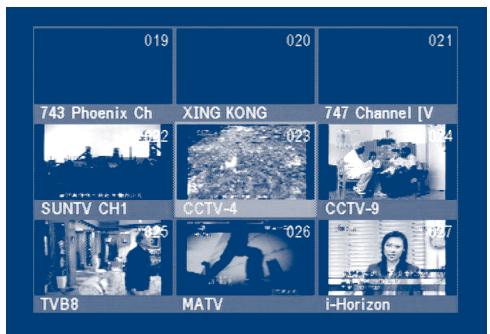

How to use the mosaic function (multi-channel view)?

Press the MOSAIC key on the remote in normal mode. The screen will display up to 9 channels simultaneously. Use arrow keys to select a channel and press OK to display it full screen.

The receiver does not detect the remote control, what to do?

Check that the batteries (AAA type) are inserted correctly and not drained. Make sure no object is blocking the IR sensor on the front panel. If the problem persists, replace the batteries.

What accessories are supplied with the receiver?

The box contains: the SRT 6015 receiver, a remote control, 2 AAA batteries, and the user manual. The power supply is built into the receiver.

USER MANUAL SRT 6015 STRONG

PART 6 Environmental Issues

Content

1.0 Introduction 3

1.1 Safety Instructions 3

1.2 Features & Accessories 4

1.3 Safety Precautions 5

1.4 Storage 5

1.5 Equipment Set-up 6

2.0 Your Receiver 6

2.1 Front Panel 6

2.2 Remote Control Unit 7

2.3 Rear Panel 8

3.0 Connections 10

3.1 Connecting to TV & VCR 10

3.2 Connecting to Digital Audio Amplifier 11

3.3 Connecting to Satellite Dish 11

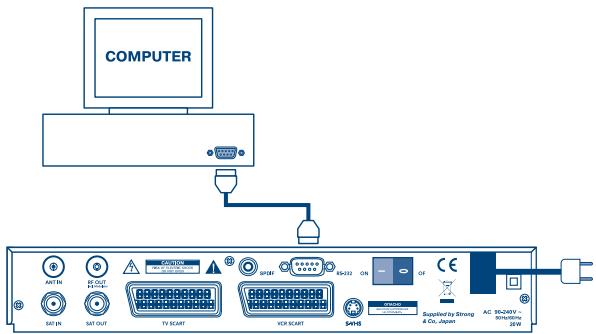

3.4 Connecting to serial cable for downloading software 13

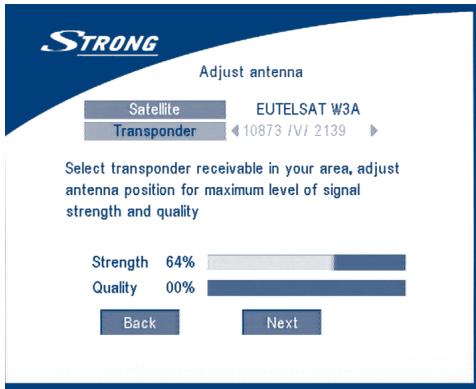

4.0 Starting up 14

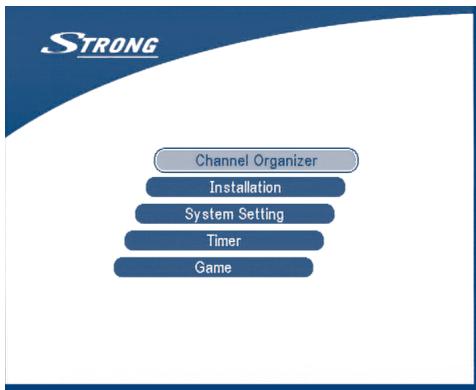

5.0 Main Menu 18

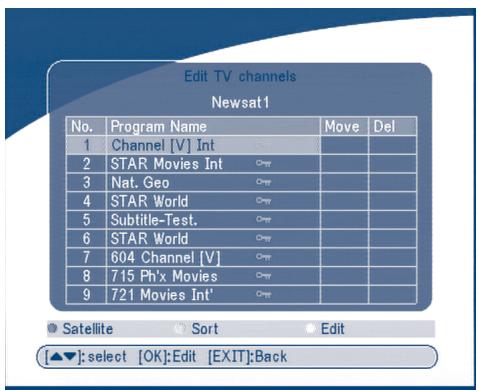

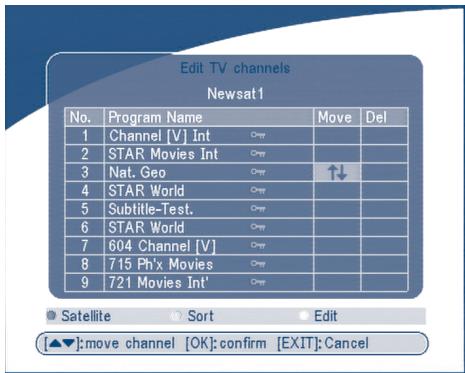

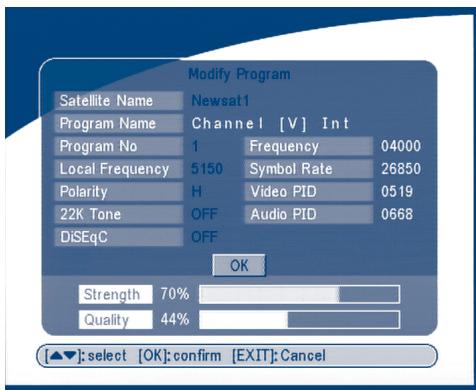

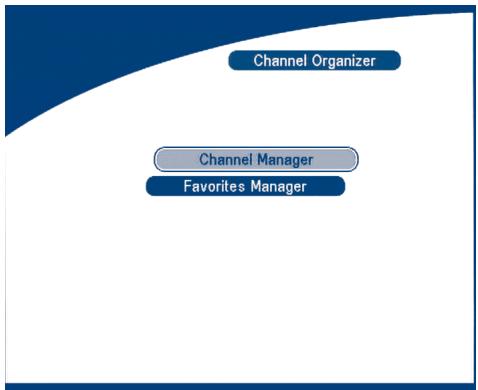

5.1 Channel Organiser 19

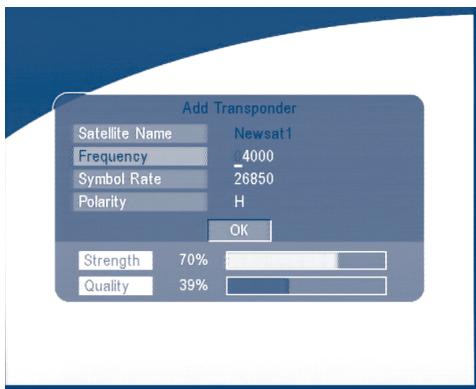

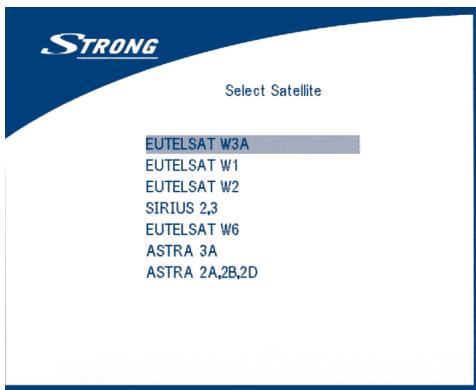

5.2 Installation 23

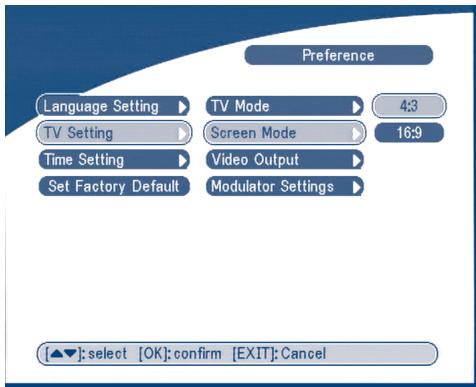

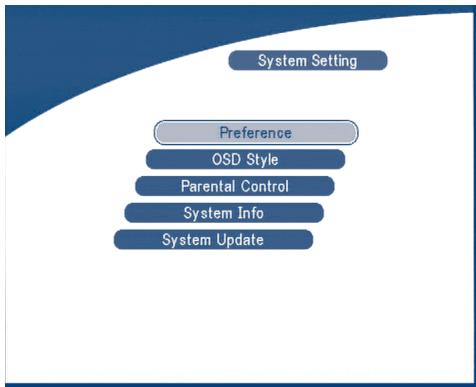

5.3 System setting 29

5.4 Timer 39

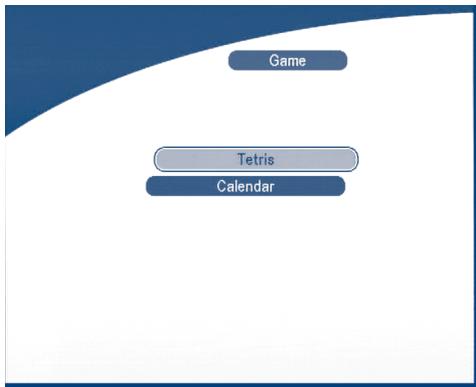

5.5 Game 40

6.0 Other operation functions 42

6.1 System Information 42

6.2 Mosaic (Nine picture view) 42

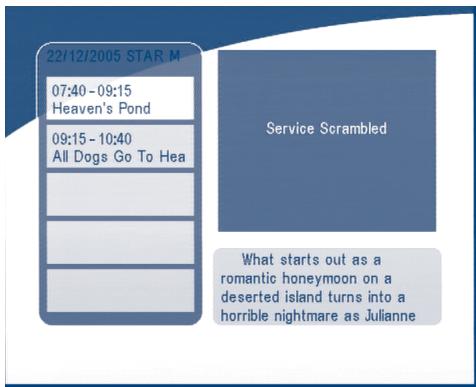

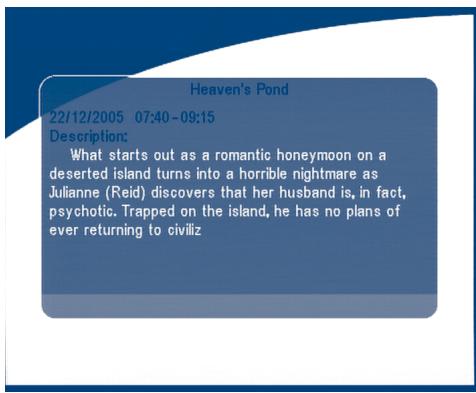

6.3 EPG (Electronic Program Guide) 43

6.4 Selection Audio Language 45

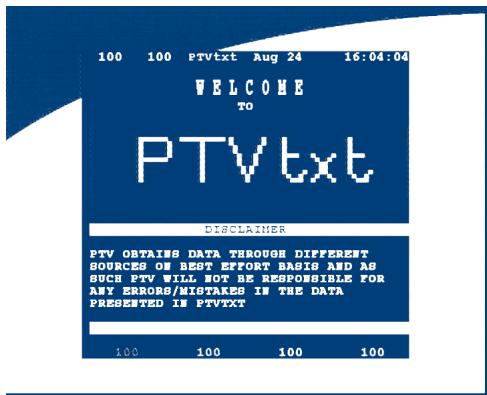

6.5 Teletext function 45

A.1 Trouble Shooting 47

A.2 Specifications 48

A.3 Glossary of Terms 50

1.0 Introduction

1.1 Safety Instructions

DO NOT INSTALL YOUR RECEIVER:

In a closed or poorly ventilated cabinet;
■ Directly on top of or under any another equipment;
■ On a surface which might obstruct the ventilation slots.

DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES:

■ To direct sunlight or near any other equipment that generates heat;
■ To rain or intense moisture;
■ To any shock which may cause permanent damage to your receiver;
■ To any magnetic objects, such as loudspeakers, transformers, etc.;
■ To intense vibration;
■ Never open the cover. It is dangerous to touch the inside of the receiver due to high voltage currents and possible electrical hazards. Your warranty will be void if the receiver has been opened.
- When the receiver is not used for a long period of time, you should unplug the power cord from the wall socket.
- Do not use a damaged power cord. It may cause a fire or an electrical shock.
- Do not touch a power cord with wet hands. It may cause an electric shock.
■ Place the receiver in a well-ventilated environment.
- When you are connecting the cables, be sure that the receiver is disconnected from the mains supply voltage.
■ Do not use your receiver in a humid environment.

Make sure you read this user manual before installing your receiver.

How to Use This Manual

This manual provides complete instructions for installing and using this receiver.

The following symbols will serve as follow.

Warning

Indicates warning information.

Tips

Indicates any other additional important or helpful information.

MENU Represents a button on the remote control or the receiver (Bold Character)

Move to Represents a menu item within a window. (Italic Character)

1.2 Features & Accessories

■ For all digital Free-To-Air TV and Radio programmes via satellite
■ Display showing channel number or time
■ Digital sound through coaxial output (S/PDIF) ^1
- Separate power switch
■ Set-up supports for first time installation
■ 3200 channel memory capacity for 64 satellites
■ 4 Favourite lists for TV-and Radio programme
■ Quick and easy installation & user-friendly menu
■ Excellent Audio & Video quality
■ Parental lock function for menu and selectable per channel
■ Teletext via OSD & VBI
■ Supports DiSEqC 1.0 and DiSEqC 1.2
Electronic Programme Guide (EPG) for present/following event information and up to 7 days for on screen programme information
■ Full multi-lingual DVB subtitling and audio track support
■ Multi-lingual support on screen menu (OSD): English, German, French, Italian, Spanish, Turkish, Bulgarian, Czech

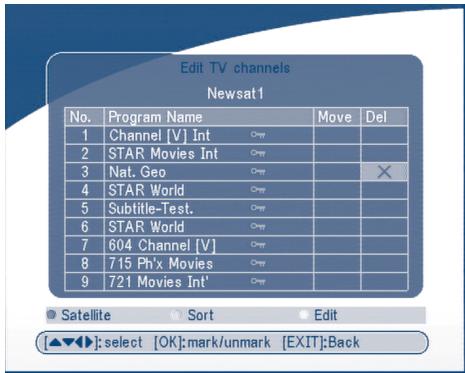

■ Edit functions for TV or Radio programme name and satellite name
■ Future-proof: Software update via satellite (OTA)
■ Signal strength bar for digital transponders
■ Automatic, Network and manual channel scan options
■ Power on with last viewed channel
■ 10 Timer for recording and/ or sleep-timer with 3 modes (daily, weekly, once)

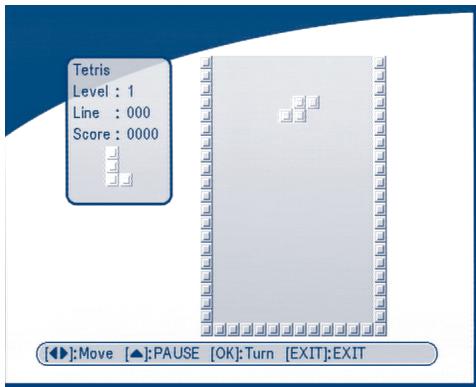

■ Game (Tetris)
■ User-friendly remote control with coloured function buttons
■ Low power consumption
■ Advanced timer function
■ Mosaic function: 9 TV Channel in overview

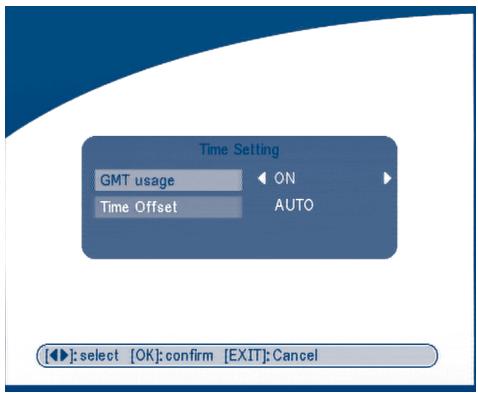

■ Automatic clock change: summer/ winter time
■ S-VHS Connector ^2
■ Multi norm UHF modulator Ch 21\~69 (Pal BG - I - DK - MN) ^2

^1 Only for model SRT 6010 and 6015
^2 Only for model SRT 6015

Accessories:

■ User's Manual
■ 1 Remote control unit
■ 2x Batteries (AAA type)

Note: The batteries should not be recharged, disassembled, electrically short-circuited or be mixed or used with other types of batteries.

1.3 Safety Precautions

To maintain your receiver's optimum performance, you are advised to apply the following safety precautions:

• Read this manual carefully and make sure you fully understand the instructions given.
  ■ Refer all maintenance or servicing to suitably qualified personnel
  If you wish, you may clean your receiver with a soft lint-free cloth slightly made damp with a mild soap solution, only after disconnecting from the mains voltage supply.
• Do not use alcohol or ammonia based liquids to clean the receiver.
• Do not open the receiver cover, as you will be exposed to a shock hazard
  ■ Do not open the receiver cover this will void your warranty.
• Do not place any objects on top of the receiver because this might prevent proper cooling of the components inside.
  ■ Make sure no foreign objects fall through the ventilation slots because this could cause fire or an electric shock.
• Wait a few seconds after switching off the receiver before you move the receiver or disconnect any equipment.
  ■ Please ensure that the electrical power supply corresponds with the voltage on the electrical identification plate at the back of the receiver.
  It is a necessity that you only use an approved extension and compatible wiring that is suitable for the electrical power consumption of the installed equipment.
  If the receiver does not operate normally even after strictly following the instructions in this user manual, it is recommended to consult your dealer.

1.4 Storage

Your receiver and its accessories are stored and delivered in a packaging designed to protect against electric shocks and moisture. When unpacking it, make sure that all the parts are included and keep the packaging away from children. When transporting the receiver from one place to another or if you are returning it under warranty make sure to repack the receiver in its original packaging with its accessories. Failing to comply with such packaging procedures could void your warranty.

1.5 Equipment Set-up

We recommend you consult a professional installer to set up your equipment. Otherwise, please follow the instructions below:

■ Refer to the user manual of your TV and your antenna.
■ Make sure that the SCART cable is in a good condition.
■ Make sure that the SCART cable connections are well shielded
■ Make sure that the outdoor components of the antenna are in good condition.

2.0 Your Receiver

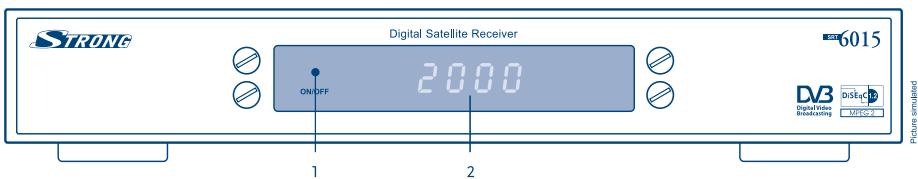

2.1 Front Panel

FIGURE 1. Front Panel

1. Mode indicator

The RED light indicates that the receiver is in STAND-BY mode. The GREEN light indicates that the receiver is in AWAKE mode.

2. 4 digits display ^1

In STAND-BY mode this indicates current time In AWAKE mode this indicates current channel number

^1 Only for model SRT 6010 and 6015

2.2 Remote Control Unit

All features of the set-top box can be controlled with the remote control unit.

A. ⏻ Turns the receiver On/Off.

B. ✗ Mutes audio output of the receiver.

C. AV

Toggle between TV and AV mode.

D. 0\~9

Changes channel and controls numeric functions.

E. FAV

Toggle Favorite mode ON / OFF.

F. TV/R

Toggle between TV or RADIO mode.

G. MENU

Shows the main menu and exits from any level of menu to view mode.

H. INFO

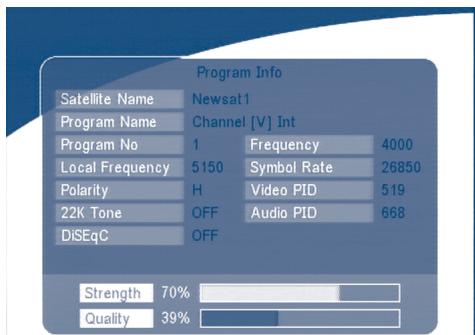

Shows information of the current channel.

I. EPG

Shows the EPG (Electronic Program Guide) only when menu is off.

J. EXIT

Exits from the menu or sub-menu and cancels the progressing function if applicable.

FIGURE 2. Remote Control Unit

Change the current program to the previous/next program when menu is off. Moves the cursor to upward/downward when menu is on.

L..

Increases/decreases the volume level when menu is off. Change the setting values in specific Menu item when menu is on.

M. OK

Activates the highlighted menu item. Displays a channel list according to TV /Radio Mode.

N. V+ / V-

Use to increase or decrease the receiver volume level.

O. P+ / P-

Page up and down in menu list.

P. MOSAIC

Show pictures of 9 channels on the screen simultaneously

Q. PAUSE

Freeze/Resume picture.

R. AUDIO

Shows the list of available audio languages for the channel you are watching. In addition it sets the current channel audio to stereo ((●)), left-mono ((● or right-mono ●)).

S. EDIT

Program edit

T. SAT

Switch the satellite

U. TEXT

Shows current service's Teletext on OSD

V. SUB

Show the list of subtitled languages the current channel supports.

W. RECALL

Switches back to last channel viewed

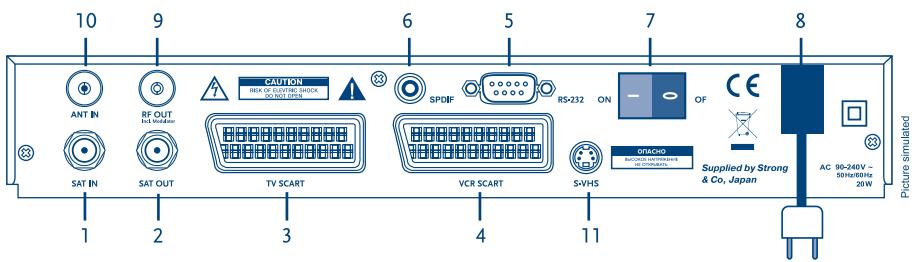

2.3 Rear Panel

FIGURE 3. Rear Panel

1. SAT IN

Connect the digital signal from your LNB on the satellite dish to this connector.

2. SAT OUT

Gives you the possibility to connect an extra receiver (analogue or digital).

3. TV SCART Connector

To connect your receiver to your TV set using a SCART cable.

4. VCR SCART Connector ^1

To connect your receiver to your video recorder using a scart cable. Your video signal will now be looped through your receiver to your TV set.

5. RS-232 Serial Port

This serial port can be used to connect your PC with your receiver, to download new versions of software to your receiver.

6. S/PDIF Digital audio output ^1

Use this coaxial output to connect your receiver to the input of your digital audio amplifier.

7. Power ON/OFF Switch

8. Power Cord

Your receiver requires a current of 90 \~ 240 V AC (Auto-selectable), 50 \~ 60 Hz +/- 5 %. Make sure to check the power specification before connecting your receiver to the wall outlet.

9. RF OUT Incl. modulator ^2

RF Modulator output (male part). If you do not use a scart cable to connect your receiver to your TV, or if you have connected a cable to the ANT input, you will have to use this connector to connect the receiver to your TV by using a coaxial cable. You can also use this connector to connect a second TV set to your receiver.

10. ANT IN 2

Input Antenna (female part). If you have cable TV or if you have an outdoor antenna, then you can connect the RF cable coming from the antenna or wall connector to this ANT input.

11. S-VHS ^2

Use this connector to connect your receiver to your TV or VCR using S-Video cable for better picture quality.

^1 Only for model SRT 6010 and 6015
^2 Only for model SRT 6015

3.0 Connections

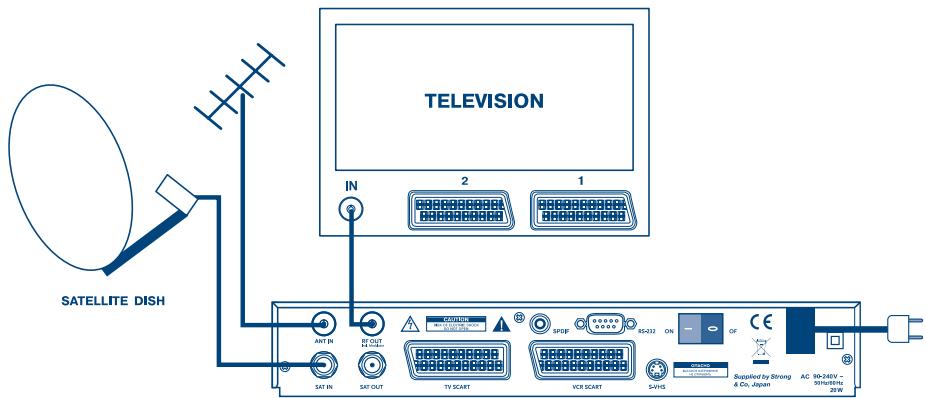

3.1 Connecting to TV & VCR

^1

1. Connect the satellite signal from the LNB to the SAT IN connector.
2. Connect a UHF coaxial lead coming from your Cable TV or Outdoor Antenna to the ANT input connector at the back of the receiver.
3. Connect a coaxial cable to the RF OUT connector at the back of the receiver.
4. Connect the other end of this coaxial cable to the ANT IN connector of your TV set.

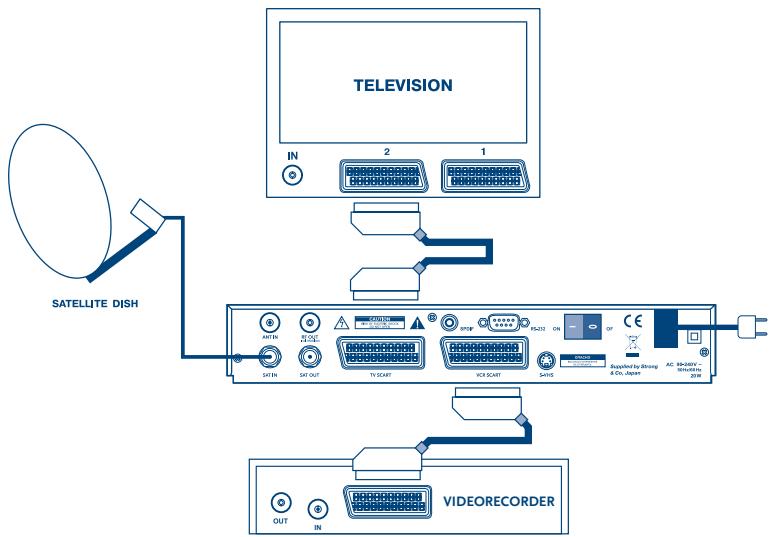

FIGURE 4. Basic connection with a Scart cable

^2

1. Connect the satellite signal from the LNB to the SAT IN connector.
2. Connect the TV scart connector at the back of the receiver to the scart-in connector on your TV set.
3. Connect the VCR scart connector at the back of the receiver to the scart-in connector on your VCR.

^1 Only for model SRT 6015
^2 Only for model SRT 6010 and 6015

FIGURE 5. Advanced connection of the receiver to the TV set and VCR

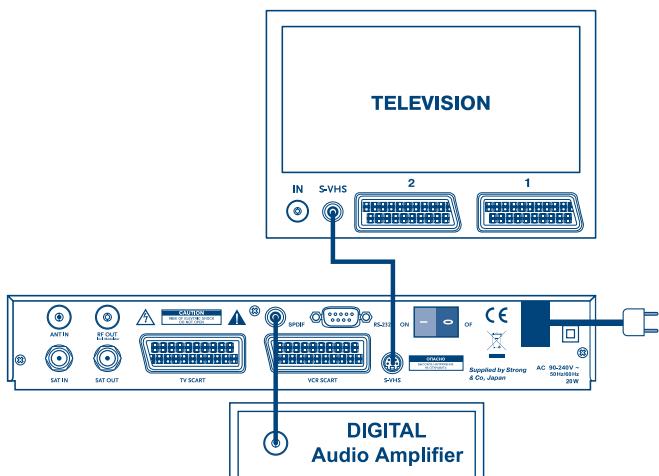

3.2 Connecting to Digital Audio Amplifier and to TV-set with S-VHS connection.

The Digital Audio Amplifier is connected with the receiver from the S/PDIF connector. The TV-set is connected with the receiver on both S-VHS connectors.

FIGURE 6

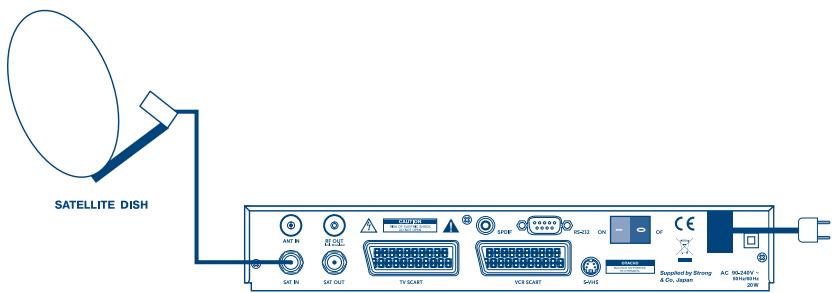

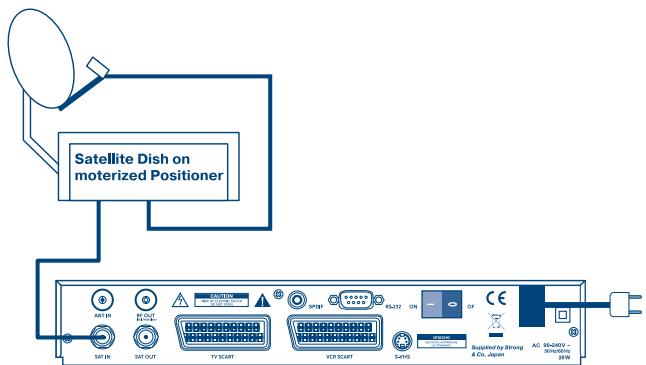

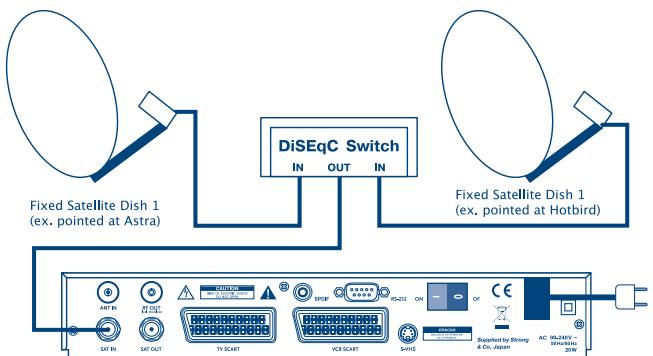

3.3 Connecting to Satellite Dish

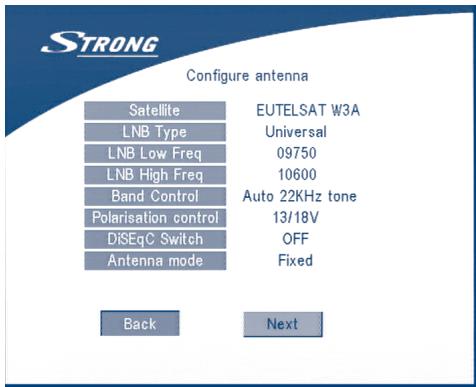

First choose which satellite you want to receive your signals from, and have your dealer aim your dish at the requested satellite.

Connect a coax cable to your LNB and the other end directly to the SAT IN connector of your receiver.

FIGURE 7. Connecting a fixed satellite dish to your receiver

If you want to watch programs from more than one satellite (For example from Astra and from Hot Bird) it is advisable to use fixed dishes and a DiSEqC 1.0 switch. Have your Dealer aim the dishes at the requested satellites and connect the LNB's with coax cables to the IN connectors of the DiSEqC 1.0 switch. Connect the OUT connector of the DiSEqC 1.0 switch to the SAT IN connector at the back of your receiver.

FIGURE 8. Connecting multiple fixed dishes to your receiver using a DiSEqC 1.0 switch

Another possibility for watching programs from multiple satellites is by mounting

a dish to a motorized DiSEqC 1.2 positioner.

Have your dealer mount the dish to the positioner, set the correct angle of the elevation and let him set the center point for your positioner.

Connect the LNB with a coax cable to the SAT IN connector of the positioner, and connect the OUT connector of the positioner to the SAT IN connector at the back of your receiver.

FIGURE 9. Connecting a dish on a motorized positioner to your receiver

3.4 Connecting to serial cable for downloading software

1. Connect the RS 232 connector on the back of your receiver to the Serial port of your computer using a serial cable.
2. Instructions how to download software can be found on our website www_strongsat.com (support > download). However, this receiver can download new system software automatically by satellite.

FIGURE 10. Connecting the RS-232 connector on the back of your receiver to the Serial port

4.0 Starting up

Ensure that your satellite receiver is correctly connected to your television and dish, and that your satellite signal is of good quality. (If you are not sure about this then ask your local strong dealer to check your installation or satellite signal.)

Confirm that the power plug on the receiver is plugged into the wall outlet. Turn on the receiver. The following picture is shown the first time you switch on the receiver.

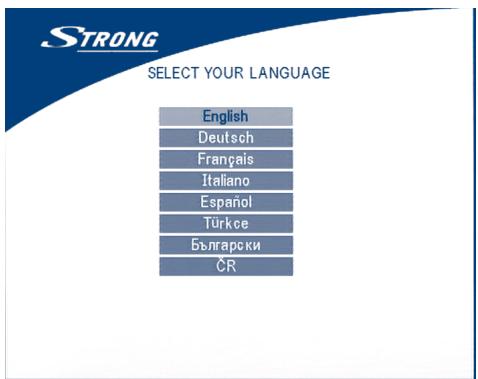

SCREEN 1

It is recommended that you perform the first time installation following the Installation Wizard step by step. It will help you to easily achieve system configuration and channel installation. If you are a professional installer then you can skip wizard by pressing MENU button and set-up channels using the Installation menu. Press UP/DOWN to choose your language, press OK to confirm. The select satellite menu will appear as below.

SCREEN 2

Future installation steps are depend from satellite where your dish is aimed.

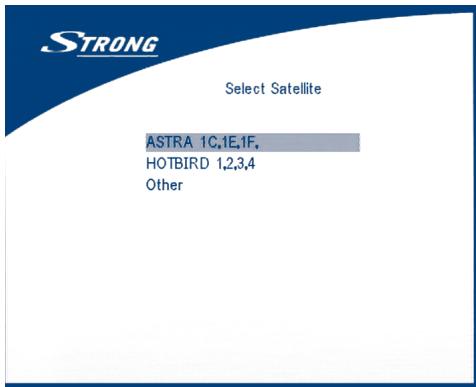

1. Your dish is aimed to Astra 1C, 1E, 1F or Hotbird satellite.

Press UP/DOWN to select the ASTRA or Hotbird satellite and press OK button on your remote control. Below screen will appear.

SCREEN 3

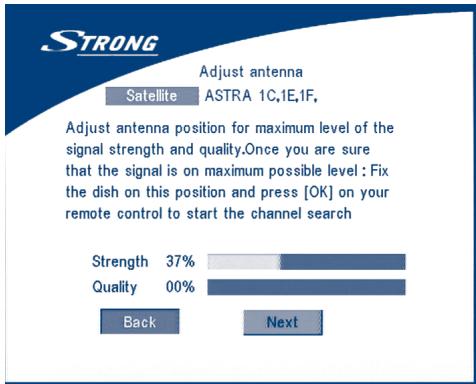

Follow instruction written on screen. When you have fixed your dish at correct direction choose NEXT and press the OK button. The channel Setup menu will appear as shown on screen 8.

1. Your dish is aimed at another satellite, select "Other" in "Select satellite" menu and press OK, more satellite will appear in the satellite list, you can select the satellite you want.

SCREEN 4

If you select a satellite in the satellite list, the configure antenna menu will appear, please set the LNB Type, LNB Low Freq, LNB High Freq, Band control, Polarisation control, DiSEqC Switch and Antenna mode.

SCREEN 5

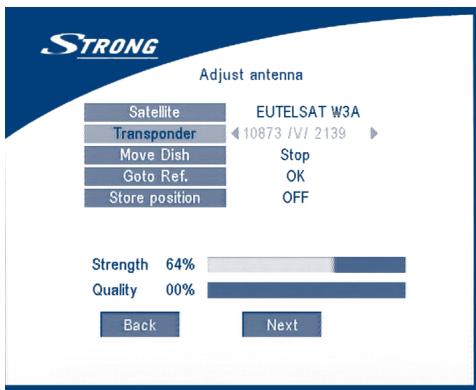

2a. If you have a fixed dish then set “Antenna mode” to “Fixed”, select NEXT and press the OK button. The Adjust antenna screen as shown on screen 6 will appears. You should select transponder receivable at your location, adjust the antenna position for maximum level for the signal strength and quality.

SCREEN 6

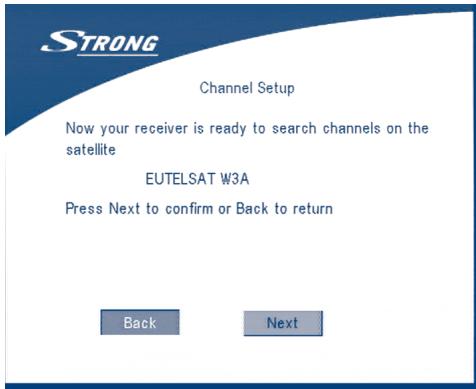

When you have completed the adjustment, choose NEXT and press the OK button. The channel Setup menu will appear as shown on screen 8.

2b. If you have a DiSEqC Dish, you can set "Antenna mode" to DiSEqC 1.2, choose NEXT and press the OK button. The menu Adjust antenna will appear as shown on screen 7.

SCREEN 7

You should select transponder receivable at your location (choose "Transponder" field and select transponder by pressing LEFT/RIGHT button). Then choose field "Move Dish" and adjust position of the dish by pressing the LEFT/RIGHT button. Once you adjust the dish position choose "Store position", set number of the position by pressing LEFT/RIGHT button. Then choose NEXT and press the OK button. You will be guided to Channel Setup menu as shown on screen 8 below.

SCREEN 8

Choose NEXT and press the OK button to start the scan.

When the scan is completed, the receiver will save the services information automatically and exit to the normal play state.

5.0 Main Menu

All the important settings and features of your receiver can be operated in Main Menu. The Main Menu consists of five sub-menus which are "Channel Organizer", "Installation", "System setting", "Timer" and "Game".

Press the MENU key when the menu is off, The MAIN MENU screen will appear (SCREEN 9).

SCREEN 9

5.1 Channel Organiser

In the MAIN MENU screen, press UP/DOWN to move the cursor to Channel Organiser, and then press OK to enter the Channel Organiser menu.

SCREEN 10

The Channel Organiser menu consists of two sub-menus; “Channel Manager” and “Favorites Manager”.

5.1.1 Channel Manager

In this menu, you can change the order of the channels, move, delete and edit channels. To change the satellite use the RED button.

SCREEN 11

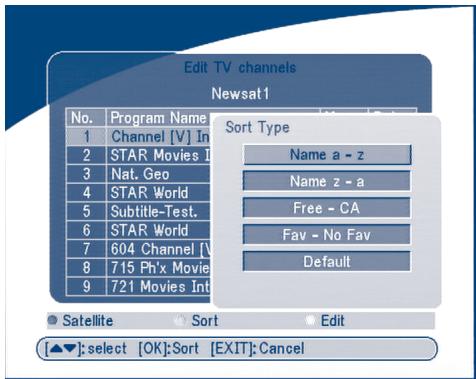

Sort (GREEN buton)

You can sort the channel order in the channel list by "name a\~z", "name z\~a", "Free-CA",

"Fav - NO Fav" or Default type.

SCREEN 12

Edit (YELLOW button)

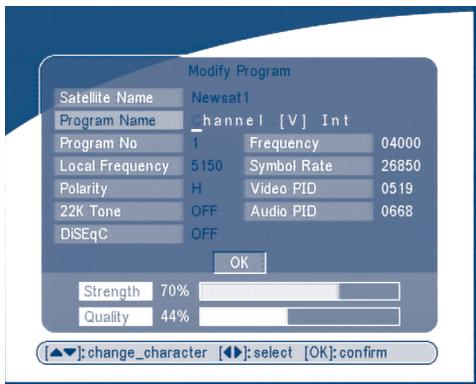

Select the channel that you wish to edit, press the YELLOW (Edit) button to move into the modify program menu. (SCREEN 13) In this menu, you can modify the Program Name, Down Frequency, Symbol rate, Video PID, Audio PID.

SCREEN 13

If you want to rename the channel, use the UP/DOWN keys to select “Program Name” and press OK, the program name dialog will shown as below.

SCREEN 14

Use the LEFT/RIGHT button to move the cursor to the character you wish to edit. Use the UP/DOWN button to change character (scroll alphabet). If you wish to delete character you have to replace it with "space" character.

When editing is complete, press the OK button.

Move channel

SCREEN 15

Press the UP/DOWN keys to point the focus of the menu to the channel of your selection.

Press the LEFT/RIGHT keys to point the focus of the menu to the column "Move".

When the focus is on column "Move", press the OK button to confirm selection of the channel, using the UP/DOWN buttons move the channel to its new location and press the OK button to confirm the new location. Repeat this for every channel that you want to move.

Delete channel

SCREEN 16

Press the UP/DOWN keys to point the focus of the menu to the channel of your selection.

Press the LEFT/RIGHT keys to point the focus of the menu to the column "Del".

When the focus is on column “Del”, press the OK button to mark the channel as selected to be deleted from the list. To apply the changes press the EXIT button and confirm the channel's deletion.

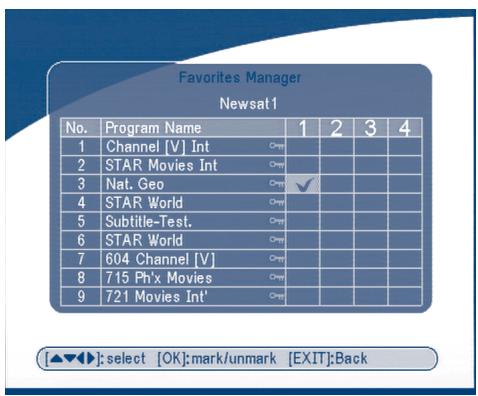

5.1.2 Favorites Manager

Press the UP/DOWN keys to select the channel. Press the LEFT/RIGHT keys to point the focus to the favorite group. Press the OK button to add the selected channel to the Favorite group. To remove the channel from the favorite group, repeat same operation.

SCREEN 17

5.2 Installation

The installation menu contains three sub-menus; "Antenna Installation", "Auto Scan" and "Manual Scan".

SCREEN 18

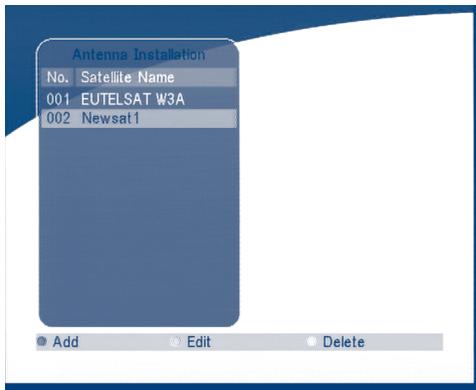

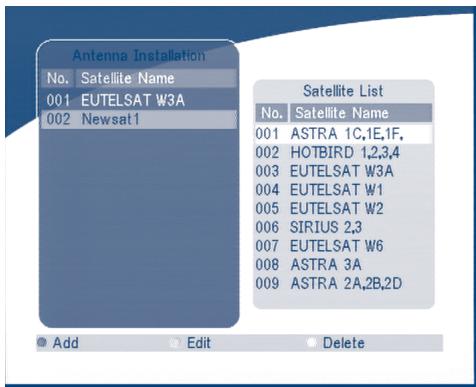

5.2.1 Antenna Installation

You can add a satellite, edit a satellite and delete a satellite in this menu.

SCREEN 19

■ Add satellite

If you want add a new satellite, press the RED key in this menu, a satellite list will appear on the screen. Press RIGHT/LEFT to select the satellite.

If the satellite does not exist in the satellite list, please select "NEW SAT1".

SCREEN 20

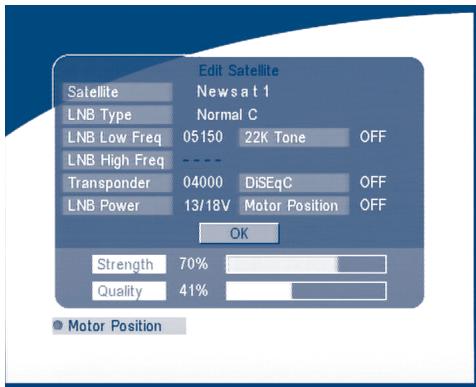

Edit satellite

If the parameters of the satellite were changed or the satellite is a new satellite, you must set the parameters of the satellite, such as LNB type, LNB low Freq, LNB High Freq, Transponder, LNB Power, 22 k Tone, DiSEqC and Motor Position.

SCREEN 21

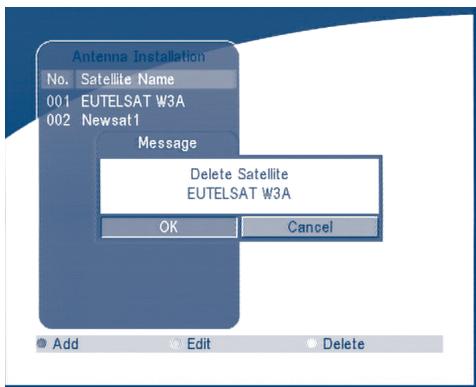

Delete satellite

If you want to delete a satellite, press the YELLOW key. Then warning message will appear as below.

SCREEN 22

Select OK and press the OK key to confirm.

5.2.2 Auto Scan

SCREEN 23

Press the GREEN key to set the scan mode to Free or Free+CA.

Press the YELLOW Key to set the Blind Scan to ON or OFF.

Press the BLUE Key to set the scan type to NIT OFF or NIT ON.

When the set-up is completed, press the RED key to start the scan, shown as below.

SCREEN 24

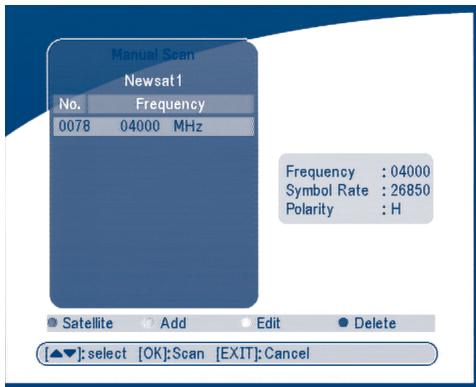

5.2.3 Manual Scan

In this menu, you can add a new transponder, edit the transponder or delete the transponder. And you can scan transponder. User can switch satellites with the RED button.

SCREEN 25

■ Add Transponder:

In this menu, you can add a new transponder to the system. Press the GREEN button, the Add Transponder sub-menu will appear on screen.

SCREEN 26

Down Frequency: Input the frequency of the new transponder. Symbol Rate: Input the symbol rate of the new transponder. Polarity: Select the Polarity of the new transponder.

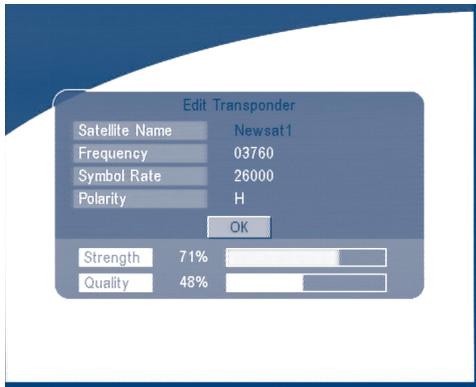

■ Edit Transponder:

In this menu, you can edit a transponder in the system. Press the YELLOW button, the Edit Transponder sub-menu will appear on screen.

SCREEN 27

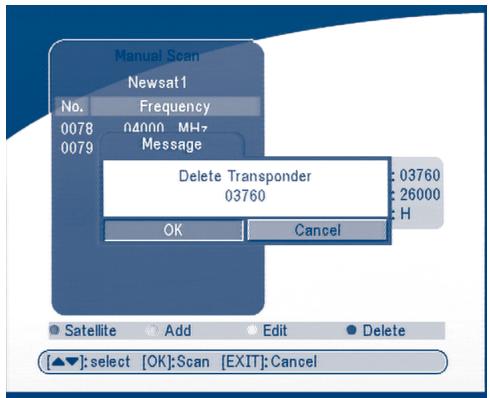

■ Delete Transponder

Press the BLUE button to delete a transponder. The warning massage will be shown as below.

SCREEN 28

Press LEFT/RIGHT to select OK, press the OK button to confirm.

Scan

Press UP/DOWN to select a transponder, press the OK button to scan all the channels on the transponder.

5.3 System setting

In this menu, you can configure the systems such as language Setting, OSD style, Parental Control, TV Settings and Time Setting.

SCREEN 29

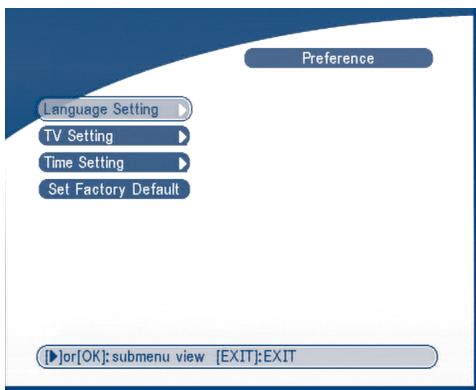

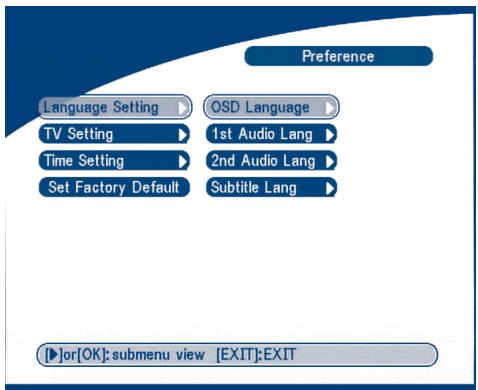

5.3.1 Preference

SCREEN 30

5.3.1.1 Language Setting

You can change the language of the OSD and Audio.

Press UP/DOWN to select the OSD language or Audio language. Press OK/RIGHT to enter the language list and Press UP/DOWN to select the language. Press OK to confirm.

SCREEN 31

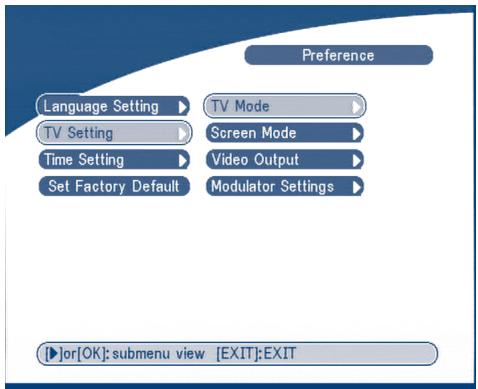

5.3.1.2 TV settings

You can set the TV mode, Screen mode and Video output.

SCREEN 32

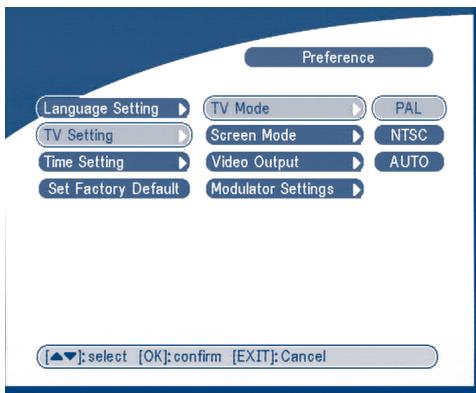

TV mode

The TV mode Screen will appear as follows:

SCREEN 33

Press OK/RIGHT to select PAL or NTSC, press OK to confirm. If you don't know which standard your TV has, please select AUTO.

Screen mode

The TV format Screen will appear as follows:

SCREEN 34

Press OK/RIGHT to select 4:3 or 16:9, press OK to confirm

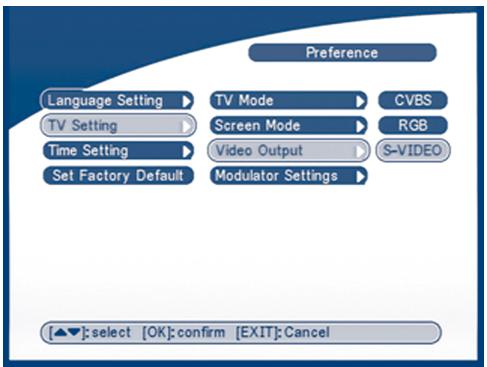

■ Video output

The Video output Screen will appear as follows:

SCREEN 35

Press OK/RIGHT to select CVBS/ RGB or S-VIDEO, press OK to confirm.

Warning! If RGB is selected > SVHS output is switched OFF totally.

Note: S-Video mode available in the model SRT 6015 only.

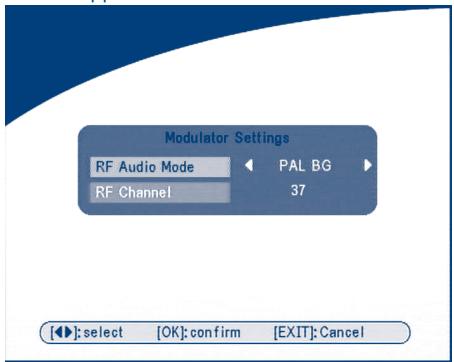

■ Modulator Settings (only for model SRT 6015)

The Modulator Settings Screen will appear as follows:

SCREEN 36

Press UP/DOWN to select RF Audio Mode or RF Channel. Use LEFT/RIGHT to set RF Audio Mode and RF Channel. Press OK to confirm.

5.3.1.3 Time Settings

If a broadcaster provides GMT, you can set the time using GMT, or set your own time by yourself. If the GMT usage is ON then the Current time is set automatically or you can set the time zone. If your broadcaster provides the correct time offset then your receiver will change from summertime to winter-time automatically.

If you set GMT Usage to OFF, Set Data and Set Time item are displayed.

To set the time value manually, move the cursor to the time item and use the numeric buttons on the remote control.

SCREEN 37

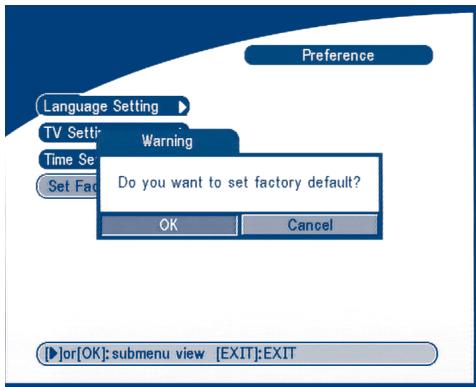

5.3.1.4 Set Factory Default

Please be careful when using this function, because it will erase all the data and parameters you may have set earlier to your receiver. Once you set the factory default you will have to re-install your preferences and re-scan your channels. To reset your receiver to factory default, apply the following steps:

Select Set Factory default and press OK. The warning message will appear as below.

SCREEN 38

Select OK and press the OK key, the receiver will return to its factory default state, and all user data will be deleted.

Note: Your PIN code will change back to the factory setting "0000".

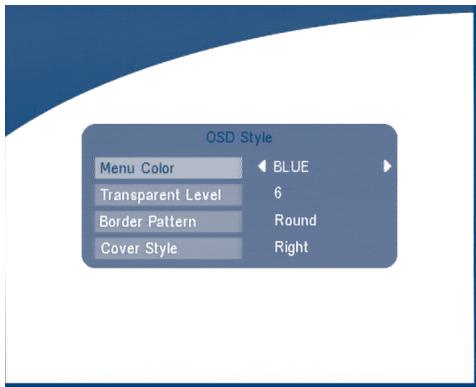

5.3.2 OSD Style

In this menu, you can set the Menu Colour, Transparency Level, Border Pattern and Cover Style.

SCREEN 39

5.3.3 Parental Control

In this menu, you can set channel lock status (ON or OFF), the menu lock status, parental setting and change the PIN code (shown as SCREEN 40).

The default PIN code is 0000.

SCREEN 40

Channel Lock

Set the system channel lock to ON or OFF. If the channel lock is on, the user has to enter the parental PIN code correctly before watching the locked channel.

SCREEN 41

■ Menu Lock

Press OK to select whether you need the lock or not for the Menu, YES or NO, press OK to confirm. If the menu lock is on, then for some operations such as search program and set factory default, you need to enter your PIN.

■ Parental Setting

Set some channels to lock status. If a channel is locked, the user has to enter the parental PIN code correctly before watching the locked channel.

SCREEN 42

Use the UP/DOWN keys to select the channel you want to lock.

Press the OK button to lock the channel.

■ Change PIN

Modifying the PIN. You must enter the 4 digits PIN and confirm it again; the system PIN will be changed into the new PIN as show on SCREEN 42.

SCREEN 43

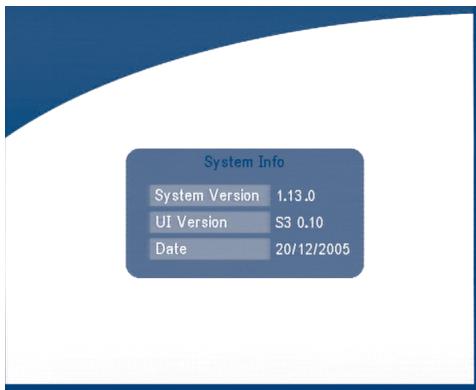

5.3.4 System info

The system information displays information about your receiver such as software and UI version.

SCREEN 44

5.3.5 System Update

In this menu, you can select between "STB to STB" and "OAD"

■ STB to STB software transfer.

a) First power off both STBs, connect them with cross RS 232.
b) Then power on master STB (master is STB from which you will copy software) and keep slave STB off. Navigate in the menu of master STB and select “System Update - STB to STB”.
c) When the status displays “Detecting slave STB”, power on slave STB, after the master STB detects the slave, the master starts transmission and burns.
d) While transmitting and burning, it is very important to avoid other operations such as power off because this may cause destruction of the data in the FLASH memory and the receiver will need to be repaired.
e) When update is complete, first power off both STBs, then disconnect the RS 232 line.

SCREEN 45

■ Over Air Download (OAD)

Select this option in order to update your receiver with the latest software version.

The receiver will check availability of the software update on air and load the latest software, if available. You will be asked to confirm update. Do not switch power off and do not disconnect the receiver from the aerial during update process.

Availability of the software update is subject of local broadcast condition and may not work in all countries. Contact your vendor to find out more about this function.

■ Update through PC to STB

1. Connect Computer to receiver (receiver must be power off) with a 9-pin cross cable (two females)
2. The computer will follow the steps below:

Start -> Programs -> Accessories -> Communications -> Hyper terminal

Then choose “COM1” or “COM2” according to which port you are using in the computer and port setting as follows:

Bits per Second: 115200

Data bits: 8

Parity: None

Stop bits: 1

Flow Control: None

1. In Hyper Terminal menu select "transfer" item and then press "send file" item. Select the file with the new software (*.UPD) you want to download and choose the protocol "1K Xmodem". Finally press ok and a download menu will appear in the computer screen. Power on the receiver, then the download process will begin.
2. After about 2.5 minutes, the message "OK, Reset" will appear on the computer on Hyper Terminal window, which means the download has completed successfully.
3. Power off the receiver and then unplug the RS 232 interface.

*Note: INCORRECT OPERATION MAY CAUSE UNREPAIRABLE DAMAGE TO THE RECEIVER.

1. DO NOT POWER OFF THE RECEIVER DURING THE PROCESS OF DOWNLOAD.
2. DO NOT PLUG IN OR UNPLUG THE RS232 INTERFACE WHEN RECEIVER IS POWERED ON.

5.4 Timer

You can set the timer to make the receiver perform designated actions including timer based wake up or sleep instructions to the set-top-box.

SCREEN 46

Use the UP/DOWN buttons to select timer. Press the LEFT/RIGHT key to activate/inactivate current timer. Press the OK button to enter your selected timer settings.

Action: You can select the following functions:

"Power On": The receiver powers on at the designated date and time.
"Time interval": The receiver switches on at the designated date and time, displays the channel and then switches off at the designated date and time (The value set at the end time).

"Power Off": The receiver powers off at the designated date and time.

Cycle: You can set the cycle of the action designated in the timer mode (one time, Daily or Weekly).

Start Date: You can set the start date of the timer action.

Start Time: You can set the start time of the timer action.

End Time: You can set the end time of the channel viewing when the Timer mode is on Time Interval.

Channel Type: Select between TV and Radio.

Channel Name: Press the Right button to display the channel list and using the navigation buttons select the channel to be shown when the receiver will power on by the timer.

5.5 Game

The receiver has one game Tetris and a calendar. In this menu user can select any game item and press OK to play the game. Or you can press the GAME key in normal play state into the game menu directly.

SCREEN 47

5.5.1 Tetris

SCREEN 48

Key function:

LEFT/ RIGHT key to move the block to left or right.

DOWN to drop the block.

UP to Rotate the block.

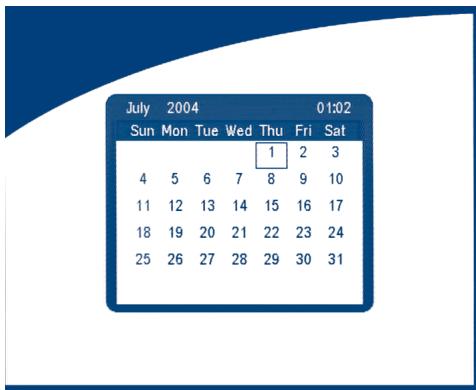

5.5.2 Calendar

UP/DOWN: +/- months.

LEFT/RIGHT: +/- years (range from 1900 to 2100).

SCREEN 49

6.0 Other operation functions

6.1 System Information

In normal operation status (no menu operation), press the INFO button twice, the Program Information menu will appear on screen as show on . In this menu, the user can view the current program information such as the satellite name, program name, program number, local frequency, polarity, 22K tone, DiSEqC, down frequency, symbol rate, video PID and audio PID. You also can view the signal strength of the current program and its signal quality.

SCREEN 50

6.2 MOSAIC (Nine picture view)

In normal operation status (no menu operation), press the MOSAIC button, there are nine picture being showing on screen such as those on .

SCREEN 51

6.3 EPG (Electronic Program Guide)

The EPG shows the event information on the current TP channel by time zone.

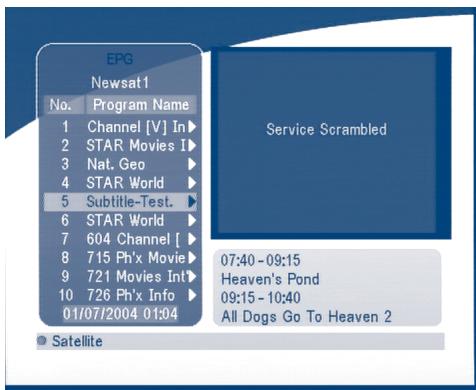

With MENU off, press the EPG button. The EPG Menu will appear:

SCREEN 52

Press UP/DOWN to choose the channel.

Press RIGHT into EPG for schedules of the current channel.

SCREEN 53

In EPG schedules menu:

Press the UP/DOWN keys to choose the schedule items.

Press P+ / P- into next / previous day's schedules.

Press LEFT/EXIT to return to EPG Menu.

Press RIGHT to show the details of this item.

SCREEN 54

In EPG schedule details:

Press P+ / P- into next/ previous page.

Press LEFT/EXIT to return to the EPG schedule Menu.

You can set up the event timer by pressing OK in the EPG schedule screen.

To set up an timer event:

1. Press UP/DOWN to move the cursor to the event for which you want to add a timer.
2. Press OK to add a timer.

SCREEN 54 shows you current event timer information based on the event you have chosen. You can also use this screen to modify each value. To save the settings, press OK. To quit event timer setup, press EXIT.

SCREEN 55

6.4 Selection Audio Language

Press the AUDIO button on the remote control to select the audio language as show in .

Select the LEFT, RIGHT ,MIX or STEREO. press OK to make one selection.

SCREEN 56

6.5 Teletext function

With menu off, press TEXT.

SCREEN 57

In TEXT on OSD:

Press UP/DOWN to add/ subtract displayed page number

Press the Numeric keys to input the page directly and

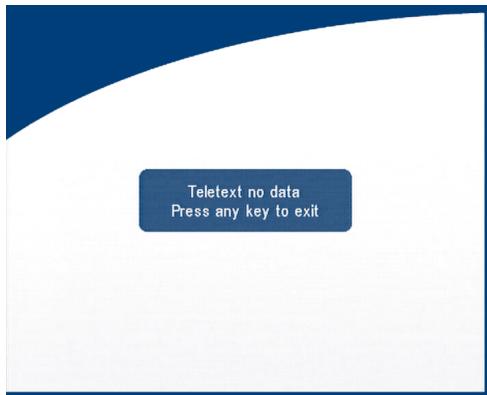

If current the program has no Teletext, the screen below will appear:

SCREEN 58

A.1 Trouble Shooting

There may be various reasons for the abnormal operation of the receiver.

Check the receiver according to the procedures shown below.

If the receiver does not work properly after checking it, please contact the dealer.

Don't open the receiver cover.

This may cause a dangerous situation.

Symptom	Cause	Remedy
The display on front panel does not light up	The power cord is not plugged in.	Check that the power cord is plugged in to the wall outlet.
No picture or sound	Wrong connection of the Audio/Video output of the receiver to TV.	Connect the Audio/ Video output of the receiver to TV correctly.
	Audio muting.	Press the Mute button
	TV power off.	Turn TV on.
No picture	The receiver can't receive the signal	Check the antenna cable, replace the cable, or connect the cable to the receiver tightly.
	Incorrect values of some tuner parameters.	Set the values of the tuner parameters correctly in the installation menu.
	Wrong direction of the dish	Check the signal strength with a spectrum analyzer and adjust your dish correctly.
The remote control does not work	The batteries of the remote controller are not inserted or exhausted	Check whether the batteries are inserted correctly in your remote control. Check the batteries, and if exhausted replace the batteries in the remote control.

A.2 Specifications

1. Tuner and demodulator

Input frequency	950 ~ 2150 MHz
Input impedance	75 ohm
Input level	-65 dBm ~ -25 dBm
LNB power supply	13/18 V ± 0.5 V, Max 500 mA,
Waveform	QPSK
Symbol rate	2 - 45 MS/s
Viterbi rate	K = 7,R = 1/2, 2/3, 3/4, 5/6, 7/8, auto
Reed Solomon decode	204, 188, T = 8

1. MPEG Transport Stream & A/V Decoding

Video decoder	Standard	ISO/IEC 13818-2 MPEG MP@ML
	Video aspect ratio	4:3, 16:9
	Resolution	720 x 576 (PAL), 720 x 480 (NTSC)
	Video output level	1.0 Vpp, 75 Ohm
Audio decoder	Standard	MPEG/MusiCam layer I & II
	Output mode	Stereo, Joint Stereo, Dual Mono, Mono
	Sampling frequency	32, 44.1, 48 kHz
	Audio output	0.775 Vrms, Unbalanced

1. System and memory

CPU Speed	50 MHz
Flash memory	16 Mbits
SDRAM	64 Mbits

1. A/V & Data In/Out

TV Scart Output	RGB, CVBS, Audio L/R Output with Volume Control
VCR Scart Input/Output ^1	Input: CVBS, Audio L/ROutput: CVBS, Audio L/R Output with Volume Control
S/PDIF output ^1	Digital audio output, coaxial
Data Interface	RS 232, Bit Rate: 115200 baudConnector: 9-Pin D-Sub Male type
RF Modulator ^2	UHF output channels CH21-69 selectable via menuPAL B/G, D/K, M/N or I selectable
S-VHS output ^2	High video quality output.

^1 Available in models SRT 6010 and SRT 6015
^2 Available in model SRT 6015.

5. Power Supply

Input Voltage	90 - 240 V AC, 50/60 Hz +/- 5 %
Power Consumption	Max. 20 W
Stand-by Power	<= 8 W

6. Physical Specification

Size (W x H x D)	260 x 40 x 140 mm
Weight	1.2 kg

7. Environmental Conditions

Operating Temperature	0 ~ 40°C
Storage Temperature	-30°C ~ 80°C
Operating Humidity Range	10 ~ 85 % RH, Non-condensing
Storage Humidity Range	5 ~ 90 % RH, Non-condensing

A.3 Glossary of Terms

C band	3.7 ~ 4.2 GHz Frequency.
DiSEqC	Digital Satellite Equipment Control.
EPG	Electronic program guides that are transmitted by a broadcaster from a particular satellite to display information guide about a program content.
Fixed Dish	A dish antenna that is aimed at one particular satellite.
Free-To-Air broadcast	Unscrambled broadcast which you can view for free.
Ku band	11 ~ 13 GHz Frequency.
LNB	(Low-Noise Block down-converter). The LNB is an electronic unit mounted on the satellite dish. It receives the signals reflected by the dish and converts them to signals that can be used by Satellite receiver.
MPEG	The Moving Picture Experts Group is founded by the ISO. MPEG is a standard method for digital transmission of video and audio.
Network	A network which is also known as a bouquet is a set of channels that is offered by a single broadcaster.
PAL	Referring to the Phase Alternate Line colour system adopted by European broadcasters.
Parental lock	This function gives you the possibility to 'lock' other several functions of the receiver to prevent unauthorized users such as children to view channels that are not suitable for them. A PIN code is required to use of the parental lock.
PID	The transmitted packages have identifiers (PID) that tells the receiver what to do with the received information. Satellite receivers normally use four types of PID, these are V-PID (video PID), A-PID (audio PID), P-PID (Program PID) and data PID (EPG information).

PIN Code

Personal Identification NumberA four-digit code that is used for locking/unlocking, e.g. with the parental control feature.

Polarization

Allows several programmes to be fitted into the same frequency band. The signals from a satellite are transmitter either with linear (vertical or horizontal) polarization or circular (right or left) polarization.

RS 232

Serial data port.

Inhaltverzeichnis

1.0 Einleitung 2

BILDSCHIRM 53

BILDSCHIRM 54

BILDSCHIRM 58

A.1 Fehlerbehebung

Viterbi-Rate K = 7, R = 1/2, 2/3, 3/4, 5/6, 7/8, auto

Reed Solomon decodierung 204, 188, T = 8

N'EXPOSEZ PAS LE RÉCEPTEUR OU SES ACCESSOIRES:

ÉCRAN 53

ÉCRAN 54

ÉCRAN 58

A.1 Dépannage

NON ESPORRE IL RICEVITORE O I SUOI ACCESSORI:

1. LED accensione/stand by

FIGURA 2. Telecomando

FIGURA 3. Pannello Posteriore

1. SAT IN

SCHERMO 53

SCHERMO 54

5.0 Menu Principal 17

FIGURA 1. Panel Frontal

1. Led encendido/stand by

A. Encendido/apagado (On/Off).

B. Silencio.

C. AV Paso de TV a AV (Habilita la entrada SCART VCR).

3. Conector TV SCART

Para conectar el receptor al TV.

4. Conector VCR SCART ^1

PANTALLA 54

PANTALLA 57

PANTALLA 58

Consumo Stand-by <= 8 W

DiSEqC Digital Satellite Equipment Control.

Environmental Issues

Strong is committed to reducing the impact of its products on the environment. To maximise the benefits of our design enhancements, your co-operation is required.

Electronic product recycling

Do not dispose of this product with your domestic rubbish.

At the end of its useful life, this product contains materials which when processed correctly can be recovered and recycled. By participating in the responsible recycling of this product you will be reducing the requirement for new raw materials and reducing the amount of material that would otherwise end up in landfill. When you purchase a new, similar product your retailer may offer to take this old one off you. Alternatively, you can take it to your local recycling centre. Your retailer or local municipal authority will advise you of the collection facilities available for waste electronically products in your area. User of this service will be free to you.

Within the scope of the European legislation on Waste Electrical and Electronic Equipment (Directive 2002/96/EC valid as of August 2005) STRONG provides a recycling system free of charge for consumers to returning products after end of life. For more information about STRONG's environmental policy to you:

www.strongsat.com - select "About us" and "Environmental Policy" from the submenu.

Packaging

When disposing of this product packaging, please ensure that it is recycled. Packaging material is to be depolluted in waste separation.

Power Saving

To save power and money, please put the product into standby mode when not in use. We also recommend disconnection from mains supply when not in use for longer periods of time.

Batteries

Do not dispose of the batteries from your handset with your domestic waste.

Where they are available, participate in your local municipal or retailer collection schemes for spent batteries. Batteries discarded in landfill sites or incinerated increases the chances of pollutants being dispersed into the atmosphere.

Alternations reserved 1/2006
