Product Type	Split Air Conditioner
Indoor Unit Dimensions (W×H×D)	Approx. 800×290×200 mm
Outdoor Unit Dimensions (W×H×D)	Approx. 700×550×250 mm
Indoor Unit Weight	Approx. 9 kg
Outdoor Unit Weight	Approx. 25 kg
Power Supply	220-240 V ~ 50 Hz
Cooling Capacity	2.5 kW (approx.)
Heating Capacity	2.8 kW (approx.)
Energy Efficiency Ratio (EER)	3.2 (approx.)
Refrigerant Type	R32
Airflow Rate (High)	450 m³/h
Noise Level (Indoor)	25-45 dB(A)
Noise Level (Outdoor)	55 dB(A)
Filter Type	Washable pre-filter
Operating Modes	Cool, Heat, Fan, Dry, Auto
Key Functions	Timer, Sleep mode, Swing louver, Turbo mode
Remote Control	Infrared remote included
Installation Type	Wall-mounted indoor unit
Maintenance	Clean filter every 2 weeks; professional service annually
Safety Features	Auto restart, overheat protection, anti-ice
Warranty	2 years (parts and labor)
Reparability	Spare parts available for 10 years

Frequently Asked Questions - LSGT60-3M Baxi

How do I clean the air filter?

Turn off the unit and open the front panel. Remove the filter, wash it with mild detergent and water, let it dry completely, then reinstall. Clean every 2 weeks for optimal performance.

What does error code E1 mean?

Error code E1 indicates a communication fault between indoor and outdoor units. Check the wiring connections and restart the unit. If persistent, contact a professional technician.

Can I use the air conditioner without the remote?

Yes, there is a manual control button on the indoor unit. Press it to toggle modes: Auto, Cool, Heat (if heat pump). However, the remote provides full functionality.

How to set the timer?

Press the TIMER button on the remote. Use +/- to set the desired time (in hours). The unit will turn on or off at the scheduled time. Refer to the manual for detailed steps.

What is the recommended temperature setting for summer?

For energy efficiency, set the temperature between 24°C and 26°C. Each degree lower increases power consumption by about 6%.

Why is water leaking from the indoor unit?

Water leakage can be due to a clogged drain pipe or dirty filter. Turn off the unit, clean the filter, and check the drain hose for blockages. If issue persists, call a service professional.

How often should I service the air conditioner?

It is recommended to have a professional service annually before peak use. This includes checking refrigerant levels, cleaning coils, and inspecting electrical components.

Can I install the outdoor unit on a balcony?

Yes, but ensure adequate airflow around the unit (minimum 30 cm clearance). Avoid direct sunlight and rain exposure. The balcony must support the weight (approx. 25 kg).

What does the 'Swing' button do?

The Swing button activates automatic vertical louver movement. This helps distribute air evenly throughout the room. Press again to stop at a desired angle.

The unit does not cool well. What can I check?

First, check if the filter is clean. Ensure windows and doors are closed. Verify that the set temperature is lower than room temperature. If the outdoor unit is blocked or dirty, clean the fins. If problem continues, contact service.

USER MANUAL LSGT60-3M Baxi

Line drawing of a screwdriver interacting with a device (no text or symbols present)

Diagram showing a screwdriver connecting to a wall-mounted electrical socket connected to a box (no text or symbols present)

Line drawing of a screwdriver interacting with a device (no text or symbols present)

Diagram showing a screwdriver connecting to a wall-mounted electrical socket connected to a box (no text or symbols present)

Read and keep this manual.

PACKAGING CONTENT

DESCRIPTION	FIGURE	SPECIFICATIONS
Wired control TXW1AC		Dimensions(hight/wide/dedepth): 120mmx120mmx20mm Weight: 168 g
2 screws		M4x20
User and Installation manual	[WWK]
Long connection wiring		Length: 5000mm Weight: 99 g
Short connection wiring		Length: 50mm Weight: 10 g

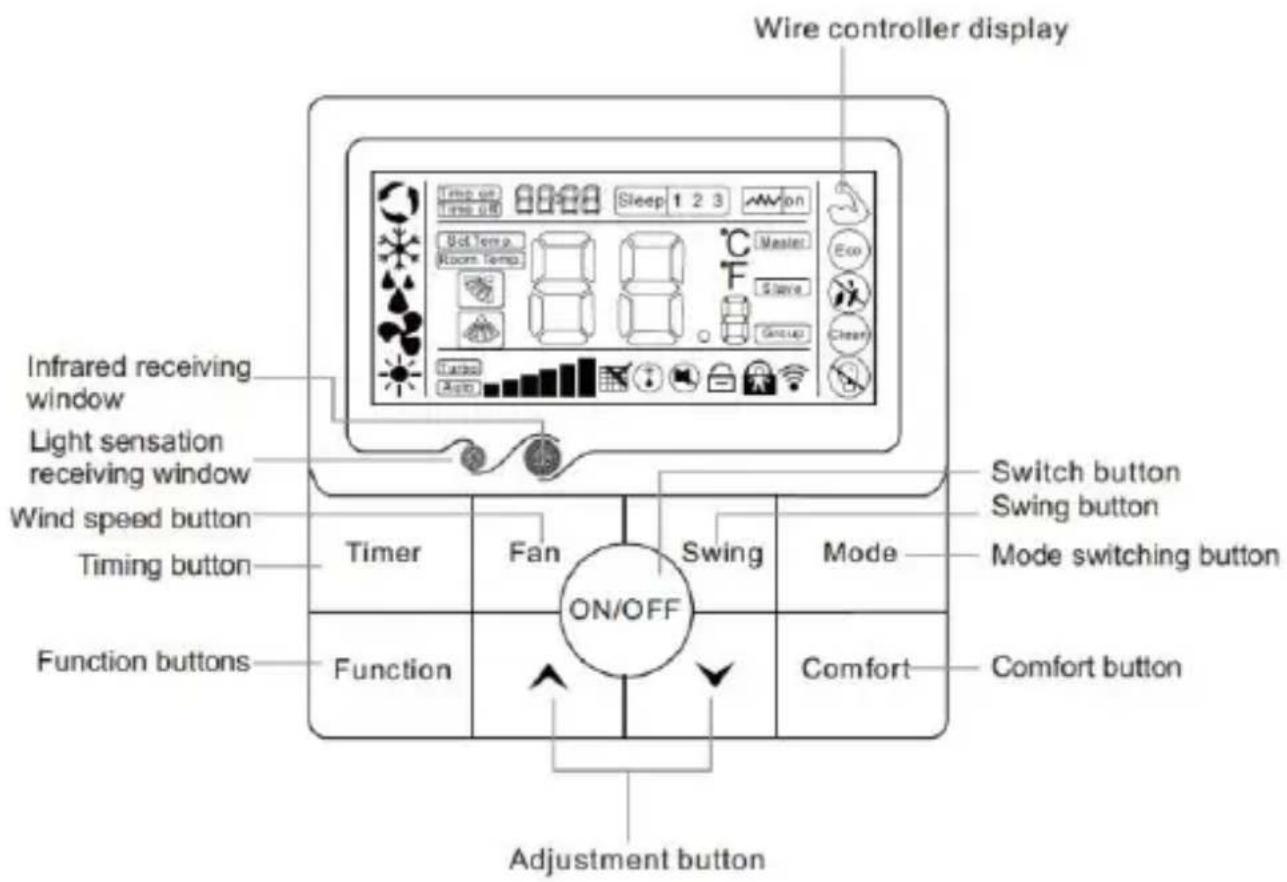

BUTTONS DESCRIPTION

ON/OFF button

Press- "ON/OFF" button to start or shutdown the unit.

1. When the unit is running, users can regulate the operation mode, fan speed, setting temperature, special functions and other parameters on the wired controller.

1. When the unit is standby, the wire controller displays indoor ambient temperature (Room temp.), the other content are not displayed.

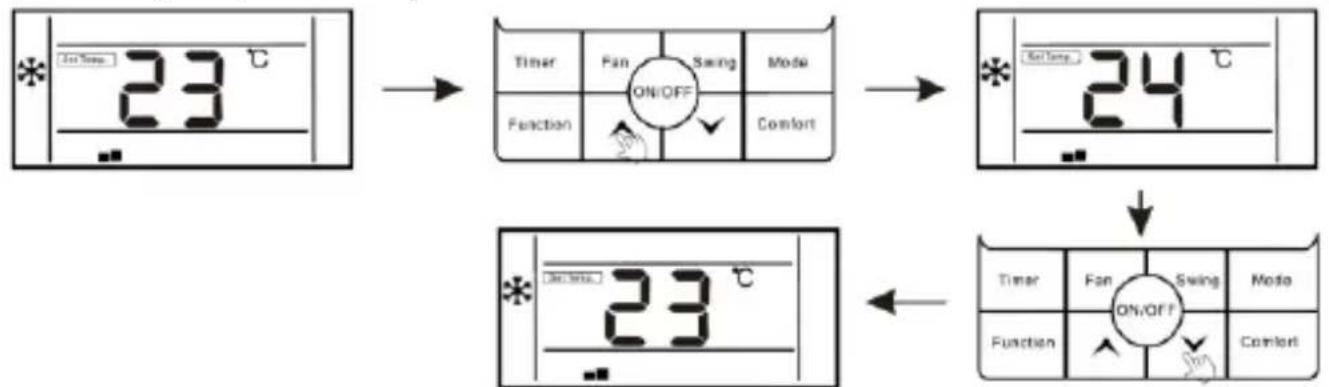

button-Temperature, time setting, function selection

1. When the unit is running, press "▲" or "▼" button to increase or decrease the setting temperature by 1^ C.

Under COOL, DRY, and HEAT modes, the setting temperature range is 16^ C-32 ^ C;

The controller will display" Set temp." to show the selling temperature;

1. Under the function selection mode, press "▲" or "▼" button to select function;
2. Under the timing mode, press "▲" or "▼" button to setting time.

Mode setting

When the unit is running, press "MODE" button, the running mode will switch according to the following order:

The initial setting temperature for each mode is 24^ C, and there is no temperature setting and automatic wind under FAN mode.

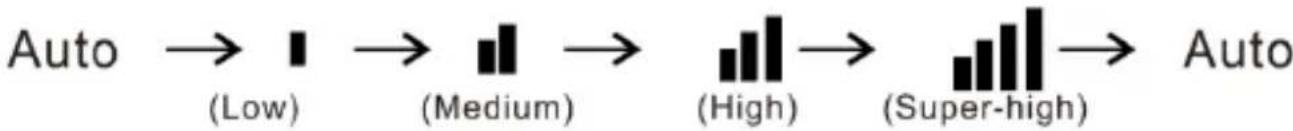

The setting of "Wind speed"

When the unit is running, press "Fan" button to switch fan speed in the following order:

3-gear of fan speed:

4-gear of fan speed:

In turbo mode, display fan speed (turbo+ highest fan speed icon).

The setting of "Swing"

1. For the unit only has the function of up and down swing: When the unit is running, press "Swing" button to enter or cancel up and down swing. At the time of opening up and down swing “☐” is lighting. At the time of closed, swing icon will disappear. If the unit has positioning swing function, press "Swing" button to regulate the swing angle in the order:

1. For the unit only has the function of left and right swing: when the unit is running, press "Swing" button lo enter or cancel left and right swing. At the time of opening left and right swing," [icon] is lighting. At the time of closed, swing icon will disappear. If the unit has positioning swing function, press "Swing" button lo regulate the swing angle in the order.

2. For the unit has the functions of left and right swing and up and down swing: Press "Swing" button, the swing mode will switch in the following cycle order:

The setting of "Comfort"

1. When the unit is running, press "Comfort" button to enter comfort function. The default setting temperature of COOL and DRY mode is 26 °C, HEAT mode 24 °C, setting temperature is adjustable. Fan speed is automatic and adjustable. The comfort function will be cancelled if the running mode is changed.

2. Press "Comfort button again to cancel comfort function.

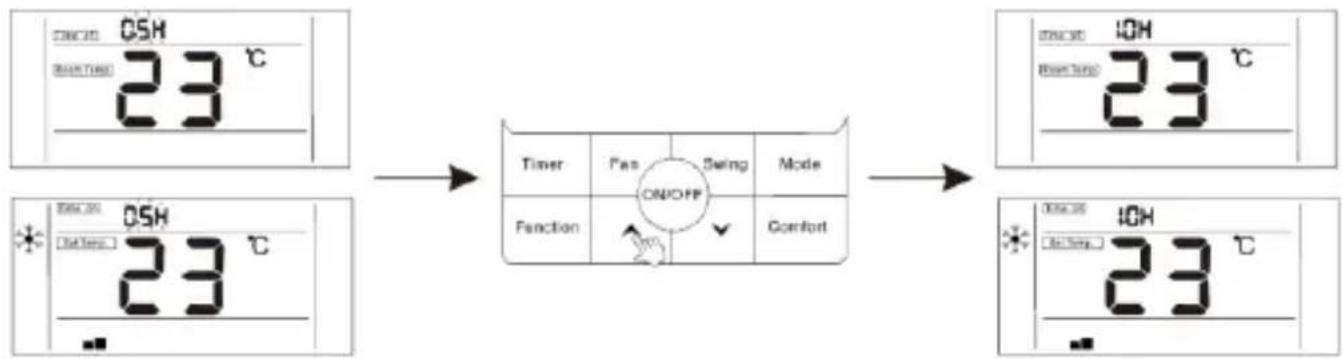

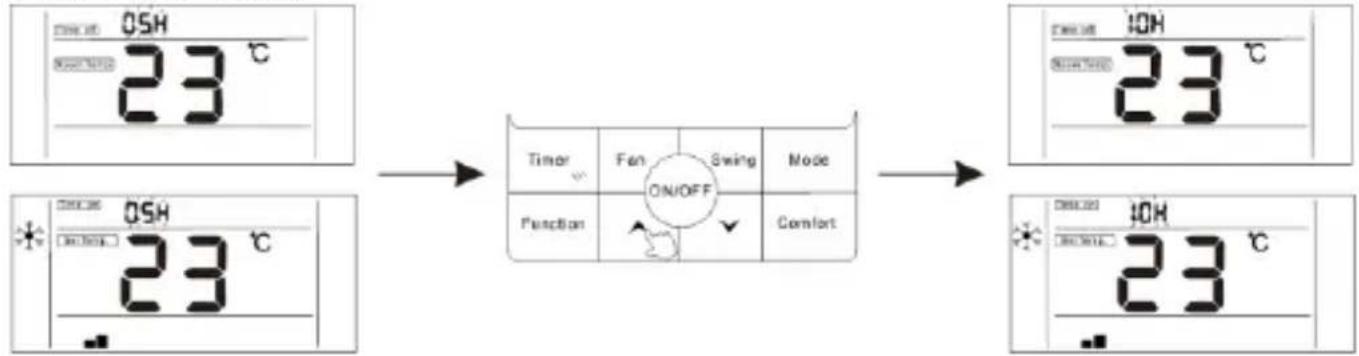

"Timing" function

Users can set shutdown timing time when the unit is running, and set starting up timing time when the unit is stand by.

1. Press "Timer" button when the unit is running, the wired controller will display "Time off" and users can set the shutdown timing time; when the unit is standby, the wired controller will display ", and users can set the starting-up timing time.

1. After entering timing time setting interface, the default timing time is 0.5h, at this moment, press "▲" or "▼" button to regulate the timing time. If the button is not pressed for 10 seconds, the timing setting will be cancelled, and then return to the state of non-timing.

1. After the setting of timing, press "Timer" button again to confirm. The timing setting is successful and the time bar will stop blinking.

1. After the setting "Timer On" function, you can adjust the fan speed, running mode, set temperature, and swing angle. If there is no operation for 10 seconds, standby screen will be displayed.

1. Timing range: 0.5-24 hours. Press "▲" or "▼" button once, the timing time will increase or decrease by 0.5 hours. When the timing time is more than 10 hours, press "" or "" button once, the timing time will increase or decrease by 1 hour.

2. Press "Timer" button or "ON/OFF" button to exit TimerON or TimerOFF.

OPTIONAL FUNCTIONS

The wired controller is for the general-purpose, specific functions of the controller are subject to the functions of your air conditioning unit. Note: In the interface of function setting, press any button such as Timer, Fan, Swing, Mode, ON/OFF, and Comfort to exit the interface and conventional operation interface will display. If there is no operation for 10S, you can exit the interface.

Enter function: Press function button to enter function selection interface, press "

▲ " or "▼" to select a function, and the corresponding icon will flash, press "function" button again to confirm the function.

Cancel function: Press function button lo enter function selection interface, press "

▲ " or "▼" lo select function and !he corresponding icon will flash, press "function" button again to cancel the function.

The setting of "Turbo" function

Turbo function: The fan speed will be ultra-high in turbo mode and users can achieve rapid cooling or heating effect.

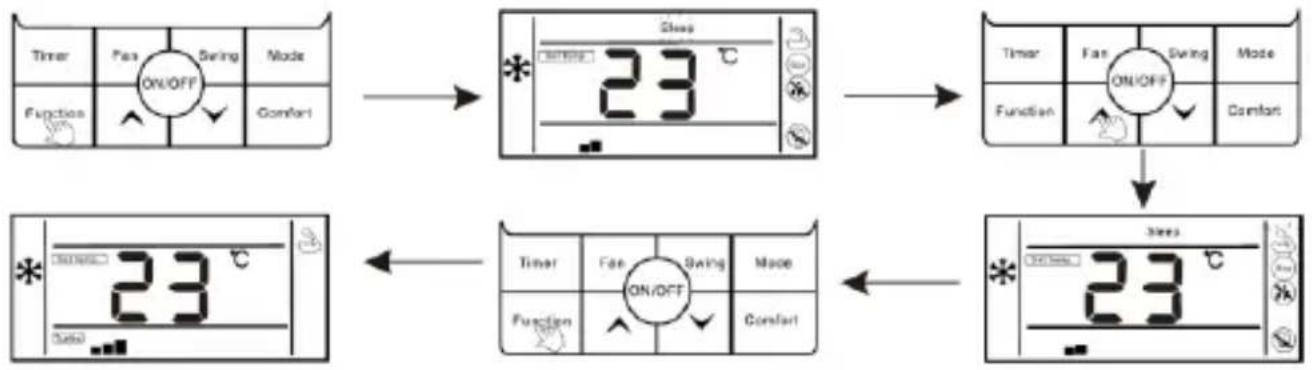

Open turbo function:

1. When the unit is running in cooling or healing mode, press "Function" key to enter the interface of function selection.

2. Press "▲" or "▼" button to switch to turbo function, at this moment, " " icon is flashing.

1. Press "Function" button to confirm turbo function, at this moment, icon " ", fan speed display is (Turbo and speed speed icons).

Cancel turbo function:

1. When turbo function is opened, press "Function" button to enter the interface of function selection.
2. Press "▲" or "▼" switch to strong function, at this moment, icon "💡" is flashing, press "Function" button to cancel strong function, and strong icon would not display.

    F["Sleep"] --> G["23 °C"]
    G --> H["Reset Temp"]

    I["Timer"] --> J["Fan ON/OFF"]
    J --> K["Swing Mode"]
    K --> L["Function ↑"]
    L --> M["Comfort ↓"]

Note: The unit without turbo function can also set turbo function on the wired controller, the performance is high fan speed, but “ ” icon and “ Turbo ” icon do will not display.

The setting of "Sleep" function

Sleep function: Make indoor unit will run according to pre-set sleep temperature curve, which creates a comfortable sleep environment and improves sleep quality.

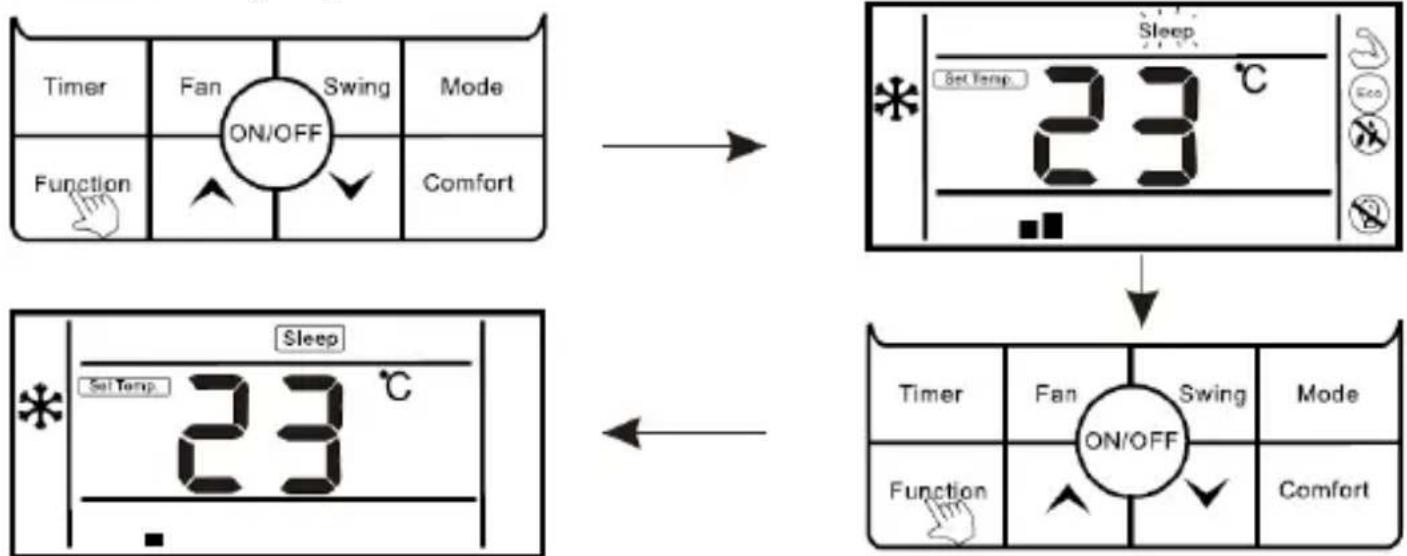

Enter sleep function:

1. In the stale of running, press "Function" button to enter the interface of function selection.

2. Press "▲" or "▼" button to switch to sleep function, "Sleep" icon is flashing at this moment.

3. Press" Function" button to open sleep function, at this moment, icon "Sleep" is lighting.

Cancel "sleep" function:

1. When sleep function is opened, press "Function" button to enter the interface of function selection.
2. Press "▲" or "▼" button to switch to sleep function, icon Sleep is flashing.
3. Press "Function" button again to cancel sleep function.


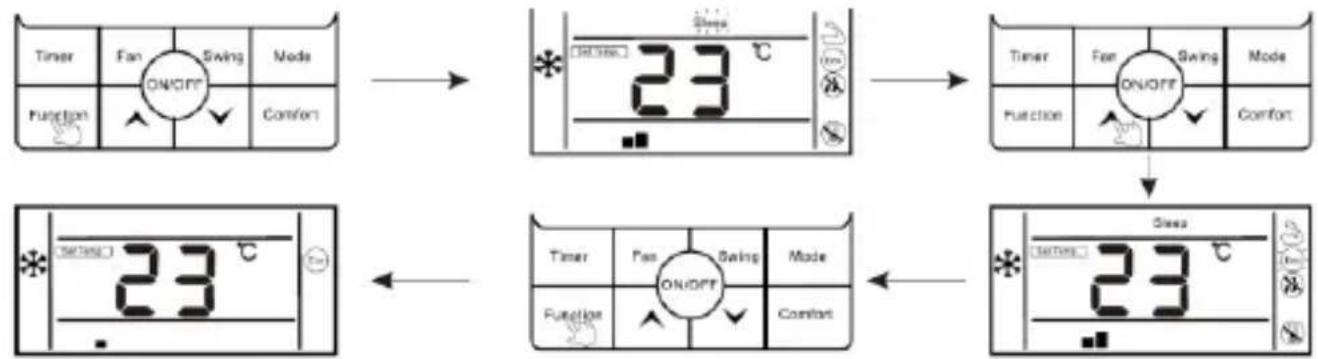

The setting of "ECO" function

Enter ECO function:

1. Press "Function" button to enter the interface of function selection.

2. Press “▲” or “▼” button lo switch lo ECO function, at this moment, “Eco” icon is flashing.

3. Press "Function" button again to confirm ECO function, at this moment, "ECO" icon is flashing.


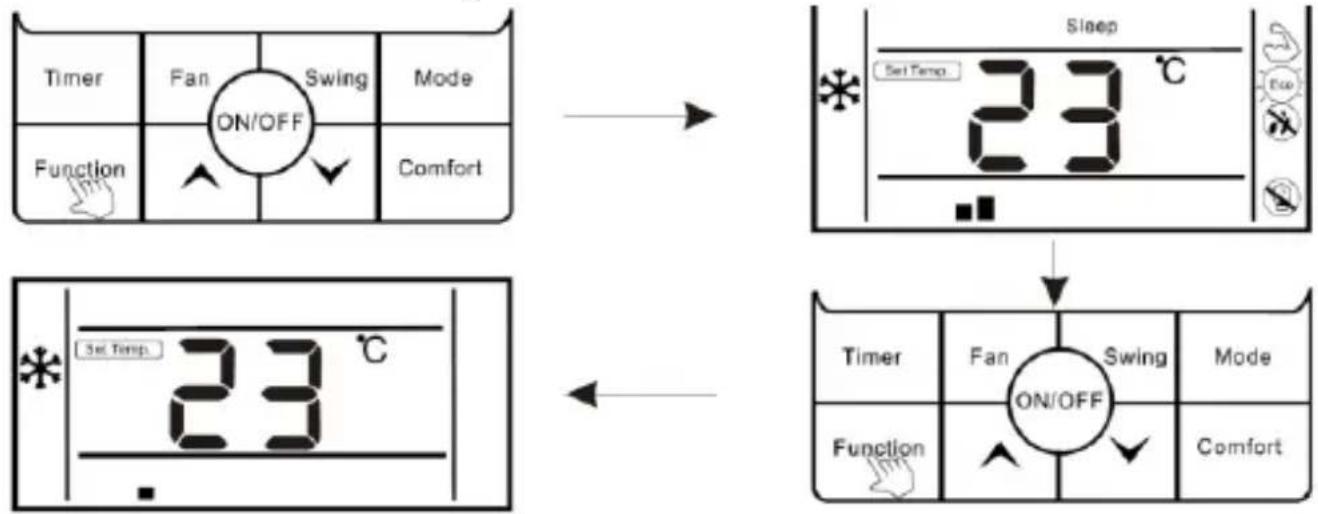

Cancel ECO function:

1. Press "Function" button to enter the interface of function selection.
2. Press "▲" or "▼" button to switch to ECO function, at this moment Icon is flashing.
3. Press "Function" button again to cancel ECO function.


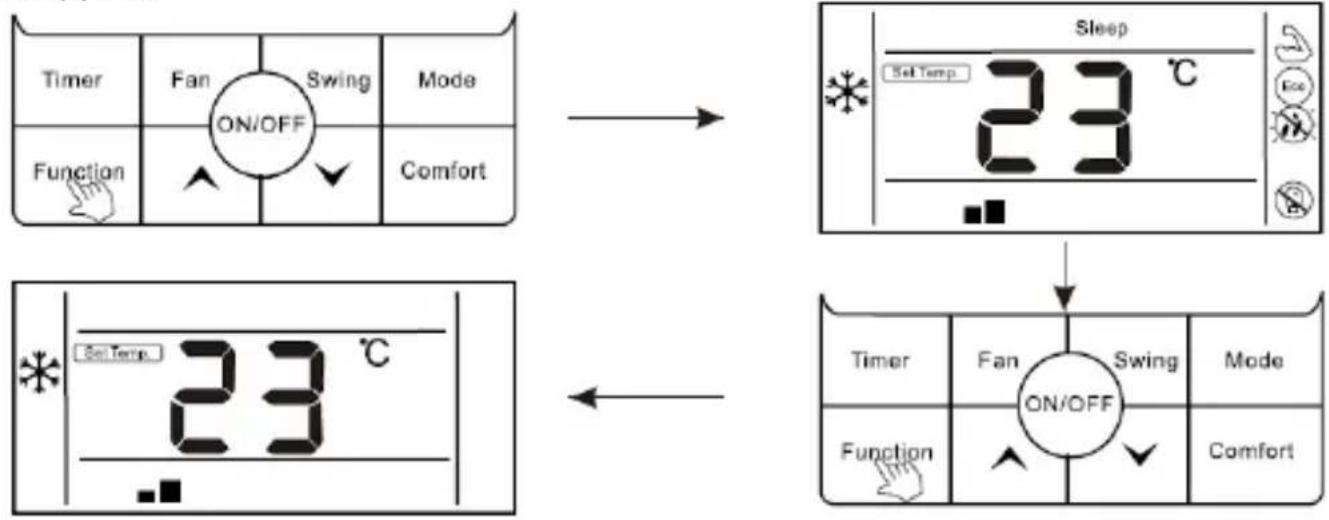

The setting of "Mildew-proof" function

Mildew-proof function: After shutdown, the air conditioner would automatically dry the moisture in the evaporator of indoor unit, so as to avoid mildewing.

Enter mildew-proof function:

1. Under COOL and DRY mode, press "Function" button lo enter the interface of function selection.
2. Press "▲" or "▼" button to switch to the mildew-proof function setting interface, at this moment, icon "●" is flashing.
3. Press "Function" button again to enter mildew-proof function, icon "OK" is lighting.

Cancel fungus-proof function:

1. When mildew proof function is ON, press "Function" button to enter the interface of function selection.
2. Press "▲" or "▼" button to mildew proof function, icon "×" is flashing.
3. Press "Function" button again to cancel mildew proof function, icon will " disappear.

The setting of "Light Sensation" function

Light sensation function: Detect the On and Off of indoor lamplight and switch to low fan speed when the lamplight is off, which can reduce the noise and create a comfortable sleep environment for users.

Enter light sensation function:

1. In the state of running, press "Function" button to enter the interface of function selection.
2. Press "▲" or "▼" to switch to light sensation function, icon "☐" is flashing.
3. Press Function button again to enter light sensation function, at this moment, icon" " is lighting.
4. When light sensation function is on, if the indoor lamplight is OFF and lasts for 20 minutes, the unit will automatically enter sleep mode. If the indoor lamplight is ON, and lasts for 20 minutes, the unit will cancel sleep mode and run according to the setting fan speed.

    F["* 23 °C"] --> G["Sleep"]
    G --> H["23 °C"]

    I["Timer"] --> J["Fan ON/OFF"]
    J --> K["Sweep Mode"]
    K --> L["Function ↑"]
    L --> M["Comfort ↓"]

    N["Timer"] --> O["Fan ON/OFF"]
    O --> P["Sweep Mode"]
    P --> Q["Function ↑"]
    Q --> R["Comfort ↓"]

    S["Sleep"] --> T["23 °C"]

Cancel light sensation:

1. When light sensation function is on, press "Function" button to enter the interface of function selection.
2. Press "▲" or "▼" button to switch to light sensation function, icon is flashing.
3. Press "Function" button again to cancel light sensation function, icon "→" will disappear.

The setting of "Clean" function

Clean function: The air conditioner can clean the evaporator automatically, which can not only keep air fresh, but also reduce the recession of cooling effect.

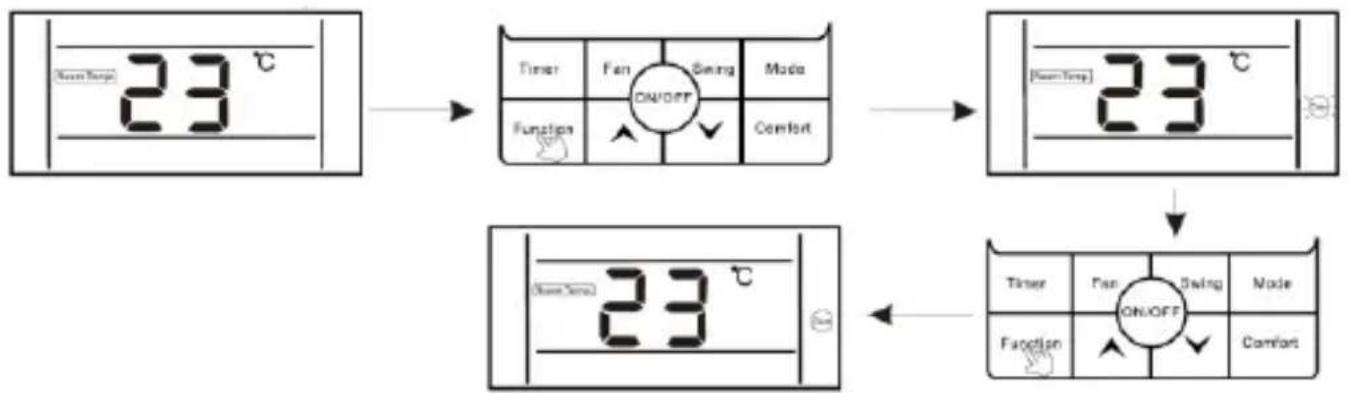

Enter clean function:

1. In the state of standby, press "Function" button to enter the interface of function selection, icon " " is flashing.
2. Press "Function" button again to confirm clean function, at this moment, icon "Clean" is lighting.
3. When the unit is performing clean function, the wired controller will keep displaying icon "", until it is finished.

DISPLAY PROMPT FUNCTIONS

"WIFI" function display

If the unit is equipped with a WIFI function module, the icon " 🔊" is lighting on wired controller.

If the unit is not equipped with a WIFI function module, the icon " 🔺 " does not display.

"Shielding" function display

When unit is locked by centralized control, the wired controller will display "☐".

"Mute" function display

When the unit enter silent function, display " 🔊" icon, when silent function is cancelled, the icon does not display.

Note: The unit without silent function can also set silent through wired controller, but it shows in the way of low wind grade, but " 🔍" does not display.

"Oil Return / Defrost" function display

When the unit is running in the state of Oil Return or Defrost, " " icon is lighting on wire controller.

When the unit has finished Oil Return or Defrost process," 🔊" icon does not display.

"Filter Screen Clean" function display

Filter screen cleaning reminder function: The unit can record its running time, when reaching the time set by the user, it will remind the user to clean the filter screen, so as to avoid prolonged cleaning and filter screen blockage, which can result in poor heating/cooling effect, abnormal protection, bacterial breeding, and other problems. When the running time reaches the filter screen cleaning reminder time set by a user, the unit will give out a reminder of filter screen cleaning, wired controller displays " ” Icon, reminding the user to clean filter screen. At this moment, long press "Timer" button for 5S to cancel the reminder, then the icon does not display. A filter screen cleaning reset signal is sent to the unit.

Celsius and Fahrenheit switching display

When users set Celsius to be valid, the wired controller will display Celsius temperature. When users set Fahrenheit to be valid, the wired controller will display corresponding Fahrenheit temperature synchronously.

"Child Lock" function display

Press both " " or " " buttons for more than 5S to enter locking, the controller

will display “☐”. In the state of locking, operations on the wired controller are disabled (but remote control receiving is valid). The method of unlocking: Press both " " or " " buttons for more than 5S or power off the unit to release the locking

(" does not display).

Remote control function

The wired controller can receive remote control commands and update the current status.

Start-up the unit with remote controller, wired controller work in accordance with the state set on the remote controller and displays corresponding working mode.

Room temperature sensor equipped on the wired controller

When the wire controller is equipped with a room temperature sensor and the sensor is not damaged, it is default that the ambient temperature detected by the sensor on the controller and the temperature value will be sent to the main PCB of the unit.

If the wire controller is not equipped with a room temperature sensor or the sensor is damaged, the room temperature will be detected by the temperature sensor of the unit itself.

Fault display

When the unit has fault, the time bar will directly display the fault code and flash, the display mode is Ex: MM (MM is the fault code, please read the corresponding product manual).

Use a flathead screw driver to pry the bottom groove of the wire controller lightly (too much force would damage circuit board), pry rotationally to open the back cover.

Line drawing of a screwdriver inserting into a device (no text or symbols)

As shown in Fig.3, fix 4 * 20mm screws provided together with the back cover on 8 6 box, then pass lead wires through the back cover.

Simple line drawing of a screwdriver connecting to a wall-mounted electrical socket connected to a box (no text or symbols)

After connecting the connecting wire to the main body of the wire controller, install main body part according to the following steps:

1). Push the upper part of main body into the clip.
2). Use the force of inclined top to install the lower part of main body (horizontal installation is prohibited, which is easy to damage the structural slot).

Connect the long cable to the wired control cable	Connect the other side of the long cable with short one	Connect the other side of the short cable (white connector) to the PCB

R32 MONO FLOOR/CEILING AND MONO CASSETTE INDOOR UNITS → RZGN(C/K)(35/50/70/100/120/140/160)

1. In case of duct units, wired control is supplied as standard.
2. Connect the white control connector to the "CN7" connector of the indoor unit PCB as shown in the following schema:
    end

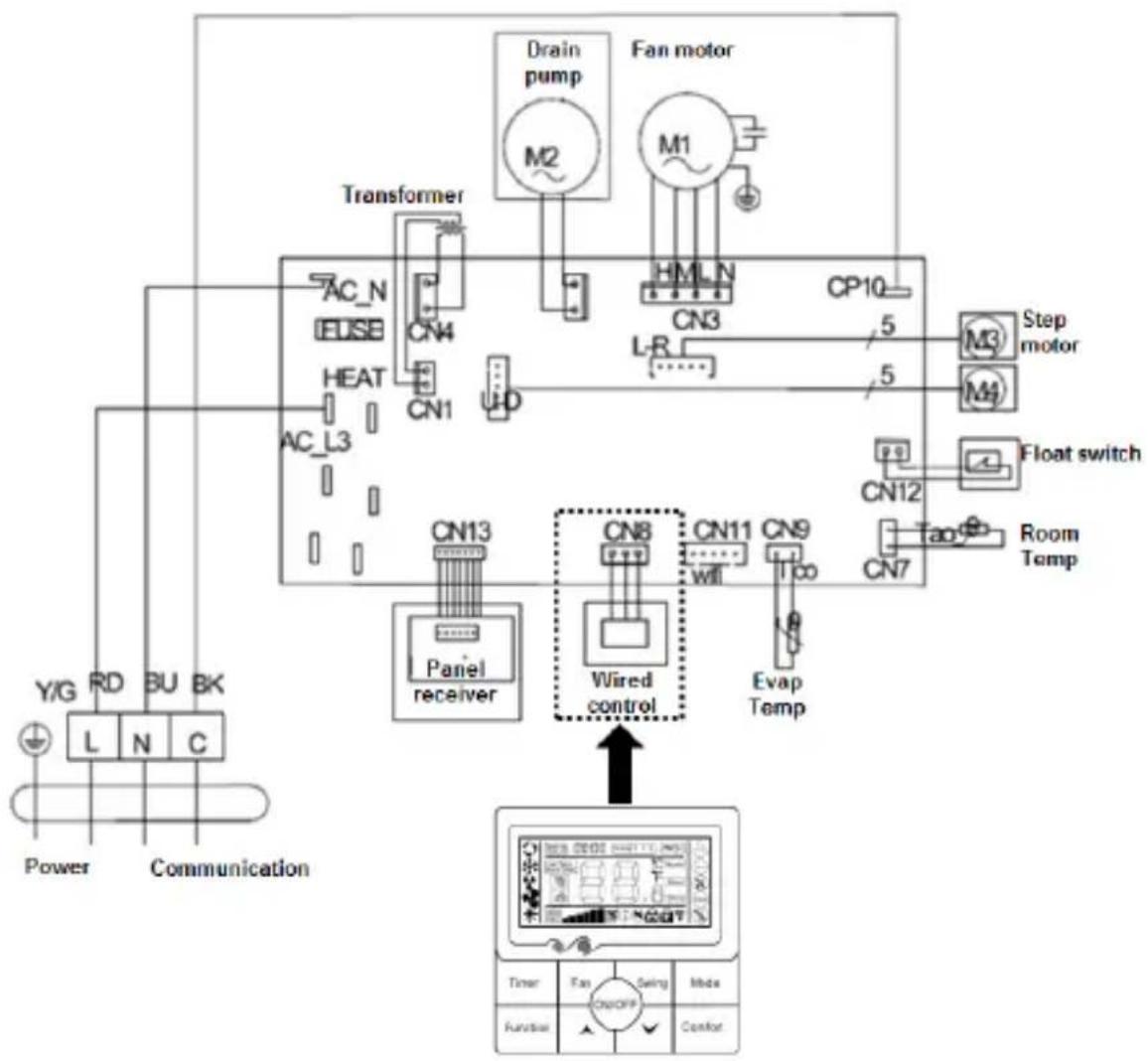

R32 MULTI CASSETTE INDOOR UNITS → LSGNK (25/35/50)-XM

1. In case of duct units, wired control is supplied as standard.
2. Connect the white control connector to the "CN8" connector of the indoor unit PCB as shown in the following schema:

ON/OFF-Taste

Line drawing of a screwdriver inserting into a device component (no text or symbols)

Diagram showing a tool interacting with a wall-mounted socket connected to a box (no text or symbols present)
        BAX["B"]
    end

    subgraph Power_Pack_Esters
        BF["SW1"] --> BG["SW2"]
    end

    subgraph Power_Pack_Factor
        BH["SW1"] --> BI["SW2"]
    end

    subgraph Power_Pack_Gain
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Hold
        BK["SW2"] --> BL["SW2"]
    end

    subgraph Power_Pack_Loss
        BN["SW2"] --> BO["SW2"]
    end

    subgraph Power_Pack_Acc
        BF["SW2"] --> BI["SW2"]
    end

    subgraph Power_Pack_Bus
        BH["SW2"] --> BI["SW2"]
    end

    subgraph Power_Pack_Circulator
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Ducts
        BK["SW2"] --> BL["SW2"]
    end

    subgraph Power_Pack_Esters
        BN["SW2"] --> BO["SW2"]
    end

    subgraph Power_Pack_Factor
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Gain
        BK["SW2"] --> BL["SW2"]
    end

    subgraph Power_Pack_Hold
        BN["SW2"] --> BO["SW2"]
    end

    subgraph Power_Pack_Loss
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Acc
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Bus
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Circulator
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Ducts
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Esters
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Factor
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Gain
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Hold
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Loss
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Acc
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Bus
        BI["SW2"] --> BJ["SW2"]
    end

    subgraph Power_Pack_Circulator
        BI["SW2"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Ducts
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Esters
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Factor
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Gain
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Hold
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Loss
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Acc
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Bus
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Circulator
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Ducts
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

    subgraph Power_Pack_Esters
        BI["Sw1"] --> BJ["Sw1"]
        BI["Sw1"] --> BJ["Sw2"]
    end

Line drawing of a screwdriver inserting into a device component (no text or symbols)

Diagram showing a screwdriver connecting to a wall-mounted switch and connected to a box (no text or symbols present)
