| Product Type | Hi-Fi Micro System |
| Brand | Philips |
| Model | Streamium MC-I200 |
| Dimensions (W x H x D) | 300 mm x 150 mm x 200 mm |
| Weight | 3.5 kg |
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption | 30 W (typical), <0.5 W standby |
| Speaker Output Power | 2 x 10 W RMS |
| Supported Audio Formats | MP3, WMA, AAC, FLAC |
| CD Playback | Yes (CD, CD-R, CD-RW) |
| FM/AM Radio | Yes (FM with RDS, AM) |
| USB Playback | Yes (USB 2.0, up to 32 GB) |
| Network Streaming | Wi-Fi 802.11 b/g/n, Ethernet |
| Bluetooth | Yes (A2DP, AVRCP) |
| Clock & Alarm | Yes (dual alarm, sleep timer) |
| Remote Control | Yes (included) |
| Display Type | LCD (backlit) |
| Inputs/Outputs | 3.5 mm aux in, headphone out |
| Maintenance | Clean with dry cloth; avoid liquids |
| Safety | Class II double insulation |
| Spare Parts | Remote control, power cord available |
Frequently Asked Questions - Streamium MC-I200 PHILIPS
User questions about Streamium MC-I200 PHILIPS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-Fi System in PDF format for free! Find your manual Streamium MC-I200 - PHILIPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Streamium MC-I200 by PHILIPS.
USER MANUAL Streamium MC-I200 PHILIPS
streamium
M-1200
Getting Started
General information
This quick installation guide gives a rough overview and helps to quickly start with basic steps. Please read the supplied instruction manual for detailed information.
Power
1 Check whether the power voltage as shown on the type plate corresponds to your local power voltage. If it does not, consult your dealer or service organisation.
2 After all connections have been made, connect the power cord to AC MAINS\~ and to the wall outlet. This switches on the AC power supply.
To disconnect the set from the power completely, remove the power plug from the wall outlet.
Basic audio setup
Connect
1 Power cord Ⓐ
2 FM wire antenna Ⓗ
3 AM loop antenna ©
4 Speakers Ⓓ

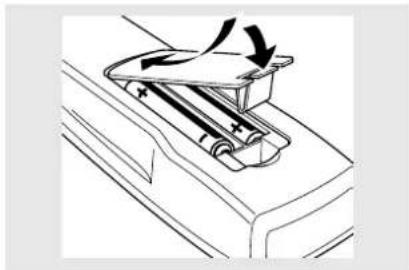

5 Insert batteries into remote control.
You can now already listen to music from the sources TUNER and CD!
Prerequisites for the home network setup
1 Connect your PC, gateway router and broadband modem (cable/DSL) according to the router's setup instructions.
2 Configure your gateway router following the directions specified in your router's manual and make sure that the PC's Internet connection is installed properly and working. If you have problems with the setup of the Internet connection, contact your networking equipment manufacturer.
IMPORTANT!
Do not connect the streamlum MC-1200 to the gateway router before the internet connection of the connected PC through the router is working.
Connecting Streamium MC-i200 to the Internet through a gateway router
3 After the Internet connection has proven to be working, connect the MC-i200 to the gateway router with the supplied cable.
4 Press CONNECT.
Depending on your network setup, you might have to enter network configuration data. Please follow the instructions on the system's display, using the Navigation log, the OK/PLAY (▶) and the numerical/alphabetical keypad on the remote control to enter the requested connection information.
continue...
Upon completion of the setup, limited music services are already available. For full functionality of your Streamium MC-i200 please register your set.
Streamium registration
1 For registration enter your E-Mail address with numerical/alphabetical keypad on the remote control by following the instructions shown on the display. Within a short period you will receive an E-Mail with your registration confirmation details.
2 To complete registration, follow the link displayed in the E-Mail.

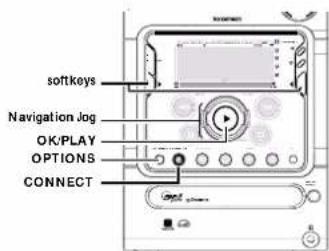

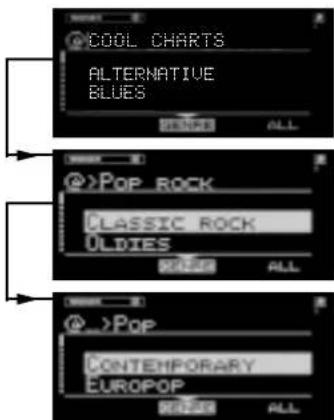

Playing music from online music services
1 Press CONNECT.
2 Browse through music services with Navigation Jog.
3 Press OK/PLAY (▶) to select and start choices.
Playing MP3-music-files from the computer's hard drive
1 Press PC-LINK.
2 Browse and select PC's, folders and tracks with Navigation log.
3 Press OK/PLAY (▶)
Note: Before you can use this music source,
1) you have to switch on your PC and connect it to the network.
2) you have to download and install the PC-LINK PC application from
http://My.Philips.com.

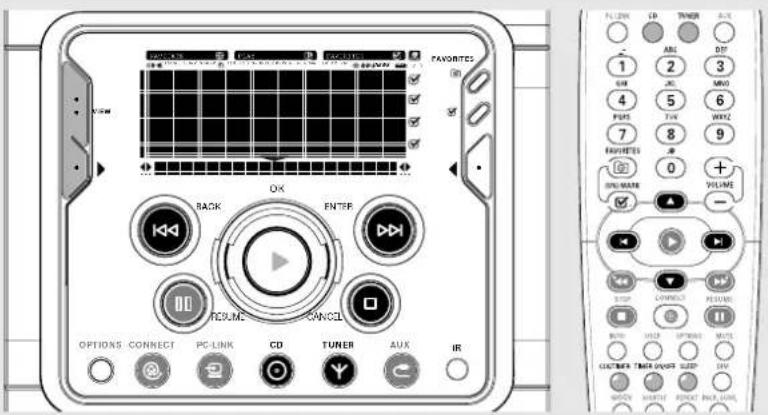

Playing a CD/MP3-CD in the CD drive

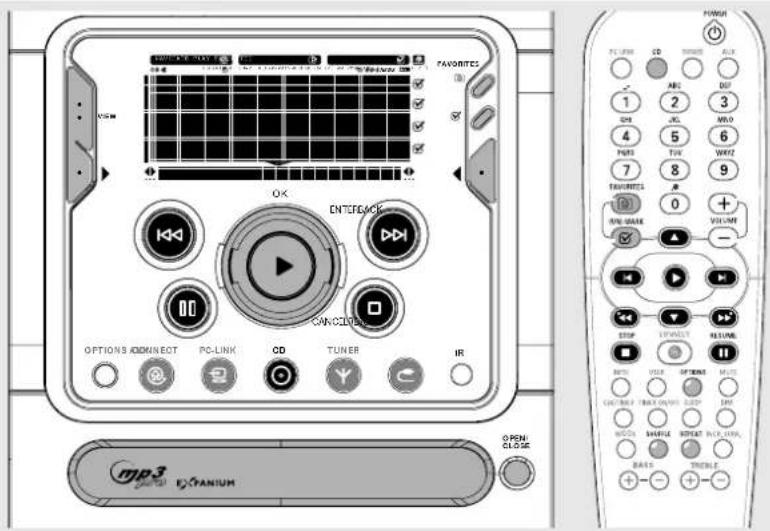

1 Press CD
2 Press OPEN/CLOSE and insert a CD or MP3-CD into the tray. Close the drawer by pressing OPEN/CLOSE again.
3 Select track with Navigation.log.
4 Press OK/PLAY (▶) to start playback.

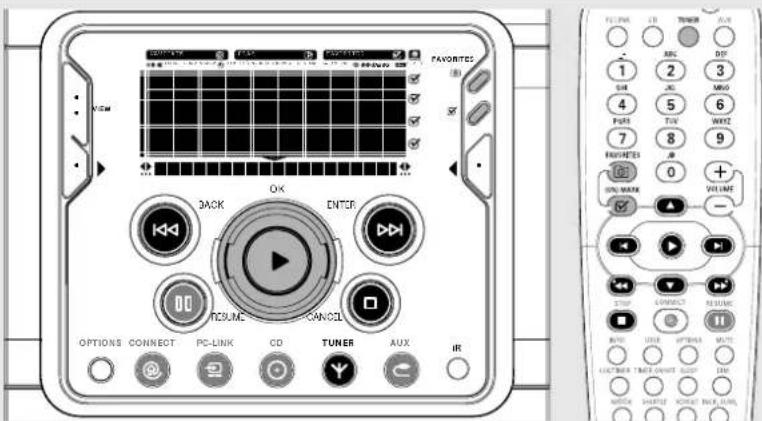

Playing FM/MW/LW radio stations
1 In standby mode, press and hold OK/PLAY (▶) on the system until "PRESS PLAY TO INSTALL TUNER" is displayed. Press OK/PLAY (▶) again to install all available radio stations.
2 Use the Navigation log to scroll through the list of radio stations.
3 Press OK/PLAY (▶) to select the radio station.
For more information, read the user manual or go to: http://My.Philips.com

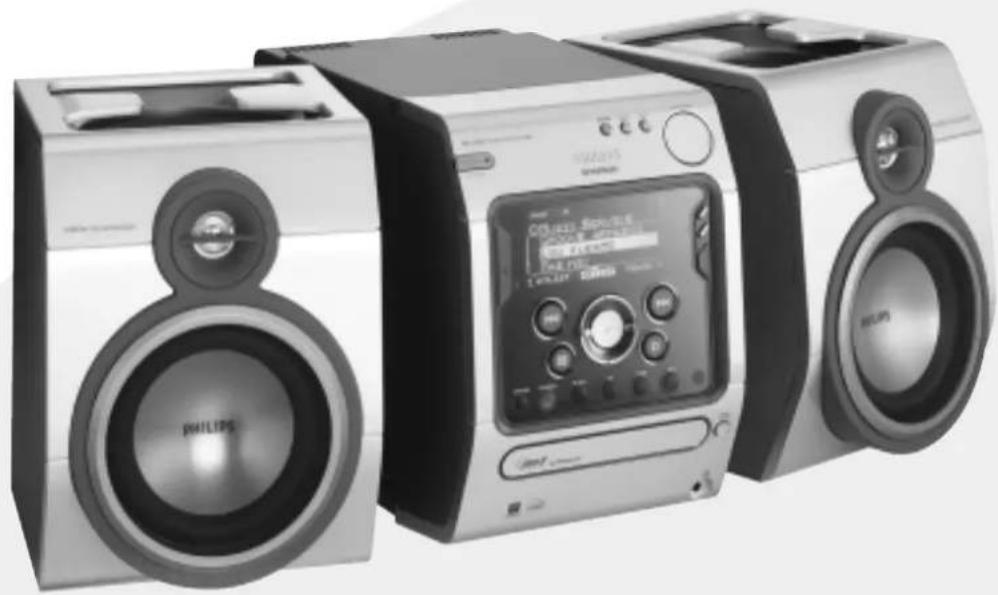

Streamium Micro Hi-Fi System
MC-i200
PHILIPS
DK
As new services and features are continuously added to this product through our online upgrades, the documentation included may not be up-to-date. Please refer to My.Phillips.com for the most recent information.
AUSBAUFÄHIG
Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).
●As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:
- Connect the blue wire to the terminal marked N or coloured black.
- Connect the brown wire to the terminal marked L or coloured red.
- Do not connect either wire to the earth terminal in the plug, marked E (or 12 ) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.
Italia
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
Index
English 6
Français 36
Español 66
Deutsch 96
Nederlands 126
Italiano 156
English
Français
Español
Deutsch
Nederlands
Italieno
Contents
General Information
Environmental information 7
Supplied accessories 7
Safety information 7
About MP3 disc 7
Preparations
Rear connections 8–9
Power
Antennas connection
Speakers connection
Home Network 9
Connecting Streamium MC-i200 9
Optional connections 10
Analogue audio connections
Subwoofer out connection
Inserting batteries into the remote control. 10

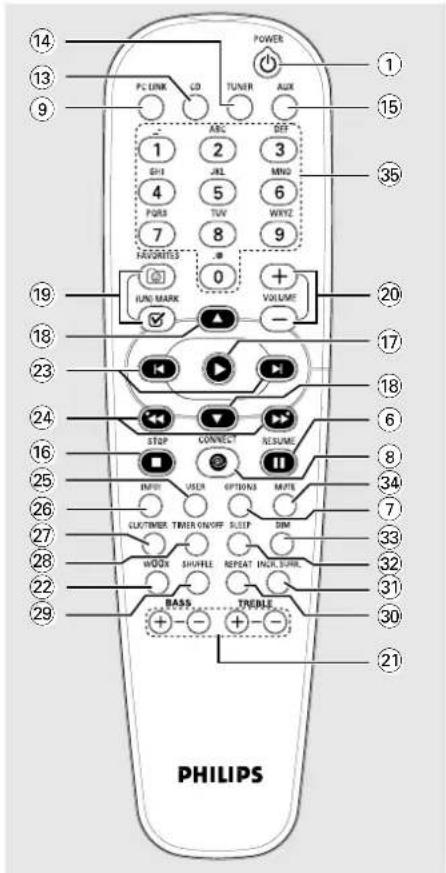

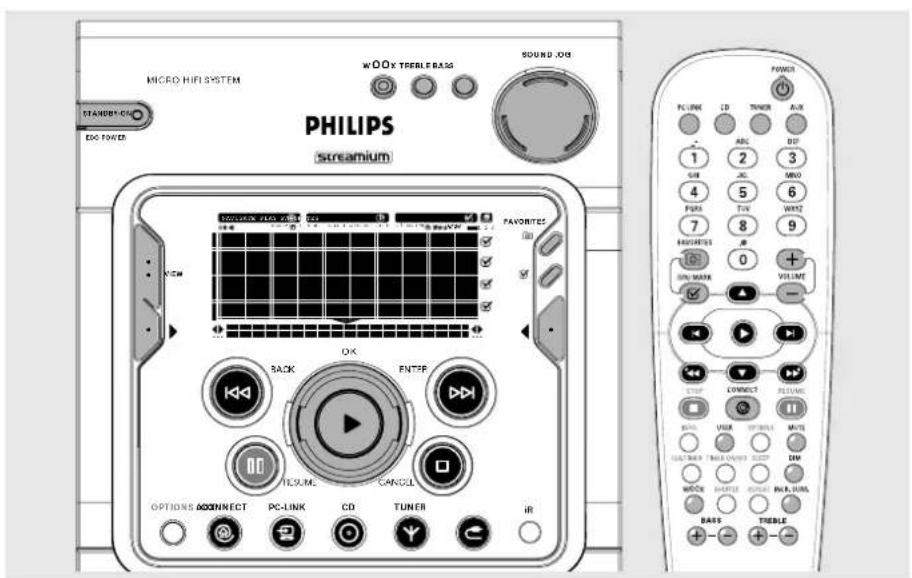

Controls
Controls on the system and remote
control 11-12
Basic Functions
Plug and Play 13–14
Switching the system on 14
Switching the system to standby mode ..... 14
Switching the system to Eco Power
standby mode.... 14
Power saving automatic standby 14
Dim mode 14
Volume control 14
Sound control 15
wOOx
Bass/Treble
Incredible Surround
Screen display.... 16
Navigation view
Play view
Switching between Navigation view and Play view
Using the soft keys 16
Scrolling 17
Internet Audio
Connecting to your PC (PC Link).... 18
Connecting to online music services 18
Set options.... 19–20
Set Registration
Select User
Network Configuration
Proxy Configuration
Network Information
Product Information
Disable Internet
Software Upgrade
Restore Defaults
About "My.Philips.com" 20
CD/MP3-CD Operations
Discs for playback 21
Loading disc 21
Basic operations 22
Selecting a desired track/passage.... 22
Repeat and Shuffle.... 22
Repeat play
Random play
Playing a MP3-CD.... 22-23
Marking favorite tracks 23
Activating/deactivating the favourites list
Playing a favourites list
Cancelling a favourite track
Deleting all favourite tracks
Artist and title information 24
Requesting on-line audio CD information
Radio Reception
Tuning to radio stations 25
Storing favourite radio stations.... 25–26
Automatic Preset Programming
Manual Preset Programming
Selecting a favourite radio station 26
Erasing a favourite radio station 26
Deleting all the favourite radio stations..... 26
RDS 26-27
Setting the RDS clock
Personalised and interactive features
Multiple users 28
Creating your user account
Selecting a user account
Favourites.... 28
Creating your favourites list
Accessing your favourites list
Returning to normal list (exit from favourites list)
Getting extra information 28
External Sources
Connecting an external device 29
Listening to external source 29
Clock/Timer
View clock.... 30
Clock setting 30
Timer setting 31
Checking the timer
Activate/deactivate the timer
Sleep timer setting 32
Maintenance.... 32
Specifications 33
Troubleshooting 34–35
This product complies with the radio interference requirements of the European Community.
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Supplied accessories
- 2 speaker boxes
Remote control
- Batteries (two AA size) for remote control - AM loop antenna
- FM wire antenna
- AC power cord
Category 5 Ethernet cable
Safety information
- Before operating the system, check that the operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.
- Place the system on a flat, hard and stable surface.
- Place the system in a location with adequate ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.
-
Do not expose the system, batteries or discs to excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.
-
If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player will not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.
- When the system is switched to Standby mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.
About MP3 disc
Supported formats
- MP3PRO, MP3
– ISO9660, Joliet, Multisession
– Supported sampling frequencies : 16, 22.05, 24, 32, 44.1, 48 (kHz)
Supported Bit-rates of MP3 disc are: 32-256 (kbps) and variable bit-rate
Making your own MP3-CD
1 Copy the music from your own Digital Audio CDs or download legal MP3 music from the Internet.
2 Record ("bum") the music on a CD-R(W) disc with your home PC. Make sure to use a recording speed not faster than indicated on the CD-R(W) and avoid running other programmes simultaneously on your PC during the recording process.
Sound Quality
Take note that MP3-CD compilations should best contain only MP3 tracks (.mp3).
To achieve a good MP3 quality, a bit rate of 128 kbps or higher is recommended.
Preparations
English
Rear connections
The type plate is located at the rear of the system.
For users in the U.K.: please follow the instructions on page 2.
Ⓐ Power
Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made.
WARNING!
- For optimal performance, use only the original power cable.
- Never make or change any connections with the power switched on.
To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for some versions).
B Antennas connection
Connect the supplied AM loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.
AM Antenna
FM Antenna
- For better FM stereo reception, connect an outdoor FM antenna to the FM ANTENNA terminal.
Speakers connection
Front Speakers
Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-"
- Fully insert the stripped portion of the speaker wire into the terminal as shown.
Notes:
- To avoid magnetic interference, do not position the front speakers too close to the PC monitor/TV.
- For optimal sound performance, use the supplied speakers.
- Do not connect more than one speaker to any one pair of + / - speaker terminals.
- Do not connect speakers with impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.
Home Network
1 Connect your PC, gateway router and broadband modem (cable/DSL) according to the router's setup instructions.
2 Configure your gateway router following the directions specified in your router's manual and make sure that the PC's internet connection is installed properly and working. If you have problems with the setup of the internet connection, contact your networking equipment manufacturer.
Connecting Streamium MC-i200
1 After the internet connection has proven to be working, connect the system to the gateway router with the supplied cable.
IMPORTANT!
Do not connect the Streamium MC-i200 to the gateway router before the internet connection of the connected PC through the router is working.
2 Press CONNECT. You will now be guided through the installation process of the system. Depending on your network setup, you might have to enter network configuration data. Please follow the instructions on the system's display, using the navigation jog, the OK/PLAY ▶ and the numerical/alphabetical keypad on the remote control to enter the requested connection information.
Notes:
- You will be asked to enter your E-Mail address. Within a short period you will receive an E-Mail confirmation with your registration details. Follow the link displayed in the E-Mail to http://My.Philips.com, where you can customise your settings and download the PC-Link PC application.
- For later modification of the connection settings, press CONNECT and OPTIONS followed by the soft key (◀) on the system to select "SET" options.
Preparations
Optional connections
The optional equipment and connecting cords are not supplied. Refer to the operating instructions of the connected equipment for details.
Analogue audio connections
AUX/CDR IN (R/L)
Use a cinch cable to connect these terminals to the analogue audio out terminals of an external equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder).
LINE OUT (R/L)
Use a cinch cable to connect these terminals to the analogue audio inputs of any analog audio equipment (amplifier/receiver or tape recorder, for example).
Notes:
- Do not connect equipment to both the LINE OUT and AUX/CDR IN terminals at the same time. Otherwise, noise will be generated and malfunction might occur. - If you are connecting equipment with a monaural output (a single audio out terminal), connect it to the AUX/CDR IN left terminal. Alternatively, you can use a "single to double" cinch cable (the output sound will still remain mono).
Subwoofer out connection
Connect the subwoofer to the SUBWOOFER OUT terminal. The subwoofer reproduces just the low bass sound effects (explosions or the rumble of spaceships, for example).
Inserting batteries into the remote control
Insert two batteries (type R06 or AA) into the remote control with the correct polarity as indicated by the "+" and "-" symbols inside the battery compartment.
- Remove batteries if they are exhausted or will not be used for a long time. - Do not use old and new or different types of batteries in combination. - Batteries contain chemical substances, so dispose of them properly.
Controls on the system and remote control
① STANDBY ON / ECO POWER
- to switch the system on or to standby mode. - hold down to switch the system to Eco Power standby mode.
② Display screen
– to view the current status of the system.
③ VIEW
- to switch to navigation or play view.
④ (soft keys)
- to select from the available choices on the bottom line of the screen.
- ( ◆) to select RDS information.
⑤ BACK ◀◀/ ENTER ▶▶
for CD, CONNECT, PC-LINK
(play view) .... to skip to the beginning of the current, previous, or next track. .... hold down to search backward/forward.
for Tuner (play view)...to tune to a lower or higher radio frequency.
for Clock .... to change between hour and minutes field.
⑥ II (RESUME)
- to interrupt or resume playback.
⑦ OPTIONS
- to modify source/service settings.
⑧ CONNECT
to connect to an internet audio service.
⑨ PC-LINK
- to access MP3 files stored on home network's PC.
⑩
- to connect headphones.
⑪ Disc tray
⑫ OPEN/CLOSE
- to open or close the disc tray.
⑬ CD
to enter CD mode.
⑭ TUNER
to enter tuner mode or select waveband (FM, MW or LW).
⑮ AUX
to select the input for an additional appliance.
⑯ ■ (CANCEL)
for CD ...... to stop playback.
for Tuner ...... to stop programming
for Clock .... to exit clock setting or cancel timer.
for Plug & Play...to exit plug & play mode.
⑰ ▶ (OK)
- to start playback.
- to confirm the selection.
– to initiate and start plug & play mode.
⑱ Navigation jog (▲▼)
for CD, CONNECT, PC-LINK...to scroll through a list.
for Tuner ...... to select a favourite radio station.
for Clock ...... to set the hours and minutes.
⑲ FAVORITES
for CD, PC-LINK, CONNECT ... to switch to the favourites list of the selected mode.
for Tuner ...... hold down to auto programme radio stations.
(UN)MARK
- to select and add an item to a favourite list.
- to delete an item from a favourite list.
– hold down to delete the complete favourites.
⑳ SOUND JOG (VOLUME +/−)
- to increase or decrease volume.
- (on the system only) to increase or decrease the low or high tone level for the respective BASS or TREBLE sound feature selected.
⑳ BASS / TREBLE
to select BASS or TREBLE sound feature.
BASS / TREBLE + I - (on the remote control)
- to increase or decrease bass or treble level.
② wOOx
to select the next wOOx level or switch off wOOx sound effect.
②3
for CD, CONNECT, PC-LINK
( play view) ...... to skip to the beginning of the current, previous, or next track.
for Tuner (play view)...to select a favourite radio station.
for Clock .... to change between hour and minutes field.
Controls
for CD (play view)...to search backward/forward. for Tuner ...... to tune to a lower or higher radio frequency. sed as a soft keys, to select from the available choices on the bottom line of the screen.
USER
- to select an active user.
INFO!
- to request on-line information about currently playing item through e-mail (if available).
CLK/TIMER
- to display or set the clock/timer.
TIMER ON/OFF
- to activate or deactivate the timer function.
SHUFFLE
- to playback all tracks/favourites in random order.
REPEAT
- to playback track/disc/favourites repeatedly.
INCR. SURR.
- to activate or deactivate the surround sound effect.
SLEEP
- to activate, deactivate or set the sleep timer function.
DIM
- to select different brightness for the display screen: DIM 1, DIM 2, DIM 3 or DIM OFF.
MUTE
- to interrupt or resume sound reproduction.
DIGITS 0 - 9
(numbers consisting more than two figures must be keyed in within 2 seconds.) for CD, CONNECT, PC-LINK ... to select a track. for OPTIONS...for text/number editing. for Tuner .... to select a favourite radio station
Notes for remote control:
- First, select the source you wish to control by pressing one of the source select keys on the remote control (CD or TUNER, for example).
- Then select the desired function (▶, ◀, ▶ for example).
IMPORTANT!
Before you operate the system, complete the preparation procedures.
Plug and Play
Plug and Play allows you to store all available RDS stations and radio stations automatically.
First time setup/power up
1 When you turn on the power supply, "PRESS PLAY TO INSTALL TUNER" is displayed.
2 Press▶ to start installation.
→ "INSTALLING TUNER" is displayed, followed by "AUTO PROGRAM IN PROGRESS...".
→ The system will automatically store the radio stations with sufficient signal strength, starting from all RDS stations and followed by FM, MW and LW bands respectively. Weak RDS stations may be stored in later presets.
→ When all the available radio stations are stored or the memory for 40 presets is used, the last preset radio station (or the first available RDS station) will be played.
3 The system will proceed to set the RDS clock if the first preset is an RDS station.
→ "INSTALL" is displayed, followed by "TIME" and "SEARCH RDS TIME".
→ When RDS time is read, "RDS TIME FOUND" is displayed and the current time will be stored.
→ If RDS station does not transmit RDS time within 90 seconds, the programme will exit automatically and the display will show "NO RDS TIME".
- If the first preset is non-RDS station;
→ The programme will exit automatically.
To reinstall Plug and Play
1 In standby mode, press and hold ▶ until "PRESS PLAY TO INSTALL TUNER" is displayed.
2 Press ▶ again to start installation.
→ All previously stored radio stations will be replaced.
Basic Functions
To exit without storing the Plug and Play
- Press ■
→ If you do not complete the Plug and Play installation, the function will be restarted when you next turn on the power supply again.
Notes:
- When the power is turned on, the disc tray may open and close to initialise the system.
- If no stereo frequency is detected during Plug and Play, "PLEASE CHECK ANTENNAPISEASE displayed.
Switching the system on
In standby mode
- Press STANDBY ON to switch on the last selected source.
- Press PC-LINK, CONNECT, CD, TUNER, or AUX to select the desired source.
In Eco Power Standby mode
- Press STANDBY ON on the system.
- Press PC-LINK, CD, TUNER, CONNECT or AUX on the remote control.
Switching the system to standby mode
- Press STANDBY ON (or ⏻ on the remote control).
→ The clock will appear on the display when the system is in standby mode.
Switching the system to Eco Power standby mode (< 0.5W)
- Press and hold STANDBY ON (or ⏻ on the remote control) for more than three seconds.
→ "ECO POWER MODE&gp1pkeyed, then she display screen will go blank.
→ The low power LED will be lighted.
Power saving automatic standby
As a power-saving feature, the system will automatically switch to Standby mode if you do not press any buttons within 30 minutes after a disc has stopped playing.
Dim mode
You can select the desired brightness for the display CHECK ANTENNA
- Press DIM on the remote control repeatedly to select DIM 1, DIM 2, DIM 3 or DIM OFF display mode.
→ DIM and the corresponding dim level will appear on the display, except for DIM OFF mode.
| DIM mode | LEDs |
| 1 | off |
| 2 | on |
| 3 | off |
| OFF | on |
Volume control
Adjust SOUND JOG (or press VOLUME
+/- on the remote control) to increase or decrease the volume level.
→ "=XX dB=Kd displayed. "XX" denotes the volume level.
To listen through the headphones
- Connect the headphones plug to the ⏻ socket at the front of the system.
→ The speakers will be muted.
To switch off the volume temporarily
- Press MUTE on the remote control.
→ Playback will continue without sound and "MUTE ONMITE" responded. - To restore the volume, press MUTE again or increase the volume level.
Basic Functions
Sound control
For optimal sound listening, you are only able to select BASS/TREBLE or wOOx at a time.
wOOx
There are three wOOx settings to enhance the bass response.
- Press wOOx repeatedly to select the next wOOx level or switch the wOOx effect off: wOOx 3, wOOx 2, wOOx 1 or wOOx OFF.
→ woox and the corresponding wOOx level will appear on the display, except for wOOx OFF mode.
Notes:
- When switched off the wOOx effect, the last Bass/Treble will resume automatically. - Some discs might be recorded in high modulation, which causes a distortion at high volume. If this occurs, deactivate wOOx or reduce the volume.
Bass/Treble
The BASS (low tone) and TREBLE (high tone) feature enables you to define the sound-processor settings.
- Press BASS +/- or TREBLE +/- on the remote control repeatedly to select the next Bass or Treble level.
OR
1 Press BASS or TREBLE on the system to select Bass or Treble sound feature.
2 Adjust SOUND JOG on the system to select the desired Bass or Treble level.
→ "BASS LEVEL XXBASTREBEE LEVEL XXTRE" is displayed. "XX" denotes the level as follows :
MINH+2 ... → 0 ... → +2 → MAXH
Notes:
- The sound jog can be used to adjust Bass/Treble level immediately after you have selected the respective Bass/Treble sound feature. If the sound jog is not used within five seconds, it will become normal volume control function. - The Bass/Treble mode will exit automatically if wOOx feature selected.
Incredible Surround
The Incredible Surround magnifies the virtual distance between the front speakers for an incredibly wide, enveloping, stereo effect.
- Press INCR. SURR. on the remote control repeatedly.
→ If activated, INCR. SURR. is shown. → If deactivated, "INCR. SURR. OFFICER. SURR. OFF displayed.
English
Basic Functions
Screen display
The system has two main screen display views – NAVIGATION and PLAY.
Navigation view
Allows you to navigate through the contents of the currently selected source/service.
In some cases, there may exist more than one level of navigation. For example, selecting an item in the existing list may further generate a sub-list of the selected item.
">">- indicates level 2 sub-list
“...>> indicates any level lower than level 2
Play view
When OK (▶) is pressed on a highlighted item within navigation view, the device switches to Play view and will start playing the item. The display content in Play view varies for each source/service.
You may switch back to Navigation view while music is playing to make your next selection.
Switching between Navigation view and Play view
- Press VIEW on the system.
Using the soft keys
Each source/service has different sort modes. For example, the sort modes when playing back an MP3CD are ALBUM, PLAYLIST, ARTIST and TRACK. (only some of the modes may be available, depending on the disc)
The “◀” or “▶” at the bottom right or left hand corner of the screen indicates that there is more information to be viewed.
To select from choices on the bottom line of the display
- Use the left hand soft key (▶) or right hand soft key (◀) on your system (◀◀/▶▶ on the remote control).
Scrolling
All lists in navigation view are sorted in alphabetical or numerical order.
To scroll through a list
- Adjust the navigation jog clockwise to scroll down or anti-clockwise to scroll up. There are two scrolling speeds: ① slow and ② fast.
① Enables you to skip forward/backward to an item on the list.
② Enables you to skip forward/backward by several items on the list.
Internet Audio
Connecting to your PC (PC-LINK)
This feature allows you to stream your favorite MP3 music from your PC via the home PC's network. In order to enjoy the PC-Link, you have to install the PC-Link PC application. This application can be downloaded from "http://My.Philips.com".
1 Press PC-LINK
→ "SCANNING FOR PC'SCANDINGFOR PC'S
→ If no PC is found within 30 seconds, an error message "NO PC'S FOUND" displayed to check your network setup.
→ If more than one PC is found, the names of the servers are displayed. Select the preferred server by pressing ▶ .
→ If only one PC is found, the system switches to sort mode in navigation view.
2 Press the soft key (◄ or ►) to select the following options from the navigation view: ARTIST, ALBUM, GENRE, PLAYLIST or TRACK.
→ If favourites mode is active, only favourites of current list are displayed.
3 Use the navigation jog (or press ▲/▼ on the remote control) until the desired item is highlighted.
• To mark or unmark into the favourites list, press
(UN)MARK
4 Press OK (▶) to confirm the selection and start playback.
• To play from the favourites list, press FAVORITES (a) and followed by ▶
Note:
- PC-Link favourites are not user specific. The same PC-Link server will always have the same favourites.
Connecting to online music services
The CONNECT feature is not a source/service by itself. It works with on-line services such as Internet radio stations to get access to music. The services offer different types of Internet audio content, that can be categorised by GENRE, REGION, LANGUAGE, PERSONAL, STATION, etc..
1 Press CONNECT.
→ A list of on-line services is displayed.
→ If unsuccessful, "DID NOT CONNECT. PLEASE TRY AGAIN LATER" is displayed.
2 Use the navigation jog (or press ▲/▼ on the remote control) to select a music service provider and then press OK (▶) or ENTER (▶▶) to enter the service.
→ The system will start connecting to the service and "LOADING..." is displayed → When connection is established, the system will show a list of available internet music services or subcategories.
3 To enter a subcategories, press OK (▶) or ENTER (▶▶). To start playing a certain music service, press OK (▶). To go back to a higher level or leave a music service, go to navigation view by pressing VIEW or using navigation jog and press BACK (◀◀◀).
→ If there are sort modes for the music services available, they will be shown on the bottom line of the display. You can change the sort mode by pressing the soft keys (▶) or (◀).
Notes:
- Only Stations can be marked as a favourite.
– Each user can have its own favourites.
Set options
An option menu exists for each source/service except for TUNER and AUX. The available option menus are detailed within the respective source/service sections in this manual.
1 Press CONNECT followed by OPTIONS.
2 Press the soft key (◀) on the system to select "\$SETSET"
→ Below are some possible options :
- SET REGISTRATION
- SELECT USER
- NETWORK CONFIG
- PROXY CONFIG
- NETWORK INFO
- PRODUCT INFO
- DISABLE INTERNET
- SOFTWARE UPGRADE
- RESTORE DEFAULTS
Note:
- This option list may be extended or changed if new services become available.
3 Use the navigation jog (or press ▲ / ▼ on the remote control) to select the desired set options and press OK (▶) to confirm.
Set Registration
Set Registration is necessary to utilise various system functions.
1 Use the numerical/alphabetical keypad on the remote control to enter your e-mail address.
To delete a character
- Press I◀◀ to move the cursor backward.
To exit the registration mode without storing
- Press ■
2 Press OK (▶) to confirm your entry.
→ Your registration confirmation details will be e-mailed to you.
Note:
- Registration is only available for the default user.
Select User
The user menu displays the available account(s) for easy selection. Select a user account to retrieve user specific favourites within a source/service.
Network Configuration
Depending on the type of Internet connection you have, "DHCP" or "STATIC" must be selected to enable your system to connect to the Internet. Check with your service provider to obtain the correct IP mode.
For users whose systems are set to "STATIC" mode, the following additional input fields have to be completed :
- SET IP
- SET NETMASK
- SET GATEWAY
SET DNS 1
- SET DNS 2
Check with your service provider and enter the necessary connection settings for these options.
Note:
- The change of network configuration is only necessary if your system does not work with the default configuration.
Proxy Configuration
Check with your service provider to obtain the correct proxy name and proxy port.
Network Information
This feature reports the details of your network connection.
Product Information
Check the current system information.
Disable Internet
Selecting this feature will disable the internet connection.
Internet Audio
Software Upgrade
This feature allows you to check for new software updates. If you are already a registered user, "My.Philips.com" will automatically notify you of any software updates by e-mail.
Restore Defaults
Selecting this feature will revert the system to the default setting.
WARNING!
Restoring the default settings erases all the information stored in the set options. You will remain registered at My.Philips.com.
Note:
- To terminate internet access when switching the source mode to CD or AUX, press OPTIONS and select accordingly.
About "My.Philips.com"
"My.Philips.com" provides a personal online tool for managing your entertainment choices. It is an exclusive service to owners of Philips' premium internet-connected products. Once you have registered with "My.Philips.com", you will be able to :
– create and personalise your music selections.
– update on latest music releases or favourite artists.
- keep up with developments in technology and software.
- contact the music service providers.
– review and obtain information on artists and music tracks by pressing INFO! button.
English
IMPORTANT!
- This system is designed for regular discs. Therefore, do not use any accessories such as disc stabiliser rings or disc treatment sheets.
- Do not load more than one disc into the tray.
Discs for playback
This system is able to play :
- All pre-recorded audio CDs
— All finalised audio CDR and audio CDRW discs - CD's with MP3 and/or MP3PRO files (files end with .mp3)
Loading disc
1 Press OPEN/CLOSE to open the disc tray.
2 Load in a disc with the label side facing up.
3 Press OPEN/CLOSE again to close the disc tray.
→ The system detects the type of disc being loaded, "CD" or "MP3 CD" is displayed.
→ The system then starts to retrieve text information for the disc.
Notes:
- To ensure good system performance, wait until the disc tray completely reads the disc before proceeding.
- For MP3 discs, the disc reading time may exceed 10 seconds due to the large number of songs compiled onto one disc.
CD/MP3-CD Operations
Basic operations
Playing a disc
- Press ▶ .
To interrupt playback
- Press II.
→ The current track time flashes.
• To resume playback, press Ⅱ again.
To stop playback
- Press ■.
Selecting a desired track/passage
To select a desired track
- While playing
- Press ◀◀◀ or ▶▶◀ (or ◀◀/▶◀ on the remote control) repeatedly until the desired track is displayed.
- in stop mode
- Use the navigation jog (or press ▲/▼ on the remote control) until the desired track is highlighted.
- Press ▶ to start playback.
To search for a particular passage during playback
- Press and hold ◀◀◀ or ▶▶▶ I (or ◀◀ / ▶▶ on the remote control) until the desired passage is located. → During searching, the volume will be reduced.
To skip to the beginning of the current track during playback
- Press (▲) once.
Repeat and Shuffle
You can select and change the various play modes before or during playback.
Repeat play
1 Press REPEAT on the remote control repeatedly to select the following :
→ REPEAT TRACK – repeat the current track.
→ REPEAT ALL – repeat the entire disc.
2 To resume normal playback, press REPEAT until "REPEAT OFF" is played
Random play
1 Press SHUFFLE on the remote control.
→ SHUFFLE is shown and "SHUFFLINGSHUFFLING displayed.
→ All the tracks or favourite tracks (if favourite mode is active) will be played in random order.
2 To resume normal playback, press SHUFFLE again.
→ SHUFFLE disappears.
Playing a MP3-CD
1 Load in a MP3-CD.
→'ANALYZING DISCHAMPLKOMING DISC
2 Press the soft key (◄ or ►) to select the following options from the navigation view: ALBUM (directory name on disc), PLAYLIST or TRACK (file name).
3 Use the navigation jog (or press ▲/▼ on the remote control) until the desired item is highlighted.
4 Press ▶ to start playback.
- Pressing the REPEAT or SHUFFLE button will repeat or shuffle the last selected option.
→ REPEAT – repeat the current album/playlist/artist/track.
→ REPEAT ALL – repeat all albums/playlistists/artists/tracks.
→ SHUFFLE – shuffle all albums/playlistists/artists/tracks.
display screen
1 The selected item is shown (album name, playlist name, artist name or MP3-CD name)
2 Track name.
3 Elapsed play time.
4 Artist name is shown. If 1 shows the artist name, then album name is shown here.
5 Next track name.
Marking favourite tracks
This feature allows you to mark your favourite tracks for easy playback the next time you load in the CD/MP3 CD again. It can store up to a maximum of 50 tracks for a normal CD and 128 tracks for MP3-CD. Different users can store different favourites for the same CD/MP3CD using their individual user ID.
You can manage your CD/MP3-CD favourites in My.Philips.com (refer to "My.Philips.com" for more information).
1 Use the navigation jog (or press ▲ / ▼ on the remote control) to scroll through the tracks.
2 Press (UN)MARK (☑) to add into the favourite list.
→ The icon "appears next to the selected track.
- Repeat this step to select additional tracks to your favourite list.
→ The next selected track will appear at the end of the list.
→ If you attempt to programme more than
50 (CD) / 128 (MP3-CD) tracks, "NO MORENO MORE
FAVORITES CAN BE ADDEDFAVORITES. CAN BE ADDED
Activating the favourites list
- Press FAVORITES (
Deactivating the favourites list
- Press CD.
Playing a favourites list
- Press FAVORITES ( ) followed by ▶.
Cancelling a favourite track
- Press (UN)MARK () or the marked track
Deleting all favourite tracks
1 Press and hold (UN)MARK () for more than three seconds.
→"DO YOU WANT TO DELETE CODO YOU WANT TO DELETE CD FAVORITES?" is displayed, followed by YES" and "NO" options.
2 Press the soft key (▶) on the system to select "YES".
Note:
- When FAVOURITES is on, no additional tracks can be marked.
CD/MP3-CD Operations
Artist and title information
The system is able to display artist and title information such as CD title, artist's name, musical genre, track titles and so forth (metadata).
CD
The tracks on the disc are displayed in numerical order when no CD information is available. If artist and title information is detected, the song titles will be displayed instead.
with artist and title information
navigation view play view
without artist and title information
navigation view play view
To return to default CD information (numerical order)
- Press OPTIONS and use the navigation jog to select "RESET CD INFORESET CD INFO
→ The tracks will be displayed numerically (for example, TRACK 1, TRACK 2, ...)
MP3-CD
If you want to replace the file names and directory names on your display by artist, album and track name, press OPTIONS. Use the navigation jog (or press ▲/▼ on the remote control) to select READ MP3CD INFOREAD MP3CD INFO press OK (▶) to confirm. To start reading this information, use the soft key to select 'YES'.
This will take up to several minutes, but it only has to be done once for each MP3CD. You will now be able to access additional sort modes like artist name, album name or title information by pressing the soft keys (▲) or (▲).
Requesting on-line audio CD information
1 While in CD mode, press OPTIONS.
→ A list of options is displayed on screen.
2 Use the navigation jog (or press ▲/▼ on the remote control) to select "GET CD INFOGETdCD INFO press OK (▶) to confirm.
→ The retrieved information will replace the default track numbers on your screen.
If more information is available, the screen will display "MULTIPLE MATCHES MULTIPLE MATCHES
- Press OPTIONS and use the navigation jog to select "NEXT CD INFOSENT press EIR(▶) to confirm to access alternative CD information.
Radio Reception
English
Tuning to radio stations
1 Press TUNER to select TUNER mode.
→ "TUNERTUNERplayed. The current radio frequency will appear on the display.
→ If an FM station is received in stereo, as displayed.
2 Press TUNER again to select the desired waveband: FM, MW or LW.
3 Press and hold |◀◀ or ▶▶▶ (or ◀◀ / ▶▶ on the remote control) until the frequency indication starts to change, then release.
→ The display will show "SEARCHING...SEARCHING a radio station with sufficient signal strength is found.
4 Repeat step 3 if necessary until you find the desired radio station.
- To tune to a weak station, press |◀◀ or ▶▶| (◀◀ / ▶▶) briefly and repeatedly until optimal reception found.
Storing favourite radio stations
You can store up to 40 favourite radio stations in the memory. Favourites is always on in Tuner mode.
Automatic Preset Programming
- Plug and Play setting (refer to "Basic Functions - Plug and Play").
OR
1 Press TUNER to select TUNER mode.
2 Press and hold FAVORITES @ until "AUTOAUTO NO. PROGRAM FAVORITE STATIONSPROGRAM FAVORITE STATIONS displayed, followed by "YES" and "NO" options.
3 Press the soft key (▶) on the system to select "YES".
→ "AUTO PROGRAM IN PROGRESS..." is displayed.
→ The system will automatically store the radio stations with sufficient signal strength, starting from all RDS stations and followed by FM, MW and LW bands respectively. Weak RDS stations may be stored in later presets.
→ When all the available radio stations are stored or the memory for 40 presets is used, the last preset radio station (or the first available RDS station) will be played.
Radio Reception
To stop storing the automatic preset
- Press ■.
Manual Preset Programming
1 Tune to your desired radio station (refer to "Tuning to radio stations").
2 Press (UN)MARK ()
→ The current station will be stored in the next available preset number.
- Repeat steps 1–2 to store other radio stations.
Notes:
- If a radio station has been stored in one of the presets, it will not be stored again under another preset number.
- The favourites function for this source is not user dependent. The same favourites list applies for all users.
- If you attempt to store more than 40 preset radio stations, 'NO MORE FAVORITES CAN BENO ADDEDABOplayed.
Selecting a favourite radio station
1 Use the navigation jog (or press ▲/▼ on the remote control) to select the desired preset radio station from the favourite list.
2 Press OK (▶) to confirm.
→ The preset number, radio frequency, and waveband are displayed.
OR
- Press ◀ / ▶ on the remote control.
Erasing a favourite radio station
1 Use the navigation jog (or press ▲ / ▼ on the remote control) to select a preset radio station from the favourite list.
2 Press (UN)MARK ()
→ The ☐ on will disappear.
→ The preset numbers of all other preset stations in the waveband with a higher number are decreased by one.
Deleting all the favourite radio stations
1 In Tuner mode, press and hold
(UN)MARK (☐ for more than 3 seconds.
2 Press the soft key (▶) on the system to select "YES"ES
MORDOSJORITES CAN BE
RDS (Radio Data System) is a broadcasting service that allows FM stations to send additional information along with the regular FM radio signal. This additional information can contain:
STATION NAME: The radio station name is displayed.
PROGRAMME TYPE: The following programme types exist and can be received by your tuner: News, Affairs, Info, Sport, Educate, Drama, Culture, Science, Varied, Pop M, Rock M, M.O.R. (middle of the road music), Light M, Classics, Other M, No type.
RADIO TEXT (RT): text messages appear on the display.
Receiving RDS Radio Station
- Tuned to a radio station from FM band.
→ If the radio station is transmitting RDS signal, the RDS logo and the radio station name/text will appear on the display.
Setting the RDS clock
Some RDS radio station may be transmitting a real clock time at an interval of every minute. It is possible to set the clock by using a time signal which is broadcast together with the RDS signal.
1 Press CLK/TIMER twice.
→ "00:0000:00rent time starts flashing.
2 Press the soft key (♦) on the system.
→ "SEARCHING FOR RDS TIME...SEARCHING FOR RDS TIME...displayed.
→ When RDS time is read, "RDS TIMERDO TIME
FOUNDFOUNplayed and the current time will be stored.
→ If the RDS station does not transmit RDS time within 90 seconds, "NO ROS TIMENO ROS TIME displayed.
Note:
- Some RDS station may be transmitting a real time clock at a minute interval. The accuracy of the transmitted time depends on the transmitting RDS station.
Personalised and interactive features
Multiple users
This system allows personalisation for multiple users. Your personal selections are bound to a user account. This feature is available for PC-LINK, CONNECT and CD only.
Creating your user account
1 Enter your e-mail address in the set options menu "SET REGISTRATION". Within a short period you will receive an e-mail with your registration confirmation details.
2 To complete registration, follow the link displayed in the e-mail.
Selecting a user account
1 Press USER on the remote control. → The available user accounts will be displayed.
2 Use the navigation jog (or press ▲/▼ on the remote control) to select and then press OK (▶) to confirm.
Favourites
In any modes, you can easily manage your favourite tracks and stations by using the
FAVORITES ( ) and (UN)MARK ( ) buttons.
Creating your favourites list
When in CD/PC-LINK/CONNECT-mode, press
(UN)MARK (no add/remove tracks or stations to/from your favourites lists. In TUNER-mode, press (UN)MARK (to save and delete radio stations and hold down
(UN)MARK (M) o auto programme radio stations.
Accessing your favourites list
To play from the favourites list, press FAVORITES (a) select a track or station, followed by ▶.
Returning to normal list (exit from favourites list)
Press the relevant source key (CD, PC-LINK or CONNECT). For example, if you are currently in CD favourites list, pressing CD button will deactivate the favourites list and return to the normal list.
Getting extra information
Pressing the INFO! button sends extra information about the currently playing item to your email address. The INFO! function works within all source modes except TUNER and AUX.
This source enables you to connect external sound devices and play the sound through your system's built-in speakers.
Connecting an external device
- Connect the audio out terminals of the external device to the AUX/CDR IN terminals of your system.
Listening to an external source
1 Press AUX to select " AUX when connected to a TV, VCR or Laser Disc player. OR
- Press AUX again to select "CD/RVDC" connected to a CD recorder or DVD player.
2 Play the external device.
- When CDR/DVD mode is selected, any audio equipment connected to the LINE OUT terminals of this micro system will be muted. You will not be able to record or listen to the sound on equipment connected to the LINE OUT terminal.
Notes:
- You are advised not to listen to and record from the same source simultaneously.
- All the sound control features (INCR. SURR., BASS/TREBLE, for example) are available for selection.
- Refer to the operating instructions for the connected equipment for details.
Clock/Timer
IMPORTANT!
When in Eco Power standby mode, it is not possible to operate the clock or timer function.
View clock
The clock (if it is set) will be shown in standby mode.
To view the clock in any source mode (CD or TUNER for example)
- Press CLK/TIMER on the remote control.
→ The clock is displayed for a few seconds.
→ If the clock has not been set, "==|===4|5|=== displayed.
Clock setting
The clock can be set in either 12-hour or 24-hour mode ("12:00 AM12:00 PM00:00 example).
1 In standby or view clock mode, press CLK/TIMER once. In any other source modes, press CLK/TIMER twice.
→ "12:00 AM13:00 PM00:00 flashing.
2 Press the left hand soft key (▶) to select 12- or 24-hour clock mode.
3 Press |◀◀ or ▶▶| (or ◀ / ▶ on the remote control) to switch between hour or minutes setting.
→ The hour or minutes digits flash.
4 Use the navigation jog (or press ▲ / ▼ on the remote control) to set the hour and minutes.
5 Press CLK/TIMER again to store the setting.
→ The clock starts working.
To exit without storing the setting
- Press ■
Notes:
- The clock setting will be cancelled when the power cord is disconnected or if a power failure occurs.
- During clock setting, if no button is pressed within 90 seconds, the system will exit clock setting mode automatically.
- To set the clock automatically through the time information in the RDS signal, refer to "Radio Reception - Setting the RDS clock".
Timer setting
The system can switch on to CD, TUNER, CONNECT or PC-LINK mode automatically at a preset time, serving as an alarm to wake you up.
IMPORTANT!
- Before setting the timer, ensure that the clock is set correctly.
- The timer will always be switched on after it has been set.
- The volume of the timer will increase gradually from the minimum level to the last tuned volume level.
- The system will switch to standby mode if no button is pressed within 30 minutes after timer wake up.
1 Press and hold CLK/TIMER for more than two seconds to select timer mode.
→ "12:00 AM! 0:00:00:00 last timer setting starts flashing.
→ starts flashing.
→ The selected source will be lighted while other available sources are flashing.
2 Press CD, TUNER, CONNECT or PC-LINK to select the desired source.
→ For CD mode, the timer will wake up by playing the first track of the disc or favourite list. If the disc tray is empty, it will switch to Tuner mode.
→ For Tuner mode, the timer will wake up by playing the last tuned radio station.
→ For CONNECT or PC-LINK mode, the timer will wake up by playing the last streamed music. If the connection fails, it will switch to Tuner mode.
3 Press ◀◀◀ or ▶▶◀ (or ◀◀ / ▶ on the remote control) to switch between hour or minutes setting.
→ The hour or minutes digits flash.
4 Use the navigation jog (or press ▲ / ▼ on the remote control) to set the hour and minutes.
5 Press CLK/TIMER to store the timer.
→ "TIMERTIMESet timer "XX:XXXand the selected source will be displayed.
→ remains on the display.
- At the preset time, the selected sound source will play.
To exit without storing the setting
- Press
Note:
- During timer setting, if no button is pressed within 90 seconds, the system will exit timer setting mode automatically.
Checking the timer
- Press CLK/TIMER once on the remote control.
→ If the timer has been activated, the set timer information is displayed.
Activate/deactivate the timer
- Press TIMER ON/OFF repeatedly on the remote control.
→ If activated, the last set timer information is displayed for a few seconds.
→ If deactivated, 'TIMER OFFSET'.
Clock/Timer
Sleep timer setting
The sleep timer enables the system to switch to standby mode automatically at a preset time.
1 Press SLEEP on the remote control repeatedly to select a preset time.
→ The selections are as follows (time in minutes):
→ "XX MINUTESXar KORFURREdisplayed. 'XX' is the time in minutes.
$$ \begin{array}{l}1 5 \rightarrow 3 9 \rightarrow 4 5 \rightarrow 6 8 \rightarrow 9 8 \rightarrow 1 2 8 1 2 8\O F F O F R 1 5 \dots\end{array} $$
2 When you reach the desired length of time, stop pressing the SLEEP button.
→ SLEEP is shown, except for "OFFOFFode.
→ The sleep timer is now set. Before the system switches to standby mode, a countdown of 10 seconds is displayed.
"10 SECONDS10 SECONDS9... SECONDS → "1 SECONDS1-SECONDSLEEP
To check the remaining length of time after sleep timer is activated
- Press SLEEP once.
To change the preset sleep timer
- Press SLEEP again while the remaining sleep timer is shown.
→ The display will show the next sleep timer options.
To deactivate the sleep timer
- Press SLEEP repeatedly until "OFFORdisplayed, or press the STANDBY ON button.
Maintenance
To clean a CD, wipe it in a straight line from the centre toward the edge using a soft, lint-free cloth. A cleaning agent may damage the disc! Write only on the printed side of a disc and only with a soft felt-tipped pen.
Clean the system with a soft, slightly dampened, lint-free cloth. Do not use any cleaning agents as they may have a corrosive effect.
Do not expose the system batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep the avoid dust on the lens.
Specifications
AMPLIFIER
Output power 2 × 100 W MPO 2 × 50 W RMS ^(1)
Signal-to-noise ratio ≥ 70 dBA (IEC)
Frequency response ..... 50 - 16000 Hz, ± 3 dB
Input sensitivity
AUX In / CDR/DVD In 500 mV / 1V
Output
Speakers ≥ 6
Headphones 32 Ω - 1000 Ω
Subwoofer Out ....1.3 V ±2dB, > 22000 Ω
Line Out .... 500 mV ±2dB, > 22000 Ω
(1) (6 Ω, 1 kHz, 10% THD)
CONNECT / PC-LINK / MP3-CD
Input
RJ45 jack ...... IEEE 802.3
MP3 specifications
Frequency response (256 kbps) 63 - 14000 Hz
Signal-to-noise ratio ≥ 67 dBA
Channel separation ....≥ 40 dB (1 kHz)
Total harmonic distortion (256 kbps) ... < 0.05%
Bit rate 32 - 256 kbps
Sampling frequencies
16, 22.05, 24, 32, 44.1, 48 kHz
DISC PLAYER
Number of favourite tracks CD - 50
MP3-CD - 128
Frequency response 20 - 20000 Hz
Signal-to-noise ratio ≥ 76 dBA
Channel separation ≥ 79 dB (1 kHz)
Total harmonic distortion..... < 0.02% (1 kHz)
TUNER
FM wave range 87.5 – 108 MHz
MW wave range 531 - 1602 kHz
LW wave range 153 - 279 kHz
Number of presets 40
Antenna
FM 75 Ω wire
AM Loop antenna
SPEAKERS
Front left/right
System 3-way; Bass reflex system with
top firing wOOx
Impedance 6 Ω
wOOx 1 x 6.5" top firing wOOx driver
Woofer 1 x 6.5" full range
Tweeter 1 x 2.5" Ferrofluid
Polydome Tweeter 1 x 1"
Dimensions (w x h x d) . 180 x 244 x 227 (mm)
Weight 3 kg each
GENERAL
Material/finish ...... Polystyrene/Metal
AC Power 220 - 230 V / 50 Hz
Power Consumption
Active 80 W
Standby .... < 15 W
Eco Power Standby .... < 0.5 W
Dimensions (w × h × d) .. 175 × 244 × 366 (mm)
Weight (without speakers) 5.0 kg
Specifications and external appearance are subject to change without notice.
Troubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
Problem Solution
CD/MP3-CD OPERATIONS
| 'NO CO AVAILABLE! PLEASENO NOR AVAILABLE! PLEASE INSERT CO!is displayed. | - Check if the disc is inserted upside down.- Wait until the moisture condensation at the lens has cleared.- Replace or clean the disc (see "Maintenance"). |
"UNRECOGNIZED DISC FORMAT UNRECOGNIZED DISCHFORMAT judges on the disc. is displayed. – Replace or clean the disc (see "Maintenance").
CONNECTION TO INTERNET
| The set does not connect to the – Press CONNECT again. internet. – Make sure you have configured your home network correctly (try connecting to the internet from a PC on the same network). | |
| Do not get audio from the product – Check your network settings in the product. even though the connection to the internet from PC is working. | |
| On some music services, the music has “hickups”. | – Try to change the Audio Buffer settings in the set options. |
RADIO RECEPTION
| Radio reception is poor. | - If the signal is too weak, adjust the antenna or connect an external antenna for better reception.- Increase the distance between the Micro System and your TV or VCR. |
Troubleshooting
GENERAL
The system does not react when – Remove the AC power plug for one minute. buttons are pressed. Then reconnect and switch on the system again.
Sound cannot be heard or is of poor – Adjust the volume. quality. – Disconnect the headphones.
– Check that the speakers are connected correctly.
- Check if the stripped speaker wire is clamped into the speaker terminal.
- Make sure the MP3-CD was recorded within 32-256 kbps bit rate with sampling frequencies at 16 kHz, 22,05 kHz, 24 kHz, 32 kHz, 44,1 kHz or 48 kHz.
The left and right sound outputs are – Check the speaker connections and location, reversed.
The remote control does not function – Select the source (CD or TUNER, for example) properly. before pressing the function button (▶, ◀, ▶).
- Reduce the distance between the remote control and the system.
- Insert the batteries with their polarities (+/- signs) aligned as indicated.
- Replace the batteries.
- Point the remote control directly toward the IR sensor on the front of the system.
The timer is not working. - Set the clock correctly.
Press TIMER ON/OFF to switch on the timer.
Not all buttons are lit. – Press DIM to select DIM OFF display mode.
The Clock/Timer setting is erased. – Power has been interrupted or the power cord has been disconnected. Reset the clock/timer.
- PHILIPS
- streamium
- Getting Started
- General information
- Power
- Basic audio setup
- Prerequisites for the home network setup
- IMPORTANT!
- Connecting Streamium MC-i200 to the Internet through a gateway router
- Upon completion of the setup, limited music services are already available. For full functionality of your Streamium MC-i200 please register your set.
- Streamium registration
- Playing music from online music services
- Playing MP3-music-files from the computer's hard drive
- Playing a CD/MP3-CD in the CD drive
- Playing FM/MW/LW radio stations
- DK
- AUSBAUFÄHIG
- Important notes for users in the U.K.
- Mains plug
- How to connect a plug
- Copyright in the U.K.
- Italia
- Norge
- Index
- Contents
- Preparations
- Controls
- Basic Functions
- Internet Audio
- CD/MP3-CD Operations
- Radio Reception
- Personalised and interactive features
- External Sources
- Clock/Timer
- Environmental information
- Supplied accessories
- Safety information
- About MP3 disc
- Supported formats
- Making your own MP3-CD
- Sound Quality
- Rear connections
- Ⓐ Power
- WARNING!
- B Antennas connection
- FM Antenna
- Speakers connection
- Front Speakers
- Notes:
- Home Network
- Connecting Streamium MC-i200
- Optional connections
- Analogue audio connections
- AUX/CDR IN (R/L)
- LINE OUT (R/L)
- Subwoofer out connection
- Inserting batteries into the remote control
- CAUTION!
- Controls on the system and remote control
- ① STANDBY ON / ECO POWER
- ② Display screen
- ③ VIEW
- ④ (soft keys)
- ⑤ BACK ◀◀/ ENTER ▶▶
- ⑥ II (RESUME)
- ⑦ OPTIONS
- ⑧ CONNECT
- ⑨ PC-LINK
- ⑩
- ⑪ Disc tray
- ⑫ OPEN/CLOSE
- ⑬ CD
- ⑭ TUNER
- ⑮ AUX
- ⑯ ■ (CANCEL)
- ⑰ ▶ (OK)
- ⑱ Navigation jog (▲▼)
- ⑲ FAVORITES
- (UN)MARK
- ⑳ SOUND JOG (VOLUME +/−)
- ⑳ BASS / TREBLE
- ② wOOx
- ②3
- USER
- INFO!
- CLK/TIMER
- TIMER ON/OFF
- SHUFFLE
- REPEAT
- INCR. SURR.
- SLEEP
- DIM
- MUTE
- DIGITS 0 - 9
- Plug and Play
- First time setup/power up
- To reinstall Plug and Play
- To exit without storing the Plug and Play
- Switching the system on
- In standby mode
- Switching the system to standby mode
- Switching the system to Eco Power standby mode (< 0.5W)
- Power saving automatic standby
- Dim mode
- Volume control
- To listen through the headphones
- To switch off the volume temporarily
- Sound control
- wOOx
- Bass/Treble
- Incredible Surround
- Screen display
- Navigation view
- Play view
- Switching between Navigation view and Play view
- Using the soft keys
- To select from choices on the bottom line of the display
- Scrolling
- To scroll through a list
- Connecting to your PC (PC-LINK)
- Press PC-LINK
- Note:
- Connecting to online music services
- Press CONNECT.
- Set options
- Set Registration
- To delete a character
- To exit the registration mode without storing
- Select User
- Network Configuration
- Proxy Configuration
- Network Information
- Product Information
- Disable Internet
- Software Upgrade
- Restore Defaults
- About "My.Philips.com"
- Discs for playback
- Loading disc
- Basic operations
- Playing a disc
- To interrupt playback
- To stop playback
- Selecting a desired track/passage
- To select a desired track
- - While playing
- - in stop mode
- To search for a particular passage during playback
- To skip to the beginning of the current track during playback
- Repeat and Shuffle
- Repeat play
- Random play
- Playing a MP3-CD
- Marking favourite tracks
- Activating the favourites list
- Deactivating the favourites list
- Playing a favourites list
- Cancelling a favourite track
- Deleting all favourite tracks
- Artist and title information
- CD
- To return to default CD information (numerical order)
- MP3-CD
- Requesting on-line audio CD information
- Tuning to radio stations
- Storing favourite radio stations
- Automatic Preset Programming
- To stop storing the automatic preset
- Manual Preset Programming
- Press (UN)MARK ()
- Selecting a favourite radio station
- OR
- Erasing a favourite radio station
- Deleting all the favourite radio stations
- MORDOSJORITES CAN BE
- Receiving RDS Radio Station
- Setting the RDS clock
- Multiple users
- Creating your user account
- Selecting a user account
- Favourites
- Creating your favourites list
- Accessing your favourites list
- Returning to normal list (exit from favourites list)
- Getting extra information
- Connecting an external device
- Listening to an external source
- View clock
- To view the clock in any source mode (CD or TUNER for example)
- Clock setting
- To exit without storing the setting
- Timer setting
- Checking the timer
- Activate/deactivate the timer
- Sleep timer setting
- Maintenance
- Specifications
- AMPLIFIER
- CONNECT / PC-LINK / MP3-CD
- DISC PLAYER
- TUNER
- SPEAKERS
- Front left/right
- GENERAL
- Troubleshooting
- WARNING
- Problem Solution
Brand : PHILIPS
Model : Streamium MC-I200
Category : Hi-Fi System
