USER MANUAL SC-MAX9000 PANASONIC

Operating Instructions

Operating Instructions

CD Stereo System

CD Stereo System

Model No. SC-MAX9000

SC-MAX7000

SC-MAX5000

This illustration shows SC-MAX5000.

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Please keep this manual for future reference.

Thank you for purchasing this product.

These operating instructions are applicable for models SC-MAX9000, SC-MAX7000 and SC-MAX5000.

SC-MAX9000: Indicate features applicable to SC-MAX9000. SC-MAX7000: Indicate features applicable to SC-MAX7000. SC-MAX5000: Indicate features applicable to SC-MAX5000.

System SC-	MAX9000 SC-	MAX7000 SC-	MAX5000
Main unit SA	A-MAX9000 SA	A-MAX7000 SA	MAX5000
Speakers SB	-B-MAX9000 SB	-B-MAF7000 SB-MAG7000	SB-MAX5000
Subwoofer	-SB-MAW7000	-

Unless otherwise indicated, illustrations in these operating instructions are of SC-MAX9000. Your system and the illustrations can look differently.

Recording and playback of content on this or any other devices may require permission from the owner of the copyright or other such rights of that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other devices complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights of the content you wish to record or playback.

Safety precautions

WARNING!

Unit

• To reduce the risk of fire, electric shock or product damage,
• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.

CAUTION!

Unit

• To reduce the risk of fire, electric shock or product damage,
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not place sources of naked flames, such as lighted candles, on this unit.

- For South Africa

This unit is intended for use in moderate climates. For Others

This unit is intended for use in tropical climates.

• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration.
• Do not stare directly at the illumination LED to avoid eyes discomfort.

AC mains lead

- The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Battery

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not break open or short-circuit the battery.
• Do not charge the alkaline or manganese battery.
• Do not use the battery if the cover has peeled off.
• Remove the battery if you do not use the remote control for a long period of time. Keep in a cool, dark area.

Note on AC mains lead

(For the AC mains plug of three pins)

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A Figure B

1. Replace the fuse and close or attach the fuse cover.

Figure A Figure B SC-MAX9000 SC-MAX7000

Fuse (13 ampere)

SC-MAX5000

Fuse (5 ampere)

SC-MAX9000 SC-MAX7000

Fuse (13 ampere)

SC-MAX5000

Fuse (5 ampere)

Table of contents

Safety precautions....2

Note on AC mains lead 3

References....3

Supplied accessories 4

Placement of speakers 4

Making the connections 6

Preparing the remote control....7

Overview of controls 8

Preparing media 10

Media playback....11

Radio 13

Recording 14

Sound and illumination effects 15

DJ functions....16

Karaoke 17

Using a microphone 17

Clock and timers 18

External equipment 19

Others 20

Maintenance 20

Troubleshooting....20

Specifications 22

References

About Bluetooth®

Panasonic bears no responsibility for data and/or information that can possibly be compromised during a wireless transmission.

Frequency band

- This system uses the 2.4 GHz frequency band.

Certification

• This system conforms to the frequency restrictions and has received certification based on frequency laws. Thus, a wireless permit is not necessary.
• The actions below are punishable by law:

- Taking apart or modifying the main unit.

- Removing specification indications.

Restrictions of use

• Wireless transmission and/or usage with all Bluetooth® equipped devices is not guaranteed.
• All devices must conform to standards set by Bluetooth SIG, Inc.
• Depending on the specifications and settings of a device, it can fail to connect or some operations can be different.
• This system supports Bluetooth® security features. However, depending on the operating environment and/or settings, this security may not be sufficient. Transmit data wirelessly to this system with caution.
• This system cannot transmit data to a Bluetooth® device.

Range of use

• Use this device at a maximum range of 10 m.
• The range can decrease depending on the environment, obstacles, or interference.

Interference from other devices

• This system may not function properly and troubles such as noise and sound jumps may arise due to radio wave interference if this unit is located too close to other Bluetooth® devices or devices that use the 2.4 GHz band.
• This system may not function properly if radio waves from a nearby broadcasting station, etc. are too strong.

Intended usage

• This system is for normal, general use only.
• Do not use this system near equipment or in an environment that is sensitive to radio frequency interference (e.g., airports, hospitals, laboratories, etc.).

Licenses

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.

Google Play and Android are trademarks of Google Inc.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Supplied accessories

Check and identify the supplied accessories.

□ 1 FM indoor antenna

□ 1 Remote control

(N2QAYB001022)

☐ 1 Remote control battery

SC-MAX90

8 Speaker feet

SC-MAX7000

16 Speaker feet ☐ 16 Speaker stacking pins 2 Brackets 2 Screws

CAUTION!

Keep the speaker feet, brackets and screws out of reach of children to prevent swallowing.

Note:

Use the AC mains lead that is suitable for your household mains socket.

Placement of speakers

Use only the supplied speakers.

You can cause damage to the system and decrease the sound quality if you use other speakers.

Note:

• Put the speakers on a flat safe surface.
• These speakers do not have magnetic shielding. Do not put them near TVs, PCs or other equipment easily influenced by magnetism.
• When you play at high levels for a long period, it can cause damage to the speakers and decrease the life of the speakers.
• Decrease the volume in these conditions to prevent damage:
• When the sound is distorted.
• When you adjust the sound quality.

CAUTION!

- Use the speakers only with the recommended system. If not, you can cause damage to the amplifier and speakers and can cause a fire. Consult an approved service personnel if damage occurs or if there is a sudden apparent change in performance.

• Do not modify the speaker or speaker wires as this can cause damage to the system.
• Do the procedures included in these instructions when you attach the speakers.
• Do not touch the speaker cone's reverberating surfaces:

- This may damage the speaker cone.

- The speaker cone may be hot.

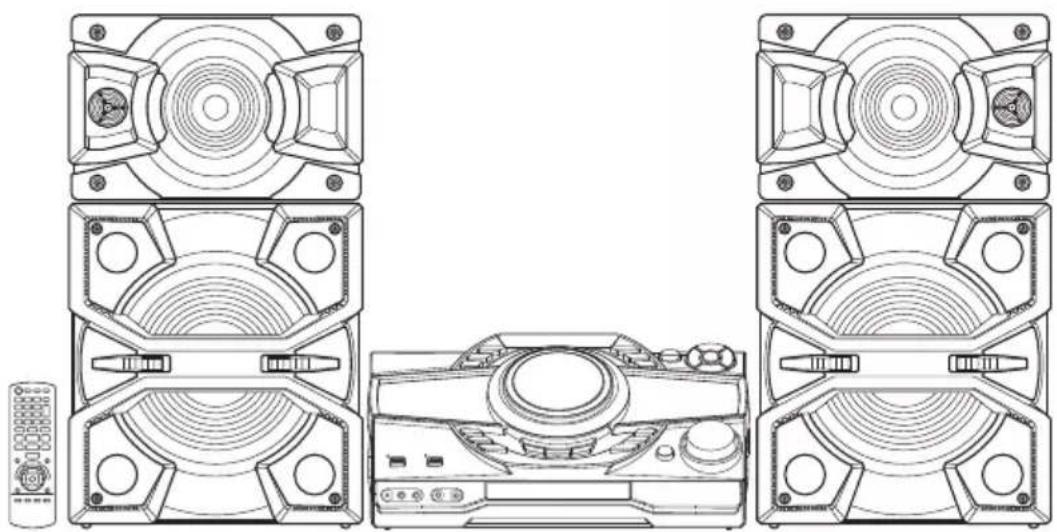

SC-MAX9000

Attaching the speaker feet

For stability and to prevent damage to the floor, attach the speaker feet to the bottom of the speakers.

Preparation

Put a protection layer below the speakers to prevent scratches.

The left and right speakers are the same.

Keep your speakers more than 10 cm from the main unit to prevent vibration effects from speakers and for ventilation.

Note:

More than one person is required to move, tilt or carry the speakers.

CAUTION!

• Be careful when babies or children are near.
• Do not stack the speakers.
• Do not put a hand or foreign object into the port holes as this can cause personal injury and damage to the speaker.

SC-MAX7000 SC-MAX5000

Place the speakers so that the tweeter is on the outside. Keep the speakers more than 10 mm away from the main unit for ventilation.

SC-MAX7000

Setup 1

Stacking the speakers

Stack the speakers using the supplied speaker stacking pins. Press down on the stacking pins and the speaker until it is secured in position.

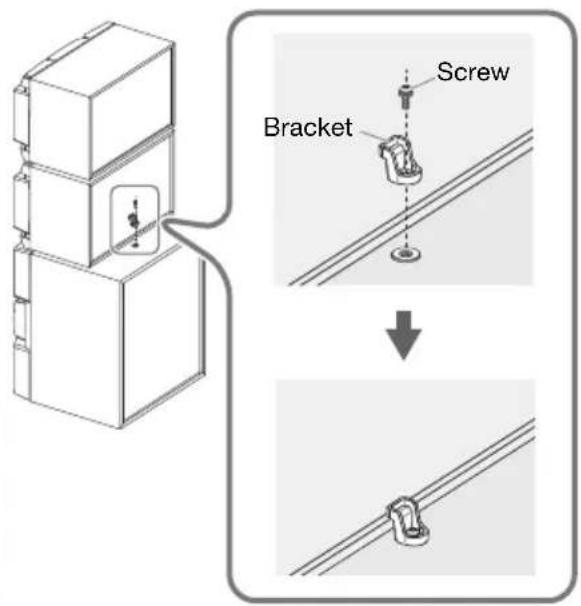

Install the supplied bracket as shown below to secure the speakers.

Setup 2

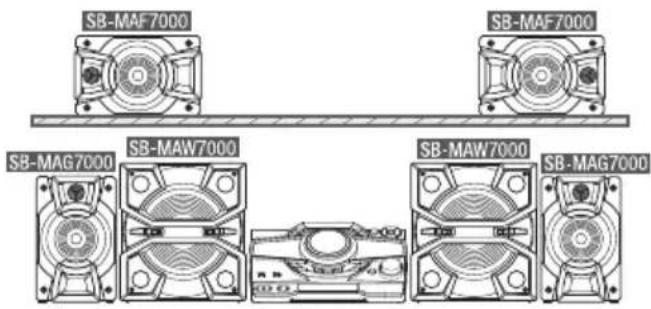

You can place the speakers vertically or on a shelf.

Attaching the speaker feet

Before placing the speakers (SB-MAF7000 & SB-MAG7000) in a vertical position, lay the speakers on a protective layer and attach the supplied speaker feet to the bottom of the speakers.

SC-MAX5000 Tweeter

Note: More than one person is required to move, tilt, or carry the speakers.

CAUTION!

• Be careful when babies or children are near.
• Do not stack the speakers.

Making the connections

Connect the AC mains lead only after all the other connections have been made.

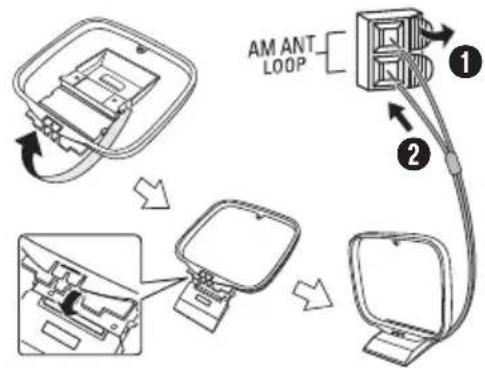

1 Connect the AM loop antenna.

Stand the antenna up on its base until it clicks.

2 Connect the FM indoor antenna.

Put the antenna where reception is best.

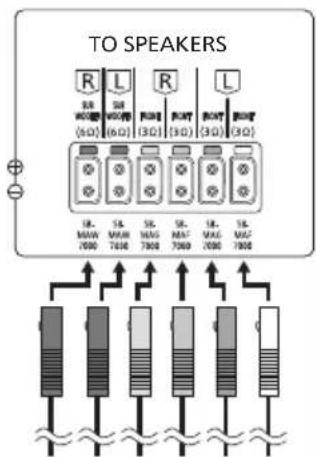

3 Connect the speakers.

Connect the speaker cables to the corresponding terminals.

SC-MAX9000 3a

3b

SC-MAX7000 3a

Connect the speaker cables to the terminals of the same colour.

3b

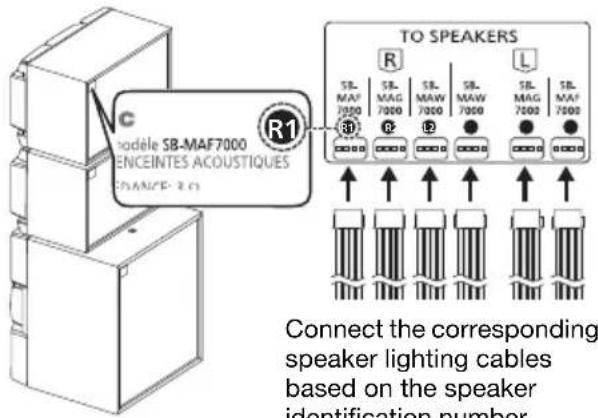

Connect the corresponding speaker lighting cables based on the speaker identification number.

SC-MAX5000

Connect the speaker cables to the terminals of the same colour.

Preparing the remote control

Use alkaline or manganese battery. Install the battery so that the poles (+ and −) align with those in the remote control.

4Connect the AC mains lead.

Do not use any other AC mains lead except the supplied one.

SC-MAX9000 SC-MAX7000

For South Africa

SC-MAX5000

Conserving power

The system consumes a small amount of power even when it is in standby mode. Disconnect the power supply if you do not use the system. Some settings will be lost after you disconnect the system. You have to set them again.

Overview of controls

Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.

① Standby/on switch [☐], [☐/☐] Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. ②View the content information ③Numeric buttons To select a 2-digit number Example: 16: [10] → [1] → [6] ④Auto preset the radio station ⑤Select the audio source On the main unit: To start Bluetooth® pairing, press and hold [PAIRING]. ⑥Basic playback control ⑦Select the sound effects ⑧Select the illumination effects ⑨View the setup menu ⑩Recording operation control ⑪Open or close the disc tray ⑫Decrease the brightness of the display panel The illumination effect is also switched off. To cancel, press the button again. ⑬Set the sleep timer ⑭Adjust the volume level ⑮Mute the sound To cancel, press the button again. "MUTE" is also canceled when you adjust the volume or when you switch off the system. ⑯Select MP3 album or track ⑰Select DJ jukebox or Karaoke jukebox ⑱Select or confirm the option ⑲View the play menu

Top View

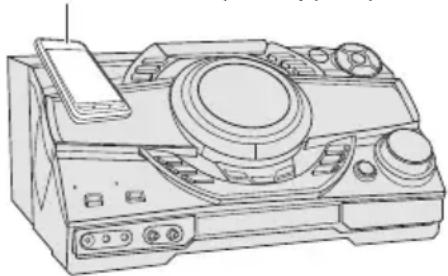

⑳ NFC touch area ② Turntable for DJ and multi control ② Select MP3 album or track

Press [ALBUM/TRACK] to select album or track.

Browse tracks or albums

Turn [MULTI CONTROL] to browse.

To start playback from the selection, press [▶/■].

USB port ()

USB status indicator

Play MP3 tracks.

⑳ SB B

USB port ()

USB status indicator

Play MP3 tracks.

Record sound or music tracks.

⑲ Select the Karaoke effect

DJ function direct buttons

Press [JUKEBOX] or [EFFECT/SAMPLER] to switch

on the DJ or Karaoke function.

Press [DJ1] to [DJ6] on the main unit to select the

desired function.

To cancel, press the selected [DJ1] to [DJ6] again.

②Switch on the Karaoke or DJ function

To cancel, press the button again.

⑳AUX IN jack ⑳Microphone jack ⑲Adjust the microphone volume level

CAUTION!

Keep the microphone volume knob out of reach of children to prevent swallowing.

③0Disc tray ③1Display panel ③2 Remote control sensor

Distance: Within approximately 7 m

Angle: Approximately 20° up and down,

30° left and right

Preparing media

Disc

1 Press [CD ▲] (main unit: [▲ OPEN/CLOSE]) to open the disc tray. Put in a disc with the label facing up. Press again to close the disc tray.

2 Press [CD/RADIO/AUX] to select "CD".

USB

Preparation

Before you connect a USB device to the system, make sure you do a backup of the data.

1 Decrease the volume and connect the USB device to the USB port. Hold the main unit when connecting or disconnecting the USB device. 2 Press [USB] (main unit: [MEMORY/USB]) to select "USB A" or "USB B". USB status indicator lights up in red when selected.

Note:

Do not use a USB extension cable. The system cannot recognise USB device connected through a cable.

Bluetooth®

You can connect and play an audio device wirelessly through Bluetooth®.

Preparation

• Switch on the Bluetooth® feature of the device and put the device near the system.
• Read the operating instructions of the device for details.

Pairing a device

Preparation

If this system is connected to a Bluetooth® device, disconnect it (→ “Disconnecting a device”).

1 Press []

If "PAIRING" is shown, continue with step 3.

2 Press [PLAY MENU] to select "PAIRING" and then press [OK].

3 Select "SC-MAX9000", "SC-MAX7000" or "SC-MAX5000" from the Bluetooth® menu of the device.

If prompted for a passkey, input "0000".

The device connects with this system automatically after pairing is complete.

The name of the connected device is shown for a few seconds.

Using the main unit

1 Press and hold [-PAIRING] until "PAIRING" is shown.

2 Select "SC-MAX9000", "SC-MAX7000" or "SC-MAX5000" from the Bluetooth® menu of the device.

Note:

You can pair up to 8 devices with this system. If a 9th device is paired, the device that has not been used for the longest time will be replaced.

Connecting a device

Preparation

If this system is connected to a Bluetooth® device, disconnect it (→ “Disconnecting a device”).

1 Press [ ]

"BLUETOOTH READY" is shown.

2 Select "SC-MAX9000", "SC-MAX7000" or

"SC-MAX5000" from the Bluetooth® menu of the device.

The name of the connected device is shown for a few seconds.

3 Start playback on the device.

Note:

• A device must be paired to connect.
• This system can only connect to one device at a time.
• When "BLUETOOTH" is selected as the source, this system will automatically try to connect to the last connected device. ("LINKING" is shown during this process.)

Disconnecting a device

1 Press []

2 Press [PLAY MENU] to select "DISCONNECT?".

3 Press [◀, ▶] to select "OK? YES" and then press [OK].

"BLUETOOTH READY" is shown.

To cancel, select "OK? NO".

Using the main unit

Press and hold [✗-PAIRING] until "PAIRING" is shown.

Note:

A device is disconnected when you:

• Select a different source.
• Move the device out of the maximum range.
• Disable the Bluetooth® transmission of the device.
• Switch off the system or the device.

One-Touch Connection (NFC)

For NFC-compatible Bluetooth® devices (Android™ devices) only

Simply by touching an NFC (Near Field Communication)-compatible Bluetooth® device on the system, you can complete all preparations, from registering a Bluetooth® device to establishing a connection.

Android device version lower than 4.1 requires the installation of the "Panasonic MAX Juke" app (free of charge).

① Enter "Panasonic MAX Juke" in the search box of Google Play™ to search and then select "Panasonic MAX Juke". ② Start the app. - Follow the instructions to complete the settings. - Make sure to use the latest version of the app.

Preparation

Switch on the NFC feature of the device.

1 Press [ ]

2 Touch and hold the device on the NFC touch area of the main unit [ ]

Bluetooth® device (not supplied)

• Hold the device until it beeps, vibrates or displays a pop-up window, and then move the device away from the system.
• Once the registration and connection of the device is complete, the name of the connected device is shown on the system for a few seconds.
• When the connection is not established even if the device has touched the NFC touch area, change its touching position. The connection may improve if you use the "Panasonic MAX Juke" app.

3 Start playback on the device.

Note:

• While connected, you can connect another device by touching and holding it on the NFC touch area of the main unit. The previous device will be disconnected automatically. • Depending on the device:
• The one-touch connection may not work.
• The position of the NFC touch area of the device may be different.
• When the connection is established, playback may start automatically.

Media playback

The following marks indicate the availability of the feature.

CD: CD-R/RW in CD-DA format or with MP3 files. USB: USB device with MP3 files.

BLUETOOTH: Bluetooth® device.

MEMORY: Internal memory (refer to "Recording" for adding tracks to the internal memory).

Basic playback

CD USB BLUETOOTH MEMORY

Play: Press [▶/■].

Stop: Press [■].

USB MEMORY

The position is memorised. "RESUME" is shown.

Press again to stop fully.

Pause: Press [▶/Ⅱ].

Press again to continue playback.

Skip: Press [I◄◄] or [►►I] (main unit: [I◄◄/◄◄] or [►►/►►I]) to skip track.

CD USB MEMORY

Press [▲, ▼] to skip MP3 album.

Search: Press and hold [◀◀] or [▶▶] (main unit:

[◀◀/◀◀] or [▶▶/▶▶I]).

Note:

Depending on the Bluetooth® device, some operations may not work.

Viewing available information

CD USB BLUETOOTH MEMORY

You can view the available information, such as MP3 album and track number, on the display panel.

Press [DISPLAY].

Example: MP3 album and track number display.

Note:

• Maximum characters that can be shown: Approximately 32. This system supports ver. 1.0, 1.1 and 2.3 ID3 tags. Text data that the system does not support can show differently.

Play menu

CD USB MEMORY

1 Press [PLAY MENU].

2 Press [◀, ▶] to select the setting and then press [OK].

OFFPLAYMODE	Cancel the setting.
1-TRACK1 ➕	Play one selected track.Press the numeric buttons to select the track.
1-ALBUM1 ➕	Play one selected MP3 album.Press [▲, ▼] to select the MP3 album.
RANDOMRND	Play all tracks randomly.
1-ALBUMRANDOM1 ➕ RND	Play all tracks in one selected MP3album randomly.Press [▲, ▼] to select the MP3 album.
ALL REPEAT Repeat all tracks.
1-TRACKREPEAT1 ➕ ➕	Repeat 1-TRACK.
1-ALBUMREPEAT1 ➕ ➕	Repeat 1-ALBUM.
RANDOMREPEATRND ➕	Repeat random playback.
1-ALBUMRANDOMREPEAT1 ➕ RND ➕	Repeat 1-ALBUM RANDOM.

Note:

• During random playback, you cannot skip to tracks which have been played.
• The setting is canceled when you open the disc tray or disconnect the USB device.

Link mode

BLUETOOTH

You can change the link mode to suit the connection type.

Preparation

If this system is connected to a Bluetooth® device, disconnect it (→ “Disconnecting a device”).

1 Press [PLAY MENU] to select "LINK MODE".

2 Press [◀, ▶] to select the mode and then press [OK].

MODE 1 Emphasis on connectivity.
MODE 2 (default)	Emphasis on sound quality.

Note on disc

• This system can play CD-R/RW with CD-DA or MP3 format content.
• Before playback, finalise the disc on the device it was recorded on.
• Some CD-R/RW cannot be played because of the condition of the recording.

Note on USB device

• This system does not guarantee connection with all USB devices. • This system supports USB 2.0 full speed.
• This system can support USB devices of up to 32 GB.
• Only FAT 12/16/32 file system is supported.

Note on MP3 file

• Files are defined as tracks and folders are defined as albums.
• Tracks must have the extension ".mp3" or ".MP3".
• Tracks will not necessarily be played in the order you recorded them.
• Some files can fail to work because of the sector size.

MP3 file on disc

• This system can access up to:
• 255 albums (including root folder)
• 999 tracks
• 20 sessions
• Disc must conform to ISO9660 level 1 or 2 (except for extended formats).

MP3 file on USB device

• This system can access up to: - 800 albums (including root folder)
• 8000 tracks
• 999 tracks in one album

Radio

Preparation

Press [CD/RADIO/AUX] to select "FM" or "AM".

Manual tuning

Press [◀◀] or [▶▶] to tune in to the station.

To tune automatically, press and hold the button until the frequency starts changing quickly.

"STEREO" is shown when a stereo broadcast is being received.

Using the main unit

1 Press [TUNE MODE] to select "MANUAL".

2 Press [|◀◀/◀◀] or [▶▶/▶▶] to tune in to the station.

Memory presetting

You can preset up to 30 FM and 15 AM stations.

Automatic presetting

1 Press [AUTO PRESET] to select "LOWEST" or "CURRENT".

LOWEST: Tuning begins from the lowest frequency.

CURRENT: Tuning begins from the current frequency.

2 Press [OK] to start presetting.

The tuner presets all the stations it can receive into the channels in ascending order.

To cancel, press [■].

Manual presetting

1 Press [◀◀] or [▶▶] (main unit: [◀◀/◀◀] or [▶▶/▶▶]) to tune in to the station.

2 Press [OK].

3Press the numeric buttons to select a preset number.

Do steps 1 through 3 again to preset more stations. The new station replaces any station that occupies the same preset number.

Selecting a preset station

Press the numeric buttons, [◀◀] or [▶▶] to select the preset station.

Using the main unit

1 Press [TUNE MODE] to select "PRESET".

2 Press [◀◀/◀◀] or [▶▶/▶▶] to select the preset station.

Improving the sound quality

When "FM" is selected

1 Press [PLAY MENU] to select "FM MODE".

2 Press [◀, ▶] to select "MONO" and then press [OK].

To cancel, select "STEREO".

“MONO” is also canceled when you change the frequency.

To memorise the setting

Continue with step 2 of "Manual presetting".

When "AM" is selected

1 Press [PLAY MENU] to select "B.PROOF".

2 Press [◀, ▶] to select the setting that provides the best reception and then press [OK].

Checking the signal status

When "FM" is selected

Press [DISPLAY].

FM ---- The FM signal is weak. The system is not tuned in to a station.

FM ST The FM signal is in stereo.

FM MONO "MONO" is selected as the "FM MODE". The FM signal is in monaural.

AM allocation setting

By main unit only

This system can also receive AM broadcasts allocated in 10 kHz steps.

1 Press [CD/RADIO/AUX] to select "FM" or "AM".

2 Press and hold [CD/RADIO/AUX].

After a few seconds, the display panel shows the current minimum radio frequency. Release the button when the minimum frequency changes.

- To go back to the initial setting, do the above steps again.

- Preset frequencies are erased after you change the setting.

Recording

This system can record up to 800 folders (maximum 999 tracks in an album) or a total of 8000 tracks, depending on the available storage capacity of the internal memory or the USB device in USB B.

To check storage space

In the stop mode, press [DISPLAY].

Example: Remaining recording time of the internal memory.

Internal memory source Remaining recording time

• “UPDATE” is shown when the system is reading the device.
• "NO DEVICE" is shown if there is no USB device connected to USB B.

Note:

• All recordings are in “.mp3” format.
• You cannot do recording when you are using random playback mode.
• The Karaoke or DJ function is switched off during recording.
• Repeat playback mode is cancelled during recording.
• A new album is added each time you do a recording.
• The sequence of albums may change after the recording.
• The recordings are kept in a folder named "REC_DATA" in the USB device or the internal memory.
• The USB status indicator blinks in red during USB recording.

Basic recording

1. Select the source you want to record.

CD-DA: Prepare the disc playback mode.

Record all tracks	Select “OFF PLAYMODE” (→“Play menu”).
Record a specified track	Select “1-TRACK” (→“Play menu”).

Make sure the disc is stopped.

Radio: Tune in to the radio station.

External equipment: Connect and play the equipment (→ "External equipment").

2. Press [MEMORY REC ●/II] or [USB REC ●/II] to start recording.

Connect and play the equipment (→ "External equipment").

2 Press [MEMORY REC ●/II] or [USB REC ●/II] to start recording.

The name of the folder that keeps the recording is shown.

Stop recording	Press [■]. “WRITING” is shown.
Pause recording	Press [MEMORY REC ●/■] or [USB REC ●/■] during recording. Press again to continue recording. Note: You can pause during recording from the radio or AUX (except in “SYNCHRO” mode). A track mark is added every time you pause (→“Adding track marks”).

Note:

• Wait for a few seconds for the system to prepare the USB device before you start recording.
• When the next track of the disc is being recorded, it will be shown on the display.

High-speed recording

CD-DA disc recording speed:

CD, CD-R: Three times (3x) the normal speed.

CD-RW: Two times (2x) the normal speed.

1 Put in the disc you want to record.

2 Press [REC MODE] to select "NORMAL" or "HI-SPEED" and then press [OK].

3 Press [USB REC ●/III] or [MEMORY REC ●/III] to start recording.

Note:

• If you cannot record at high-speed because of the condition of the disc, record at normal speed.
• The sound is muted during high-speed recording.

Adding track marks

When recording from radio or external equipment, you can divide tracks using various modes.

Before recording

Press [REC MODE] to select the mode.

MANUAL Add a track mark manually. Press [OK] during recording to add a track mark.
SYNCHRO (For AUX source)	Recording starts automatically when the other equipment starts to play. Recording pauses when it detects silence for 3 seconds.
TIME MARK A track is automatically divided at 5-minute intervals.

Note:

• During recording, if you press [OK] or pause recording while using “TIME MARK” mode, the 5-minute counter is reset.
• You cannot add track marks manually in "SYNCHRO" mode.

Recording MP3 tracks

You can record MP3 tracks from:

• MP3 disc to USB B or internal memory • USB A to USB B or internal memory • USB B to internal memory or vice versa

1 Prepare the source you want to record.

Record all tracks	Select “OFF PLAYMODE” (→“Play menu”).
Record a specified album or track	Select “1-ALBUM” or “1-TRACK” (→“Play menu”).

2 Press [MEMORY REC ●/III] or [USB REC ●/III] to start recording.

To check the recording progress, press [DISPLAY].

Stop recording Press [■].

Recording stops at the last fully recorded track in the album. For example, if you stop recording during the fourth track, only the first three tracks are recorded. "NO FILE RECORDED" is shown if no track is recorded.

Note:

• Some tracks can use a longer time to record.
• Some tracks cannot be recorded because of the condition of the source.
• The recorded file name is the same as the original file (maximum 32 characters).

Deleting the recorded tracks

1 MEMORY

Press [MEMORY] (main unit: [MEMORY/USB]) to select "MEMORY".

USB B

Press [USB] (main unit: [MEMORY/USB]) to select "USB B".

2 Press [▲, ▼] to select the album. 3 Press [◀◀] or [▶▶] to select the track. 4 Press [EDIT MODE] to select the mode.

TRACK DEL Delete a single track.

ALBUM DEL Delete one album (maximum 999 tracks).

FORMAT Format the USB device.

ALL DEL Delete all albums in the internal memory.

5 Press [OK].

The selected item to be deleted is shown.

6 Press [OK].

"SURE? NO" is shown.

7 Press [◀, ▶] to select "SURE? YES" and then press [OK].

"WRITING" is shown.

To cancel, select "SURE? NO".

Sound and illumination effects

Sound effects

Preset EQ

1 Press [EQ] (main unit: [LOCAL EQ]) to select "PRESET EQ". 2 Press [▲, ▼] to select the desired preset EQ setting and then press [OK].

Or turn [MULTI CONTROL] to select the desired preset EQ setting.

Manual EQ

1 Press [EQ] (main unit: [LOCAL EQ]) to select "MANUAL EQ". 2 Press [▲, ▼] to select the sound effect.

Or turn [MULTI CONTROL] to select the sound effect.

3 Press [◀, ▶] to select the setting and then press [OK].

Or press [I◄◄/◄◄] or [►►/►►I] to select the setting.

BASS/MID/TREBLE -4 to +4

1 Press [D.BASS] to select "D.BASS LEVEL" or "D.BASS BEAT".

To cancel, select "OFF D.BASS".

2 Press [▲, ▼] to select the setting and then press [OK].

Or turn [MULTI CONTROL] to select the setting.

Note:

D.BASS BEAT: This function emphasises the attack level of the drum beat and produces a punchy sound. Depending on the track, the effect may be small.

Illumination effects

You can change the illumination effect on the system.

Press [ILLUMINATION] to select the desired effect.

PATTERN Illuminate with pattern in multiple colours.

COLOR A selection of 60 different illumination colours on the speakers and 6 different illumination colours on the main unit.

OFF Cancel the effect.

You can also press [▲, ▼] to select the next or previous effect and then press [OK].

Or turn [MULTI CONTROL] to select the effect.

Note:

SC-MAX7000

To ensure the illumination effects are shown properly, make sure to arrange the speakers accordingly as in "Placement of speakers".

DJ functions

You can use the DJ functions to add sound effects or sample sounds between songs.

Using the "Panasonic MAX Juke" app

You can download and install the free Android app "Panasonic MAX Juke" on Google Play for additional features, such as to request song playback from multiple devices simultaneously.

For details on the app, refer to the site below.

http://av.jpn.support.panasonic.com/support/global/cs/audio/app/max_juke/android/index.html (This site is in English only.)

Note:

The DJ function is switched off when you switch off the system, change to another source, or during recording.

DJ jukebox

USB MEMORY

You can use the DJ jukebox function to add cross-fade effects or sample sound mixes between songs.

Press [JUKEBOX] to select "DJ JUKEBOX".

To cancel, select "OFF JUKEBOX".

Note:

The system switches to repeat mode automatically when you switch on DJ jukebox.

Changing the repeat setting

1 Press [PLAY MENU].

2 Press [◀, ▶] to select the setting and then press [OK].

Using the main unit

In the stop mode, turn [MULTI CONTROL] to select the setting and then press [▶/II].

RANDOM REPEATRND	Repeat random playback.
ALL TITLE REPEAT Repeat all tracks.
RANDOM MIX REPEATRND	Repeat random playback.Sample sound is added to the intervals of all tracks.

Changing the DJ jukebox effect

Press [DJ1] to [DJ6] on the main unit to select the effect.

[DJ1] Cross-fade: The current track volume gradually becomes soft, and the next track volume gradually becomes loud.

[DJ2] to [DJ6] Sample sound mix: Sample sound is added to the intervals of all tracks.

To cancel, press the button again.

Note:

You cannot select the DJ jukebox effect when you are using "RANDOM MIX REPEAT" mode.

Using the "Panasonic MAX Juke" app

You can call up the tracks you want to play through the app.

DJ sampler

(Except for AUX source)

By main unit only

By turning [MULTI CONTROL], you can apply a scratch sound or sample sound to the track you are playing.

1 Press [EFFECT/SAMPLER] to select "SAMPLER SELECT NUMBER".

2 Press [DJ1] to [DJ6] to select the desired sound.

3 Turn [MULTI CONTROL].

To cancel DJ sampler

Press [EFFECT/SAMPLER] to select "OFF EFFECT".

Using the "Panasonic MAX Juke" app

You can change the sample sound on the app. (To return all sample sounds to the factory preset, press and hold [EFFECT/SAMPLER] when the DJ sampler is switched off.)

DJ effect

(Except for AUX source)

By main unit only

You can use the DJ effect function to add the sound effects.

1 Press [EFFECT/SAMPLER] to select "DJ EFFECT SELECT NUMBER".

2 Press [DJ1] to [DJ6] to select the effect.

[DJ1] PHASERAdd space and dimension to the sound.

[DJ2] FILTEREnhance or filter specific ranges of the sound.

[DJ3] SOUND CHOPPERCut off the sound periodically.

[DJ4] ELECTRO ECHOAdd digital echo to the sound.

[DJ5] PITCH SHIFTERAdjust the keys of the sound.

[DJ6] HARMONIZERAdd notes to the sound to create harmony.

Turn [MULTI CONTROL] to select the setting.

To cancel DJ effect

Press [EFFECT/SAMPLER] to select "OFF EFFECT".

Karaoke

Preparation

Select the music source.

Note:

• The Karaoke function is switched off when you switch off the system or start recording.
• When you switch on the Karaoke jukebox, the Karaoke effect is switched on automatically.

Karaoke jukebox

Press [JUKEBOX] to select "KARAOKE JUKEBOX".

To cancel, select "OFF JUKEBOX".

Note:

The system switches to repeat mode automatically when you switch on the Karaoke jukebox.

Changing the repeat setting

1 Press [PLAY MENU].

2 Press [◀, ▶] to select the setting and then press [OK].

Using the main unit

In the stop mode, turn [MULTI CONTROL] to select the setting and then press [▶/III].

RANDOM REPEATRND ○	Repeat random playback.
ALL TITLE REPEAT Repeat all tracks.○
RANDOM MIX REPEATRND ○	Repeat random playback.Sample sound is added to the intervals of all tracks.

Karaoke effect

By main unit only

You can use the Karaoke effect function to add the sound effects.

1 Press [EFFECT/SAMPLER] to select "KARAOKE EFFECT".

2 Press [DJ1] to [DJ6] to select the effect.

[DJ1] VOCAL CANCELSwitch on or switch off the voice guide (depending on source).

[DJ2] ECHOAdd echo effect to the sound.

[DJ3] KEY-CONChange the key of a song.

[DJ4] TEMPOChange the speed of a song.

[DJ5] BGM LEVELChange the background music level.

[DJ6] MIC EQSelect a MIC EQ level.

3 Turn [MULTI CONTROL] to select the setting.

To cancel Karaoke effect

Press [EFFECT/SAMPLER] to select "OFF EFFECT".

Note:

To use the Karaoke effect in AUX source, set "AUX MODE" to "MODE 1". (→ "AUX mode")

Using a microphone

Preparation

Decrease the volume of the system to its minimum before you connect or disconnect a microphone.

1 Connect a microphone (not supplied) to the microphone jack.

Plug type: ∅ 6.3 mm monaural

2 Turn [MIC VOL, MIN/MAX] on the main unit to adjust the volume of the microphone.

If you want to sing with the background music.

3 Play the music source and adjust the volume of the system.

Note:

• If a strange noise (howling) is emitted, move the microphone away from the speakers, or decrease the volume of the microphone.
• When you do not use the microphone, disconnect it from the microphone jack, and decrease the volume of the microphone level to "MIN".
• This system cannot record from microphone.

Clock and timers

Setting the clock

This is a 24-hour clock.

1 Press [SETUP] to select "CLOCK".

2 Press [◀, ▶] to set the time and then press [OK].

To check the time

Press [SETUP] to select "CLOCK" and then press [OK]. In standby mode, press [DISPLAY].

Note:

Reset the clock regularly to maintain accuracy.

Sleep timer

The sleep timer switches off the system after the set time.

Press [SLEEP] to select the setting (in minutes).

To cancel, select "OFF".

To check the remaining time

Press [SLEEP].

Note:

• The remaining time is shown for a few seconds every minute. "SLEEP 1" is always shown when only 1 minute remains.
• The play timer and sleep timer or the record timer and sleep timer can be used together.
• The sleep timer always comes first. Be sure not to set an overlap of timers.

Play timer and record timer

(Except for Bluetooth® and AUX source)

You can set the timer to come on at a certain time to:

- Wake you up (play timer).

- Record from the radio (record timer).

Play timer and record timer cannot be used together.

Preparation

Set the clock.

1 Press [SETUP] to select "TIMER ADJ". 2 Press [◀, ▶] to select "💡PLAY" or "💡REC" and then press [OK]. 3 Press [◀, ▶] to set the start time and then press [OK]. 4 Do step 3 again to set the end time.

5 Press [◀, ▶] to select the source you want to play or record and then press [OK].

6 For record timer, press [◀, ▶] to select "MEMORY" or "USB B" to keep the recording and then press [OK].

To start the timer

1 Prepare the source.

Play timer Prepare the source you want to listen to (disc, USB, internal memory or radio) and set the volume.
Record timer	Connect the USB device to USB B (for USB recording) and tune in to the radio station.

2 Press [SETUP] to select "TIMER SET".

3 Press [◀, ▶] to select the setting and then press [OK].

PLAY ON Start the play timer.

PLAY OFF Cancel the play timer.

REC ON Start the record timer.

REC OFF Cancel the record timer.

“∅” is shown.

The system must be switched off for the timer to operate.

To check the setting

1 Press [SETUP] to select "TIMER ADJ".

2 Press [◀, ▶] to select “⊕PLAY” or “⊕REC” and then press [OK].

In standby mode, press [DISPLAY] two times.

Note:

• The play timer starts at a low volume and increases gradually to the preset level.
• The record timer starts 30 seconds before the set time with the volume muted.
• The timer comes on at the set time every day if the timer is on.
• If you switch off the system and then switch on again while a timer is in operation, the timer will not stop at the end time.

External equipment

Preparation

• Disconnect the AC mains lead.
• Switch off all equipment and read the appropriate operating instructions.

Note:

Components and cables are sold separately.

Using the auxiliary input

You can connect a VCR, DVD player, etc., and listen to the audio through this system.

Rear panel of this main unit

1. Connect the external equipment.

2. Press [CD/RADIO/AUX] to select

SC-MAX9000 SC-MAX7000: "AUX 1", "AUX 2" or "AUX 3".

SC-MAX5000: "AUX 1".

3. Play the external equipment.

Note:

• If you want to connect equipment other than those described, refer to the audio dealer.
• Sound distortion can occur when you use an adapter.

Connecting a portable audio equipment

You can play music from a portable audio equipment.

Preparation

• Switch off the equaliser (if any) of the portable audio equipment to prevent sound distortion.
• Decrease the volume of the system and the portable audio equipment before you connect or disconnect the portable audio equipment.

1 Connect the portable audio equipment.

Plug type: ∅ 3.5 mm stereo

2 Press [CD/RADIO/AUX] to select SC-MAX9000 SC-MAX7000: "AUX 4". SC-MAX5000: "AUX 2".

3 Play the portable audio equipment.

To adjust the input level

1 Press [PLAY MENU] to select "INPUT LEVEL". 2 Press [◀, ▶] to select "NORMAL" or "HIGH" and then press [OK].

Note:

• You cannot adjust the input level during recording.
• Select "NORMAL" if the sound is distorted during "HIGH" input level.
• Read the operating instructions of the portable audio equipment for details.

AUX mode

1 Press [PLAY MENU] to select "AUX MODE".

2 Press [◀, ▶] to select the mode and then press [OK].

MODE 1 (default)	Select this mode to use the Karaoke effect function.
MODE 2	Select this mode when watching TV, movies or using an external player with Karaoke features.

Others

Auto off

This system automatically switches off when you do not use it for approximately 20 minutes.

1 Press [SETUP] to select "AUTO OFF". 2 Press [◀, ▶] to select "ON" and then press [OK]. To cancel, select "OFF".

Note:

This function does not work when you are in radio source or when a Bluetooth® device is connected.

Bluetooth® standby

This function automatically switches on the system when you establish a Bluetooth® connection from a paired device.

1 Press [SETUP] to select "BLUETOOTH STANDBY". 2 Press [◀, ▶] to select "ON" and then press [OK]. To cancel, select "OFF".

Note:

Some devices may take longer to respond. If you are connected to a Bluetooth® device before switching off the system, wait for a minimum of 5 seconds before connecting to this system from your Bluetooth® device again.

Software version

You can check the software version of the system.

1 Press [SETUP] to select "SW VER." and then press [OK]. The software version is shown. 2 Press [OK] again to exit.

Maintenance

To clean this system, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this system.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

Troubleshooting

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated do not solve the problem, consult your dealer for instructions.

Common problems

The unit does not work.

• The safety device has been activated. Do the following:
• Press [∅/I] on the main unit to switch the unit to standby mode. If the unit does not switch to standby mode,
• Press and hold the button for a minimum of 10 seconds. Or,
• Disconnect the AC mains lead and then connect it again.
• Press [∅/l] again to switch on the unit. If the problem persists, consult your dealer.

The display panel lights up and changes continuously in standby mode.

• Press and hold [■] on the main unit to select "DEMO OFF". No operations can be done with the remote control.
• Examine that the battery is installed correctly.

Sound is distorted or no sound.

• Adjust the volume of the system.
• Switch off the system, determine and correct the cause, and then switch on again. It can be caused by straining of the speakers through excessive volume or power, and when using the system in a hot environment.

A humming sound can be heard during playback.

- An AC mains lead or fluorescent light is near the cables. Keep other appliances and cords away from the cables of this system.

The sound level reduces.

- The protection circuit has been activated due to the continuous use at high volume output. This is to protect the system and maintain the sound quality.

Disc

Display not shown correctly.

Playback does not start.

• You have not put in the disc correctly. Put it in correctly. • Disc is dirty. Clean the disc.
• Replace the disc if it is scratched, warped, or non-standard.
• There is condensation. Let the system dry for 1 to 2 hours.

The total number of tracks displayed is incorrect.

The disc cannot be read.

Distorted sound is heard.

• You put in a disc that the system cannot play. Change to a playable disc.
• You put in a disc that has not been finalised.

USB

The USB device or the contents in it cannot be read.

• The format of the USB device or the contents in it are not compatible with the system.
• USB devices with storage capacity of more than 32 GB cannot work in some conditions.

Slow operation of the USB device.

- Large content size or large memory USB device takes longer time to read.

Bluetooth

Pairing cannot be done.

• Check the Bluetooth ^® device condition.
• The device is out of the 10 m communication range. Move the device nearer to the system.

The device cannot be connected.

• The pairing of the device was unsuccessful. Do pairing again.
• The pairing of the device has been replaced. Do pairing again.
• This system might be connected to a different device. Disconnect the other device and try pairing the device again.
• The system may have a problem. Switch off the system and then switch on again.

The device is connected but audio cannot be heard through the system.

- For some built-in Bluetooth devices, you have to set the audio output to "SC-MAX9000", "SC-MAX7000" or "SC-MAX5000" manually. Read the operating instructions of the device for details.

Sound from the device is interrupted.

• The device is out of the 10 m communication range. Move the device nearer to the system.
• Remove any obstacle between the system and the device.
• Other devices that use the 2.4 GHz frequency band (wireless router, microwaves, cordless phones, etc.) are interfering. Move the device nearer to the system and distance it from the other devices.
• Select "MODE 1" for stable communication.

The one-touch connection (NFC) is not working.

• Make sure the system and the NFC feature of the device are switched on.
• Touch and hold the device on the NFC touch area of this system again.

Playback image and sound are not synchronised.

• Restart the playback app of the device.
• Connect the device to the system with an audio cable (not supplied).

Radio

Sound is distorted.

- Use an optional FM outdoor antenna. The antenna should be installed by a competent technician.

A beat sound is heard.

• Switch off the TV or move it away from the system.
• Move mobile telephones away from the system if the interference is apparent.
• When in AM tuner mode, select the "B.PROOF" setting that provides the best reception.

A low hum is heard during AM broadcasts.

- Move the antenna away from other cables and cords.

AUX

Playback image and sound are not synchronised.

- Set "AUX MODE" to "MODE 2".

Karaoke effect cannot be used.

- Set "AUX MODE" to "MODE 1".

Main unit displays

"ADJUST CLOCK"

- The clock is not set. Adjust the clock.

"ADJUST TIMER"

- The play timer and/or record timer is not set. Adjust the play timer and/or record timer.

"ALB FULL"

- The number of albums has exceeded the supported limit.

"AUTO OFF"

- The system has not been used for 20 minutes and will switch off within a minute. To cancel, press any button.

"CAN'T REC"

"DEVICE FULL"

- You cannot do recording because the remaining recording time of the USB device is less than the total time of the music source. Change to a USB device which has enough recording time and do the recording again.

"ERROR"

- An incorrect operation was done. Read the instructions and try again.

"ERROR" (during recording)

• You cannot select other playback source (example: radio, USB etc.) or press [◀◀] or [▶▶] during recording. Stop the recording function.
• You cannot open the disc tray when recording from an AM source.

"F61"

• Examine and correct the speaker cords connection.
• Disconnect the USB device. Switch off the system and then switch on again.

"F703"

• Examine the Bluetooth® connection.
• Disconnect the Bluetooth® device. Switch off the system and then switch on again.

"F76"

• There is a problem with the power supply.
• Disconnect the AC mains lead and consult your dealer.

"F77"

- Disconnect the AC mains lead and consult your dealer.

"NO DEVICE"

- You cannot do recording or check available storage space because there is no USB device connected to USB B.

"NO DISC"

- You have not put in a disc.

"NO PLAY"

"UNSUPPORT"

• Examine the content. You can only play supported format.
• The files in the USB device can be corrupted. Format the USB device and try again.
• The system may have a problem. Switch off the system and then switch on again.

"NO TRACK"

- There is no album or track in the USB device or the internal memory.

"PLAYEROR"

- An unsupported MP3 file has been played. The system will skip that track and play the next one.

"REC ERROR"

• You disconnected the USB device during recording. Connect the USB device and do recording again.
• An error occurred during USB recording. Disconnect the USB device and then connect it again.

"REMOTE 1"

"REMOTE 2"

• The remote control and the main unit are using different codes. Change the code of the remote control.
• When "REMOTE 1" is shown, press and hold [OK] and [1] for a minimum of 4 seconds.
• When "REMOTE 2" is shown, press and hold [OK] and [2] for a minimum of 4 seconds.

"TEMP NG"

• The temperature protection circuit has been activated, and the system will switch off. Let the unit cool down before switching it on again.
• Check that the ventilation opening of the unit is not obstructed.
• Ensure this unit is well ventilated.

"TRK FULL"

- The number of files has exceeded the supported limit.

"USB A NO DEVICE"

"USB B NO DEVICE"

- The USB device is not connected. Examine the connection.

"USB OVER CURRENT ERROR"

- The USB device is using too much power. Disconnect the USB device, switch off the system and then switch on again.

"VBR"

- The system cannot show the remaining play time for variable bit rate (VBR) tracks.

Remote control code

When other Panasonic equipment responds to the remote control of this system, change the remote control code for this system.

Preparation

Press [CD/RADIO/AUX] to select

SC-MAX9000 SC-MAX7000: "AUX 1", "AUX 2", "AUX 3" or

"AUX 4".

SC-MAX5000: "AUX 1" or "AUX 2".

To set the code to "REMOTE 2"

1 Press and hold [CD/RADIO/AUX] on the main unit and [2] on the remote control until "REMOTE 2" is shown.

2 Press and hold [OK] and [2] for a minimum of 4 seconds.

To set the code to "REMOTE 1"

1 Press and hold [CD/RADIO/AUX] on the main unit and [1] on the remote control until "REMOTE 1" is shown.

2 Press and hold [OK] and [1] for at least 4 seconds.

System memory reset

Reset the memory when the following situations occur:

- There is no response when buttons are pressed.

- You want to clear and reset the memory contents.

1 Disconnect the AC mains lead.

2 While you press and hold [⏻/ɪ] on the main unit, connect the AC mains lead again.

Continue to press and hold the button until

“----” is shown.

3 Release [⏻/ɪ].

All the settings are set back to the factory preset.

It is necessary to set the memory items again.

Specifications

Amplifier section

RMS output power stereo mode

SC-MAX9000

High Ch 500 W per channel (3 Ω), 1 kHz, 30% THD Mid Ch 500 W per channel (3 Ω), 1 kHz, 30% THD Low Ch 1000 W per channel (5 Ω), 100 Hz, 30% THD Total RMS stereo mode power 4000 W

SC-MAX7000

Front Ch 350 W per channel (3 Ω), 1 kHz, 30% THD Front Ch 350 W per channel (3 Ω), 1 kHz, 30% THD Subwoofer Ch 800 W per channel (6 Ω), 100 Hz, 30% THD

Total RMS stereo mode power 3000 W

SC-MAX5000

High Ch 350 W per channel (3 Ω), 1 kHz, 30% THD Mid Ch 350 W per channel (3 Ω), 1 kHz, 30% THD Low Ch 500 W per channel (2 Ω), 100 Hz, 30% THD Total RMS stereo mode power 2400 W

Tuner section

Frequency modulation (FM)

Preset memory 30 stations

Frequency range 87.50 MHz to 108.00 MHz (50 kHz step)

Antenna terminals 75 Ω (unbalanced)

Amplitude modulation (AM)

Preset memory 15 stations

Frequency range 522 kHz to 1629 kHz (9 kHz step) 520 kHz to 1630 kHz (10 kHz step)

Disc section

Disc played (8 cm or 12 cm)

CD, CD-R/RW (CD-DA, MP3*)

* MPEG-1 Layer 3, MPEG-2 Layer 3

Pick up

Wavelength 790 nm (CD)

Bluetooth section

Version Bluetooth® Ver. 2.1 + EDR

Class Class 2

Supported profiles A2DP, AVRCP, SPP, OPP, FTP

Operating frequency 2.4 GHz band FH-SS

Operation distance 10 m line of sight

Internal memory section

Memory

Memory size 4 GB

Media file format support MP3 (*.mp3)

Memory recording

Bit rate 128 kbps

Memory recording speed 1x, 3x max (CD only)

Recording file format MP3 (*.mp3)

Speaker section

SB-MAX9000

Speaker unit(s)

Tweeter 6 cm cone type x 1

Woofer 16 cm cone type x 2

Super Woofer 38 cm cone type x 1

Impedance

High 3 Ω / Mid 3 Ω / Low 5 Ω

Dimensions (W x H x D)

Including speaker feet 572 mm x 782 mm x 528 mm

Excluding speaker feet 572 mm x 774 mm x 528 mm

Mass 37 kg

SB-MAF7000 SB-MAG7000

Speaker unit(s)

Tweeter 6 cm cone type

Woofer

20 cm cone type

Impedance

3 Ω

Dimensions (W x H x D) 407 mm x 260 mm x 258 mm

Mass

5.5 kg

SB-MAW7000

Speaker unit(s)

Super Woofer

30 cm cone type

Impedance

6 Ω

Dimensions (W x H x D) 402 mm x 450 mm x 386 mm

Mass 13 kg

SB-MAX5000

Speaker unit(s)

Tweeter 6 cm cone type

Woofer

20 cm cone type

Super Woofer

30 cm cone type

Impedance

High 3 Ω / Mid 3 Ω / Low 2 Ω

Dimensions (W x H x D) 407 mm x 709 mm x 389 mm

Mass 19 kg

Terminal section

USB port

USB standard

USB 2.0 full speed

Media file format support MP3 (*.mp3)

USB device file system

FAT12, FAT16, FAT32

USB recording

Bit rate 128 kbps

USB recording speed

1x, 3x (CD only)

Recording file format MP3 (*.mp3)

SC-MAX9000

SC-MAX7000

AUX IN 1, 2, 3

SC-MAX5000

AUX IN 1

Audio input

Pin jack

SC-MAX9000

SC-MAX7000

AUX IN 4

SC-MAX5000

AUX IN 2

Terminal

Stereo, 3.5 mm jack

Microphone

Terminal

Mono, 6.3 mm jack (2 systems)

General

Power supply

AC 220 V to 240 V, 50/60 Hz

Power consumption

SC-MAX9000 SC-MAX7000

340 W

SC-MAX5000

240 W

Dimensions (W x H x D) 460 mm x 234 mm x 409 mm

Mass

SC-MAX9000 SC-MAX7000

6.0 kg

SC-MAX5000

5.5 kg

Operating temperature range

0°C to +40°C

Operating humidity range

35% to 80% RH (no condensation)

Power consumption in standby mode (approximate)

SC-MAX9000 SC-MAX7000

0.4 W

SC-MAX5000

0.5 W

Power consumption in standby mode (approximate)

(With "BLUETOOTH STANDBY" set to "ON")

SC-MAX9000 SC-MAX7000

0.5 W

SC-MAX5000

0.6 W

Note:

- Specifications are subject to change without notice. Mass and dimensions are approximate.

- Total harmonic distortion is measured by the digital spectrum analyzer.

Fuse cover

1. Replace the fuse, then close or cover the fuse cover.

Figure A Figure B

Note:

Caution!

SC-MAX7000 SC-MAX5000

When placing the speakers, make sure the tweeters are on the outside.

Note:

Caution!

Connections

Connect the AC power cord after all connections are complete.

1 Connect the AM loop antenna.

Stand the antenna upright on its base until it clicks into place.

2 Connect the FM indoor antenna.

Affix the antenna in the position where reception is best.

3 Connect the speakers.

Connect the speaker wires to the corresponding terminals.

SC-MAX9000

3a

3b

SC-MAX7000 3a

Connect the speaker wires to the terminals of the same color.

3b

Built-in memory source Remaining recording time

FTP, OPP, SPP, AVRCP, A2DP

"BLUETOOTH STANDBY" [SETUP] for test 1

1 “SW VER.” [SETUP] for selection

[OK]

[OK] [◀.▶] to set the clock time and date

Visual Foot

[OK] "CLOCK" for baking, press [SETUP] button

SLEEP 30 → SLEEP 60 → SLEEP 90 → SLEEP120

OFF

Press [SLEEP] button

Note:

3 [OK] [◀.▶] to set the time and date

4

[OK] [◀▶] for baking, press [OK] [◀▶/▶▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶] [◀▶/◀▶], [OK].

[6]←[1]←[≥10]:16: Montreal

Note:

Speakers

Installing the speaker stand

Note:

Warning!

Supplied accessories
