Type of product	Hi-Fi System
Brand	Panasonic
Model	SC-VK82D
Main unit dimensions (W x H x D)	Approx. 160 x 250 x 300 mm
Main unit weight	Approx. 3.5 kg
Power supply	AC 220-240 V, 50/60 Hz
Power consumption	Approx. 80 W
Output power	50 W per channel (RMS)
CD player	Plays CD, CD-R/RW
Cassette deck	Dual cassette decks with auto reverse
Tuner	AM/FM with preset stations
Connectivity	AUX input, headphone jack
Karaoke functions	Microphone input with echo control
Equalizer	4-mode preset EQ (Rock, Pop, Classic, Jazz)
Timer	Sleep timer and play timer
Remote control	Included
Display	FL (fluorescent) display
Maintenance and cleaning	Wipe exterior with a soft dry cloth; clean CD lens with a lens cleaner disc; keep ventilation slots clear
Safety	Use only as specified in the manual; avoid exposure to water or moisture; do not insert objects into openings
Spare parts and repairability	Only qualified service personnel should attempt repairs; use genuine Panasonic replacement parts

Frequently Asked Questions - SC-VK82D PANASONIC

How do I connect the system to my TV?

You can connect the system to your TV using the AUX input on the front panel. Use an audio cable to connect the headphone or audio output of the TV to the AUX input, then select 'AUX' as the source.

Can I play MP3 CDs on this system?

Yes, the CD player supports MP3 playback when using CD-R or CD-RW discs with MP3 files burned properly. Ensure the disc is finalized and files are in MP3 format.

How do I clean the cassette heads?

Use a cotton swab lightly moistened with isopropyl alcohol to gently clean the tape heads, pinch rollers, and capstans. Wait for the alcohol to completely dry before playing a tape.

What is the maximum power output of the system?

The system delivers 50 W per channel (RMS) into 6 ohms, providing a total of 100 W for a stereo output. Peak power may be higher, but RMS is a reliable measure of continuous power.

How do I set the clock on the SC-VK82D?

Press and hold the CLOCK/TIMER button until the clock indicator blinks. Use the +/- buttons to adjust the hour and minute, then press CLOCK/TIMER to confirm. The clock will be set.

Can I connect a microphone for karaoke?

Yes, the system has a microphone input on the front panel. Connect a microphone, select karaoke mode if available, and adjust the echo and volume controls for singing.

What types of CDs can be played?

The CD player supports CD-DA, CD-R, and CD-RW discs. It can play 5-inch and 3-inch discs. MP3 files burned on CD-R/RW are also compatible.

How do I preset radio stations?

Tune to the desired station manually, then press the MEMORY button. Use the tuning buttons to select a preset number, and press MEMORY again to store it. You can store up to 30 FM and 15 AM stations.

Why is there no sound from the speakers?

Check that the speakers are properly connected and the mute function is off. Verify the selected source is playing and the volume is not too low. If using AUX, ensure the connected device is outputting audio.

How can I maintain the CD player lens?

Use a CD lens cleaner disc periodically to remove dust from the laser lens. Do not touch the lens directly with any object. Keep the disc tray closed when not in use.

USER MANUAL SC-VK82D PANASONIC

The above illustration of the unit is an example and shows SC-VK92D for Southeast Asia.

Operating Instructions

DVD Stereo System

Model No. SC-VK92D/SC-VK82D/SC-VK72D

Table of contents

Getting started

Safety precautions 3

Accessories 3

Disc information 4

Simple setup

STEP1 Positioning 5

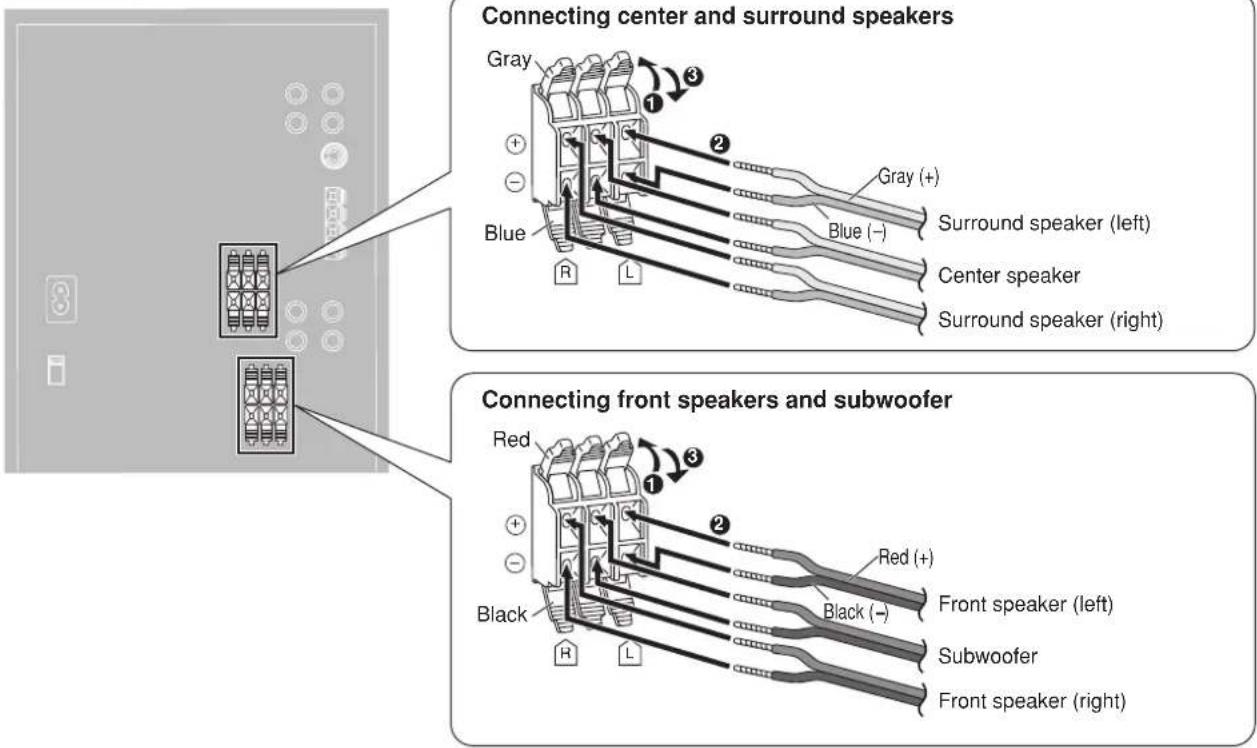

STEP2 Speaker connections 6

STEP3 Video connections 7

STEP4 Radio and power supply connections 8

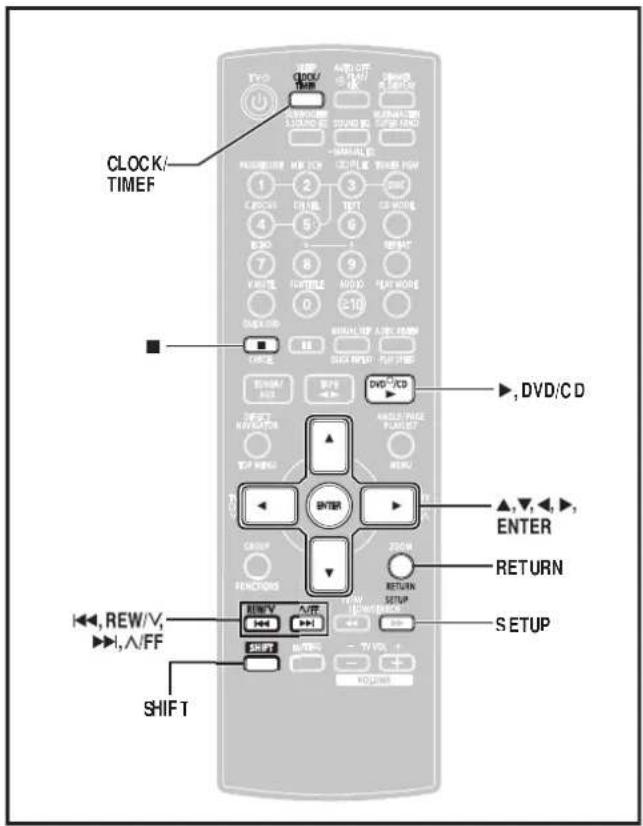

STEP5 The remote control 8

STEP6 QUICK SETUP 9

STEP7 Setting the time 9

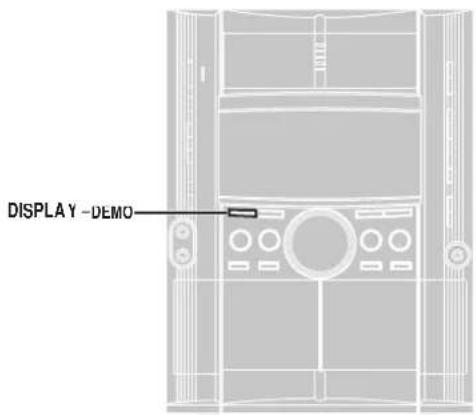

DEMO function 9

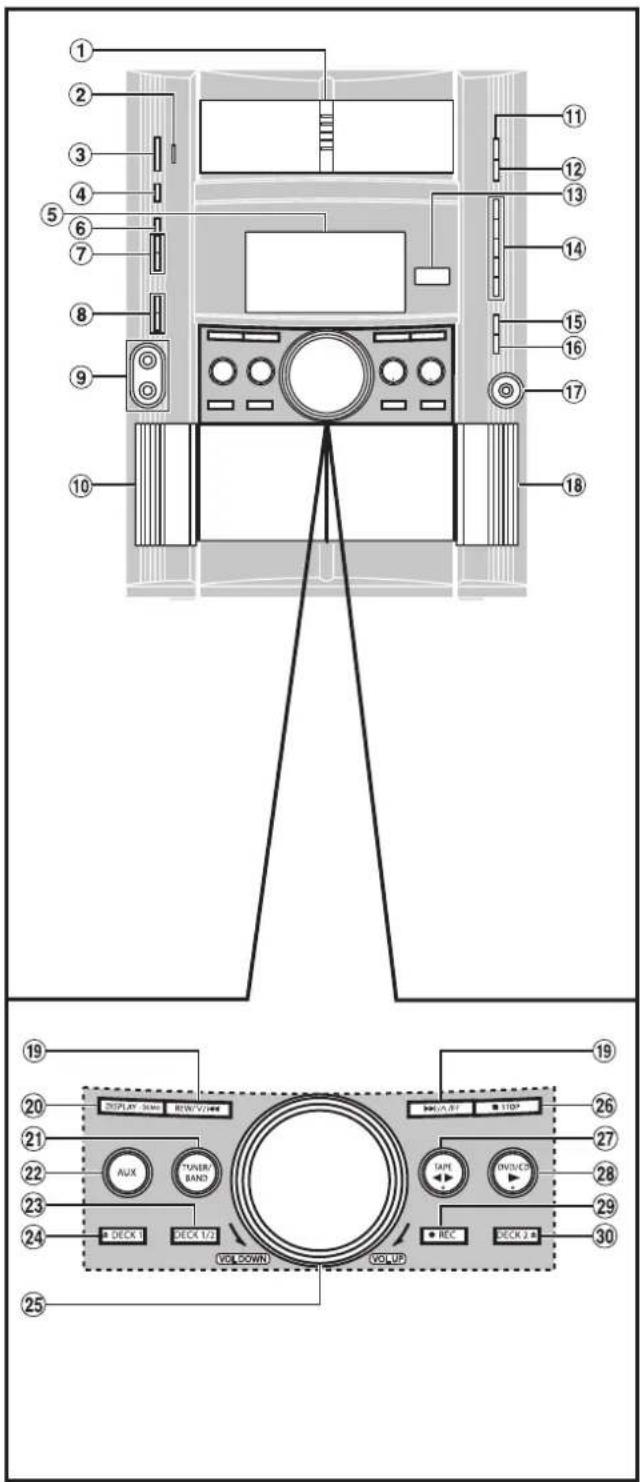

Control reference guide 10

Disc operations

Discs — Basic play 12

Discs — Convenient functions .... 14

Disc information / Displaying current playback condition (QUICK OSD) / Reviewing titles to play (ADVANCED DISC REVIEW) / CD sequential play (CD MODE) / Quick replay / Skipping 30 seconds forward / Changing the zoom ratio / Changing the play speed / Angle selection and Still picture rotation/advance / Changing soundtracks / Changing subtitles / Repeat play

Discs — Using navigation menus .... 16

Playing data discs / Playing from the selected track in the CD / Playing HighMAT™ discs / Playing RAM discs

Discs — Program/Random play 18

Program play (up to 32 items) / Random play / ALL-DISC random play

Discs — Using on-screen menus 19

Main Menu / Other Settings

Discs — Changing the player settings 20

Changing the delay time (Speaker Settings)

Region number

The player plays DVD-Video marked with labels containing the region number or "ALL".

Region Number

Saudi Arabia and Kuwait 2

Southeast Asia 3

Australia and N.Z. 4

Example: Southeast Asia

Before connecting, operating or adjusting the product, please read the instructions completely.

Please keep this manual for future reference.

Radio operations

The radio 22

Manual tuning / Preset tuning / Selecting channels

Tape operations

Cassette tapes 23

Playback / Recording

Karaoke operations

Enjoying karaoke 24

Enjoying karaoke function / Changing the key / Adjusting the echo effect / To record your karaoke performance / To record your voice

Other operations

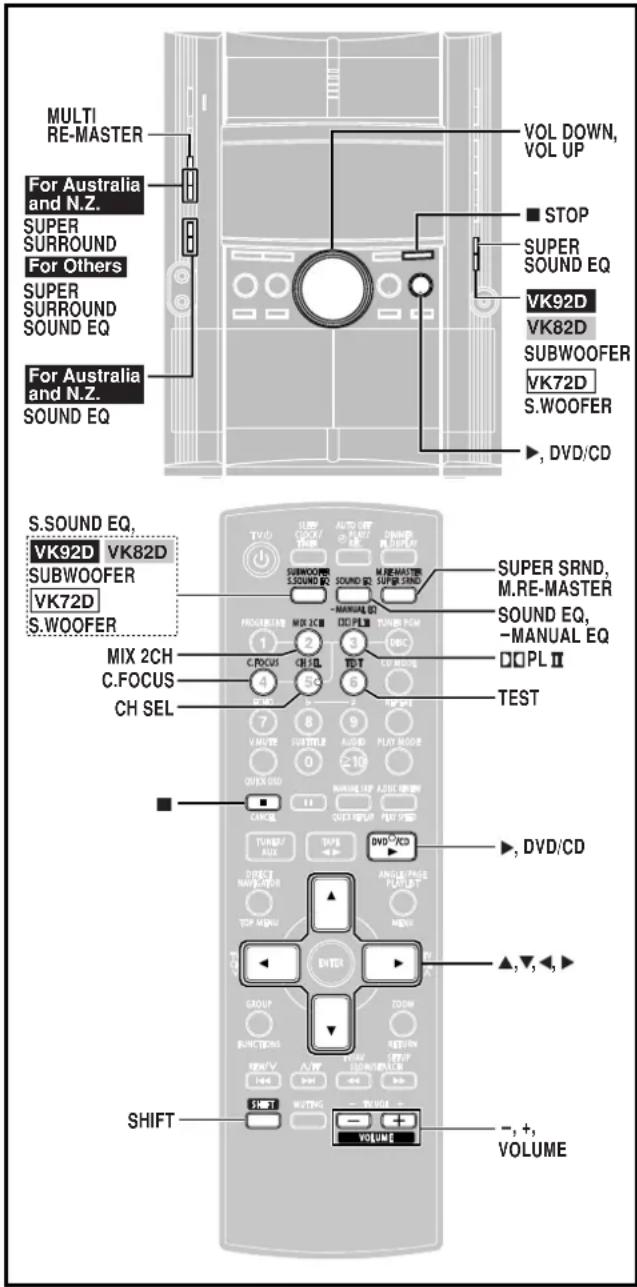

Sound field and sound quality 26

Down-mixing / Dolby Pro Logic II / Center Focus / Super Surround / Sound field control / Using the Manual Equalizer (MANUAL EQ) / Using the Super Sound Equalizer / Subwoofer level / Super Woofer / Multi Re-master—Enjoying more natural sound / Speaker level adjustments

Using the timers 28

The play/record timer / The sleep timer

Other functions 29

Muting the volume / Auto-off function / Dimming the display / Changing the sound range display

Using other equipment 29-30

Using headphones / Operating a television / Using a subwoofer / Using an external unit / Optional antenna connections

Reference

Glossary 31

Language code list 31

Troubleshooting guide 32

Specifications 34

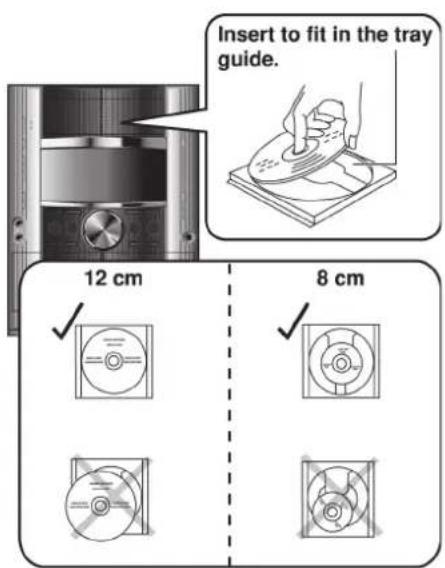

Tray/disc handling procedure ...... Back cover

Maintenance Back cover

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

VK92D : indicates features applicable to SC-VK92D only.

VK82D : SC-VK82D only.

VK72D : SC-VK72D only.

• These operating instructions are applicable to models SC-VK92D, SC-VK82D and SC-VK72D for a variety of regions.
• Unless otherwise indicated, illustrations in these operating instructions are of SC-VK92D for Southeast Asia.
• Operations in these instructions are described mainly with the remote control, but you can do the operations on the main unit if the controls are the same.

System SC-VK92D SC-VK82D SC-VK72D
Main unit SA-VK92D (1 unit) SA-VK82D (1 unit) SA-VK72D (1 unit)
Front speakers SB-VK92 (2 units) SB-VK82 (2 units) SB-VK72 (2 units)
Center speaker SB-PC92 (1 unit) SB-PC82 (1 unit) SB-PC72 (1 unit)
Surround speakers SB-PS92 (2 units) SB-PS82 (2 units) SB-PS72 (2 units)
Subwoofer(s) SB-WVK92 (2 units) SB-WVK82 (1 unit) ----

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

For Saudi Arabia, Kuwait and Southeast Asia

CAUTION:

The AC voltage is different according to the area.

Be sure to set the proper voltage in your area before use.

(For details, please refer to page 8.)

(Inside of product)

For Saudi Arabia, Kuwait and Southeast Asia

THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.

For Australia and N.Z.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit's service life.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and cause a fire.

Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

Power cord protection

Ensure the AC power cord is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC power cord can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC power cord and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

Accessories

Please check and identify the supplied accessories.

AC power supply cord

For Saudi Arabia and Kuwait

VK72D

For Southeast Asia

VK92D VK82D VK72D

For Saudi Arabia and Kuwait

VK92D VK82D VK72D

VK92D VK82D

For Australia and N.Z.

VK82D

□ 2 Batteries for remote control

1 Remote control

For Saudi Arabia, Kuwait and Southeast Asia

VK92D

(N2QAJB000141)

VK82D

(N2QAJB000142)

VK72D

(N2QAJB000143)

For Australia and N.Z.

VK82D

(N2QAJB000140)

3 Speaker cords

VK72D

1 x short cord

2 x long cords

1 Video cable

1 AM loop antenna

□ 1 FM indoor antenna

Note

The included AC power supply cord is for use with this unit only. Do not use it with other equipment.

For Saudi Arabia and Kuwait

Note on AC power supply cord

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differs according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

1. Replace the fuse and close or attach the fuse cover.

Discs that can be played

Disc Logo	in these Remarks	Indication operating instructions
DVD-RAM		RAM	Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard) such as DVD video recorders, DVD video cameras, personal computers, etc.
		JPEG	Recorded using the DCF (Design rule for Camera File system) standard.• To play JPEG files, select “Play as Data Disc” in Other Menu (→ page 19).
DVD-Audio		DVD-A	—
		DVD-V	Some DVD-Audio discs contain DVD-Video content.To play DVD-Video content, select “Play as DVD-Video” in Other Menu (→ page 19).
DVD-Video		DVD-V	—
DVD-R(DVD-Video)/DVD-RW(DVD-Video)	R4.7 RW		Discs recorded and finalized* on Panasonic DVD video recorders or DVD video cameras.
+R (Video)/+RW (Video)	—		Discs recorded and finalized* on DVD video recorders or DVD video cameras.
Video CD		VCD	—
SVCD			Conforming to IEC62107.
CD		CD	This unit is compatible with HDCD, but does not support the Peak Extend function (a function which expands the dynamic range of high level signals).HDCD-encoded CDs sound better because they are encoded with 20 bits, as compared with 16 bits for all other CDs.
CD-RCD-RW	***	WMAMP3JPEGCDVCD	• This unit can play CD-R/RW (audio recording disc) recorded with the formats on the left. Close the sessions or finalize* the disc after recording.• HighMAT discsWMA, MP3 or JPEG files only.To play without using the HighMAT function, select “Play as Data Disc” in Other Menu (→ page 19).•WMAThis unit does not support Multiple Bit Rate (MBR: a file that contains the same content encoded at several different bit rates).

* A process that allows play on compatible equipment.
- It may not be possible to play the above discs in all cases due to the type of disc or condition of the recording.

■Discs that cannot be played

DVD-ROM, CD-ROM, CDV, CD-G, SACD, Divx Video Discs and Photo CD, DVD-RAM that cannot be removed from their cartridge, 2.6-GB and 5.2-GB DVD-RAM, and "Chaoji VCD" available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

Playing DVDs and Video CDs

The producer of these discs can control how they are played so you may not always be able to control play as described in these operating instructions (for example if the play time is not displayed or if a Video CD has menus). Read the disc's instructions carefully.

■Audio format of DVDs

This unit automatically recognizes and decodes discs with these symbols.

■To clean discs

Wipe with a damp cloth and then wipe dry.

■Disc handling precautions

• Do not attach labels or stickers to discs (This may cause disc warping, rendering it unusable).
• Do not write on the label side with a ball-point pen or other writing instrument.
• Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
• Do not use scratch-proof protectors or covers.
• Do not use the following discs:
  – Discs with exposed adhesive from removed stickers or labels (rented discs, etc).
  – Discs that are badly warped or cracked.
  – Irregularly shaped discs, such as heart shapes.

■Video systems

• This unit can play PAL and NTSC, but your television must match the system used on the disc.
• PAL discs cannot be correctly viewed on an NTSC television.
• This unit can convert NTSC signals to PAL 60 for viewing on a PAL television (→ page 21, "Video" tab — NTSC Disc Output).

Simple setup

STEP 1 Positioning

Optimum location

Distance: A=B=C=D=E

Positioning for best effect

How you set up your speakers can affect the bass and the sound field. Note the following points:

• Place speakers on flat secure bases.
• Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with a thick curtain.
  • The angles in the diagram are approximate.

Caution

• Use the speakers only with the recommended system. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.
• Do not attempt to attach these speakers to walls using methods other than those described in this manual.

■ Attaching to a wall

Surround and center speakers can be attached to a wall.

① Drive a screw (not included) into the wall.
② Fit the speaker securely onto the screw(s) with the hole(s).

- The wall or pillar on which the speakers are to be attached should be capable of supporting 10 kg per screw. Consult a qualified building contractor when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers.

Front speakers

Speakers are designed identically so that no left or right channel orientation is necessary.

Center speaker

• Vibration caused by the center speaker can disrupt the picture if it is placed directly on the television. Put the center speaker on a rack or shelf.
  • To prevent the speakers from falling, do not place directly on top of the television.

Subwoofer(s) VK92D VK82D

Place to the right and left (VK92D) or right (VK82D) of the television, on the floor or a sturdy shelf so that it won't cause vibration.

Leave 10 cm at the rear for ventilation.

Use only supplied speakers

• Using other speakers can damage the unit and sound quality will be negatively affected.
• Set the speakers up on an even surface to prevent them from falling. Take proper precautions to prevent the speakers from falling if you cannot set them up on an even surface.

Notes on speaker use

• You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.
• Reduce the volume in the following cases to avoid damage. — When playing distorted sound.

— When the speakers are reverberating due to a record player, microphone(s) (except Australia and N.Z.), noise from FM broadcasts, continuous signals from an oscillator, test disc, or electronic instrument.

— When adjusting the sound quality.
— When turning the unit on or off.

If irregular coloring occurs on your television

The front and center speakers and subwoofer(s) are designed to be used close to a television, but the picture may be affected with some televisions and set-up combinations.

If this occurs, turn the television off for about 30 minutes.

The television's demagnetizing function should correct the problem. If it persists, move the speakers further away from the television.

Note

• Keep your speakers at least 10 mm away from the system for proper ventilation.
• You cannot take the front net off the speakers.

Surround speaker
VK92D VK82D

Center speaker VK92D VK82D

Surround speaker VK72D

Center speaker VK72D

STEP2

Speaker connections

Twist and pull off the vinyl tip of the speaker cords.

OR

If the speaker cords do not have vinyl tips, directly connect them to the terminals.

VK92D

VK82D

VK72D

3 Speaker cords

• 1 x short cord: For center speaker
  • 2 x long cords: For surround speakers

STEP3 Video connections

• Do not connect the unit through a video cassette recorder
  Due to copy guard protection, the picture may not be displayed correctly.
• Turn the television off before connecting, and refer to the television's operating instructions.

■Television with a VIDEO IN terminal

■Television with an S VIDEO IN terminal

S VIDEO OUT terminal

The S VIDEO terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance (C) and luminance (Y) signals. (Actual results depend on the television.)

Video cable

■Television with COMPONENT VIDEO IN terminals

COMPONENT VIDEO OUT terminals

These terminals can be used for either interlace or progressive output and provide a purer picture than the S VIDEO OUT terminal. Connection using these terminals outputs the color difference signals (P_B/P_R) and luminance signal (Y) separately in order to achieve high fidelity in reproducing colors.

- The description of the component video input terminals depends on the television or monitor (e.g. Y/P_B/P_R,Y/B-Y/R-Y, Y/C_B/C_R). Connect to terminals of the same color.

To enjoy progressive video

Connect to the component video input terminals on a 480p (or 525p) or 576p (or 625p) compatible television. (Video will not be displayed correctly if connected to an incompatible television.)

STEP4

Radio and power supply connections

AM loop antenna

FM indoor antenna

AC power supply cord

For Australia and N.Z.

VK82D

For Saudi Arabia and Kuwait

VK72D

For Southeast Asia

VK82D VK72D K92D

For Saudi Arabia and Kuwait

• Connect the AC power supply cord only after all other connections are complete.
• Optional antenna connections (→ page 30).

Preparation

Twist and pull off the vinyl tip of the antenna wires.

AM loop antenna

Stand the antenna up on its base.

For Saudi Arabia, Kuwait and Southeast Asia

Before connecting the AC power supply cord, set the voltage.

Voltage Selector

Use a flat-head screwdriver to set the voltage selector on the back of the main unit to the appropriate position for the area in which this system is used.

FM indoor antenna

Tape the antenna where reception is best.

For Saudi Arabia and Kuwait AC power supply con

• Use 3 pin AC power supply cord for 220 to 240 V.
• Use 2 pin AC power supply cord for 110 to 127 V.

BE SURE TO READ THE NOTE ON AC POWER SUPPLY CORD ON PAGE 3 BEFORE CONNECTION.

→ To household AC socket

Conserving power

The unit consumes power (VK92D VK82D: approx. 0.9 W or VK72D: approx. 0.8 W) even when it is turned off with [∅] (main unit: [∅/I]). To save power when the unit is not to be used for a long time, unplug it from the household AC power socket. You will need to reset some memory items after plugging in the unit.

STEP5

The remote control

Remote control

Batteries

R6/LR6, AA, UM-3

- Do not use rechargeable type batteries.

Do not:

• mix old and new batteries.
• use different types at the same time.
• heat or expose to flame.
  • take apart or short circuit.
• attempt to recharge alkaline or manganese batteries.
• use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

Use

Aim at the remote control signal sensor ( → page 10), avoiding obstacles, at a maximum range of 7 m directly in front of the unit.

STEP6

QUICK SETUP

The QUICK SETUP screen assists you to make necessary settings.

Turn on the television and select the appropriate video input on the television.

1 Press [▶, DVD/CD] to select "DVD/CD" as the source.
The unit comes on.
Press [■] when a disc is in the tray.

2 Press [SHIFT] + [SETUP] to show the QUICK SETUP screen.

3 Follow the messages and press [▲, ▼, ◀, ▶] to select, then press [ENTER] to make the settings.

Press [RETURN] to go back to the previous screen.

4 Press [ENTER] and then [SHIFT] + [SETUP] to end the settings.

STEP 7

Setting the time

This is a 24-hour clock.

1 Press [CLOCK/TIMER] to select "CLOCK".

Every time you press the button:

CLOCK → ⊕ → ⒷREC

Previous display

2 (within 7 seconds or so)

Press [◀◀, REW/∨] or [▶▶, ∧/FF] to set the time.

3 Press [CLOCK/TIMER] to finish setting the time.

The display will return to whatever was displayed before you set the time.

To display the time

Press [CLOCK/TIMER] once when the unit is on or at standby mode.

The time is shown for about 5 seconds.

Note

Reset the clock regularly to maintain accuracy.

DEMO function

When the unit is first plugged in, a demonstration of its functions may be shown on the display.

If the demo setting is off, you can show a demonstration by turning on the demo.

Press and hold [DISPLAY -DEMO].

The display changes each time the button is held down.

DEMO OFF (off) ↔ DEMO ON (on)

You can reduce the power consumed in standby mode by turning the demonstration off.

Main unit

① Disc drawer
② AC supply indicator [AC IN] This indicator lights when the unit is connected to the AC mains supply.
③ Standby/on switch [∅/l] Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
④ Disc check button [DISC CHECK] 12
⑤ Display
⑥ Multi Re-master button [MULTI RE-MASTER] 27
⑦ For Saudi Arabia, Kuwait and Southeast Asia Super surround button [SUPER SURROUND] .... 26 Sound EQ button [SOUND EQ] .... 26 For Australia and N.Z. Super surround button [SUPER SURROUND] .... 26
For Saudi Arabia, Kuwait and Southeast Asia Microphone volume level buttons [MIC LEVEL DOWN, UP] .... 24 For Australia and N.Z. Sound EQ button [SOUND EQ] .... 26
⑨ For Saudi Arabia, Kuwait and Southeast Asia Microphone jacks [MIC 1, 2] .... 24
⑩ Deck 1 cassette holder ....23
⑪ Disc tray open/close button [▲, OPEN/CLOSE] ...... 12
⑫ Disc change button [▲, DISC CHANGE] 12
⑬ Remote control signal sensor
⑭ DVD/CD direct play buttons [1-5] 12
⑮ Super sound EQ button [SUPER SOUND EQ] 27
⑯ VK92D VK82D Subwoofer button [SUBWOOFER] .... 27 VK72D Super woofer button [S.WOOFER] .... 27
⑰ Headphone jack [PHONES] 29
18 Deck 2 cassette holder 23

Center console

⑲ Disc skip/search/slow-motion play, tape fast-forward/rewind, tune, time adjust buttons [REW/V/I◄◄, ►►I/∧/FF] ...... 12, 22, 23
⑳ Display mode, demonstration button [DISPLAY -DEMO] 9, 29
②1 Tuner/band select button [TUNER/BAND] 22
②2 AUX button [AUX] 30
②3 Deck 1/2 selection button [DECK 1/2] ....23
②4 Deck 1 open button [▲ DECK 1] 23
②5 Volume control [VOL DOWN, VOL UP] 25
②6 Stop button [■ STOP]....12
⑳ Tape play/direction button [◀▶, TAPE].... 23
⑳ DVD/CD play button [▶, DVD/CD] 9
29 Record button [● REC] 23
③0 Deck 2 open button [DECK 2 ▲] 23

Remote control

Buttons such as 27 function in exactly the same way as the buttons on the main unit.

③1 Standby/on, TV power on/off button [∅, TV∅] 28, 29

③2 Numbered buttons [0 - 9, ≥10] .... 13

For Saudi Arabia, Kuwait and Southeast Asia Quick OSD, Vocal mute button [QUICK OSD, V.MUTE].... 14, 24 For Australia and N.Z. Quick OSD button [QUICK OSD].... 14

③4 Pause button [III] 13

③5 Stop, Cancel button [■, CANCEL] 9, 13, 17, 18

③6 Manual skip, Quick replay button [MANUAL SKIP, QUICK REPLAY] 14

③7 Tuner/aux button [TUNER/AUX] 22, 30

③8 Top menu, Direct navigator button [TOP MENU, DIRECT NAVIGATOR] .... 13, 16, 17

⑲ Functions, Group button [FUNCTIONS, GROUP] .... 13, 16, 19

④0 Disc skip, tape fast-forward/rewind, preset channel select, time adjust buttons [I◄◄, REW/V, ►►I, ∧FF] ...... 9, 22, 23

④1 Shift button [SHIFT] To use functions labeled in orange: While pressing [SHIFT], press the corresponding button.

④2 Muting button [MUTING] 29

43 Clock/timer, Sleep timer button [CLOCK/TIMER, SLEEP] .... 9, 28 Play/record timer, Auto off button [©PLAY/REC, AUTO OFF] .... 28, 29 FL display, Dimmer button [FL DISPLAY, DIMMER] .... 13, 29

④4 VK92D VK82D Super Sound EQ, Subwoofer button [S.SOUND EQ, SUBWOOFER] .... 27 VK72D Super Sound EQ, Super woofer button [S.SOUND EQ, S.WOOFER] .... 27 Sound EQ, Manual EQ button [SOUND EQ, -MANUAL EQ] .... 26, 27 Super surround, Multi Re-master button [SUPER SRND, M.RE-MASTER] .... 26, 27

45 Disc select, Tuner program button [DISC, TUNER PGM] 14, 22

46 CD mode button [CD MODE] 14 Repeat button [REPEAT] 15 Play mode button [PLAY MODE] 18, 22, 23

④ Advanced disc review, Play speed button [A.DISC REVIEW, PLAY SPEED].... 14, 15

48 Menu, Playlist, Angle/Page button [MENU, PLAYLIST, ANGLE/PAGE]....13, 15–17

④9 Cursor buttons [▲,▼,◀,▶], Enter button [ENTER]....9, 13, 15–17, 25, 27 These buttons have the following functions. [◀,▶]: TV channel select buttons [TV CH∨, TV CH∧].....29

⑤0 Return, Zoom button [RETURN, ZOOM] 9, 15

51 Slow/search, Tuning buttons [◀◀, ▶▶, SLOW/SEARCH] .... 13, 16, 22 These buttons have the following functions. [◀◀] : TV/AV input mode select button [TV/AV] .... 29 [▶▶] : Setup button [SETUP] .... 9

⑤2 Volume buttons, TV volume buttons [-, +, VOLUME, - TV VOL +] 25, 29

53 Progressive video button [PROGRESSIVE] 13 2 channel down-mixing button [MIX 2CH] 26 Dolby Pro Logic II button [☐☐PLII] 26

54 Center focus button [C.FOCUS] 26 Channel select button [CH SEL] 27 Test signal button [TEST] 27

For Saudi Arabia, Kuwait and Southeast Asia Echo button [ECHO] 25 Key control buttons [b, #] 25

⑤6 Subtitle button [SUBTITLE]....13, 15 ⑤7 Audio button [AUDIO]....15, 24, 25

1 Press [▲, OPEN/CLOSE] to open the tray.

The unit comes on.

• To load discs in other trays, press [1]–[5] to select the tray and press [▲, OPEN/CLOSE] to open the tray.
• You can load up to 5 discs (one per tray).
• Load double-sided discs so the label for the side you want to play is facing up.
  • RAM Remove the disc from its cartridge before use.

Do not pull or push the tray with your hand.

2 Press [▲, OPEN/CLOSE] to close the tray.

Check the disc location

Press [DISC CHECK] during play.

Press again to close the trays.

• To check the location of the 12 cm discs.
- If a disc is being played, the corresponding tray will not open.
- Do not remove or insert disc(s) during a disc check.
- Do not pull out the trays during a disc check.

Change a disc in another tray

Press [▲, DISC CHANGE] and then [1]–[5].

Press [▲, DISC CHANGE] again to close the tray.

• You can also remove a disc while another is playing.
• If you select a disc which is being played, play stops and the tray opens.

3 Press [1]–[5] to play the disc.

You can also press

[▶, DVD/CD] if the current disc is your desired disc.

Stop

Press [■ STOP] during play.

The position is memorized while "RESUME" is on the display.

• Press [▶, DVD/CD] to resume.
• Press [■ STOP] again to clear the position.

Skip/Search/Slow-motion play

• To skip: Press [REW/∨/I◀◀] or [▶▶I/∧/FF].
• To search: Hold down [REW/∨/◄◄◄] or [►►I/∧/FF] during play.
• To play in slow-motion: Hold down [REW/V/I◄◄] or [►►I/∧/FF] during pause.
  • VCD Slow motion play is for forward direction only.
• Search/slow motion play speed increases up to 5 steps.

DVD/CD

Note

• Discs continue to rotate while menus are displayed. Press [■ STOP] when you finish to preserve the unit's motor and your television screen.
• Total title number may not be displayed properly on +R/+RW.

Disc information

You can select the disc after checking the discs loaded with the Disc information screen.

- You can also select the disc directly with the disc buttons on the main unit.

1 Press [DISC] to show the Disc information screen.

2 Press the numbered buttons ([1]–[5]) to select the disc.

To clear the screen

Press [DISC].

Displaying current playback condition (QUICK OSD)

The current playback condition is displayed.

Press [QUICK OSD].

• To exit the screen

Press [QUICK OSD].

- CD MP3 WMA The QUICK OSD screen will appear automatically.

Reviewing titles to play (ADVANCED DISC REVIEW)

RAM DVD-V (Except +R/+RW)

Allows you to browse the disc contents and start playing from the selected position. You can select either "Intro Mode" or "Interval Mode" in "Advanced Disc Review" in the "Disc" tab (→ page 20).

1 Press [A.DISC REVIEW].

The QUICK OSD screen is displayed.

e.g. RAM

2 Press [▶, DVD/CD] when you find a title/program to play.

This may not work depending on the disc and the play condition.

CD sequential play (CD MODE)

VCD CD WMA MP3

This feature is very convenient if you want to play several music CDs sequentially. Make sure that the applicable disc is in the play position before playing.

DVD and JPEG are skipped without being played.

While stopped

1 Press [CD MODE].

2 Press [▶, DVD/CD].

Note

• If the disc in the play position is not applicable (e.g. DVD), CD Mode does not work.
  • HighMAT menus and Video CD playback control are disabled.
• You cannot change the mode during play, or while in program or random mode.
• If you want to play a DVD, press [CD MODE] again to cancel CD Mode. (CD Mode is also canceled when you open the current disc tray, switch the unit to standby or select another source.)

Quick replay

(Only when the elapsed play time can be displayed.)

(Except +R/+RW)

Press [SHIFT] + [QUICK REPLAY] to skip back a few seconds.

Skipping 30 seconds forward

(Only when the elapsed play time can be displayed.)

RAM DVD-V (Except +R/+RW)

Play restarts from approximately 30 seconds later. Convenient when you want to skip commercials etc.

During play

Press [MANUAL SKIP].

RAM It is not possible to skip through the current program if the start of the next program is within about 30 seconds of the point you are skipping from.

Changing the zoom ratio

RAM DVD-A (Motion picture part) DVD-V VCD

This feature expands the letterbox picture to fit the screen.

During play

Press [SHIFT] + [ZOOM] several times to select the preset aspect ratio (Just Fit Zoom) or "Auto".

Fine adjustments (Manual Zoom)

After selecting the preset aspect ratio or "Auto", press [◀, ▶].

- from "x1.00" to "x1.60" (in 0.01 units)

- from "x1.60" to "x2.00" (in 0.02 units)

- Press and hold [◀, ▶] to alter faster.

Changing the play speed

RAM DVD-A (Motion picture part) DVD-V

During play

Press [SHIFT] + [PLAY SPEED] several times to select "Normal", "Fast" or "Slow".

Changing play speed between the range of "x0.6" to "x1.4" (in 0.1 units)

Press [◀, ▶] while the above message is displayed.

- Press [▶, DVD/CD] to return to normal play.

- This function may not work depending on the disc's recording.

Angle selection and Still picture rotation/advance

Press [SHIFT] + [ANGLE/PAGE] several times to select the angle or rotate/advance the still picture.

DVD-V (with multiple angles) - Angle selection

DVD-A – Still picture advance

(Press [RETURN] to go back to page 1.)

JPEG – Still picture rotation

Changing soundtracks

RAM DVD-A DVD-V (with multiple soundtracks) VCD

Press [SHIFT] + [AUDIO] several times to select the soundtrack.

RAM VCD

You can use this button to select "L", "R" or "L R".

e.g. DVD-V

DVD-V (Karaoke discs)

Press [◀, ▶] to select "On" or "Off" for vocals.

Read the disc's instructions for details.

Functions Audio

Signal type/data

LPCM/PPCM/D Digital/DTS/MPEG: Signal type

kHz (Sampling frequency)/bit/ch (Number of channels)

Changing subtitles

DVD-V (with multiple subtitles) VCD (SVCD only)

Press [SHIFT] + [SUBTITLE] several times to select the subtitle language.

- On +R/+RW, a subtitle number may be shown for subtitles that are not displayed.

To display/clear the subtitles

Press [◀, ▶] to select "On" or "Off".

e.g. DVD-V

RAM (On/Off only with discs that contain subtitle on/off information)

Functions Subtitle

Press [SHIFT] + [SUBTITLE] to select "On" or "Off".

- Subtitle on/off information cannot be recorded using Panasonic DVD Recorders.

Repeat play

(Only when the elapsed play time can be displayed.

JPEG: Works with all JPEG content.)

During play

Press [REPEAT] several times to select an item to be repeated.

e.g. DVD-V

RAM: Program → Disc → Off

• During playlist play: Scene → Playlist → Off

DVD-A: Track → Group* → Off

DVD-V: Chapter → Title * → Off

VCD CD: Track → Disc* → Off

- When CD Mode is on: Track → Disc → All CD's → Off

- When CD Mode is on, during program and random play: Track → All CD's → Off

WMA MP3: Content → Group * → Off

- When CD Mode is on: Content → Group → All CD's → Off

- When CD Mode is on, during program and random play: Content → All CD's → Off

JPEG: Group* → Off

*“All” is displayed during program and random play.

Playing data discs

WMA MP3 JPEG

You can play JPEG files on DVD-RAM or play HighMAT discs without using the HighMAT function (→ page 19, "Play as Data Disc" in Other Menu).

Playing items in order (Playback Menu)

1 Press [TOP MENU].

2 Press [▲, ▼] to select "All" (WMA/MP3/JPEG), "Audio" (WMA/MP3) or "Picture" (JPEG), then press [ENTER].

• To exit the screen Press [TOP MENU]

Playing from the selected item (Navigation Menu)

1 Press [MENU].

2 Press [▲, ▼, ◀, ▶] to select the group or audio/picture content and press [ENTER].

• After listing all the contents in one group, the list for the next group appears.

3 To play content in the group in order Press [ENTER]. To start play from the selected content Press [▲, ▼].

e.g.

• Press [SHIFT]+[ANGLE/PAGE] to skip page by page in the group or content field.
• To enjoy listening to WMA/MP3 contents while showing a JPEG image on the screen. Select a JPEG file first, and then select audio contents. (The opposite order is not effective.)
  • To exit the screen Press [MENU].

■ Using the submenu

1 While the menu is displayed Press [FUNCTIONS].

Items shown differ depending on the type of disc.

Multi	Groups and contents are displayed.
List	Contents only
✓Tree	Groups only
Thumbnail	Thumbnail images JPEG
Next group	To go to next group WMA MP3
Previous group	To go to previous group WMA MP3
All	WMA/MP3, JPEG, MPEG4 and DivX video
✓Audio	WMA/MP3 only
Picture	JPEG only
Video	MPEG4 and DivX video only
✓Help display	To switch between guide messages and the elapsed play time indicator
Find	To search by content or group title(→ see below)

2 Press [▲, ▼] to select an item and press [ENTER].

■ Searching by content or group title

Highlight a group title to search the group, or a content title to search its content.

1 While the submenu is displayed ( → see above) Press [▲, ▼] to select "Find" and press [ENTER].

2 Press [▲,▼] to select a character and press [ENTER].

• Repeat to enter other characters.
• Lower case is also searched.
• Press [◀◀, ▶▶] to skip between A, E, I, O, and U.
• Press [◀] to erase a character.
• Leave the asterisk (*) when you search for the titles including the character you enter.
• Erase the asterisk (*) to search for the titles starting with the character you enter. To add the asterisk (*) again, display the submenu again and select "Find".

3 Press [▶] to select "Find" and press [ENTER]. The search results screen appears.

4 Press [▲, ▼] to select the content or group and press [ENTER].

Playing from the selected track in the CD

CD

Titles appear with CD Text disc playback.

1 Press [TOP MENU] or [MENU].

e.g. CD text

2 Press [▲, ▼] to select the track and press [ENTER].

• Press [SHIFT]+[ANGLE/PAGE] to skip page by page.
• Press [FUNCTIONS] to show the playback position and current position.

- To exit the screen

Press [TOP MENU] or [MENU].

Playing HighMAT™ discs

WMA MP3 JPEG

1 While stopped

Press [TOP MENU].

2 Press [▲, ▼, ◀, ▶] to select the item, then press [ENTER].

- Repeat this step if necessary.

• To change the menu background

Press [FUNCTIONS].

The background changes to the one recorded on the disc.

• To exit the screen

Press [■].

Selecting from the list

1 During play

Press [MENU].

2 Press [◀] then [▲, ▼]

to switch among

"Playlist", "Group

and "Content" lists.

3 Press [▶] then [▲, ▼]

to select an item and

press [ENTER].

e.g.

- Press [SHIFT]+[ANGLE/PAGE] to skip page by page.

• To exit the screen

Press [MENU].

Tips for making WMA/MP3 and JPEG discs (For CD-R, CD-RW)

• Discs must conform to ISO9660 level 1 or 2 (except for extended formats).
• This unit supports multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.
• When there are more than 8 groups, the eighth group onwards will be displayed on one vertical line in the menu screen.
• There may be differences in the display order on the menu screen and computer screen.
• This unit cannot play files recorded using packet write.

Naming folders and files

Files are treated as contents and folders are treated as groups on this unit.

At the time of recording, prefix folder and file names with 3-digit numbers in the order you want to play them (this may not work at times).

Files must have the extension:
".WMA" or ".wma"
".MP3" or ".mp3"
".JPG", ".jpg", ".JPEG" or ".jpeg"

WMA

• You cannot play WMA files that are copy protected.
• This unit does not support Multiple Bit Rate (MBR).

MP3

• This unit is not compatible with ID3 tags.
- Compatible sampling rate: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1 and 48kHz .

e.g. MP3
root

Playing RAM discs

RAM

• Titles appear only if the titles are recorded on the disc.
• You cannot edit programs, playlists and disc titles.

Playing the programs

1 Press [DIRECT NAVIGATOR].

2 Press [▲, ▼] or the numbered buttons to select the program.

• Press [SHIFT]+[ANGLE/PAGE] to skip page by page.
  • To select a 2-digit number e.g. 23: [≥10] → [2] → [3].
• Press [▶] to show the contents of the program and the disc.

e.g.

3 Press [ENTER].

• To exit the screen

Press [DIRECT NAVIGATOR].

Playing a playlist

(Only when the disc contains a playlist)

1 Press [PLAYLIST].

2 Press [▲, ▼] or the numbered buttons to select the playlist.

• Press [SHIFT]+[ANGLE/PAGE] to skip page by page.
  • To select a 2-digit number

e.g. 23: [≥10] → [2] → [3].

e.g.

3 Press [ENTER].

• To exit the screen

Press [PLAYLIST].

JPEG

• To view JPEG files on this unit:
- Take them on a digital camera that meets the DCF Standard (Design rule for Camera File system) Version 1.0. Some digital cameras have functions that are not supported by the DCF Standard Version 1.0 like automatic picture rotation which may render a picture unviewable.
- Do not alter the files in any way or save them under a different name.
- This unit cannot display moving pictures, MOTION JPEG and other such formats, still pictures other than JPEG (e.g.: TIFF) or play pictures with attached audio.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

AUDIO·IMAGE

HighMAT™ and the HighMAT logo are either trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries

Discs — Program/Random play

Starting program/random play

While stopped

Press [PLAY MODE] to select the desired mode.

Program and random playback screens appear sequentially.

Every time you press the button:

To exit program or random play mode

Press [PLAY MODE] several times while stopped.

Program play (up to 32 items)

When CD mode is off

DVD-A DVD-V VCD CD WMA MP3 JPEG

You can program all the items on a disc in the play position.

1 DVD-A DVD-V Press the numbered buttons to select a group (WMA MP3 JPEG then press [ENTER]) or title.

• To select a 2-digit number

e.g. 25: [≥10] → [2] → [5]

WMA MP3 JPEG

[2] → [5] → [ENTER]

e.g. DVD-V

2 Press the numbered buttons to select a chapter or track/content (WMA MP3 JPEG then press [ENTER]).

- Repeat steps 1 and 2 to program other items.

3 Press [▶, DVD/CD].

Discs — Program/Random play

When CD mode is on (→ page 14)

VCD CD WMA MP3

You can program all the items on all the discs.

1 Press the numbered buttons ([1]–[5]) to select a disc.

2 Press the numbered buttons to select the items (WMA MP3 then press [ENTER]).

• To select a 2-digit number

e.g. 25: [≥10] → [2] → [5]

WMA MP3 [2] → [5] → [ENTER]

- Repeat steps 1 and 2 to program other items.

3 Press [▶, DVD/CD].

To select an item using the cursor buttons

Press [ENTER] and [▲, ▼] to select an item, then press [ENTER] again to register.

To change a selected program

1. Press [▲, ▼] to select an item.

2. Repeat above steps 1 and 2.

To clear a selected program

1. Press [▲, ▼] to select an item.

2. Press [SHIFT]+[CANCEL] (or press [▲, ▼, ◀, ▶] to select "Clear" and press [ENTER]).

To clear the whole program

Select "Clear all" with [▲, ▼, ◀, ▶] and press [ENTER].

Note

The program is retained in memory unless one of the following occurs:

– The current disc tray is opened.

- Another source is selected.

- The unit is switched to standby.

- CD mode is turned on or off.

- You manually select another disc (while CD mode is off).

Random play

When CD mode is off

VCD CD

You can play all the items on the disc in the play position in random order.

DVD-A DVD-V WMA MP3 JPEG

You can play the selected item(s) on the disc in the play position in random order.

1 DVD-A DVD-V WMA MP3 JPEG

Press the numbered buttons to select a group or title.

DVD-A

- To enter all groups, press [◀, ▶] to select "All" and press [ENTER].

- To deselect a group, press the numbered button corresponding to the group you want to clear.

e.g. DVD-V

2 Press [▶, DVD/CD].

ALL-DISC random play

When CD mode is on (→ page 14)

VCD CD WMA MP3

You can play all the items on all the discs in random order.

Press [▶, DVD/CD].

e.g. CD

Random Playback

Press PLAY to start

- Disable HighMAT disc play to use program and random play. Select "Play as Data Disc" in Other Menu (→ page 19).

- DVD-A Some discs contain bonus groups. If a password screen appears after selecting a group, enter the password with the numbered buttons to play the bonus group. Refer also to the disc's jacket.

Discs — Using on-screen menus

1 Press [FUNCTIONS] once.
2 Press [▲, ▼, ◀, ▶] to select the menu, then press [ENTER] to begin selecting items.

3 Press [▲, ▼, ◀, ▶] to select the item, then press [ENTER] to make the settings.

Alternatively, press the numbered buttons.

Items shown differ depending on the type of disc.

Main Menu

Program, Group, Title, Chapter, Track, Playlist, Content		To start from a specific item
Time*(Except +R/+RW)	To skip incrementally or decrementally*(Time Slip for play only)1 Press [ENTER] twice to show Time Slip indicator.2 Press [▲,▼] to select the time and press [ENTER].• Press and hold [▲,▼] to alter faster.To start from a specific time*(Time Search)To change remaining/elapsed time display
Audio	(→ page 15, Changing soundtracks)
	WMA MP3 To display the current disc type

Other Settings

Play Speed	RAM DVD-A (Motion picture part) DVD-VTo change play speed– from “x0.6” to “x1.4” (in 0.1 unit steps)
■ Play Menu
Repeat (→ page	15)
A-B Repeat	Except JPEG RAM (Still picture part)To repeat a specified sectionPress [ENTER] at the starting and ending points. Press [ENTER] again to cancel.
Marker To mark	Except RAMTo mark up to 5 positions to play againPress [ENTER]. (The unit is now ready to accept markers.)To mark a position:Press [ENTER] (at the desired point)another position:Press [◀,▶] to select “*” → Press [ENTER]To recall a marker:Press [◀,▶] → Press [ENTER]To erase a marker:Press [◀,▶] → Press [SHIFT]+[CANCEL]• This feature does not work during program and random play.
Advanced Disc Review	[→ page 14, Reviewing titles to play (ADVANCED DISC REVIEW)]
■ Picture Menu
Picture Mode	NormalCinema1: Mellows images and enhances detail in dark scenes.Cinema2: Sharpens images and enhances detail in dark scenes headsAnimationDynamicUser (Press [ENTER] to select “Picture Adjustment”) (→ see below)
	Picture AdjustmentContrast SharpnessBrightness Color *1 (or Colour*2)Gamma (Adjusts the brightness of dark parts.)Depth Enhancer (Reduces the rough noise in the background to give a greater feeling of depth.)
Video Output Mode	• NTSC disc480i*1 (or 525i*2) (Interlace)↔ 480p *1 (or 525p*2) (Progressive)• PAL disc576i*1 (or 625i*2) (Interlace)↔ 576p *1 (or 625p*2) (Progressive)When you select “480p (or 525p)” or “576p (or 625p)”, a confirmation screen appears. Select “Yes” only if connecting to a progressive output compatible television.

1 For Southeast Asia, Australia and N.Z.

*2 For Saudi Arabia and Kuwait

Still Picture To switch still picture
Thumbnail To show thumbnail images
Subtitle	(→ page 15, Changing subtitles)
Marker (VR)	RAM To recall a marker recorded on DVD-Video recordersTo recall a marker:Press [▲,▼] → Press [ENTER]
Angle	(multiple angles)To select the angle
Rotate Picture	To rotate pictures
Slideshow	To turn slideshow on/offTo change the slideshow timing (0 – 30 sec)
Other Settings	(→ see below)

Transfer Mode

If you have chosen “480p (or 525p)” or “576p (or 625p)”, (→ see left), select the method of conversion for video output to suit the type of material.When you play NTSC discsAuto1 (normal): Detects 24 frame-per-second film content and appropriately converts it.Auto2: Compatible with 30 frame-per-second film content in addition to 24 frame-per-second film content.Video: Select when using Auto1 or Auto2, and the video content is distorted.When you play PAL discsAuto: Detects 25 frame-per-second film content and appropriately converts it.Video: Select when using Auto, and the video content is distorted.

Audio Menu

Dolby Pro Logic II	(→ page 26)
Dialogue Enhancer	To make the dialogue in movies easier to hear DVD-V (Dolby Digital, DTS, MPEG, 3-channel or higher, with the dialogue recorded in the center channel) On ↔ Off
Multi Re-master	(→ page 27)
Sound Enhancement	Enhances audio output to produce a warm hall-like sound. On ↔ Off

■ Display Menu

Information	JPEG: Off, Date, Details
Subtitle Position	0 to -60 (in 2 unit steps)
Subtitle Brightness	Auto, 0 to -7
Just Fit Zoom	To select the appropriate screen size to fit your TV screen
Manual Zoom	To zoom in and out manually
Bit Rate Display	RAM DVD-A (Motion picture part)DVD-V VCDOn ↔ Off
GUI See-through	Off, On, Auto
GUI Brightness	-3 to +3

Other Menu

Setup	(→ page 20)
Play as DVD-VideoorPlay as DVD-Audio	Select “Play as DVD-Video” to play DVD-Video contents of DVD-Audio.
Play as DVD-VR,Play as HighMATorPlay as Data Disc	Select “Play as Data Disc” to play JPEG files on DVD-RAM or to play HighMAT disc without using the HighMAT function.

1 Press [SHIFT] + [SETUP] to show the setup menu. • If you have not set QUICK SETUP (→ page 9), the QUICK SETUP screen appears.
2 Press [▲, ▼] to select the tab, then press [▶] to begin selecting the items.
3 Press [▲, ▼] to select the item, then press [ENTER] to begin selecting the settings.
4 Press [▲, ▼, ◀, ▶] to select, then press [ENTER] to make the settings.

Alternatively, press the numbered buttons.

e.g. Setup menu

• To exit, press [SHIFT]+[SETUP].
- The settings remain intact even if you switch the unit to standby.
- Underlined items in the following diagram are the factory preset.

The QUICK SETUP enables successive settings of the items in the shaded area.

■ "Disc" tab

AudioChoose the audio language.	English• (Language options)*1• Original**2• Other ******3
SubtitleChoose the subtitle language.	Automatic*4• English• (Language options)*1• Other ******3
MenusChoose the language for disc menus.Changing the menu language in QUICKSETUP also changes this setting.	English• (Language options)*1• Other ******3
Advanced Disc Review(→ page 14)	Intro Mode: Reviews each title/program.Interval Mode: Reviews not only each title/program but also each 10 minute interval within a title/program.
RatingsSet a ratings level to limit DVD-Video play.Follow the on-screen instructions.	Setting ratings (When level 8 is selected)8 No Limit• 1 to 7• 0 Lock All: To prevent play of discs without rating levels.
	Changing ratings (When level 0 to 7 is selected)Unlock Player• Change Password• Change Level• Temporary Unlock
	When you select your ratings level, a password screen is shown.Follow the on-screen instructions.Do not forget your password.A message screen will be shown if a DVD-Video exceeding the ratings level is inserted in the unit.Enter your password and then follow the on-screen instructions.

*1 Language options
For Southeast Asia: Chinese
For others: French, German, Italian, Spanish, Portuguese, Russian and Dutch
^*2 The original language designated on the disc is selected.
*3 Input a code number referring to the table on page 31.
⁴ If the language selected for “Audio” is not available, subtitle appears in that language (if available on the disc).

■ "Video" tab

TV AspectChoose the setting suit your television The sides and preference. (unless prohibited by the disc).	4:3 Pan&Scan: Regular aspect television (4:3)of the widescreen picture are cut off so it fills the screen
	4:3 Letterbox: Regular aspect television (4:3)Widescreen software is shown in the letterbox style.
	16:9: Widescreen television (16:9)
TV TypeSelect to suit the type of television.	Standard (Direct View TV)CRT Projector Projection TV LCD TV/Projector Plasma TV
Time DelayWhen connected with a Plasma display,adjust if you notice the audio is out of syncwith the video.	0ms 20ms 40ms 60ms 80ms 100ms
Still ModeSpecify the type of picture shown when paused.	AutomaticField: The picture is not blurred, but picture quality is lower.Frame: Overall quality is high, but the picture may appear blurred.
NTSC Disc OutputChoose PAL 60 or NTSC output when playingNTSC discs (→ page 4, Video systems).	PAL60: When connected to a PAL television.NTSC: When connected to an NTSC television.(For Saudi Arabia, Kuwait, Australia and N.Z.: “PAL60” is the factory preset)
■ “Audio” tab
Dynamic Range Compression	OffOn: Adjust for clarity even when the volume is low by compressing the range of the lowest sound level and the highest sound level. Convenient for late night viewing.(Only works with Dolby Digital)
Speaker Settings (→ see below)Set the delay time for your center and surround speakers.	Center (C): 0.0/1.0/2.0/3.0/4.0/5.0 msSurround (LS/RS): 0.0/5.0/10.0/15.0 ms
■ “Display” tab
Menu Language	*5 English 中文*6 English Français Deutsch Italiano Español Português Русский Netherlands
On-Screen Messages	On Off
■ “Others” tab
QUICK SETUP	Yes No
Re-initialize Setting*5 (or Re-initialiseSetting*) same password. After “INIT” on the display disappears, turn the unit to the defaultThis returns all values in the Setup menus settings.off and on again.	Yes: The password screen is shown if Ratings (→ page 20) are set. Please enter the display disappears, turn the unit to the defaultNo

Changing the delay time (Speaker Settings)

(Effective when playing multi-channel audio)

(Center and surround speakers only)

For optimum listening with 5.1-channel sound, all the speakers, except for the subwoofer, should be the same distance from the seating position. If you have to place the center or surround speakers closer to the seating position, adjust the delay time to make up for the difference.

: Actual speakers position

: Ideal speakers position

a b c: Primary listening distance

Approximate room dimensions

Circle of constant primary listening distance

If either distance ⓐ or ⓑ is less than ⓒ, find the difference in the table and change to the recommended setting.

a Center speaker		b Surround speaker
Difference (Approx.)	Setting Difference (Approx.) Setting
30 cm	1.0 ms	150 cm	5.0 ms
60 cm	2.0 ms	300 cm	10.0 ms
90 cm	3.0 ms	450 cm	15.0 ms
120 cm	4.0 ms
150 cm	5.0 ms

1 Press [▲, ▼] to select the delay time box and press [ENTER].
2 Press ▲, ▼] to adjust the delay time and press [ENTER].

To finish the speaker setting

Press [◀] to select "Exit" and press [ENTER].

The radio

Manual tuning

1 Press [TUNER/AUX] (main unit: [TUNER/BAND]) to select "FM" or "AM".

The unit comes on.

2 Press [◀◀] or [▶▶] (main unit: [REW/V/I◀◀] or [▶▶I/∧/FF]) to select the frequency.

Press and hold [◀◀] or [▶▶] (main unit: [REW/∨/◀◀] or [▶▶I/∧/FF]) until the frequency starts scrolling to start automatic tuning. Tuning stops when a station is found.

"TUNED" is displayed when a radio station is tuned.

"ST" is displayed when a stereo FM broadcast is being received.

■ If noise is excessive in FM

Press [PLAY MODE] to display "MONO".

Monaural sound is selected and noise reduces when reception is weak.

Press [PLAY MODE] again to cancel the mode.

"MONO" is also canceled if the frequency is changed.

The radio

For Saudi Arabia, Kuwait and Southeast Asia

■ AM allocation setting (main unit only)

The step is factory-set to 9 kHz, but you can change it to receive broadcasts allocated to 10 kHz steps.

1. Select "FM"

2. Press and hold [TUNER/BAND].

After a few seconds the display changes to show the current minimum frequency. Continue to hold the button down. The minimum frequency changes and the step is changed.

To return to the original step, repeat the above steps.

Note

After changing the “allocation” setting, the frequencies you previously preset in the memory will be cleared. Preset them again.

Preset tuning

Remote control only

There are two methods of pre-setting stations.

Automatic presetting : All the stations the tuner can receive are preset.

Manual presetting :You can select the stations to preset and the order they are preset in.

Up to 15 stations each can be set in the FM and AM bands.

Preparation:

Press [TUNER/AUX] to select "FM" or "AM".

Automatic presetting

Do the following once each for FM and AM.

Preparation: Tune to the frequency where pre-setting is to begin.

Press [SHIFT] + [TUNER PGM] until the frequency changes.

The tuner presets all the stations it can receive into the channels in ascending order. The last station to be set is then played.

Manual presetting

Pre-set the stations one at a time.

1 Tune to the station ( → see left).

2 Press [SHIFT] + [TUNER PGM].

3 While "PGM" is flashing on the display

Press the numbered buttons to select a channel.

Alternatively, press [I◄◄, REW/∨] or [►►I, ∧/FF] then press [SHIFT]+[TUNER PGM].

The station occupying a channel is erased if another station is preset in that channel.

Selecting channels

Remote control only

1 Press [TUNER/AUX] to select "FM" or "AM".

2 Press the numbered buttons or [I◄◄, REW/∨] or [►►I, ∧/FF] to select the channel.

• To select a 2-digit number

e.g. 1 2: [≥ 1 0] → [1] → [2].

Playback

You can use either deck 1 or deck 2 for tape playback.

Use normal position tapes.

High position and metal position tapes can be played, but the unit will not be able to do full justice to the characteristics of these tapes.

1 Press [◀▶, TAPE].

The unit comes on.

If a cassette was loaded, play starts automatically (One touch play).

2 Press [▲ DECK 1] or [DECK 2 ▲] on the main unit and insert the cassette.

Insert with the side to be played facing towards you and the exposed tape facing down.

Close the holder by hand.

3 Press [◀▶, TAPE] to start playback.

Every time you press the button: F▶ ↔ ◀R

F▶: Forward side is played.

◀R: Reverse side is played.

To stop tape playback

Press [■] (main unit: [■ STOP]).

To select the reverse mode

While TAPE is selected as the source

Press and hold [PLAY MODE].

Every time you press and hold the button:

← : One side is played.

→: Both sides are played. (forward → reverse) Play stops at the end of the reverse side.

(2): Both sides are played repeatedly until [■] (main unit: [■ STOP]) is pressed.

To listen to 2 tapes consecutively, load a tape into each deck and select “(✗)”. Both tapes will be played repeatedly until [■] (main unit: [■ STOP]) is pressed.

To fast-forward or rewind

Press [REW/∨/◀◀] (rewind) or [▶▶I/∧/FF] (fast-forward).

To select between loaded decks

Press [PLAY MODE] (main unit: [DECK 1/2]).

Note

• Tape playback is momentarily interrupted if you open the other deck.
• Tapes exceeding 100 minutes are thin and can break or get caught in the mechanism.
• Tape slack can get caught up in the mechanism and should be taken up before the tape is played.
• Endless tapes can get caught up in the deck's moving parts if used incorrectly. Use tapes appropriate to this unit's auto-reverse mechanism.

Recording

Selection of tapes for recording

Use normal position tapes.

High position and metal position tapes can be used, but this unit will not be able to record or erase them correctly.

Preparation:

- Wind up the leader tape so recording can begin immediately.

- Press [◀▶, TAPE] and then [■] (main unit: [■ STOP]).

1 Press [DECK 2 ▲] on the main unit and insert the cassette to be recorded.

Insert with the side to be recorded facing towards you and the exposed tape facing down.

The tape direction is automatically set to "F▶".

2 Press and hold [PLAY MODE] to select the reverse mode.

Every time you press and hold the button:

← : One side only records.

⇔ , (⇔) : Both sides record (forward → reverse)

“(→)” is automatically changed to “-when [● REC] is pressed.

3 Select the source to be recorded.

Radio recording:

Tune to the required station. ( → page 22)

Disc recording:

① Insert the disc(s) you want to record. Press [▶, DVD/CD] and then [■] (main unit: [■ STOP]).

② Prepare the desired disc recording mode.

- To record programmed items [→ do steps 1–2 on page 18, "Program play (up to 32 items)"]. Ensure disc is stopped.

Tape-to-tape recording:

① Press [◀▶, TAPE] and then [■] (main unit: [■ STOP]).

② Press [▲ DECK 1] on the main unit and insert the cassette you want to record.

4 Press [● REC] on the main unit to start recording.

To stop recording

Press [■] (main unit: [■ STOP]).

If the tape finishes before the disc

The disc continues playing. Press [■] (main unit: [■ STOP]) to stop it.

Note

• Multi-channel sources (3 to 5.1 channels) are automatically down-mixed to 2 channels during recording.
• Changes to volume and sound or field quality do not affect recording.
• You cannot open deck 1 while recording.
• You cannot fast-forward or rewind one deck while recording with the other.

Erasure prevention

Use a screwdriver or similar object to break out the tab.

Side A

Tab for side B Tab for side A

To re-record on a protected cassette

Cover the hole with adhesive tape

To erase a tape

1. Press [◀▶, TAPE] and then [■] (main unit: [■ STOP]).

2. Insert the recorded tape into deck 2. Ensure there is no tape in deck 1.

3. Press and hold [PLAY MODE] to select the reverse mode.

4. Press [● REC] on the main unit.

Adhesive tape

Before enjoying the karaoke function

• Lower the microphone volume with [MIC LEVEL DOWN] on the main unit, then connect the microphone(s) to the microphone jack(s).
  Use a dynamic microphone.
  Plug type: 6.3 mm monaural
  You cannot perform karaoke with surround effects, Dolby Pro Logic II or Center Focus, or during speaker level adjustments.
• If a strange noise (howling) is emitted during use, move the microphone away from the speakers, or lower the microphone volume.
• When you are not using the microphone, disconnect it from the microphone jack, and lower the microphone volume level to "MIC OFF".

Audio is automatically switched to stereo (2ch)

Vocal mute function

Use this function when enjoying sources not formatted for karaoke. The voice portion of the track is blocked out but not the background music.

Preparation:

RAM VCD

Press [SHIFT]+[AUDIO] to select "L R".

Press [SHIFT] + [V.MUTE] to switch the function on or off.

You need software recorded in stereo sound if you want to use the vocal mute function. Voice and/or static may be reproduced with the following types of software.

• Software recorded monaural
  • Classical music or works performed by a limited number of instruments
  • Chorus works or duets

Note

There might be some strange sound heard during playback.

Audio mode function

Use this function to set the audio source after switching off the vocal mute function.

Press [SHIFT] + [AUDIO].

Every time you press the button:

RAM VCD CD WMA MP3 TUNER CASSETTE AUX

AUDIO LR → AUDIO L → AUDIO R

(Display on the main unit)

RAM VCD

(On-screen display on the television)

AUDIO LR (L R) : Left channel sound is heard from the left speaker and right channel sound is heard from the right speaker (Vocal and accompaniment).

AUDIO L (L) : Only left channel sound (No vocal).

AUDIO R (R) : Only right channel sound (Vocal).

Select no vocal for karaoke.

Vocal and no vocal may be reversed.

Actual operations depend on the disc. Read the disc's instructions for details.

Enjoying karaoke function

1 Select the source and start play.
2 Start singing and adjust volume with [-, + VOLUME] (main unit: [VOL DOWN, VOL UP]) and [MIC LEVEL DOWN, UP] on the main unit.

To turn the vocals on and off

DVD-V

1 Press [SHIFT] + [AUDIO] during play.
2 Press [▲] or [▼] then [ENTER], or [◀, ▶] to select the mode.

Solo discs Duet discs

Off: Vocals off Off: Vocals off

On: Vocals on V1+V2: Both parts

V1: Part 1 only

V2: Part 2 only

Changing the key

To raise the key by a halftone:

Press [SHIFT] + [#].

Every time the button is pressed, the key will change as follows:

KEYCON -6 → -5 → -4 → -3 → -2 → -1 → 0 → +1 → +2 → +3 → +4 → +5 → +6

To lower the key by a halftone:

Press [SHIFT] + [b].

Every time the button is pressed, the key will change as follows:

KEYCON +6 → +5 → +4 → +3 → +2 → +1 → 0 → -1 → -2 → -3 → -4 → -5 → -6

To cancel

Press [SHIFT]+[b] or [SHIFT]+[#] to display "0".

Adjusting the echo effect

Press [SHIFT] + [ECHO].

Every time you press the button:

ECHO 1 → ECHO 2 → ECHO 3 → ECHO 4 → ECHO OFF (off)

The effect increases with the level.

To record your karaoke performance

Preparation:

• Do the preparatory steps 1–2 on page 23.
• When singing along with discs

Insert the disc(s) you want (→ page 12).

Press [▶, DVD/CD].

• When singing along with tape
  Press [▲ DECK 1] on the main unit and insert the tape you want.
• When singing along with radio

Select your desired station (→ page 22).

- When singing along from an external source

Connect and prepare the source (→ page 30).

- When singing along from an external source Connect and prepare the source (→ page 30).

1 Press [SHIFT] + [AUDIO] to select the voice mode.
2 Adjust volume with [-, +VOLUME] (main unit: [VOL DOWN, VOL UP]) and [MIC LEVEL DOWN, UP] on the main unit.

Press [● REC] on the main unit and start karaoke performance.

To stop recording

Press [■] (main unit: [■ STOP]).

Note

To playback the recorded tape, be sure to press [SHIFT]+[AUDIO] to select the "AUDIO LR" mode.

To record your voice

Preparation: Do the preparatory steps 1–2 on page 23.

Ensure that there is no tape in deck 1.

1 Press [● REC] on the main unit to start recording.
2 Speak through the microphone and adjust volume with [-, +VOLUME] (main unit: [VOL DOWN, VOL UP]) and [MIC LEVEL DOWN, UP] on the main unit.

• Down-mixing, Center Focus, Super Surround, Subwoofer level ( → page 27) and Super Woofer ( → page 27) cannot be performed if headphones are connected (“ERROR” appears on the display).
• You may experience a reduction in sound quality when these sound field systems are used with some sources. If this occurs, turn the sound field system off.

Down-mixing

You can output the down-mixed 2 channel signals when necessary.

Press [SHIFT] + [MIX 2CH].

Each time you press the button: MIX 2CH ON ↔ MIX 2CH OFF

- When "D.MIX" flashes on the display, the disc contains multiple-channel signals that cannot be down-mixed. DVD-A

Dolby Pro Logic II

Dolby Pro Logic II is an advanced decoder that derives 5-channel surround (Left and Right Front, Center, Left and Right Surround) from any stereo program material, whether or not it has been specifically Dolby Surround encoded.

Press [SHIFT] + [☐☐PLII].

Every time you press the button:

MOVIE: Movie software, recorded in Dolby Surround.

MUSIC: Stereo sources

OFF: Cancel

• This works only in DVD/CD mode.
- “☐☐PLII” lights when there is effect.

Center Focus

(Discs where the dialogue is recorded in the center channel)

You can make the sound of the center speaker seem like it is coming from within the television.

Press [SHIFT] + [C.FOCUS].

Every time you press the button:

C FOCUS ON ←→ C FOCUS OFF

• This does not work when Super Surround is turned on.
• This will also work when Dolby Pro Logic II is turned on.

Super Surround

Press [SUPER SRND] (main unit: [SUPER SURROUND]).

Every time you press the button:

MUSIC: Adds surround effects to stereo sources.

MOVIE: Use this mode when playing movie software.

PARTY: Sound is in stereo regardless of the direction you are facing.

(off): Cancel

• You can adjust the volume of the surround speakers to get the best surround effect (→ page 27, Speaker level adjustments).
• Super Surround does not work when playing a DVD recorded with 5.1 channel.
• When Super Surround is on, Dolby Pro Logic II turns off.

Sound field control

Press [SOUND EQ] to select a setting.

Every time you press the button:

HEAVY: Adds punch to rock.

CLEAR: Clarifies higher sounds.

SOFT: For background music.

DISCO: Reverberates sound to make you feel like you are in a disco.

LIVE: Makes vocals more alive.

HALL: Expands sound to make you feel like you are in a hall.

EQ-OFF: Canceled (no effect is added) (factory preset).

To check the current setting

Press [SOUND EQ].

Using the Manual Equalizer (MANUAL EQ)

Create your own sound quality effects.

1 Press and hold [-MANUAL EQ] until "MANUAL EQ" appears.

2 (Within 12 seconds)

Change the sound quality with the cursor buttons.

① Select the sound range to be adjusted with [◀] or [▶]. BASS ↔ MID ↔ TREBLE
② Adjust the level with [▲] or [▼]. (-3 to +3)

Repeat step 2 to set the desired sound quality.

The original display is restored on the display panel in about 3 seconds.

To cancel

Press [SOUND EQ] to select "EQ-OFF".

The changes you make are stored and automatically recalled the next time you select "MANUAL EQ".

Using the Super Sound Equalizer

Turning on the super sound equalizer gives you a more powerful sound.

Press [S.SOUND EQ] (main unit: [SUPER SOUND EQ]).

The "S.SOUND EQ" indicator lights up.

Every time you press the button:

S.SOUND EQ 1 → S.SOUND EQ 2

S.SOUND EQ OFF

To cancel

Press [S.SOUND EQ] (main unit: [SUPER SOUND EQ]) to turn off the indicator.

Subwoofer level

VK92D VK82D

Press [SHIFT] + [SUBWOOFER] (main unit: [SUBWOOFER]).

Every time you press the button:

SUB W1→SUB W2→SUB W3 (factory preset)→SUB W4

Super Woofer

VK72D

Press [SHIFT] + [S.WOOFER] (main unit: [S.WOOFER]).

Every time you press the button:

SUPER WOOFER ON ←→ SUPER WOOFER OFF

Multi Re-master — Enjoying more natural sound

RAM DVD-A DVD-V CD VCD

Discs recorded with multi channels LPCM at 44.1 kHz or 48 kHz This feature gives you a more natural sound by adding the higher frequency signals not recorded on the disc.

WMA MP3

Discs recorded at 44.1 kHz or 48 kHz

This feature reproduces the frequencies lost during recording to give you a sound closer to the original.

During play

Every time you press [SHIFT] + [M.RE-MASTER]

(main unit: [MULTI RE-MASTER]):

Setting	RAM DVD-A DVD-V CD VCDType of music Effect level	WMA MP3
1 High tempo (e.g., pop and rock) Light
2 Various tempos (e.g., jazz) Medium
3 Low tempo (e.g., classical) Strong
Off Off Off

Speaker level adjustments

This is one of the ways to get appropriate surround effects.

Preparation:

Press [▶, DVD/CD] and then [■] (main unit: [■ STOP]).

1 While stopped and no on-screen display is shown Press [SHIFT] + [TEST] to output a test signal.

L: Front left

C: Center

R: Front right

RS: Right surround

LS: Left surround

- There is no output from SW (subwoofer) channel.

2 Press [-, +VOLUME] (main unit: [VOL DOWN, VOL UP]) to set the volume level normally used for listening.

3 Press [▲] (increase) or [▼] (decrease) to adjust the speaker level for each speaker.

C, RS, LS: -6 dB to +6 dB

(L, R: Only the balance is adjustable.)

- To adjust the balance of the front speakers While outputting the test signal, press [◀, ▶].

- Adjust the speaker level to the same level as the front speakers.

To stop the test signal

Press [SHIFT]+[TEST] again.

■ To adjust speaker level during play

(Effective when playing multi-channel audio or Dolby Pro Logic II or Super Surround is on.)

1 Press [SHIFT] + [CH SEL] to select the speaker.

L→C→R→RS→LS→SW

↑

SW: Subwoofer

- You can adjust SW only if the disc includes a subwoofer channel.

- "SW" does not appear on the display and is not adjustable when Dolby Pro Logic II is turned on.

- “S” appears on the display when “MUSIC” or “MOVIE” is selected with Super Surround (→ page 26). In this case, you can adjust both surround speaker levels at the same time using [▲, ▼].

S: -6 dB to +6 dB

2 Press [▲] (increase) or [▼] (decrease) to adjust the speaker level for each speaker.

C, RS, LS, SW: -6 dB to +6 dB

(L, R: Only the balance is adjustable.)

• To adjust the balance of the front speakers

While "L" or "R" is selected, press [◀, ▶].

Using the timers

The play/record timer

You can set the timer to come on at a certain time to wake you up (play timer) or to record a radio station or from the aux source (record timer).

The play and record timers cannot be used together.

Preparation:

• Turn the unit on and set the clock (→ page 9)
• For the play timer, prepare the desired music source (tape/disc/radio/aux), and set the volume.
• For the record timer, check the cassette's erasure prevention tabs (→ page 23) and insert the tape in deck 2 (→ page 23). Tune to the radio station (→ page 22) or select the aux source (→ page 30).

1 Press [CLOCK/TIMER] to select the timer function.

Every time you press the button:

①PLAY: to set the play timer
①REC: to set the record timer
(Proceed to the next step within 7 seconds)

2 ON time setting

① Press [◀◀, REW/√] or [▶▶], ∧/FF] to set the start time.
② Press [CLOCK/TIMER].

OFF time setting

Repeat steps ① and ②.

Using the timers

The play/record timer

3 Press [ ◎PLAY/REC] to display the timer indicator.

Every time you press the button:

①PLAY: to turn the play timer on
①REC: to turn the record timer on
(The indicator doesn't appear if the start and finish times or the clock hasn't been set.)

4 Press [ ⏻] to turn the unit off.

The unit must be off for the timers to operate.

• Play timer: Play will start in the set condition at the set time with volume increasing gradually to the set level.
• Record timer: The unit comes on 30 seconds before the set time with the volume muted.

To cancel the timer

Press [∅PLAY/REC] to clear the timer indicator from the display. (The timer comes on at the set time everyday if the timer is on.)

To change the settings (when the unit is on)

To change the play/record times

Do steps 1, 2 and 4.

To change the source or volume

1. Press [∅PLAY/REC] to clear the timer indicator from the display.
2. Make changes to the source or volume.
3. Do steps 3 to 4.

To check the settings

Press [CLOCK/TIMER] while the unit is on to select "◎PLAY" or "◎REC".

The settings are shown in the following order:
Play timer: start time→finish time→source→volume
Record timer: start time→finish time→source
To check the settings while the unit is off, press [CLOCK/TIMER] twice.

If you use the unit after the timers are set

After using, check that the correct tape/disc(s) are loaded before turning the unit off.

Note

• If you turn the unit off and on again while a timer is functioning, the finish time setting will not be activated.
• If you selected AUX as the source, when the timer comes on, the unit turns on and engages "AUX" as the source. If you want to playback or record from a connected unit, set that unit's timer to the same time. (See the connected unit's instruction manual.)

The sleep timer

This timer turns the unit off after a set time.

While enjoying the desired source:

Press [SHIFT] + [SLEEP] to select the time (minutes).

Every time you press the button:

To cancel the sleep timer

Press [SHIFT]+[SLEEP] to select "SLEEPOFF".

To confirm the remaining time

Press [SHIFT]+[SLEEP] once.

The remaining time is shown for about 5 seconds.

To change the setting

Press [SHIFT]+[SLEEP] to select the new setting.

You can use the sleep timer in combination with the play/record timer.

Make sure the unit is off before the play/record timer's start time.

Note

The sleep timer will be turned off when you start recording.

Muting the volume

Press [MUTING].

Volume is reduced to minimum.

To cancel

Press [MUTING] again or reduce the volume to minimum (--dB), then raise it to the required level.

Muting is also canceled when you switched the unit to standby.

Auto-off function

When disc or tape is selected as the source

To save power, the unit turns off if it is left unused for ten minutes.

This function does not work if the source is tuner or AUX.

Press [SHIFT] + [AUTO OFF].

"AUTO OFF" is shown on the main unit's display.

The setting is maintained even if the unit is turned off.

If you select tuner or AUX as the source, "AUTO OFF" goes out. It comes on again when you select disc or tape.

To cancel

Press [SHIFT]+[AUTO OFF] again.

Dimming the display

Press [SHIFT] + [DIMMER].

To return to the original brightness, press [SHIFT]+[DIMMER] again.

- The display is dimmed, but brightens when you perform some operations.

Changing the sound range display

The unit's display shows the level of each sound range with the four types of display described below.

Press [DISPLAY -DEMO] on the main unit.

Every time you press the button:

Normal display

This display indicates the strength of the sound in each tonal range.

Peak-hold display

The peak sound value of each sound range is held on the display for about one second after it occurs.

Aurora display

The peak sound value of each sound range is displayed in inverted form.

Reflection display

The display which indicates the strength of the sound in each tonal range is displayed in inverted form.

Using other equipment

Using headphones

1 Reduce the volume and connect the headphones (not included).

Headphone plug type: 3.5 mm stereo

2 Adjust headphone volume with [VOL DOWN, VOL UP] on the main unit.

Audio is automatically switched to stereo (2-channel).

Note

Avoid listening for prolonged periods of time to prevent hearing damage.

Operating a television

Point the remote control at the television for the following operations.

Turning the television on/off

Press [SHIFT] + [TV○].

Switching the television's video input mode

Press [SHIFT] + [TV/AV].

Changing channels

Press [SHIFT] + [TV CHV] or [SHIFT] + [TV CHA].

Adjusting the volume

Press [SHIFT] + [-TV VOL] or [SHIFT] + [TV VOL+].

Note

Some models cannot be operated by this remote control.

Using a subwoofer

VK72D

Connect an active subwoofer (not included). See below for connection.

Adjust the volume on the subwoofer to suit your preference.

Note

When using headphones, the subwoofer should be switched off.

Using an external unit

You can playback the sound from a video cassette recorder, tape deck, laser disc player, etc., through this unit's speaker.

Before connection

• Disconnect the AC power supply cord.
• Turn off all equipment and read the appropriate operating instructions.
• The equipment connections described are examples.
• Peripheral equipment and optional cables are sold separately unless otherwise indicated.

When connecting a record player
We recommend using a record player with a built-in phono equalizer. If your player doesn't have a built-in equalizer, connect it first to a separate equalizer and then connect that to this unit.

1 Press [TUNER/AUX] (main unit: [AUX]) to select "AUX". The unit comes on.
2 For listening : Proceed to step 3. For recording : Press [● REC] on the main unit (recording starts). Press [■] (main unit: [■ STOP]) to stop recording.

3 Start playback from external source.

• For details, refer to the instruction manual of the units which are to be connected.
• When units other than those described above are to be connected, please consult your audio dealer.

Optional antenna connections

Use outdoor antenna if radio reception is poor.

Note

Disconnect the outdoor antenna when the unit is not in use. Do not use the outdoor antenna during a lightning storm.

FM outdoor antenna

• Disconnect the FM indoor antenna.
• The antenna should be installed by a competent technician.

AM outdoor antenna

• Run a piece of vinyl wire horizontally across a window or other convenient location.
• Leave the loop antenna connected.

Decoder

A decoder restores the coded audio signals on DVDs to normal. This is called decoding.

Dolby Digital

This is a method of coding digital signals developed by Dolby Laboratories. Apart from stereo (2-channel) audio, these signals can also be multi-channel audio. A large amount of audio information can be recorded on one disc using this method.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters around the world. There is good separation between the channels, so realistic sound effects are possible.

Dynamic range

Dynamic range is the difference between the lowest level of sound that can be heard above the noise of the equipment and the highest level of sound before distortion occurs.

Film and video

DVD-Videos are recorded using either film or video. This unit can determine which type has been used, then uses the most suitable method of progressive output.

For NTSC

Film is 24 or 30 frames per second, with motion picture film generally being 24 frames per second.

Video is 60 fields per second (two fields making up one frame).

For PAL

Film is 25 frames per second.

Video is 50 fields per second (two fields making up one frame).

Frame still and field still

Frames are the still pictures that go together to make a moving picture.

There are about 30 frames shown each second.

One frame is made up of two fields. A regular television shows these fields one after the other to create frames.

A still is shown when you pause a moving picture. A frame still is made up of two alternating fields, so the picture may appear blurred, but overall quality is high.

A field still is not blurred, but it has only half the information of a frame still so picture quality is lower.

Progressive/Interlace

The PAL video signal standard has 576 (or 625) interlaced (i) scan lines, whereas progressive scanning, called 576p (or 625p), uses twice the number of scan lines. For the NTSC standard, these are called 480i (or 525i) and 480p (or 525p) respectively.

Using progressive output, you can enjoy the high-resolution video recorded on media such as DVD-Video.

Your television must be compatible to enjoy progressive video.

I/P/B

MPEG 2, the video compression standard adapted for use with DVD-Video, codes frames using these 3 picture types.

I: Intra coded picture

This picture has the best quality and is the best to use when adjusting the picture.

P: Predictive coded picture

This picture is calculated based on past I or P-pictures.

B: Bidirectionally-predictive coded picture

This picture is calculated by comparing past and future I and P-pictures so it has the lowest volume of information.

Linear PCM (Pulse Code Modulation)

These are uncompressed digital signals, similar to those found on CDs.

Playback control (PBC)

If a Video CD has playback control, you can select scenes and information with menus.

Sampling frequency

Sampling is the process of converting the heights of sound wave (analog signal) samples taken at set periods into digits (digital encoding). Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound.

Language code list

Abkhazian: 6566	Danish:	6865	Italian:	7384	Norwegian:	7879	Swedish:	8386
Afar: 6565	Dutch:	7876	Japanese:	7465	Oriya:	7982	Tagalog:	8476
Afrikaans: 6570	English:	6978	Javanese: 7487		Pashto, Pushto:	8083	Tajik:	8471
Albanian: 8381	Esperanto:	6979	Kannada:	7578	Persian: 7065		Tamil:	8465
Ameharic: 6577	Estonian: 6984		Kashmiri: 7583		Polish:	8076	Tatar:	8484
Arabic: 6582	Faroese:	7079	Kazakh: 7575		Portuguese:	8084	Telugu:	8469
Armenian: 7289	Fiji:	7074	Kirghiz:	7589	Punjabi: 8065		Thai:	8472
Assamese: 6583	Finnish:	7073	Korean:	7579	Quechua:	8185	Tibetan: 6679
Aymara: 6589	French:	7082	Kurdish: 7585		Rhaeto-Romance:	8277	Tigrinya:	8473
Azerbaijani: 6590	Frisian:	7089	Laotian:	7679	Romanian:	8279	Tonga: 8479
Bashkir: 6665	Galician:	7176	Latin:	7665	Russian:	8285	Turkish:	8482
Basque: 6985	Georgian:	7565	Latvian, Lettish:	7686	Samoan:	8377	Turkmen:	8475
Bengali; Bangla: 6678	German:	6869	Lingala:	7678	Sanskrit:	8365	Twi:	8487
Bhutani: 6890	Greek:	6976	Lithuanian:	7684	Scots Gaelic:	7168	Ukrainian: 8575
Bihari: 6672	Greenlandic:	7576	Macedonian:	7775	Serbian: 8382		Urdu:	8582
Breton: 6682	Guarani:	7178	Malagasy: 7771		Serbo-Croatian:	8372	Uzbek: 8590
Bulgarian: 6671	Gujarati:	7185	Malay:	7783	Shona:	8378	Vietnamese:	8673
Burmese: 7789	Hausa:	7265	Malayalam:	7776	Sindhi:	8368	Volapük:	8679
Byelorussian: 6669	Hebrew: 7387		Maltese:	7784	Singhalese: 8373		Welsh:	6789
Cambodian: 7577	Hindi:	7273	Maori:	7773	Slovak:	8375	Wolof: 8779
Catalan: 6765	Hungarian:	7285	Marathi: 7782		Slovenian:	8376	Xhosa: 8872
Chinese: 9072	Icelandic:	7383	Moldavian:	7779	Somali:	8379	Yiddish:	7473
Corsican: 6779	Indonesian:	7378	Mongolian:	7778	Spanish:	6983	Yoruba:	8979
Croatian: 7282	Interlingua: 7365		Nauru:	7865	Sundanese:	8385	Zulu:	9085
Czech: 6783	Irish:	7165	Nepali: 7869		Swahili:	8387

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult your dealer for instructions.

Power Page

No power.	• Insert the AC power supply cord securely. 8
The unit is automatically switched to the standby mode.	• The unit was switched to standby by the sleep timer or auto-off function.	28, 29

Unresponsive or inoperable function

No response when buttons pressed.	This unit cannot play discs other than the ones listed in these operating instructions.Some operations may be prohibited by the disc.—The unit may not be operating properly due to lightning, static electricity or some other external factor. Turn the unit off then back to ON. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.Condensation has formed: Wait 1 to 2 hours for it to evaporate.	4, 17—
No operations can be performed with the remote control.	Check that the batteries are installed correctly. 8The batteries are depleted: replace them with new ones.Aim the remote control at the remote control sensor and operate.	810
Cannot play DVDs.	CD Mode is on. Press [CD MODE] to turn CD Mode off.	14
No picture or sound.	Check the video or audio connection. 6, 7Check the power or input setting of the connected equipment.Check that the DVD-RAM has something recorded in it. —	—
You have forgotten your ratings password.Reset all the settings to Factory Preset.	While stopped and “DVD/CD” is the source, press and hold [■ STOP] on the main unit and [≥10] on the remote control until “Initialized (or Initialised)” disappears from the television.Turn the unit off and on again.All settings will return to the default values.	—

Specific operation undesirable or unexpected

It takes time before play starts. MP3	• Play may take time to begin when an MP3 track has still picture data. Even after the track starts, the correct play time will not be displayed. This is normal.	—
Folders deeper than the eighth layer on a data disc are not displayed correctly. WMA MP3 JPEG	• Folders deeper than the eighth layer are displayed as the eighth layer.	—
A menu screen appears during skip or search. VCD	• This is normal for Video CDs.	—
Playback control menu doesn’t appear. VCD with playback control	• Press [■] twice and then press [▶, DVD/CD].	—
The program and random play functions do not work. DVD-V	• These functions do not work with some DVD-Videos.	—
Programmed items are not played. DVD-V	• Some items cannot be played even if you have programmed them.	—
The on-screen menu shows “2” as a soundtrack option when [SHIFT]+[AUDIO] is pressed, but the audio does not change. DVD-A	• Even if a second soundtrack isn’t recorded, two numbers will normally be shown.	—
Play restarts from the beginning of the track when the soundtrack is changed. DVD-A	• This is normal for DVD-Audio.	—
Scenes are skipped intermittently. RAM DVD-V	• If you change the volume or sound field/quality setting during ADVANCED DISC REVIEW, the function continues without the on-screen display. Press [A.DISC REVIEW] again to cancel the function.	14

Subtitle

Subtitle position is wrong.	• Adjust the position. (“Subtitle Position” in the Display Menu.)	19
No subtitles.	• Display the subtitles.	15

Marker

Cannot add markers.

You cannot add markers with DVD-RAM.If the disc's elapsed play time doesn't appear on the unit's display, you cannot add markers.

——

A-B repeat

Point B is automatically set.	• The end of an item becomes point B when it is reached.	—
A-B repeat is automatically canceled.	• A-B repeat is canceled when you press [SHIFT]+[QUICK REPLAY].	—

Sound

Sound distorted.	Noise may occur when playing WMA.	—
Effects do not work.	Some audio effects do not work or have less effect with some discs.Multi Re-master and Dolby Pro Logic II do not work if you have changed the play speed.	——
Humming heard during play.	An AC power supply cord or fluorescent light is near the cables. Keep other appliances and cords away from this unit's cables.	—
No sound.	There may be a pause in sound when you change the play speed.	15

Menus

The Setup menu cannot be accessed.

Select “DVD/CD” as the source.Cancel program and random play.

—18

Picture abnormal or un-viewable
Page

Picture distorted.	Some distortion is normal during SEARCH.Ensure that the unit is connected directly to the television, and is not connected through a video cassette recorder.	—7
Picture size doesn’t fit the screen.	Change “TV Aspect” in the “Video” tab.Change the Zoom setting.	2115
The television may display incorrectly or colors appear faded.	The unit and television are using different video systems.For Southeast Asia Use a multi-system or NTSC television.For others Use a multi-system or PAL television.The system used on the disc does not match your television.—PAL discs cannot be correctly viewed on an NTSC television.—This unit can convert NTSC signals to PAL 60 for viewing on a PAL television (“NTSC Disc Output” in “Video” tab.)	——21
Menu is not displayed correctly.	Restore the zoom ratio to “x1.00”.Set “Subtitle Position” in Display Menu to “0”.	1519
Auto zoom function does not work well.	Turn off TV’s zoom function.Use the other preset aspect ratios or manual adjustment.Zoom function may not work well, especially in dark scenes and may not work depending on the type of disc.	——15—
The picture on the television disappears or stripes appear on the screen.	Mobile telephone chargers can cause some disturbance.If you are using a TV indoor antenna, change to an outdoor antenna.The television antenna wire is too close to the unit. Separate the antenna wire of the television from the unit.	———

Progressive video

There is ghosting when progressive output is on.	This problem is caused by the editing method or material used on DVD-Video, but should be corrected if you use interlace output. Change “Video Output Mode” in Picture Menu to “480i (or 525i)” or “576i (or 625i)”.	19
Picture not in progressive output.	Press [SHIFT]+[PROGRESSIVE] so “PRG” is displayed. Or select “480p (or 525p)” or “576p (or 625p)” in “Video Output Mode” in Picture Menu.If the unit is connected to the television through VIDEO OUT or S VIDEO OUT terminal, output will be interlace, even if “PRG” is displayed.	13, 197

Listening to the radio

Noise is heard.“ST” flickers or doesn’t light.Sound is distorted.	Adjust the position of the FM or AM antenna.—Use an outdoor antenna. 30
A beat sound is heard.	Turn the television off or separate it from the unit.—
A low hum is heard during AM broadcasts.	Separate the antenna from other cables and cords.—

Using the cassette deck

Poor quality sound.Recording is not possible.

Clean the heads.If the erasure prevention tabs have been removed, cover the holes with adhesive tape.

back cover23

Unit displays

Although the unit is on standby mode, the display lights up and changes continuously.	Turn off the demo function. 9If you set the clock, demo function will be turned off automatically.	9
The display is dark.	Press [SHIFT]+[DIMMER] to brighten the display. 29
“NO PLAY”	You inserted a disc the unit cannot play; insert one that can.You inserted a blank disc. —	4
“NO DISC”	You haven’t inserted a disc; insert one. —You haven’t inserted the disc correctly; insert it correctly.	back cover
“F61”	Check and correct the speaker cord connections. 6, 7If this does not fix the problem, there is a power supply problem. Consult the dealer.
“DVD U11”	Disc is dirty. Wipe it clean. 4
“ERROR”	Incorrect operation performed. Read the instructions and try again.	—
“DVD H□□”□□ stands for a number.	Trouble may have occurred. The number following “H” depends on the status of the unit.Turn the unit off and back to ON. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.If the service numbers fail to clear, note the service number and contact a qualified service person.	——

Television displays

“This disc may not be played in your region”	You can only play DVD-Video if their region number is the same or includes the same region number as the unit or if the DVD-Video is marked “ALL”. Confirm the region number for the unit on the back of the main unit.	—
No on-screen display.	Select “On” in “On-Screen Messages” in “Display” tab.	21
“☒”	The operation is prohibited by the unit or disc.	—
“Cannot display group xx, content xx”	You are trying to display incompatible contents.	—

Memory reset (Initialization)

When the following situations occur, refer to the instructions below to reset the memory:

• There is no response when buttons are pressed.
- You want to clear and reset the memory contents.

To reset memory

1 Disconnect the AC power supply cord. (Wait at least 3 minutes before proceeding to step 2.)
2 While pressing and holding down [∅/l] on the main unit, reconnect the AC power supply cord.

"----" appears on the display.

3 Release [∅/I].

All the settings are returned to the factory preset.

You will need to reset the memory items.

AMPLIFIER SECTION

VK92D

RMS Output Power: Dolby Digital Mode

Front – High Ch	95 W per channel (4 Ω), 1 kHz, 10% THD
Front – Low Ch	50 W per channel (8 Ω), 100 Hz, 10% THD
Surround Ch	75 W per channel (4 Ω), 1 kHz, 10% THD
Center Ch	100 W per channel (4 Ω), 1 kHz, 10% THD
Subwoofer Ch	95 W per channel (4 Ω), 100 Hz, 10% THD
Total RMS Dolby Digital mode power 730 W

PMPO output power 8000

W

VK82D

RMS Output Power: Dolby Digital Mode

Main	85 W per channel (4 Ω), 1 kHz, 10% THD
Surround Ch	60 W per channel (4 Ω), 1 kHz, 10% THD
Center Ch	80 W per channel (4 Ω), 1 kHz, 10% THD
Subwoofer Ch	90 W per channel (4 Ω), 100 Hz, 10% THD
Total RMS Dolby Digital mode power 460 W

For Saudi Arabia, Kuwait and Southeast Asia

PMPO output power 5600

W

VK72D

RMS Output Power: Dolby Digital Mode

Main	70 W per channel (6 Ω), 1 kHz, 10% THD
Surround Ch	55 W per channel (6 Ω), 1 kHz, 10% THD
Center Ch	70 W per channel (6 Ω), 1 kHz, 10% THD
Total RMS Dolby Digital mode power 320 W

PMPO output power 4000

W

FM/AM TUNER, TERMINALS SECTION

Preset station FM 15 stations

AM 15 stations

Frequency Modulation (FM)

Frequency range 87.50 to 108.00	MHz (50 kHz step)
Sensitivity 2.5	μV (IHF)
S/N 26 dB 2.2	μV
Antenna terminals 75	Ω (unbalance)

Amplitude Modulation (AM)

Frequency range

For Saudi Arabia, Kuwait and Southeast Asia

522 to 1629 kHz (9 kHz step)

520 to 1630 kHz (10 kHz step)

522 to 1629 kHz (9 kHz steps)

For Australia and N.Z. VK82D

AM sensitivity S/N 20 dB at 999 kHz 560

μV/m

Audio performance (Amplifier)

Input sensitivity/Input impedance

Aux

250 mV, 20 kΩ

Phone jack

Terminal

Stereo, 3.5 mm jack

For Saudi Arabia, Kuwait and Southeast Asia

Mic jack

Sensitivity

0.7 mV, 600 Ω

Terminal

Mono, 6.3 mm jack (2 system)

CASSETTE DECK SECTION

Type

Auto Reverse

Track system

4-Track, 2 Channel

Head Record/Playback

Solid Permalloy Head

Erasure

Double Gap Ferrite Head

Motor

DC Servo Motor

Recording System

AC Bias 100 kHz

Erase System

AC Erase 100 kHz

Tape Speed

4.8 cm/s

Overall Frequency Response (+3, -6 dB) at DECK OUT

Normal

35 Hz to 14 kHz

S/N Ratio

50 dB (A weighted)

Wow and Flutter

0.18% (WRMS)

Fast Forward and Rewind Time

Approx. 120 seconds with C-60 cassette tape

DISC SECTION

Disc played (8 cm or 12 cm)

(1) DVD (DVD-Video, DVD-Audio)

(2) DVD-RAM (DVD-VR, JPEG *4, *5)

(3) DVD-R (DVD-Video)

(4) DVD-RW (DVD-Video)

+R/RW (Video)

(5) CD, CD-R/RW [CD-DA, Video CD, SVCD *1, MP3 *2, *5,

WMA ³ , ⁵ , JPEG ⁴ , ⁵ , HighMAT Level 2 (Audio and Image)]

*1 Conforming to IEC62107

^*2 MPEG-1 Layer 3, MPEG-2 Layer 3

*3 Windows Media Audio Ver. 9.0 Class 2A Not compatible with Multiple Bit Rate (MBR)

⁴ Exif Ver 2.1 JPEG Baseline files Picture resolution: between 160 x 120 and 6144 x 4096 pixels (Sub sampling is 4:2:2 or 4:2:0)

⁵⁶ The total combined maximum number of recognizable audio and picture contents and groups: 4000 audio and picture contents and 400 groups.

Pick up

Wavelength

DVD/CD

662 nm/785 nm

Audio output (Disc)

Number of channels 5.1 ch (FL, FR, C, SL, SR, SW)

Audio performance (measurement at: Line out terminal)

Frequency response

- CD-Audio

4 Hz to 20 kHz (+1 dB, -2 dB)

VIDEO SECTION

Video system

Signal system PAL625/50, PAL525/60, NTSC

Composite video output

Output level	1 Vp-p (75 Ω)
Terminal	Pin jack (1 system)

S-video output

Y output level	1 Vp-p (75 Ω)
C output level 0.3	Vp-p (75Ω) (PAL)
	0.286 Vp-p (75Ω) (NTSC)
Terminal	S terminal (1 system)

Component video output

[NTSC: 525 (480)p/525 (480)i, PAL: 625 (576)p/625 (576)i]

Y output level 1 Vp-p (75 Ω)

Pb output level 0.7 Vp-p (75 Ω)

PR output level 0.7 Vp-p (75 Ω)

Terminal Pin jack (Y: green, PB: blue, PR: red) (1 system)

SPEAKER SECTION

VK92D Front speakers SB-VK92

Type 3 way, 3 speaker system (Bass reflex)

Speaker unit(s) Impedance High 4 Ω/Low 8 Ω

1. Super woofer 20 cm Cone type

2. Woofer 12 cm Cone type

3. Tweeter 6 cm Cone type

Input power (IEC) High 100 W (Max)/Low 55 W (Max)

Output sound pressure 86 dB/W (1.0 m)

Cross over frequency 170 Hz, 7 kHz

Frequency range 40 Hz to 23 kHz (-16 dB)

54 Hz to 21 kHz (-10 dB)

Dimensions (WxHxD) 250 x 429 x 318.5 mm

Mass 6.2 kg

VK92D Surround speakers SB-PS92

Type 2 way, 2 speaker system (Bass reflex)

Speaker unit(s) Impedance 4 Ω

1. Woofer 8 cm Cone type

2. Tweeter 6 cm Cone type

Input power (IEC) 80 W (Max)

Output sound pressure 81 dB/W (1.0 m)

Cross over frequency 8 kHz

Frequency range 69 Hz to 29 kHz (-16 dB)

74 Hz to 27 kHz (-10 dB)

Dimensions (WxHxD) 140 x 330 x 155.8 mm

Mass 1.3 kg

VK92D Center speaker SB-PC92

Type 2 way, 3 speaker system (Bass reflex)

Speaker unit(s) Impedance 4 Ω

1. Full range

8 cm Cone type

1. Full range

8 cm Cone type

Input power (IEC) 110 W (Max)

Output sound pressure 81 dB/W (1.0 m)

Cross over frequency

10 kHz

Frequency range 79 Hz to 28 kHz (-16 dB)

90 Hz to 26 kHz (-10 dB)

Dimensions (WxHxD) 409 x 104 x 155.5 mm

Mass 1.5 kg

VK92D Subwoofers SB-WVK92

Type 1 way, 2 speaker system (Bass reflex)

Speaker unit(s) Impedance 4 Ω

1. Woofer

16 cm Aluminum Cone type

1. Woofer

16 cm Aluminum Cone type

Input power (IEC) 100 W (Max)

Output sound pressure 84 dB/W (1.0 m)

Frequency range

27 Hz to 3.6 kHz (-16 dB)

32 Hz to 400 Hz (-10 dB)

200 x 429 x 378 mm

Dimensions (WxHxD)

Mass 6.3 kg

VK82D Front speakers SB-VK82

Type 3 way, 3 speaker system (Bass reflex)

Speaker unit(s) Impedance 4 Ω

1. Super woofer 20 cm Cone type

2. Woofer 12 cm Cone type

3. Tweeter 6 cm Cone type

Input power (IEC) 100 W (Max)

Output sound pressure 86 dB/W (1.0 m)

Cross over frequency 300 Hz, 7 kHz

Frequency range 40 Hz to 23 kHz (-16 dB)

54 Hz to 21 kHz (-10 dB)

Dimensions (WxHxD) 250 x 429 x 318.5 mm

Mass 6.2 kg

VK82D Surround speakers SB-PS82

Type 2 way, 2 speaker system (Bass reflex)

Speaker unit(s) Impedance 4 Ω

1. Woofer 8 cm Cone type

2. Tweeter 6 cm Cone type

Input power (IEC) 80 W (Max)

Output sound pressure 81 dB/W (1.0 m)

Cross over frequency 8 kHz

Frequency range 69 Hz to 29 kHz (-16 dB)

74 Hz to 27 kHz (-10 dB)

Dimensions (WxHxD) 140 x 330 x 155.8 mm

Mass 1.3 kg

VK82D Center speaker SB-PC82

Type 2 way, 3 speaker system (Bass reflex)

Speaker unit(s) Impedance 4 Ω

1. Full range

8 cm Cone type

1. Full range

8 cm Cone type

Input power (IEC) 110 W (Max)

Output sound pressure 81 dB/W (1.0 m)

Cross over frequency

10 kHz

Frequency range 79 Hz to 28 kHz (-16 dB)

90 Hz to 26 kHz (-10 dB)

Dimensions (WxHxD) 409 x 104 x 155.5 mm

Mass 1.5 kg

VK82D Subwoofer SB-WVK82

Type 1 way, 2 speaker system (Bass reflex)

Speaker unit(s) Impedance 4 Ω

1. Woofer

16 cm Aluminum Cone type

1. Woofer

16 cm Aluminum Cone type

Input power (IEC) 100 W (Max)

Output sound pressure 84 dB/W (1.0 m)

Frequency range

27 Hz to 3.6 kHz (-16 dB)

32 Hz to 400 Hz (-10 dB)

200 x 429 x 378 mm

Dimensions (WxHxD)

Mass 6.3 kg

VK72D Front speakers SB-VK72

Type 3 way, 3 speaker system (Bass reflex)

Speaker unit(s) Impedance 6 Ω

1. Super woofer 20 cm Cone type

2. Woofer 12 cm Cone type

3. Tweeter 6 cm Cone type

Input power (IEC) 85 W (Max)

Output sound pressure 86 dB/W (1.0 m)

Cross over frequency 300 Hz, 7 kHz

Frequency range 40 Hz to 23 kHz (-16 dB)

54 Hz to 21 kHz (-10 dB)

Dimensions (WxHxD) 250 x 429 x 318.5 mm

Mass 6.2 kg

VK72D Surround speakers SB-PS72

Type 1 way, 1 speaker system (Bass reflex)

Speaker unit(s) Impedance 6 Ω

1. Full range

6.5 cm Cone type

Input power (IEC) 70 W (Max)

Output sound pressure 80 dB/W (1.0 m)

Frequency range

100 Hz to 25 kHz (-16 dB)

113 Hz to 22 kHz (-10 dB)

220 x 88 x 96 mm

Dimensions (WxHxD)

Mass

0.72 kg

VK72D Center speaker SB-PC72

Type 2 way, 3 speaker system (Bass reflex)

Speaker unit(s) Impedance 6 Ω

1. Full range

6.5 cm Cone type

1. Full range

6.5 cm Cone type

Input power (IEC) 100 W (Max)

Output sound pressure 83 dB/W (1.0 m)

Cross over frequency

10 kHz

Frequency range 103 Hz to 25 kHz (-16 dB)

116 Hz to 22 kHz (-10 dB)

Dimensions (WxHxD)

320 x 88 x 96 mm

Mass 1.3 kg

GENERAL

Power supply

For Saudi Arabia, Kuwait and Southeast Asia

AC 110 to 127V/220 to 240V, 50/60 Hz

For Australia and N.Z. VK82D

AC 230 to 240V, 50 Hz

Power consumption

VK92D 450 W

VK82D 365 W

VK72D 300 W

Dimensions (WxHxD) 250 x 330 x 348 mm

Mass

VK92D VK82D 9.4 kg

VK72D 8.8 kg

Operating temperature range + 5°C to + 35°C

Operating humidity range 5% to 90% RH (no condensation)

Power consumption in standby mode:

VK92D VK82D 0.9 W (approximate) VK72D 0.8 W (approximate)

Note:

1. Specifications are subject to change without notice. Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum analyzer.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

HDCD , HDCD , High Definition Compatible Digital and Pacific Microsonics ^TM are either registered trademarks or trademarks of Pacific Microsonics, Inc. in the United States and/or other countries.

HDCD system manufactured under license from Pacific Microsonics, Inc. This product is covered by one or more of the following: In the USA: 5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274, 5,854,600, 5,864,311, 5,872,531, and in Australia: 669114, with other patents pending.

Tray/disc handling procedure

Not adhering to the following may cause problems.

Opening/closing a disc tray

Inserting a disc correctly

• Insert the disc correctly in the position as indicated in the diagrams above.
• Place only one disc on a tray.
• Insert the disc with the label side facing up.

Maintenance

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

Do not use commercially available lens cleaners as they may cause malfunction. (Cleaning of the lens is generally not necessary although this depends on the operating environment.)

For a cleaner, crisper sound (cassette deck)

Clean the heads regularly to assure good quality playback and recording. Use a cleaning tape (not included).
