Product type	Built-in dishwasher
Brand	Indesit
Model	DSIO 3M24 C S
Width	45 cm (narrow model)
Height	85 cm (adjustable up to 90 cm)
Depth	60 cm
Net weight	40 kg
Capacity	10 place settings
Number of programs	6 programs (Intensive, Eco, Quick, Normal, Glass, Pre-rinse)
Energy class	E (old label: A+)
Annual water consumption	2800 liters (estimate)
Annual energy consumption	220 kWh (estimate)
Noise level	49 dB(A)
Special functions	Delayed start, Half load, Anti-leak safety
Drying type	Condensation drying
Tub material	Stainless steel
Salt indicator	Yes, indicator light
Rinse aid indicator	Yes, indicator light
Self-cleaning filter	No
Spare parts	Available: spray arms, filters, baskets (model 3M24)
Repairability index	7.2/10 (manufacturer estimate)
Maintenance	Monthly cleaning of filters, check spray arms

Frequently Asked Questions - DSIO 3M24 C S INDESIT

How to install my Indesit DSIO 3M24 C S dishwasher?

Installation must be carried out by a qualified professional. Ensure that the water inlets (3/4 inch) and drainage are compliant. The noise level is 49 dB. Refer to the built-in diagram provided with the manual.

What products to use for the dishwasher?

Use regenerating salt, rinse aid, and dishwasher powder or tablets. Do not use regular dish soap. Adjust dosage according to water hardness (test strip).

How to clean the dishwasher filters?

Remove the lower basket, unscrew the central filter and rinse it under running water. Clean the flat filter monthly. A clogged filter reduces washing performance.

Why is my dishwasher not washing properly?

Check that the spray arms rotate freely and that the nozzles are not blocked. Also ensure that the filters are clean, salt and rinse aid are adequate, and the dishes are not overloaded.

How to resolve an error code on the dishwasher?

Error codes are displayed on the control panel. For example, F1 indicates a water inlet fault, F2 a drainage problem. Consult the manual for the full meaning and recommended actions.

What is the place setting capacity of the DSIO 3M24 C S?

This model is a narrow 45 cm wide dishwasher with a standard capacity of 10 place settings. The upper basket is height-adjustable to accommodate large glasses.

Can I use all-in-one tablets?

Yes, this model accepts multifunction tablets. In this case, set the salt and rinse aid dispensers to minimum and activate the 'All-in-One' option if available on your control panel.

How to maintain the spray arms?

Unscrew the nuts of the upper and lower spray arms, rinse them under running water. Use a needle to unclog the nozzles. Reassemble, ensuring they rotate freely.

What is the duration of the economic program?

The Eco program (50°C) lasts about 3h30. It is designed for minimal energy and water consumption. For very dirty dishes, use the Intensive program (65°C) about 2h40.

Where to buy spare parts for my Indesit DSIO 3M24 C S?

You can find spare parts like filters, spray arms, and gaskets on specialized sites (e.g., SOS Accessoire, Spareka) or from an Indesit authorized dealer. Use the exact model to ensure compatibility.

USER MANUAL DSIO 3M24 C S INDESIT

THANK YOU FOR BUYING AN INDESIT PRODUCT.

In order to receive a more complete assistance, please register your appliance on: www.indesit.com/register

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO HAVE MORE DETAILED INFORMATION

Before using the appliance carefully read the Safety Instruction.

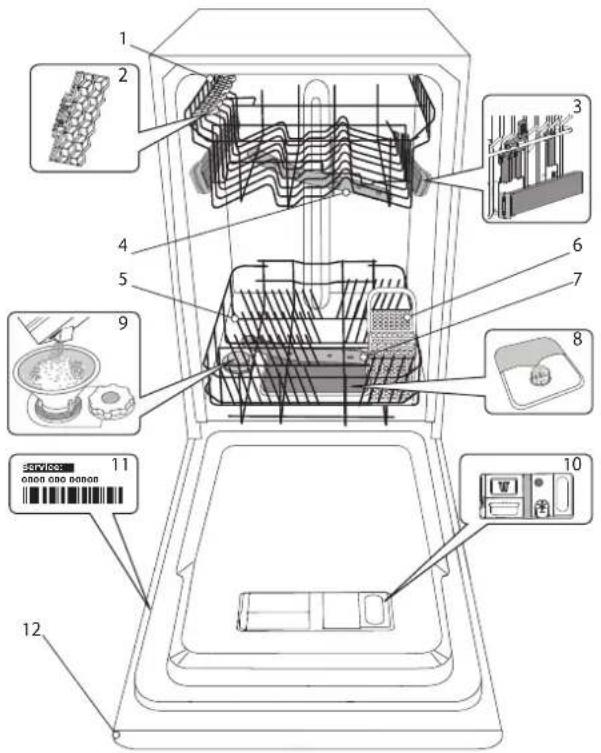

PRODUCT DESCRIPTION

APPLIANCE

1. Upper rack
2. Foldable flaps
3. Upper rack height adjuster
4. Upper spray arm
5. Lower rack
6. Cutlery basket
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel

CONTROL PANEL

1. On-Off/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Display

7. Delay indicator light

8. Half Load indicator lights

9. Push&GO button
10. Delay button
11. Half Load button with indicator light
12. Tablet (Tab) button with indicator light
13. START/Pause button with indicator light

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

- It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.

- It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light. The control panel is lit.

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced food item (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier.

The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button P for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
• The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button.

Setting is complete!

As soon as this procedure is complete, run a program without loading. Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✗ in the control panel is lit.

B

1. Open the dispenser B by pressing and pulling up the tab on the lid.

2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.

3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to ZERO, no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.
- If you see bluish streaks on the dishes, set a low number (1-2).
- If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program		Drying phase	Available options *)	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco 50°	ECO	√	(HW87) [HE22] [DXVW]	4:00 9.0 0.76
2. Auto Intensive 65°		√	(TD80)	2:20 - 3:00 16.0	- 18.0 1.20 - 1.40
3. Auto Mixed 55°		√	(KWYD) [WZZ3] [TKX8]	2:10 - 2:50 14.5	- 16.0 1.05 - 1.25
4. Glass	45°	√	(OTY4) [SA33]	1:40 12.0 1.0
5. Rapid 30' 45°		-	(ZSKC) [OZSK] [KBAY]	0:30 9.0 0.50
6. Night 50°		√	(YWGZ) [OOOW]	3:35 16.5 1.0
7. Extra 65°	[ZSZT]	-		1:30 12.0 1.20
8. Pre-Wash		-	(KAZD) [7331] [KCBK]	0:10 4.5 0.01
9. Push&GO	[X408] 50°	√	(BY46) [DTA0] [ZTW7]	1:20 10.0 1.10

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 AUTO INTENSIVE

Automatic program for heavily soiled dishes and pans (not to be used for delicate items).

3 AUTO MIXED

Automatic program for normally soiled pans and dishes.

4 GLASS

Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.

5 RAPID 30'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.

6 NIGHT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

7 EXTRA

Program that allows to wash very big items loaded in the lower rack. Please apply detergent directly to tub instead of detergent dispenser. Upper rack should be removed with this cycle.

8 PRE-WASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

9 PUSH&GO

Everyday wash and dry cycle that ensures great cleaning performance in a short time without the need to pre-treat dishes.

Notes:

Please note that cycle Rapid 30' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

PUSH & GO

Push&GO button is an easily distinguishable button that allows you direct access to the Push&GO program, a wash and dry cycle that ensures great cleaning performance in a short time. You don't have to worry which program to choose, Push&GO cycle will do the work for you.

To select Push&GO program, switch on appliance, press only Push&GO button for 3 seconds and close the door within 4 seconds.

DELAY

The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding «h» symbol appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.
2. Select the wash program, press the START/PAUSE button and within 4 seconds close the door: the timer will begin counting down.
3. Once this time has elapsed, the indicator light «h» switches off and the wash cycle begins.

To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light switches off.

The DELAY function cannot be set once a wash cycle has been started.

HALF LOAD using the upper or lower rack

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and then press the HALF LOAD button: the indicator corresponding to the chosen rack lights up and the wash cycle starts only in the upper or lower rack.

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly.

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used. Press the TABLET button (the indicator light will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

EXTRA

EXTRA makes it possible to carry out a heavy-duty wash cycle of large crockery up to a max height of 53cm: baking pans, oven grids, dripping pans, hob grids, large saucepans, serving dishes, pizza dishes, stainless-steel hood filters. Remove the upper rack to load bulky crockery.

Diagram of a mechanical component with a coiled spring and rope, no text or symbols present

Release the two locks (right and left) and pull out the rack.

When the upper rack is fitted, the locks must be always closed.

Technical line drawing of a mechanical assembly with no visible text or symbols

In order for the water to reach the crockery everywhere, arrange it as shown in the Figure.

Do not start the dishwasher without the upper rack using wash cycles other than EXTRA.

To carry out the wash cycle Extra pour the detergent DIRECTLY INTO THE TUB and not into the dispenser.

LOADING THE RACKS

UPPER RACK

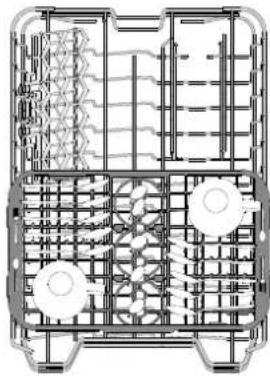

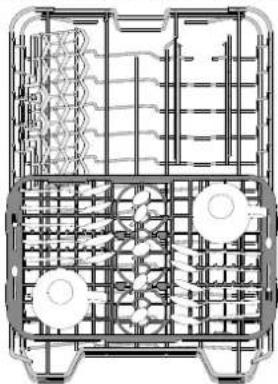

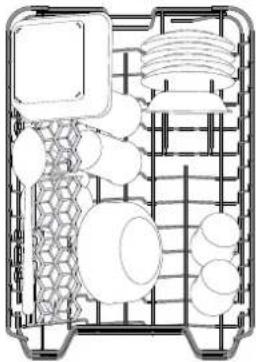

Top-down architectural or mechanical layout diagram showing internal components like gears, spheres, and a grid-like structure (no text or labels)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

(loading example for the upper rack)

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up supports by creating more space upwards and avoid collision with the items loaded into lower rack.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers A at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded.

NEVER raise or lower the basket on one side only.

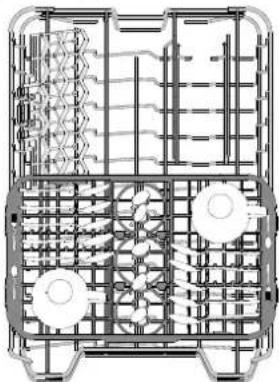

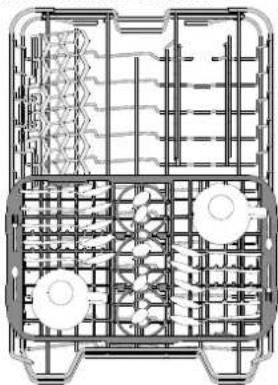

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

Depending on the model:

- to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down.

- to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

Technical diagram of a mechanical or architectural component with layered structure and no visible text or symbols

SLIDING TRAY

Technical diagram of a mechanical or electrical component with grid lines and internal components (no text or symbols)

The upper rack is fitted with a sliding tray which can be used to hold small crockery and cutlery. For optimum washing performance, avoid positioning bulky crockery directly below the tray. The tray is removable.

LOWER RACK

Cross-sectional diagram of an industrial or mechanical device with internal components and no visible text or symbols

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm.

(loading example for the lower rack)

CUTLERY BASKET

It is fitted with top grids for improved cutlery arrangement. It must only be positioned at the front of the lower rack.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack.

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Open the door and press the ON/OFF button.

1. LOAD THE RACKS (see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec. When the program starts you hear a single beep. If the door was not closed within 4sec., the alarm sound will be played. In this case, open the door, press START/Pause button and close the door again within 4 sec.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle number on the display. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: open the door, press and hold the ON/OFF button, the machine will switch off.

Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (START/Pause led starts blinking) (be ware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
  • Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
  The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

• When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.
• In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).
2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

Technical diagram of a mechanical assembly with hand operating a tool, showing internal components and motion arrows (no text or labels)

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Illustration of a hand using a tool to interact with a mechanical device, showing a rotating component and an upward arrow (no text or symbols)

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
  • Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty. (After refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2).Adjust water hardness - see table, page 2.
Rinse aid indicator is lit	Rinse aid dispenser is empty. (After refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not re-start automatically when power returns.Open dishwasher door, press Start button and close the door within 4 seconds.
	The dishwasher door is not closed. Vigorously push	the door until you hear the "click".
	Cycle is interrupted by door opening for more than 4 seconds.	Press START/Pause and close the door within 4 seconds.
	It does not respond to commands.Display shows:9 or12and On/Off LED is blinking rapidly	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.Display shows:3 and On/Off LED is blinking rapidly	The wash cycle has not finished yet. Wait until the wash cycle finishes.	wash cycle finishes.
	The drain hose is bent. Check that the drain hose is not bent (see INSTALLATION INSTRUCTION).	Not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.	pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).	The filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).	The detergent has not been measured out correctly or it is not suitable for use in dish-washers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent.
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dish-washers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).	wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dish-washers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).	Build the salt reservoir (see FILLING THE SALT RESERVOIR).
	There is no salt.	Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The dishwasher does not fill the water. Display shows:H6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely. Display shows:15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.
- Visiting our website docs.indesit.eu and parts-selfservice.whirlpool.com
- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code indicated on the energy label. The label also includes the model identifier that can be used to consult the https://eprel.ec.europa.eu database portal.

Illustration of a hand pouring granular material into a bowl on a stand next to a bread roll (no text or symbols)

Diagram of a coiled cable or spring mechanism with no visible text or symbols

Technical line drawing of a mechanical assembly with two vertical rods mounted on a grid base (no text or symbols)

Top-down schematic of a mechanical or electrical component layout with no visible text, numbers, or symbols.

Architectural line drawing of a building facade with grid patterns and structural elements (no text or symbols)

ПЛЪЗГАЩА СЕ ТАВИЧКА

Technical line drawing of a mechanical component with grid lines and mounting holes (no text or symbols)

Cross-sectional diagram of a mechanical or electrical device with internal components (no visible text or symbols)

Three technical diagrams showing a basket with steam rising, a grid structure with arrows indicating flow, and a final plan view of a storage unit (no text or symbols present)

Technical diagram of a mechanical assembly with hand and tool, no visible text or symbols

Illustration of a hand using a ruler to measure a circular object with a decorative base, showing an upward arrow (no text or symbols present)

Illustration of a hand pouring granular material into a bowl on a stand, with a separate food item nearby (no text or symbols)

Diagram of a mechanical component with a curved band, no visible text or symbols

Technical line drawing of a mechanical lifting device with two vertical supports and a basket (no text or symbols)

Top-down architectural floor plan of a building showing internal layout and furniture placement (no text or labels)

SKLOPNÉ OPĚRKY S NASTAVITELNOU POLOHOU

Architectural or engineering diagram showing layered structure with no visible text, numbers, or symbols

VÝSUVNÝ KOŠ

Technical diagram of a mechanical component with grid lines and internal components (no text or symbols)

Cross-sectional diagram of a mechanical or electrical device with layered components and no visible text or symbols

Technical diagram of a mechanical assembly with hand and base components, no visible text or symbols

Illustration of a hand using a tool to test a circular object in a container, with an upward arrow indicating motion (no text or symbols present)

směřuje vzhůru.

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Technical line drawing of a mechanical lifting device with two vertical supports and a basket (no text or symbols)

Top-down schematic of a mechanical or electrical component layout with no visible text, numbers, or symbols.

Pure technical line drawing of a mechanical component or assembly without any text, numbers, or symbols

VERSCHIEBBARER BEHÄLTER

Top-down technical diagram of a mechanical device with grid lines and internal components (no text or symbols)

Cross-sectional diagram of an electrical enclosure or transformer with internal components (no text or labels visible)

Three technical diagrams showing a fire extinguisher, a grid structure with internal components, and a final layout (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with hand and curved component (no text or symbols)

Illustration of a hand using a ruler to measure a small object in a container, with a decorative cake nearby (no text or symbols)

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced fruit (no text or symbols)

Diagram of a mechanical component with a spring-loaded spring, showing no text or symbols

Technical line drawing of a mechanical assembly with two vertical rods mounted on a grid base (no text or symbols)

Top-down schematic of a mechanical or electrical component layout with no visible text, numbers, or symbols.

Technical diagram of a mechanical assembly with labeled component A (no readable text or symbols)

Technical line drawing of a mechanical assembly or structural component (no text or symbols)

Technical line drawing of a mechanical component with grid and mounting holes (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and housing (no text or labels)

Technical diagram of a mechanical assembly with hand and base components, no visible text or symbols

Illustration of a hand using a tool to interact with a circular device, showing mechanical components and an upward arrow (no text or symbols)

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced food item (no text or symbols)

Diagram of a mechanical component with a coiled spring, no text or symbols present

Technical line drawing of a mechanical assembly with two vertical rods mounted on a grid base (no text or symbols)

Top-down architectural floor plan showing room layouts and structural elements (no text or labels)

REGULEERITAVA PAIGUTUSEGA KOKKUKÄIVAD LABAD

Abstract line drawing of layered geological or material structure with wavy patterns (no text or symbols)

LIUGRIIUL

Technical diagram of a mechanical or electrical component with grid lines and circular features (no text or symbols)

Cross-sectional diagram of an electrical enclosure or enclosure with internal components and wiring (no text or labels visible)

Technical diagram of a mechanical assembly with hand and curved arrows indicating motion (no text or symbols)

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced seed or fruit (no text or symbols)

OPTIONS ET FONCTIONS

Illustration of a mechanical component with a belt and spring, no text or symbols present

Technical line drawing of a mechanical assembly with two vertical supports and a central grid (no text or symbols)

Top-down architectural floor plan showing room layouts and furniture layout (no text or labels)

VOLETS PLIABLES AVEC POSITIONS AJUSTABLES

Cross-sectional diagram of a mechanical or structural assembly with layered components (no visible text or labels)

BAC COULISSANT

Top-down architectural or mechanical diagram showing grid layout with circular elements and structural elements (no text or symbols)

Cross-sectional diagram of an electrical enclosure showing internal components and wiring (no text or labels)

Three technical diagrams showing a fire extinguisher, a grid-patterned storage unit, and a final container with internal structures (no text or symbols)

INTERRUPTIONS IMPRÉVUES

Mechanical assembly diagram showing a lever mechanism with a rotating component and a curved arrow indicating motion (no text or symbols)

Technical diagram of a mechanical assembly with hand operating a rotating component (no text or labels)

Illustration of a hand using a ruler to measure a circular object with a gear-like base, showing an upward arrow (no text or symbols present)

1. Gornja košara
2. Pomični preklopi
3. Mehanizam za podešavanje gornje košare po visini
4. Gornji nosač prskalica
5. Donja košara
6. Košara za pribor za jelo
7. Donji nosač prskalica
8. Sklop filtra
9. Spremnik za sol
10. Spremnici za deterdžent i sredstvo za ispiranje
11. Natpisna pločica
12. Upravljačka ploča

UPRAVLJAČKA PLOČA

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced fruit nearby (no text or symbols)

1. Otvorite dozator B tako da pritisnete i povučete jezičac na poklopcu.
2. Pažljivo uvedite sredstvo za ispiranje do referente oznake maksimalne količine (110 ml) prostora za punjenje, pazite da ne dođe do proljevanja. Ako se to dogodi, suhom krpom odmah očistite proliveno.
3. Pritisnite poklopac dok se ne zatvori uz klik.
   Sredstvo za ispiranje NIKADA ne ulijevajte izravno u kadicu.

PODEŠAVANJE DOZIRANJA SREDSTVA ZA ISPIRANJE

Ako niste potpuno zadovoljni rezultatima sušenja, možete podesiti količinu upotrijebljenog sredstva za ispiranje.

1. Prilikom doziranja deterdženta pogledajte ranije navedene informacije kako biste stavili odgovarajuću količinu. Unutar dozatora D nalaze se oznake koje vam pomažu prilikom doziranja.
2. Uklonite ostatke deterdženta s ru- bova spremnika prije no što poklo- pac zatvorite tako da sjedne.
3. Poklopac spremnika za deterdžent zatvorite tako da ga povučete dok se mehanizam za zatvaranje ne učvrsti.

Spremnik za deterdžent automatski se otvara u odgovarajućem trenutku ovisno o programu. Ako se upotrebljava kombinirani deterdžent, preporučujemo upotrebu gumba TABLETE jer on prilagođava program tako da se uvijek ostvaruju najbolju rezultati pranja i sušenja.

Upotreba deterdženta koji nije namijenjen perilicama posuđa može prouzročiti nepravilnosti ili oštećenje uređaja.

TABLICA PROGRAMA

Program			Faza sušenja	Dostupne opcije *)			Trajanje programa pranja (h:min) **)	Potrošnja vode (litara po ciklusu)	Potrošnja energije (kWh po ciklusu)
1. Eko 50°	ECO		√				4:00 9,0 0,76
2. Automatsko Intenzivno		65°	√				2:20 - 3:00 16,0	18,0 1,20 - 1,40
3. Automatsko Mješovito		55°	√				2:10 - 2:50 14,5	16,0 1,05 - 1,25
4. Čaše		45°	√				1:40 12,0 1,0
5. Brzo 30' 45°			-				0:30 9,0 0,50
6. Noć 50°			√		[ST68]		3:35 16,5 1,0
7. Extra 65°			-				1:30 12,0 1,20
8. Pretpranje		-	-				0:10 4,5 0,01
9. Push&GO		50°	√				1:20 10,0 1,10

Diagram of a rope being twisted with a loop, showing rope routing (no text or symbols)

Technical line drawing of a mechanical assembly with a central frame and two vertical supports (no text or symbols)

Top-down architectural or layout diagram of a building interior with furniture and structural elements (no text or labels)

POMIČNI PREKLOPI S PODESIVIM POLOŽAJEM

Architectural line drawing of a building facade with diagonal and horizontal structural lines (no text or symbols)

KLIZNA LADICA

Technical diagram of a mechanical component with grid lines and circular features (no text or symbols)

Gornja košara ima i kliznu ladicu za postavljanje malog suđa i pribora za jelo. Za najbolju učinkovitost pranja glomazno suđe izbjegavajte postavljati izravno ispod ladice. Ladica se može ukloniti.

DONJA KOŠARA

Cross-sectional diagram of an electrical enclosure or enclosure with internal components and wiring (no text or labels visible)

Three technical diagrams showing a basket with fire extinguishing and three views of a grid-like structure (no text or symbols)

Technical diagram of a mechanical assembly with hand and base components, no visible text or symbols

Illustration of a hand using a ruler to measure a circular object with a gear-like base, no text or symbols present.

Donji krak mlaznice može se skinuti tako da se povuče prema gore.

SUSTAV OMEKŠAVANJA VODE

Illustration of a hand pouring granular material into a bowl on a stand, with a separate side showing a whole grain (no text or symbols)

Diagram of a mechanical component with a spring-like spring and rotating arrows, no text or symbols present.

Technical line drawing of a mechanical assembly with a basket and support structure (no text or symbols)

Top-down architectural floor plan of a building with grid layout and furniture placement (no text or labels)

SPONDE RIBALTABILI CON POSIZIONE REGOLABILE

Architectural line drawing of a building facade with wavy and rectangular patterns (no text or symbols)

PIANO SCORREVOLE

Technical line drawing of a mechanical component with grid lines and internal components (no text or symbols)

Cross-sectional diagram of an electrical enclosure showing internal components and wiring (no text or labels)

Three-panel diagram showing a basket with steam rising, a grid structure with arrows indicating flow, and a final plan view of a storage unit (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a gear and pulley (no text or labels)

Technical diagram of a mechanical assembly with a hand holding a component, showing internal components and motion arrows (no text or labels)

Illustration of a hand using a tool to press food into a container with a cake and a bowl (no text or symbols)

Illustration of a hand pouring granular material into a bowl on a stand next to a sash (no text or symbols)

Diagram of a mechanical component with a coiled spring and roller, no text or symbols present

Technical line drawing of a mechanical assembly with two vertical rods mounted on a grid base (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

REGULIUOJAMOS PADĖTIES UŽLENKIAMI SKYDELIAI

Architectural line drawing of a building facade with diagonal and horizontal panels (no text or symbols)

STUMDOMASIS PADĖKLAS

Technical line drawing of a mechanical component with grid lines and mounting holes (no text or symbols)

Cross-sectional diagram of an electrical enclosure or enclosure with internal components and wiring (no text or labels visible)

Three technical diagrams showing a basket with fire extinguisher and three different storage compartments (no text or symbols)

Mechanical assembly diagram showing a lever mechanism inside a housing (no text or symbols)

Technical diagram of a mechanical assembly with a hand holding a tool, showing internal components and motion arrows (no text or labels)

Illustration of a hand using a tool to press a circular component with a spring, showing mechanical parts and an upward arrow (no text or symbols)

LIETOŠANAS NORĀDĪJUMI

INSTRUKCIJA

PALDIES, KA IEGĀDĀJĀTIES INDESIT IZSTRĀDĀJUMU.

Illustration of a hand pouring granular material into a bowl with a slice of seeds, next to a sliced seed or fruit (no text or symbols)

Diagram of a mechanical component with a spring, showing motion lines and no text or symbols

Atveriet divus fiksatorus (labo un kreiso) un izvelciet statīvu.

Technical line drawing of a mechanical lifting device with a basket and frame (no text or symbols)

Top-down architectural floor plan of a building showing internal layout and furniture placement (no text or labels)

Architectural line drawing of a building facade with internal structural elements (no text or symbols)

BĪDĀMAIS TRAUKS

Technical line drawing of a mechanical component with grid lines and circular features (no text or symbols)

Cross-sectional diagram of a mechanical or electrical device with internal components and no visible text or symbols

Architectural floor plan showing a building with an arrow indicating direction (no text or labels)

Architectural floor plan diagram showing structural grid and stairwell layout (no text or labels)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

SNELLE REFERENTIEGIDS

HANDLEIDING

DANK U WEL VOOR UW AANKOOP VAN EEN INDESIT PRODUCT.

Illustration of a hand pouring granular material into a bowl on a stand, with a separate side view showing a whole grain (no text or symbols)

Diagram of a mechanical component with a curved arrow indicating rotation or force (no text or symbols)

Technical line drawing of a mechanical assembly with gears and a basket (no text or symbols)

Top-down schematic of a vehicle interior layout with no visible text or symbols

Technical line drawing of a mechanical component or assembly (no text or symbols visible)

SCHUIFLADE

Technical line drawing of a mechanical component with grid lines and circular features (no text or symbols)

Cross-sectional diagram of an electrical enclosure or enclosure with internal components (no text or labels visible)

Mechanical assembly diagram showing a lever mechanism inside a housing (no text or symbols)

Technical diagram of a mechanical assembly with hand and gear, no visible text or symbols

Illustration of a hand pouring granular material into a bowl on a stand, with a sliced food item nearby (no text or symbols)

Diagram of a mechanical assembly with a coiled spring and roller, no text or symbols present

Technical line drawing of a mechanical assembly with two parallel rods mounted on a grid base (no text or symbols)

Top-down architectural floor plan of a building showing internal layout and furniture (no text or labels)

SKŁADANE PÓŁECZKI Z REGULOWANYM POŁOŻENIEM

Abstract line drawing of layered geological strata with wavy patterns (no text or symbols)

PRZESUWNA TACKA NA SZTUČCE

Top-down architectural or mechanical diagram showing grid layout with no visible text, numbers, or symbols.

Cross-sectional diagram of an electrical enclosure showing internal components and wiring (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a rotating component and a gear (no text or symbols)

Technical diagram of a mechanical assembly with hand and base components, no visible text or symbols

Illustration of a hand using a tool to press a circular component with a spring scale, showing mechanical setup (no text or symbols)

Illustration of a hand pouring granular material into a bowl on a gas stove (no text or symbols)

SETAREA DURITĂȚII APEI

Diagram of two household appliances with labeled parts (A and B), showing internal compartments and fixtures without any text or symbols.

Diagram of a coiled cable or spring with rope routing (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Top-down schematic of a vehicle or container layout with internal compartments and structural elements (no text or labels)

Architectural line drawing of a building facade with wavy and rectangular elements (no text or symbols)

TAVĂ CULISANTĂ

Top-down architectural or engineering diagram showing a grid-like structure with internal components (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and housing (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a gear and shaft (no text or labels)

Technical diagram of a mechanical assembly with hand and base components (no text or labels)

Illustration of a hand pouring granular material into a bowl with a side view of a sliced seed or nut (no text or symbols)

Simple line drawing of a refrigerator with monitor, toilet, sink, and door (no text or symbols)

B

[Non-Text]

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Technical line drawing of a mechanical lifting device with no visible text or symbols

Architectural floor plan showing room layouts and furniture layout (no text or labels)

SKLÁPACIE KLAPKY S NASTAVITEL'NOU POLOHOU

Architectural line drawing of a building facade with internal structural lines and windows (no text or symbols)

VÝSUVNÁ POLICA

Top-down technical diagram of a mechanical component with grid lines and internal components (no text or symbols)

Cross-sectional diagram of an electrical enclosure or transformer unit with internal components (no text or labels visible)

Architectural floor plan showing grid layout and structural elements (no text or labels)

Architectural floor plan diagram showing grid layout and structural elements (no text or labels)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Architectural diagram of a multi-level building structure with hand and directional arrows indicating components (no text or labels)

Illustration of a hand using a ruler to test a small bowl with food items, no text or symbols present

Spodné ostrekovacie rameno možno vybrat potiahnutím nahor.

SYSTÉM NA ZMÄKČOVANIE VODY

NAVODILA ZA ODPRAVLJANJE TEŽAV

HVALA, KER STE KUPILI IZDELEK ZNAMKE INDESIT.

Za popolno podporo aparat registrirajte na spletni strani: www.indesit.com/register

Pred uporabo aparata pozorno preberite Varnostna navodila.

ZA PODROBNEJŠE INFORMACIJE POSKENIRAJTE KODO QR NA NAPRAVI

OPIS IZDELKA

APARAT

Illustration of a hand pouring granular material into a bowl with a slice of food on a stand (no text or symbols)

Ko to storite, zaženite program brez posode.

Diagram of a mechanical component with a coiled spring, no text or symbols present

Sprostite obe ključavnici (desno in levo) in izvlecite stojalo.

Technical line drawing of a mechanical lifting device with no visible text or symbols

Top-down schematic of a vehicle or container layout with internal compartments and structural elements (no text or labels)

ZLOŽLJIVA POLIČKA Z NASTAVLJIVIM POLOŽAJEM

Architectural line drawing of a building facade with wavy and rectangular patterns (no text or symbols)

ODSTRANLJIVA POLICA

Top-down technical diagram of a vehicle chassis with grid lines and mechanical components (no text or labels)

Cross-sectional diagram of a mechanical or electrical device with layered components and no visible text or symbols

Three technical diagrams showing a basket with steam rising, a cross-sectional view of a storage unit, and a final plan view (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with a curved component and directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with hand and base components (no text or symbols)

Illustration of a hand using a tool to interact with a mechanical component, showing a gear and a rotating ring (no text or symbols)

UPUTSTVO ZA SVAKODNEVNU

UPOTREBU

HVALA ŠTO STE KUPILI PROIZVOD KOMPANIJEINDESIT. Kako biste dobili kompletniju podršku, molimo da registrujete Vaš uređaj na: www.indesit.com/register

SKENIRAJTE QR KOD NA SVOM UREĐAJU DA BISTE DOBILI DETALJNIJE INFORMACIJE

1. Gornja korpa
2. Sklopiva krilca
3. Podešivač visine gornje korpe
4. Gornja prskalica
5. Donja korpa
6. Korpa za pribor za jelo
7. Donja prskalica
8. Sklop filtera
9. Rezervoar za so
10. Posude za deterdžent i sredstvo za ispiranje
11. Natpisna pločica
12. Kontrolna tabla

KONTROLNA TABLA

Illustration of a hand pouring granular material into a bowl with a spoon, next to a sliced food item (no text or symbols)

1. Uklonite donju korpu i odvrnite poklopac rezervoara (u smeru suprotnom od smera kretanja kazaljki na satu).
2. Samo prvi put kada ovo radite: napunite rezervoar za so vodom.
3. Postavite levak (vidite sliku) i napunite rezervoar za so do ivice (oko 1 kg); nije neuobičajeno da malo vode iscuri.
4. Uklonite levak i obrišite ostatke soli sa otvora.

Vodite računa da poklopac bude čvrsto zavijen, tako da deterdžent ne može da uđe u posudu tokom programa pranja (to može da ošeteti omekšivač za vodu tako da se ne može popraviti).

Kad god je potrebno da dodate so, obavezno je da obavite proceduru pre početka ciklusa pranja da bi se izbegla korozija.

PODEŠAVANJE TVRDOĆE VODE

Da bi omekšivač za vodu radio kako treba, neophodno je da tvrdoća vode bude podešena na osnovu stvarne tvrdoće vode u vašoj kući.

Ove informacije možete dobiti od lokalnog snabdevača vodom.

1. Otvorite posudu B tako što ćete pritisnuti i povući na gore jezičak na poklopcu.
2. Pažljivo sipajte sredstvo za ispiranje do oznake za maksimum (110 ml) na prostoru za punjenje - izbegavajte prosipanje. Ako se to dogodi, odmah obrišite prosuto suvom krpom.
3. Pritisnite poklopac dok se ne začuje zvuk škljocanja.
   NIKADA ne sipajte sredstvo za ispiranje direktno u kadicu.

PODEŠAVANJE DOZIRANJA SREDSTVA ZA ISPIRANJE

Ako niste u potpunosti zadovoljni rezultatima sušenja, možete da podesite količinu sredstva za ispiranje koja se koristi.

1. Za odmeravanje deterdženta pogledajte prethodno pomenute informacije kako biste sipali odgovarajuću količinu. U posudi D nalaze se oznake koje vam mogu pomoći u doziranju deterdženta.
2. Uklonite ostatke deterdženta sa ivica posuda pre nego što i zatvorite poklo-pac dok se ne začuje zvuk škljocanja.
3. Zatvorite poklopac posude za deterdžent povlačenjem na gore dok uređaj za zatvaranje ne bude čvrsto na mestu.

Diagram of a mechanical component with a spring-like loop, no text or symbols present

Technical line drawing of a mechanical assembly with two triangular components mounted on a grid base (no text or symbols)

Kako bi mlaz mogao da stigne do svih delova sudova, poređajte ih kako je prikazano na slici.

Ne aktivirajte mašinu za sudove bez gornje korpe u ciklusima pranja izuzev programa EXTRA.

Za aktivaciju ciklusa Extra, stavite deterdžent DIREKTNO U KADU, a ne u dispenzer.

PUNJENJE KORPI

GORNJA KORPA

Top-down architectural or engineering diagram showing internal layout of furniture and components (no text or labels)

SKLOPIVA KRILCA SA PODESIVIM POLOŽAJEM

Architectural line drawing of a building facade with wavy and rectangular elements (no text or symbols)

KLIZNA FIOKA

Technical line drawing of a mechanical assembly with grid and gear components (no text or symbols)

Gornja korpa ima kliznu fioku koja se može koristiti za sitno posuđe i pribor. Za optimalne performanse pranja, izbegavajte postavljanje velikog posuđa direktno ispod fioke. Fioka se može ukloniti.

DONJA KORPA

Cross-sectional diagram of a mechanical or electrical device with internal components and no visible text or symbols

NEODGOVARAJUĆE POSUĐE

• Drveno posuđe i pribor.
• Osetljive ukrašene čaše, umetničke rukotvorine i antičko posuđe. Dekoracija na njima nije otporna.
• Delovi od sintetičkog materijala ne podnose visoke temperature.
• Posuđe od bakra i kalaja.
• Posuđe zaprljano pepelom, voskom, mašću za podmazivanje ili mastilom.

Mechanical assembly diagram showing a lever mechanism with a gear and gear base (no text or symbols)

Nakon čišćenja filtera, ponovo postavite sklop filtera i pravilno ih pričvrstite na mesto; ovo je neophodno za efikasan rad mašine za pranje sudova.

ČIŠĆENJE CREVA ZA DOVOD VODE

Architectural diagram of a building interior with hand and directional arrows indicating movement (no text or symbols)

Da biste uklonili gornju prskalicu, okrenite plastični prsten za zaključavanje u smeru kretanja kazaljki na satu. Gornja prskalica se ponovo postavlja tako da strana sa više otvora bude okrenuta na gore.

Illustration of a hand using a tool to interact with a container, showing a bowl and a plate (no text or symbols)

ЩОДЕННИЙ ДОВІДНИК

Diagram of a rope being wrapped around a coiled cable, with no visible text or symbols

Technical line drawing of a mechanical assembly with a grid base and central shaft (no text or symbols)

Top-down architectural or engineering diagram showing internal layout of furniture and components (no text or labels)

Architectural line drawing of a building facade with wavy and rectangular patterns (no text or symbols)

ВИСУВНИЙ ПІДДОН

Technical diagram of a mechanical assembly with grid lines and gear-like components (no text or labels)

Cross-sectional diagram of a mechanical or electrical device with layered components and no visible text or symbols

Mechanical assembly diagram showing a lever mechanism inside a housing (no text or labels)

Technical diagram of a mechanical assembly with a hand holding a component, showing internal components and motion arrows (no text or labels)

Illustration of a hand using a ruler to test a circular component in a container, with an upward arrow indicating motion (no text or symbols present)
