T26 Pro - Karaoke system EARISE - Free user manual and instructions

Product Type	Karaoke System
Model	T26 Pro
Brand	EARISE
Dimensions (Main Unit, approx.)	30 x 20 x 15 cm
Weight (Main Unit, approx.)	2.5 kg
Power Supply	AC 100-240V, 50/60Hz; DC 5V via USB-C
Battery Capacity	3600 mAh rechargeable lithium-ion
Wireless Microphones	2 x UHF dynamic microphones
Bluetooth Version	5.0
Speaker Power	20W RMS
LED Lighting	Multi-color RGB with multiple modes
Audio Inputs	Bluetooth, AUX 3.5mm, USB, TF card
Audio Outputs	Built-in speaker, headphone jack
Microphone Frequency	UHF 600-700 MHz
Range (Bluetooth)	Up to 10 meters
Range (Microphones)	Up to 15 meters
Battery Life	Up to 4 hours at medium volume
Charging Time	Approx. 3 hours
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids
Safety Precautions	Do not expose to water or extreme temperatures; keep away from children under 3
Replacement Parts	Contact EARISE support for microphones and batteries
Warranty	1 year limited manufacturer warranty

Frequently Asked Questions - T26 Pro EARISE

How do I pair the wireless microphones with the T26 Pro?

Turn on the system and the microphones. They will automatically pair via UHF. If not, press the 'Sync' button on the system and then the microphone's power button.

Can I connect my phone via Bluetooth?

Yes, enable Bluetooth on your phone and select 'EARISE T26 Pro' from the list. The system supports Bluetooth 5.0 for stable audio streaming.

How do I adjust the microphone volume?

Use the dedicated microphone volume knob on the main unit. Separate controls for each microphone are available.

How long does the battery last?

At medium volume, the battery lasts up to 4 hours. Charging takes approximately 3 hours via USB-C.

Can I use external speakers with the T26 Pro?

No, the T26 Pro has built-in speakers only. It does not provide an external speaker output.

How do I clean the system?

Unplug the device and wipe the exterior with a soft, dry cloth. Do not use water or cleaning solvents.

What should I do if the microphones are not working?

Check if the system is on and the microphones have fresh batteries. Ensure they are on the same UHF channel. Try resyncing via the 'Sync' button.

Is the system safe for children?

The system is designed for adult supervision. Keep small parts away from children under 3 years old. Volume should be kept at safe levels.

Can I play music from a USB drive?

Yes, insert a USB drive with MP3 files into the USB port. The system will automatically play them. Use the mode button to select USB playback.

How do I change the LED lighting mode?

Press the 'Light' button on the system to cycle through different modes: static, pulse, and music-reactive.

USER MANUAL T26 Pro EARISE

Close-up of a cariase speaker with hexagonal grille and control panel (no readable text or symbols)

USER INSTRUCTION

Benutzerhandbuch

User Manual

WARNING 02

DISPLAY SCREEN 02

1. Do not place in humid environment or expose to rain. Avoid severe collisions.
2. Keep the product away from high temperature and open flame environment to prevent dangers such as battery explosion.
3. Do not open the cabinet of the product, or it will cause machine damage and other accidents.
4. For maintenance, contact the service station or professional personnel if needed.
5. Can only be replaced with the same or equivalent type of battery.
6. In order to avoid charging issues, the product must be charged with the original USB cable. Accidents and machine damage caused by using other charging cable will not covered by warranty.

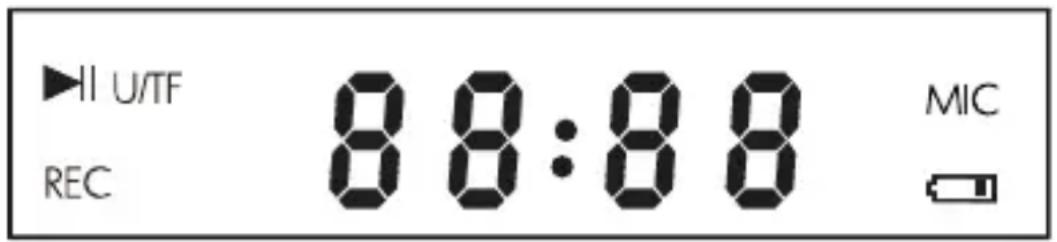

DISPLAY SCREEN

1. [▶]：With a USB flash drive or TF card inserted, this symbol will light up when music is paused. As for AUX in or FM radio mode, this symbol will light up when music is muted.
2. [U/TF]: When a USB flash drive or TF card inserted, this symbol will light up.

3. [MIC]: When the microphone is in use, this symbol will light up.

4. [88:88]: When using the AUX function, "LINE IN" will be displayed on the screen; When in the FM radio mode, it will display the number of current channel; When playing music through a USB flash drive or TF card, it will display the song playing time.

5. [图标] : This symbol will light up when there's only 20% power left. The volume will automatically decrease to about 70%.

6. [REC]: This symbol will light up during recording.

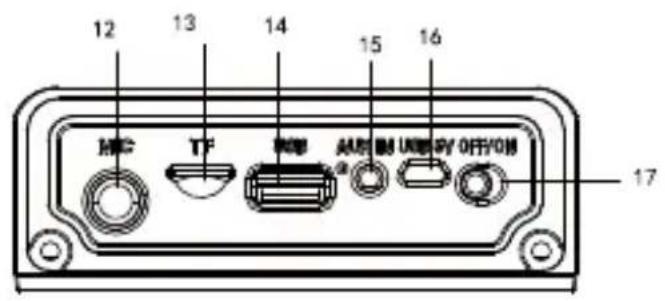

THE OPERATION PANEL

1	Microphone Volume EQ	10
2	Bass	11	Play/Pause
3	Master Volume	12	Mic In
4	Record	13	TF Card Slot
5	Repeat/Light	14	USB Flash Drive Slot
6	Echo	15	Aux In
7	Mode	16	USB 5V Charging Port
8	Previous Track	17	Power On/Off
9	Next Track

BLUETOOTH

1. Power on the speaker. The default mode is Bluetooth. The screen display shows "BLUE" and it will flash.
2. Turn on the device's Bluetooth, search for "EARISE T26 Pro", and click to pair.
3. A voice prompt "Bluetooth connected" to be heard indicates a successful connection. The display "BLUE" stops flashing.

MICROPHONE

1. The package includes two wireless microphones.
2. Each microphone needs 2pcs AA batteries, which are not included.
3. After installing the batteries, push the power switch to the top side to turn on the microphone, the screen display shows "MIC" at the same time.
4. When the power switch is in the middle, it means the microphone is standby.
5. Please keep the microphones 1 meters far away from the speaker, or it will cause a shrill noise.

DISCO LIGHT

1. Press and hold the "REP/Light" button to choose a light mode: multi-color mode 1 (default, cold light), multi-color mode 2 (warm light), fast flashing in several colors, and alternating single-color and two-color flashing. The disco light will flash according to the music.
2. Press the "REP/Light" button twice to turn off the disco light.
3. Press the "REP/Light" button twice again to turn on the disco light.

EQ

1. EQ function only works for USB / TF mode.
2. Press the "EQ" button to select a EQ mode.
3. There are 5 EQ modes: normal, rock, pop, classic, jazz, country.

FM RADIO

1. Press the "MODE" button to switch to FM radio mode.
2. Press and hold the "▶" button to automatically search for FM stations. The station will be saved automatically, the display screen shows "P01", "P02", etc.
3. When searching for stations, you can stop searching by pressing the "▶II" button.
4. After searching, press "▶" or "◀◀" button to select a saved station.
5. If you are listening to a saved station "P05" in which FM range is 92.0 MHz, press and hold "▶" button to searching stations from 92.0MHz to 108.0MHz, and the found station will be saved automatically as "P06"; press and hold "◀" button to searching stations from 87.5MHz to 92.0 MHz, and the found station will be saved automatically as "P04"
6. The FM range is 87.5MHz-108.0MHz.
7. It is suggested to search for radio stations automatically the first time you use it.

AUX IN

1. The speaker has a 3.5 mm AUX jack for connecting non-Bluetooth devices.
2. One end of the cable is plugged into the AUX jack, and the other end is connected to the audio output port of the device, such as a computer, mobile phone and amplifier.
3. The speaker will automatically switch to AUX IN mode. Alternatively, you can switch to the AUX IN mode by pressing the "MODE" button.

MIC IN

1. The speaker has a "MIC IN" jack (6mm AUX jack) for a third microphone.

2. If connected to a wired microphone, simply connect via the "MIC IN" jack.

3. If connected to a wireless microphone, simply connect the wireless receiver via the "MIC IN" jack.

4. Please note that the frequency of the wireless microphone cannot be the same as the original microphones', otherwise it will cause interference.

USB

1. Press the "MODE" button to switch to USB / TF mode.
2. Insert a USB flash drive and the speaker will automatically start playing the existing music from the first song. The display shows "U / TF" in the upper left corner.
3. The song file format must be MP3.
4. The USB flash drive must have a capacity of 8G to 32G.
5. The USB flash drive must be USB 2.0 and the file system must be FAT32.
6. If the USB flash drive is formatted and the file system is not FAT32, it will not work properly.

TF CARD

1. Insert the TF card and the speaker will automatically start playing the existing music from the first song. The display shows "U / TF" in the upper left corner.
2. The song file format must be MP3.
3. The capacity of the TF card must be 8G to 32G.
4. The file system of the TF card must be FAT32.

ECHO

1. Press the "ECHO" button to select the intensity of the reverb, there are 4 levels: E00, E01, E02, E03. E00 is off, and E03 is the strongest.
2. Please note that the reverb only works for the microphone, it doesn't work on the background music.

RECORD

1. The recording function only work when a TF card or USB flash drive inserted.
2. Insert the TF card or USB flash drive, the speaker will automatically switch to USB / TF mode, and "U / TF" will be displayed in the upper left corner of the display screen.
3. Before recording, make sure that you have sufficient recording storage space.
4. Make sure there is at least one song in the TF card or USB flash drive, otherwise the recording function will not work.
5. Please turn on the microphone before press the "REC" button, otherwise the recording function will not work.
6. Press and hold the "REC" button to start recording.
7. Press the "REC" button to pause or resume recording.
8. Press and hold the "REC" button again to finish recording.
9. After recording, press the "REC" button to listen to the recording file just recorded.
10. Deleting a recording file: When playing a recording file, press and hold the "MODE" button to delete the current recording file.
11. The recording file format is MP3.
12. Please note that it cannot play music in recording mode.

REPEAT

1. The repeat function only work when a TF card or USB flash drive inserted.
2. Press the "REP/Light" button to select a loop mode.
3. There are 4 modes: ONE (single song cycle), FOLD (loop the playlist in a folder), RAN (play all songs randomly), ALL (loop all playlist of all folders).

LOW BATTERY ALERT

1. When there's only 20% power left, "☐" will flash on the display screen and the volume will automatically decrease to about 70%, .

2. Use the included USB cable to charge the speaker. One end of the USB cable is connected to the USB 5V charging port on the speaker and the other end is connected to the power outlet. (The adapter is not included)

3. During charging, the charging indicator lights up and turns off when fully charged.
4. When using for the first time, the charging time should not be less than 12 hours.

THE REMOTE CONTROL

Key	Function
REC	Recording
MODE	Switch mode: LINE IN, USB, SD/TF Card, Bluetooth, FM
Press EQ	the button to select a EQ mode: normal, rock, pop, classic, jazz, country.
MUTE	Press the button to enter mute mode, press it again to cancel.
▶II	Play / Pause
◀◀	Previous Track
▶◀	Next Track
REP	When playing music via USB flash drive or TF card, press this button to switch to the loop mode: ONE (single song cycle), FOLD (loop the playlist in a folder), RAN (play all songs randomly), ALL (loop all playlist of all folders).
0~9	When playing music via USB flash drive or TF card, you can select the song you want quickly. For example, you need to select the 258th song, you need to press the “2”, “5”, “8” three buttons in sequence and wait for 1 second, then it will automatically switch to the 258th song.

SPECIFICATION

Power Output: 12W

R. Frequency: 90Hz-20KHz

Li-ion battery: 3.7V / 4400mAh

Drive Unit: 5.25"2Ω*1

S/N Ratio: ≥60dB

DC Input: USB 5V

Power Supply: AC 100-240V

Dimension: L282*W192*H374mm

WHAT'S IN THE BOX

1 x T26 Pro PA Speaker

2 x Wireless Microphones

1 x Remote Control

1 x USB Cable

1 x AUX Cable

1 x User Manual

WARRANTY

EARISE guarantees one and a half years warranty and 60 days hassle-free return. We provide lifetime technical support.

Please reach us via [e-mail].
