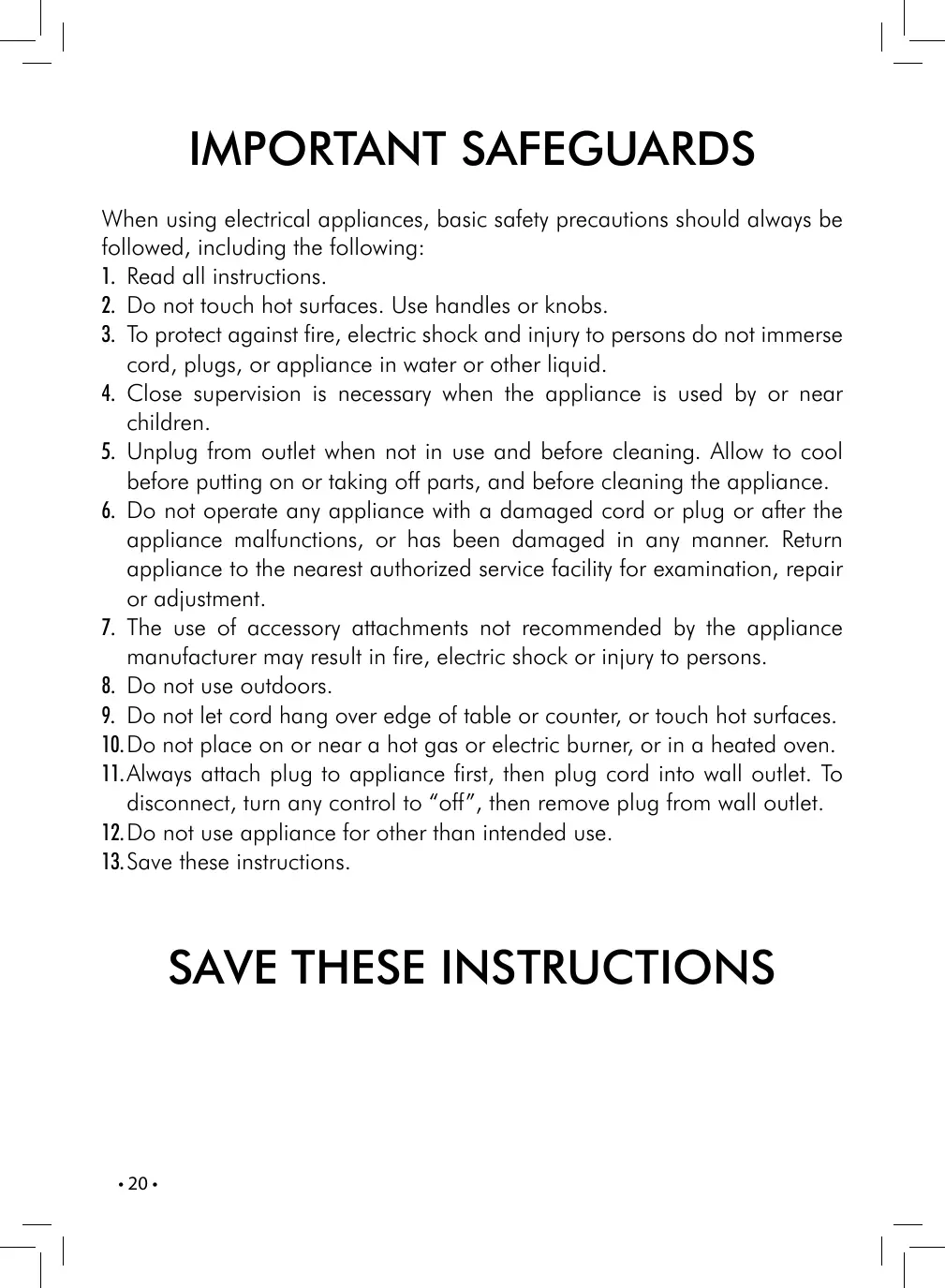

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only.

1 Check voltage to be sure that the voltage indicated on the nameplate corresponds with your voltage.
2 Never use warm or hot water to fill the water tank. Use cold water only.
3 Keep your hands and the cord away from hot parts of the appliance during operation.
4 Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.
5 For optimal taste of your coffee, use purified or bottled water. Periodic descaling is still recommended every 2-3 months.
6 Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER SUPPLY CORD

A. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
B. Longer detachable power-supply cords or extension cords are available and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,

1. The marker electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance

2. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and

3. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

Line drawing of a modern coffee machine (no text or symbols)

Technical line drawing of a mechanical device with an open door and internal components (no text or symbols)

GENERAL INFORMATION

The coffee machine is suitable for preparing espresso coffee using either coffee beans or ground coffee and is equipped with a device to dispense steam and hot water. The structure of the machine has been designed for domestic use only and is not suitable for continuous professional-type operation.

Keep these operating instructions in a safe place and make them available to anyone who may use the coffee machine.

For further information or in case of problems that are not included or not completely explained in these instructions, please contact an authorized service center.

Warning. No liability is held for damage caused by:

• Incorrect use not in accordance with the intended purposes;
  • Repairs not carried out by authorized service centers;
  • Tampering with the power cord;
  • Tampering with any parts of the machine;
• Storage or use of the machine at a temperature outside the operating temperature range (+15°C / +45°C);
• The use of non-original spare parts and accessories.
  In these cases, the warranty shall be deemed null and void.

SAFETY REGULATIONS

Never allow water to come into contact with any of the electrical parts of the machine: Danger of short circuit! Steam and hot water may cause scalding!

Do not direct the steam/hot water wand towards body parts. Carefully handle the steam/hot water wand by its grip: Danger of scalding!

Intended Use

The coffee machine is intended for domestic use only. Do not make any technical changes or use the machine for unauthorized purposes since this would create serious hazards! The appliance is not to be used by persons (including children) with reduced physical, mental or sensory abilities or with limited experience and/or expertise, unless they are supervised by a person responsible for their safety, or they are instructed by this person on how to properly use the machine.

Power Supply - Power Cord

Only connect the coffee machine to a suitable socket.

The voltage must correspond to that indicated on the machine label located on the inside of service door.

Never use the coffee machine if the power cord is defective or damaged.

If damaged, the power cord must be replaced by the manufacturer or an authorized service center. Do not pass the power cord around corners, over sharp edges or over hot objects and keep it away from oil. Do not use the power cord to carry or pull the coffee machine.

Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord hang freely from tables or shelves.

For the Safety of Others

Keep children under control to prevent them from playing with the product. Children are not aware of the risks related to electric household appliances. Do not leave the machine packaging materials within the reach of children.

150 mm 6 inches 150 mm 6 inches 150 mm 6 inches 150 mm 6 inches

Danger of Burns

Never direct the steam/hot water wand towards yourself or others: Danger of scalding! Always use the handles or knobs provided.

Machine Location - Suitable Location for Operation and Maintenance

For best use, it is recommended to:

• Choose a safe, level surface, where there will be no danger of overturning it or being injured.
• Choose a location that is sufficiently well-lit, clean and near an easily reachable socket.
• Provide for a minimum distance from the sides of the machine as shown in the illustration.
• During machine turning on/off, it is recommended to place an empty glass under the dispensing head.

Do not keep the machine at a temperature below 0^ C ( 32^ F). Frost may damage the machine. Do not use the coffee machine outdoors. In order to prevent its housing from melting or being damaged, do not place the machine on very hot surfaces and close to open flames.

Storing the Machine - Cleaning

Before cleaning the machine, turn it off by pressing the ON/OFF button, and then switch the power button to "0". Remove the plug from the socket.

Wait for the machine to cool down.

Never immerse the machine in water!

It is strictly forbidden to tamper with the internal parts of the machine.

Water left in the tank for several days should not be consumed. Wash the tank and fill it with fresh drinking water.

If the machine will not be used for a long time, dispense water from the steam wand, and carefully clean the Pannarello (if supplied), then turn it off and unplug it. Store it in a dry place, out of the reach of children. Keep it protected from dust and dirt.

Servicing / Maintenance

In case of failure, problems or a suspected fault resulting from the falling of the machine, immediately remove the plug from the socket. Never attempt to operate a faulty machine.

Servicing and repairs may only be carried out by authorized service centers. All liability for damages resulting from work not carried out by professionals is declined.

Fire Safety Precautions

In case of fire, use carbon dioxide ( CO_2 ) extinguishers. Do not use water or dry powder extinguishers.

Technical line drawing of a mechanical device with no visible text or symbols

Saeco

Diagram of a mechanical device with a crossed-out black cross symbol (no text or labels)

INSTALLATION

For your own and for other people's safety, carefully follow the instructions provided in the "Safety Regulations" section.

Machine Packaging

The original packaging has been designed and constructed to protect the machine during transport. We recommend keeping the packaging material for possible future transport.

Preliminary Operations

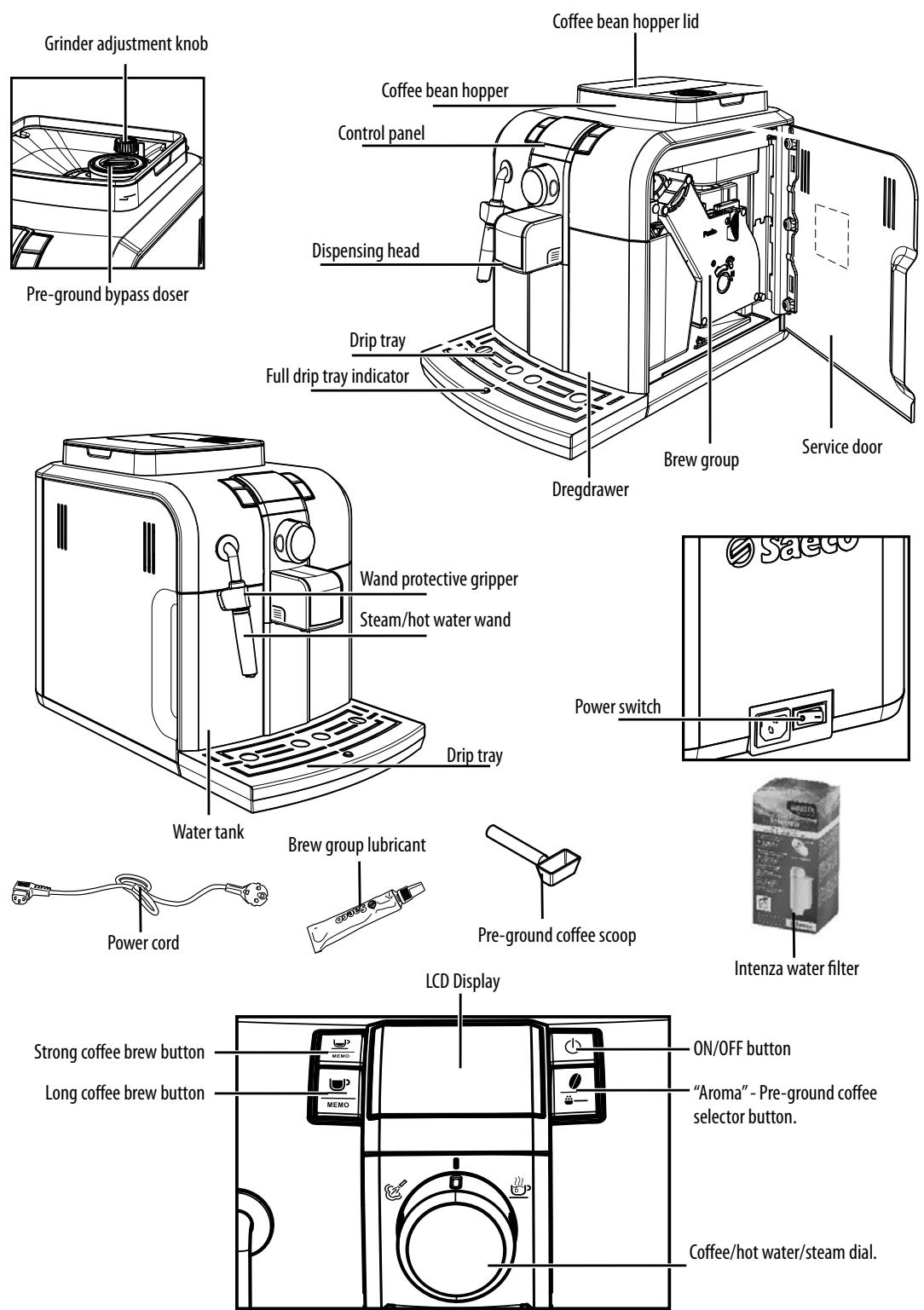

• Remove the coffee bean hopper lid and the drip tray with grill from the packaging.
• Remove the coffee machine from the packaging and position it in a place that meets the requirements described in the safety regulations.
• Place the drip tray with grill into its appropriate seat on the machine. Make sure it is fully inserted and clicks into place.
• Place the coffee bean hopper lid on the bean hopper.
• Before plugging the machine into the socket, be sure that all steps outlined in section "Using the Machine for the First Time" have been completed.
  Also check that the powerswitch is turned off ("0").

i Important Note: Carefully read the explanations of all the warnings displayed on the LCD control panel (section "LCD Display Warnings").

Never remove the drip tray when the machine is turned on. Wait a couple of minutes after turning on/off, since the machine will be carrying out a rinse/self-cleaning cycle (see section "Rinse/ Self-cleaning Cycle").

Illustration of a hand operating a machine with a tool, no visible text or symbols

Line drawing of a container with liquid and a funnel inserted, no text or symbols present

Line drawing of a hand operating a kitchen grater with a tray and control panel (no text or symbols)

Line drawing of a toaster with a lid and tray, no text or symbols present

Saeco

Line drawing of a cable inserted into an electrical outlet socket (no text or symbols)

Using the Machine for the First Time

• Remove the water tank and install the Intenza water filter as recommended on page 27.
• Fill the tank with fresh drinking water. Do not exceed the "max" level indicated on the water tank. Once filled, place the tank back into the machine.

Fill the tank only with fresh, non-sparkling water. Hot water or any other liquid may damage the tank and/or the machine. Do not turn on the machine when the tank is empty. Make sure there is enough water in the tank.

- Remove the coffee bean hopper lid.

Note: The hopper may be provided with different safety features according to the regulations of the country of use of the machine.

- Slowly pour the coffee beans into the hopper.

Only coffee beans may be put into the coffee bean hopper. Ground coffee, instant coffee or any other object may damage the machine.

• Replace the coffee bean hopper lid.
• Insert the plug into the socket on the back of the machine.

- Insert the plug of the other end of the cable into a wall socket with suitable power voltage.

Saeco

- Turn the machine ON by pressing the power switch to "I".

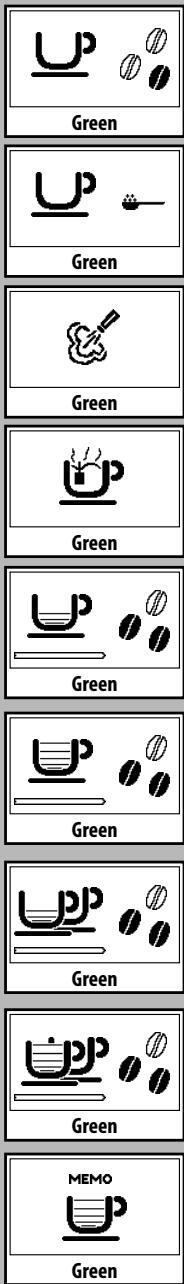

• The display shows the ON/OFF icon.

Black

• Make sure the ON/OFF button is set to the "☐" position; if this is not the case, set it to that position.
• Press the ON/OFF button to turn the machine on.
• The display indicates that the circuit must be primed.

Red

Note: Before starting the machine after long periods of inactivity, the water circuit must be primed.

Laboratory setup with a glass beaker and mechanical device (no visible text or symbols)

Priming the Water Circuit

- To prime the water circuit, place a container under the steam/hot water wand(Pannarello, if supplied).

Diagram of a washing machine control panel with directional arrows and labeled buttons

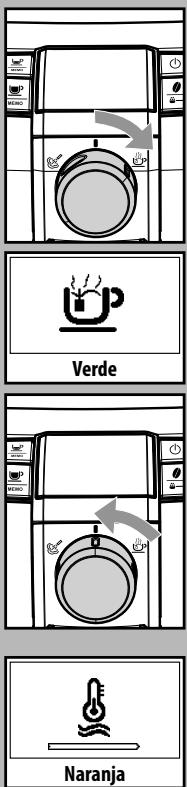

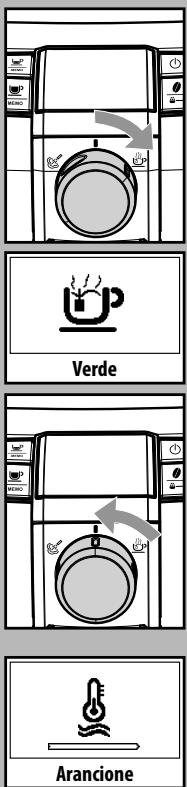

- Turn the selector dial clockwise to set it to the “ ” position. The machine starts the automatic priming of the circuit by letting out a preset quantity of water through the steam/hot water wand (Pannarello, if supplied). The bar under the icon shows the operation progress.

Red

At the end of the priming process, the display shows an icon (see figure) indicating that the selection dial must be brought back to the central "☐" position.

Orange

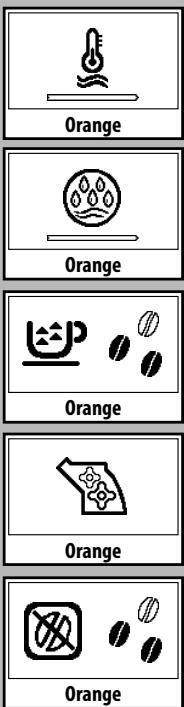

- The display then shows the machine warm-up icon, as shown in the figure.

Orange

When warm-up is complete, the machine performs a rinse cycle of the internal circuits. In this phase, this icon will be displayed:

Green

- When the operations described above are complete, this icon will be displayed: The machine is then ready to brew beverages. - To brew coffee, dispense hot water or steam, and for a proper use of the machine, carefully follow the instructions provided.

Rinse/Self-Cleaning Cycle

This cycle will rinse coffee circuits with fresh water.

The cycle is carried out:

• At machine start (with cold boiler)
  • After priming the water circuit (with cold boiler)
• During the stand-by mode (if a coffee product has been brewed)
• If the machine is turned off by pressing the ON/OFF button (if a coffee product has been brewed).

Orange

A small amount of water will be dispensed to rinse and heat all the machine components; in this phase this icon is displayed:

Wait for the cycle to finish automatically. You can stop dispensing as well, by pressing either coffee button and/or the ON/OFF button.

Line drawing of a hand holding a small object inside a container (no text or symbols)

Line drawing of a hand holding a cylindrical object over a surface, with no visible text or symbols

Line drawing of a mechanical assembly or lifting operation, showing hands operating a component (no text or symbols present)

Intenza Water Filter

To improve the quality of the used water, it is recommended that you install the water filter.

Remove the small white filter from the tank and store it in a dry place sheltered from dust.

Remove the water filter from its packaging, immerse it vertically (with the openings positioned upwards) in cold water and gently press its sides so as to let the air bubbles out.

Set the Intenza Aroma System as specified on the box.

A = Soft water

B = Medium water (standard)

C = Hard water

Insert the filter in the empty tank. The reference mark and the groove must match. Push firmly until it is completely inserted.

Fill the tank with fresh drinking water and re-insert it into the machine.

Dispense the water in the tank by using

the hot water function (see section "Hot Water Dispensing").

Fill the water tank again. The machine is now ready to be used.

Note: If there is no Intenza water filter, insert the previ-

ously-removed small white filter into the water tank.

ADJUSTMENTS

The machine that you have bought allows for certain adjustments that will permit you to use it to its full potential.

Saeco Adapting System

Coffee is a natural product and its characteristics may change according to its origin, blend and roast. The Saeco coffee machine is equipped with a self-adjusting system that allows the use of all types of coffee beans available on the market (not including flavored or carmelized).

• The machine automatically adjusts itself in order to optimize the extraction of the coffee, ensuring perfect compression of the beans to obtain a creamy espresso coffee that is able to release all the aromas, regardless of the type of coffee used.
• The optimization process is a learning process that requires the brewing of a certain number of coffees to allow the machine to adjust the compactness of the ground coffee.
• Attention should be given to special blends, which require grinder adjustments in order to optimize the extraction of the coffee (see section "Coffee Grinder Adjustment").

Coffee Grinder Adjustment

Warning! The grinder adjustment knob, inside the coffee

bean hopper, must be turned only when the grinder is working. Do not pour ground and/or instant coffee into the coffee bean hopper.

Do not insert any material other than coffee beans into

the hopper. The grinder contains moving parts that may be dangerous. Therefore, do not insert fingers and/or other objects. Only grind setting by means of the knob is permitted. Turn off the machine and unplug it from the socket before carrying out any type of operation inside the coffee

Diagram of a hand pressing down on a car intake manifold with a valve (no text or symbols)

bean hopper.

Do not pour coffee beans when the coffee grinder is working.

The machine allows slight adjustments to the coffee grinder to adapt it to the kind of coffee used.

To make any adjustment, press and turn the knob inside the coffee bean hopper.

Press and turn the knob by one notch at a time and brew 2-3 cups of coffee; this is the only way to notice differences in grind.

The reference marks inside the coffee bean hopper indicate the grind setting. There are 5 different grind settings to choose from with the following references:

Large Dot - Coarse Grind

Small Dot - Fine Grind

Line drawing of a coffee machine with a cup on a tray, no text or symbols present

Adjusting the Coffee Quantity

The machine allows you to adjust the amount of brewed coffee according to your tastes and/or the size of your cups.

Each time you press and release button " MEMO" or " MEMO", the machine brews a pre-programmed amount of coffee. This amount may be reprogrammed to your taste. Each button may be individually programmed for a specific brew setting.

As an example, the following procedure describes the programming of the button “MEMO”, which is normally associated with espresso coffee.

• Place a cup under the dispensing head.
• Press and hold the "MEMO" button, until the relevant icon is displayed. At this point, the machine is programming it.

MEMO Green

Black

Green

Diagram of a washing machine control panel with directional arrow and labeled buttons

• The machine begins the dispensing phase. The “◀” icon will be displayed to show which button is being programmed.
• Press the button with the “←” icon again when the desired amount of coffee in the cup is reached.

At this point the button "MEMO" is programmed; each time it is pressed and released, the machine will brew the same amount of coffee that was just programmed.

Stand-By

The machine is designed for energy saving. The machine automatically turns off after 60 minutes of inactivity.

Note: During the switching off phase, the machine performs a rinse cycle, if a coffee product has been brewed.

To turn the machine on again, simply press the ON/OFF button (if the power switch is set to "I"). In this case the machine will go through the rinse cycle only if the boiler is cold.

COFFEE BREWING

Note: Should the machine not brew coffee, make sure that the water tank contains water.
Before brewing coffee, check the messages on the display. Check that the water tank and coffee been hopper are full.
Leave the dial on the coffee position "☐" during the dispensing phase.
Before brewing the coffee, adjust the height of the brewing head according to your needs, and select the aroma or the pre-ground coffee.

Illustration of a hand holding a small electronic device with a double-headed arrow indicating vertical displacement (no text or symbols present)

Line drawing of a coffee machine with a cup on a tray (no text or symbols)

Line drawing of a coffee maker machine with a cup on a tray (no text or symbols)

Line drawing of two coffee cups on a tray with a pump and machine (no text or symbols)

Line drawing of a hand pressing down on a door panel with a circular button (no text or symbols)

Green

Dispensing Head Adjustment

Most cups on the market can be used with this coffee machine.

The height of the dispensing head may be adjusted to better fit the dimensions of the cups that you wish to use.

Manually move the dispensing head up or down to adjust its height by placing your fingers as shown in the figure.

The recommended positions are:

For use with small cups;

For use with big cups.

- Two cups/mugs can be placed under the dispensing head for brewing two coffees at the same time.

Aroma Adjustment

Aroma adjusts the quantity of coffee to be ground, or sets the use of pre-ground coffee.

Four choices are possible by pressing and releasing the “ 🍼 ” button (mild, medium or strong aroma, and ground coffee).

Selection can be made when the beans appear on the display. Each time the “ 🔊” button is pressed and released, the aroma changes by one degree:

∅∅=Mild aroma
∅∅=Medium aroma
∅∅∅ = Strong aroma

Green

Diagram showing a hand interacting with a device labeled 'BROCC' and a circular button, indicating a process or operation.

Green

Green

Selection must be made prior to brewing the coffee. The system sets the aroma according to the personal taste of the user.

After selecting "Strong Aroma", the function for brewing coffee with pre-ground coffee is displayed.

This selection is displayed by the icon on the side.

Refer to the relevant section to use this function.

Using Coffee Beans

- To brew coffee, press and release one of the following buttons:

the " 🔊 " button to select the desired aroma.

the "MEMO" button for an espresso coffee;.

the "MEMO" button for a long coffee.

• The brewing cycle then starts:

To dispense 1 cup of coffee, press the button once. This icon will be displayed:

To dispense 2 cups of coffee, press the button twice. This icon will be displayed:

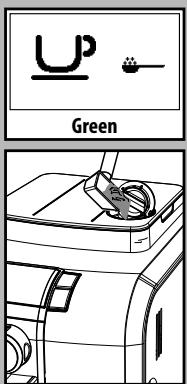

To brew 2 coffees, the machine automatically grinds and doses the correct amount of coffee. Brewing two coffees requires two grinding cycles and two brewing cycles, which the machine carries out automatically.

• After the prebrewing cycle, coffee begins to come out of the dispensing head.
- Coffee brewing stops automatically when the pre-programmed level is reached; however, it is possible to interrupt coffee brewing by pressing the button initially pressed.

Green

Green

The machine is adjusted to brew a true Italian espresso coffee. This feature may slightly lengthen the brewing time, allowing the intense flavor of the coffee to develop fully.

Using Pre-Ground Coffee

This function allows using pre-ground and decaffeinated coffee.

Pre-ground coffee must be poured into the bypass doser positioned next to the coffee bean hopper. Only use coffee ground for espresso machines and never coffee beans or instant coffee.

i Note:

• If no pre-ground coffee is poured into the bypass doser, only water will be dispensed;
• If the dose is excessive and 2 or more measuring scoops of coffee are used, the machine will not brew the product. In this case, the machine will run an empty cycle and discharge any ground coffee into the dregdrawer.

To brew coffee:

• Press and release the " 🔊" button to select the pre-ground coffee function.
• Lift the pre-ground bypass doser cover.
• Add only 1 scoop of pre-ground coffee to the compartment. Use the measuring scoop supplied with the machine to perform this operation. Then, close the cover.

Green

Illustration of a laboratory setup with a beaker, test tube, and tool (no text or symbols visible)

Warning: Only add pre-ground coffee to the bypass doser. Other substances and objects may cause severe damages to the machine. Such damages will not be covered by warranty.

Press and release:

the "MEMO" button for an espresso coffee;

the "MEMO" button for a long coffee.

- The brewing cycle then starts. After the pre-brewing cycle, coffee begins to come out of the dispensing head.

After dispensing the product, the machine defaults back to the whole coffee bean configuration.

i Repeat the operations described above to brew other coffees.

DISPENSING HOT WATER

Warning: Dispensing may be preceded by short spurts of hot water and scalding is possible. The steam/hot water wand may reach high temperatures: Do not touch with bare hands. Use the appropriate handle only.

- Before dispensing hot water, check that the following icon is displayed:

When the machine is ready, proceed as follows:

- Place a container under the steam/hot water wand (Pannarello, if supplied).

• Turn the selector dial clockwise to the "💡" position.
  • The following icon will be displayed:
• Fill the cup with hot water to the desired level; to stop hot water dispensing, turn selector dial counterclockwise back to the "☐" position. The machine returns to the normal operating mode.

Occasionally, after turning the selector dial, hot water may not be dispensed and the following icon may be displayed: Simply wait until the end of the warm-up phase, at which point hot water will be dispensed from the wand (Pannarello if supplied).

STEAM DISPENSING / CAPPUCCINO BREWING

Steam may be used to froth milk for a cappuccino, as well as to reheat other beverages.

Danger of scalding! Brewing may be preceded by small spurts of hot water. The steam/hot water wand may reach high temperatures. Never touch it with bare hands.
i Important Note: After using the steam/hot water wand to froth milk, immediately clean the wand (or Pannarello when provided). When the machine is ready, dispense a small amount of hot

Illustration of a laboratory setup with a beaker, test tube, and control unit (no text or symbols visible)

Diagram of a washing machine with control panel and fan mechanism (no text or symbols)

Orange

Line drawing of a washing machine front panel with control buttons and a rotary dial (no text or symbols)

water in a glass and clean the steam wand (or Pannarello when provided) externally. In this way, all parts will be perfectly cleaned and free of any milk residue.

• Place a container under the steam/hot water wand (Pannarello, if supplied).
• When the machine is ready to brew coffee, turn selector dial counterclockwise to set it onto the “💡” position. Residual water may dispense from the steam/hot water wand (Pannarello, if supplied).
• The following icon is displayed during the preheating time required by the machine:
• Steam dispensing will begin when the following icon is displayed; soon after only steam will begin to come out.
• Turn the selector dial clockwise and set it back to the "☐" position to stop dispensing steam.
• Fill 1/3 of the container you wish to use to prepare the cappuccino with cold milk.

Use cold milk for better results when preparing a cappuccino.

Line drawing of a hand using a blender to clean or prepare food (no text or symbols)

- Immerse the steam/hot water wand (Pannarello, if supplied) in the milk to be heated.

Diagram of a washing machine control panel with directional arrow and control buttons

- Turn the selector dial counter-clockwise to set it to the "💡" position. Froth the milk by gently swirling the cup.

Diagram of a washing machine with control panel and rotary dial indicator showing rotation arrow

- After dispensing steam for the desired time, turn the selector dial clockwise and set it back to the "☐" position to stop dispensing steam. - The same procedure can be used to heat other beverages.

After using the steam/hot water wand (Pannarello, if supplied), wash it as described in the "Cleaning and Maintenance" section.

After using steam to prepare a beverage, it is possible to brew coffee or to dispense steam straight after.

If the selector dial is left on the central position "☐", the machine, in order to save energy, automatically reaches the temperature needed to dispense coffee.

Technical diagram showing a mechanical device with labeled components and directional arrow indicating motion or force

Saeco

Hand holding a tool interacting with a mechanical component (no visible text or symbols)

Diagram of a mechanical device with a lever and adjustment arrow (no text or symbols)

CLEANING AND MAINTENANCE

General cleaning

• Empty and clean the dregdrawer daily, with the machine turned on.

• Maintenance and cleaning operations can only be carried out when the machine is cold and disconnected from the power supply.
• Do not immerse the machine in water.
• Do not wash any of its parts in the dishwasher.
• Do not use sharp objects or harsh chemical products (solvents) for cleaning.
• Use a soft, dampened cloth to clean the machine.
• Do not dry the machine and/or its components using a microwave and/or standard oven.

After frothing milk beverages, dispense hot water from the steam/hot water wand (Pannarello, if supplied) to obtain a thorough cleaning.

• Every day, after frothing the milk, remove the external part of the steam/hot water wand and wash it with fresh drinking water.
• Clean the steam wand weekly. In order to do this, you have to:
• Remove the external part of the Pannarello (for standard cleaning);
• Remove the upper part of the Pannarello from the steam wand;
• Wash the upper part of the Pannarello with fresh drinking water;
• Wash the steam wand with a wet cloth and remove any milk residue;
• Replace the upper part in the steam wand (make sure it is completely inserted).
  Reassemble the external part of the Pannarello.

Illustration of a hand operating a machine with a tool, no visible text or symbols

Diagram of a machine tool with a gray arrow pointing to a component (no text or symbols present)

• It is recommended to clean the water tank daily.
• Remove the small white filter in the water tank and wash it under running drinking water.
• Reposition the small white filter in its housing by gently pressing and turning it at the same time.
• Fill the water tank with fresh drinking water.
• Empty and clean the drip tray daily. Perform this operation also when the float is raised.

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Illustration of a hand operating a mechanical device with arrows indicating motion or operation (no text or symbols present)

Line drawing of a person using a tool on a mechanical device (no text or symbols)

Brew Group

• The brew group must be cleaned at least once a week.
• Turn off the machine by pressing the ON/OFF button and remove the plug from the socket.
• Remove the dregdrawer. Open the service door.

• To remove the brew group, pull it by the handle and press the «PUSH» button. The brew group must be washed only with lukewarm water, no detergent/soap is necessary.

• Wash the brew group with lukewarm water and carefully clean the upper filter.

• Thoroughly wash and dry all the parts of the brew group.
• Thoroughly clean the inside of the machine.

PUSH N

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Technical line drawing of a vehicle interior with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door mechanism with no visible text or symbols

• Make sure that the brew group is in rest position. The two references must match.
• The lever on the rear part of the brew group must be in contact with the base. Press the "PUSH" button to make sure that the brew group is in the correct position.

i Lubricate the brew group after approximately 500 brewing cycles. The brew group lubricant may be purchased at authorized service centers.

• Lubricate the brew group guides using the supplied lubricant only.
• Apply the lubricant evenly on both side guides.
• Insert the brew group in its seat until it locks into place WITHOUT pressing the "PUSH" button.
• Insert the dregdrawer. Close the service door.

Orange

DESCALING

Limescale build-up is normal with the use of this appliance.

The display informs you when descaling is necessary:

i Important Note: It is recommended to refer to the next section, "Remarks on Descaling", for some tips about keeping the machine in perfect working order.

DendroAlpicate Benzaldehyde Immunizer 200 mL Saeco

i Please use Saeco descaling solution in your machine. It has been specifically developed to preserve performance and functionality throughout the lifetime of the machine and to ensure, with regular use, a high quality delivered product.

Warning! Never use vinegar as a descaling solution.

Before descaling, remove the Pannarello attachment from the steam/hot water wand as described in the "Cleaning and Maintenance" section.

Hand holding a tool near a door with a key inserted (no text or symbols visible)

- Turn the machine on by pressing the ON/OFF button. Wait for the machine to finish its rinse cycle and warm up.

Diagram showing a hand pointing at a control panel with a circular component, likely illustrating a process or system adjustment.

Warning! Remove the Intenza filter before adding the descaling solution.

OK ESC Red

- Hold the “ 📄 ” button for 5 seconds. The display will show the icon on the side.

If you press the “ 📄 ” button by mistake, use the “ 📁 ” button to quit.

MEMS

- Press button “ ” to confirm the activation of the descaling cycle.

From this point forward, the descaling cycle must be completed before proceeding.

Line drawing of a container with liquid and a hand pouring liquid from a side outlet (no text or symbols)

- Mix the descaling solution with water as specified on the package of the descaling product and fill the water tank. Place the tank back in the machine.

Line drawing of a laboratory setup with a beaker, test tube, and tool (no text or symbols)

- Insert a container below the steam/hot water wand.

Use a large container for this process. If you do not have a container of this capacity, once it is filled close the knob, empty the container and then place it again under the wand and repeat the procedure.

Red

- After adding the descaling solution in the tank, turn the selector dial clockwise to position “ 6 ” to start the descaling cycle.

Diagram of a washing machine with control panel and rotary dial indicator showing rotation arrow

Red

- The machine will start dispensing, at regular intervals, the descaling solution (the bar shows the cycle progress).

- When the solution in the tank is finished dispensing, the icon on the side is displayed to indicate that the selector dial must be brought back to the "☐" position.

• The icon indicates that the tank must be rinsed and filled.
  Rinse the water tank thoroughly and refill it with fresh drinking water.
• Empty the container used to collect the liquid dispensed by the machine and place it under the steam wand.

- When inserting the tank filled with water in the machine, the icon on the side is displayed; turn the selector dial clockwise to position "UP".

• The machine starts the rinse cycle.

- When the water in the tank is finished dispensing, the icon on the side is displayed to indicate that the selector dial must be brought back to the "☐" position.

• The icon indicates that the tank must be rinsed and filled.
  Rinse the water tank thoroughly and refill it with fresh drinking water.
• Empty the container used to collect the liquid dispensed by the machine.

END → Red

• When inserting the tank filled with water the icon on the side is displayed. Press the “ 🔥 ” button to quit the descaling cycle.
• The machine now carries out the warm-up and rinse cycle to prepare for product brewing.

If the machine is switched off during the descaling cycle, the next time the machine is switched on the cycle must be repeated from the beginning.

The descaling solution is to be disposed of according to the manufacturer's instructions and/or regulations in force in the country of use.

Remarks on Descaling

The machine you have purchased is equipped with an advanced software to check the quantity of used water in order to provide reliable information about the right time to carry out descaling operations. This software has been programmed for standard water hardness.

In case of especially hard water (high calcium content), descaling cycles might have to be carried out more frequently, even if the machine does not display warning signals.

Even if the machine is not used often (e.g. 1 coffee per day), it is recommended to perform descaling cycles more frequently.

In these specific cases, it is recommended to perform descaling cycles every 1-2 months, even if the machine does not signal it.

CONTROL PANEL DISPLAY

Ready Signals

- The machine is ready for whole bean coffee brewing and hot water dispensing.

- The machine is ready for pre-ground coffee brewing.

- The machine is in the steam dispensing phase.

- The machine is in the hot water dispensing phase.

• The machine is brewing 1 espresso coffee.

• The machine is brewing 1 long coffee.

• The machine is brewing 2 espresso coffees.

• The machine is brewing 2 long coffees.

- The machine is programming the amount of coffee to be brewed.

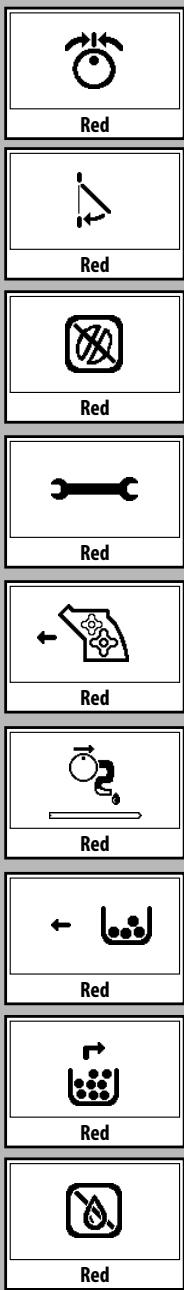

Warning Signals

- The machine is warming up to brew coffee and dispense hot water or steam.

- The machine is performing the rinse cycle. Wait until the machine automatically stops brewing the beverage.

• The machine must be descaled.

- The brew group is being reset due to machine reset.

- The coffee bean hopper needs to be refilled with coffee beans to restart the brewing cycle.

Red Red Red Red Red Red Red Red Red Red Red Red Red Red Red Red

Alarm Signals

• Return the hot water / steam knob to its proper position.
• Close the service door.
  • Refill the coffee bean hopper.
• Turn the machine off. After 30-seconds, turn it back on. Try 2 or 3 times. If the machine does NOT start, contact an authorized service center.
• Insert the brew group in the machine.
  • Problems with the water circuit.
• Insert the dregdrawer.
  • Empty the dregdrawer and the drip tray.
• Fill the water tank.

OK ESC Red

Red

Red

END → Red

Red

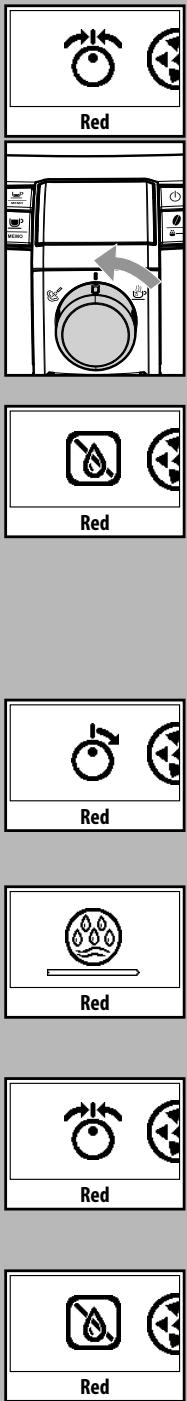

• Start screen for descaling cycle activation. Press "OK" to continue or "ESC" to quit.
• Open the knob to carry out the operation described.
  • Descaling cycle in progress.
• Descaling cycle ended. Press the “ 12 ” button to quit the descaling cycle.
• Fill the water tank.

TROUBLESHOOTING

Machine Actions	Causes	Solutions
The machine does not turn on.	The machine is not connected to the power source.	Connect the machine to the power source.
The coffee is not hot enough.	The cups are cold.	Warm the cups with hot water.
No hot water or steam is dispensed.	The hole of the steam wand is clogged.	Clean the hole of the steam wand using a pin.Make sure that the machine is turned off and has cooled before performing this operation.
	Pannarello is dirty (if supplied).	Clean the Pannarello.
The coffee has little crema.(see note)	The coffee blend is unsuitable, the coffee is not freshly roasted or the grind is too coarse.	Change coffee blend or adjust the grind as explained in the “Coffee Grinder Adjustment” section.
The machine takes a long time to warm up or the amount of water dispensed from the wand is too little.	The machine circuit is obstructed by limescale build-up.	Descale the machine.
The brew group does not come out.	The brew group is out of place.	Turn the machine on. Close the service door. The brew group automatically returns to the correct position.
	Dregdrawer is inserted.	Remove the dregdrawer first, then the brew group.
The machine grinds the coffee beans but no coffee comes out.(See note)	Water tank is empty.	Fill the water tank and prime the circuit (section “Using the Machine for the First Time”).
	Brew group is dirty.	Clean the brew group (section “Brew Group”).
	Circuit is not primed.	Prime the circuit (section “Using the Machine for the First Time”).
	Rare event that occurs when the machine is automatically adjusting the dose.	Brew a few coffees as described in section “Saeco Adapting System”.
	The dispensing head is dirty.	Clean the dispensing head.
The coffee is too weak.(see note)	Rare event that occurs when the machine is automatically adjusting the dose.	Brew a few coffees as described in section “Saeco Adapting System”.
Coffee is brewed slowly.(see note)	The coffee grind is too fine.	Change coffee blend or adjust the grind as explained in the “Coffee Grinder Adjustment” section.
	The circuit is not primed.	Prime the circuit (section “Using the Machine for the First Time”).
	The brew group is dirty.	Clean the brew group (section “Brew Group”).
Coffee leaks out of the dispensing head.	The dispensing head is clogged.	Clean the dispensing head and its holes.

Note: These problems can be considered normal if the coffee blend has been changed or if the machine has just been installed. In this case wait until the machine performs a self-adjusting operation as described in section "Saeco Adapting System".

Please contact Saeco Customer Service or an authorized service center for any problems not covered in the above table or when the suggested solutions do not solve the problem.

TECHNICAL SPECIFICATIONS

The manufacturer reserves the right to make changes to the technical specifications of the product.

Nominal Voltage - Power Rating - Power Supply .... See label on the inside of the service door

Housing material ....Thermoplastic material/Metal

Size (w x h x d).... 10" x 12.5" x 16" (256 x 315 x 415 mm)

Weight 20 lbs. (9 kg)

Power Cord Length 47" (1.2m)

Control Panel.... Front side

Pannarello (only available for certain models) .... Special for cappuccinos

Water tank....1.2 litres – Removable type

Coffee Bean Hopper Capacity....9.2 oz. (260 g)

Dregdrawer Capacity 8

Pump pressure 15 bar

Boiler ....Stainless steel type

Safety Mechanisms Thermal fuse

MACHINE DISPOSAL

• The packing materials can be recycled.
• Appliance: Unplug the appliance and cut the power cord.
• Deliver the appliance and power cord to a service center or public waste disposal facility.

This product complies with eu directive 2002/96/ec.

The symbol ■ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

EC DECLARATION OF CONFORMITY

YEAR 09

EC 2006/95, EC 2004/108,

SAECO INTERNATIONAL GROUP S.P.A

Via Torretta, 240 - 40041 Gaggio Montano (Bo) - Italy

declare under our responsibility that the product :

to which this declaration relates is in conformity with the following standards or other normative documents :

• Safety of household and electrical appliances - General requirements EN 60335-1(2002) + A1(2004) + A2(2006) + A11(2004) + A12(2006) + A13(2008)
• Safety of household and electrical appliances - Part 2-15 Particular requirements for appliances for heating liquids EN 60335-2-15(2002) + A1(2005)
• Household and similar electrical appliances - Electromagnetic fields - methods for evaluation and measurement EN 50366 (2003) + A1 (2006).
• Household and similar electrical appliances - safety - Part 2-14 Particular requirements for kitchen machines EN 60335-2-14 (2006).
• Electromagnetic compatibility (EMC) - Requirements for household appliances, electric tools and similar apparatus - Part 1 - Emission EN 55014-1 (2006).
• Electromagnetic compatibility (EMC) - Part. 3^ Limits - Section 2 : Limits for harmonic current emissions (equipment input current ≤ 16A for phase) EN 61000-3-2 (2006)
• Electromagnetic compatibility (EMC) - Part 3^ : Limits - Section 3 : Limitation of voltage changes, voltage fluctuations and flicker in public low - voltage supply systems, for equipment with rated current ≤ 16 A for phase and not subject to conditional connection

EN 61000-3-3 (1995)+ corr.(1997) + A1 (2001) + A2 (2005).

- Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus - Part 2. Immunity - Product family standard EN 55014-2 (1997) + A1 (2001)

following the provisions of the Directives: EC 2006/95, EC 2004/108.

Gaggio Montano

li, 28/04/2009

R & D Manager

Mr. Andrea Castellani

Line drawing of a modern coffee machine (no text or symbols)

Technical line drawing of a mechanical device with an open door and internal components (no text or symbols)

ALLGEMEINES

Technical line drawing of a mechanical device with no visible text or symbols

Saeco

Pure electrical circuit lines without any symbols

Illustration of a hand operating a machine with a tool, no visible text or symbols

Line drawing of a container with liquid and a funnel inserted, no text or symbols present

Line drawing of a hand operating a kitchen grater with a tray and control panel (no text or symbols)

Line drawing of a mechanical device with a cylindrical component inserted into a base (no text or symbols)

Saeco

Line drawing of a cable inserted into an electrical outlet socket (no text or symbols)

Illustration of a laboratory setup with a beaker, test tube, and tool (no text or symbols visible)

Diagram of a refrigerator interior with labeled controls and a directional arrow indicating rotation or movement.

Rot

Line drawing of a hand holding a small object inside a container (no text or symbols)

Line drawing of a hand holding a cylindrical object over a mechanical component (no text or symbols)

Line drawing of a mechanical assembly or lifting operation, showing hands operating a component (no text or symbols present)

Wasserfilter "INTENZA"

Diagram of a hand pressing down on a car intake manifold with a valve, showing no text or symbols.

Line drawing of a coffee machine with a cup on a tray, no text or symbols present

MEMO Grün

Schwarz

Grün

Diagram of a refrigerator control panel with directional arrow and labeled buttons

Illustration of a hand holding a device with a double-headed arrow indicating vertical motion (no text or symbols present)

Line drawing of a coffee machine with a cup on a tray (no text or symbols)

Line drawing of a coffee maker machine with a cup on a tray (no text or symbols)

Line drawing of two coffee cups on a tray with a pump and machine (no text or symbols)

Line drawing of a hand pressing down on a door panel with a circular button (no text or symbols)

Grün

Einstellung Auslauf

Diagram showing a hand interacting with a device labeled 'BROCC' and a circular component, indicating a process or operation.

Grün

Grün

Grün

Grün

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a laboratory setup with a beaker, stirring rod, and a pressure gauge (no text or symbols)

Illustration of a laboratory setup with a beaker, tool, and equipment (no visible text or symbols)

Diagram of a washing machine control panel with directional arrows and labeled buttons

Orangefarben

Line drawing of a washing machine front panel with control buttons and a rotary dial (no text or symbols)

Line drawing of a hand using a blender to clean or prepare food (no text or symbols)

Diagram of a washing machine control panel with directional arrow and control buttons

Diagram of a washing machine with control panel and rotary dial indicator showing rotation arrow

Technical diagram showing a mechanical device with labeled components and directional arrow indicating motion or force

Saeco

Hand holding a tool interacting with a mechanical component (no visible text or symbols)

Diagram of a mechanical device with a lever and adjustment knob (no text or symbols)

Diagram of a mechanical device with a hand operating a component, showing no text or symbols.

Diagram of a printer or printer with a paper airplane being inserted into a slot (no text or symbols visible)

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Diagram of a hand operating a mechanical device with arrows indicating motion or force direction (no text or symbols present)

Line drawing of a person using a tool on a mechanical device (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating a cut or assembly (no text or symbols present)

Technical line drawing of a vehicle interior with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door mechanism with no visible text or symbols

Line drawing of a container with liquid and a hand pouring liquid from a side outlet (no text or symbols)

Line drawing of a laboratory setup with a beaker, test tube, and tool (no text or symbols)

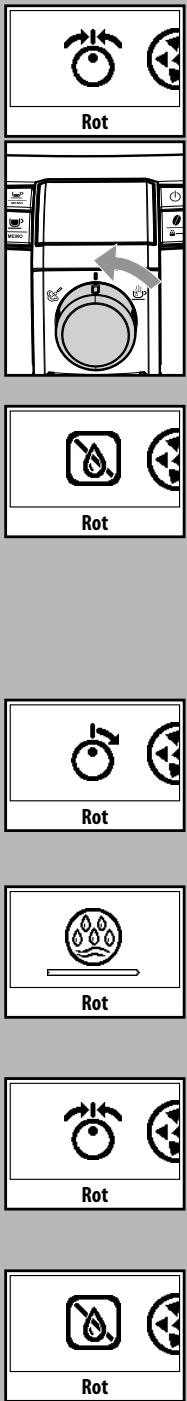

Rot

Diagram of a washing machine control panel with directional arrows indicating rotation or adjustment

Rot

Hand holding a tool near a door with a key inserted (no text or symbols visible)

Diagram showing a hand pointing at a control panel with a circular component, likely illustrating a process or system adjustment.

OK ESC Rot

END → Rot

OK ESC Rot

Rot

Rot

END → Rot

Rot

2006/95/EG, 2004/108/EG,

SAECO INTERNATIONAL GROUP S.P.A

Via Torretta, 240 - 40041 Gaggio Montano (Bo) - Italy

Line drawing of a modern coffee machine (no text or symbols)

Technical line drawing of a mechanical device with open door and internal components (no text or symbols)

GÉNÉRALITÉS

Technical line drawing of a mechanical device with no visible text or symbols

Saeco

Pure mechanical diagram showing a device with a crossed-out black cross symbol (no text or labels)

MISE EN PLACE

Illustration of a hand operating a machine with a tool, no visible text or symbols

Line drawing of a container with liquid and a funnel inserted, no text or symbols present

Line drawing of a hand operating a kitchen grater with a tray and control panel (no text or symbols)

Line drawing of a toaster oven with a cylindrical container on top (no text or symbols)

Saeco

Line drawing of a cable inserted into an electrical outlet socket (no text or symbols)

Diagram showing a hand pressing down on a device with a circular component, indicating a process or operation.

Illustration of a laboratory setup with a beaker, tool, and equipment (no visible text or symbols)

Amorçage du circuit

Diagram of a washing machine control panel with labeled buttons and directional arrow indicating rotation or adjustment.

Line drawing of a hand holding a small object inside a container (no text or symbols)

Line drawing of a hand holding a cylindrical object over a surface, with no visible text or symbols

Line drawing of a mechanical assembly or lifting operation, showing hands operating a component (no text or symbols present)

Diagram of a hand pressing down on a car intake manifold with a circular component (no text or symbols)

MEMO Vert

Noir

U Vert

Diagram of a washing machine with directional arrow indicating down or left motion, showing control panel and fan controls.

Line drawing of a coffee machine with a cup on a striped surface (no text or symbols)

MEMO P MEMO

MEMO Vert

Illustration of a hand holding a device with a double-headed arrow indicating vertical motion (no text or symbols present)

Line drawing of a coffee machine with a cup on a wooden surface (no text or symbols)

Line drawing of a coffee maker machine with a cup on a wooden surface (no text or symbols)

Line drawing of two coffee cups on a tray with a pump and machine (no text or symbols)

Line drawing of a hand pressing down on a door panel with a circular vent (no text or symbols)

U Vert

Diagram showing a hand pressing down on a device with labeled buttons and directional arrows indicating process flow.

Vert

Vert

Vert

Vert

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a laboratory setup with a beaker, test tube, and stand (no text or symbols)

Vert Orange

Line drawing of a hand using a blender to clean or prepare food (no text or symbols)

Diagram of a washing machine control panel with directional arrow and control buttons

Diagram of a washing machine with control panel and rotary dial indicator showing rotation arrow

Technical diagram showing a mechanical device with labeled components and directional arrow indicating motion or force

Saeco

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram of a mechanical device with a lever and handle, no visible text or symbols

NETTOYAGE ET ENTRE- TIEN

Nettoyage général

Illustration of a hand operating a machine with a tool, no visible text or symbols

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Technical line drawing of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a hand operating a gear mechanism (no text or symbols visible)

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Technical diagram of a vehicle interior with labeled components and a hand pointing to a component labeled 'DR000'.

Technical line drawing of a mechanical assembly with internal components and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly or device with no visible text or symbols

Hand holding a tool near a door with a key inserted (no text or symbols visible)

Diagram showing a hand pointing at a control panel with a down arrow and a circular component, likely illustrating a process or system adjustment.

OK ESC Rouge

Line drawing of a container with liquid and a hand pouring liquid from a side outlet (no text or symbols)

Line drawing of a laboratory setup with a beaker, test tube, and pipette (no text or symbols)

Diagram of a washing machine with control panel and rotary dial indicator showing rotation arrow

Rouge

END → Rouge

OK ESC Rouge

Rouge

Rouge

END → Rouge

Rouge

DÉCLARATION CE DE CONFORMITÉ

AN 09

2006/95/CE, 2004/108/CE,

SAECO INTERNATIONAL GROUP S.P.A

Via Torretta, 240 - 40041 Gaggio Montano (Bo) - Italy

Line drawing of a modern coffee machine (no text or symbols)

Technical line drawing of a mechanical device with an open door and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Saeco

Pure mechanical diagram showing a device with a crossed-out black cross symbol (no text or labels)

INSTALACIÓN

Illustration of a hand operating a machine with a tool, no visible text or symbols

Line drawing of a container with liquid and a funnel inserted, no text or symbols present

Line drawing of a hand using a device to press or install a tray (no text or symbols visible)

Line drawing of a mechanical device with a cylindrical component inserted into a base (no text or symbols)

Saeco

Line drawing of a cable inserted into a socket socket (no text or symbols)

Primer encendido

Diagram showing a hand pressing down on a device with a circular button, indicating a process or operation.

Diagram showing a laboratory setup with labeled components and a hand holding a tool, likely illustrating a chemical or laboratory procedure.

Carga del circuito

Diagram of a washing machine with control panel and directional arrow indicating rotation or adjustment

Line drawing of a hand holding a small object inside a container (no text or symbols)

Line drawing of a hand holding a cylindrical object over a mechanical component (no text or symbols)

Line drawing of a mechanical assembly or lifting operation, showing hands operating a component (no text or symbols present)

Diagram of a hand pressing down on a car intake manifold (no text or symbols present)

MEMO Verde

MOMO MEMO VERDE

Illustration of a hand holding a device with a double-headed arrow indicating vertical motion (no text or symbols present)

Line drawing of a coffee machine with a cup on a wooden surface (no text or symbols)

Line drawing of a coffee maker machine with a cup on a wooden surface (no text or symbols)

Line drawing of two coffee cups on a tray with a pump and machine (no text or symbols)

Line drawing of a hand pressing down on a door panel with a circular button (no text or symbols)

U Verde

Diagram showing a hand pressing down on a device with labeled buttons and directional arrows indicating process flow.

Verde

Verde

Verde

Illustration of a laboratory setup with a beaker, test tube, and tool (no text or symbols visible)

Line drawing of a hand using a blender to clean or prepare food (no text or symbols)

Diagram of a washing machine control panel with directional arrow and control buttons

Diagram of a washing machine with control panel and rotary dial indicator showing rotation arrow

Technical diagram showing a mechanical device with labeled components and directional arrow indicating motion or force

Saeco

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram of a mechanical device with a lever and handle, no visible text or symbols

LIMPIEZA Y MANTENI- MIENTO

Limpieza general

Diagram of a mechanical device with a hand operating a component, showing no text or symbols.

Diagram of a printer or printer with a paper airplane being inserted, showing no text or symbols.

Diagram of a mechanical device with an arrow indicating direction, showing internal components without any text or symbols.

Illustration of a hand operating a mechanical device with arrows indicating motion or operation (no text or symbols present)

Line drawing of a person using a tool on a mechanical device (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating a cut or assembly (no text or symbols present)

Technical line drawing of a vehicle interior with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a door mechanism with no visible text or symbols

Hand holding a tool near a door with a key inserted (no text or symbols visible)

Diagram showing a hand pointing at a control panel with a circular component, likely illustrating a process or system adjustment.

OK ESC Rojo

Line drawing of a container with liquid and a hand pouring liquid from a side outlet (no text or symbols)

Line drawing of a laboratory setup with a beaker, test tube, and stand (no text or symbols)

Diagram of a washing machine with control panel and rotary dial indicator showing rotation arrow

END → Rojo

OK ESC Rojo

Rojo

Rojo

END → Rojo

Rojo

2006/95/CE, 2004/108/CE,

SAECO INTERNATIONAL GROUP S.P.A

Via Torretta, 240 - 40041 Gaggio Montano (Bo) - Italy

The manufacturer reserves the right to change the features of the product without prior notice.

© Saeco International Group S.p.A.
