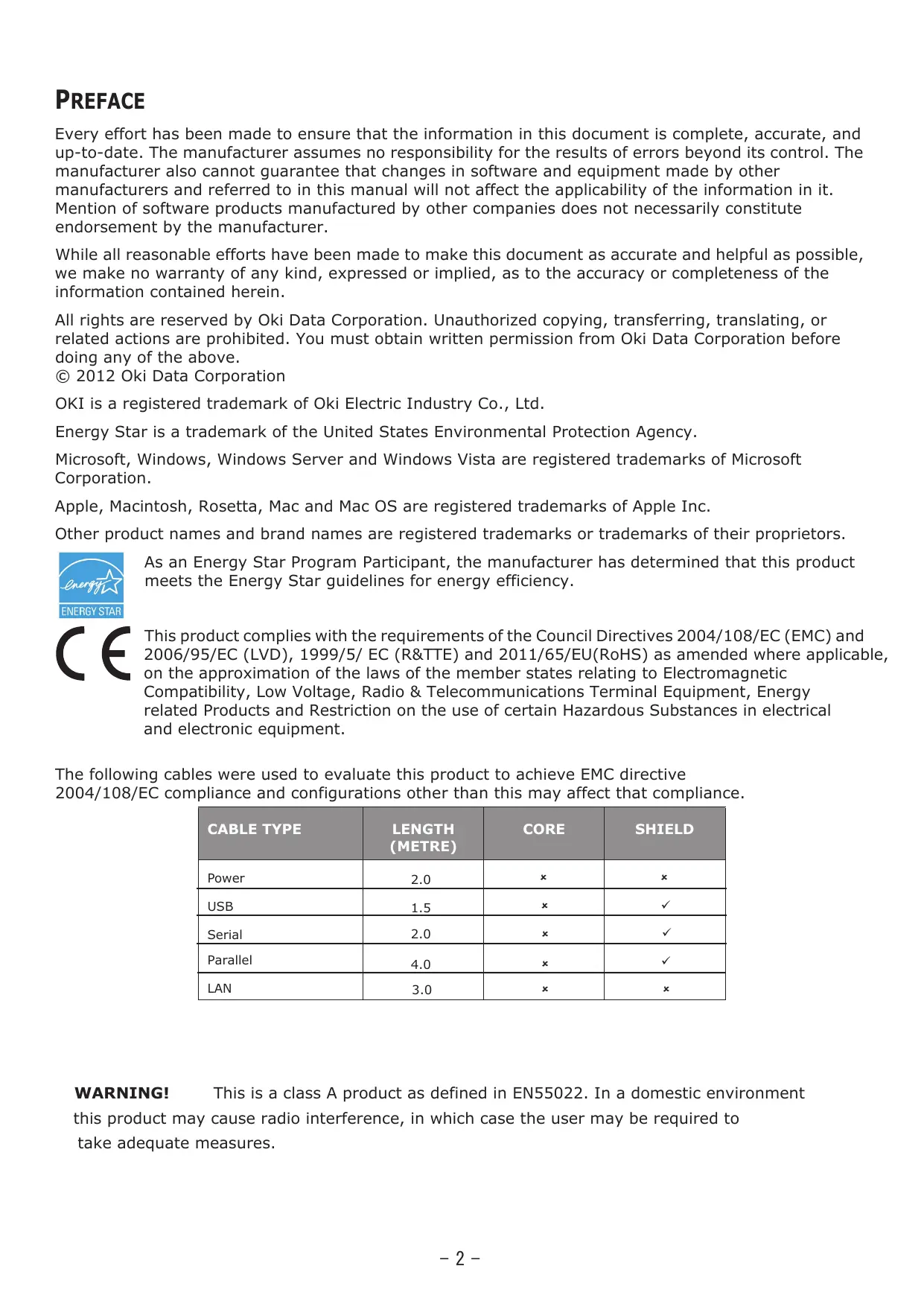

PREFACE Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this manual will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer. While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein. All rights are reserved by Oki Data Corporation. Unauthorized copying, transferring, translating, or related actions are prohibited. You must obtain written permission from Oki Data Corporation before doing any of the above. © 2012 Oki Data Corporation OKI is a registered trademark of Oki Electric Industry Co., Ltd. Energy Star is a trademark of the United States Environmental Protection Agency. Microsoft, Windows, Windows Server and Windows Vista are registered trademarks of Microsoft Corporation. Apple, Macintosh, Rosetta, Mac and Mac OS are registered trademarks of Apple Inc. Other product names and brand names are registered trademarks or trademarks of their proprietors. As an Energy Star Program Participant, the manufacturer has determined that this product meets the Energy Star guidelines for energy efficiency. This product complies with the requirements of the Council Directives 2004/108/EC (EMC) and 2006/95/EC (LVD), 1999/5/ EC (R&TTE) and 2011/65/EU(RoHS) as amended where applicable, on the approximation of the laws of the member states relating to Electromagnetic Compatibility, Low Voltage, Radio & Telecommunications Terminal Equipment, Energy related Products and Restriction on the use of certain Hazardous Substances in electrical and electronic equipment. The following cables were used to evaluate this product to achieve EMC directive 2004/108/EC compliance and configurations other than this may affect that compliance. CABLE TYPE CABLE TYPE WARNING! LENGTH (METRE) CORE CORE SHIELD Power

This is a class A product as defined in EN55022. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

MANUFACTURER Oki Data Corporation, 4-11-22 Shibaura, Minato-ku, Tokyo 108-8551, Japan For all sales, support and general enquiries contact your local distributor.

IMPORTER TO THE EU/AUTHORISED REPRESENTATIVE

OKI Europe Limited (trading as OKI Printing Solutions) Blays House Wick Road Egham Surrey, TW20 0HJ United Kingdom For all sales, support and general enquiries contact your local distributor. ENVIRONMENTAL INFORMATION

CE Compliance (for EU only) This product complies with the requirements of EMC and Low Voltage Directives including their amendments. VORSICHT:

• Schallemission: unter 70dB (A) nach DIN 45635 (oder ISO 7779)
• Die für das Gerät Vorgesehene Steckdose muß in der Nähe des Gerätes und leicht zugänglich sein. Centronics is a registered trademark of Centronics Data Computer Corp. Microsoft is a registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and set in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. (for USA only) Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s authority to operate the equipment. “This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.” “Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.” (for CANADA only) Precautions for the handling of Wireless Communication Devices Wireless LAN Module: SD-Link 11g For Europe This device was tested and certified by Notified Body. Hereby, Oki Data Corporation declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment uses the radio frequency band which has not been standardised throughout the EU and EFTA countries. It can be used in the following countries. Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Hungary, Germany, Greece, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Norway, Liechtenstein, Iceland, Switzerland For USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modification not expressly approved by manufacturer for compliance could void the user’s authority to operate the equipment. For Canada Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. For safety Do not operate this product in locations where its use may be prohibited. For example, in an aeroplane or hospital. If you are unsure whether operation is permitted, please refer to and follow the airline company or medical institution guidelines. Otherwise, flight instrument or medical equipment may be affected, causing a serious accident. This product may affect the operation of some implanted cardiac pacemakers and other medically implanted equipment. Pacemaker patients should be aware that the use of this product in close proximity to a pacemaker might cause the device to malfunction. If you have any reason to suspect that interference is taking place, immediately turn off the product and contact your Oki Data sales agent. Do not disassemble, modify, or repair the product as doing so may cause injury. Modification is also against the Laws and Regulations for Radio Equipment. Please ask your Oki Data sales agent for repair. Safety Summary Safety Summary Personal safety in handling or maintaining the equipment is extremely important. Warnings and Cautions necessary for safe handling are included in this manual. All warnings and cautions contained in this manual should be read and understood before handling or maintaining the equipment. Do not attempt to effect repairs or modifications to this equipment. If a fault occurs that cannot be rectified using the procedures described in this manual, turn off the power, unplug the machine, and then contact your authorised Oki Data representative for assistance. Meanings of Each Symbol This symbol indicates warning items (including cautions). Specific warning contents are drawn inside the symbol. (The symbol on the left indicates a general caution.) This symbol indicates prohibited actions (prohibited items). Specific prohibited contents are drawn inside or near the symbol. (The symbol on the left indicates “no disassembling”.) This symbol indicates actions which must be performed. Specific instructions are drawn inside or near the symbol. (The symbol on the left indicates “disconnect the power cord plug from the outlet”.) Disconnect the plug. This indicates that there is the risk of death or serious injury if the machine is improperly handled contrary to this indication. Do not use voltages other than the AC voltage specified on the rating plate, as this may cause fire or electric shock. Prohibited If the machine shares the same electrical outlet, with any other appliance that consumes a large amount of power, the voltage will fluctuate widely each time these appliances operate. Be sure to provide an exclusive outlet for the machine as this may cause fire or electric shock. Do not insert or drop metal, flammable or other foreign objects into the machine through ventilation slits, as this may cause fire or electric shock. Prohibited Prohibited If the machine is dropped or the cabinet is damaged, turn off the power switch and disconnect the power cord plug from the outlet, and then contact your authorised Oki Data representative for assistance. Continued use of a damaged machine may cause fire or electric shock. Disconnect the plug. (i) Do not plug in or unplug the power cord with wet hands as this may cause electric shock. Do not place metal objects or water-filled containers (flower vases, flower pots or mugs etc) on top of the machine. If metal objects or spilled liquids enter the machine, this may cause fire or electric shock. Do not scratch, damage or modify the power cords. Do not place heavy objects on, pull on, or excessively bend the power cords, as this may cause fire or electrical shock. Continued use of the machine in an abnormal condition (the machine is producing smoke or a strange smell) may cause fire or electric shock. In these cases, immediately turn off the power switch and disconnect the power cord plug from the outlet. Then, contact your authorised Oki Data representative for assistance. Safety Summary If foreign objects (metal fragments, water, liquids) enter the machine, turn off the power switch and disconnect the power cord plug from the outlet, and then contact your authorised Oki Data representative for assistance. Continued use of the machine in that condition may cause fire or electric shock. Ensure that the equipment is Connect a properly grounded. Extension grounding wire. cables should also be grounded. Fire or electric shock could occur on improperly grounded equipment. Disconnect the plug. Disconnect the plug. Prohibited

disassembling. Do not use a spray cleaner containing flammable gas for cleaning this product, as this may cause a fire. CAUTION Prohibited When unplugging the power cords, be sure to hold and pull on the plug. Pulling on the cord may cut or expose the internal wires and cause fire or electric shock. Do not remove covers, repair or modify the machine yourself. Contact your Oki Data representative for assistance. You may be injured by high voltage, very hot parts or sharp edges inside the machine. Care must be taken not to injure yourself with the printer paper cutter, projection and the edge of sheet metal. This indicates that there is the risk of personal Injury or damage to objects if the machine is improperly handled contrary to this indication. Precautions The following precautions will help to ensure that this machine will continue to function correctly.

• Try to avoid locations that have the following adverse conditions:
• Temperatures out of the specification
• The cover should be cleaned by wiping with a dry cloth or a cloth slightly dampened with a mild detergent solution. NEVER USE THINNER OR ANY OTHER VOLATILE SOLVENT on the plastic covers.
• USE ONLY Oki Data SPECIFIED paper and ribbons.
• DO NOT STORE the paper or ribbons where they might be exposed to direct sunlight, high temperatures, high humidity, dust, or gas.
• Ensure the printer is operated on a level surface.
• Any data stored in the memory of the printer could be lost during a printer fault.
• Try to avoid using this equipment on the same power supply as high voltage equipment or equipment likely to cause mains interference.
• Unplug the machine whenever you are working inside it or cleaning it.
• Keep your work environment static free.
• Do not place heavy objects on top of the machine, as these items may become unbalanced and fall causing injury.
• Do not block the ventilation slits of the machine, as this will cause heat to build up inside the machine and may cause fire.
• Do not lean against the machine. It may fall on you and could cause injury.
• Unplug the machine when it is not used for a long period of time.
• Place the machine on a stable and level surface.
• Do not turn on the printer power while the ON LINE and ERROR lamp are blinking as this may cause damage to the printer.
• RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Request Regarding Maintenance
• Utilise our maintenance services. After purchasing the machine, contact your authorised Oki Data representative for assistance once a year to have the inside of the machine cleaned. Dust will build up inside the machines and may cause a fire or a malfunction. Cleaning is particularly effective before humid rainy seasons.
• Our preventive maintenance service performs periodic checks and other work required to maintain the quality and performance of the machine. For details, please consult your authorised Oki Data representative.
• Do not expose the machine to insecticides or other volatile solvents. This may cause the cabinet, or other parts, to deteriorate and may cause the paint to peel. ( ii )

TABLE OF CONTENTS

WARNING! This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CAUTION!

1. This manual may not be copied in whole or in part without prior written permission of Oki Data.

2. The contents of this manual may be changed without notification.

3. Please refer to your local Authorised Service representative with regard to any queries you may have in

1. PRODUCT OVERVIEW

1.1 Introduction

1. PRODUCT OVERVIEW

1.1 Introduction

Thank you for choosing the Oki Data LE840/LE850 series label printer. This User’s Guide contains from general set-up through to how to confirm the printer operation using a test print, and should be read carefully to help gain maximum performance and life from your printer. For most queries please refer to this manual and keep it safe for future reference. Please contact your Oki Data representative for further information concerning this manual.

1.2 Features

This printer has the following features:

• The print head block can be opened providing smooth loading of media and ribbon.
• Various types of media can be used as the media sensors can be moved from the centre to the left edge of the media.
• Web based functions such as remote maintenance and other advanced network features are available.
• Superior hardware, including the specially developed 8 dots/mm (203 dots/inch) thermal print head which will allow very clear print at a printing speed of 3, 6, 10, or 12 inches/sec. and 3, 5, 8, 10, or 12 inches/sec. with 11.8 dots/mm (300 dots/inch).

1.3 Unpacking

1. Check for damage or

scratches on the printer. However, please note that Oki Data shall have no liability for any damage of any kind sustained during transportation of the product.

2. Keep the cartons and internal

packing for future transportation of the printer. LE840 LE850 3ips 6ips 10ips 12ips 3ips 5ips 8ips 10ips 12ips

• Besides the optional Cutter Module, there is also an optional Strip Module, RS-232C I/F card, Centronics I/F card, Expansion I/O Card, Wireless LAN I/F the RTC/USB host I/F card, HF band RFID mount kit and Narrow width platen kit. Unpack the printer as per the Unpacking Instructions supplied with the printer. E1- 1

1. PRODUCT OVERVIEW

1.4 Accessories

Accessories When unpacking the printer, please make sure all the following accessories are supplied with the printer. Power cord Safety & Warranty Sheet CD-ROM(1pc.) E1- 2 Setup Guide

1. PRODUCT OVERVIEW

1.5 Appearance

1.5 Appearance

1.5.1 Dimensions

The names of the parts or units introduced in this section are used in the following chapters. 278 (10.9) 460 (18.1)

(12.2) Dimensions in mm (inches)

1.5.2 Front View

1.5.3 Rear View

Reserved for Parallel Interface Reserved for Serial or WLAN Interface USB Interface Reserved for USB Host Interface Reserved for Expansion I/O interface LAN Interface (Available for only Ethernet model) Power Switch AC Power Inlet E1- 3

1. PRODUCT OVERVIEW

1.5 Appearance

1.5.4 Operation Panel

LCD ERROR LED ONLINE LED PAUSE FEED RESTART MODE

LEFT RIGHT CANCEL ENTER DOWN Please see Section 3 for further information about the Operation Panel.

1.5.5 Interior

Ribbon Shaft Paper Guide R Print Head Block Print Head

1. PRODUCT OVERVIEW

1.6 Options

Each time media is cut, the media feed is stopped. Strip module RTC & USB host interface card This allows use of on-demand (peel-off) operation or to take-up labels and backing paper together when using the rewind guide plate. To purchase the strip module, please inquire with your local distributor. This print head enables a conversion of a 300dpi print head of the LE850 model into 203dpi print head. This print head enables a conversion of a 203dpi print head of the LE840 model into 300dpi print head. This card holds the current time: year, month, day, hour, minute, second and provides a USB host interface. Expansion I/O interface card Parallel interface card Installing this card in the printer allows connection to an external device with the exclusive interface. Installing this card provides a Centronics interface port. Serial interface card Installing this card provides an RS-232C interface port. RFID module mount kit Wireless LAN interface card This kit is to mount Tagsys HF band RFID module and antenna. Installing this card provides Wireless LAN communication. 203-dpi print head 300-dpi print head NOTE: To purchase the optional kits, please contact the nearest authorised Oki Data representative or Oki Data Head Quarters. E1- 5

2. PRINTER SETUP

2. PRINTER SETUP

2. PRINTER SETUP

This section outlines the procedures to setup your printer prior to its operation. The section includes precautions, loading media and ribbon, connecting cables, setting the operating environment of the printer and performing an online print test. Setup Flow Procedure Reference After referring to the Safety Precautions in this manual, install the printer in a safe and stable location.

2.1 Installation

Connect a power cord to the power inlet of the printer, then to an AC outlet.

2.2 Connecting the Power

Cord Load a label stock or tag stock.

2.3.1 Loading the Media

Media sensor position alignment Adjust the position of gap sensor or black mark sensor according to the media being used.

2.3.1 Loading the Media

2.3.2 Loading the Ribbon

Connect the printer to a host computer or network.

2.4 Connecting the Cables to

Your Printer Turn on the printer power.

2.5 Turning the Printer

ON/OFF Installation Connecting the power cord Loading the media Connecting to a host computer Turning the power ON

2.6 Printer Setting

Printer setting Installing the printer driver If necessary, install the printer driver on your host computer.

2.7 Installing the Printer

Drivers Make a print test from your operating environment and check the print result.

2.8 Print Test

Position and Print Tone Fine adjustment If necessary, fine adjust the print start position, cut/strip position, print tone, etc.

2.9 Position and Print Tone

Fine Adjustment Automatic threshold setting If the print start position cannot be detected properly when pre-printed label are used, set the threshold automatically.

2.10 Threshold Setting

Manual threshold setting If the print start position cannot be detected properly even after automatic threshold setting is performed manually set the threshold.

2.10 Threshold Setting

2. PRINTER SETUP

2.1 Installation

2.1 Installation

To insure the best operating environment and to assure the safety of the operator and equipment, please observe the following precautions.

Operate the printer on a stable, level surface in a location free from excessive humidity, high temperature, dust, vibration and direct sunlight.

Keep your work environment static free. Static discharge can cause damage to delicate internal components.

Make sure the printer is connected to a clean source of AC power and no other high-voltage devices, that may cause line noise interference, are connected to the same mains.

Assure that the printer is connected to the AC mains with a threeprong power cable that has the proper ground (earth) connection.

Do not operate the printer with the cover open. Be careful not to allow fingers or articles of clothing to get caught in any of the moving parts, especially the optional cutter mechanism.

For best results, and longer printer life, use only Oki Data recommended media and ribbons.

Store the media and ribbons in accordance with their specifications.

This printer mechanism contains high-voltage components; therefore you should never remove any of the covers of the machine as you may receive an electrical shock. Additionally, the printer contains many delicate components that may be damaged if accessed by unauthorised personnel.

Clean the outside of the printer with a clean, dry cloth or a clean cloth slightly dampened with a mild detergent solution.

Use caution when cleaning the thermal print head as it will become very hot while printing. Wait until it has had time to cool before cleaning. Use only the Oki Data recommended print head cleaner to clean the print head.

Do not turn off the printer power or remove the power plug while the printer is printing or while the ON LINE lamp is flashing. E2- 2

2. PRINTER SETUP

2.2 Connecting the Power Cord

2.2 Connecting the

1. Make sure that the printer

Power Switch is turned to the OFF position () before connecting the Power Cord to prevent possible electric shock or damage to the printer.

2. Connect the Power Cord

to a supply outlet with a properly grounded (earthed) connection.

1. Make sure that the printer Power Switch is in the OFF () position.

Connect the Power Cord to the printer as shown in the figure below. Power Cord Power Switch

2. Plug the other end of the Power Cord into a grounded outlet as shown

in the figure below. Power Cord [Example of US Type] E2- 3 Power Cord [Example of EU Type]

2. PRINTER SETUP

2.3 Loading Supplies

2.3 Loading Supplies

1. Do not touch any moving parts, projection and the edge of sheet metal. To reduce the risk of

fingers, jewellery, clothing, etc., being drawn into the moving parts, be sure to load the supplies once the printer has stopped moving completely.

2. The Print Head becomes hot immediately after printing, allow it to cool before loading the media.

3. To avoid injury, be careful not to trap your fingers while opening or closing the cover.

1. Be careful not to touch the Print Head Elements when lifting the Print Head Block. This may

cause missing dots due to static electricity or other print quality problems.

2. When loading or replacing the media or ribbon, be careful not to damage the print head with hard

objects like watches or rings. Care must be taken not to allow the metal or glass part of a watch to touch the print head edge. Care must be taken not to allow a metal object like a ring to touch the print head edge. Since the print head element can be easily damaged by shock, please treat it carefully and do not hit it with hard objects. E2- 4

2. PRINTER SETUP

2.3 Loading Supplies

2.3.1 Loading the Media

1. When the Head Lever is

turned to FREE position, the Print Head can be raised.

2. To enable printing the Head

Lever must be set to the LABEL / TAG position. (This ensures that the Print Head is closed.) There are two head pressure levels in the LABEL / TAG position. Set the Head Lever depending on the media type: Position LABEL: Labels Position TAG : Tags However, proper position may differ depending on media. For details, refer to your Oki Data authorised service representative. The following procedure shows the steps to properly load the media into the printer so that it feeds straight through the printer. The printer prints both labels and tags.

1. Open the Top Cover.

2. Turn the Head Lever to the FREE position and release the Ribbon

3. Open the Print Head Block.

Top Cover Print Head Block FREE LABEL TAG Head Lever Ribbon Shaft Holder Plate

4. Move the Paper guide R to the rightmost position or shift the

guide to the horizontal position. Paper Guide L Paper Guide R

5. Put the media on the Paper Holder.

6. Pass the media around the Paper Holder, and then pull

the media towards the front of the printer.

7. Push the Paper Guide against the media until the media is

held firmly in place. To lock the Media, shift the Paper Guide R to vertical position E2- 5

2. PRINTER SETUP

2.3 Loading Supplies

2.3.1 Loading the Media

(Cont.) In the case of labels rolled with the print side facing inside. In the case of labels rolled with the print side facing outside. NOTE: Do not over-tighten the Locking Ring of the Supply Holder.

Place the media between the Media Guides and adjust them to the media width. Once in the correct position tighten the Locking Screw. Check that the media’s path through the printer is straight. The media should be to the left side of the print head Media Guide Print Head Paper Guide Locking Screw Media E2- 6 Media Guide

2. PRINTER SETUP

2.3 Loading Supplies

2.3.1 Loading the Media

10. Lower the Print Head Block.

11. Once the media is loaded it may be necessary to set the Media

Sensors used to detect the start position for label or tag. Setting the Gap Sensor position (1) Manually move the Media Sensor so that the Gap Sensor is positioned at the centre of the labels. ( indicates the position of the Gap Sensor). Gap Label NOTE: Be sure to set the black mark sensor to detect the centre of the black mark, otherwise a paper jam or no paper error may occur. Media Sensor Gap Sensor () Setting the Black Mark Sensor position (1) Pull about 500 mm of media out of the front of the printer, turn the media back on itself and feed it under the Print Head past the sensor so that the black mark can be seen from above. (2) Manually move the Media Sensor so that the Black Mark Sensor is in line with the centre of the black mark on the media. ( indicates the position of the Black Mark Sensor). Black Mark Media Media Sensor E2- 7

2. PRINTER SETUP

2.3 Loading Supplies

2.3.1 Loading the Media

12. Batch mode

In batch mode, the media is continuously printed until the number of labels/tags specified in the issue command has been printed.

13. Loading with peel off module

When the optional Strip Module is fitted, the label is automatically removed from the backing paper at the Strip Plate as each label is printed. NOTES:

1. Be sure to set the Selection

Switch to STANDARD/ PEEL OFF position.

2. The backing paper is easier

to feed back to the Take-Up Spool if the Front Plate is removed.

3. Fit the Take-Up Clip so that

the longer side of the clip is fitted into the shallow groove in the Take-Up Spool.

4. The backing paper can be

wound directly onto the Take-up Spool or a paper core. (1) Remove enough labels from the leading edge of the media to leave 500mm of backing paper free. (2) Insert the backing paper under the Strip Plate. (3) Wind the backing paper onto the Take-up Spool and fix it in position with the Take-up Clip. (Wind the paper counter-clockwise around the spool.) (4) Rotate the Take-up Spool counter-clockwise a few times to remove any slack in the backing paper. (5) Set the Selection Switch mounted on the Rewinder Assembly to STANDARD/PEEL OFF position. Take-up Spool Strip Plate Take-up Clip Backing Paper E2- 8

2. PRINTER SETUP

2.3 Loading Supplies

2.3.1 Loading the Media

(Cont.) WARNING! The cutter is sharp, so care must be taken not to injure yourself when handling the cutter. CAUTION!

1. Be sure to cut the backing

paper of the label. Cutting labels will cause the glue to stick to the cutter which may affect the cutter quality and shorten the cutter life.

2. Use of tag paper when the

thickness exceeds the specified value may affect the cutter life.

14. Loading with cutter

When the optional Cutter Module is fitted, the media is automatically cut. A disc cutter is available as option. Insert the leading edge of the media into the cutter until it comes out the Media Outlet of the Cutter Module. Cutter Module Media Outlet E2- 9

2. PRINTER SETUP

2.3 Loading Supplies

2.3.2 Loading the Ribbon

1. When attaching the ribbon

stoppers, make sure that the pinchers face into the printer

2. Be sure to remove any slack in

the ribbon before printing. Printing with a wrinkled ribbon will reduce the print quality.

3. The Ribbon Sensor is mounted

on the rear of the Print Head Block to detect a ribbon end. When a ribbon end is detected a “NO RIBBON” message will appear on the display and the ERROR LED will illuminate. There are two types of media available for printing on: thermal transfer and direct thermal (which has a chemically treated surface). DO NOT LOAD a ribbon when using direct thermal media.

1. Grasp the tabs on the top and bottom of the Ribbon Stoppers and move

the Ribbon Stoppers back to the end of the Ribbon Shaft. Ribbon Stopper Ribbon Shaft

2. Leaving plenty of slack between the ribbon spools, place the ribbon

onto the Ribbon Shafts as shown below. There are 2 possible ways to load the ribbon. Ribbon Shaft Print Head Block Outside Wound Ribbon Ribbon Shaft Inside Wound Ribbon NOTE: To check or change settings on which type of Ribbon winding to be used, you must go to SYSTEM Mode in the Printer. For more details refer to Key Operation Manual, “8.4.1 PRINTER SET”. E2-10

2. PRINTER SETUP

2.3 Loading Supplies

2.3.2 Loading the Ribbon

3. Push Ribbon along the Ribbon Shafts to a position where the ribbon is

fully to the Left against the stoppers when fitted.

4. Lower the Print Head Block and set the Ribbon Shaft Holder

Plate aligning its holes with the Ribbon Shafts.

5. Take up any slack in the ribbon. Wind the leading tape onto the

ribbon take-up roll until the ink ribbon can be seen from the front of the printer. Ribbon Shaft Holder Plate

6. Turn the Head Lever to Lock position to close the Print Head.

7. Close the Top Cover.

2. PRINTER SETUP

2.4 Connecting the Cables to Your Printer

2.4 Connecting the

Cables to Your Printer The following paragraphs outline how to connect the cables from the printer to your host computer, and will also show how to make cable connections to other devices. Depending on the application software you use to print labels, there are 5 ways to connect the printer to your host computer. These are:

• An Ethernet connection using the printer’s standard LAN connector.
• A USB cable connection between the printer’s standard USB connector and your host computer’s USB port. (Conforming to USB 2.0)
• A serial cable connection between the printer’s optional RS-232 serial connector and one of your host computer’s COM ports.
• A parallel cable connection between the printer’s optional parallel connector and your host computer’s parallel port (LPT).
• Wireless LAN using an optional Wireless LAN board. For details, refer to APPENDIX 2. Reserved for Parallel Interface Reserved for Serial or WLAN Interface USB Interface Reserved for USB Host interface Reserved for Expansion I/O Interface LAN Interface (Available for Ethernet model only) Power Switch AC Power Inlet E2-12

2. PRINTER SETUP

2.5 Turning the Printer ON/OFF

2.5 Turning the Printer

ON/OFF When the printer is connected to your host computer it is good practice to turn the printer ON before turning on your host computer and turn OFF your host computer before turning off the printer.

2.5.1 Turning ON the Printer 1. To turn ON the printer power, press the Power Switch as shown in the

• Use the power switch to turn the printer On/Off. Plugging or unplugging the Power Cord to turn the printer On/Off may cause fire, an electric shock, or damage to the printer.
• Do not turn on the printer power while the ON LINE and ERROR lamp are blinking as this may cause damage to the printer. diagram below. Note that ( | ) is the power ON side of the switch. Power Switch

2. Check that the ON LINE message appears in the LCD Message

Display and that the ON LINE and POWER LED lights are illuminated. NOTE: If a message other than ON LINE appears on the display or the ERROR LED lamp is illuminated, refer to Section 5.1, Error Messages.

2.5.2 Turning OFF the Printer 1. Before turning off the printer Power Switch verify that the ON LINE

message appears in the LCD Message Display and that the ON LINE LED light is on and is not flashing.

2. To turn OFF the printer power press the Power Switch as shown in the

diagram below. Note that () is the power OFF side of the switch. CAUTION!

1. Do not turn off the printer

power while the media is being printed, as this may cause a paper jam or damage to the printer.

2. Do not turn off the printer

power while the ON LINE lamp is blinking as this may cause damage to your computer. Power Switch E2-13

2. PRINTER SETUP

2.6 Printer Setting

2.6 Printer Setting

Depending on the settings of your host computer or the interface being used it may be necessary to change the printer parameter settings. Follow the procedures described below to change the printer parameter settings to correspond to your environment. NOTE: Incorrect settings can cause the printer not to function correctly. If you have any problems with the parameter settings, please contact your nearest Oki Data service representative. For the settings this manual does not cover, please contact your nearest Oki Data service representative, or refer to the LE840/LE850 Key Operation Manual. Power ON Power OFF PAUSE state Hold down [RESTART] User System Mode Hold down [MODE]

Turn on the power while holding down [FEED] & [PAUSE] or [MODE].

Reset Parameter setting (Section 2.6.2) Fine adjustment (Section 2.9) LAN/WLAN (Section 2.6.3) BASIC (Section 2.6.4) Z-MODE (Section 2.6.5) Auto calibration (Section 2.6.6) Dump mode (Section 2.6.7) Log (Section 2.6.8) Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting (Section 2.6.10) BASIC mode RFID setting Real Time Clock (Section 2.6.11) Z-MODE USB memory (Section 2.6.12) Reset

2. PRINTER SETUP

2.6 Printer Setting

Key functions in system mode

2.6 Printer Setting

(Cont.) Function Returns to the system mode menu. Returns to the previous menu. Displays the next screen. Saves the settings and returns to the previous menu. Moves the cursor up. (Note 1) Increases a value. (Note 2) Moves the cursor down. (Note 1) Decreases a value. (Note 3) Moves the cursor to the left. (Note 3) Moves the cursor to the right. (Note 3) NOTES: The cursor will not scroll from the bottom to the top or top to bottom of a menu. The value will not increase or decrease any further than the maximum or minimum values of a parameter. The cursor will not move any further than the left- or right-most positions of a field. Any values changed will not become effective if the printer is turned off without pressing the [ENTER] key. How to enter the User System Mode [PAUSE] ONLINE Hold down [RESTART] Hold down [MODE] User System Mode The User System Mode consists of the following menus. <1>RESET Used to reboot the printer. <2>PARAMETER SET ( Section 2.6.2) Used to set the printer parameters. <3>ADJUST SET ( Section 2.9) Used to fine adjust the print start position, cut position, etc. <4>LAN/WLAN ( Section 2.6.3) Used to enable or disable the LAN communication and SNMP. <5>BASIC ( Section 2.6.4) Used to set the function of basic program when it is loaded to the printer. <6>Z-MODE ( Section 2.6.5) Same as BASIC <7>AUTO CALIB ( Section 2.6.6) Used to enable or disable the automatic calibration function. <8>DUMP MODE ( Section 2.6.6) Used to print the data in the receive buffer for debugging purposes. <9>LOG ( Section 2.6.7) Used to save print logs in USB memory. How to exit the User System Mode Select <1> RESET menu to reboot the printer. E2-15

2. PRINTER SETUP

2.6 Printer Setting

Sub menu Printer Set (Section 2.6.2.1) Software Set (Section 2.6.2.2) Panel (Section 2.6.2.3) Password (Section 2.6.2.4) E2-16

2. PRINTER SETUP

2.6 Printer Setting

2.6.2 Parameter Setting

(Cont.) NOTE: Underlined setting is the factory default.

2.6.2.1 Printer Set

(1) MEDIA LOAD Determines how the use of the [FEED] key enables the printer to detect the home position. This parameter is effective only when the sensor type is set to other than “None”. OFF Media loading function is disabled (Same as a feed by [FEED] key) STD When the [FEED] key is pressed after the printer is tuned on, reset in batch mode, or the print head is closed, the printer detects the next gap/black mark and feeds the paper from the sensor to the print start position. ECO When the [FEED] key is pressed after the printer is tuned on, reset in batch mode, or the print head is closed, the printer detects the next gap/black mark and feeds the paper to the print start position based on the last label pitch printed. ECO+Bfeed Since optional ribbon saving module is not available to the LE840/LE850, MEDIA LOAD setting and the printer behavior will be automatically changed to “ECO” setting even if “ECO+Bfeed” is selected for these models. (2) FORWARD WAIT This parameter allows you to choose whether or not to activate the auto forward wait function. This function, used in the cut mode, automatically feeds the media forward if there is more than a 1-second idle time after printing. This prevents the top edge of the media from curling. NOTE:

1. If the pitch of the media used for

the previous issue was less than 20mm, the forward wait will not be activated regardless of the parameter setting.

2. The media will stay at the

forwarded position even if the power is turned off/on, the printer is reset, the print head is opened/closed. OFF

Disables the auto forward feed wait Enables the auto forward feed wait → When ON is selected, the feed amount can be fine adjusted. (3) FORWARD WAIT POS. +5.0mm +4.9mm -4.9mm -5.0mm

2. PRINTER SETUP

2.6 Printer Setting

The printer waits for next issue after 13.7-mm media has been fed forward. When thermal transfer and cut mode are selected, the printer feeds 6-mm media backward, then waits for next issue after 3-mm media has been fed forward. From this position, the printer starts the on-the-fly printing for next issue. The 3-mm distance to the home position is fed at 3 ips.

(5) HU CUT/RWD

Setting for using the Rewinder in the batch or strip issue modes. NOTE: Pre-strip function is automatically enabled when the print speed is set to 10 ips or faster. However, the print speed is corrected depending on the EX I/O parameter setting, as follows.

EX I/O: TYPE 1

10 ips (203 dpi) 8 ips (300 dpi)

EX I/O: TYPE 2

Rewinder is not used. Rewinder is used. (6) RBN SAVE RIBBON save, Head up related parameter are included in system menu. However, these function will not be supported by LE840/LE850. Therefore these parameter setting will be ignored and no effect.

(7) PRE PEEL OFF

Select whether to activate the pre-strip function. When this parameter is set to ON, the top edge of a label is separated (pre-stripped) from the backing paper before the label is printed. This function is intended to make the strip issue easier in the case of labels that are hard to strip due to the label density, strength of the adhesive used, or the print speed. OFF

(8) BACK SPEED Select back feed speed. In strip issue a back feed speed of 3 ips may cause the correct distance not to be fed due to a lack of torque, slippery media surface, etc. In such cases reduce the back feed speed to 2 ips to ensure the correct feed amount. STD LOW 3ips 2ips

(9) TYPE OF RIBBON

Select type of ribbon. When a coating side of the ribbon is the outside, chooses CSO. When a coating side of the ribbon is the inside, chooses CSI. CSO CSI Coated side out Coated side in E2-18

2. PRINTER SETUP

2.6 Printer Setting

2.6.2.2 Software Set

(1) FONT CODE Allows you to select the character code used for printing. Printed characters differ depending on the chosen character code and font.

NOTE: The following fonts do not support a zero with a slash. (If a zero with a slash is specified, a zero without a slash will be printed.) [Bit map fonts] OCR-A, OCR-B, GOTHIC725 Black, Kanji, Chinese character [Outline fonts] Price fonts 1, 2, and 3, DUTCH801 Bold, BRUSH738 Regular, GOTHIC725 Black, TrueType font PC-850 PC-852 PC-857 PC-8 PC-851 PC-855 PC-1250 PC-1251 PC-1252 PC-1253 PC-1254 PC-1257 LATIN9 Arabic PC-866 UTF-8 (2) ZERO FONT Allows you to select the way the zero character is printed. Select between “0” and “Ø”.

(3) CODE Select the command control code to be used.

AUTO Automatically selected.

ESC, LF, NUL

MANUAL The control code is specified by the user. → When MANUAL is selected, you need to specify each of the control codes 1 to 3 with a hex. code.

2. PRINTER SETUP

2.6 Printer Setting

(4) PEEL OFF STATUS

Specifies whether the printer sends a strip wait status to the host in response to a status request command. OFF

(5) USB I/F STATUS

Specifies whether to return a response to the host via USB. OFF

Disables sending a response via USB Enables sending a response via USB (6) FEED KEY Selects the function of the FEED key. FEED PRINT Feeds one label. Prints the data in the image buffer (The last label printed) Windows code Original code (8) EURO CODE Specifies the Euro code (€). “20” to “FF” (Specify the hex code in 2 bytes of ASCII code)

(9) AUTO HD CHK

Select whether to perform the auto print head check when the printer is powered on. OFF

Auto print head check is not performed. Auto print head check is performed. E2-20

2. PRINTER SETUP

2.6 Printer Setting

(10) WEB PRINTER Select whether to use the printer as a web printer. When the web printer is enabled, the status of the printer connected to a network can be monitored through the web browser. OFF ON INTERNAL ON EXTERNAL NOTE: Since detecting the remaining ribbon length has a margin of error, use the specified length as a guide.

(11) RBN NEAR END

Select the remaining ribbon length when the ribbon near end is detected. OFF 30m Ribbon near end is not detected. Ribbon near end is detected when the remaining ribbon is 30-m long. (Equivalent to ribbon diameter of 38 mm) Ribbon near end is detected when the remaining ribbon is 70-m long. (Equivalent to ribbon diameter of 43 mm) 70m (12) EX.I/O Select the type of expansion I/O interface operating mode. This parameter needs to be set depending on the expansion I/O control specification of the device to be connected via the expansion I/O interface. TYPE1 TYPE2 Standard mode In-line mode

(13) LBL/RBN END

Select the operation to be performed when a label end or ribbon end is detected. TYPE1 When a label/ribbon end is detected in the middle of printing, the printer immediately stops printing. Selectable only when the ribbon saving function is not activated. When a label/ribbon end is detected in the middle of printing, the printer prints the half-finished label as far as possible, and stops when the next label is at the home position. TYPE2 NOTE: The type specified by the command may differ from the actual mode, depending on the status of this parameter. Also, the data transmission method is slightly different. For details, refer to the External Equipment Interface Manual. Compatible with the current version Special specification E2-21

2. PRINTER SETUP

2.6 Printer Setting

(15) XML Select the type of XML data to be printed.

OFF STD ORACLE SAP STD EXT ORACLE EXT SAP EXT Disables XML data printing. Standard specification Oracle SAP Standard specification (External memory) Oracle using an external memory SAP using an external memory (16) THRESHOLD SELECT This parameter is to choose which threshold value for the media sensor to validate. REFLECT TRANS. Reflective sensor (Black mark sensor) Transmissive sensor (Gap sensor) Then, choose which value to use. MANUAL SET Threshold set in the Threshold mode takes effect. COMMAND SET Threshold set by command takes effect. (17) ENERGY TYPE This parameter is intended to make the printer perform appropriate printing for the supplies to be used. If you use a different supply from the setting, poor printing may occur. TRANSFER DIRECT Thermal transfer print method → Thermal direct print method → When TRANSFER is selected for the Energy type parameter, choose a ribbon type. Wax1 Wax2 Wax3 Semi resin1 Semi resin2 Semi resin3 Resin1 Resin2 Reserve1 to Reserve2 Wax 1 Wax 2 Wax 3 Semi-resin 1 Semi-resin 2 Semi-resin 3 Resin 1 Resin 2 Reserved When DIRECT is selected for the Energy type parameter Standard Standard Reserve1 to Reserve9 Reserved E2-22

2. PRINTER SETUP

2.6 Printer Setting

(18) PW SAVE TIME

Sets the length of time until the printer enters the power saving mode. (Unit: minute) 240 min. NOTE: For details of the power saving mode, refer to Section 3.4 Power Save Function. 239 min. 2 min. 1 min. (Default: 15 minutes) (19) RIBBON WIDTH Sets the range of the adjustment control depending on the type of ribbon to be used. TYPE 1 Narrow range of adjustment control TYPE 2 Wide range of adjustment control. Selection of RBN ADJ.<FW>, RBN ADJ.<BK> table. For narrow width ribbon (less than 55mm), it is recommended to use TYPE2 setting with negative value for RBN ADJ <FW> (i.e -10). Refer to 2.9.1 Fine Adjustment on page E2-56 to E2- 57.

2.6.2.3 PANEL

(1) LCD LANGUAGE Choose a language in which the LCD messages are displayed. NOTE: The language displayed on panel is Japanese when Japanese is selected, and English when English, German, French, Dutch, Spanish, Italian, Portuguese , Simp. Chinese or Korean is selected. (2) DISPLAY Choose whether the model name, the number of labels printed and the IP address are displayed or hidden. MACHINE NAME OFF: Hidden ON: Displayed PRINT PAGE OFF: Hidden ON: Displayed IP ADDRESS OFF: Hidden ON: Displayed E2-23

2. PRINTER SETUP

2.6 Printer Setting

Adjust the contrast of the LCD.

2.6.2.4 PASSWORD

(1) PASSWORD This parameter is for the system administrator only. Please do not change the setting for this parameter. OFF ON (AUTO) ON (LAN) ON (WLAN) LAN and Wireless LAN are disabled. Automatically selected. LAN is enabled. Wireless LAN is enabled. SNMP is disabled. SNMP is enabled. E2-24

2. PRINTER SETUP

2.6 Printer Setting

2.6.4 Basic Program Setting The following table shows the contents of the Basic program setting

USER SYSTEM MODE

<2>PARAMETER SET <3>ADJUST SET <4>LAN/WLAN <5>BASIC Contents of the Basic Program Setting Menu Menu BASIC (2) FILE MAINTENANCE The block number and BASIC program file name (up to 12 characters) stored in the BASIC program storage area are displayed. If the file name exceeds 12 characters, the overflowing characters are not displayed. When no file is stored, a hyphen (“-“) is displayed in place of the file name. (3) TRACE Allows you to enable tracing in the BASIC program. OFF

Disables tracing the BASIC program. Enables tracing the BASIC program. (4) EXPAND MODE The printer switches the mode to execute the BASIC program. The Z-Mode menu allows you to select whether or not to enable the ZMode. (1) Z-MODE OFF

ON SETTING OFF

ON SETTING ON

E2-25 Z-Mode is disabled. Z-Mode is enabled. BASIC system mode program is not started automatically. Z-Mode is enabled. BASIC system mode program is started automatically.

2. PRINTER SETUP

2.6 Printer Setting

The Auto Calibration menu allows you to select whether or not to enable automatic calibration at power on time. When automatic calibration is activated, the printer feeds the media for about 160 mm each time the power is turned on or the print head is open then closed to detect the print start position. (1) AUTO CALIB OFF ON TRANS. ON REFLECT ON ALL NOTE: Since the head-up function is not provided to the LE840/LE850, the setting and the printer behavior will be automatically changed to

“ON TRANS”,”ON

REFLECT”,”ON ALL” even if “+Bfeed” is selected for these models. Disabled. Enabled.-Transmissive sensor (Gap sensor) Enabled.- Reflective sensor (Black mark sensor) Enabled. (Transmissive & Reflective sensors) same as “ON TRANS” setting same as “ON REFLECT” setting same as “ON ALL” setting NOTES:

1. When AUTO CALIB is enabled, an automatic calibration is performed at

an open/close of the print head and at a power on time.

2. After the automatic calibration is performed, the media length, effective

print length, sensor type and whether the ribbon is used or not, obtained through the calibration, will take effect until next calibration is performed or the printer power is turned off. (Settings specified by commands are ignored.)

3. This function is available only when the media pitch is 10.0 mm to 150.0

4. When the printer cannot detect the second black mark/gap, it will

continue to feed the media for up to 500.0mm. If a black mark/gap is still not detected, the printer will stop, resulting in a paper jam.

5. During an automatic calibration, the printer also feeds the ribbon. Even

if the ribbon is not loaded, this will not result in an error. However, the print condition will be automatically changed to “No ribbon” after the calibration ends.

6. When the cutter is installed and a previous issue was performed in cut

issue mode, the media is cut and ejected after the automatic calibration is completed.

7. When a label end occurs during an automatic calibration, the printer

stops, resulting in an error. Loading new media and closing the print head can clear the error and resume the automatic calibration.

8. Since the optional ribbon saving module is not available for the

LE840/LE850, Setting + Bfeed will have no effect and the setting will revert to without BFeed.

9. The feed speed during automatic calibration is 3 ips.

10. Do not open the print head during automatic calibration. The

subsequent printer operation is not guaranteed. If you open the print head, turn off the power and back to on. E2-26

2. PRINTER SETUP

2.6 Printer Setting

In Dump Mode, the data in the receive buffer is printed. The data is expressed in hexadecimal values. This operation allows verification of the programming commands or the debug of the program. (1) BUFFER Select the receive buffer to dump.

RS-232C receive buffer Centronics receive buffer Network I/F receive buffer BASIC Interpreter: I/F → Interpreter buffer BASIC Interpreter: Interpreter buffer → I/F USB receive buffer RFID receive buffer (2) DUMP LIST This parameter is to choose the output destination. USB MEMORY PRINT NOTES:

1. If a file with the same name

already exists in the USB memory, it will be overwritten.

2. Selecting “RS-232C” or

“CENTRONICS” without the optional board installed causes a 0-KB file to be output.

3. If an error occurs while using

the USB memory, the error message is displayed. For details, refer to Section 2.6.12 Copying Data to/from USB Memory. Saves in the USB memory. → Prints out → When USB MEMORY is selected: A file is automatically created in the USB memory and named in the following format based on the printer model and saved date. /ATA0/DUMP/LE840_DUMP_1209271030.DAT / (e.g. LE840(203dpi model), 10:30, Sep 27, 2012) When PRINT is selected: Choose a printing method. ON DEMAND Prints 166 lines of data (approx. 50 cm), then stops. Subsequent data is printed when the [ENTER] key is pressed. ALL Prints all data in the receive buffer. E2-27

2. PRINTER SETUP

2.6 Printer Setting

2.6.7 Dump Mode Setting

(Cont.) Print Conditions Printing width: 3.9 inches (Approx. 100 mm) Sensor selection: None Print speed: 6”/sec. (203 dpi) 5”/sec. (300 dpi) Printing mode: Depends on the selection in use. 16 bytes/line Data is printed in the order from the new one to the old. Data specified by the receive buffer write pointer will be printed in boldface. Receive Buffer Size NOTE: If an error occurs while printing, the printer stops printing and shows an error message. To clear the error, press the [PAUSE]. After clearing the error the printer does not resume printing automatically. Interface Size RS-232C 1MB (65536 lines) Centronics 1MB (65536 lines) LAN 1MB (65536 lines) BASIC 1 8KB (512 lines) BASIC 2 8KB (512 lines) USB 1MB (65536 lines) RFID 8KB (512 lines) Required Media Length Interface Length RS-232C

198.2 m

198.2 m

198.2 m

198.2 m

RFID *: Media length required for printing all data in the receive buffer. E2-28

2. PRINTER SETUP

2.6 Printer Setting

1. If a file with the same name

already exists in the USB memory, it will be overwritten.

2. If an error occurs while using

the USB memory, the error message is displayed. For details, refer to Section 2.6.12 Copying Data to/from USB Memory. After clearing the error the printer does not resume logging automatically. The Log menu allows the saving of print logs to USB memory. (1) LOG

PRINTER TO USB

Saves print logs in the USB memory. A file is automatically created in the USB memory and named in the following format based on the printer model and saved date.

/ATA0/LOG/LE840_LOG_1209271030.DAT

(e.g. LE840(203dpi model), 10:30, Sep 27, 2012) E2-29

2. PRINTER SETUP

2.6 Printer Setting

How to enter the System Mode Power ON while holding down [FEED]&[PAUSE] System Mode Power OFF Power ON while holding down [MODE] The System Mode consists of the following menus. <1>DIAG. Used to check and print the printer system information and maintenance counter status. <2>PARAMETER SET ( Section 2.6.2) Used to set the parameters for each printer function. <3>ADJUST SET ( Section 2.9) Used to fine adjust the print position, cut position, print tone, etc. <4>TEST PRINT Used to perform print tests. <5>SENSOR ADJUST Used to check the sensor statuses and set each sensor. <6>RAM CLEAR Used to perform a RAM clear. DO NOT USE this menu. <7>INTERFACE ( Section 2.6.10) Used to set the interface parameters. <8>BASIC ( Section 2.6.4) Used to set the function of basic program when it is loaded to the printer. <9>FOR FACTORY Used for an in-process inspection. DO NOT use this menu. <10>RFID Used to set RFID related parameters. (see Installation Manual in each RFID kit) <11>RTC ( Section 2.6.11) Used to set the date and time of the real time clock, enable or disable the low battery check, and choose a real time renewal timing. <12>Z-MODE ( Section 2.6.5) Same as BASIC <13>USB MEMORY ( Section 2.6.12) Used to copy data to/from USB memory. <14>RESET Used to reboot the printer. How to exit the User System Mode Select <14>RESET menu to reboot the printer. E2-30

2. PRINTER SETUP

2.6 Printer Setting

2.6.10 Interface Setting

SYSTEM MODE <4>TEST PRINT <5>SENSOR ADJUST <6>RAM CLEAR <7>INTERFACE The Interface menu allows configuring printer interface parameters. The following table shows the contents of the Interface menu. Contents of the Interface Menu Menu Interface

2. PRINTER SETUP

2.6 Printer Setting

OFF ON (AUTO) ON (LAN) ON (WLAN) LAN and Wireless LAN are disabled. Automatically selected. LAN is enabled. Wireless LAN is enabled. SNMP is disabled. SNMP is enabled. (3) BASIC INFORMATION The following information is displayed. IP Address Gateway address Subnet mask Socket port status Socket port number (4) IP ADDRESS Set the IP address.

(5) GATEWAY ADDRESS Set the gateway address.

(6) SUBNET MASK Set the subnet mask.

(7) SOCKET PORT Select whether to enable or disable the socket port. OFF Socket port is disabled. Socket port is enabled.

2. PRINTER SETUP

2.6 Printer Setting

(8) PORT NUMBER Set the port number.

DHCP is disabled. DHCP is enabled. DHCP client ID is entered with ASCII code. → DHCP client ID is entered with Hex. code. → When ASCII is selected: Enter 64 characters with ASCII code. When HEX is selected: Enter 64 characters with Hex. code.

(11) DHCP HOST NAME

Enter 32 characters with ASCII code.

2. PRINTER SETUP

2.6 Printer Setting

(13) WLAN MODE Set the connection mode and authentication in reference to the following table. ADHOC INFRA OPEN SHARED 802.1x OPEN SYSTEM TLS TTLS LEAP PEAP MD5 EAP-FAST NETWORK EAP WPA-PSK WPA2 OPEN SYSTEM TLS TTLS LEAP PEAP EAP-FAST TLS TTLS LEAP PEAP EAP-FAST OFF WEP40 WEP104 OFF WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104

2. PRINTER SETUP

2.6 Printer Setting

(14) DEFAULT KEY Select a WEP key.

(Default: 1) (15) 802.11b CHANNEL Select a channel for 802.11b WLAN.

(17) 802.11g CHANNEL Select a channel for 802.11g. WLAN.

54M 48M 36M 24M 18M 12M

2. PRINTER SETUP

2.6 Printer Setting

(19) WINS OFF ON (MANUAL) ON (DHCP) WINS is disabled. WINS is enabled. (Manual) WINS is enabled. (DHCP) (20) WINS ADDRESS The WINS address is displayed. LPR is disabled. LPR is enabled. USB serial ID is disabled. USB serial ID is enabled.

2. PRINTER SETUP

2.6 Printer Setting

(3) STOP BIT 1 bit 2 bits

2.6.10.4 CENTRO.

(1) ACK/BUSY Select ACK/BUSY timing. TYPE1 TYPE2 A rise of ACK signal and a release of BUSY occur at the same time. A fall of ACK signal and a release of BUSY occur at the same time. (2) INPUT PRIME Resets the printer when the INIT signal is ON. OFF

2. PRINTER SETUP

2.6 Printer Setting

2.6.11 Real Time Clock (RTC) The RTC menu allows the date and time to be set, enables the battery

SYSTEM MODE <8>BASIC <9>FOR FACTORY <10>RFID <11>RTC check function, and selects the RTC data renewal timing while labels are being printed. The Real Time Clock Setting is effective only when an optional RTC & USB Host Interface Card is installed. (1) DATE TIME This parameter is to set date and time. YY/MM/DD

[RIGHT] (2) BATTERY CHECK Enable the low battery check function. OFF

(3) RENEWAL This parameter is to choose when date and time are updated while printing. BATCH PAGE E2-38 The real time clock data is read only for the first label in a batch, the same time is printed on the all labels. The real time clock data is read at the start of printing each label, the real time can be printed on each label.

2. PRINTER SETUP

2.6 Printer Setting

2.6.12 Copying Data to/from The USB Memory menu allows the copying of data from a USB memory

to the printer and saving data from the printer to a USB memory. USB Memory SYSTEM MODE <10>RFID <11>RTC <12>Z-MODE <13>USB MEMORY NOTE: Usable USB memory’s file system is as follows: File system Max. size FAT (FAT16) 2GB FAT32 8GB To use USB memories of the other file system, they need to be formatted to either of the above on the PC in advance. USB memory can be used only when an optional RTC & USB Host Interface Card is installed.

(1) USB TO PRINTER

This parameter is to copy data from a USB memory to the printer. COPIED DATA CONFIG FILE File (*.DAT) containing firmware (BOOT/MAIN/ CG/KANJI/HTML), storage area information, and parameter settings File (*.CFG) in which the path of the firmware (BOOT/MAIN/ CG/KANJI/HTML) is saved

1. When the file selection screen is displayed choose a file to be copied.

2. When the [ENTER] key is pressed, the confirmation message is

displayed. For the CFG files, the message included in the CFG file is displayed prior to the confirmation message.)

3. The data is read from the USB memory. It takes 3 to 5 minutes to

read all the information. NOTE: If a file with the same name already exists in the USB memory, it will be overwritten.

(2) PRINTER TO USB

This parameter is to save the firmware (BOOT/MAIN/CG/ KANJI/HTML), storage area information, and parameter settings to a USB memory. ALL

1. The confirmation message is displayed.

2. The data is copied to the USB memory. It takes approx. 40 seconds to

save all information. A file is automatically created in the USB memory and named in the following format based on the printer model and saved date.

/ATA0/SYSTEM/LE840-0927.DAT

(e.g. LE840(203dpi model), Sep 27) E2-39

2. PRINTER SETUP

2.6 Printer Setting

While using the USB memory, the following error message may be displayed. Error message FORMAT ERROR Check the settings. MEMORY WRITE ERR. Check the data and the settings. MEMORY READ ERR. Check the data and the settings. MEMORY FULL Free some memory space.

FILE NOT FOUND

Check the data and the settings. UNKNOWN ERROR Description Format error USB memory is not connected. Write error Read error Insufficient free space Specified file is not found. Other errors Depending on the remaining memory size or the USB memory status, a write error may occur even under the insufficient free space condition. E2-40

2. PRINTER SETUP

2.7 Installing the Printer Drivers

Installing the Printer Drivers

Introduction This chapter describes the use of the Oki Data printer driver for the Oki Data label printer on your Windows host computer; how to install and delete the printer driver and the procedure for adding a LAN port Cautions and limitations.

General Description (1) Features Once you install the Oki Data printer driver on your Windows host computer, you can use the Oki Data label printer in the same way you would a laser or ink jet printer. You can use the printer by connecting a USB or LAN cable to your host computer. (2) System Requirements To install the Oki Data printer driver on your host computer the following system requirements are needed.

Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7 or Windows Server 2008 R2 A DOS-/V (IBM PC/AT compatible) machine running an above operating system.

• LAN interface Installing the Printer Driver The installation procedure of the printer driver differs depending on the printer model and the connection method. If an older version of the printer driver has been already installed, you must uninstall it and restart the computer before installing a newer version. See Section 2.7.6 Uninstalling the Printer Driver. Installation method for each operating system E2-41

2. PRINTER SETUP

2.7 Installing the Printer Drivers

Use the following procedure to install the printer driver. (1) Insert the LE840/LE850 CD-ROM into your PC’s CD-ROM drive. Click on [Run setup.exe] when the “Auto Play” screen is displayed.

• If the menu screen does not appear, run “setup.exe” on this CD. (2) If the [User Account Control] dialog box is displayed, click on [Yes] or [Continue]. After reading the license agreement, click on [I Agree]. E2-42

2. PRINTER SETUP

2.7 Installing the Printer Drivers

(4) Click on [Install Driver]. (5) When the [Local or network printer] screen appears, select the type of printer being used, and then click on [Next]. (6) Click the interface being used, and then click on [Next]. Local printer Network printer E2-43

2. PRINTER SETUP

2.7 Installing the Printer Drivers

(7) If the [Printer name] screen appears, set the default printer and printer name if necessary, and then click on [Next]. (8) A screen appears indicating that the installation is in progress. Please wait for the installation to complete. (9) If the [Connect cable] screen appears, connect the PC and printer, and then turn the printer’s power on. (10) When the [Installation complete] screen appears, installation is complete. E2-44

2. PRINTER SETUP

2.7 Installing the Printer Drivers

Uninstalling the Printer Driver Open the [Printer Folder] (*). Select "OKI LE840/LE850" in the [Printers and Faxes] section, and then click [Remove device]. Another way is to right click the mouse. (3) Click [Yes]. E2-45

2. PRINTER SETUP

2.7 Installing the Printer Drivers

(4) Select an installed printer (such as "Fax" or "Microsoft XPS Document Writer") in the [Printers and Faxes] section and then click [Print server properties]. (5) For Windows 7 Click the [Drivers] tab and then click [Change Driver Settings]. For Server 2008 R2 Click [Drivers]. (6) Select "OKI LE840/LE850" from the "Installed printer drivers" list and then click [Remove]. E2-46

2. PRINTER SETUP

2.7 Installing the Printer Drivers

(7) Select [Remove driver and driver package.] and then click [OK]. (8) Click [Yes]. (9) Click [Delete]. (10) Click [OK] after driver removal completes and then click [Close] to exit the [Print Server Properties] dialog box. Then, turn off the printer and restart your computer. E2-47

2. PRINTER SETUP

2.7 Installing the Printer Drivers

If the [User Account Control] dialog box is displayed, click [Continue]. Uninstall procedure: (1) Open the [Printer Folder].

• See the [Printer folder] procedure in "3.1 How to use this manual" for instructions on how to open the screen in each OS. [Delete]. (2) Select "OKI LE840" from the "printers folder" and then select [Organize] (3) When "Are you sure you want to delete OKI LE840?" appears, click [Yes]. (4) Select [Organize] [Layout] [Menu Bar]. (5) Select [File] [Run as administrator] [Server Properties].
• If you logged on to Server 2008 using the built-in administrator account, select [Files] [Server Properties]. (6) Click the [Drivers] tab, select " OKI LE840" from the "Installed printer drivers" list, and then click [Remove]. (7) When the [Remove Driver And Package] screen is displayed, select [Remove driver and driver package.], and then click [OK]. (8) When the "Deleting this printer driver package will remove it from the system. Are you sure you want to delete OKI LE840?" screen appears, click [Yes]. (9) When the [Remove Driver And Package] screen appears, click [Delete]. (10) Click [OK] after driver removal completes and then click [Close] to exit the [Print Server Properties] dialog box. (11) Turn off the printer and restart your computer.

Other OS Uninstall procedure: (1) Open the [Printer Folder].

• See the [Printer folder] procedure in "3.1 How to use this manual" for instructions on how to open the screen in each OS. (2) Select "OKI LE840" from the "printers folder" and then select [File] [Delete]. (3) When " Are you sure you want to delete OKI LE840?" appears, click [Yes]. (4) Select [File] [Server Properties]. (5) Click the [Drivers] tab, select "OKI LE840" from the "Installed printer drivers" list, and then click [Remove]. (6) When the [Print Server Properties] screen appears, click [Yes]. (7) Click [Close] after driver removal is complete to exit the [Print Server Properties] dialog box. (8) Turn off the printer and restart your computer. E2-48 After your operating environment has been set, perform a print test.

1. Perform a print test by using the Printer Driver or an Issue Command.

The printer driver’s Properties screen allows you to set the communication conditions, media size, and other printing conditions in accordance with your operating environment. For details, refer to the Help for the Windows Printer Drivers screen. Example: Stock tab display of the Printer Driver’s Properties Screen OKI LE840 Printing Preferences Print Method Sensor Label Gap Issue Mode Post-print Action (Cut) Print Speed Fine Adjustment Print Method: Sensor: Issue Mode: Post-print Action: Fine Adjustment: Direct thermal or thermal transfer is selectable. Media sensor type is selectable. Batch, strip or cut is selectable. Whether to use the cutter or not is selectable. Adjustment values for the feed amount, cut/strip position, etc. can be set.

2. Confirm the print test result.

When a print start position, cut/strip position, or print tone needs to be adjusted: ⇒ Section 2.9 Position and Print Tone Fine Adjustment

When pre-printed media is used, and if a print start position is not properly detected: ⇒ Section 2.10 Threshold Setting E2-49 When using a Strip Module or an optional Cutter Module It is necessary to set the issue mode, cut/strip position, etc. on the Printer Driver or with TPCL in accordance with your printing condition. For details of the TPCL, refer to the LE840/LE850 External Equipment Interface Manual Regarding how to use the Printer Driver, refer to the Help for the Windows Printer Drivers screen. To gain maximum performance and life from the Cutter Module or Strip Module, periodic cleaning is required. Before starting a cleaning, be sure to TURN OFF the printer to avoid risk of injury. For details of cleaning, refer to Section 4.1.3 Optional Cutter Module. E2-50

2. PRINTER SETUP

2.9 Position and Print Tone Fine Adjustment

2.9 Position and Print

Tone Fine Adjustment Power ON Power OFF This section describes how to fine adjust a print start position, cut/strip position, reverse feed amount, print tone, and ribbon motor torque. When a fine adjustment is required, follow the procedure below. PAUSE state Hold down [RESTART] User System Mode

2.9.1 Fine Adjustment

USER SYSTEM MODE

<1>RESET <2>PARAMETER SET <3>ADJUST SET <4>LAN/WLAN Reset Parameter setting (⇒Section 2.6.2) Fine adjustment (⇒Section 2.9) LAN/WLAN (⇒Section 2.6.3) BASIC (⇒Section 2.6.4) Z-MODE (⇒Section 2.6.5) AUTO calibration (⇒Section 2.6.6) Dump mode (⇒Section 2.6.7) Log (⇒Section 2.6.8) Contents of the Fine Adjustment Menu Menu Adjust set Parameter FEED ADJ. CUT ADJ. BACK ADJ. X ADJUST TONE ADJ. (TRANS.) TONE ADJ. (DIRECT)

RBN ADJ. <FW>

RBN ADJ. <BK>

THRESHOLD <REFL.> THRESHOLD <TRANS.> Adjusts the feed amount to the print start position Adjusts the cut or strip position. Adjusts the reverse feed amount. Adjusts the print position in X coordinate (horizontal direction) Adjusts the print tone for thermal transfer printing. Adjusts the print tone for direct thermal printing. Adjusts the ribbon take-up motor drive voltage. Adjusts the ribbon feed motor drive voltage. Sets a fine adjustment value for the threshold for the reflective sensor (Black mark sensor). Sets a fine adjustment value for the threshold for the transmissive sensor (Gap sensor). NOTE: The printer driver’s properties screen also has Parameter Fine Adjustment menu. E2-51

2. PRINTER SETUP

2.9 Position and Print Tone Fine Adjustment

2.9.1 Fine Adjustment (Cont.)

(1) FEED ADJ. Print start position is shifted by fine adjusting the feed amount. 50.0mm 49.9mm -49.9mm -50.0mm

• Example of Print Start Position Fine Adjustment When setting +3.0 mm Compared with “+0.0mm” position, the print start position is shifted forward. Feed Direction One label Print Start Position 3mm When setting +0.0 mm Feed Direction One label Print Start Position When setting –3.0 mm Compared with “+0.0mm” position, the print start position is shifted backward. 3mm Feed Direction One label Print Start Position NOTE: Do not set the fine adjustment value which is larger than the media pitch. When the set value exceeds the media pitch, the printer operation is not guaranteed. E2-52

2. PRINTER SETUP

2.9 Position and Print Tone Fine Adjustment

2.9.1 Fine Adjustment (Cont.)

(2) CUT ADJ. Cut position or peel-off position is shifted by fine adjusting the feed amount. Peel-off Position Cut Position 18.0mm 6.7mm 17.9mm 6.6mm -49.9mm -49.9mm -50.0mm -50.0mm

• Example of Cut Position Fine Adjustment When setting +3.0 mm Compared with “+0.0mm” position, the cut position is shifted forward. Feed Direction 3mm Cut Position When setting +0.0 mm Feed Direction Cut Position 3mm When setting –3.0 mm Compared with “+0.0mm” position, the cut position Print Head is shifted backward. Feed Direction Cut Position

• Example of Peel-off Position Fine Adjustment Print Head When setting –3.0 mm Compared with “+0.0mm” position, the peel-off position is shifted backward. Label Strip Plate Platen Backing Paper When setting +0.0 mm When setting +3.0 mm Compared with “+0.0mm” position, the peel-off position is shifted forward. Feed Direction E2-53

2. PRINTER SETUP

2.9 Position and Print Tone Fine Adjustment

2.9.1 Fine Adjustment (Cont.)

(3) BACK ADJ. Reverse feed amount to the next print start position is fine adjusted. 9.9mm 9.8mm -9.8mm -9.9mm

• Example of Reverse Feed Amount Fine Adjustment When setting +3.0 mm Compared with “+0.0mm” position, the print start position after a reverse feed is shifted forward. Feed Direction Print Start Position after a reverse feed 3mm When setting +0.0 mm Feed Direction Print Start Position after a reverse feed When setting –3.0 mm Compared with “+0.0mm” position, the print start position after a reverse feed is shifted backward. 3mm Feed Direction Print Start Position after a reverse feed NOTE: Depending on the print conditions, a label may not return to the home position with a reverse feed, even if a reverse feed amount is specified to the same length as the forward feed. On the following conditions, the media may not return to the home position, resulting in an error.
• The media sensor is used.
• The media pitch is almost the same as the distance between the print head and the media sensors (75.5 mm.)
• A printer action includes a reverse feed (such as cut issues, strip issues, and automatic forward feed standby.) To prevent an error from occurring, the reverse feed amount needs to be increased by performing the back feed fine adjustment in the positive (+) direction. E2-54

2. PRINTER SETUP

2.9 Position and Print Tone Fine Adjustment

2.9.1 Fine Adjustment (Cont.)

(4) X ADJUST Print position in X-coordinate (horizontal direction) is fine adjusted. 99.5mm 99.4mm -99.4mm -99.5mm

• Example of X Coordinate Fine Adjustment Top Down Printing When setting –50.0 mm Compared with “+0.0mm” position, the print position is shifted to the left.

Bottom First Printing 50.0mm

When setting +0.0 mm ABC When setting +50.0 mm Compared with “+0.0mm” position, the print position is shifted to the right. 50.0mm ABC E2-55

2. PRINTER SETUP

2.9 Position and Print Tone Fine Adjustment

2.9.1 Fine Adjustment (Cont.)

(5) TONE ADJ.(TRANS.) Print tone for the thermal transfer printing is fine adjusted. +10 Darker

Lighter (6) TONE ADJ.(DIRECT.) Print tone for the direct thermal printing is fine adjusted. +10 Darker

1. The fine adjustment value is

not effective for the reverse rotation.

2. The fine adjustment value is

limited depending on the print speed. Value -15 to 0 +1 to +5 +6 to +10 Lighter

(7) RBN ADJ.<FW>

When the ribbon is slack or wrinkled and printing is affected, fine adjust the ribbon motor torque. +10 High

Motor torque Print speed All speed 8 ips or less 6 ips or less

2. PRINTER SETUP

2.9 Position and Print Tone Fine Adjustment

2.9.1 Fine Adjustment (Cont.)

1. The fine adjustment value is

not effective for the reverse rotation.

2. The all fine adjustment

values are applicable to every print speed.

(8) RBN ADJ.<BK>

When the ribbon is slack or wrinkled and printing is affected, fine adjust the ribbon motor torque. +10 High

NOTE: When “0.0 V” is set for this parameter, it is automatically corrected to 1.0V (default) after the power is turned OFF then ON. Low (9) THRESHOLD <REFL.> When you perform a threshold setting for the reflective sensor (Black mark sensor) and found the threshold needs to be adjusted, set a fine adjustment value. This menu is accessible directly from the Threshold Setting Mode so that the threshold can be manually set right away. Manually set threshold = Peak voltage – The value set here For details, refer to Section 2.10. 4.0V 3.9V 0.1V 0.0V NOTE: When “0.0 V” is set for this parameter, it is automatically corrected to 1.4V (default) after the power is turned OFF then ON. (10) THRESHOLD <TRANS.> When you perform a threshold setting for the Transmissive sensor (Gap sensor) and found the threshold needs to be adjusted, set a fine adjustment value. This menu is accessible directly from the Threshold Setting Mode so that the threshold can be manually set right away. . Manually set threshold = Peak voltage – The value set here For details, refer to Section 2.10. 4.0V 3.9V 0.1V 0.0V E2-57 2.PRINTER SETUP

2.10 Threshold Setting

2.10 Threshold Setting

To maintain a constant print position the printer uses the media sensor to detect a print start position according to the difference of voltage between a print area and a gap or black mark. When the media is pre-printed, the darker (or more dense) inks can interfere with this process causing paper jam errors. To get around this problem, first, try an automatic threshold setting. If the problem still occurs, then, the threshold voltage needs to be fine adjusted. Threshold is a voltage level by which the printer determines whether a print area or a gap/a black mark is being detected by the media sensor. The threshold is a boundary between a print area and a gap/black mark, and should be a midpoint of their voltage levels. Power ON Power OFF PAUSE state Hold down [PAUSE] Threshold Setting Mode

Reflective sensor (Black mark sensor) Transmissive sensor (Gap sensor) (1) Load the media to be used. (2) Choose 1) or 2) depending on the sensor type to be used, then press the [ENTER]. NOTES:

1. Failure to feed more than 1.5

labels may result in an incorrect threshold setting.

2. Ensure that a paper end or

ribbon end error will not occur during paper feed. (3) Hold down the [PAUSE] until more than 1.5 labels (tags) have been fed. The media will continue to be fed until the [PAUSE] is released. (An automatic threshold setting for the selected sensor is completed by this operation.) (4) The result of the threshold setting is displayed. Sensor type Result (Text) Result (Graph) Key operation guide (e.g.: Succeeded) E2-58 (e.g: Failed) 2.PRINTER SETUP

2.10 Threshold Setting

2.10 Threshold Setting

(Cont.) Display example

NOTE: To make a threshold value set in this section effective, select the Transmissive Sensor (when using pre-printed media) or Reflective Sensor (when using manual threshold value) in Issue Command or the printer driver.

Explanation Result: OK (Mid.) Threshold is at the midpoint between the peak and the baseline. Result: OK (High) Threshold is near the peak voltage, so detection of a gap/black mark may fail if the voltage difference is very small. Adjusting the threshold to the midpoint between the peak and the baseline enables more accurate detection. Follow next (5) to (10) Result: OK (Low) Threshold is near the baseline voltage, so detection of a gap/black mark may fail if the voltage difference is very small. Adjusting the threshold to the midpoint between the peak and the baseline enables more accurate detection. Follow next (5) to (10) Failed (1) The media sensor cannot detect a gap/black mark. Sensor adjustment is required. (⇒Section 2.11) Failed (1) The media sensor cannot detect a gap/black mark. (Threshold ≤ Baseline) Sensor adjustment is required. (⇒Section 2.11) Failed (2) Detection by the media sensor is disabled. Sensor adjustment is required. (⇒Section 2.11) (5) To return to the sensor selection screen, press the [FEED]. To terminate the threshold setting, press the [ENTER]. To see the details, press the [RIGHT]. Sensor type Peak voltage Threshold voltage Baseline voltage Key operation guide (e.g: Succeeded) E2-59 (e.g.: Failed) 2.PRINTER SETUP

2.10 Threshold Setting

2.10 Threshold Setting

(Cont.) NOTE: The threshold can be manually set as follows: Manually set threshold = Peak voltage – Threshold fine adjustment value e.g.) When Peak=3.5V and Fine adjustment value=1.0V, the threshold will be set to 2.5V. (6) To return to the previous display, press the [LEFT]. To set a fine adjustment value, press the [RIGHT]. The threshold fine adjustment screen in ADJUST SET menu appears. Set a value and press the [ENTER], [PAUSE] or [CANCEL]. (7) The result after manually setting the threshold is displayed. To set a fine adjustment value, press the [LEFT]. To return to the sensor selection screen, press the [FEED]. To terminate the threshold setting, press the [ENTER]. The printer is placed in Pause state. (8) After the threshold is properly set, exit the threshold setting mode and place the printer in the user system mode to set the Threshold select parameter to Manual Set for the applicable sensor. For details, refer to Section 2.6.2.2 Software Set. PAUSE [RESTART] User System Mode <2>PARAMETER SET Software Set THRESHOLD SELECT REFLECT

• COMMAND SET (9) Return to the User System Mode menu by pressing the [MODE]. Choose <1>RESET and press the [ENTER] to reboot the printer. (10) When the printer is placed in the online mode, press the [FEED] to feed the media. If a paper jam occurs or the media does not stop at the print start position, retry the threshold setting. E2-60 If a paper jam error still occurs even after a threshold setting has been performed, register the voltage level of media to the media sensor. Power OFF Turn on the power while holding down [FEED] & [PAUSE] or [MODE]. System Mode

Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting BASIC mode RFID setting Real Time Clock Z-MODE USB memory Reset Contents of the Sensor Adjust Menu SYSTEM MODE <3>ADJUST SET <4>TEST PRINT <5>SENSOR ADJUST <6>RAM CLEAR Displays the ambient temperature and print head temperature. Registers the voltage level of tag paper’s print area to the reflective sensor (Black mark sensor). Registers the voltage level of label gap to the transmissive sensor (Gap sensor). Registers the voltage level of no paper to the reflective/transmissive sensor. Registers the voltage level of ribbon to the ribbon end sensor. (1) REFLECT

1. Select “REFLECT” from the Sensor Adjust menu.

2. Place the tag paper to be used on the reflective sensor (Black mark

sensor) so that the sensor can detect a print area.

3. Hold down the [ENTER] for 3 seconds or more.

4. When registration of the “print area level” is completed, “Adjust

Complete” is displayed and an asterisk is shown on the right side of the voltage. (2) TRANS.

1. Select “TRANS.” from the Sensor Adjust menu.

2. Remove some labels and place the backing paper so that the

Transmissive sensor (Gap sensor) can detect it.

3. Hold down the [ENTER] for 3 seconds or more.

4. When registration of the “label gap level” is completed, “Adjust

Complete” is displayed and an asterisk is shown on the right side of the voltage. (3) PE REFL./TRANS.

1. Select “PE REFL./TRANS.” from the Sensor Adjust menu.

2. Remove any media from the media sensor.

3. Hold down the [ENTER] for 3 seconds or more.

4. When registration of the “no media level” is completed, “Adjust

Complete” is displayed and an asterisk is shown on the right side of the voltage. E2-62

3. ONLINE MODE

This chapter describes the usage of the keys on the Operation Panel in Online mode. When the printer is in Online mode and connected to a host computer, the normal operation of printing on labels or tags can be accomplished. Key functions in the online mode

3.1 Key Functions

Key [FEED] PAUSE FEED [RESTART] RESTART MODE

LEFT RIGHT ENTER CANCEL DOWN [PAUSE] Function (1) Feeds the set media length. (2) Prints the data in the image buffer according to the system mode setting. (3) Clears the help message. (1) Resumes printing after a temporary pause in printing or after an error. (2) Places the printer in the initial state which is obtained when the power is turned on. (3) Places the printer in the user system mode. (4) Clears the help message. (1) Stops label printing temporarily. (2) Programs the threshold values. (3) Clears the help message. (1) Places the printer in the user system mode. (2) Clears the help message. (1) Clears the job. (2) Displays previous help message page. (1) Displays next help message page. (2) Clears the help message. (1) Scrolls up (1) Scrolls down (1) Displays previous help message page. (1) Displays next help message page. E3- 1 Online state (1) (2) (3) (4) Error state (10) (11) (12) No. (1) (2) (3) (4) (5) Description Model name and firmware version Message The number of labels printed IP address (only when LAN/WLAN is enabled.) Radio intensity (only when WLAN is enabled.) Indicates the radio intensity in 4 levels. (6) WLAN connection (only when WLAN is enabled.)

• Lights up when connecting to an access point.
• Flashes while roaming.
• Goes off when disconnected. (7) Presence of a print job Appears when a print job exists. (8) RFID (only when RFID module is installed.)
• Appears when a communication between the printer and the RFID module is enabled.
• Flashes while communicating with the RFID module. (9) Ribbon near end Flashes when a ribbon near end state is detected. (10) The number of remaining labels to print (11) Error description and solution (12) Help guide Appears when a help guide message is provided. Press the [RIGHT] key to see the help guide message. E3- 2

3.3 Operation Example

Online Mode Idling or normal issuing When [PAUSE] key is pressed while printing: When [RESTART] key is pressed, the printer resumes printing if there is remaining data. Printing is stopped. If the print head is opened during idling: Close the print head. Help guide is displayed. Press [RIGHT] key Help guide message for head open Load media. When [RESTART] key is pressed, the printer resumes printing if there is remaining data. If an error occurs while printing: Printing is stopped and Help guide is displayed. Press [RIGHT] key

3.3 Operation Example (Cont.)

Help Guide Message Idling or normal issuing Load media. When [RESTART] key is pressed, the printer resumes printing if there is remaining data. If an error occurs while printing: Printing is stopped and Help guide is displayed. [RIGHT] or [ENTER] Cause of the error How to restore to online [RIGHT] or [ENTER] E3- 4

3.3 Operation Example (Cont.)

Cancellation of Print Job While [CANCEL] is held down, the received data is discarded. (Quick reset) Idling or normal issuing When [PAUSE] key is pressed while printing: Hold down [CANCEL] for 3 sec. or more. If an error occurs while printing: Hold down [CANCEL] for 3 sec. or more. E3- 5 Power Save Function

3.4.1 Entering the Power

Saving Mode When the printer stays in any of the following statuses for the specified length of time, it enters the power saving mode.

• Online (Idle, communicating)
• Waiting for label to be removed
• System mode (except for self-diagnosis, test print, sensor adjustment)
• User system mode (except for dump)
• Pause state of the expansion I/O When the printer enters the power saving mode, “POWER SAVING MODE” is displayed on the LCD and the backlight goes off. When the following occurs in the power saving mode, the LCD wakes up.
• A key is pressed. (Except for [RESTART] or [FEED] key which causes printing or paper feed.)
• The head lever is released and locked.
• The status of the pause or active signal of the expansion I/O changes. The LCD shows “POWER SAVING MODE” and the backlight goes off again if no status change occurs on the printer for 30 seconds.

3.4.2 Exiting the Power

Saving Mode The printer exits the power saving mode when:

• printing (printing caused by a depression of the [RESTART] key is included.) is performed.
• paper feed or re-print s caused by a depression of the [FEED] key
• printing or paper feed is initiated through the expansion I/O
• automatic calibration is performed
• sensor adjustment is performed in the system mode
• the printer receives commands - U1/U2, T, XS, IB or RFIDrelated commands E3- 6

4. MAINTENANCE

1. Be sure to disconnect the

power cord before performing maintenance. Failure to do this may cause an electric shock.

2. To avoid injury, be careful

not to pinch your fingers while opening or closing the cover and print head block.

3. The print head becomes

hot immediately after printing. Allow it to cool before performing any maintenance.

4. Do not pour water directly

5. Do not touch any moving

parts, projection and the edge of sheet metal. This chapter describes how to perform routine maintenance. To ensure the continuous high quality operation of the printer, you should perform a regular maintenance routine. For high usage it should be done on a daily basis. For low usage it should be done on a weekly basis.

4.1 Cleaning

To maintain the printer performance and print quality, please clean the printer regularly, or whenever the media or ribbon is replaced.

1. Turn off the power and unplug the printer.

2. Open the Top Cover.

3. Turn the Head Lever to the “FREE” position, and then release the

Ribbon Shaft Holder Plate.

4. Open the Print Head Block.

5. Remove the ribbon and media.

1. Do not use any volatile

solvent including thinner and benzene, as this may cause discoloration to the cover, print failure, or breakdown of the printer.

2. Do not touch the Print

Head Element with bare hands, as static may damage the Print Head. CAUTION! When cleaning the print head, be careful not to damage the print head with hard objects like watches or rings. Care must be taken not to allow the metal or glass part of a watch to touch the print head edge. Care must be taken not to allow a metal object like a ring to touch the print head edge. Since the print head element can be easily damaged by shock, please treat it carefully and do not hit it with hard objects. E4- 1

4.1.1 Print Head/Platen/

Sensors (Cont.) NOTE: Please purchase the Print Head Cleaner from your authorised Oki Data service representative.

6. Clean the Print Head Element with a Print Head Cleaner or a cotton

swab or soft cloth slightly moistened with alcohol. Print Head Pinch Roller Print Head Element Feed Roller Platen Black Mark Sensor/ Gap Sensor

7. Wipe the Platen, Feed Roller, and Pinch Roller with a soft cloth

slightly moistened with alcohol. Remove dust or foreign substances from the internal parts of the printer.

8. Wipe the Gap Sensor and Black Mark Sensor with a dry soft cloth.

4.1.2 Covers and Panels

Wipe the covers and panels with a dry soft cloth or a cloth slightly moistened with a mild detergent solution. CAUTION!

1. DO NOT POUR WATER

directly onto the printer.

2. DO NOT APPLY cleaner

or detergent directly onto any cover or panel.

3. NEVER USE THINNER

OR OTHER VOLATILE

SOLVENT on the plastic covers.

4. DO NOT clean the panel,

covers, or the supply window with alcohol as it may cause them to discolour, lose their shape or develop structural weakness. E4- 2

4.1.3 Optional Cutter Module The disc cutter and rotary cutter are available as an option. They are both

1. Be sure to turn the power

off before cleaning the Cutter Module.

2. As the cutter blade is

sharp, care should be taken not to injure yourself while cleaning. cleaned in the same way. When removing the Cutter Cover of the rotary cutter unit, remove the screws from the bottom of the cover.

Loosen the two Plastic Head Screws to remove the Cutter Cover. Remove the jammed paper. Clean the Cutter with a soft cloth slightly moistened with alcohol. Attach the Cutter Cover. Plastic Head Screw Cutter Unit E4- 3

5. TROUBLESHOOTING

5.1 Error Messages

5. TROUBLESHOOTING

This chapter lists the error messages, possible problems, and their solutions. WARNING! If a problem cannot be solved by taking the actions described in this chapter, do not attempt to repair the printer. Turn off and unplug the printer, then contact an authorised Oki Data service representative for assistance.

5.1 Error Messages

• If an error is not cleared by pressing the [RESTART] key, turn the printer off and then on.
• After the printer is turned off, all print data in the printer is cleared. Error Messages HEAD OPEN COMMS ERROR PAPER JAM Problems/Causes The Print Head Block is opened in Online mode. Feeding or printing has been attempted with the Print Head Block open. A communication error has occurred. Solutions Close the Print Head Block.

3. Wrong Media Sensor is selected for

the media being used.

3. Turn the printer off and then on.

Select the Media Sensor for the media type being used. Resend the print job.

4. The Black Mark Sensor is not

correctly aligned with the Black Mark on the media.

5. Size of the loaded media is different

from the programmed size.

4. Adjust the sensor position, then press

the [RESTART] key. ⇒ Section 2.3.1.

5. Replace the loaded media with one

that matches the programmed size, press the [RESTART] key, or turn the printer off and then on, select a programmed size that matches the loaded media. Resend the print job.

6. Media sensor has not been properly

calibrated for the media being used.

6. Refer to Section 2.10 to set the

threshold. If this does not solve the problem, turn off the printer, and call a Oki Data authorised service representative. Close the Print Head Block. Then press the [RESTART] key. Make sure the interface cable is correctly connected to the printer and the host and the host is turned on.

1. The media is jammed in the media 1. Remove the jammed media, and clean

the Platen. Reload the media path. The media is not fed smoothly. correctly. Press the [RESTART] key. ⇒ Section 5.3.

2. Reload the media correctly. Then

2. The media is not loaded properly.

press the [RESTART] key. ⇒ Section 2.3. E5- 1

5. TROUBLESHOOTING

5.1 Error Messages

1. The media is jammed in the cutter.

(Only when the cutter module is installed on the printer.) NO PAPER

2. The Cutter Cover is not attached

1. The media has run out.

2. The media is not loaded properly.

3. The media sensor position has not

been adjusted properly.

4. Media sensor has not been properly

calibrated for the media being used. RIBBON ERROR

5. The media is slack.

1. The ribbon is not fed properly.

2. The ribbon is not loaded.

3. The ribbon sensor has a problem.

NO RIBBON The ribbon has run out. REWIND FULL The Built-in Rewinder Unit is full. The Print Head has overheated. There is a problem with the Print Head. A momentary power failure has occurred. Power off/on timing is too fast. E5- 2 Solutions

1. Remove the jammed media. Press the

[RESTART] key. If this does not solve the problem, turn off the printer, and call an Oki Data authorised service representative. ⇒ Section 4.1.3.

2. Attach the Cutter Cover properly.

1. Load new media. Press the

[RESTART] key. ⇒ Section 2.3.1.

2. Reload the media correctly. Press the

[RESTART] key. ⇒ Section 2.3.1.

3. Adjust the sensor position. Press the

[RESTART] key. ⇒ Section 2.3.1.

4. Refer to Section 2.10 to set the

threshold. If this does not solve the problem, turn off the printer, and call an Oki Data authorised service representative.

5. Take up any slack in the media.

1. Remove the ribbon and check the

status of the ribbon. Replace the ribbon if necessary. If the problem is not solved, turn off the printer, and call an Oki Data authorised service representative.

2. Load a ribbon.

3. Turn off the printer and call an Oki

Data authorised service representative. Load a new ribbon. Press the [RESTART] key. ⇒ Section 2.3.2. Remove the backing paper from the BuiltIn Rewinder Unit. Press the [RESTART] key. Turn off the printer and allow it to cool down for about 3 minutes. If this does not solve the problem call an Oki Data authorised service representative. Replace the Print Head. Check that the power source, which supplies power to the printer, is the correct rating. If the printer shares the same power outlet with other electrical appliances that consume large amounts of power, use a different outlet. Turn on the printer after LED is not blinking. (Power turn on during LED blinking)

5. TROUBLESHOOTING

5.1 Error Messages

MEMORY WRITE ERR. FORMAT ERROR MEMORY FULL PASSWORD INVALID Please Power OFF Problems/Cause

1. The printer is used in a location

where it is subject to noise or there are power cords from other electrical appliances near the printer or interface cables.

2. The Power Cord of the printer is not

3. The printer shares the same power

source with any other electrical appliances.

4. An application software used on

your host computer has an error or malfunction. An error has occurred in writing to the flash ROM/USB memory. An error has occurred in formatting the flash ROM/USB memory. Saving failed because of insufficient storage space in the flash ROM/USB memory. Data cannot be read-from or written-to a backup EEPROM properly. The printer did not succeed in writing data onto an RFID tag after retrying the specified number of times. The printer cannot communicate with the RFID module. The voltage of the Real Time Clock Battery is low. Turn the printer off, and then on again. While the printer is in the Download mode for upgrading the firmware, it receives an improper command, for example, an Issue Command. A wrong password was entered three consecutive times. A hardware or software problem may have occurred. Please consult the system administrator. E5- 3 Solutions

1. Keep the printer and the interface

cables away from the source of noise

2. Ground the Power Cord.

3. Provide an exclusive power source for

4. Confirm the host computer operates

properly. Turn the printer off, and then on again. Turn the printer off, and then on again. Turn the printer off, and then on again. Press the [RESTART] key. Turn the printer off, and then on again. If you wish to keep using the same battery even after “LOW BATTERY” error occurs, turn off the printer and start it in the system mode, set the date and time for the RTC and reboot the printer. As long as the power is on the date and time will be correct. Call an Oki Data authorised service representative to replace the battery. Turn the printer off, and then on again. Turn the printer off and then on. If this does not solve the problem, turn off the printer, and call an Oki Data authorised service representative.

5. TROUBLESHOOTING

5.2 Possible Problems

5.2 Possible Problems

This section describes problems that may occur when using the printer, and their causes and solutions. Possible Problems The printer will not turn on. The media will not feed. Causes

1. The Power Cord is disconnected.

2. The AC outlet is not functioning

3. The fuse has blown, or the circuit

breaker has tripped.

1. The media is not loaded properly.

2. The printer is in an error condition.

Pressing the [FEED] key in the initial state results in an error. Nothing is printed on the media. A feed was attempted contrary to the following default conditions. Sensor type: Gap sensor Printing method: Thermal transfer Media pitch: 76.2 mm

1. The media is not loaded properly.

2. The ribbon is not loaded properly.

The printed image is blurred. The cutter does not cut.

3. The print head is not installed

4. The combination of the ribbon and

media is not correct.

1. The combination of the ribbon and

media is not correct.

2. The Print Head is not clean.

1. The Cutter Cover is not attached

2. The media is jammed in the Cutter.

3. The cutter blade is dirty.

The Strip Module does not remove labels from the backing paper. Label stock is too thin or the glue is too sticky. E5- 4 Solutions

1. Plug in the Power Cord.

2. Test with a power cord from another

electrical appliance.

3. Check the fuse or circuit breaker.

1. Load the media properly.

2. Solve the error in the message display.

(See Section 5.1 for more detail.) Change the print condition by using the printer driver or a print command so that it corresponds to your printing conditions. Clear the error state by pressing the [RESTART] key.

1. Load the media properly.

2. Load the ribbon properly.

3. Install the print head properly and

close the Print Head Block.

4. Select an appropriate ribbon for the

media type being used.

1. Select an appropriate ribbon for the

media type being used.

2. Clean the print head using the Print

Head Cleaner or a cotton swab slightly moistened with ethyl alcohol.

1. Attach the Cutter Cover properly.

2. Remove the jammed paper.

3. Clean the cutter blade.

1. Refer to Section 7.1 Media and

2. Set the Pre Peel function to ON.

5. TROUBLESHOOTING

5.3 Removing Jammed Media

5.3 Removing Jammed

Media CAUTION! Do not use any tool that may damage the Print Head. WARNING!

1. Be sure to disconnect the

power cord before performing maintenance. Failure to do this may cause an electric shock.

2. To avoid injury, be careful

not to pinch your fingers while opening or closing the cover and print head block.

3. The print head becomes

hot immediately after printing. Allow it to cool before performing any maintenance.

4. Do not pour water directly

5. Do not touch any moving

parts, projection and the edge of sheet metal. NOTE: If you get frequent jams in the cutter, contact an Oki Data authorised service representative. This section describes, in detail, how to remove jammed media from the printer.

1. Turn off and unplug the printer.

2. Open the Top Cover.

3. Turn the Head Lever to FREE position, then open the Ribbon Shaft

4. Open the Print Head Block.

5. Remove the ribbon and media.

Print Head Block Ribbon Shaft Holder Plate

6. Remove the jammed media from the printer. DO NOT use any sharp

implements or tools as these could damage the printer.

7. Clean the Print Head and Platen, then remove any further dust or

8. Paper jams in the Cutter Unit can be caused by wear or residual glue

from label stock on the cutter. Do not use non-specified media in the cutter. CAUTION! When removing the jammed media, be careful not to damage the print head with hard objects like watches or rings. Care must be taken not to allow the metal or glass part of a watch to touch the print head. Care must be taken not to allow a metal object like a ring to touch the print head. Since the print head element can be easily damaged by shock, please treat it carefully and do not hit it with hard objects. E5- 5

6. PRINTER SPECIFICATIONS

This section describes the printer specifications. Model LE840Ds Item Dimension (W x D x H) LE840Dn LE840Du Operating temperature range 5 degC to 40 degC (40 degF to 104 degF) Relative humidity 25% to 85% RH (no condensation) Storage Temperature -40 degC to +60 degC Storage Humidity 10%RH to 90%RH (non condensation) Power supply Universal switching power source AC 100 V to 240 V, 50/60 Hz Input voltage AC100 V to 240 V, 50/60 Hz Power During a print job* Consumption During stand-by During sleep mode 157.34W 0.71A Less than 15W (Option full-operating) , 0.19A 5.7W 0.09A Resolution 8 dots/mm (203 dpi) Printing method Direct Thermal Printing speed 76.2mm/sec. (3 in/sec.) 152.4mm/sec (6 in/sec.) 254.0mm/sec.(10 in/sec.) 304.8mm/sec.(12 in/sec.) Available media width (including

25.0 mm to 114.0 mm (0.98 inches to 4.49 inches)

backing paper) Effective print width (max.) Batch Strip (Strip mode is enabled only when the optional Strip Module is installed.) Cut (Cut mode is enabled only when the optional Cutter Module is installed.) Graphic type 128 x 64 dots *: While 20% slant lines are printed in the specified format. E6- 1 Item Bar code types LE840Dn LE840Du JAN8, JAN13, EAN8, EAN8+2 digits, EAN8+5 digits, EAN13, EAN13+2 digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 STATE CUSTOMER CODE), GS1 DataBar , Standard 2 of 5 , USPS Intelligent Mail Barcode Two-dimensional code Times Roman (6 sizes), Helvetica (6 sizes), Presentation (1 size), Letter Gothic (1 size), Prestige Elite (2 sizes), Courier (2 sizes), OCR (2 types), Gothic (1 size), Outline font (4 types), Price font (3 types) Rotations Standard interface Optional interface Serial interface Parallel interface Expansion I/O interface RTC & USB Host interface Wireless LAN interface Note: Serial I/F and Wireless LAN I/F are exclusive connection 203-dpi print head 300-dpi print head NOTES: Data MatrixTM is a trademark of International Data Matrix Inc., U.S. PDF417TM is a trademark of Symbol Technologies Inc., US. QR Code is a trademark of DENSO CORPORATION. Maxi Code is a trademark of United Parcel Service of America, Inc., U.S. E6- 2 N/A Dimension (W x D x H) Operating temperature range 5 degC to 40 degC (40 degF to 104 degF) Relative humidity 25% to 85% RH (no condensation) Storage Temperature -40 degC to +60 degC Storage Humidity 10%RH to 90%RH (non condensation) Power supply Universal switching power source AC 100 V to 240 V, 50/60 Hz Input voltage AC100 V to 240 V, 50/60 Hz Power During a print job* Consumption During stand-by During sleep mode 157.34W 2.0A-0.7A Less than 15W (Option full-operating) , 0.19A 5.7W 0.09A Resolution 8 dots/mm (203 dpi) Printing method Thermal Transfer or Direct Thermal Printing speed 76.2mm/sec. (3 in/sec.) 152.4mm/sec (6 in/sec.) 254.0mm/sec.(10 in/sec.) 304.8mm/sec.(12 in/sec.) Available media width (including

25.0 mm to 114.0 mm (0.98 inches to 4.49 inches)

backing paper) Effective print width (max.) Batch Strip (Strip mode is enabled only when the optional Strip Module is installed.) Cut (Cut mode is enabled only when the optional Cutter Module is installed.) Graphic type 128 x 64 dots *: While 20% slant lines are printed in the specified format. E6- 3 Item Bar code types LE840Tn LE840Tu JAN8, JAN13, EAN8, EAN8+2 digits, EAN8+5 digits, EAN13, EAN13+2 digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 STATE CUSTOMER CODE), GS1 DataBar, Standard 2 of 5 , USPS Intelligent Mail Barcode Two-dimensional code Times Roman (6 sizes), Helvetica (6 sizes), Presentation (1 size), Letter Gothic (1 size), Prestige Elite (2 sizes), Courier (2 sizes), OCR (2 types), Gothic (1 size), Outline font (4 types), Price font (3 types) Rotations 0, 90, 180, 270 deg Standard interface USB, Parallel, Serial Optional interface Serial interface USB, LAN USB Parallel interface Expansion I/O interface RTC & USB Host interface Wireless LAN interface Note: Serial I/F and Wireless LAN I/F are exclusive connection. Optional Module 203-dpi print head 300-dpi print head NOTES: Data MatrixTM is a trademark of International Data Matrix Inc., U.S. PDF417TM is a trademark of Symbol Technologies Inc., US. QR Code is a trademark of DENSO CORPORATION. Maxi Code is a trademark of United Parcel Service of America, Inc., U.S. E6- 4

7. SUPPLY SPECIFICATIONS

7.1 Media

Please make sure that the media being used is approved by Oki Data. The warranty does not apply when a problem is caused by using media that is not approved by Oki Data. For information regarding Oki Data approved media, please contact a Oki Data authorised service representative.

7.1.1 Media Type

Two types of media can be loaded for this thermal transfer and direct thermal printer: label or tag. The table below shows size and shape of the media available for this printer. Black Mark (on reverse side) Label Stop position Stop position Cut position Black Mark (on reverse side) Tag paper

Feed Direction Paper Size and Shape Item LE840 LE850 Thermal head density 8dots/mm（203dpi） Thermal head width 104.0mm Contents

Paper Pitch Issue type Label Tag Paper length Min.

Cutter Batch Strip Disc *Note1 Cutter Min.

Max. Label width Label-to-label gap Direct

Min. Black mark length

*Note1 and Backing paper width Max.

Batch 108.416mm Strip Max. effective print width Max. Label

Effective print length Tag

104.0 +-0.2

104.0 +-0.2

Slow-up and down area Slow-up

(Un-print area) Slow-down

Paper thickness Paper thickness can be cut Min.

Max. paper roll diameter

Paper winding direction

φ200 φ200 (when the built in rewinder is used φ180) (when the built in rewinder is used φ180) Inside the printing side Inside the printing side Outside the printing side Outside the printing side Inside diameter Inside diameter φ76.2±0.3 φ76.2±0.3 68-112mm 68-112mm NOTES:

1. To ensure print quality and print head life use only Oki Data specified media.

2. When using the peel-off at 12”/sec or more for 203dpi model, issue at 10”/sec.

When using the peel-off at 10”/sec or more for 300dpi model, issue at 8”/sec.

3. When using the disk cutter, the label length must meet the following condition:

Label length 18.0mm - (Gap length/2).

4. The Strip Module do not support the print speed of 10”/sec. or faster.

5. The ratio of a label length to a gap length must be a minimum of 3 to 1 (3:1).

6. When using label stock in cut mode, be sure to cut in the gaps. Cutting labels will cause the adhesive

to stick to the cutter, which may affect the cutter performance and shorten the cutter life.

7. When the Strip Module is used on the LE840 (203 dpi model), the print speed is automatically corrected

to 10”/sec. if 12”/sec. or faster is specified. When the Strip Module is used on the LE850 (300 dpi model), the print speed is automatically corrected to 8”/sec. if 8”/sec. or faster is specified. E7-２

7.1.2 Detection Area of the Transmissive Sensor (Gap sensor)

Sensor position The sensor is movable in the range from the center of the paper to the left end. Transmissive sensor and Reflective sensor (Black mark sensor) are moving from side to side at same time each sensor unit. Sensor unit Reflective sensor(□square) Transmissive sensor (○circle) 6mm 51mm Movement range Sensor distance 10mm10mm Center of paper Paper position (left) Paper position (Right) Factory initial setting Detection Area of Transmissive Sensor Transmissive Sensor Detection of hole (Center of paper) Rectangular hole Transmissive Sensor position (Round holes are View from the print side Unacceptable.) 5mm Paper feed direction Should be keep 5mm Magnified view of detection area Transmissive sensor is movable within this range. E7-３ Transmissive Sensor position (Center of paper) Necessary detection area View from the print side Label Gap Min. 2.0 mm (Min.6.0mm when the cutter is used.) Label Paper feed direction Min. 12 mm Magnified view of detection area 16mm Transmissive sensor is movable within this range.

7.1.3 Detection Area of the Reflective Sensor (Black mark sensor)

The Reflective Sensor is movable from the centre to the left edge of media. The reflection factor of the Black Mark must be 10% or lower with a waveform length of 950 nm. The Reflective Sensor should be aligned with the centre of the Black Mark. The black marks, if necessary, must be printed on the labels in the gap areas. Rectangular holes can substitute the black marks, on the condition that nothing is printed on the back side. Reflective Sensor (Center of paper) Perspective on the back side Reflective Sensor position View from the print surface Min. 2.0 mm Paper feed direction Min. 12 mm 6mm Reflective sensor is movable within this range. E7-4

7.1.4 Effective Print Area

7.1.4.1 Relationship between Print Head Effective Print Width and Paper Width

Paper position (Left) Paper position (Right) Printing area Outside printing area 104.0mm±0.2mm (Effective print head width) 2 mm 8 mm Outside printing area 30.0mm (Min. paper width) 114.0mm (Max. paper width)

7.1.4.2 Effective Print Area of Tags and Labels

1.5 mm from right

3.5 mm from left

edge of paper 10 mm to 1500 mm Label/tag length Guaranteed Printing Area Detection area 1 mm Feed direction NOTES:

1. Print quality in the shaded area is not guaranteed. For the label, printing in the 1-mm width area around

the label is not guaranteed as well as the shaded area shown above.

2. This printer paper set position is left side,

The center of the paper (label and tag) is not almost aligned with the center of the print head.

3. If printing is performed in the shaded area, the ribbon may wrinkle. This may affect the print quality of

the guaranteed printing area. E7-5

7. SUPPLY SPECIFICATIONS

7.2 Ribbon

7.1.5 RFID Tags

Available RFID tag types are different depending on the RFID modules/printers. Cautions for using RFID Tags (1) Lift-up of Print Head An RFID tag chip or the print head may be damaged when the print head passes over the chip. (2) Storage of RFID Supplies Do not store RFID tags close to printers, as their read/write performance may be compromised when they are used. (3) Roll-type RFID Supplies When RFID supplies are to be rolled, roll hardness must be considered. Although it depends on the type of adhesive, tag, and backing paper, RFID-tag embedded labels tend to stay rolled. Especially, when they are outside wound, a paper jam error may occur. Unless otherwise specified, it is recommended that the RFID-tag embedded labels be inside wound. (4) Sensor When the transmissive sensor or reflective sensor is enabled, transmittance or reflectivity of a label or tag may vary at an RFID-tag embedded area depending on the pattern of the antenna or other factors. In such cases, a manual threshold setting is required. For details, refer to Section 2.10 Threshold Setting. (5) Cutter When an RFID label or tag is used in cut issue mode, care must be taken not to cut the antenna of the RFID tag or the IC chip so as not to damage the cutter. (6) Static Electricity When printing is performed in a place where humidity is low or under some specific conditions, writing data on an RFID tag may fail due to static electricity generated by the label or ribbon. E7-6

7. SUPPLY SPECIFICATIONS

7.2 Ribbon

(7) Printing on Bump (Chip/Antenna) Area Embedding an RFID tag in labels creates bumps on the label surface, causing incomplete printing. Uneven printing or incomplete printing can occur easily, especially within 5 mm top and bottom, and to the left and right sides of the RFID-tag embedded area, as shown in the figure below. NOTE: The degree of poor printing quality differs depending on height of a chip/antenna used. Media feed direction Poor printing may occur in this area due to a bump. 5 mm Poor printing may occur in this area due to a bump. (8) Ambient Temperature As low temperatures cause wireless performance to deteriorate, writing data on an RFID tag may fail under such conditions. (9) Strip Issue Stripping performance in strip issue mode depends on the type of adhesive, tag, and backing paper. For some RFID supplies used, a strip issue may not be performed properly. (10) Caution for Minimum Label Pitch Length When using media, with a short label pitch length, data may be written on an RFID tag adjacent to the target RFID tag. As the location, where data is to be written, differs among RFID tag types, a check must be performed to make sure that the data is written on the target RFID tags. For details, please contact the nearest Oki Data support representative. (11) Defective RFID Supply RFID supplies may include defective RFID tags at the time of shipment from the maker. The defect rate differs depending on tag types, method of converting to supplies, etc. The RFID supply manufacturer should provide a way to identify defective tags by printing a mark on them or any other methods. Or, defective tags should be rejected in the production process. The end users must be notified on how to identify a defective tag from a good one. E7-7

7. SUPPLY SPECIFICATIONS

7.2 Ribbon

7.2 Ribbon

The approved ribbon must be used. Use of any non-approved ribbon may cause problems.

SHAPE AND SIZE OF RIBBON

Ribbon Shape Ribbon Width Ribbon Winding Width Max. Ribbon Length Max. Ribbon OD Outside wound Inside wound Back Treatment Material Ribbon Core Shape Leader Tape End Tape

Spool type 68(40) ±1 mm to 112 mm 68(40) -1 mm to 112 mm 600 m (Ø90 mm or less) Ø90 mm Ø80 mm Coated Paper See Fig. 1. Polyester film (silver), 300 ± 5 mm long Polyester film (silver), 250 ± 5 mm long The ribbon is wound outside. For the core and ribbon winding positions, see Fig. 2. NOTES:

1. The ribbon type number and the lot No. should be marked on the ribbon core end with black

indelible ink. (If doing this is impossible, separately specify the location where the type number and the lot number are stamped.)

2. It is recommended that the ribbon is wider than the paper width by 5 mm or more.

• When the difference between the ribbon width and the paper width is same or too minimum, the ribbon may wrinkle.
• When the difference between the ribbon width and the paper width is too large, the ribbon may wrinkle.
• Be careful of the upper limit of the ribbon width.

3. The ribbon which is narrower than the paper width by 5 mm or more can be used, but the print area

7. SUPPLY SPECIFICATIONS

7.2 Ribbon

Fig. 2 Positional Relationship between Core and Ribbon The inked surface faces the outside. NOTE: Wind the ink ribbon so that the ribbon center aligns with the core center. Fig. 3: Connection between Leader Tape and Ribbon Adhesive tape Leader tape The inked surface Ink ribbon Adhesive tape Inked side Take-up core Core Base Treated back side NOTES on using ribbon: If the difference between the ribbon width and the paper width is too large, the ribbon may wrinkle. Refer to the table below and choose the paper appropriate to the ribbon width. Even if the ribbon is narrower than paper, printing can be performed. However, it results in the narrower print range. LE840T/LE850T Ribbon width 68mm Appropriate 45 to 63 mm paper width 84ｍｍ 112ｍｍ 63 to 79 mm 79 to 107 mm The ribbon tension adjustment may be further required according to the ribbon width. In the case a narrower width of the ribbon is used, if the ribbon tension is strong, the ribbon will wrinkle. According to the print patterns, fine adjustment of the ribbon take-up motor is required. As a guide, regardless of the print speed, it should be set to “-3” (FW) and “-1” (BK) for 68-mm wide ribbon, and “-4” (FW) and “-2” (BK) for 50-mm wide or less ribbon, respectively. E7-9

7. SUPPLY SPECIFICATIONS

7.3 Recommended Media and Ribbon Types

7.3 Recommended Media and Ribbon Types

APPROVED PAPER Type Item Code Paper Thickness (µm)

Vellum Transtherm 1C Thermal transfer type FR1412-50 FR1615-50 Manufacturer Type No. Thermal transfer type IS50 Manufacturer Remarks RICOH VES-85

White PET Silver chemical mat

(Uncoated) (Coated, gloss) T.B.D (Yupo) NOTE:

1. The print head life varies depending on the print pattern (printing ratio).

2. Transmissive sensor (Gap sensor) is initially adjusted with Vellum label, and the Reflective sensor

(Black mark sensor) is adjusted with I-BEST S tag. When using other Label/Tag, it may be necessary to adjust sensor. When occurring Feed Error, adjust sensor with using Label/Tag. For details regarding the sensor adjustment, refer to Section 2.11 Sensor Setting. E7-10

7. SUPPLY SPECIFICATIONS

7.3 Recommended Media and Ribbon Types

APPROVED RIBBONS Type: W: Wax Item Code (Global) Manufacturer Ink Name Base Thickness (µm) Manufacturer Type Remarks

AWR6 AWX-FH AWARD AWR470Solfree APR6 APX-FH AXR7+ AXR8 ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR

1. Print conditions and paper to be used may differ for each ribbon.

E7-11 SR: Semi-resin R: Resin Applicable models (indicated with )

7. SUPPLY SPECIFICATIONS

7.3 Recommended Media and Ribbon Types

PRINT TONE FINE ADJUSTMENT VALUES BY SUPPLIES For 203dpi model Print Mode Ribbon Paper 3”/s Print energy type Vellum

unusable Wax1 Thermal transfer type TT1C

Wax1 Wax1 Semi-resin1 Remarks This combination is not acceptable in the case of 10, 12ips and high temperature environment. In the case of 10, 12ips and low temperature environment requires a print tone adjustment to positive direction. Serial bar code printed at 12ips is unusable. In the case of 3, 6ips and high temperature environment requires a print tone adjustment to negative direction. In the case of 3, 6ips and high temperature environment requires a print tone adjustment to negative direction. This combination is not acceptable in the case of 10ips and high temperature environment. In the case of 3, 6ips and high temperature environment requires a print tone adjustment to negative direction. In the case of 3ips and high temperature environment requires a print tone adjustment to negative direction. In the case of 6ips and low temperature environment requires a print tone adjustment to positive direction. This combination is not acceptable in the case of 10, 12ips and high temperature environment.

TT1C VES-85 I-BEST S

7. SUPPLY SPECIFICATIONS

7.3 Recommended Media and Ribbon Types

Thermal transfer type Paper FR1412-50 FR1615-50 3”/s Print energy type Resin1 Resin1 Vellum

Wax1 TT1C I-BEST S 150LA-1P 130LAB-1-150

Wax1 Wax1 Standard Standard

This combination is not acceptable in the case of all print speed and high temperature environment. NOTES: *1: Since the print tones provided in the above table are the recommended values, the variance should be taken into consideration when in use. *2: The print energy type must be set the above table by all means. For setting method of the print energy type, refer to Section 2.6.2.2 Software Set. *3: It limits print tone fine adjustment for the protection of thermal head by the rating of the maximum supply energy of thermal head. The tone of printing do not thicken even if it is set print tone fine adjustment value more than the value of the list shown below. Print energy type Standard Wax1 Wax2 Semi-resin1 Semi-resin2 Resin1 Wax3 Semi-resin3 Resin2

7. SUPPLY SPECIFICATIONS

7.3 Recommended Media and Ribbon Types

For 300dpi model Print Mode Ribbon Paper 3”/s Print energy type Wax1

Remarks In the case of 3, 5, 8ips and high temperature environment requires a print tone adjustment to negative direction. In the case of 8ips and low temperature environment requires a print tone adjustment to positive direction. Wax1 In the case of 8ips and high temperature environment requires a print tone adjustment to negative direction. I-BEST S

Unusable Wax1 Vellum

Unusa ble Wax1 I-BEST S

Unusa ble Thermal transfer type Vellum

Wax1 Unusable Vellum

Wax1 Wax1 Wax1 In the case of 3, 5, 8ips and high temperature environment requires a print tone adjustment to negative direction. In the case of 3, 5ips and high temperature environment requires a print tone adjustment to negative direction. In the case of 3ips and high temperature environment requires a print tone adjustment to negative direction.

Unusa ble Wax1 Wax1 In the case of 3, 5, 8ips and high temperature environment requires a print tone adjustment to negative direction.

7. SUPPLY SPECIFICATIONS

7.3 Recommended Media and Ribbon Types

Print Mode Ribbon Direct Thermal type Paper 150LA-1P 3”/s

Print energy type Remarks Standard Standard NOTES: *1: Since the print tones provided in the above table are the recommended values, the variance should be taken into consideration when in use. *2: The print energy type must be set the above table by all means. For setting method of the print energy type, refer to the Key Operation Manual. *3: It limits print tone fine adjustment for the protection of thermal head by the rating of the maximum supply energy of thermal head. The tone of printing do not thicken even if it is set print tone fine adjustment value more than the value of the list shown below. FEAAPrint energy type 3”/s 5”/s Print tone fine adjustment limit 8”/s 10”/s 12”/s Standard Wax1 Wax2 Semi-resin1 Semi-resin2 Resin1 Wax3 Semi-resin3 Resin2

7. SUPPLY SPECIFICATIONS

7.4 Care/Handling of media and Ribbon

7.4 Care/Handling of Media and Ribbon

CAUTION! Be sure to carefully review and understand the Supply Manual. Use only media and ribbons that meet specified requirements. Use of non-specified media and ribbons may shorten the head life and result in problems with bar code readability or print quality. All media and ribbons should be handled with care to avoid any damage to the media, ribbons or printer. Read the guidelines in this section carefully.

• Do not store the media or ribbon for longer than the manufacturer’s recommended shelf life.
• Store media rolls on the flat end. Do not store them on the curved sides as this might flatten that side causing erratic media advance and poor print quality.
• Store the media in plastic bags and always reseal after opening. Unprotected media can get dirty and the extra abrasion from the dust and dirt particles will shorten the print head life.
• Store the media and ribbon in a cool, dry place. Avoid areas where they would be exposed to direct sunlight, high temperature, high humidity, dust or gas.
• The thermal paper used for direct thermal printing must not have specifications which exceed Na+ 800 ppm, K+ 250 ppm and Cl- 500 ppm.
• Some ink used on pre-printed media may contain ingredients which shorten the print head’s product life. Do not use labels pre-printed with ink which contain hard substances such as carbonic calcium (CaCO3) and kaolin (Al2O3, 2SiO2, 2H2O). For further information, please contact your local distributor or your media and ribbon manufacturers. E7-16

APPENDIX 1 MESSAGES AND LEDS

APPENDIX 1 MESSAGES AND LEDS

APPENDIX 1 MESSAGES AND LEDS

Appendix 1 describes the LCD messages displayed on the operation panel.

Symbols in the message 1: : The LED is illuminated. : The LED is flashing. : The LED is unlit. 2: %%,%%%,%%%: Remaining memory size of the external memory: 0 to 09,999,999 (in K bytes) 3: ####: Remaining memory size for PC commands storage area in the internal memory: 0 to 3072 (in K bytes) 4: &&&&: Remaining memory size for writable characters storage area: 0 to 3147 (in K bytes) No. LCD Message Yes/No Acceptance of Status Request/ Reset Command Yes/No In online mode In online mode (The printer is communicating) The print head block is open in online mode. The printer is paused. A parity, overrun, or framing error has occurred during communication through the RS-232C. The media is jammed during paper feed. A problem has occurred with the cutter module. The media has run out, or the media is not loaded properly. The ribbon has run out. Feed or printing was attempted with the print head block open. There is a problem with the print head. The print head has overheated. The ribbon has been torn. A problem has occurred with the sensor that determines the torque for the ribbon motor. An overflow error has occurred in the rewind unit. Writable character or PC command save mode

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Yes The storage area is being initialised.

Yes TrueType font or BASIC program is being downloaded. An error has occurred while writing to flash memory or USB memory. An erase error has occurred while formatting the flash memory or USB memory. Data cannot be stored because the flash memory or USB memory is full. A command error has occurred while analyzing the command.

Yes Yes Yes LED Indication Printer Status ONLINE ERROR ON LINE

17 MEMORY WRITE ERR.

Restoration by RESTART key

APPENDIX 1 MESSAGES AND LEDS

APPENDIX 1 MESSAGES AND LEDS

No. LCD Message LED Indication Printer Status ONLINE ERROR 21 POWER FAILURE

PASSWORD INVALID Please Power OFF

30 INTERNAL COM ERR

A power failure has occurred. Data cannot be read from/written to a backup EEPROM properly When the following abnormal operations are performed, a system error occurs: (a) Command fetch from an incorrect address. (b) Access to word data at an incorrect address. (c) Access to long-word data at an incorrect address. (d) Access to the area of 80000000H to FFFFFFFFH in the logic space in user mode. (e) An undefined instruction in an area other than a delay slot was decoded. (f) An undefined instruction in a delay slot was decoded. (g) An instruction to rewrite a delay slot was decoded. DHCP Client is being initialised. (Only when the DHCP is enabled.) The printer did not succeed in writing data onto an RFID tag after having retried the specified number of times. The printer cannot communicate with the RFID module. The voltage of the Real Time Clock Battery is low. The printer is waiting for a password to be entered. A wrong password was entered three consecutive times. A hard error occurred in internal serial interface. Yes/No Acceptance of Status Request/ Reset Command Yes/No

Restoration by RESTART key NOTE: When an error message listed above appears on the LCD display please refer to Section 5 TROUBLESHOOTING for a solution. EA1- 2

APPENDIX 1 MESSAGES AND LEDS

APPENDIX 1 MESSAGES AND LEDS

• If an error is found in a command received, up to 42 bytes of the erroneous command, starting from the command code, will be displayed. (However, [LF] and [NUL] will not be displayed.) Example 2

[ESC]T20G30[LF] [NUL]

Command error The following message appears. SYNTAX ERROR T20G30

• When the error is shown, “? (3FH)” appears for character codes other than 20H to 7FH and A0H to DFH.
• For details, please refer to the LE840/LE850 External Equipment Interface Manual EA1- 3

APPENDIX 2 INTERFACE

APPENDIX 2 INTERFACE

APPENDIX 2 INTERFACE

NOTE: To prevent radiation and reception of electrical noise, the interface cables must meet the following requirements:

• In case of a parallel interface cable or serial interface cable, fully shielded and fitted with metal or metallised connector housings.
• Keep as short as possible.
• Should not be bundled tightly with power cords.
• Should not be tied to power line conduits.
• A parallel interface cable to be used should conform to IEEE1284. USB interface (Standard) Physical Layer: Transfer type: Transfer rate: Class: Number of ports: Power source: Connector: Conforming to V2.0 Full speed Control transfer, Bulk transfer Full speed (12M bps) Printer class Self power Type B Pin No.

LAN (Standard: Available for only Ethernet model) Physical Layer: Number of ports: Connector: LED status:

IEEE802.3 10BASE-T/100BASE-TX

RJ-45 Link LED, Activity LED LED Link Link LED (Green) LED Status LAN status

10Mbps link or 100Mbps link is detected. OFF No link is detected.

• Communication cannot be made while the Link LED is off. Activity LED (Orange) LAN cable: Cable length: Activity

Communicating OFF Idle NOTE: When a generally-used twisted pair Ethernet (TPE) or UTP cable is used, a communication error may occur depending on your operating environment. In such case, you may be requested to use a shielded twisted pair cable. EA2- 1

APPENDIX 2 INTERFACE

APPENDIX 2 INTERFACE

Serial interface (Option) Type: Communication mode: Transmission speed: Synchronization: Start bit: Stop bit Data length: Parity: Error detection: Protocol: Data input code: Receive buffer: Connector: RS-232C Full duplex 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 115200 bps Start-stop synchronization 1 bit 1 bit, 2 bit 7 bit, 8 bit None, EVEN, ODD Parity error, Framing error, Overrun error Unprocedure communication ASCII code, European character 8 bit code, graphic 8 bit code, JIS8 code, Shift JIS Kanji code, JIS Kanji code 1M byte Pin No.

Signal N.C TXD (Transmit Data) RXD (Received Data) DSR (Data Set Ready) SG (Signal Ground) DTR (Data Terminal Ready) CTS (Clear to Send) RTS (Request to Send) N.C Parallel interface (Centronics) (Option) Mode: Conforming to IEEE1284 Compatible mode (SPP mode), Nibble mode Data input method: 8 bit parallel Control signal: Data input code: Receive buffer: Busy Perror Select nAutoFd nInit nFault nSelectIn ASCII code European 8 bit code Graphic 8 bit code JIS8 code Shift JIS Kanji code JIS Kanji code 1MB EA2- 2

APPENDIX 2 INTERFACE

APPENDIX 2 INTERFACE

Connector: PIN Signal No. SPP Mode Nibble Mode ECP Mode

nStrobe HostClk HostClk

Data 1 Data 1 Data 1

Data 2 Data 2 Data 2

Data 3 Data 3 Data 3

Data 4 Data 4 Data 4

Data 5 Data 5 Data 5

Data 6 Data 6 Data 6

Data 7 Data 7 Data 7

Data 8 Data 8 Data 8

nAck PtrClk PeriphClk

Busy PtrBusy PeriphAck

PError AckDataReq nAckReverse

nAutoFd HostBusy HstAck

CHASSIS GND CHASSIS GND CHASSIS GND

+5V (For detection) +5V (For detection) +5V (For detection)

IEEE1284-B Connector EA2- 3

APPENDIX 2 INTERFACE

APPENDIX 2 INTERFACE

Wireless LAN (Option) Standard: Client protocol: Print protocol: Security protocol: Antenna: Parameter setting: Default IP address: Default subnet mask: Certification: Conforming to IEEE802.11b, and IEEE802.11g TCP/IP, Socket, LPD (LLPR), DHCP/WINS, HTTPD (SNMP) Socket communication/LPR WEP (64 bits/128 bits) or AES, TKIP (only when using WPA, WPA-PSK) Shared key (for WEP), PSK, PEAP, TLS, TTLS, MD5, LEAP, EAP-FAST Built-in via USB, LAN, WLAN, RS-232C, Parallel

Wi-Fi, CCX V3, V4 NOTE: MAC address of the Wireless LAN module will be necessary when setting the MAC address filtering function of an access point. Please ask a service person of your nearest Oki Data service representative. USB Host interface (Option) Physical Layer: Transfer type: Transfer rate: Number of ports: Power supply: Connector: Conforming to V2.0 Full speed Control transfer, Bulk transfer Full speed (12M bps) 500mA output Type A EA2- 4

APPENDIX 2 INTERFACE

APPENDIX 2 INTERFACE

Expansion I/O Interface (Option) Input Signal Output Signal Connector (External Device Side) Connector (Printer Side) IN0 to IN5 OUT0 to OUT6 FCN-781P024-G/P or equivalent FCN-685J0024 or equivalent Pin Signal I/O

IN0 Input FEED Function Pin Signal I/O

COM2 Common (Ground)

OUT5 Output POWER ON N.C.: No Connection Input Circuit Output Circuit EA2- 5

APPENDIX 2 INTERFACE

APPENDIX 2 INTERFACE

TagSysm MEDIO S002 /S003 (Not included in this optional kit.) 13.56MHz 200 mW TagSys C210, C220, C240, C320 I-Code, Tag-it, ISO15693 Antenna: RF antenna is not included in this optional kit. EA2- 6 CODE39 (Full ASCII) CODE93 UPC-E+2 digits UPC-E+5 digits EAN8+2 digits EAN8+5 digits UPC-A UPC-A+2 digits EA3- 2 Customer bar code Customer bar code of high priority KIX Code RM4SCC Data Matrix MicroQR QR code Micro PDF417 MaxiCode CP Code PDF417 EA3- 3 ● GS1 DataBar family (with no compound composite printed) GS1 DataBar (Truncated) GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional GS1 DataBar Limited GS1 DataBar Expanded GS1 DataBar Expanded Stacked UPC-A UPC-E EAN-13 EAN-8 UCC/EAN-28 with CC-A, CC-B, or CC-C EA3- 4 ● GS1 DataBar family (with compound composite printed) GS1 DataBar (Truncated) GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional GS1 DataBar Limited GS1 DataBar Expanded Stacked GS1 DataBar Expanded UPC-A EAN-13 UPC-E EAN-8 UCC/EAN-128 with CC-A or CC-B UCC/EAN-128 with CC-C EA3- 5 Expansion I/O interface A code which represents alphanumeric characters by using a series of black and white stripes of different widths. Reading barcodes is a fast and accurate means of capturing data. Batch mode An interface circuit that may be installed to allow the printer to be connected to an external device such as a wrapping machine. It can receive feed, print start, and pause signals from the external device and to send back print, pause, and error status signals to the external device. An issue mode that continuously prints until the specified number has been printed. Font Black mark A complete set of alphanumeric characters in one style of type. E.g. Helvetica, Courier, Times A black mark printed on the media so that the printer can maintain a consistent print position by detecting this mark. Gap Black mark sensor Gap sensor A reflective sensor that detects the difference of potential between the black mark and print area to find the print start position. A transmissive sensor that detects the difference of potential between the gap between labels and the label to find the print start position. Built-in rewinder mode IPS Gap between labels on a backing material A printer mode where media is wound onto the build-in rewinder. Inch per second The unit used to express print speed. Cut mode Label A printer mode where an optional cutter module is installed to automatically cut media from the supply roll after they are printed. The print command can specify to cut after every print or to cut after a set number of prints. LCD A type of media with adhesive backing. Liquid Crystal Display Installed on the operation panel and displays operation modes, error message etc. Cutter module A device used to cut the media. Media DHCP Material on which data is printed by the printer. Labels, tag paper, fanfold paper, perforated paper etc. Dynamic Host Configuration Protocol A communications protocol that allocates an IP address to a computer plugged into a network. Plug and Play When Plug and Play is enabled, the PC will automatically identify the printer (if the PC supports Plug & Play), optimise the system resource (IRQ and DMA), and display a message prompting a printer driver installation. DPI Dots Per Inch The unit used to express print density. Pre-printed media A type of media on which characters, logos, and other designs have been already printed. EA4- 1 Printer IP address Tag A 32-bit address of a printer connected to TCP/IP network, which identifies the printer. An IP address is written as 4 sets of numbers, separated by full stops. For example 192.168.10.20. A type of media with no adhesive, usually made from cardboard or other durable material. Thermal direct printing A printing method using no ribbon and thermal media which reacts to heat. The print head makes direct contact with the media producing text or images. Print head element The thermal print head consists of a single line of tiny resistive elements. When current is allowed to flow through each element it heats up causing a small dot to be burned onto thermal paper or a small dot of ink to be transferred from a thermal ribbon. Thermal print head A print head using thermal transfer or thermal direct printing method. Print speed Thermal transfer printing The speed at which printing occurs. This speed is expressed in units of IPS (inches per second). A printing method where the thermal print head heats an ink or resin coated ribbon against the media. The ink/resin is then transferred onto the media. Reflective sensor See Black mark sensor. Threshold setting A sensor setting that allows the printer to maintain a consistent print position of pre-printed media. Resolution The number of individual dots a printer can produce within a unit of distance. Printer resolution measured in Dots per Inch. As the number of dots per inch increases, the resolution increases, resulting in a more detailed image. Transmissive sensor See Gap sensor. USB (Universal Serial Bus) An interface that is used to connect peripherals, such as a printer, keyboard, mouse to computer or host. The USB port may allow disconnection of a USB device without turning off the power. RFID (Radio Frequency Identification) RFID is a technology that uses radio waves to exchange data between a reader and an electronic tag. The tag can be encapsulating inside a label which can also be printed on. RFID is very useful for object identification and tracking. Web printer The web printer function allows you to browse the printer status on the PC, issue media, check or change the settings, or download firmware to the printer. Ribbon An inked film used to transfer an image or text onto media. In thermal transfer printing, it is heated by the print head, causing an image to be transferred onto the media. Strip mode The printer removes labels from the backing paper. After each issue the printer stops until the label is removed. Once the label is removed the next label will be issued and so on. Supplies Media and ribbon EA4- 2 Oki contact details Oki Systems 8. /WG Blays House Wick Road Egham Surrey TW20 0HJ Tel:+44 (0) 1784 274300 Fax:+44 (0) 1784 274301 http://www.oki.co.uk Oki Systems Ireland Limited The Square Industrial Complex Tallaght Dublin 24 Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie Oki Systems Ireland Limited Northern Ireland 19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie OKI Systems (Czech and Slovak), s.r.o. IBC – Pobřežní 3 186 00 Praha 8 Czech Republic Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk OKI Europe Ltd. (Russia) Office 702, Bldg 1 Zagorodnoye shosse 117152, Moscow OKI Systems (Magyarország) Kft. Capital Square Tel: +43 223 6677 110 Tower 2 Drucker Support: 7th Floor +43 (0) 2236 677110-501 H-1133 Budapest, Fax Support: Váci út 76 +43 (0) 2236 677110-502 Hungary Website: www.oki.at Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu OKI Systems (Italia) S.p.A. via Milano, 11, 20084 Lacchiarella (MI) Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it OKI Printing Solutions Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland OKI Europe Ltd. (Ukraine) Raisy Opkinoy Street,8 Building B, 2nd Floor, Kiev 02002 Ukraine Tel: +380 44 537 5288 e-mail: info@oki.ua Website: www.oki.ua OKI Sistem ve Yazıcı Çözümleri Tic. Ltd. Şti. Harman sok Duran Is Merkezi, No:4, Kat:6, 34394, Levent İstanbul Tel: +90 212 279 2393 Faks: +90 212 279 2366 Web: www.oki.com.tr www.okiprintingsolutions.com.tr Oki Systems (Belgium) Medialaan 24 1800 Vilvoorde Helpdesk: 02-2574620 Fax: 02 2531848 Website: www.oki.be AlphaLink Bulgaria Ltd. 2 Kukush Str. Building "Antim Tower", fl. 6 1463 Sofia, Bulgaria tel: +359 2 821 1160 fax: +359 2 821 1193 Website: http://bulgaria.oki.com Oki Systems (Thailand) Ltd. 1168/81-82 Lumpini Tower, 27th Floor Rama IV Road Tungmahamek, Sathorn Bangkok 10120 Tel:(662) 679 9235 Fax:(662) 679 9243/245 http://www.okisysthai.com Oki Data Americas Inc.(United States • États-Unis) 2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054 USA Oki Systems (Hong Kong) Ltd. Suite 1908, 19/F, Tower 3, China Hong Kong City 33 Canton Road, TsimShaTsui, Kowloon, Hong Kong Tel: 1-800-654-3282 Fax: 1-856-222-5247 http://WWW.OKIPRINTINGSOLUTIONS.COM http://my.okidata.com Tel: (852) 3543 9288 Fax: (852) 3549 6040 http://www.okiprintingsolutions.com.hk Oki Data(Australia) Pty Ltd. Levwl1 67 Epping Road, Macquarie Park NSW 2113, Australia Tel: +61 2 8071 0000 (Support Tel: 1800 807 472) Fax: +61 2 8071 0010 http://www.oki.com.au Comworth Systems Ltd. 8 Antares Place Mairangi Bay, Auckland, New Zealand Tel:(64) 9 477 0500 Fax:(64) 9 477 0549 http://www.comworth.co.nz Oki Data(S) P Ltd. Malaysia Rep Office Suite 21.03, 21st Floor Menara IGB, Mid Valley City, Lingkaran Syed Pura 59200, Kuala Lumpur, Malaysia Tel: (60) 3 2287 1177 Fax: (60) 3 2287 1166 3ips 6ips 10ips 12ips 3ips 5ips 8ips 10ips 12ips

1.5 Aspect

1.5.1 Dimensions

278 (10.9) 460 (18.1)

(12.2) PAUSE FEED RESTART MODE HAUT GAUCHE DROITE ANNULATION ENTRÉE BAS [Câble type US] F2- 3 Câble Secteur choisir [RESET] menu

Redémarrez l'imprimante

choisir [RESET] menu Redémarrez l'imprimante

F2-14 Reset Parameter setting (⇒Section 2.6.2) Fine adjustment (⇒Section 2.9) LAN/WLAN (⇒Section 2.6.3) BASIC (⇒Section 2.6.4) Z-MODE (⇒Section 2.6.5) Auto calibration (⇒Section 2.6.6) Dump mode (⇒Section 2.6.7) Log (⇒Section 2.6.8) Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting (⇒Section 2.6.10) BASIC mode RFID setting Real Time Clock (⇒Section 2.6.11) Z-MODE USB memory (⇒Section 2.6.12) Reset Sub menu Printer Set (Section 2.6.2.1) Software Set (Section 2.6.2.2) Panel (Section 2.6.2.3) Password (Section 2.6.2.4) F2-16 PC-850 PC-852 PC-857 PC-8 PC-851 PC-855 PC-1250 PC-1251 PC-1252 PC-1253 PC-1254 PC-1257 LATIN9 Arabic PC-866 UTF-8 Mode standard Mode Inline OFF STD ORACLE SAP STD EXT ORACLE EXT SAP EXT OFF ON (AUTO) ON (LAN) ON (WLAN)

• ON ALL+Bfeed OFF ON (AUTO) ON (LAN) ON (WLAN) TLS TTLS LEAP PEAP MD5 EAP-FAST NETWORK EAP WPA-PSK WPA2 OPEN SYSTEM TLS TTLS LEAP PEAP EAP-FAST TLS TTLS LEAP PEAP EAP-FAST OFF WEP40 WEP104 OFF WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 54M 48M 36M 24M 18M 12M

2.6.10 Réglage de l’Interface

• ON (DHCP) Cliquez sur [Delete]. (10) [Run as administrator] [Server Properties]. Auto Tests (Suite) User System Mode

Reset Parameter setting (⇒Section 2.6.2) Fine adjustment (⇒Section 2.9) LAN/WLAN (⇒Section 2.6.3) BASIC (⇒Section 2.6.4) Z-MODE (⇒Section 2.6.5) AUTO calibration (⇒Section 2.6.6) Dump mode (⇒Section 2.6.7) Log (⇒Section 2.6.8) Threshold Setting Mode

• Reflective User System Mode <2>PARAMETER SET Software Set THRESHOLD SELECT REFLECT
• COMMAND SET Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting BASIC mode RFID setting Real Time Clock Z-MODE USB memory Reset

2.11 Ajustement cellules

(Suite) No. (1) (2) (3) (4) (5) MEMORY WRITE ERR. FORMAT ERROR MEMORY FULL EEPROM ERROR PASSWORD INVALID Please Power OFF Dimension (L × P × H) Poids LE840Ds LE840Dn 10%RH to 90%RH (sans condensation) Alimentation électrique 76.2mm/sec. (3 pouces /sec.) 152.4mm/sec (6 pouces /sec.) 254.0mm/sec.(10 pouces /sec.) 304.8mm/sec.(12 pouces /sec.) digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 STATE CUSTOMER CODE), GS1 DataBar , Standard 2 of 5 , USPS Intelligent Mail Barcode USB, Parallel, Serial Interfaces Optionnelles Interface série USB, LAN USB Dimension (L × P × H) 10%RH to 90%RH (sans condensation) Alimentation électrique 76.2mm/sec. (3 pouces /sec.) 152.4mm/sec (6 pouces /sec.) 254.0mm/sec (10 pouces /sec.) 304.8mm/sec (12 pouces /sec.) digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 STATE CUSTOMER CODE), GS1 DataBar , Standard 2 of 5 , USPS Intelligent Mail Barcode USB, Parallel, Serial Interfaces Optionnelles Interface série USB, LAN USB Distance cellule 10mm PET Blanc Silver chemical mat

Manufacturer Ink Name AWR6 AWX-FH AWARD AWR470Solfree APR6 APX-FH AXR7+ AXR8

TT1C VES-85 I-BEST S

TT1C I-BEST S 150LA-1P 130LAB-1-150

Wax1 Wax1 Standard Standard

Vélin TT1C I-BEST S Vélin TT1C VES-85 I-BEST S FR1412-50 FR1615-50 Vélin

TT1C I-BEST S 150LA-1P

Inutilisable Wax1 Wax1 Wax1 Semi-resin1 Semi-resin1 Semi-resin1 Semi-resin1 Resin1 Resin1 Wax1

Wax1 Wax1 Standard Standard Standard Wax1 Wax2 Semi-resin1 Semi-resin2 Resin1 Wax3 Semi-resin3 Resin2 ERR. ECRITURE MÉMOIRE

MOT DE PASSE

29 INVALIDE Please Power OFF

30 INTERNAL COM ERR

Signal N.C TXD (Transmit Data) RXD (Received Data) DSR (Data Set Ready) SG (Signal Ground) DTR (Data Terminal Ready) CTS (Clear to Send) RTS (Request to Send) N.C

Signal Mode SPP Mode Nibble Mode ECP

nStrobe HostClk HostClk

Data 1 Data 1 Data 1

Data 2 Data 2 Data 2

Data 3 Data 3 Data 3

Data 4 Data 4 Data 4

Data 5 Data 5 Data 5

Data 6 Data 6 Data 6

Data 7 Data 7 Data 7

Data 8 Data 8 Data 8

nAck PtrClk PeriphClk

Busy PtrBusy PeriphAck

PError AckDataReq nAckReverse

nAutoFd HostBusy HstAck

CHASSIS GND CHASSIS GND CHASSIS GND

+5V (For detection) +5V (For detection) +5V (For detection)

CODE39 (Full ASCII) CODE93 UPC-E+2 digits UPC-E+5 digits EAN8+2 digits EAN8+5 digits UPC-A UPC-A+2 digits FA3- 2 Customer bar code Port Interface I/O Vitesse d’impression Oki détails du contact Oki Systems 8. /WG Blays House Wick Road Egham Surrey TW20 0HJ Tel:+44 (0) 1784 274300 Fax:+44 (0) 1784 274301 http://www.oki.co.uk Oki Systems Ireland Limited The Square Industrial Complex Tallaght Dublin 24 Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie Oki Systems Ireland Limited Northern Ireland 19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie OKI Systems (Czech and Slovak), s.r.o. IBC – Pobřežní 3 186 00 Praha 8 Czech Republic Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk OKI Europe Ltd. (Russia) Office 702, Bldg 1 Zagorodnoye shosse 117152, Moscow OKI Systems (Magyarország) Kft. Capital Square Tel: +43 223 6677 110 Tower 2 Drucker Support: 7th Floor +43 (0) 2236 677110-501 H-1133 Budapest, Fax Support: Váci út 76 +43 (0) 2236 677110-502 Hungary Website: www.oki.at Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu OKI Systems (Italia) S.p.A. via Milano, 11, 20084 Lacchiarella (MI) Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it OKI Printing Solutions Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland OKI Europe Ltd. (Ukraine) Raisy Opkinoy Street,8 Building B, 2nd Floor, Kiev 02002 Ukraine Tel: +380 44 537 5288 e-mail: info@oki.ua Website: www.oki.ua OKI Sistem ve Yazıcı Çözümleri Tic. Ltd. Şti. Harman sok Duran Is Merkezi, No:4, Kat:6, 34394, Levent İstanbul Tel: +90 212 279 2393 Faks: +90 212 279 2366 Web: www.oki.com.tr www.okiprintingsolutions.com.tr Oki Systems (Belgium) Medialaan 24 1800 Vilvoorde Helpdesk: 02-2574620 Fax: 02 2531848 Website: www.oki.be AlphaLink Bulgaria Ltd. 2 Kukush Str. Building "Antim Tower", fl. 6 1463 Sofia, Bulgaria tel: +359 2 821 1160 fax: +359 2 821 1193 Website: http://bulgaria.oki.com Oki Systems (Thailand) Ltd. 1168/81-82 Lumpini Tower, 27th Floor Rama IV Road Tungmahamek, Sathorn Bangkok 10120 Tel:(662) 679 9235 Fax:(662) 679 9243/245 http://www.okisysthai.com Oki Data Americas Inc.(United States • États-Unis) 2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054 USA Oki Systems (Hong Kong) Ltd. Suite 1908, 19/F, Tower 3, China Hong Kong City 33 Canton Road, TsimShaTsui, Kowloon, Hong Kong Tel: 1-800-654-3282 Fax: 1-856-222-5247 http://WWW.OKIPRINTINGSOLUTIONS.COM http://my.okidata.com Tel: (852) 3543 9288 Fax: (852) 3549 6040 http://www.okiprintingsolutions.com.hk Oki Data(Australia) Pty Ltd. Levwl1 67 Epping Road, Macquarie Park NSW 2113, Australia Tel: +61 2 8071 0000 (Support Tel: 1800 807 472) Fax: +61 2 8071 0010 http://www.oki.com.au Comworth Systems Ltd. 8 Antares Place Mairangi Bay, Auckland, New Zealand Tel:(64) 9 477 0500 Fax:(64) 9 477 0549 http://www.comworth.co.nz Oki Data(S) P Ltd. Malaysia Rep Office Suite 21.03, 21st Floor Menara IGB, Mid Valley City, Lingkaran Syed Pura 59200, Kuala Lumpur, Malaysia Tel: (60) 3 2287 1177 Fax: (60) 3 2287 1166 VORSICHT:

• Schallemission: unter 70dB (A) nach DIN 45635 (oder ISO 7779)
• Die für das Gerät Vorgesehene Steckdose muß in der Nähe des Gerätes und leicht zugänglich sein. Centronics is a registered trademark of Centronics Data Computer Corp. Microsoft is a registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and set in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. (for USA only) Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s authority to operate the equipment. “This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.” “Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.” (for CANADA only) 3ips 6ips 10ips 12ips 3ips 5ips 8ips 10ips 12ips PAUSE state Hold down [RESTART] User System Mode

Premere [MODE] Select [RESET] menu Select [RESET] menu

[UP] o [RESTART] RESTART MODE

LEFT RIGHT CANCEL ENTER User System Mode Disabilita auto forward feed wait Abilita auto forward feed wait→ Disabilita pre peel off Abilita pre peel off Coated side out (Inchiostratura esterna) Coated side in (Inchiostratura interna) I2-18 PC-850 PC-852 PC-857 PC-8 PC-851 PC-855 PC-1250 PC-1251 PC-1252 PC-1253 PC-1254 PC-1257 LATIN9 Arabic PC-866 UTF-8 Windows code Original code OFF STD ORACLE SAP STD EXT ORACLE EXT SAP EXT Wax 1 Wax 2 Wax 3 Semi-resin 1 Semi-resin 2 Semi-resin 3 Resin 1 Resin 2 Reserved Resin 1 Resin 2 Reserved OFF ON (AUTO) ON (LAN) ON (WLAN)

2.6.4 Configurazione Basic

USER SYSTEM MODE

<2>PARAMETER SET <3>ADJUST SET <4>LAN/WLAN <5>BASIC ON REFLECT ON ALL ON TRANS.+Bfeed ON REFLECT+Bfeed ON ALL+Bfeed Buffer RS-232C Buffer Centronics Buffer Network I/F Buffer BASIC: I/F → Buffer Interpreter Buffer BASIC: buffer Interpreter → I/F buffer USB buffer RFID

2.6.10 Conf. Interfacce

(Cont.) OFF ON (AUTO) ON (LAN) ON (WLAN)

2.6.10 Conf. Interfacce

(Cont.) DHCP client ID inserito in ASCII. → DHCP client ID inserito in Hex. → (12) WLAN STANDARD

2.6.10 Conf. Interfacce

(Cont.) TLS TTLS LEAP PEAP MD5 EAP-FAST SHARED KEY EAP-MD5 NETWORK EAP WPA-PSK WPA2 OPEN SYSTEM TLS TTLS LEAP PEAP EAP-FAST TLS TTLS LEAP PEAP EAP-FAST OFF WEP40 WEP104 OFF WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104

2.6.10 Conf. Interfacce

(Cont.) 54M 48M 36M 24M 18M 12M

2.6.10 Conf. Interfacce

2.6.10 Conf. Interfacce

(Cont.) (2) DATA LENGTH

/ATA0/SYSTEM/LE840-0927.DAT

(e.g. LE840(203dpi model), Sep 27) I2-39 Click [OK] after driver removal completes and then click [Close] to exit the [Print Server Properties] dialog box. Quindi, spegnere la stampante e riavviare il computer. I2-47 PAUSE state Premere [RESTART] User System Mode

2.9.1 Regolazioni fini

USER SYSTEM MODE

<1>RESET <2>PARAMETER SET <3>ADJUST SET <4>LAN/WLAN Reset Parameter setting (⇒Section 2.6.2) Fine adjustment (⇒Section 2.9) LAN/WLAN (⇒Section 2.6.3) BASIC (⇒Section 2.6.4) Z-MODE (⇒Section 2.6.5) AUTO calibration (⇒Section 2.6.6) Dump mode (⇒Section 2.6.7) Log (⇒Section 2.6.8) Parametri FEED ADJ. CUT ADJ. BACK ADJ. X ADJUST TONE ADJ. (TRANS.) TONE ADJ. (DIRECT)

RBN ADJ. <FW>

RBN ADJ. <BK>

THRESHOLD <REFL.> THRESHOLD <TRANS.> Print speed All speed 8 ips or less 6 ips or less Tensione nastro

I2-56 Bassa PAUSE state Premere [PAUSE] Threshold Setting Mode User System Mode <2>PARAMETER SET Software Set THRESHOLD SELECT REFLECT

• COMMAND SET Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting BASIC mode RFID setting Real Time Clock Z-MODE USB memory Reset Stato On Line (1) (2) (3) (4) No. (1) (2) (3) (4) (5) MEMORY WRITE ERR. FORMAT ERROR MEMORY FULL INPUT PASSWORD PASSWORD INVALID Please Power OFF -40 degC to +60 degC 10%RH to 90%RH 72H (non condensante) 8 dots/mm (203 dpi) Termico Diretto 76.2mm/sec. (3 pollici/sec.) 152.4mm/sec (6 pollici/sec.) 254.0mm/sec.(10 pollici/sec.) 304.8mm/sec.(12 pollici/sec.) JAN8, JAN13, EAN8, EAN8+2 digits, EAN8+5 digits, EAN13, EAN13+2 digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 STATE CUSTOMER CODE), GS1 DataBar , Standard 2 of 5 , USPS Intelligent Mail Barcode Available two-dimensional code -40 degC to +60 degC 10%RH to 90%RH 72H (non condensante) 8 dots/mm (203 dpi) Trasferimento Termico o Termico Diretto 76.2mm/sec. (3 pollici/sec.) 152.4mm/sec (6 pollici/sec.) 254.0mm/sec.(10 pollici/sec.) 304.8mm/sec.(12 pollici/sec.) JAN8, JAN13, EAN8, EAN8+2 digits, EAN8+5 digits, EAN13, EAN13+2 digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 STATE CUSTOMER CODE), GS1 DataBar , Standard 2 of 5 , USPS Intelligent Mail Barcode Available two-dimensional code Reflective sensor ( square) Sensore transmissive ( 6mm circle) Detection of hole

7.1.4 Area di stampa effettiva

7.1.4.1 Relationship between Print Head Effective Print Width and Paper Width

White PET Silver chemical mat

(Uncoated) (Coated, gloss) T.B.D (Yupo) Manufacturer Ink Name Spessore (µm) Manufacturer Modello

AWR6 AWX-FH AWARD AWR470Solf ree APR6 APX-FH AXR7+ AXR8

ARMOR ARMOR ARMOR ARMOR

TT1C VES-85 I-BEST S

Trasferimento Termico

I7-12 TT1C I-BEST S 150LA-1P 130LAB-1-150

Wax1 Wax1 Standard Standard

Termico Diretto Note

APPENDICE 1 MESSAGGI E LED

APPENDICE 1 MESSAGGI E LED

17 ERR. SCRITT. MEMORIA

APPENDICE 1 MESSAGGI E LED

APPENDICE 1 MESSAGGI E LED

LCD Messaggi LED Indicazioni Stato stampante ONLINE ERROR 23 SYSTEM ERROR

PASSWORD ERRATA Please Power OFF

28 INTERNAL COM ERR

APPENDICE 1 MESSAGGI E LED

APPENDICE 1 MESSAGGI E LED

APPENDICE 2 INTERFACCE APPENDICE 2 INTERFACCE Conforme alla V2.0 Full speed Control transfer, Bulk transfer Full speed (12M bps) Stampante Auto alimentata Tipo B Pin No.

IEEE802.3 10BASE-T/100BASE-TX

RJ-45 Link LED, Activity LED LED Link 10Mbps link or 100Mbps link is detected. OFF No link is detected.

• Communication cannot be made while the Link LED is off. Activity APPENDICE 2 INTERFACCE APPENDICE 2 INTERFACCE RS-232C Full duplex 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 115200 bps Start-stop synchronization 1 bit 1 bit, 2 bit 7 bit, 8 bit None, EVEN, ODD Parity error, Framing error, Overrun error Unprocedure communication ASCII code, caratteri Europei 8 bit code, grafici 8 bit code , JIS8 code, Shift JIS Kanji code, JIS Kanji code 1M byte Pin No.

Segnale RD (Received Data) TD (Transmit Data) CTS (Clear to Send) RTS (Request to Send) DTR (Data Terminal Ready) SG (Signal Ground) DSR (Data Set Ready) Data input code: ASCII code European 8 bit code Graphic 8 bit code JIS8 code Shift JIS Kanji code JIS Kanji code 1MB IA2- 2 APPENDICE 2 INTERFACCE APPENDICE 2 INTERFACCE Connector: PIN Signal No. SPP Mode Nibble Mode ECP Mode

nStrobe HostClk HostClk

Data 1 Data 1 Data 1

Data 2 Data 2 Data 2

Data 3 Data 3 Data 3

Data 4 Data 4 Data 4

Data 5 Data 5 Data 5

Data 6 Data 6 Data 6

Data 7 Data 7 Data 7

Data 8 Data 8 Data 8

nAck PtrClk PeriphClk

Busy PtrBusy PeriphAck

PError AckDataReq nAckReverse

nAutoFd HostBusy HstAck

CHASSIS GND CHASSIS GND CHASSIS GND

+5V (For detection) +5V (For detection) +5V (For detection)

IEEE1284-B Connector IA2- 3 APPENDICE 2 INTERFACCE APPENDICE 2 INTERFACCE Conforme alla IEEE802.11b e IEEE802.11g TCP/IP, Socket, LPD (LLPR), DHCP/WINS, HTTPD (SNMP) Comunicazione Socket/LPR WEP (64 bits/128 bits) o AES, TKIP (solo se si utilizza WPA-PSK) Shared key (for WEP), PSK, PEAP, TLS, TTLS, MD5, LEAP, EAP-FAST Interna via USB, LAN, WLAN, RS-232C, Parallel

Wi-Fi, CCX V3, V4 Conforme a V2.0 Full speed Control transfer, Bulk transfer Full speed (12M bps) 50mA output Tipo A IA2- 4 APPENDICE 2 INTERFACCE APPENDICE 2 INTERFACCE APPENDICE 2 INTERFACCE APPENDICE 2 INTERFACCE TagSys MEDIOS002/S003 (Not included in an optional kit.) Frequenza:

13.56 MHz

Output: 200 mW CODE39 (Full ASCII) CODE93 UPC-E+2 digits UPC-E+5 digits EAN8+2 digits EAN8+5 digits UPC-A UPC-A+2 digits IA3- 2 Customer bar code Customer bar code of high priority KIX Code RM4SCC Data Matrix MicroQR QR code Micro PDF417 MaxiCode CP Code PDF417 IA3- 3 GS1 DataBar Stacked GS1 DataBar Limited GS1 DataBar Expanded GS1 DataBar Expanded Stacked UPC-A UPC-E EAN-13 EAN-8 GS1 DataBar Stacked GS1 DataBar Limited GS1 DataBar Expanded Stacked GS1 DataBar Expanded UPC-A EAN-13 UPC-E EAN-8 Dettagli contatto Oki Oki Systems (UK) Ltd Blays House Wick Road Egham Surrey TW20 0HJ Tel:+44 (0) 1784 274300 Fax:+44 (0) 1784 274301 http://www.oki.co.uk Oki Systems Ireland Limited The Square Industrial Complex Tallaght Dublin 24 Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie Oki Systems Ireland Limited Northern Ireland 19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie OKI Systems (Czech and Slovak), s.r.o. IBC – Pobřežní 3 186 00 Praha 8 Czech Republic Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk OKI Europe Ltd. (Russia) Office 702, Bldg 1 Zagorodnoye shosse 117152, Moscow OKI Systems (Magyarország) Kft. Capital Square Tel: +43 223 6677 110 Tower 2 Drucker Support: 7th Floor +43 (0) 2236 677110-501 H-1133 Budapest, Fax Support: Váci út 76 +43 (0) 2236 677110-502 Hungary Website: www.oki.at Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu OKI Systems (Italia) S.p.A. via Milano, 11, 20084 Lacchiarella (MI) Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it OKI Printing Solutions Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland OKI Europe Ltd. (Ukraine) Raisy Opkinoy Street,8 Building B, 2nd Floor, Kiev 02002 Ukraine Tel: +380 44 537 5288 e-mail: info@oki.ua Website: www.oki.ua OKI Sistem ve Yazıcı Çözümleri Tic. Ltd. Şti. Harman sok Duran Is Merkezi, No:4, Kat:6, 34394, Levent İstanbul Tel: +90 212 279 2393 Faks: +90 212 279 2366 Web: www.oki.com.tr www.okiprintingsolutions.com.tr Oki Systems (Belgium) Medialaan 24 1800 Vilvoorde Helpdesk: 02-2574620 Fax: 02 2531848 Website: www.oki.be AlphaLink Bulgaria Ltd. 2 Kukush Str. Building "Antim Tower", fl. 6 1463 Sofia, Bulgaria tel: +359 2 821 1160 fax: +359 2 821 1193 Website: http://bulgaria.oki.com Oki Systems (Thailand) Ltd. 1168/81-82 Lumpini Tower, 27th Floor Rama IV Road Tungmahamek, Sathorn Bangkok 10120 Tel:(662) 679 9235 Fax:(662) 679 9243/245 http://www.okisysthai.com Oki Data Americas Inc.(United States • États-Unis) 2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054 USA Oki Systems (Hong Kong) Ltd. Suite 1908, 19/F, Tower 3, China Hong Kong City 33 Canton Road, TsimShaTsui, Kowloon, Hong Kong Tel: 1-800-654-3282 Fax: 1-856-222-5247 http://WWW.OKIPRINTINGSOLUTIONS.COM http://my.okidata.com Tel: (852) 3543 9288 Fax: (852) 3549 6040 http://www.okiprintingsolutions.com.hk Oki Data(Australia) Pty Ltd. Levwl1 67 Epping Road, Macquarie Park NSW 2113, Australia Tel: +61 2 8071 0000 (Support Tel: 1800 807 472) Fax: +61 2 8071 0010 http://www.oki.com.au Comworth Systems Ltd. 8 Antares Place Mairangi Bay, Auckland, New Zealand Tel:(64) 9 477 0500 Fax:(64) 9 477 0549 http://www.comworth.co.nz Oki Data(S) P Ltd. Malaysia Rep Office Suite 21.03, 21st Floor Menara IGB, Mid Valley City, Lingkaran Syed Pura 59200, Kuala Lumpur, Malaysia Tel: (60) 3 2287 1177 Fax: (60) 3 2287 1166 3ips 6ips 10ips 12ips 3ips 5ips 8ips 10ips 12ips Abmessungen in mm (Inch) PAUSE FEED RESTART MODE

LEFT RIGHT CANCEL ENTER DOWN

2.6 Printer Setting

User System Mode PC-850 PC-852 PC-857 PC-8 PC-851 PC-855 PC-1250 PC-1251 PC-1252 PC-1253 PC-1254 PC-1257 LATIN9 Arabic PC-866 UTF-8 OFF STD ORACLE SAP STD EXT ORACLE EXT SAP EXT Reflective Sensor (Black mark sensor) Transmissive Sensor (Gap sensor) Wax 1 Wax 2 Wax 3 Semi-resin 1 Semi-resin 2 Semi-resin 3 Resin 1 Resin 2 Reserved OFF ON (AUTO) ON (LAN) ON (WLAN)

2.6.10 Interface Setting

SYSTEM MODE <4>TEST PRINT <5>SENSOR ADJUST <6>RAM CLEAR <7>INTERFACE OFF ON (AUTO) ON (LAN) ON (WLAN) TLS TTLS LEAP PEAP MD5 EAP-FAST NETWORK EAP WPA-PSK WPA2 OPEN SYSTEM TLS TTLS LEAP PEAP EAP-FAST TLS TTLS LEAP PEAP EAP-FAST OFF WEP40 WEP104 OFF WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 54M 48M 36M 24M 18M 12M

• ON (DHCP) (2) DATA LENGTH

SYSTEM MODE <10>RFID <11>RTC <12>Z-MODE <13>USB MEMORY RTC & USB Host Interface Card User System Mode

THRESHOLD <REFL.> THRESHOLD <TRANS.> Threshold Setting Mode

Reflective sensor (Black mark sensor) Transmissive sensor (Gap sensor) User System Mode <2>PARAMETER SET Software Set THRESHOLD SELECT REFLECT

• COMMAND SET Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting BASIC mode RFID setting Real Time Clock Z-MODE USB memory Reset

4.1.1 Druckkopf, Walzen und

1. Schalten Sie den Drucker aus und ziehen den Netzstecker.

1. Do not use any volatile

solvent including thinner and benzene, as this may cause discoloration to the cover, print failure, or breakdown of the printer.

2. Do not touch the Print

Head Element with bare hands, as static may damage the Print Head. MEMORY WRITE ERR. FORMAT ERROR MEMORY FULL EEPROM ERROR PASSWORD INVALID Please Power OFF Andere Fehlermeldungen AC100 V to 240 V, 50/60 Hz +/- 10% JAN8, JAN13, EAN8, EAN8+2 digits, EAN8+5 digits, EAN13, EAN13+2 digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 STATE CUSTOMER CODE), GS1 DataBar , , Standard 2 of 5 , USPS Intelligent Mail Barcode Zweidimensionale Barcodes. USB, Parallel, Serial Optional Schnittstellen Seriell Schnittstelle USB, LAN USB AC100 V to 240 V, 50/60 Hz +/- 10% JAN8, JAN13, EAN8, EAN8+2 digits, EAN8+5 digits, EAN13, EAN13+2 digits, EAN13+5 digits, UPC-E, UPC-E+2 digits, UPC-E+5 digits, UPC-A, UPC-A+2 digits, UPC-A+5 digits, MSI, ITF, NW-7, CODE39, CODE93, CODE128, EAN128, Industrial 2 to 5, Customer Bar Code, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 STATE CUSTOMER CODE), GS1 DataBar , , Standard 2 of 5 , USPS Intelligent Mail Barcode Zweidimensionale Barcodes. USB, Parallel, Serial Optional Schnittstellen Seriell Schnittstelle USB, LAN USB (Uncoated) (Coated, gloss) VES-85

White PET Silver chemical mat

AWR6 AWX-FH AWARD AWR470Solfree APR6 APX-FH AXR7+ AXR8 ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR

Bemerkung TT1C VES-85 I-BEST S Druckmethode Farbband Material

FR1412-50 FR1615-50 Thermotransfer Thermodirekt TT1C I-BEST S 150LA-1P 130LAB-1150

Energy Type Standard Wax1 Wax2 Semi-resin1 Semi-resin2 Resin1 Wax3 Semi-resin3 Resin2 Drucktemperatur 3”/Sek. 6”/Sek. 10”/Sek. 12”/Sek. Energy Type Standard Wax1 Wax2 Semi-resin1 Semi-resin2 Resin1 Wax3 Semi-resin3 Resin2 3”/Sek. 5”/Sek. Drucktemperatur 8”/Sek. 10”/Sek. 12”/Sek. ON LINE ON LINE KOPF OFFEN PAUSE KOMMUNIKATIONSFEHLER

PASSWORT UNGÜLTIG

30 INTERNAL COM ERR

Link LED (Grün) Activity LED (Orange)

OFF Signal N.C TXD (Transmit Data) RXD (Received Data) DSR (Data Set Ready) SG (Signal Ground) DTR (Data Terminal Ready) CTS (Clear to Send) RTS (Request to Send) N.C Data Input Code: Eingangsspeicher: Busy Perror Select nAutoFd nInit nFault nSelectIn +5V (For detection) +5V (For detection) +5V (For detection)

CODE39 (Full ASCII) CODE93 UPC-E+2 Digits UPC-E+5 Digits EAN8+2 Digits EAN8+5 Digits UPC-A UPC-A+2 Digits DA3- 2 Customer Barcode of high priority KIX Code RM4SCC Data Matrix Micro QR QR Code Micro PDF417 Maxi Code CP Code PDF417 DA3- 3 GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional GS1 DataBar Limited GS1 DataBar Expanded GS1 DataBar Expanded Stacked UPC-A UPC-E EAN-13 EAN-8 GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional GS1 DataBar Limited GS1 DataBar Expanded Stacked GS1 DataBar Expanded UPC-A EAN-13 UPC-E EAN-8 Thermo Transfer Druck RFID (Radio Frequency Identification) Oki Kontaktdetails Oki Systems 8. /WG Blays House Wick Road Egham Surrey TW20 0HJ Tel:+44 (0) 1784 274300 Fax:+44 (0) 1784 274301 http://www.oki.co.uk Oki Systems Ireland Limited The Square Industrial Complex Tallaght Dublin 24 Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie Oki Systems Ireland Limited Northern Ireland 19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie OKI Systems (Czech and Slovak), s.r.o. IBC – Pobřežní 3 186 00 Praha 8 Czech Republic Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk OKI Europe Ltd. (Russia) Office 702, Bldg 1 Zagorodnoye shosse 117152, Moscow OKI Systems (Magyarország) Kft. Capital Square Tel: +43 223 6677 110 Tower 2 Drucker Support: 7th Floor +43 (0) 2236 677110-501 H-1133 Budapest, Fax Support: Váci út 76 +43 (0) 2236 677110-502 Hungary Website: www.oki.at Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu OKI Systems (Italia) S.p.A. via Milano, 11, 20084 Lacchiarella (MI) Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it OKI Printing Solutions Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland OKI Europe Ltd. (Ukraine) Raisy Opkinoy Street,8 Building B, 2nd Floor, Kiev 02002 Ukraine Tel: +380 44 537 5288 e-mail: info@oki.ua Website: www.oki.ua OKI Sistem ve Yazıcı Çözümleri Tic. Ltd. Şti. Harman sok Duran Is Merkezi, No:4, Kat:6, 34394, Levent İstanbul Tel: +90 212 279 2393 Faks: +90 212 279 2366 Web: www.oki.com.tr www.okiprintingsolutions.com.tr Oki Systems (Belgium) Medialaan 24 1800 Vilvoorde Helpdesk: 02-2574620 Fax: 02 2531848 Website: www.oki.be AlphaLink Bulgaria Ltd. 2 Kukush Str. Building "Antim Tower", fl. 6 1463 Sofia, Bulgaria tel: +359 2 821 1160 fax: +359 2 821 1193 Website: http://bulgaria.oki.com Oki Systems (Thailand) Ltd. 1168/81-82 Lumpini Tower, 27th Floor Rama IV Road Tungmahamek, Sathorn Bangkok 10120 Tel:(662) 679 9235 Fax:(662) 679 9243/245 http://www.okisysthai.com Oki Data Americas Inc.(United States • États-Unis) 2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054 USA Oki Systems (Hong Kong) Ltd. Suite 1908, 19/F, Tower 3, China Hong Kong City 33 Canton Road, TsimShaTsui, Kowloon, Hong Kong Tel: 1-800-654-3282 Fax: 1-856-222-5247 http://WWW.OKIPRINTINGSOLUTIONS.COM http://my.okidata.com Tel: (852) 3543 9288 Fax: (852) 3549 6040 http://www.okiprintingsolutions.com.hk Oki Data(Australia) Pty Ltd. Levwl1 67 Epping Road, Macquarie Park NSW 2113, Australia Tel: +61 2 8071 0000 (Support Tel: 1800 807 472) Fax: +61 2 8071 0010 http://www.oki.com.au Comworth Systems Ltd. 8 Antares Place Mairangi Bay, Auckland, New Zealand Tel:(64) 9 477 0500 Fax:(64) 9 477 0549 http://www.comworth.co.nz Oki Data(S) P Ltd. Malaysia Rep Office Suite 21.03, 21st Floor Menara IGB, Mid Valley City, Lingkaran Syed Pura 59200, Kuala Lumpur, Malaysia Tel: (60) 3 2287 1177 Fax: (60) 3 2287 1166 VORSICHT:

• Schallemission: unter 70dB (A) nach DIN 45635 (oder ISO 7779)
• Die für das Gerät Vorgesehene Steckdose muß in der Nähe des Gerätes und leicht zugänglich sein. Centronics is a registered trademark of Centronics Data Computer Corp. Microsoft is a registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and set in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. (for USA only) Cambios o modificaciones no aprobadas expresamente por el fabricante que afecten a sus certificaciones pueden invalidar la autoridad de utilizar el equipo. “This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.” “Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.” (for CANADA only) 3ips 6ips 10ips 12ips 3ips 5ips 8ips 10ips 12ips Operate the printer on a stable, level, operating surface in a location free from excessive humidity, high temperature, dust, vibration or direct sunlight.

PAUSE state Mantener [RESTART] User System Mode Mantener [MODE]

User System Mode Sub menu Printer Set (Section 2.6.2.1) Software Set (Section 2.6.2.2) Panel (Section 2.6.2.3) Password (Section 2.6.2.4) S2-16 PC-850 PC-852 PC-857 PC-8 PC-851 PC-855 PC-1250 PC-1251 PC-1252 PC-1253 PC-1254 PC-1257 LATIN9 Arabic PC-866 UTF-8 Windows code Original code OFF STD ORACLE SAP STD EXT ORACLE EXT SAP EXT Al seleccionar DIRECT. Standard Reserve1 to Reserve9 Estándar Reservado S2-22 (Por defecto: 40) Low OFF ON (AUTO) ON (LAN) ON (WLAN) OFF ON (AUTO) ON (LAN) ON (WLAN) TLS TTLS LEAP PEAP MD5 EAP-FAST NETWORK EAP WPA-PSK WPA2 OPEN SYSTEM TLS TTLS LEAP PEAP EAP-FAST TLS TTLS LEAP PEAP EAP-FAST OFF WEP40 WEP104 OFF WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 54M 48M 36M 24M 18M 12M

S2-35 (19) WINS OFF ON (MANUAL) ON (DHCP) (3) STOP BIT 1 bit 2 bits Seleccionar [Remove driver and driver package.] y haga clic en [OK]. (8) Clic [Yes]. (9) Clic [Delete]. (10) User System Mode

RBN ADJ. <FW>

RBN ADJ. <BK>

THRESHOLD <REFL.> THRESHOLD <TRANS.> PAUSE state Mantenga [PAUSE] Threshold Setting Mode

User System Mode <2>PARAMETER SET Software Set THRESHOLD SELECT REFLECT

• COMMAND SET Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting BASIC mode RFID setting Real Time Clock Z-MODE USB memory Reset No. (1) (2) (3) (4) (5)

FALLO DE TENSION

S5- 2 MEMORY WRITE ERR. FORMAT ERROR MEMORY FULL 5 degC to 40 degC (40 degF to 104 degF) Humedad relativa 10%RH to 90%RH 72H (non condensation) 0, 90, 180, 270 USB, Parallel, Serial USB, LAN USB 203-dpi print head 300-dpi print head 5 degC to 40 degC (40 degF to 104 degF) Humedad relativa 0, 90, 180, 270 USB, Parallel, Serial USB, LAN USB Paper Size and Shape Elemento LE840 LE850 Detection Area of Transmissive Sensor Sensor transmisivo Detection of hole White PET Silver chemical mat

AWR6 AWX-FH AWARD AWR470Solfree APR6 APX-FH AXR7+ AXR8 ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR ARMOR

Print energy type Vellum

Transferencia térmica

Print energy type Observaciones Resina1 Resina1 Vellum

Cera1 Cera1 TT1C I-BEST S 150LA-1P 130LAB-1-150

Print energy type Cera 1

Print energy type Observaciones Estándar Estándar

30 INTERNAL COM ERR

APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ Señal N.C TXD (Transmit Data) RXD (Received Data) DSR (Data Set Ready) SG (Signal Ground) DTR (Data Terminal Ready) CTS (Clear to Send) RTS (Request to Send) N.C APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ Connector: Señal PIN Nº Modo SPP Modo Nibble Modo ECP

nStrobe HostClk HostClk

Data 1 Data 1 Data 1

Data 2 Data 2 Data 2

Data 3 Data 3 Data 3

Data 4 Data 4 Data 4

Data 5 Data 5 Data 5

Data 6 Data 6 Data 6

Data 7 Data 7 Data 7

Data 8 Data 8 Data 8

nAck PtrClk PeriphClk

Busy PtrBusy PeriphAck

PError AckDataReq nAckReverse

nAutoFd HostBusy HstAck

CHASSIS GND CHASSIS GND CHASSIS GND

+5V (For detection) +5V (For detection) +5V (For detection)

Conector IEEE1284-B SA2- 3 APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ APENDICE 2 INTERFAZ CODE39 (Full ASCII) CODE93 UPC-E+2 digits UPC-E+5 digits EAN8+2 digits EAN8+5 digits UPC-A UPC-A+2 digits SA3- 2 Customer bar code Customer bar code of high priority KIX Code RM4SCC Data Matrix MicroQR QR code Micro PDF417 MaxiCode CP Code PDF417 SA3- 3 Oki datos de contacto Oki Systems (UK) Ltd Blays House Wick Road Egham Surrey TW20 0HJ Tel:+44 (0) 1784 274300 Fax:+44 (0) 1784 274301 http://www.oki.co.uk Oki Systems Ireland Limited The Square Industrial Complex Tallaght Dublin 24 Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie Oki Systems Ireland Limited Northern Ireland 19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie OKI Systems (Czech and Slovak), s.r.o. IBC – Pobřežní 3 186 00 Praha 8 Czech Republic Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk OKI Europe Ltd. (Russia) Office 702, Bldg 1 Zagorodnoye shosse 117152, Moscow OKI Systems (Magyarország) Kft. Capital Square Tel: +43 223 6677 110 Tower 2 Drucker Support: 7th Floor +43 (0) 2236 677110-501 H-1133 Budapest, Fax Support: Váci út 76 +43 (0) 2236 677110-502 Hungary Website: www.oki.at Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu OKI Systems (Italia) S.p.A. via Milano, 11, 20084 Lacchiarella (MI) Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it OKI Printing Solutions Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland OKI Europe Ltd. (Ukraine) Raisy Opkinoy Street,8 Building B, 2nd Floor, Kiev 02002 Ukraine Tel: +380 44 537 5288 e-mail: info@oki.ua Website: www.oki.ua OKI Sistem ve Yazıcı Çözümleri Tic. Ltd. Şti. Harman sok Duran Is Merkezi, No:4, Kat:6, 34394, Levent İstanbul Tel: +90 212 279 2393 Faks: +90 212 279 2366 Web: www.oki.com.tr www.okiprintingsolutions.com.tr Oki Systems (Belgium) Medialaan 24 1800 Vilvoorde Helpdesk: 02-2574620 Fax: 02 2531848 Website: www.oki.be AlphaLink Bulgaria Ltd. 2 Kukush Str. Building "Antim Tower", fl. 6 1463 Sofia, Bulgaria tel: +359 2 821 1160 fax: +359 2 821 1193 Website: http://bulgaria.oki.com Oki Systems (Thailand) Ltd. 1168/81-82 Lumpini Tower, 27th Floor Rama IV Road Tungmahamek, Sathorn Bangkok 10120 Tel:(662) 679 9235 Fax:(662) 679 9243/245 http://www.okisysthai.com Oki Data Americas Inc.(United States • États-Unis) 2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054 USA Oki Systems (Hong Kong) Ltd. Suite 1908, 19/F, Tower 3, China Hong Kong City 33 Canton Road, TsimShaTsui, Kowloon, Hong Kong Tel: 1-800-654-3282 Fax: 1-856-222-5247 http://WWW.OKIPRINTINGSOLUTIONS.COM http://my.okidata.com Tel: (852) 3543 9288 Fax: (852) 3549 6040 http://www.okiprintingsolutions.com.hk Oki Data(Australia) Pty Ltd. Levwl1 67 Epping Road, Macquarie Park NSW 2113, Australia Tel: +61 2 8071 0000 (Support Tel: 1800 807 472) Fax: +61 2 8071 0010 http://www.oki.com.au Comworth Systems Ltd. 8 Antares Place Mairangi Bay, Auckland, New Zealand Tel:(64) 9 477 0500 Fax:(64) 9 477 0549 http://www.comworth.co.nz Oki Data(S) P Ltd. Malaysia Rep Office Suite 21.03, 21st Floor Menara IGB, Mid Valley City, Lingkaran Syed Pura 59200, Kuala Lumpur, Malaysia Tel: (60) 3 2287 1177 Fax: (60) 3 2287 1166 VORSICHT:

• Schallemission: unter 70dB (A) nach DIN 45635 (oder ISO 7779)
• Die für das Gerät Vorgesehene Steckdose muß in der Nähe des Gerätes und leicht zugänglich sein. Centronics is a registered trademark of Centronics Data Computer Corp. Microsoft is a registered trademark of Microsoft Corporation. Windows is a trademark of Microsoft Corporation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and set in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. (for USA only) Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s authority to operate the equipment. “This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.” “Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.” (for CANADA only) 3ips 6ips 10ips 12ips 3ips 5ips 8ips 10ips 12ips

1. PRODUCT OVERVIEW

1.4 Accessories

Acessórios Visor LCD Visor

2.3.2 Colocar a fita

2.3.2 Colocar a fita (Cont.)

If a message other than ON LINE appears on the display or the ERROR LED lamp is illuminated, refer to Section 5.1, Error Messages. Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting (⇒Secção 2.6.10) BASIC mode RFID setting Real Time Clock (⇒Secção 2.6.11) Z-MODE USB memory Reset User System Mode

2.6.2 Configuração de

USER SYSTEM MODE

<1>RESET <2>PARAMETER SET <3>ADJUST SET <4>LAN/WLAN

(5) HU CUT/RWD

PC-850 PC-852 PC-857 PC-8 PC-851 PC-855 PC-1250 PC-1251 PC-1252 PC-1253 PC-1254 PC-1257 LATIN9 Arabic PC-866 UTF-8 OFF STD ORACLE SAP STD EXT ORACLE EXT SAP EXT Reflective sensor Transmissive sensor OFF ON (AUTO) ON (LAN) ON (WLAN)

• ON SETTING ON P2-25 OFF ON TRANS. ON REFLECT ON ALL

• ON ALL+Bfeed Buffer RS-232C Buffer Centronics Buffer Network I/F BASIC Interpreter: I/F → Interpreter buffer BASIC Interpreter: Interpreter buffer → I/F USB buffer a receber RFID buffer a receber

2.6.10 Configuração de

Interface SYSTEM MODE <4>TEST PRINT <5>SENSOR ADJUST <6>RAM CLEAR <7>INTERFACE Parâmetros LAN/WLAN SNMP SETTING BASIC INFORMATION IP ADDRESS GATEWAY ADDRESS SUBNET MASK SOCKET PORT PORT NUMBER DHCP

DHCP CLIENT ID

DHCP HOST NAME

WLAN STANDARD WLAN MODE DEFAULT TECLA 802.11B CHANNEL 802.11B BAUD 802.11G CHANNEL 802.11G BAUD

WLAN POWER SAVE

WINS WINS ADDRESS LPR SPEED DATA LENGTH STOP BIT PARITY CONTROL ACK/BUSY INPU PRIME PLUG & PLAY OFF ON (AUTO) ON (LAN) ON (WLAN) (5) GATEWAY ADDRESS

• 11g P2-33 TLS TTLS LEAP PEAP MD5 EAP-FAST NETWORK EAP WPA-PSK WPA2 OPEN SYSTEM TLS TTLS LEAP PEAP EAP-FAST TLS TTLS LEAP PEAP EAP-FAST OFF WEP40 WEP104 OFF WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 WEP40 WEP104 54M 48M 36M 24M 18M 12M

• ON (DHCP) (2) DATA LENGTH

Abra a [Printer Folder] (*). (2) Seleccione [Remove driver and driver package.] e User System Mode

Parâmetro FEED ADJ. CUT ADJ. BACK ADJ. X ADJUST TONE ADJ. (TRANS.) TONE ADJ. (DIRECT)

RBN ADJ. <FW>

RBN ADJ. <BK>

THRESHOLD <REFL.> THRESHOLD <TRANS.> (3) BACK ADJ. Reverse feed amount to the next print start position is fine adjusted. 9.9mm 9.8mm -9.8mm -9.9mm PAUSE state Pressione [PAUSE] Threshold Setting Mode

Reflective sensor (Preto sensor de marca) Transmissive sensor (Gap sensor) User System Mode <2>PARAMETER SET Software Set THRESHOLD SELECT REFLECT

• COMMAND SET (9) SYSTEM MODE <2>PARAMETER SET <3>ADJUST SET <4>TEST PRINT <5>SENSOR ADJUST Self diagnosis Parameter setting Fine adjustment Test print Sensor adjustment RAM clear Interface setting BASIC mode RFID setting Real Time Clock Z-MODE USB memory Reset No. (1) (2) (3) (4) (5) When [PAUSE] key is pressed while printing: USB, Parallel, Serial Equipamento opcional Interface serie USB, LAN USB Reflective sensor(□square) Transmissive sensor (○circle) 6mm 51mm Movement range Sensor distance 10mm Center of paper Paper position Factory initial Paper position (left) setting (Right) Detection of hole (Center of paper) Transmissive Sensor position (Round holes are View from the print side Unacceptable.) Adhesive tape Paper feed direction Should be keep 5mm 16mm Transmissive sensor is movable within this range. Transmissive Sensor position (Center of paper) Necessary detection area View from the print side Label Gap when the cutter is used.) Paper feed direction Min. 12 mm 16mm Transmissive sensor is movable within this range. (Center of paper) Perspective on the back side Reflective Sensor position View from the print surface Paper feed direction Feed 6mm Reflective sensor is movable within this range. P7- 4 Paper position (Left) Paper position (Right) Printing area Outside printing area 104.0mm±0.2mm (Effective print head width) 2 mm 30.0mm (Min. paper width) Outside printing area 8 mm Feed direction 114.0mm (Max. paper width) Detection area 1 mm

1.5 mm from right

3.5 mm from left

edge of paper 10 mm to 1500 mm Label/tag length Guaranteed Printing Area Detection area 1 mm Feed direction The inked surface faces the outside. Adhesive tape A Ink ribbon The Adhesive tape Inked side Take-up core Core Base Treated back side White PET Silver chemical mat

Manufacturer Ink Name Espessura base Manufacturer (µm) Tipo Observações

APR6 APX-FH AXR7+ AXR8

ARMOR ARMOR ARMOR ARMOR

TT1C VES-85 I-BEST S

TT1C I-BEST S 150LA-1P 130LAB-1-150

+5V (For detection) +5V (For detection) +5V (For detection)

Conector IEEE1284-B PA2- 3 IN0 to IN5 OUT0 to OUT6 FCN-781P024-G/P ou equivalente FCN-685J0024 ou equivalente Pin Sinal I/O

IN0 Input FEED Função Pin Sinal I/O

----Comum (Alimentação)

OUT5 Output POWER ON

CÓDIGO39 (Full ASCII) CÓDIGO93 UPC-E+2 dígitos UPC-E+5 dígitos EAN8+2 dígitos EAN8+5 dígitos UPC-A UPC-A+2 dígitos PA3- 2 UCC/EAN-28 com CC-A, CC-B, ou CC-C PA3- 4 UCC/EAN-128 com CC-C PA3- 5 Oki detalhes de contacto Oki Systems (UK) Ltd Blays House Wick Road Egham Surrey TW20 0HJ Tel:+44 (0) 1784 274300 Fax:+44 (0) 1784 274301 http://www.oki.co.uk Oki Systems Ireland Limited The Square Industrial Complex Tallaght Dublin 24 Tel:+353 (0) 1 4049590 Fax:+353 (0)1 4049591 http://www.oki.ie Oki Systems Ireland Limited Northern Ireland 19 Ferndale Avenue Glengormley BT36 5AL Northern Ireland Tel:+44 (0) 7767 271447 Fax:+44 (0) 1 404 9520 http://www.oki.ie Technical Support for all Ireland: Tel:+353 1 4049570 Fax:+353 1 4049555 E-mail: tech.support@oki.ie OKI Systems (Czech and Slovak), s.r.o. IBC – Pobřežní 3 186 00 Praha 8 Czech Republic Tel: +420 224 890158 Fax:+420 22 232 6621 Website: www.oki.cz, www.oki.sk OKI Europe Ltd. (Russia) Office 702, Bldg 1 Zagorodnoye shosse 117152, Moscow OKI Systems (Magyarország) Kft. Capital Square Tel: +43 223 6677 110 Tower 2 Drucker Support: 7th Floor +43 (0) 2236 677110-501 H-1133 Budapest, Fax Support: Váci út 76 +43 (0) 2236 677110-502 Hungary Website: www.oki.at Telefon: +36 1 814 8000 Telefax: +36 1 814 8009 Website: www.okihu.hu OKI Systems (Italia) S.p.A. via Milano, 11, 20084 Lacchiarella (MI) Tel:+39 (0) 2 900261 Fax:+39 (0) 2 90026344 Website: www.oki.it OKI Printing Solutions Platinium Business Park II, 3rd Floor ul. Domaniewska 42 02-672 Warsaw Poland OKI Europe Ltd. (Ukraine) Raisy Opkinoy Street,8 Building B, 2nd Floor, Kiev 02002 Ukraine Tel: +380 44 537 5288 e-mail: info@oki.ua Website: www.oki.ua OKI Sistem ve Yazıcı Çözümleri Tic. Ltd. Şti. Harman sok Duran Is Merkezi, No:4, Kat:6, 34394, Levent İstanbul Tel: +90 212 279 2393 Faks: +90 212 279 2366 Web: www.oki.com.tr www.okiprintingsolutions.com.tr Oki Systems (Belgium) Medialaan 24 1800 Vilvoorde Helpdesk: 02-2574620 Fax: 02 2531848 Website: www.oki.be AlphaLink Bulgaria Ltd. 2 Kukush Str. Building "Antim Tower", fl. 6 1463 Sofia, Bulgaria tel: +359 2 821 1160 fax: +359 2 821 1193 Website: http://bulgaria.oki.com Oki Systems (Thailand) Ltd. 1168/81-82 Lumpini Tower, 27th Floor Rama IV Road Tungmahamek, Sathorn Bangkok 10120 Tel:(662) 679 9235 Fax:(662) 679 9243/245 http://www.okisysthai.com Oki Data Americas Inc.(United States • États-Unis) 2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054 USA Oki Systems (Hong Kong) Ltd. Suite 1908, 19/F, Tower 3, China Hong Kong City 33 Canton Road, TsimShaTsui, Kowloon, Hong Kong Tel: 1-800-654-3282 Fax: 1-856-222-5247 http://WWW.OKIPRINTINGSOLUTIONS.COM http://my.okidata.com Tel: (852) 3543 9288 Fax: (852) 3549 6040 http://www.okiprintingsolutions.com.hk Oki Data(Australia) Pty Ltd. Levwl1 67 Epping Road, Macquarie Park NSW 2113, Australia Tel: +61 2 8071 0000 (Support Tel: 1800 807 472) Fax: +61 2 8071 0010 http://www.oki.com.au Comworth Systems Ltd. 8 Antares Place Mairangi Bay, Auckland, New Zealand Tel:(64) 9 477 0500 Fax:(64) 9 477 0549 http://www.comworth.co.nz Oki Data(S) P Ltd. Malaysia Rep Office Suite 21.03, 21st Floor Menara IGB, Mid Valley City, Lingkaran Syed Pura 59200, Kuala Lumpur, Malaysia Tel: (60) 3 2287 1177 Fax: (60) 3 2287 1166 Oki Data Corporation 4-11-22 Shibaura, Minato-ku,Tokyo 108-8551, Japan www.okiprintingsolutions.com
