USER MANUAL WS7018 LA CROSSE TECHNOLOGY

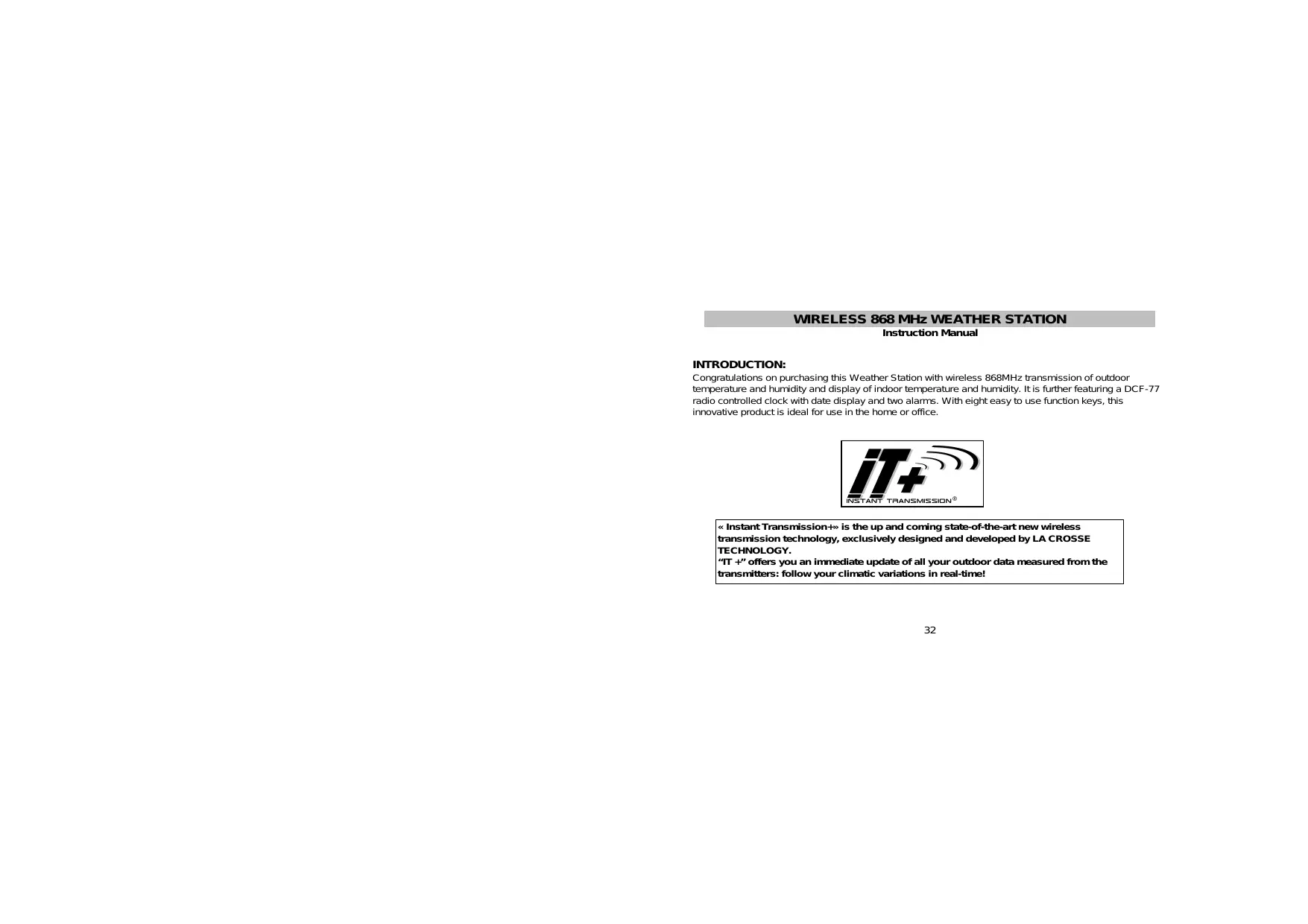

INTRODUCTION: Congratuiations on purchasing this Weather Station with wireless 868MHz transmission of outdoor temperature and humidity and display of indoor temperature and humidiy. Itis further featuring a DCF-77 radio controlled clock with date display and to alarms. With eight easy to use function keys, this innovative product is ideal for use in the home or office.

<'instant Transmission+> is the up and coming state-ofthe-art new wireless fransmission technology, exclusively designed and developed by LA CROSSE TECHNOLOGY.

DCF.77 Radio controlled time with manual setting options Time reception ON/OFF

Hour and minute display, seconds indicated by flashing dot

Features 2 alarme with snooze function

Date and month / weekday and date calendar display selectable

Weather forecasting with 3 weather icons and weather tendency indicator Weather forecasting icon sensitiity setting

Terrperature display in degrees Celsius (C) or Fahrenheit (F) selectable Indoor and outdoor temperature display with MIN/MAX recording

Indoor and outdoor humidity reading displayed as RH% with MIN/MAX recordings All MIN/MAX temperature recordings Show date and time received

All MIN/MAX recordings can be reset

Indoor comfort level indicator - happy or sad face icons

Can take up to three outdoor transmitters:

LCD contrast setting

Low battery indicator.

Wireless transmission at 868 MHz

Signal reception intervals at 4 seconds

Wall mounting or table standing

The Thermo-Hygro Outroor Transmitter

Rerote transmission of outdoor temperature and huridity to Weather Station by 868

MHz + Display altemately the outdoor temperature and humidity readings on LCD TE + Shower proof casing — + Wall mounting case (Mounting ata sheltered place. Avoid direct rain and sunshine)

HOW TO INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION The Weather station uses 2 x AA, IEC LRG, 1.5V batteries. When batteries will need to be replaced, the low battery icon will appear on the LCD. To install and replace the batteries, please follow'the steps below 1. Insert finger or other solid object in the space atthe bottom center of the | = | battery compartment and Iif- up to remove the cover.

2. Insertbatieries observing the correct polarity (see marking) Replace compartment cover.

HOW TO INSTALL AND REPLACE BATTERIES IN THE THERMO-HYGRO OUTDOOR TRANSMITTER

‘The Themro-hygro transmitr uses 2 x AA, IEC LR6, 1.5V battery. To install and replace the batteries, please follow the steps below: 1. Remove the battery corpartment cover.

2. Insertthe batteries, observing the correct polarity (see marking) 3. Replace the battery compartment cover on the unit. Note:

In the event of changing batteries in any of the units, all units need to be reset by following the seing up procedures. This is because a random security code is assigned by the transmitter at-start-up and this code must be received and stored by the Weather station in the first 3 minutes of power being supplied to it

BATTERY CHANGE: Itis recommended to replace the batteries in all units on an annual basis to ensure optimum accuracy of these units.

Please participate in the preservation of the environment. Retum used batteries to an authoriseel depot. =

WHEN ONE TRANSMITTER IS USED

1 First insertihe batteries in the transmitier (see ‘How to install and replace batteries in the Termo-hygro outoor transmitter” above).

2. Within 2 minutes of powering up the transmitter, insert the batteries in the Terrperature Station (see "How to install and replace batteries in the Weather Station” abovc). Once the batteries are in place, all segments of the LCD will light up brief and à short signal tone will sound. Following the indoor terrperature/humiity and the time as 0:00 wil be displayed. Ifthese information are not displayed on the LCD after 60 seconds, remove the batteries and wait for at least 60 seconds before reinsertng them Once the indoor data is displayed user may proceed to the next step.

3. Aferthe batteries are inserted, the Weather station wil start receiving data signal fromthe transmiter, The outdoor temperature and humidity data should then be displayed on the Weather station. If this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.

4. In orderto ensure sufficient 868 MHz transmission however, the distance between the Weather Station and the transmitr should not be more than 100 meters (see notes on ‘Positioning” and “868 MHz Reception)

Note: In the event of changing batteries of he units, ensure the batteries do not spring free from the contacts. Always wait at least 1 minute after removing the batieries before reinserting, otherwise start up and transmission problems may occur.

WHEN MORE THAN ONE TRANSMITTER IS USED

1. User shall remove all the batteries fromthe Weather Station and transmitters, and vit 60 seconds.

2. Insertthe batteries in the firsttransmitter.

3. Within 2 minutes of powering up the first transmiter, insert the batteries in the Weather Station. Once the batteries are in place, all segments of the LCD will light up brief and à short signal tne will sound. Following the indoor terrperature/numidity and the time as 0:00 väll be displayed. If these information are not displayed on the LCD after 60 seconds, remove the batteries from both units and wait for at least 60 seconds before reinserting them.

4. The outdoor temperature and humicity data fromthe fist transmitter (channel 1) should then be displayed on the Weather Station. Also, the signal reception icon will be displayed. this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1.

5. Insertthe batteries in the second transmiter as soon as the outdoor temperature and hunicity readings from the frsttransmitter are displayed on the Weather Station.

Note : User shall insert the batteries into the second transmiter within 45 seconds after the Weather Station displays the information of the fist transmitter.

6. The outdoor temperature and humidity fromthe second transmitter and the “channel 2' icon should then be displayed on the Weather Station. If this does not happen after 2 minutes, the batteries will need to be removed from all the units and reset from step 1.

7. Insertthe batteries in the third transmitter as soon as the "channel 2” icon and outdoor data are displayed on the Weather Station. Then within 2 minutes, the channel 3 outdoor data from the third transrritter will be displayed and the channel icon will shift back to “" once the third transmitter is successfully received. IF this is nothappen, user shall restartthe setting up from step L Note : User shall insertthe batteries into the third transmiter within 45 seconds afer the Weather Station displays the information of he first transmiter. Or immediately after reception of the second transmiter is

8. In order tp ensure sufficient 868 MHz transmission however, the distance between the Weather Station and the transmiter should not be more than 100 meters (see notes on ‘Positioning” and “268 Mz Reception’.

‘Transmission problems wil arise if the seing for additional sensors is not followed as described above. Should transmission problems oceur, itis necessary to remove the batteries from all units and start again the set-up from step1

Weather station: he weather Sntion has eight easy 1 use function keys, an te aude and four behind a shutorinside ie louer corrperment Indoor Outdoor Setting e Es D D G— creme Alarm 1 DENIOLIE Snooze SET key (Settng} ame Da

+ To enter the set mode for the following functions: LCD contrast, Time zone, Time Reception ON/OFF, 12/24 hour display, Manual time, Year, Date, snooze time duration, C/F, and Weather forecasting icon sensi üvity

Note: The year can be displayed in the set mode (ot displayed in norrral mode)

+ Tostopthe alamm IN key (Indoor)

+ To toggie between the current minimum/ meximumindoor temperature and hurridity

+ To press forover 3 seconds to resetthe indoor maximum and minimumtemperature and humidity records

{will reset all records to current level)

Note: the Time/date inforration is only available for MIN/MAX terrperature data, and will be changed to default

time after the reset operation

+ To change LCD contrast, time zone, Time Reception ON/OFF, 12/24 hour display, hour, year, month, day, snooze time duration, C/F and weather forecasting_ icon Sensitivity in seting modes

Note: in 24hr time display mode, the day is set by using the IN key. In 12hr time display mode, the month is set by

+ To change alammhourin alammsettng mode + Tostopthe alamm

+ To toggie between the currenÿ minimumy maximum outrioor temperature and hurridity

+ Press for around 3 seconds to resetthe outdoor maximumand minimumtemperature and huridity records

{will reset all records to current level ofthe relate transmitter being reset_ each transmitters data must be reset separately)

Note: the time/date information of MIN/MAX temperature will be reset to default time as well

* To change minute, day, month units in setting modes

Note: in 24hr time display mode, the month is set by using the OUT key. In 12hr time display mode, the day is set by using the OUT key

+ To change alammrminute in alammseting mode

CH key (Channel) + To toggie between the Therro-Hygro outdoor transmitters 1, 2 and 3 (if more than 1 transmitter is used)

+ To exit manual setting mode and alarmsetting mode + Tostopthe alamm

+ To display the time set for Alarm{(1}) and to simultaneousiy switch Alarm ((1)) ON/ OFF + Press for about 3 seconds to enter the Alarm ((1)) setting mode

+ To toggie between the io date display modes and the tno alarm times

+ To activate the snooze function forthe alamm

+ To viewalarmtime setting in norrral operation mode

+ To exit manual setting mode and alammsetting mode

LCD SCREEN: DCF Towericon _| (for time reception

Weather Tendency Icon

Low battery indicator. {weather station) |

Indoor Temperature in € — Low battery indicator (transrritter)

1 weather Forecasticon

|_ Confort Indicator icon

Indoor Relative Humidity %

Outdoor Temperature in ©

ES HN Outrloor reception signal

(IR Nurrber showing Transmitter unit

+ When the signal is successful received by the Weather Station, the outdoor transmission icon will be switched on. (If not successful, the icon wall not be shown on LCD). The user can then easily see whether the last reception

vs successful (icon on) or not (icon eff. On the other hand, the shortblinking of the icon shows that a reception is current taking place.

For better distinciness the LCD screen is splitinto 5 sections displaying the informations for time, date, weather forecast, indoors and outdoors.

LCD1L RADIO CONTROLLED TIME + In normal mode display of radio controlled time.

+ A reception tower symbol in the upper left hand comer of LCD 1 ofthe display indicates that the DCF-77 time signal is scanned for (flashing) or received (stead).

+ Inseting mode display of manual setting values.

LCD 2 - CALENDAR, ALARM ((1)) OR ALARM ((2)) TIME

+ Display date and month, weekday and date, Alarm ((1)) time or Alarm ((2)) time. it also shows the Alarm ONOFF icons {(1)) and ((2))

+ Inseting mode display of a variety of references and setting values

LCD 3 - WEATHER FORECAST AND WEATHER ICONS

+ Display ofthe weather t be expected in fomof three weather symbols and to weather tendency

indicators in fomaof an arrow which change their appearance depending on the air pressure development.

LCD 4 - INDOOR TEMPERATURE AND HUMIDITY

+ In normal mode, on the le, display of the current indoor temperature.

+ In normal mode, on the right, display of the current indoor relative humicity.

+ By pressing the ‘IN”key, display of the stored MIN/MAX indoor temperature and hurridity with Simultaneous display of a MIN or MAX syrbl in the upper center.

+ In normal mode, display of confort indicator.

+ Display of low battery indicator. À small battery symbol on the upper right side indicates low running batteries.

LCDS - OUTDOOR TEMPERATURE AND HUMIDITY + In normal mode, on the le, display of the current outdoor temperature.

+ In normal mode, on the right, display of the current outdoor relative humidity

+ By pressing the “OUT” key, display ofthe stored MIN/MAX outrloor terrperature and huridity with simultaneous display of à MIN or MAX symbol in the upper center.

+ By pressing the ‘CH”key, display of outdoor sensors (up to three outdoor transmitters) 1, or 3 in the center will indicate from which sensor the current reading originates,

+ Display of low battery indicator. À small battery symbol on the upper right side indicates low running batteries.

+ An antenna symbol in the upper center indicates thata signal is received fromthe transmiter(s).

DCF-77 RADIO CONTROLLED TIME: ‘The time base for the radio controlled time is a Cesium Atomic Clock operated by the Physikalisch Technische Bundesanstait Braunschweïg which has a time deviation of less than one second in one million years. The time is coded and transmited from Maintlingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has à transmitng range of approximately 1,500 km. Your radio-controlled Weather Station receives this signal and convert itto show the precise time in summer or wintertime, The quality of the reception depends great on the geographic location. In normal cases, there should be no reception problems within a 1,500km radius around Frankéurt.

Once the outdoor temperature and hurridit are displayed on the Weather station after initial set-up, the DCF tower icon in the clock display wil! Start flashing in the upper left comer. This indicates that the clock has detected that there is a radio signal present and is tying t receive it When the time code is received, the DCF tower becomes. permanent li and the time will be displayed.

DCF reception is done twice daily at 02:00 and 03:00 am If the reception is not successful at 03:00 am then the next reception takes place the next hour and so on until 06:00am or un the reception is successful If the reception is not successful at 06:00 am then the next atterrpt will take place the next day at 02:00 am

Ifthe toweer icon flashes, but does not setthe time or the DCF tower does not appear at all, then please take note ofthe following!

+ Recommended distance to any interfering sources like computer monitors or TV sets is à minimum of 1.5 - 2 metres.

+ Within ferro-concrete rooms (basements, superstuctures), the received signal is naturally weakened. In extreme cases, please place the unit close to à window and/or point is front or back towards the Frankdurt transmitter.

+ During nightäime, the atmospheric disturbances are usually less severe and reception is possible in most

cases. A single daily reception is adequate to keep the accuracy deviation below 1 second.

‘The following manual settings can be changed when pressing the SET key for. + LCD contrast setting

LCD CONTRAST SETTING Fed

‘The LCD contrast can be set to 8 different levels to suit the users needs (default LCD contrast seting is LCD 5). To setthe desired contrast level

1. Press the IN key to select the level of contrast desired. 2. Press the SET key to confimand enter the “Time Zone setting” or ext the setting mode by pressing the CH or SNZkey

‘The time zone default of the Weather Station is 0. To change to another time zone:

1. Press the SET key after corrpleting the LCD contrast setting in order to enter the time zone setting (fashing).

2. Using the IN key, setthe time zone. The range runs from to +12 and then runs from -12 back to O in consecutive Ihour intervals.

3. Press the SET key to confirmand enter the “Time Reception ON/OFF setting” or exit the seting mode by pressing the CH or SNZ key

TIME RECEPTION ONOFF SETTING | 5 gn- ñ Digi flashing

In area where reception of the DCF-77 time is not possible, the DCF.-77 time reception function can be tumed OFF.

‘The clock vâll then work as à normal Quartz clock. (Default setting is ON).

1. The digit "ON" will startflashing on the LCD)

2. Use the IN key t tum OFF the time reception function.

3. Confirmwith the SET key and enter the “12/24-Hour Display setting” or exit the setting mode by pressing the CH or SNZ key.

the Time Reception function is tumed OFF manuallÿ, the clock will not attempt any reception of the DCF

time as long as the Time Reception OFF function is activated. The Time Reception and DCF icons will not

be displayed on the LCD.

12/24 HOUR TIME DISPLAY SETTING

? Pad Uk "24" flashing

1. After setting time reception ON/OFF, press the SET key, “12h"or"24h"flashes in the LCD. 2. Press the IN key t selectthe "12h" or ‘24h display mode. 3. Press the SET again to confirm and to enter the “Manual Time setting” or ext the setting mode by pressing the CH or SNZ key. Note: When 24h mode display is selected, the calendar format will be date and month display. When 12h mode display is selected, the calendar format will be month and date display.

MANUAL TIME SETTING In case the Weather Station is not able to detect the DCF-signal (disturbances, transmittng distance, et.) the time can be manually set The clock wil then work as a normal Quartz clock.

CCS Hours (lasning) — À — 2-{2:34 3 y inutes (Rashing) To setthe clock

‘The hour and minute digits start flashing in the time display section.

2. Use the IN key t adjustthe hours and the OUT key to adjustthe minutes. If you hold the key ile you adjust, the hours move 1 hour and the minutes move 5 minutes.

3. Confirmuwih the SET key and enter the “Calendar Setting'” or exit the setting mode by pressing the CH or SNZ key

‘The unit wil still try and receive the signal despite it being manually set. When it does receive the signal, it will change the manually set time into the received time. During reception atterrpts the DCF tower icon wil flash. 1f reception has been unsuccessful, then the DCF tower icon will not appear but reception wil still be atterrpted the following day.

Year (flashing) Date (fashing) Month (flashing)

‘The date defaut of the Weather station is 1. 1. of the year 2006 after initial setup. Once the radio-controlled time signals are received, the date is automatically updated. However, ifthe signals are not received, the date can also be set manually. To do this:

1. Usingthe IN key, setthe year required. The range runs from 2003 to 2029 (default is 2006)

2. Press the SET key t enterthe month and date seting mode.

3. Press the IN (or OUT) key to setthe date and the OUT (or IN) key to setthe month required. 4. Confirmuwih the SET key and enter the ‘Snooze setting ” or exit the setting mode by pressing the CH or

‘The snooze time can be set OFF to a maximum time of 30 minutes (defaut is 10 minutes)

1. Use the IN key to setthe snooze time. Each pressing of}

the key will increase the snooze time by 5 minutes,

‘The snooze can also be set OFF when the “OFF” digitis being displayed. 2. Confirmuwith the SET key and enter the “&C / temperature display setting" or exit the manual setting

mode by pressing the CH or SNZ key. Note: IFthe snooze time has been set "OFF" the snooze functi

T/F TEMPERATURE DISPLAY SETTING

jon will not be activated.

‘The default temperature reading is setto © (degree Celsius). To select F (degree Fahrenheit}:

1. The “C”ill be flashing, use the IN Key to ing gle bebeen “TC” and “F”.

2. Once the desired temperature unit has been chosen, confimwith the SET key and enter the "Weather Forecast icon Sensitivity setting” or exit the setting mode by pressing the CH or SNZ key.

WEATHER FORECASTING ICON SENSITIVITY SETTING For locations with rapid changes of weather conditions, the threshold can be set tp a different level for faster display of weather conditions. ————_

1. Using the IN key tp setthe weather sensitivity level. There are 3 levels of setting: 1, 2 and 3; level 1 is the most sensitive setting, level 3 is the least sensitive seting (default setting is 2"). 2. Confirmuith the SET key and exitthe Manual settings.

ee" (O3DE Alamntime icon

Press and hold down the AL1 key for about 3 seconds until the alarm time display flashes.

2. Use the IN key t setthe hours and the OUT key to setthe minutes. Pressing these keys continuously moves the hours consecuïively by 1 and the minutes consecuüvely by 5.

3. Ether press the ALL key once more to confimand return to the novel display or de not touch any buttons for around 15 seconds to confirmthe settime.

4. To activate the alamm function, press the ALL button once for Alam L. You should now see the ((1)) alarm syrbol to represent the Alarm 1 being ON.

To de-activate, press the AL1 button once again.

‘The steps for seting, activating and de-activating Alarm 2 are the same, but using the AL2 button instead of

SNOOZE SETTING AND STOPPING THE ALARM:

1. When the alammis sounding, press the SNZ t activate the snooze function. The alarm will stop and re- activate after the snooze interval of 5 minutes (for exarrple).

2. To stopthe alammconpletely, press any keys other than the SNZ key.

WEATHER FORECAST AND TENDENCY:

The weather forecasting icons: ‘There are 3 weather icons in the third section of LCD which can be displayed in any of the following corbinations:

Sunny Cioudy with sunny intervals.

For every sudden or significant change in the air pressure, the weather icons will update accordingly to represent the change in weather. If the icons do not change, then it means either the air pressure has not changed or the change has been too slow for the Weather station to register. However, if the icon displayed is a sun or raining cloud, there will be no change of icon if the weather gets any better (with sunny icon) or worse (with rainy icon) since the icons are already at their extremes.

‘The icons displayed forecasts the weather in temrs of geting better or worse and not necessary Sunny or rainy as each icon indicates. For exarple, ifthe current weather is cloudy and the rainy icon is displayed, it does not mean that the product is faulty because itis not raining. It simply means that the air pressure has dropped and the weather is expected to get worse but not necessarily rainy.

After setting up, readings for weather forecasts should be disregarded for the next 12-24 hours. This will allow suffcient time for the Weather Station to collect air pressure data at a constant altitude and therefore result in a rrore accurate forecast.

Comron tp weather forecasting, absolute accuracy cannot be guaranteed. The weather forecasting feature is. estimated to have an accuracy level of about 75% due t the varying areas the Weather Station has been designed for use in. In areas that experience sudden changes in weather (for exarrple from sunny to rain), the Weather Station will be more accurate compared to use in areas where the weather is stagnant most of the time (for xarrple most sunny)

Ifthe Weather Station is moved tp another location significantly higher or lower than its initial standing point (for exarrple fromthe ground floor ta the upper floors of a house), remove the batteries and re-insert them after about 30 seconds. By doing this, the Weather Station vil! not mistake the new location as being a possible change in air pressure when real itis due to the slight change of altitude. Again, disregard weather forecasts for the next 12 to 24 hours as this will allow time for operation at a constant altitude.

THE WEATHER TENDENCY INDICATOR Working together with the weather icons are the weather tendency indicators (located on the left and right hand side of the weather icons). When the indicator points upwards, it means that the air-pressure is increasing and the weather is expected t improve, but when indicator points dounwards, the air-pressure is dropping and the weather is expected to become worse.

Taking this into account, one can see how the weather has changed and is expected tp change. For exarrple, ifthe indicator is pointing dounwards together with cloud and sun icons, then the last noticeable change in the weather was when itwas sunny (the sun icon only). Therefore, the next change in the weather will be the cloud with rain icons since the indicator is painting dowrwards.

Once the weather tendency indicator has registered a change in air pressure, it will remain permanent visualized onthe LCD.

‘The indoor temperature and humidity are measured automatically and displayed on the fourth section ofthe LCD.

THE COMFORT LEVEL INDICATORS:

Comfortable: A happy face icon “2'indicating a terperature level betneen 20.0€ and 25.9€ (68F to 78.6F and hurridity between 45% and 65%.

Uncomfortable: A sad face icon "@" indicating any value outside the comtortable range.

TOGGLING AND RESETTING THE INDOOR RECORDING:

1. To toggle between the indoor current, minimum and maxmumtemperature and humidity data and the times atwhich they were recorded, press the IN key:

Once to show the minimum temperature and humidity values with time and date recorded ‘Twice to show the maximum terrperature and humidity values with time and date recorded Three times to return t the current me, date, temperature and hurridity levels:

Note: the Time/date information is only available for the MIN/MAX temperature data.

2. Toresetthe minimumand maxmumtemperature and humidity data and the times at which they were recorded, press the IN key continuousy for about 3 seconds. This wil reset all minimum and maximum data recorded to the current time, date, temperature and humidity, The min/mex temperatures and hurmidity recorded are of current time and they remain unaffected by the time zone setting.

OUTDOOR TEMPERATURE AND HUMIDITY:

Maximum Display Outdoor Reception Signal

Nurrber showing Transritter unit (only if there is more than one transmiter)

‘The last LCD section shows the outdoor temperature and humidity, a reception signal and a number beside the temperature will also show if more than one transmitter has been used.

TOGGLING AND RESETTING THE OUTDOOR RECORDINGS: To toggle between the outdoor current, minimum and maximum temperature and huridity data and the times at which they were recorded, press the OUT key: Once to show the minimum temperature and humidity values with time and date recorded ‘Twice to show the maximum terrperature and humidity values with time and date recorded Three times to return t the current me, date, temperature and hurridity levels: Note: the time/date information is only available for MIN/MAX temperature data. 2. To toggle between transmitters, press the CH key: Once to show transmitter 2 Twice to show transmitter 3 Three times to return to transmitter 1

Note: The transmitter number will only be displayed if there is more than one transmitter detected.

3. Toresetthe minimumand maxmumtermperature and humidity data, and the times at which they were recorded, press the OUT key continuously for about 3 seconds. This will reset all minimum and maxirrum data recorded to the current time, date, temperature and humidity. The current time taken is the normal displayed time and does not regard the time zone set for the unit.

Note: the MIN/MAX data for each transmitier needs to be reset separately.

TO VIEW THE MIN/MAX DATA FROM DIFFERENT TRANSMITTERS When more than 1 transmitter used:

1. To toggle between transmitters, press the CH key:

Once to show transmitter 2

‘Twice to show transmitter 3

Three times to retum to transmitter 1

Use OUT key t view the MIN/MAX terrperature and humidity data for the selected transmitter.

3. To resetthe minimumand mamumterrperature and humidity data, and the times at which they were recorded, press the SET key continuousiy for about 3 seconds. This il reset the MIN/MAX data recorded to the current time, date, temperature and humidity. The current me taken is the normal displayed time and does not regard the time zone set for the unit.

Note: the MIN/MAX data for each transmitter needs tp be reset separately.

LOW BATTERY INDICATOR Low battery indicator is displayed on the LCD when the batteries require changing:

THERMO-HYGRO OUTDOOR TRANSMITTE. ‘The terrperature and humidity are measured and transmited every 4 seconds.

‘The range of the Thermo-Hygro outdoor transmitier may be affected by the temperature. At cold terrperatures the Hransmitting distance may be decreased. Please bear this in mind when placing the transmitter.

868MHz RECEPTION CHECK Ifthe outdoor terrperature and humidity data are not being received within three minutes after setting up (or autdoor display always show “ - -"in the outdoor section of the Weather station during normal operation), please check the following points:

1. The distance ofthe weather station or transmitter should be atleast 1.5 to 2 meters away fromany interfering sources such as computer monitors or TV sets.

2. Avoid positioning the Weather Station onto orin the immediate proximity of metal window frames.

3. Using other electrical products such as headphones or speakers operating on the same signal frequency {86MHz) may prevent correct signal transmission and reception.

4. Neïghbours using electrical devices operating on the B68MHZ signal frequency can also cause interference.

When the 868MH2z signal is received correct, do not re-open the battery cover of either the transmiter or Weather Station, as the batteries may spring free fromithe contacts and force a false reset. Should this happen accidentally then reset all units (see Setting up above) othernise transmission problems may occur.

‘The transmission range is about 100 m fromthe transmitter to the Weather Station (in open space). However, this depends on the surrounding environment and interference levels. 1f no reception is possible despite the observation of these factors, all system units have to be reset (see Setting up).

POSITIONING THE WEATHER STATION: ‘The Weather Station comes attached with removable table stand, which provides the option of table standing or wall mounting the unit. Before wall mounting, please check that the outdoor terrperature and humidity values can be received fromthe desired locations. To well mount. 1. Fixa screw (not supplied) into the desired wall, leaving the head extended out the by o about 5mm 2. Remove the stand fromthe Weather Station by pullng itway fromthe base and hang it ont the screw. Remember to ensure that it locks into place before releasing.

POSITIONING THE THERMO-HYGRO OUTDOOR TRANSMITTER ‘The Transmitter is supplied with a holder that may be attached to a wall with the Bo screws supplied. The Transmitter can also be position on a flat surface by securing [' he stand to the bottomto the Transmitter.

IR To wall mount: 1. Secure the bracket ont a desired wall using the screws and plastic anchors. 2. Clip the remote thermo-hygro transmiter onto the bracket.

Before permanent fixng the transmitter wall base, place all units in the desired locations 1 check that the outdoor terrperature reading is receivable. In event that the signal is not received, relocate the transmitters or move themslightiy as this may help the signal reception.

CARE AND MAINTENANCE:

+ Extreme temperatures, vibration and shock should be avoided as these may cause damage to the unit and give inaccurate forecasts and readings.

Precautions shall be taken when handling the batteries. Injuries, bus, or property damage may be resulted ifthe batteries are in contact with conducting materials, heat, corrosive materials or explosives. The batteries shall be taken out fromthe unit before the product is to be stored for a long period of time: immediately remove all low powered batteries to avoid leakage and damage. Replace only with new batteries of the recommended type.

When cleaning the display and casings, use a soft darrp cloth only. Do notuse solvents or scouring agents. as they may mark the LCD and casings.

Do not submerge the unit in water.

Special care shall be taken when handling a damaged LCD display. The liquid crystals can be harrful to users health.

Do notmeke any repair attempts to the unit. Retum them to their original point of purchase for repair by a qualiied engineer. Opening and tampering with the unit may invalidate their guarantee.

Never touch the exposed electronic circuit of he device as there is a danger of electric shock should it become exposed.

Do not expose the units to extreme and sudden temperature changes, this may lead to rapid changes in forecasts and readings and thereby reduce their accuracy.

Temperature measuring range:

Indoor 29.90 to +59.96C with 0.1 resolution 14.2F to #139.8F with 0.2F resolution (OF. L" displayed if outside this range)

Outdoor + -39.9C to 459.9 with 0.1C resolution

39.8 to +139.8%F with 0.29F resolution (OF L" displayed if outside this range)

Relative humidity measuring range:

Indoor humidity range 2 1% to 99% with 1% resolution (Display “ "if temperature is OL.F display “ "if <1% and "999%" if > 99%) Outdoor humidity range 2 1% to 99% with 1% resolution (Display “ "outside temperature is

OFL: display 19% if <1% and 99% if >99%) Interior data checking intervals

Indoor temperature checking interval … : every 15 seconds

Outdoor temperature and humidity data checking interval: Every 4 seconde (or every 15 minutes if data are lost

Weather station 2 2x AAIEC, LRG, LV

‘Thermo-Hygro outdoor transmiter 2 2XAA IEC, LRG, L5V Battery life = up to 24 months(Alkaline batteries recommended)

Dimensions (L x W x H)

Weather Station = 97 x 30 x 140mm (without stand)

Thermo-Hygro outdoor transmitter : 36.2 x21.2 x 128,3 mm (without wall bracket)

LIABILITY DISCLAIMER

+ The clectical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment

+ Please contact your local or/and regional authoriies to retieve the addresses of legal durping grounds with selective collection

+ All electronic instruments must from now on be recycled. User shall take an active part in the reuse,

recycling and recovery of the electrical and electronic waste. * The unrestricted disposal of electronic waste may do harmon public health and the quality of environment. + This product must however not be throun in general rubbish collection points,

AS stated on the gift box and labeled on the product, reading the “User manual”is highly recommended for the benefit of the user.

‘The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place.

This product is not to be used for medical purposes or for public information.

‘This product is only designed to be used in the home as indication of the future weather and is not 100% accurate. Weather forecasts given by this product should be taken only as an indication and not as being totally accurate.

‘The speciications of this product may change without prior notice.

‘This product is not a toy. Keep out of the reach of children.

No part of this manual may be reproduced without written consent of the manufacturer.

RSTTE Directive 1999/5EC Summary of the Declaration of Confommity : We hereby declare that this wireless transmission device does corrply with the essential requirements of RETTE Directive 1999/5/EC.
