PC681 - Mini oven SMEG - Free user manual and instructions

Product type	Mini oven
Brand	SMEG
Model	PC681
Dimensions (W x D x H)	Approximately 55 x 40 x 35 cm
Weight	Approximately 15 kg
Power supply	220-240 V ~ 50/60 Hz
Power	Approximately 1500 W
Capacity	Approximately 30 liters
Interior coating	Self-cleaning enamel (autocatalytic panels)
Main functions	Convection, regeneration of self-cleaning panels, Vapor Clean option (depending on version)
Included accessories	Grid, drip tray, left/right self-cleaning panels, self-cleaning deflector
Panel installation	Remove accessories, take off frames and deflector, install new panels and self-cleaning deflector
Regeneration cycle	Set a convection function at maximum temperature for 1 hour, repeat every 2 weeks
Cleaning the panels	Wash with water and mild dish soap, rinse, dry in the oven at 180°C for 1 hour
Maintenance precautions	Do not use non-stick films, abrasive products, metal brushes or sharp objects
Vapor Clean function (depending on model)	Spray a water-dish soap solution on the side walls, avoid spraying the deflector
Safety	Double-glazed door, thermal insulation, automatic shut-off in case of overheating (estimated)
Available spare parts	Self-cleaning panels, deflectors, grids, drip trays
Repairability	Repairability index not provided (estimated 7/10)

Frequently Asked Questions - PC681 SMEG

How to install the self-cleaning panels in the SMEG PC681 mini oven?

Remove all accessories from the oven. Disassemble the side frames by pulling them inward, then remove them from the rear slots. Unscrew the deflector screws and remove it. Place the new self-cleaning deflector (2) at the back and screw it in. Insert the left panel (1) against the wall, then replace the frame by first engaging it into the rear slots (B) then clipping it into the groove (A). Repeat for the right panel (3).

What is the purpose of the regeneration cycle for the self-cleaning panels?

The regeneration cycle (or catalytic cycle) eliminates small residual grease by heating the empty oven at maximum temperature for one hour. It is not suitable for sugary residues. It is recommended to do it every two weeks.

How to clean the self-cleaning panels if they are very dirty after regeneration?

Remove the panels and wash them with hot water and mild dish soap. Rinse thoroughly and dry them. Replace them in the oven and run a convection program at 180°C for one hour to dry them completely.

Can I use abrasive cleaners on the self-cleaning walls of the SMEG PC681?

No, it is strictly forbidden to use abrasive products, metal brushes or sharp objects as they would damage the self-cleaning enamel. Use only a microfiber cloth and mild dish soap.

How does the Vapor Clean function work on the SMEG PC681 mini oven?

The Vapor Clean function (if present) cleans the oven walls with steam. Before activating it, remove the accessories and self-cleaning panels. Spray a solution of water and dish soap on the side walls, upwards and downwards, avoiding the deflector. Then start the program.

What to do if food leaves stubborn stains in the oven?

For grease stains, run an empty regeneration cycle (maximum temperature, convection, 1 hour). For sugary residues, first clean with a damp cloth and dish soap, then rinse. Avoid cooking foods that stain before previous stains are removed.

Can I leave the self-cleaning panels in place during normal cooking?

Yes, the self-cleaning panels should stay in place during cooking. They help progressively remove grease splatters. Only remove them for cleaning or regeneration.

What types of dishes are not recommended with self-cleaning panels?

Dishes that produce a lot of grease splatters (like roast duck) can saturate the panels. In that case, run a regeneration cycle after cooking. Also avoid using non-stick films (silicone) that could damage the enamel.

Where to find spare parts for the SMEG PC681 mini oven?

Spare parts such as self-cleaning panels, deflectors, grids and drip trays are available from SMEG authorized service centers or on appliance spare parts websites. Check compatibility with model PC681.

What is the electrical power of the SMEG PC681?

The SMEG PC681 mini oven has an approximate power of 1500 W. It operates on a power supply of 220-240 V ~ 50/60 Hz. Plug it into a suitable grounded outlet.

USER MANUAL PC681 SMEG

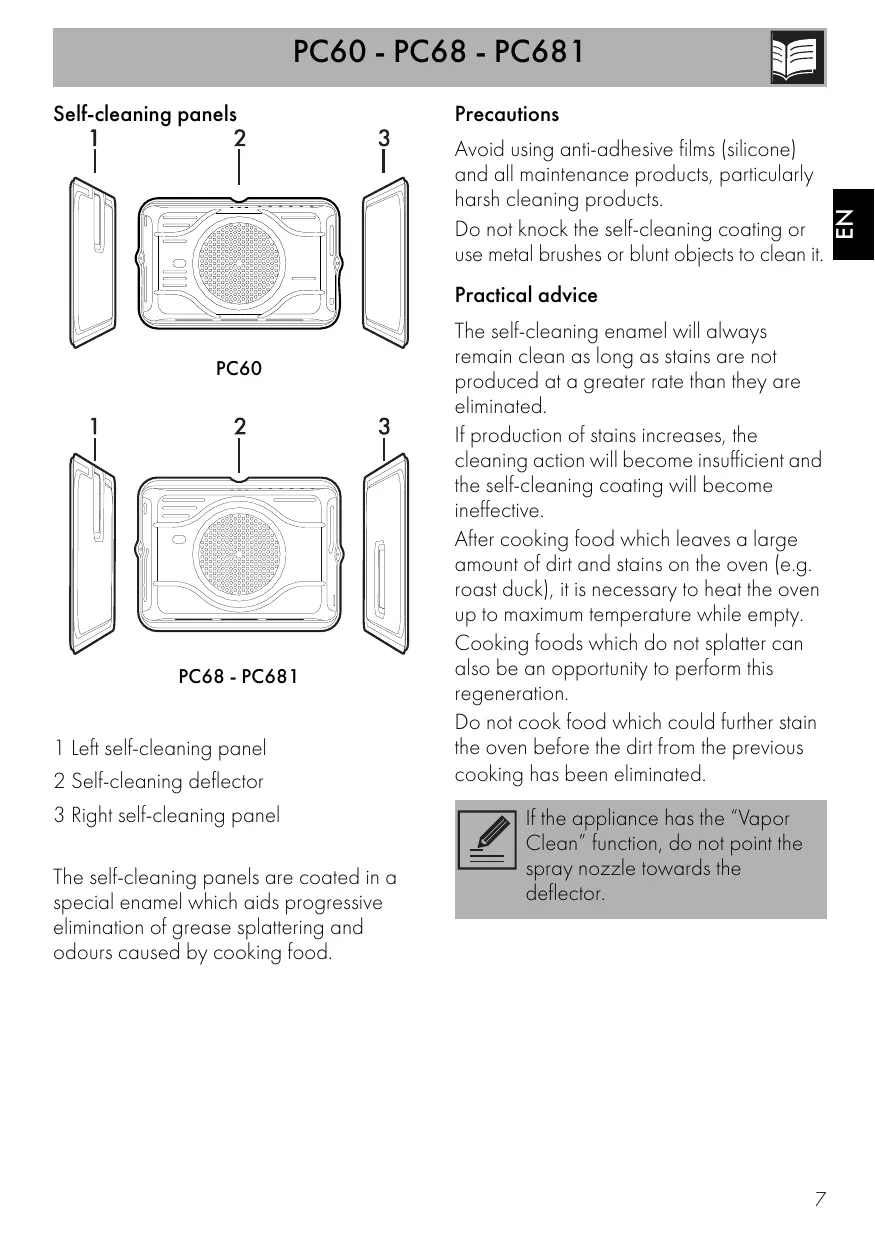

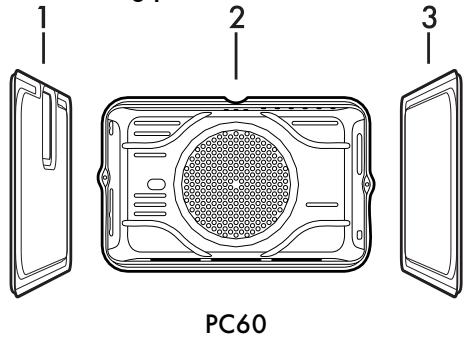

Self-cleaning panels

1 Left self-cleaning panel
2 Self-cleaning deflector
3 Right self-cleaning panel

The self-cleaning panels are coated in a special enamel which aids progressive elimination of grease splattering and odours caused by cooking food.

Precautions

Avoid using anti-adhesive films (silicone) and all maintenance products, particularly harsh cleaning products.

Do not knock the self-cleaning coating or use metal brushes or blunt objects to clean it.

Practical advice

The self-cleaning enamel will always remain clean as long as stains are not produced at a greater rate than they are eliminated.

If production of stains increases, the cleaning action will become insufficient and the self-cleaning coating will become ineffective.

After cooking food which leaves a large amount of dirt and stains on the oven (e.g. roast duck), it is necessary to heat the oven up to maximum temperature while empty.

Cooking foods which do not splatter can also be an opportunity to perform this regeneration.

Do not cook food which could further stain the oven before the dirt from the previous cooking has been eliminated.

If the appliance has the "Vapor Clean" function, do not point the spray nozzle towards the deflector.

Installation of the self-cleaning panels

1. Remove all accessories from inside the oven (trays and drip trays).

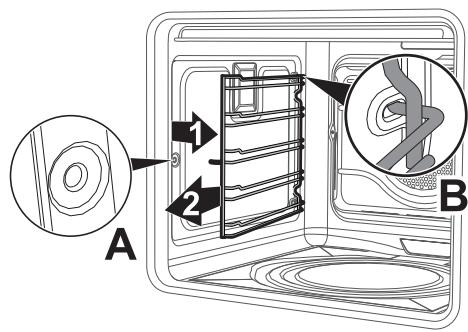

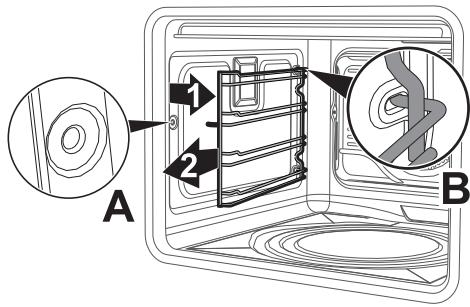

2. Remove the frames: pull the frame towards the inside of the oven to unhook it from its groove A, then slide it out of the seats at the back B.

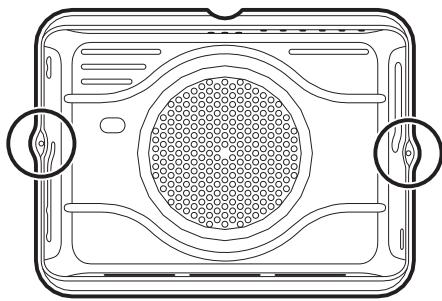

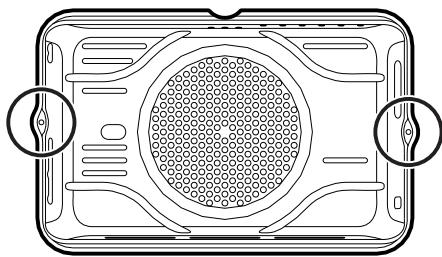

1. Remove the deflector: unscrew the two side screws holding the deflector to the rear wall of the oven.

1. Replace the deflector with the new self-cleaning deflector (2): fasten it to the rear wall of the oven using the screws removed from the previous deflector.

2. Place the left-hand self-cleaning panel (1) on the corresponding oven wall.

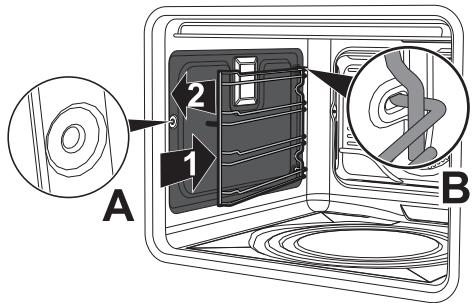

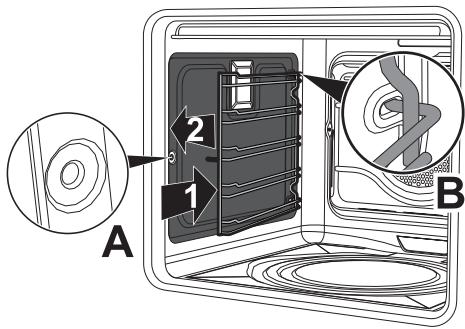

3. Hold the self-cleaning panel in position on the wall and insert the frame first into the seats at the back B, then hook it into its groove A.

1. Repeat the operation with the right-hand self-cleaning panel (3).

Regeneration of self-cleaning panels (catalytic cycle)

The regeneration cycle of the self-cleaning panels is a cleaning method through heating suitable for removing small grease residues, not sugar-based ones.

1. Clean the base and the upper guard first with a microfibre cloth soaked in water and neutral washing up liquid. Rinse thoroughly.
2. Set a regeneration cycle by selecting a fan assisted function at the maximum temperature for one hour.
3. If the panels are particularly dirty after the regeneration cycle, remove them and wash them with neutral washing up liquid. Rinse and dry them.

Put the panels back in the oven and set a fan assisted function at a temperature of 180^ for one hour, in order to ensure that they are thoroughly dry.

We recommend carrying out the self-cleaning panel regeneration cycle every 15 days.

Preliminary operations (only for appliances with "Vapor Clean")

Before starting the Vapor Clean function:

• Completely remove all accessories from inside the oven. The upper guard can be left inside the oven.
• Remove the self-cleaning panels and racks/trays support frames.

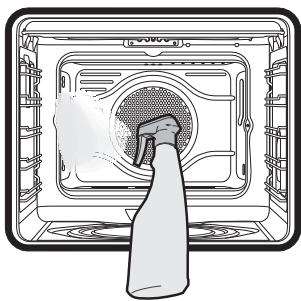

• Spray a water and washing up liquid solution inside the oven using a spray nozzle. Direct the spray against the side walls, upwards and downwards.

Do not spray towards the deflector.
