Image Spot 170 FC - Lamp Artecta - Free user manual and instructions

Product Type	Moving Head Spot Light
Model	Image Spot 170 FC
Brand	Artecta
Light Source	170W White LED
Luminous Flux	Approx. 9000 lm
Beam Angle	15° – 30° (motorized zoom)
Color System	CMY + linear CTO
Gobos	7 rotating gobos + 7 static gobos
Prisms	4-facet rotating prism
Pan Range	540°
Tilt Range	250°
DMX Channels	20 / 26 (selectable)
Control Protocols	DMX512, RDM
Display	LCD with touch control
Power Supply	100-240V AC, 50/60Hz
Power Consumption	250W max
Dimensions (L x W x H)	330 x 260 x 450 mm
Weight	9.5 kg
Mounting	Omega brackets for hanging/floor
Cooling	Smart temperature-controlled fan
Protection Rating	IP20 (indoor use only)
Included Accessories	Power cord, DMX cable, manual
Maintenance	Clean lens and fans monthly; avoid dust
Safety	Class I, use with grounded outlet; allow 0.5m clearance
Spare Parts & Repairability	LED module, gobo wheel, fans available; service by qualified tech

Frequently Asked Questions - Image Spot 170 FC Artecta

How do I reset the Artecta Image Spot 170 FC to factory defaults?

Go to the menu, select 'Settings' then 'Factory Reset' and confirm. This will restore all parameters to default.

What DMX protocol does the fixture use?

It uses standard DMX512 with RDM support for remote device management.

How can I replace the LED module in the Image Spot 170 FC?

Only qualified personnel should replace the LED module. Disconnect power, remove the back cover, unplug the old module, install new one, and recalibrate if needed.

Why is the fan on my Artecta spot loud?

Loud fan often indicates dust buildup or that the cooling is running at high speed due to high temperature. Clean the fan and vents regularly.

Can I control the fixture without a DMX controller?

Yes, you can use standalone mode via the onboard display to set static colors, gobos, or sound-activated patterns.

How many DMX channels does the fixture use?

It can operate in 20-channel or 26-channel mode, selectable in the menu.

What is the recommended cleaning procedure for the lens?

Use a soft, lint-free cloth with a mild glass cleaner. Avoid abrasive materials and do not spray directly onto the lens.

Does the Image Spot 170 FC support remote device management (RDM)?

Yes, it supports RDM for remote addressing, status monitoring, and parameter adjustment.

What is the maximum ambient temperature for safe operation?

The maximum ambient temperature is 40°C (104°F). Ensure proper ventilation and do not cover the fixture.

How do I update the firmware on the Artecta Image Spot 170 FC?

Firmware updates are typically done via a USB connection using Artecta's proprietary software. Check the official support page for instructions.

USER MANUAL Image Spot 170 FC Artecta

Line drawing of a mechanical device with rollers and housing (no text or symbols)

ENGLISH

Image Spot 170 FC

V1

Product code: A0690111

Preface

Thank you for purchasing this Arpecta product.

The purpose of this user manual is to provide instructions for the correct and safe use of this product.

Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

This user manual contains information concerning:

• Safety instructions
• Intended and non-intended use of the device
  • Installation and operation of the device
• Maintenance procedures
• Troubleshooting
• Transport, storage and disposal of the device

Non-observance of the instructions in this user manual may result in serious injuries and damage of property.

©2024 Arpecta. All rights reserved.

No part of this document may be copied, published or otherwise reproduced without the prior written consent of Highlite International.

Design and product specifications are subject to change without prior notice.

For the latest version of this document or other language versions, please visit our website www.highlite.com or contact us at [e-mail].

Highlite International and its authorized service providers are not liable for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or reliance on the information contained in this document.

Table of contents

1. Introduction......4

1.1. Before Using the Product 4
1.2. Intended Use 4
1.3. Product Lifespan....4
1.4. LEDs Lifespan 4
1.5. Text Conventions 5
1.6. Symbols and Signal Words....5
1.7. Symbols on the Information Label ....5

2. Safety....6

2.1. Warnings and Safety Instructions 6

2.2. Requirements for the User....8

3. Description of the Device 9

3.1. Front View....9
3.2. Back View....9
3.3. Product Specifications 10
3.4. Optional Accessories....11

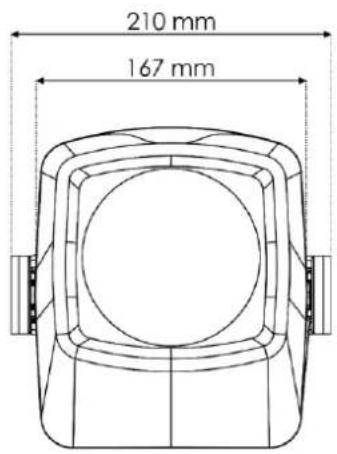

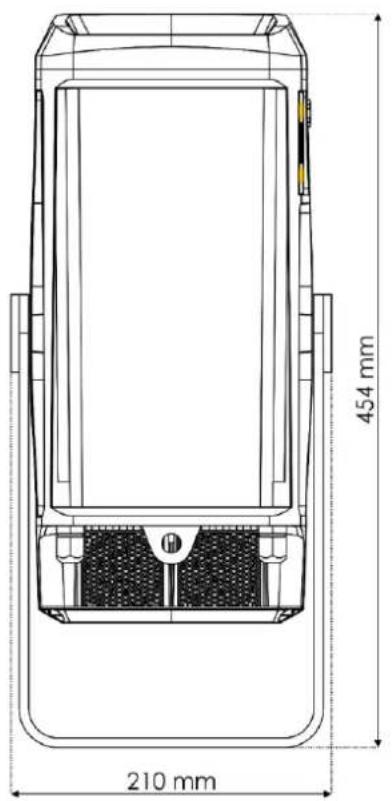

3.5. Dimensions....11

4. Installation....12

4.1. Safety Instructions for Installation 12
4.2. Personal Protective Equipment 12
4.3. Installation Site Requirements 12
4.4. Rigging 13
4.4.1. Angle Adjustment....14
4.5. Connecting to Power Supply....15
4.6. Power Linking of Multiple Devices....15

5. Setup....16

5.1. Warnings and Precautions ....16
5.2. Stand-alone Setup 16
5.3. DMX Connection....16
5.3.1. DMX-512 Protocol....16

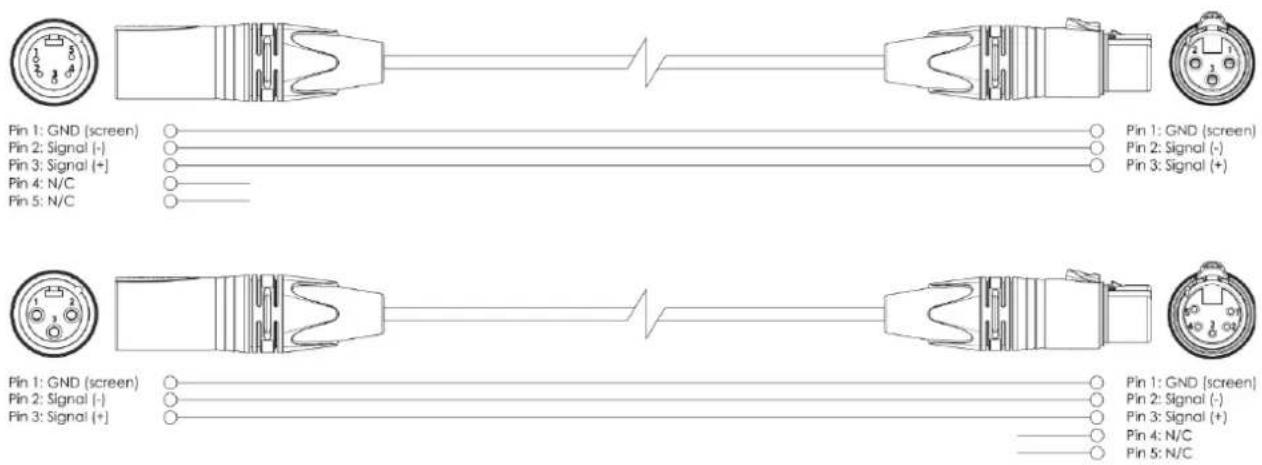

5.3.2. DMX Cables....17
5.3.3. Master/Slave Setup 17

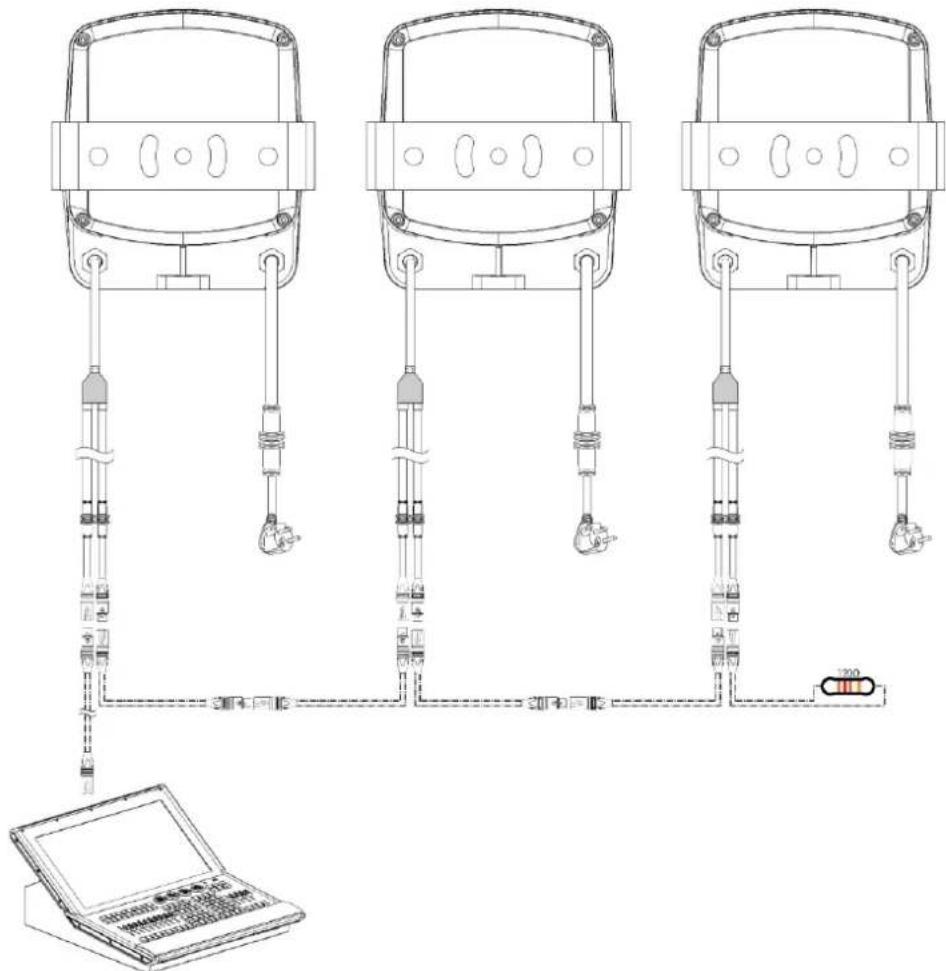

5.3.4. DMX Linking....18
5.3.5. DMX Addressing....18

6. Operation....19

6.1. Safety Instructions for Operation....19
6.2. Control Mode....19
6.3. Control Panel 20
6.4. Start-up....20

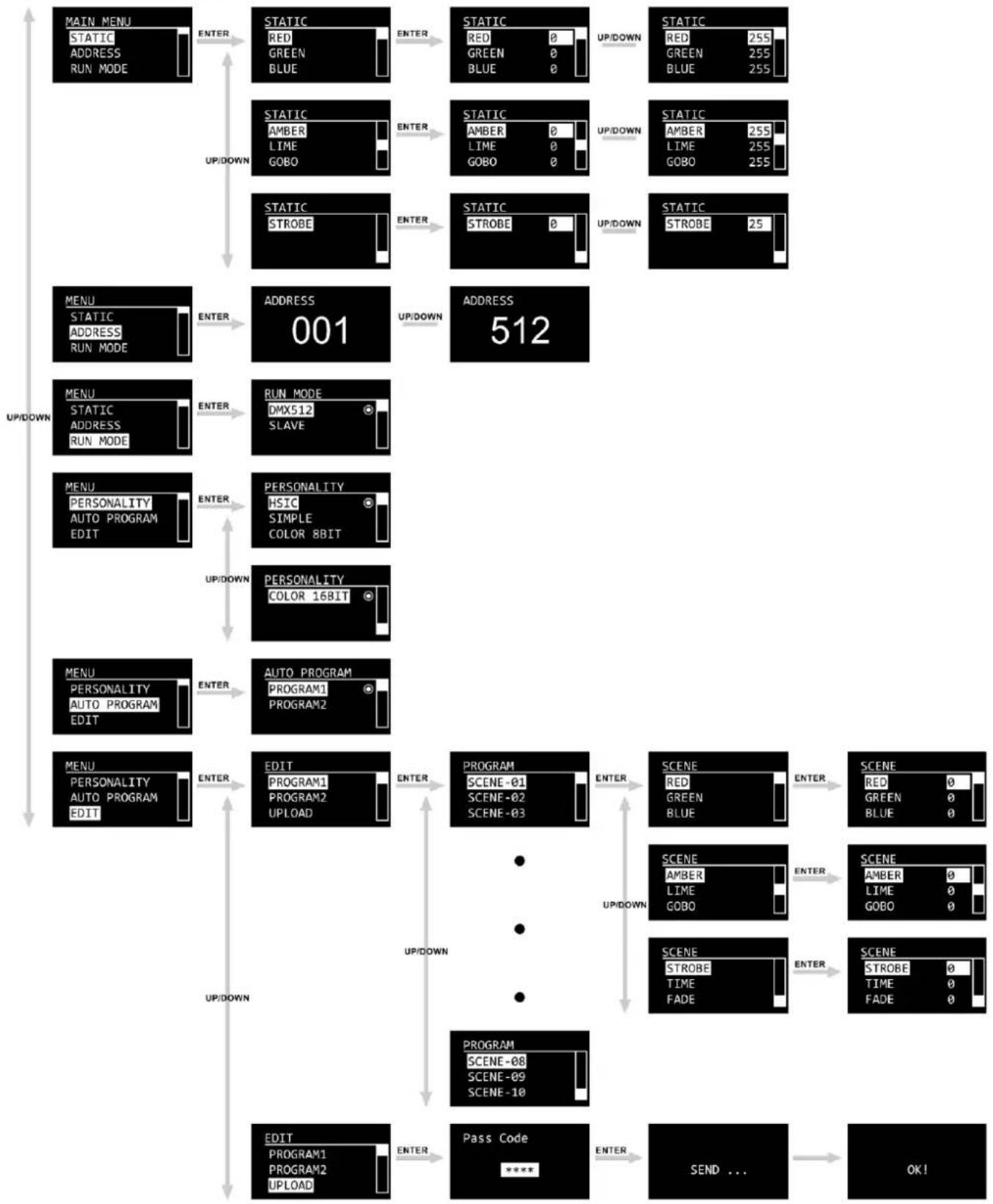

6.5. Menu Overview 21
6.6. Main Menu Options 24

6.6.1. Static 24
6.6.2. DMX Address 24
6.6.3. Run Mode....25
6.6.4. Personality (DMX Channel Modes) 25
6.6.5. Auto Programs 25
6.6.6. Edit....26
6.6.6.1. Upload....27

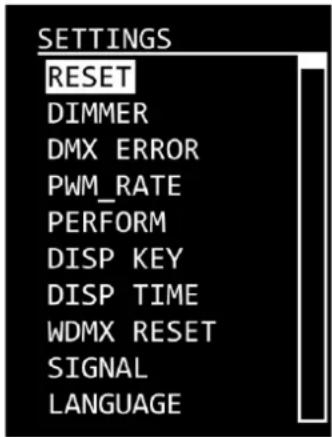

6.6.7. Settings....27

6.6.7.1. Reset 28

6.6.7.2. Dimmer 28

6.6.7.3. DMX Error....28

6.6.7.4. PWM Rate 29

6.6.7.5. Performance 29

6.6.7.6. Disp Key (Display Lock) 29

Image Spot 170 FC

6.6.7.7. Disp Time (Display Time) 29
6.6.7.8. WDMX Reset 29
6.6.7.9. Signal 30
6.6.7.10. Language 30

6.6.8. Info....30
6.6.9. CCT (Correlated Color Temperature Control) 31
6.6.10. Preset Color 31

6.7. DMX Channels 32

6.7.1. HSIC (8 CH) 32
6.7.2. SIMPLE (8 CH), COLOR 8BIT (11 CH), COLOR 16BIT (17 CH)....33

6.8. Rotating Gobo Holder 35

6.8.1. Replacing a Gobo from the Rotating Gobo Wheel....35
6.8.2. Gobo Size 37
6.8.3. Glass Gobo Orientation ....37

6.9. RDM Information....38

6.9.1. RDM Details....38
6.9.2. Supported RDM PIDs (Parameter IDs)....38
6.9.3. Highlite RDM Details 38

7. Troubleshooting ....39

8. Maintenance ....40

8.1. Safety Instructions for Maintenance....40
8.2. Preventive Maintenance....40

8.2.1. Basic Cleaning Instructions 40
8.2.2. Draining Condensation Water 41

8.3. Corrective Maintenance....41

9. Deinstallation, Transportation and Storage 42

9.1. Instructions for Deinstallation....42
9.2. Instructions for Transportation 42
9.3. Storage....42

1. Disposal 42
2. Approval....42

1. Introduction

1.1. Before Using the Product

Important Read and follow the instructions in this user manual before installing, operating or servicing this product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual.

After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer.

Your shipment includes:

• Showtec Image Spot 170 FC
• Schuko to special 3-pin power cable (1,5 m)
- 3-pin XLR IN/OUT to special 3-pin data cable IP20 (0,2 m)
- Safety cable
- Safety eye
- User manual

Technical line drawing of a portable device with attached cables and connectors (no text or symbols)

Fig. 01

1.2. Intended Use

This device is intended for professional use as an outdoor spot. It is not suitable for households and for general lighting.

Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

1.3. Product Lifespan

This device is not designed for permanent operation. Disconnect the device from the electrical power supply when the device is not in operation. This will reduce the wear and will improve the device's lifespan.

1.4. LEDs Lifespan

The light output of the LEDs gradually decreases over time (lumen depreciation). High operating temperatures contribute to this process. You can extend the lifespan of the LEDs by providing adequate ventilation and operating the LEDs at the lowest possible brightness.

1.5. Text Conventions

Throughout the user manual the following text conventions are used:

• Buttons: All buttons are in bold lettering, for example "Press the UP/DOWN buttons"
  • References: References to chapters and parts of the device are in bold lettering, for example:
  "Refer to 2. Safety", "turn the adjustment screw (02)"
  • 0–255: Defines a range of values
  • Notes: Note: (in bold lettering) is followed by useful information or tips

1.6. Symbols and Signal Words

Safety notes and warnings are indicated throughout the user manual by safety signs.

Always follow the instructions provided in this user manual.

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

Attention

Indicates important information for the correct operation and use of the product.

Important

Read and observe the instructions in this document.

Electrical hazard

Provides important information about the disposal of this product.

1.7. Symbols on the Information Label

This product is provided with an information label. The information label is located on the backside of the device.

The information label contains the following symbols:

This device shall not be treated as household waste.

This device is rated IP66.

This device falls under IEC protection class I.

Minimum distance from lighted objects.

Minimum distance from other objects.

2. Safety

Important

Read and follow the instructions in this user manual before installing, operating or servicing this product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual.

2.1. Warnings and Safety Instructions

DANGER

Danger for children

For adult use only. The device must be installed beyond the reach of children.

- Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within children's reach. Packaging material is a potential source of danger for children.

DANGER

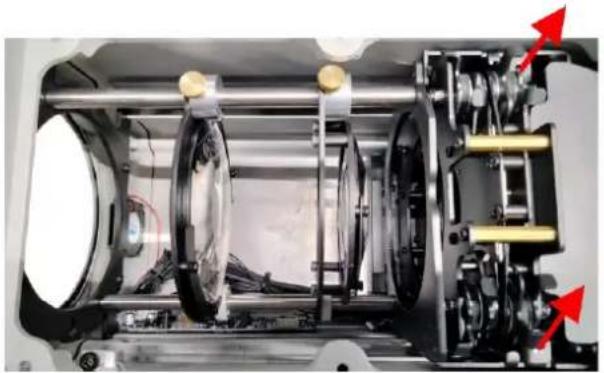

Electric shock caused by dangerous voltage inside

There are areas within the device where dangerous touch voltage may be present.

• Do not open the device or remove any covers.
• Do not operate the device if the covers or the housing are open. Before operation, check if the housing is firmly closed and all screws are tightly fastened.
• Disconnect the device from electrical power supply before service and maintenance, and when the device is not in use.

DANGER

Electric shock caused by short-circuit

This device falls under IEC protection class I.

• Make sure that the device is electrically connected to ground (earth). Connect the device only to a socket-outlet with ground (earth) connection.
• Do not cover the ground (earth) connection.
• Do not bypass the thermostatic switch or fuses.
• Do not let the power cable come into contact with other cables. Handle the power cable and all connections with the mains with caution.
• Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
• Make sure that the power cable is not crimped or damaged. Examine the power cable periodically for any defects.
• Do not immerse the device in water or other liquids. Do not install the device in a location where flooding may occur.
• Do not use the device during thunderstorms. Disconnect the device from the electrical power supply immediately.
• Keep the connectors sealed with the rubber caps when the connectors are not in use.
• Do not connect the cables from above the connectors, if the device is installed outdoors. Make a 'drip loop' in the cable so that rain water cannot enter the device.

Image Spot 170 FC

- Make sure that the cable run is not too heavy. A heavy cable run can cause damage to the connectors. If the connectors are damaged, their ingress protection (IP) can deteriorate.

WARNING

Risk of epileptic shock

Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.

Attention

Power supply

• Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
• Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the required power consumption of the device.

Attention

General safety

• Do not connect the device to a dimmer pack.
• Do not switch the device on and off in short intervals. This decreases the device's life.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Change the lens or the LEDs if they are visibly damaged to such an extent that their effectiveness is impaired, for example by cracks or deep scratches. Contact your Highlite International dealer for more information, as servicing can be performed only by instructed or skilled persons.
• If the device is dropped or struck, disconnect the device from the electrical power supply immediately.
• If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation.
• If the device fails to work properly, discontinue the use immediately.

Attention

For professional use only

This device shall be used only for the purposes it is designed for.

This device is designed to be used as an outdoor spot. Any incorrect use may lead to hazardous situations and result in injuries and material damage.

• This device is not suitable for households and for general lighting.
- This device is not designed for permanent operation.
- This device contains a non-user-replaceable light source.
- This device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

Attention

Before each use, examine the device visually for any defects.

Make sure that:

• All screws used for installing the device or parts of the device are tightly fastened and are not corroded.
• The safety devices are not damaged.
  • There are no deformations on housings, fixations and installation points.
• The lens is not cracked or damaged.
• The power cables are not damaged and do not show any material fatigue.

Attention

Do not expose the device to conditions that exceed the rated IP class conditions.

This device is IP66 rated. IP (Ingress Protection) 66 class means that the device is dust-tight and protected against harmful effect of powerful water jets or of heavy seas.

2.2. Requirements for the User

This product may be used by ordinary persons. Maintenance may be carried by ordinary persons. Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite dealer for more information.

Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled person, for specific tasks and work activities associated with the installation, service and maintenance of this product, so that they can identify risks and take precautions to avoid them.

Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards associated with the installation, service and maintenance of this product.

Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons include not only users of the product but also any other persons that may have access to the device or who may be in the vicinity of the device.

3. Description of the Device

The Arctica Image Spot 170 FC is a 170 Watt gobo projector spot with a powerful RGBAL LED in an IP66 die-cast aluminium housing, suitable for indoor and outdoor applications. It features a bi-rotational gobo and 16-bit color control, manually adjustable beam angle and focus, manual framing system, adjustable PWM and adjustable fan modes for quiet operation, as well as a strobe function. Color presets are available and include several standard Lee colors. Multiple scenes can be programmed and played back via a sequence or programme for stand-alone use. The Image Spot 170 FC can be controlled via DMX and is RDM compatible.

3.1. Front View

01) 150 W LED
02) Protective vent
03) Protective metal plate for LED display+ menu buttons
04) Adjustment screw
05) Ventilation
06) Mounting bracket

Fig. 02

3.2. Back View

07) Special 3-pin IP68 DMX signal connector IN/Out
08) Safety eye
09) IP68 power IN

Fig. 03

3.3. Product Specifications

Model:

Image Spot 170 FC

Electrical:
Input voltage:	100–240 V AC, 50/60 Hz
Power consumption:	200 W

Physical:
Dimensions:	454 x 206 x 201 mm (LxWxH)
Weight:	7,9 kg

Optics:
Light source:	170W RGBAL LED
Dimmer:	0–100 %
Strobe:	0–25 Hz
Gobo (not included)	Glass gobo: Diameter 56 mm, image size 53 mm, thickness 1,1 mm
Beam angle (circular):	20°–40°
Zoom:	Manual zoom
Focus:	Manual focus
Shutter blade:	6 x manual shutter blades

Operation and control:
Control:	Stand-alone (auto, manual)Master/Slave (auto, manual)DMX-512, RDM
DMX channels:	8, 8, 11, 17 channels
Control panel:	LED display

Connections:
Power connection:	Dedicated IP68 Power connector IN
Data connections:	Dedicated IP68 3-pin DMX connectors IN/OUT
Signal pinouts:	3-pin: pin 1 (ground), pin 2 (-), pin 3 (+)

Construction:
Housing:	ABS / Aluminum
Color:	Light grey
IP rating:	IP66
Cooling:	Convection/axial fan

Thermal:
Maximum ambient temperature ta:	45 °C
Minimum operating temperature	-20 °C

Minimum distance:
Minimum distance from flammable surfaces:	0,5 m
Minimum distance to lighted object:	0,8 m

3.4. Optional Accessories

The Image Spot 170 FC is delivered with accessories. You can additionally purchase the following accessories:

• Product code: 43600 IP65 Power Extension cable 1.5 m
• Product code: 43601 IP65 Power Extension cable 5 m
• Product code: 43602 IP65 Power Extension cable 10 m
• Product code: 43610 IP65 Data Extension cable 1,5 m
• Product code: 43611 IP65 Data Extension cable 5 m
• Product code: 43612 IP65 Data Extension cable 10 m

3.5. Dimensions

Fig. 04

4. Installation

4.1. Safety Instructions for Installation

WARNING

Incorrect installation can cause serious injuries and damage of property.

If trussing systems are used, installation must be carried out only by instructed or skilled persons.

Follow all applicable European, national and local safety regulations concerning rigging and trussing.

4.2. Personal Protective Equipment

During installation and rigging wear personal protective equipment in compliance with the national and site-specific regulations.

4.3. Installation Site Requirements

• The device can be used outdoors.
• The device can be mounted to a truss or other rigging structure in any orientation.
• The minimum distance to other objects must be bigger than 0,5 m.
• The minimum distance between the light output and the illuminated surface must be bigger than 0.8 m.
• The maximum ambient temperature _a = 45^ must never be exceeded.
  • The relative humidity must not exceed 50 % with an ambient temperature of 45 °C.

4.4. Rigging

The device can be positioned on a flat surface or mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure.

CAUTION

Restrict the access under the work area during rigging and/or derigging.

To mount the device, follow the steps below:

01) Use a clamp to attach the device to the supporting structure, as shown in Fig. 05. Make sure that the device cannot move freely.

Technical line drawing of a structural frame with two circular components, no text or symbols present

Fig. 05

02) Secure the device with a secondary suspension, for example a safety cable. Make sure that the secondary suspension can hold 10 times the weight of the device. If possible, the secondary suspension should be attached to a supporting structure independent of the primary suspension.

03) Put the safety cable through the safety eye, as shown in Fig. 06.

Fig. 06

4.4.1. Angle Adjustment

You can adjust the angle of the device with the adjustment screw (04).

01) Turn the adjustment screw (04) counterclockwise to release it.
02) Tilt the device to the desired angle (see Fig. 07).
03) Turn the adjustment screw (04) clockwise to tighten it. Make sure that the device cannot move freely after the adjustment screw (04) is tightened.

Technical line drawing of a mechanical housing component with red directional arrows indicating motion (no text or symbols)

Fig. 07

4.5. Connecting to Power Supply

DANGER
Electric shock caused by short-circuit

The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device.

This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth).

Before connecting the device to the socket-outlet:

• Make sure that the power supply matches the input voltage specified on the information label on the device.
• Make sure that the socket-outlet has ground (earth) connection.

Connect the device to the socket-outlet with the power plug. Do not connect the device to a dimmer circuit, as this may damage the device.

This device is IP66 rated.

• Do not expose the device to conditions that exceed the rated IP class conditions.
• Keep the connectors sealed with the rubber caps when the connectors are not in use.
• Do not connect the cables from above the connectors, if the device is installed outdoors. Make a 'drip loop' in the cable so that rain water cannot enter the device.
• Make sure that the cable run is not too heavy. A heavy cable run can cause damage to the connectors. If the connectors are damaged, their ingress protection (IP) can deteriorate.

4.6. Power Linking of Multiple Devices

This device supports power linking. Power can be relayed to another device via the power OUT connector. Note that the input and the output connectors have different designs: one type cannot be connected to the other.

Power linking of multiple devices must be carried out only by instructed or skilled persons.

WARNING
Incorrect power linking may lead to overload of the electrical circuit and result in serious injuries and damage of property.

To prevent overload of the electrical circuit, when power linking multiple devices:

• Use cables with sufficient current-carrying capacity. The power cable supplied with the device is not suitable for power linking of multiple devices.
• Make sure that the total current draw of the device and all connected devices does not exceed the rated capacity of the power cables and the circuit breaker.
• Do not link more devices on one power link than the maximum recommended number.

Maximum recommended number of devices:

• at 100–120 V: 5 devices Image Spot 170 FC
  • at 200–240 V: 10 devices Image Spot 170 FC

5. Setup

5.1. Warnings and Precautions

Attention

Connect all data cables before supplying power.

Disconnect power supply before connecting or disconnecting data cables.

5.2. Stand-alone Setup

When the Image Spot 170 FC is not connected to a controller or to other devices, it functions as a standalone device. It can be operated in auto mode or manually.

For more information about the control modes, refer to 6.6.3. Run Mode on page 25 or 6.6.6. Edit on page 26.

5.3. DMX Connection

5.3.1. DMX-512 Protocol

You need a DMX serial data link to run light shows of one or more devices using a DMX-512 controller or to run synchronized shows of two or more devices set in a master/slave operating mode.

The Image Spot 170 FC has 3-pin DMX signal IN and OUT connectors.

The pin assignment is as follows:

• 3-pin: pin 1 (ground), pin 2 (-), pin 3 (+)

Devices on a serial data link must be daisy-chained in a single line. The number of devices that you can control on one data link is limited by the combined number of the DMX channels of the connected devices and the 512 channels available in one DMX universe.

To comply with the TIA-485 standard, no more than 32 devices should be connected on one data link. In order to connect more than 32 devices on one data link, you must use a DMX optically isolated splitter/booster, otherwise this may result in deterioration of the DMX signal.

Note:

• Maximum recommended DMX data link distance: 300 m
• Maximum recommended number of devices on a DMX data link: 32 devices

5.3.2. DMX Cables

Shielded twisted-pair cables with 3-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables.

If you use 3-pin XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network.

When you make your own DMX cables, make sure that you connect the pins and wires correctly as shown in Fig. 08.

Fig. 08

5.3.3. Master/Slave Setup

The Image Spot 170 FC supports master/slave control mode. To connect multiple devices in master/slave setup, follow the steps below:

01) Connect the first device's DMX OUT connector to the second device's DMX IN connector.
02) Repeat step 1 to connect all devices as shown in Fig. 09.
03) Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device in the setup.
04) Set the first device on the data link as a master device. See 6.6.3. Run Mode on page 25 for more information.
05) Set the remaining devices to slave mode. See 6.6.3. Run Mode on page 25 or 6.6.6. Edit on page 26 for more information.

Fig. 09

5.3.4. DMX Linking

To connect multiple devices on one DMX data link, follow the steps below:

01) Use the supplied 3-pin XLR to special 3-pin data cable to connect the DMX OUT connector of the lighting controller to the DMX IN connector of the first device.
02) Connect the first device's DMX OUT connector to the second device's DMX IN connector.
03) Repeat step 2 to connect all devices in a daisy-chain as shown in Fig. 10.
04) Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data link.

Fig. 10

5.3.5. DMX Addressing

In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The Image Spot 170 FC has 4 personalities: 8, 8, 11 and 17 channels.

If you want to connect multiple devices on one data link and use them in 17-channel mode, for example, follow the steps below:

01) Set the starting address of the 1^st device on the data link to 1 (001).
02) Set the starting address of the 2^nd device on the data link to 18 (018), as 1 + 17 = 18 .
03) Set the starting address of the 3^rd device on the data link to 35 (035) as 18 + 17 = 35 .
04) Continue assigning the starting addresses of the remaining devices by adding each time 17 to the previous number.

Make sure that you do not have any overlapping channels in order to control each Image Spot 170 FC correctly. If two or more devices are addressed similarly, they will work similarly.

6. Operation

6.1. Safety Instructions for Operation

Attention

This device must be used only for the purposes it is designed for.

This device is intended for professional use as an outdoor spot. It is not suitable for households and for general lighting.

Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

Attention

Power supply

Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.

6.2. Control Mode

The Image Spot 170 FC supports the following control modes:

• Stand-alone: Auto, program1, program2, CCT, preset color
• Master/Slave: Auto, program1, program2, CCT, preset color
  • DMX-512 8, 8, 11, 17 channels

For more information about how to connect the devices, refer to 5. Setup on pages 16–18.

To operate the device manually as a stand-alone device or in a master/slave setup:

See 6.6.3. Run Mode on page 25 or 6.6.6. Edit on page 26 for more information

In auto mode you can run the auto program. To run the auto program:

See 6.6.5. Auto Programs on page 25 for more information.

To operate the device with a DMX controller:

• Set the DMX starting address of the device in the DMX Address menu. See 5.3.5. DMX Addressing on page 18 and 6.6.2. DMX Address on page 24.
• Select the DMX channel mode. See 6.6.2. DMX Address on page 24 for more information. See 6.7. DMX Channels on pages 32–34 for complete overview of all DMX channels.

6.3. Control Panel

• Use the MENU function in each menu to exit the current submenu and to return to the Main Menu.
- Use the ENTER button to open the desired menu, to confirm your choice or to set the currently selected value.
• Use the UP/DOWN buttons to navigate through the menus or to increase/decrease numeric values.

6.4. Start-up

Upon start-up the display shows a splash screen with the brand name of this device. Immediately afterwards the display shows the start screen. The start screen provides information about the currently active operation mode and temperature. Press the MENU button to enter the main menu. The display will show:

Note:

When no button is pressed after 10 seconds of inactivity, the display turns off.

To light up the display, you have to press the MENU button for 3 seconds. Once you have pressed this button, the display lights up.

6.5. Menu Overview

Legend:
- SETTING: RESET, DIMMER, DMX ERROR; - SETTING: PWM RATE, PERFORM, DISP KEY; - SETTING: PERFORM, PERFORM, DISP KEY; - SETTING: PERFORM, PERFORM, DISP KEY; - SETTING: PERFORM, PERFORM, DISP KEY; - SETTING: PERFORM, PERFORM, DISP KEY; - SETTING: PERFORM, PERFORM, DISP KEY; - SETTING: PERFORM, PERFORM, DISP KEY; - SETTING: PERFORM, PERFORM, DISP KEY; - SETTING: PERFORM, PERFORM, DISP KEY; - DESHING: ON, OFF, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, NOT, ON, Not,
- SETTING: DIMMER, DIMM4 OFF; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR; - SETTING: DIMMER, DMX ERROR;
- SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETTING: SAVE BLACK; - SETting: Signal XLDRMX WDMX Language CHINESE ENGLISH

Legend:
- SETING: DIP MIX ON, OFF; - SETING: DIP MIX ON, OFF; - SETING: DIP MIX ON, OFF; - SETING: DIP MIX ON, OFF; - SETING: DIP MIX ON, OFF; - SETING: DIP MIX ON, OFF; - SETING: DIP MIX ON, OFF; - SETING: DIP MIX ON, OFF; - SETING: DIP MIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMIX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEX ON, OFF; - SETING: DINMEXON ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/On/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/ON/On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / On / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Un / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Um / Un (Note in image)
- OK!
- Upper bound to right arrow labeled 'OK!'
- Lower bound to left arrow labeled 'UP/DOWN'

Image Spot 170 FC

6.6. Main Menu Options

The main menu has the following options:

01) Press the MENU button to open the main menu.
02) Press the UP/DOWN buttons to navigate through the main menu.

• Static: See 6.6.1. Static
- Address: See 6.6.2. DMX Address
- Run Mode See 6.6.3. Run Mode
- Personality: See 6.6.4. Personality
• Auto Program: See 6.6.5. Auto Program
• Edit: See 6.6.6. Edit
- Setting: See 6.6.7. Setting
• Info: See 6.6.8. Info
• CCT: See 6.6.9. CCT
- Preset Color: See 6.6.10. Preset Color

03) Press the ENTER button to open the submenus.

6.6.1. Static

In this pop-up submenu you can determine the behavior of the device in case there is no DMX signal.

01) Press the UP/DOWN buttons to scroll through the static colors (RED, GREEN, BLUE, AMBER, LIME) and GOBO and STROBE.
02) Press the ENTER button to open the settings submenu.
03) Press the UP/DOWN buttons to increase/decrease the values.

• Color intensity (RED, GREEN, BLUE, AMBER, LIME): the adjustment range is between 0–255, from low to high intensity
• GOBO: Gobo rotation, the adjustment range is between 0–255
• STROBE frequency: The adjustment range is between 0–25, from OFF to high frequency

04) Press the ENTER button to set the value and to move to the next setting.

6.6.2. DMX Address

In this menu you can set the DMX starting address of the device and the personality of this device.

01) Press the UP/DOWN buttons to select the DMX starting address of the device. The selection range is 001–512. Refer to 5.3.5. DMX Addressing on page 18 for more information.
02) Press the ENTER button to confirm.

6.6.3. Run Mode

In this menu you can set the control mode of the device.

01) Press the UP/DOWN buttons to toggle between the following 2 options:

• DMX: The device will operate in DMX Mode
• SLAVE: The device will operate as a slave in Master/Slave Mode.
  It means that it will react the same as the master device

02) Press the ENTER button to confirm.

6.6.4. Personality (DMX Channel Modes)

In this menu you can set the DMX channel mode (personality).

01) Press the UP/DOWN buttons to select the desired DMX channel mode. There are 4 options available:

HSIC: 8 channels

COLOR 8BIT: 11 channels

SIMPLE: 8 channels

COLOR 16BIT: 17 channels

02) Press the ENTER button to confirm. See pages 32–34 for the DMX channel modes.

6.6.5. Auto Programs

In this menu you can select a built-in auto program or a custom program. There are 2 custom programs, which can be edited in Edit menu. See 6.6.6. Edit on page 26.

01) Press the UP/DOWN buttons to select a custom program.
02) Press the ENTER button to confirm.
03) Press the ENTER button to set the speed.

6.6.6. Edit

In this menu you can edit the custom programs thus creating your own custom show.

01) Press the UP/DOWN buttons to select the custom program you want to edit (PROGRAM1-2) or UPLOAD, see 6.6.6.1. Upload on page 27.
02) Press the ENTER button to confirm. Each custom program has 10 scenes, which can be edited:

03) Press the UP/DOWN buttons to select the desired scene.
04) Press the ENTER button to enter the scene settings.
05) Press the UP/DOWN buttons to scroll through the 5 colors (RED, GREEN, BLUE, AMBER, LIME), and the GOBO, STROBE, TIME and FADE options.
06) Press the ENTER button to open the settings submenu.

SCENE
RED	255
GREEN	255
BLUE	255
AMBER	255
LIME	255
GOBO	255
STROBE	25
TIME	255
FADE	255

07) Press the UP/DOWN buttons to increase/decrease the values.

• Color intensity (RED, GREEN, BLUE, AMBER, LIME): the adjustment range is between 0-255, from low to high intensity
• GOBO: Gobo rotation, the adjustment range is between 0–255
• STROBE frequency: The adjustment range is between 0–25, from OFF to high frequency.
  • TIME (duration of the scene): The adjustment range is between 0–255, from 0 to 255 seconds
• FADE (transition time between the scenes): The adjustment range is between 0–255, from 0 to 255 seconds

08) Press the ENTER button to set the value and to move to the next setting.

Note: For each custom program you can create 30 scenes, which makes it possible to create 300 customized scenes in total.

6.6.6.1. Upload

In this submenu you can export the custom programs from the master device to the connected slave devices.

01) Select UPLOAD and press the ENTER button to open the submenu.
02) Enter the password, pressing the buttons in the following order: UP, DOWN, UP, DOWN.
03) Press the ENTER button to confirm. During upload, the light output will turn yellow and the display will show:

04) When the upload is finished, the display will show OK.
05) Press the ENTER button to confirm and exit the submenu.

6.6.7. Settings

In this menu, you can adjust the settings of the device. This menu requires the password. The default password is pressing the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN.

01) Enter the password to access the menu.
02) Press the ENTER button to confirm the password.
03) Press the UP/DOWN buttons to select one of the following 10 options:

• RESET: See 6.6.7.1. Reset
  • DIMMER: See 6.6.7.2. Dimmer
  • DMX ERROR: See 6.6.7.3. DMX Error
• PWM: See 6.6.7.4. PWM Rate
  • PERFORM: See 6.6.7.5. Perform
  • DISP KEY: See 6.6.7.6. Disp Key
  • DISP TIME: See 6.6.7.7. Disp Time
  • WDMX RESET: See 6.6.7.8. WDMX
  • SIGNAL: See 6.6.7.9. Signal
  • LANGUAGE See 6.6.7.10. Language

04) Press the ENTER button to confirm.

6.6.7.1. Reset

In this submenu you can restore the default factory settings and reset the custom programs.

01) Select RESET and press the ENTER button to open the submenu.
02) Enter the password, pressing the buttons in the following order: UP, DOWN, UP, DOWN.
03) Press the ENTER button to confirm. During reset the display shows:

When the resetting is finished, the display shows OK.

04) Press the ENTER button to confirm and exit the submenu.

6.6.7.2. Dimmer

In this submenu you can adjust the dimmer speed.

01) Select DIMMER and press the ENTER button to open the submenu.
02) Press the UP/DOWN buttons to select one of the following options:

• DIM 4: Non-linear dimmer
- OFF: Linear dimmer

03) Press the ENTER button to confirm.

6.6.7.3. DMX Error

In this submenu, you can determine the behavior of the device in case of a DMX failure.

01) Select DMX ERROR and press the ENTER button to open the submenu.
02) Press the UP/DOWN buttons to toggle between the following 2 options:

- SAVE: In case of a DMX signal failure the device will use the last properly received DMX signal ensuring uninterrupted performance

- BLACK: In case of a DMX signal failure the device will black out the light output

03) Press the ENTER button to confirm.

6.6.7.4. PWM Rate

In this submenu you can set the PWM (Pulse Width Modulation) frequency.

01) Select PWM RATE and press the ENTER button to open the submenu.
02) Press the UP/DOWN buttons to select the desired PWM frequency.

The available options are: 1200 Hz, 2400 Hz, 4000 Hz, 6000 Hz and 25000 Hz.

Note: The higher the PWM frequency, the lower the dimmer's grayscale.

03) Press the ENTER button to set the value.

6.6.7.5. Performance

In this menu you can set the performance of the device.

01) Select PERFORMANCE and press the ENTER button to open the submenu.
02) Press the UP/DOWN buttons to select the desired performance mode. The available options are:

• LIVE: Default mode. It provides a compromise between output quality and noise level
- POWER: Output-oriented mode. The device does not offer any consideration for noise level and operates at full power
- STUDIO: Noise level-oriented mode. It emits little noise and operates at moderate power level

03) Press the ENTER button to confirm.

6.6.7.6. Disp Key (Display Lock)

In this menu you can activate the display lock.

Press the UP/DOWN buttons to toggle between ON and OFF.

• ON: Display lock is on. The display turns off if no button is pressed within the preset amount of time. To access the main menu, you will need to enter the password. The default password is pressing the UP/DOWN buttons in the following order: UP, DOWN, UP, DOWN, ENTER
• OFF: The main menu remains unlocked after the display turns off

Note: If you deactivate the display lock, this will not affect the submenus, which by default require a password.

6.6.7.7. Disp Time (Display Time)

In this menu you can set the amount of time that needs to pass before the display turns off, if no button is pressed.

01) Press the UP/DOWN buttons to select one of the following options: 10 s/30 s/2 min/ON.
02) Press the ENTER button to confirm.

6.6.7.8. WDMX Reset

In this submenu, you can reset the wireless connection and clear all messages of the receiver.

01) Select WDMX RESET and press the ENTER button to open the submenu.
02) Press the UP/DOWN buttons to toggle between the following 2 options:

• NO: Do not reset the wireless connection and clear all messages of the receiver
• YES: Reset the wireless connection and clear all messages of the receiver

03) Press the ENTER button to confirm.

6.6.7.9. Signal

In this submenu you can set the signal preferences when wireless DMX is enabled.

01) Press the UP/DOWN buttons to select one of the following 2 options:

• XLRDMX: DMX signal is only received via wired XLR cable
  • WDMX: DMX signal is only received via Wireless DMX. Device needs to be paired via WDMX

02) Press the ENTER button to confirm.

6.6.7.10. Language

In this submenu, you can set the language of the menu.

01) Select LANGUAGE and press the ENTER button to open the submenu.
02) Press the UP/DOWN buttons to select between the following 2 options:

• ENGLISH: All text on the display is in English
- CHINESE: All text on the display is in Chinese

03) Press the ENTER button to confirm.

6.6.8. Info

In this menu you can view the parameters of the device.

01) Press the UP/DOWN buttons to select one of the following 3 options:

• FIXTURE HOUR: Shows the total hours of operation of the device
- VERSION: Provides information about the firmware version
• RDM: Shows the UID number and name (LABEL) of the device

02) Press the ENTER button to confirm.

6.6.9. CCT (Correlated Color Temperature Control)

In this menu you can calibrate the color temperature.

01) Press the UP/DOWN buttons to scroll through the following options:

02) Press the ENTER button to confirm.

6.6.10. Preset Color

In this menu you can select a preset color mix.

01) Press the UP/DOWN buttons to select one of the 48 presets:

02) Press the ENTER button to confirm.

6.7. DMX Channels

6.7.1. HSIC (8 CH)

8 CH (HSIC)	Function	Value	Setting
1	Intensity	000-255	From low to high intensity (0-100 %)
2	Hue	000-255	From low to high intensity (0-100 %)
3	Hue Fine	000-255	From low to high intensity (0-100 %)
4	Saturation	000-255	From low to high intensity (0-100 %)
5	CCT	000-009	No function
		010	1800 K
		025	2200 K
		040	2700 K
		055	3000 K
		070	3200 K
		085	4000 K
		100	4500 K
		115	5000 K
		130	5600 K
		145	6000 K
		160	6500 K
		175	7000 K
		190	8000 K
		205	10000 K
		255	10000 K
6	Strobe	000-009	No function
		010-099	Strobe, from low to high frequency (0-25 Hz)
		100-109	Open
		110-179	Lightning strobe, from low to high frequency (0-25 Hz)
		180-189	Open
		190-255	Random strobe, from low to high frequency (0-25 Hz)
7	Gobo Rotation	000-009	Open
		010-145	Gobo Indexing
		146-150	Stop
		151-200	Clockwise rotation (CW) gobo flow from fast to slow
		201-205	Stop
		206-255	Counter-clockwise rotation (CCW) gobo flow from slow to fast
8	Control Mode	000-010	No Function
		011-060	Reserved
		061-070	Live
		071-080	Studio
		081-090	Power
		091-100	Reserved
		101-110	Dimmer Off
		111-120	Dimmer Mode 4
		121-150	Reserved
		151-160	1200 Hz
		161-170	2400 Hz
		171-180	4000 Hz
		181-190	6000 Hz
		191-200	25000 Hz
		201-210	All Reset
		211-255	Reserved

6.7.2. SIMPLE (8 CH), COLOR 8BIT (11 CH), COLOR 16BIT (17 CH)

8 CH(SIMPLE)	11 CH(COLOR8BIT)	17 CH(COLOR16BIT)	Function	Value	Setting
1	1	1	Master Dimmer	000-255	From low to high intensity (0-100 %)
		2	Dimmer Fine	000-255	From low to high intensity (0-100 %)
2	2	3	Red	000-255	From low to high intensity (0-100 %)
		4	Red Fine	000-255	From low to high intensity (0-100 %)
3	3	5	Green	000-255	From low to high intensity (0-100 %)
		6	Green Fine	000-255	From low to high intensity (0-100 %)
4	4	7	Blue	000-255	From low to high intensity (0-100 %)
		8	Blue Fine	000-255	From low to high intensity (0-100 %)
5	5	9	Amber	000-255	From low to high intensity (0-100 %)
		10	Amber Fine	000-255	From low to high intensity (0-100 %)
6	6	11	Lime	000-255	From low to high intensity (0-100 %)
		12	Lime Fine	000-255	From low to high intensity (0-100 %)
	7	13	Color Presets	000-010	No function
				011-015	Color 1	Loving Amber
				016-020	Color 2	Light Salmon
				021-025	Color 3	Scarlet
				026-030	Color 4	Flame Red
				031-035	Color 5	Easy White
				036-040	Color 6	Warm Peach
				041-045	Color 7	Dark Salmon
				046-050	Color 8	Sunset Red
				051-055	Color 9	Medium Bastard Amber
				056-060	Color 10	CID(To Tungsten)
				061-065	Color 11	Soft Golden Amber
				066-070	Color 12	Urban Sodium
				071-075	Color 13	LCT Yellow(Y1)
				076-080	Color 14	LEE Yellow
				081-085	Color 15	Ice And A Slice
				086-090	Color 16	Spring Yellow
				091-095	Color 17	LEE Plus Green
				096-100	Color 18	CalColor 30 Green
				101-105	Color 19	Fern Green
				106-110	Color 20	Dark Yellow Green
				111-115	Color 21	LEE Fluorescent 3600 K
				116-120	Color 22	Turquoise
				121-125	Color 23	Kelly Green
				126-130	Color 24	Forest Green
				131-135	Color 25	Cosmetic Aqua Blue
				136-140	Color 26	Steel Green
				141-145	Color 27	Steel Blue
				146-150	Color 28	Special Steel Blue
				151-155	Color 29	Paler Lavender
				156-160	Color 30	New Colour Blue
				161-165	Color 31	Dark Steel Blue
				166-170	Color 32	Daylight Blue
				171-175	Color 33	Pale Lavender
				176-180	Color 34	Surprise Pink
				181-185	Color 35	Pale Violet
				186-190	Color 36	Perfect Lavender
				191-195	Color 37	Light Pink
				196-200	Color 38	Pretty'n Pink
				201-205	Color 39	Follies Pink
				206-210	Color 40	Magical Magenta
				211-215	Color 41	Pale Rose
				216-220	Color 42	Smokey Pink

8 CH (SIMPLE)	11 CH (COLOR 8BIT)	17 CH (COLOR 16BIT)	Function	Value	Setting
				221–225	Color 43	Flesh Pink	L192
				226–230	Color 44	Special Rose Pink	L332
				231–235	Color 45	Moroccan Pink	L790
				236–240	Color 46	Pink	L157
				241–245	Color 47	Cherry Rose	R332
				246–250	Color 48	Cool LED Bright Pink	L128
				251–255	No function
	8	14	CCT	000–009	No function
				010	1800 K
				025	2200 K
				040	2700 K
				055	3000 K
				070	3200 K
				085	4000 K
				100	4500 K
				115	5000 K
				130	5600 K
				145	6000 K
				160	6500 K
				175	7000 K
				190	8000 K
				205	10000 K
				255	10000 K
7	9	15	Strobe	000–009	No function
				010–099	Strobe, from low to high frequency (0–25 Hz)
				100–109	Open
				110–179	Lightning strobe, from low to high frequency (0–25 Hz)
				180–189	Open
				190–255	Random strobe, from low to high frequency (0–25 Hz)
	10	16	Gobo Rotation	000–009	Open
				010–145	Gobo Indexing
				146–150	Stop
				151–200	Clockwise rotation (CW) gobo flow from fast to slow
				201–205	Stop
				206–255	Counter-clockwise rotation (CCW) gobo flow from slow to fast
8	11	17	Control Mode	000–010	No Function
				011–060	Reserved
				061–070	Live
				071–080	Studio
				081–090	Power
				091–100	Reserved
				101–110	Dimmer Off
				111–120	Dimmer Mode 4
				121–150	Reserved
				151–160	1200 Hz
				161–170	2400 Hz
				171–180	4000 Hz
				181–190	6000 Hz
				191–200	25000 Hz
				201–210	All Reset
				211–255	Reserved

Note: Make sure that the Master Dimmer channel is open to see the light output.

6.8. Rotating Gobo Holder

Technical line drawing of a mechanical component with a circular hole and mounting holes (no text or symbols)

Fig. 12

6.8.1. Replacing a Gobo from the Rotating Gobo Wheel

DANGER Electric shock caused by dangerous voltage inside

There are areas within the device where dangerous touch voltage may be present.

• Disconnect the device from electrical power supply before service and maintenance, and when the device is not in use.
• Allow the device to cool down before opening the cover.
• Use for replacement only gobos that match the specifications below. Using custom gobos that do not match those specifications may result in damage to the device. Any damage to the device as a result of using a custom gobo is not covered under warranty.
• Do not touch the glass gobo with bare fingers to avoid leaving fingerprints. Handle the gobo only by the gobo carrier, or wear protective gloves. If you touch the glass, clean with a soft lint-free cloth and rubbing alcohol.

To replace a rotating gobo, follow the steps below:

01) Disconnect the device from the mains and allow it to cool completely.
02) Set the device in horizontal position with the lens facing forward.
03) Loosen the 6 hex screws on the maintenance cover, as shown in Fig. 13.

Technical line drawing of a mechanical component with mounting holes and a red L-shaped bracket (no text or symbols)

Fig. 13

04) Carefully remove the head cover from the housing to get access to the rotating gobo holder.

05) Loosen the 2 screws on the gobo/shutter blade cover, as shown in Fig. 14.
06) Gently lift the gobo/shutter blade assembly a bit up and pull it out, as shown in Fig. 15.

Interior view of a mechanical assembly with rotating components and directional arrows (no visible text or symbols)

Fig. 14

Close-up of a hand holding a black mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

Fig. 15

07) Very carefully take the gobo holder out of the gobo/shutter blade assembly, as shown in Fig. 16.

Three-panel image showing hands assembling electronic components in a device, with red arrows indicating the process (no text or symbols present)

Fig. 16

08) Put the new gobo in the gobo holder. Do not touch the gobo with bare fingers.
09) Insert the new gobo in the gobo holder. See 6.8.3. Glass Gobo Orientation on page 37 for more information.
10) Use high temperature silicone sealant to attach the gobo to the gobo holder.
11) Put the gobo holder back into the gobo/shutter blade assembly and snap it into position.
12) Tighten the 2 screws on the gobo/shutter blade cover.
13) Replace the head cover and tighten all 6 hex screws.

6.8.2. Gobo Size

Fig. 17

6.8.3. Glass Gobo Orientation

Coated glass gobos are inserted with the coating against the rim of the holder. Textured gobos are inserted with the smooth side pointing away from the holder. This provides the best results when combining rotating gobos.

When an object is held up to the coated side, there is no space between the object and its reflection. The back edge of the gobo cannot be seen when looking through the coated side.

When an object is held up to the uncoated side, there is a space between the object and its reflection. The back edge of the gobo can be seen when looking through the uncoated side.

6.9. RDM Information

This device supports RDM. Refer to 6.8.2. Supported RDM PIDs (Parameter IDs) for more information.

6.9.1. RDM Details

• Responder: 29B4:0CExxxxx
  • Manufacturer's ID: Showtec (Highlite International B.V.)
  • Manufacturer Label: Arpecta
  • Model Description: Image Spot 170 FC
• Model ID: 206
  • Device Label: Image Spot 170 FC

6.9.2. Supported RDM PIDs (Parameter IDs)

Parameter ID	Value	Required	GET	SET
COMMS_STATUS	0x0015		*	*
STATUS_MESSAGES	0x0030		*
STATUS_ID_DESCRIPTION	0x0031		*
CLEAR_STATUS_ID	0x0032			*
SUPPORTED_PARAMETERS	0x0050	*	*
DEVICE_MODEL_DESCRIPTION	0x0080		*
MANUFACTURER_LABEL	0x0081		*
DEVICE_LABEL	0x0082		*	*
FACTORY_DEFAULTS	0x0090		*	*
LANGUAGE_CAPABILITIES	0x00A0		*
LANGUAGE	0x00B0		*	*
DMX_PERSONALITY	0x00E0		*	*
DMX_PERSONALITY_DESCRIPTION	0x00E1		*
DMX_START_ADDRESS	0x00F0	*	*	*
SLOT_INFO	0x0120		*
SLOT_DESCRIPTION	0x0121		*
SENSOR_DEFINITION	0x0200		*
SENSOR_VALUE	0x0201		*	*
RECORD_SENSORS	0x0202			*
CURVE	0x0343		*	*
CURVE_DESCRIPTION	0x0344	*	*
MODULATION_FREQUENCY	0x0347		*	*
MODULATION_FREQUENCY_DESCRIPTION	0x0348	*	*

6.9.3. Highlite RDM Details

All Highlite RDM responder IDs are divided into 3 parts, starting with a 4-digit Manufacturer's ID, followed by a 3-digit Model ID, and a 5-digit unique ID for each item.

As a result, RDM responder IDs will always start with the same 7 digits (exclusive to each type of device). The last 5 digits will be different for each device.

7. Troubleshooting

This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts.

Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.

Refer servicing to instructed or skilled persons. Contact your Highlite International dealer in case the solution is not described in the table.

Problem	Probable cause(s)	Solution
The device does not function at all	No power to the device	Make sure the power is switched on and cables are plugged in
	Main fuse is blown	Disconnect the device and contact your Highlite International dealer
The device does not respond to DMX control	The controller is not connected	Connect the controller
	The signal is reversed. The 3-pin/5-pin DMX OUT of the controller does not match the DMX IN of the device	Install a phase-reversing cable between the controller and the device
	The controller is defective	Try using another controller
The device responds erratically to DMX control	Bad data link connection	Examine connections and cables.Correct poor connections. Repair or replace damaged cables
	The data link is not terminated with a 120 Ω termination plug	Insert a termination plug in the DMX OUT connector of the last device on the link
	Incorrect addressing	Check address settings and correct, if necessary
	In case of a setup with multiple devices, one of the devices is defective and disturbs data transmission on the link	To find out the defective device, bypass one device at a time until normal operation is restored
No light or LEDs cut out intermittently	LEDs are damaged	Disconnect the device and contact your Highlite International dealer
	The power supply settings do not match local AC voltage and frequency	Disconnect the device. Check the settings and correct, if necessary

8. Maintenance

8.1. Safety Instructions for Maintenance

DANGER

Electric shock caused by dangerous voltage inside

Disconnect power supply before servicing or cleaning.

8.2. Preventive Maintenance

Attention

Before each use, examine the device visually for any defects.

Make sure that:

• All screws used for installing the device or parts of the device are tightly fastened and are not corroded.
• The safety devices are not damaged.
• There are no deformations on housings, fixations and installation points.
• The lens is not cracked or damaged.
• The power cables are not damaged and do not show any material fatigue.

8.2.1. Basic Cleaning Instructions

The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. On the other hand, if the device is installed in well-ventilated area, it will need less frequent cleaning. To establish a cleaning schedule, examine the device at regular intervals during the first 100 hours of operation.

To clean the device, follow the steps below:

01) Disconnect the device from the electrical power supply.
02) Allow the device to cool down for at least 15 minutes.
03) Remove the dust collected on the external surface with dry compressed air and a soft brush.
04) Clean the lens with a damp cloth. Use a mild detergent solution.
05) Dry the lens carefully with a lint-free cloth.
06) Clean the DMX and other connections with a damp cloth.

Attention

• Do not immerse the device in liquid.
• Do not use alcohol or solvents.
• Make sure that the connections are fully dry before connecting the device to the power supply and to other devices.

8.2.2. Draining Condensation Water

The Image Spot 170 FC is IP66 rated. The device can resist water jets. If the device is exposed to extreme humid conditions during servicing, condensation may collect inside the device. This can happen also during transportation, if the device is exposed to extreme temperature variations.

If condensation water collects inside the device, follow the steps below to remove the condensation water:

01) Carefully remove the protective vent (02) with a wrench (16 mm).

02) Let the device operate at full output for 60 minutes.
03) Let the device cool down for 30 minutes.
04) Install the protective vent (02) back in place. Make sure that you do not overtighten it.

8.3. Corrective Maintenance

The device does not contain user-serviceable parts. Do not open the device and do not modify the device.

Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.

9. Deinstallation, Transportation and Storage

9.1. Instructions for Deinstallation

WARNING

Incorrect deinstallation can cause serious injuries and damage of property.

• Let the device cool down before dismounting.
• Disconnect power supply before deinstallation.
• Always observe the national and site-specific regulations during deinstallation and derigging of the device.
• Wear personal protective equipment in compliance with the national and site-specific regulations.

9.2. Instructions for Transportation

• Use the original packaging to transport the device, if possible.
• Always observe the handling instructions printed on the outer carton box, for example: "Handle with care", "This side up", "Fragile".

9.3. Storage

• Clean the device before storing. Follow the cleaning instructions in chapter 8.2.1. Basic Cleaning Instructions on page 40.
• Store the device in the original packaging, if possible.

10. Disposal

Correct disposal of this product

Waste Electrical and Electronic Equipment

This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. For more detailed information about recycling of this product contact the local authorities or the authorized dealer.

11. Approval

Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity.
