Max fun - Toys Chipolino - Free user manual and instructions

Product Type	Ride-On Toy Car
Brand	Chipolino
Model	Max Fun
Recommended Age	3-6 years
Maximum Weight Capacity	25 kg
Dimensions (L x W x H)	105 x 55 x 50 cm
Weight	8 kg
Power Source	6V rechargeable battery
Charging Time	8-12 hours
Run Time	1-2 hours per charge
Maximum Speed	3 km/h
Drive Type	Single motor, rear wheel drive
Assembly Required	Yes (tools included)
Materials	Plastic body, rubber tires, steel frame
Safety Features	Seat belt, slow start, automatic brake
Functions	Forward/reverse, steering wheel, horn, music
Cleaning & Maintenance	Wipe with damp cloth; avoid water on battery
Spare Parts Availability	Sold separately via authorized dealers
Warranty	6 months against manufacturing defects
Manual Language	English, PDF available

Frequently Asked Questions - Max fun Chipolino

How long does it take to charge the battery?

The battery takes approximately 8-12 hours for a full charge. Always use the provided charger and unplug once fully charged.

What is the maximum weight limit for the Max Fun?

The maximum weight capacity is 25 kg (55 lbs). Do not exceed this limit to ensure safe operation.

Is assembly required?

Yes, some assembly is required. The manual includes step-by-step instructions, and all necessary tools are included in the package.

Can the toy be used outdoors on grass?

Yes, it can be used on flat, hard surfaces like pavement or short grass. Avoid steep slopes or rough terrain.

What should I do if the car stops moving?

Check the battery charge and connections. Ensure the power switch is on and the foot pedal is pressed. If the problem persists, consult the troubleshooting section of the manual.

How do I clean the ride-on car?

Use a damp cloth to wipe down the plastic parts. Do not use water directly on the battery or motor. Store in a dry place.

Does the car have a seat belt?

Yes, it is equipped with a safety seat belt. Always ensure the child is properly strapped in before use.

Can I replace the battery?

Yes, replacement batteries are available from Chipolino dealers. Only use the specified 6V battery type.

What is the recommended age range?

The Max Fun is designed for children aged 3 to 6 years. Adult supervision is always recommended.

Does the car have a warranty?

Yes, Chipolino offers a 6-month warranty against manufacturing defects. Keep your receipt for proof of purchase.

USER MANUAL Max fun Chipolino

IMPORTANT! KEEP THIS MANUAL FOR FUTURE REFERENCE

INSTRUCTION MANUAL FOR USE FOR KID'S BALANCE TOY ON WHEELS "MAX FUN"

Illustration of a tricycle with 'MAX FUN' branding on its side, showing front wheel, rear wheel, and body (no text beyond the brand name)

This -product is produced in conformity with the Toy Safety Directive 2009/48/EC of the European parliament and the Council, Regulation for essential requirements and assessment of the compliance of toys and the applicable European standards.

IMPORTANT! MAJOR WARNINGS!

✿ CAUTION! USE ONLY UNDER DIRECT ADULT SUPERVISION AND WITH A COMPANION – DANGER OF FALLING!
CAUTION! THIS TOY HAS NO BRAKES!
✿ CAUTION! TO BE USED ONLY BY CHILDREN AGED MORE THAN 3 YEARS! THE TOY IS NOT SUITABLE FOR CHILDREN UNDER 3 YEARS!
CAUTION! MAXIMUM CHILD WEIGHT 25 kg. DO NOT OVERLOAD!
✿ CAUTION! BEFORE USING THE TOY, TEACH THE CHILD THE CORRECT USAGE AND SAFETY RULES.
✿ CAUTION! THE CHILD MUST WEAR A HELMET, KNEE AND ELBOW PROTECTORS AND SHOES WHEN USING THE TOY!
✿ CAUTION! USE THE TOY ONLY DURING THE DAY AND ON EVEN SECURED PLAYGROUNDS AT A SAFE DISTANCE FROM STREETS AND ROAD LANES FOR VEHICLES.
CAUTION! KEEP AWAY FROM FIRE!
CAUTION! USE THE TOY ONLY FOR ITS PURPOSE.
✿ ONLY an adult should assemble the TOY!
DO NOT let children under 3 years near the TOY before you have assembled it, to avoid their access to small and disassembled parts!
This TOY is intended for ONLY one child!
DO NOT use the TOY if some parts are damaged or missing.
DO NOT put additional strings or accessories to the TOY to avoid risk of suffocation!
DO NOT leave items or luggage on the handle bar to avoid risk of balance disturbance.
DO NOT put items or heavy objects on the TOY during transportation and storing to avoid damage of the construction.
DO NOT move the TOY by pulling it with another transport means!
DO NOT let the child playing with the TOY or other children near it to touch the wheels or put items inside them!
- Keep away from rivers, pools, stairs and hurdles!
DO NOT make changes or modifications to the TOY construction! If necessary, contact the retailer or an authorized service for advice and repair.
DO NOT use spare parts or other components, which are not provided by the producer! The producer revokes all responsibility in case spare parts have been used, which are different from the original ones or recommended by the producer.
- Keep the nylon package away from children to avoid risk of suffocation!

PRODUCT FEATURES

KIDS BALANCE TOY ON WHEELS is a bicycle without pedals, which develops in your child sense of orientation and speed in a safe way. This creates a feeling of balance and safety because the child's feet are in contact with the ground at all times. While riding the bike, the child learns to balance and exercises different moves (turn left and right), learns to control speed depending on its abilities.

The TOY is intended for children aged 3 years and up with weight not more than 25 kg.
◆ Recommended age: 3-6 years.
◆ The saddle is adjustable in height.

MAIN PARTS

Please, make sure that all parts are available.

ASSEMBLY AND USE GUIDE

CAUTION! FOLLOW EXACTLY THE GUIDELINES AND SEQUENCE OF ASSEMBLY AND USE. WHICH YOU WILL FIND IN THE TEXT AND FIGURES.

CAUTION! CHECK FIXING IS SECURE AFTER COMPLETING EACH OPERATION!

CAUTION! TIGHTEN THE BRACKETS WELL. IF THEY ARE LOOSE, THE PRODUCT MAY FALL APART AND THE CHILD MAY BE INJURED.

Tools needed: Allen key (included in the set).

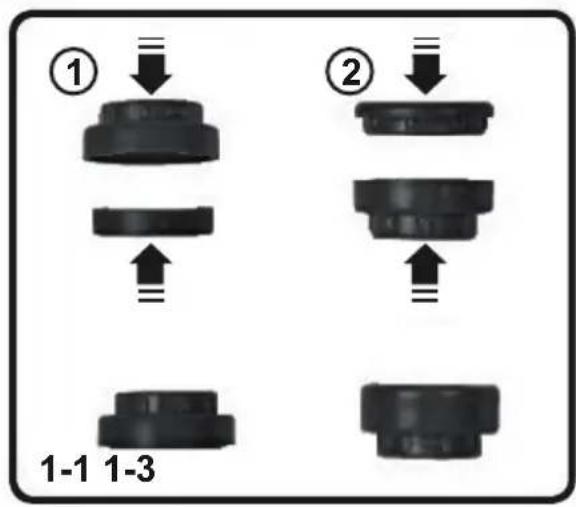

1. ASSEMBLY OF THE FRONT FORK

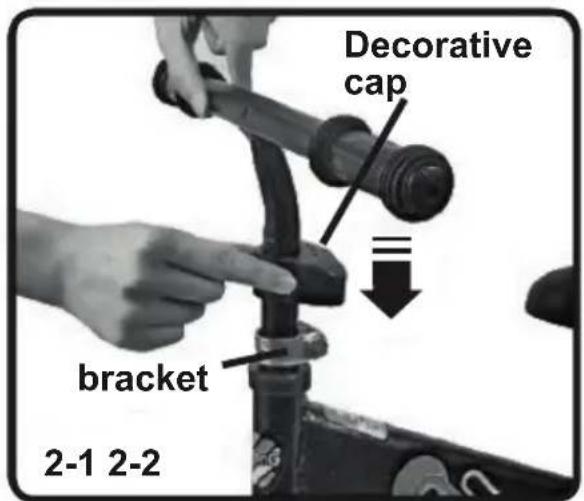

2. ASSEMBLY OF THE STEERING BAR

2-1 – Place the bracket onto the protruding part of the fork. Insert the steering bar base into the opening of the fork. Tighten the nut of the bracket and cover with the decorative cap.

2-2 Assembled steering bar.

3 - ASSEMBLY OF THE WHEELS

3-1 and 3-2 Assembly of the front wheel.

Untighten the nuts and remove the fixing washers from the axis of front wheel. Place the wheel on the fork, place the washers and tighten the nuts at both sides (3-2) using the allen key.

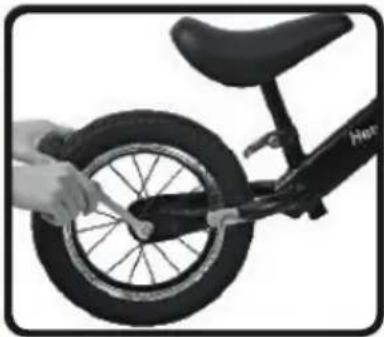

3-3 Assembly of the rear wheel.

Untighten the nuts and remove the fixing washers from the axis of rear wheel. Place the wheel of the frame, place the washers and tighten the nuts at both sides (3-2) using the allen key.

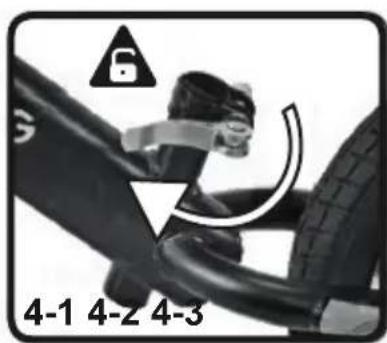

4 - ASSEMBLY OF THE SADDLE

4-1 Open the bracket.

4-2 Insert the saddle into the tube of the frame.

CAUTION! Obey the marking for the minimum depth when inserting the saddle!

Note: The saddle position must be set so that the marking is no more visible.

4-3 Fix with the bracket.

Close-up of a black mechanical lever handle with two curved arms and a cylindrical head (no text or symbols visible)

Close-up of a black bicycle brake lever with attached suspension components (no visible text or symbols)

Close-up of a hand using a bicycle tire to adjust the wheel rim (no text or symbols visible)

Close-up of a mechanical component with a metallic lever and bolt, mounted on a metal frame (no visible text or symbols)

Close-up of a hand using a bicycle to adjust the wheel rim (no text or symbols visible)

Close-up of a black HetonG 2.0 bicycle with a seat and suspension mechanism (no text or symbols on the diagram itself)

Close-up of a car wheel with a person adjusting the tire, showing a warning symbol and curved arrow (no text or labels)

CAUTION! The toy must be used with increased caution, because it requires balance skills. In this way, you will avoid falling or collisions, which may injure the child or third persons.

✿ CHOOSING THE OPTIMAL POSITION OF THE SEAT

The child must be comfortably seated, not leaning forward to the handle bar and its feet must be in full contact with the ground.

IMPORTANT! For beginners we recommend initially to use the lowest position of the seat!

❖ HELMET, KNEE AND ELBOW PROTECTORS, AND SHOES

FOR MORE SAFETY WHEN THE CHILD USES THE TOY, IT SHOULD WEAR A HELMET, KNEE AND ELBOW PROTECTORS AND SHOES!

The helmet must be steady on the head, not tilted back or in position in which it does not protect the forehead.

Side-by-side line drawings of a person wearing a helmet, with checkmark and no symbol indicating correct and incorrect states (no text or symbols present)

CARE AND MAINTENANCE

Periodically check the good working order of all parts.
Do not wet the TOY. Clean with a soft damp towel and a neutral liquid soap.
Do not use aggressive detergents containing abrasive particles, ammonia, bleach or spirit.
◆ Regularly oil the moving parts.
Do not use on sandy surfaces.
Do not store the TOY in areas with hot air or close to heat sources, because it will deform.
- Store the TOY in a clean and dry place. Do not subject to direct environmental influence – sun, rain, moisture or harsh temperature changes!
Always dry the TOY or let it dry before storing or using it again. Mildew may appear if you store the product moist.
In case of problems related to the normal exploitation, contact the authorized service for advice or repair.

Materials used: plastic, metal.

DIKMF021xxxx/ Balance Bike
