Product Type	3 in 1 Ride-On Toy / Push Walker / Rocking Horse
Brand	Chipolino
Model	3 in 1 Kiddy Evo
Recommended Age	12 months and up
Maximum Weight Capacity	20 kg (44 lbs)
Product Dimensions	50 x 25 x 40 cm (19.7 x 9.8 x 15.7 in)
Product Weight	3 kg (6.6 lbs)
Material	Durable plastic with metal parts
Functions	Ride-on, push walker, rocking motion
Assembly Required	Yes, includes tools and instructions
Power Source	None (manual, no batteries)
Cleaning & Care	Wipe with damp cloth and mild soap; do not submerge
Safety Certification	Conforms to EN71 safety standards
Number of Wheels	4 (with stoppers for stability)
Includes	Body, handlebar, seat, 4 wheels, rockers, screws, wrench
Spare Parts Availability	Available from Chipolino customer service
Warranty	2 years limited warranty
Recommended for	Indoor and outdoor use on flat surfaces
Storage Instructions	Store in a dry place away from direct sunlight
Maintenance	Periodically check and tighten screws and bolts

Frequently Asked Questions - 3 in 1 Kiddy Evo Chipolino

How do I assemble the Chipolino 3 in 1 Kiddy Evo?

Assembly is straightforward. Attach the wheels to the base using the included screws and wrench. Then secure the handlebar and seat. For the rocking mode, replace the front wheels with the rocker bases. Refer to the user manual for step-by-step instructions.

What is the recommended age for this toy?

The Chipolino 3 in 1 Kiddy Evo is designed for children aged 12 months and up. It supports different stages: push walker for beginners, ride-on for toddlers, and rocking horse for fun.

What is the maximum weight limit?

The maximum weight capacity is 20 kg (44 lbs). Do not exceed this limit to ensure safety and stability.

Is the toy safe for my child?

Yes, it meets EN71 safety standards. It has rounded edges, a stable base, and non-toxic materials. Always supervise your child during use.

Can I use this toy outdoors?

Yes, it is suitable for outdoor use on flat, dry surfaces. Avoid rough terrain, stairs, or wet areas to prevent accidents.

How do I clean the Kiddy Evo?

Clean with a soft cloth dampened with water and mild soap. Do not use abrasive cleaners or submerge the toy in water. Dry thoroughly after cleaning.

Are replacement parts available?

Yes, spare parts such as wheels, screws, and rockers can be ordered from Chipolino customer service. Contact them for availability and pricing.

Does the toy require batteries?

No, the Kiddy Evo is a manual toy that does not require any batteries or electronic components. It is powered by your child's movement.

What should I do if a part is missing?

Check the packing list in the box. If a part is missing, contact the retailer or Chipolino support immediately with your purchase details to request a replacement.

Can the handlebar be removed?

Yes, the handlebar is detachable for easy storage or when transitioning from push walker to ride-on mode. Unscrew it using the provided tools.

USER MANUAL 3 in 1 Kiddy Evo Chipolino

IMPORTANT! KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE!

INSTRUCTION MANUAL FOR USE OF KID'S TOY SCOOTER KIDDY EVO WITH HANDLE

This product is produced in conformity with the requirements of the Toy Safety Directive 2009/48/EC of the European Parliament and the Council, national legislation and the applicable to the product European Standards.

TO GUARANTEE THE SAFE USE OF THIS PRODUCT, FOLLOW THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL:

CAUTION! IMPORTANT WARNINGS!

CAUTION! USE ONLY UNDER DIRECT ADULT SUPERVISION – DANGER OF FALLING!
CAUTION! THE TOY IS SUITABLE FOR CHILDREN UP TO 3 YEARS AND WIEGHT UP TO 20KG!
✿ CAUTION! DO NOT OVERLOAD! THE TOY IS NOT SUITABLE FOR CHILDEN ABOVE 3 YEARS AND WEIGHT ABOVE 20kg.
✿ CAUTION! BEFORE USING THE TOY, TEACH THE CHILD THE CORRECT WAY TO USE IT AND THE SAFETY RULES. Using the toy requires special skills and increased caution to avoid falling and collisions.
✿ CAUTION! WEAR PROTECTIVE EQUIPMENT – helmet, knee and elbow protectors, suitable shoes.
✿ CAUTION! BEFORE EACH USE, CHECK IF THE HANDLEBAR IS WELL FIXED TO THE DECK AS WELL AS IF ALL SCREWS, NUT AND BOLTS ARE WELL TIGHTENED.
✿ CAUTION! IN ORDER TO AVOID INJURY, REMOVE THE PUSH HANDLE WHEN THE CHILD RIDES THE SCOOTER ON HIS OWN.
✿ CAUTION! USE THE TOY ONLY DURING THE DAY ON SECURED PLAYGROUNDS AT A SAFE DISTANCE FROM STREETS AND VEHICLE ROADS.
CAUTION! KEEP AWAY FROM FIRE!
CAUTION! USE THE TOY ONLY FOR ITS PURPOSE.
CAUTION! THIS TOY IS NOT INTENDED FOR AGGRESSIVE RIDE, TRICKS AND JUMPS!
✿ ONLY an ADULT should assemble and disassemble the TOY!
Do not run or skate during pushing the scooter by the parent handle!
DO NOT allow presence of children under 3 years before having assembled the TOY completely, to avoid access to small and dismantled parts!
This TOY is intended for one child ONLY!
DO NOT use the TOY if you find missing or damaged parts.
❖ Maximum load in the storage basket up to 300g!
DO NOT use the brake while turning left or right, this can cause the child to fall!
DO NOT attach strings or accessories to the TOY to avoid risk of entanglement!
DO NOT put items or luggage on the handlebar to avoid risk of balance disturbance!
- The child must hold the handlebar with both hands to ride safely.
DO NOT put heavy items or objects on the TOY in order not to damage its construction.
DO NOT use another transport means to move the TOY by hauling!
DO NOT let the child using the TOY or other children close to it to touch the wheels with hands and/or put items on them!
Use away from rivers, pools, stairs and hurdles!
DO NOT make changes or modifications to the construction of the TOY! If necessary, contact the dealer or an authorized service for advice and repair.
DO NOT use spare parts or other components, which are not supplied by the producer! The producer revokes all responsibility in case you have used spare parts different from the original ones or recommended by him.
- Keep the plastic bags away from children to avoid risk of suffocation!

PRODUCT FEATURES

✿ THE TOY is suitable for children above 3 years and weight up to 20kg;
✿ THE TOY can be used as a scooter and as a ride on car;
✿ THE TOY may be ridden by the child or pushed by parent using the push handle;
The seat can be adjusted in height in 3 positions
The handlebar can be adjusted in height in 3 positions;
❖ The parent handle may be adjusted in 3 height positions;
◆ Rubber anti-slip handle grips
◆ Rear wheel brake;
◆ Storage basket for accessories;

MAIN PARTS

1 - HANDLEGRIPS
2-HANDLEBAR
3 - STORAGE BASKET
4 - SEAT
5-BRAKE
6 - REAR WHEEL
7 - SEAT SUPPORT
8 - DECK
9 - FRONT WHEELS * 2
10 - PARENT PUSH HANDLE

ASSEMBLY AND SAFE USE

CAUTION! FOLLOW EXACTLY THE GUIDELINES AND SEQUENCE OF ASSEMBLY AND USE GIVEN IN THE BELOW TEXT AND FIGURES.

CAUTION! CHECK THE SECURITY OF FIXING UPON COMPLETING EACH OPERATION!

CAUTION! THE TOY MUST BE USED WITH INCREASED CAUTION BECAUSE IT REQUIRES SKILLS TO BALANCE. IN THIS WAY YOU WILL AVOID FALLING OR COLLISIONS WHICH MAY CAUSE INJURY TO THE CHILD OR OTHER PEOPLE.

Tools needed: Allen wrench (included in the set).

1 - HANDLEBAR ASSEMBLY

Insert the lower end of the handlebar with pressure in the opening in the deck until you hear a click and the tube of the handle bar is in the respective opening. To remove the handlebar, press the pin and draw the handlebar out.

2 - SEAT ASSEMBLY. HEIGHT ADJUSTMENT - 3 positions

2-1 Place the seat to the handlebar tube.
2-2 Fix the seat support to the corresponding holes on the seat base using the plate and the two screws use the Allen wrench.
2-3 Fix the seat to the handlebar by bolt.

To adjust seat height:

• Unscrew the bolt which fixes the seat to the handlebar;
• Position the seat in desired level (2-2-A, B, C);
  • Fix the seat with the bolt.

3 - STORAGE BASKET INSTALLATION

4 - ADJUSTING THE HEIGHT OF THE HANDLEBAR - 3 positions

• Press the pin;
• Move the handlebar up/down according to your desire;
• When fixed in position the pin will show through the hole and you will hear a click.
  • Fix the desired height with the plastic ring.

5 - SCOOTER MOVEMENT AND BRAKE USAGE

When you tilt the handlebar to the right, the wheels will turn RIGHT and the scooter will turn right. When in upright position, the scooter will move STRAIGHT.

The rear wheel has a brake. To use the brake during movement, the child can step with its heel on it and press it until the scooter stops.

CAUTION! The brake must be used with only one foot!

6 - INSTALLING THE PUSH HANDLE

6-1 –Before installing the handle, put the fixing bracket on the handle tube.
6-2 – Install the handle base on the scooter deck. Insert the handle in the base and press it until the pin is shown through the hole and you hear a „click“.
6-3 - Fix the handle to the seat by tightening the bracket with a screw.
6-4 – Place the backrest on the handle. Put the bracket to the backrest in a way that the openings match. Fix it with screws.

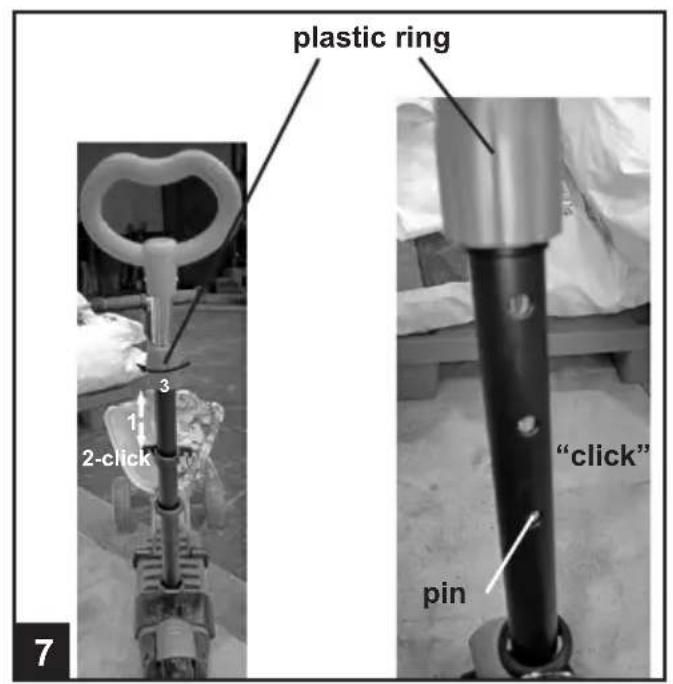

7 - ADJUSTING THE HANDLE HEIGHT - in 3 positions

• Press the pin;
• Move according to desired height;
• When fixed you will hear a click.

Fix the desired height by tightening the plastic ring.

SCOOTER: Remove the seat from the frame of the toy. The child grabs the handlebar with both hands, steps with one foot on the deck and push itself with the other.

RIDE ON CAR: The child sits on the seat, grabs the handlebar with both hands and moves in the desired direction.

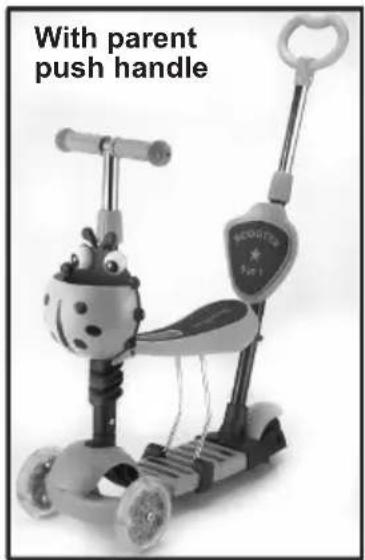

WITH PARENT PUSH HANDLE: The child sits on the seat, grabs the handlebar with both hands, and the parent pushes the handle in order to move the toy.

For more safety, the child must wear a helmet on the head, knee and elbow protectors and shoes while using the toy!

The helmet must be steady on the head and not tilted back or not protecting the forehead

CARE AND MAINTENANCE

Periodically check the good working order of the separate parts.
Do not cover the toy with liquid. Clean with soft damp towel and a neutral liquid soap.
Do not clean with aggressive detergents containing abrasive particles, ammonia, bleach or spirit.
◆ Regularly oil the moving parts.
Do not use on sandy terrains.
Do not store the TOY places with very warm air or close to heat sources, it will deform.
Store the TOY in a clean and dry space. Do not subject to direct environmental influence – sun, rain, moisture or harsh temperature changes!
Always dry the TOY or leave it to dry before storing it or using it again. Mildew may appear if you store the product damp.
In case or problems related to the normal exploitation of the product, turn to authorized service for advice and repair.

Materials used: plastic, metal, PVC.
