Product Type	Built-in Microwave with Grill
Brand	Gorenje
Model	BM251SG2WG
Capacity	25 L
Microwave Power	900 W
Grill Power	1000 W
Dimensions (W x D x H)	595 x 382 x 388 mm
Net Weight	20 kg
Power Supply	230 V, 50 Hz
Control Type	Touch control with rotary dial
Display	LED digital display
Functions	Microwave, Grill, Combi cooking, Defrost by weight/time
Features	Child lock, Clock timer, Turntable, Interior light
Door Opening	Drop-down door with viewing window
Color	Stainless steel (SG)
Cleaning	Damp cloth; avoid abrasive cleaners
Safety	Do not operate empty; use microwave-safe containers
Repairability	Spare parts available; authorized service centers

Frequently Asked Questions - BM251SG2WG GORENJE

How do I set the clock on my Gorenje BM251SG2WG microwave?

Press the Clock button, then use the rotary dial to set hours and minutes. Press Clock again to confirm.

What containers are safe to use in the microwave?

Use microwave-safe glass, ceramic, or plastic containers labeled for microwave use. Avoid metal, aluminum foil, and melamine.

How do I use the grill function?

Place food on the high rack. Press Grill and set cooking time using the dial. Press Start.

Why is my microwave not heating?

Check if the door is fully closed, the power is on, and the timer is set. If the problem persists, contact service.

How do I clean the interior of the microwave?

Wipe with a damp soft cloth and mild detergent. Do not use abrasive cleaners or scouring pads.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Always use it unless specified in the manual for large dishes.

What does the child lock feature do and how do I activate it?

Child lock prevents accidental operation. To activate, press and hold Stop for 3 seconds until a lock icon appears.

How do I defrost food in this microwave?

Press Defrost, enter food weight using the dial, and press Start. The microwave automatically sets time and power.

What should I do if the microwave emits a burning smell?

Stop immediately, unplug the appliance, and check for food residue. Clean thoroughly. If smell persists, contact service.

How do I install the microwave into a cabinet?

Ensure proper ventilation. The cabinet must have cutouts as per the installation manual. Secure the microwave with screws provided.

USER MANUAL BM251SG2WG GORENJE

Instructions for use / Microwave oven (SI).... 3

Instruction manual / Microwave oven (EN)....28

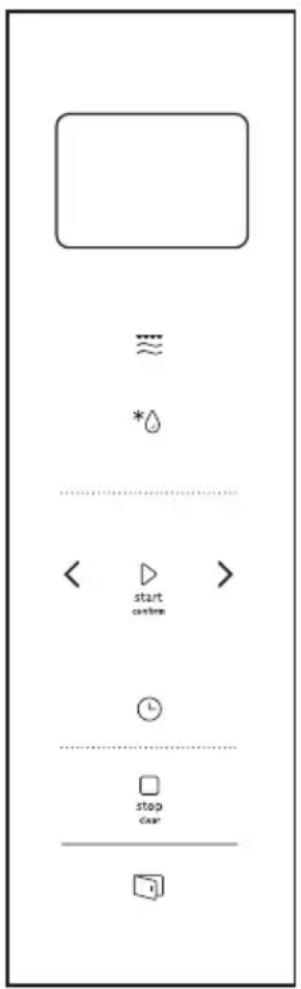

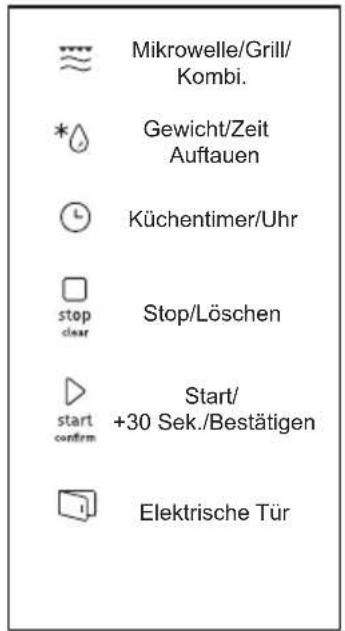

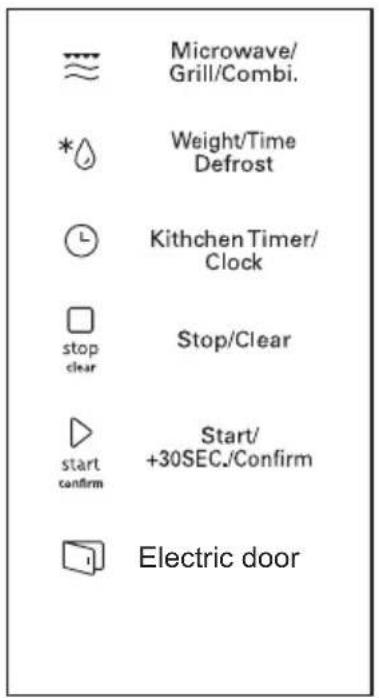

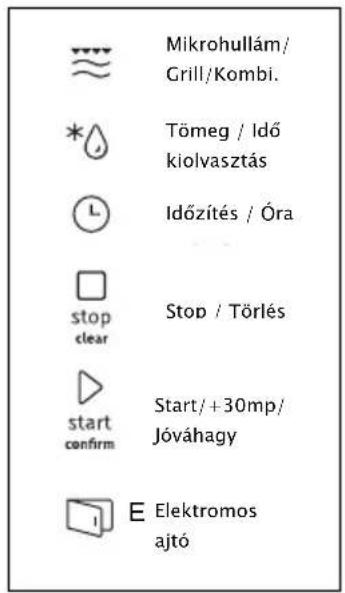

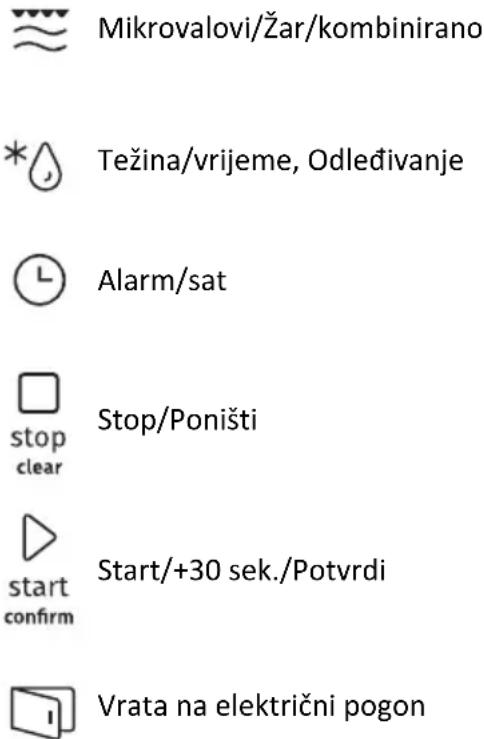

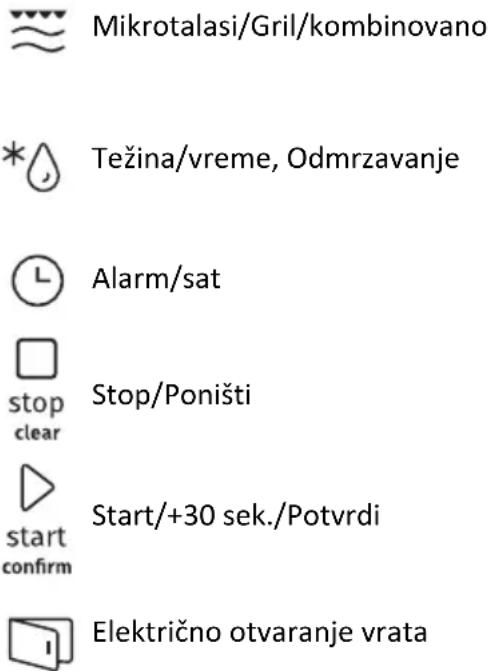

Note:

Microwave/Grill/Combination

Weight/Time, Defrost

Reminder/Clock

Stop/Clear

Start/+30 sec./Confirm

start confirm

15. Auto Menu

1. Press the ">" key to select the menu. The display will show labels from "A1" to "A15".
2. Press the "Start/+30 sec./Confirm" key to confirm the setting.
3. Use the "<" and ">" keys to select the default weight according to the table.
4. Press the "Start/+30 sec./Confirm" key and the oven will start operating.

Meni Teža Prikaz
A-1Pica	200 g	200g
	400 g	400g
A-2Pogrevanje krožnika	200 g	200 g
	400 g	400 g
	600 g	600 g
A-3Taljenje čokolade	100 g	100 g
	150 g	150 g
	200 g	200 g
A-4Taljenje masla	100 g	100 g
	150 g	150 g
	200 g	200 g
A-5 Meso (govedina)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-6 Meso (svinjina)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-7 Meso (piščanec)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-8Zelenjava	200 g	200 g
	300 g	300 g
	400 g	400 g
A-9Testenine	50 g (s hladno vodo, 450 g)	50 g
	100 g (s hladno vodo, 800 g)	100 g
A-10Krompir	200 g	200 g
	400 g	400 g
	600 g	600 g
A-11Ribe	250 g	250 g
	350 g	350 g
	450 g	450 g
A-12Pogrevanje juhe	200 ml 200
	400 ml 400
	600 ml 600
A-13Pokovka	100 g	100
A-14Piščančji medaljoni	200 g	200 g
	400 g	400 g
	600 g	600 g
A-15Mleto meso	4	4

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

The appliance is for household use for heating food and beverages using electromagnetic energy, for indoor use only.

INSTRUCTIONS FOR USE

Carefully read the instructions and save them for future reference.

These instructions are intended for the user.

They describe the cooker and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

WARNING

To reduce the risk of fire, electric shock, injury to persons, or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• Only use utensils that are suitable for use in microwave ovens.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The oven should be cleaned regularly and any food deposits removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• Only use the temperature probe recommended for

this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

- The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
• farm houses;
• bed and breakfast type environments.

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- Metallic containers for food and beverages are not allowed during microwave cooking.

- The appliance shall not be cleaned with a steam cleaner.

- The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

- The microwave oven is intended to be used built-in.

- Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor

and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)

• Steam cleaner is not to be used.
• Surface of a storage drawer can get hot.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• WARNING: Accessible parts may become hot during use. Young children should be kept away.
• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1). The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2). The extension cord must be a grounding-type 3-wire cord.

3). The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

• Clean the cavity of the oven after using with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
• Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use	as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass Tray Turntable Ring Assembly

Instruction Manual

Turntable Shaft

Grill Rack (Cannot be used in microwave function and must be placed on the glass tray)

A) Control panel

D) Door assembly

B) Turntable shaft

E) Safety interlock system

C) Observation window

F) Oven cavity

TURNTABLE INSTALLATION

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

How to put the turntable in place:

1. Place the turntable ring assembly ③ into the recess in the cooking compartment.
2. Place the glass tray ① on the turntable ring assembly ③. Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray ① engages in the turntable shaft ② in the centre of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge.

Note:

1. Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.
2. Never place the glass tray upside down. The glass tray should never be restricted.
3. Both glass tray and turntable ring assembly must always be used during cooking.
4. All food and containers of food are always placed on the glass tray for cooking.
5. Never restrict the movement of the turntable.
6. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1). Press "Kitchen Timer/Clock" twice to select clock function, the hour figures will flash. 2). Press " < " or " > " to adjust the hour figures, the input time should be within 0 --23. 3). Press "Kitchen Timer/ Clock", the minute figures will flash. 4). Turn " < " or " >" to adjust the minute figures, the input time should be within 0--59. 5). Press "Kitchen Timer/ Clock" to finish clock setting. ":" will flash, and the time will light.

Note:

1). If the clock is not set, it would not function when powered. 2). During the process of clock setting, if you do not press "Kitchen Timer/Clock" in 1 minute, the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " Microwave/ Grill/ Combi. " once, the screen will display "900W". Press " Microwave/ Grill/ Combi. " repeatedly or press " < "or " > " to choose the power you want, "900W", "720W ", "450W", "270W", "90W", "G", "C-1" or "C-2" will display for each added press. Then press "Start/ +30 Sec./ Confirm" to confirm ,and press " < " or " > " to set cooking time from 0:05 to 95:00. Press " "Start/ +30 Sec./ Confirm" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1). Press " Microwave/ Grill/ Combi " once, the screen displays "900W". 2). Press " Microwave/ Grill/ Combi " again or press " < " or " >" to choose 80% microwave power. 3). Press "Start/+30 Sec./Confirm" to confirm, and the screen displays "720 W". 4). Press "< "or "> " to adjust the cooking time until the oven displays "20:00". 5). Press " Start/ +30 Sec./ Confirm " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min:1 minute 30---95 min:5 minutes

"Microwave/Grill/Combi." Order	Pad instructions Display	Microwave Power	Grill Power
1 900 W	100%
2 720 W	80%
3 450 W	50%
4 270 W	30%
5 90 W	10%
6 G 0		%	100%
7 C-1 55		%	45%
8 C-2 36		%	64%

3. Grill or Combi. Cooking

Press " Microwave/ Grill/ Combi. " once, the screen will display "900W". Press " Microwave/ Grill/ Combi. " repeatedly or press " < " or " > " to choose the power you want, "900W", "720W ", "450W", "270W", "90W", "G", "C-1" or "C-2" will display for each added press. Then press "Start/ +30 Sec./ Confirm" to confirm, and press " < " or " > " to set cooking time from 0:05 to 95:00. Press " Start/ +30 Sec./ Confirm " again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power (C-1) to cook for 10 minutes, you can operate the oven as follows:

1) Press "Microwave/Grill/Combi" once; the screen will display "900W". 2) Press "Microwave/Grill/Combi" several times or press "<" or ">" to choose "C-1". 3) Press "Start/+30 Sec./Confirm" to confirm. 4) Press "<" or ">" to adjust the cooking time until the oven displays "10:00". 5) Press "Start/+30 Sec./Confirm" to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. For better grilling results, turn the food over, close the door, and then press "Start/+30 Sec./Confirm" to continue cooking. If no operation is performed, the oven will continue working.

4. Defrost by Time

1) Press "Weight/Time Defrost" twice; the oven will display "dEF2". 2) Press "Start/+30 Sec./Confirm" to confirm. 3) Press "<" or ">" to set the cooking time; the time range is "00:05-95:00". 4) Press "Start/+30 Sec./Confirm" to start cooking. If half the time passes, the buzzer will sound twice to remind you to turn the food over. If no operation is performed, the oven will continue working.

5. Defrost by Weight

1) Press "Weight/Time Defrost" once; the oven will display "dEF1". 2) Press "Start/+30 Sec./Confirm" to confirm. 3) Press "Weight/Time Defrost" repeatedly or press "<" or ">" to select the defrost menu; "d01", "d02", "d03", "d04" will display in order. 4) Press "Start/+30 Sec./Confirm" to confirm. 5) Press "<" or ">" to select the weight of the food. 6) Press "Start/+30 Sec./Confirm" to start defrosting.

Menu	d01Frozen bread	d02Frozen meat	d03Frozen vegetable	d04Frozen pizza
Weight	100g-1000g	100g-2000g	100g-1000g	100g-600g

6. Kitchen Timer

1) Press "Kitchen Timer/Clock" once; the screen will display 00:00. 2) Press "<" or ">" to enter the correct time. (The maximum cooking time is 95 minutes.) 3) Press "Start/+30 Sec./Confirm" to confirm the setting. 4) When the kitchen timer reaches the set time, the buzzer will ring 5 times.

Note:

During the Kitchen Timer, no other programs can be set.

7. Quick Start

1) In the waiting state, press "Start/+30 Sec./Confirm" to start 30 seconds of cooking at 100% power; each additional press increases the cooking time by 30 seconds, up to 95 minutes. 2) In the waiting state, press "<" to set the cooking time for 95 minutes at 100% microwave power, then press "<" or ">" to adjust the cooking time. Then press "Start/+30 Sec./Confirm" to start cooking.

Note:

In microwave, grill, combination cooking, time defrost, or multi-stage modes, each press of "Start/+30 Sec./Confirm" increases the cooking time by 30 seconds.

8. Lock-out Function for Children

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long beep denoting entering the children-lock state. The locked icon and the current time (if the clock is set) or "0:00" will display.

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released.

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section. Kitchen Timer and Auto Menu can not be in multi-section cooking. Each one more press

on "Start/+30Sec./Confirm" can increase the time by 30 seconds (except weight defrost).

Example: If you want to defrost food of d01 for 500g and then cook with 80% microwave power for 7 minutes, operate it as the following:

1). Press "Weight/Time Defrost" once, and the oven will display "dEF1". 2). Press " Start/+30 Sec./ Confirm " to confirm. 3). Press "< "and " > " or press " Weight/Time Defrost " to select the weight defrost menu till "d01" displays. 4). Press " Start/+30 Sec./ Confirm " to confirm. 5). Press "<" or "> " to set the defrost weight for 500g. 6). Press "Microwave/Grill/Combi."twied the oven will display "720W". 7). Press " Start/ +30 Sec./ Confirm " to confirm. 8). Press "< "or " > " to set the defrost time for 7 minutes. 9). Press " Start/+30 Sec./ Confirm " to start cooking and buzzer will sound once for the first section, defrosting time counts down. Buzzer will sound once again entering the second cooking. When cooking finishes, buzzer sounds five times.

10. ECO Function

To enter ECO mode: In waiting state, press "Stop/Clear" to enter the ECO mode. The screen will go out.

To cancel ECO mode: In ECO mode, press any keys, press " < " or " > " or open the oven door to cancel it.

11. Silent mode

To activate the silent mode: In waiting state, press and hold "Kitchen Timer/ Clock" for 3 seconds. A long beep will sound. When you press the keys, it does not make a sound.

To deactivate the silent mode: In silent mode, press and hold "Kitchen Timer/ Clock" for 3 seconds. A long beep will sound and the oven will exit silent mode.

12. Aquaclean Function

To enter the Aquaclean mode: In waiting state, press and hold “Microwave/Grill/Combi” for 3 seconds. A long beep will sound and the oven will enter aquaclean mode.

Put 200ml of water inside, and then press "Start/+30 Sec./Confirm" to start the Aquaclean function with 900W power level and 5 minutes which can not be changed.

13. Inquiring Function

1). In states of microwave, grill and combination cooking, press "Microwave/Grill/Combi." the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state. 2). In cooking state, press "Kitchen Timer/ Clock" to inquire the time and the time will display for 3 seconds.

14. Electric door

Press "☐" button, the oven door will open.

Note:

if there is a fault when pressing "☐" button directly, screen will display "E-3", re-close the furnace door and access to electricity again, until the normal state is restored.

15. Sucker

If the electric door is broken, opening the oven door by the sucker as is shown above.

16. Auto Menu

1). Press " > " to choose the menu, and "A1" to "A15" will display. 2). Press " Start/ +30 Sec./ Confirm " to confirm. 3). Press "<" or "> " to choose the default weight as the menu chart.

4). Press " Start/ +30 Sec./ Confirm " to start cooking.

Menu Chart

Menu Weight	Display
A1 Pizza	200 g 200 g
	400 g 400 g
A2 Reheat plate	200 g 200 g
	400 g 400 g
	600 g 600 g
A3 Melt chocolate	100 g 100 g
	150 g 150 g
	200 g 200 g
A4 Melt butter	100 g 100 g
	150 g 150 g
	200 g 200 g
A5 Meat (Beef)	250 g 250 g
	350 g 350 g
	450 g 450 g
A6 Meat (pork)	250 g 250 g
	350 g 350 g
	450 g 450 g
A7 Meat (chicken)	250 g 250 g
	350 g 350 g
	450 g 450 g
A8 Vegetable	200 g 200 g
	300 g 300 g
	400 g 400 g
A9 Pasta	50g (with cold water 450g)	50 g
	100g (with cold water 800g)	100 g
A10 Potato	200 g 200 g
	400 g 400 g
	600 g 600 g
A11 Fish	250 g 250 g
	350 g 350 g
	450 g 450 g
A12Reheat soup	200ml 200
	400ml 400
	600ml 600
A13Pocporn	100 g 100
A14Chicken nuggest	200 g 200g
	400 g 400g
	600 g 600g
A15Minced meat	4	4

Installation and connection

• This appliance is only intended for domestic use.
• This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
• Please observe the special installation instructions.
• The appliance can be installed in a 60cm wide wall-mounted cupboard.
• The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
• The mains voltage must correspond to the voltage specified on the rating plate.
• The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
• Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Please Read the Manual Carefully Before Installation

Please Note

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

Screw A

Screw B

Mounting Plate

Trim-kit plastic cover

sucker

The built-in cabinet shall not have a rear wall behind the appliance.

Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

Note:

The bracket and bottom cabinet template are needed when installing in both installations.

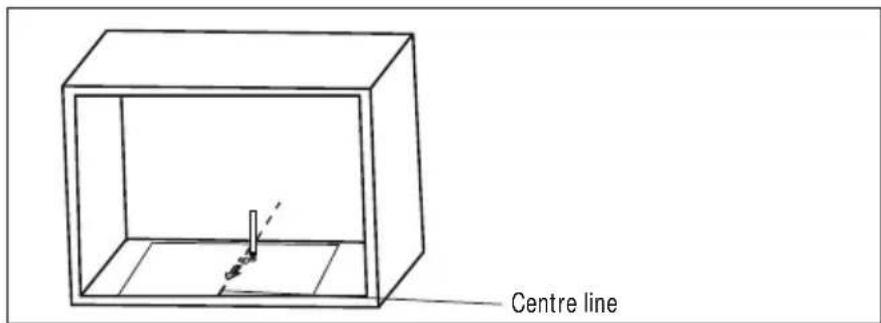

Prepare the cabinet

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

1. Make the marks on the bottom plane of cabinet according to marks "a" of the template

1. Remove the bottom cabinet template and fix the mounting plate with screw A.

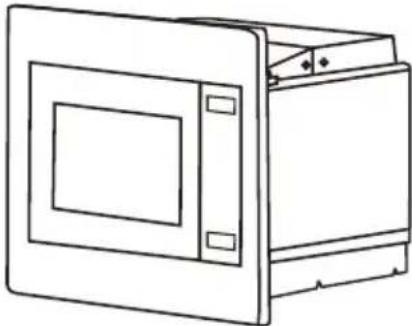

Install the Oven

1. Fix ADJUST SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.
2. Adjust the height of ADJUST SCREW A to keep a 1mm gap between the ADJUST SCREW A and the top plane of the cabinet.
3. Do not trap or kink the power cord.
4. Make sure that the oven is installed in the center of the cabinet.

1. Open the door; fix the oven to the cabinet with the SCREW at the INSTALLATION HOLE of the TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

Specifications

Model: BM251SG2BG/ WG

Rated Voltage: 230 V ~ 50 Hz

Rated Input Power (Microwave): 1450W

Rated Output Power (Microwave): 900W

Rated Input Power (Grill): 1000W

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven cannot be started.	(1). Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2). Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3). Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4). Door is not closed well.	Close door well.

According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in the future you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you can find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

Eventual mismatches in colour shades between different appliances or components within a single design line may occur due to various factors, such as different angles under which the appliances are observed, different coloured backgrounds, materials, and room illumination.

Additional recommendations for cooking with microwave and useful advice can be found on the website:

http://www.gorenje.com

WISHES

YOU

YOUR

APPLIAN

gorenje

We reserve the right to any changes and errors in the instructions for use.

DEAR CUSTOMER

A) Control panel

D) Door unit

B) Turntable shaft

Note:

16. Auto menu

A) Control panel B) Turntable shaft C) Control window

D) Door assembly

E) Safety locking system

F) Oven interior / preparation area

Adjusting the turntable

Clean the oven interior and adjust the turntable. When installing a new appliance, check that you have removed all packaging, film, and adhesive tapes from the appliance and the turntable shaft. Before using the appliance for food preparation for the first time, correctly install the turntable. It is also necessary to clean the oven interior (cooking area) and all accessories.

Note:

1. SETTING THE CLOCK

When you connect the microwave oven to the electrical power supply, the display will show "0:00" and the oven will emit one beep.

15.5 Automatic programs (AutoMenu)

1. Press the ">" key to select the menu. The display will show labels from "A1" to "A15".
2. Press the "Start/+30 sec./Confirm" key to confirm the setting.
3. Use the "<" and ">" keys to select the desired weight from the displayed table.
4. Press the "Start/+30 sec./Confirm" key and the oven will start operating.

Meni Teža Prikaz
A-1Pica	200 g	200g
	400 g	400g
A-2Zagrijavanje posuđa	200 g	200 g
	400 g	400 g
	600 g	600 g
A-3Topljenje čokolade	100 g	100 g
	150 g	150 g
	200 g	200 g
A-4Taljenje maslaca	100 g	100 g
	150 g	150 g
	200 g	200 g
A-A-5 Me (govedina)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-A-6 Me (svinjetina)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-7 Meso (piletina)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-8Povrće	200 g	200 g
	300 g	300 g
	400 g	400 g
A-9Tjestenine	50 g (s hladno vodo, 450 g)	50 g
	100 g (s hladno vodo, 800 g)	100 g
A-10Krumpir	200 g	200 g
	400 g	400 g
	600 g	600 g
AA--11Ribe	250 g	250 g
	350 g	350 g
	450 g	450 g
A-12Podgrijavanje juhe	200 ml 200
	400 ml 400
	600 ml 600
A-13Kokice	100 g	100
A-14Pilećimedaljoni	200 g	200 g
	400 g	400 g
	600 g	600 g
A-15Mljevenomeso	4	4

In accordance with the Waste Electrical and Electronic Equipment (WEEE) Directive, waste electrical and electronic appliances must be collected and processed separately. When you dispose of this product, please do not put it in household waste. Please send this product to the nearest collection point for waste electrical and electronic equipment.

For any information or in case of problems, contact the Gorenje customer support center in your country (the telephone number can be found in the international warranty list). If there is no such center in your country, contact the Gorenje service department for household appliances.

A) Control panel B) Rotating turntable shaft C) Control window

1. SETTING THE CLOCK

1. Automatic programs
2. Press the ">" button to select the menu. The display will show labels from "A1" to "A15".
3. Press the "Start/+30 sec./Confirm" button to confirm the selection.
4. Use the "<" and ">" buttons to select the desired weight from the displayed table.
5. Press the "Start/+30 sec./Confirm" button to start the oven.

Table of automatic programs

Meni Teža Prikaz
A-1Pica	200 g	200g
	400 g	400g
A-2Zagrevanje tanjira	200 g	200 g
	400 g	400 g
	600 g	600 g
A-3Topljenje čokolade	100 g	100 g
	150 g	150 g
	200 g	200 g
A-4Topljenje putera	100 g	100 g
	150 g	150 g
	200 g	200 g
A-A-A-5 (govedina)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-A-A-6 (svinjetina)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-A-A-7 (živina)	250 g	250 g
	350 g	350 g
	450 g	450 g
A-8Povrće	200 g	200 g
	300 g	300 g
	400 g	400 g
A-9Testenine	50 g (s hladnom vodom, 450 g)	50 g
	100 g (s hladnom vodom, 800 g)	100 g
A-10Krompir	200 g	200 g
	400 g	400 g
	600 g	600 g
AA-11Ribe	250 g	250 g
	350 g	350 g
	450 g	450 g
A-12Podgrevanje supe	200 ml 200
	400 ml 400
	600 ml 600
A-13Kokice	100 g	100
A-14Pileći medaljoni	200 g	200 g
	400 g	400 g
	600 g	600 g
A-15Mleveno meso	4	4

Adhesive vacuum handle

A. Kitchen furniture for built-in appliances

• A kitchen element in which the oven is built in must not have a side panel at the back behind the oven.
• The minimum height for installing the appliance is 85 cm.
• Do not cover the ventilation openings and air intake slots.

Note: For both types of installation, the mounting plate and the template for the lower part of the kitchen element are required.

B. Prepare the kitchen element

1. Read the instructions on the TEMPLATE FOR THE LOWER PART OF THE KITCHEN ELEMENT. Place the template on the bottom side of the kitchen element.

In accordance with the Waste Electrical and Electronic Equipment (WEEE) Directive, waste electrical and electronic appliances should be collected and processed separately. When the product becomes unnecessary, please do not dispose of it with regular household waste. Instead, please deliver this product to the nearest collection point for waste electrical and electronic equipment.

For any information or in case of problems, contact the Gorenje customer support center in your country (the phone number can be found in the international warranty card). If there is no such center in your country, contact the Gorenje service department for household appliances.

Note:

Microwave/Grill/Combi

16. Auto menu

A) Control panel

D) Door structure

Note:

A) Control panel

D) Door assembly

B) Plate axle

Note:

1. Clock setting

Mounting plate

A) Control panel

Note:

1. Automatic menu
