Product Type	Freestanding Electric Cooker
Brand	Haier
Model	HAIH6IEMCE
Power Source	Electric (Single Phase, 220-240V, 50/60Hz)
Total Power Consumption	Approximately 10.5 kW
Number of Cooking Zones (Hob)	4
Hob Type	Ceramic Glass
Oven Capacity	71 Liters
Oven Functions	Conventional, Fan-assisted, Grill, Defrost
Control Type	Rotary knobs and digital display
Dimensions (Width x Depth x Height)	600 mm x 600 mm x 850 mm
Weight	52 kg
Energy Efficiency Class (Oven)	A
Cleaning System	Catalytic panels for oven interior
Safety Features	Child lock, residual heat indicators, automatic shut-off
Spare Parts Availability	Through authorized Haier service centers
Repairability Index	8.5 / 10
Warranty	2 years (subject to terms)
User Manual Languages	English, French, German, Dutch, Spanish, Italian, Portuguese
Special Features	Timer, oven light, telescopic shelves

Frequently Asked Questions - HAIH6IEMCE HAIER

How do I install the Haier HAIH6IEMCE cooker?

Installation should be performed by a qualified electrician. Ensure the mains supply matches the voltage (220-240V) and the circuit is rated for the cooker's load (around 45A). Leave adequate ventilation gaps as per the manual.

What are the oven functions and how to use them?

The oven offers conventional, fan-assisted, grill, and defrost modes. Use the function selector knob to choose and set temperature. Refer to the User Manual for specific cooking guidelines.

How do I clean the ceramic glass hob?

Use a dedicated ceramic hob cleaner and soft cloth. Avoid abrasive sponges. For burnt residues, scrape gently with a razor blade scraper. Ensure surfaces are cool before cleaning.

How do I activate the child lock?

Press and hold the 'Lock' button (usually with a key icon) for 3 seconds until an indicator appears. To deactivate, repeat the same procedure.

What does the residual heat indicator mean?

After switching off a hob zone, an 'H' symbol indicates the zone is still hot. Do not touch until the symbol disappears.

How do I replace the oven light bulb?

Disconnect the cooker from power. Remove the glass cover by unscrewing or prying (depending on model). Replace with a 25W/300°C rated bulb (E14 base). Reassemble.

Why is the oven not heating properly?

Check if the thermostat is set correctly. Ensure the oven door seals are clean and intact. If problem persists, contact Haier Service.

Can I use aluminum foil inside the oven?

Yes, but avoid covering the oven floor or heating elements completely, as it can hinder heat circulation and cause damage. Use only on wire racks.

How do I set the timer?

Press the timer button, use +/- to set desired time. The oven will sound an alarm when time elapses. Not all models have this function; check your control panel.

Where can I find spare parts for my Haier cooker?

Spare parts are available through authorized Haier service centers and online retailers. Use the model number HAIH6IEMCE for correct parts.

USER MANUAL HAIH6IEMCE HAIER

EN Instruction on mounting and use

Your safety is important to us. Please read this information before using your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp. - Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these installation instructions.
• This appliance must be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit that incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and Maintenance - Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.

Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards. However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to ensure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing, or any item other than suitable cookware contact the Induction glass until the surface is cool.
• Metallic objects such as knives, forks, spoons, and lids should not be placed on the hob surface since they can get hot.
• Keep children away.
• Handles of saucepans may be hot to touch. Check that saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.

Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the induction glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of external timer or separate remote-control system.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

WARNING: In order to prevent tipping of the appliance, this stabilizing means must be installed. Refer to the instructions for installation.

WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacture of the appliance in the instruction for use as suitable or hob guards incorporated in the appliance.

The use of inappropriate guards can cause accidents.

This appliance incorporates an earth connection for functional purposes only.

SAFETY PRECAUTION FOR DRAFT HOOD

Never let the children operate the machine. The draft hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.

The draft hood and its filter should be cleaned regularly in order to keep in good working condition.

Clean the draft hood according to the instruction manual and keep the unit from danger of burning.

Please keep the kitchen room well ventilated. Before connecting this appliance, check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only. There shall be adequate ventilation of the room when the draft hood is used at the same time as appliances working;

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels; Regulations concerning the discharge of air have to be fulfilled.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

CAUTION: Accessible parts may become hot when used with cooking appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt, seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

Congratulations on the purchase of your new Induction Hob with Integrated Hood.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

Product Overview

Top View

1. 2000 W zone, boost to 2600W
2. 1500 W zone, boost to 1800W
3. 2000 W zone, boost to 2600W
4. 1500 W zone, boost to 2000W
5. Flex zone, 2800W boost to 3500W
6. Glass plate
7. Control panel

1. ON/OFF control for hood
2. Low level air volume
3. Mid level air volume
4. High level air volume
5. Boost level air volume
6. Stop and go function control
7. Keylock control
8. Heating zone selection controls
9. ON/OFF control
10. Keep warm control
11. Timer control
12. Flex zone control/BBQ function control

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Iron pot magnetic circuit Ceramic glass plate Induction coil Induced currents

Before using your New Induction Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your Induction hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure. Use the ball of your finger, not its tip. You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Choosing the right Cookware

Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.
• If you do not have a magnet:
• Put some water in the pan you want to check.
• If the square symbol does not flash in the display and the water is heating, the pan is suitable.
• Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot slightly wider will use energy at its maximum efficiency. If you use a smaller pot, efficiency could be less than expected. Always centre your pan on the cooking zone.

Always lift pans off the Induction hob - do not slide, or they may scratch the glass.

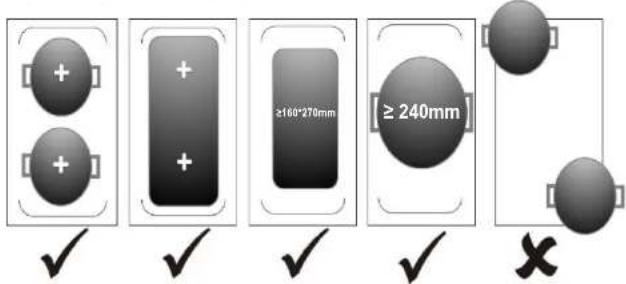

Pan dimensions

The cooking zones are up to a limit, automatically adapted to the diameter of the pan. However, the bottom of this pan must have a minimum diameter according to the corresponding cooking zone. To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.

The base diameter of induction cookware

Cooking zone	Minimum (mm)
1 (210mm)	140
2 (160mm)	100
3,4(180mm)	120
Flex zone	160mm*270mm or 240mm

Using your Induction Hob

To start cooking

1. Touch the ON/OFF control.

After power on, the buzzer beeps once, all displays show " - " or " -- ", indicating that the induction hob has entered the state of standby mode.

1. Place a suitable pan on the cooking zone that you wish to use.

- Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

1. Touching the heating zone selection control, and a indicator next to the key will flash
2. Set a power level by sliding along the "—"control, or just touch any point of the

a. If you don't select a heat zone within 1 minute, the induction hob will automatically switch off. You will need to start again at step 1. b. You can modify the heat setting at any time during cooking. c. If slide along the "—", power will vary from stage 1 to stage 9.

If the display flashes U alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or, • the pan you're using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 1 minutes if no suitable pan is

placed on it.

When you have finished cooking

1. Turn the cooking zone off by sliding along the "—" to the left point, and then hold for 1 second.

Make sure the power display shows "0", then shows "H".

1. Turn the whole cooktop off by touching the ON/OFF control.

1. Beware of hot surfaces

'H' will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

In case of a power interruption while "H" is on, please pay attention to not touch the cooking surface even if "H" is no longer shown when the power is back.

Using the Power Management

Using power management you can set the total power to 3.1kW/4.5kW and

7.4kW. The default total power setting is the maximum power level.

Setting the total power level to fit your requirement

1. Make sure the cooktop is turned off. Note: you can only set power management when the cooktop is turned off.
2. Touch the button "Pause function" and hold for 5 seconds. You can hear the buzzer beeps one time.
3. After you hear the beep, touch "+" and "-" button at the same time and hold for 3 second, the timer indicator will show flashing previous total power level, e.g.

'3.1'. Touch and hold "+" and "-" for 1 second again to switch to other power level, for example 3.1. When the power that you want is flashing, touch the button "Pause function" and hold for 5 seconds. The buzzer will beep 10 times. It means you have finished the setting.

Note:

1. After step 2, you must touch the "+" and "-" within 3 seconds after you hear the beep. Otherwise you will need to start again from step 2.
2. Once finish setting, wait till the end of 10 beeps. Do not touch any button during this period. Otherwise the setting will be invalid.

Power management Rules

If total power exceeds the limitation of 3.1kw, 4.5kw(depending on which level you've set), you are not able to increase power stage of any zone. If you increase it by touching '+', the cooktop will beep 3 times and indicator will show a flashing 'Pn'. Thus you need to decrease power stage of other zones before increasing the power of objective zone.

Using the Boost

Boost is the function that one zone rising to a larger power in one second and lasting for 5 minutes. Thus you can get a more powerful and faster cooking.

Using the Boost to get larger power

1. Press and hold the far right end of the slider of the zone you want to enter the Boost function.

1. The Boost power will last for 5 minutes and then the zone will exit Boost status

1. If you want to cancel the Boost during this 5 minutes, directly select the area on the slider except for the Boost button.

Restrictions when using

The four zones were divided into two groups. In one group, if use boost on one zone, first make sure that the other zone is working on/below power level 5. When you select one zone and press 'boost' button, if the other zone is working above power level 5, the "P" and "9" symbols will flash on the display of the selected zone and power level will be automatically set as 9.

Remark: When not using boost function, you can use all four zones at the same time.

Use the flex zone

1. Touch the heating zone slider that you hope to go into flex zone cooking, an indicator next to the key will flash.
2. Touch the flex zone selection button to activate the flexible area as a single big zone. The power level indicators of the front zone and the rear zone will indicate the same power level, and the LED indicator next to the flex zone button will light up.

1. Then you can slide along the "—" control, or just touch any point of the "—".

Or

1. If you want to quit the flex zone, touch one of the sliders, and then touch the button of the flex zone.

20

Flex Zone

• This area can be used as a single zone or as two different zones, according to the cooking needs at any time.
• The flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, a cookware is moved from one zone to the other within the flexible area, keeping the same power level of the zone where the cookware originally was placed, and the part that is not covered by cookware will not heat.
• Important: Make sure to place the cookware centered on the single cooking zone. In case of big pots, oval, rectangular, and elongated pans, make sure to place the pans centered on the cooking zone, covering both cross marks.

Examples for good and bad pot placements:

As big zone

1. To activate the flexible area as a single big zone, simply press the dedicated key.
2. The power setting works as any other normal area.

As two independent zones

To use the flexible area as two different zones with different power settings, press the dedicated key again, and the zones will return to their old settings.

Using the Barbecue function

BBQ is the function used in the flex zone mode, which allows the pan surface temperature to stay at a reasonable level. Only the two areas on the right can use the BBQ function.

1. Touch one of the right zone sliders, an indicator next to the key will flash.
2. Touch the flex zone button and hold for 3 seconds to activate the BBQ function. Then 'b' and 'q' will be displayed.

1. If you want to cancel the barbecue function, touch one of the right zone sliders, and then touch the flex zone control.

Using the Keep warm

The Keep warm function is suitable for keeping food warm. Using the Keep warm function ensures a stable temperature.

1. Select the cooking zone.

1. Then touch the keep warm button to activate the keep warm function. The cooking zone indicator will display "A".

1. If you want to cancel the keep warm function, touch and hold the heating zone keep warm function. The heating zone will go back to the "0" power stage.

Using the Pause function

The Pause function can be used at any time during cooking. It allows you to stop the induction cooktop and come back to it.

1. Make sure the cook zone is working.
2. Touch the STOP+GO button, the cooking zone indicator will show "II". Then the operation of the induction cooktop will be deactivated within the scope of all cooking zones, except the STOP+GO, ON/OFF, and lock keys.

1. To cancel the pause status, touch the STOP+GO button, then the cooking zone will go back to the power stage which you set before.

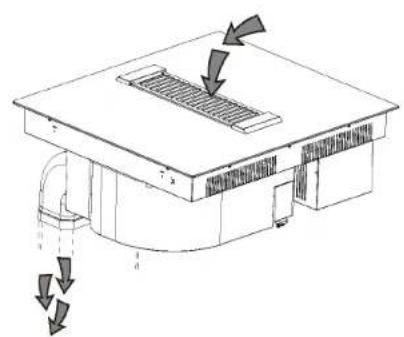

Using the downdraft hood

1. To activate the downdraft hood.

To select a power for any cooking zone, then the hood will be activated automatically and run with level 1.

1. To turn off the hood.

Pressing the On/Off button to turn off the hood. You could reactivate it by pressing this button.

1. Set a power by level button, power level will vary from stage 1 to stage 3. For the Power level P, it will last 5 minutes.

Delay switch-off

Delay switch-off is the function that allows the hood to run after turning off the hob.

1. Please make sure that the hood is running when you stop cooking. Then turn off the hob by touching the ON/OFF control (not the ON/OFF control for the hood), the timer digit will show "05", and the hood will switch off after 5 minutes automatically.

Locking the Controls

• You can lock the controls to prevent unintended use (for example, children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the keylock control. The timer indicator will show "Lo".

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for a while.
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disabled except the ON/OFF. You can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically goes on to standby in 1 minute. The fan will keep cooling down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shuts down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hour)	8	8	8	4	4	4	2	2	2

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switches off after 2 minutes.

People with a heart pacemaker should consult with their doctor before using this unit.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up. • You can set the timer up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting any cooking zone.

1. Touch "+" "-" control, the minder indicator will start flashing and "30" will show in the timer display.

1. Set the time by touching the "-" or "+" control.

Hint: Touch the "-" or "+" control once to decrease or increase by 1 minute. Hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.

1. Buzzer will bips for 30 seconds and the timer indicator shows "-" when the setting time finished.

Setting the timer to turn one cooking zone off

Cooking zones set for this feature will:

1. Touching the heating zone slider that you want to set the timer for.
2. Touch timer control, the minder indicator will start flashing and "30" will show in the timer display.
3. Set the time by touching the "-" or "+" control.

Hint: Touch the "-" or "+" control once will decrease or increase by 1 minute.

Touch and hold the "-" or "+" control, the timer will decrease or increase by 10 minutes.

1. To cancel the timer, touch the heating zone slider, and then set the time to "00". And then "--".
2. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The dot next to power level indicator will illuminate indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will be automatically switch off and show "H".

Other cooking zone will keep operating if they are turned on previously.

Setting the timer to turn more than one cooking zone off

1. If use this function to more than one heating zone, the timer indicator will show the shortest time.

(e.g. zone 2# setting time of 3 minutes, zone 3# setting time of 6 minutes, the timer indicator shows "03".)

NOTE: The flashing dot next to power level indicator means the timer indicator is showing time of the heating zone.

If you want to check the set time of other heating zone, touch the heating zone selection control. The timer will indicate its set time.

1. When cooking timer expires, the corresponding heating zone will be automatically switch off and show "H".

NOTE: If you want to change the time after the timer is set, you have to start from step 1.

Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly, particularly if you're using Power Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the temperature setting. Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85°C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour-thickened sauces below boiling point.

Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak

To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 - 8 minutes per side. Press the steak to gauge how cooked it is - the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For stir-frying

1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you.

Heat setting	Suitability
1 - 2	delicate warming for small amounts of foodmelting chocolate, butter, and foods that burn quicklygentle simmeringslow warming
3 - 4	reheatingrapid simmeringcooking rice
5 - 6	pancakes
7 - 8	sauteingcooking pasta
9	stir-fryingsearingbringing soup to the boilboiling water

Care and Cleaning

What? How? Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Induction glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The induction hob cannot be turned on.	No power.	Make sure the induction hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your induction cooktop' for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low humming noise when used on a high heat setting.	This is caused by the technology of induction cooking.	This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting.
Fan noise coming from the induction hob.	A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you've turned the induction hob off.	This is normal and needs no action.Do not switch the power to the induction hob off at the wall while the fan is running.
Pans do not become hot and appears in the display.	The induction hob cannot detect the pan because it is not suitable for induction cooking.The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centred on it.	Use cookware suitable for induction cooking. See section 'Choosing the right cookware'.Centre the pan and make sure that its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display).	Technical fault.	Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

Failure Display and Inspection

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes:

Problem	Possible causes	What to do
F3/F4	Temperature sensor of the induction coil failure	Please contact the supplier.
F9/FA	Temperature sensor of the IGBT failure.	Please contact the supplier.
E1/E2	Abnormal supply voltage	Please inspect whether power supply is normal.Power on after the power supply is normal.
E3	High temperature of the induction coil temperature sensor	Please contact the supplier.
E5	High temperature of the IGBT temperature sensor	Please restart after the hob cools down.

The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.

Technical Specification

Model	HAIH6IEMCE	HAIH6IEMCF
Cooking Zones	4 Zones	4 Zones
Supply Voltage	220-240V~,50-60Hz	220-240V~,50-60Hz
Installed Electric Power	6800-7600W	6800-7600W

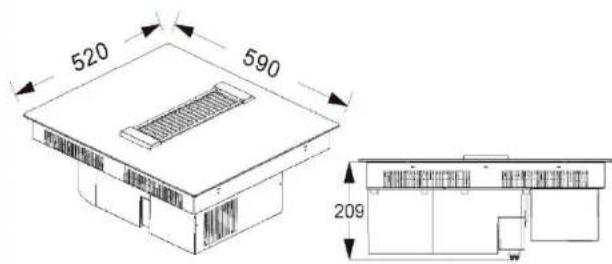

Product Size LxWxH(mm)	590X520X213	590X520X213
Built-in Dimension AxB (mm)	560X490	560X490

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

34

1x

4x

1x ( 4x ∅3.5x8mm

1x

1x 35

1x

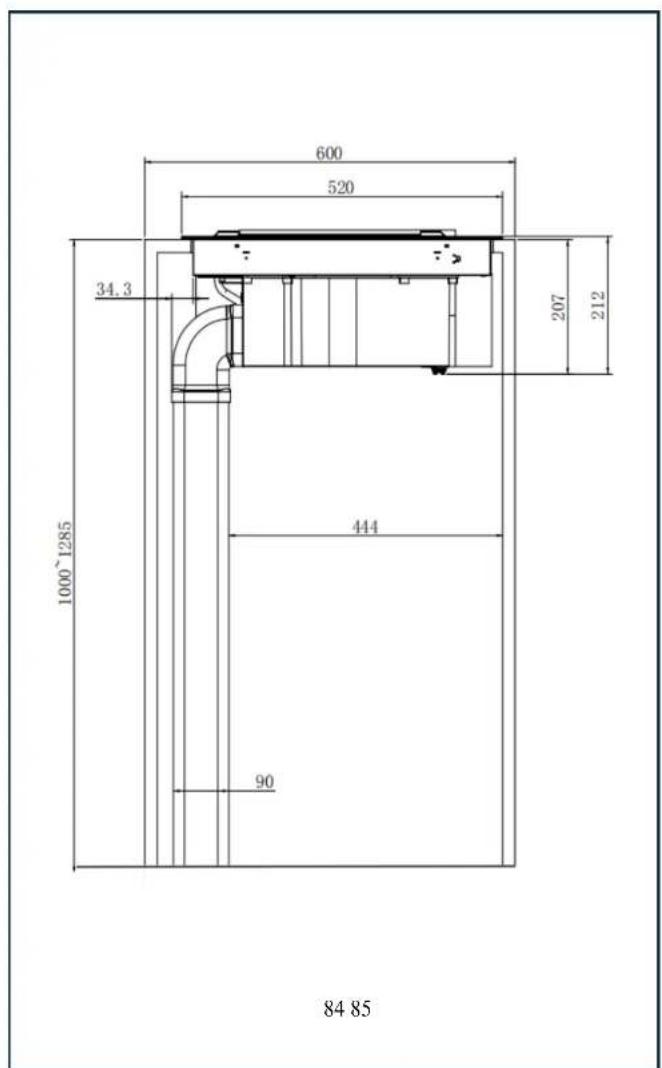

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the Induction cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

Worktop/Kitchen cabinet

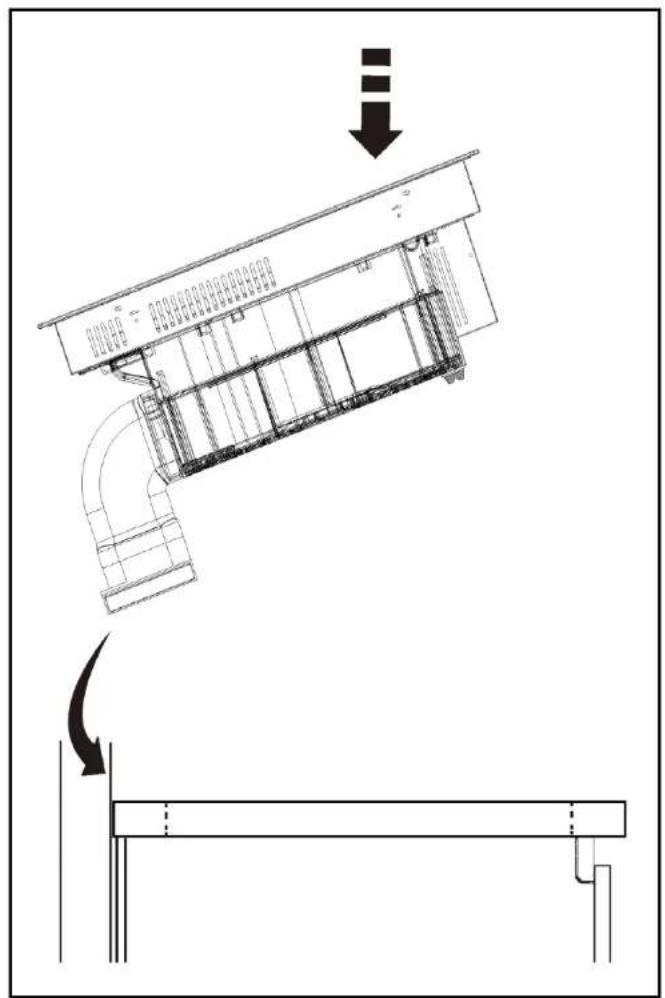

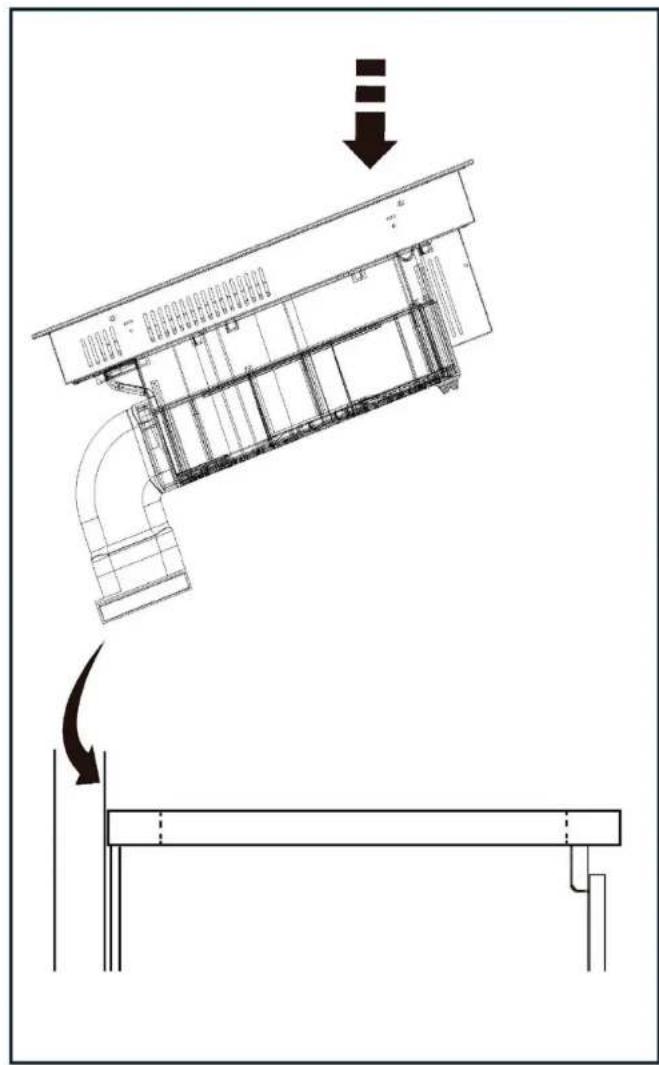

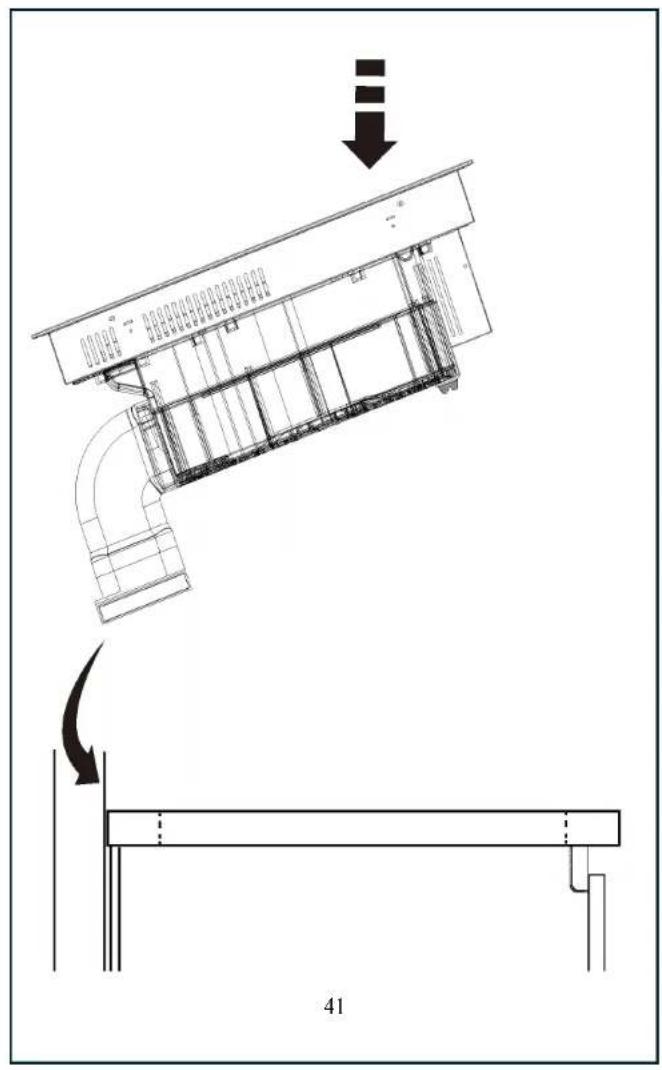

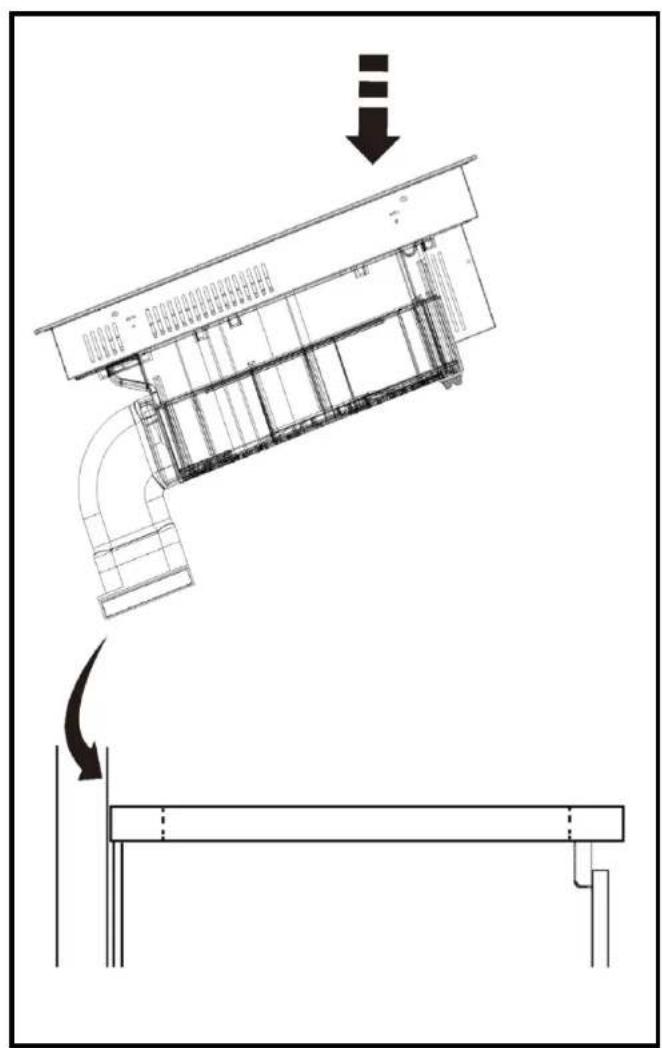

Before you install the machine, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
• the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)
• the isolating switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and bylaws if in doubt regarding installation
• Use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that:

• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob
• the isolating switch is easily accessible by the customer

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics
3. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75 °C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

• If the cable is damaged or to be replaced, the operation must be carried out by the after-sales agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains, an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised technicians only.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

iron pot

magnetic circuit

ceramic hob

induction coil

induced currents

82

1x

4x

1x (4x ∅3.5x8 mm)

1x

1x

83

1x

steel pot

130

1x

4x

1x [NO TEXT] 4x ∅3.5x8 mm

1x

1x

131

1x

590	520	213	209	560+5	490-5	Min 50

iron panel

As large zone

178 179

1x

4x

1x (4x ∅3.5x8mm

1x

1x

1x

180 181

cast iron pot

Flexible zone

One large zone

L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	213	209	560 + 5	490 + 5	min. 50

A (mm)	B (mm)	C (mm)	D E
760	min. 30		min. 20	Přívod vzduchu	Výstup vzduchu 5 mm

232

233

234

235

iron pot

Flex zone

270

271

272

273

Before installing the appliance, make sure that

iron pot

magnetic circuit

glass ceramic plate

Lift the cookware from the induction hob – do not slide them as this may scratch the glass.

Cookware dimensions

The cooking zones automatically adapt to the diameter of the cookware up to a limit. However, the bottom of this cookware must have a minimum diameter in accordance with the corresponding cooking zone. To make the best use of your hob, place the cookware in the center of the cooking zone.

1. The power boost will last for 5 minutes, after which the zone will exit the power boost

or

1. If you want to leave the flexible zone, touch one of the sliders, then touch the flexible zone key.

Flexible zone

As a large zone

1. To activate the flexible area as one large zone, simply press the dedicated key.
2. Power adjustment works just like any other normal area.

1. To cancel the pause state, touch the STOP+GO button, and the cooking zone will return to the power level you previously set.

Using the hood

1. Activating the hood.

If you want to select the power for any cooking zone, the hood will automatically activate and start at level 1.

1. Turning off the hood.

L (mm)	(mm)	V (mm)	D (mm)	A (mm)	B (mm)	X (mm)
590	520	213	209	560+, 4	90+5 50	mini

Under all circumstances, make sure that the induction hob is well ventilated and that the air inlet and outlet are not blocked. Make sure that the induction hob is in good working condition. As shown below

Note: The safety distance between the hot plate and the kitchen cabinet above the hot plate should be at least 760 mm.

Iron pot

Flexible zone

590	520	213	209	560+∞	490+5	50 ελάχ.
