Product type	Front-loading washing machine
Model	LI6 1470
Brand	Teka
Capacity	8 kg
Maximum spin speed	1400 rpm
Energy efficiency class	A+++
Annual energy consumption	220 kWh
Annual water consumption	10500 L
Noise level (wash/spin)	56 dB / 76 dB
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Net weight	72 kg
Power supply	220-240 V, 50 Hz
Rated power	2100 W
Water pressure	0.5-10 bar
Programs	Cotton, Synthetics, Delicates, Wool, Quick 30, Eco, Rinse & Spin, Drum Clean, etc.
Additional functions	Delay start, Child lock, Pre-wash, Extra rinse, Spin speed adjustment, Temperature selection
Display type	Digital LED
Drum material	Stainless steel
Door opening	Left hinge, 180° opening
Installation type	Freestanding
Maintenance and cleaning	Clean detergent drawer, filter, and door seal regularly; run Drum Clean cycle monthly
Safety features	Child lock, Overheating protection, Overflow protection, Unbalanced load detection
Spare parts availability	Motor, pump, belt, door lock, control board, gasket, hose, filter
Repairability index	8.5/10
Warranty	2 years (standard)

Frequently Asked Questions - LI6 1470 TEKA

How do I install the Teka LI6 1470 washing machine?

Place the machine on a solid, level floor. Remove the transport bolts from the back. Connect the water supply hose (cold water only) and the drain hose to a suitable drain. Plug into a grounded outlet. Ensure the drum is empty before first use.

What is the maximum load for the cotton program?

The maximum load for the cotton program is 8 kg. Overloading may affect washing performance and cause excessive vibration.

How do I clean the detergent drawer?

Pull out the drawer, press the lever inside the compartment (if present) to remove it completely. Rinse under running water with a brush. Wipe the drawer housing. Reinsert when dry.

What does the error code E20 mean?

Error E20 indicates a drainage problem. Check if the drain hose is kinked or blocked. Clean the pump filter located at the bottom front of the machine. Restart the cycle.

Can I use a delay start function?

Yes, you can delay the start of the cycle by up to 24 hours. Select the desired program, press the delay start button, and adjust the time using the corresponding knob or buttons.

Why is my machine vibrating excessively during spin?

Excessive vibration may be due to the machine not being level, transport bolts still installed, or an unbalanced load. Ensure the machine is level, remove transport bolts, and redistribute laundry evenly.

How do I enable the child lock?

Press and hold the child lock button (usually a key icon) for 3-5 seconds until the indicator lights up. Repeat to disable. This prevents children from changing settings during a cycle.

What type of detergent should I use?

Use high-efficiency (HE) detergents suitable for front-loading washers. For specific programs like wool or delicates, use the recommended detergent. Avoid using too much detergent to prevent oversudsing.

How often should I run the drum clean cycle?

It is recommended to run a drum clean cycle every 30 washes or monthly, depending on usage. Use a special cleaner or run an empty cycle at 90°C with a descaling agent.

Where can I find spare parts for my Teka LI6 1470?

Spare parts are available through Teka authorized service centers or online retailers. Common parts include the door seal, pump, belt, and control board. Always use genuine parts to ensure compatibility.

USER MANUAL LI6 1470 TEKA

User Manual

LI6 1470/LI6 1480/W6508.0v

EN ES

SAFETY INSTRUCTIONS

■ Safety Instructions .... 2

INSTALLATION

■ Product Description 9

■ Installation 10

OPERATION

■ Quick Start 13

■ Before Each Washing 15

■ Detergent Dispenser 16

■ Control Panel 18

■ Programmes.... 19

■ Option.... 23

MAINTENANCE

Cleaning and Care 26

Trouble Shooting 29

Technical Specifications .... 30

Product Fiche 31

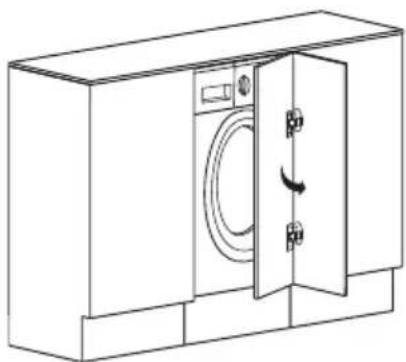

Built-in installation 34

Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons. Risk of electric shock!

The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.
• Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see "Maintenance - Cleaning of drain pump filter") to avoid damages caused by frost.
• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• The mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washing machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.
• Max. inlet water pressure: 1 MPa. Min. inlet water pressure: 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, as it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications" table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with local regulations.

Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

⚠ Warning!

• Do not use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or be connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out the power plug with wet hands.
• Always pull at the plug, not at the cable. Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap, and the outlet hose for possible problems due to changes in water pressure. If the connections loosen or leak, close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• The glass door may become very hot during operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Large quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never use any flammable, explosive, or toxic solvents. Do not use gasoline or alcohol as detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones, etc. may cause serious damage to this machine.
• Remove all objects from pockets such as lighters and matches before using the appliance. Thoroughly rinse items that have been washed by hand.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax, and wax removers should be washed in hot water with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, waterproof textiles, rubber-backed articles, and clothes or pillows fitted with foam rubber pads should not be dried in the machine.
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is difficult to close the door, check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. - Never pour water over the appliance for cleaning purposes. Risk of electric shock! - Repairs shall only be carried out by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of unauthorized persons.

TRANSPORT

• Before Transport: - Bolts shall be reinstalled to the machine by a specialized person. - Accumulated water shall be drained out of the machine.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built-in use.

Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result from it.

• This appliance is intended to be used in household and similar applications such as: - Staff kitchen areas in shops, offices, and other working environments; - Farm houses; - By clients in hotels, motels, and other residential type environments; - Bed and breakfast type environments; - Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

■ Product Description

Note!

- The product line chart is for reference only, please refer to real product as standard.

Accessories

Transport plughole

■ Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation
4. Room temperature is above 0° C
5. Keep far away from the heat sources such as coal or gas burning appliances.

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Loosen the 4 transport bolts with a spanner.

Remove the bolts including the rubber parts and keep them for future use.

Close the holes using the cover caps.

Levelling the washing machine

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify water inlet hose.

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

1. Put it into the water trough. 2. Connect it to the branch drain pipe of the trough.

Quick Start

! Caution!

• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washing machine, so that provide the best performance.

The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1- Remove all accessories from the drum and close the door; 2- Insert the mains plug to the socket; 3- Switch on the washing machine and press "Speed" and "Delay" simultaneously for 10 seconds until "t19" is displayed; 4- Press [ ▷II] to start the appliance and wait till “****” is displayed. 5-The machine MFG60-S1206/C20E-EU(NE) does not needcalibrate, so step 1 to step 4 can be skipped.

1. Before Washing

Note!

- Detergent needs to be added in compartment I if the pre-wash function is selected.

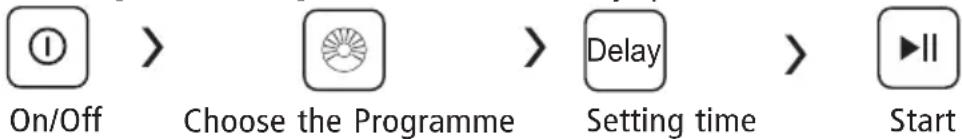

2. Washing

Power on, select programme, select function or remain default settings, press Start/Pause to start the program.

3. After Washing

Buzzer beeps and "End" appears on the display.

■ Before Each Washing

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before washing. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Check the care label

Sort laundry according to color and textile type

Take all items out of the pockets

Tie together long textile strips and belts, close zips and buttons

Put small items into a laundry bag

Turn easy-pilling and long-pile fabric inside out

Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

! Caution!

- Detergent only need to be added in "compartment I" after selecting pre-wash function.

Programme	I	II
Quick 15		●	○
Rapid 45	○	●	○
20°C		●	○
Jeans	○	●	○
Eco 40-60		●	○
Intensive		●	○
Rinse&Spin			○
Spin Only

● Means must

○ Means optional

Programme	I	II
Baby Care	○	●	○
Wool		●	○
Delicate		●	○
Mixed	○	●	○
Synthetic	○	●	○
Sports	○	●	○
Cotton	○	●	○

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, ECO 40-60, Intensive	40 60/	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Intensive, Cotton, ECO 40-60, Mixed,20°C	20/30/40/60	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	20°C, Synthetic	Cold/20/30/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	20/30	Delicate textiles, silk, viscose
Special wool detergent	Wool	20 30/40/	Wool

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
• To achieve the best cleaning result, proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness; if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is; less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

The following symptoms are a sign of detergent overdosing:

• Heavy foam formation
• Poor washing and rinsing result

The following symptoms are a sign of detergent underdosing:

• Laundry turns grey
• Built-up of limescale deposits on the drum, the heating element and/or the laundry

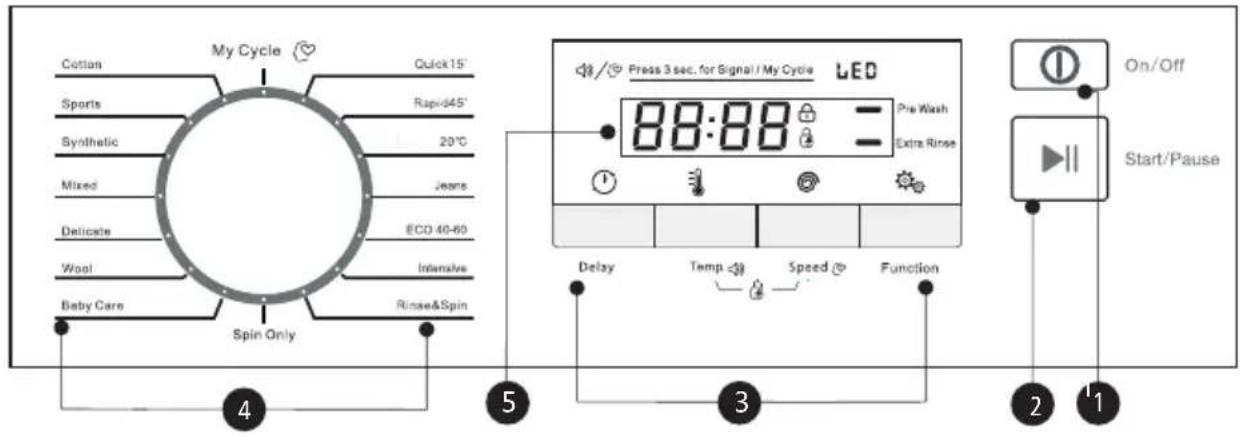

Control Panel

Model: LI6 1480/LI6 1470/W6508.0v

Note!

The chart is for reference only. Please refer to the real product as standard.

1 Power

Product is on/off.

3 Option

This allows you to select an additional function and will light when selected.

5 Display

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

2 Start/Pause

Press the button to start or pause the washing cycle.

4 Programmes

Available according to the laundry type.

Programmes

Model: LI6 1470

Programme	Washing/Drying Load (kg)	Display Time (H)
	7.0	7.0
		1400
Quick 15	2.0	0:15
Rapid 45	2.0	0:45
20°C	3.5	1:01
Jeans	7.0	1:45
Eco 40-60	7.0	3:25
Intensive	7.0	3:48
Rinse&Spin	7.0	0:20
Spin Only	7.0	0:12
Baby Care	7.0	1:43
Wool	2.0	1:07
Delicate	2.5	0:50
Mixed	7.0	1:20
Synthetic	3.5	3:18
Sports	3.5	1:11
Cotton	7.0	3:49

• The above data is for reference only, and the data may change due to different actual use conditions.
• The values given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning EN 60456:2016 with (EU) No. 1061/2010, the EU energy efficiency class is: A+++. Energy test program: Intensive; Speed: The highest speed; Temp.: 60°C / 40°C; Other as the default. Half load for 7.0 kg machine: 3.5 kg.

Note!

- The parameters in this table are only for user's reference. The actual parameters may differ from those in the above-mentioned table.

Programmes

Model: W6508.0vLI6 1480/

Programme	Washing/Drying Load (kg)	Display Time (H)
	8.0	8.0
		1400
Quick 15	2.0	0:15
Rapid 45	2.0	0:45
20°C	4.0	1:01
Jeans	8.0	1:45
Eco 40-60	8.0	3:35
Intensive	8.0	3:48
Rinse&Spin	8.0	0:20
Spin Only	8.0	0:12
Baby Care	8.0	1:43
Wool	2.0	1:07
Delicate	2.5	0:50
Mixed	8.0	1:20
Synthetic	4.0	3:18
Sports	4.0	1:11
Cotton	8.0	3:49

• The above data is for reference only, and the data may change due to different actual use conditions.
• The values given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning EN 60456:2016 with (EU) No. 1061/2010, the EU energy efficiency class is: A+++. Energy test program: Intensive; Speed: The highest speed; Temp.: 60°C/40°C; Other as the default. Half load for 8.0 kg machine: 4.0 kg.

Note!

- The parameters in this table are only for user's reference. The actual parameters may differ from those in the above-mentioned table.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess compliance with regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Rapid 45'	Washing few and not very dirty clothes quickly.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Baby Care	Washing the baby's clothes, it can make the baby's wear cleaner. and make the rinse performance better to protect the baby skin.
Jeans	Specially for jeans.
Mixed	Mixed load consisting of textiles made of cotton and synthetics.
20°C	Washing brightly colored clothes, it can protect the colors better .
Sports	Washing the activewear.
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Delicate	For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Spin Only	Extra spin with selectable spin speed.
Rinse&Spin	Extra rinse with spin.
Eco 40-60	Washing brightly colored clothes, it can protect the colors better. Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.
Intensive	To increase the washing effects, washing time is increased.

Option

Cycle	Default Temp.(°C)	Default spin speed in rpm		Additional functions
Wash cycles	1200 1400
Quick 15	Cold	800	800	Delay,
Rapid 45	40	800	800	Delay, Pre Wash, Extra Rinse,
20°C	20	1000	1000	Delay, Extra Rinse,
Jeans	60	1000	1000	Delay, Pre Wash, Extra Rinse,
Eco 40-60	--	1200	1400	Delay,
Intensive	40	800	800	Delay,
Rinse&Spin	--	1000	1000	Delay, Extra Rinse,
Spin Only	--	1000	1000	Delay,
Baby Care	60	800	800	Delay, Pre Wash, Extra Rinse,
Wool	40	600	600	Delay, Extra Rinse,
Delicate	30	600	600	Delay, Extra Rinse,
Mixed	40	800	800	Delay, Pre Wash, Extra Rinse,
Synthetic	40	800	1200	Delay, Pre Wash, Extra Rinse,
Sports	40	800	800	Delay, Pre Wash, Extra Rinse,
Cotton	40	800	1400	Delay, Pre Wash, Extra Rinse,

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Delay

Set the Delay function:

1. Select a programme
2. Press the Delay button to choose the time (the delaying time is 0-24 H.)
3. Press [Start/Pause] to commence the delay operation

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should press the [On/Off] button to reset the programme.

Pre Wash

Pre Wash

The Prewash function can add an extra wash before the main wash.

Extra Rinse

Extra Rinse

The laundry will undergo an extra rinse once after you select it.

Speed

Speed

Press the button to change the spin speed.

Temp.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.

My Cycle

Memory the frequently used programmes

Press [ ♥ ] for 3 seconds to memory the running programme. The default is cotton.

Child Lock

To avoid mis operation by children.

On/Off

Start/Pause

Press [Temp.] and [Speed]

3 sec. till buzzer beep.

Caution!

• Press the two buttons for 3 sec. to release the function.
• The "Child Lock" will lock all buttons except [On/Off].
• Cut off the power supply to release the child protection.
• The child lock will remain effective when the power is resumed for some models.

Mute the buzzer

On/Off

Start/Pause

Press the [Temp.] button for 3 sec. to mute the buzzer.

To activate the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

! Caution!

- After muting the buzzer function, the sounds will not be activated anymore.

■ Cleaning and Care

⚠ Warning!

- Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

① Caution!

- Never use abrasive or caustic agents, formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter needs to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Clean The Detergent Dispenser

1. Press down the arrow location on softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water. 3.Restore the softener cover and push the drawer into position.

Pull out the dispenser drawer with press the A

Clean the dispenser drawer under water

Clean inside the recess with an old toothbrush

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

Warning!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

After the power is dis-connected, pull out the Dam-Board.

Turn the filter down as shown with the figure and take out sundries matters.

Reinstall each part back after sundries matters are removed.

Caution!

- Make sure emergency drain hose cap and the emergency drain hose are reinstalled properly, otherwise water may leak.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare part for your appliance are available for a minimum of 10 years.

In case of questions please contact our customer service at:

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective. You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognised!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check that the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance - Cleaning the drain pump filter").
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
LI6 1470	7.0kg 63kg	1550*840*825
LI6 1480/W6508.0v	8.0kg	595*540*825	63kg 1950W

Product Fiche

Product fiche concerning Regulation (EU) No 1061/2010

Trade mark
Model identifier	LI6 1470
Rated capacity in kg of cotton laundry	7
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 139kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.67kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.59kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.51kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 9900 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive 60°C programme' and the "Intensive 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	280min
Programme time of the standard 60°C cotton programme at half load	270min
Programme time of the standard 40°C cotton programme at half load	270min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	56dB
Airborne acoustical noise emissions during spinning phase	78dB
'built-in' washing machine	yes

Product Fiche

Product fiche concerning Regulation (EU) No 1061/2010

Trade mark
Model identifier	LI6 1480/W6508.0v
Rated capacity in kg of cotton laundry	8
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 157 kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.75kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.66kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.62kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 11000 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive 60°C programme' and the "Intensive 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	273min
Programme time of the standard 60°C cotton programme at half load	267min
Programme time of the standard 40°C cotton programme at half load	267min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	56dB
Airborne acoustical noise emissions during spinning phase	78dB
'built-in' washing machine	yes

1) The actual energy consumption will depend on how the appliance is used. 2) The actual water consumption will depend on how the appliance is used and on the hardness of the water. 3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

Built-in installation

Appendix

Self-tapping screws (ST4*12)

Self-tapping screws (M5*12)

Hinges

Counter magnet Spacer

Fixed position paper

Tool

Screw driver

Automatic driver Ruler Pencil

Install Steps

Overview

The door is open from right to left. The door is open from left to right.

Preparation and assembly of the door

Make the mark on the door

Fixed position paper on the door.

Drill hole on the door

Installation the hinges and spacer

4

Installation the counter magnet

5

Installation the door

6

Warning!

- When installing the appliance into the kitchen ensure furniture, if possible, the hoses are placed in either of the two recesses on the back of the appliance. This will help to prevent the hoses from becoming kinked or trapped.

Nota

Nota

Trade mark
Model identifier	LI6 1470
Rated capacity in kg of cotton laundry	7
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 139 kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.67kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.59kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.51kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 9900 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive 60°C programme' and the "Intensive 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	280min
Programme time of the standard 60°C cotton programme at half load	270min
Programme time of the standard 40°C cotton programme at half load	270min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	56dB
Airborne acoustical noise emissions during spinning phase	78dB
'built-in' washing machine	yes

■ Product fiche

Product fiche concerning to Regulation (EU) No 1061/2010

Trade mark
Model identifier	LI6 1480/W6508.0v
Rated capacity in kg of cotton laundry	8
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 157 kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.75kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.66kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.62kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 11000 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive 60°C programme' and the "Intensive 40°C programme" are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	273min
Programme time of the standard 60°C cotton programme at half load	267min
Programme time of the standard 40°C cotton programme at half load	267min
duration time of left-on mode	-
Airborne acoustical noise emissions during washing phase	56dB
Airborne acoustical noise emissions during spinning phase	78dB
'built-in' washing machine	yes

Note

Overview

INSTALLATION

Drill the door.

4

5

6
