USER MANUAL DN-A200P DENON

DO NOT OPEN CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock t persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

+ DECLARATION OF CONFORMITY We declare under our sole responsibility that this product, to which this declaration relates, is in conformity with the following standards: EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3. Following the provisions of 73/23/EEC, 89/336/EEC and 93/68/EEC Directive

ÜBEREINSTIMMUNGSERKLÂRUNG Wir erklären unter unserer Verantwortung, da@ dieses Produkt, auf das sich diese Erklärung bezieht, den folgenden Standards entspricht: EN60065, EN55013, EN55020, EN61000-3-2 und EN61000-3-3. Entspricht den Verordnungen der Direktive 73/23/EEC, 89/336/EEC und 93/68/EEC.

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet

The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.

Handie the power cord carefuly. Hold the plug when unplugging the cord.

Do not let insecticides, benzene, and thinner come in contact with the apparatus.

+_ The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

No naked flame sources, such as lighted candles, should be placed on the apparatus. Attention should be drawn to the environmental aspects of battery disposal

Do not expose the set to dripping or splashing fluids:

No objects filed with liquids, such as vases, shall be placed on the apparatus.

LIANO FRANCAIS DEUTSCH ENGLISH ENGLIS EUTSCH FRANCAIS ITALIANO ESPANOL NEDERLANDS SVENSKA A NOTE ABOUT RECYCLING: This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with the local recycling

When discarding the unit, comply with local rules or regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with the local regulations conceming chemical waste.

This product and the accessories packed together constitute the applicable product according to the WEEE directive except batteries. |

HINWEIS ZUM RECYCLING:

ENGLISH Thank vou for choosing the DENON PROFESSIONAL DN-A200 Pre- main Amplifier. This remarkable component has been engineered to provide superb sound, as well as providing outstanding high fidelity. reproduction of your favorite music sources

As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the contents of this manual before proceeding,

[Getting Started ] Accessories Cautions on installation Cautions on Using Mobile Phones … Before using re About the remote entie unit. Inserting the batteries - Operating range of the remote control uni Part names and functions Front panel. Rear panel - ; Remote control unit …

bRLLLEE Connections Connecting the speakers Connecting the Audio Eq ment. Cable indications … Connecting Players and Speakers. Connecting Recorders… Connestinglthe power supply card:

Operation Préparations Prior to Playing Starting Playback

Starting Recording Copying Cassette Tapes

Check that the following parts are attached in addition to the main unit

@ Operating instructions

@ Service station list

® Remote control unit (RC-1022) @ Batteries (RO3/AAA)

RP Cautions on installation

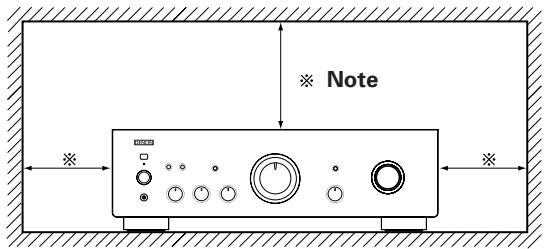

Note: For heat dispersal, do not install this unit in a confined space such as a bookcase or similar enclosure.

ENGLISH Cautions on using mobile phones

Using a mobile phone near this unit may result in noise. If so, move the mobile phone away from this unit when it is in use

+ Moving the set To prevent short-circuits or damaged wires in the connection cables, always unplug the power supply cord and disconnect the connection cables between all other audio components when moving the unit.

n to the following before using this unit:

+ Before turning the power switch on Check once again that all connections are correct and that there are not problems with the connection cables. Always set the power switch to the standby position before connecting and disconnecting connection cables

+ Store the operating instructions in a safe place. After reading the operating instructions, store them in a safe place as they could come in handy in the future.

+ Whenever the power switch is in the STANDBY state, the unit is still connected to AC line voltage. Please be sure to turn off the power switch or unplug the cord when you leave home for, say, a vacation.

+ Note that the illustrations in these instructions may differ from the actual unit for explanation purposes.

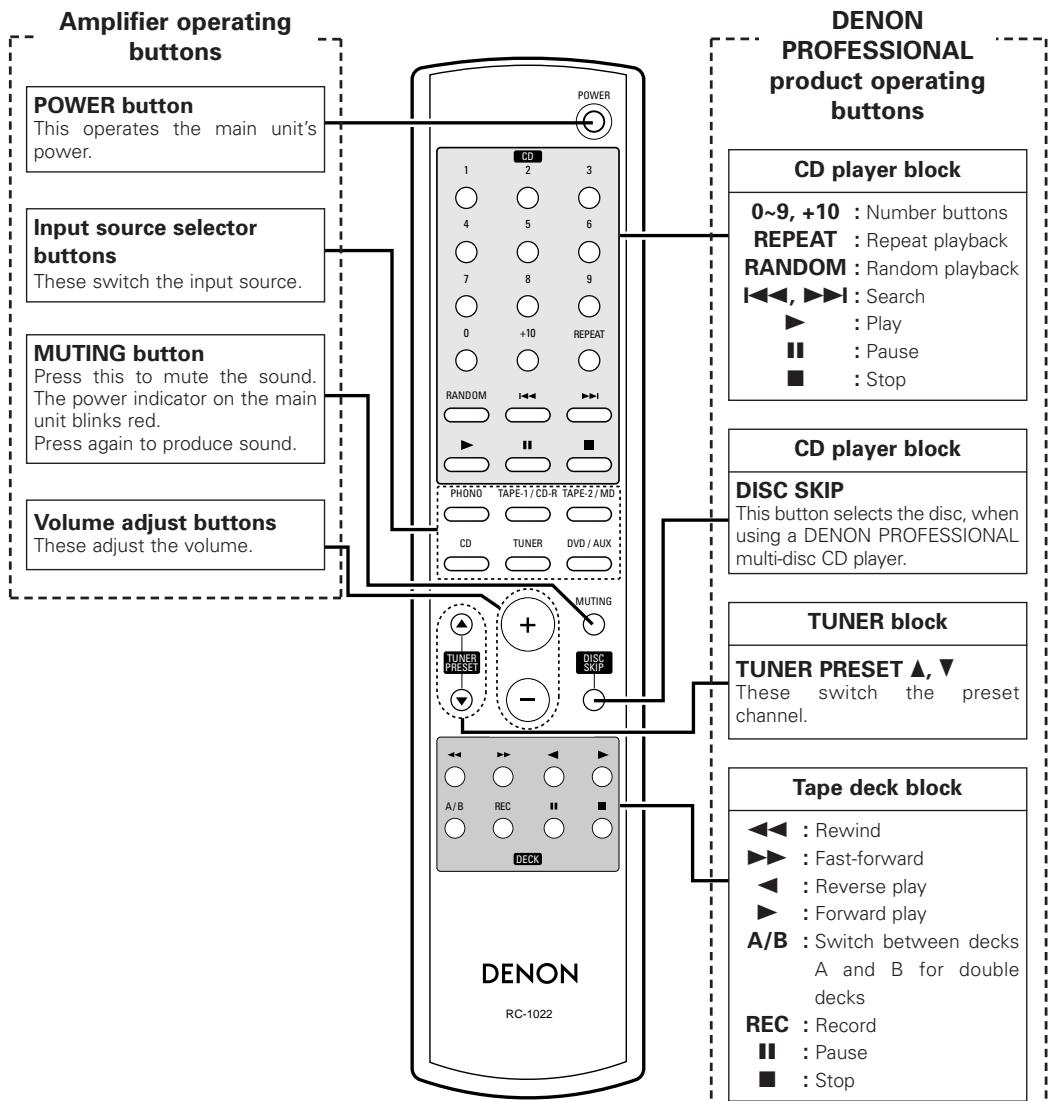

About the remote control unit

The included remote control unit can be used to control DENON PROFESSIONAL CD players, tape decks and tuners

% Some products may not be operable

ENGLISH Getting Started

Inserting the batteries

® Remove the remote control unit's rear cover.

@ Set two RO3/AAA batteries in the battery compartment in the indicated direction

@® Put the rear cover back on.

+ Replace the batteries with new ones if the set does not operate even when the remote control unit is operated nearby the unit. (The attached batteries are only for verifying operation.)

+ When inserting the batteries, be sure to do so in the proper direction, following the “®” and “@" marks in the battery compartment.

+ To prevent damage or leakage of battery fluid: + Do not use a new battery together with an

old one. + Do not use two different types of batteries. +Do not short-circuit, disassemble, heat or dispose of batteries in flames

+ I£the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries

+ Remove the batteries from the remote if it will not be in use for long periods.

Operating r. control unit

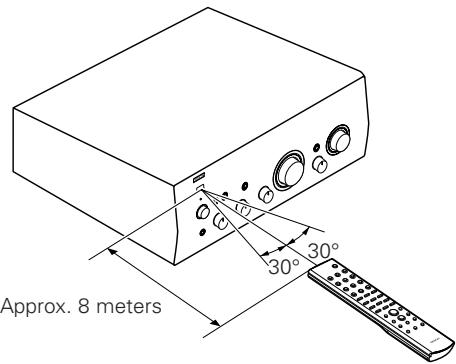

+ Point the remote control unit at the remote sensor when operating it

+The remote control unit can be used from a distance of up to about 8 meters, at a horizontal angle of up to 30° with respect to the sensor.

+lt may be difficult to operate the remote control unit if the remote sensor is exposed to direct sunlight or strong artificial light.

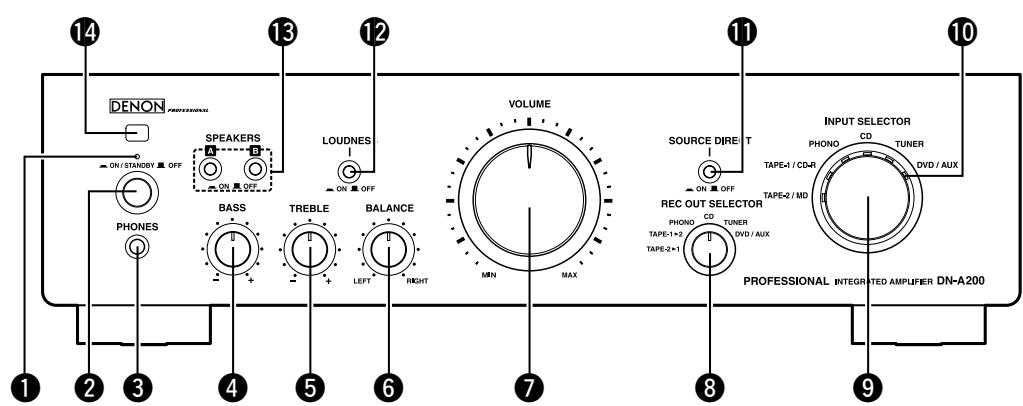

DENON LT | d © POWER indicator Changes as shown below according to this unit's status. + For several seconds after the power is tumed on: Red (blinking) + When the power is on: Green

+ When in standby: Red + When the power is off: Off

© POWER switch (=ON/STANDBY BLOFF } When set 10 “= ON/STANDBY", the power turns on, and when set to "OFF", the power turns off.

© Headphone jack (PHONES)

© TREBLE control knob

© BALANCE control knob

@ VOLUME control knob

© REC OUT SELECTOR knob When copying between 2 recorders to select the source to be output to the recording output terminals.

© INPUT SELECTOR knob Use this to select the source that you wish to listen to.

© input indicator The selected input is shown with an orange indicator.

® SOURCE DIRECT switch When set t0 "ON", the signals do not pass through the tone adjustment circuitry (bass, treble, balance and loudness), resulting in playback with higher sound quality. When set to "OFF", the sound can be adjusted to your tastes.

@ LOUDNESS switch When listening with the volume turned low, set this to “mON" to amplify the bass and treble sound that is hard to hear when the volume is low and achieve a more natural sound

® SPEAKERS A/B switches

+When À {or B) is set to "mON", sound is produced from the speakers connected to the À {or B) speaker output terminals.

+ When both À and B are set to “mON”, sound is produced from the speakers connected to both the À and B speaker output terminals:

+ When both A and B are set to “OFF”, no sound is produced from the speakers. Use this when listening over headphones.

® Remote control sensor

+ When the VOLUME control knob is set just beyond the "12 o‘clock" position lover halfway), the adjustments that can be made with the BASS and TRÉBLE controls is decreased

*When the VOLUME control knob is set to maximum or turned fully clockwise, the base and treble can no longer be adjusted

ENGLISH Getting Started

NOTE: + Functions @, @, @ and ® are only available hen the SOURCE DIRECT switch is set to OFF"

Remote control unit |

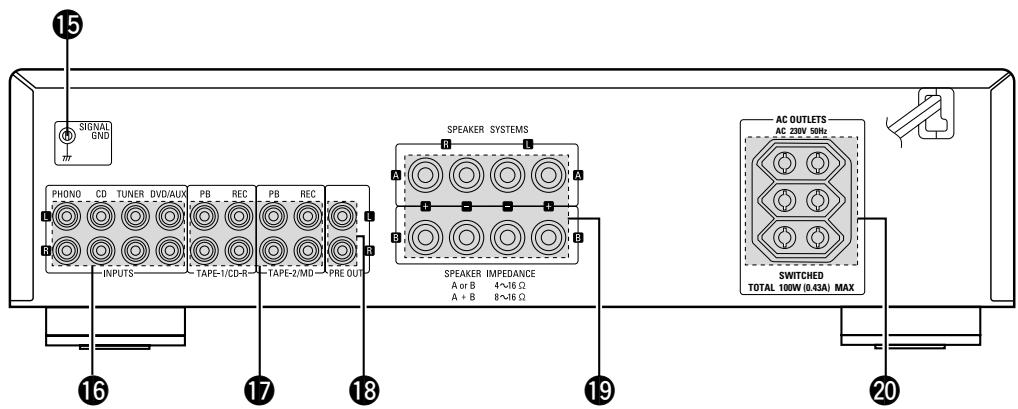

6 © SIGNAL GND (ground) terminal

Connect the ground wire from your turntable here

NOTE: + This terminal is not a safety ground

INPUTS terminals Connect your source equipment here. ® Recording input/output terminals (TAPE-1/CD-R and TAPE-2/MD) Connect vour recording equipment here.

© PRE OUT terminals Use this to add such equipment as à power amplifier or subwoofer.

© SPEAKER SYSTEMS terminals Connect your speakers here

@ AC OUTLETS Use these as the power outlets for other audio devices. Check equipment power requirement ratings before use (see the ratings as marked on the rear panel. If in doubt consult with your dealer or DENON PROFESSIONAL distributor.

+ Short-circuiting plugs are inserted into the PHONO input terminals. Remove these when connecting à turntable. Be sure to keep it for future use

+ The PRE OUT terminals are still active even when using headphones. If you do not want any audio signal to be output from the equipment connected to the PRE OUTS turn off the connected devices (power amplifier, etc.)

+ NEVER insert the short-circuiting pin plug into the recording output or PRE OUT terminals. Doing so could result in damage

A/B : Switch between decks

A and B for double decks : Record

«The included remote control unit can be used to operate DENON PROFESSIONAL CD players, tape decks and tuners.

+ When using it, also refer to the operating instructions of the other devices

+ Some products may not be operable

ENGLISH ENGLIS Connections

Connecting the speakers

Connect the speaker terminals with the speakers making sure that like polarities are matched (® with ®, © with ©):

(Speaker impedance Use speakers with impedances within the ranges shown below according to their usage conditions

Ÿ wires S 2. Insert the cable

NOTE: When making connections, take care that none of the individual conductors of the speaker cable come in contact with adjacent terminals, with other speaker cable conductors, or with the rear panel and screws.

NEVER touch the speaker terminals when the power is on. Doing so could result in electric shocks.

3. Tighten by tuming clockwise

Connecting the speaker cables Speakers used Impedance 1. Loosen by turning A or B only 4-16 @/ohms 2) counterclockwise Both À and B 8 - 16 Q/ohms Either tightly twist or terminate the core

Note on speake pedance

When using speakers with an impedance below the designated value (for example 4 ohms), playing for long periods of time with the volume high could cause the temperature to rise, activating the protection circuit.

When the protection circuit is activated, the output to the speakers is cut off and the power indicator blinks. If this happens, unplug the power cord, wait for the set to cool off and improve ventilation around the unit. Also check the wiring of the input cables and the speaker cables. After doing this, plug the power cord back in and turn the units power back on

If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit, switch off the power and contact à DENON PROFESSIONAL service center.

Connecting the Audio Equipment

+ Do not plug in the power supply cord until al connections have been completed

+ When making connections, also refer to the operating instructions of the other components.

+ Be sure to connect the left and right channels properly (left with left, right with right}

+ Do not bundie power cords together with speaker cables. Doing so could result in humming or noise.

+ Do not turn up the volume when no turntable is connected to the PHONO input terminals: Doing so will cause humming or noise When not connecting à turntable, leave the included short-circuiting pin plug plugged in.

Cautions on playing SA sources: When regular speakers not compatible with SA sources (DVD Audio discs, Super Audio CDs and other sources including treble components above the audible range), set the properties of the player (DVD Audio player, Super Audio CD player, etc.) for use with regular speakers (or amplifiers)

The speakers may be damaged if the volume is set too high when playing SA sources

For instructions on setting the player, refer to the operating instructions included with the player.

The hookup diagrams on the subsequent pages assume the use of the following optional connection

cables (not supplied)

Analog terminal (Stereo) (White) (Red)

IN OUT OUT IN ENGLISH Connections

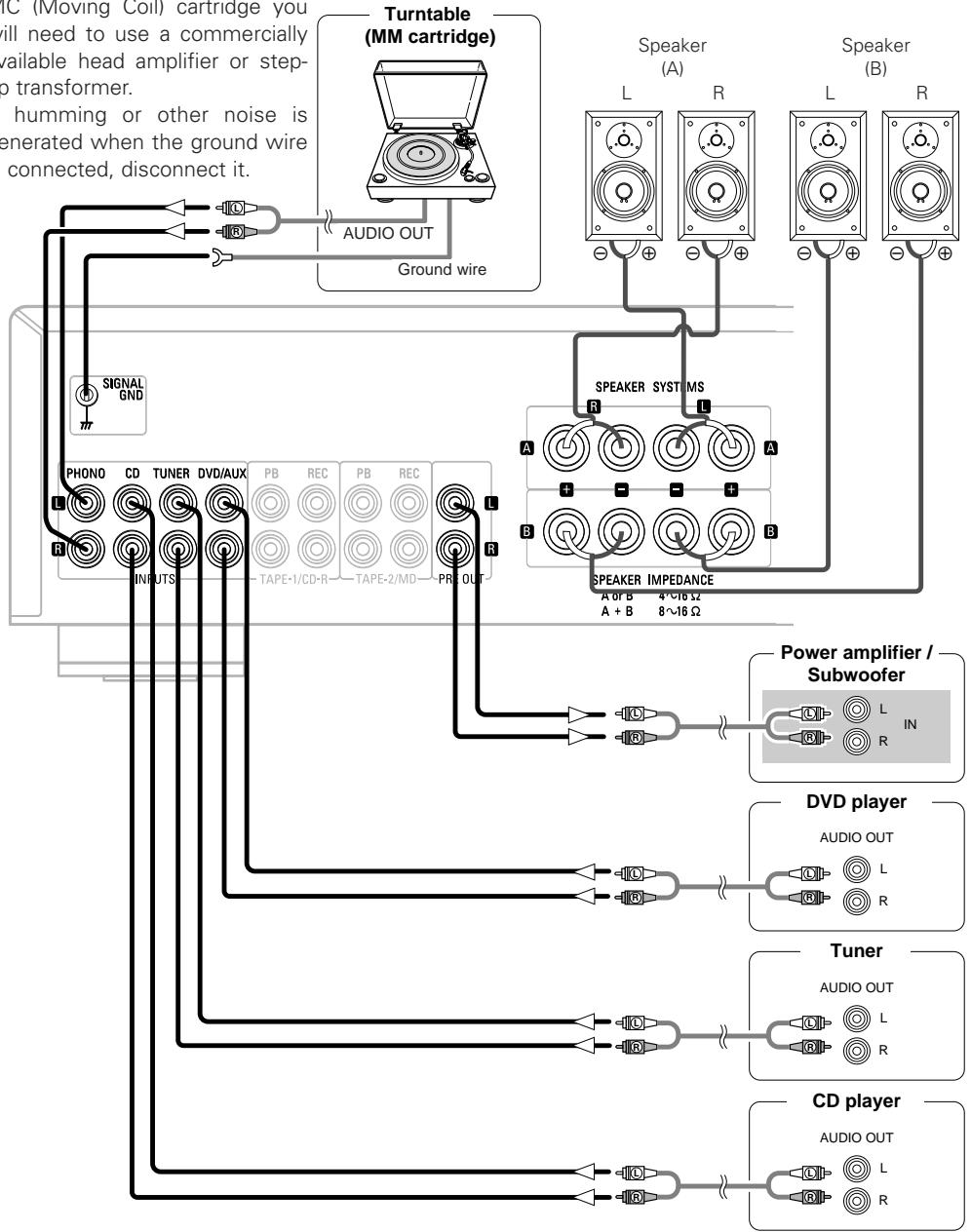

Connecting Players and Speakers

+ Only Turntables fitted with a MM {Moving Magneti cartridge can be used with this unit. If you have an MC (Moving Coill cartridge you Tumtable will need to use à commercially |” (M cartridge) available head amplifier or step- up transformer.

Speaker Speaker ta CE]

+lf humming or other noise is generated when the ground wire is connected, disconnect it.

ENGLISH TOTAL 100 (ASAI MAX ENGLISH Connections

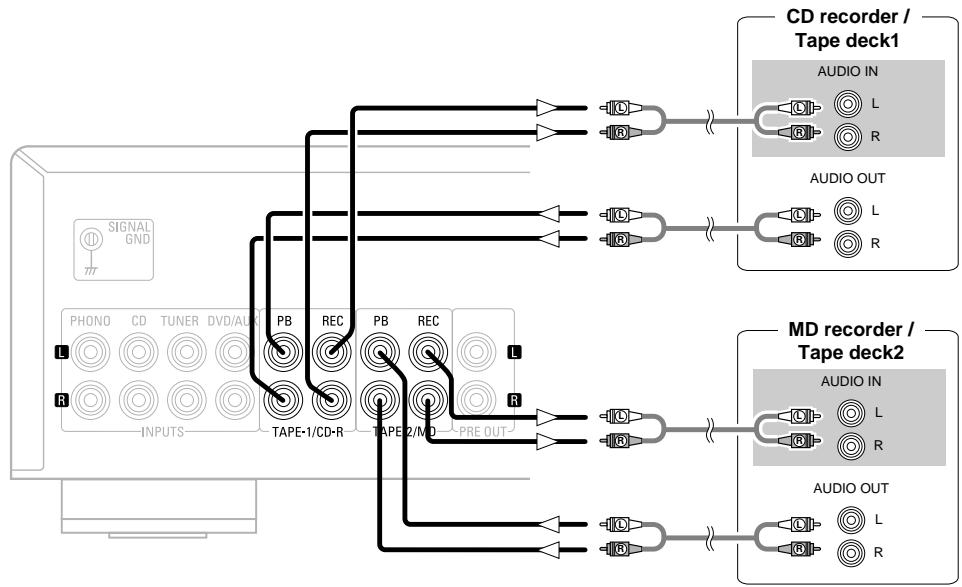

Connecting Recorders

CD recorder / Tape deck1

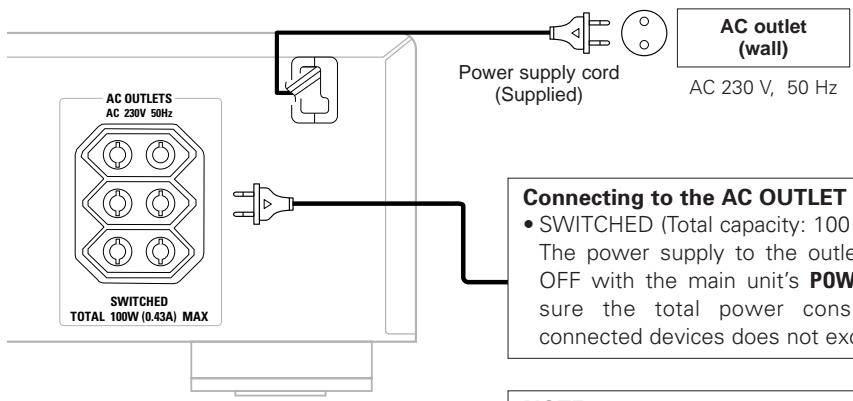

Connecting the power supply cord

AC outiet (wall) Power supply cord {Supplied) AC 230 V, 50 Hz

Connecting to the AC OUTLET

+ SWITCHED (Total capacity: 100 W (0.43 A) The power supply to the outlets tums ON and OFF with the main units POWER switch. Make sure the total power consumption of the connected devices does not exceed 100W.

+ Only use the AC OUTLET for audio equipment Never use it for hair driers, TVS or other electrical appliances

+ Insert the plugs securely. Incomplete connections will result in the generation of noise

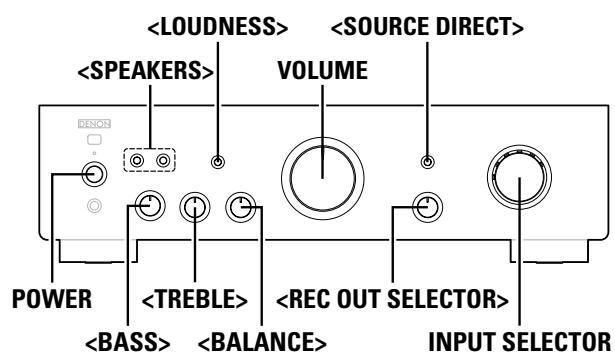

ENGLIS Operation <LOUDNESS> <SOURCE DIRECT> VOLUME

1 Set tbe volume to the mininaum by using VOLUME.

1 Turn <REC OUT SELECTOR> to select the source to be recorded.

2 Set <SOURCE DIRECT> and LOUDNESS> to “OFF”.

3 Set <BASS>, <TREBLE> and <BALANCE> to the center position.

4r= <SPEAKERS> À or B depending on the terminals to which speakers are connected.

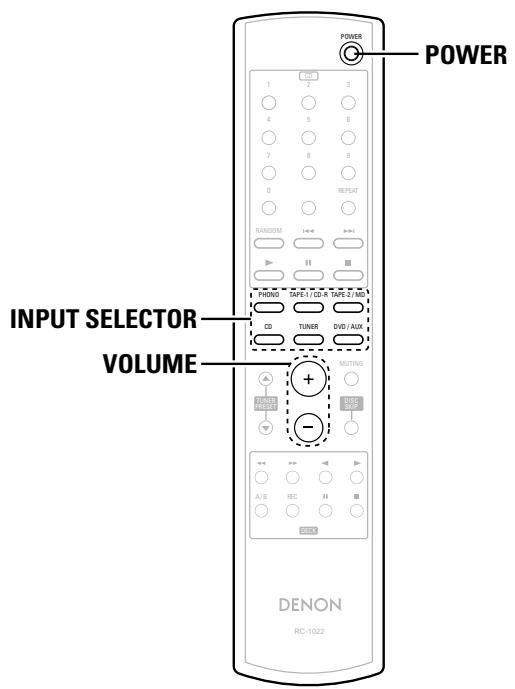

5 Turn on the power by pressing POWER. + The power indicator blinks red for several seconds, then lights green

+ Select one of the sources among the following: TAPE-2/MD, TAPE-1/CD-R, PHONO, CD, TUNER and DVD/AUX: + The input indicator for the selected source lights

2 y te selected source.

3 Adjust the volume by using VOLUME.

About the button names in this explanation < >: Buttons on the main unit [ 1: Buttons on the remote control unit Button name only Buttons on the main unit and remote control unit

Ans the tone with <BASS», <BALANCE> and <LOUDNESS>.

% If there is no need to adjust the tone, press <SOURCE DIRECT>.

ENGLISH PHONO, CD, TUNER, DVD/AUX: Select the device connected to the recording terminals to record.

2 Set the recorder to the record mode.

3 Start playing the source 10 be recorded.

[ Copving cassette tapes

1 Turn <REC OUT SELECTOR> and select “TAPE-1 > 2" (or “TAPE-2

TAPE-2»-1, TAPE-13>-2: Select this to record from tape deck 2 onto tape deck 1 (or from tape deck 1 onto tape deck 2)

2 Set the deviæ connected to the TAPE-2/MD (or ‘TAPE-1/CD-R) terminal to the record mode.

Start playback on the device connected to the TAPE- T/CD-R (or TAPE-2/MD) terminal.

+ The sound to be recorded can be heard by selecting the playback source with INPUT SELECTOR, while the recorded sound can be heard by selecting the recorder.

When performing these operations, also refer to the operating instructions of the other devices.

NOTE: + The sound may be interrupted or noise may be recorded if INPUT SELECTOR is operated during recording

ENGLISH Check the following before assuming there is a problem with the set

1. Are all connections proper ?

2. ls the set being operated as described in the operating instructions ? 3. Are the speakers and input components being operated properly ?

If the set does not seem to be operating properly, check the points listed below. If these points do not

apply, the set may be damaged. Turn off the power immediately and contact your store of purchase.

+ The vibrations from the speakers are being transmitted to the player through the floor.

along with the music if the volume is too high when playing records.

from each other as possible. + Use cushions, etc. to absorb the speakers’ vibrations:

Symptom Cause Measures Page When the power is turned | » The power supply cord's plug is not|+ Make sure the unit is corectiy| 5 on, the power indicator | fully plugged in plugged in and switched on at the does not light and no mains socket. sound is produced

+The speaker cables are not fully | + Connect securely. 4,5 connected. + The device you want to listen to has | + Insure the correct input is selected. | 2,6 The power _indicator| _ not been selected lights but no sound is|eThe volume control is set to | Set to an appropriate level. 2,6 produced: minimum. + The input cable is not fully connected. | Connect securely. 5 + The speaker selector button is set to | + Ensure the SPEAKER A or B buttons | 2, 6 “OFF" are set to "ON" as appropriate +The speaker cables are not fully | + Connect securely. 4,5 Sound is only produced | _ connected! from the left_ ar right | + The input cable is not fully connected. | + Connect securely. 5 speakers) + The left/right balance is off + Adjust to à proper balance using the| 2 balance control knob. For stereo sound, the | + The connections of the speakers or |e Check the connections to be sure 4,5 positions of the input cables are inverted that left is connected to left, right to instruments are inverted right. leftright +The players ground wire is not |+ Connect securely. 3,5 connected. Humming sound is heatd |, rie cables are not fully connected to | + Connect securely 3,5 in the music when aying rocgrds the PHONO terminals. + Influence from à TV or VCR near the | + Try changing the positions in which] - player. the devices are installed + The player and speakers are too close | + Install the player and speakers as far | — Howiing is _ produced

+ The needle pressure is not proper. + There is dirt on the tip of the needle. + The cartridge is defective.

When playing a record, the sound is distorted.

+ Adjust to a proper needle pressure: + Check the tip of the needle. + Replace the cartridge

Dynamic power: High frequency Output terminal

(Pre amplifier section Equalizer amplifier output: (REC OUT terminals)

(overall performance SN Ratio (A network):

Tone control (bass):

General Power outlets: Power Supply: Power Consumptio: Dimensions: Net Mass:

CRemote control unit (RC-1022)

Remote control type: Power supply: External dimensions: Mass:

2-channel driving (CD — SP OUT) S0W+50W (8 Q/ohms, 20 Hz - 20 kHz, TH.D. 0.07%) 85W+85W (4 Qohms, DIN, 1 kHz, T.H.D. 0.7%) 0.01% (Rated output: -3 dB), 8 @/ohms, 1 kHz Speaker À or B: 4 - 16 Q/ohms

A+B: 8-16 Qohms Suited for headphones/stereo headphones

150 mV PHONO (MM): 2.5 mV/47 kKQ/kohms

CD, TUNER, DVD/AUX.TAPE-1/CD-R, TAPE-2/MD: 105 mV/47 kQ/kohms (SOURCE DIRECT OFF) 105 mV/13 ka/kohms (SOURCE DIRECT ON)

3 switched outlets, total capacity 100W (0.43A)

434 (WI x 121 (H) x 337 (D) mm (including protruding parts) 7.0 Kg

RO3/AAA Type (2 batteries) 49 (WA x 220 (H) x 21 (D) mm 120 g (including batteries}

* For improvement purposes, specifications and functions are subject to change without advanced notice

ENGLISH D&M Holdings Inc.
