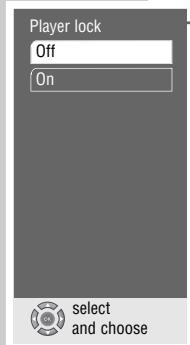

Locking and releasing the disc tray of the DVD player

Authorising the contents of a DVD

22 Parental lock

24 Picture settings

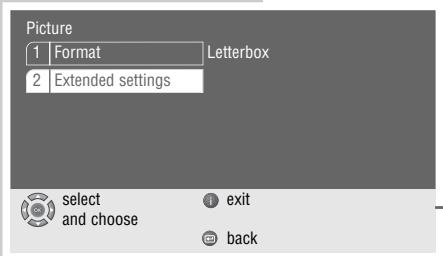

Selecting the picture format for your television Selecting filter functions

26 Custom settings

Settings in the >Player menu « menu
Selecting the language of the screen menu
Setting the TV system
Setting the screen menu and the display of the DVD player
Language settings

29 Using external devices

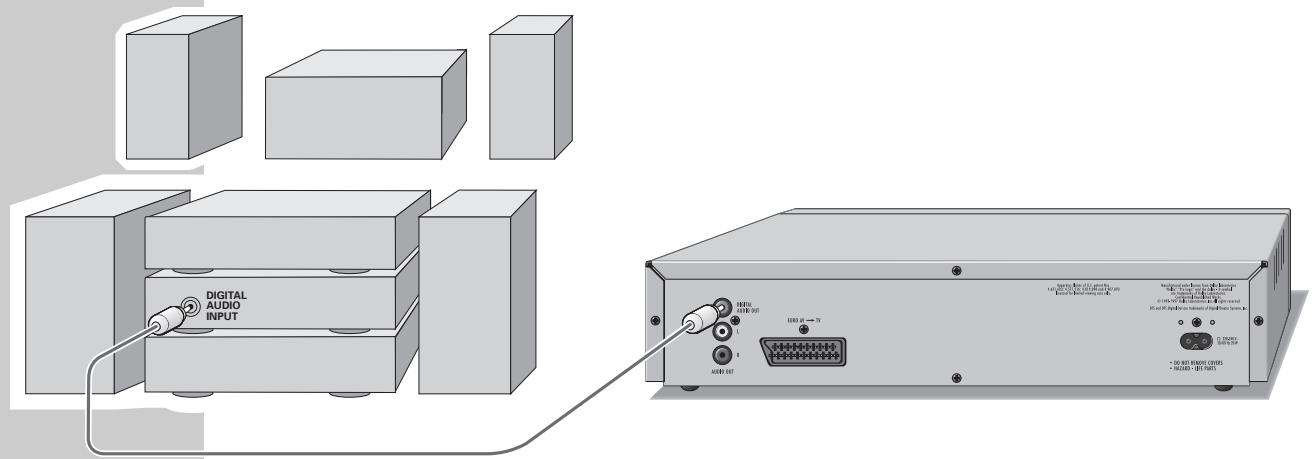

• Connecting to a digital multi-channel amplifier

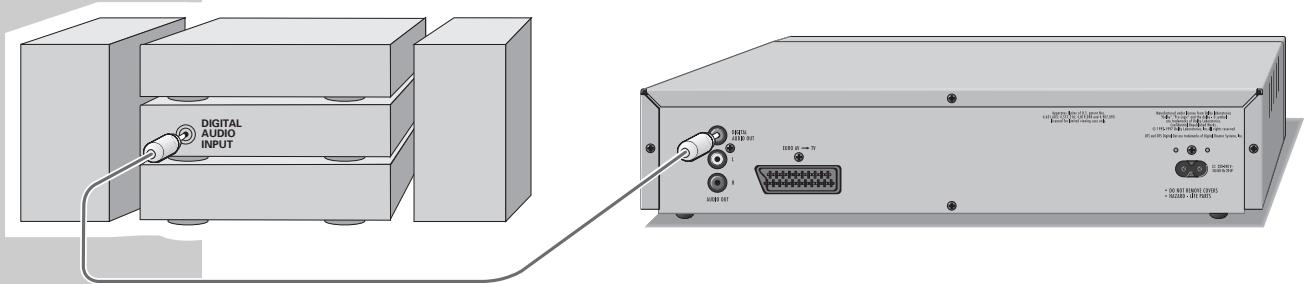

• Connecting to a HiFi system with digital two-channel stereo sound (PCM)

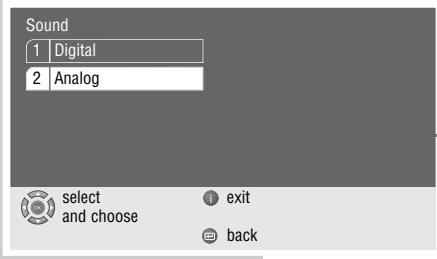

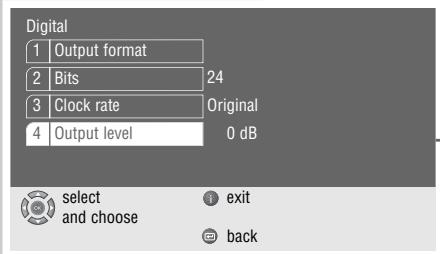

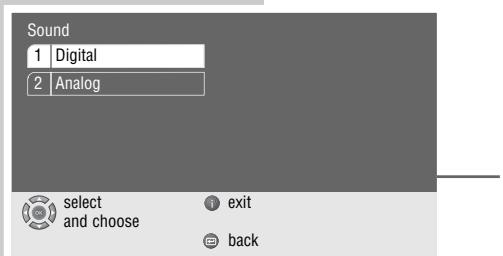

• Adapting the digital output to the digital multi-channel amplifier

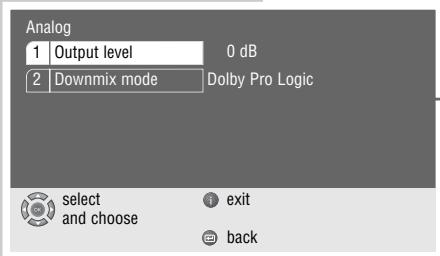

• Adapting the analogue output to the HiFi system

32 Television remote control

33 INFORMATION

Technical data
General instructions for laser devices
Rectifying minor problems
Cleaning CDs and DVDs
GRUNDIG Service

GDP 3200 DVD PLAYER

Special features of your DVD player

Your DVD player gives you perfect digital video playback in studio quality.

It also provides superb cinema-quality audio playback – in stereo or with digital multi-channel sound – depending on the type of DVD and the HiFI system or stereo television.

Other features of DVD video include the choice of audio channel and language, choice of subtitle language, and various camera recording angles.

In addition to DVDs, your DVD player can also play MP3, video and audio CDs.

Your DVD player is suitable for DVDs with regional code 2.

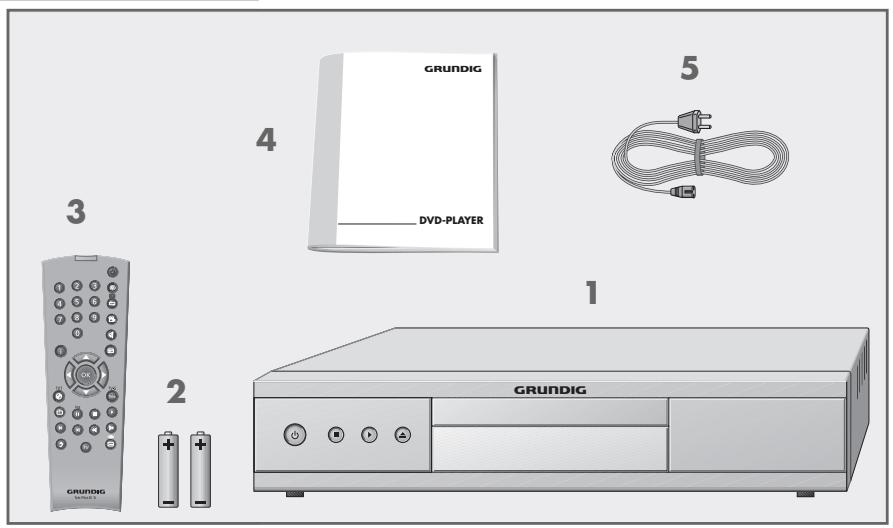

Packing contents

1 GDP 3200 DVD player
2 2 batteries, 1.5V- ,mignon type
3 Remote control
4 Operating manual
5 Power cord

Guarantee:

We wish to point out explicitly that only operating software authorized by GRUNDIG is permissible for the DVD player. You can obtain this software from your dealer, or in the near future from the Grundig Websites www.grundig.com or www.grundig.de. Any instance of operating software from a dubious Internet source being loaded into the device will impair functioning and also, due to unauthorized intervention, invalidate any claims under the guarantee. As a rule, GRUNDIG declines to refund any costs resulting in such cases. Any repair costs thus due, even those occurring within the guarantee period, are to be paid by the customer.

Please note the following points when setting up the DVD player:

This DVD player set is designed to play video and audio signals from compact discs (DVD and CD).

Any other use is expressly prohibited.

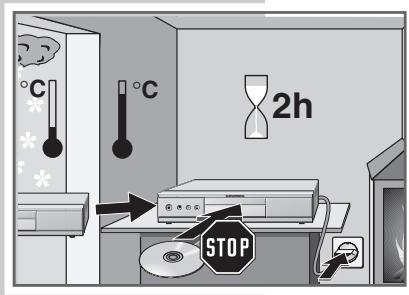

If the DVD player is subject to a sudden change in temperature, for example if brought in from the cold to a warm room, connect it to the mains supply and let it stand for at least two hours before you insert a DVD.

The DVD player is designed for use in dry rooms. If you do use it in the open, please ensure that it is protected from moisture, such as rain or water splashes.

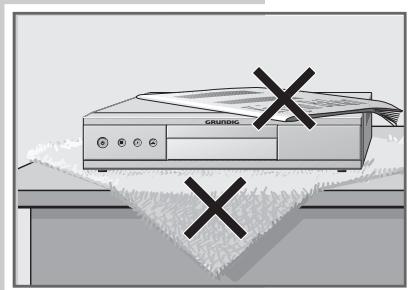

Place the DVD player on a hard, level surface. Do not place any objects such as newspapers on the DVD player or any cloth or similar articles underneath it.

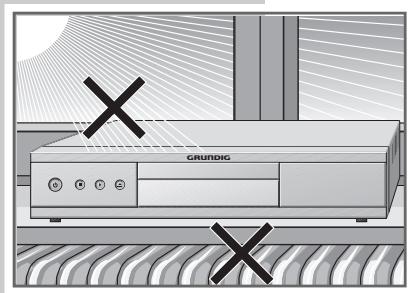

Do not place the DVD player close to heating units or in direct sunlight, as this will impair cooling.

Do not insert foreign objects in the air vents or the disc compartment.

Never open the DVD player casing under any circumstances. The manufacturer accepts no liability for damage resulting from improper handling.

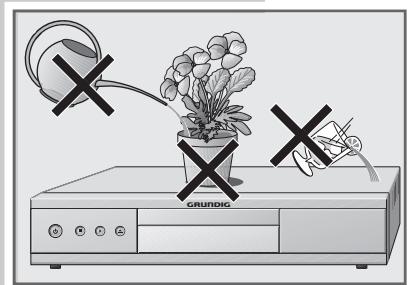

Do not place any vessels such as vases on the DVD player, as they may spill liquid, thus presenting a safety risk.

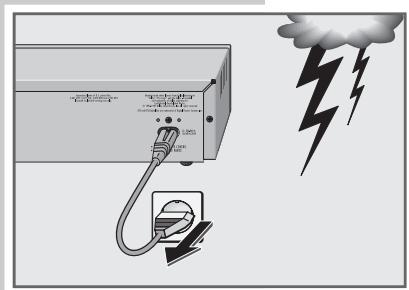

Thunderstorms are a danger to all electrical devices. Even if the DVD player is switched off, it can be damaged by a lightning strike to the mains. Always remove the mains plug during an electrical storm.

If the DVD player is unable to scan DVDs or CDs perfectly, use a standard commercial cleaning CD to clean the laser optics. Other cleaning methods may damage the laser optics.

Always keep the disc compartment closed to prevent dust from collecting on the laser optics.

This DVD player is designed to the highest technological and environmental standards. Only ecologically compatible, high quality materials have been used. The batteries included are free of mercury and cadmium.

The range of materials used has been deliberately restricted and all the larger plastic parts have been labelled. This DVD player is easily disassembled to make servicing easier and optimise recycling.

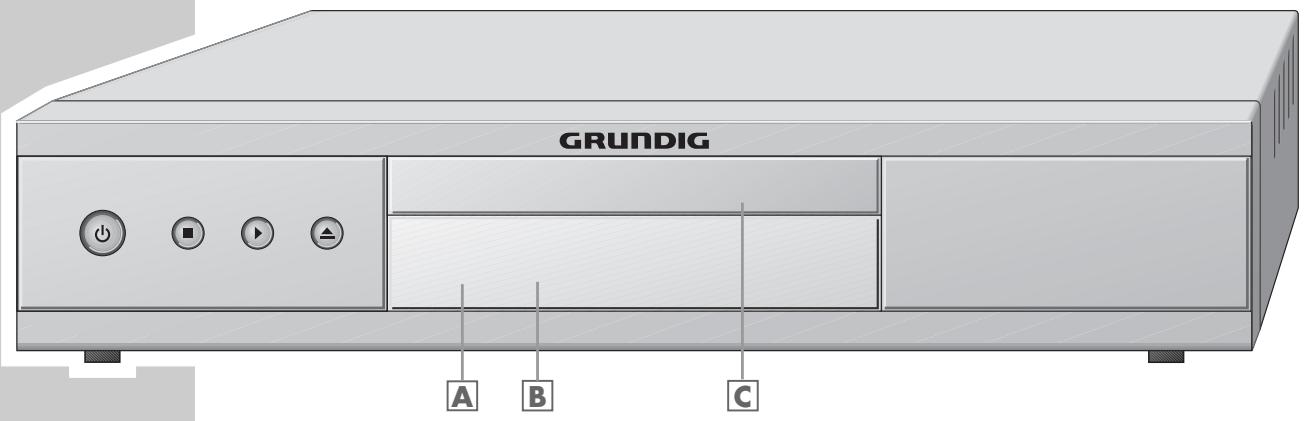

The front of the DVD player

Switches the DVD player to and from stand-by mode.
Switching the DVD player off does not mean it is disconnected from the mains.
Starts playback.
Press and hold down (4 seconds) to switch the video strobe function on.
Press once to activate the "RESUME" function.
Press twice to switch to "STOP" mode.
Opens and closes the disc compartment.
A Stand-by indicator.
B Display.
C Compartment for DVDs/CDs.

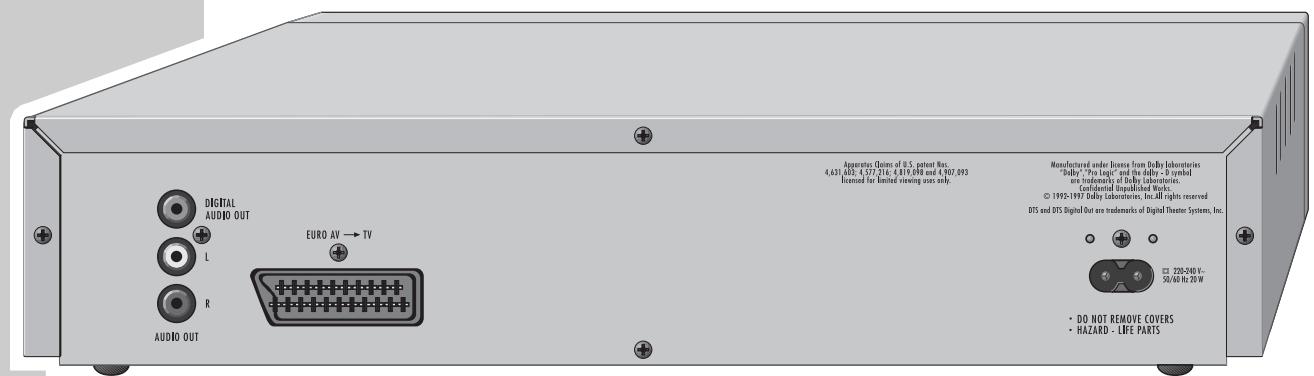

The back of the DVD player

AUDIO OUT L R

Audio output jacks (left/right channel) for connection to a HiFi system.

EURO AV TV

Video/ audio output jack for connecting a television set.

DIGITAL AUDIO OUT

Audio output jack (coaxial) for PCM/MPEG2/AC3/DTS signals, for connecting a digital multichannel audio/video amplifier.

220-240V~50/60Hz 20W

Socket for power cord.

Caution:

Do not connect any devices while the DVD player is switched on.

Never touch the inside of the sockets and plugs of the connecting cables. An electrostatic discharge can damage the DVD player.

The display elements of the DVD player

1

DVD

D

B C

DISK

Playback.

Pause/Freeze-Frame.

DVD

DVD inserted.

VCD>>

VCD inserted.

MP3

MP3 inserted.

0:00:00<

Total or elapsed playing time in hours, minutes and seconds.

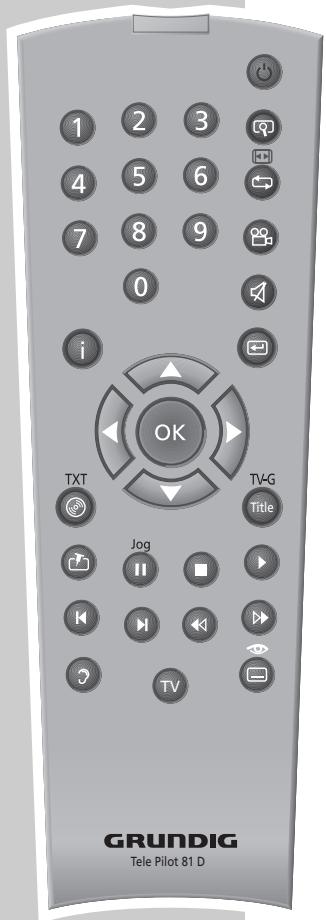

The remote control

Switches the DVD player on from stand-by mode (the red indicator on the DVD player is lit) and off again (stand-by).
1 ... 0 Numeric keys for various inputs.
Zooms in on scenes during playback.
For marking and repeating sections on DVDs and video CDs or tracks on audio CDs.
Selects various camera angles for certain scenes or passages on the DVD during playback.
i Calls up the DVD player menu.
Switches the sound of the television set off (mute).
Quits the menu or returns to the previous menu level.
▲▼ Select various functions in the menus.
Select various functions in the menus;

« quits the menu or returns to the previous menu level.

OK Displays various information on the television screen during playback, such as the title or chapter number and playing time.

Confirms selections made from the menus.

Calls up the disc menu of the DVD/video CD during playback.
Title Calls up the title menu of a DVD during playback;.
Marks scenes on a DVD.
Freeze-frame for DVDs and video CDs. Pause for audio CDs

Press and hold down for slow motion (DVD).

Interrupts the currently running function.
Starts playback.
Selects the previous title or section during playback.
▶ Selects the next title or section during playback.

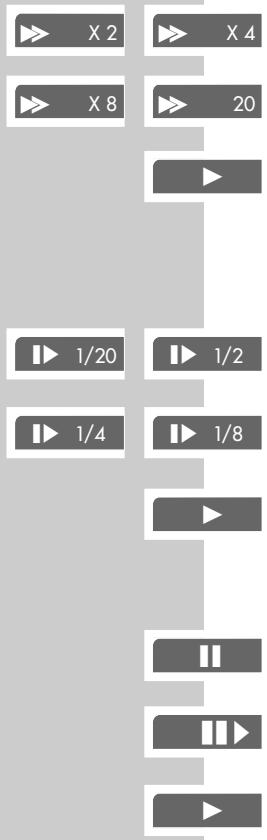

Switches to reverse frame search at various speeds during playback.
Switches to forward frame search at various speeds during playback.
Switches between the original and the dubbed language during DVD playback.
TV Switches the remote control from DVD operation to TV operation, see the options described on page 30.

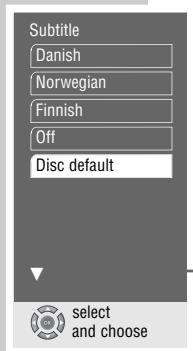

For selecting and displaying subtitles on the DVD during playback.

CONNECTION AND PREPARATION

Connecting the television ...

... using a EURO-AV cable

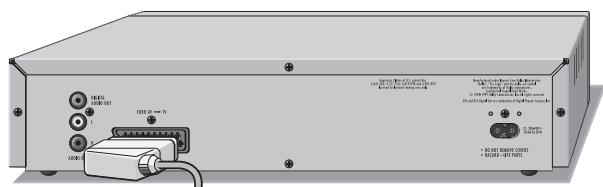

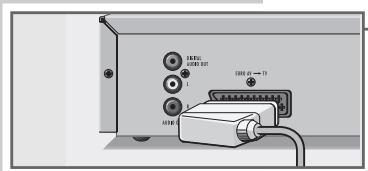

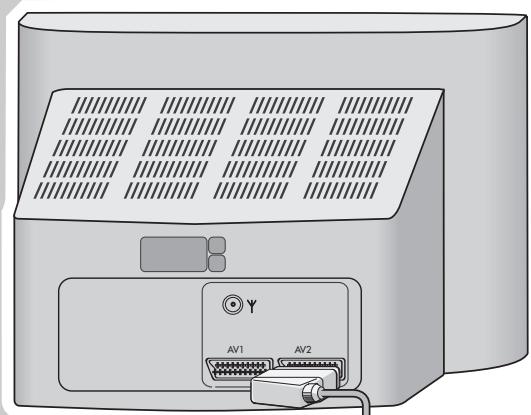

Plug a standard EURO-AV-cable into the »EURO AV TV « socket on the DVD player and the appropriate socket (AV 2) on the television set.

Connecting to a HiFi system with analogue two-channel stereo sound

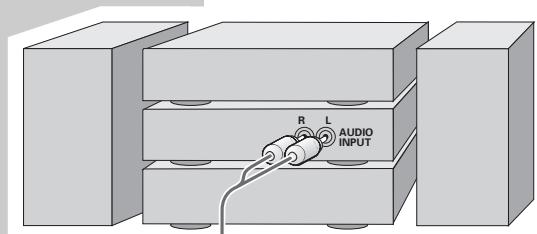

As an alternative to using the television's speakers, the sound can also be played back through a HiFi system.

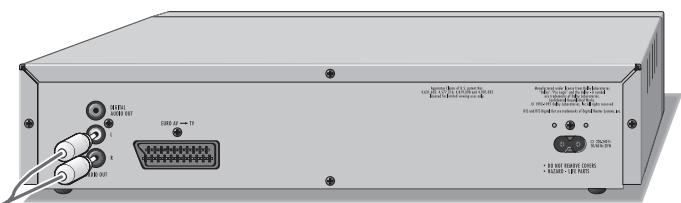

Plug a standard cinch cable into the «AUDIO OUT L R« sockets on the DVD player and into the appropriate sockets on the HiFi system.

Caution:

Do not connect the DVD player's «AUDIO OUT L R« sockets to the PHONO sockets (record player input) on the HiFi system.

Connecting the power cord

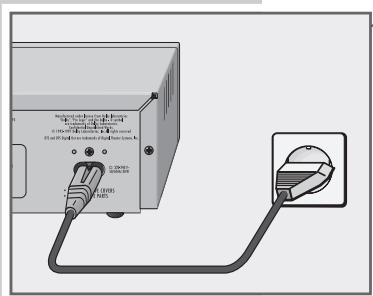

Plug the power cord supplied into the 220 - 240V socket on the back of the DVD player.
2 Insert the power cord plug into the socket.

Caution:

The only way to disconnect the DVD player from the mains supply is to pull the plug.

Inserting batteries in the remote control

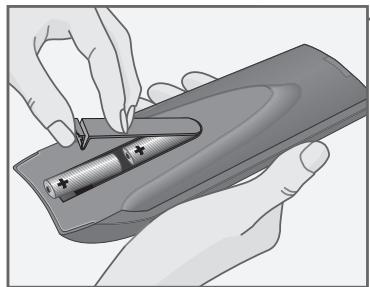

1 Open the battery compartment by pressing the snap-catch, and remove the lid.
2 When inserting the batteries (mignon type, for example, LR 6 or AA 2 × 1.5V ), observe the polarity marked on the battery compartment.

Note:

If the DVD player no longer reacts properly to remote control commands, the batteries may be flat. Always remove flat batteries. No liability is accepted for damage resulting from leaking batteries.

Environmental note:

Batteries, including those which are heavy metal-free, may not be disposed of with household waste. Please dispose of used batteries in an environmentally sound manner. Find out about the legal regulations which apply in your area.

Setting the language

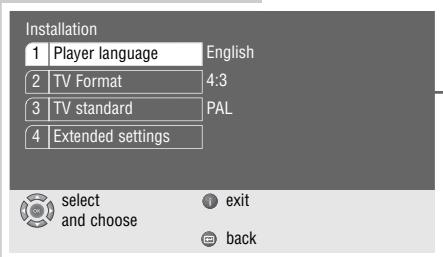

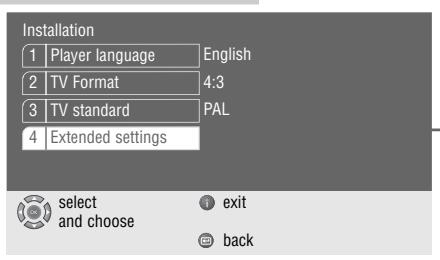

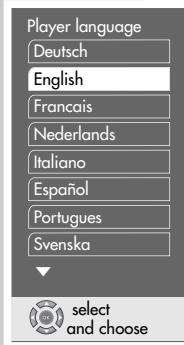

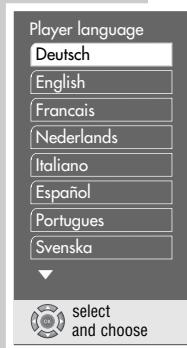

When the DVD player is first operated, the «Player language« menu appears automatically. You can now choose the language of the user guide. When this is selected, the language of the DVD menu and the dubbed language are automatically set in the same language.

1 Select the desired language for the screen menus using or and press OK to confirm.

Note:

If this setting is not confirmed with «OK«, the «Player language« menu appears when the system is switched on again.

You can change these settings at any time after first operating the system, see the settings in the "Selecting the language of the screen menu" chapter on page 24 and in the "Language settings" chapter on page 26.

Adapting the DVD player to the television set

Selecting the screen format of your television set

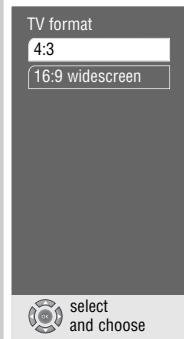

If your television has a 16:9 screen format, then select the «16 : 9« setting. These default settings also have an influence on the settings in the «Picture« menu item.

On a conventional television set with a 4:3 screen format, select the «4 : 3« setting.

Press i to call up the main menu.
2 Select the «Player menu« menu with «▼ « or « ▲ « activate with «OK«, or select directly using «1 … 0«.
3 Select the TV format line with or and activate with OK.

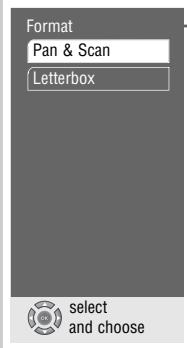

4 Select the screen format required (4:3 or 16:9 wide screen) with or and confirm with OK.

DVD and video CD features

VIDEO

DIGITALVIDEO

You can recognise DVDs, s-video CDs and video CDs by the logo on the label.

Depending on the contents of the DVD, s-video CD or video CD (films, video clips etc.), they may carry one or more titles.

Each title may contain one or more chapters. Titles and chapters can be selected easily and conveniently.

You can control and direct playback of a DVD, s-video CD or video CD using the menu of the DVD player on the television screen.

Some of the DVD player's functions, such as video strobe or slow motion, can not be selected when playing back a video CD. This depends on the video CD.

Special DVD features

VIDEO

DVDs have a title menu which provides an overview of the titles available and the passages they contain.

Some of the DVD player's functions, such as slow motion, freeze-frame and auto-play, can also be controlled by the DVD itself. It is therefore possible that the freeze-frame function, for example, cannot be selected during certain scenes.

Many DVDs have audio tracks recorded in up to eight languages.

This enables you to select the language you prefer.

Many DVDs are recorded by the manufacturer with subtitles in several languages. You can select subtitle superimposition from up to 32 different languages.

Since films are released in different parts of the world at different times, all DVD players world-wide are given a regional code. Your DVD player has been given region code 2.

DVDs can also be given a supplementary regional code. If you insert a DVD with different code to that of the DVD player, a reference to the regional code appears on the television screen. The DVD player will not be able to play back the DVD.

Before playback

Preparation

3 Press to switch on the DVD player.

Switch on the television and select the channel for the DVD player.
2 If a HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player.

• On-screen display: no disc .

Note:

When the parental lock is activated, the display appears.

You must deactivate this lock. See the chapters on locking and releasing the disc compartment of the DVD player on page 20.

no disc

Inserting a DVD/video CD

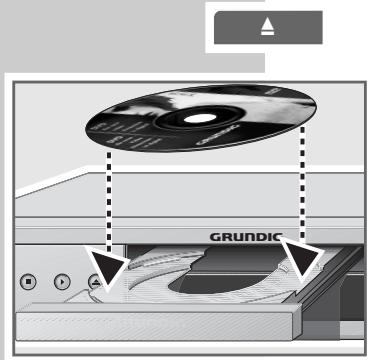

Press on the DVD player. - The disc tray opens.
2 Insert the desired DVD/video CD in the disc tray with the label facing upwards.
3 Press

DVD-player display: DVD , or VCD , the current chapter and the elapsed playing time of the DVD or Video-CD. Playback starts automatically.

Note:

If the DVD/video CD has not been authorised, the rating must be changed. (See the chapter on the parental lock on page 21).

If the symbol appears on the television screen, then the selected function is not possible with this DVD/video CD.

Playing back a title

After the disc compartment closes and the DVD is scanned, playback starts automatically.
2 To pause playback (freeze-frame), press .
3 Press again to resume playback.
4 End playback by pressing ■ «.

Note:

Depending on the DVD/video CD you are using, you may have to select a title or chapter from the DVD's/video CD's table of contents.

Use the , , or buttons to select it and then press OK to confirm.

If the selection is numbered, use the 1 0 keys.

Calling up information

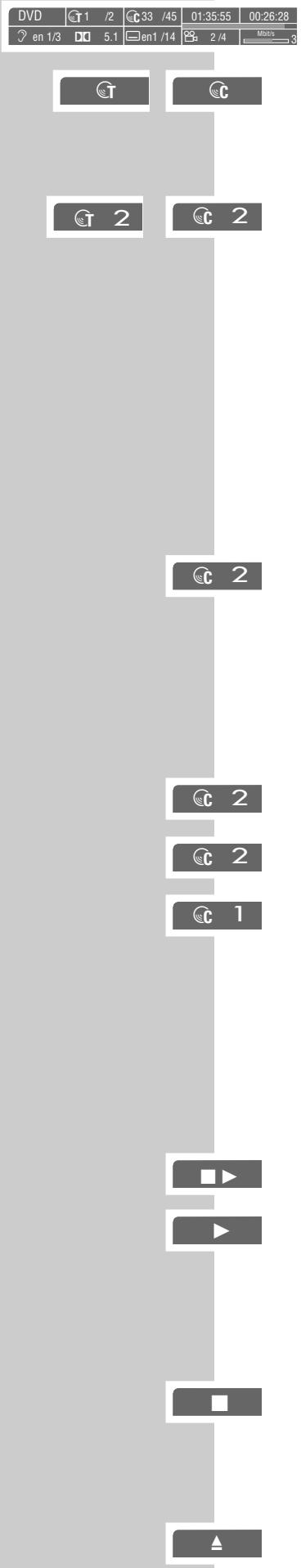

You can call up information on the title, chapter and playing time for display on the screen.

Press OK to see the Info line.
- This provides information on:
The type of disc, current title number, current chapter number, playing time, remaining playing time, language options, audio system, subtitle language, camera position and bit rate.
2 Press OK to hide the Info line.

Selecting titles or chapters

If a DVD or video CD contains several titles and/or chapters, you can select from among them. The «T« and «C« boxes in the info line will tell you whether a DVD contains more than one title or chapter.

1 Call up the contents of the DVD/video CD by pressing 9
- If the DVD/video CD has a title menu, it will appear on the screen.
2 If the selection options are numbered, select the desired title and section using 1 0 .
3 If the options are not numbered, select titles and sections with , , or , and activate with OK .

• Playback begins with title/chapter selected.

Selecting chapters ...

... using the numerical buttons of the remote control

1 Select the desired chapter using 1 ... 0 and confirm with OK . - Playback begins with the chapter selected.

Note:

Incorrect entries can be deleted by pressing

… step by step

1 To select the next chapter, press during playback.
2 Return to the beginning of the chapter by pressing once.
3 To select the previous chapter, press twice. - Playback begins with the chapter selected.

Interrupting and resuming playback

The playback of a DVD/video CD can be interrupted at any point and then resumed from the same place.

1 Interrupt playback by pressing once only.
2 Resume playback at the same point by pressing

Ending playback

Playback of a DVD or video CD automatically stops at the end of a title. You can stop playback at any point by pressing « twice.

Removing the DVD/video CD

Press on the DVD player to open the disc tray.

Additional playback functions

Note:

The sound is muted with the "frame-search", "slow-motion" and "freeze-frame" functions.

Some functions can not be selected. This depends on the DVD/video CD being used.

Video search

You can choose from among four different speeds (forwards or reverse).

1 During playback, select the desired playback speed with « or » «. You can select a speed which is two, four, eight or twenty times faster, forwards or reverse.
2Resume playback by pressing

Slow motion

You can choose from among four different speeds (forwards).

During playback, press
2 Select desired slow motion speed (1/20, 1/8, 1/4, 1/2) by pressing
3Resume playback by pressing

Frame-by-frame playback

During playback, press II.
2 Move the freeze frame step by step backwards or forwards with
3Resume playback by pressing

Repeating a chapter or a DVD

These functions repeat the currently running chapter or the entire DVD.

1 During playback, press and hold down «.
- « appears on the television screen, the chapter is repeated.
2 During playback, press and afterwards press it again.
- appears on the television screen, the DVD is repeated.
3 To quit this function, press again.

Repeating a selected scene (A-B Repeat)

You can use this function to select the beginning and end of a scene, and then play it over and over.

1 During playback, mark the beginning of the scene by briefly pressing - A appears on the television screen.
2 To mark the end of the scene, press again briefly.
- A-B appears on the television screen, the marked scene is repeated continuously.
3 To quit this function, press again.

Selecting the camera angle for particular scenes or passages

Many DVDs contain scenes or passages which were filmed several times from different camera angles.

You can choose from among these different angles.

If the DVD offers this function, 1/4 « appears on the television screen in the info line.

During playback press » « to select the camera angle function. - The camera angle » 2/4« appears in the display, 2 of 4 in this example.
2 Select a different camera angle by pressing » «.

Enlarging the picture (Zoom)

1 During playback or pause, press 《 «. - Display: » ① X2«, the DVD player enlarges a section of the screen.
2 You can move the screen section by pressing , , or .
3 To return to normal picture size, press again.

Changing the dubbed language

This setting switches out of the preset dubbed language, when the DVD offers alternatives.

During playback, press 3
- Display: for example » de 2/3 : D0 5.1« appears briefly, and the current dubbed language is displayed.
2 To set the desired language, press repeatedly.

Selecting and displaying subtitles

If the current DVD provides subtitles, they can be displayed on your TV screen. When subtitles in several languages are available, you can select your language of choice.

1 During playback, press .
- Display: for example » de 2/14« appears briefly, and the current dubbed language is displayed.
2 To set the language for the subtitles, press repeatedly.

Note:

To switch off the subtitles, keep pressing until - appears in the display, or press and hold down

Selecting and playing scenes

You can mark a scene on the DVD, which you can then select directly during playback. The bookmark is retained when you remove the DVD.

Setting a mark

1 During playback, press .

Note:

This mark is deleted automatically when you set a new mark.

Playing selected scenes

1 During playback, press and hold down «.

• Playback starts at the point marked.

no disc

Preparation

1 Switch on the television and select the channel for the DVD player.
2 If a HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player.
3 Press to switch on the DVD player. On-screen display no disc.

Inserting an MP3-CD

Press on the DVD player.
2 Insert the MP3 CD in the disc compartment, with the labelling facing upwards.
3 Press - A menu appears on the screen showing the content of the MP3 CD.

Playback

1 Select the folder or track required with or

Note:

A folder can contain tracks, which can be called up with OK\ll.

2 Start track playback with
- The playing time appears in the display on the DVD player.
3 To pause playback, press I.
4 Press again to resume playback.

Selecting a different folder and other tracks

This can be done if the MP3 CD contains several folders.

Press to call up the Contents menu (file browser).
2 Press to end playback.
3 If the Contents menu displays tracks, press to switch back one level.
4 Select the folder by pressing or

Note:

If you want to play all the tracks in a folder, press

5 Press to see the tracks in the folder.
6 Press ▲ or ▼ to select the track you want to hear and then ▲ to start playback.

Ending playback

1 End playback by pressing

Removing an MP3-CD

Press on the DVD player to open the disc tray.

Audio CD features

An audio CD is identified by this logo.

Audio CDs contain only music recordings. They can be played in the normal manner on a HiFi system.

Before playback

Preparation

1 Switch on the television and select the channel for the DVD player. With this you can see the DVD player's displays.
2 If a HiFi system is connected to the DVD player, switch on the HiFi system and select the appropriate audio input for the DVD player.
3 Press to switch on the DVD player. -Display on the DVD player and television no disc.

Inserting an audio CD

Press on the DVD player. - The disc tray opens.
2 Insert the audio CD in the disc tray, with the labelling facing upwards.
3 Press - The CD is loaded.

• The DVD player displays the number of tracks and the total playing time of the CD.

Calling up the info line

Press OK to call up the info line.

• The info line is displayed. Here you find information about the CD, including the number of tracks, the playing time of the tracks, the playing time remaining, the audio system and the data flow.

Audio functions

Playing back a track

1 Start playback with -Playback stops automatically at the end of the CD.
2 To pause playback, press » || «.
3 Press again to resume playback.
4 You can search for a passage of a track during playback with «« or «» «.

Selecting a different track

1 To select the next track, press during playback.
2 Return to the beginning of the track by pressing once.
3 To select previous track, press twice. - Playback begins with the track selected.
4 To select a track directly, enter the one or two-digit number of the track with 1 ... 0 and press OK to confirm.

Interrupting and resuming playback

The playback of a CD can be interrupted at any point and then resumed from the same place.

1 Interrupt playback by pressing once only.
2Resume playback at the same point by pressing

Ending playback

Playback of the CD stops automatically at the end of the last track. You can stop playback at any point by pressing « twice.

Repeating a title or an audio CD

These functions repeat the track currently being played or the entire audio CD.

1 Press and hold down during playback.
- appears on the television screen, the track is repeated.
2 During playback, press and afterwards press again.
- appears on the television screen, the audio CD is repeated.
3 To quit this function, press again.

With the parental lock you can:

• Lock the disc tray of the DVD player.
• Block scenes which are not appropriate for children from DVDs or video CDs, or select alternative scenes.

Locking and releasing the disc tray of the DVD player

Locking the disc tray of the DVD player

Press i to call up the main menu.

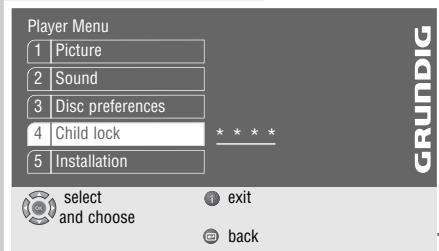

2 Select the Child lock line with or and activate with OK , or select directly with 1 0 .
3 Enter 1 9 9 9 with the number keys. - The Child lock menu is displayed, the parental lock status ( On or Off) is shown.

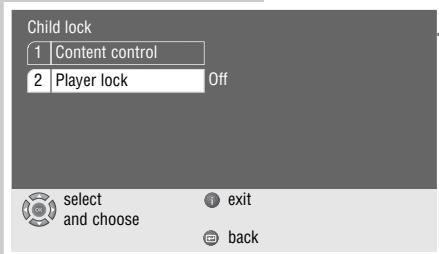

4 Select the «Player lock« line with «▼ « or « ▲ « and activate with «OK«.
5 Lock the DVD player with or ( On ) and confirm with OK .
6 Press i\~ to quit the menu.

Note:

The button on the DVD player is locked and is displayed each time it is pushed. A disc in the DVD player can be played.

Releasing the disc tray of the DVD player

1 To release the disc tray, repeat steps 2 to 5 in the "Locking the disc tray on the DVD player" chapter, select the Off display with ▲ or ▼ and confirm with OK .

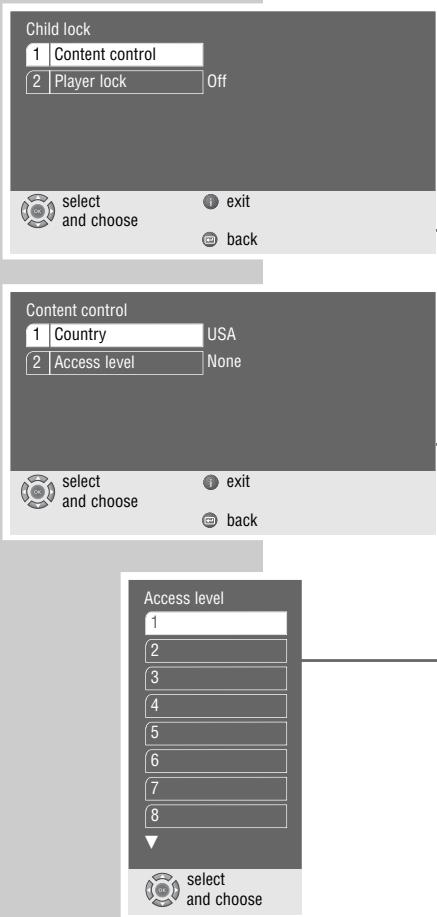

Authorising the contents of a DVD

Films on DVD may be wholly or partially unsuitable for children. Such DVDs contain information which identifies these scenes, providing them with ratings from 1 to 8. You can select one of the ratings and thereby authorise alternative scenes for playback.

Press i to call up the main menu.
2 Select the «Child lock« line with «▼ « or « ▲ « and activate with «OK«, or select directly using «1 … 0«.
3 Enter 1 9 9 9 with the number keys. - The Child lock menu is displayed, the parental lock status ( On or Off) is shown.
4 Activate the Country control line with OK .
5 Activate the Country line with OK .
6 Select the country with or and activate with OK

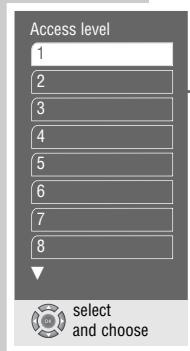

7 Select the «Access level« line with «▼ « or « ▲ « and activate with «OK«.
8 Select the desired rating (from 1 to 8 ) using or , and activate with OK .
9 Press i\~ to quit the menu.

Selecting the picture format for your television

This setting is dependent on the chosen TV format, see the "Selecting the screen format for your television" chapter on page 11.

If 4:3 format is selected, you can set:

»Pan&Scan« for wide-screen playback using the full height of the screen, but with the left and right edges of the picture cropped.

Letterbox for wide-screen playback with black bars on the top and bottom edges of the screen

If 16:9 format is selected, you can set:

»Use TV settings « for resetting the format by the television set.

»Automatic « for adapting the picture format automatically by the DVD player.

»Original« for 4:3 playback with black bars on the left and right edges of the screen.

»Cinema zoom«, where the picture is enlarged to the width of the screen, and the upper and lower edges of the picture are cropped.

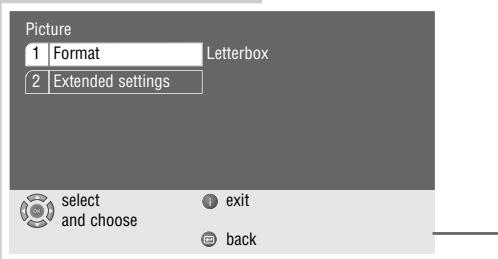

Press i to call up the main menu.
2 Select the «Picture« menu with «▼ or « ▲ « activate with «OK«, or select directly with «1 … 0«.
3 Select the Format\ll line with or and activate with OK
4 Select the desired setting for 4:3 format (»Pan&Scan« or »Letterbox«) with «▼ « or « ▲ « and press «OK « to confirm;

or

select the desired setting for 16:9 widescreen format (»Use TV settings «, »Automatic «, »Original « or »Cinema zoom «) with «▼ « or «▲ « and press «OK « to confirm.

5 Press i\~ to quit the menu.

Selecting filter functions

Press i< to call up the main menu.
2 Select the «Picture« menu with «▼ or « ▲ «activate with «OK«, or select directly with «1 … 0«.
3 Select the Extended settings line with or and activate with OK.

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting the horizontal filter

This setting optimises the soft focus function, computer graphics and photos when playing back.

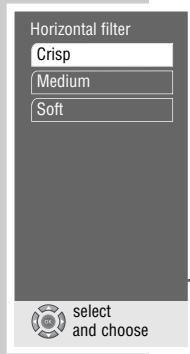

1 Select the Horizontal filter line with or and activate with OK.
2 Select the desired setting (»Crisp«, «Medium« or «Soft«) with «▼ « or « ▲ « and press «OK« to confirm.

Vertical filter

This setting optimises the flicker-reduced reproduction of freeze frames when playing back.

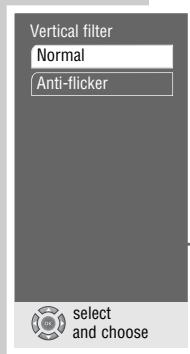

1 Select the Vertical filter line with or and activate with OK.
2 Select the desired setting (»Normal« or «Anti-flicker«) with «▼« or «▲« and press «OK« to confirm.
3 Press i\~ to quit the menu.

Settings in the «Player menu« menu

Press i< to call up the main menu.
2 Select the «Player menu« menu with «▼ « or « ▲ « and activate with «OK «, or select directly using « 1 … 0 «.

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting the language of the screen menu

With this you set the language of the DVD player's screen menu.

1 Select the «Player language« line with «▼« or «▲« and activate with «OK«.
2 Select the desired language with or and confirm with OK

Setting the TV system

The colour norm of the DVD player's screen menus has to be adapted to the format of the television.

Select NTSC for televisions with NTSC norm, PAL for televisions with PAL norm, and Auto for televisions with multi-norm.

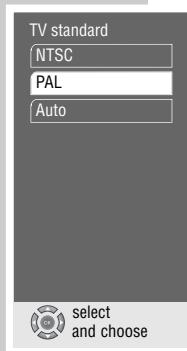

1 Select the TV standard line with or and activate with OK.
2 Select the desired setting (»NTSC«, »PAL« or «Auto«) with «▼ « or «▲ « and press «OK« to confirm.
3 Press i\~ to quit the menu.

Setting the screen menu and display of the DVD player

Press i to call up the main menu.
2 Select the «Player menu« menu with «▼ « or «▲ « activate with «OK«, or select directly with «1 ... 0«.
3 Select the Extended settings line with or and activate with OK.

Note:

For further operation, see the following sections, each one starting from Step 1.

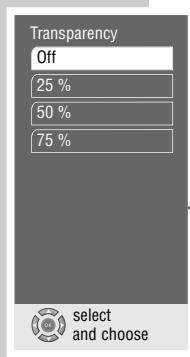

Selecting the transparency of the screen menus

1 Select Onscreen display by pressing or and then press OK to activate it.
2 Activate the »Transparency« line with »OK«.
3 Select the desired setting (25%, 50% oder 75%) with «▼« or «▲« and press «OK« to confirm.

Note:

When the Off line is selected, the screen menus have a solid background.

4 Return to the Extended settings menu by pressing .

Software status and dealer menu

Here you can get information about your DVD player's software version. The Dealer Service menu line is reserved for the authorised dealer.

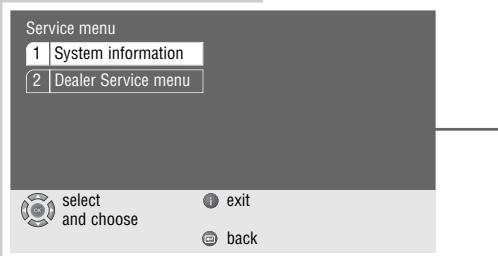

1 Select the Dealer Service menu line by pressing or and then press OK to activate it.
2 Select the «System informationen« line by pressing «▼ « or « ▲ « and then press «OK« to activate it.
3 Press i\~ to quit the menu.

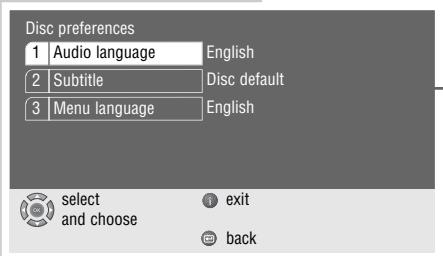

Language settings

Press i to call up the main menu.
2 Select the Disc preferences menu with or and activate with OK, or select directly using 1 0

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting the dubbed language

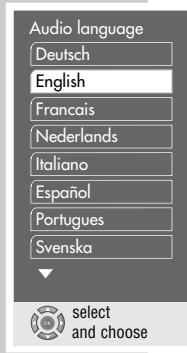

If several languages are available on the current DVD, the sound is played back in the language you have selected.

If the language you select is not on the DVD, the first dubbed language available is automatically selected.

1 Select the «Audio language« line by pressing « or « and then press OK « to activate it.
2 Select the desired dubbed language with or and confirm with OK .

Selecting the language for the subtitles

If subtitles are available on the current DVD, they are played back in the language you have selected.

If the language you have selected for the subtitles is not on the DVD, the first language available is automatically selected.

1 Select the Subtitle line with or and activate with OK
2 Select the desired language with or and activate with OK .

Note:

When the Off line is selected, the subtitles are not displayed.

Selecting the language of the DVD menus

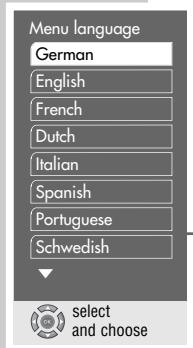

If a DVD has menus in several languages, you can select the language of your choice.

1 Select the »Menu language« line with «▼« or «▲« and activate with «OK«.
2 Select the desired language for the DVD menus using or and press OK to confirm.
3 Press i\~ to switch off the menu.

Connecting to a digital multi-channel amplifier

The digital multi-channel sound of a DVD can best be decoded and played with a multi-channel audio/video amplifier (Dolby* digital decoder or DTS).

Plug a standard cinch cable into the «DIGITAL AUDIO OUT« socket of the DVD player and into the appropriate socket on the digital multi-channel amplifier.

• Manufactured under license from Dolby Laboratories Licensing Corporation. "Dolby", "Dolby Pro Logic", "AC 3" and the double-D symbol "D" are trademarks of the Dolby Laboratories Licensing Corporation. Copyright 1992 Dolby Laboratories, Inc. All rights reserved.

Connecting to a HiFi system with digital two-channel stereo sound (PCM)

Plug a standard cinch cable into the «DIGITAL AUDIO OUT« sockets on the DVD player and into the appropriate sockets on the HiFi system.

Note:

The correct digital output format must be set on the DVD player. For this, you must observe the settings in the "Adapting the digital output to a digital multi-channel amplifier" chapter starting on page 28.

Adapting the digital output to a digital multi-channel amplifier

With this you choose whether the decoder signal is processed in the unit or fed unchanged to the digital output. With internal decoding, there is a stereo signal (PCM) at the digital output.

Press i to call up the main menu.
2 Select the «Sound« menu with «▼ « or « ▲ « activate with «OK«, or select directly with «1 … 0«.
3 Select the Digital line with or and activate with OK

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting audio signal types for the digital output

The audio signal type must be selected according to the connected decoder/amplifier.

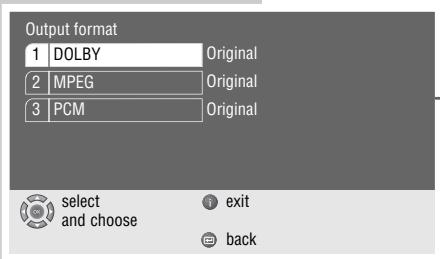

1 Select the Output format line with or and activate with OK .
2 Select the required output format, (»DOLBY« «MPEG«, or «PCM«) with «▼ « or « ▲ « and confirm with «OK«.
3 Select the audio signal type (»Original« or »PCM«) with «▼ « or « ▲ « and then press «OK« to confirm.
4 Return to the »Digital« menu by pressing »← «.

Setting the bit rate

Here you choose the possible digital resolution and the dynamic range possible of the output signal in order to adapt the signal to the decoder.

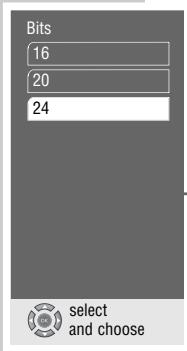

1 Select the Bits line with or ▲ and activate with OK .
2 Select the desired value (»16«, «20« or «24«) with «▼« or «▲« and press «OK« to confirm.

Setting the sampling rate.

This function is used to limit the sampling rate of the digital multi-channel amplifier.

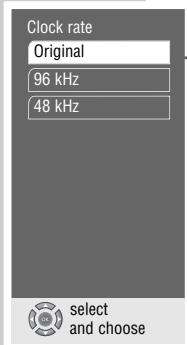

1 Select the Abstrate line with or and press OK to activate the function.

• This has been set to 48kHz at the factory.

• Use Original for DVDs with a 96 kHz sound signal.
  The sound signal is output at the «AUDIO OUT L R« sockets and - if supported by the DVD - at the «DIGITAL AUDIO OUT« socket.
• Use 96kHz for DVDs with a 96 kHz sound signal for optimum analogue sound output at the AUDIO OUT L R 机 sockets.
• Use 48kHz for DVDs with a 48kHz sound signal.

The signal is output at the «AUDIO OUT L R« socket and at the «DIGITAL AUDIO OUT« socket. THE 96 kHz sound signal is converted into 48 kHz.

Setting the digital output level

With this setting, the output level can be adapted to the volume of other external sound sources.

1 Select the Output level line with or ▲ and activate with OK .
2 Change the output level set by step (from 0dB to 20dB ) with or , or with and in 10 steps, and press OK to confirm.
3 Press i to quit the menu.

Adapting the analogue output to the HiFi system

With this you set the output level of the audio signal and the audio operation type (stereo, surround sound or Dolby Pro Logic).

Press i to call up the main menu.
2 Select the «Sound« menu with «▼ « or « ▲ « activate with «OK« or select directly using «1 … 0«.
3 Select the Extended settings line with or and activate with OK.
4 Select the Analog line with or ▲ and activate with OK .

Note:

For further operation, see the following sections, each one starting from Step 1.

Setting the output level

1 Select the Output level line with or ▲ and activate with OK .
2 Change the output level set by step (from 0dB to 20dB ) with or , or with and in increments of 10, and press OK to confirm.

You can also operate GRUNDIG televisions with this remote control. The functions available to you depend on the model of the GRUNDIG television.

Point the remote control directly at the TV.

TV Switches the remote control to television operation.

To do this, press and hold down TV then press the relevant button for the desired function.

Switches off the television set (stand-by).

1 ... 0 Switches the television off, stand-by on.

Selects the television channel directly. 0 selects the channel position R

In video text operation: for entering the three-figure page number.

In television operation: inset picture in main picture.

Switches the picture format.

Calls up the concise TV help menu.

Switches the sound on or off (mute).

Calls up the "DIALOG CENTER" or switches to menu operation.

Switches between the two most recently selected channels (zapping).

Volume setting, lower, higher.

In menu mode: «cursor left, «cursor right.

OK Activates functions, calls up data, confirms and saves data.

In menu mode: cursor up, cursor down.

TXT Switches from TV operation to video text operation and back.

TV-GTitle Switches the TV guide on and off again.

In teletext mode: returns to the previous page.

In teletext mode: advances to the next page.

In teletext mode: switches to the next theme.

In teletext mode: switches to the next chapter.

3 Calls up the sound menu.

Calls up the screen menu.

C

Technical data

This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC.

This device conforms to the safety regulation DIN EN 60065 (VDE 0860) and therefore the international safety regulation IEC 60065.

You may not open the DVD player. The manufacturer accepts no liability for damage resulting from improper handling.

Mains voltage:

220-240V\~,50/60Hz

Audio format:

Digital: MPEG2/Dolby Digital, PCM, DTS

Power consumption:

Operating: approx. 20 W

Stand-by: ≤ 5 W

Analogue:

Stereo sound, Dolby Pro Logic

Ambient temperature:

+10°C to +35°C

Audio:

Signal: Analogue

DVD: 48/96 kHz 4Hz-22/44 kHz

Video CD: 44.1 kHz 4Hz-20 kHz

Audio CD: 44.1 kHz 4Hz-20 kHz

Playback standard:

PAL, 50 Hz, 625 lines

NTSC, 60 Hz, 525 lines

Signal-to-noise ratio

(at 1 kHz): 90 dB

Sound volume

(at 1 kHz): 90 dB

Playback system:

DVD video, video CD, S video CD,

audio-CD

CD-R, CD-RW,

Dimensions and weight:

Dimensions:

W×H×L360×73×24.6mm

Weight 2.4kg

CLASS 1 LASER PRODUCT

General instructions for laser devices

Your system is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum permissible emission value cannot be exceeded under any circumstances.

Caution:

If operating devices or methods other than those specified here are employed, it may lead to dangerous exposure to emissions.

This device emits laser radiation. Because of the danger of eye injuries, the unit may only be opened or serviced by trained personnel.

If settings other than those specified here are employed or OTHER PROCEDURES are carried out, this may lead to dangerous radiation exposure.

This product contains components which are covered by certain U.S. patents or for other reasons are considered intellectual property of the Macrovision Corporation and other proprietors. Use of this protected technology must be approved by the Macrovision Company and is only permissible for private presentation at home or for other limited applications, where no special permission has been granted by Macrovision. Reproduction or disassembly of the device is prohibited.

Manufactured with permission from Dolby Laboratories. The "Dolby" label and the double-D logo "DQ" are trademarks of Dolby Laboratories. Confidential unpublished material.

©1992-1997 Dolby Laboratories, Inc. All rights reserved.

When playing DTS-encoded CD's & DVD's, excessive noise will be exhibited from the analog stereo outputs. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo outputs of the DVD player is connected to an amplification system. To enjoy DTS Digital Surround playback, an external 5.1 channel DTS Digital Surround decoder system must be connected to the digital output (S/PDIF) of the DVD player.

"DTS" and "DTS Digital Out" are registered trademarks of Digital Theater Systems, Inc.

Rectifying minor problems

Not every picture or sound problem is caused by a defect in your DVD player. Impairment can also be caused by leads having been accidentally pulled out, damaged DVDs/CDs and worn-out batteries in the remote control.

If the following measures do not bring about satisfactory results, consult an authorised dealer.

Fault	Cause/Remedy
DVD player does not respond to remote control	Point the remote control directly at the DVD player.
	Remove all obstacles which may impair the path of the remote control signal.
	Check or replace the remote control batteries.
No picture	Check the video connection.
Distorted picture	Make sure that there are no fingerprints on the DVD/CD, follow the cleaning instructions on this page.
DVD/CD cannot be played	Check that the label on the DVD/CD is facing upwards.
	Clean the DVD/CD.
	Check if the DVD/CD is damaged by testing it with another DVD/CD.
No sound	Check the audio connections.
	Try another playback source.
Distorted sound from HiFi system	Ensure that the audio connections have not been connected at the phono input on the amplifier.

Cleaning DVDs and CDs

Wipe the dirty DVD/CD with a cloth from the centre outwards in a straight line. Do not use any solvents such as petrol, thinners, conventional cleaner or anti-static spray for vinyl records.

GRUNDIG Service

GRUNDIG Deutschland

Elstree Way, Borehamwood, Herts, WD6 1RX

GB GroBbritannien/Great Britain

+44/1 81-3 24 94 00

Technical Service

Unit 35, Woodside Park, Wood Street

Rugby, Warwickshire, CV2 2NP

2 Waverley Office Park, Old Naas Road

EIR Dublin 12

+353/1-4509717

GRUNDIG FRANCE S.A.

Steinacker Straße 28

CH 8302 Kloten

+41/1-8158111

GRUNDIG PORTUGUESA

GRUNDIG POLSKA SPZ.O.O.
