Product Type	DVD Player
Brand	Grundig
Model	GDP 5500
Dimensions (W x H x D)	415 x 296 x 85 mm
Weight	1.7 kg
Power Supply	110-240 V~, 50/60 Hz
Power Consumption	Max 12 W, Standby ≤0.5 W
Supported Disc Types	DivX (MPEG4), DVD, DVD-R, DVD+R, VCD, SVCD, CD, CD-R, CD-RW, MP3, WMA (PCM), JPEG, KODAK CD
Video Output	HDMI (1080p), Composite (RCA)
Audio Output	2-Ch RCA (L/R), Coaxial Digital
USB Input	USB 2.0 (FAT 16/32), front panel
Audio Decoder	Dolby Digital (AC-3) internal
Special Features	HDMI 1080p upscaling, Progressive Scan, USB recording (CD ripping), DivX playback with subtitle support (.srt, .sub, .smi, .ssa, .ass, .txt), multi-language OSD
Remote Control Battery	1 x 1.5V (AAA/R03/UM4)
Cleaning	Wipe with soft damp cloth; no alcohol, ammonia, or abrasives
Laser Safety	Class 1 Laser Product
Package Contents	DVD player, Remote control, Batteries, RCA video/audio cable, User manual

Frequently Asked Questions - GDP 5500 GRUNDIG

How do I switch on the DVD player?

Plug the power cord into a wall socket and press the ⏻ button on the device or the Standby/On button on the remote control. The display will show 'LORD'. Then switch on your TV and select the correct input.

How do I connect the DVD player to my TV?

You can connect using an HDMI cable (recommended for best quality) or a standard RCA AV cable (yellow video, red/white audio). Ensure both devices are off before connecting.

Why is there no image on the screen?

Check that all connections are secure and the TV is set to the correct input source. Also verify that the power cord is properly connected and the device is switched on.

How can I play files from a USB stick?

Switch off the DVD player, insert the USB stick into the front USB port, then switch on the player. The navigation menu will appear automatically. Use the arrow keys to select folders and files, then press PLAY/PAUSE to start playback.

What disc formats are supported?

The player supports DivX (MPEG4), DVD, DVD-R, DVD+R, VCD, SVCD, CD, CD-R, CD-RW, MP3, WMA (PCM), JPEG, and KODAK CD. Note that mp4 files are not supported and writable DVDs must be finalized.

How do I set the HDMI resolution?

Press SETUP, go to the General menu, select HD OUTPUT, and choose the resolution that matches your TV: 720p, 1080i, 1080p, or HD OFF for standard definition. Press OK to confirm.

How can I clean the disc or the device?

For the device, unplug it and wipe with a soft, slightly damp cloth. Do not use alcohol or abrasive cleaners. For discs, gently wipe from the center outward with a soft cloth; do not use solvents.

What does 'INVALID KEY' mean?

This message appears when the selected function is not allowed by the current disc or device state. For example, trying to use a feature that is not supported on that particular disc.

How do I record audio from a CD to USB?

Insert an audio CD and a USB stick (FAT32). Press the USB REC button on the remote. Adjust settings (bitrate, tracks) in the on-screen menu, then select START to begin recording. Do not remove the USB during recording.

Why is the remote control not working?

Remove any obstructions between the remote and the device, aim at the front panel sensor, and check the battery polarity and charge. Replace the battery if needed (1x AAA 1.5V).

USER MANUAL GDP 5500 GRUNDIG

Black Grundhöhe audio recording device with LCD display and control buttons (no readable text or symbols)

TR EN

FOR A GOOD REASON

GRUNDIG

■ Divx 3.11, Divx 4.12, Divx 5.x, Divx 6.0, Xvid with B-Frame, Xvid with Q-pel, Divx Pro.

Not:

110 -240 V Elektrik kablosu.

Diagram showing four views of a remote control panel with battery and switch components (no text or labels)

Illustration of a hand holding a circular object with a downward arrow, no text or symbols present

30 Warning for the Packaging!

30 Warning for the Battery!

30 Environmental note

30 Compliance with the Restriction of Use of Prohibited Substances:

30 PCB Compliance:

30 Actions to Take for Energy Saving

31 GDP 5500

31 Packing contents

31 Special features

32 OVERVIEW

32 DVD player controls

33 Remote control

35 CONNECTION AND PREPARATION

35 Connecting TV with HDMI cable.

35 Connecting the TV using an AUDIO/VIDEO cable

36 Connecting the device to the audio system

36 Connection to an amplifier with TV equipment

37 Connecting an MP3 player or a USB memory stick

37 Connecting to the mains supply

37 Putting batteries in the remote control

38 INITIAL SETUP

38 Switching on the DVD player

38 Selecting the display language

38 Adapting the DVD player to the TV

39 Selecting the TV format

40 DVD Playback

40 Special features of the DVD

40 Preparation

40 Inserting the disc

40 Playback

40 Removing the disc

40 Additional playback functions

43 PLAYING AUDIO/PICTURE/VIDEO FILES

43 Reading the contents of a data device or a USB memory stick

43 Playing picture CDs

43 Playing MP3 audio CDs

45 SPECIAL SETTINGS

45 General Setup Page Settings

45 Existing settings in the General menu

46 Osd Language Setting

46 Audio Settings

47 Quality Settings

47 Usb Record Function (Cd Ripping)

48 Preparation

49 INFORMATION

49 License Terms

49 Cleaning the device

49 Cleaning the disc

50 Technical Data

50 System

51 Troubleshooting

IMPORTANT SAFETY AND ENVIRONMENT MEASURES\_

Read and follow all of the warnings and instructions given on this manual and the device. Keep this manual for future reference.

The device is designed for the playback of video and audio signals from compact discs, USB and similar data devices. Any other use is expressly prohibited.
If you want to set up the device on wall shelves or in cupboards, please ensure that it is adequately ventilated. There must be at least 10 cm of space at the side, above and behind the device.
- Do not cover the device with newspapers, table cloths, curtains, etc. Do not place the device on bed, coach, carpet or other similar surfaces. Since the device on such surfaces is not ventilated well, its electrical parts becomes overheated. This overheating may lead to the failure of device.
- Do not place this device on trolleys, legs, tripods, brackets or tables which are not fixed. If it falls, it may lead to severe injuries in the children and adults and serious damage may occur on the device.
- When setting up the device, remember that furniture is often coated with various types of varnish and plastic, which often contain chemical additives. These additives may cause corrosion to the feet of the unit. This may leave stains on the surface of the furniture which can be difficult or impossible to remove.
If the device is exposed to sudden changes in temperature, for example when taken from the cold into a warm room, wait at least two hours before using it.
This device is designed for closed spaces. If you use it outdoors, make sure it is protected from moisture such as dripping or splashing water.
■ Use the device only in warm environments.
- Do not place the device close to heating units or under direct sunlight, as this will impair cooling.

• Do not place any vessels containing liquids, such as vases, on the device. Do not insert any foreign objects in the disc compartment.
• Do not place any objects such as burning candles on the device.
• Do not open the device casing under any circumstances. Warranty claims are excluded for damage resulting from improper handling.
  ■ Thunderstorms are a danger to all electrical devices. Even if the device is switched off, it can be damaged by a lightning strike to the mains. Always disconnect the mains during a storm.
  ■ Always keep the disc compartment closed to prevent dust from collecting on the laser optics.
• Avoid your finger being trapped while the disc tray is being closed. Otherwise injuries or device damage may occur.
  ■ When you place this device beside a TV, radio or VCR, the image or sound being played may deteriorate. In this case, move the device away from TV, radio or VCR.
• Do not use cleaning agents as they may damage the housing. Clean the device with a clean and dry cloth. Unplug the device from wall socket before cleaning it.
• Do not connect any other equipment while the device is switched on. Make sure you close the other devices before making the connections.
• Only plug the device into the mains socket after you have connected the external devices. Make sure the power plug is freely accessible.
  If the power cord is damaged, it should be replaced by its manufacturer, aftersales service or another competent and certified personnel (preferably an electrician) or the person to be assigned by the importer.

IMPORTANT SAFETY AND ENVIRONMENT MEASURES\_

■ Unplug the device in the following situations and call the authorized service:

a) If the power cord or the plug is damaged.
b) If liquid poured or an object fell down into the device.
c) When the device is exposed to rain or water.
d) If the device does not operate properly although the normal instructions for use are followed.
e) When the device is dropped or damaged in any way.
f) When a major change occurs in the performance of the device.

Warning for the Packaging!

In accordance with our National Environment Legislation, the packages are manufactured from recyclable materials. Make sure that the packages are not treated as domestic waste but disposed of in the collection facilities specified by the local authorities.

Warning for the Battery!

In accordance with our National Environment Legislation, the battery contained in the product should be duly recycled or disposed of into the waste battery container specified by the local authority. Charge or replace the battery as specified in the user manual. Please consult the local authorized service in order to recycle the battery.

Environmental note

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life.

Take it to a collection point for the recycling of electrical and electronic equipment. This is indicated by this symbol on the product, in the user manual and on the packaging.

Please consult your local authorities to learn the nearest collection point.

Help protect the environment by recycling used products.

Compliance with the Restriction of Use of Prohibited Substances:

Conforms to the EEE Regulation. The product which you have purchased does not contain harmful or prohibited substances which are specified in the Regulation on the restriction of the use of certain hazardous substances in electrical and electronic equipment as issued by the Ministry of Environment and Forestry of Republic of Turkey in the Official Gazette dated 30.05.2008 and numbered 26891.

PCB Compliance:

"It does not contain PCB (Polychlorinated Biphenyl)."

Actions to Take for Energy Saving

■ Switch the device to the Standby mode if you will not use it for a short period of time. If you will not use the device for a longer period of time, unplug it.
■ Activate the screen saver. This feature is also beneficial for your TV and lengthen the lifespan of its panel.

Made in P.R.C.

Packing contents

DVD disc player

Remote control

1 batteries (Micro, R03/UM 4/AAA, 1 x 1.5 V)

User manual

RCA Video / Audio cable

Special features

■ High audio and video quality with »HDMI 1080P« output
■ USB 2.0 Storage Device Input
■ Supports playing DivX (MPEG 4), DVD, DVD-R, DVD+R, VCD, CD, CD-R, CD-RW, MP3, WMA(PCM), JPEG, KODAK CD
■ Internal Dolby Digital (AC-3) decoder
■ Progressive scan
■ Multi-language support (6 audio and 6 sub-title)
■ Obtaining high quality audio from your Home Theatre System with Coaxial 5.1 Channel Digital audio output

Image Codec Support (In Divx Mode)

■ Divx 3.11, Divx 4.12, Divx 5.x, Divx 6.0, Xvid/B-Frame, Xvid/Q-pel, Divx Pro.

Note:

■ (files with .mp4 extension are not supported)

Subtitle Format Support

■ .srt, .sub, .smi, .ssa, .ass, .txt

Progressive Scan (Non Interlaced)

For motion picture, it is a method by which all rows of the picture are displayed, stored or transmitted simultaneously. Therefore, a sharper and flickerless image is obtained compared to the standard video signal. Progressive Scan provides a flickerless image as on a computer monitor. In the interlaced scanning which tires the eye more, it is intended to create a full image impression by displaying the odd rows first and then the even rows. Progressive scanning is indicated by »p« in short. For instance, for 480p and 720p your TV should be »HD Ready«. In order to obtain 1080p quality image, your TV should be »Full HD«. In this case, you should use the HDMI connection.

Displaying Subtitle Files with same names

It is necessary that the video file and the subtitle file have the same name in order to display subtitles.

Notes:

■ Writeable DVD discs (DVD-RW, DVD-R) should be finalized; only the playback mode is allowed in the recordable discs. Playback may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the disc box. Please refer them when necessary.
- Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for playback.
■ Windows Media Audio WMA (PCM) files must be written to the disc with a .wma file extension in order to be recognized and played back properly.
■ JPEG picture files must be written to the disk with a .jpeg or .jpg file extension in order to be recognized and played back properly.

DVD player controls

Front View of the Device

Switches the device on from

Standby mode and off again.

Opens or closes the disc compartment.

Device Led display.

Starts and pauses playback.

Stops the playback.

USB socket for connecting MP3

player, a USB memory stick or a card-reader.

Back view of the device and connections

110-240 V Power cord.

HDMI

Video/audio output socket for TV

OUT

connection (digital signal).

2-CH

Audio output sockets (left/right

AUDIO

analogue channel) for connecting

OUT L/R

an audio system.

COAXIAL

Audio output socket (coaxial) for connecting a digital multi-channel video/audio amplifier.

VIDEO

Video output socket for connecting a TV or AV receiver with a RCA socket.

Remote control

1 Standby/on switch

Press to switch the unit from on to Standby mode or vice versa. In Standby mode, the unit is still consuming a small amount of power.

DISPLAY

Displays information on TV screen during playback.

OPEN/CLOSE ▲

Opens/closes the disc tray

2 0-9, 10

To select title/chapter/track numbers etc.

e.g., 5: 5

15: 10 5

SEARCH MODE

Starts to select the point

1. Press ◀▶ to select the item.
2. Press 0 to 9 to specify the location.
3. Press OK.

3 TOP MENU

Shows Top menu

MENU

• Shows Menu
- Sets PBC of VCD equipped with Play-back Control (PBC) function to On/Off

- Selects items, input position, etc.

- For moving the display position of enlarged images

- For rotating JPEG images

OK

Confirms menu selection

SETUP

Enters or exits the system setup menu

RETURN

Returns to the previous display

4 SKIP, |

• Skips to previous title/chapter/track or next title/chapter/track
• Switches the MENU page of VCD equipped with Playback Control (PBC) function

SEARCH,

Starts fast reverse or fast forward

STOP

Stops playback

PLAY/PAUSE▶/ II

Starts or pauses playback

Starts playback

FRAME II

Plays Video frame by frame

5 REPEAT

Selects various repeat mode

Selectable modes differ depending on the type of contents

REP DIR plays all the same type of files in the selected folder repeatedly.

A-B REPEAT

Repeats playback from point A to B on a media

SLOW

Starts slow motion playback

CANCEL

Clear the input information

6 SUBTITLE

Shows the subtitle and selects different subtitle

RANDOM/ANGLE

Starts random playback/Switches the camera angle

AUDIO

Changes soundtracks

ZOOM

Changes zoom ratio

PROGRAM

Sets the playback order

1. Press ◀▶▼▲ to select the item.

2. Press 0 to 9 to specify the order. To cancel: Press CANCEL.

3. Press◀▶▼▲ to select PLAY To clear the whole program: Press to select CLEAR.

4. Press OK.

USB

Switches to the USB mode / Returns to the disc mode

USB REC

CD Ripping

Notes:

• Do not make HDMI or other connections while the device is switched on. Switch off other equipment as well before connecting it.
• Plug in the device into the wall socket only after you have connected the external devices.

Connecting TV with HDMI cable.

1 Connect an HDMI cable into the »HDMI« socket on the back of the device and the corresponding socket (HDMI) on the TV.

Connecting the TV using an AUDIO/VIDEO cable
    I["To the Video inputs (yellow)"]
    I --> J["To the audio inputs (red, white)"]
    K["To the Video inputs (yellow)"] --> L["Video"]
    K --> M["DA20AL"]
    K --> N["Output"]

1 Connect a standard cable into the »VIDEO« socket on the back of the device and corresponding socket (VIDEO IN) of the TV.
2 Connect standard cables into the »2-CH AUDIO OUT« sockets and the corresponding sockets (AUDIO IN) on the TV.

Connecting the device to the audio system

1 Connect the standard cable into the »2-CH AUDIO OUT« sockets and the corresponding sockets on the audio system (AUDIO IN).

Connection to an amplifier with TV equipment

1 Connect the digital cable into the »COAXIAL« socket on the back of the device and the corresponding socket of the amplifier.

Connecting an MP3 player or a USB memory stick

Note:

■The device must be switched off while the USB device is being connected or removed. If it is not switched off, data could be lost.
■External USB Hard Drives are not supported by your device. Do not connect such devices to your DVD Player.

1 Switch off the device by pressing » ⏻ «.

2 Connect the MP3 player's USB interface with a standard USB cable into the »USB« socket on the device (under the front flap);

or

insert the USB plug of the USB memory stick in the »USB« socket on the device.

Notes:

■ To remove the MP3 player or the USB memory stick, switch off the device and pull out the cable for the data medium.
■ The USB socket on the device does not support USB extension cable connection and is not designed for connecting directly to a computer. It does not support connecting to a computer with a USB extension cable.

Connecting to the mains supply

Notes:

• Check that the mains voltage on the type plate (on the back of the device) corresponds to your local mains supply. If this is not the case, contact your authorized dealer.
  ■ Before connecting the power cord to the wall socket, ensure that all other connections have been made.

1 Plug the power cord into the wall socket.

Warning:

■ The device is connected to the mains with a power cord. Pull out the power plug if you want to completely disconnect the device from the mains.
■ Make sure the power plug is easily accessible during operation and not hindered by other objects.

Putting batteries in the remote control

Diagram showing three views of a mobile phone with battery and indicator lights (no text or symbols)

1 Open the battery compartment on the back-side of the remote control.
2 Observe the polarity marked on the base of the battery compartment when inserting the battery (micro battery, 1 x 1.5 V, R 03/UM 4/AAA).
3 Close the battery compartment lid.

Notes:

• Do not expose the batteries to extreme heat, caused for example by direct sunlight, heaters or fire.
  ■ Remove the batteries when they are flat or when you know that the device will not be used for a long period of time. The manufacturer accepts no liability for damage caused by leaking batteries.

Environmental note:

■ Batteries, including those which do not contain heavy metals, should not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations.

Switching on the DVD player

1 Plug the power cord into the wall socket.
2 Press the » 🔊 « button on the device. - Display: »LORD«.
3 Switch on the TV, select the input setting on the TV that matches the connection method you used to connect the DVD player.

Note:

■ When first plugged to mains power or when the power button on the remote control is pressed your DVD Player will enter Standby mode. There is no visual indication in Standby mode.

Menu navigation

When you switch on the device, the device logo automatically appears on the screen. If there is no disc in the disc compartment, »NODSC« appears on the screen.

1 Press »SETUP« to open the main menu.

2 To navigate in the menu, use » ▼«, »▲«, »◀« or »▶« cursor buttons.
3 Press »OK« to confirm you selection.
4 Press »SETUP« to exit the main menu.

Selecting the display language

1 Press »SETUP« to open the main menu.
2 Select » in the main menu with » ◀ or »« and press »OK« to confirm.
3 Select »OSD LANGUAGE« with »▼« or »▲« and press »OK« to confirm.
4 Select the desired language with » or »▲« and press »OK« to confirm (select »INGiLiZCE« for English).

5 Press »SETUP« to exit the main menu.

Adapting the DVD player to the TV

Setting the TV system (TV Standard)

1 Press »SETUP« to open the main menu.
2 Select »« in the main menu with » ◀« or »▶« and press »OK« to confirm.
3 Select »TV SYSTEM« with »▼« or »▲« and press »OK« to confirm.
4 Select »PAL« for PAL system or »NTSC« for NTSC system with »▼« or »▲« and press »OK« to confirm.
5 Press »SETUP« to exit the main menu.

Setting the HDMI resolution

You can select the ideal setting for the TV you have connected. The abbreviation behind the number means: Progressive, Interlace.

This function can only be selected when a LED/LCD-TV is connected to the »HDMI« socket.

1 Press »SETUP« to open the main menu.
2 Select »HD OUTPUT« in the main menu with »◀« or »▶« and press »OK« to confirm.

3 Select the »resolution« with » ▼« or »▲« and press »OK« to confirm.
4 Select the desired value (»HD OFF«, »720p«, »1080i«, »1080p«) with »▼« or »▲« and press »OK« to confirm.
5 Press »SETUP« to exit the main menu.

Note:

■ The output resolution depends on the type of LED/LCD-TV connected to the device, as described in the table below:

LED/LCD-TV TYPE	Correct Resolution Setting
If your TV is standard definition PAL TV (SD TV)	HD OFF
If your TV is a high definition TV (HDTV) capable of 720p only	720p
If your TV is a high definition TV (HDTV) capable of 1080i only	1080i
If your TV is equipped with HDMI and if it is a high definition TV (HDTV) capable of 1080p [at any frame rate], and your device is connected to your TV via HDMI	1080p (HDMI)

Selecting the TV format

This setting depends on your TV.

1 Press »SETUP« to open the main menu.
2 Select »« in the main menu with » ◀« or »▶« and press »OK« to confirm.
3 Select »TV TYPE« with »▼« or »▲« and press »OK« to confirm.

4 Select the desired value (»4:3/PS«, »4:3/LB«, »16:9«) with »▼« or »▲« and press »OK« to confirm.

5 Press »SETUP« to exit the main menu.

Special features of the DVD

You can recognize a DVD by the logo on its label.

The discs have one or more tracks depending

on the content of the DVD.

Each track can contain one or more chapters. Selecting the track and chapter is simple and convenient.

You can control and playback a DVD using the menu of the DVD player on the television screen.

Preparation

1 Switch on the TV, select the input on the TV that matches the connection method you have used to connect the DVD player.
2 If an audio system or an AV receiver is connected to the DVD player, switch it on and select the audio input for the DVD player.
3 Switch on the DVD player.

- If there is no disc in the disc compartment, »MODSC« appears on the display after a short time.

- If a disc has been inserted, it is scanned and »LORD« appears on the display.

Inserting the disc

1 Press »▲« to open the disc compartment.
- Display: »OPEN«.
2 Place the disc into the compartment with its label facing upwards.
3 Press »▲« to close the disc compartment.

- Display: »CLOSE« and then »LOAD«; the disc is scanned and then the total duration of the disc is shown.

- The disc menu opens automatically.

Note:

■ Some disc menus direct you to choose the menu language first. If this happens select the language with cursor buttons and press »OK«.

Playback

1 If this option is available, select »Play« with cursor buttons and press »OK«;

or

- The playback starts.

Note:

If »INVALID KEY« appears on the television screen, the selected function is invalid for this disc.

2 Press » « (freeze frame) to pause playback.
3 Press »« to resume playback.
4 Press » ■ « to stop playback.
5 Press » « to resume normal playback.
6 Press » ■ « twice to end the playback.

Removing the disc

1 Press »▲« to open the disc compartment.
2 Remove the disc from the compartment.
3 Press »▲« to close the disc compartment.

Additional playback functions

Note:

During operation, »INVALID KEY« sign may appear on the TV screen. »INVALID KEY« sign means that the device or the disc does not allow the relevant process.

Viewing information

You can view information about the title, chapter, playing time and much more on the screen.

1 Press »DISPLAY« on the remote control.

- Information lines appear on the screen.

2 Press »DISPLAY« on the remote control again.

- More information lines appear on the screen.

3 Press »DISPLAY« on the remote control to deactivate this function.

- Information lines disappear.

Navigating in the disc menu

The disc may contain several titles and chapters you can choose from.

1 Press »MENU« on the remote control. - Main menu of the disc opens.
2 Select the title you want with the cursor buttons and press »OK« to confirm.
3 In the selected title, choose the chapter or part that you want with the cursor buttons and press »OK« to confirm.
4 Press »MENU« on the remote control to return to the main menu of the disc.

Fast forward and fast rewind

During playback, press »«« on the remote control to fast rewind or press »»to fast forward within the disc.

Note:

■ When you press the button consecutively, at each press fast forward or fast rewind speed changes. Speed change happens with this sequence: X2, X4, X8, X20.

2 Press »«Ito resume normal playback. -Playback is resumed.

Selecting the previous or next chapters

1 During playback, press » to play the previous chapter or press » to play the next chapter.

- When you release the button, the device skips the current chapter and playback starts from the selected chapter.

Search functions

1 Press »SEARCH MODE« in order to open the function for going to the desired title, chapter or time.
2 Select the desired mode with »◀« or »▶« and press »OK« to confirm.
3 In the selected mode, press number buttons to select the point you want to play.

Note:

■ For example, you should press »0«, »4« buttons respectively to select the fourth title.
- Selected point will be played back automatically.

Enlarging or reducing the picture

(only DVD)

To switch through ZOOM 2, ZOOM 3, ZOOM 4, ZOOM 1/2, ZOOM 1/3, ZOOM 1/4, ZOOM OFF, press »ZOOM« repeatedly.

- Display:

»ZOOM 2«, selected area of the picture is enlarged by 2 times;
»ZOOM 3«, selected area of the picture is enlarged by 3 times.
»ZOOM 4«, selected area of the picture is enlarged by 4 times.
»ZOOM 1/2«, selected area of the picture is reduced by 1/2 times.
»ZOOM 1/3«, selected area of the picture is reduced by 1/3 times.
»ZOOM 1/4«, selected area of the picture is reduced by 1/4 times.

Note:

■ You can slide the picture with »▼«, »▲«, »◀« or »▶« on the screen.

2 To exit the function, press »ZOOM« repeatedly until »ZOOM OFF« symbol appear.

- Picture on the screen restores to its normal size.

Repeating a chapter or a track

(controlled by the DVD Disc)

1 During playback, press » REPEAT « repeatedly to select a repeat mode: »OFF«, »CHAPTER«, »TITLE«, »REP ALL«.

• Display: »OFF«, »CHAPTER«, »TITLE«, »REP ALL«, current chapter is repeated.
• Display: »CHAPTER«, current chapter is repeated.
• Display: »TITLE«, the entire disc is repeated.

2 To exit the function, press select »OFF«.

Repeating a selected chapter

(controlled by the DVD Disc)

1 During playback, press »A-B REPEAT« to select a start point for a chapter to be repeated.
- Display: »REPEAT A-«, the start point of the chapter is selected.
2 At the point you want to be the end point, press »A-B REPEAT« again to set the end point for the chapter to be repeated.
- Display: »REPEAT A-B«, end point of the chapter is selected. The selected chapter starts to be repeated.
3 To deactivate this function, press »A-B RE-PEAT« again to set »A-B CANCEL«.

Playing chapters and tracks in random order

1 Press »RANDOM/ANGLE« during play-back.

• Display: »RANDOM«.
• Random playback starts automatically.

2 To deactivate this function, press »RAN- DOM/ANGLE« again during playback.

- Display: »OFF« disappears from the display.

Selecting and displaying the subtitles

If the disc includes subtitle, it can be displayed on the TV screen. If there are language options, you can select any language available.

1 During playback, press »SUBTITLE« on the remote control.
- »OFF«.
2 Select the option you want with »SUBTITLE« and press »OK« to confirm.
3 To turn the subtitle off, press »SUBTITLE« until »Subtitle Off« in Step 1 appears on the screen.

Notes:

- You can set the subtitle from the disc menu too. Refer to the section "Navigating in the disc menu".

Title menu

If the disc provides pop-up or title menus, you can use this function.

1 During playback, press the »TOP MENU« button to open the pop-up or title menu.
2 Select the option you want with the cursor buttons and press »OK« to confirm.
3 Press »TOP MENU« again to cancel the function.

Selecting the camera angle for particular scenes

Some discs provide scenes which were filmed several times from different camera angles.

1 During playback, press »RANDOM/ANGLE« on the remote control.
- Angle menu appears.
2 Select the angle you want by pressing »RAN- DOM/ANGLE« repeatedly and press »OK« to confirm.
- Display: for example »01/03«.

Reading the contents of a data device or a USB memory stick

DVD player basically supports the version 2.0 and is also compatible with the previous 1.0 and 1.1 versions. In some cases, incompatibility may occur due to the different data formats.

Playback may result in errors or jamming due to the non-standard different formats and parameters. WMA(PCM) is the specific format for Windows media player; compressed data can be played back in this device.

1 Press » ⏻ « to switch off the DVD player.
2 Connect the data device to the »USB« socket with a standard USB cable; or
insert the USB plug of the USB memory stick in the »USB« socket on the device (refer to the section "Connecting an MP3 player or a USB memory stick").
3 Switch on the TV, select the input setting on the TV that matches the connection method you used to connect the DVD player.

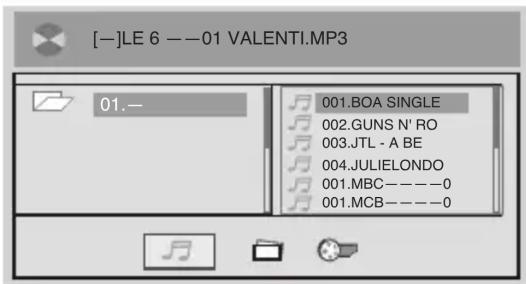

4 Start the DVD player with » ⏻«. If the procedure is successful, a navigation menu is automatically displayed.
- »Loading«; external device menu is opened.

Note:

If more than one data source is connected, press »USB« to select the USB source.

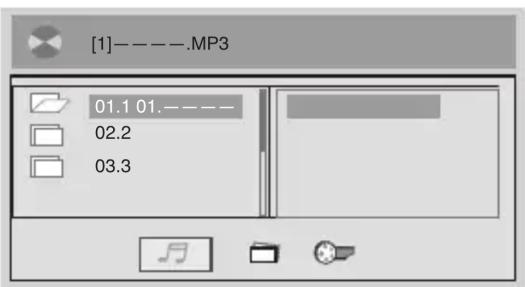

5 Select folders with »▼« or »▲« and press »OK« to confirm. Select the video, music or image files with »▼« or »▲« and press »OK« to confirm.
6 Press »« to start playback. - The selected file starts playing.
7 Press » ■« to stop playback.

Playing picture CDs

1 Press » ⏻ « to switch on the DVD player.
2 Press »▲« to open the disc compartment. - Display: »OPEN«.
3 Insert the disc with pictures into the disc compartment.
4 Press »▲« to close the disc compartment. - Display: »CLOSE«. - Display: »LOAD«The disc automatically plays.
5 Press » ■ « to stop playback.

Playing MP3 audio CDs

1 Press » ⏻ « to switch on the DVD player.
2 Press »▲« to open the disc compartment. - Display: »OPEN«.
3 Insert the disc with audio files into the disc compartment.
4 Press »▲« to close the disc compartment. - Display: »CLOSE«. - »LOAD«; disc menu is opened.

5 Select folders with »▼« or »▲« and press »OK« to confirm. Select the audio files with »▼« or »▲« and press »OK« to confirm.
6 Press »Ito start playback. - The selected folder starts playing.
7 Press » ■ « to stop playback.

PLAYING AUDIO/PICTURE/VIDEO FILES

Additional playback functions for Audio/Picture/Video files

■ Press » « I to pause playback.
■ Press »«again to resume playback.
- Press the »◀« to return to the previous menu.
■ During playback, press »« or » « no go forward or backward.

- Select the next track/picture with »« or previous track/picture with »« during playback.

During playback, press »REPEAT« repeatedly to select a repeat mode: - »REP OFF« - »REP 1« - »REP DIR« - »REP ALL«

■ Press »▼«, »▲«, »◀« or »▶« repeatedly to rotate the picture.

Notes:

■ The USB socket on the device does not support a connection for a USB extension cable and is not designed for directly connecting to a computer.
■ The USB socket of this device is a standard socket. Due to rapid advances in technology and new manufacturers appearing every day, the compatibility of USB memory sticks can only be partially guaranteed.
If the connected USB device is not recognized or is not read well, this situation does not necessarily suggest a failure of the device.
■ Bi-directional data transfer as defined for ITE devices in EN 55022/EN 555024 is

not possible.

■ USB transfer is not in itself an operating mode. It is only an additional function.
■ Never disconnect the USB devices during any procedure. This could damage the USB device and the device. Any such damage will invalidate your warranty.
■ When the device is in stop mode, you can insert or remove the card and USB devices.
■ While the card is being read, press »USB« to return DISC mode.

General Setup Page Settings

1 Press »SETUP« to open the main menu.
2 Select »General« in the main menu with »« or »»« and press »OK« to confirm.
3 Select the necessary function with »▼« or »▲« and press »OK« to confirm.

4 Select the desired settings with »▼« or »▲« and press »OK« to confirm.
5 Press »SETUP« to exit the main menu.

Existing settings in the General menu

TV SYSTEM

Your DVD Player supports different TV output formats including NTSC and PAL systems.

If your TV supports only NTSC or PAL and you select opposite TV output format on your DVD Player, the image on the TV could flicker and lose color.

TV TYPE

You can select different screen formats and the TV screen in the TV Viewing menu. For different matches between the disc and the TV, there are various screen formats.

Note:

• Regardless of the selected screen format, a picture which is recorded as 4:3 format is always displayed in 4:3 aspect ratio.
  ■ Screen format of the DVD titles could vary; please refer to the information accompanying the DVD title.
  If the TV is a standard 4:3 screen while the DVD title was recorded as 16:9, the picture will be fitted horizontally.

■ Some DVD titles may have been recorded in special formats. In such cases, DVD titles could be displayed in their own original formats on the screen regardless of the TV screen format you choose.

HD OUTPUT

This option increases the video output resolution of your DVD Player resulting in a better video quality.

Use »▼« or »▲« buttons to change the settings and press »OK« to confirm.

Note: This setting only improves the quality of video transferred over HDMI cable.

SCREEN SAVER

While the screen saver is on, if the DVD player is not operated for a certain period of time, an animation picture will appear on the screen. This will improve the lifetime of your TV panel.

To enable or disable the screen saver use » ▼« or »▲« buttons to select and press »OK« to confirm.

PASSWORD

You can change the password. Enter a 4-digit number by using the number buttons between »1...0« and press »OK« to confirm. Please do not forget the password you choose.

Note: (Initial password: 0000). Note down the new password in order not to forget it. You have to enter your new password to adjust the parental control function.

PARENTAL CONTROL

Parental control function works with different censuring classes assigned to DVDs. These classes help you control the DVD types viewed by your family.

8 censuring classes are available for DVDs.
- 1[KID SAF]: Suitable for all children.
- 2[G]: General audiences.
- 3[PG]: Parental guidance suggested.
- 4[PG-13]: Not suitable for anyone under 13.
- 5[PG-R]: Parental guidance suggested.
- 6[R]: Not suitable for anyone under 17 unless supervised by a parent or adult guardian.

• 7[NC-17]: Not suitable for anyone under 17.
• 8[ADULT]: All discs can be played.

To change Parental control level use »▼« or »▲« buttons to select and press »OK« to confirm.

Note:

■ You have to enter the password to change this setting. (Initial password: 0000)

DEFAULT (Factory Settings)

Resets your player to the default factory settings. To reset, select »RESTORE« and press »OK« to confirm.

Restoring to the factory defaults will not reset the "Parental Control Password"

Osd Language Setting

In this menu, you can adjust the menu language, subtitle language and audio track language settings.

1 Press »SETUP« button to enter main menu.
2 On main menu select » « using » ◀« or »▶« buttons and pres »OK« to confirm.
3 Select desired function by using » ▼« or » ▲« buttons and press »OK« to confirm.
4 Press »SETUP« button to exit main menu.

OSD LANGUAGE

Adjusts the OSD Language and screen menu language.

CAPTION LANGUAGE

Adjusts the caption language of the DVD titles being viewed on your DVD player.

(DVD title may not support this feature).

SUBTITLE LANGUAGE

Adjusts the subtitle language of the DVD titles being viewed on your DVD player.

(DVD title may not support this feature).

MENU LANGUAGE

Adjusts the menu language of the DVD titles being viewed on your DVD player.

(DVD title may not support this feature).

DIVX SUBTITLE LANGUAGE

Adjusts the subtitle language of the DivX titles being viewed on your DVD player.

(DivX title may not support this feature).

Note:

This feature is not active while watching a DivX title. To adjust the subtitle language of the DivX title being viewed press »STOP« button twice.

And then change the settings in DIVX SUBTITLE LANGUAGE menu.

Audio Settings

1 Press »SETUP« button to enter main menu.
2 On main menu select »« using » ◀« or »▶« buttons and pres »OK« to confirm.
3 Select desired function by using » ▼« or » ▲« buttons and press »OK« to confirm.
4 Press »SETUP« button to exit main menu.

Existing Settings in the Audio Menu

AUDIO OUT: Adjusts audio output settings. Your DVD Player has three types of audio output:

- SPDIF OFF: 2-CH analog audio is output on back panel Left/Right analog audio output connectors.

- SPDIF/RAW or SPDIF/PCM: Surround digital audio coded in Dolby Digital / DTS format is output on back panel coaxial audio output connector.

DYNAMIC RANGE

This function could be used to avoid disturbance when viewing content with high audio output level during the night. This function lowers the dynamic range of the audio while preserving the tonal quality of the original audio.

Dynamic range is the difference of highest and lowest level audio in a given track in decibel (dB) units.

Quality Settings

This menu enables you to adjust the video quality settings of your DVD video output such as Brightness and Contrast.

1 Press »SETUP« button to enter main menu.
2 On main menu select »« option using » ◀« or »▶« buttons and press »OK« to confirm.
3 Select desired function by using » ▼« or »▲« buttons and press »OK« to confirm.
4 Press »SETUP« button to exit main menu.

Brightness: Adjusts the brightness level of the video output.

When you press »▶«, a value is displayed on the screen. Adjust with »▼« or »▲« and press »OK« to confirm.

Press »◀« to return to the menu.

Contrast: Adjusts the contrast level of the video output.

When you press »▶«, a value is displayed on the screen. Adjust with»▼ « or » ▲« and press »OK« to confirm.

Press »◀« to return to the menu.

Color: Adjusts the color temperature level of the video output.

When you press »▶«, a value is displayed on the screen. Adjust with »▼« or »▲« and press »OK« to confirm.

Press »◀« to return to the menu.

Saturation: Adjust the saturation level of the video output.

When you press »▶«, a value is displayed on the screen. Adjust with »▼« or »▲« and press »OK« to confirm.

Sharpness: Adjusts the sharpness level of the video output as »8,6,4,2,0«.

Press »◀«t o return to the menu.

Usb Record Function (Cd Ripping)

It is possible to record the Audio tracks on an Audio CD to USB memory using this function.

1 To be able to use this function first insert an Audio CD.
2 Place a USB memory to the USB slot on the front panel of your DVD Player and press »USB REC« button.
3 Recording setting will be displayed on the screen. Press »▶« to view the settings. To adjust any of the settings move the cursor on that setting and press »OK« button. To go back to the Menu press »◀« button.
4 Select START option using »▼« or »▲« buttons and press »OK« button to start recording.

Settings

Recording and encoding settings could be adjusted in this menu.

SPEED: To adjust recording settings from CD to USB memory press »OK« button.

BIT RATE: You could change the compression ratio to adjust. Higher bit rate results in higher quality Audio. Lower bitrate results in lower size file.

To adjust the Bit Rate press »OK« button.

CREATE ID3 TAG: Artist, Album and Track names could be recorded if this function is supported by the Audio CD inserted.

To enable this function press »OK« button.

CREATE PLAYLIST: Creates a specific folder on USB memory to store the encoded audio files.

To enable this function press »OK« button.

TRACK

This sub menu displays all tracks and their lengts on the Audio CD.

Select the tracks you wish to record to USB memory by using »▼« or »▲« buttons and press »OK« to confirm.

START

The sub menu will display total number of tracks to be recorded, total length of tracks to be recorded and total size the tracks will take on USB memory. To start recording press »OK« button.

Overall progress could be monitored by the progress bars. To adjust recording speed press »OK« button. To cancel recording press »▶« button to highlight CANCEL function and press »OK« to confirm.

Note:

• Do not remove the USB mermoy while recording is in progress. Doing so could damage the USB memory and/or the files in it.
  ■ Using only USB memories is recommended for recording function. Memory card adaptors may not function properly.

License Terms

Manufactured under the license of Dolby Laboratories.

Dolby and double D symbol are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO:

DivX ^® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ^® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ^® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX ^® , DivX Certified ^® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

DivX Certified ^® to play DivX ^® video, including premium content.

General information about the laser products.

This device is a CLASS 1 LASER PRODUCT. Class 1 Laser Product means that the product is designed in such a way not to exceed the permitted maximum laser emission limits under any circumstances.

Warning:

■ Using operation tools or methods other than those mentioned herein may lead to hazardous exposure to the laser emissions.
This device emits laser beams. Due to the danger of eye injuries, the unit may only be dismantled and repaired by the trained and qualified personnel.
If the settings apart from those stated herein are used or other procedures are performed, you may be exposed to dangerous radiation.

Cleaning the device

Disconnect the power plug of the device from the wall outlet. Clean the device with a soft cloth slightly moistened with a detergent water. Do not use solutions containing alcohol, ethyl alcohol, ammonium or abrasive substances.

Cleaning the disc

Illustration of a hand holding a CD or DVD disc with a finger pointing to it (no text or symbols)

If the player cannot read the CDs, use a standard cleaning CD which are available on the market to clean the laser optic hardware.

Other cleaning methods may damage the laser optic hardware.

Fingerprints, dust and dirt may cause noise and audio deformation.

Use a slightly moistened and soft cloth to clean a CD and wipe on a linear direction from the center to the edge. Do not use cleaning substances, solvents or abrasive cleaners for the gramophone records.

Technical Data

This device is equipped with a noise suppression system as per EU Directives in force.

This product meets the require-

ments of the EU Directives 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU.

System

Power supply

Operating voltage: 110 - 240 V\~

Mains frequency: 50/60 Hz

Max. power consumption: 12 W

Power consumption in Standby mode: ≤ 0,5 W

Standard Playback

PAL, 50 Hz, 625 rows

NTSC, 60 Hz, 525 rows

Disc types

DivX (MPEG 4), DVD, DVD-R, DVD+R, VCD, SVCD, CD, CD-R, CD-RW, MP3, WMA (PCM), JPEG, KODAK CD

USB

USB 2.0 compatible FAT 32/16

Audio format

Dolby Digital

Dimensions and weight

Dimensions: W x H x D 415 x 296 x 85 mm

Weight: 1.7 kg

Technical and design modifications are reserved.

Troubleshooting

Please read the following manual for the possible reason and solution of the problem before calling the nearest service or authorized reseller for your repair requests.

SIGN CORRECTION	METHOD
It is not energised Check whether the power connection is properly made.
No image on the screen	Check the connections between the player and the TV.
	Check whether your TV operates properly or not.
No sound	Check the connections between the player and the other devices are in place.
	Make sure that the TV and amplifier works properly and set correctly.
It does not play	Check whether the disc is inserted correctly.
	Clean the disc.
Remote control does not respond	Remove the obstructions between the remote control and the device.
	Aim the remote control to the receiver on the front panel of the device.
	Check the batteries and replace them if necessary.
Image Interference	Check whether the disc is dirty or scratched. Clean or replace the CD.
	Switch of the device, wait for ten seconds and restart again.
It is not activated by means of the buttons.	Electrical fluctuations or some other electric problem.Switch of the device, wait for ten seconds and restart again.

Garanti Konusunda
