USER MANUAL GDP 1100/1 GRUNDIG

Special features of your DVD player

Scope of delivery

Disc formats

Set-up and safety

Overview

The front of the DVD player

The back of the DVD player

The remote control

Connection and preparation

Connecting a television or flat screen

Connecting a multi-channel amplifier or digital two-channel audio system

Connecting an audio system with analogue two-channel stereo sound

Connecting the power cord

Inserting batteries in the remote control

Getting started

Switching on the DVD player

Selecting the language of the screen menus

Adapting the DVD player to the television set

Before playback

Preparation

Inserting a disc

Removing discs

DVD playback

DVD features

Special DVD features

DVD playback

Selecting titles or chapters

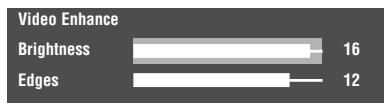

Picture settings

Calling up information

Interrupting/resuming playback (resume)

Ending playback

Additional playback functions

Selecting and playing scenes

Playing back chapters in random order

Repeat functions

VCD/S-VCD playback

S-VCD/VCD features

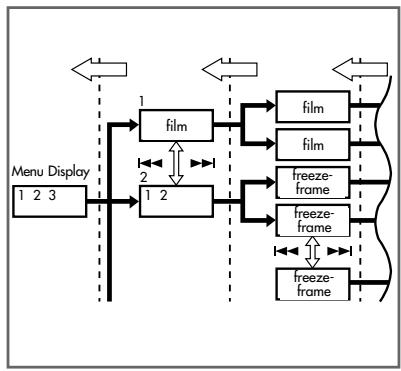

PBC (playback control)

Switching PBC (playback control) on/off

Playing back a track

Selecting a track

Frame search

Ending playback

26-27

26

26

27

27

27

28-29

28

28

28-29

29

29

29

30-31

30

30-31

31

32

33

33

33

34

34

35-36

35

36

37-39

37

37

38

38

39

39

39

MP3 CD playback

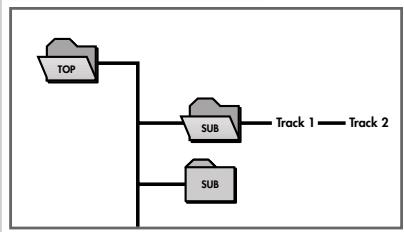

MP3 CD features

Playback

Selecting files

Ending playback

Removing the MP3 CD

Picture CD playback

JPEG CD features

Features of the KODAK picture CD

Displaying JPEG pictures

Selecting pictures

Adjusting the picture display

Enlarging the picture (zoom)

Audio CD playback

Audio CD features

Audio CD playback

Repeat functions

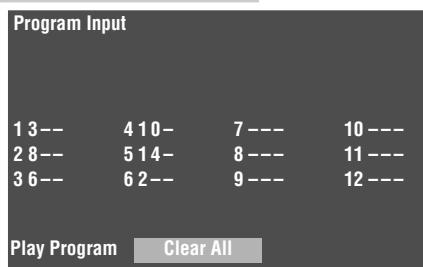

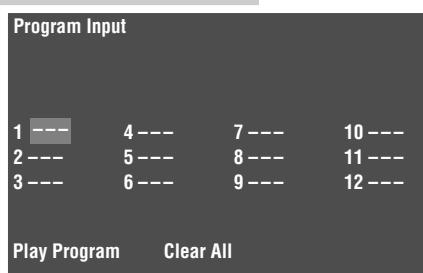

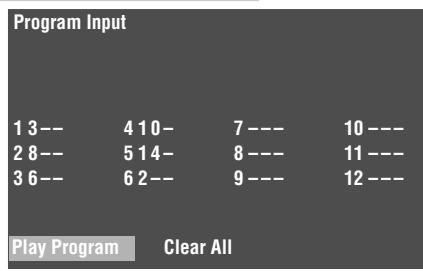

Creating a program

Audio settings

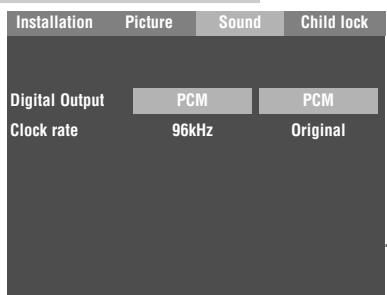

Selecting the digital output

Setting the sampling rate

Child lock

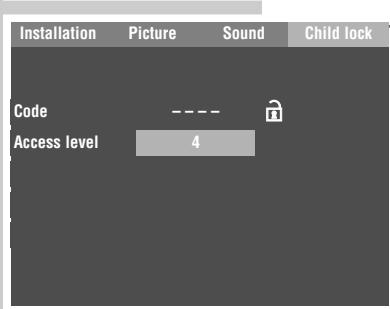

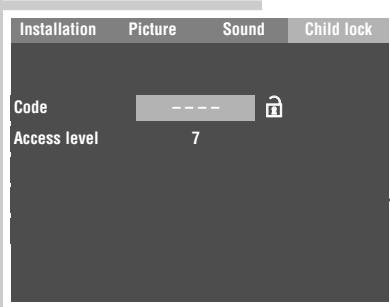

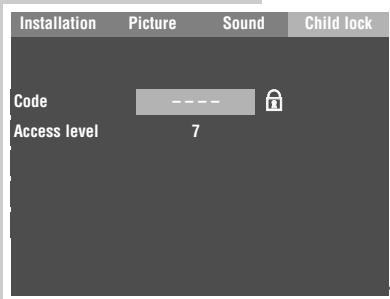

Authorising the contents of a DVD

Personal settings

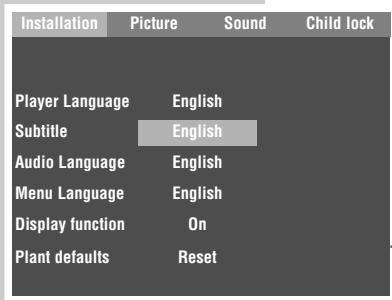

Setting the language

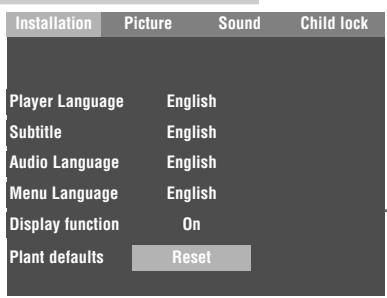

Resetting the DVD player to its original condition

Information

Technical data

General instructions for laser devices

Troubleshooting

Cleaning discs

Software information

Calling up software information

Additional information for units sold in the UK.

Special features of your DVD player

Your DVD player provides you with perfect digital video playback of studio quality.

It also provides superb cinema-quality audio playback – in stereo or with digital multi-channel sound – depending on the type of DVD and the audio system or stereo television.

Other features of DVD video include the choice of audio channel and language, choice of subtitle language, and various camera recording angles. Your DVD player is suitable for DVDs with regional code 2.

As well as DVDs, MP3 CDs, JPEG coded (photo) CDs, KODAK Picture CDs, Video CDs, S Video-CDs and audio CDs can also be played back.

Scope of delivery

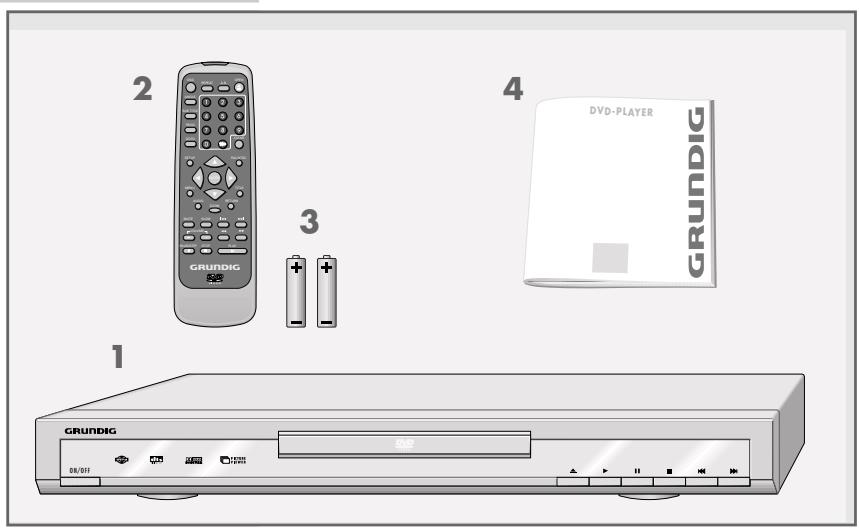

DVD Player GDP 1100
2 Remote control
3 2 Batteries, 1.5V , type AAA
4 Operating manual

Disc formats

Your DVD player can play back CD R, CD RW, VCD 2.0, Super VCD, DVD R, DVD RW discs.

Due to the difference in quality of the recording media and the quality of the recording itself, it can occasionally happen that a home-made DVD or CD cannot be read. This does not indicate a malfunction of the DVD player.

You have to finalise your own CD R and CD RW recordings.

Make sure the settings of your CD burning program correspond to the ISO 9660 standard to create a CD R or CD RW.

When MP3 or JPEG CDs are played back, individual tracks/pictures may be skipped or incorrectly played back/ displayed. This can be due to the disc configuration, the encoder software or the hardware used for the recording.

Audio CDs (CD-DA) meet the specification and bear the corresponding logo. Copy-protected CDs do not meet this specification and do not bear the corresponding logo. These CDs can cause playback errors.

Please note the following information when setting up your DVD player:

This DVD player set is designed to play video and audio signals from compact discs (DVDs and CDs).

Any other use is expressly prohibited.

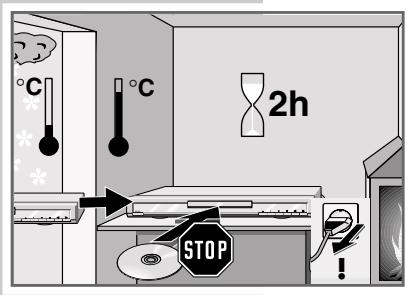

If the DVD player is subjected to a sudden change in temperature, for example if it is brought in from the cold to a warm room, do not connect it to the mains supply and let it stand for at least two hours before you insert a DVD.

The DVD player is designed for use in dry rooms. If you do use it in the open, please ensure that it is protected from moisture, such as rain or water splashes.

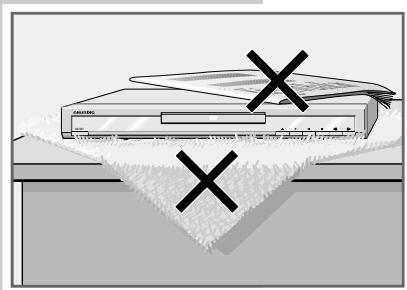

Place the DVD player on a hard, level surface. Do not place any objects such as newspapers on the DVD player or any cloth or similar articles underneath it.

Do not place the DVD player directly on top of an AV receiver or a subwoofer. The laser optics are sensitive to temperature and shocks.

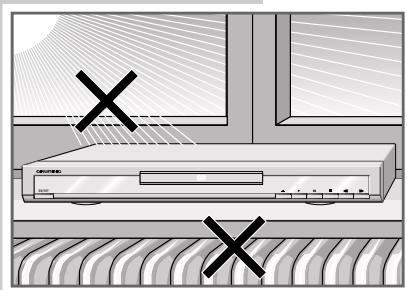

Do not place the DVD player close to heating units or in direct sunlight, as this will impair cooling.

Do not insert foreign objects in the disc compartment of the DVD player.

Never open the DVD player casing under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

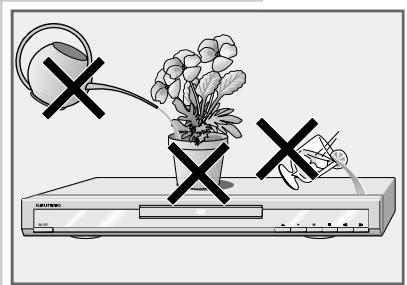

Do not place any vessels filled with liquid, such as vases, on the DVD player, the vessel may tip and the liquid spilled may penetrate into electrical components, thereby presenting a safety hazard.

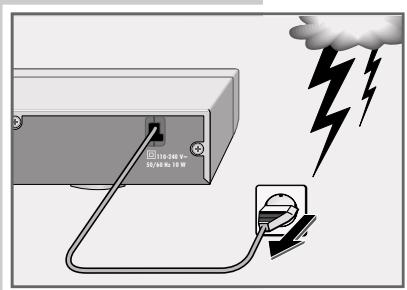

Thunderstorms are a danger to all electrical devices. Even if the DVD player is switched off, it can be damaged by a lightning strike to the mains. Always remove the mains plug during an electrical storm.

If the DVD player cannot scan DVDs or CDs perfectly, use a commercially available cleaning-CD to clean the laser optics. Other cleaning methods may damage the laser optics.

Always keep the disc compartment closed to prevent dust from collecting on the laser optics.

This DVD player is designed to the highest technological and environmental standards. Only environmentally-friendly, high-quality materials have been used. The batteries included contain no mercury or cadmium.

The range of materials used has been deliberately restricted and all the larger plastic parts have been labelled. This DVD player is designed so that it can be easily disassembled to aid servicing and recycling.

The front of the DVD player

ON/OFF

Switches the DVD player on and off.

The device is only completely disconnected from the mains if the plug is pulled out.

Compartment for CD media.

Display.

Opens and closes the disc compartment.

Starts playback.

Freeze-frame and frame-by-frame playback for DVDs and video CDs.

Pause for MP3 CDs, JPEG CDs, Kodak Picture CDs and audio CDs.

Press once to interrupt or resume playback.

Press twice to stop playback.

Selects the previous track or section during playback.

Selects the next track or section during playback.

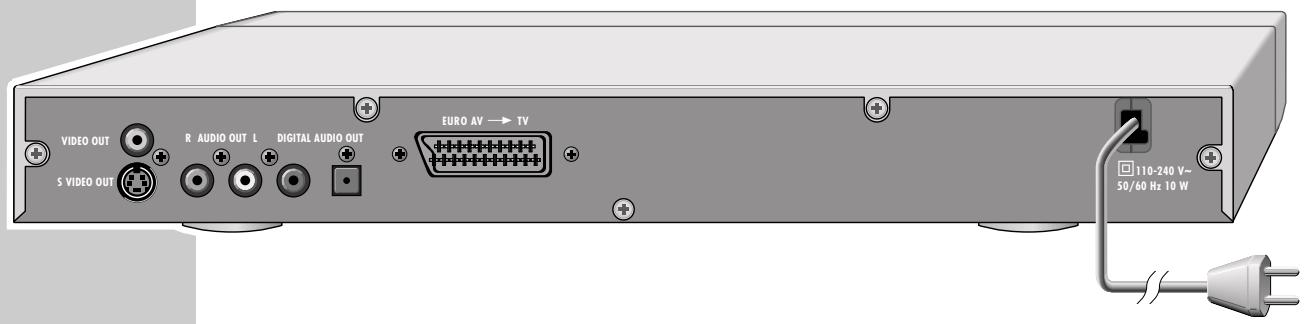

The back of the DVD player

VIDEO OUT

Video output socket for connecting a television or AV receiver with a cinch socket.

VIDEO OUT

Video output socket for connecting a television or AV receiver with an S video socket.

R AUDIO OUT L

Audio output sockets (right/left analogue channel) for connecting an audio system.

DIGITAL AUDIO OUT

Audio output socket (optical) for PCM/Dolby digital/ DTS signals.

Audio output socket (coaxial) for PCM/Dolby digital/ DTS signals.

For connecting a digital multi-channel audio video amplifier or AV receiver.

EURO AV TV

For connecting a television with an EURO-AV socket.

110-240V~

Mains cable.

50/60Hz 10W

Caution:

Do not connect any devices while the DVD player is switched on. Switch off the other device as well before connecting it.

Never touch the inside of the sockets and plugs of the connecting cables.

An electrostatic discharge can damage the DVD player.

The remote control

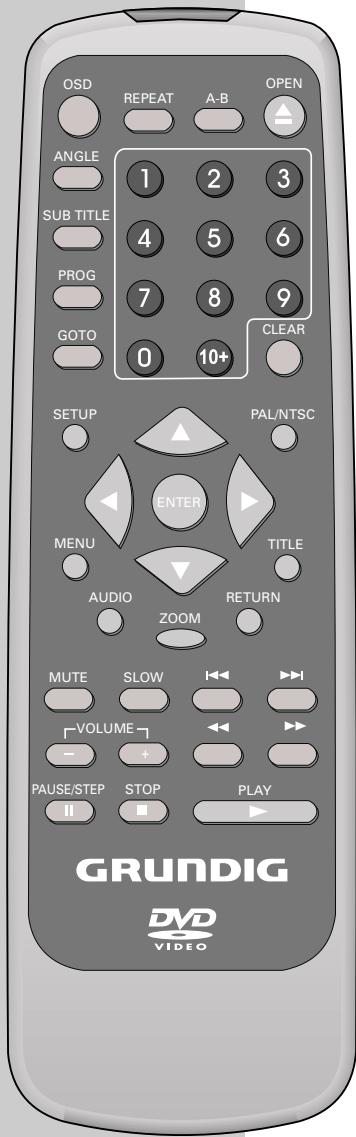

OSD	Displays various information on the television screen during playback, such as the title or chapter number and playing time (not used for MP3 CDs). Displays GRUNDIG software information when the disc compartment is open.
REPEAT	Switches between various REPEAT functions.
A-B	For marking sections for repeated playback.
OPEN ▲	Opens and closes the disc compartment.
ANGLE	Selects various camera angles* for certain scenes or passages on the DVD during playback.
SUB TITLE	For selecting subtitles on the DVD during playback.
PROG	When stopped: for programming a playback list for the media inserted. Calls up the SHUFFLE function when playing back DVDs, S-VCD/VCDs, MP3 CDs and audio CDs.
GOTO	Selects a section on the disc.
1 ... 0 10+	Numeric keys for various inputs.
CLEAR	Deletes inputs.
SETUP	Calls up the main menu of the DVD player during STOP mode. Calls up the picture settings during playback.
▲ ▲ ▼	Selects various functions in the menus. Moves in the zoom mode in the picture section.
ENTER	Confirms inputs and selected functions.
PAL/NTSC	Selects the PAL or NTSC television format.
MENU	Opens up the disc menu of the DVD during playback. Switches the content menu of an MP3 CD (file browser) on. Enters 9 miniatures display of a S-VCD/VCD during playback.
AUDIO	Switches between the original and dubbed language during DVD playback. Selects various audio channels.
ZOOM	Enlarges scenes during playback (not used for MP3 and audio CDs).

RETURN Switches up one menu level (available for S-VCD/VCD).

TITLE Calls up the DVD's title menu* or the S-VCD's/VCD's menu during playback.

MUTE Mutes the sound of the DVD player.

SLOW Selects forward slow motion during playback.

Selects the previous title or section during playback.

Select the next title or section during playback.

• VOLUME + Adjusts the volume.

Switches to backwards frame search at various speeds during playback.

Switches to forwards frame search at various speeds during playback.

PAUSE/STEP II Freeze-frame and frame-by-frame playback for DVDs and S-VCDs/VCDs.

Pause for MP3 and audio CDs.

STOP Press once to interrupt playback.

Press twice to stop playback.

PLAY Startspayback.

CONNECTION AND PREPARATION

Connecting a television or flat screen

You have three options, depending on the sockets you have on your television or flat screen:

• You get the best picture quality by making the connection at the EURO-AV socket using a fully assigned EURO-AV cable.
• The standard connection for many devices, and one which provides good quality, is via the S-VIDEO OUT socket and the AUDIO OUT cinch sockets.
• The simplest option which stills offers sufficient quality is connecting the VIDEO OUT video socket and AUDIO OUT sockets with a cinch cable.

Necessary adjustments to the television

After you have made the connections at the selected output sockets, you must activate them. The setting procedure is described in the "Selecting the video output socket (EURO AV/RGB or S-Video)" section on page 15.

If the DVD player is connected to a television set or a flat screen with a 16:9 format, observe the settings described in the "Selecting the screen format of your television set" section on page 15.

The colour standard of the DVD player must be matched to the colour standard of your television or flat screen. The setting procedure is described in the section "Setting the TV standard" on page 14.

Connect the EURO AV TV socket directly to the television or flat screen, not indirectly via a video recorder. This can cause difficulties when playing back copy-protected CDs.

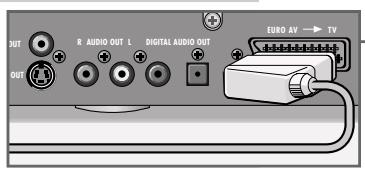

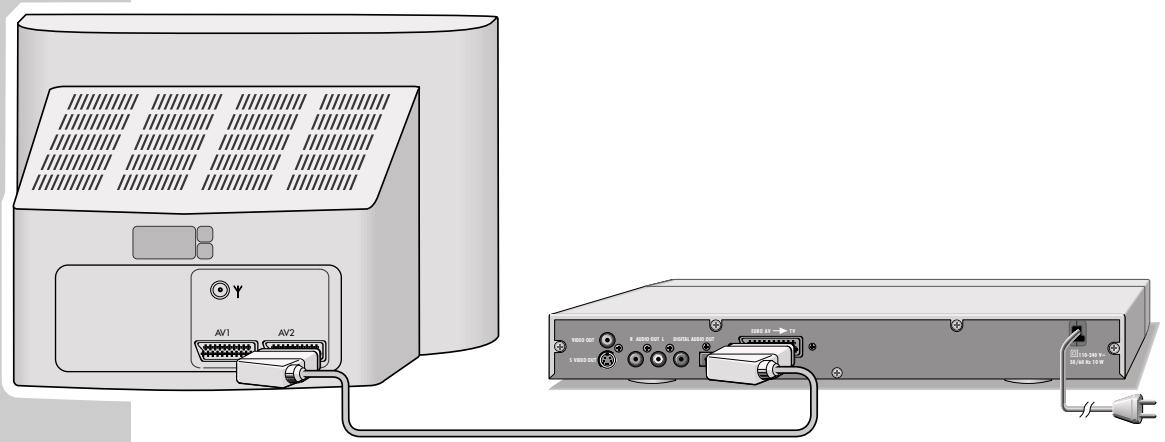

Connection using a EURO-AV (Scart) cable

Plug a standard, fully assigned EURO-AV cable into the «EURO AV → TV« socket of the DVD player and into the corresponding socket of the television or flat screen.

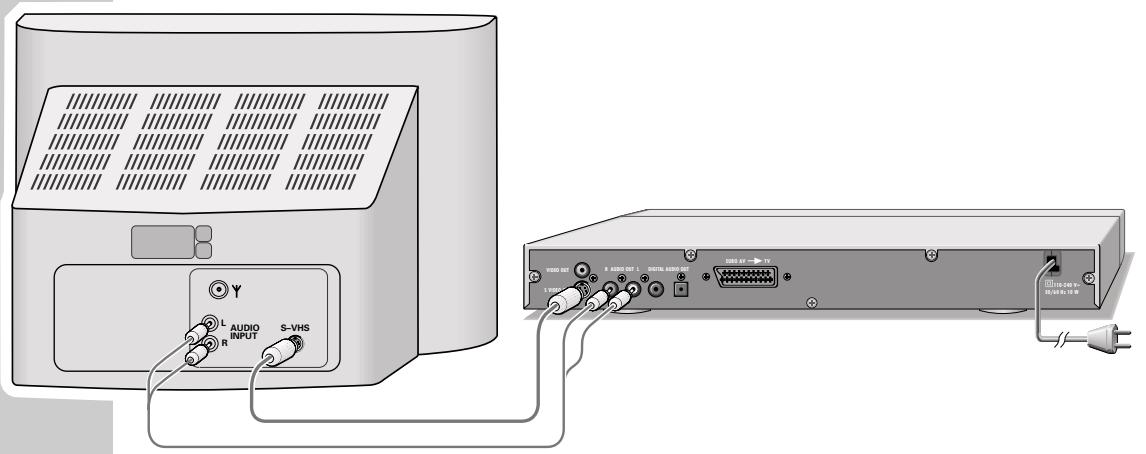

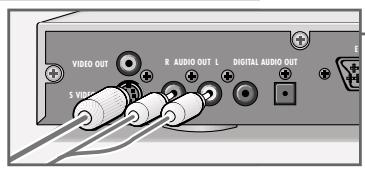

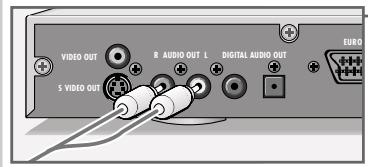

Connection using a Y/C (S-VIDEO) cable and a cinch cable

1 Plug a standard Y/C cable into the «S VIDEO OUT« socket of the DVD player and into the corresponding socket (SVIDEO IN) of the television or flat screen.
2 Plug a standard cinch cable into the «R AUDIO OUT L« socket on the DVD player and into the corresponding sockets (AUDIO IN) of the television or flat screen.

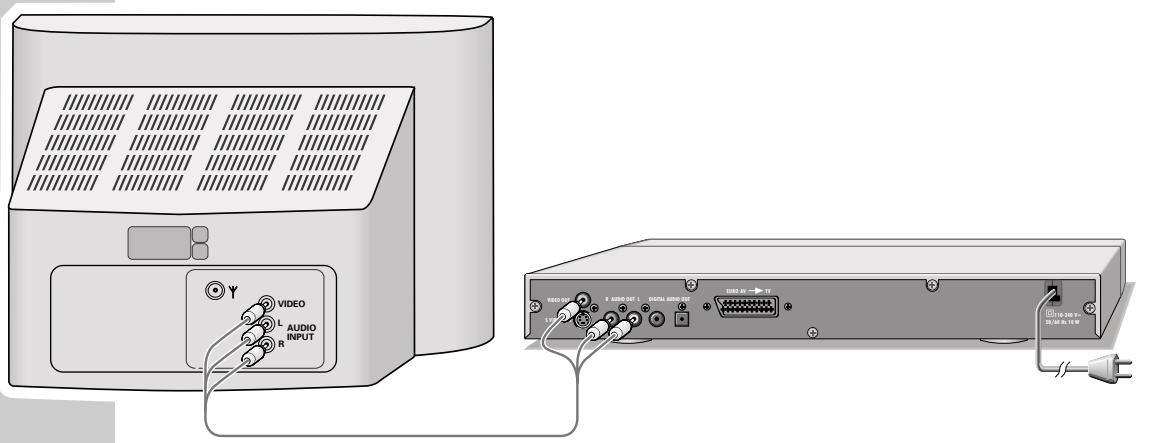

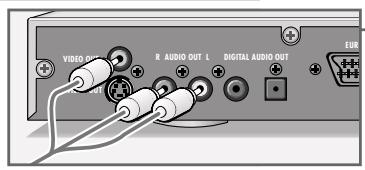

Connecting using a cinch cable

Plug a standard cinch cable into the «VIDEO OUT« socket on the DVD player and the corresponding socket (VIDEO IN) on the television or flat screen.
2 Plug a standard cinch cable into the «R AUDIO OUT L« socket on the DVD player and into the corresponding sockets (AUDIO IN) of the television or flat screen.

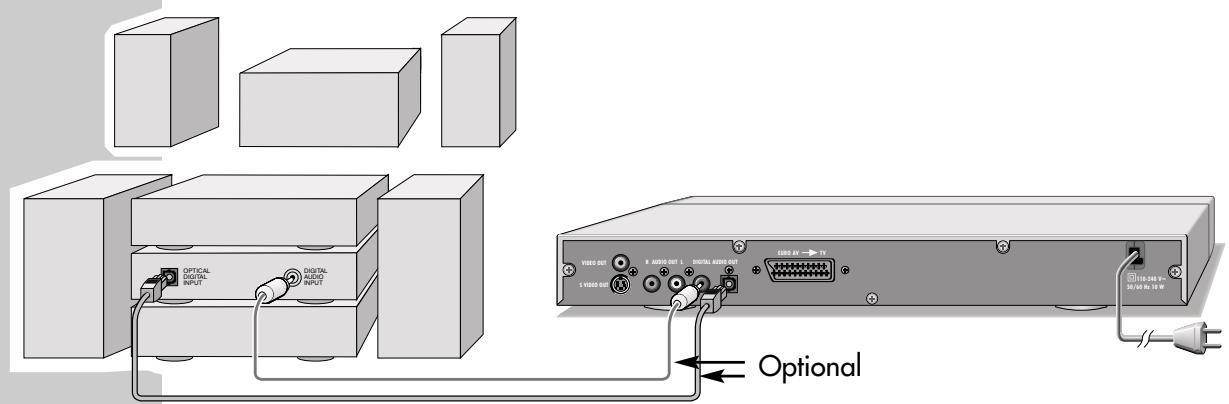

Connecting a multi-channel amplifier or digital two-channel audio system

The digital multi-channel sound of a DVD can best be decoded and played back with a multi-channel audio/video amplifier (Dolby digital decoder or DTS).

Plug a standard cinch cable into the «DIGITAL AUDIO OUT« socket on the DVD player and into the appropriate socket on the digital multi-channel amplifier

or

Remove the protective cap of the optical digital output and plug an optical digital cable into the digital output «DIGITAL AUDIO OUT« of the DVD player and into the corresponding socket of the digital multi-channel amplifier.

Notes:

Keep the protective cap in a safe place and put it back in place on the device if it is not to be used for a longer period of time.

Even if you are using a digital connection, you should still make an analogue audio connection as it is possible, depending on the disc type, that no signal can be output via the «DIGITAL AUDIO OUT« socket see page 13 for connection).

• Manufactured under licence from Dolby Laboratories Licensing Corporation. "Dolby", "Dolby Pro Logic", "Dolby Digital" and the double-D symbol "D0" are trademarks of the Dolby Laboratories Licensing Corporation. Copyright 1992 Dolby Laboratories, Inc. All rights reserved.
• DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc. All rights reserved.

Connecting an audio system with analogue two-channel stereo sound

As an alternative to using the television's speakers, the sound can also be played back through an audio system. This can improve audio playback.

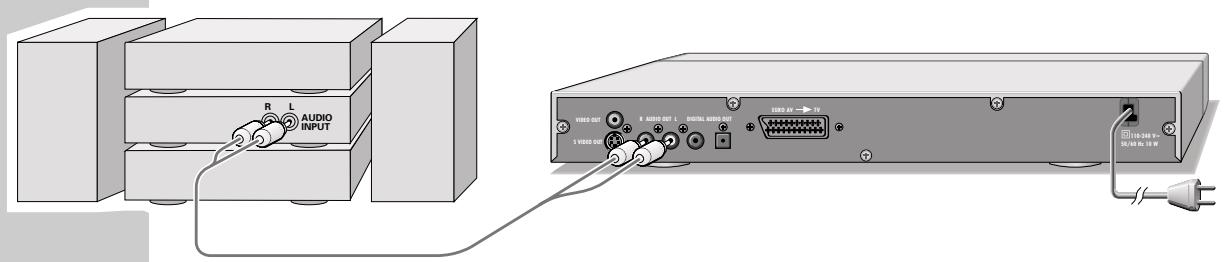

1 Plug a standard cinch cable into the «R AUDIO OUT L« socket of the DVD player and into the corresponding socket on the audio system.

Caution:

Do not connect the R AUDIO OUT L × socket on the DVD player to the PHONO (record player) input socket on the audio system.

Connecting the power cord

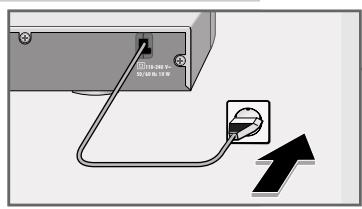

1 Plug the power cord into the wall socket.

Inserting batteries in the remote control

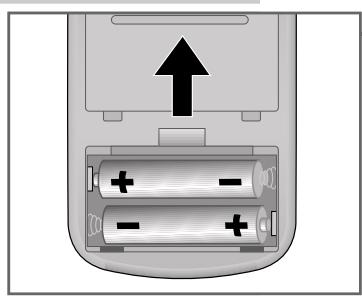

1 Open the battery compartment by pressing the snap-catch, and remove the lid.
2 When inserting the batteries (Micro type, e.g. R03/AAA, 2 × 1.5V ), observe the polarity marked on the battery compartment.
3 Close the battery compartment.

Note:

If the DVD player no longer reacts properly to remote control commands, the batteries may be flat. Be sure to remove used batteries. The manufacturer accepts no liability for damage resulting from leaking batteries.

Environmental note:

Batteries, including those which contain no heavy metal, may not be disposed of with household waste. Please dispose of used batteries in an environmentally sound manner. Find out about the legal regulations which apply in your area.

Switching on the DVD player

Press ON/OFF on the device to switch on the DVD player.

Note:

The DVD player must be in stop mode for the following settings. All settings which are made via the main menu are then only activated if they have been ended beforehand using SETUP .

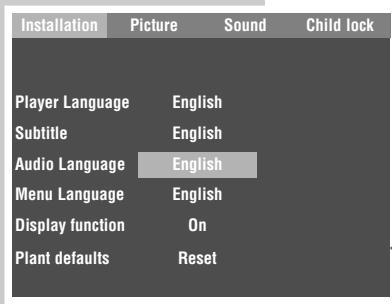

Selecting the language of the screen menus

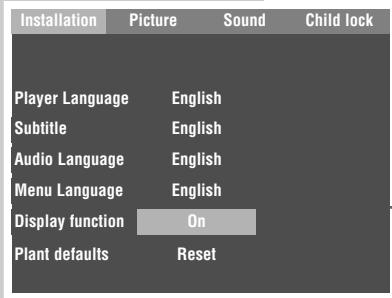

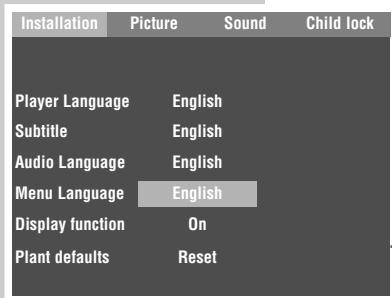

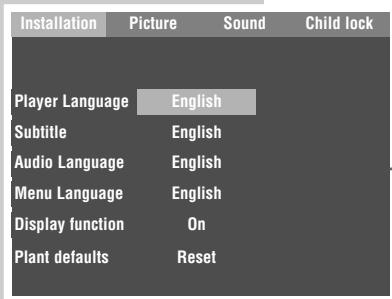

You can choose between twelve menu languages. The preset setting is «English«.

1 Call up the main menu with SETUP in stop mode.
2 Select the Installation< menu item with or and activate it with ENTER.

• The current menu language is displayed against a blue background in the «Player Language« line.

3 Select the menu language you require by pressing ENTER repeatedly.
4 Press SETUP to conclude the setting.

Adapting the DVD player to the television set

Setting the TV standard

The colour norm of the DVD player's screen menus has to be adapted to the format of your television or flat screen.

Select NTSC for televisions with the NTSC standard, or PAL for those with the PAL standard. Factory setting is PAL.

Select «Auto« for televisions with multi-norm, and the TV norm follows that on the disc.

1 Call up the main menu with SETUP in stop mode.
2 Select the «Picture« menu item with « or » « and activate it with «ENTER«.

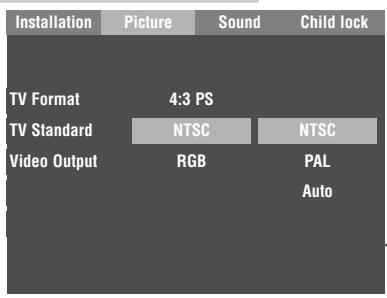

3 Select the TV Standard line with or and activate with ENTER .
4 Select the desired setting (»NTSC«, »PAL« or «Auto«) with «▼ « or « ▲ « and confirm with «ENTER«.

Note:

You can watch any DVD on a television with the PAL system, since it always converts the format. Smearing effects may occur, depending on the type of conversion used.

5 Press SETUP to conclude the setting.

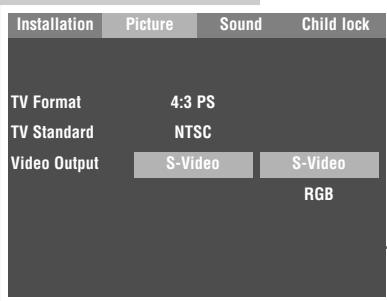

Selecting the video output socket (EURO AV/RGB or S-Video)

The video output of your DVD player has been set at the factory to «RGB«. If you connect your DVD player using a Y/C cable («S-VIDEO OUT« socket on the DVD player) to the television, you will need to set «S-Video« as the video output for the video signal to be relayed to the television.

1 Call up the main menu with SETUP in stop mode.
2 Select the Picture menu item with or and activate it with ENTER .
3 Select «Video Output« with «▼ « or « ▲ « and activate with «ENTER«.
4 Select the desired video output (»RGB« for the »EURO AV → TV« socket or «S-Video« for the «S-VIDEO OUT« socket) with «▼ « or «▲ « and confirm with «ENTER«.
5 Press SETUP to conclude the setting.

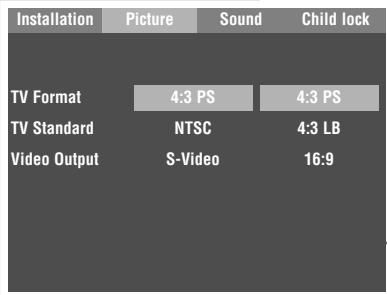

Selecting the screen format of your television set

This setting depends on your television or flat screen, and on the information on the DVD.

If you have a 4:3 format television or flat screen, the following settings are available:

4:3 PS (Pan&Scan) for wide-screen playback, where the left and right edges of the picture are cropped off (depending on the DVD in use). The device is set to 4:3 PS at the factory.

or

4:3 LB (Letterbox) for wide-screen playback with black bars at the top and bottom edges of the television screen.

If you have a 16:9 format television or flat screen, select the 16:9 setting.

1 Call up the main menu with SETUP in stop mode.
2 Select the Picture menu item with or and activate it with ENTER .
3 Select TV Format with or and activate with ENTER .
4 Select the desired picture format (»4:3 PS«, «4:3 LB« or «16:9«) with «▼ « or « ▲ « and confirm with «ENTER«.
5 Press SETUP to conclude the setting.

Preparation

1 Switch on the television and select the preset channel for the DVD player.
2 If an audio system or an AV receiver is connected to the DVD player, switch it on and select the audio input for the DVD player.
3 Press ON/OFF on the device to switch on the DVD player. - Display on the DVD player 10 dISC, on the television - No Disc.

No Disc

Inserting a disc

1 Press
- Display: OPEN, the disc drawer opens.
2 Insert the disc you want to play in the disc compartment with the label facing upwards.
3 Press

• Display: CLOSE, the disc drawer closes, afterwards the LOd display flashes, the disc is scanned.
• Display: the elapsed playing time of the disc.

Loading....

Play

Q

Notes:

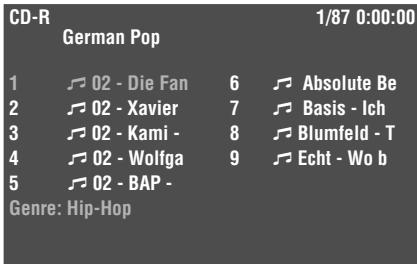

Playback of a DVD, VCD, SVCD, KODAK Picture CD, JPEG CD or audio CD (CD-DA) starts automatically.

The file browser appears if an MP3 CD is inserted.

If the symbol appears on the television screen, the selected function is not possible with this disc.

Removing discs

Press

• Display: OPEN, the disc drawer opens.

DVD features

DVD

VIDEO

You can recognise a DVD by the logo on the label.

Depending on the content of the DVD, the discs contain one or more titles.

Each title may contain one or more chapters. Titles and chapters can be selected easily and conveniently.

You can control and direct playback of a DVD using the menu of the DVD player on the television screen.

Special DVD features

DVDs have a title menu which provides an overview of the available titles and the passages they contain.

Some of the DVD player's functions, such as slow motion, freeze-frame and auto-play, can also be controlled by the DVD itself. It is therefore possible that the freeze-frame function, for example, cannot be selected during certain scenes.

Many DVDs have audio tracks recorded in up to eight languages.

This enables you to select the language you prefer.

Many DVDs are recorded by the manufacturer with subtitles in several languages.

You can select subtitles from up to 32 different languages.

Since films are released in different parts of the world at different times, all DVD players world-wide are given a regional code. The regional code for your DVD player is 2.

DVDs may also be given a supplementary regional code. If you insert a DVD with a code different to that of the DVD player, a reference to the regional code appears on the television screen. The DVD player will not be able to play back the DVD.

Q

Notes:

If a DVD is not authorised, the coded rating of the access level (»1 « ... »7«) must be changed (see the »Authorising the content of the DVD« chapter on page 34).

If the symbol appears on the television screen, then the selected function is not possible with this DVD.

DVD playback

Play

After the disc compartment closes and the DVD is scanned, playback starts automatically.

Pause II

2 To pause playback (freeze-frame), press PAUSE II<.

Play

3 Press PLAY to resume playback.

Stop

4 End playback with STOP (press twice).

Selecting titles or chapters ...

If a DVD contains several titles and/or chapters, you can select them.

… using the menu of the DVD player

The menu of the DVD may contain selection options for titles, sections or scenes. Depending on the DVD, the menu can be called up with MENU or TITLE .

1 Call up the contents of the DVD by pressing MENU or TITLE during playback.
- If the DVD has a title menu it will appear on the screen.
2 Select the tracks and sections with , , or and call them up with ENTER or start playback with PLAY .

... using the GOTO function of the DVD player

Press GOTO to see the Info line.
- Display Search, Time and Title/Chapter.
2 Enter the time with «1 ... 0« and confirm with «ENTER«.
- The DVD player searches for the selected time in the current chapter

or

select Title/Chapter with , enter the desired title with 1 ... 0 and confirm with ENTER

or

Search

Time

---

Title/Chapter ---/---

Search

Time 01:30:00

Title/Chapter ---/---

Search

Time

Title/Chapter 002---

Serach

Time

---

Title/Chapter --/012

move the bookmark to the chapter with enter the desired chapter with 1 ... 0 and confirm with ENTER .

• Playback starts with the selected chapter in the current title.

Next

Back

Selecting a chapter directly

1 To select the next chapter, press during playback.
2 To select the previous chapter, press during playback. - The DVD player locates the chapter and starts playback.

Picture settings

1 During playback, press «SETUP«. - Display: the «Video Enhance« menu.

2 Select Brightness with ▲ or and set the picture brightness with or .
3 Select «Edges« with « ▲ « or «▼ « and set the picture sharpness with « « or « » «.
4 During playback, press SETUP

Calling up information

You can view information on the screen.

1 Press OSD to see the Info line.

-Display: 00:00:05 Playing time 01:31:55 Remaining playing time

2 To call up further information press OSD again.

-Display:

DVD Type of disc

Title 1/2 Current track and available tracks

Chapter 13/20 Current chapter and chapters available

Angle 1/4 Camera angles available (4 in this example)

Sound 1/3 D Current playback language is English

1 Ch Eng

Subtitle Off Subtitles are switched off

Bitrate 6400Mbps Bitrate

3 Press OSD to conceal the Info line.

Interrupting/resuming playback (resume)

The playback of a DVD can be interrupted at any point and then resumed from the same place.

Stop (Play to resume)

1 Interrupt playback by pressing STOP 1 once.

Play

2Resume playback at the point where you stopped it with PLAY

Ending playback

Stop

You can stop playback at any time, by pressing STOP twice.

Additional playback functions

Notes:

The sound is muted during the "Frame search", "Slow motion" and "Freeze-frame" functions.

Depending on the DVD, some functions cannot be selected.

Frame search

Several different speeds are available.

X2

1/2

1/4

Pause II

Step III

2 To return to playback press PLAY

Slow motion

Four different (forward) playback speeds are available.

1 During playback, press «SLOW«.
2 Select the slow motion speed using SLOW .
3 To return to playback press PLAY

Frame-by-frame playback

1 During playback, press PAUSE/STEP II « repeatedly. The picture is advanced one frame at a time.
2 To return to playback press PLAY «.

Selecting the camera angle for particular scenes or passages

Many DVDs contain scenes or passages which were filmed from several different camera angles.

You can choose from among these different angles.

1 During playback, select the camera angle function by pressing «ANGLE«. - The display « 1/3« shows the camera angle, in this case, the first of three options.
2 Press ANGLE to select another camera angle.

Enlarging the picture and moving screen sections (Zoom)

1 During playback or pause, press «ZOOM« once, twice or three times (depending on the DVD).

• Display: 1 , 2 or 3 a section of the picture is enlarged.

2 The picture section can be moved with , , or
3 To end the function press «ZOOM« again.

-Display: Off.

Switching the dubbed language or the audio format

These settings switch away from the preset dubbed language, if the DVD offers any alternatives.

1 During playback, press >AUDIO<.
- Display: for example » 2/3 DQ 1 Ch Eng« is displayed briefly, and the current dubbing language is displayed, in the example: the 2nd of 3 available dubbed languages has been selected, sound format Dolby Digital DQ 5.1.
2 Keep pressing «AUDIO« to select the dubbing language.

Note:

Switching the dubbed language can be suppressed by the structure of the DVD itself. In this case the setting is usually made in the DVD menu.

1/21 Eng

Selecting and displaying subtitles

If the DVD provides subtitles, they can be displayed on your TV screen. When subtitles are available in several languages, you can select your preferred language.

1 During playback, press SUB TITLE .

• Display: for example, 1/21 Eng is briefly displayed, and the current subtitle is displayed.

2 Keep pressing SUB TITLE to select the subtitle language.

Notes:

To switch off the subtitles press SUB TITLE repeatedly until Off appears in the display.

Switching the sub-titles can be suppressed by the structure of the DVD itself. In this case the setting is usually made in the DVD menu.

Selecting and playing scenes

You can make a bookmark for a scene on a DVD. This bookmark can be selected directly for playback.

You can set three bookmarks per DVD.

Bookmark 1 -----

Bookmark 2 ------

Bookmark 3 - - - -

Bookmark 1 00:20:35

Bookmark 2 ------

Bookmark 3 ------

Setting bookmarks

1 During playback, press GOTO ^次 twice.
2 Select a bookmark using or .
3 Press ENTER at the point you wish to mark. - In the playing time appears in the display.

Notes:

Select the next bookmark with or and mark a new point.

The bookmark (playing time) can be deleted using CLEAR .

Playing bookmarked scenes

1 During playback, press GOTO ^次 twice.
2 Select a bookmark using 或 and confirm with ENTER . - Playback starts at the point marked.

Playing back chapters in random order

If the DVD in use permits this, you can play back chapters in random order.

Shuffle On

1 During playback, press PROG<.

• Display: Shuffle On, the chapters are played back in random order.

Shuffle Off

2 End the function by pressing PROG ^次 twice.

• Display: briefly Shuffle On then Shuffle Off .

Note:

The function described - "Playing back chapters in random orders" - can also be used for S-VCDs/VCDs (see page 24), MP3 CDs (see page 26) and audio CDs (see page 30), if the discs in use permit this.

Repeat functions

Repeating a selected scene (A-B Repeat)

You can mark the start and end of a scene, this is then played back repeatedly.

Rep A -

1 During playback, mark the beginning of the scene by pressing A-B<. - Display: Rep A -<.

Rep A-B

2 Mark the end of the scene by pressing A - B again.
- Display: Rep A - B , the scene is now played back repeatedly.

Rep Off

3 End the function by pressing A - B briefly again. - Display: Rep Off<.

Repeat Chapter

Repeating a chapter or a DVD

These functions repeat the chapter currently playing or the entire DVD.

1 During playback, press REPEAT

• Display: Repeat Chapter , the chapter is repeated.

2 During playback, briefly press REPEAT twice.

• Display: Repeat Title , the DVD is repeated.

3 End the function by pressing REPEAT briefly again.

• Display: Off.

Repeat Title

Off

S-VCD/VCD features

You can recognise S-VCD/VCDs (video CDs) by the logo on the label.

Depending on the contents of the S-VCD/VCD (films, music videos etc.), the discs may carry one or more tracks.

Like audio CDs, S-VCDs/VCDs have a track structure.

S-VCDs/VCDs can be created using the PBC (playback control) system for track navigation. This depends on the processing and burning software used.

You can control and direct playback of the S-VCD/VCD using the menu of the DVD player on the television screen.

You cannot select some of the functions on the DVD player (slow motion, camera angle, marking scenes) when you are playing an S-VCD/VCD. This depends on how the S-VCD/VCD was created.

Depending on how they were created, S-VCDs can have various subtitles and dubbed languages.

PBC (playback control)

PBC is a navigation option for S-VCD/VCDs. PBC information is burned onto the disc when it is made. PBC uses a playlist structure in the menu on the S-VCD/VCD.

PBC is activated by default on delivery. PBC and the program info on the S-VCD/VCD predetermine the navigation options. If the disc has PBC, «PBC» appears in the display of the DVD player.

If PBC is not available, the S-VCD/VCD behaves like an audio CD as regards navigation (with a track structure). You can select tracks with «1 ... 0« or «|« or «»»|« start playback using «PLAY » and end playback with «STOP » (press twice).

Switching PBC (playback control) on/off

PBC Off

PBC On

1 To deactivate the PBC function, press TITLE twice during playback. - Display: PBC Off.
2 To activate the PBC function, press TITLE twice during playback. - Display: PBC On.

Playing back a track

Play

After the disc compartment closes and the S-VCD/VCD is scanned, playback starts automatically.

Pause II

2 To pause playback (freeze-frame), press PAUSE II.

Step II

3 Press PAUSE II « repeatedly to switch through individual frames.

Play

4 Press PLAY to resume playback.

Stop

5 End playback with «STOP « (press twice during «PBC Off« mode).

Play

Selecting tracks using the disc menu

Press MENU × during playback to call up the disc menu.
- The menu appears. The individual tracks are displayed in miniature format.
2 Select the desired miniature using and activate with ENTER.
- Playback commences at the start of the selected miniature.

Selecting a track

If an S-VCD/VCD has several tracks, you can select them even if the PCB function is switched off. If an S-VCD/VCD has several tracks, you can see them in the info line.

1 Select the desired track directly using 1 ... 0 and 10 + or

Next

Select the track step-by-step with | or | .

Frame search

Several different speeds are available.

1 Select the desired playback speed during playback with or .
2 To return to playback press PLAY

Ending playback

You can stop playback at any time, by pressing STOP (press twice during PBC Off mode).

MP3 CD features

MP3 stands for MPEG-1 Audio Layer 3 and arises from the Motion Picture Expert Group (MPEG) Standard which was developed for compressing film data.

The MP3 format enables audio files to be saved on a computer with a sound quality similar to that of a CD. This only requires approx. 10% of the original data quantity. The standard encoding bit rate for MP3 files is 128 kbps. Generally, the higher the bit rate of a an MP3 file, the better the sound quality.

Most MP3 files on the Internet are encoded at 128 or 160 kbps. 160 kbps is considered CD quality.

MP3 files can be downloaded from the Internet and then burned onto a CD-ROM disc. Your DVD player can read the ID3 tag from the file header, which contains information on title and artist, and display this in the info menu/status display.

MP3 CDs contain sound recordings. They can be played in the normal manner on an audio system. The digital signals transmitted during MP3 playback are PCM coded, regardless of the audio output setting. The signals are output with the same data rate as the music source (possibilities are: 32 kbps - 320 kbps, ideal: 128 kbps).

MP3 files can be organised in albums (directories) and files in a similar way to directories and files on a computer.

Playback

After the disc compartment closes and the MP3 CD is scanned, and the file browser (table of contents) of the MP3 CD is displayed.
- Playback starts automatically with the first file of the first album.
2 Select the file using , , or
3 Start playback using ENTER

• Playback starts with the selected file.

Note:

The contents of the MP3 CD (file browser) can be called up with TITLE .

4 Interrupt playback using PAUSE II (pause).
5 Continue playback with PLAY

Pause II

Play

Selecting files ...

... using the numerical buttons

12

1 During playback, select the desired file using 1 ... 0 For tracks with two digit numbers, enter the first digit by pressing 10+ as many times as necessary, and then enter the next digit using 1 ... 0 - Playback begins with the selected track.

Next

... step by step (SKIP)

Back

1 During playback, select the next file with
2 Select the previous file with | . - Playback begins with the selected file.

Ending playback

Stop

1 End playback with STOP (press twice).

Removing the MP3 CD

Press . Display: OPEN, the disc drawer opens.

JPEG CD features

JPEG stands for Joint Picture Experts Group. This process was designed to compress picture files.

JPEG files can be burned onto a CD along with other file types. Such CDs are known as file CDs or mixed mode CDs. For example, the CD could contain MP3 files (audio) and JPEG files (for example to display album covers).

The files on a JPEG CD can be organised in directories. This structure is similar to that of an MP3 CD.

JPEG CDs only contain data in the compressed JPEG format. This is mostly data from digital cameras or from picture processing programs. The data (pictures) can be displayed individually or in sequence in a slide show.

Features of the KODAK picture CD

Kodak Picture CD

This method was developed for archiving analogue photographs.

After they are developed, small photographs are scanned with a resolution of 1536 × 1024 pixels and burnt onto a CD in JPEG format.

A KODAK picture CD can contain up to 40 pictures. In addition to the picture files, a KODAK picture CD can also contain imaging software which enables the user to play the CD on a PC, edit the pictures or view a slide show.

Displaying JPEG pictures

After the disc compartment closes and the JPEG picture CD is scanned, the slide show starts automatically.

CD-R		4/88
	Birds
1	029155	6	031507
2	031426	7	031512
3	031490	8	031516
4	031496	9	031529
5	031498	10	031530

Call up the file browser or inset picture overview

1 During playback call up the file browser (table of contents for the JPEG CD) using STOP

or

call up the inset picture overview during playback using MENU

2 Switch to the next or previous page of the inset picture overview using
3 Select the desired picture with , or and confirm with ENTER .

• The JPEG picture appears as a still image on the screen, and after a short while the next picture appears.

Pause II

Play

Note:

To view the picture for longer, press PAUSE II. Press PLAY continue the slide show.

Selecting pictures

... using the numerical buttons

24

1 During playback, select the desired picture using 1 0 For pictures with two digit numbers, enter the first digit by pressing 10 + as many times as necessary, and then enter the next digit using 1 0 - Playback starts with the picture selected.

Next

... step by step (SKIP)

1 During playback, select the next picture with

Back

2 Select the previous picture with | «. - Playback starts with the picture selected.

Adjusting the picture display

180 Deg CW

The pictures can be turned.

Original

1 During playback use ANGLE to turn pictures 90^

2 To end the function press ANGLE repeatedly until Original appears on the screen.

Enlarging the picture (zoom)

This function enables you to enlarge sections of the picture and move them on the screen.

4/3

1 During playback or during a pause, press ZOOM\ll.

2 To enlarge a picture section, press ZOOM repeatedly.

3 Move the picture section with on the screen.

Q Off

4 To switch back to normal picture size, press ZOOM repeatedly until Off appears on the screen.

Audio CD features

An audio CD is identified by this logo.

Audio CDs contain only sound recordings. They can be played in the normal manner on an audio system.

The individual tracks are stored in a sequence. There are no folders.

Play

Pause

Play

CDDA 00:01:34 00:02:12

Track 2/19

5

Next

Back

Audio CD playback

1 Playback starts automatically when a CD is inserted. -Playback stops at the end of the CD.
2 Press PAUSE II to interrupt playback (pause).
3 Continue playback with PLAY «.

Calling up an info line

The info line is displayed on the television screen.

1 Call up the info line during playback, by pressing OSD once or twice. - The info line is displayed.
This gives information about the CD: elapsed playing time of the track, remaining playing time and the number of tracks.
2 Press OSD to deactivate the info line.

Selecting a track ...

… using the numerical buttons

1 Select the desired track using 1 0 For tracks with two digit numbers, enter the first digit using 10 + and then enter the next digit using 1 0 - Playback begins with the selected track.

... step by step (SKIP)

1 During playback, select the next track with .
2 Select the previous track with | . - Playback begins with the selected track.

X4

Play

St

Fast search

Four different speeds are available.

1 To select the desired playback speed press « or »▶ repeatedly during playback.
2 To return to playback press PLAY

Ending playback

Playback stops automatically at the end of the CD. You can stop playback at any time by pressing STOP twice.

Repeat functions

Repeating a selected section (A-B Repeat)

You can mark a section of a particular track which is then played back repeatedly.

Rep A -

Rep A-B

Rep Off

Repeat Single

Repeat All

Off

1 During playback, mark the beginning of the section by pressing A-B<. - Display: Rep A-<.
2 To mark the end of the section, press A - B again.
- Display: Rep A - B , the section is now played back repeatedly.
3 End the function by pressing A - B briefly again. Display: Rep Off

Repeating a title or a CD

These functions repeat the track currently playing or the entire CD.

1 During playback, press REPEAT . - Display: Repeat Single , the track is repeated.
2 During playback, briefly press REPEAT twice. - Display: Repeat All, the CD is repeated.
3 End the function by pressing REPEAT briefly again. - Display: Off .

CREATING A PROGRAM

This function enables you to program a playback list for all types of discs. Up to 12 titles, chapters or tracks can be stored.

Note:

Opening the disc compartment deletes the programme.

Creating a program

Insert the DVD, audio CD or picture CD in the disc tray.
2 Stop the DVD player by pressing STOP
3 Call up the Program Input menu with PROG . Depending on the type of disc in use the respective program menu appears, item 1 is highlighted.
4 Enter the number of the title, chapter or track with «1 ... 0« and confirm with «ENTER«.
5 Select the next item with , , or and repeat your entry.

Playing back a program

1 To play back the program, select Play Program with △ or and confirm with ENTER. - Playback of the program starts.
2 End playback of the program with STOP (press twice).

Deleting a program

1 Call up the Program Input menu when the device is in stop mode with PROG .
2 Select «Clear All« with «▲«, «» «, «▲« or «▼ « and confirm with «ENTER«;

or

open the CD drawer using

• The program is deleted.

Selecting the digital output

Here you select whether the audio signal is emitted from the «DIGITAL AUDIO OUT« sockets in the original data format or in PCM format. The factory setting is «PCM«.

1 Call up the main menu using SETUP*.
2 Select the «Sound« menu item with « or » « and activate it with «ENTER«.
3 Select »Digital Output« with »▼ « or » ▲ « and activate with »ENTER«.
4 Select the desired operating type with (»PCM« or »Original«) with «▼ « or « ▲ « and confirm with «ENTER«.
5 Press SETUP to conclude the setting.

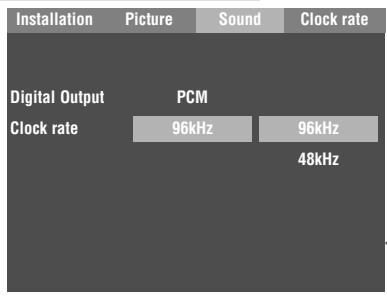

Setting the sampling rate

This setting is used to adjust the sampling rate of the digital output. The sampling rate indicates how many samples can be read in per time interval.

• Use 96kHz for DVDs with a 96kHz audio signal for optimum analogue audio output at the R AUDIO OUT L« sockets. 96kHz is preset at the factory.

• Use «48 kHz« for DVDs with a 48 kHz audio signal. The signal is emitted at the «R AUDIO OUT« and «DIGITAL AUDIO OUT« sockets.

1 Call up the main menu using SETUP
2 Select the «Sound« menu item with « or » « and activate it with «ENTER«.
3 Select Clock rate « with »▼ « or » ▲ « and activate with »ENTER «.
4 Select the desired value using (»48 kHz « or »96 kHz «) with » ▼ « or » ▲ « and confirm with «ENTER «.
5 Press SETUP to conclude the setting.

The child lock enables you to block scenes on DVDs which are not suitable for children or to select alternative scenes. This is done by selecting a certain access level.

Authorising the contents of a DVD

Films on DVD may be wholly or partially unsuitable for children. These DVDs contain information which marks the corresponding content or scenes. This works with several access levels from «1« to «7« and «Off«. You can select one of the access levels and thereby authorise alternative scenes for playback.

1 Place any disc in the tray. After playback has started automatically, end playback using STOP (press twice).
2 Call up the main menu using SETUP
3 Select the Child lock menu item with or and activate with ENTER. - The Code line is highlighted in blue.
4 Enter your four-digit personal code number with 1 0 and confirm with ENTER. - The lock symbol opens.
5 Select Access level with ▲ or ▼.
6 To select the desired access level (from 1 to 7 or Off) press ENTER repeatedly.
7 Return to code entry by pressing
8 Enter your four-digit personal code number with 1 0 and confirm with ENTER. - The lock symbol closes.
9 Press SETUP to exit the menu.

Note:

If you have forgotten your personal code number or lost it, please use the master code listed in the Troubleshooting section on page 38.

Setting the language

You can choose between various languages.

1 Call up the main menu using SETUP
2 Select the «Installation« menu item with « or « and activate it with «ENTER«.

• The Installation« menu is displayed.

Note:

For further operation, see the following sections, each one starting from Step 1.

Selecting the dubbing language

If several languages are available on the current DVD, the sound is played back in the language you have selected.

If the language you select is not on the DVD, the first dubbed language available is automatically selected.

1 Select Audio Language with or .
2 Select the dubbed language by pressing ENTER repeatedly.

Selecting the language for the subtitles

If subtitles are available on the current DVD, they are shown in the language you have selected.

If the selected subtitles are not on the DVD, the first language available is automatically selected.

1 Select Subtitle using or ▲
2 Select the desired language by pressing «ENTER« repeatedly.

Selecting the language of the DVD menus

If the DVD has menus in several languages, you can select your language of choice.

1 Select Menu Language using or
2 Select the language for the DVD menus by pressing «ENTER« repeatedly.

Concluding the settings

1 Press SETUP to quit the menu.

Switching function displays on and off

The various displays which inform you about the current operating mode of the DVD player on the screen have been preset to on. You can switch them on and off as required.

1 Call up the main menu using SETUP*.
2 Select the «Installation« menu item with « or « and activate it with «ENTER«.
3 Select Display function with or .
4 Use ENTER to set to Off or On .
5 Press SETUP to conclude the setting.

Resetting the DVD player to its original condition

All custom settings are restored to the original status.

1 Call up the main menu using SETUP*.
2 Select the Installation< menu item with or and activate it with ENTER.
3 Select Plant defaults « with »▼ « or »▲ «.
4 Restore the original settings of the DVD player using ENTER .

C

Technical data

This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC.

This device conforms to the safety regulation DIN EN 60065 and therefore the international safety regulation IEC 60065.

You may not open the DVD player. The manufacturer will not accept any liability for damage resulting from improper handling.

Mains voltage:

110-240V\~,50/60Hz

Audio format:

Digital: MPEG2/Dolby Digital, PCM, DTS

Analogue: Stereo sound, Dolby Prologic

Power consumption:

Operating: approx. 10 W

Ambient temperature:

+10°C to +35°C

Audio:

Signal: Analogue

DVD: 48/96 kHz 20 Hz-22/44 kHz

Video CD: 44.1 kHz 20 Hz-20 kHz

Audio CD: 44.1 kHz 20 Hz-20 kHz

Playback standard:

PAL, 50 Hz, 625 lines

NTSC, 60 Hz, 525 lines

Signal-to-noise ratio

(at 1 kHz): ≥90 dB

Sound volume

(at 1 kHz): ≥ 80 dB

Playback system:

CD R, CD RW, VCD 2.0, Super-VCD, DVD R,

DVD RW, MP3, JPEG, KODAK Picture CD

Dimensions and weight:

Dimensions:

W×H×L 430×48×257 mm

Laser:

Semiconductor laser

Wavelength 650 nm for DVD

Wavelength 780 nm for CD

CLASS 1 LASER PRODUCT

General instructions for laser devices

Your system is a CLASS 1 LASER PRODUCT. This means that the laser is designed in such a way as to ensure that the maximum permissible emission value cannot be exceeded under any circumstances.

Caution:

If operating devices or methods other than those specified here are employed, it may lead to dangerous exposure to emissions.

This device emits laser radiation. Because of the danger of eye injuries, the unit may only be opened or serviced by trained personnel.

If settings other than those specified here are employed or OTHER PROCEDURES are carried out, this may lead to dangerous radiation exposure.

This product contains components which are covered by certain U.S. patents or for other reasons are considered intellectual property of the Macrovision Corporation and other proprietors. Use of this protected technology must be approved by the Macrovision Company and is only permissible for private presentation at home or for other limited applications, where no special permission has been granted by Macrovision. Reproduction or disassembly of the device is prohibited.

Manufactured with permission from Dolby Laboratories. The "Dolby" label and the double-D logo "DQ" are trademarks of Dolby Laboratories. Confidential unpublished material.

©1992-1997 Dolby Laboratories, Inc. All rights reserved.

During playback of DTS-coded CDs and DVDs, a high noise level is produced at the analogue stereo outputs. In order to avoid possible damage to the audio system, the user should take appropriate preventive measures when the stereo outputs of the DVD player are connected to an amplification system. For DTS Digital Surround playback, an external 5.1-channel DTS Digital Surround decoder must be connected to the digital output (S/PDIF) of the DVD player.

DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc. All rights reserved.

Troubleshooting

Not every picture or sound problem is caused by a defect in your DVD player. Impairment can also be caused by leads having been accidentally pulled out, damaged DVDs/CDs and worn-out batteries in the remote control. If the following measures do not do not rectify the problem, consult an authorised dealer.

DVD R/RWs in DVD video format, as well as CD Rs and CD RWs in CD-DA and MP3 format can be played. Due to the difference in quality of the recording media and the quality of the recording itself, it can occasionally happen that a home-made DVD or CD cannot be read. This does not indicate a malfunction of the DVD player.

Problem	Possible cause/remedy
DVD player does not respond to the remote control	Point the remote control directly at the DVD player.
	Remove all obstacles which may interfere with the path of the remote control signal.
	Check or replace the remote control batteries.
The disc tray will not open, Picture/sound problems	Using the mains switch, switch the DVD player «ON/OFF« off and on again.
No picture	Check the video connection.
Distorted image	Make sure that there are no fingerprints on the DVD/CD, follow the cleaning instructions on this page.
No colour with a EURO-AV connection	Ensure that the video output of the DVD player is set to «RGB« (see page 15).
No picture with an S-Video connection	Ensure that the video output of the DVD player is set to «S-Video« (see page 15).
The DVD/CD cannot be played	Check if the label on the DVD/CD is facing upwards.
	Clean the DVD/CD.
	Check if the DVD/CD is damaged by testing out another DVD/CD.
No sound	Check the audio connections.
	Try another playback source.
	Use an external decoder for DTS audio formats.
No sound at the digital output	The scanning rate was set to 96 kHz. Set the scanning rate to 48 kHz as described on page 37.
Distorted sound from the HiFi system	Ensure that the audio connections have not been connected to the phono input on the amplifier.
You have lost or forgotten your personal identity number	Open the child lock with the master code – «8888« (see page 33).

Cleaning discs

Wipe the dirty disc with a cloth from the centre outwards in a straight line.

Do not use any solvents such as benzene, thinners, conventional cleaner or anti-static spray for vinyl records.

Software information

We wish to point out explicitly that only operating software authorised by GRUNDIG is permissible for the DVD player. This operating software is available from specialist dealers or will be available shortly on the Grundig web sites www.grundig.com and www.grundig.de. Any instance of operating software from a dubious Internet source being loaded to the device will impair functioning and also, since it is an unauthorised intervention, invalidate any claims under the guarantee.

GRUNDIG will refuse to refund any costs resulting in such cases. Any repair costs in such cases, even those occurring within the guarantee period, are to be paid by the customer.

Calling up software information

This function enables you to check the current software status of the DVD player.

1 Switch on the DVD player using ON/OFF on the device.
2 Open the disc compartment by pressing
3 Display the software information by pressing OSD .
4 To exit the software information display, close the disc compartment by pressing .

Additional information for units sold in the UK.

Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply.

The range of multi-system receivers is built to work in most European countries. However, the mains plug and socket system for the UK differs from many European countries.

This appliance has been supplied with a fitted, non-removable, approved converter plug for use in the UK. This converter plug is fitted with a 5A rated fuse.

In case this appliance is supplied with a moulded 2-pin Euro plug only, which is unsuitable for UK operation, this must be cut off and immediately disposed of. An approved 13A, 3-pin UK plug should then be fitted by a qualified electrician.

Note:

The severed Euro plug must be destroyed to avoid a possible shock hazard should it be inserted into a socket elsewhere.

If a non-rewireable 3-pin plug or a rewireable 13A (BS1363) 3-pin plug is used, it must be fitted with a 5A ASTA or BSI approved BS1362 fuse. If any other type of plug is used it must be protected by a 5A fuse either in the plug, or at the distribution board. If this type of plug becomes defective, ensure that the fuse is removed before disposal, to eliminate potential shock hazard.

If it is necessary to change the fuse in the non-rewireable plug, the correct type and rating (5A ASTA or BSI approved BS1362) must be used and the fuse cover must be refitted. If the fuse cover is lost or damaged, the lead and plug must not be used until a replacement is obtained. Replacement fuse covers should be obtained from your dealer.

Important:

The wires in the mains lead are colour coded in accordance with the following code:

BLUE - NEUTRAL

BROWN-LIVE

As the colours of the wires in the mains lead of your appliance may not correspond with the coloured marking identifying terminals in your plug, proceed as follows:

Connect the BLUE coloured wire to plug terminal marked with the letter "N" or coloured black.

Connect the BROWN coloured wire to the plug terminal marked with the letter "L" or coloured red.

In no circumstance must any of the wires be connected to the terminal marked with the letter "E", earth symbol "H", coloured green, or green & yellow.

Replacement mains lead sets can be obtained from your local dealer, or by contacting Grundig Consumer Relations (01788 570088)

Moulded 3-pin lead set, suitable for UK use:

Ref: Leadset UK 8290-991-224

Moulded 2-pin Euro lead set, not suitable for UK use:

Ref: Leadset Euro 8290-991-316
