Product Type	High-Back Booster Car Seat
Brand	Peg Perego
Model	Viaggio HBB 120
Weight Range	15–36 kg (33–79 lbs)
Height Range	100–150 cm (39–59 inches)
Age Range	Approx. 3.5–12 years
Seat Dimensions (W x D x H)	43 x 40 x 68 cm
Seat Weight	5.5 kg (12 lbs)
Installation Method	Vehicle seat belt (no ISOFIX required)
Harness Type	No harness; uses vehicle 3-point belt
Side Impact Protection	Energy-absorbing foam in headrest and side wings
Headrest Adjustment	Height adjustable (11 positions)
Cup Holder	Retractable cup holder included
Seat Cover	Removable and machine washable (30°C)
Cleaning Instructions	Wipe plastic parts with damp cloth; wash cover separately
Safety Standards	ECE R44/04, tested for Group 2/3
Additional Features	Soft padding, backrest recline for comfort, easy belt guides
Spare Parts Availability	Covers, cup holders, and foam inserts available via Peg Perego support
Repairability	Modular design; replaceable components

Frequently Asked Questions - Viaggio HBB 120 PEG PEREGO

What is the weight limit for the Peg Perego Viaggio HBB 120?

The seat is approved for children weighing 15–36 kg (33–79 lbs), corresponding to Group 2/3.

Does the Viaggio HBB 120 use ISOFIX connectors?

No, it is installed using the vehicle's 3-point seat belt. It does not require ISOFIX.

Can the seat cover be removed for washing?

Yes, the cover is removable and machine washable at 30°C. Air dry only.

How do I adjust the headrest height?

Pull up the lever at the back of the headrest and slide it to one of 11 positions. Ensure it clicks into place.

Is the seat suitable for forward-facing only?

Yes, the Viaggio HBB 120 is a forward-facing booster seat. It cannot be rear-facing.

What safety standards does this seat meet?

It complies with ECE R44/04, the European safety standard for child car seats.

Does the seat include a cup holder?

Yes, it has a retractable cup holder on one side.

Can I recline the backrest?

The backrest has a recline adjustment for added comfort when the child is sleeping.

How should I clean the plastic parts?

Wipe the plastic parts with a damp cloth and mild soap. Do not use abrasive cleaners.

Where can I purchase spare parts?

Spare parts like covers and cup holders are available through Peg Perego's official website or authorized dealers.

USER MANUAL Viaggio HBB 120 PEG PEREGO

EN Instructions for use

FIUS1701I145

VIAGGIO HBB

120

WARNING:

- Do not install or use this booster seat until you read and understand all the instructions in this manual and the labels. To avoid serious injuries to your child, follow the instructions carefully. Keep the instruction manual in the dedicated pocket for future reference.

Weight limits:

40 - 120 lbs

(18 - 54 kg)

Height limits:

39 - 57 inches

(99 - 145 cm)

Table of Contents

Introduction 3

Warning 5

Safety information ....7

Registration form 8

Your booster seat....9

Product assembly prior to use ....10

Product features ....13

Vehicle seatbelts design and compatibility .....15

Vehicle seat design and compatibility ....17

Installing the booster seat in the vehicle ......18

Securing the child in the booster seat ...... 22

Headrest height adjustment ....25

Backrest angle adjustment .....26

Using Viaggio HBB 120 without backrest ......27

Cleaning and maintenance ....31

Accessories 38

Replacement Parts ....39

Introduction

Thank you for choosing a Peg Perego Viaggio HBB 120 booster seat.

As with any other Peg Perego product, your Viaggio HBB 120 has been designed and certified by a dedicated team of engineers inside Peg Perego Research and Development Department.

Your Viaggio HBB 120 has been manufactured and assembled in a Peg Perego plant under certified quality procedures and using high quality materials from certified suppliers. As with every booster seat, Viaggio HBB 120 is used with a child inside a vehicle, travelling fast on highways or slow in the chaotic traffic of today's cities. This means that you need to use this booster seat as a concerned parent, driving carefully when you have a child on board but also, before this, taking your time to explore the product, knowing all the features it has, the different possible uses, the proper and best installations. Go through this manual entirely, keeping your new product in sight, checking every point and understanding it. Install the product in your vehicle taking the necessary time and making fitting trials before using it with your child. Once you have read the manual, store it again in the backrest.

Introduction

This will make you sure that everybody looking after your child and using this seat will be able to look for help in this manual.

Should you see any malfunctioning feature, after taking the necessary familiarization or if you see broken parts, do not hesitate to call Peg Perego Customer Service @ 1-800-671-1701 for help. Now that you know your new Viaggio HBB 120, you are ready to enjoy safe and happy journeys with your family and your children.

Warning

• Do not install or use this booster seat until you read and understand all the instructions in this manual and the labels on the product. To avoid serious injuries to your child, follow the instructions carefully. Keep the instruction manual in the backrest for future reference.
• Your child could be seriously injured if you do not follow instructions and warning labels correctly.
• Use only the vehicle's lap and shoulder belt system when restraining the child in this booster seat. Snugly adjust the belt around child's body making sure that the belt lies flat with no slack.
• This booster seat meets or exceeds all applicable Federal Motor Vehicle Safety Standard 213 requirements for use in motor vehicles. This restraint is NOT certified for aircraft use since aircraft seats are normally equipped with lap belt only.
• Not all available models of seatbelts are approved for use with this product. Refer to the dedicated section in this manual for further details.
• Viaggio HBB 120 can be secured to your vehicle by means of lower universal anchorage system (LATCH) for added stability. Refer to the dedicated section in this manual for installation details and check your vehicle owner's manual for further details.
• This booster seat is designed to be installed on front

Warning

facing vehicle seats only equipped with a headrest. Never use on seats looking sideways or rearward facing. Do not use in cars with door-mounted or motorized shoulder belts. Read your vehicle owner's manual for additional information.

• According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seating positions.
• Complete and send in the registration form provided with this product right away. In case of an accident: if this car seat is involved in a car accident, it may be no longer safe for use. You may need to get a new unit. Call Peg Perego Customer Service at 1-800-671-1701 (toll free) for information about repairs or spare parts.
• Seat covers and pads provided in this product are part of the product and the certification program. The use of non approved covers or other accessories are not recommended.
• EPS components (white soft foam located below the upholstered covers) are integrated in the product as safety related parts and should never be removed or damaged.
• Secure this booster seat in the car even when not occupied. This car seat is a heavy object that could cause severe damage to other occupants in case of an accident.
• Keep fingers away from moving parts.

Safety Informations

• Use Viaggio HBB 120 in forward facing mode with children weighing in the range 40 – 120 lbs (18 – 54 kg) and whose height is between 39 and 57 inches (99 – 145 cm).
• When placing your child in the seat, make sure that bulky jackets or covers are removed. This will make the use of seatbelts easier and therefore correct.
• Do not leave your child unattended in the vehicle, even for a short period. He/she could get tangled in the straps and be seriously injured or could move or tip the seat.
• Do not leave the booster seat under direct sunlight for a prolonged time. The seat may become very hot and burn your child’s skin.
• When not in use, store the product in a proper place, away from light, moisture, excessive heat or cold.
• Do not place this car seat on countertops, tables or soft surfaces.
• Do not try to remove or add parts unless where explained in this manual; do not try to repair this product. In case of damage or defective components, call customer service @ 1-800-671-1701 for help.
• Do not leave loose objects, bags or luggage in the vehicle interior. In case of an accident they could suddenly move causing the occupants to be injured.
• Do not use this unit after twelve (12) years from the date of production labelled on the seat.

Registration Form

Important! Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address and the restraint's model number and manufacturing date to:

Peg Perego U.S.A., Inc. 3625 Independence Drive Fort Wayne, IN 46808 Or call 1-800-671-1701 (toll free) Or register online at

www.carseat-registration.pegperego.com

For recall information, call the U.S. Government's Vehicle Safety Hotline at 1-888-327-4236

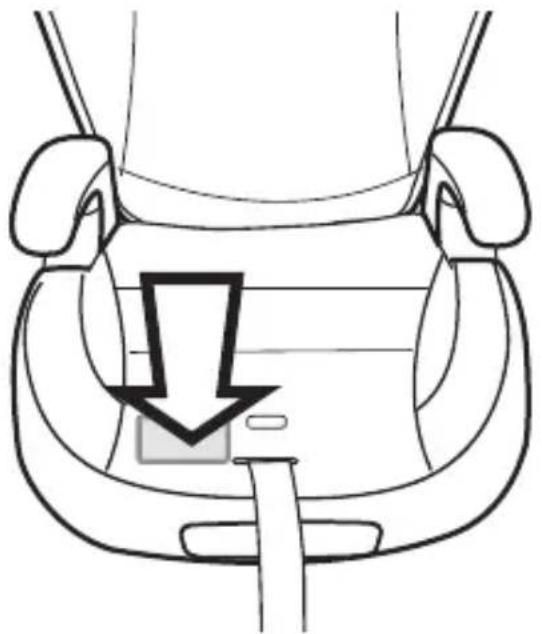

Model number, model name, date of manufacturing, etc. are indelibly printed on a label located on the seat

under the upholstery (as shown here). Registration form is attached to the product cover. Detach the form, fill in and mail to Peg Perego. No stamp is needed. We have already paid for it. Should the registration form be missing, please call Customer Service @ 1-800-671-1701 for a replacement form.

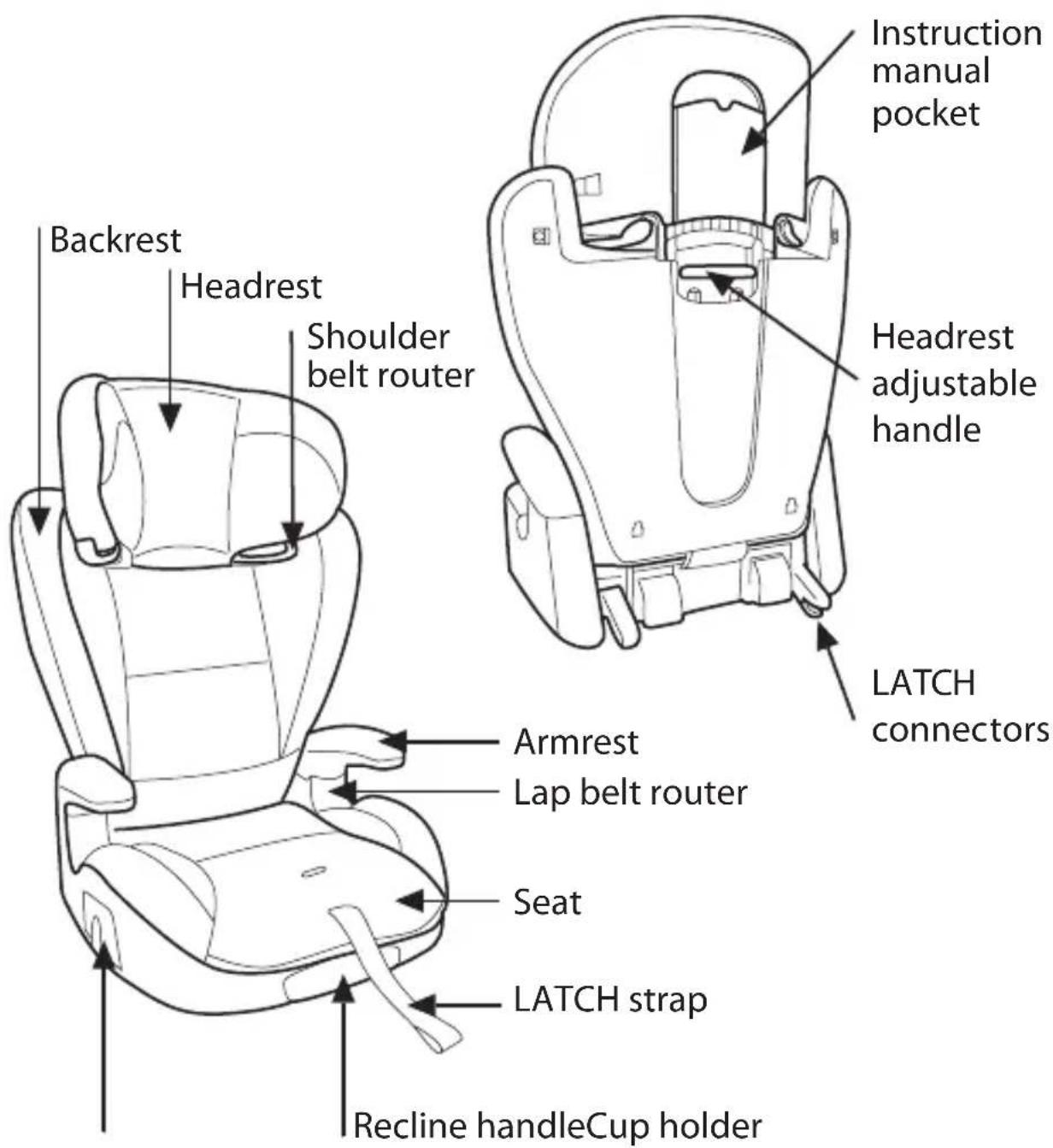

Your booster seat

ety ed it's

e)

ɔv ɪɡ, at

Product assembly prior to use

1. Always check the product prior to assembly. The product is composed of an headrest (a) a backrest (b) and a seat (c). Backrest and headrest are factory assembled. To assemble correctly the product please follow the instructions carefully. In case of missing or malfunctioning parts, please contact our Customer Service @ 1-800-671-1701 for help.

Product assembly prior to use

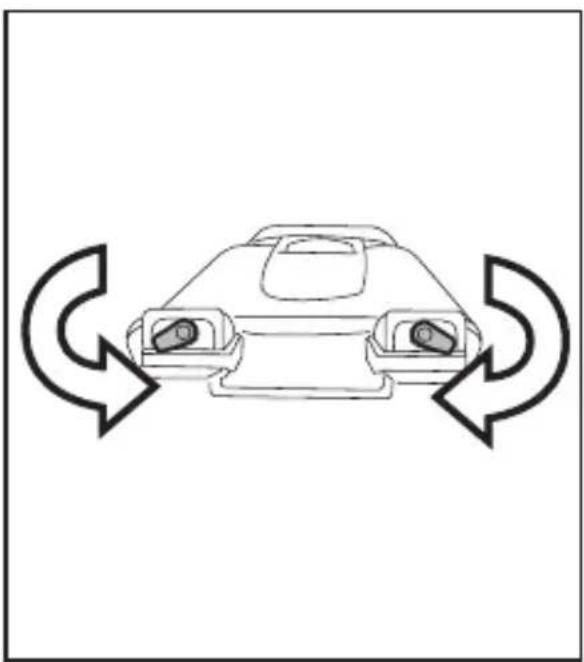

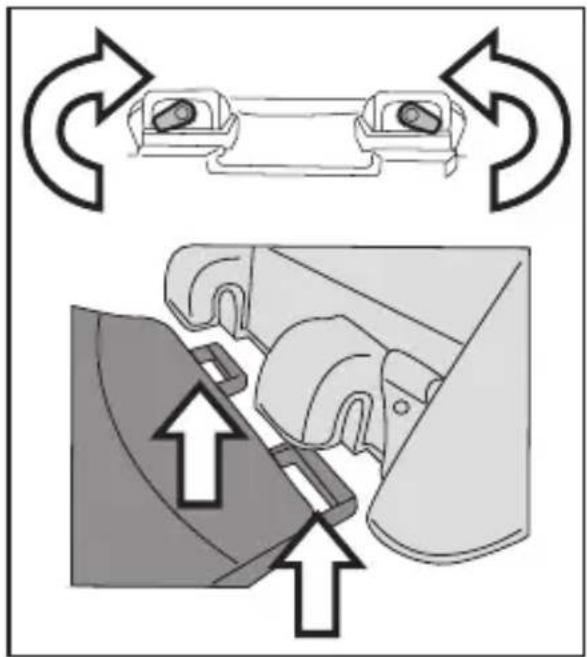

1. Rotate the red stops in the open position and slide the backrest in the housings located behind the seat as shown in the picture.

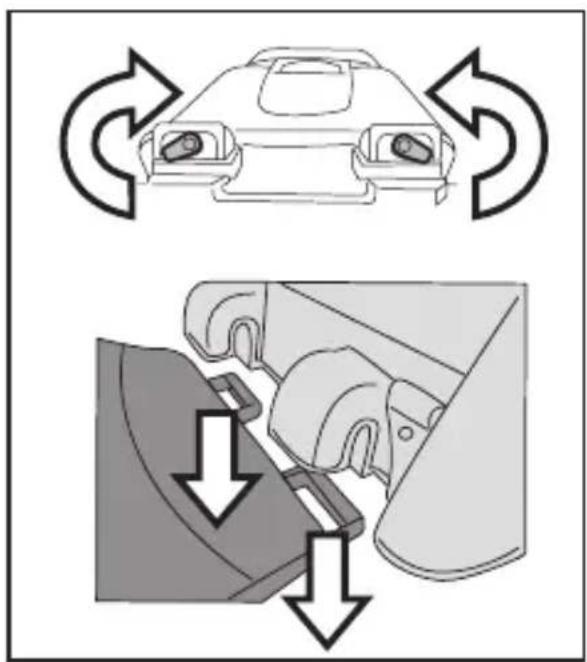

1. Keeping the product flat, close the red stops until a click is heard.

Product assembly prior to use

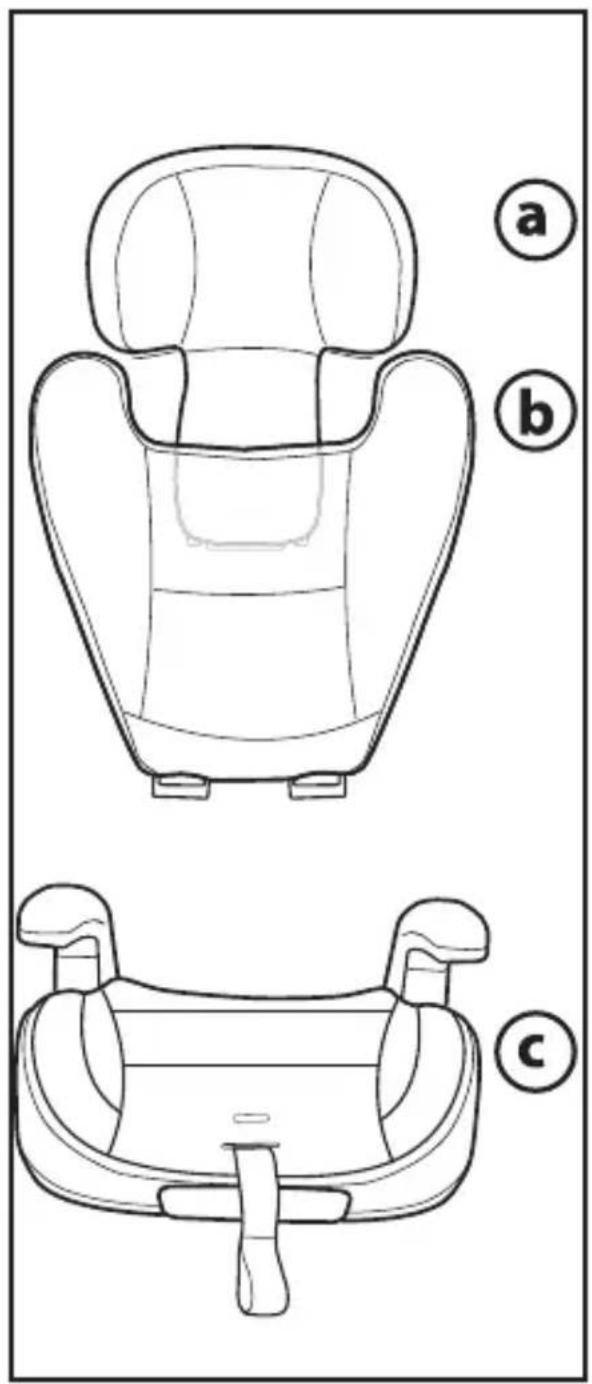

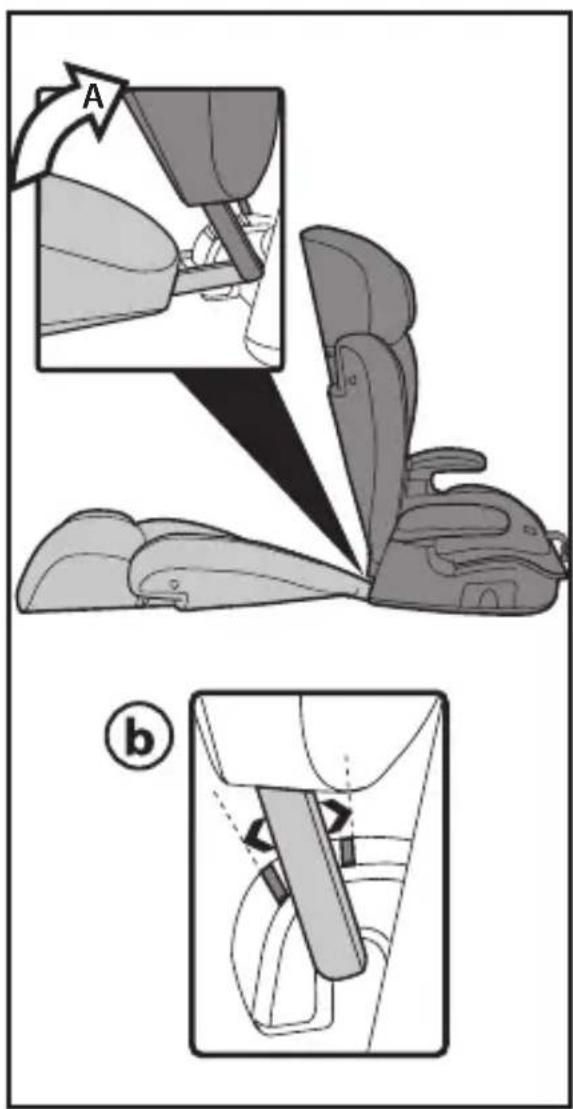

1. Rotate the backrest in the elevated position (a) until a loud click is heard. The backrest will be free to rotate between the two stops as shown in the picture (b). The product is now ready for use.

IMPORTANT NOTE: Viaggio HBB 120 is a High Back Booster. Its headrest and backrest have been designed on the experience made in side impact dynamic testing. Being designed to elevate the seating surface of your child, it becomes extremely important that your child's head, which would lean close to a glass vehicle window in a backless booster, is protected from injuries at all times.

We recommend using the booster seat with backrest and headrest to offer maximum protection.

Product features

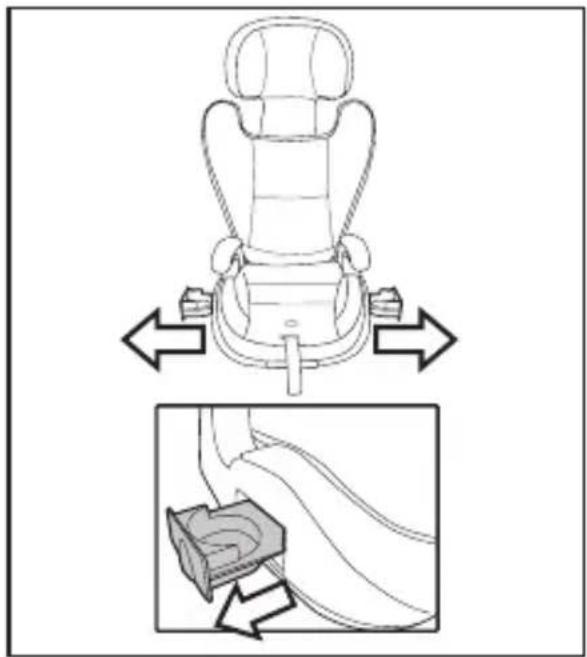

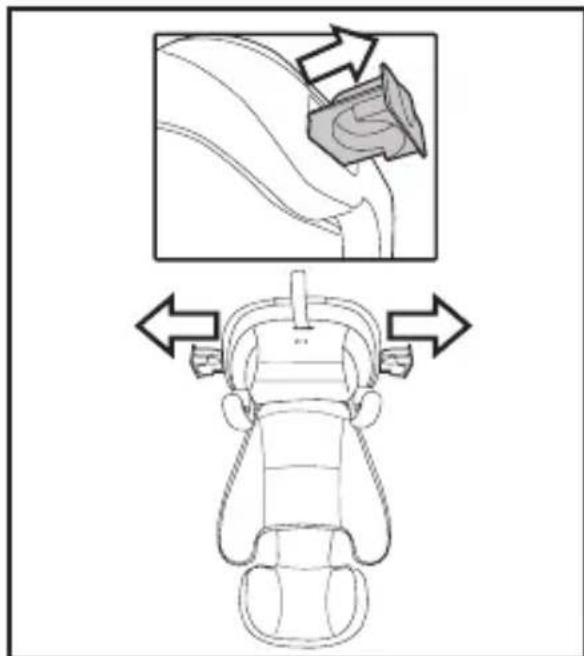

1. The product is equipped with two integral cup holders, located at the side of the seat. To operate the cup holder, simply pull /push the part until it stops.

WARNING: never put hot liquids in the cup holder. Your child or a nearby occupant may become injured in case of a turn or sudden stop.

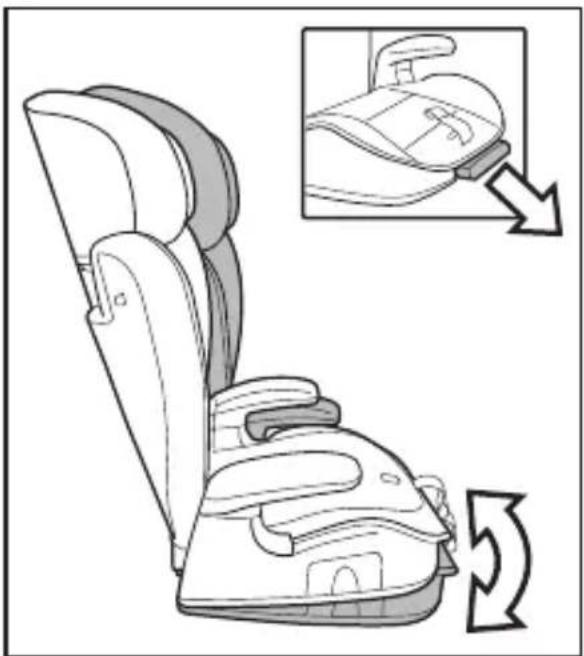

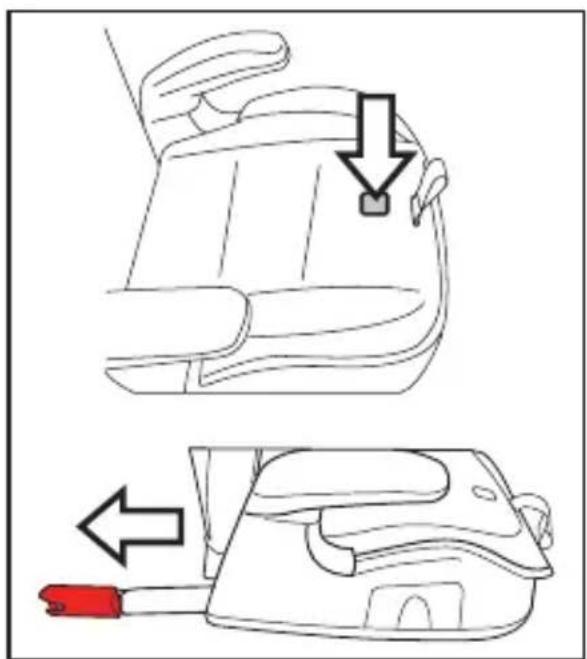

1. The booster seat is equipped with a movable foot to adjust seat angle. The foot is spring loaded. To operate it, pull the handle located in front of the seat and rise the seat at the same time. The foot will pop out in the reclined position.

Product features

1. To return the foot to the original position, pull the lever again and push the seat downward.

Via and of seven dif As de a s car do cal for

Vehicle seatbelts design and compatibility

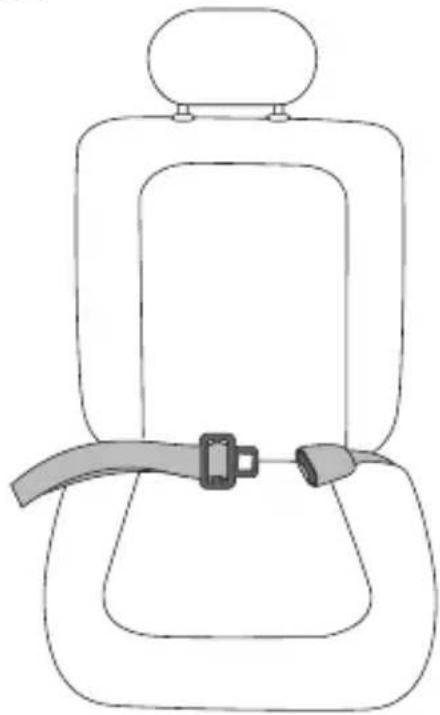

Viaggio HBB 120 is designed to be installed with lap and shoulder vehicle belts commonly fitted on most of the available cars. However, in the market there are several different types of vehicles manufactured in different periods.

As a result, there are many different vehicle belt designs. Unfortunately, some may be unsuitable for a safe installation of Viaggio HBB 120. Please read carefully the list below and in case of problems or doubts, double check your vehicle owner's manual or call Peg Perego Customer Service @ 1-800-671-1701 for additional help.

Vehicle seatbelts design and compatibility

NON COMPATIBLE VEHICLE BELT DESIGNS

WARNING: do not use Viaggio HBB 120 with the following vehicle belt design:

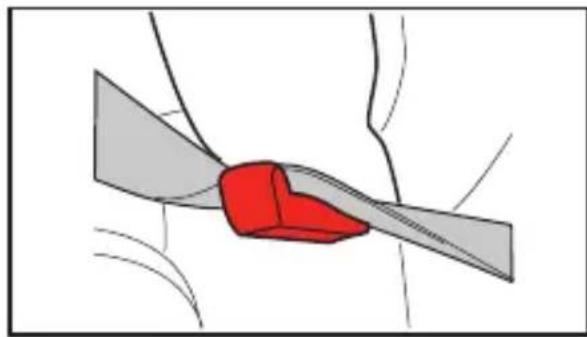

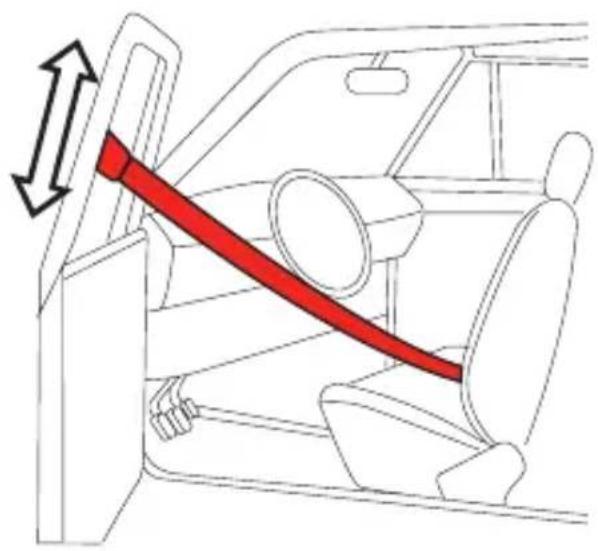

1. Lap/motorized shoulder belts. Belts mounted on the door

1. Lap belt only of any kind.

Vehicle seat design and compatibility

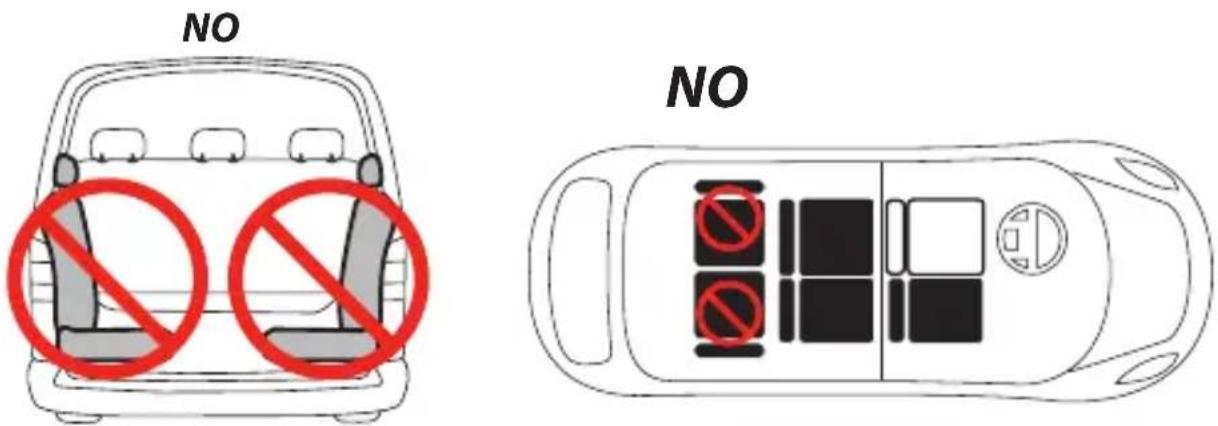

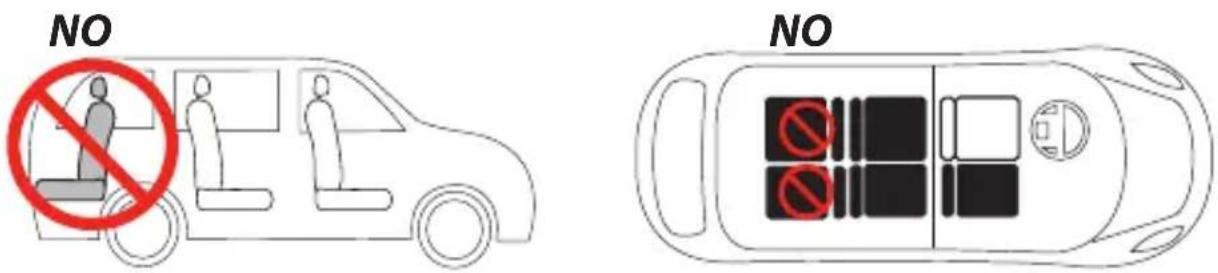

WARNING: do not use Viaggio HBB 120 with the following vehicle seat design:

1. Side facing seats

2. Rear facing seats or seats that rotate in different positions

For your child's safety, always read your vehicle owner's manual for further informations.

Installing the booster seat in the vehicle

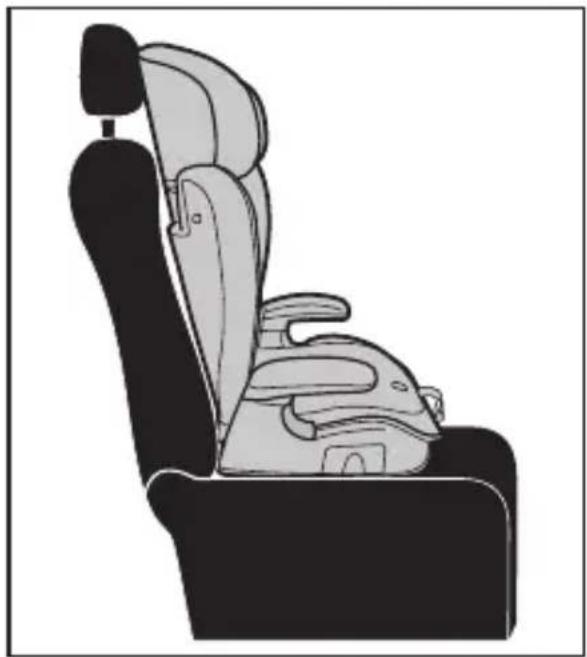

1. Lean the booster seat on the selected vehicle seat in forward facing mode.

IMPORTANT! For proper head support, this booster seat needs to be installed in a vehicle seating position equipped with a headrest.

1. Primo Viaggio HBB120 is equipped with LATCH connectors to be used with your vehicle's lower anchors.

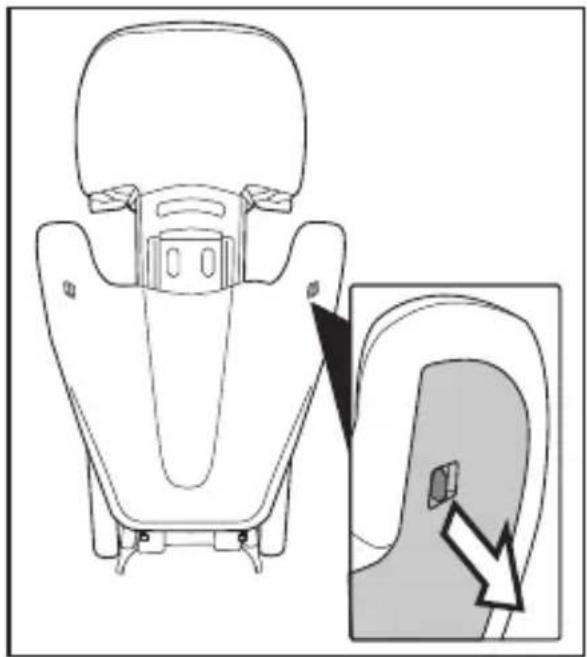

Connectors are stored in the back side of the seat. To use the connectors, push the central adjuster in the front of the seat and pull the connectors by hand out of the housing at the same time.

e Installing the booster seat in the vehicle

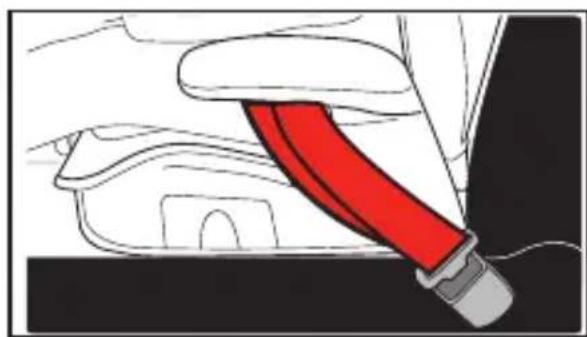

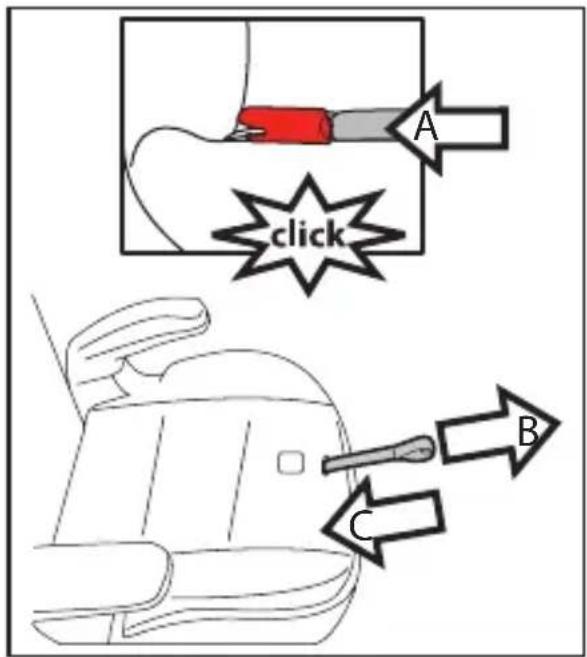

1. Attach the connectors to the vehicle's lower anchors. An audible click is heard when the product is attached to the lower anchors. Pull the central strap (b) and push the booster seat against the seat (c). Check that the booster seat is attached by moving it sideways. Attaching the booster seat with LATCH connectors to the vehicle seat means that it is possible to leave it in place even when not occupied.

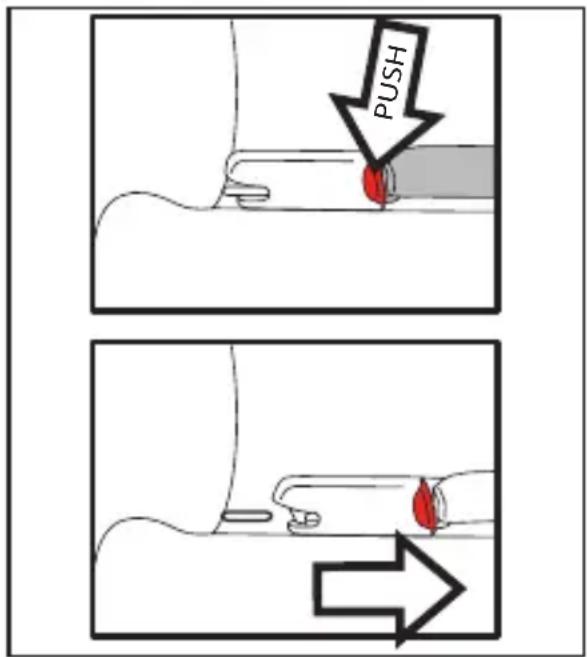

2. To detach the booster seat, push on the central adjuster to release the booster seat and move it away from the vehicle seat. Expose the connectors red button and push the

Installing the booster seat in the vehicle

button in order to release the booster seat.

IMPORTANT NOTE:

use of LATCH connectors are recommended by PegPerego to achieve the best stability of the product in case of sudden stops or steep turns. Also, using the LATCH will give guarantee that the product is located in the correct position with respect to the vehicle belt attachment points.

e Installing the booster seat in the vehicle

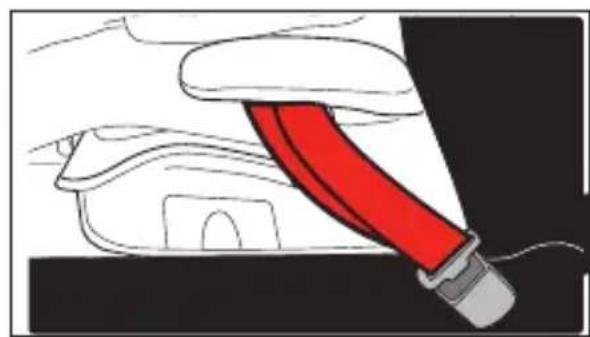

1. In case of lower anchors unavailability and whenever the booster seat is used without LATCH connectors, make sure that the booster seat leans firmly on the seat.

IMPORTANT NOTE:

in this case, make sure that the booster seat removed from the vehicle's interior whenever it is not occupied by a child passenger or restrain the booster seat with vehicle seatbelt. The seat is a heavy object that could cause severe damage to other occupants in case of an accident.

Securing the child in the booster seat

1. Make sure that your child is sitting comfortable in the booster seat, with the back fully against the backrest of the booster seat. Pull the vehicle belt and make sure that the lap portion of it passes below both armrests.

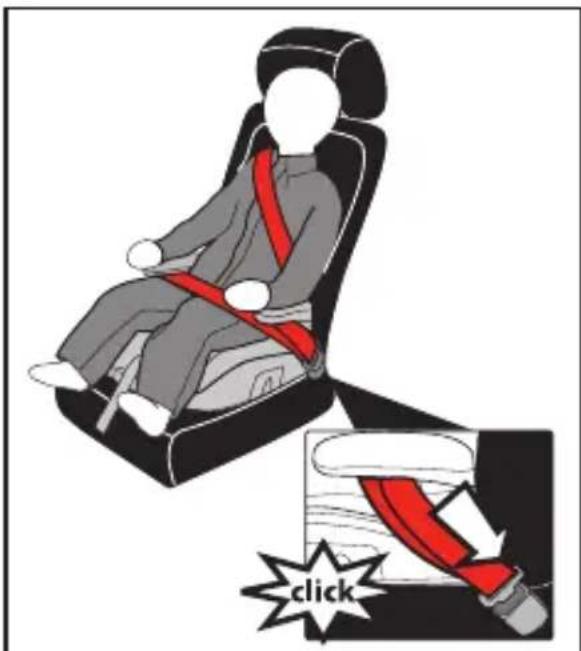

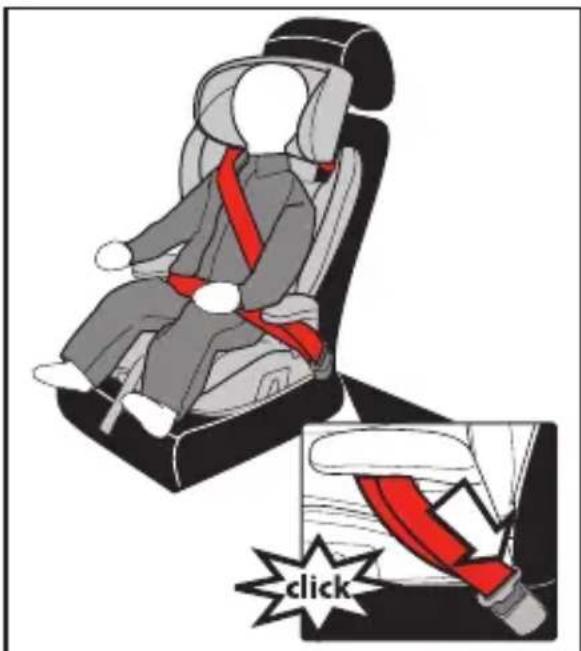

1. Buckle the belt (an audible click is heard) and make sure that both lap and shoulder belts pass below the armrest located next to the seatbelt buckle. Pull on both lap and shoulder belts making sure that they are not tangled anywhere.

Securing the child in the booster seat

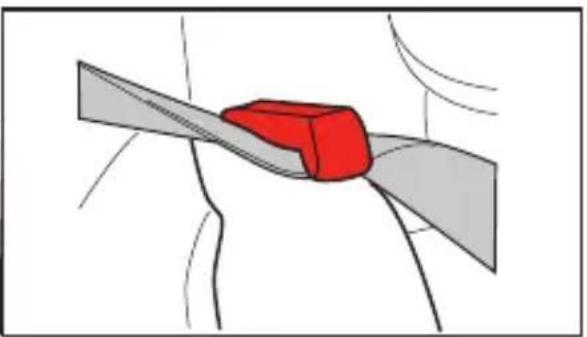

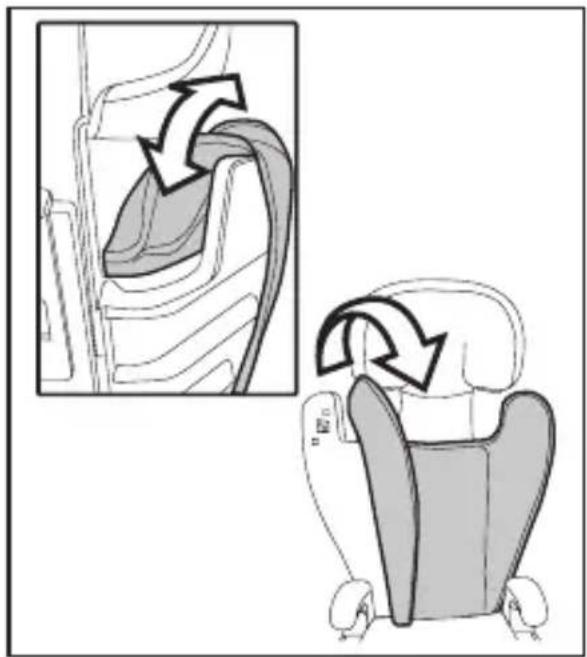

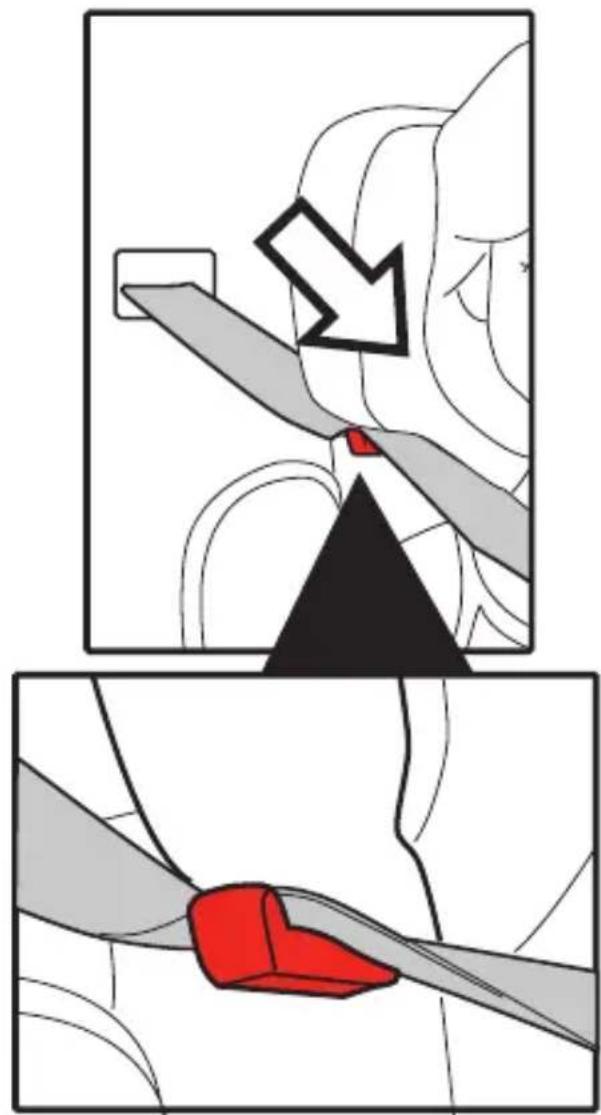

1. Thread the shoulder belt in the red router located below the headrest. To do this slide the belt from outside toward the center of the product. Check that the belt is not twisted when doing this operation.

Securing the child in the booster seat

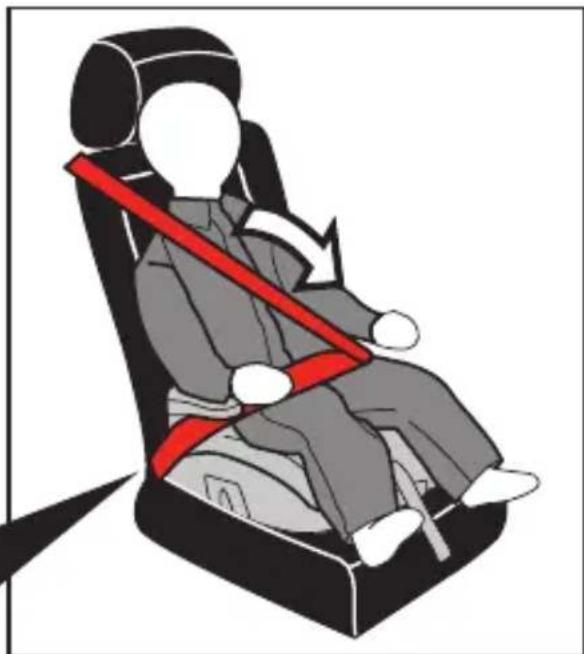

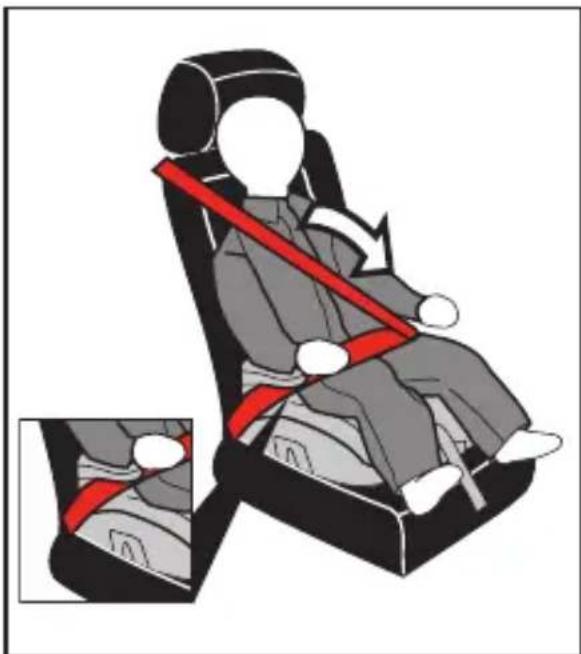

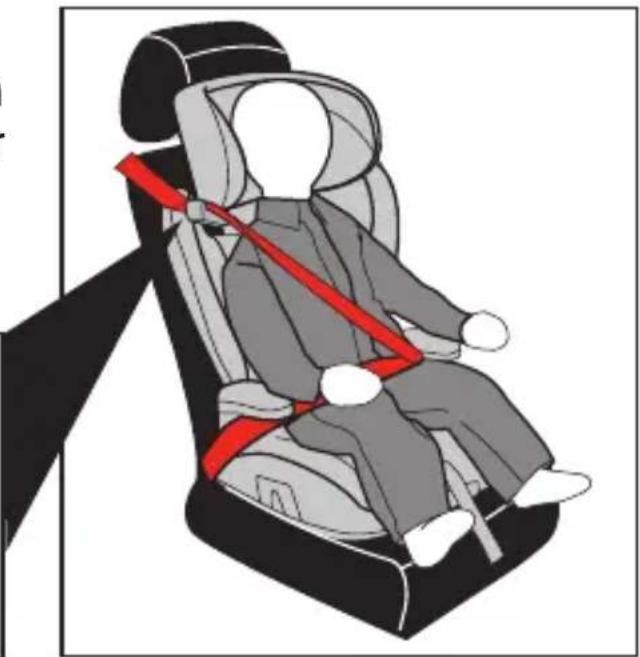

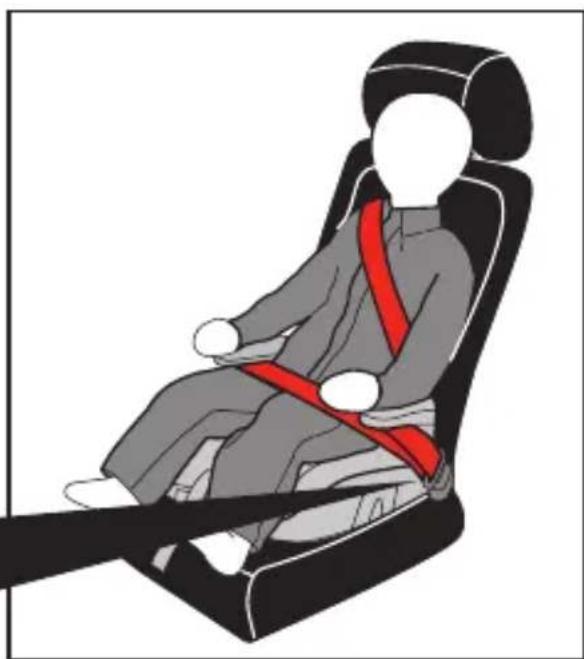

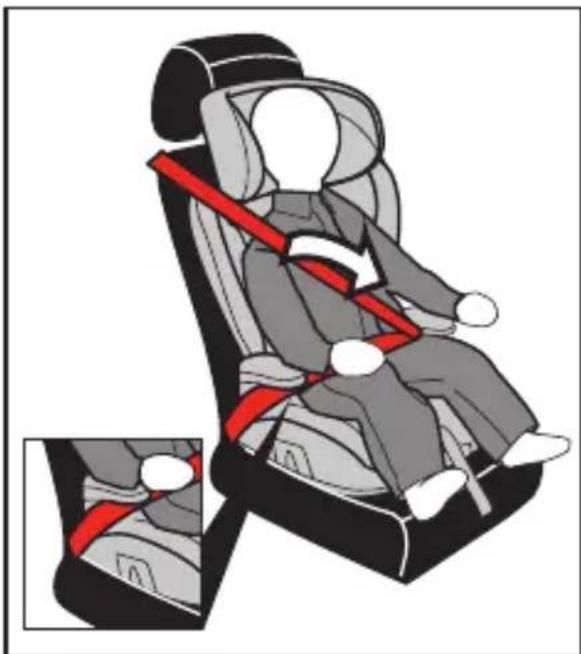

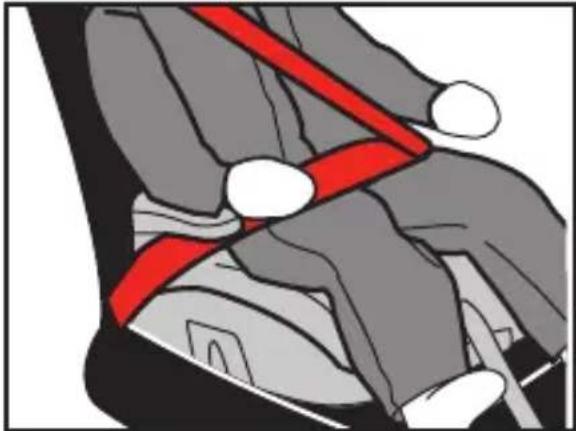

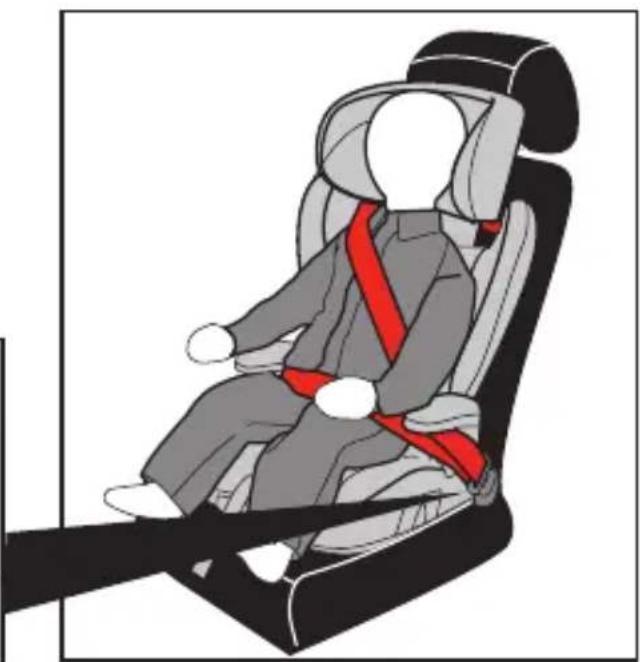

1. Picture shows the correct belt pattern around the child in your Viaggio HBB 120.

Headrest height adjustment

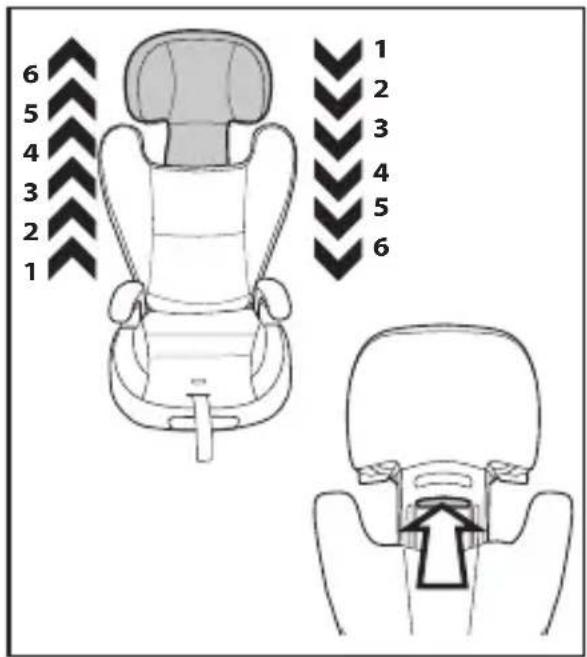

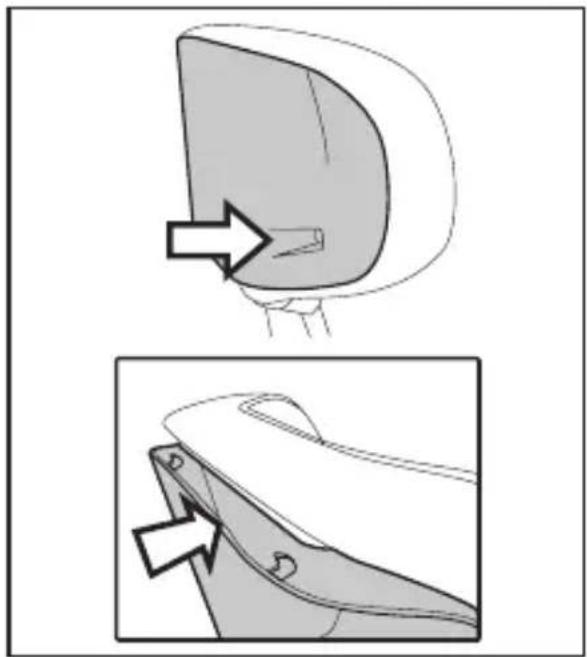

1. Headrest is adjustable in 6 different positions. To adjust the backrest, pull the lever located behind and move the headrest up and down to the desired position. When the handle is released the headrest will lock in place. Move the headrest up and down to ensure that the lock is properly engaged.

2. With the child in the booster seat, adjust headrest height making sure that the belt passes at or above shoulder level. The headrest is properly set when the shoulder belt router is located at no more than 1" (2,5 cm) above shoulder level and the shoulder lies at the center of child's chest.

Backrest angle adjustment

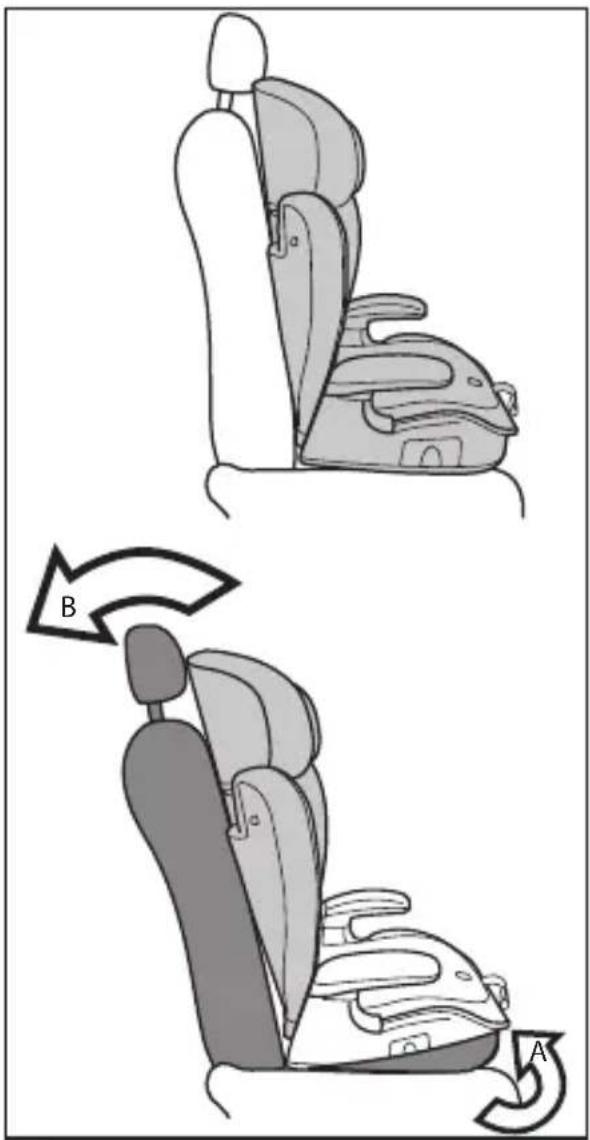

1. For longer journeys, the booster seat can be used in a comfort position. This will guarantee that your child will sleep keeping the head gently leaned on the headrest and being kept protected by the side wings in case of a lateral impact.

To reach the comfort position recline the seat as explained at page 13 by pulling the recline handle (a). Adjust the backrest of your vehicle's seat following your vehicle owner's manual (b). Viaggio HBB 120 backrest will follow the vehicle backrest thanks to its free hinge.

Using Viaggio HBB 120 without backrest

Your Viaggio HBB 120 has been designed with a removable backrest. The backrest provides protection to your child's head and shoulders in a side collision.

We strongly recommend the backrest to be used as much as possible. This provides the best protection for your child.

We realize there may be times when it is easier to travel without the backrest. In this case, it is important that your child keeps the safety belt in the proper place.

To remove the backrest:

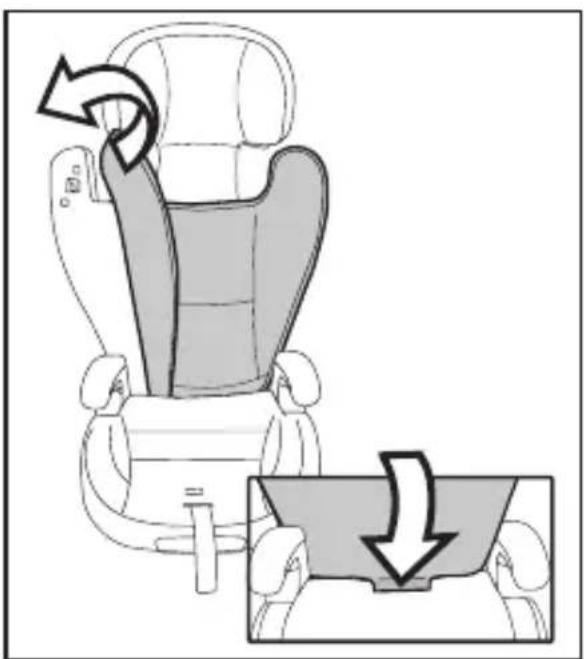

Rotate the red stops in the open position and slide the backrest out of its housing.

Using Viaggio HBB 120 without backrest

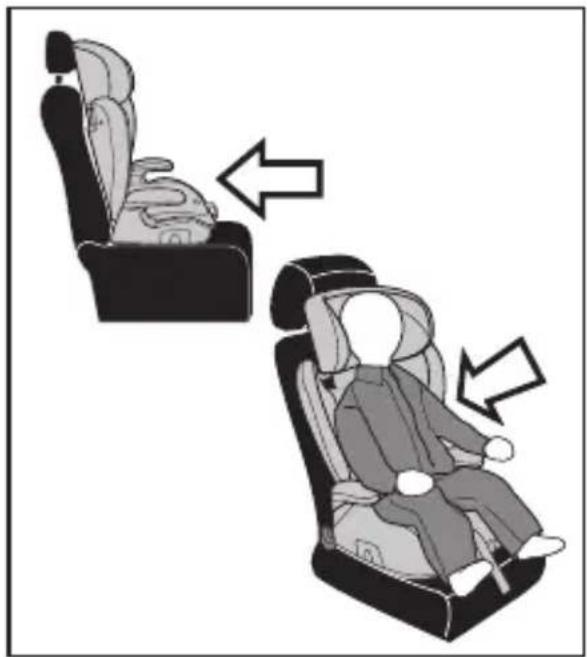

1. Make sure that your child is sitting comfortably in the seat, with his back fully against the vehicle seat backrest. Pull the belt and make sure that the lap portion of it passes below both armrests.

IMPORTANT! For proper head support, this booster seat needs to be installed in a vehicle seating position equipped with a headrest.

1. Buckle the belt (an audible click is heard) and make sure that both lap and shoulder belts pass below the armrest located next to the seatbelt buckle. Pull on both lap and shoulder belts making sure that they are not tangled anywhere.

Using Viaggio HBB 120 without backrest

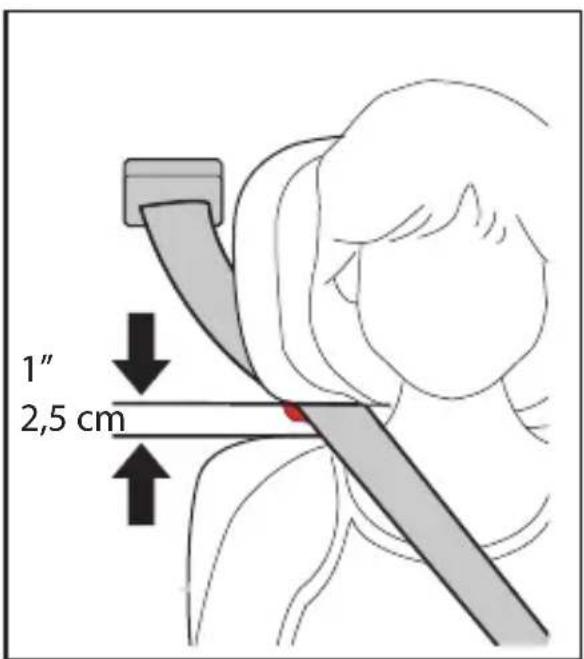

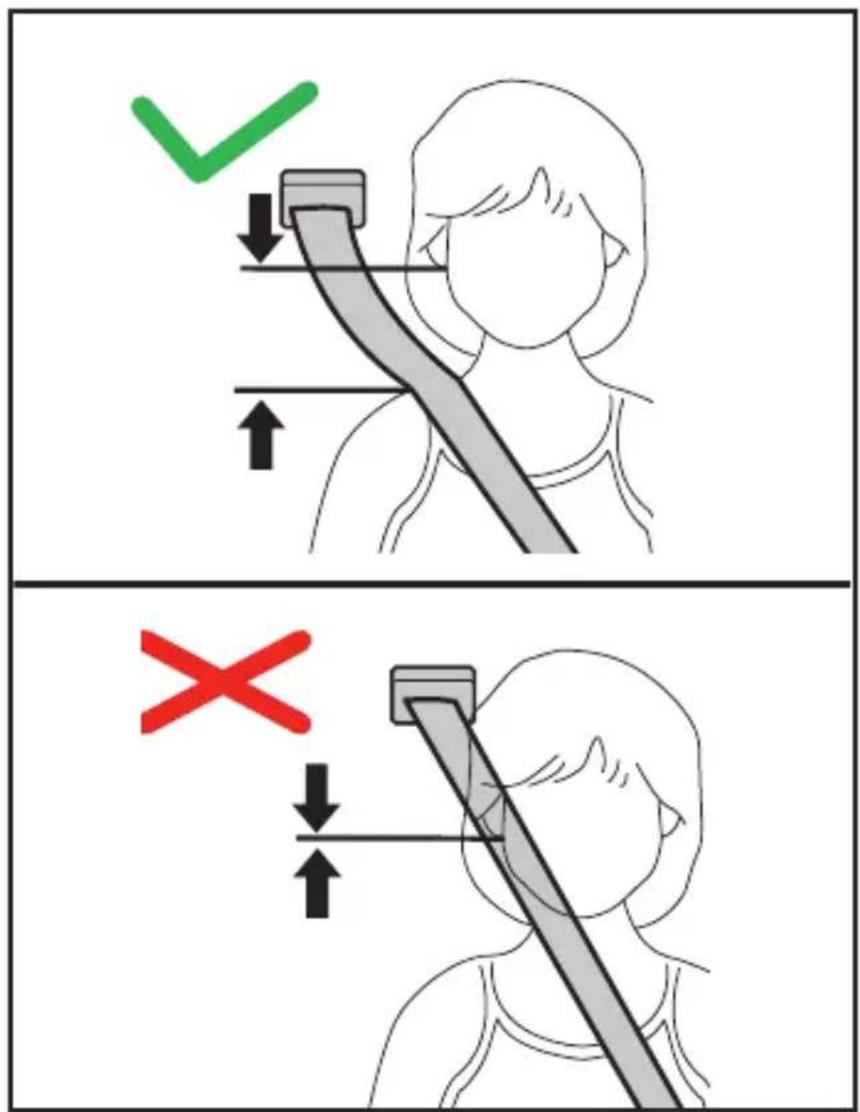

1. Check that the shoulder belt lies on the shoulder, away from your child's neck and below ear level, as shown in the picture.

Using Viaggio HBB 120 without backrest

1. Picture shows the correct belt pattern around the child in your Primo Viaggio HBB 120.

Cleaning and maintenance

Your booster seat requires a minimum of cleaning and maintenance. Do not clean with harsh products or solvents. Keep moving parts clean. In case, clean plastic parts with a damp cloth. Do not use water with harness and latching mechanisms. Protect the booster seat from extreme cold, water, rain and sun exposure. Prolonged exposures to these elements can change the colors in the material but also change their mechanical properties. Store the booster seat in a dry area if not used for long periods.

The upholstery is likely to be removed and cleaned frequently. Follow the procedure below to remove the fabric and reassemble it properly. Check the booster seat features before disassembly and make sure that the same features are still working once the booster seat is set up for use again. Extra care is required when removing padding to avoid breaking the white EPS panels on the booster seat.

All the upholstered covers (seat, backrest and headrest) can be machine washed at 87° F ( 30° C).

Cleaning and maintenance

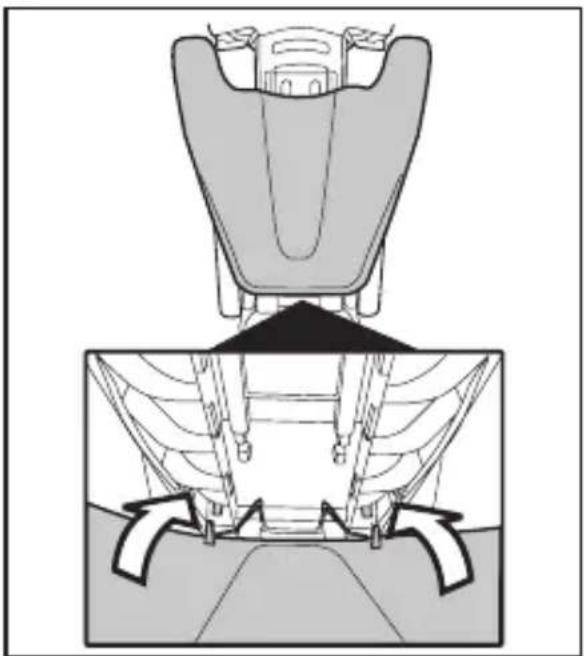

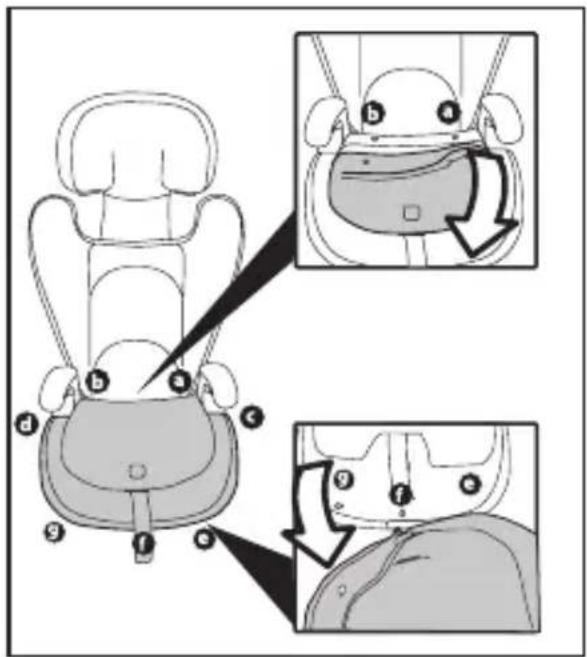

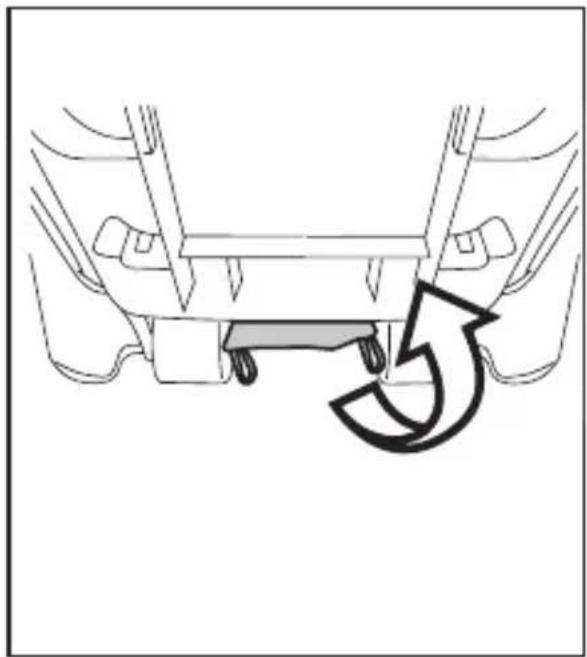

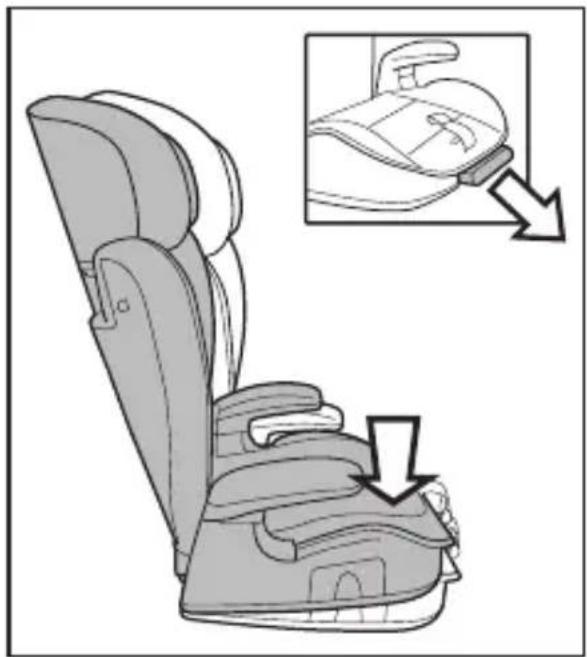

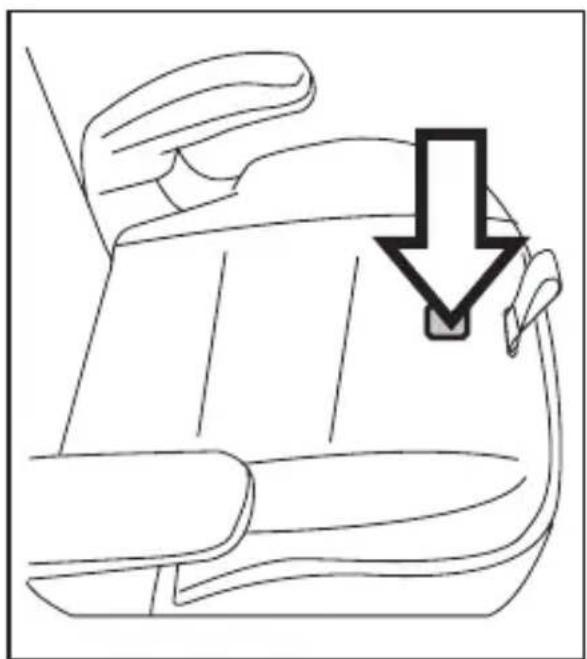

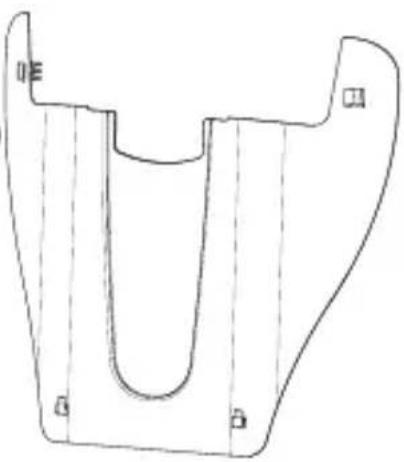

1. To remove the seat upholstery: recline backrest until it lies flat; undo plastic hooks starting with rear of the seat (a and b); undo snap buttons located under the armrest (c and d; pay attention to hold the button properly in order to avoid ripping the upholstery apart); undo plastic hooks in the front part of the seat cover (e, f and g).

2. Remove plastic hook plates from the pocket located under the seat.

Cleaning and maintenance

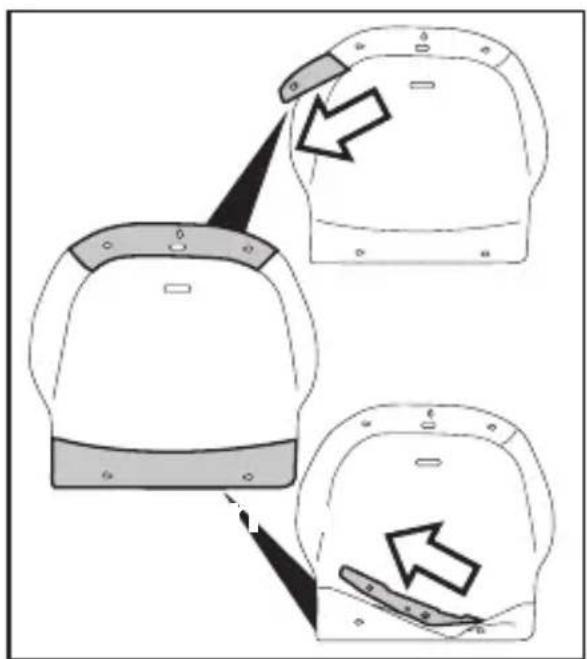

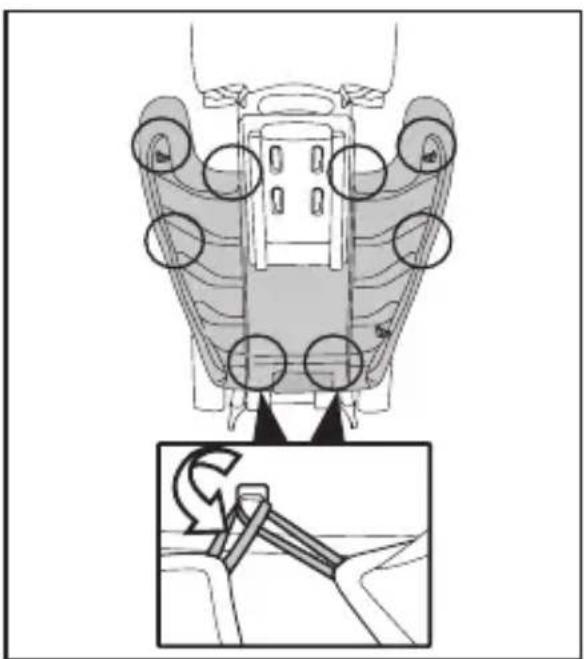

1. To remove the backrest upholstery, undo the plastic cover first unsnapping it from the top, as shown in the picture.

1. Undo the elastic bands from the hooks located in the backrest structure. Before undoing the hooks for the first time make sure that the correct pattern is understood.

Cleaning and maintenance

1. Remove the backrest upholstery from bottom first. Then free the shoulder cover from its structure.

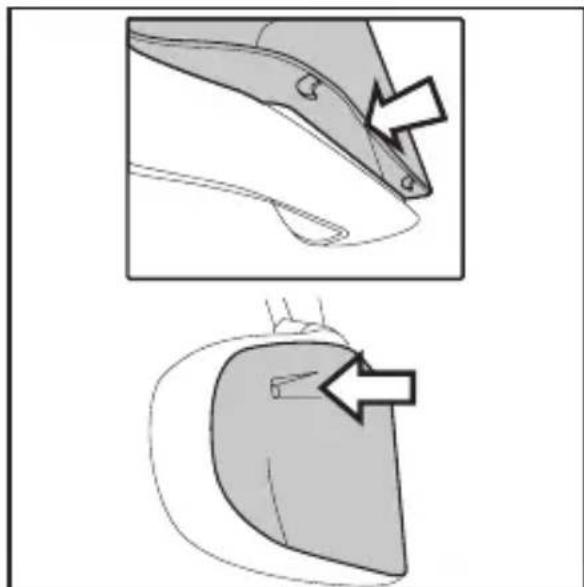

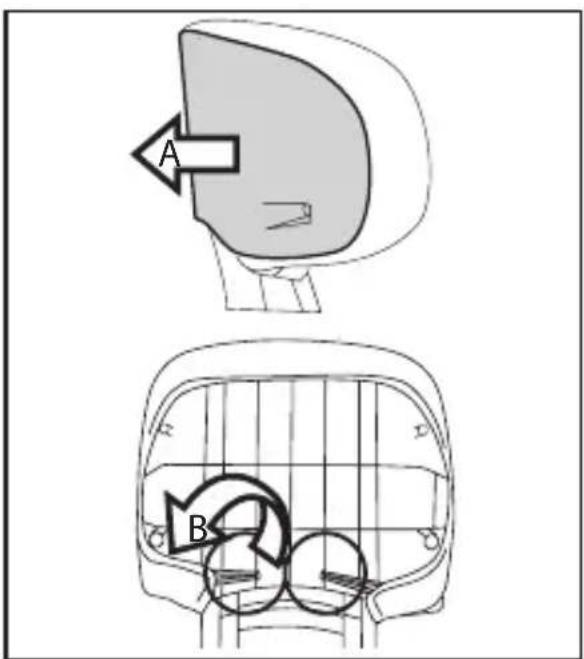

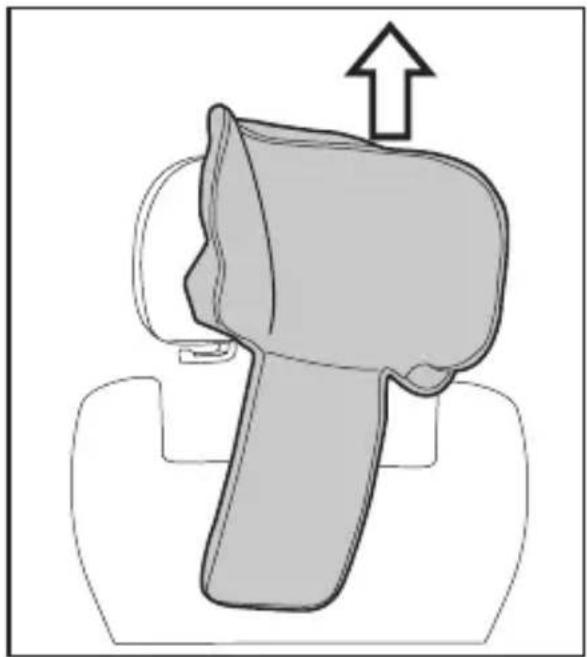

1. Remove the headrest plastic cover unsnapping it from below as shown in the picture (a). Undo elastic hooks from the headrest structure (b).

Cleaning and maintenance

1. Remove headrest upholstery.

1. To refit the backrest upholstery in place, first fit the shoulder cones and then the bottom part.

Cleaning and maintenance

1. Attach the elastic hooks in the center lower structure of the backrest.

1. Put the backrest plastic cover in place as shown in the picture (lower part first, then upper snaps).

Cleaning and maintenance

1. Put the headrest plastic cover in place as shown in the picture (lower part first, then upper snaps).

Accessories

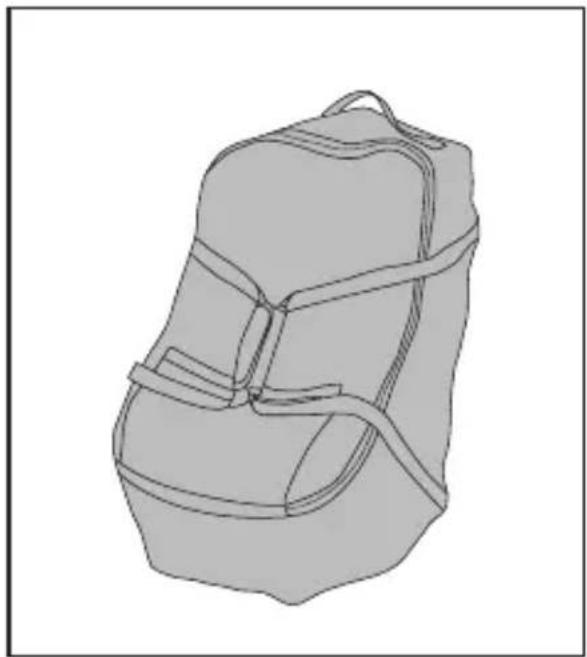

Travel Bag Car Seat: practical travel bag that keeps the car seat clean and protected.

Replacement Parts

1

3

2

4

6

5

1) ASPI0148NF
2) SPST7164KNF
3) BRIVIKNA*

Declaration of conformity

Product name

VIAGGIO HBB 120

Product reference number IMVI*

Reference Standards (origin)

FMVSS 571-213 (USA)

Declaration of conformity

PegPerego S.p.A. declares, under its own responsibility, that the item in question has undergone a series of internal tests and has been certified by external independent laboratories, in compliance with current legislation.

Date and place of issue

Arcore, January 2012

PegPerego S.p.A.

via De Gasperi, 50

20862 Arcore (MB), ITALY

ES Español

Arcore, January 2012

Date and place of issue

legislation.

compliance with current

independent laboratories, in

been certified by external

a series of internal tests and has

item in question has undergone

its own responsibility, that the

PegPerego S.p.A. declares, under

Declaration of conformity

FNVSS 571-213 (USAS)

Reference Standards (origin)

*|W|

Product reference number

VIAG510 HBB 120

Product name

conformity

Declaration of

EN English

Piezas de repuesto

38

limpia.

Travel Bag Car Seat: practica bolsa de transporte, la siella se mantine protegida y

Accessories

37

respaldo.

inferior central del

36

35

34

29

28

27

乙

20

61

itempo.

14

乙1

6
