Product Type	Plasma TV
Screen Size	59 inches (diagonal)
Display Resolution	1920 x 1080 (Full HD)
Refresh Rate	600Hz (Subfield Motion)
Dimensions (with stand)	139.5 x 89.5 x 34.0 cm (W x H x D)
Dimensions (without stand)	139.5 x 83.5 x 7.5 cm
Weight (with stand)	32.5 kg
Weight (without stand)	28.5 kg
Power Consumption (typical)	250 W
Power Consumption (standby)	< 0.5 W
Input Voltage	AC 100-240V, 50/60Hz
HDMI Ports	3
USB Ports	2
Component Input	1
Composite Input	1
RF Input	1
Audio Output (Optical)	1
Headphone Jack	1
Built-in Tuner	ATSC / NTSC / SECAM
Energy Class	B (older rating)
VESA Mount Pattern	400 x 400 mm
Recommended Cleaning	Dry soft cloth; avoid chemicals

Frequently Asked Questions - PS59D535A5W SAMSUNG

How do I clean the screen of my Samsung PS59D535A5W?

Use a dry, soft microfiber cloth. Do not apply liquid directly. Gently wipe in a circular motion. Avoid abrasive cleaners or paper towels.

What is the best picture setting for this TV?

For optimal picture, choose 'Movie' or 'Standard' mode. Adjust brightness and contrast to your room lighting. Disable 'Auto Motion Plus' for accurate film content.

Does the PS59D535A5W have built-in Wi-Fi?

No, this model does not have built-in Wi-Fi. You can connect external devices via HDMI or use a USB adapter if supported.

How can I wall mount this TV?

Use a VESA 400x400 mm wall mount. Ensure the wall can support at least 30 kg. Follow the manual for proper installation and use the provided screws.

What should I do if the TV won't turn on?

Check the power cord connection. Try a different outlet. If the standby light is off, the TV may need service. Do not attempt internal repairs.

How do I connect external speakers?

Use the optical audio output (TOSLINK) for a soundbar or receiver. Alternatively, use the headphone jack for active speakers. The TV does not have analog audio out.

What is the lifespan of the plasma panel?

Plasma panels typically last 60,000 to 100,000 hours. At 8 hours/day, that's about 15-20 years. Image retention may occur if static images are left too long.

Can I update the firmware?

This model may support firmware updates via USB. Check Samsung's support website for files. The TV does not have internet connectivity.

Why is there a buzzing sound from the TV?

Some buzzing is normal for plasma TVs due to power supply components. If it's loud or changes, contact support. Keep the TV ventilated.

How do I reset the TV to factory settings?

Go to Menu > Support > Self Diagnosis > Reset. Enter PIN (default: 0000). Confirm. All settings will be cleared.

USER MANUAL PS59D535A5W SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country	Customer Care Centre	Web Site
ALBANIA 42 27 5765 -
AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com
BELGIUM 02-251-24-18 www.samsung.com/be (Dutch)		www.samsung.com/be_fr (French)
BOSNIA 05 133 1989 -
BULGARIA 07001 33 11 www.samsung.com
CROATIA 002 SAMSUNG (062 726 7864) www.samsung.com
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com
	Samsung Zri., česká organizadní složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8
DENMARK	70 73 19 70	www.samsung.com
FINLAND	030 - 8227 515	www.samsung.com
FRANCE	01 49 63 00 00	www.samsung.com
GERMANY 01826 - SAMSUNG (726-7864 € 0.14/Min) www.samsung.com
GREECE 2106293100 www.samsung.com
HUNGARY	06-80-SAMSUNG (726-7864)	www.samsung.com
ITALIA	800-SAMSUNG (726-7864)	www.samsung.com
KOSOVO [phone]	-
LUXEMBURG	261 03 710 www.samsung.com
MACEDONIA	023 207 777 -
MONTENEGRO	020 406 888 -
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0, 10/Min)	www.samsung.com
NORWAY	815-56 480	www.samsung.com
POLAND	0 801 - SAMSUNG (172678)022-507-93-33	www.samsung.com
PORTUGAL	80820-SAMSUNG (726-7864)	www.samsung.com
RUMANIA	08010 SAMSUNG (09010 7267864) – doar din rejeusRomtelecom, tarif local;021.206.01.10 – din price rejea, tarif normal	www.samsung.com
SERBIA	0700 Samsung (0700 726 7864)	www.samsung.com
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk
SPAIN	902 - 1 - SAMSUNG (902 172 678)	www.samsung.com
SWEDEN	0771 726 7864 (SAMSUNG)	www.samsung.com
Switzerland	0849 - SAMSUNG(7267864, CHF 0.09/min)	www.samsung.com/chwww.samsung.com/ch_fr(French)
U.K	0330 SAMSUNG (7267864)	www.samsung.com
EIRE	0818 717100	www.samsung.com
LITHUANIA	8-800-77777	www.samsung.com
LATVIA	8000-7267	www.samsung.com
ESTONIA	800-7267	www.samsung.com
Turkey	444 77 11	www.samsung.com

SAMSUNG

Plasma TV user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model Serial No.

For more information on how to use the e-Manual (p. 12)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.
2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.
3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.
5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.
6. For more information, please contact your local Samsung customer care centre.

The reception quality of the TV may be affected due to differences in broadcasting methods between countries. Please check the TV performance with your local SAMSUNG Authorized Dealer or the Samsung Call Centre to see if it can be improved by reconfiguring the TV settings.

User Instructions

- Screen Image Retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes, as it can cause screen image retention. This image retention is also known as "screen burn." To avoid such image retention, reduce the brightness and contrast of the screen when displaying a still image.

• Heat on the Top of the Plasma TV

The top side of the product may become hot after long periods of use, as heat dissipates from the panel through the vent hole in the upper part of the product.

This is normal and does not indicate any defect or operation failure of the product.

However, children should be prevented from touching the upper part of the product.

- The Product Is Making a "Cracking" Noise.

A "cracking" noise may occur when the product contracts or expands due to changes in the surrounding environment, such as temperature or humidity. This is normal and not a defect of the unit.

- Cell Defects

The PDP uses a panel consisting of 2,360,000 (HD-level) to 6,221,000 (FHD-level) pixels, which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

- Avoid operating the TV at temperatures below 41°F (5°C).

- A still image displayed too long may cause permanent damage to the PDP panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen.

Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the "brightness" and "contrast" when displaying still images for a long time.

- Warranty

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your dealer. The items' colours and shapes may vary depending on the models. Cables not included in the package contents can be purchased separately. Check that there is no accessory hidden behind packing materials when you open the box.

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

• Remote Control & Batteries (AAA x 2)

- Power Cord

- Owner's Instructions

- Cleaning-Cloth

• Warranty Card (Not available in some locations) / Safety Guide

Ferrite Core (1EA) Ferrite Core (1EA)

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

A Maximum distance between the ferrite core and the end of the cord inserted in the TV: 6~8 inches (51 inches model only) B Maximum distance between the ferrite core and the other end of the cord inserted in the AC outlet: 3/4 inches

- An administration fee may be charged if either

– (a) an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual) – (b) you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).

- The amount of such administration charge will be advised to you before any work or home visit is carried out.

Power Cord

Viewing the Control Panel

The product colour and shape may vary depending on the model.

	Remote control sensor Aim the remote control towards this spot on the TV.
	Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
	SOURCE	Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.
	MENU Displays an on-screen menu, the OSD (on screen display) of your TV's features.
	-▲+	Adjusts the volume. In the OSD, use the -▲+ buttons as you would use the ◀ and ▶ buttons on the remote control.
	√CH^	Changes the channels. In the OSD, use the √CH^ buttons as you would use the ▼ and ▲ buttons on the remote control.
	○(Power)	Turns the TV on or off.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

Viewing the Remote Control

This is a special remote control for the visually impaired and has Braille points on the Channel and Number buttons.

Installing batteries (Battery size: AAA)

Changing the Input Source

Source

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

1. Press the SOURCE button on your remote.
2. Select a desired external input source.

You can change the view mode among the All and Connected by pressing the ◀ or ▶ button.

■TV / Ext. / HDMI1/DVI / HDMI2 / USB

In the Source, connected inputs will be highlighted.

Ext. always stay activated.

Edit Name

In the Source, press the TOOLS button, and then you can set an external input source's name you want.

■VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier.

When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you should set the TV to PC mode under Edit Name.

When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode under Edit Name.

When connecting an AV device to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI Devices mode under Edit Name.

Information

You can see detailed information about the selected external device.

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

Preset: Connecting the mains and antenna. The PDP device may interfere with an amateur radio or AM radio. When using two-way radio mobile and portable units or amateur radio or AM radio near your TV, this may cause the TV to malfunction.

Power Input

VHF/UHF AntennaCable

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings.

Press the POWER ⏻ button. Plug & Play is available only when the Source is set to TV.

Before turning on the TV, make sure the antenna cable is connected (p. 6).

To return to the previous step, press the Red button.

1	Selecting a language	Press the ▲ or ▼ button, then press the ENTER button.Select the desired OSD (On Screen Display) language.
2	Selecting Store Demo or Home Use	Press the ◀ or ▶ button, then press the ENTER button.Select the Home Use mode. Store Demo mode is for retail environments.To return the unit's settings from Store Demo to Home Use(standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec.Store Demo is only for shop display. If you select it, several functions are not able to use. Please select Home Use when you watch at home.
3	Selecting a country(Depending on the country)	Press the ▲ or ▼ button, then press the ENTER button. Select the appropriate country.After selecting the country in the Country menu, some models may proceed with an additional option to setup the pin number.When you input the PIN number, “0-0-0-0” is not available.
4	Setting the Clock Mode	Set the Clock Mode automatically or manually.Auto: Select the time zone (depending on the country) where you are located.Manual: Allows you to manually set the current date and time.
5	Selecting an antenna	Press the ▲ or ▼ button, then press the ENTER button. Select the Antenna source to memorise.
6	Selecting a channel	Press the ▲ or ▼ button, then press the ENTER button. Select the channel source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Tuning.
7	Enjoy your TV.	Press the ENTER button.

If You Want to Reset This Feature...

Select System - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is "0-0-0-0". If you want to change the PIN number, use the Change PIN function.

You should do Plug & Play (MENU → System) again at home although you did in shop.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to "0-0-0-0": MUTE → 8 → 2 → 4 → POWER (on).

Connecting to an AV devices

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR

Using an HDMI cable (up to 1080p)

HDMI IN 1(DVI), 2

- If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

•The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

- Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

Using a Scart Cable

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

SERVICE: Connector for service only.

Available devices: digital audio system, amplifier, DVD home theatre, PC

Using a Headphone Connection

Headphones ☐: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

Connecting through the HDMI cable may not be supported depending on the PC.

Display Modes (HDMI to DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V)
IBM	640 x 350	31.469	70.086	25.175	+/-
	720 x 400	31.469	70.087	28.322	-/+
MAC	640 x 480	35.000	66.667	30.240	-/-
	832 x 624	49.726	74.551	57.284	-/-
	1152 x 870	68.681	75.062	100.000	-/-
VESA DMT	640 x 480	31.469	59.940	25.175	-/-
	640 x 480	37.861	72.809	31.500	-/-
	640 x 480	37.500	75.000	31.500	-/-
	800 x 600	37.879	60.317	40.000	+/+
	800 x 600	48.077	72.188	50.000	+/+
	800 x 600	46.875	75.000	49.500	+/+
	1024 x 768	48.363	60.004	65.000	-/-
	1024 x 768	56.476	70.069	75.000	-/-
	1024 x 768	60.023	75.029	78.750	+/+
	1152 x 864	67.500	75.000	108.000	+/+
	1280 x 1024	63.981	60.020	108.000	+/+
	1280 x 1024	79.976	75.025	135.000	+/+
	1280 x 800	49.702	59.810	83.500	-/+
	1280 x 800	62.795	74.934	106.500	-/+
	1280 x 960	60.000	60.000	108.000	+/+
	1360 x 768	47.712	60.015	85.500	+/+
	1440 x 900	55.935	59.887	106.500	-/+
	1440 x 900	70.635	74.984	136.750	-/+
	1680 x 1050	65.290	59.954	146.250	-/+
VESA DMT /DTV CEA	1920 x 1080p 6	7.500 60.000 148.500 +/+

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.

•The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

Connecting to a COMMON INTERFACE slot

Using the "CI or CI+ CARD"

To watch paid channels, the "CI or CI+ CARD" must be inserted.

• If you don't insert the "CI or CI+ CARD", some channels will display the message "Scrambled Signal".
• The pairing information containing a telephone number, the "CI or CI+ CARD" ID, the Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.
• When the configuration of channel information has finished, the message "Updating Completed" is displayed, indicating the channel list is updated.

NOTE

• You must obtain a "CI or CI+ CARD" from a local cable service provider. When removing the "CI or CI+ CARD", carefully pull it out with your hands since dropping the "CI or CI+ CARD" may cause damage to it.

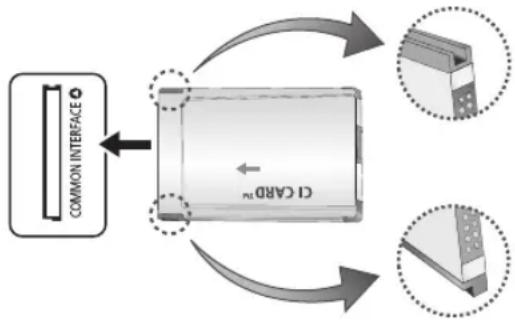

• Insert the "CI or CI+ CARD" in the direction marked on the card. •The location of the COMMON INTERFACE slot may be different depending on the model. "CI or CI+ CARD" is not supported in some countries and regions; check with your authorized dealer.
• If you have any problems, please contact a service provider. Insert the "CI or CI+ CARD" that supports the current antenna settings. The screen will be distorted or will not be seen.

How to use the e-Manual

You can read the introduction and instructions about the TV features stored in your TV.

MENU → Support → e-Manual → ENTER

If you want to return to e-Manual, press E-MANUAL button on remote.

You can't use the Try Now function, if the menu is not activated.

Screen Display

TV Screen: Displays the current input source screen.

Operation Buttons:

D Blue (Index): Displays index screen.

Enter: Select a category or sub-menu.

→ Exit: Exit the e-Manual.

How to toggle between the e-Manual and the corresponding menu(s).

This function is not enabled in some menus.

Method 1 Method 2

1. Press the red button to select Try Now, if you want to execute the corresponding menu(s).
2. To return to the e-Manual screen, press the E-MANUAL button.
3. Press the ENTER button when selecting Contents Area. The "Are you sure?" is displayed. Select Yes and then press the ENTER button. The OSD window will be displayed.
4. To return to the e-Manual screen, press the E-MANUAL button.

Contents Area: You can view the corresponding contents, if you selected a sub-menu. To move previous or next page, press the ◀ or ▶ button.

Operation Buttons:

A Red (Try Now): Displays the corresponding menu(s). B Green (Home): Moves to the e-Manual home screen. C Yellow (Zoom): Magnifies a screen. D Blue (Index): Displays index screen ◀ (Page): Moves to previous or next page.

Using the Zoom mode

When you view the e-Manual instruction, select the yellow button to magnify the screen. You can scroll through the magnified screen by using the ▲ or ▼ buttons.

To return to the previous screen, press the RETURN button.

□ Changing the Preset Picture Mode M→Picture → Picture Mode → ENTER

Picture Mode

Select your preferred picture type.

When an input source is set to PC, the Picture Mode is only available in Standard and Entertain.

• Dynamic: Suitable for a bright room. • Standard: Suitable for a normal environment. • Natural (for LED 5006 model): Suitable for reducing eye strain. • Movie: Suitable for watching movies in a dark room. • Entertain: Suitable for watching movies and games.

Return

How to search a keyword by using the index page

This function may not be supported depending on the language.

1. If you want to search for a keyword, press the blue button to select Index.
2. Press the ◀ or ▶ button to select the character order you want.
3. Press the ▲ or ▼ button to select the keyword you want to see, and then press the ENTER button.
4. You can view the corresponding e-Manual instruction screen.

To close the Index screen, press the RETURN button.

Installing the Wall Mount

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Wall Mount Kit Specifications (VESA)

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

- Do not use screws that do not comply with the VESA standard screw specifications.

- Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.

For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.

- Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

- Our 55" model does not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for this model.

- Do not mount the TV at more than a 15 degree tilt.

Product Family inches		VESA Spec. (A * B)	Standard Screw Quantity
PDP-TV	43~51 400	X 400	M8	4
	59~64 600	X 400

Unscrew the hole around before installing Wall-Mount on the wall.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit "www.samsung.com," then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

The TV won't turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.• Make sure the wall outlet is working.• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below.
There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the TV and external devices).• Set your external device's (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device's output is HDMI, it should be connected to an HDMI input on the TV.• Make sure your connected devices are powered on.• Be sure to select the TV's correct source by pressing the SOURCE button on the remote control.
The remote control does not work. • Replace the remote control batteries with the poles (+/-) in the right direction.• Clean the sensor's transmission window on the remote.• Try pointing the remote directly at the TV from 5~6 feet away.
The cable/set top box remote control doesn't turn the TV on or off, or adjust the volume.	• Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

Some of the above pictures and functions are available on specific models only.

You can keep your TV in optimum condition by upgrading to the latest firmware on the website (samsung.com → Support → Downloads) via USB.

Licence

List of Features

Excellent Digital Interface: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed without a cable box / STB (Set-Top-Box) satellite receiver.

Securing the TV to the wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the included Safety Flyer. For added stability and safety, install the anti-fall device as follows.

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall. Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

1. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

1. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong cable and then tie the string tightly.

NOTE

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.

Untie the string before moving the TV.

1. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Storage and Maintenance

If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.

Do not spray water or a cleaning agent directly onto the product. Any liquid that goes into the product may cause a failure, fire, or electric shock.

Clean the product with a soft cloth dapped in a small amount of water.

Specifications

Display Resolution 1920 X 1080
Environmental Considerations
Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Humidity	5% to 95%, non-condensing
TV System Analogue: B/G, D/K, L, I (Depending on your country selection) Digital: DVB-T/DVB-C
Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60 Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0
Sound System BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC.
HDMI IN Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.
Stand Swivel (Left / Right) -20° - 20°
Model Name PS51D535 PS59D535
Screen Size 51 inches 59 inches
Sound (Output) 10 W X 2 15 W X 2
Dimensions (WxDxH)
Body	1187.8 x 56.0 x 706.6 mm	1370.4 x 56.0 x 815.4 mm
With stand	1187.8 x 251.8 x 781.9 mm	1370.4 x 330.0 x 894.7 mm
Weight
Without Stand	21.6 kg	31.6 kg
With Stand	24.6 kg	35.8 kg

Design and specifications are subject to change without prior notice. For information about power supply, and more about power consumption, refer to the label attached to the product.

Power cord

View the control panel

Change the input source

Source

Power cable

Power cord

Change the input source

Source

SERVICE: For service use only.

Available devices: digital audio system, amplifier, DVD home theater, PC

Using a headphone connection

Do not mount the TV at an angle greater than 15 degrees.

Produktfamilie tommer		VESA-spes. (A * B)	Standardskrue Mengde
Plasma-TV	43~51 400	X 400	M8	4
	59~64 600	X 400

Power cord
