Product Type	Curling Iron
Brand	SilverCrest
Model	SHC 240 A1
Barrel Diameter	25 mm (1 inch)
Barrel Material	Ceramic with tourmaline coating
Temperature Range	120°C - 200°C (adjustable)
Heat Settings	5 levels
Power Rating	30-45 W
Power Supply	AC 220-240V, 50/60Hz
Cord Length	1.8 m (swivel)
Auto Shut-Off	After 60 minutes
LED Display	Yes (temperature)
Cool Tip	Yes, for safe handling
Heat-Up Time	Approximately 60 seconds
Dimensions (L x W x H)	32 x 4 x 4 cm
Weight	320 g
Includes	Heat-resistant mat, user manual
Safety Features	Auto shut-off, overheat protection
Cleaning	Wipe with damp cloth, unplugged

Frequently Asked Questions - SHC 240 A1 SILVERCREST

What is the barrel diameter of the SilverCrest SHC 240 A1 curling iron?

The barrel diameter is 25 mm (1 inch), suitable for creating medium-sized curls.

How do I adjust the temperature on the curling iron?

Use the slider on the handle to select from 5 heat settings ranging from 120°C to 200°C. The current temperature is shown on the LED display.

Does the curling iron have an auto shut-off feature?

Yes, it automatically turns off after 60 minutes of inactivity for safety.

Can I use this curling iron on wet hair?

No, always dry your hair thoroughly before using the curling iron to avoid damage and ensure safe styling.

What is the best temperature for fine hair?

For fine or delicate hair, start at the lowest setting (120°C) and increase gradually if needed.

How should I clean the curling iron?

Unplug the device and let it cool completely. Wipe the barrel with a slightly damp cloth using water or a gentle cleaner. Never immerse in water.

Does the curling iron have a cool tip?

Yes, the tip of the barrel remains cool to the touch, allowing safe handling while curling.

How long does it take to heat up?

The curling iron reaches the selected temperature within approximately 60 seconds.

What should I do if the cord is damaged?

Stop using the device immediately. The cord cannot be replaced, so the curling iron must be disposed of properly and replaced.

Is the barrel coated with tourmaline?

Yes, the ceramic barrel features a tourmaline coating that reduces frizz and adds shine.

USER MANUAL SHC 240 A1 SILVERCREST

Operating instructions

DE AT CH

QUICK CURL

Bedienungsanleitung

IAN 302366

GB IE NI

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE/NI Operating instructions Page 1

Limitation of liability 2

Proper use 2

Package contents 3

Appliance description....3

Technical data 3

Safety information 4

Unpacking....7

Disposal of the packaging....7

First use 7

Preparing your hair 7

Operation 8

Settings 8

Curling your hair 10

Automatic switch-off....11

Cleaning and care....11

Storage 11

Disposal of the appliance....12

Troubleshooting 12

Kompernass Handels GmbH warranty....13

Service....14

Importer....14

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Limitation of liability

All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions correspond to the latest information available to us at the time of printing and takes our previous experience and know-how into account.

No claims may be derived from the specifications, figures and descriptions in these operating instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

Proper use

This appliance is intended for styling human hair and is intended exclusively for private use.

It is not intended for use on animals or in commercial or industrial environments.

The appliance is not intended for any other purpose, nor for use beyond the scope described. No claims of any kind will be accepted for damage arising as a result of incorrect use. The risk is borne solely by the user.

Package contents

This appliance is supplied with the following components as standard:

• Quick Curl
• Protective cap
• Hair template
• Cleaning accessory
• Operating instructions

NOTE

▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Appliance description

① Curlingchamber
② Roller
③ Protective cap
4 Time indicator
⑤ Turns indicator
⑥ Curling direction indicator
⑦ Temperature indicator
⑧ Cleaningaccessory
⑨Hairtemplate
10Hanger
⑪ Timebutton
⑫On/Offbutton
⑬Turnbutton
⑭Temperaturebutton
15 Curling direction button L/R
16 Startbutton

Technical data

Mains voltage 110 - 240 V \~, 50/60 Hz

Power consumption 20 W

Protection class

(double insulation)

Safety information

RISK OF ELECTRIC SHOCK

• Connect the appliance only to mains power sockets supplying a mains power voltage of 110 - 240 V \~, 50/60 Hz.
  To prevent accidents, have defective plugs and/or power cables replaced immediately by an authorised specialist technician or our Customer Service department.
  Remove the plug from the mains power socket in case of operating malfunctions and before you clean the appliance.
  ▶ Always pull on the plug to disconnect the appliance from the mains; never pull on the power cable itself.
  ▶ Do not kink or crush the power cable, and route the cable so that it cannot be stepped on or tripped over.
  ▶ Make sure that the power cable does not become wet or moist during use. Route the cable in such a way that it cannot be crushed or damaged.
  ▶ To prevent risks, stop using the appliance immediately if it is damaged.
  ▶ Do not wrap the power cable around the appliance, and protect it from being damaged.
• Do not use extension cables – they will make it difficult to disconnect the appliance quickly in an emergency.
  ▶ Never touch the appliance, the power cable or the power plug with wet hands.
  ▶ Never submerge the appliance in liquids or never allow liquids to penetrate the appliance housing. Do not expose the appliance to humidity and do not use it outdoors. If any liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.

RISK OF ELECTRIC SHOCK

▶ Unplug the appliance immediately after use. The appliance is only completely free of electrical power when unplugged.
▶ Ensure that objects can never penetrate into the inside of the appliance, especially metal hair clips, grips or hairpins.
If the appliance is being used in the bathroom, disconnect the plug from the mains power socket after use as the close proximity of water represents a hazard – even when the appliance is switched off.

Do not use this appliance near bathtubs, showers or other containers filled with water. The proximity of water is hazardous, even if the appliance is switched off. For additional protection, we recommend that you install a residual current circuit breaker with an activation power rating of no more than 30 mA for the power circuit in the bathroom. Ask your electrician for advice.

⚠ WARNING! RISK OF INJURY!

▶ Never leave a switched-on appliance unsupervised.
▶ Never place the appliance close to sources of heat, and always protect the power cable from damage.
- Do not operate the appliance if it has been dropped or is damaged in any way. Have the appliance checked and/or repaired by qualified technicians if necessary.
- Do not open the housing or attempt to repair the appliance yourself. This can lead to risks and also invalidates the warranty. Defective appliances should be repaired by authorized specialists only.
The appliance components can get hot during operation. Therefore, only touch the handle and the buttons.

⚠ WARNING! RISK OF INJURY!

This appliance may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are being supervised or have been instructed with regard to the safe use of the appliance and have understood the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance should not be carried out by children, unless they are under supervision.

▶ Never switch the appliance on if the protective cap is on.
▶ Never put on the protective cap when the appliance is still hot.
▶ Use only the supplied original accessories, as these have been optimised for interaction with the appliance. Other parts may not be adequately safe.
- Keep the air inlet and outlet openings clear to ensure un impaired air flow. Otherwise the appliance may overheat.
Exercise caution when using hair spray, water atomizers, etc. The air flow may blow these substances directly into your eyes. These substances must also not be allowed to penetrate the appliance, as they may be inflammable, caustic or electrically conductive.

Unpacking

◆ Remove all parts of the appliance and the operating instructions from the box.
◆ Remove all packaging material.

WARNING! RISK OF SUFFOCATION!

▶ Do not allow children to play with packaging materials. There is a risk of suffocation.

Disposal of the packaging

The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: Plastics,

20-22: Paper and cardboard,

80-98: Composites

NOTE

▶ If possible, keep the original packaging during the warranty period so that the appliance can be packed properly for returning in the event of a warranty claim.

First use

■ Before you use the appliance, ensure that ...

- the appliance or its accessory parts are in perfect working condition, - all packaging materials have been removed.

Preparing your hair

• Ensure that your hair is free of any styling or care products. This does not apply to heat protection spray.
• Your hair must be dry.
• Your hair must be combed and free from knots.

Operation

NOTE

▶ You may notice a slight smell when using the appliance for the first time. This is normal and the smell dissipates after a short time.

Settings

1) Insert the plug into a mains socket. The appliance beeps.

2) Press the On/Off button ⏻ ⑫. You will hear a beep and the temperature indicator ⑦ flashes. The set temperature flashes several times before the current temperature is displayed. The appliance now heats up and the current temperature rises. As soon as the selected temperature is reached, the temperature indicator ⑦ comes on permanently.

NOTE

The set temperature may be exceeded repeatedly and drops again afterwards. This happens because the appliance is trying to maintain the set temperature and reheats repeatedly.

3) Press the temperature button ⏻ 14 until the desired temperature is shown on the display. The temperature depends on your hair type:

Temperature Hair type

130°C very fine, stressed and damaged hair

150°C fine hair

170°C normal hair

190°C wavy hair

210°C thick or wavy hair

230°C thick, wavy hair

NOTE

If you are not sure what temperature is ideal for your hair, increase the temperature gradually. Start with a low temperature and increase the temperature until you are happy with the result.

4) Press the rotation direction button L until the desired curling direction has been set:

Curling direction indicator 6	Curl direction
RIGHT	The curls are always turned in a clockwise direction
LEFT	The curls are always turned in an anticlockwise direction
AUTO	The curls are turned alternately in a clockwise and anticlockwise direction

5) Press the turn button Ⓞ ⑬ to set the number of turns You can read off the set number from the turns indicator ⑤. The number of turns depends on the length of the hair:

Number of turns Hair length

5-7 approx. 20-30 cm

8-10 30-50 cm

11-12 >50 cm

NOTE

The diameter/size of the curls is always the same!

6) Depending on the nature of your hair and the desired intensity of the curls, select the time for which the strand of hair is to stay on the roller ② and be heated.

For gentle waves, select a short time. For tighter curls, choose the longest possible time. Bear in mind that thick hair needs a longer time than fine hair to achieve the same result.

To set the time, press the time button ① ⑪ repeatedly until the desired time appears on the time indicator ④.

Selectable time Temperature

3-12 seconds 130°C - 230°C

You have now made all required settings. You can change the settings at any time by pressing the relevant button if you ascertain that the time/temperature/turning speed is not ideal for your hair.

Curling your hair

Once you have made all settings on the appliance and the Temperature indicator ⑦ is permanently on (temperature reached):

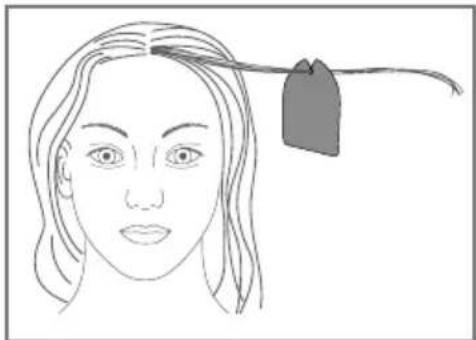

1) To prevent the hair from getting caught in the curling chamber ①, use the hair template ⑨ to separate the strands of hair. Ensure that the strand is no thicker than the punched hole in the hair template ⑨.

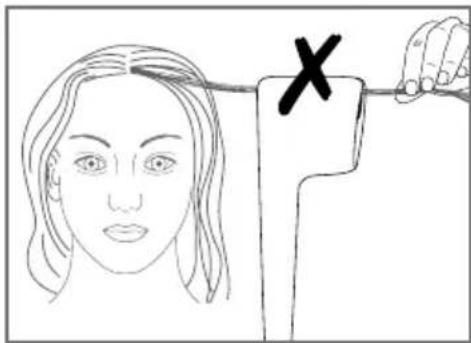

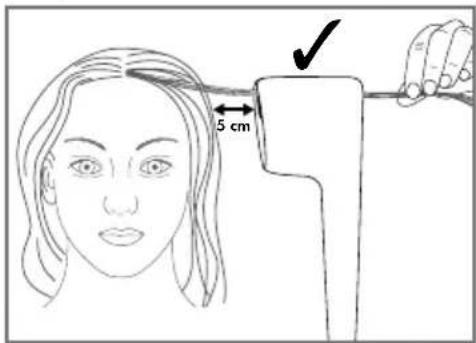

2) When inserting the hair strand into the curling chamber ①, the opening must be facing towards the head. Hold the appliance around 5 cm from your scalp. The strand must be straight and taut when it is inserted.

3) Let go of the strand and press the Start button ⑯. The roller ② starts to turn and stops automatically after the set number of turns. The strand is wound around the roller ②.

As soon as the roller ② stops, you will hear a beep and the set time starts counting down. As soon as the programmed time period has elapsed, you will hear three beeps.

4) Pull the appliance away from your head so that the strand slips out of the curling chamber ①.

5) Proceed in the same way with the other strands.

6) When you are finished styling your hair, press and hold down the On/Off button 🔊 12 until the display goes out.

7) Remove the power plug from the mains power socket.

8) As soon as the appliance has cooled down, put the protective cap ③ onto the appliance.

Automatic switch-off

This appliance is fitted with an automatic switch-off system. After 60 minutes, the appliance will switch itself off automatically if you do not press any buttons.

NOTE

The automatic switch-off is designed merely as a safety feature in case you forget to switch off the appliance! The automatic switch-off is not intended as a substitute for switching the appliance off with the On/Off switch ⏻ 12 and pulling the plug out of the mains socket.

Cleaning and care

RISK OF ELECTRIC SHOCK

▶ Before cleaning the appliance, always pull out the plug from the mains power socket. There is a risk of electric shock!

WARNING! RISK OF INJURY!

▶ Allow the appliance to cool down fully before cleaning it. Risk of burns!

CAUTION – PROPERTY DAMAGE!

▶ Do not use any aggressive, abrasive or chemical cleaning agents! These could damage the surfaces of the appliance.
■ Clean the appliance using only a lightly moistened cloth.
■ Clean the hair template ⑨ with a damp cloth.

To clean the curling chamber ① and the roller ②, push the cleaning accessory ⑧ into the curling chamber ① and turn it several times around the roller ②.

- Allow the appliance to dry completely before reuse or before putting it away.

Storage

Place the protective cap ③ on the cooled-down appliance.
■ You can also hang up the appliance by the hanger ⑩.
■ Store the appliance in a dry and dust-free location.

Disposal of the appliance

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of the European Directive 2012/19/EU (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal facility or your municipal waste facility. Please comply with all applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Troubleshooting

Fault Cause Remedy
The appliance is not working.	· The plug is not inserted into a power socket.	· Insert the plug into a mains power socket.
	· The appliance is not switched on.	· Switch on the appliance.
	· The appliance is defective.	· In this case, contact Customer Services.
“Err2” appears on the display.	· The hair could not be pulled in correctly.	· Pull the strand out of the curling chamber 1, ensure that no knots have formed in the hair, and try again to make a curl.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

• Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
• You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
  If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
• You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 302366

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 16

Urheberrecht 16

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
