| Product Type | Wireless Access Point / Router |
| Model | Aruba Instant IAP-305 |
| Wireless Standard | 802.11ac Wave 2 |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Maximum Data Rate | Up to 1.733 Gbps (5 GHz) + 800 Mbps (2.4 GHz) |
| MIMO | 4x4:4SS |
| Ethernet Ports | 1x 10/100/1000 Base-T (PoE-In) |
| Power over Ethernet (PoE) | 802.3at PoE+ |
| Power Supply | 12V DC adapter (optional) or PoE+ |
| Dimensions (W x D x H) | 200 x 200 x 45 mm |
| Weight | 0.75 kg |
| Mounting | Ceiling or wall mount (bracket included) |
| Management | Aruba Instant (controller-less), Aruba Central, or on-premise controller |
| Encryption | WPA2, WPA3, 802.1X |
| Operating Temperature | 0°C to 40°C |
| Humidity | 5% to 95% (non-condensing) |
| LED Indicators | Power, system, radio status |
| Compliance | FCC, CE, IC |
Frequently Asked Questions - Aruba Instant IAP-305 HP
User questions about Aruba Instant IAP-305 HP
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Router in PDF format for free! Find your manual Aruba Instant IAP-305 - HP and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Aruba Instant IAP-305 by HP.
USER MANUAL Aruba Instant IAP-305 HP
The Aruba 300 Series wireless access points (APs) support IEEE802.11ac standards for high-performance WLAN, and are equipped with two radios, which provide network access and monitor the network simultaneously. These access points deliver high-performance 802.11n 2.4 GHz and 802.11ac 5 GHz functionality, while also supporting 802.11a/b/g wireless services. Multi-user Multiple-in, Multiple-output (MU-MIMO) is enabled when operating in 5GHz mode for optimal performance. The AP-304 and AP-305 access points work in conjunction with an Aruba controller, while the IAP-304 and IAP-305 access point can be configured using a built-in virtual controller.
The 300 Series wireless access points provide the following capabilities:
- IEEE 802.11a/b/g/n/ac operation as a wireless access point
- IEEE 802.11a/b/g/n/ac operation as a wireless air monitor
- IEEE 802.11a/b/g/n/ac spectrum monitor
- Compatible with IEEE 802.3at PoE+ and IEEE 802.3af PoE • Centralized management configuration and upgrade • Integrated Bluetooth Low Energy (BLE) Radio
This device must be professionally installed and serviced by a trained ACMP or similar Aruba-certified technician. Aruba access points are classified as radio transmission devices, and are subject to government regulations of the host country. The network administrator(s) is/are responsible for ensuring that configuration and operation of this equipment is in compliance with their country's regulations. For complete list of approved channels in your country of the AP-304 and AP-305 access points, refer to the Aruba Downloadable Regulatory Table at support.arubanetworks.com.
Package Contents
(I)AP-304 or (I)AP-305 access point • Ceiling Rail Adapter (spare: AP-220-MNT-C1) - Startup Guide
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including the original packing materials. Use these materials to repack and return the unit to the supplier if needed.
Software
The AP-304 and AP-305 access points require ArubaOS 6.5.1.0 or higher. For additional information, refer to the ArubaOS User Guide and ArubaOS Quick Start Guide.
The IAP-304 and IAP-305 access points require Aruba Instant 4.3.1.0 or higher. For additional information, refer to the Aruba Instant User Guide and Aruba Instant Quick Start Guide.
300 Series Hardware Overview
Figure 1 Status LEDs on AP Front (305 shown)
LEDs
The 300 Series access points have two LEDs that indicate the system and radio status of the device. These two LEDs can be configured via ArubaOS (for AP-304 and AP-305) or Aruba Instant (for IAP-304 and IAP-305) software into three separate modes:
• Normal mode (by default): See Table 1 - Both LEDs off - Blink mode: Both LEDs blink green (synchronized)
Table 1 300 Series LEDs Status in Normal Mode
| LED Color/State Meaning | ||
| System Status (Left) | Off Device powered off | |
| Green- Blinking Device booting, not ready for use | ||
| Green- Solid Device ready for use, no restrictions | ||
| Green- Flashing Device ready for use, uplink negotiated in sub optimal speed (<1Gbps) | ||
| Amber- Solid Device ready for use; power-save mode (802.3af PoE) | ||
| Amber- Flashing Device ready for use; power-save mode (802.3af PoE), uplink negotiated in sub optimal speed (<1Gbps) | ||
| Red- Solid System error condition | ||
| Radio Status (Right) | Off Device powered off, or both radios disabled | |
| Green- Solid Both radios enabled in access mode | ||
| Green- Blinking One radio enabled in access mode | ||
| Amber- Solid Both radios enabled in monitor mode | ||
| Amber- Blinking One radio enabled in monitor mode | ||
| Alternating One radio enabled in access mode, other in monitor mode | ||
External Antenna Connectors
The AP-304 and IAP-304 access points are equipped with three external antenna connectors on the front corners of the access point.
Figure 2 External Antenna Connector
External antennas for this device must be installed by an Aruba Certified Mobility Professional (ACMP) or other Aruba-certified technician, using manufacturer-approved antennas only.
The Equivalent Isotropically Radiated Power (EIRP) levels for all external antenna devices must not exceed the regulatory limit set by the host country/domain.
Installers are required to record the antenna gain for this device in the system management software.
USB Interface
The 300 Series is equipped with a USB port for connectivity with cellular modems and other USB client devices. When powered by an 802.3at or DC power source, the USB port can supply power up to 5W/1A. The USB interface is disabled when the access point is powered by an 802.3af PoE source (power-save mode).
Console Port
The serial console port is located at the back of the device and is a 4-pin connector covered by a dust cover. An optional serial adapter cable (AP-CBL-SER) is sold separately to connect the device to a serial terminal or a laptop for direct local management.
Ethernet Port
The 300 Series access points are equipped with one 10/100/1000Base-T auto-sensing MDI/MDX Ethernet port. This port supports wired-network connectivity, in addition to Power over Ethernet (PoE) from IEEE 802.3af and 802.3at compliant power sources.
This device accepts 56V DC (802.3at), or 48V DC (802.3af) nominal as a standard powered device (PD) from power sourcing equipment, including PoE midspan injector or a PoE-sourcing network infrastructure.

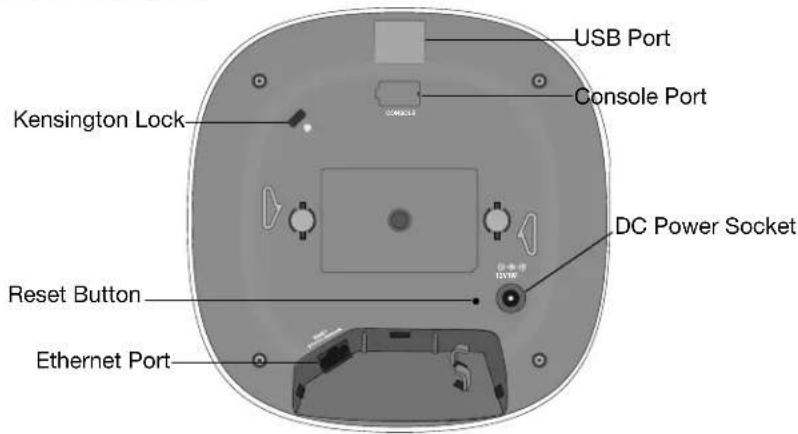

Figure 3 Back Panel
Kensington Lock Slot
The 300 Series access points are equipped with a Kensington lock slot for additional security.
Reset Button
To reset the 300 Series access points to factory default settings, press and hold down the reset button using a small, narrow object such as a paper clip while the (I)AP is powered on.
DC Power Socket
If PoE is not available, an optional Aruba AP-AC-12V30B power adapter kit (sold separately) can be used to power the 300 Series access points.
Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to power this device, as long as it complies with all applicable local regulatory requirements and the DC interface meets the following specifications:
• 12 Vdc (+/- 5%) and at least 18W • Center-positive 2.1/5.5 mm circular plug, 9.5 mm length
Before You Begin
FCC Statement: Improper termination of access points installed in the United States configured to non-US model controllers will be in violation of the FCC grant of equipment authorization. Any such willful or intentional violation may result in a requirement by the FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80).
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please refer to the ArubaOS User Guide/Aruba Instant User Guide for details on restrictions.
Pre-Installation Network Requirements
The instructions in this section apply only to the AP-304 and AP-305.
After WLAN planning is complete and the appropriate products and their placement have been determined, the Aruba controller(s) must be installed and initial setup performed before the Aruba access points are deployed. For initial setup of the controller, refer to the ArubaOS Quick Start Guide for the software version installed on your controller.
Pre-Installation Checklist
Before installing your 300 Series access points, ensure that you have the following:
- Cat5E or better UTP cable of required length • One of the following power sources: ■ IEEE 802.3af-compliant Power over Ethernet (PoE) source.
- Aruba AP-AC-12V30B power adapter kit (sold separately)
For AP-304 and AP-305 only:
• Aruba Controller provisioned on the network: ■ Layer 2/3 network connectivity to your access point • One of the following network services: ■ Aruba Discovery Protocol (ADP) ■ DNS server with an "A" record
Aruba Networks, Inc., in compliance with governmental requirements, has designed the 300 Series access points so that only authorized network administrators can change the settings. For more information about access point configuration, refer to the ArubaOS Quick Start Guide /Aruba Instant Quick Start Guide and ArubaOS User Guide/Aruba Instant User Guide.
Verifying Pre-Installation Connectivity
The instructions in this section apply only to the AP-304 and AP-305.
Before installing access points in a network environment, make sure that they are able to locate and connect to the controller after power on.
Specifically, you must verify the following conditions:
- When connected to the network, each access point is assigned a valid IP address
- Access points are able to locate the controller.
Refer to the ArubaOS Quick Start Guide for instructions on locating and connecting to the controller.
Identifying Specific Installation Locations
You can mount the 300 Series access point on the ceiling or a wall. Use the access point placement map generated by Aruba's RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the center of the intended coverage area and should be free from obstructions or obvious sources of interference. These RF absorbers/reflectors/interference sources will impact RF propagation and should have been accounted for during the planning phase and adjusted for in RF plan.
Identifying Known RF Absorbers, Reflectors and Interference Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field during the installation phase is critical. Make sure that these sources are taken into consideration when you attach an access point to its fixed location. Examples of sources that degrade RF performance include:
- Cement and brick
- Objects that contain water
- Metal
- Microwave ovens • Wireless phones and headsets
Installing the Access Point
Service to all Aruba Networks products should be performed by an AMCP certified technician or similar.
The 300 Series access points ship with a ceiling rail adapter to attach to a 9/16" or 15/16" ceiling rail. Additional ceiling or wall mount kits are sold separately as accessories.
The installer is responsible for securing the access point onto the ceiling tile rail in accordance with the steps below. Failure to properly install this product may result in physical injury and/or damage to property.
- Pull the necessary cables through a prepared hole in the ceiling tile near where the access point will be placed.
- Place the adapter against the back of the access point with the adapter at an angle of approximately 30 degrees to the tabs (see Figure 4).
- Twist the adapter clockwise until it snaps into place in the tabs (see Figure 4).

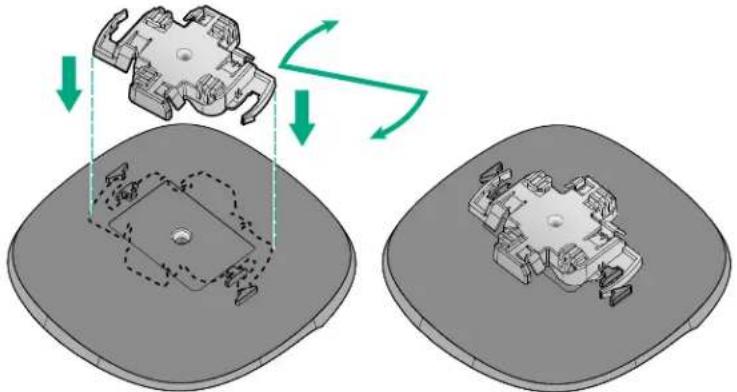

Figure 4 Attaching the Ceiling Rail Adapter to the AP
- Hold the access point next to the ceiling tile rail with the mounting slots at approximately a 30-degree angle to the ceiling tile rail (see Figure 5 and Figure 6). Make sure that any cable slack is above the ceiling tile.
- Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the ceiling tile rail.

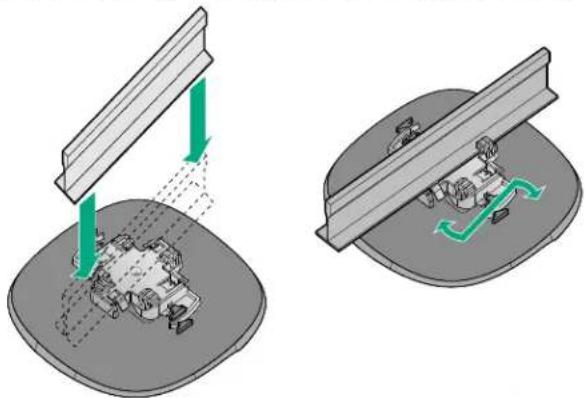

Figure 5 Mounting the Access Point to a 15/16" ceiling rail
Figure 6 Mounting the Access Point to a 9/16" ceiling rail
Connecting Required Cables
Install cables in accordance with all applicable local and national regulations and practices.
Verifying Post-Installation Connectivity
The integrated LEDs on the access point can be used to verify that the access point is receiving power and initializing successfully (see Table 1). Refer to the ArubaOS Quick Start Guide/Aruba Instant Quick Start Guide for further details on verifying post-installation network connectivity.
Configuring the 300 Series Access Points
The instructions for this section are applicable to the AP-304 and AP-305 only.
Access Point Provisioning/Reprovisioning
Provisioning parameters are unique to each access point. These local access point parameters are initially configured on the controller which are then pushed out to the access point and stored on the access point itself. Aruba recommends that provisioning settings be configured via the ArubaOS Web UI only. Refer to the ArubaOS User Guide for complete details.
Access Point Configuration
Configuration parameters are network or controller specific and are configured and stored on the controller. Network configuration settings are pushed out to the access point but remain stored on the controller. Configuration settings can be configured via the ArubaOS Web UI or ArubaOS CLI. Refer to the ArubaOS User Guide for complete details.
Electrical and Environmental Specifications
For additional specifications on this product, please refer to the product data sheet at www.arubanetworks.com/safety_addendum.
All Aruba access points should be professionally installed by an Aruba Certified Mobility Professional (ACMP). The installer is responsible for ensuring that grounding is available and meets applicable national and electrical codes.
■ Maximum (worst-case) power consumption: 13.5W (802.3af PoE) or 12W (DC)
Excludes power consumed by external USB device (and internal overhead); this could add up to 6W (PoE) or 5.5W (DC) for 5W/1A USB device
■ Direct DC source: 12Vdc nominal, +/- 5% ■ Power over Ethernet (PoE): 802.3at and 802.3af complaint source ■ Connect only to IEC 60950-1 or IEC 60601-1 3rd edition products and power sources.
If a power adapter other than the Aruba-approved adapter is used in the US or Canada, it should be NRTL listed, with an output rated 12Vdc, minimum 2A, marked "LPS" and "Class 2", and suitable for plugging into a standard power receptacle in the US and Canada.
Environmental
- Operating:
■ Temperature: 0°C to +50°C (+32°F to +122°F) ■ Humidity: 5% to 93% non-condensing
• Storage and transport:
■ Temperature: -40°C to +70°C (-40°F to +158°F)
Regulatory Information
The following regulatory model names apply to the 300 Series access points:
AP-304/IAP-304: APIN0304 AP-305/IAP-305: APIN0305
Aruba Networks provides a multi-language document that contains country-specific restrictions and additional safety and regulatory information for all Aruba access points. This document can be viewed or downloaded at www.arubanetworks.com.
FCC
This device is electronically labeled.
To view the FCC ID for controller-managed access points:
- Log into the controller WebUI
- Navigate to Maintenance > Controller > About To view the FCC ID for Instant access points:
- Log into the virtual controller WebUI
- Navigate to Maintenance > About
RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits. This equipment should be installed and operated with a minimum distance of 7.87 inches (20cm) between the radiator and your body for 2.4 GHz and 5 GHz operations. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology.
FCC Class B Part 15
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instructions, may cause interference harmful to radio communications.
Operation is subject to the following conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation. If this equipment does cause interference, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio or TV technician for help.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
Complies with the Class B limits for radio noise emissions as set out in the interference-causing equipment standard entitled "Digital Apparatus," CAN ICES-3(B)/NMB-3(B).
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (E.I.R.P.) does not exceed the limit necessary for successful communication.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This equipment complies with IC RSS-102 RF exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
Under Industry Canada regulations, when operated in 5150 to 5250 MHz frequency range, this device is restricted to indoor use to reduce the potential for harmful interference with co-channel Mobile Satellite Systems. Users are advised that high power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850MHz and that these radars could cause interference and/or damage to LE-LAN devices.
EU Regulatory Conformance
Aruba Networks Inc., hereby declares that this product is in compliance with the directives listed below;
EMC Directive 2014 • Low Voltage Directive 2014 • R&TTE Directive 1999 REACH Regulation (EC) No.: 1907/2006 RoHS Directive 2011 • WEEE Directive 2012
A Declaration of Conformity for these directives is available for viewing at www.arubanetworks.com.
EMC Class B Warning
- Equipment not suitable for use in the presence of flammable mixtures.
- Connect to only IEC 60950-1 or IEC 60601-1 3rd edition certified products and power sources. The end user is responsible for the resulting medical system complies with the requirements of IEC 60601-1 3rd edition.
- Wipe with a dry cloth, no additional maintenance required.
- No serviceable parts, the unit must be sent back to the manufacturer for repair.
- No modifications are allowed without Aruba approval.
Taiwan
Expected Service Life 10 years. For additional compliance information, refer to the regulatory label on the back of this device.
Proper Disposal of Aruba Equipment
Dispose of Aruba products per local regulation. For the most current information about Global Environmental Compliance and Aruba products, visit www.arubanetworks.com.
Waste of Electrical and Electronic Equipment
Aruba products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of life of these products in these countries shall comply with the applicable national laws of countries implementing Directive 2002/96/EC on Waste of Electrical and Electronic Equipment (WEEE).
India RoHS
This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling) Rules, governed by the Ministry of Environment & Forests, Government of India.
European Union RoHS
RoHS
Aruba products also comply with the EU Restriction of Hazardous Substances Directive 2011/65/EC (RoHS). EU RoHS restricts the use of specific hazardous materials in the manufacture of electrical and electronic equipment. Specifically, restricted materials under the RoHS Directive are Lead (including Solder used in printed circuit assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine.
Some Aruba products are subject to the exemptions listed in RoHS Directive Annex 7 (Lead in solder used in printed circuit assemblies). Products and packaging will be marked with the "RoHS" label shown at the left indicating conformance to this directive.
China RoHS
Aruba products also comply with China environmental declaration requirements and are labeled with the "EFUP 25" label shown at the left.
| 有害物质(ISO) | 有害物质的加入元素 | |||||
| 针 (m) | 叉 (kg) | 针 (m) | 入件数 (个) | SiO2(重) (mg) | 水文、色性 (PSa) | |
| P2O溶液 (labeled as M10) | X | 0 | 0 | 0 | 0 | 0 |
| 甲基苯丙烯腈 (Metho & Li2O3) | O | 0 | 0 | 0 | 0 | 0 |
| 乙酸丙烯 (Methyl Prc) | O | 0 | 0 | 0 | 0 | 0 |
| 邻二溴丁酯和邻二溴丁酯 (Metho and Metane) | O | 0 | 0 | 0 | 0 | 0 |
Contacting Support
Table 2 Contact Information
| Main Sitewww.arubanetworks.com | |
| Support Sitehttps://support.arubanetworks.com | |
| Airheads Social Forums and Knowledge Base | community.arubanetworks.com |
| North American Telephone 1-800-943-4526 (Toll Free)1-408-754-1200 | |
| International Telephones | http://www.arubanetworks.com/support-services/contact-support/ |
| Software Licensing Sitehttps://hpe.com/networking/support | |
| End of Support informationhttp://www.arubanetworks.com/support-services/end-of-life-products/end-of-life-policy/ | |
| Security Incident Response Team (SIRT) | Site:http://www.arubanetworks.com/support-services/security-bulletins/Email:sirt@arubanetworks.com |
Copyright
© Copyright 2018 Hewlett Packard Enterprise Development LP
Open Source Code
This product includes code licensed under the GNU General Public License, the GNU Lesser General Public License, and/or certain other open source licenses. A complete machine-readable copy of the source code corresponding to such code is available upon request. This offer is valid to anyone in receipt of this information and shall expire three years following the date of the final distribution of this product version by Hewlett Packard Enterprise Company. To obtain such source code, send a check or money order in the amount of US \$10.00 to:
Hewlett Packard Enterprise Company
Attn: General Counsel
3000 Hanover Street
Palo Alto, CA 94304
USA
Warranty
This hardware product is protected by an Aruba warranty. For more details visit www.hpe.com/us/en/support.html
- PACKAGE CONTENTS
- SOFTWARE
- SERIES HARDWARE OVERVIEW
- LEDS
- EXTERNAL ANTENNA CONNECTORS
- USB INTERFACE
- CONSOLE PORT
- ETHERNET PORT
- KENSINGTON LOCK SLOT
- RESET BUTTON
- DC POWER SOCKET
- BEFORE YOU BEGIN
- EU STATEMENT
- PRE-INSTALLATION NETWORK REQUIREMENTS
- PRE-INSTALLATION CHECKLIST
- VERIFYING PRE-INSTALLATION CONNECTIVITY
- IDENTIFYING SPECIFIC INSTALLATION LOCATIONS
- IDENTIFYING KNOWN RF ABSORBERS, REFLECTORS AND INTERFERENCE SOURCES
- INSTALLING THE ACCESS POINT
- CONNECTING REQUIRED CABLES
- VERIFYING POST-INSTALLATION CONNECTIVITY
- CONFIGURING THE 300 SERIES ACCESS POINTS
- ACCESS POINT PROVISIONING/REPROVISIONING
- ACCESS POINT CONFIGURATION
- ELECTRICAL AND ENVIRONMENTAL SPECIFICATIONS
- ENVIRONMENTAL
- REGULATORY INFORMATION
- FCC
- FCC CLASS B PART
- EU REGULATORY CONFORMANCE
- EMC CLASS B WARNING
- TAIWAN
- PROPER DISPOSAL OF ARUBA EQUIPMENT
- WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT
- INDIA ROHS
- EUROPEAN UNION ROHS
- ROHS
- CHINA ROHS
- CONTACTING SUPPORT
- COPYRIGHT
- OPEN SOURCE CODE
- WARRANTY
Brand : HP
Model : Aruba Instant IAP-305
Category : Router
